Wintal DAB17C User Manual

Internet Radio Adaptor with

DAB and Bluetooth

User Manual

DAB17C

(Additional powered speaker / active speaker is required to use this product)

Please read this user manual carefully before using receiver

Location of Controls

1. TFT color display

2. Infrared remote sensor

3. 3.5 mm audio out socket –

Connect external powered

speakers with 3.5 mm plug or

RCA adaptor with 3.5mm plug

4. 3.5mm antenna input socket

5. Optical Out- Digital optical

output connection

6. DC IN socket- Connect with

the AC adaptor supplied in the

package

7. Power On/OFF switch

- 1 -

Remote control

: Press to mute the sound.
: Power on/off standby.

1-10: Preset and recall the radio station by

pressing a specific number.
Press and hold the button to store the
station.
Press briefly to recall the station.

: Press to adjust the backlight, there are

three levels available.

: Long pressing to save the playing

station to a specific number at your
choice. Press it briefly to recall the
preset list.

▲ / ▼: Up/Down button, press to scroll up and

down on the menu;
During playback of the radio channel:
Internet radio mode: back to the
internet radio menu.
DAB mode: press ▲ / ▼ return to the
station list.
FM mode: press ▲ / ▼ to fine tune the
frequency.

: Press it to return to previous menu /

left navigation.

: Right navigation / enter into sub menu.

OK: Press to select/confirm an option;

FM mode: press to auto scan the next

available station.
: Press to set the Alarm on the radio
: Set the sleep timer of the radio, press

the button repeatedly to select

The timer period you desire.

INFO: To view the detailed information of the

current playing radio station or music

stream from UPnP.
: To enter the setup wizard.
: Return to the main menu of the radio

mode you are using or exit the

operating menu to playing screen

MODE: Press to enter the menu of the radio

modes.

EQ: Equalizer, press to enter EQ list and

choose the preferred style.
: Previous song (for Bluetooth and

UPnP).
: Play/pause (for Bluetooth and UPnP).
: Next song (for Bluetooth and UPnP).

- 2 -

Before you start

Please ensure the following is ready:
* You have a broadband internet connection.
* A wireless (Wi-Fi) broadband router is connected to the internet

successfully.
The radio supports Wireless B ,G and N connection (Wireless N router

can also be used with the setting on B or G).

* You know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected

Access (WPA) data encryption code/password. You need to key in the
correct code when the radio is connected to the wireless router for
network connection.

If you do not know the code/password, please contact the person /
technician who set up the router/network for you.

* The radio can work via Wireless network connection (Wi-Fi

connection)

Precautions

* The radio should not be used in a high temperature or high humidity

environment over prolonged periods of time as this may damage the
unit.

* Keep the radio away from liquids as it may get damaged. Please switch

off the radio immediately if water or liquids is spilled into the radio.

Consult with the shop you bought this radio for any question.
* Avoid using or storing the unit in dusty or sandy environment.
* Do not open and repair the radio by yourself.
* Use only the AC adaptor supplied with the radio.

Connecting a power supply with a different rating will cause permanent
damage to the radio and may be hazardous.

* Clean only with dry cloth

- 3 -

Getting started

Connect the AC adaptor supplied in the package to the DC jack at the rear
side of the radio.

The radio is an adaptor and does not have internal speaker. Prepare
a powered speaker which has the 3.5mm pin to plug in to the 3.5 mm
line out jack on the radio.

The radio supports also the optical connection. If you have a system
comes with optical input, connect to the optical out on the radio to
listen.

Switch the radio on using the Power on/off switch. The radio will power up
and the display on the front will light up and display as follow:

Select YES to start the wizard, select No to set up manually. If you select
YES, it will start setting the date and time by choosing the 12 or 24 hour
format, update the time from Network (this option is recommended) or
you can set the time manually by selecting No Update.

It will then prompt you to set the time zone, select the time zone in your
country, then select Daylight Saving is applicable and whether you want
to keep network connected:

WELCOME

- 4 -

Then choose the WLAN Region

Wlan region

Australia

Europe

Connecting to the Wireless (Wi-Fi) Network

The radio will search the wireless networks which are available and
display a list of the SSID (name of the wireless router). Select your SSID
by using the <OK> button:

Then you need to enter the encryption password to access the wireless
router.

To enter the code, press ◄►▲▼buttons to choose the characters, press
<OK> button to confirm and skip to the next entry. If you want to make
correction, scroll to the tab BKSP to erase the character that you just
entered. After the input is completed, scroll to the tab OK then press
<OK> button on the remote control to save the key.

The radio will start connecting to the network. If the connection is
successful, the following screen will appear.

- 5 -

If connection is failed, the radio returns to the password entry screen.

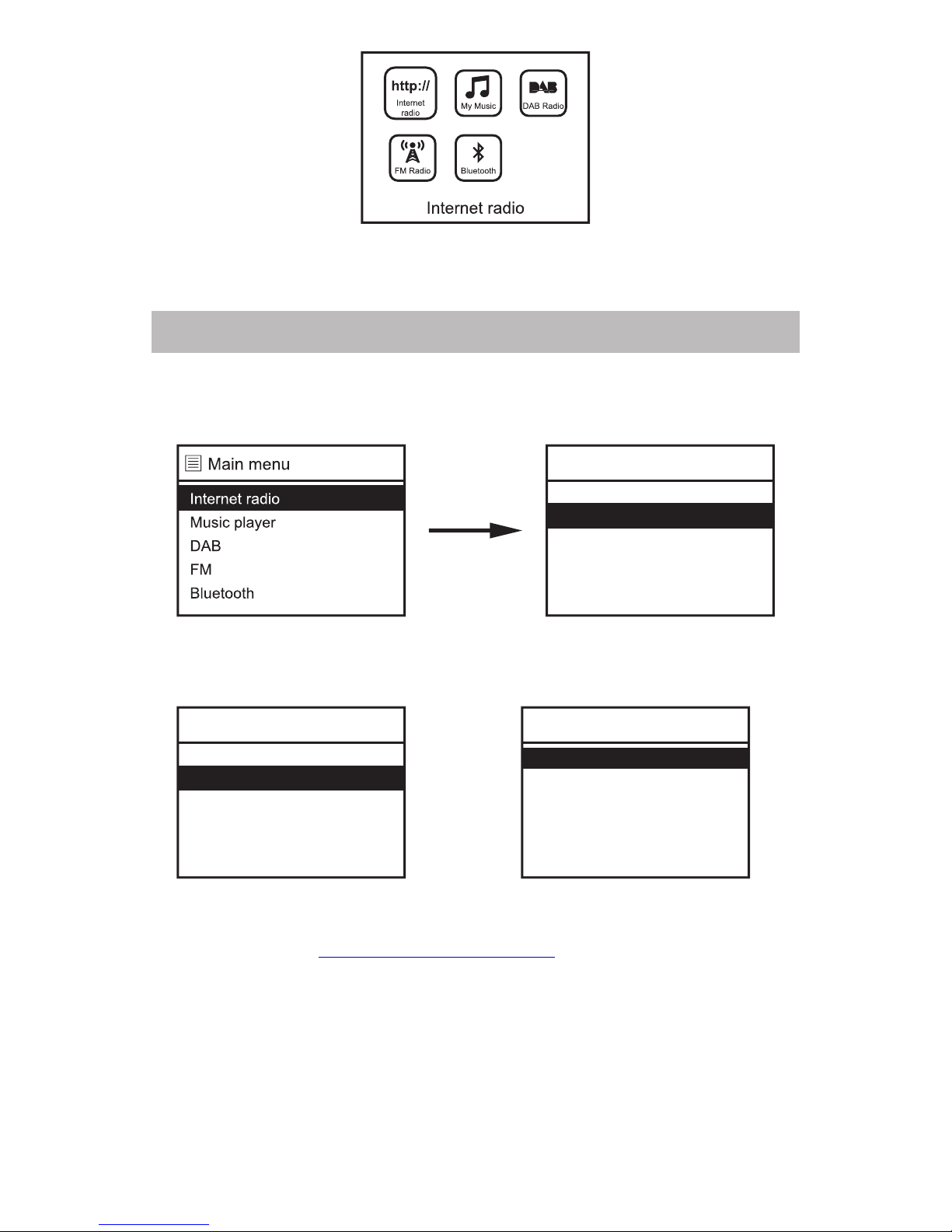

System Settings

Inter net Radio

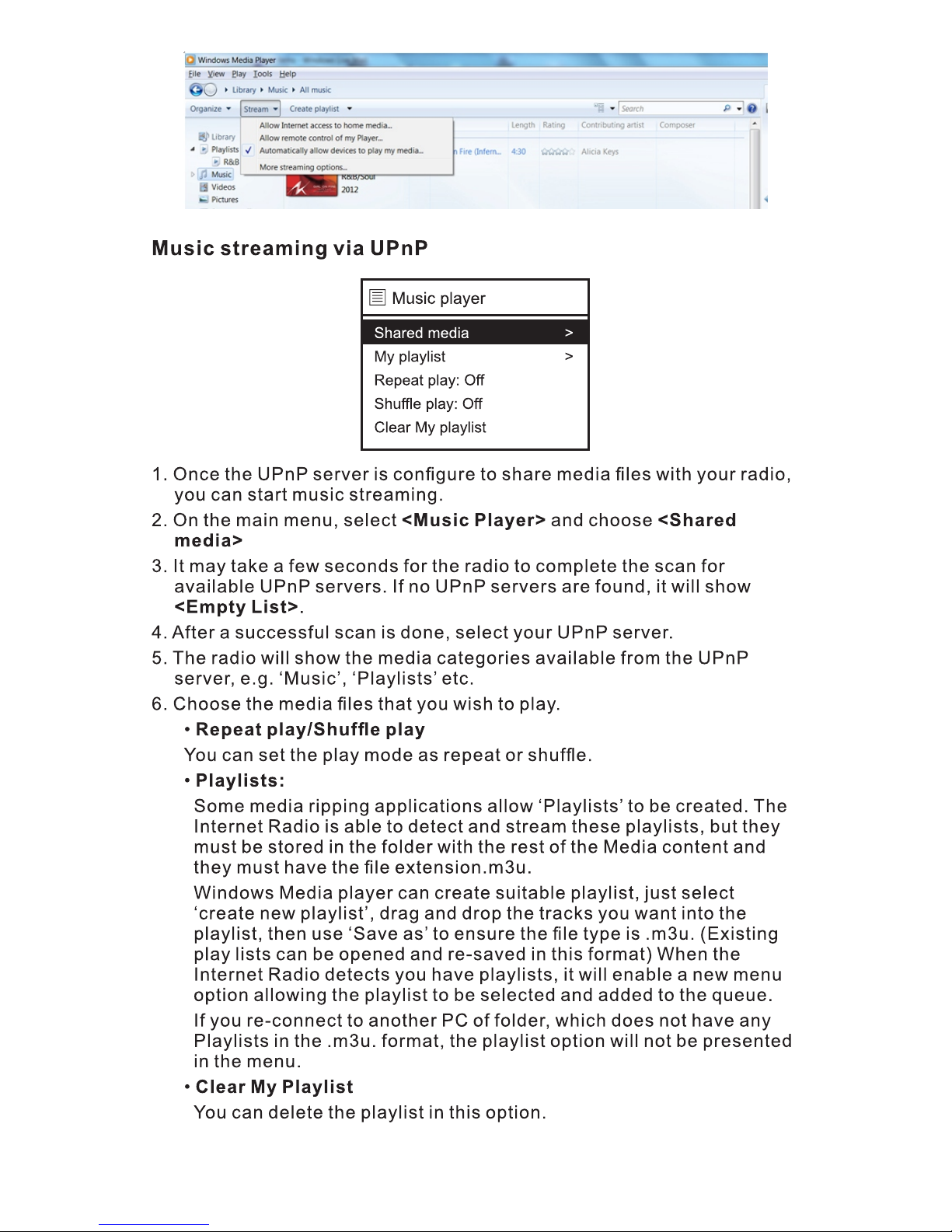

Music P layer

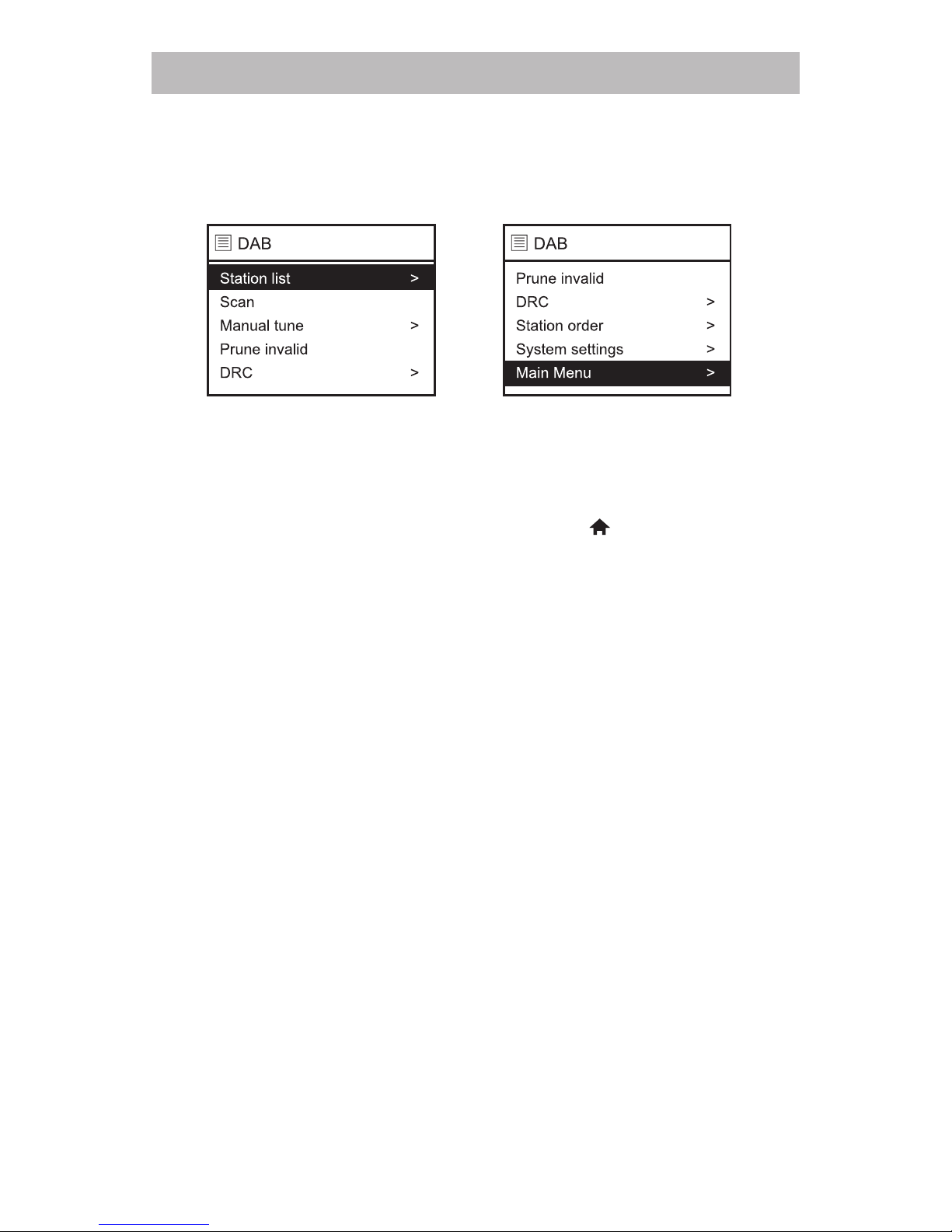

DAB
FM
Bluet ooth
Sleep
Alarm s

Syste m setting s >

Equal iser >

Netwo rk >

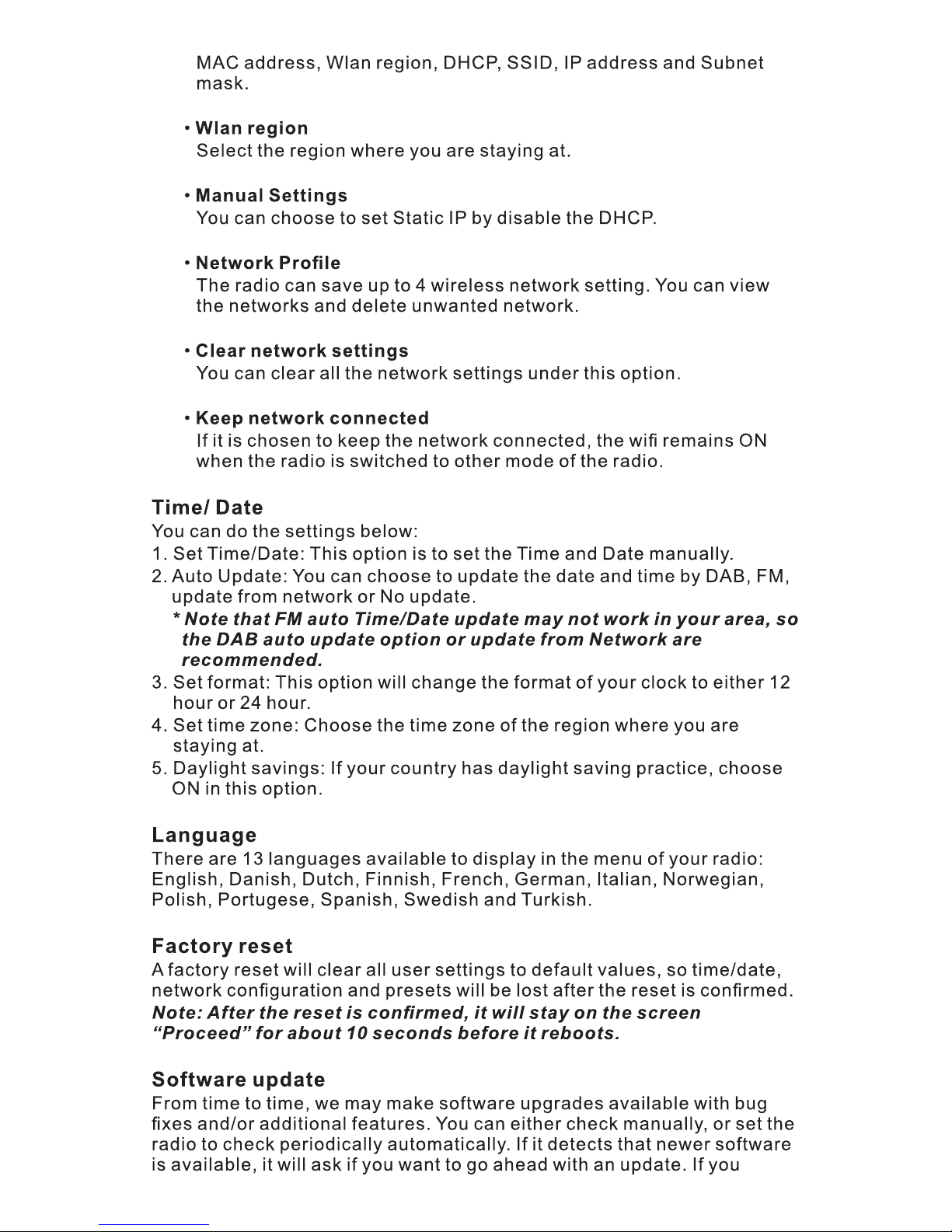

Tim e/Da te >
Langu age >
Facto ry reset
Softw are updat e >
Softw are upgra de >

System Settings

- 6 -
