OPERATIONS MANUAL
SAT-520PLUS
WinSystems reserves the right to make changes in the circuitry
and specifications at any time without notice.
Copyright 2002 by WinSystems. All Rights Reserved.
NOTE: This manual has been designed and created for use as part of the WinSystems’
Technical Manuals CD and/or the WinSystems’ website. If this manual or any portion of
the manual is downloaded, copied or emailed, the links to additional information (i.e.
software, cable drawings) will be inoperable.
REVISION HISTORY
P/N 403-0310-000B
ECO Number Date Code Rev Level
ORIGINATED 021126 B
ECO 04-31 040413 B1
070223 B2*
* revised for format, only
Table of Contents
Visual Index – Quick Reference
. . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Top View – Connectors i
Top View – Jumpers ii
Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features 1
General Description 1
SAT-520Plus Technical Reference
. . . . . . . . . . . . . . . . . . . . . . . . . . 2
AMD Elan SC520 Chipset/Processor 2
Memory Selection and Installation 3
Power/Reset Connection 3
BIOS Extension Socket 4
Floppy Disk Interface 4
IDE Interface 5
DiskOnChip Configuration 5
Serial Interface 6
Serial Port I/O Definitions 7
Ethernet Controller 8
Parallel I/O 9
VGA Configuration 10
Flat Panel Output Connection 11
Parallel Printer Port 11
Keyboard Interface 12
Multi-I/O Connector 12
Mouse Interface 12
Real-Time Clock/Calendar and CMOS Setup RAM 13
Watchdog Timer Configuration 13
Status LED 13
Speaker/Sound Interface 13
PC/104 Bus Interface 14
PC/104-Plus Interface 16

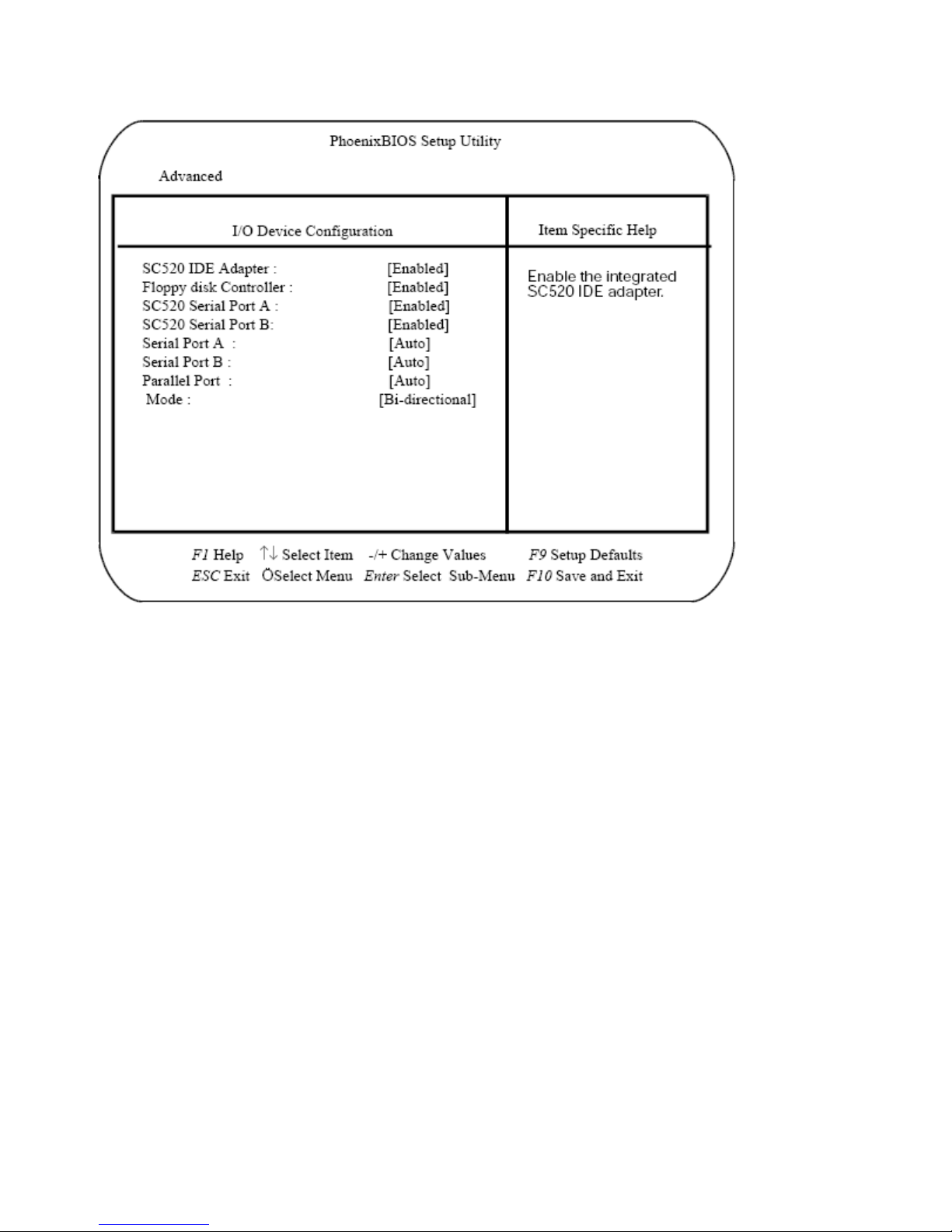

Phoenix BIOS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Phlash Utility
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Logo Utility
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
I/O Port Map
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Interrupt Map
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Datasheet Reprint Intel 82C55A
. . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cable Drawings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Software Drivers & Examples
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
& LEDs

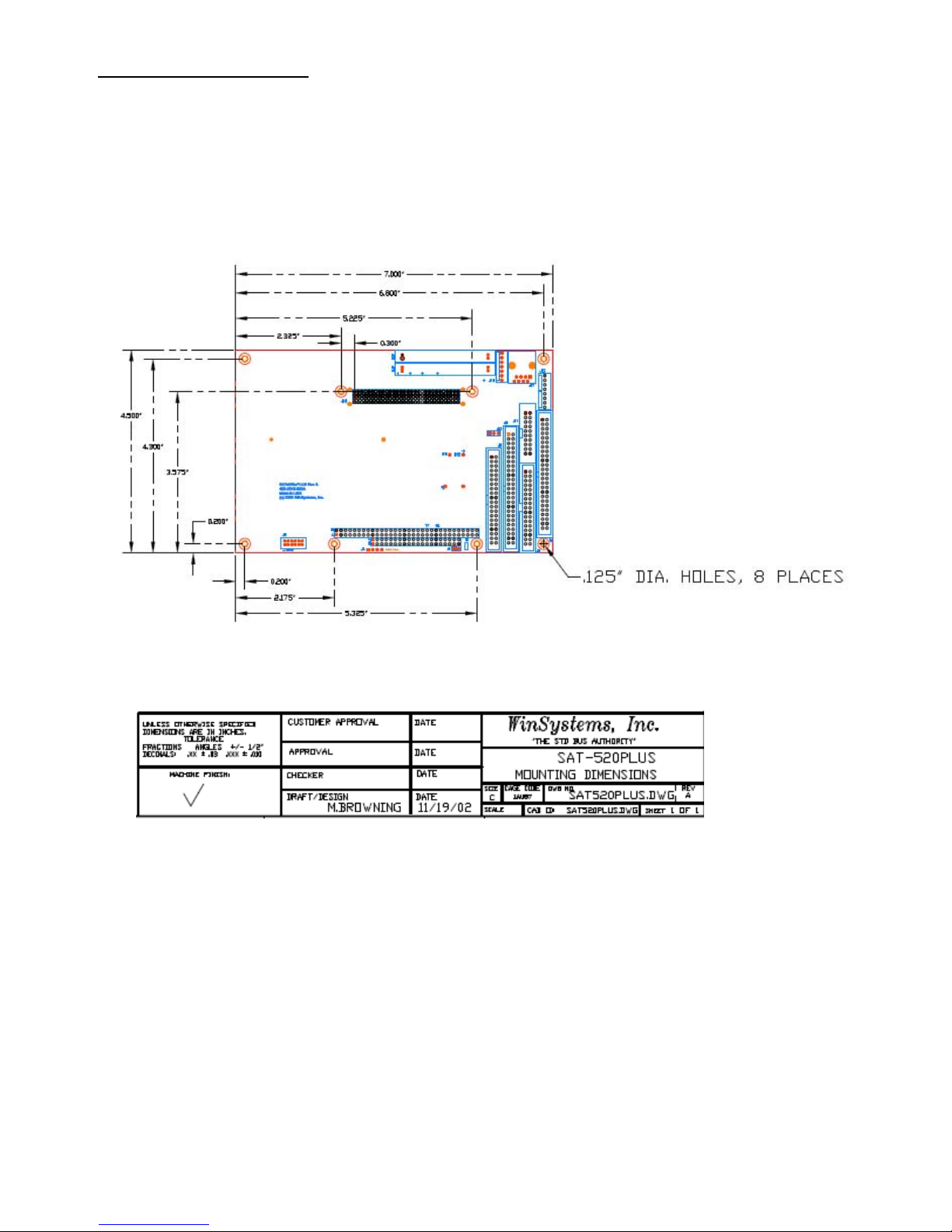

SAT-520Plus Mechanical Drawing
. . . . . . . . . . . . . . . . . . . . . . . . . . . 37

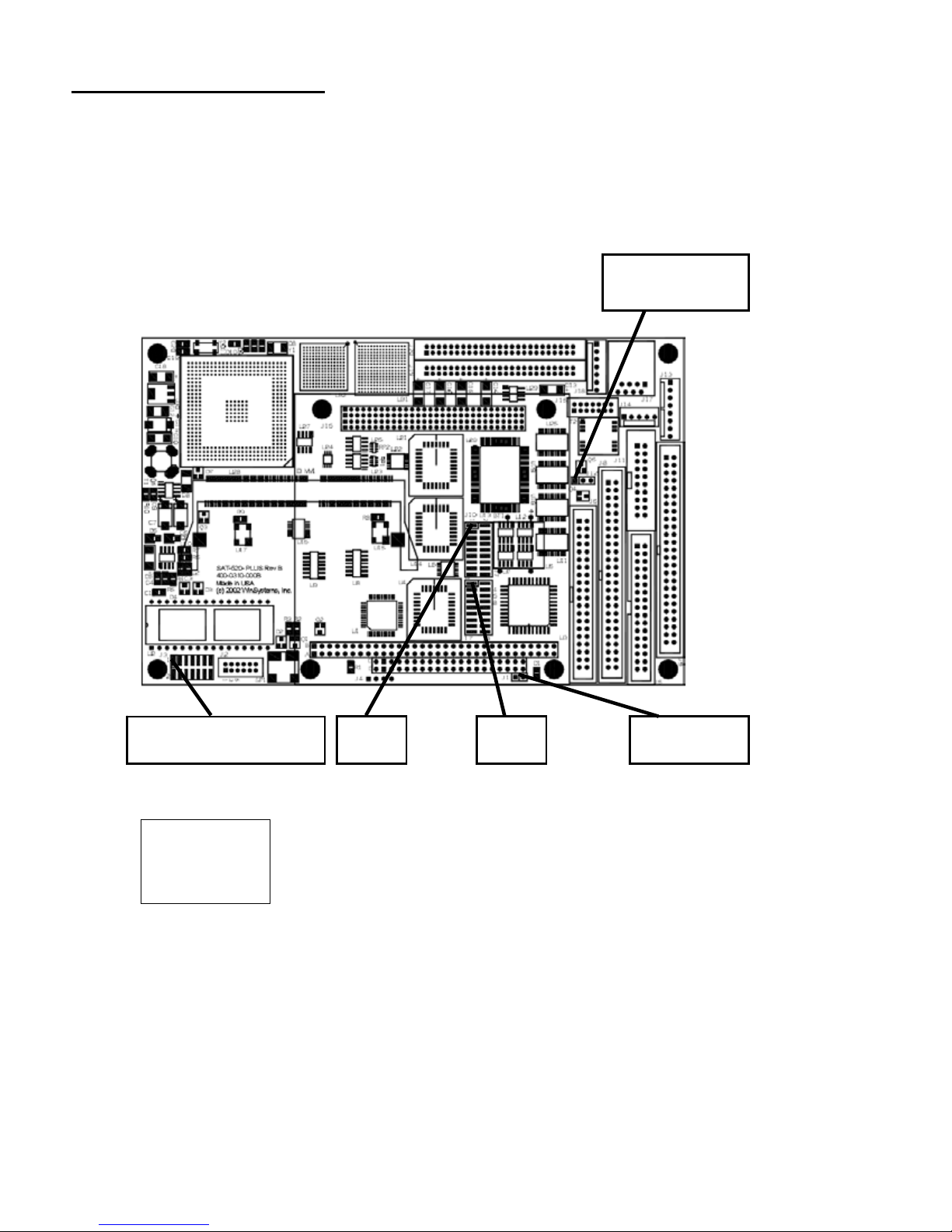

Jumper Reference – (Drawings ONLY)
. . . . . . . . . . . . . . . . . . . . . . . 38
Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Warranty Repair Information
070223 Operations Manual SAT-520PLUS i

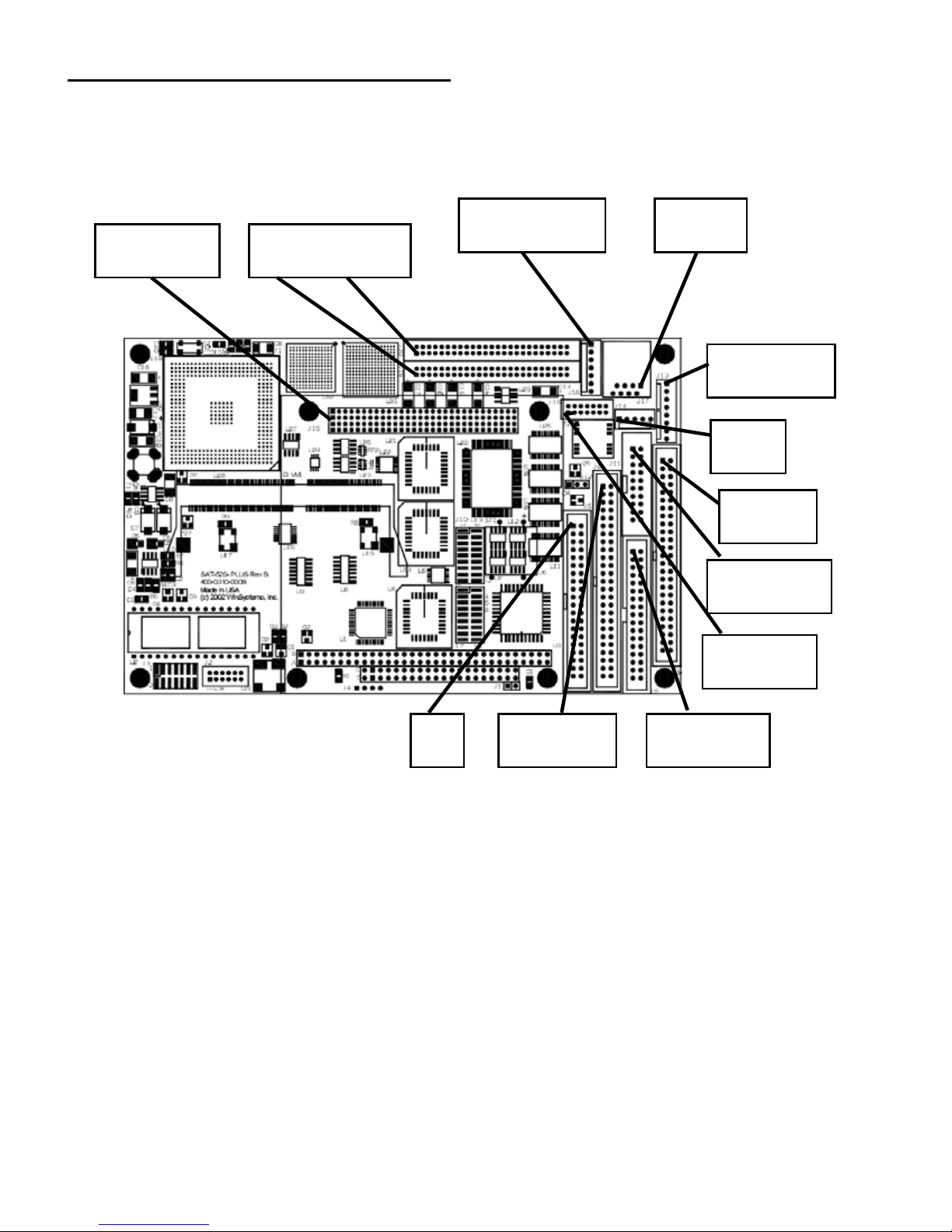

Visual Index – Quick Reference
Top View - Connectors
For the convenience of the user, a copy of the Visual Index has been provided with
direct links to connector and jumper configuration data.
J16
PC/104-Plus
J19, J20
Flat Panel Output
J18
Panel Backlight
J17
Ethernet
J14
Mouse
J13
Power/Reset
J15
CRT Output
J11
COM3/COM4
J9
Multi I/O
J6
IDE
J8
Parallel I/O
J5
Floppy Drive
070223 Operations Manual SAT-520PLUS ii

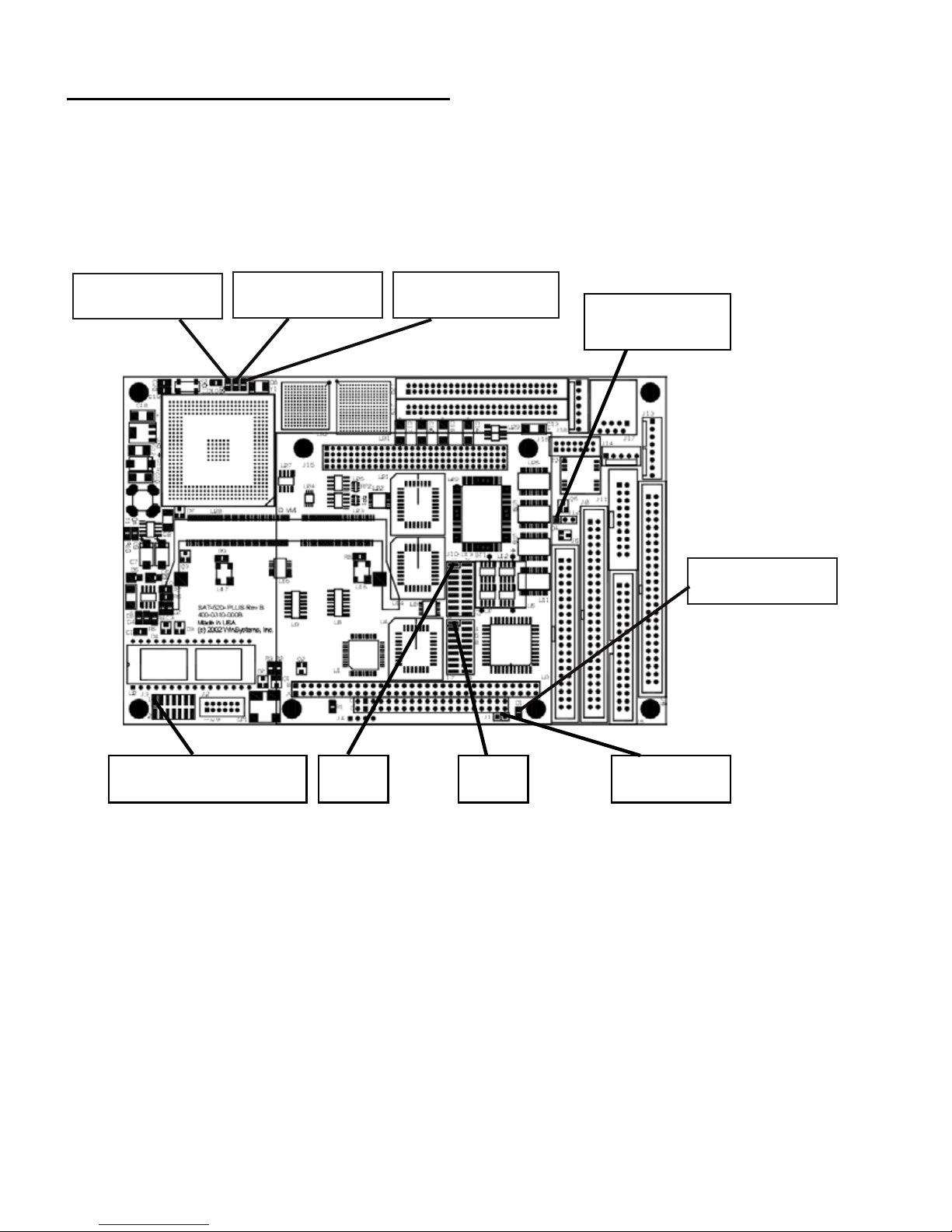

Visual Index – Quick Reference
Top View - Jumpers
For the convenience of the user, a copy of the Visual Index has been provided with
direct links to connector and jumper configuration data.
J12
Panel Backlight
J3
VBAT/DOC/Watchdog
J1
Parallel VIO
J7
COM1
J10
COM2
& LEDs
D10
Ethernet Link
Ethernet SpeedD8Ethernet Activity
D9
D1
IDE Status LED
070223 Operations Manual SAT-520PLUS 1
Introduction
This manual is intended to provide the necessary information regarding configuration
and usage of the SAT-520PLUS board. WinSystems maintains a Technical Support
Group to help answer questions regarding usage, or programming of the board. For
answers to questions not adequately addressed in this manual, contact Technical
Support at (817) 274-7553 between 8AM and 5PM Central Time.
General Information
Features
AMD Elan SC520 Chipset/Processor
5x86 Processor at 133MHz
16KB Write Back Cache
On Chip Floating Point Coprocessor
User Upgradeable SODIMM SDRAM Memory
Solid State Disk (DiskOnChip
®
)support
Intel 82551ER 10/100 Ethernet Port
4 RS-232 Serial Ports with 16 byte FIFO’s
PS/2 Keyboard and Mouse support
32-bit PC/104Plus Expansion Bus
16-bit PC/104 Expansion Bus
Single 5 Volt supply requirement
Industry Standard Phoenix BIOS in user upgradeable Flash
SPP/EPP/ECP PnP Parallel printer port
Standard PC-AT architecture runs DOS, Windows, Linux, and other PC software
24 general purpose TTL digital I/O lines (82C55A)
High-resolution CRT and flat panel controller with hardware Windows accelerator
24 Digital I/O lines
-40
o
C to +85oC operation
BIOS Extension socket
General Description
The SAT-520Plus is a highly integrated PC/104 and PC/104Plus expandable module
with x86 compatibility and standard PC-AT architecture. It utilizes the latest of AMD’s
embedded processors, the ELAN SC520. The SC520 incorporates a 5x86 CPU core
running at 133MHz along with a full 33MHz PCI host bridge, internal AT style
peripherals, dual serial ports, and an IDE interface. The addition of the SMSC 37B727
adds the keyboard/mouse controller, two more plug-n-play serial ports, and a
SPP/EPP/ECP parallel printer port, dual floppy disk interface. 24 lines of digital I/O,
VGA and flat panel support also adds to the expansive feature set. Also onboard the
SAT-520Plus is the popular Intel 82551ER10/100 Ethernet controller making this board
an excellent choice for embedded applications requiring integrated networking. The
133MHz 5x86 CPU core and the integrated floating point processor offer an excellent
compromise between computing power and power consumption. Feature expansion is
also supported via either the popular PC/104 expansion bus or through the newer
high-performance PCI type PC/104Plus expansion bus. The SAT-520Plus supports
both standard rotational media drives, floppy and hard disk, or the popular
DiskOnChip
®
flash modules in sizes ranging from 8 to 288 Mbytes.
070223 Operations Manual SAT-520PLUS 2
SAT-520Plus Technical Reference
The SAT-520Plus uses the latest AMD embedded processor/chipset solution, the Elan
SC520. The SC520 contains the following subsystems:
133MHx Am5X86 CPU core with floating point unite and a 16KB write-back cache
Integrated PCI 2.2 compliant host bridge running at 33MHz
SDRAM Controller
ROM/Flash Controller
Programmable Interval Timers
Real Time clock/CMOS RAM
Programmable Interrupt Controllers
Programmable DMA Controllers
Dual 16550 Compatible Serial Ports
Dual IDE Chip Selects
PS/2 Style Gate A20 and reset functions
The SAT-520Plus augments the inherent feature set of the AMD SC520 by adding the
SMSC 37C727 PnP Super I/O chip. This chip contains these subsystems.
Dual Floppy disk interface
PS/2Mouse controller
PS/2 Keyboard controller
Two 16550 compatible serial ports
SPP/EPP/ECP compatible parallel printer port
The SAT-520Plus included a fourth generation CRT/Flat panel controller that supports
standard VGA output as well as a variety of Flat Panel Displays.
The SAT-520Plus also includes an 82C55A-type device supporting 24 lines of digital
I/O.
The SAT-520Plus also utilizes the Intel 82551ER10/100 Ethernet Controller for
compatibility with a variety of network operating systems and software.
Support for the M-Systems DiskOnChip
®
device is present which allows for Flash
drives in sizes from 8 to 288 MB.
AMD Elan SC520 Processor – The AMD SC520 is the latest in AMD’s line of
embedded processors. The SC520 incorporates the CPU, FPU, DRAM controller,
Flash/ROM controller, PCI controller, RTC/CMOS RAM, and Chip selections for DOC
support and the IDE interface.
The processor is supplied from AMD in a 388-pin PBGA package and is soldered
directly to the board at the factory. This part is not user replaceable of upgradeable.
The core CPU runs at a base clock frequency of 33MHz. An internal software controlled
multiplier of either 3X of 4X results in internal processor speeds of either 100MHz or
133MHz. The multiplier selection is user definable using the Phoenix BIOS Setup
utility.
070223 Operations Manual SAT-520PLUS 3
1 o
2 o
3 o
4 o
5 o
6 o
7 o
8 o
-12V
+12V
+5V
+5V
GND
GND
GND
RESET*
Memory Selection and Installation – The SAT-520Plus comes from the
factory with 0MB of RAM. RAM memory must be installed by the user and must meet
the following criteria:
32, 64, 128 or 256MB 144-Pin SODIMM SDRAM, PC66 or PC100 minimum,
with gold fingers
WinSystems qualified SODIMMs are available from Crucial Technologies or online
through the WinSystems web site at www.winsystems.com
or directly from
WinSystems. WinSystems cannot warrant the operation of systems using nonqualified SODIMM modules.
Installation is accomplished by inserting the module into the connector on the front of
the board at approximately a 30-degree angle. Press firmly to fully seat the module
into the connector and then press the module downward to snap it into the retaining
clamps.
Removal is accomplished by gently pulling outward on the retaining clamps until the
module springs up to the appropriate removal angle.
Power/Reset Connection – Power is supplied to the SAT-520Plus
through the 8-pin Molex connector at J13. The pin definitions are:
An optional momentary-contact, normally-open reset button can be connected
between pin 8 and ground.
Visual
Index
070223 Operations Manual SAT-520PLUS 4
BIOS Extension Socket – The SAT-520Plus supports the use of
the Atmel 27C070 EPROM, or the Atmel 29C010 EEPROM to be used as
an extended BIOS for the user. Code for these parts must be offset
2000Hex bytes from the start of the prom. The 32-pin socket at U4 is used to contain
the Atmel devices used for the BIOS. The BIOS is memory mapped into a 8Kbyte hole
at segment D2000. An example jumpering for J3 with write enabled and disabled is
shown below.
Extension write enabled Extension write disabled
NOTE: The write enable/disable functions apply only to the Atmel 29C010 part.
Floppy Disk Interface – The SAT-520Plus and the Phoenix BIOS
support up to two 5¼” or 3½” floppy disk drives. The drive types are
configured using the BIOS setup menus. The drives are connected via
the I/O connector at J5. Note that the interconnect cable to the drives is a standard
floppy I/O cable used on desktop PC’s. The cable must have the twisted section prior
to the drive A position. The pin definitions for the J5 connector are:
1 3 5 7 9 11 13
o o o o o o o
o o o o o o o
1 3 5 7 9 11 13
o o o o o o o
o o o o o o o
Visual
Index
1 o o 2
3 o o 4
5 o o 6
7 o o 8
9 o o 10
11 o o 12
13 o o 14
15 o o 16
17 o o 18
19 o o 20
21 o o 22
23 o o 24
25 o o 26
27 o o 28
29 o o 30
31 o o 32
33 o o 34
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
RPM/LC
N/C
N/C
INDEX
MTR0
DRV1
DRV0
MTR1
DIR
STEP
WDATA
WGATE
TRK0
WPRT
RDATA
HDSEL
DSKCHG
Visual
Index
070223 Operations Manual SAT-520PLUS 5
IDE Interface – The SAT-520Plus supports up to two IDE devices.
Connection to IDE hard disks and CD-ROMs is most easily
accomplished when using the WinSystems adapter cable, part number
CBL-126-9, connected to J6. This cable allows for the attachment of one standard 40pin IDE device. Configuration of any IDE device is accomplished using the Phoenix
BIOS setup menus.
The pin definitions for the 40-pin IDE
connector are:
DiskOnChip Configuration – The SAT-520Plus supports solid state disks using
the M-Systems DiskOnChip (DOC) flash devices (www.m-sys.com
). These devices are
available in sizes ranging from 8Mbytes to the currently available maximum size of
288Mbytes. These devices are inherently supported by the VIOS and DOS (they
appear as hard disk to DOS) and are supported by a variety of other operating
systems. Current non DOS driver support is available directly from the M-Systems
website.
The DOC device is ordinarily used in systems without an actual hard disk. In these
cases the hard drive settings for both the C: and D: drives should be set to NONE in
the CMOS Setup Menus. The DOC will then appear as drive C: and standard
partitioning and formatting software may be used to prepare it to boot. The boot-up
time may be dramatically improved by disabling the SC520 IDE controllers in the
CMOS setup when an actual hard disk will not be connected.
When the DOC is used in conjunction with an actual hard disk it automatically becomes
the secondary of D: drive. This can be useful when it is desired to load a DOC with a
large number of files that may currently reside on the hard disk. This characteristic of
becoming a secondary drive to an actual hard disk is referred to by M-Systems as
“Last Drive”. This characteristic may be altered such that the DOC will become the
primary drive (or First Drive) by using the DFORMAT utility available from M-Systems.
In this case it is possible to boot from the DOC and access the hard disk as the D:
drive. Refer to the utilities documentation accompanying the download from MSystems for more information if this mode is required.
1 o o 2
3 o o 4
5 o o 6
7 o o 8
9 o o 10
11 o o 12
13 o o 14
15 o o 16
17 o o 18
19 o o 20
21 o o 22
23 o o 24
25 o o 26
27 o o 28
29 o o 30
31 o o 32
33 o o 34
35 o o 36
37 o o 38
39 o o 40
RESET
D7
D6
D5
D4
D3
D2
D1
D0
GND
GND
IOW
IOR
N/C
N/C
INTRQ
A1
A0
HDCS0
N/C
GND
D8
D9D
10
C11
D12
D13
D14
D15
N/C
GND
GND
GND
ALE
GND
IOCS16
N/C
A2
HDCS1
GND
Visual
Index
An IDE Status LED, D1, provides visual status during IDE data transfer.
070223 Operations Manual SAT-520PLUS 6
The DOC device is installed in the socket-strips designated as U2. Pin 1
of the DOC should be oriented toward the outer edge of the board.
The DOC is enabled and disabled by using pins 7 and 8 of the jumper
block at J3. The jumpering configurations for J3 are:
DOC Enabled DOC Disabled
Serial Interface
– The SAT-520Plus contains four 16550 compatible
serial ports. COM3 and COM4 are RS-232 only and are present inside
the SMSC 37C727 Super I/O chip. COM3 and COM4 are fully plug-andplay compatible (PnP) and are configurable using the BIOS setup menus. Connection
to COM3 and COM4 is made via the connector at J11. J11 pinout is shown on the
following page.
COM1 and COM2 can be individually configured for any one of a number of operating
modes using the jumper blocks at J7 and J10. These modes include:
1. RS-232 Mode
2. RS-422 Mode with RTS transmitter enable
3. RS-422 Mode with auto transmitter enable
4. RS-485 Mode with RTS transmitter enable
5. RS-485 Mode with RTS transmitter enable and echo back
6. RS-485 Mode with auto transmitter enable
7. RS-485 Mode with auto transmitter enable and echo back
Modes 2, 4 and 5 require the RTS bit in the MCR (Bit 1) be set in order to Transmit.
Modes 4 and 6 require that RTS in the MCR (Bit 1) be deasserted in order to receive.
Each of the RS-422/RS-485 modes also allows for jumper selection of transmit and/or
receive termination resistor(s). There is an 18-pin configuration jumper for both
COM1 and COM2 ports that allow the user to select the operating mode and its
optional features and termination. The jumper numbers and corresponding port
numbers are shown in the following table. There are three choices for termination
when RS-422 or RS-485 modes are used.
TX(100) - Places a 100 ohm resistor across the TX+/TX- pair.
RX(100) - Places a 100 ohm resistor across the RX+/RX- pair.
TX-RX(300) - Places a 100 ohm resistor from +5V to TX/RX+, a 100 ohm resistor from
TX-RX- to ground and a 100 ohm resistor between TX-RX+ and TX/RX-.
1 3 5 7 9 11 13
o o o o o o o
o o o o o o o
2 4 6 8 10 12 14
1 3 5 7 9 11 13
o o o o o o o
o o o o o o o
2 4 6 8 10 12 14
Visual
Index
Visual
Index
070223 Operations Manual SAT-520PLUS 7
Each channel is configured using J7 or J10 as shown above. The table below shows
the appropriate jumpering for J7 and J10 in the various modes.
Termination
Mode
# Description Jumpers
TX
(100
)
RX
(100)
TX/RX
(300)
1 RS-232 1-2 N/A N/A N/A
2
RS-422 RTS
Enable
3-4, 9-10 11-12 17-18
11-12
13-14
15-16
3
RS-422 Auto
Enable
3-5, 9-10 (One node
must use TX/RX 300
Termination)
N/A 17-18
11-12
13-14
15-16
4
RS-485 RTS
Enable
3-4, 7-8 11-12 N/A
11-12
13-14
15-16
5
RS-485 RTS
Enable
with Echo-Back
3-4, 8-6 11-12 N/A
11-12
13-14
15-16
6
RS-485 Auto
Enable
3-5, 7-8 (One node
must use TX/RX 300
Termination)
N/A N/A
11-12
13-14
15-16
7
RS-485 Auto
Enable
with Echo-Back
3-5, 8-6 (One node
must use TX/RX 300
Termination)
N/A N/A
11-12
13-14
15-16
Serial Port I/O Definitions – Serial port definitions for all four
COM ports are the same when used in their various modes. Pin
definitions for each are shown below in each possible mode.
DB9 Male
COM3 and COM4 are RS-232 only and are terminated at J11. An adapter cable is
available from WinSystems, part number CBL-173-1, adapting J11 to two standard
DB9M connectors. The pin definitions for J11 are:
1 o o 2
3 o o 4
5 o o 6
7 o o 8
9 o o 10
11 o o 12
13 o o 14
15 o o 16
17 o o 18
COM3 – DCD
COM3 – RX
COM3 – TX
COM3 – DTR
GND
COM4 – DCD
COM4 – RX
COM4 – TX
COM4 – DTR
GND
COM3 – DSR
COM3 – RTS
COM3 – CTS
COM3 – RI
N/C
COM4 – DSR
COM4 – RTS
COM4 – CTS
COM4 – RI
N/C
1 2 3 4 5
o o o o o
o o o o
6 7 8 9
RS-232 Mode
1. DCD
2. RX
3. TX
4. DTR
5. GND
6. DSR
7. RTS
8. CTS
9. RI
RS-422 Mode
1. N/A
2. TX+
3. TX+
4. N/A
5. GND
6. RX+
7. RX-
8. N/A
9. N/A
RS-485 Mode
1. N/A
2. TX/RX+
3. TX/RX-
4. N/A
5. GND
6. N/A
7. N/A
8. N/A
9. N/A
Visual
Index
070223 Operations Manual SAT-520PLUS 8
Ethernet Controller – One of the principal features of the SAT-
520Plus is the inclusion of the 10/100 Ethernet controller. The popular
Intel 82551ER high-integration NIC supports both IEEE 802.3 10BASE-T
and 100BASE-TX in a fully auto-negotiating mode. The 82551 ER
integrates both the Media Access Controller (MAC) and the physical layer (PHY) on a
single chip. The 82551ER is a full bus mastering PCI controller and also incorporates
6K of buffer memory. Full duplex operation provides throughput of up to 200Mbs of
fast Ethernet segments.
Intel provides a vast array of driver support for all of the popular network operating
systems including: Windows CE, Windows 95, Windows 98SE, Windows ME, Windows
NT, Windows 2000, Novell Netware 3.11-4.1, Solaris, Linux, and Unix.
The Ethernet section of the SAT-520Plus is a full PCO PnP (plug-and-play)
implementation coupled with the Phoenix PCI BIOS which assigns the necessary I/O,
Memory, DMA, and IRQ resources required by the controller. Connection to the
network is made via the RJ-45 connector at J17. There are three Ethernet status
LEDs on the edge of the board. The purpose of each LED is:
NOTE: WinSystems cannot provide technical support for direct programming of the
82551ER controller. We suggest utilizing a TCP/IP stack of Network O/S that allows
the use of preexisting 82551 drivers.
Ethernet Drivers – The 82551ER is supported by a number of operating systems
directly. Intel provides the latest drivers through their web site at:
http://developer.intel.com/design/network/drivers/
Alternately, most drivers will be available for the WinSystems site at:
http://www.winsystems.com
D10 (YELLOW) LINK ACTIVE
D9 (RED) SPEED INDICATION – LIT=100BASE-TX
D8 (GREEN) ACTIVITY
Visual
Index
070223 Operations Manual SAT-520PLUS 9
1 2
o o
Parallel I/O – The SAT-520Plus contains an 82C55A type device
supporting 24 lines of digital I/O. These 24 lines are terminated at J8,
and are enabled and disabled using pins 13 and 14 of J3. When J3 pins
13 and 14 are jumpered, digital I/O is enabled. An example is shown below. The base
address of the 82C55A is 1E8H. For programming information, refer to the Intel
82C55A Datasheet.
Parallel I/O Connector – The parallel I/O connector is located at J8.
The pin definitions are:
NOTE: Pin 49 of J8 may be configured to supply +5 volts to pin 49 by
placing a jumper on J1. The current draw from pin 49 should not
exceed 300mA.
1 o o 2
3 o o 4
5 o o 6
7 o o 8
9 o o 10
11 o o 12
13 o o 14
Parallel I/O enabled
1 o o 2
3 o o 4
5 o o 6
7 o o 8
9 o o 10
11 o o 12
13 o o 14
15 o o 16
17 o o 18
19 o o 20
21 o o 22
23 o o 24
25 o o 26
27 o o 28
29 o o 30
31 o o 32
33 o o 34
35 o o 36
37 o o 38
39 o o 40
41 o o 42
43 o o 44
45 o o 46
47 o o 48
49 o o 50
PORT C BIT 7
PORT C BIT 6
PORT C BIT 5
PORT C BIT 4
PORT C BIT 3
PORT C BIT 2
PORT C BIT 1
PORT C BIT 0
PORT B BIT 7
PORT B BIT 6
PORT B BIT 5
PORT B BIT 4
PORT B BIT 3
PORT B BIT 2
PORT B BIT 1
PORT B BIT 0
PORT A BIT 7
PORT A BIT 6
PORT A BIT 5
PORT A BIT 4
PORT A BIT 3
PORT A BIT 2
PORT A BIT 1
PORT A BIT 0
+5V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Visual
Index
Visual
Index
Visual
Index
070223 Operations Manual SAT-520PLUS 10
VGA Configuration – The SAT-520Plus uses a fourth generation
CRT/Flat panel Super VGA controller. It supports standard VGA output
as well as a variety of Flat Panel Displays using optional Flat Panel
Adapter (FPA) kits. The video on the SAT-520Plus uses the Asiliant 69000 series of
high performance VGA controllers. The Asiliant controller supports standard and
Super-VGA as well as color and monochrome panels with 8, 9, 12, 15, 16, 18, 24 and
36-bit interfaces. WinSystems provides flat panel support through a series of Flat
Panel kits. Contact your WinSystems’ Applications Engineer for the most current list of
available FPAs and supported panels.
Details regarding interfacing to specific Flat Panels is not provided in this manual but
should be referenced in the documentation accompanying the FPA kit. Attempted
connection to any flat panel not directly supported by a WinSystems’ FPA module is at
the user’s risk and extreme care should be exercised to avoid damaging or destroying
the panel.
HAZARD WARING: LCD panels can require a high voltage for the panel
backlight. This high-frequency voltage can exceed 1000 volts and can
present a shock hazard. Care should be taken when wiring or handling the
inverter output. To avoid danger of shock and to avoid damaging fragile and
expensive panels, make all connection changes with power removed.
NOTE: J12 must be jumpered 1-2 for Sharp type panels, and 2-3 for NEC type panels.
An example jumpering for NEC panels is shown below.
CRT Output Connection – Video output to a standard VGA monitor is
made via the connector at J15. An adapter cable, part number CBL234-1, is available from WinSystems to adapt from J15 to the standard
DB15 VGA connector. The pin definitions for the J15 connector are:
Panel Backlight Connection – Panel Backlight connection is made via
the connector at J18. The pinout for J18 is:
1 2 3
o o o
Panel Backlight Enable
1 o o 2
3 o o 4
5 o o 6
7 o o 8
9 o o 10
11 o o 12
13 o o 14
GND
GND
GND
GND
GND
GND
VCC
RED
GREEN
BLUE
HSYNC
VSYNC
DDCDATA
DDCCLK
o 1
o 2
o 3
o 4
o 5
o 6
o 7
+12
+12
GND
GND
ENBKL
VCC
VCC
Visual
Index
Visual
Index
Visual
Index
070223 Operations Manual SAT-520PLUS 11
Flat Panel Output Connection – Connection to all flat panels is
made via the two 50-pin connectors at J19 and J20. These connectors
are cabled to the appropriate FPA (Flat Panel Adapter) module which
then breaks out the necessary cabling for attachment to the panel itself. The FPA
module also supplies any special controls that may be needed for the panel. Refer to
the FPA documentation for specific hook-up instructions. The pin definitions for J19
and J20 are:
J19 J20
Parallel Printer Port – The SAT-520Plus supports a parallel printer
port contained in the SMSC37C727 super I/O chip and is terminated at
the Multi-I/O connector at J9. This port is fully PnP compatible and is
configurable using the Phoenix BIOS setup menus. The parallel port can be configured
for SPP, EPP and ECP modes. The pin definitions for the DB25 connecter using the
CBL-247-1 are:
1 o o 2
3 o o 4
5 o o 6
7 o o 8
9 o o 10
11 o o 12
13 o o 14
15 o o 16
17 o o 18
19 o o 20
21 o o 22
23 o o 24
25 o o 26
27 o o 28
29 o o 30
31 o o 32
33 o o 34
35 o o 36
37 o o 38
39 o o 40
41 o o 42
43 o o 44
45 o o 46
47 o o 48
49 o o 50
SW0
SW2
FP0
FP1
FP2
FP3
FP4
FP5
FP6
FP7
FP8
FP9
FP10
FP11
PCSHCLK
PCFLM
PCLP
PCM
PHSYNC
PVSYNC
ENVCC
ENBKL
ENVEE
+12V
SWVCC
SW1
SW3
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
-12V
+12V
SWVCC
1 o o 2
3 o o 4
5 o o 6
7 o o 8
9 o o 10
11 o o 12
13 o o 14
15 o o 16
17 o o 18
19 o o 20
21 o o 22
23 o o 24
25 o o 26
27 o o 28
29 o o 30
31 o o 32
33 o o 34
35 o o 36
37 o o 38
39 o o 40
41 o o 42
43 o o 44
45 o o 46
47 o o 48
49 o o 50
FP12
FP13
FP14
FP15
FP16
FP17
FP18
FP19
FP20
FP21
FP22
FP23
FP24
FP25
FP26
FP27
FP28
FP29
FP30
FP31
FP32
FP33
FP34
FP35
SWVCC
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
SWVCC
Visual
Index
1 o o 14
2 o o 15
3 o o 16
4 o o 17
5 o o 18
6 o o 19
7 o o 20
8 o o 21
9 o o 22
10 o o 23
11 o o 24
12 o o 25
13 o
STROBE
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
ACK
BUSY
PE
SLCT
AUTOFD
ERROR
INIT
SLIN
GND
GND
GND
GND
GND
GND
GND
GND
Visual
Index
070223 Operations Manual SAT-520PLUS 12
1 o
2 o
3 o
4 o
5 o
MSDATA
N/C
GND
VCC
MSCLK
1 o o 2
3 o o 4
5 o o 6
7 o o 8
9 o o 10
11 o o 12
13 o o 14
15 o o 16
17 o o 18
19 o o 20
21 o o 22
23 o o 24
25 o o 26
27 o o 28
29 o o 30
31 o o 32
33 o o 34
35 o o 36
37 o o 38
39 o o 40
41 o o 42
43 o o 44
45 o o 46
47 o o 48
49 o o 50
COM1 - DCD
COM1 - RXD
COM1 - TXD
COM1 - DTR
COM1 - GND
COM2 - DSR
COM2 - RTS
COM2 - CTC
COM2 - RI
LPT - STROBE
LPT - PD0
LPT - PD1
LPT - PD2
LPT - PD3
LPT - PD4
LPT - PD5
LPT - PD6
LPT - PD7
LPT - ACK
LPT - BZY
LPT - PE
LPT - SLCT
KEYBD - GND
KEYBD - KDATA
KEYBD - +5V
COM1 - DSR
COM1 - RTS
COM1 - CTC
COM1 - RI
COM2 - DCD
COM2 - RSX
COM2 - TXD
COM2 - DTR
COM2 - GND
LPT - AUTOFD
LPT - ERROR
LPT - INIT
LPT - SLCTIN
LPT - GND
LPT - GND
LPT - GND
LPT - GND
LPT - GND
LPT - GND
LPT - GND
LPT - GND
KEYBD - GND
KEYBD - GND
KEYBD - CLK
KEYBD - +5V
Keyboard Interface – The SAT-520Plus contains onboard PS/2 style keyboard
controller. Connection is made through the Multi-I/O cable connection at J9. An
adapter cable, CBL-247-1 is available from WinSystems to make ready access to all of
the devices terminated at the Multi-I/O connector. Users who may wish to construct
their own cables should refer to the Multi-I/O connector pin definitions given later in
this manual.
Multi-I/O Connector – The I/O to the primary serial channels,
the printer port, and keyboard are all terminated via the connector at
J9. WinSystems’ multi-I/O cable, part number CBL-247-1, is available
to adapt to the conventional I/O connectors. The pin definitions for J9 are shown
here:
Mouse Interface – Connection to a mouse is made via the connector
at J14. An adapter cable, CBL-225-1, is available from WinSystems to
adapt to a conventional PS/2 mouse connector. The pinout for J14 is:
Visual
Index
Visual
Index
070223 Operations Manual SAT-520PLUS 13
Real-Time Clock/Calendar and CMOS Setup RAM – The
onboard 350mAH lithium battery provides power to the real-time clock
and the CMOS setup RAM when power is removed. If it ever becomes
necessary to have the CMOS RAM settings return to their default factory
settings, with power off, reposition the J3 jumper from pins 1-2 to pins 2-4 for
approximately 30 seconds and then return the jumper to pins 1-2. At the next powerup the BIOS will load the factory defaults.
Watchdog Timer Configuration – The SAT-520Plus features a
power-on voltage detect and a power-down/power brownout circuit to
protect memory and I/O from faulty CPU operation during periods of
illegal voltage levels. This supervisory circuit also features a watchdog
timer which can be used to guard against software lockups. An internal self-timer with
a period of 1/5 second will, when enabled, reset the CPU if the watchdog has not been
serviced (petted) within the allotted time. There are three watchdog operational
modes available on the SAT-520Plus. With a jumper placed on pins 5-6 of J3, the
watchdog circuit is totally disabled and can never reset the processor. When J3 pins
are not jumpered, the watchdog timer is permanently enabled and timing begins
immediately at power up. This mode is NOT compatible with the Phoenix BIOS or with
MS-DOS but is available for directly embedded code that replaces the BIOS. The
watchdog must be accessed at least every 1.5 seconds or a reset will occur. Petting in
this mode is accomplished with a single I/O write (value ignored) to address 1EFH.
The alternate mode of operation is via software control to enable or disable the
watchdog’s operation. This mode is set by jumpering J3 pins 3-5. In this mode the
watchdog powers-up disabled and must be enabled in software before timing will
begin. Enabling the watchdog is accomplished by writing a 1 to I/O port 1EEH.
Writing a 0 to I/O address 1EEH will disable the watchdog. Once the watchdog is
enabled, it must be serviced at least every 1.5 seconds or a rest will occur. Petting in
this mode is accomplished with a single I/O write (value ignored) to address 1EFH.
Status LED – An onboard LED can be used by software for signaling status or error
conditions, The LED is illuminated by writing a 1 to I/O port 1EDH. The LED is turned
off by writing a 0 to I/O address 1EDH.
Speaker/Sound Interface - An onboard audio transducer provides a high level
audio output which is compatible with the standard PC speaker. This output is used by
the BIOS to signal POST errors and may be used by user software for signaling
purposes.
Visual
Index
Visual
Index
J3 orientation
1 3 5 7 9 11 13
o o o o o o o
o o o o o o o
2 4 6 8 10 12 14
070223 Operations Manual SAT-520PLUS 14
PC/104 Bus Interface – The SAT-520Plus supports the PC/104
bus which is basically the original ISA bus with the 16-bit extensions.
A vast array of PC/104 stack-on modules are available from
WinSystems and other PC/104 suppliers. The PC/104 bus connector pin definitions are
provided here for reference. Refer to the PC/104 Bus Specification for specific signal
and mechanical specifications.
A1 o o B1
A2 o o B2
A3 o o B3
A4 o o B4
A5 o o B5
A6 o o B6
A7 o o B7
A8 o o B8
A9 o o B9
A10 o o B10
A11 o o B11
A12 o o B12
A13 o o B13
A14 o o B14
A15 o o B15
A16 o o B16
A17 o o B17
A18 o o B18
A19 o o B19
A20 o o B20
A21 o o B21
A22 o o B22
A23 o o B23
A24 o o B24
A25 o o B25
A26 o o B26
A27 o o B27
A28 o o B28
A29 o o B29
A30 o o B30
A31 o o B31
A32 o o B32
GND
RESET
+5V
IRQ9
-5V
DRQ2
-12V
SRDY
+12V
KEY
SMEMW*
SMEMR*
IOW*
IOR*
DACK3*
DRQ3
DACK1*
DRQ1
REFRESCH*
BCLK
IRQ7
IRQ6
IRQ5
IRQ4
IRQ3
DACK2*
T/C
BALE
+5V1
OSC
GND
GND
IOCHK*
SD7
SD6
SD5
SD4
SD3
SD2
SD1
SD0
IOCHRDY
AEN
SA19
SA18
SA17
SA16
SA15
SA14
SA13
SA12
SA11
SA10
SA9
SA8
SA7
SA6
SA5
SA4
SA3
SA2
SA1
SA0
GND
D0 o o C0
D1 o o C1
D2 o o C2
D3 o o C3
D4 o o C4
D5 o o C5
D6 o o C6
D7 o o C7
D8 o o C8
D9 o o C9
D10 o o C10
D11 o o C11
D12 o o C12
D13 o o C13
D14 o o C14
D15 o o C15
D16 o o C16
D17 o o C17
D18 o o C18
D19 o o C19
GND
SBHE*
LA23
LA22
LA21
LA20
LA19
LA18
LA17
MEMR*
MEMW*
SD8
SD9
SD10
SD11
SD12
SD13
SD14
SD15
KEY
GND
MEMCS16*
IOCS16*
IRQ10
IRQ11
IRQ12
IRQ15
IRQ14
DACK0*
DRQ0
DACK5*
DRQ5
DACK6*
DRQ6
DACK7*
DRQ7
+5V
MASTER*
GND
GND
Visual
Index
070223 Operations Manual SAT-520PLUS 15
PC/104 Add-on Modules – The GP bus provided by the AMD Elan SC520 processor
does a reasonably good job of implementing the ISA (PC/104) bus. There are,
however, a few caveats and limitations that may not allow certain PC/104 add-on
modules to function properly.
Pin Number Pin Name Caveat/Limitation
A1 IOCHK* No bus level NMI support
B5 -5V No support for -5 volts
B8 SRDY There is no support for 0 wait state.
All bus timing is fixed by the SC520
B19 Refresh/DACK0 No support for Refresh to the ISA bus
B20 BCLK This is an asynchronous 8MHz clock
B30 OSC This is an asynchronous 14.318MHz clock
D8 DACK0 No DMA channel 0 available
D9 DRQ0 No DMA channel 0 available
D12 DACK6 No support for DMA channel 6
D13 DRQ6 No support for DMA channel 6
D14 DACK7 No support for DMA channel 7
D15 DRQ7 No support for DMA channel 7
D17 MASTER No support for alternate bus masters on the ISA bus
In additional to the table above, it must also be recognized that because of the large
complement of I/O devices onboard. There may be few, if any, bus interrupts available
to PC/104 add-on cards. In some cases turning off the onboard peripheral will free up
the interrupt for use on the PC/104 bus.
The table below show the standard interrupt assignments and if they are available,
and if the associated peripheral is disabled.
IRQ Number Peripheral Free when peripheral disabled
0 Heartbeat Tick NO
1 Keyboard NO
2 Slave PIC YES
3 COM2 YES
4 COM1 N/A
5 Unassigned NO
6 Floppy Controller YES
7 Parallel Port NO
8 RTC YES
9 COM3 YES
10 PCI Routing NO
11 COM4 YES
12 Mouse NO
13 FPU NO
14 Hard Disk NO
IMPORTANT NOTE: Due to limitation with the Programmable Address Registers
(PAR) within the SC520 processor, the I/O address range accessible via the PC/104
bus alters fairly significantly dependent upon the presence and type of video adapter
installed. When a PC/104Plus video card is installed, I/O addresses below 200H are
not accessible on the PC/104 Bus, therefore, all I/O cards must be mapped above
200H. This limitation does not exist when using a PC/104 video card, or when no
video card is present.
070223 Operations Manual SAT-520PLUS 16
PC-104-Plus Interface - The SAT-520Plus also supports
peripheral expansion using the PC/104-Plus connector at J16. Up to
three PC/104-Plus modules may be stacked onto the SAT-520Plus.
The onboard Ethernet is attached to Slot 4 and PC/104-Plus modules should be
attached and configured beginning at Slot 1. The PC/104-Plus bus pin definitions are
shown here for reference purposes only. Refer to the PC/104-Plus Bus Specification
for signal definitions, timing and mechanical details.
Pin A B C D
1
GND/5.0
Key
RESERVED +5V AD00
2 VI/O AD02 AD01 +5V
3 AD05 GND AD04 AD03
4 C/BE0* AD07 GND AD06
5 GND AD09 AD08 GND
6 AD11 VI/O AD10 M66EN
7 AD14 AD13 GND AD06
8 +3.3V C/BE1* AD15 +3.3V
9 SERR* GND SB0* PAR
10 GND PERR* +3.3V SDONE
11 STOP* +3.3V LOCK* GND
12 +3.3V TRDY* GND DEVSEL*
13 FRAME* GND IRDY* +3.3V
14 GND AD16 +3.3.V C/BE3*
15 AD18 +3.3V AD17 GND
16 AD21 AD20 GND AD19
17 +3.3V AD23 AD22 +3.3V
18 IDSEL0 GND IDSEL1 IDSEL2
19 AD24 C/BE3* VI/O IDSEL3
20 GND AD26 AD25 GND
21 AD29 +5V AD28 AD27
22 +5V AD30 GND AD31
23 REQ0* GND REQ1* VI/O
24 GND REQ2 +5V GNT0*
25 GNT1* VI/O GNT2* GND
26 +5V CLK0 GND CLK1
27 CLK2 +5V CLK3 GND
28 GND INTD* +5V RTS*
29 +12V INTA* INTB* INTC*
30
-12V
RESERVED RESERVED
GND/3.3V
KEY
Visual
Index
070223 Operations Manual SAT-520PLUS 17
Phoenix BIOS Setup
General Information – The SAT-520Plus comes equipped with a standard Phoenix
Bios to assure full compatibility with PC operating systems and software. The basic
system configuration is stored in battery-backed CMOS RAM within the clock/calendar.
Access to this setup information is via the Setup utility in the Phoenix BIOS.
Entering Setup – To enter setup, power up the computer and press F2 when either
the splash screen is displayed (when enabled) or when the “Press F2 for Setup” message
is displayed.
Alternately, under certain error conditions a message similar to, “Press F1 to Continue
or F2 for Setup” may be displayed. Press the desired key for the appropriate action.
The BIOS will display the message, “Entering Setup” and will continue with the
remainder of the POST routines. It may take a number of seconds before the main setup
menu screen is displayed.

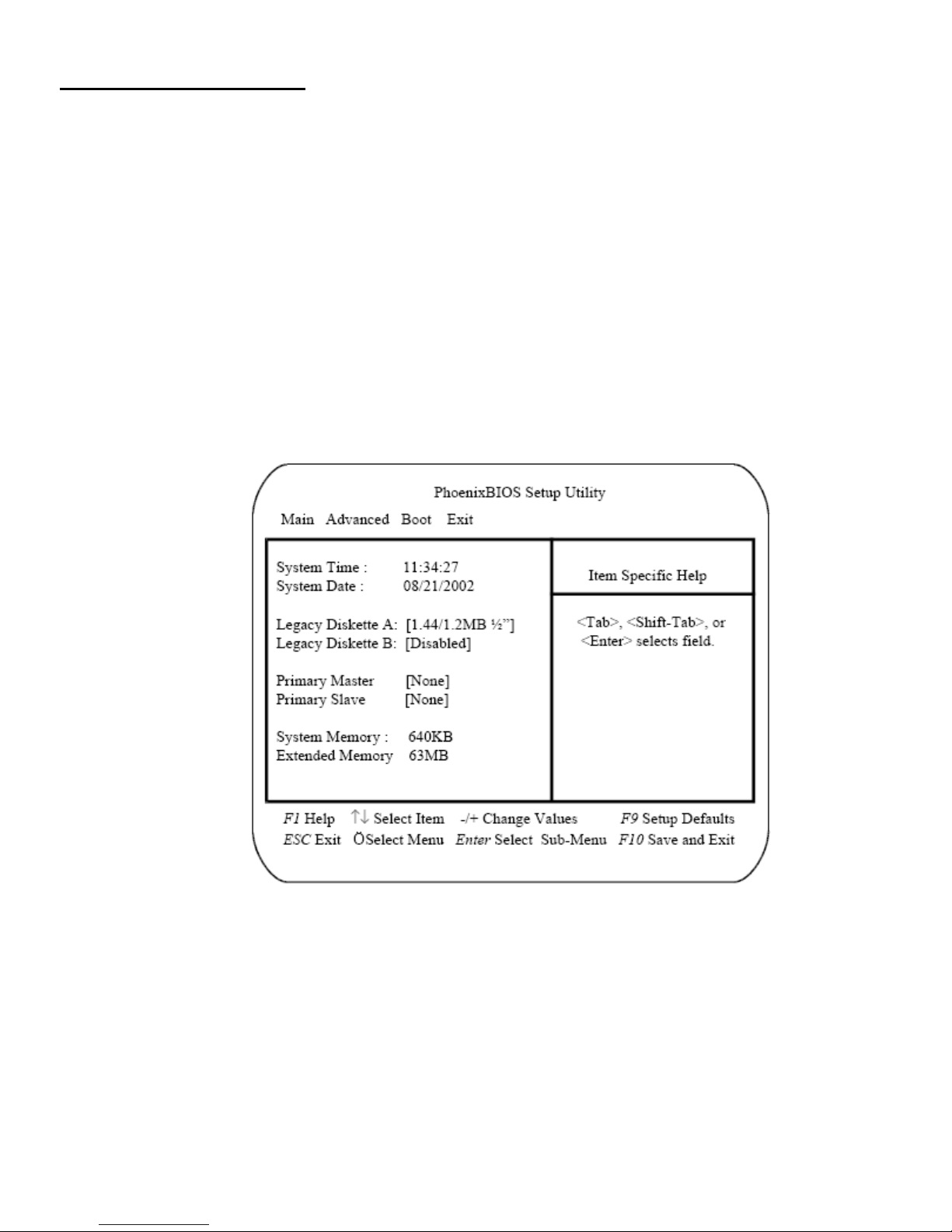

Setup Main Menu – Each of the available options on the main menu screen,
illustrated here, will be discussed in this section.
Use the “UP” and “DOWN” arrow keys to move among the sections. Use the “LEFT” and
“RIGHT” arrow keys to move to another menu page. Hit “+” or “-” to scroll through the
selections, or hit “ENTER” when a selection is highlighted to enter a sub-menu or to see a
list of choices.
System Time: This option allows for the setting of the time in the clock/calendar.
“ENTER” is used to move from hours, to minutes, to seconds while the “+/-” keys adjust
the value.
070223 Operations Manual SAT-520PLUS 18
System Date: This option allows for setting the calendar to the current month, day,
and year. Movement from field to field is accomplished with the “ENTER” key. Values are
changed using the “+/-” keys.
Legacy Diskette A: This option allows for setting the type of the first floppy drive
attached. If no drive is attached, “disabled” should be selected. The option list is shown
here:
Disabled
360KB 5 ¼”
1.2MB 5 ¼”
720KB 3 ½”
1.44/1.25MB 3 ½”
2.88MB 3 ½”
Legacy Diskette B: This option allows for setting the type of the second floppy drive
attached. If no drive is attached, “disabled” should be selected. The option list is shown
here:
Disabled
360KB 5 ¼”
1.2MB 5 ¼”
720KB 3 ½”
1.44/1.25MB 3 ½”
2.88MB 3 ½”
Primary Master: This option sets the drive type for the first fixed disk. Unlike older
systems with fixed drive type numbers, the Phoenix BIOS relies primarily on the selfidentification feature of modern IDE drives. This allows the BIOS to auto-detect the drive
type and parameters. Support is also provided for user defined drive parameter
definitions as well as support for Bootable CD-ROMs and removable ATAPI drives. The
selection choices for this menu option are:
Auto
None
CD-ROM
ATAPI Removable
User
When no fixed disk is to be attached, select “None” to minimize startup time. The “Auto”
mode is the most versatile and works with nearly all modern hard disks, CD-ROMs and
ATAPI-Removable drives.
070223 Operations Manual SAT-520PLUS 19
Primary Slave: This option sets the drive type for the second fixed disk. Unlike older
systems with fixed drive type numbers, the Phoenix BIOS relies primarily on the selfidentification feature of modern IDE drives. This allows the BIOS to auto-detect the drive
type and parameters. Support is also provided for user defined drive parameter
definitions as well as supported for Bootable CD-ROMs and removable ATAPI drives. The
selection choices for this menu option are:
Auto
None
CD-ROM
ATAPI Removable
User
When no fixed disk is to be attached, select “None” to minimize startup time. The “Auto”
mode is the most versatile and works with nearly all modern hard disks, CD-ROMs and
ATAPI-Removable drives.
System Memory: This field is displayed by the BIOS and cannot be changed. It shows
the amount of memory below 1MB that the system found.
Extended Memory: This is also a display only field. It represents the amount of
extended memory above 1MB that was found in the system.

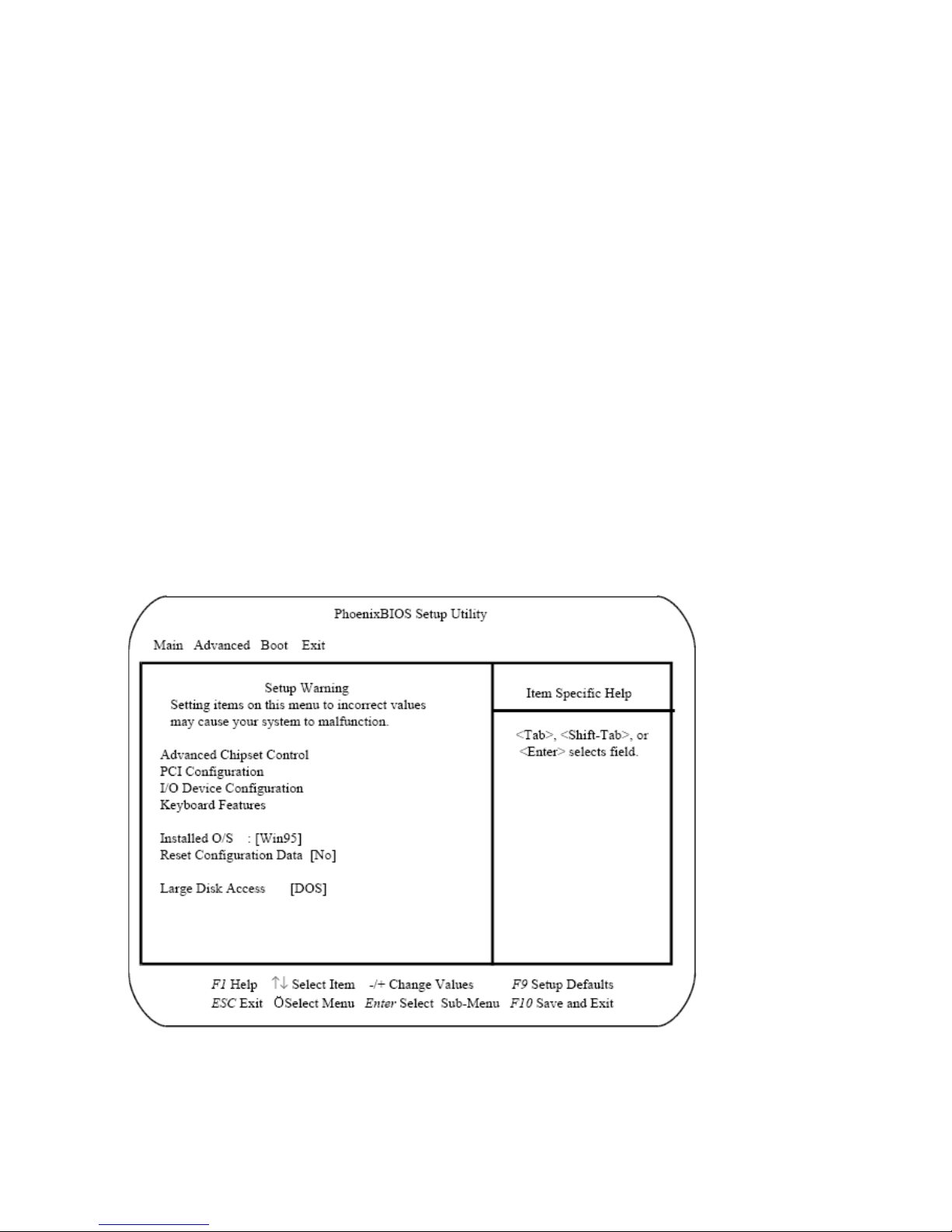

Advanced CMOS Setup – The advanced CMOS setup allows for the configuration of
all of the non-disk related Setup items. There are several sub-menus that allow control of
a number of systems and chipset features. Each of the setup options will be discussed in
the sections that follow.
070223 Operations Manual SAT-520PLUS 20

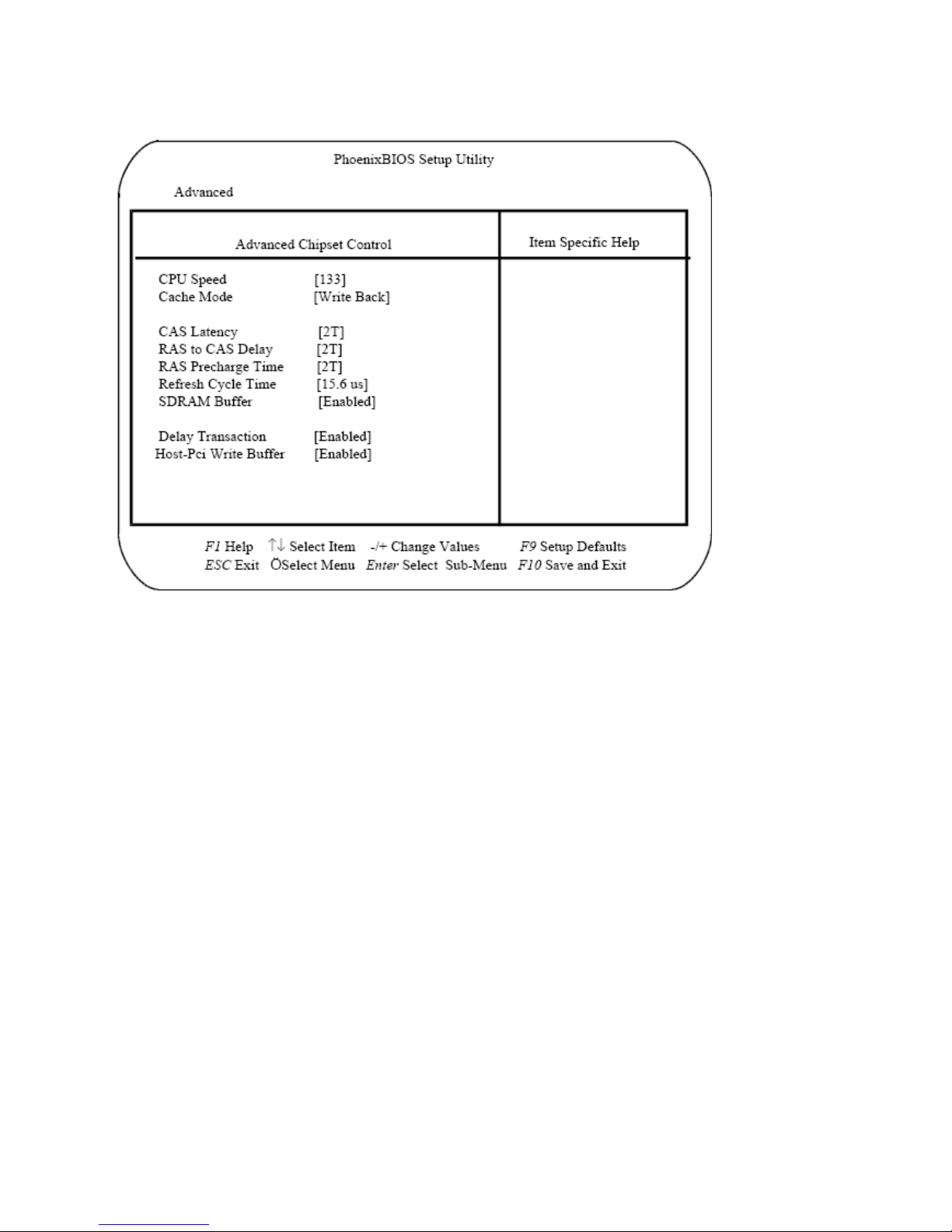

Advanced Chipset Control Menu - This submenu allows configuration of the chipset
portion of the AMD SC520 processor/chipset. Each of the selections will be discussed in
the following sections.
CPU Speed: This options allows for setting the CPU operating speed. In all cases the
frequency is 33MHz and it is the internal CPU divisor that is changed by this option. The
choices are:
133 MHz
100 MHz
Cache Mode: The SC520 has an on chip 16KB cache. The cache mode may be
configured using this setup menu option. The options are:
Write Back
Write Through
CAS Latency: This selection allows the cache latency time to be varied by a number of
(T) clock cycles. The available choices are:
3T
2T
070223 Operations Manual SAT-520PLUS 21
RAS to CAS Delay: This selection allows for control of the RAS to CAS timing delay. It
too is expressed in clock (T) cycles. The choices are:
2T
3T
4T
RAS Precharge Time: This selection controls the precharge time for DRAM cycles. The
selections are expressed in clock (T) cycles. The available selections are:
2T
3T
4T
6T
Refresh Cycle Time: This selection allows control of the SDRAM refresh timing. This
selection must match the requirements of the SDRAM actually installed. The available
selections are:
7.8us
15.6us
31.2us
62.5us
SDRAM Buffer: This option allows for enabling or disabling the SDRAM buffer function.
The available choices are:
Enabled
Disabled
Delay Transaction: This selection allows for configuring the delayed transaction
processing feature. The choices are:
Enabled
Disabled
Host-PCI Write Buffer: This selection allows for control of the Host-PCI write buffer.
The selections are:
Enabled
Disabled
070223 Operations Manual SAT-520PLUS 22

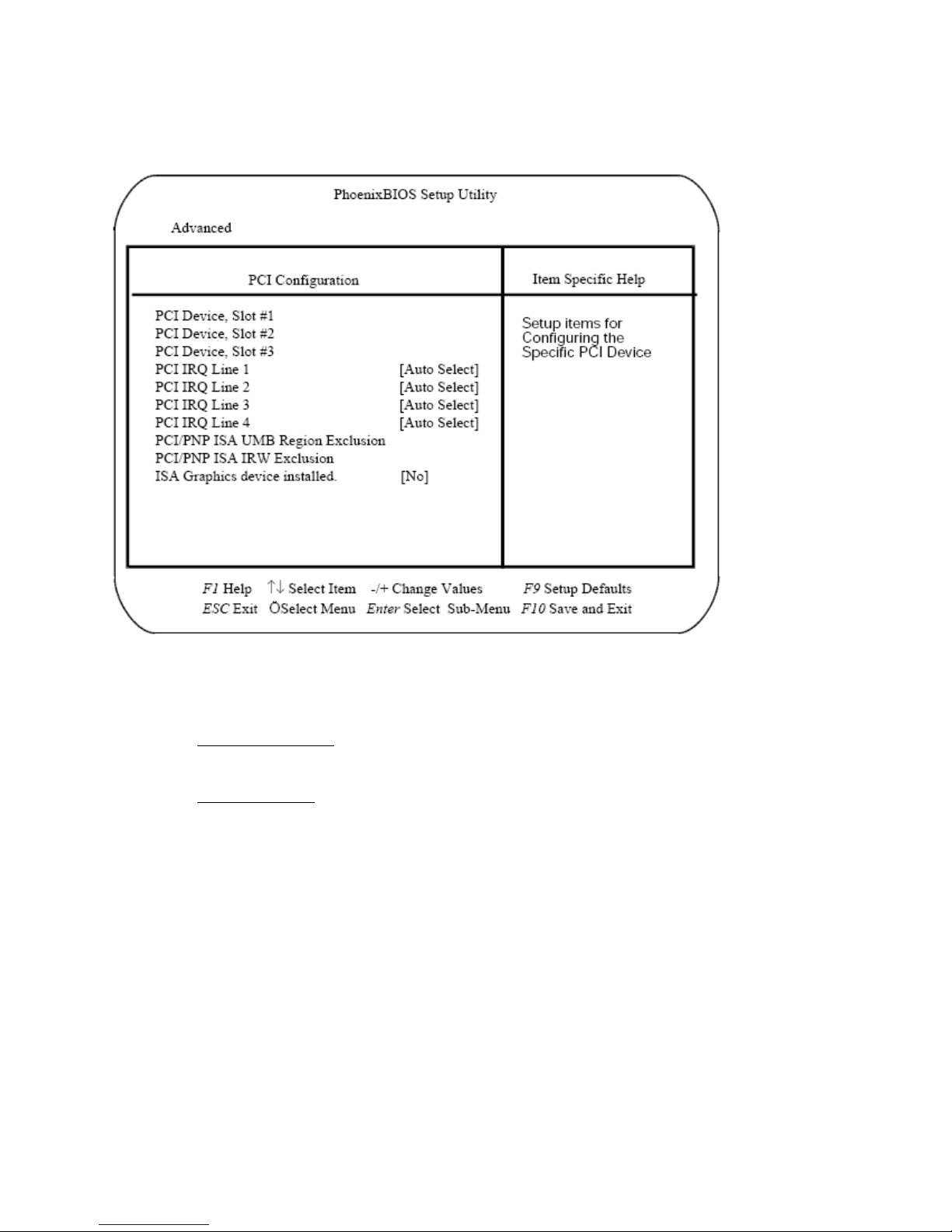

PCI Configuration – This menu allows setup configuration of the PCI bus resources.
This menu should only be used by knowledgeable users. It is possible to configure the PCI
resources so as not to allow the onboard peripherals to function due to lack of resources.
The sections that follow describe each of the menu items and selections.
PCI Device, Slot #1: This submenu allows control of several parameters relating to
modules attached as the PCI Slot 1 device. These include:
Option ROM Scan
: If the PCI device contains a BIOS extension,
its scan can be controlled using this option.
Enable Master:
This options allows the device to serve as a
PCI bus master if enabled.
Latency Timer: This selection controls the latency timer value. The choices are:
Default 0080H
0020H 00A0H
0040H 00C0H
0060H 00E0H
070223 Operations Manual SAT-520PLUS 23
PCI Device, Slot #2: This submenu allows control of several parameters relating to
modules attached as the PCI Slot 2 device. These include:
Option ROM Scan
: If the PCI device contains a BIOS extension,
its scan can be controlled using this option.
Enable Master:
This options allows the device to serve as a
PCI bus master if enabled.
Latency Timer: This selection controls the latency timer value. The choices are:
Default 0080H
0020H 00A0H
0040H 00C0H
0060H 00E0H
PCI Device, Slot #3: This submenu allows control of several parameters relating to
modules attached as the PCI Slot 3 device. These include:
Option ROM Scan
: If the PCI device contains a BIOS extension,
its scan can be controlled using this option.
Enable Master:
This options allows the device to serve as a
PCI bus master if enabled.
Latency Timer: This selection controls the latency timer value. The choices are:
Default 0080H
0020H 00A0H
0040H 00C0H
0060H 00E0H
PCI IRQ Line 1: This option selects the IRQ to be routed to IRQ Line 1(A). The choices
are:
Disabled 9
Auto Select 10
3 11
4 12
5 14
7 15
PCI IRQ Line 2 This option selects the IRQ to be routed to IRQ Line 2(B). The choices
are:
Disabled 9
Auto Select 10
3 11
4 12
5 14
7 15
070223 Operations Manual SAT-520PLUS 24
PCI IRQ Line 3: This option selects the IRQ to be routed to IRQ Line 3(C). The choices
are:
Disabled 9
Auto Select 10
3 11
4 12
5 14
7 15
PCI IRQ Line 4: This option selects the IRQ to be routed to IRQ Line 4(D). The choices
are:
Disabled 9
Auto Select 10
3 11
4 12
5 14
7 15
PCI/PnP ISA UMB Region Exclusion: This menu options allows specific upper memory
blocks to be reserved so that they will not be used by PCI or ISA PnP devices. There are 6
address blocks that may be individually selected as either ‘Available’ or ‘Reserved’. These
blocks are:
C800 – CBFF D400 – D7FF
CC00 – CFFF D800 - DBFF
D000 – D3FF DC00 – DFFF
PCI/PnP ISA IRQ Resource Exclusion: This option, like the previous one, allows a
resources (IRQ) to be reserved so that it will not be assigned to a PCI or ISA PnP device.
Each of the listed IRQs may either be selected as ‘Available’ or ‘Reserved’. The selectable
IRQ resources are:
IRQ3 IRQ9
IRQ4 IRQ10
IRQ5 IRQ11
IRQ7 IRQ15
ISA Graphics Device Installed: This options when selected ‘YES’ allows a ISA (nonVGA) graphics device to access palette data in the PCI VGA device. The options are:
YES
NO
070223 Operations Manual SAT-520PLUS 25
I/O Device Configuration – This menu allows configuration of a number of
peripheral devices. Each of the menu options will be discussed in the sections that follow.
SC520 IDE Adapter: This configuration option controls the internal IDE interface. The
options are:
Enabled
Disabled
When no IDE devices are connected, turning this option to ‘Disabled’ will result in a
significant reduction in the time to boot.
Floppy Disk Controller: This option controls the floppy disk controller. The options are:
Enabled
Disabled
SC520 Serial Port A: This options configures the first serial port (COM1). The selection
options for this menu item are:
Enabled
Disabled
070223 Operations Manual SAT-520PLUS 26
SC520 Serial Port B: This options configures the second serial port (COM2). The
selection options for this menu item are:
Enabled
Disabled
Serial Port A: This option controls the first serial port in the SMSC 37C727 super I/O
chip (COM3). The available selections are:
Disabled
Enabled
Auto
OS Controlled
When the port is selected as ‘Enabled”, two submenu choices become visible.
Base I/O Address – This selection configures the base I/O
address. The choices are:
3E8H
2E8H
3A8H
2A8H
Interrupt - This selects the desired interrupt for this port. The
selections are:
IRQ9
IRQ11
Serial Port B: This option controls the first serial port in the SMSC 37C727 super I/O
chip (COM3). The available selections are:
Disabled
Enabled
Auto
OS Controlled
When the port is selected as ‘Enabled”, two submenu choices become visible.
Base I/O Address – This selection configures the base I/O
address. The choices are:
3E8H
2E8H
3A8H
2A8H
070223 Operations Manual SAT-520PLUS 27
Interrupt - This selects the desired interrupt for this port. The
selections are:
IRQ9
IRQ11
Parallel Port: This option controls the configuration of the onboard printer port. The
available selections are:
Disabled
Enabled
Auto
OS Controller
Mode – This submenu allows selection of the parallel port operating
mode. The selections are:
Output only
Bi-directional
EPP
ECP
When the port is selected as ‘Enabled”, two submenu choices become visible.
Base I/O Address – This selection configures the base I/O
address. The choices are:
378
278
3BC
Interrupt - This selects the desired interrupt for this port. The
selections are:
IRQ5
IRQ7
Keyboard Features: This menu enables configuration of the keyboard operating
parameters. There are four items on this menu. Each of the selections will be discussed
in the section that follows.
Numlock: This option determines the status of the Numlock LED. The available options
are:
Auto
On
Off
Key Click: This selection enables or disables the sound produced when a key is pressed.
The options are:
Disabled
Enable
070223 Operations Manual SAT-520PLUS 28
Keyboard Auto Repeat Rate: This option controls the repeat rate (typematic) when a
key is held down. The options are:
30/sec 13.3/sec
26.7/sec 10/sec
21.8/sec 6/sec
18.5/sec 2/sec
Keyboard Auto Repeat Delay: This options controls the time that a key must be held
down before it begins to repeat. The selections are:
¼ sec ¾ sec
½ sec 1 sec
Miscellaneous Functions: The following items are also present on the Advanced Setup
Menu.
Installed OS: This feature allows for the selection of O/S type. The selections are:
Win95
Other
Reset Configuration Data: This option when enabled, resets the PnP and other
configuration data which may be programmed by the BIOS into its flash memory. This
will cause all devices and settings to be fully enumerated at the next boot. The available
options are:
Yes
No
Large Disk Access: This options sets the large disk (greater than 529MB) access mode.
The available selections are:
Other
DOS
070223 Operations Manual SAT-520PLUS 29

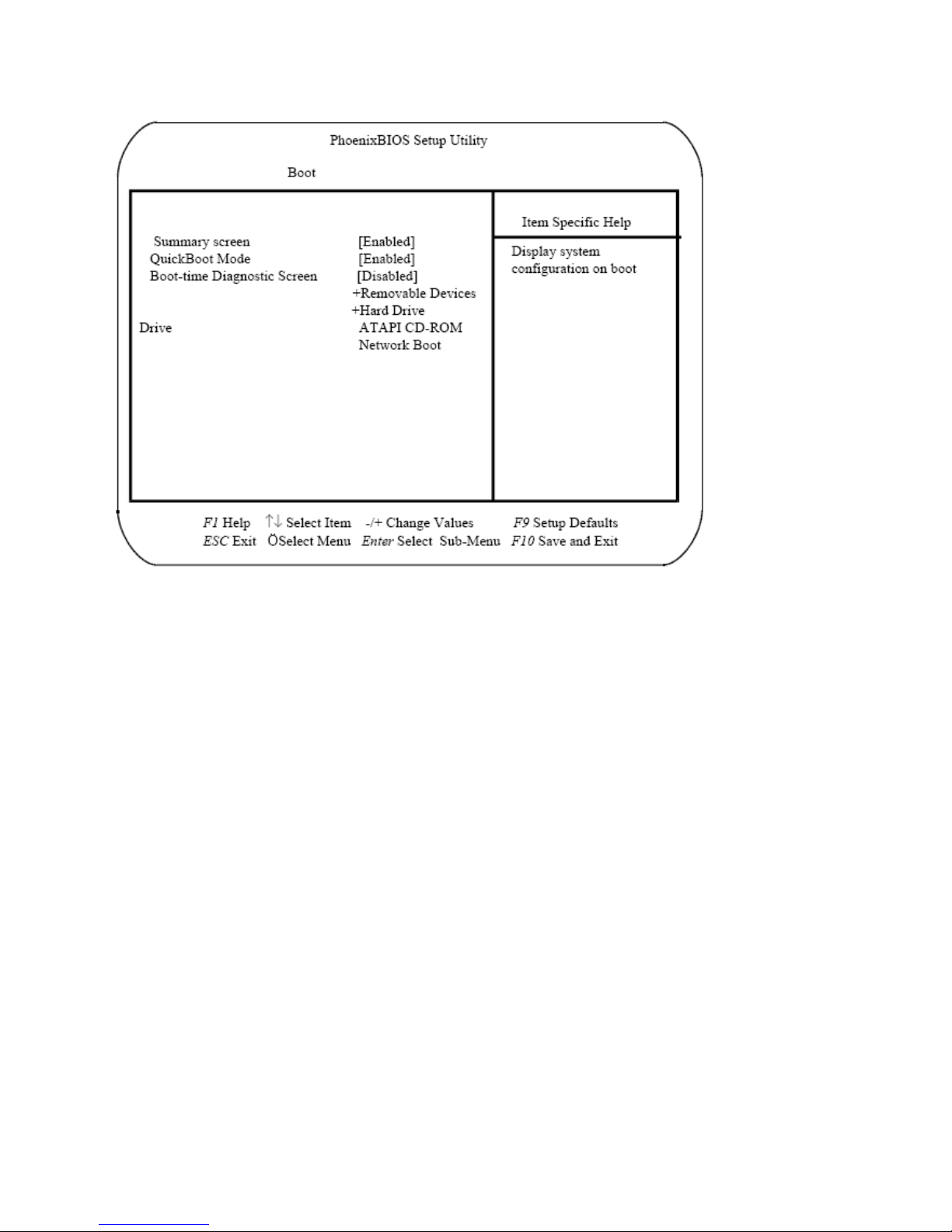

Boot Setup – This menu allows selection of a number of Boot Options. Each of the
menu items will be described in the following sections.
Summary Screen: This option allows for control of the system summary screen. When
enabled, a configuration box will be displayed for three seconds prior to boot. The
selection options are:
Enabled
Disabled
QuickBoot Mode: This option allows for a shortened POST process. When this option is
‘Enabled’ the memory test is shortened significantly, reducing the time to boot. The
choices are:
Disabled
Enabled
Boot-time Diagnostic Screen: This option allows control of the Splash screen and the
BIOS post and sign-on messages. When ‘Enabled”, the splash screen is off, and the BIOS
messages will be displayed. Refer to the section on the Logo utility for information on
creating custom BIOS splash screens. The choices are:
Disabled
Enabled
070223 Operations Manual SAT-520PLUS 30
Boot Order: This options allows the available boot devices to be ordered according to the
desired boot priority. Removable devices (floppy), hard disks, CD-ROM drives, and
network boot items may be moved up or down the priority list using the keys as shown on
the boot menu screen.
Exit Setup – This menu screen is used for exiting the setup menu and for saving or
discarding any changes made.
Exit Saving Changes: This option when selected saves all of the changes made to the
CMOS RAM and exits the Setup utility. A warm start reboot is attempted. In some cases
depending upon systems conditions and changes made, the restart will not be successful
and either a power-down or a manual reset may be required.
Exit Discarding Changes: This options exits the Setup utility and restarts the system.
Any changes made (other than Date/Time) will not be saved.
Load Setup Defaults: This options when selected loads the CMOS RAM with all factory
defaults.
Discard Changes: This option removes any changes made but does not exit the setup
utility.
Save Changes: This option saves all changes made to CMOS RAM but does not exit the
Setup utility.
Phlash Utility – The Phoenix BIOS onboard the SAT-520Plus is stored in Flash
memory. BIOS updates may be programmed onboard using the Phoenix Phlash utility.
Phlash.exe is a DOS executable program that may be run from the command prompt such
as: Phlash bios.rom
This will executes the Phlash.exe program and start reprogramming of the BIOS with the
specified file, BIOS.ROM. The Phlash utility also requires the presence of the file
PLATFORM.BIN. The utility can be run from floppy, hard disk, of DiskOnChip. In may also
be run “in the blind” without keyboard or video present by adding its invocation into the
AUTOEXEC.BAT file on the boot media.
Logo Utility – The LOGO.EXE utility combined with the BMP2PGX.EXE program and
MS-Windows PAINT.EXE allows for the creation of a custom splash screen that will be
displayed during the BIOS post process. The steps for creating a custom splash screen
are:
1. In Windows Paint or another graphic utility capable of generating Windows .BMP
files, create your desired screen with a resolution of 640 X 480 pixels in 16
colors. This resolution and color count must be adhered to if the graphic is to be
displayed properly. Save the file in a .BMP format.
2. Run the BMP2GPX.EXE utility to convert the .BMP file to a .PGX file which is a
compressed graphic format used by the Phoenix BIOS display manager. The
invocation line is like this: bmp2gpx.logo.bmp
This will create the .PGX file required for the next step. The name will be
the same as the .BMP file with a .PGX extension.
070223 Operations Manual SAT-520PLUS 31
3. Run the LOGO.EXE utility to place the .PGX file into the BIOS image file. If the
BIOS image file is named BIOS.ROM and the logo file is called LOGO.PGX, then
the command: logo bios.rom logo.pgx will load the new logo file into the
BIOS.ROM file at the proper position.
4. Use the Phlash.exe utility described in the previous section to program the new
BIOS image.
5. Using the BIOS Setup, on the Boot Menu, disable the Boot-Time Diagnostic
Screen.
During the POST routines, your screen will be displayed. You can still press <ESCAPE> to
return the diagnostic screen of <F2> to enter setup.
070223 Operations Manual SAT-520PLUS 32
I/O Port Map
The following is a list of PC I/O ports. Addresses marked with a ‘-’ are not used on the
SAT-502Plus but their use should be carefully evaluated so as not to conflict with other
I/O boards. I/O addresses marked with a ‘+’ are used on the SAT-520Plus and are
unique to the WinSystems design. I/O addresses marked with ‘**’ are generally unused
and should be the basis for the first choices in I/O address selection for external I/O
boards.
NOTE: The SAT-520Plus uses a PnP BIOS for both the PC/104Plus and the PC/104 bus I/O
resource allocations. Care must be taken to avoid contention with resources allocated by
the BIOS.
HEX Range
Usage
000-00F 8327 DMA Controller #1
**010-01F Free
020-021 8259 PIC #1
**022-03F Free
040-043 8254 PIT
**044-05F Free
060-06F 8042 Keybrd/Mouse Control
070-07F CMOS RAM, Clock/Calendar
080-09F DMA Page Registers
0A0-0BF 8259 PIC #2
0C0-0DF 8237 DMA Controller #2
**0E0-0EF Free
0F0-0F1 Math Coprocessor Control
**0F2-0F7 Free
085-0FF Math Coprocessor
100-102 VGA Control Register
**103-16F Free
170-177 IDE Controller #2
**178-1EC Free
+1ED-1EF Watchdog/LED Control
1F0-1FF IDE Controller #1
200-207 Game Port
**208-237 Free
238-23B Bus Mouse
23C-23F Alt. Bus Mouse
**240-277 Free
278-27F Parallel Port
**280-2a7 Free
2A8-2AF Serial Port
2B0-2BF EGA
2C0-2CF EGA
2D0-2DF EGA
2E0-2E7 GPIB Interface
2E8-2EF Serial Port
**2F0-2F7 Free
2F8-2FF Serial Port
HEX Range Usage
**300-32F Free
370-377 Floppy Disk Controller #2
378-37F Parallel Printer
**380-3A7 Free
3A8-3AF Serial Port
3B0-3BB MDA
3BC-3BF Parallel Port
3C0-3CF EGA/VGA
3D0-3DF CGA
**3E0-3E7 Free
3E8-3EF Serial Port
3F0-3F7 Floppy Disk Controller #1
3F8-3FF Serial Port
070223 Operations Manual SAT-520PLUS 33
Interrupt Map
No. Address Type Description
0 0 CPU Divide by Zero
1 4 CPU Single Step
386+ Debug Exception
2 8 CPU NMI
3 0C CPU Breakpoint
4 10 CPU Overflow
5 14 BIOS Print Screen
186+ Bounds Exception
6 18 186+ Invalid Opcode
7 1C 186+ Coprocessor unavailable
8 20 HARDWARE IRQ 0 - 18.2Hz heartbeat
286+ LIDT - Double fault exception
9 24 HARDWARE IRQ 1 - Keyboard
286+ Coprocessor segment
A 28 HARDWARE IRQ 2 - Chained to slave
286+ Invalid TSS exception
B 2C HARDWARE IRQ 3 - COM2
286+ Segment not present
C 30 HARDWARE IRQ 4 - COM1
286+ Stack fault exception
D 34 HARDWARE IRQ 5
286+ Protection Fault
E 38 HARDWARE IRQ 6 - Floppy Disk
286+ Page fault
F 3C HARDWARE IRQ 7 - LPT 1
10 40 BIOS Video BIOS functions
286+ Coprocessor exception
11 44 BIOS BIOS equipment check
486+ Alignment check exception
12 48 BIOS BIOS memory size
P5+ Machine check
13 4C BIOS BIOS disk function
14 50 BIOS BIOS serial functions
15 54 BIOS BIOS casette/misc funtions
16 58 BIOS BIOS keyboard functions
17 5C BIOS BIOS printer functions
18 60 BIOS SROM Basic Entry (IBM)
19 64 BIOS BIOS Boot function
1A 68 BIOS BIOS time of day functions
1B 6C BIOS BIOS keyboard break
1C 70 BIOS BIOS chained timer tick
1D 74 BIOS BIOS video initialization
1E 78 BIOS
BIOS diskette parameter
table
1F 7C BIOS BIOS CGA graphics fone
20 80 MS-DOS Program Terminate
21 84 MS-DOS DOS function calls
22 88 MS-DOS Terminate address
23 8C MS-DOS Ctrl-Break address
24 90 MS-DOS Fatal Error vector
25 94 MS-DOS Absolute disk read
26 98 MS-DOS Absolute disk write
27 9C MS-DOS Terminate address
070223 Operations Manual SAT-520PLUS 34
No. Address Type Description
28 A0 MS-DOS Idle signal
29 A4 MS-DOS TTY output
2A A8 MS-DOS MS-Net services
2F BC MS-DOS Print Spool
30 C0 MS-DOS Long jump interface
33 CC MS-DOS Mouse functions
3F FC MS-DOS Overlay interrupt
40 100 BIOS BIOS floppy redirect
41 104 BIOS BIOS Fixed disk 1 table
42 108 BIOS EGA Chain
43 10C BIOS EGA Parameter table pointer
44 110 BIOS EGA graphics font
46 118 BIOS BIOS Fixed disk 2 table
4A 128 BIOS AT Alarm exit address
50 140 BIOS AT Alarm interrupt
51 144 BIOS Mouse functions
5A 168 NET NET functions
5B 16C NET boot chain
5C 170 NET NET BIOS entry
67 19C MS-DOS EMS functions
6D 1B4 VGA VGA service
70 1C0 HARDWARE IRQ 8 - Real time clock
71 1C4 HARDWARE IRQ 9 - Redirected IRQ 2
72 1C8 HARDWARE IRQ 10 - unassigned
73 1CC HARDWARE IRQ 11 - unassigned
74 1D0 HARDWARE IRQ 12 - Mouse
75 1D4 HARDWARE IRQ 13 - Coprocessor
76 1D8 HARDWARE IRQ 14 - IDE hard disk
77 1DC HARDWARE IRQ 15 - unassigned
070223 Operations Manual SAT-520PLUS 35
Datasheet Reprint
Intel 82C55A intel_82c55a.pdf
Cables
Part Number Description
CBL-115-4 50-pin 4ft. Opto Rack interface cable
CBL-125-1 Floppy Disk Adapter Cable
CBL-173-1 20-pin ribbon to two DB-9 for serial channels 3&4
CBL-174-1 Power cable for sbc (unterminated)
CBL-225-1 PS/2 mouse adapter cable
CBL-234-1 CRT adapter cable - 14-pin ribbon to 15-pin D-sub
CBL-247-1 Multi-I/O adapter cable PS/2 keyboard, serial 1&2, and LPT
Software Drivers & Examples
Latest BIOS and Utilities sat520_rel0920.zip
Drivers for Assiliant (Chips & Technology) 69000 Video Controller
Driver for Windows XP wxpv251c.zip
Driver for Windows 2000 w2kv251c.zip
Driver for Windows NT 4.0 nt4v251c.zip
Driver for Windows 3.1 w31132.zip
Driver for Windows 95 w95500.zip
Driver for Windows 98 w98600.zip
Driver for OS/2 3.0 & 4.0 os2231.zip
Initialization routine for 82C55 (Assembly Language) 8255init.zip
Drivers for Intel 82551ER/82559ER 10/100 Ethernet Controller
Linux Kernels - 2.4.x & 2.6.x kernels e100-3.5.14.tar.gz
Latest known to compile for 2.2.x kernels e100-2.1.15.tar.gz
NDIS4 (Windows 98) 82559erWin98.zip
NDIS4 (Windows NT 4 & 2000) e100ndis4.zip
Windows NT Embedded 4.0 e100ent.zip
Windows XP/2000 e100exp.zip
Windows CE 3.0 e100ce3.zip
Linux Drivers
Kernel 2.2, 2.4 linux_uio48_96.zip
Kernel 2.6 uio48io_kernel_2.6.zip
Windows XP Driver wsuio48_96xp.zip
Example of reprogramming DOS tick for high resolution timing tickdemo.zip
Serial Console Utilities:
Generic 38400baud Serial console redirect for COM1 scon1.zip
070223 Operations Manual SAT-520PLUS 36
Generic 38400baud Serial console redirect for COM2 scon2.zip
Generic 9600baud Serial console redirect for COM1 sc19600.zip
Generic 9600baud Serial console redirect for COM2 sc29600.zip
070223 Operations Manual SAT-520PLUS 37
Mechanical Drawing
070223 Operations Manual SAT-520PLUS 38
1 3 5 7 9 11 13
o o o o o o o
o o o o o o o
2 4 6 8 10 12 14
Jumper Reference
Drawings ONLY - for more detailed information on these parts, refer to the
descriptions shown previously in this manual.
J3 3-5 watchdog enabled in software
5 6 watchdog enabled (NOT compatible with
Phoenix BIOS or with MS-DOS
5-6 watchdog disabled
7-8 DOC enabled
7 8 DOC disabled
13-14 DIO enabled
13 14 DIO disabled
J12
Panel Backlight
J3
VBAT/DOC/Watchdog
J1
Parallel VIO
J7
COM1
J10
COM2
070223 Operations Manual SAT-520PLUS 39
1 2 3
o o o
1 2
o o
COM1/COM2 (J7 and J10)
Termination
Mode # Description Jumpers
TX (100) RX (100) TX/RX (300)
1 RS-232 1-2 N/A N/A N/A
2 RS-422 RTS Enable 3-4, 9-10 11-12 17-18
11-12
13-14
15-16
3 RS-422 Auto Enable
3-5, 9-10 (One node must
use TX/RX 300 Termination)
N/A 17-18
11-12
13-14
15-16
4 RS-485 RTS Enable 3-4, 7-8 11-12 N/A
11-12
13-14
15-16
5
RS-485 RTS Enable
with Echo-Back
3-4, 8-6 11-12 N/A
11-12
13-14
15-16
6 RS-485 Auto Enable
3-5, 7-8 (One node must use
TX/RX 300 Termination)
N/A N/A
11-12
13-14
15-16
7
RS-485 Auto Enable
with Echo-Back
3-5, 8-6 (One node must use
TX/RX 300 Termination)
N/A N/A
11-12
13-14
15-16
J12 panel backlight enabled
J1 +5V supplied to J8, pin 49 (Parallel I/O)
070223 Operations Manual SAT-520PLUS 40
Specifications
Electrical
Bus Interface : PC/104 8-bit or 16-bit expansion bus
PC/104-Plus 32-bit expansion bus
System Clock : 33MHz
PCI Clock : 33 MHz
VCC : +5V ± 5% at 1200mA typical with 256Mbytes SDRAM
installed
VCC1 : +12V ± 5% (not required. PC/104 Expansion Only)
VCC2 : -12V ± 5% (not required. PC/104 Expansion Only)
Memory
Addressing : 256MByte Addressing
BIOS : 512KByte Flash
SDRAM : 32 to 256 MByte SDRAM SODIMM with gold fingers
(PC100 to PC133)
SSD : M-Systems 32-pin DiskOnChip (8Mb to 288Mb)
Mechanical
Dimensions : 4.5” x 7.1” x .60” (without expansion modules or cables)
PC-Board : FR-4 Epoxy Glass with 6 signal layers and 2 power planes with
screened component legend, and plated through holes
Jumpers : AMDebug: 0.025” square posts on 0.10” centers
Others: 0.5mm square posts on 2 mm centers
Connectors : Multi-I/O: 50-pin RN type IDH-50-LP
COM3/COM4: 20-pin RN type IDH-50-LP
Floppy Disk: 34-pin RN type IDH-50-LP
IDE Disk: 40-pin RN type IDH-50-LP
CRT: 144-pim 2mm Molex type 87331-1420
Flat Panel: two, 50-pin 2mm Molex type 87331-5020
PC/104 Bus: 64-pin SAMTEC type ESQ-132-12-G-D
40-pin SAMTEC type ESQ-120-12-G-D
PC/104-Plus Bus: SAMTEC type TS-30Q
Power/Reset: 8-pin Molex type 22-11-2082
Parallel I/O: 50-6-pin RN type IDH-50-LP
Weight :
Environmental
Operating
Temperature : -40
o
C to +85oC
Non-Condensing
Relative Humidity: 5 to 95%
MTBF : 12.30 years
WARRANTY REPAIR INFORMATION
WARRANTY
WinSystems warrants to Customer that for a period of two (2) years from the date of
shipment any Products and Software purchased or licensed hereunder which have been
developed or manufactured by WinSystems shall be free of any material defects and shall
perform substantially in accordance with WinSystems’ specifications therefor. With respect
to any Products or Software purchased or licensed hereunder which have been developed or
manufactured by others, WinSystems shall transfer and assign to Customer any warranty of
such manufacturer or developer held by WinSystems, provided that the warranty, if any,
may be assigned. Nothwithstanding anything herein to the contrary, this warranty granted
by WinSystems to the Customer shall be for the sole benefit of the Customer, and may not
be assigned, transferred or conveyed to any third party. The sole obligation of WinSystems
for any breach of warranty contained herein shall be, at its option, either (i) to repair or
replace at its expense any materially defective Products or Software, or (ii) to take back such
Products and Software and refund the Customer the purchase price and any license fees paid
for the same. Customer shall pay all freight, duty, broker’s fees, insurance charges for the
return of any Products or Software to WinSystems under this warranty. WinSystems shall
pay freight and insurance charges for any repaired or replaced Products or Software
thereafter delivered to Customer within the United States. All fees and costs for shipment
outside of the United States shall be paid by Customer. The foregoing warranty shall not
apply to any Products of Software which have been subject to abuse, misuse, vandalism,
accidents, alteration, neglect, unauthorized repair or improper installations.
THERE ARE NO WARRANTIES BY WINSYSTEMS EXCEPT AS STATED HEREIN, THERE
ARE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN NO EVENT SHALL WINSYSTEMS BE LIABLE FOR
CONSEQUENTIAL, INCIDENTIAL OR SPECIAL DAMAGES INCLUDING, BUT NOT
LIMITED TO, DAMAGES FOR LOSS OF DATA, PROFITS OR GOODWILL.
WINSYSTEMS’ MAXIMUM LIABILITY FOR ANY BREACH OF THIS AGREEMENT OR
OTHER CLAIM RELATED TO ANY PRODUCTS, SOFTWARE, OR THE SUBJECT MATTER
HEREOF, SHALL NOT EXCEED THE PURCHASE PRICE OR LICENSE FEE PAID BY
CUSTOMER TO WINSYSTEMS FOR THE PRODUCTS OR SOFTWARE OR PORTION
THEREOF TO WHICH SUCH BREACH OR CLAIM PERTAINS.
WARRANTY SERVICE
1. To obtain service under this warranty, obtain a return authorization number.
In the United States, contact the WinSystems’ Service Center for a return
authorization number. Outside the United States, contact your local sales agent for
a return authorization number.
2. You must send the product postage prepaid and insured. You must enclose
the products in an anti-static bag to protect from damage by static electricity.
WinSystems is not responsible for damage to the product due to static electricity.
Loading...
