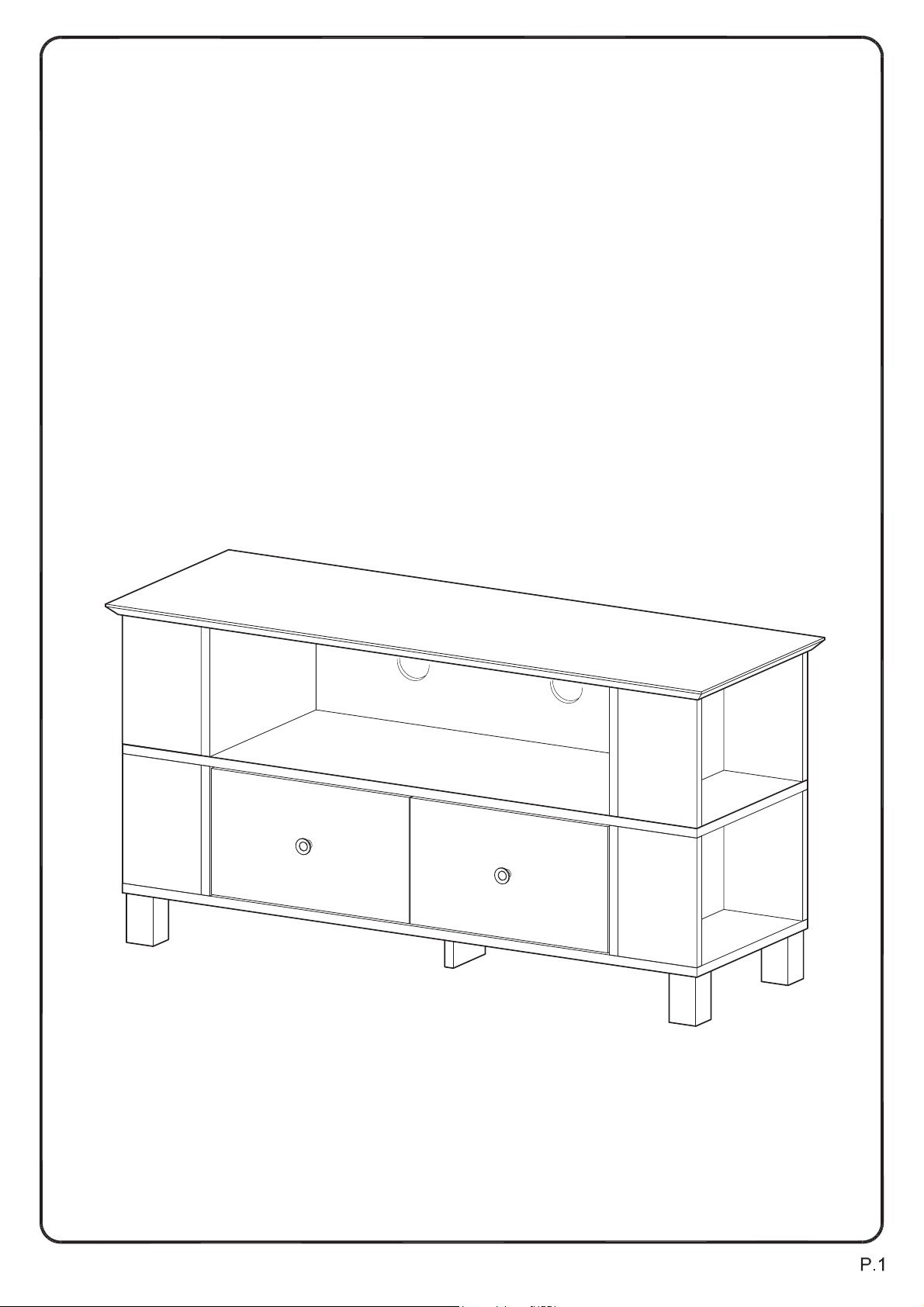

Assembly Instructions
Page 2

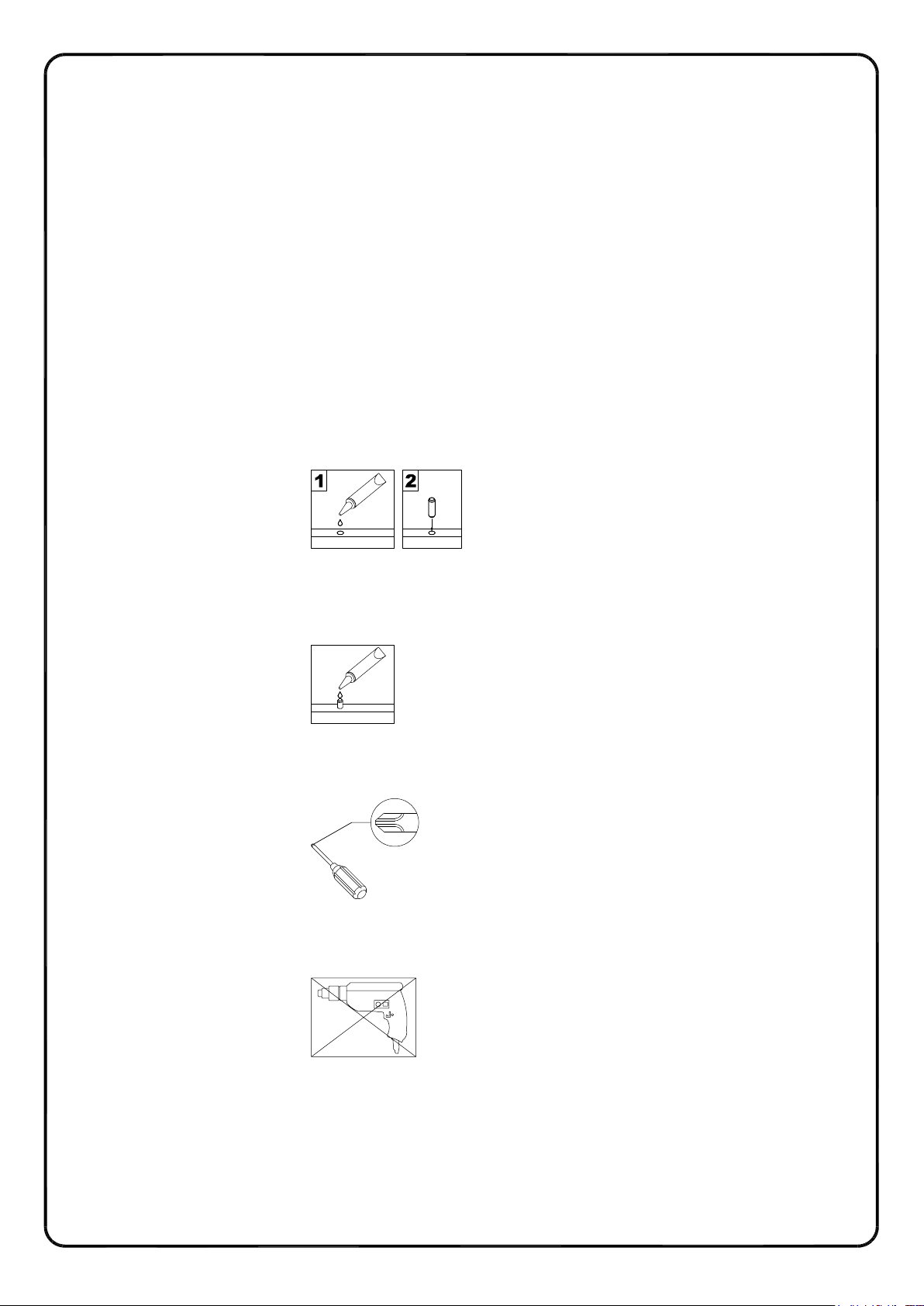

General Assembly Guidelines
I. Ensure that all parts and hardware are available before beginning assembly.
II. Follow each step carefully to ensure the proper assembly of this product.
III. Two people are recommended for ease in the assembly of this product.
IV. The four main types of hardware used to assemble this product are: wood dowels,
cam bolts and locks, bolts and screws.
V. The provided glue is to secure wood dowels in place. When first inserting dowels,
locate the appropriate hole for the dowel, place a small amount of glue in the hole
and insert the dowel. Wipe away excess glue immediately.
In future assembly steps when dowels are necessary to attach assembly parts
together, place a small amount of glue on the end of the dowel before attaching
parts together. Wipe away excess glue immediately.
VI. A Phillips head screwdriver is required for the assembly of this product.
VII. Power tools should not be used to assemble this product.
P.2
Page 3

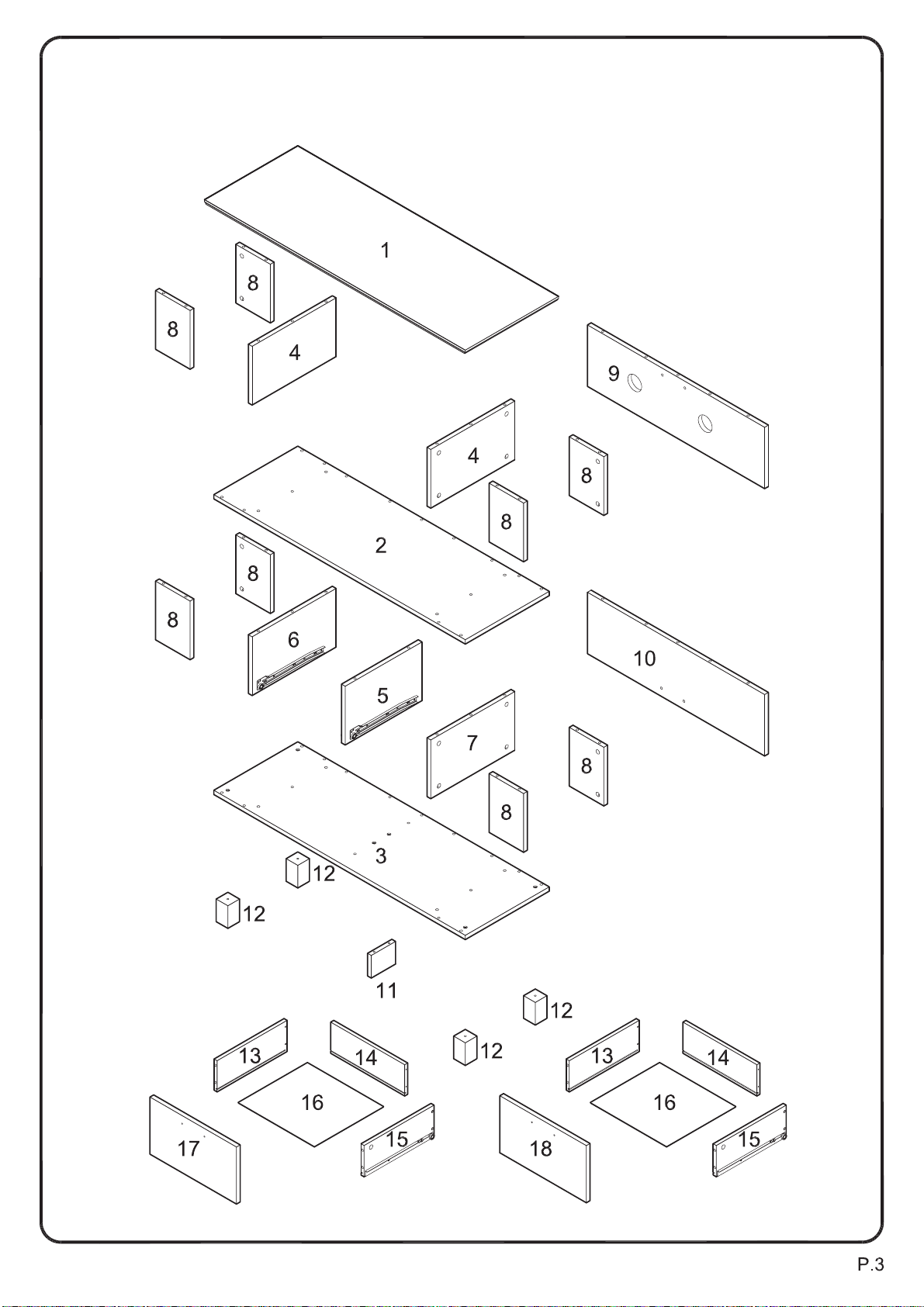

Parts List
Page 4

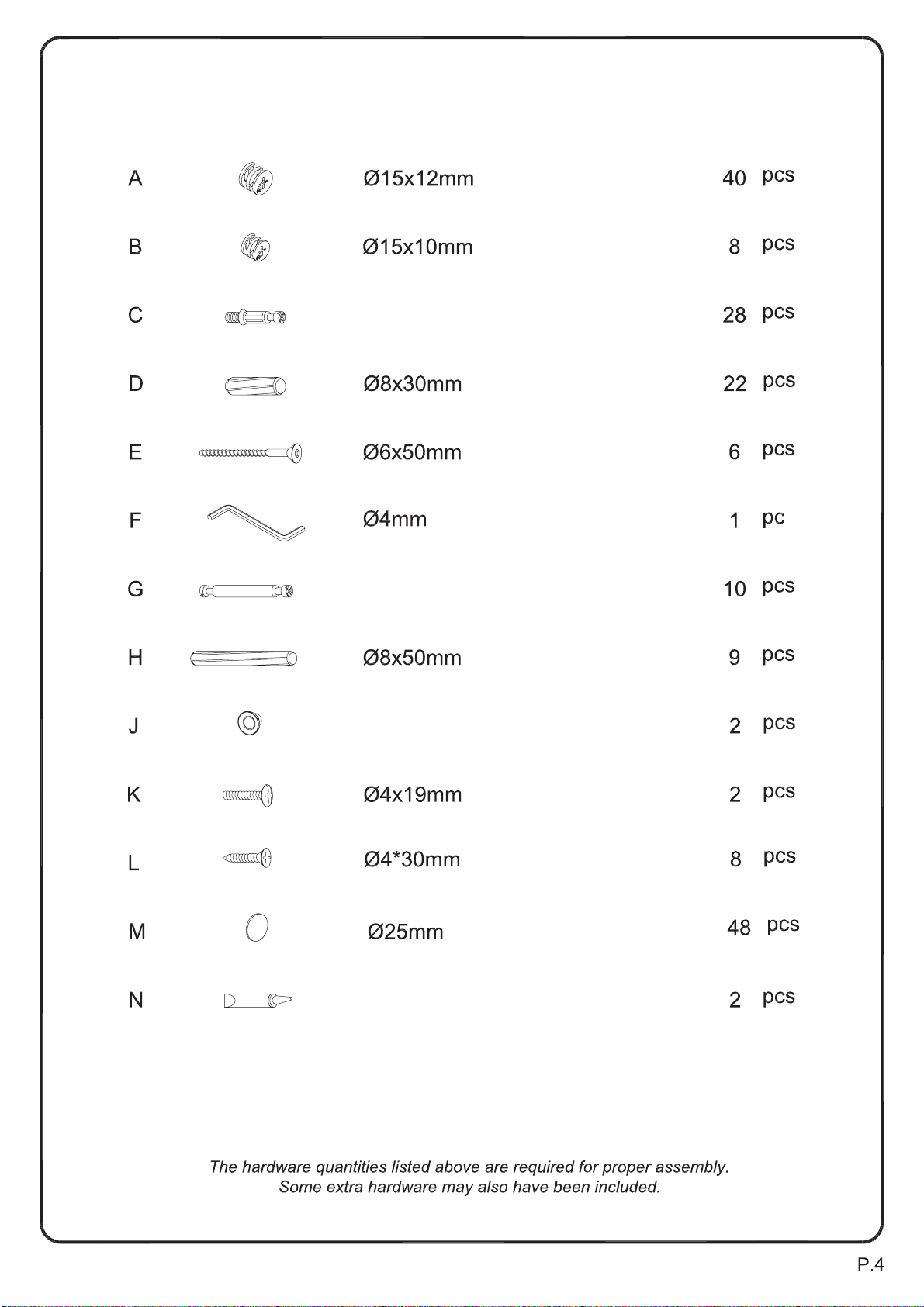

Hardware List
Large cam lock
Small cam lock
Short cam bolt
Short wood dowel
Large bolt
Wrench
Long cam bolt
Long wood dowel
Handle
Small bolt
Screw
Sticker
Glue tube
Page 5

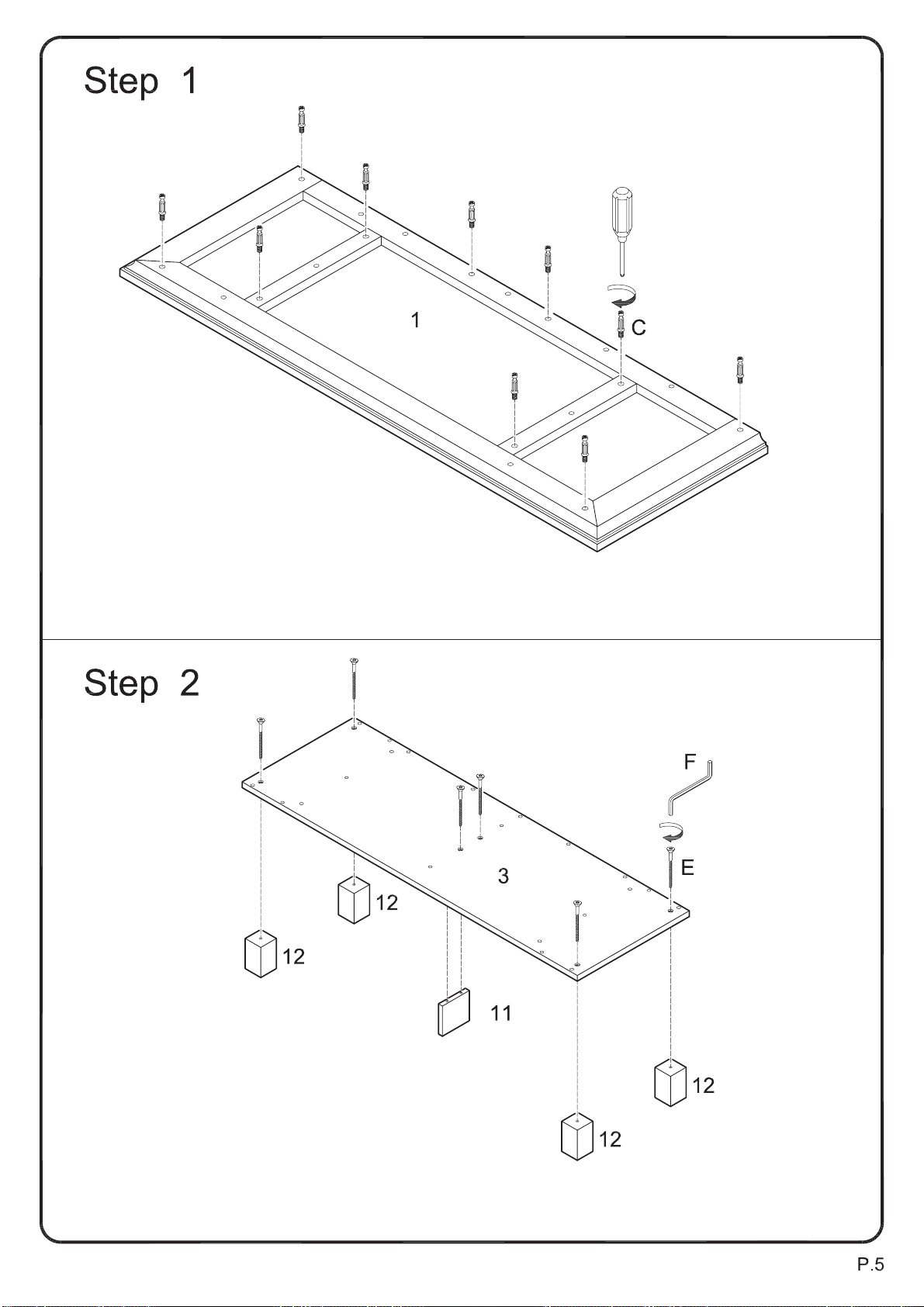

Screw short cam bolts (C) into stand top (1).
Attach feet (12) and stand support (11) to stand base (3) using large bolts (E) and wrench (F).
Page 6

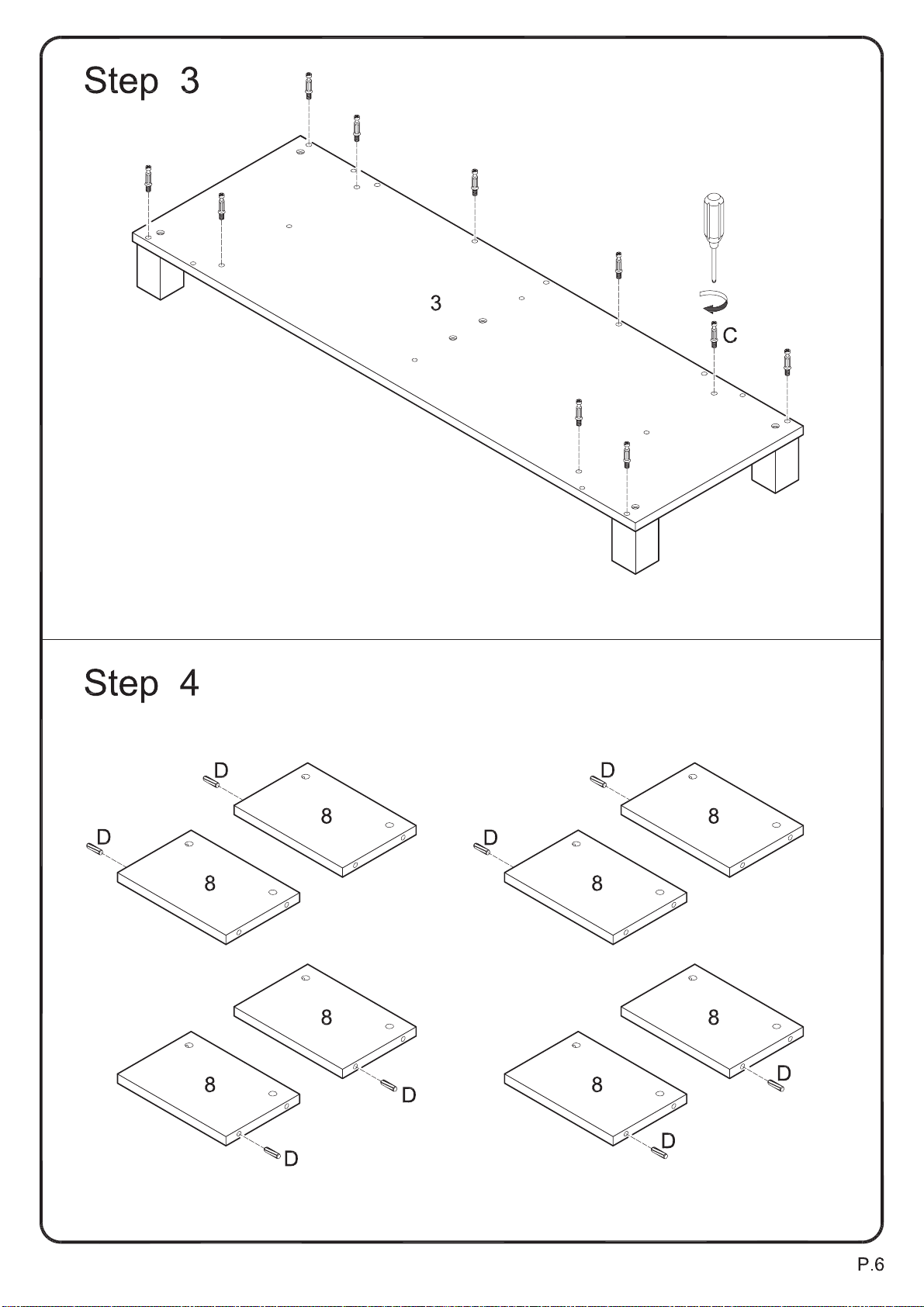

Screw short cam bolts (C) into stand base (3).
Insert short dowels (D) into panels (8) on appropriate sides.
Page 7

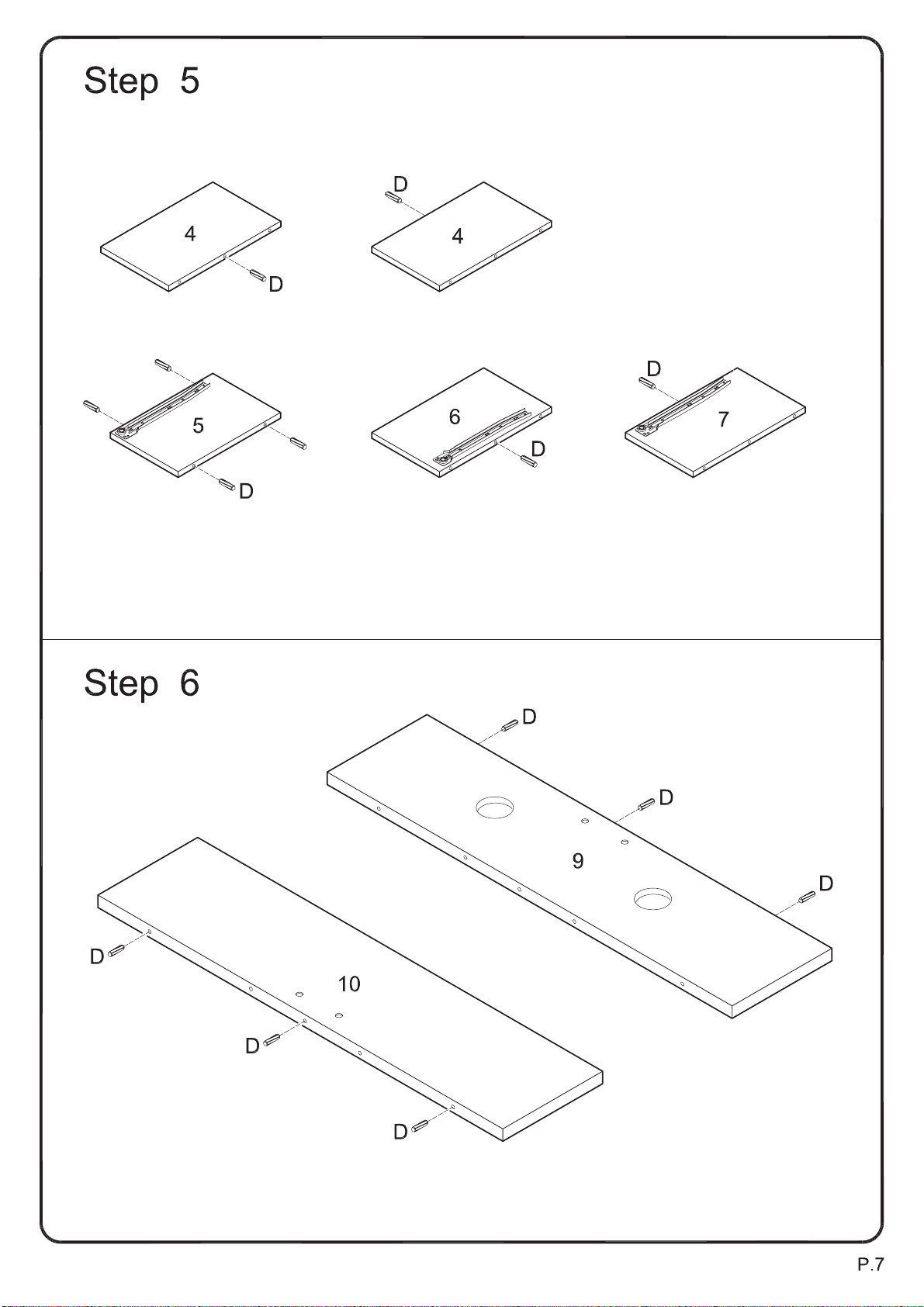

Insert short dowels (D) into panels (4,5,6,7) on appropriate sides.
Insert short dowels (D) into back panels (9,10).
Page 8

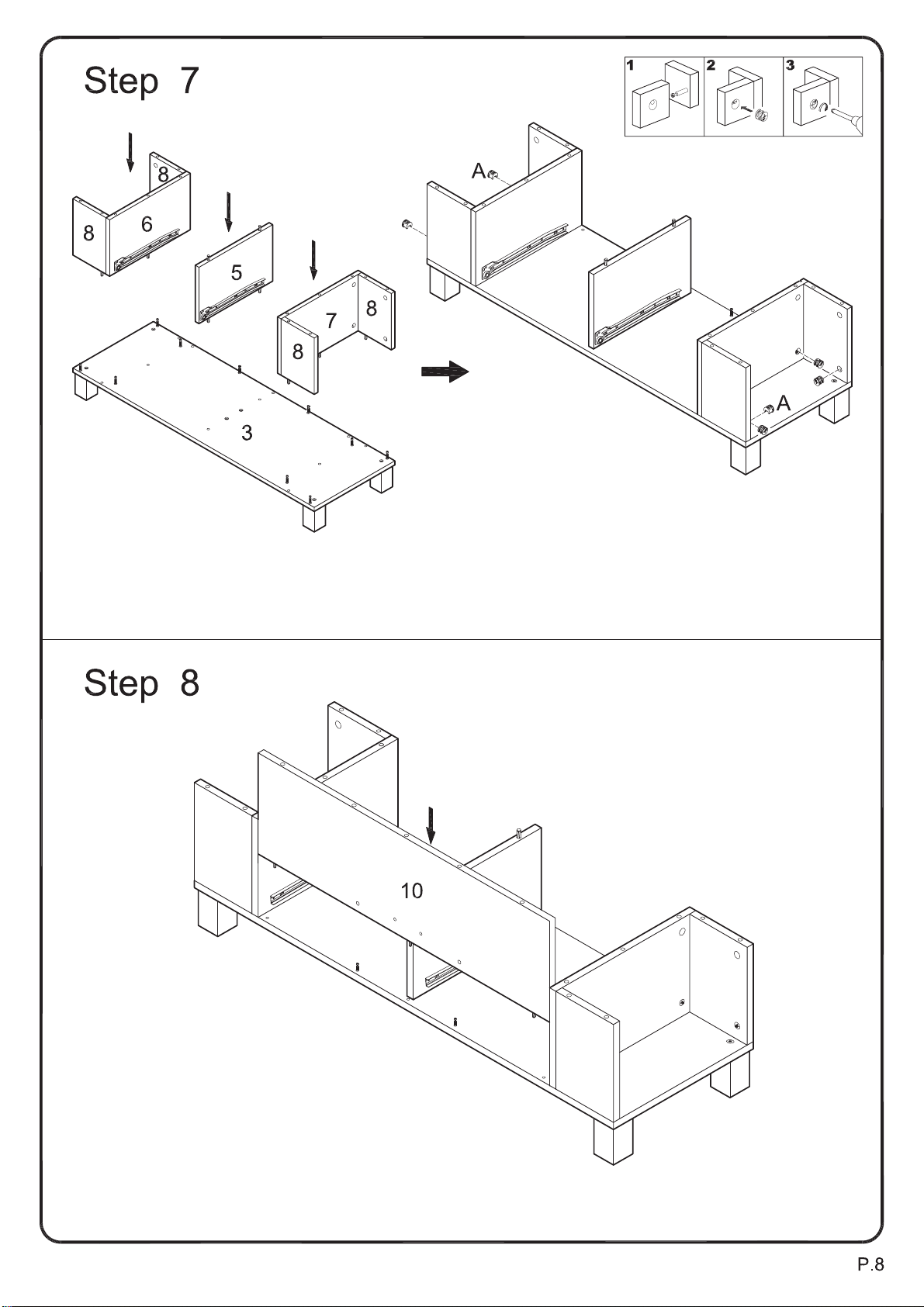

Attach panels (5,6,7,8) to stand base (3) using cam bolts and dowels as guides. Note that panels (8) are not
attached to panels (6,7), but that all panels should align when attached to stand base (3). Secure panels
(6,7,8) to stand base (3) by inserting large cam locks (A) into panels (6,7,8) and tightening with a screwdriver.
Carefully slide back panel (10) into place at the back of the stand assembly. Use cam bolts and dowels as
guides.
Page 9
7

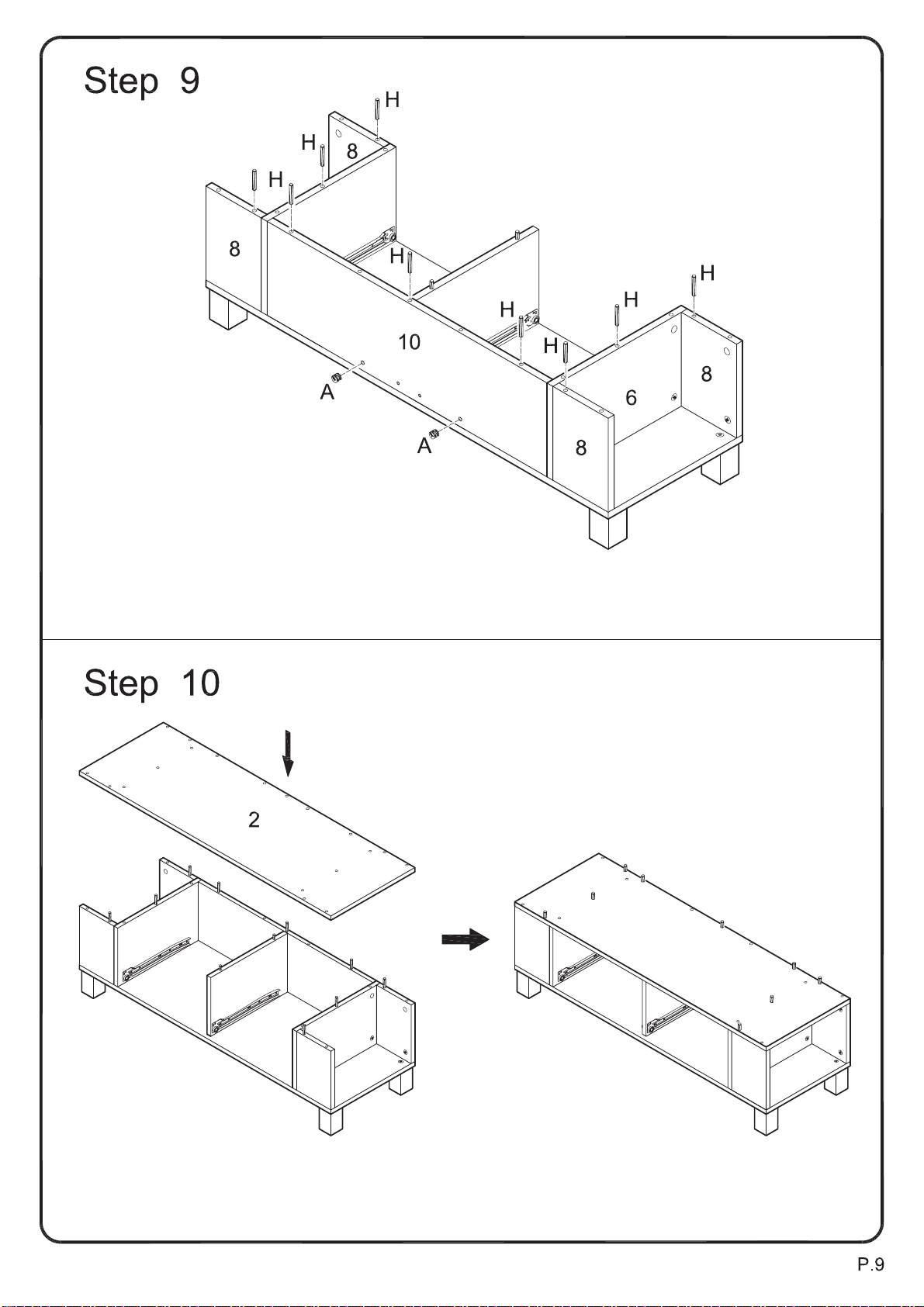

Insert cam locks (A) into back panel (10) and tighten with a screwdriver. Insert long dowels (H) into panels
(6,7,8) and back panel (10).
Carefully slide middle panel (2) into place on stand assembly. Use dowels as guides.
Page 10
A
A
A
10

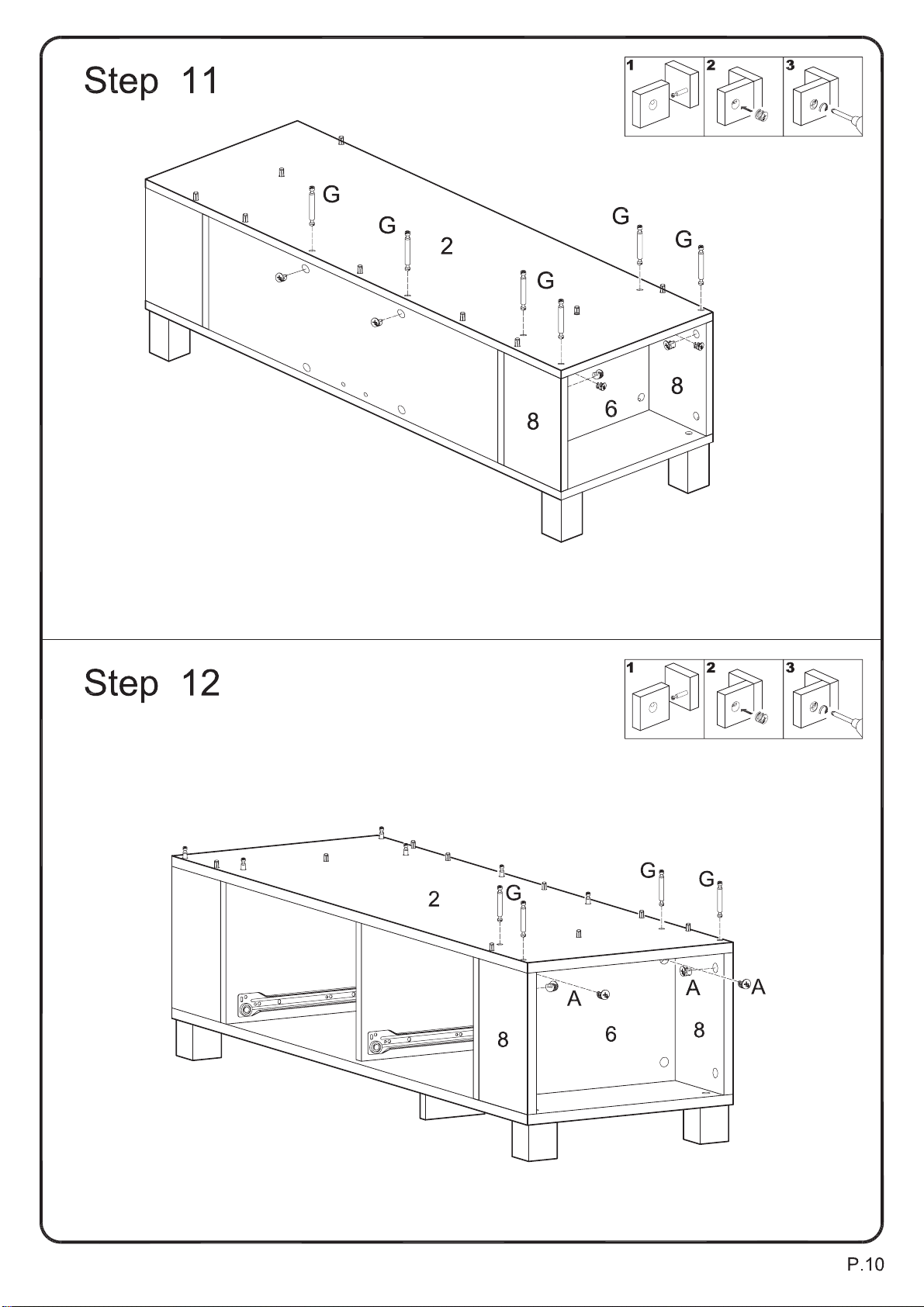

Insert long cam bolts (G) into middle panel (2). Insert large cam locks (A) into panels (6,8) and back panel
(10). Tighten with a screwdriver to secure middle panel (2).
A
On opposite end of stand assembly, insert long cam bolts (G) into middle panel (2). Insert large cam locks (A)
into panels (7,8) and tighten with a screwdriver.
Page 11

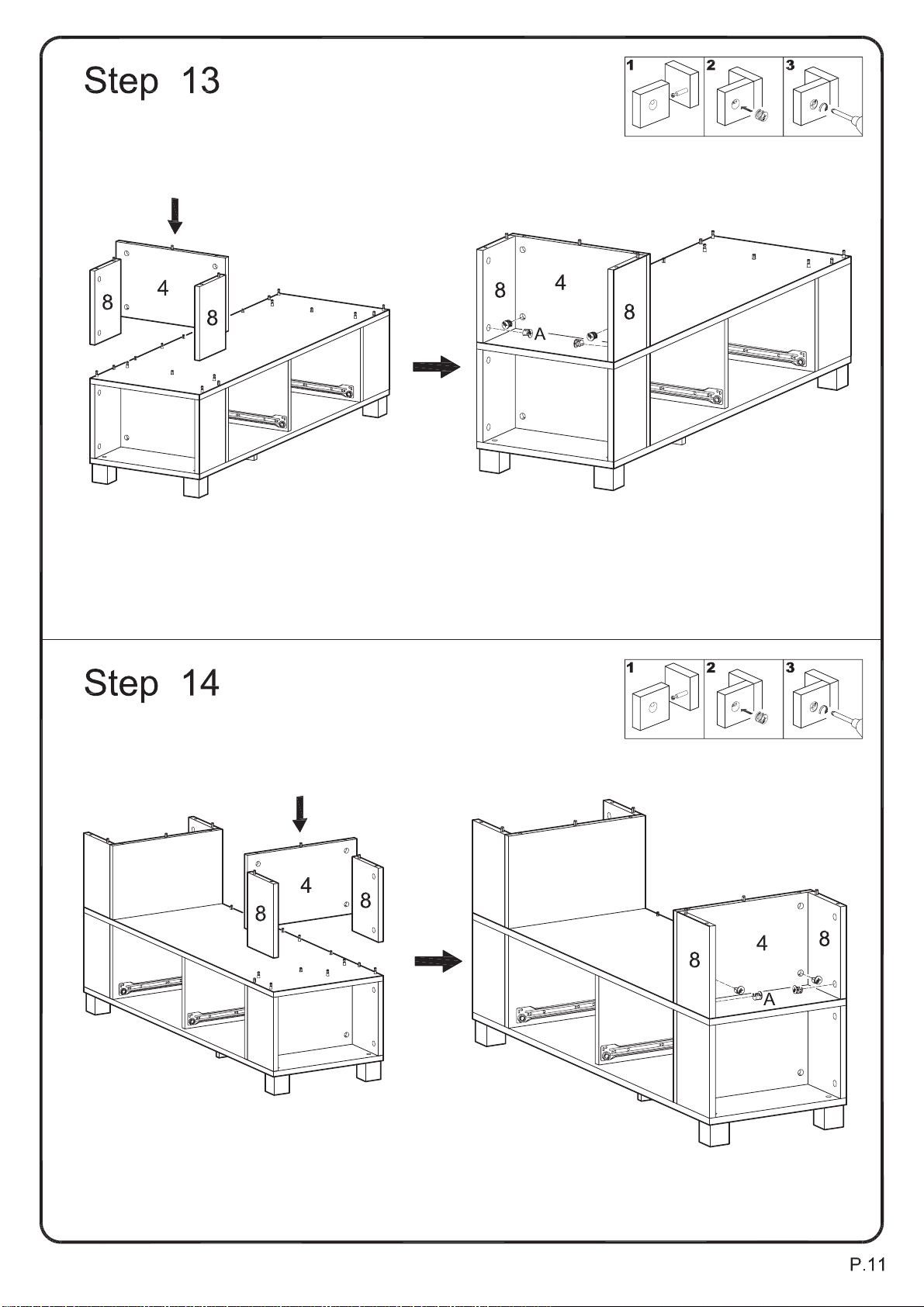

Attach panels (4,8) to the stand assembly using cam bolts and dowels as guides. Insert large cam locks (A)
into panels (4,8) and tighten with a screwdriver.
Attach the second set of panels (4,8) to the opposite end of the stand assembly using cam bolts and dowels
as guides. Insert large cam locks (A) into panels (4,8) and tighten with a screwdriver.
Page 12

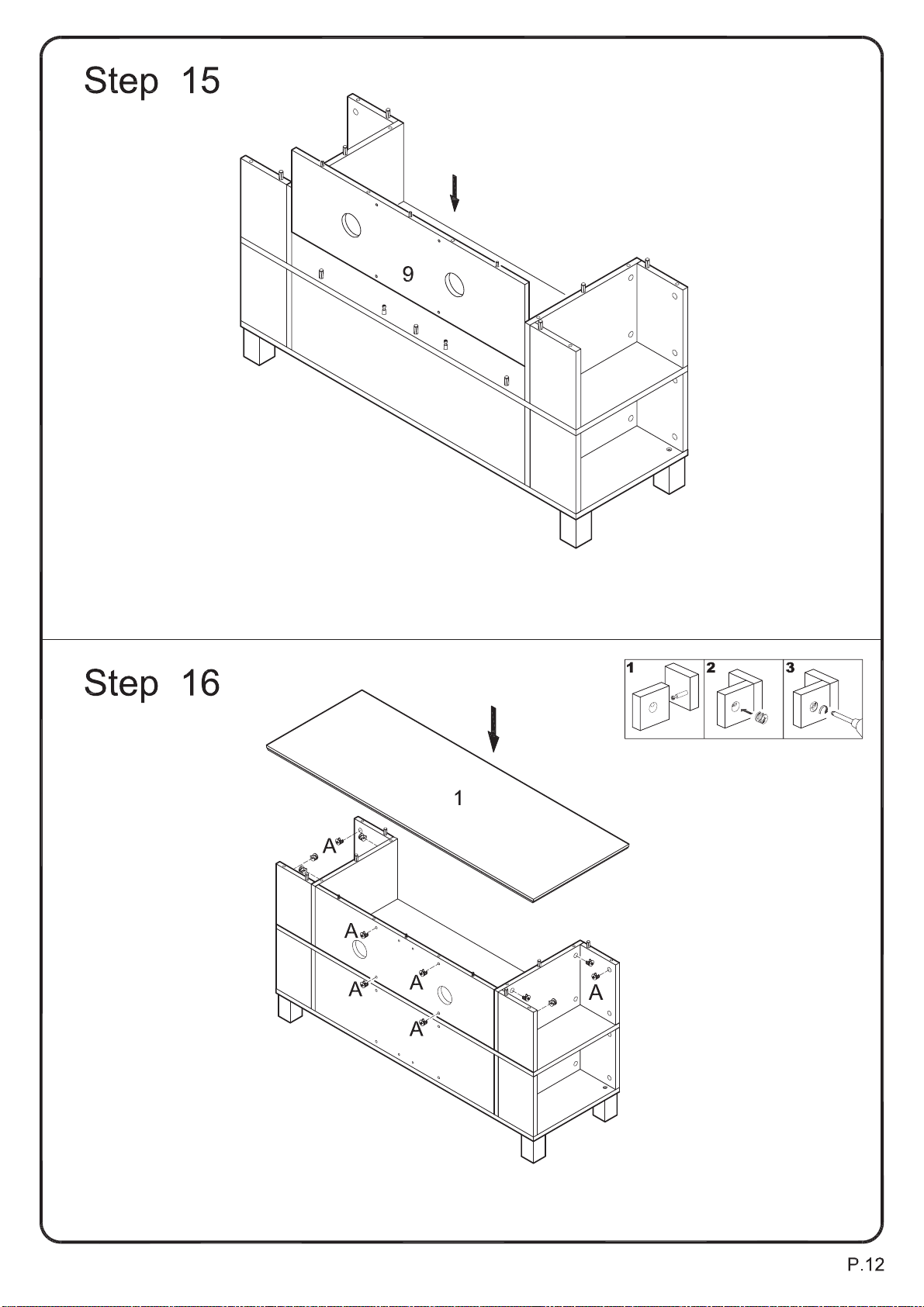

Carefully slide back panel (9) into place at the back of the stand assembly. Use cam bolts and dowels as
guides.
8
4
8
8
4
9
8
Insert large cam locks (A) into panels (4,8) and back panel (9). Attach stand top (1) to the stand assembly
using cam bolts and dowels as guides. Tighten large cam locks (A) with a screwdriver.
Page 13

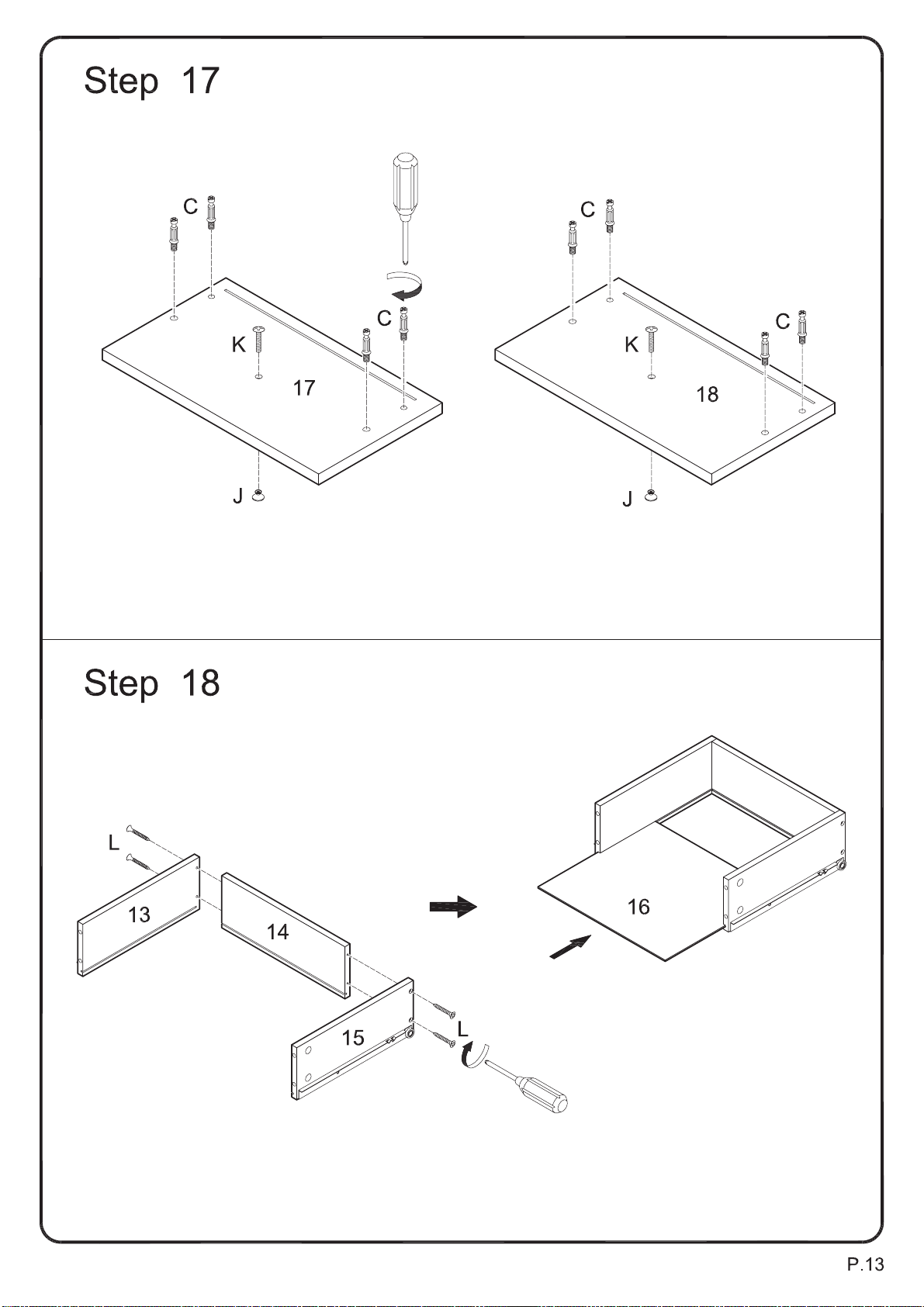

Screw short cam bolts (C) into drawer fronts (17,18). Attach handles (J) to drawer fronts (17,18) using small
bolts (K).
Attach drawer sides (13,15) to drawer back (14) using screws (L). Slide drawer bottom (16) into place along
the grooves of the drawer assembly. Repeat this step for the second drawer.
Page 14
13
15

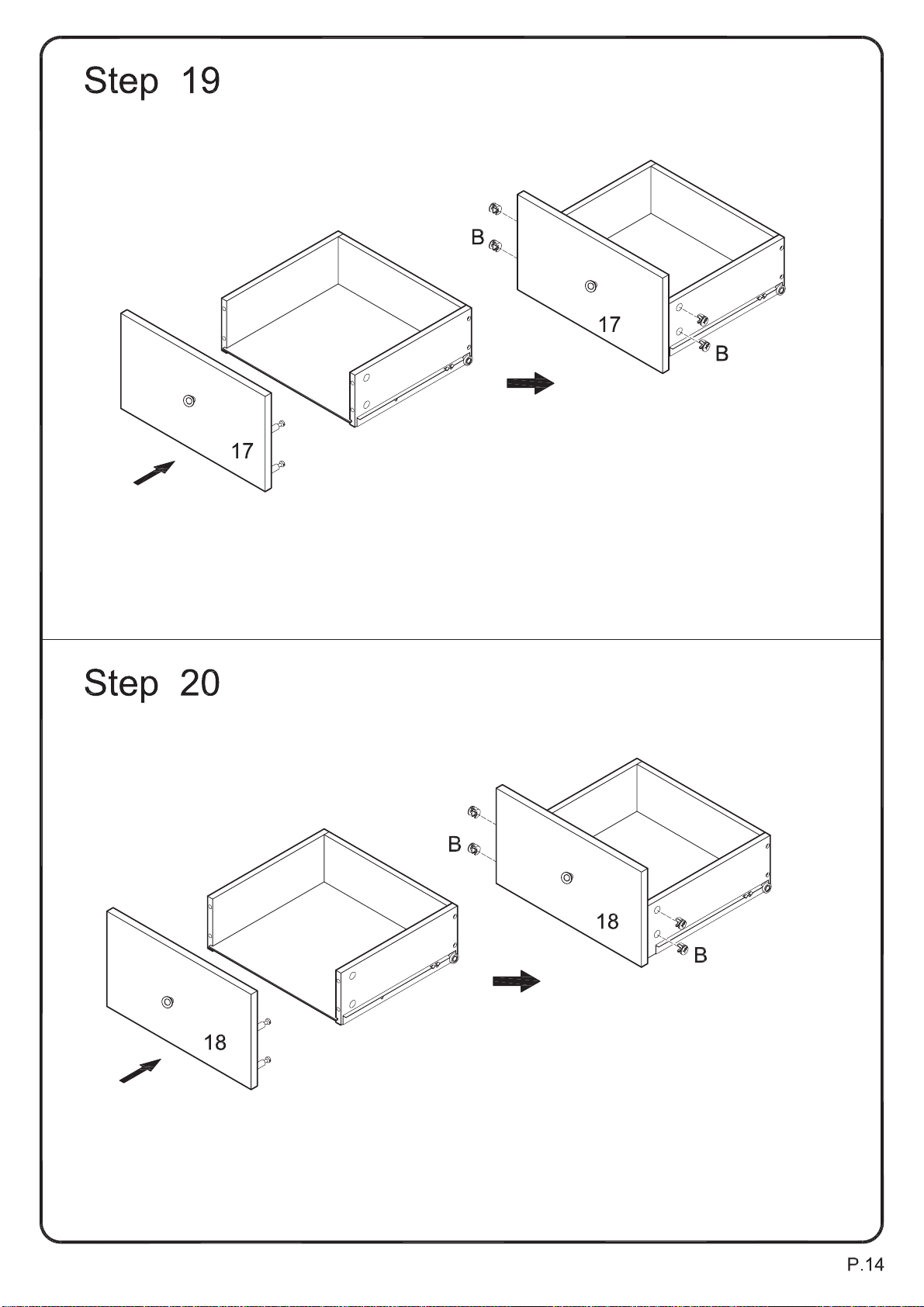

Attach drawer front (17) to the first drawer assembly using cam bolts as guides. Insert small cam locks (B)
into drawer sides (13,15) and tighten with a screwdriver.
13
15
Attach drawer front (18) to the second drawer assembly using cam bolts as guides. Insert small cam locks
(B) into drawer sides (13,15) and tighten with a screwdriver.
Page 15

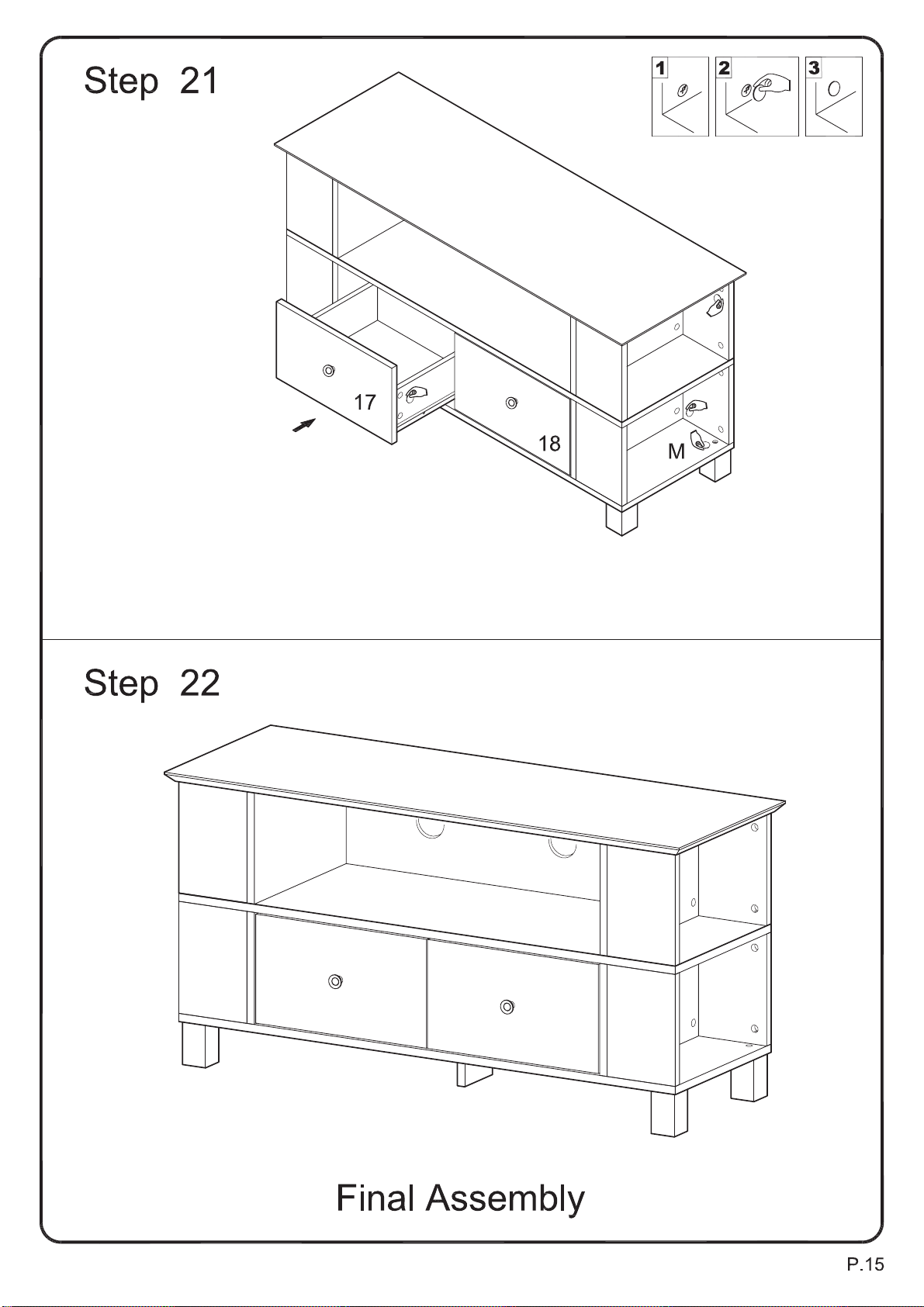

Carefully slide drawers into the stand assembly. Cover all visible cam locks with stickers (M) as desired.
