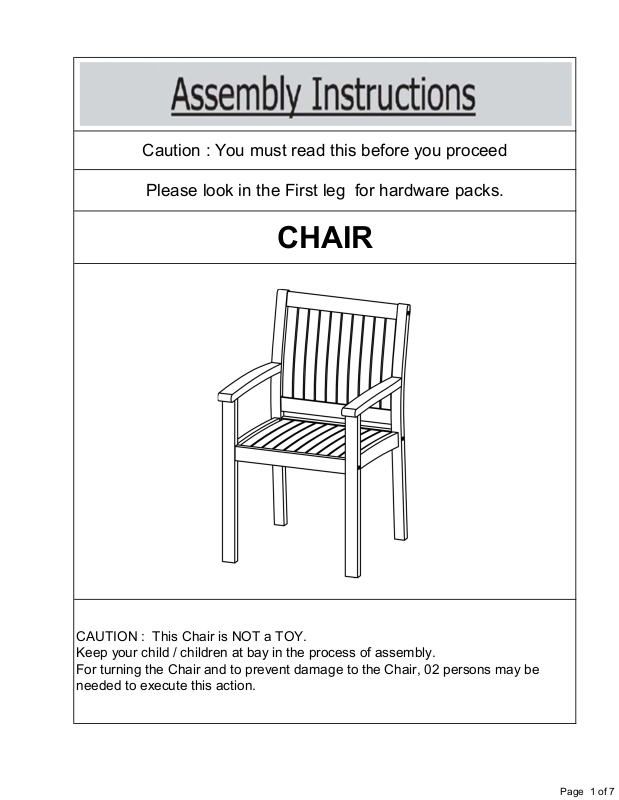

Caution : You must read this before you proceed
Please look in the First leg for hardware packs.
CHAIR
CAUTION : This Chair is NOT a TOY.
Keep your child / children at bay in the process of assembly.
For turning the Chair and to prevent damage to the Chair, 02 persons may be
needed to execute this action.
Page 1 of 7
①
②
Parts List
Label Picture Description QTY
A Backrest Panel 1
B Seat Panel 1
C First Leg Panel 1
D Second Leg Panel 1
Hardware
Label Picture Description QTY
Screw (M6x80mm) 7
Allen Key 1
Page 2 of 7
Assembly Preparation
overview of the Chair parts, the above picture is to help you put the various parts into perspective.
Before Beginning Assembly:
Assembly Steps
Overview
First Leg Panel (C)
Seat Panel (B)
Backrest Panel (A)
Second Leg Panel (D)
This Chair has multiple parts and may require up to 30 minutes to assemble. To give you an
Please read through the instructions below to familiarise yourself with the parts and steps before
assembly.
Page 3 of 7
Step 1
2
1
Front
Front
Unpack and place all parts on a clean, non-marring surface.
Step 2
A
D
B
C
2.1
2.1) Position First Leg Panel(C) and Backrest Panel(A) to Seat Panel(B).
2.2) Attach Second Leg Panel(D) to Backrest Panel(A), and Seat Panel(B) using Screws(①) with
Allen Key(②).
Do not fully tighten the Screws.
Note: Be sure to position the Seat Panel correctly as indicated by the label "Front"
2.2
Page 4 of 7
Step 3
1
2
Front
C
A
B
D
With assistance from an adult partner, turn the Chair Frame over onto the other side.
Attach First Leg Panel(C) to Backrest Panel(A), and Seat Panel(B) using Screws(①) with Allen
Key(②).
Do not fully tighten the Screws.
Page 5 of 7
Step 4
Place the Chair on a LEVEL SURFACE to see if it wobbles.
If it wobbles, lift the Chair to some 30cm to 50cm high from the ground. Keep your feet and toes
well away from the drop zone.
Drop the Chair freely and vertically with the four legs, hitting the ground, at the same time.
This Drop Test will help to ensure that all the Screws and gaps reach full alignment status.
Test again for evenness on a LEVEL SURFACE.
If no wobbles are found, proceed to tighten all the Screws.
When tightening the Screws, tighten sequentially.
DO NOT tighten any Screw fully and then move on towards the next one.
This could cause the frame to warp.
If there are still wobbles, loosen the Screws and execute this same drop test.
Step 5
Your Chair is ready to use.
This Chair can only be used on a flat, level surface
Page 6 of 7
