ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
Important to Know
1. Read all instructions carefully before installation and operation.
2. If you are not familiar with state and local electrical codes, it is recommended that you consult with a qualified
electrician.
3. Before installation, shut off power at the main fuse or circuit breaker box. Be aware that simply turning off the
wall switch is not sufficient to prevent an electrical shock.
4. This fixture requires a 120 VAC, 60 Hz power source.
5. Do not attempt to take the lantern apart; there are no serviceable parts inside.
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Maximum Wattage: 60W Incandescent Bulb
Work Temperature: - 4°F~104°F
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
BB
Mounting Unit
X1
Mounting Screw
X2
CC
DD
Wire Connector
X3
Ball Nut
X2
Page 1 of 3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
● Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
● Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
PREPARATION
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder, Wire Stripper.

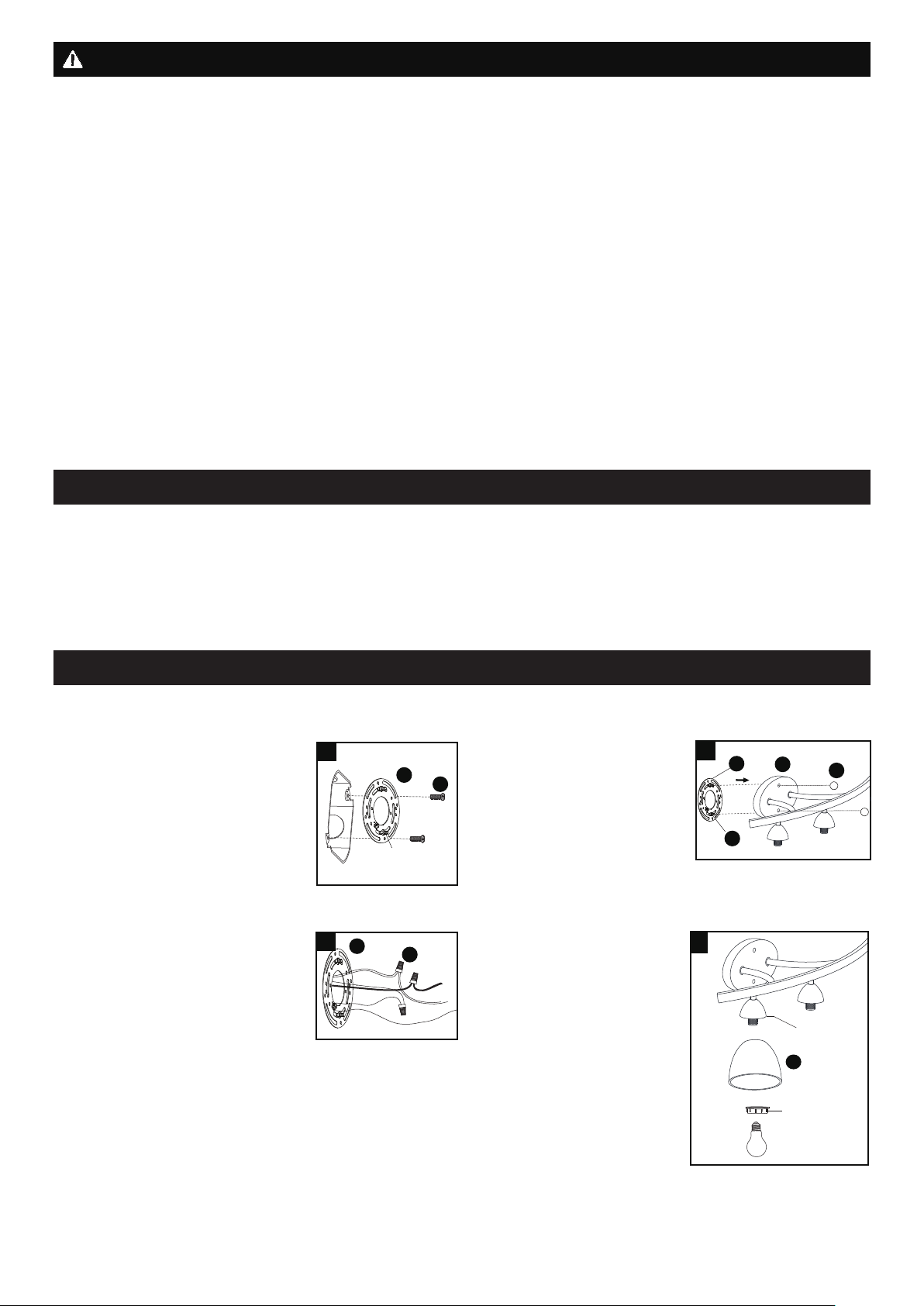

ASSEMBLY INSTRUCTIONS
Turn off the power at fuse or circuit box.
1. Attach mounting unit (AA) to the
outlet box using two mounting
screws(BB). Adjust the length of
the fixture mounting screws if
necessary.
Note: Make sure that the
headless screws are lined up
horizontally to make the fixture
1
1
AA
Fixture
Mounting
Screw
BB
3. Attach the fixture(A) to the
mounting unit(AA) by
inserting two fixture
mounting screws(BB),
and then secure it with
two ball nuts(DD).
3
AA
BB
A
DD
level.
2. Connect the fixture black wire to
the house black wire and the
fixture white wire to the house
white wire using wire connectors
2
AA
CC
4. Attach the glass shades
(B) to the glass holders,
and then secure them
with socket rings.
4
(CC) provided. Connect the copper
wire on the light fixture to the
mounting unit(AA) by securing it
with the preinstalled grounding
screw, and then connect it to the
house grounding wire with the
wire connector(CC).
Tuck all the wires into outlet box.
Install 5X60W Max
medium base bulbs
(not included).
Turn on the power at fuse
or circuit box.
Glass Holder
B
Socket Ring
Bulb Type A Max.60W
(not included)
Page 2 of 3
The following parts are available for re-order if damaged or missing.
Spare Parts List:
AA
Mounting Unit
X1
BB
Mounting Screw
X2
CC
DD
Wire Connector
X3
Ball Nut
X2
Assembly Kit
(1 SET)
CARE AND MAINTENANCE
● To clean, turn off and wipe with a damp, non-abrasive cloth.
TROUBLESHOOTING
1) The light does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
a) Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Glass Shade
B
(5 PCS)
Page 3 of 3
