Assembly Instructions
Caution: You must read this before you proceed.
Bed
Not intended for children under the age of six. INFANTS HAVE DIED
FROM BECOMING ENTRAPPED IN BEDS. Openings in and between bed
parts can entrap the neck and head of a small child. NEVER use bed for
child under the age of six.
The mattress must be appropriately sized for the bed. If the mattress is
undersized, dangerous gaps can exist and a person can become entrapped
or entangled in the frame and suffocate.
NEVER place bed near windows where cords from blinds or drapes may
strangle a child.
NEVER suspend strings over bed.
NEVER place items with a string, cord, or ribbon, such as hood strings or
pacifier cords, around a child’s neck.
These items may catch on bed parts.
ALWAYS follow assembly instructions.
Page 1 OF 11

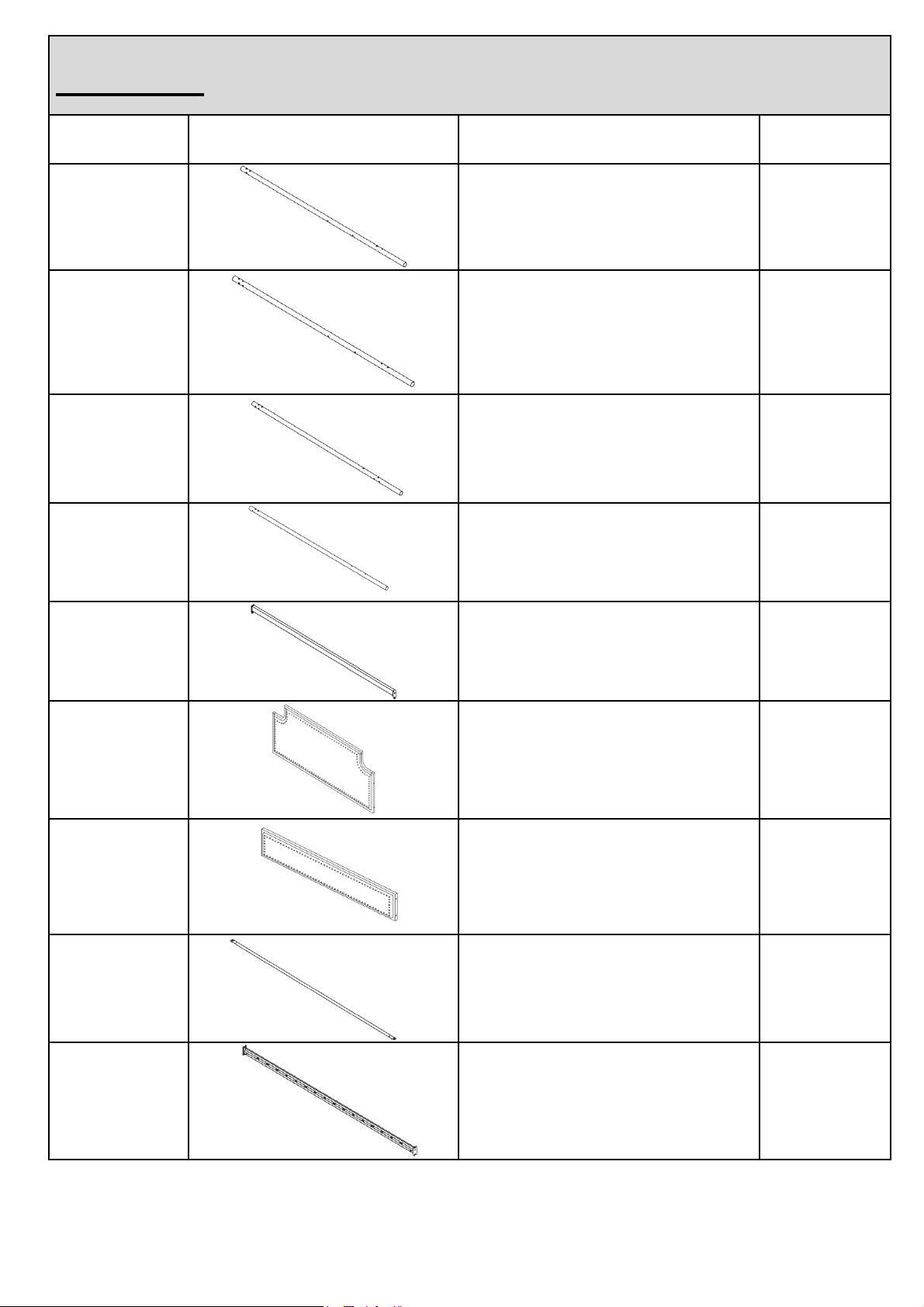

Label Picture Description QTY
A Left Headboard Post 1
B Right Headboard Post 1
C Left Footboard Post 1
D Right Footboard Post 1
E Short Upper Support Rail 2
F Headboard Panel 1
G Footboard Panel 1
H Slat 16
I Side Rail 2
Part List
Page 2 OF 11
J Support Rail 2
K Finial 4
L Center Support Rail 1
M Support Leg 2
N Long Upper Support Rail 2
Label Picture Description QTY
① Bolt (M6x46mm) 5
② Bolt (M6x16mm) 25
③ Bolt (M8x55mm) 9
④ Bolt (M6x55mm) 9
⑤ Spring Washer (φ6.5mm) 9
⑥ Washer (φ6.5mm) 9
⑦ Allen Key (4mm) 1
⑧ Slat Connector 38
Hardware
Page 3 OF 11
Before
Beginning
Assembly:
Assembly Steps
Assembly Preparation
x 2
x 2
x 2
x 2
x 4
x 2
x 16
x 9
x 9
x 9
x 38
x 5
x 25
x 9
Page 4 OF 11
Unpack and place all parts for clear visibility.
This Bed has multiple parts and may require up to 60 minutes to assemble. To give
you an overview of the bed parts, the above picture is to help you put the various parts
into perspective. Please read through the instructions below to familiarise yourself with
the parts and steps before assembly.
Overview
Step 1
x 2
x 2
x 2
x 16
x 2
x 2
x 4
FRONT FACING
Short Upper
Support Rail(E)
Finial(K)
Footboard
Panel(G)
Support Rail(J)
Support
Leg(M)
Side Rail(I)
Slat(H)
Long Upper
Support Rail(N)
Center
Support Rail(L)
Headboar
d Panel(F)
Left Headboard
Post(A)
Right Headboard
Post(B)
Left Footboard Post(C)
Right
Footboard
Post(D)
Page 5 OF 11
Step 2
3.1) Attach Left Headboard Post(A) and Right Headboard Post(B) to Headboard
Panel(F) using Bolts(④) with Allen Key(⑦).
3.2) Attach Left Headboard Post(A) and Right Headboard Post(B) to Short Upper
Support Rail(E) using Bolts(②), and Bolts(③) with Allen Key(⑦).
Do not fully tighten the Bolts.
Step 3
Attach Finials(K) to mounting positions on Left Headboard Post(A), Right Headboard
Post(B), Left Footboard Post(C) and Right Footboard Post(D) by turn clockwise by
hand.
3.1
3.2
Page 6 OF 11
Step 4
4.1) Attach Left Footboard Post(C) and Right Footboard Post(D) to Footboard
Panel(G) using Bolts(④) with Allen Key(⑦).
4.2) Attach Left Footboard Post(C) and Right Footboard Post(D) to Short Upper
Support Rail(E) using Bolts(②), and Bolts(③) with Allen Key(⑦).
Do not fully tighten the Bolts.
Step 5
4.2
4.1
5.2
5.1
Page 7 OF 11
Step 6

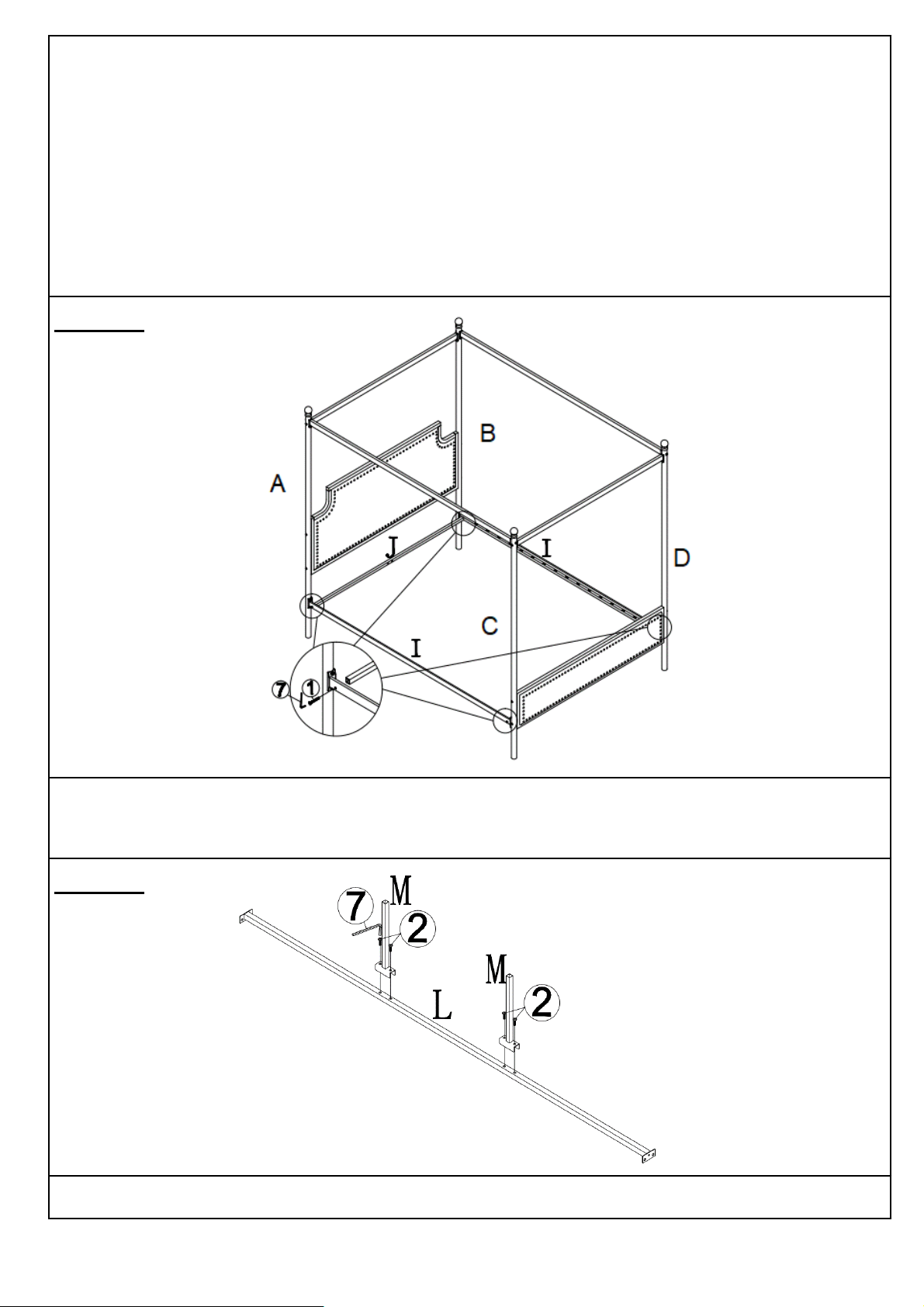

Attach Support Legs(M) to Center Support Rail(L) using Bolts(②) with Allen Key(⑦).
Attach Support Rail(J) to Side Rail(I) using Bolts(①) with Allen Key(⑦).
Repeat same process to assemble the other Support Rail(J) to Side Rail(I).
Step 7
5.1) Place the Headboard frame and Footboard frame right side up.
Then, attach Side Rail(I) to Left Headboard Post(A) and Left Footboard Post(C) using
Bolts(②), Spring Washers(⑤), and Washers(⑥) with Allen Key(⑦).
Repeat same process to assemble the other Side Rail(I) to Right Headboard Post(B)
and Right Footboard Post(D).
5.2) Attach Long Upper Support Rail(N) to Left Headboard Post(A) and Left Footboard
Post(C) using Bolts(②), and Bolts(③) with Allen Key(⑦).
Repeat same process to the other Long Upper Support Rail(N) to Right Headboard
Post(B) and Right Footboard Post(D).
Page 8 OF 11
Step 8
Attach Center Support Rail(L) to Support Rails(J) using Bolts(②) with Allen Key(⑦).
Step 9
Insert Slat connectors(⑧) onto both sides of Slat(H) as pictured above.
Page 9 OF 11
Step 11
Your Bed is ready for use.
This Bed can only be used on a flat, level surface.
Attach assembled Slats(H) to the mounting positions of the Side Rails(I).
Note: Before assembling Slat(H) to Side Rail(I), fully and securely, tighten all
nuts, at all joints.
Inspect it and make sure all parts are adequately connected.
Step 10
Page 10 OF 11
Page 11 OF 11
