Winnebago Access 24V (2014), Access 26Q (2014), Access 31J (2014), Access 31R (2014), Access 31W (2014) User Manual

TABLE OF CONTENTS

1 – INTRODUCTION

About this Manual ............................................................................................................................ 1-1

Safety Messages Used in this Manual .............................................................................................. 1-1

Pre-Delivery Inspection ....................................................................................................................1-2

Front Axle Tire Alignment ............................................................................................................... 1-2

Service and Assistance ...................................................................................................................... 1-2

Reporting Safety Defects .................................................................................................................. 1-2

Occupant and Cargo Carrying Capacity Label .................................................................................1-3

Vehicle Certification Label ............................................................................................................... 1-4

Specifications and Capacities ........................................................................................................... 1-5

Owner and Vehicle Information ....................................................................................................... 1-6

2 – SAFETY AND PRECAUTIONS

General Warnings ............................................................................................................................. 2-1

Driving Safety ................................................................................................................................... 2-1

Fuel and Propane Gas ....................................................................................................................... 2-1

Propane Gas Leaks ............................................................................................................................ 2-2

Propane Gas Leak Detector .............................................................................................................. 2-3

Carbon Monoxide Warning .............................................................................................................. 2-3

Carbon Monoxide Alarm .................................................................................................................. 2-3

Smoke Alarm .................................................................................................................................... 2-4

Fire Extinguisher ............................................................................................................................... 2-5

Electrical ........................................................................................................................................... 2-5

Loading ............................................................................................................................................. 2-5

Maintenance ...................................................................................................................................... 2-6

Emergency Exits ............................................................................................................................... 2-6

Power Sofas and Beds ....................................................................................................................... 2-6

Slideout Rooms ................................................................................................................................. 2-7

Formaldehyde Information ............................................................................................................... 2-7

Mold, Moisture, and Your Motor Home ........................................................................................... 2-7

Roof and Ladders .............................................................................................................................. 2-8

Roadside Emergency ........................................................................................................................ 2-9

Jump Starting ..................................................................................................................................2-10

Engine Overheat ............................................................................................................................. 2-10

5 - DASH / AUTO

3 – DRIVING YOUR MOTOR HOME

Seats – Driver/Co-Pilot ..................................................................................................................... 3-1

Fold-Down Dinette Seat ................................................................................................................... 3-1

Seat Belts .......................................................................................................................................... 3-1

Child Restraints ................................................................................................................................. 3-2

Keys .................................................................................................................................................. 3-3

Rev. 1308130220 Part No. 161500-13-002

Table Of Contents

Hazard Warning Flashers .................................................................................................................. 3-3

Mirrors – Power Sideview Exterior .................................................................................................. 3-3

Mirrors – Power Sideview Exterior .................................................................................................. 3-4

Battery Boost Switch ........................................................................................................................ 3-5

Air Conditioner/Heater – Automotive (Dash) .................................................................................. 3-5

Radio In-Dash/Rearview Monitor System ........................................................................................ 3-6

Radio – In-Dash ................................................................................................................................3-7

Engine Access – Interior ................................................................................................................... 3-8

Engine Cooling System .................................................................................................................... 3-8

Tires .................................................................................................................................................. 3-8

Suspension Alignment and Tire Balance ..........................................................................................3-8

Air Springs – Rear Helper ................................................................................................................ 3-9

Lights ................................................................................................................................................ 3-9

4 – APPLIANCES AND SYSTEMS

Refrigerator ....................................................................................................................................... 4-1

Refrigerator Service Access Compartment ....................................................................................... 4-2

Range and Oven ................................................................................................................................ 4-2

Microwave Oven ............................................................................................................................... 4-4

Range Hood ...................................................................................................................................... 4-4

Systems Monitor Panel .....................................................................................................................4-4

Water Heater - Gas/ Electric ............................................................................................................. 4-5

Water Heater - Gas/ Electric ............................................................................................................. 4-6

Pressure-Temperature Relief Valve .................................................................................................. 4-7

Propane Gas Furnace ........................................................................................................................ 4-8

Propane Gas Furnace ........................................................................................................................ 4-9

Ducted Roof Air Conditioning System ............................................................................................. 4-9

Air Conditioner Filter ..................................................................................................................... 4-10

5 – PROPANE GAS

Propane Gas Supply .......................................................................................................................... 5-1

Safe Use of the Propane Gas System ................................................................................................ 5-2

Propane Gas Warnings and Precautions ...........................................................................................5-3

Propane Gas Pressure Regulator ....................................................................................................... 5-4

Propane Vaporization in Cold Weather ............................................................................................5-5

6 – ELECTRICAL

Electrical Cautions ............................................................................................................................ 6-1

Electrical System – House 120-Volt AC ..........................................................................................6-1

External Power Cord ......................................................................................................................... 6-1

Power Center ..................................................................................................................................... 6-2

Circuit Breakers – House 120-Volt AC ............................................................................................ 6-3

Electrical Outlets – House 120-Volt AC .......................................................................................... 6-4

Ground Fault Circuit Interrupter ....................................................................................................... 6-4

Electrical Generator – 120-Volt ........................................................................................................ 6-4

Electrical System – House 12-Volt DC ............................................................................................6-5

Table Of Contents

House/Coach Battery Disconnect Switch ......................................................................................... 6-6

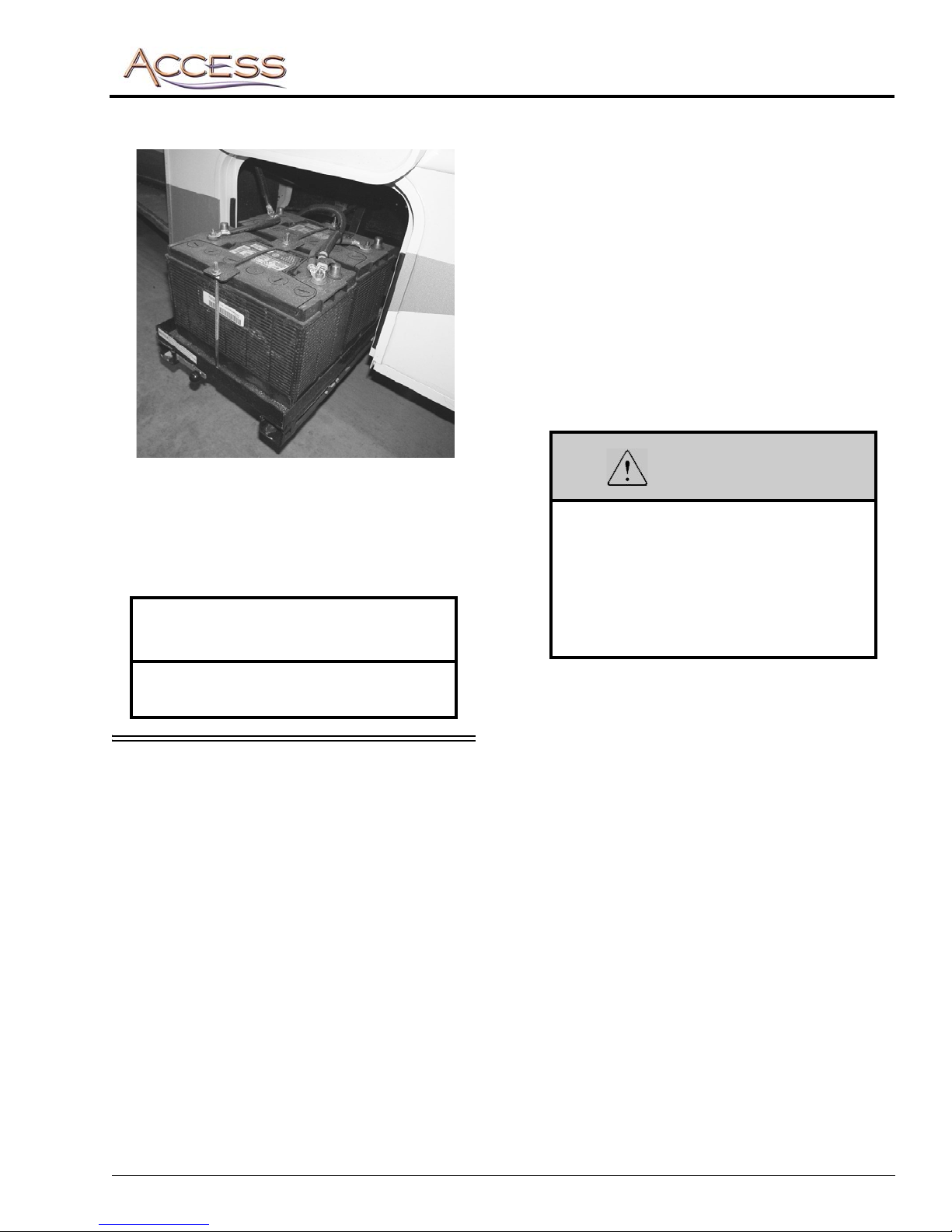

Battery Access .................................................................................................................................. 6-6

Battery Care ...................................................................................................................................... 6-7

Circuit Breakers and Fuses – House 12-Volt DC ............................................................................. 6-8

7 – PLUMBING

Fresh Water System .......................................................................................................................... 7-1

Water Pump ...................................................................................................................................... 7-2

Disinfecting Your Fresh Water System ............................................................................................ 7-3

Shower Hose Vacuum Breaker ......................................................................................................... 7-4

Exterior Shower/Wash Station .......................................................................................................... 7-4

Toilet ................................................................................................................................................. 7-4

Drainage System (P-Traps) ............................................................................................................... 7-5

Waste Water System ......................................................................................................................... 7-5

Waste Water System - Waste Pump (Model 26Q) ........................................................................... 7-6

Holding Tank Heater ........................................................................................................................ 7-9

WaterLine & Tank Drain Valves ...................................................................................................... 7-9

Water Heater Bypass and Antifreeze Siphon Valves ..................................................................... 7-10

Winterizing Procedure .................................................................................................................... 7-10

Water System Drain Valve Locations ............................................................................................ 7-15

8 – ENTERTAINMENT

Video Selection System .................................................................................................................... 8-1

TV – (Swing-Out) ............................................................................................................................. 8-2

TV – Entrance Door .......................................................................................................................... 8-2

Front TV Ignition Switch Interlock .................................................................................................. 8-2

Bedroom TV 12-Volt Master Power Switch .................................................................................... 8-3

Audio-Video System Basic Operation .............................................................................................. 8-3

DVD Home Theater System ............................................................................................................. 8-3

Flip-Down Screen Video Players ..................................................................................................... 8-5

Electrical Inverter ............................................................................................................................. 8-6

TV Antenna - Digital ........................................................................................................................ 8-6

TV Signal Amplifier ......................................................................................................................... 8-7

Cable TV Connection ....................................................................................................................... 8-7

Exterior Cable TV - 12V Connection ............................................................................................... 8-8

TV Digital Satellite System Wiring .................................................................................................. 8-8

9 – FURNITURE AND SOFTGOODS

Sleeping Facilities ............................................................................................................................. 9-1

Front Overhead Bunk ........................................................................................................................ 9-1

Sofa/Bed Conversion ........................................................................................................................ 9-2

Dinette/Bed Conversion .................................................................................................................... 9-3

Dinette/Bed Conversion - Dream Dinette™ ..................................................................................... 9-4

U-Shaped Dinette/Bed Conversion ................................................................................................... 9-5

Dinette Conversion ........................................................................................................................... 9-6

Comfort Sofa Sleeper ........................................................................................................................ 9-6

Roller Shades (Manual) - Solar Day/Night .......................................................................................9-9

Wood Furniture and Cabinetry ....................................................................................................... 9-10

10 – SLIDEOUT ROOMS

Slideout Room Keylock .................................................................................................................. 10-1

Slideout Room Operation – Electric ............................................................................................... 10-1

Slideout Room – Extreme Weather Precaution .............................................................................. 10-3

Slideout Room Troubleshooting (Lippert) ..................................................................................... 10-3

Slideout Emergency Retraction (Lippert) ....................................................................................... 10-4

General Slideout Care ..................................................................................................................... 10-6

11 – MAINTENANCE AND STORAGE

Sealants – Inspection and General Information ..............................................................................11-1

Roof ................................................................................................................................................ 11-1

Undercarriage .................................................................................................................................. 11-1

Exterior Finish ................................................................................................................................ 11-2

Exterior Graphic Care ..................................................................................................................... 11-3

Plastic Parts – Cleaning .................................................................................................................. 11-3

Exterior Lights ................................................................................................................................ 11-4

Interior Soft Goods ......................................................................................................................... 11-4

Ceiling Fabric Care ......................................................................................................................... 11-5

Cabinetry – Cleaning ...................................................................................................................... 11-7

Tables and Countertops .................................................................................................................. 11-7

Stainless Steel Appliances .............................................................................................................. 11-7

Galley Sink ..................................................................................................................................... 11-8

Range and Refrigerator ................................................................................................................... 11-8

Vinyl Flooring ................................................................................................................................. 11-8

Bathroom ........................................................................................................................................ 11-9

Doors and Windows ........................................................................................................................ 11-9

Vehicle Storage – Preparation ........................................................................................................ 11-9

Vehicle Storage – Removal .......................................................................................................... 11-10

Chassis Service and Maintenance ................................................................................................. 11-11

Coach Maintenance Chart ............................................................................................................. 11-12

12 – MISCELLANEOUS

Loading the Vehicle ........................................................................................................................ 12-1

Weighing Your Loaded Vehicle ..................................................................................................... 12-1

Car or Trailer Towing ..................................................................................................................... 12-3

Trailer Wiring Connector ................................................................................................................ 12-4

Towing Guidelines .......................................................................................................................... 12-4

Power Awning ................................................................................................................................ 12-5

Storage Compartment Doors .......................................................................................................... 12-6

Storage Compartment Cover/Folding Table ................................................................................... 12-6

Tool and Ladder Storage ................................................................................................................. 12-6

Roof Ladder .................................................................................................................................... 12-6

1-4

Windows ......................................................................................................................................... 12-7

Power Roof Ventilator .................................................................................................................... 12-7

Effects of Prolonged Occupancy .................................................................................................... 12-8

1-5

SECTION 1 – INTRODUCTION

DANGER

Congratulations! We welcome you to the exciting world of motorhome travel and camping. You will find it convenient and enjoyable to have all the comforts of home and still enjoy the great outdoors wherever you choose to go. Your motorhome has been carefully designed, engineered, and manufactured to provide years of enjoyment.

Before sliding into the driver’s seat, please become familiar with operations and features. In addition, spend some time with the dealer when you take delivery to learn all you can about your new motorhome.

ABOUT THIS MANUAL

This operator’s manual was prepared to aid you in the proper care and operation of the vehicle and equipment.

Please read this manual completely to understand how everything in your coach works before taking it on its “maiden voyage”. In addition, please become familiar with the New Vehicle Limited Warranty.

NOTE: This manual describes many features of

your motorhome and includes instructions for its safe use. This manual, including photographs and illustrations, is of a general nature only.

Some equipment and features described or shown in this manual may be optional or unavailable on your model.

Because of Winnebago Industries®’ continuous program of product improvement, it is possible that recent product changes and information may not be included. The instructions included in this manual are intended as a guide, and in no way extend the responsibilities of Winnebago Industries beyond the standard written warranty as presented in this manual. The descriptions, illustrations, and specifications in this manual were

correct at the time of printing. We r eserve the right to change specifications or design without notice, and without incurring obligation to install the same on products previously manufactured.

The materials in your InfoCase contain

warranty information and operating and maintenance instructions for the various appliances and components in your motorhome.

NOTE: Many of the instruction sheets and

manuals for the various appliances and components have been incorporated into the Operator’s Manual Supplement for your convenience. Please read the FAQ in Section 1 of the Operator’s Manual Supplement for more details.

Throughout this manual, frequent reference is made to the vehicle chassis manual that is provided by the manufacturer of the chassis on which this motorhome is built.

Consult the chassis manual for operating, safety, and maintenance instructions pertaining to the chassis section of the motorhome.

SAFETY MESSAGES USED IN THIS MANUAL

Throughout this manual, certain items are labeled Danger, Warning, Caution, Notice, or Note. These terms alert you to precautions that may involve damage to your vehicle or a risk to your personal safety. Read and follow them carefully.

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious personal injury.

5 - DASH / AUTO

1-1

SECTION 1 –

WARNING

CAUTION

INTRODUCTION

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious personal injury.

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate personal injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

NOTE: A “Note” is not necessarily safety-

related, but indicates a recommendation or special point of information that could assist in understanding the use or care of a feature item.

FRONT AXLE TIRE ALIGNMENT

We recommend that you have the front suspension and steering alignment checked and adjusted after you have fully loaded the vehicle according to your needs. Thereafter, have alignment inspected periodically to maintain vehicle steering performance and prevent uneven tire wear.

SERVICE AND ASSISTANCE

Your dealer will be glad to provide any additional information you need, as well as answer any questions you might have about operating the equipment in your coach. When it comes to service, remember that your dealer knows your vehicle best and is interested in your satisfaction. Your dealer will provide quality maintenance and any other assistance that you may require during your ownership of this vehicle.

If you need warranty repairs while traveling, you may take your vehicle to any authorized Winnebago Industries® dealership and request their assistance.

See the Service Dealer Directory in your InfoCase.

PRE-DELIVERY INSPECTION

This motorhome has been thoroughly inspected before shipment. Your dealer is responsible for performing a complete predelivery inspection of the chassis and all motorhome components.

As a part of the pre-delivery inspection procedure, the dealer is responsible for road testing the motorhome, noting, and correcting any problems before delivery.

1-2

REPORTING SAFETY DEFECTS

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Winnebago Industries, Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Winnebago Industries®.

To contact NHTSA, you may either call the Vehicle Safety Hotline toll-free at: 1-888-327-4236; (TTY: 1-800-424-9153)

or go to their website at http://www.safercar.gov or write to:

Administrator, NHTSA 1200 New Jersey Avenue S.E. Washington, D.C. 20590

You can also obtain other information about motor vehicle safety from the NHTSA website at http://www.safercar.gov

OCCUPANT AND CARGO CARRYING CAPACITY LABEL

This label is affixed in the driver’s area next to or near the Vehicle Certification Label. It contains vehicle occupant and cargo carrying capacity along with the number of seat belt positions in the vehicle. The label also provides the weight of a full load of water and advises that this weight, along with the tongue weight counts as cargo.

SECTION 1 –

INTRODUCTION

If any weight exceeding 45.4 kg (100 lbs.) is added to your coach between final vehicle certification and first retail sale, the occupant and cargo carrying capacity must be corrected and a label similar to the one shown below will be affixed inside your coach.

1-3

SECTION 1 – INTRODUCTION

VEHICLE CERTIFICATION LABEL

This label is affixed to the lower driver side armrest panel, driver door, or the driver side door jamb,

depending on model. It contains vehicle identification numbers and other important reference information.

EXPLANATION OF DATA

1. Chassis manufacturer.

2. Chassis manufacture date.

3. Month and year of manufacture at Winnebago Industries®.

4. Gross Vehicle Weight Rating: Total permissible weight of the vehicle, including driver, passengers, total cargo carried (including all liquids), and equipped with all options.

5. Gross Axle W eight Rating: Total permissible weight allowed for the front and rear axles (listed in pounds and kilograms).

6. Suitable Tire Choice: Tires recommended to meet handling and safety requirements. When replacing any of the tires on your vehicle, always replace with a tire that meets these specifications.

7. Suitable Rim Choice: Wheel rims recommended to meet handling and safety requirements. When replacing any of the rims on your vehicle, always replace with a rim that meets these specifications.

8. Cold Inflation Pressure: Inflation pressures at Gross Axle Weight Ratings recommended (while cold) for the tires originally equipped

on your vehicle. These pressure levels must be maintained to assure proper handling, safety, and fuel economy.

9. Rear Axle Wheel Configuration: Single or Dual as it relates to the inflation.

10. Serial Number: This is the serial number assigned to the completed vehicle by Winnebago Industries.

11. Vehicle Identification Number (VIN): This number identifies the chassis on which the motorhome is built. The 10th digit of the VIN designates the chassis model year. (C=2012, D=2013, etc.). This information is useful when ordering chassis repair parts.

12. Type: States the NHTSA designated usage classification for your motorhome. MPV signifies a Multi-purpose Passenger Vehicle.

13. Color: Signifies the color code number of the decor used throughout the vehicle. This number is necessary for ordering replacement cushions, curtains, carpet, etc.

14. Winnebago

model year and series/family

name.

15. Model: Lists the Winnebago product model number of your vehicle.

1-4

SPECIFICATIONS AND CAPACITIES

Standard

Ford

E350

Optional

Ford

E450

Ford

E450

Chassis

Ford

E450

Chassis

Ford® E450

Chassis

Ford® E450

Chassis

Feature Number 16C 16Y 16Y 16Y 16Y 16Y

Length 25' 0.7" 25' 0.7" 27' 11.3" 32' 0.2" 32' 0.4" 31' 8.4"

Exterior Height

11' 11' 1" 11' 2" 11' 1" 11' 1" 11' 1"

Exterior Width

8' 5.5" 8' 5.5" 8' 5.5" 8' 5.5" 8' 5.5" 8' 5.5"

42.5 cu. ft. 42.5 cu. ft. 79.2 cu. ft. 73.3 cu. ft. 83.7 cu. ft. 87.2 cu. ft.

Awning Length 11' 6" 11' 6" 13' 10' 6" 16' 15'

Interior Height 6' 8" 6' 8"

6" 10" Front

6' 4" Rear

6' 8"

6" 10" Front

6' 4" Rear

6" 10" Front

6' 4" Rear

Interior Width 8' 8' 8' 8' 8' 8'

Freshwater Tank Capacity

34 gal. 34 gal. 34 gal. 34 gal. 34 gal. 34 gal.

Water Heater Capacity 6 gal. 6 gal. 6 gal. 6 gal. 6 gal. 6 gal.

Holding Tank Capacity - Black

37 gal. 37 gal. 30 gal. 30 gal. 43 gal. 41 gal.

Holding Tank Capacity - Gray

35 gal. 35 gal. 30 gal. 40 gal. 40 gal. 40 gal.

18 gal. 18 gal. 18 gal. 18 gal. 18 gal. 18 gal.

Wheelbase 158" 158" 190" 220" 215" 220"

GVWR 11,500 lbs. 14,500 lbs. 14,500 lbs. 14,500 lbs. 14,500 lbs. 14,500 lbs.

GAWR - Front 4,600 lbs. 5,000 lbs. 5,000 lbs. 5,000 lbs. 5,000 lbs. 5,000 lbs.

GAWR - Rear 7,800 lbs. 9,600 lbs. 9,600 lbs. 9,600 lbs. 9,600 lbs. 9,600 lbs.

GCWR

18,500 lbs. 22,000 lbs. 22,000 lbs. 22,000 lbs. 22,000 lbs. 22,000 lbs.

Fuel Capacity 55 gal. 55 gal. 55 gal. 55 gal. 55 gal. 55 gal.

Winnebago Access

Capacities are based on measurements prior to tank installation. Slight capacity variations can result upon installation.

Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAW R, and GCWR as well

as adequate trailer brakes. Refer to the chassis operator's manual of your motor home for further towing information.

All measurements are based upon the most recent data available. See your dealer for specifications.

The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The

actual height of your vehicle may vary by several inches depending on chassis or equipment variations. Contact your dealer for further

Floorplans feature a wide-body design - over 96". You should be aware that some states restrict access on some or all state roads to 96" in

body width. You should confirm the road usage laws in the states of interest to you.

The load capacity of your motor home is designated by weight, not by volume, so you cannot necessarily use all available space when loading

your motor home.

Capacities shown are the tank manufacturer's listed water capacity (W.C.). Actual filled propane capacity is 80% of listing due to overfilling

prevention device on tank.

SECTION 1 –

INTRODUCTION

Exterior Storage

Chassis

24V

Chassis

26Q 31J 31R 31W

Propane Capacity

Notes:

information.

1-5

SECTION 1 – INTRODUCTION

OWNER AND VEHICLE INFORMATION

OWNER INFO

Owner’s Name(s) __________________________________________________________________ Address __________________________________________________________________________

__________________________________________________________________________

VEHICLE INFORMATION

Motorhome Model Number __________________________________________________________ Motorhome Serial Number___________________________________________________________ Chassis Vehicle Identification No. (VIN)________________________________________________ Vehicle Mileage at Delivery __________________________________________________________ Selling Dealer Name________________________________________________________________ Address __________________________________________________________________________

__________________________________________________________________________

YOUR WINNEBAGO INDUSTRIES® DEALER /SERVICE CENTER

Name____________________________________________________________________________ Address __________________________________________________________________________

__________________________________________________________________________

Contact ____________________________________________Phone ________________________

CHASSIS SERVICE CENTER

Name____________________________________________________________________________ Address __________________________________________________________________________

__________________________________________________________________________

Contact ____________________________________________Phone ________________________

RV INSURANCE POLICY

Company_________________________________________________________________________ Policy Number ____________________________________________________________________ Agent______________________________________________Phone ________________________

1-6

SECTION 2 – SAFETY AND PRECAUTIONS

DANGER

GENERAL WARNINGS

• Only seats equipped with seat belts are to be occupied while the vehicle is moving.

• Make sure all passengers have seat belts fastened. Lap belts should fit low on the hips and upper thighs. The shoulder belt should be positioned snug over the shoulder.

• For pregnant women: Never place the shoulder belt behind your back or under your arm. Adjust the lap belt across your hips/ pelvis, and below your belly. Place the shoulder belt across your chest (between your breasts) and away from your neck.

• Child restraints should be installed properly according to manufacturer’s instructions. See “Child Restraints”.

• All moveable or swiveling seats should be placed and locked in travel position while the vehicle is moving.

• Never let passengers stand or kneel on seats while the vehicle is moving.

• Use care when accelerating or decelerating on a slippery surface. Abrupt speed changes can cause skidding and loss of control.

• Never drive the vehicle with a slideout room extended.

• Driving through water deep enough to wet the brakes may affect stopping distance or cause the vehicle to pull to one side. Check brake operation in a safe area to be sure they have not been affected. Never operate any vehicle if a difference in braking efficiency is noticeable.

• Adverse weather conditions and extremes in terrain may affect handling and/or performance of your vehicle. Refer to your chassis manual for complete and related information on driving your vehicle.

FUEL AND PROPANE GAS

• Sleeping facilities are not to be utilized while vehicle is moving.

• Examine the escape window and be familiar with its operation.

• Inspect the fire extinguisher monthly for proper charge and operating condition. This should also be done before beginning a vacation or any extended trip.

DRIVING SAFETY

• Do not attempt to adjust the driver’s seat while the vehicle is moving.

• Do not adjust tilt steering in a moving vehicle.

• Do not operate the cruise control on icy or extremely wet roads, winding roads, in heavy traffic, or in any other traffic situation where a constant speed cannot be maintained.

All pilot lights, appliances, and their ignitors (see operating instructions) shall be turned off before refueling of motor fuel tanks and/or propane containers. Failure to comply could result in death or serious injury.

5 - DASH / AUTO

2-1

SECTION 2 –

WARNING

SAFETY AND PRECAUTIONS

Propane gas containers, gasoline, or other flammable liquids shall not be placed or stored onboard the vehicle because a fire or explosion may result. Propane gas containers are equipped with safety valves, which relieve excessive pressure by discharging gas to the atmosphere. Failure to comply could result in death or serious injury.

• All pilot lights must be extinguished and appliances turned off while refilling the fuel tank or propane gas tank.

• Never smoke while refilling vehicle fuel tank or propane gas tank.

• Never use an open flame to test for propane gas leaks. Replace all protective covers and caps on propane system after filling. Make sure valve is closed and the door is latched securely.

• Never connect natural gas to the propane gas system.

• When lighting range burners, do not turn burner controls to “On” and allow gas to escape before lighting match.

• Portable fuel-burning equipment, including wood and charcoal grills and stoves shall not be used inside the recreational vehicle. The use of this equipment inside the recreational vehicle may cause fires or asphyxiation.

• Propane gas regulators must always be installed with the diaphragm vent facing downward. Regulators are equipped with a protective cover. Make sure that the regulator vent faces downward and that the cover is kept in place to minimize vent blockage, which could result in excessive gas pressure causing fire or explosion.

• The following warning label is located in the cooking area to remind you to provide an adequate supply of fresh air for combustion.

Unlike homes, the amount of oxygen supply is limited due to the size of the recreational vehicle, and proper ventilation when using the cooking appliance(s) avoids dangers of asphyxiation. It is especially important that cooking appliances not be used for comfort heating, as the danger of asphyxiation is greater when the appliance is used for long periods of time. Failure to comply could result in death or serious injury.

PROPANE GAS LEAKS

Check propane gas system for leaks yearly, or as necessary.

The following procedures are noted on a label, located in the vehicle near the range area. If you smell gas within the vehicle, quickly and carefully perform the procedures listed.

IF YOU SMELL PROPANE

• Extinguish any open flames, pilot lights, and

all smoking materials.

• Do not touch electrical switches.

• Shut off the gas supply at the tank valve(s) or

gas supply connection.

• Open doors and other ventilating openings.

• Leave the area until odor clears.

• Have the propane system checked and leakage

source corrected before using again.

Failure to comply could result in death or serious injury.

2-2

PROPANE GAS LEAK

WARNING

Propane Gas Leak Detector

WARNING

DETECTOR

Your coach is equipped with a Propane Gas Leak Detector, similar to the one shown below. The leak detector sounds an alarm if an unsafe amount of propane gas is present inside the coach.

SECTION 2 –

SAFETY AND PRECAUTIONS

battery during storage periods when the house battery will not be charged regularly by the engine or shoreline.

Further Information

See the manufacturer’s user guide provided in

your InfoCase for further instructions.

CARBON MONOXIDE WARNING

Avoid inhaling exhaust gases, as they contain carbon monoxide, which is a colorless, odorless, and poisonous gas. Death or serious injury can result.

EXPLOSION HAZARD: DO NOT use an open flame to test for gas leaks. When testing for gas line leaks with a soapy water solution, DO NOT use a detergent containing ammonia or chlorine. These substances may generate a chemical reaction causing corrosion to gas lines, resulting in dangerous leak conditions. Death or serious injury can result.

Power Connection

The Propane Gas Leak Detector is powered by the house batteries. If the House/Coach Battery Disconnect switch is shut off or the battery cable is disconnected from the batteries, the alarm will not work. The Propane Gas Leak Detector fuse or circuit breaker is located in the 12-volt house electrical load center.

Because the Propane Gas Leak Detector is connected to the house battery, it is always drawing a small amount of current. Even though this current draw is slight, it could drain the house

The best protection against carbon monoxide entry into the vehicle body is a properly maintained engine exhaust and ventilation system. It is recommended that the exhaust system and body be inspected by a qualified motorhome service center:

• Each time the vehicle is serviced for an oil

change.

• Whenever a change in the sound of the

exhaust system is noticed.

• Whenever the exhaust system, underbody , or

rear of the vehicle is damaged.

To allow proper operation of the vehicle’s ventilation system, keep front ventilation inlet grill clear of snow, leaves, or other obstructions at all times. DO NOT OCCUPY A PARKED VEHICLE WITH ENGINE RUNNING FOR AN EXTENDED PERIOD.

Do not run engine in confined areas, such as a garage, except to move vehicle into or out of the area.

CARBON MONOXIDE ALARM

Your coach is equipped with a Carbon Monoxide (CO) Alarm (located on the ceiling in the bedroom area.) The CO Alarm is powered by

2-3

SECTION 2 –

WARNING

Press button to test

Carbon Monoxide Alarm

Smoke Alarm

Push button

to test

SAFETY AND PRECAUTIONS

a 9-volt battery and has a sensor that is designed to detect toxic carbon monoxide gas fumes resulting from incomplete combustion of fuel. It will detect CO gas from any combustion source such as the furnace, gas range/oven, water heater, refrigerator, chassis engine, and electric generator engine.

SMOKE ALARM

Your coach is equipped with a Smoke Alarm (located on the ceiling in the lounge area.) The Smoke Alarm is powered by a 9-volt battery and has a sensor that is designed to detect smoke.

Failure to replace this product by the “REPLACE BY DATE” printed on the alarm cover may result in death by Carbon Monoxide poisoning.

Replacement

When replacing this alarm, we recommend replacing only with the same model, or with one that is also listed for RV application. We recommend obtaining a replacement from your Winnebago Industries® dealer.

Further Information

Please read the information provided by the manufacturer, which is included in your InfoCase for further information.

The following label is affixed to the Smoke

Alarm.

Replacement

When replacing this alarm, we recommend replacing only with the same model, or with one that is also listed for RV application. We recommend obtaining a replacement from your Winnebago Industries

dealer.

Further Information

See the manufacturer’s information in your InfoCase for further instructions.

2-4

SECTION 2 –

Fire Extinguisher

(Typical inst alla tion - your coach may

vary according to model and floorplan)

SAFETY AND PRECAUTIONS

FIRE EXTINGUISHER

A dry chemical Fire Extinguisher is located

near the main entrance door.

We recommend that you become thoroughly familiar with the operating instructions displayed on the side of the Fire Extinguisher and in the information supplied in your InfoCase.

We also recommend that you inspect the Fire Extinguisher for proper charge at least once a month in accordance with National Fire Protection Association (NFPA) recommendations as stated on the label.

If the charge is insufficient, the Fire Extinguisher must be replaced.

ELECTRICAL

• Careless handling of electrical components can be fatal. Never touch or use electrical components or appliances while feet are bare, while hands are wet, or while standing in water or on wet ground.

• Improper grounding of the vehicle can cause personal injury . Do not plug the utility power cord into an outlet which is not grounded and do not adapt the plug to connect to a receptacle for which it is not designed.

• Do not attach an extension cord to the utility power cord.

• Do not use any electrical device that has had the ground pin removed.

• A void overloading electrical circuits. Replace fuses or circuit breakers with those of the same size and amperage rating only. Never use a higher rated fuse or breaker.

• Use caution when handling or working near electrical storage batteries. Always remove jewelry and wear protective clothing and eye covering. Avoid creating sparks.

NOTICE

Do not test the fire extinguisher by discharging it. Partial discharge can cause leakage of pressure or contents, which would render the unit inoperative when needed. When using the fire extinguisher , aim the spray at the base of the fire.

Replacement

If for any reason you must replace the Fire Extinguisher, the replacement must be the same type and size as the one originally supplied in your coach. We recommend obtaining a replacement only from your Winnebago Industries

dealer or a reliable RV parts supplier.

• Store or secure all loose items inside the motorhome before traveling. Possible overlooked items such as canned goods or small appliances on the countertop, cooking pans on the range, or free-standing furniture items can become dangerous projectiles during a sudden stop.

• Be aware of GVWR, GAWR, and individual load limit on each tire or set of duals (See “Loading the Vehicle” in Section 12 - Miscellaneous).

• Never load the motorhome in excess of the gross vehicle weight rating of the gross axle weight rating for either axle.

2-5

SECTION 2 –

Bedroom Escape Window

(Lift both red safety latches UP and

push window OUT for emergency exit)

-Typical View

WARNING

Slider Window Latch

(Lift latch UP and slide window open)

-Typical View

SAFETY AND PRECAUTIONS

MAINTENANCE

• Do not remove the radiator cap while engine and radiator are still hot. Always check coolant level visually at the see-through coolant reservoir.

• Never get beneath a vehicle that is held up by a jack only.

• Do not mix different construction types of tires on the vehicle, such as radial, bias, or belted tires, as vehicle handling may be affected. Replace tires with exact size, type, and load range.

• Refer to your chassis manual for complete maintenance precautions and recommendations.

Using Slider Windows As An Emergency Exit

Some coaches are required to have a slider window was an alternate exit. This window will be marked EXIT and have a red-handled latch.

Most slider windows along the side of any motorhome can also be used as an alternate emergency exit, should the need arise.

To use slider windows as an exit:

• Lift window latch UP.

• Slide the window open.

• Either slide the screen open or push the screen

material out, depending on window construction.

EMERGENCY EXITS

Escape Window

The bedroom escape window is secured by two red safety latches on each side of the window.

To open, lift both latches UP, then push outward near the bottom of the window.

POWER SOFAS AND BEDS

Keep people away from operating mechanism and pinch hazard areas during use. Failure to do so could cause injury.

2-6

SLIDEOUT ROOMS

WARNING

Your motorhome may have more than one slideout room. Understand which switch operates which slideout room prior to operation. Make sure all slideout rooms are clear of people who could be harmed or obstacles that could cause damage prior to operating any slideout rooms. Failure to observe can result in death or serious injury.

Check inside and outside the vehicle to make sure that there are no people who could be harmed or obstacles that could cause damage due to room activation.

Keep all persons clear of the slideout room and moving parts while extending or retracting. Do not occupy the slideout room while it is being extended or retracted. Failure to observe can result in death or serious injury.

FORMALDEHYDE INFORMATION

Some of the materials used in this recreational vehicle emit formaldehyde. Eye, nose, and throat irritation, headache, nausea, and a variety of asthma-like symptoms, including shortness of breath have been reported as a result of formaldehyde exposure. Reaction to formaldehyde exposure may vary among individuals. Elderly persons and young children, as well as anyone with a history of asthma, allergies, or lung problems may be at greater risk. Research is continuing on the possible long-term effects of exposure to formaldehyde. Inadequate

SECTION 2 –

SAFETY AND PRECAUTIONS

ventilation may allow formaldehyde and other contaminants to accumulate in indoor air. Ventilation to dilute the indoor air may be obtained from a passive or mechanical ventilation system. Always be sure to thoroughly ventilate your recreational vehicle before and during each use. High indoor temperatures and humidity may raise formaldehyde levels. When a recreational vehicle is in areas subject to high temperatures, an air conditioning system can be used to control indoor temperature levels. If you have any questions regarding the health effects of formaldehyde, consult your doctor or local health department.

MOLD, MOISTURE, AND YOUR MOTOR HOME

What is Mold?

Molds are part of the natural environment. They are as old as the Earth itself and mold spores are almost everywhere at some level waiting to grow. Mold plays a part of nature by breaking down dead organic matter, such as fallen leaves and dead trees. Indoors however, mold growth should be avoided. Molds reproduce by means of tiny spores. Those spores are invisible to the naked eye and float throughout the outdoor and indoor air. Because of the nature of the use of a motorhome, it is natural for a motorhome to be introduced into an environment with mold spores.

Mold is a plant and requires its own special environment to grow. That environment includes organic materials, nutrients, moisture, and proper temperature.

How Can I Avoid Mold?

To reduce the ability for mold to grow, you must reduce what constitutes its growth environment. Mold can grow with the smallest of a nutrient base. Just small amounts of dirt or dust on the carpet can be enough to allow the mold process to begin. Keep the environment as clean as possible. Vacuum the carpet. Clean food spills

2-7

SECTION 2 –

WARNING

SAFETY AND PRECAUTIONS

thoroughly and quickly. Avoid grease buildup near the stove or sink. Clean the exhaust fan above the stove often.

Minimize moisture in your motorhome and keep humidity low. Clean spills quickly. Do not allow condensation to build up. You can open windows and vents to minimize condensation. Use of the air conditioner can assist in removing moisture from the air. Avoid leaks, but if leaks do occur, make repairs promptly.

Avoid bringing mold into your motorhome. Plants, cloths, books, and other household items may already have mold present. It is easy to transfer mold into your motorhome environment.

Monitor your motorhome. Periodically check those hidden areas in corners, closets, and cabinets to assure mold is not present.

What if I Find Mold?

If mold develops, clean the area with a concentrate of soap and bleach. Items that contain mold that cannot be cleaned should be removed from the vehicle.

warranty period, Winnebago Industries will not provide any financial assistance to the repair of the condition.

ROOF AND LADDERS

Stay off roof. Roof surface may be slippery. Falling could result in death or serious injury.

The ladder on your motorhome is provided for

limited access to the roof.

Walking or working on the roof should be left to qualified service personnel using proper safety equipment in a safe environment. You should only walk or work on the roof if you are qualified and have created a safe environment.

For your safety, it is not recommended that you store or carry items on the roof.

Can Mold Harm Me?

The effects of mold and airborne mold spores may cause irritation to some people. Experts disagree on the level of exposure that may cause health concerns.

If Mold Is Present, What Will

Winnebago Industries

If Winnebago Industries determines that mold is present in the Winnebago®/Itasca® motorhome as a result of a manufacturing defect reported to Winnebago Industries within the limited warranty period, Winnebago will clean the affected area(s) and/or replace affected items as it deems necessary. This is the extent of coverage provided by Winnebago Industries. Winnebago Industries, however, will not assume responsibility for mold deemed to be a result of a motorhome users lack of timely and appropriate action to mitigate circumstances should a problem occur.

If Winnebago Industries determines that mold is present due to conditions it determines is not a result of a manufacturing defect found within the

Do?

Before Using the Ladder

• Inspect the ladder to make sure it is not

damaged. Never use a damaged ladder.

• Keep the rungs of the ladder clean and dry

while in use. Never use the ladder when it is raining, snowing, or icy. The rungs can become slippery . Do not step onto the rungs if the rungs are wet, or if your shoes are wet or carry mud or debris that could result in a loss of footing.

• Never ignore warning labels or weight limits

defined on your ladder. The following warning label is located on or near the ladder:

Do not exceed 225-lb. maximum weight capacity . Misuse of ladder could result in death or serious injury. See Operator’s Manual before using ladder.

2-8

SECTION 2 –

CAUTION

SAFETY AND PRECAUTIONS

• Maximum Capacity: 225 lbs.

• Do not overload. Ladder is intended for one

person.

• Make sure you are physically capable to

safely use the ladder . Strength, flexibility , and stability are required.

• Be aware that the vehicle may sway as you

climb the ladder . Do not use the ladder in high winds.

• As you climb the ladder, grasp the side rails

firmly and always use both hands. Keep your body centered between the side rails. Do not over-reach.

• Never allow children on the ladder.

• Do not transport items anchored to the

ladder. You could damage the ladder.

ROADSIDE EMERGENCY

Because of the size and weight of this vehicle and its tires, and the possible complications involved in tire changing, we strongly advise obtaining professional road service to change a flat tire whenever possible. However, if an emergency requires you to change the tire yourself, please exercise extreme caution and read all tire changing information in the chassis manual.

Never get beneath a vehicle that is held up by a jack only.

• If you must change lanes to get to a safe stopping place, use your signals to warn other motorists and change lanes smoothly and carefully after you are certain the lane is clear .

• Let the vehicle coast to a stop, gently steering to a safe stopping place off the traffic lanes of the road. Do not worry about damaging the tire or wheel rim by driving on it. A tire or wheel replacement is cheaper than damaging the vehicle or injuring yourself.

• When you have come to a stop, activate your hazard flashers to warn other motorists, then exit the vehicle carefully.

• Set out flares or other warning devices.

Check your tires for proper inflation before each trip and at least once a month with an accurate tire gauge.

Spare Tire Storage

If your coach is supplied with a spare tire, it may be fastened to the backwall of the coach or inside a rear storage compartment.

Some models, however, may have a swingdown spare tire carrier beneath the rear of the coach. Please follow all safety warnings and instructions for removing spare tire from the carrier.

Swing-Down Carrier (if equipped)

If You Get A Flat Tire

• DO NOT panic.

• Grip the steering wheel firmly and steer the vehicle as straight as possible. Avoid quick maneuvers. You may need to counter-steer to compensate for “pull” created by the failed tire.

• DO NOT stomp on the brake. This abruptly shifts the vehicle’s weight forward, making it nose-dive and pull toward the blown-out side.

• DO NOT jerk your foot off the accelerator. Just ease back on the accelerator slowly and gently to continue momentum. The deflated tire will slow the vehicle.

Do not lie beneath tire carrier while removing tire. The tire can fall and injury can occur.

• Support tire carrier with a jack or block while removing wire pin and wing nut from bolt at front of carrier.

• Carefully lower tire carrier to ground.

• Remove 2 bolts and retainer plate that hold wheel to carrier bracket.

• Lift or slide tire from carrier.

2-9

SECTION 2 –

WARNING

SAFETY AND PRECAUTIONS

• Do not over-tighten wing nut when returning carrier to storage position.

Recovery Towing

When calling a professional towing service, we recommend that you advise them of your coach length and approximate front axle weight listed on your Vehicle Certification Label. This will allow the towing operator to determine the proper towing equipment to use.

Winnebago Industries® does not assume responsibility for damage incurred while towing this vehicle.

NOTE: Consult your chassis manual for towing

instructions or precautions provided by the chassis manufacturer.

NOTICE

Do not lift on bumper . Dama ge will result to front end body parts.

NOTICE

Do not attempt to push start this vehicle. Damage to the transmission or other parts of the vehicle will occur.

ENGINE OVERHEAT

If you see or hear steam escaping from the engine compartment or have any other reason to suspect an extreme engine overheating condition, pull the vehicle over to the roadside as soon as it is safe to do so, stop the engine, and get all passengers out of the vehicle.

NOTICE

Operating a vehicle under a severe overheating condition can result in damage to the vehicle.

Stay out from beneath the motorhome while it is suspended by the towing assembly. Do not allow passengers to occupy a towed vehicle. Death or serious injury can result.

JUMP STARTING

If your coach will not start from the chassis battery, try using the Battery Boost switch to divert power from the house batteries to the starter. (See “Battery Boost Switch” in Section 3

- Driving Your Motor Home).

If you wish to try jump starting the engine using another vehicle or booster system, see your chassis manual for connecting jumper cables to the automotive electrical system.

For information on what to do in case of

overheating, consult your chassis manual.

2-10

SECTION 3 – DRIVING YOUR MOTOR HOME

Folding Dinette Seat Back

•Remove dinette seat backrest cushion

•Unfasten bolt latch at aisle side of seat

•Fold dinette seat backrest down to recline front seat

The information in this section refers only to features installed or adapted to the dash and driver compartment area by Winnebago Industries®. It also includes passenger seating in the living area of the coach.

Further Information

See the chassis manual in your InfoCase for all original chassis related controls, instrumentation, switches, and other features. This includes items such as cruise control, climate controls, gauges, wipers, lights, front seats, and three-point safety belts, etc.

SEATS – DRIVER/CO-PILOT

The driver and co-pilot seats may be independently adjusted to suit individual preference.

Further Information

See the chassis manual in your InfoCase for instructions on seat adjustments.

FOLD-DOWN DINETTE SEAT

-If Equipped

(Models without front slideout and with dinette seat directly behind driver or passenger front seat)

On certain models, the dinette seat located directly behind the driver or passenger front seat must be folded down to allow front seat reclining.

5 - DASH / AUTO

T ypical view - your coach may vary accor ding to model and floorplan.

SEAT BELTS

Seats intended for occupancy while the vehicle is in motion are equipped with seat belts for the protection of the driver and passengers.

Lap Belts

The lap belts must be worn as low as possible and fit snugly across the hip area. Always sit erect and well back into the seat. To gain full protection of the safety belt, never let more than

3-1

SECTION 3 –

WARNING

1- Insert tab into buckle slot until it “clicks” and is locked

2- Pull strap to tighten

3- Press to release

DRIVING YOUR MOTOR HOME

one person use the same safety belt at any one time, and do not let the safety belts become damaged by pinching them in the doors or in the seat mechanism. After any serious accident, any seat belts which were in use at the time must be inspected and replaced if necessary.

Adjustment:

To lengthen belt, swivel the tab end at a right angle to belt and pull strap to desired length. To shorten, pull loose end of belt.

Lap/Shoulder Belts

See your chassis manual for instructions on proper fastening, adjustment, and releasing of lap/shoulder belts.

Seat Belt Care and Cleaning

• Be careful not to damage the belt webbing and

hardware. Take care not to pinch them in the seat or doors.

• Inspect the belts and hardware periodically.

Check for cuts, frays, and loose parts. Damaged parts should be replaced. Do not remove or modify the belt system.

• Keep belts clean and dry. If the belts need

cleaning, use only a mild soap and water solution. Do not use hot water. Do not use abrasive cleaners, bleach, or dyes. These products may weaken the belts.

• Replace any belt assembly that was used

during a severe impact. Replace the complete assembly even if damage is not apparent.

To Fasten:

Be sure belt is not twisted. Grasp each part of the belt assembly and push tongue into buckle. Adjust to a snug fit by pulling the loose end away from the tongue.

To Release:

Press button in center of buckle and slide tongue out of buckle.

Snug and low belt positions are essential. This will ensure that the force exerted by the lap belt in a collision is spread over the strong hip area and not across the abdomen, which could result in serious injury. Only seats equipped with seat belts are to be occupied while vehicle is in motion. Swivel seats must be in the locked, forward facing position while vehicle is in motion.

CHILD RESTRAINTS

-If Equipped

A properly installed and secured child restraint system can help reduce the chance or severity of personal injury to a child in an accident or during a sudden maneuver. Children may have a greater chance of being injured in an accident if they are seated in a child restraint system which is not properly secured.

A child restraint system is designed to be secured in a vehicle seat by a lap belt or the lap belt portion of a lap-shoulder belt.

When purchasing a child restraint system, follow these guidelines:

1. Look for the label certifying that it meets all

applicable safety standards.

2. Make sure that it will attach to your vehicle

and restrain your child securely and conveniently so that you are able to install it correctly each time it is used.

3-2

SECTION 3 –

Tether Anchor Loop

1. Lower the dinette table.

2. Route the tether over the top of the dinette seat back and hook it to the anchor loop on the floor .

3. Fasten the lap belt.

DRIVING YOUR MOTOR HOME

3. Be certain that it is appropriate for the child's height, weight, and development. The instructions and/or the regulation label attached to the restraint typically provides this information.

4. Review the instructions for installation and use of the restraint. Be sure that you understand them fully and can install the restraint properly and safely in your vehicle.

Tether Anchor Loop

-If Equipped

If your coach has a dinette, it may be equipped with a child seat tether anchor loop located on the floor directly behind the forward facing dinette seat.

Further Information

See the child seat manufacturer’s specific instructions for proper attachment and adjustment of the tether and seat belts.

KEYS

Your motorhome is supplied with several keys. In addition to the chassis manufacturer’s ignition key, you receive keys for the entrance door and exterior compartment doors.

Keys have an identification number, either a small metal tag or stamped into the key head. These numbers are recorded on the vehicle’s component model/serial sheet, which is included in your InfoCase. In case keys are lost or stolen, your dealer or a locksmith can provide you with duplicate keys or modify the locks.

HAZARD WARNING FLASHERS

The hazard warning flashers provide additional safety when the vehicle must be stopped on the side of the roadway and presents a possible hazard to other motorists. When the flashers are on, it serves as a warning to other drivers.

NOTE: The dinette table must be in the lowered

position when a child seat is in use.

Further Information

See your chassis manual for instructions on activating, operating, and canceling hazard warning flashers.

MIRRORS – POWER SIDEVIEW EXTERIOR

–If Equipped

Always adjust mirrors for maximum rear visibility before traveling. Make sure the seat is adjusted for proper vehicle control and that you are sitting back squarely into the seat.

The mirrors may also contain heating elements to de-fog or de-ice the mirror glass during cold weather operation. An ON-OFF switch for the mirror heaters is located near the remote mirror controls.

The ignition switch must be on to operate mirror controls and heaters.

3-3

SECTION 3 –

Mirror Adjustment Control

• Mirror surface tilts in direction of arrow button pressed.

• Middle switch selects L or R mirror to adjust.

• Center position is “neutral” to disable arrow buttons and prevent misadjustment of mirrors.

Mirror Heat

Switch

• The mirrors can be folded back against the cab doors, if needed.

Mirror Pivot Lock

• Unscrew protective cap and loosen Allen head set screw to pivot mirror head.

Allen Head Set Screw

DRIVING YOUR MOTOR HOME

Mirror Head Adjustment

If you cannot adjust a mirror properly using the control switch, the mirror may need a coarse adjustment by rotating the mirror head.

3-4

Further Information

Refer to the manufacturer’s user manual provided in your InfoCase for further information.

MIRRORS – POWER SIDEVIEW EXTERIOR

–If Equipped

Always adjust mirrors for maximum rear visibility before traveling. Make sure the seat is adjusted for proper vehicle control and that you are sitting back squarely into the seat.

The mirrors may also contain heating elements to de-fog or de-ice the mirror glass during cold weather operation. An ON-OFF switch for the mirror heaters is located near the remote mirror controls.

The ignition switch must be on to operate

Mirror Adjustment Control

• Mirror surface tilts in direction of arrow button pressed.

• Middle switch selects L or R mirror to adjust.

• Center position is “neutral” to disable arrow buttons and prevent misadjustment of mirrors.

Mirror Heat

Switch

• The mirrors can be folded back against the cab doors, if needed.

Battery Boost Switch

(Typical View - depending on model)

•If chassis battery is discharged, press and hold while turning ignition key for emergency starting power.

mirror controls and heaters.

SECTION 3 –

DRIVING YOUR MOTOR HOME

BATTERY BOOST SWITCH

The Battery Boost switch can be used to draw emergency starting power from the house batteries to start the engine if the chassis battery is discharged.

Press and Hold the Battery Boost switch in the ON position while turning ignition key for emergency starting power.

NOTE: The House/Coach Battery Disconnect

switch near the entrance door must be ON and house batteries must be sufficiently charged for this feature to work.

Mirror Head Adjustment

If you cannot adjust a mirror properly using the control switch, the mirror may need a coarse adjustment by rotating the mirror head.

Further Information

Refer to the manufacturer’s user manual provided in your InfoCase for further information.

AIR CONDITIONER/HEATER – AUTOMOTIVE (DASH)

See your chassis manual for operating information on driver and passenger comfort controls – air conditioner, heater, defroster, and ventilation.

NOTE: The dash air conditioner is not designed

to cool the entire interior of the coach, but is intended only to provide cooling for the cab area.

3-5

SECTION 3 – DRIVING YOUR MOTOR HOME

RADIO IN-DASH/REARVIEW MONITOR SYSTEM

–If Equipped

The radio in your coach can receive AM/FM stereo and weather band stations. It also has a compact disc (CD) player for your listening enjoyment through quality high-output speakers located in several areas of the coach.

This system is also featured with a rearview camera monitor system, which lets you see what is directly behind your coach for safety and maneuvering assistance. The viewing screen is integrated into the dash.

The monitor screen “wakes up” automatically when transmission is shifted into reverse. A microphone built into the rear camera lets you hear warning sounds or verbal directions from an assistant.

• MUTE - Press to MUTE audio.

• EJECT - Press to EJECT

CD.

• DAY/NIGHT - Press to

switch between stored DAY/NIGHT user settings. Press and Hold to access AUTO DAY/NIGHT adjust.

• AUX IN - Connect portable

audio player.

• USB - Connect a USB Jump

Drive. NOT FOR IPOD CONTROLS.

Basic Operating Instructions

• POWER ON/OFF - Push

to turn ON or OFF. Push and Hold to turn screen OFF. Touch screen to turn back ON.

• MENU - Press to access USER SETTING

MENU. Press and Hold to access SYSTEM SETUP MENU.

• AUDIO - Press and Hold to access AUDIO

MENU. Press to return to current playback mode.

• CAM - Press to access CAMERA mode.

Press and Hold to access CAMERA SETTINGS MENU.

Satellite Radio

–If Equipped

Your coach may be equipped with a Sirius® satellite radio receiver that plays through your radio.

See the receiver manufacturer’s information in your InfoCase for programming and operating instructions.

iPod Cable

-If Equipped

Your coach may be equipped with a cable to connect your iPod to play through your dash radio. This cable is located in the motor cover beverage tray.

3-6

See the manufacturer’s information in your

iPod Cable

-Typical View

iPod Cable

-Typical View

InfoCase for operating instructions.

Radio Remote Control

A hand-held remote control for the radio lets you change radio stations or CD selections from a distance for your convenience. The remote control is included in your InfoCase.

SECTION 3 –

DRIVING YOUR MOTOR HOME

Please refer to the manufacturer’s operating guide in your InfoCase for detailed instructions on programming preset station buttons and using this full-featured radio/audio system.

Satellite Radio

–If Equipped

Your coach may be equipped with a Sirius® satellite radio receiver that plays through your radio.

See the receiver manufacturer’s information in your InfoCase for programming and operating instructions.

iPod Cable

-If Equipped

Your coach may be equipped with a cable to connect your iPod to play through your dash radio. This cable is located in the motor cover beverage tray.

Further Information

See the manufacturer’s user guide provided in your InfoCase for complete operating instructions.

RADIO – IN-DASH

-If Equipped

See the manufacturer’s information in your

InfoCase for operating instructions.

Radio Remote Control

A hand-held remote control for the radio lets you change radio stations or CD selections from a distance for your convenience. The remote control is included in your InfoCase.

Further Information

See the manufacturer’s user guide provided in your InfoCase for complete operating instructions.

3-7

SECTION 3 –

Front Engine Latches

-Typical View

WARNING

DRIVING YOUR MOTOR HOME

ENGINE ACCESS – INTERIOR

Front Engine Cover

NOTE: Take precautions to protect carpet and

interior furnishings when removing engine cover . The underside of the engine cover could contain deposits of oil and fuel or other engine fluids and substances that could damage fabrics and interior furnishings.

• To remove engine cover, unlatch the two

upper and the two lower latches (located on each side of the engine cover).

Further Information

Refer to the chassis manual in your InfoCase for information and precautions on filling, servicing, and checking the fluid level.

TIRES

Improper tire pressure can result in tire overloading and abnormal wear and also affects handling, ride characteristics, and fuel economy.

Make sure all replacement tires are of the same size and rating as those shown on your Vehicle Certification Label.

ENGINE COOLING SYSTEM

Do not remove the radiator cap while engine and radiator are still hot. Always check coolant level visually at the see-through coolant reservoir.

NOTE: Your chassis engine cooling system is

filled with special extended-life coolant that is not the same as common antifreeze available at retail outlets. The coolant system MUST be refilled or topped up with the same type of coolant as equipped to maintain the special longlife properties.

SUSPENSION ALIGNMENT AND TIRE BALANCE

The front suspension and steering system of this vehicle was factory aligned using highly accurate equipment prior to delivery to the dealership. However, alignment should be checked and adjusted after you have fully loaded the motorhome according to your personal needs. Thereafter, the alignment should be periodically inspected to help prevent uneven tire wear.

Any excessive or abnormal tire wear may indicate worn or misaligned suspension or steering, unbalanced tire, or other tire/suspension problem.

Alignment can be affected by worn steering/ suspension parts or by incidents which happen during driving, such as hitting a curb, pothole, or railroad track, etc. Improper alignment can cause tires to roll at an angle and wear unevenly. It may also cause the vehicle to “pull” to the right or left. Have your dealer inspect your vehicle’s suspension and steering components periodically for misalignment or wear.

3-8

can lead to vibrations and uneven tread wear,

Rear Air Spring Valves

(Located inside left rear wheel well

-Typical View

Air Spring

such as cupping and flat spots. Tires may need to be balanced if uneven wear is detected or if ride comfort decreases noticeably.

Further Information

further information.

AIR SPRINGS – REAR HELPER

(AIR BAGS)

–If Equipped

enhancement to the standard suspension system to provide adjustable load and ride conditions. This feature is not intended to increase the load capacity of the rear axle or vehicle.

Adjustment

periodically to maintain optimal ride and handling characteristics according to cargo weight.

will result in a firmer ride, while too little air pressure will allow the air helper spring to bottom out over rough road conditions. Too little air pressure will also not provide the improvement in handling that is possible.

necessary to equalize a load, however, we recommend maintaining the same pressure in both air bags whenever possible to ensure that the vehicle remains level.

Out-of-balance tires will not roll smoothly and

See the chassis manual in your InfoCase for

The rear air helper springs (air bags) are an

Check and adjust the air bag pressure

Too much air pressure in the air helper springs

The air bags can be adjusted independently if

SECTION 3 –

DRIVING YOUR MOTOR HOME

LIGHTS

All exterior lights should be checked for proper operation each time the vehicle is prepared for a trip. Any bulbs which fail to light should be checked and replaced, when necessary, with a new bulb of the same size. A failure of more than one light, such as both taillights not operating, may indicate a burned out fuse. Check fuse and replace with one of the same rating when necessary. If a fuse is not the cause of the problem, the wiring system should be checked immediately by an authorized service center.

Further Information

Refer to the chassis manual in your InfoCase for further information.

Recommended Pressure

Minimum Air Pressure. . . . . . . . . . . 20 psi

Maximum Air Pressure . . . . . . . . . . 80 psi

3-9

SECTION 4 – APPLIANCES AND SYSTEMS

Place bubble level in bottom of refrigerator

Bubble must be at least 1/2 inside circle

The appliances installed in your motorhome are manufactured by reputable RV appliance makers and have been tested by independent laboratories to meet all applicable standards and codes set for RV appliances.

See Section 2 - Safety and Precautions of this manual for any safety and precautions you need to take regarding the operation of your appliances.

REFRIGERATOR

The refrigerator in your coach can operate from either of two energy sources available to the motorhome:

• 120-Volt AC Electric

• Propane Gas

To be able to use both types of energy, the refrigerator does not have a compressor like household refrigerators. Instead, it uses an ammonia-water solution for cooling. Basically, ammonia vapor is distilled from the solution by heat produced from either propane gas flame or electrical heat element. The ammonia vapor is then carried to the finned condenser where it liquefies. The liquid then flows to an evaporator where it creates cooling by evaporation. The ammonia circulates back into the water solution and the cooling cycle continues.

Leveling

Before operating the refrigerator when the motorhome is stationary, place a small level on the bottom of the refrigerator and make certain the unit is level. If over 1/2 of the bubble is inside the circle in any direction, the coach is level enough for continuous operation of the refrigerator while parked.

Normal vehicle leveling to provide comfort for the occupants is satisfactory for refrigerator operation.

NOTICE

To prevent permanent damage to the refrigerator cooling unit, turn the refrigerator off if the vehicle will be p arked on an incline of over 3 side-to-side or 6 front-to-rear (such as steep driveways or parking lots, etc.) for more than one hour.

Basic Operation

Slide the control switches to the operating positions described and observe the indicator lights.

5 - DASH / AUTO

4-1

SECTION 4 –

Refrigerator Access Door Latches

Refrigerator Access Compartment

APPLIANCES AND SYSTEMS

• Gas- Refrigerator will operate on gas from the

propane tank if the main valve is open and the tank contains gas.

• Auto- Refrigerator will operate on 120-VAC

household current if the shoreline is connected or the auxiliary generator is running. If electricity is lost, it will automatically switch over to Gas operation if gas is available.

To Open

1. Use a screwdriver or coin to turn the latch knobs to the vertical position as shown.

2. Remove the door from the opening.

To Close

1. Replace the door into the opening.

2. Push the latch knobs in while turning to the horizontal position as shown.

• Temperature Setting- Start at the coldest

setting to ensure coldest temperature in the freezer compartment, then adjust warmer as necessary after cold* food has been added.

• “On” Indicator Light- Glows steady when

refrigerator is operating properly.

• “Gas” Indicator Light- Will flash if gas is

not available. T o operate the refrigerator you must provide 120VAC then switch to Auto operation.

* The refrigerator will retain temperature more efficiently if food is cold before placing inside.

Further Information

For further information and operating cautions, see the refrigerator operating instructions included in your InfoCase.

REFRIGERATOR SERVICE ACCESS COMPARTMENT

(Exterior)

RANGE AND OVEN

–If Equipped

The Range and optional Oven in your motorhome operate on propane gas and will provide most of the functions of the range in your home.

The exterior refrigerator service compartment allows access to the rear of the refrigerator for inspection, maintenance, and service.

4-2

SECTION 4 –

To Light Range Top Burners

• Turn the desired burner knob counter-clockwise to the ON or LITE position (do NOT attempt to light more than one burner at a time).

• Turn the SPARK knob clockwise one “click”.

NOTE: If the burner fails to light, continue turning the

SPARK knob clockwise until the burner lights.

• To extinguish the burner flame, turn desired burner knob clockwise to OFF.

Oven Burner Knob

–If Equipped

• PILOT ON position keeps pilot flame lit for repeated use of Oven while vehicle is parked.

• Turn Oven knob to PILOT OFF position while traveling or refilling propane gas tank.

To Light Oven Pilot

• See “Oven Operation” in the manufacturer’s user guide provided in your InfoCase.

WARNING

APPLIANCES AND SYSTEMS

IT IS NOT SAFE TO USE COOKING

APPLIANCES FOR COMFORT HEATING Cooking appliances need fresh air for safe operation. Before operation:

1. Open overhead vent or turn on

exhaust fan.

2. Open window.

FAILURE T O COMPLY COULD RESULT IN

DEATH OR SERIOUS INJURY

Unlike homes, the amount of oxygen supply is limited due to the size of the recreational vehicle, and proper ventilation when using the cooking appliances avoids dangers of asphyxiation.

It is especially important that cooking appliances not be used for comfort heating, as the danger of asphyxiation is greater when the appliance is used for long periods of time.

FAILURE TO COMPLY COULD RESULT IN DEATH OR SERIOUS INJURY.

Avoiding Asphyxiation

The following warning label has been located in the cooking area to remind you to provide an adequate supply of fresh air for combustion.

Portable fuel-burning equipment including wood and charcoal grills and stoves, shall not be used inside the recreational vehicle. The use of this equipment inside the recreational vehicle can cause fires or asphyxiation. Failure to comply could result in death or serious injury.

Further Information

See the appliance manufacturer’s user guide provided your InfoCase for complete operating instructions and safety precautions.

4-3

SECTION 4 –

Water Tank

Water Level

Sensors

APPLIANCES AND SYSTEMS

MICROWAVE OVEN

-If Equipped

Refer to the manufacturer’s user guide located inside the appliance for complete operating instructions.

RANGE HOOD

-If Equipped

The range hood vent draws cooking odors and airborne grease particles into the filtration grid and either recirculates the air or vents it to the outside of the coach, depending on model.

A light on the underside of the hood provides illumination for cooking and food preparation.

Further Information

See the manufacturer’s user guide provided in your InfoCase for instructions on replacement of light bulbs and replacement or cleaning of grease filter elements.

pump and water heater. Indicator lights tell you if the water pump is on or if the water heater pilot light is out.

Water And Holding Tank Levels

Press and Hold the Levels Test switch to show

approximate level on the monitor lights.

The approximate fluid levels are measured by electronic sensors on the sides of the tanks. There is generally more fluid in a tank than indicated on the monitor panel.

SYSTEMS MONITOR PANEL

The Systems Monitor Panel provides a convenient central location for checking the condition of all utility systems in your coach.

At the touch of a button this panel will display the fresh water and holding tank levels, propane gas tank level, plus the house battery condition. You can start the generator or turn on the water

For example, if the fluid level is 1-2” below the FULL sensor, the monitor will show the level to be only 2/3 even though the tank is nearly full.

If a tank is about 1/4 full, the monitor will register an empty tank because the fluid level is below the 1/3 sensor even though there is still fluid in the tank.

However, when the indicator reads FULL, the tank is actually full.

4-4

Tank Capacities

See “Tank Capacities” in Section 1 -

Introduction.

Propane Gas Level

Press and Hold the Levels Test switch to show

approximate propane tank level.

The propane level is registered by a sending unit on the tank. The gauge mounted on the side of the tank will give a more accurate indication of actual tank level if needed.

SECTION 4 –

APPLIANCES AND SYSTEMS

Battery Charge Meter

Press and Hold the Levels Test switch to check the level of charge (voltage) in the 12-volt house battery.

The colored segments (red, yellow, and green) will light from the bottom up to the amount of charge the battery contains.

• Green - good or adequate charge.

• Yellow - marginal charge.

• Red - battery needs charging before use.

To get an accurate reading:

1. Both the chassis engine and the generator

engine must be shut off and 120-volt AC shoreline unplugged.

2. An interior light should be turned on to

provide a small load which draws off the battery surface charge.

Water Pump Switch

When use of the self-contained water system is desired, turn the Water Pump switch on. The “Pump On” light will illuminate when the pump switch is on and the system is operable. Water will be available as soon as a faucet is opened.

Refer to the Water Pump information elsewhere in this section for additional information on the water pump and initial startup.

NOTE: Some models may be equipped with a

Water Pump switch in the water service center on the outside of the coach or within the bathroom area for your convenience.

WATER HEATER - GAS/ ELECTRIC

The gas/electric water heater has a dual power feature. It can operate from propane gas or 120volt house current, or it can use both at the same time for quicker recovery at times when you are using a lot of hot water.

Read the Water Heater Operation Manual for complete Safety Warnings, Operating Instructions, and Maintenance Information before operating the water heater.

Be sure the water heater is filled with water before starting either electric or propane gas operation. To fill the water heater, turn the

Water Pump switch on and open a hot water faucet anywhere in the coach. When water begins to flow steadily from the faucet, the water heater is full.

For Propane Gas Operation

Press the Water Heater switch on the Systems Monitor Panel. The “Pilot Out” light will glow for about 10-15 seconds, then it will go out. The “Heater On” indicator will remain lit. If the “Pilot Out” light comes on during gas operation, it means that the burner has gone into “lockout” mode and must be restarted. If this happens, turn the Water Heater switch off for about 5 minutes, then turn it back on.

4-5

SECTION 4 –

Gas Water Heater Switch

(Located on Systems

Monitor Panel)

Electric Water Heater Switch

(Typically located near

Systems Monitor Panel)

APPLIANCES AND SYSTEMS

For Electric Operation

Turn on the Water Heater electric element switch. The shoreline must be connected or generator running for electric operation.

Further Information

Read the operating and safety information provided in the Water Heater Operation Manual in your InfoCase.

WATER HEATER - GAS/ ELECTRIC

-If Equipped (with Motoraid water heating system)

Read the Water Heater Operation Manual for complete Safety Warnings, Operating Instructions and Maintenance Information before operating the water heater.

Be sure the water heater is filled with water before starting either electric or propane gas operation. To fill the water heater, turn the

Water Pump switch on and open a hot water faucet anywhere in the coach. When water begins to flow steadily from the faucet, the water heater is full.

For Quick Recovery Operation (Dual Heating)

Turn On both Water Heater switches - the gas one on the monitor panel and the electric one. This will help reheat the water heater tank more quickly than a single source would alone. Use this mode when you are using a larger than normal volume of hot water.

4-6

For Propane Gas Operation

Press the Water Heater switch on the Monitor Panel. The “Pilot Out” light will glow for about 10-15 seconds, then it will go out. The “Heater On” indicator will remain lit. If the “Pilot Out” light comes on during gas operation, it means that the burner has gone into “lockout” mode and must be restarted. If this happens, turn the Water Heater switch off for about 5 minutes, then turn it back on.

For Electric Operation

Gas Water Heater Switch

(Located on Systems

Monitor Panel)

Electric Water Heater Switch

(Typically located near

Systems Monitor Panel)

CAUTION

Water Heater Exterior Service Access

Turn on the Water Heater electric element switch. The shoreline must be connected or generator running for electric operation.

SECTION 4 –

APPLIANCES AND SYSTEMS

Further Information

Read the operating and safety information provided in the Water Heater Operation Manual in your InfoCase.

PRESSURE-TEMPERATURE RELIEF VALVE

On occasion, water may be seen seeping from the water heater pressure temperature relief valve. This is no cause for repair or replacement of the valve.

For Quick Recovery Operation (Dual Heating)

Normally there is an air gap at the top of the water heater tank, which acts as a pressure buffer. In time, however, heated water may expand and fill this air gap, causing a slight increase in water pressure. This may cause the P-T valve to “weep” until the air gap is manually replaced.

Hot water can escape from tank causing injury. Operate this valve only when the water heater and engine cooling system are cold.

To Replace the Air Gap:

1. Turn off the Water Heater switch and

incoming water supply (city water and/or demand pump).

4-7

SECTION 4 –

•Lift handle straight out to open P-T valve when water heater is cold

Thermostat/Switch

•Move from OFF to desired temperature for furnace operation

Room Temperature

Thermometer

APPLIANCES AND SYSTEMS

2. Open a faucet in the motorhome to relieve water pressure.

3. Pull the handle of the P-T valve straight out and allow water to flow until it stops.

4. Let the handle of the P-T valve snap shut.

5. Close the faucet and turn on the water supply before switching the water heater on.

Manually operate the pressure temperature

relief valve at least once a year.

NOTE: If your water heater is equipped with the

motoraid system, it uses an extension from the engine cooling system to heat water in the water heater while driving. The engine cooling system must also be cold before opening the pressuretemperature relief valve. See “Motoraid Water Heater” for more information.

PROPANE GAS FURNACE

To Start Up

1. Open the Propane Gas T ank valve by turning fully counter-clockwise.

2. Move the Thermostat/Switch to from OFF to the desired temperature position.

4-8

3. Furnace fan should start to blow immediately after setting the Thermostat.

4. After approximately 30 seconds, the Furnace burner should light.

5. The Furnace should now cycle off and on automatically as the Thermostat demands just like a household furnace.

If heat does not come out of the heat ducts

after a minute or so, the burner is not lit.

Turn Thermostat OFF for 3-5 minutes, ensure Propane Gas Tank valve is open and tank is not empty, and repeat Steps 2 through 4.

If the Furnace will not light after three attempts, follow “Shut Down” steps and contact your dealer or a local RV service center for repair.

NOTE: If the Furnace burner has any residuals

of metal protectant or lubricants used during manufacture of the Furnace, it may smoke slightly when the Furnace is used for the first time and may set off your smoke alarm. We recommend that you provide adequate ventilation when using the Furnace for the first time to avoid a nuisance smoke alarm. We do not recommend removing the smoke alarm battery.

SECTION 4 –

Temp Selector

• Press up or down to select temperature

APPLIANCES AND SYSTEMS

To Shut Down

• Move Thermostat switch to OFF position.

• Close Propane Gas T ank valve if coach will be stored for a period of time.

Further Information

Refer to the manufacturer’s user guide provided in your InfoCase for further information, including operating precautions and periodic maintenance. See the Coach Maintenance Schedule for recommended intervals.

PROPANE GAS FURNACE

To Start Up

1. Open the LP gas tank valve by turning fully

counter-clockwise.

NOTE: If heat does not come out of the heat

ducts after a minute or so the burner is not lit. Turn thermostat off for 3-5 minutes, check to be sure propane gas tank valve is open and tank is not empty, then try steps 2-4 again. If the furnace will not light after three attempts, go to Shut Down steps and contact your dealer or a local RV service center for repair.

To Shut Down

1. Slide thermostat switch to Off position.

2. Close propane tank valve if coach will be stored for a period of time.

Further Information

Please see the furnace operating instructions provided in your InfoCase for further information, including operating precautions, and periodic maintenance. See the Coach Maintenance Schedule for recommended intervals.

2. Move THERMOSTAT switch from Off to Heat and press the T emp Selector button (Up/ Down arrows) until the desired temperature is shown in the display.

3. Furnace fan should start to blow immediately after setting the thermostat.

4. After about 30 seconds, the furnace burner should light.

5. The furnace should now cycle off and on automatically as the thermostat demands just like a household furnace.

NOTE: If the furnace burner has any residuals

of metal protectant or lubricants used during manufacture of the furnace, it may smoke slightly when the furnace is used for the first time and may set off your smoke alarm. We recommend that you provide adequate ventilation when using the furnace for the first time to avoid a nuisance smoke alarm. We do not recommend removing the smoke alarm battery.

DUCTED ROOF AIR CONDITIONING SYSTEM

The furnace thermostat also controls ducted roof air conditioner operation when the Thermostat switch is placed in “Cool” position.

All cooling functions controlling to setpoint have a short cycle protection time delay of three minutes. There will be no delay if the cycle OFF time exceeds three minutes.

4-9

SECTION 4 – APPLIANCES AND SYSTEMS

NOTE: The ducted roof air conditioning system

has ceiling registers that can be closed if necessary to force more cool air toward a specific area of the coach or to route cool air away from a specific area. If too many vents are closed, however, it can cause the air conditioner unit to shut down, particularly in high humidity conditions.

Further Information

Refer to the manufacturer’s user guide provided in your InfoCase for complete operating instructions.

AIR CONDITIONER FILTER

The washable foam air conditioner filter is located in the ceiling-mounted return A/C grille in the lounge area of the coach.

It is recommended to check the filter monthly for dirt build-up and cleaned or replaced, as necessary.

4-10

SECTION 5 – PROPANE GAS

WARNING

Propane Tank Features

-Typical View

PROPANE GAS SUPPLY

The propane gas system supplies fuel for the gas range/oven, water heater, furnace, and refrigerator (while in gas mode). When used and handled properly, this system is safe and economical and provides modern living conveniences wherever you travel.

See Section 2 - Safety and Precautions in this manual for other safety and precautions you need to be aware of related to propane.

How Propane Gas Works

Propane is a type of LP (Liquefied Petroleum) gas compressed into liquid form for easy transportation and storage. Propane gas may also be called tank gas, bottle gas, or simply LP.

Propane is used by appliances in vapor form only, but is stored in the tank as a liquid under very high pressure. As the liquid gas is released, it reverts back to a vapor and expands to many times its compressed volume.

Propane Tank System

The storage reservoir for the propane gas system is a horizontally mounted tank which is permanently attached to the vehicle frame. The tank is accessible only from the outside of the vehicle.

Do not alter or remove propane tank valves or gauge. Propane can escape, which can cause an explosion resulting in death or serious injury . Have the propane system serviced by a qualified service center.

Refilling Propane Tank

Since the propane tank is permanently mounted to the frame, the motorhome must be taken to a propane dealership for filling. Do not attempt to remove the propane tank from the vehicle. The tank is equipped with a fill adapter with both internal and external threads, which allows easy filling with any propane filling equipment. The tank is full when liquid propane gas appears at the overflow valve.

5 - DASH / AUTO

NOTE: The propane tank is equipped with an

automatic 80% stop-fill device.

5-1

SECTION 5 –

DANGER

PROPANE GAS

DO NOT FILL CONTAINER TO MORE THAN 80 PERCENT OF CAPACITY. FAILURE T O COMPLY COULD RESUL T IN A FIRE OR PERSONAL INJURY. Make sure the motorhome is level when filling. It is possible to accidentally overfill the tank if the vehicle is not level, with the fill valve on the uphill side. Overfilling the propane gas tank can result in uncontrolled gas flow, which can cause fire or explosion. A properly filled container will contain approximately 80 percent of its volume as liquid propane gas. All pilot lights must be extinguished and appliances and their ignitors turned off, and supply valve closed before refilling propane gas tanks or vehicle fuel tanks. Do not smoke or expose an open flame while near a propane refueling area. Propane gas is heavier-than-air and extremely flammable. Never fill the propane tank with engine or generator running. Before opening the supply valve, check to be sure all controls for gas appliances are in the “Off” or “Pilot Off” position. If this step is not performed, propane gas could accumulate inside the motorhome creating a fire or explosion hazard. Never use an open flame to test for propane gas leaks. Replace all protective covers and caps on propane system before filling.

Selecting Propane Fuel Types

We recommend using straight propane in your propane tank. Propane gas is commonly available at all propane gas outlets in the U.S. (According to the National Propane Gas Association, propane gas outlets in the United States do not offer any other type of liquefied petroleum gas than propane to the general public.) Check local

phone directory yellow pages for locations of local propane gas refilling stations or bulk dealerships.

NOTE: If you travel outside the U.S. with your

motorhome, you may find butane or propane/butane mixtures available in addition to propane. Because gasburning RV appliances ar e designed to run on propane only, we recommend that you request straight propane only. Butane burns about 30 percent hotter than propane and can overheat some appliances, particularly refrigerators, and cause permanent damage. Other appliances designed to operate on propane can become sooted and lose efficiency by using butane fuel.

Air in the Propane Gas Tank

If your gas appliances do not stay lit or require frequent adjustment, even though you know the propane tank contains sufficient fuel, the problem may be air in the propane gas tank. Air in the tank mixes with the propane gas vapors causing them to burn poorly. This condition could linger for weeks if the air is not purged from the tank. Most propane gas dealers have equipment for purging air from propane gas tanks and will purge before refilling the tank.

SAFE USE OF THE PROPANE GAS SYSTEM

The propane system is designed and built with strict adherence to national, state, and recreational vehicle industry requirements for mobile propane gas equipment.

For your safety, there are many safety devices and backup systems installed, such as tank fill overflow valves, an interior propane gas detector/ alarm, and an interior carbon monoxide (CO) detector/alarm.

Propane gas also contains an odor additive that you can smell if propane is present in the air.

Here are a few precautions to observe that will help you to use the propane gas system safely:

5-2

• Exercise caution at all times. Be familiar with

DANGER

the distinctive odor of propane gas. If a leak is suspected, turn off the supply valve immediately. Have the propane gas system checked by your dealer or other qualified propane gas service center.

• Do not tamper with the propane gas piping system, pressure regulator, or gas appliances. Service and maintenance of propane gas system components should be performed only by your dealer or a qualified propane gas service center.

• Never attempt to connect natural gas to the propane gas system.

• Have the entire propane gas system inspected for possible leaks and missing or damaged parts at each tank filling. Also inspect before and after each trip, and any time trouble is suspected.

• Turn the propane supply valve off when not using the propane gas system.

• Never use a wrench to tighten the tank supply valve. It is designed to close leak-tight by hand. If a wrench is required to completely close the valve, it is defective and must be replaced.

• Be sure appliance and outside vents are open and free from obstruction when using the propane gas system.

• Never attach a lock or any device requiring a key to the propane tank compartment door. According to standards set for recreation vehicles, the propane supply valve must be readily accessible in an emergency.

• Exercise caution when drilling holes or attaching objects to the walls. Gas lines and electrical wiring could be seriously damaged and present an extreme safety hazard.

SECTION 5 –

PROPANE GAS

PROPANE GAS WARNINGS AND PRECAUTIONS

It is illegal for vehicles equipped with propane tanks to travel on certain roadways or through certain tunnels in the U.S. To avoid inconvenience, check state regulations concerning flammable gas transportation.

Propane Gas Leaks

The following label is located in the vehicle near the range area. If you smell gas within the vehicle, quickly and carefully perform the procedures listed.

IF YOU SMELL PROPANE

1. EXTINGUISH ANY OPEN FLAME, PILOT LIGHTS, AND ALL SMOKING MATERIALS.

2. DO NOT TOUCH ELECTRICAL SWITCHES.

3. SHUT OFF THE PROPANE SUPPLY AT THE TANK VALVE(S) OR PROPANE SUPPLY CONNECTIONS.

4. OPEN DOORS AND OTHER VENTILATING OPENINGS.

5. LEAVE THE AREA UNTIL THE ODOR CLEARS.

6. HAVE THE PROPANE SYSTEM CHECKED AND LEAKAGE SOURCE CORRECTED BEFORE USING SYSTEM AGAIN.

FAILURE TO COMPLY COULD RESULT IN

EXPLOSION RESULTING IN DEATH OR

SERIOUS INJURY

• All pilot lights must be extinguished and appliances and their ignitors turned off while refilling the fuel tank or propane tank.

• Never smoke while refilling vehicle fuel tank or propane gas tank.

• Avoid inhaling exhaust gases produced by burned gasoline, diesel fuel, or propane gas in items such as the range, chassis engine, generator engine, refrigerator, furnace, and water heater. They contain carbon monoxide, which is an odorless, colorless, and poisonous gas.

5-3

SECTION 5 –

WARNING

PROPANE GAS

Propane cylinders shall not be placed or stored inside the vehicle. Propane cylinders are equipped with safety devices that relieve pressure by discharging propane to the atmosphere. Failure to comply could result in death or serious injury.

• Never use an open flame to test for propane gas leaks. Replace all protective covers and caps on propane system after filling. Make sure valve is closed and door latched securely .

• Portable fuel-burning equipment, including wood and charcoal grills and stoves, shall not be used inside the recreational vehicle. The use of this equipment inside the recreational vehicle may cause fires or asphyxiation.

• Regulators are equipped with a protective cover . Make sure that the regulator vent faces downward and that the cover is kept in place to minimize vent blockage, which could result in excessive gas pressure causing fire or explosion.

Visually inspect the pressure regulator vent periodically for blockage by accumulated debris or insect nests, etc. Vent obstruct ion could result in excessive pressure causing fire or explosion, which could result in death or serious injury . If an obstruction exists, have the regulator serviced by a qualified service center.

NOTE: If your model is equipped with a propane

powered electrical generator, there will be two regulators stacked one upon another. One regulates the house propane supply pressure, the other regulates pressure to the generator.

PROPANE GAS PRESSURE REGULATOR

The pressure regulator is protected from the elements by a plastic cover, which should be left in place at all times.

Propane regulators must always be installed with the regulator vents facing downward. Regulators that are not in compartments have been equipped with a protective cover. Make sure that the regulator vent faces downward and that the cover is kept in place to minimize vent blockage that could result in excessive propane pressure causing fire or explosion.

Only your dealer or a qualified propane gas service should remove the regulator cover for adjustments.

5-4

Regulator Freeze-up

Regulator freeze-ups are caused by the presence of moisture in fuel. This moisture will pass through the cylinder valve and into the regulator where it can freeze. Fuel producers, tank and bottle manufacturers, and propane gas dealers take every precaution to reduce moisture, but sometimes only a fraction of an ounce entering the tank can cause problems. To help avoid the possibility of freeze-up, always keep tank control valve closed when not in use, even when tank is empty, to prevent moisture from collecting on the inside.

If regulator freeze-up should occur, you may attempt to thaw the regulator using a light bulb.

DO NOT USE AN OPEN FLAME OR HEAT LAMP.

If moisture begins to cause problems, have your propane gas dealer inject a small amount of dry methyl alcohol in your tank (approximately one ounce to 20 pounds or one pint to 100 gallons) to help guard against regulator freezeups.

SECTION 5 –

PROPANE GAS

This means that in extremely cold weather when a large volume of gas is being used by the furnace for heating, it is possible to experience a loss of gas pressure.

At first, this problem may appear to be caused by an empty tank or a regulator freeze-up, but is actually caused by failure of the liquid gas to vaporize as fast as it is needed by the furnace.

The demand for propane to produce heat increases to the point where the gas cannot vaporize fast enough to keep the furnace going. The only solution to this problem is to reduce gas usage where possible.

Adjusting the temperature on the gas/electric refrigerator may be a first step. Using less hot water will also help, as well as refraining from using the gas cooktop. A final step is to lower the thermostat setting to reduce gas usage by the furnace.

PROPANE VAPORIZATION IN COLD WEATHER

Propane gas vaporization increases and decreases in direct relation to ambient temperature. In other words, the lower the temperature, the slower the liquid propane will vaporize into a usable gas for appliances.

5-5

SECTION 6 – ELECTRICAL

WARNING

Your coach is equipped with an electrical system consisting of two separate voltages:

• 12-volt DC system (battery current); and

• 120-volt AC system (household current)

The 12-volt system consists of two internal power sources, while the 120-volt system is operated from an outside power source or the optional 120-volt generator.

ELECTRICAL CAUTIONS

• Careless handling of electrical components

can be fatal. Never touch or use electrical components or appliances while feet are bare, while hands are wet, or while standing in water or on wet ground.

• Improper grounding of the vehicle can cause

personal injury . Do not plug the utility power cord into an outlet which is not grounded and do not adapt the plug to connect to a receptacle for which it is not designed.

• Do not attach an extension cord to the utility

power cord.

• Be sure that all electrical appliances to be used

contain 3-prong plugs for proper grounding.

the power converter automatically changes a portion of the 120-volt current to 12-volt DC current. All equipment in the motorhome that is normally powered by the house batteries is then powered through the converter.

In addition, the following equipment is entirely dependent on 120-volt current: air conditioner, refrigerator (when placed in AC mode), microwave oven, and any 120-volt electrical equipment used at convenience outlets.

EXTERNAL POWER CORD

(Shoreline)

Do not use an extension cord. Improper sized cords, damaged cords, and poor connections can lead to fire, which can result in death or serious injury.

• A void overloading electrical circuits. Replace fuses or circuit breakers with those of the same size and amperage rating only. Never use a higher rated fuse or breaker.

• Use caution when handling or working near electrical storage batteries. Always remove jewelry and wear protective clothing and eye covering. Avoid creating sparks.

ELECTRICAL SYSTEM – HOUSE 120-VOLT AC

The 120-volt system operates from the shoreline cord connected to an outside 120-volt utility service, such as those at campgrounds or from the 120-volt generator. When the shoreline cord is connected to an outside power source, or when the auxiliary electric generator is running,

Do not connect the external power cord to any receptacle until you have verified proper polarity and grounding. Be sure all prongs of the supply cord are properly plugged into the receptacle. Failure to observe can result in death or serious injury.

The external power cord (commonly referred to as a “shoreline”) is located in a driver side compartment.

To connect to an external power source, remove the power cord from the utility compartment and plug it into a suitable power outlet box.

5 - DASH / AUTO

6-1

SECTION 6 –

30 Amp Receptacle

• Swivel the small cover section upward to access the cord passage.

• Route power cord through passage and close door while shoreline is connected to outlet.

ELECTRICAL

The power cord is designed to ground the electrical system through the receptacle. It is also designed to carry the amperage output of most campground outlets. If the electrical receptacle to be used is designed to mate with the prongs of the power cord plug, the electrical connection can be expected to carry rated load.

Power Cord Door

(Models with power cord compartment on sidewall)

–If Equipped

A flip-up passage in the power cord door lets you route the power cord out of the compartment and close the door while the power cord is connected.

After disconnecting the power cord, neatly

replace it in the cord compartment.

NOTE: Always keep compartment door and

access passage closed while shoreline cord is not in use.

Park Fuses or Breakers

Most campgrounds are equipped with a fuse or circuit breaker at the receptacle (which we recommend shutting off before engaging or disengaging the power cord.) This protects the park’s wiring, as well as the power cord on your vehicle from electrical damage. If electrical power fails, contact the park attendants and have them check the fuse or breaker for your supply receptacle.

6-2

POWER CENTER

(Converter)

The power converter is generally located in a lower cabinet face in the galley or living area, depending on the floorplan of your model.

The converter power panel contains the house electrical system 120-volt circuit breakers and 12-volt fuses.

The power converter changes 120-volt AC current from the auxiliary generator or the shoreline into 12-volt DC current for use by 12volt equipment in the motorhome.

for use by items which require 120-volt current,

12-Volt

House Fuses

120-Volt

Circuit Breakers

Power Center (Converter)

-Typical View

such as the air conditioner(s), the refrigerator in AC mode, the microwave oven, etc.

NOTE: The converter will not change 12-volt

through the power converter unchanged, although it is routed through a series of protective fuses located on the power panel.

Further Information

maintenance information provided in your InfoCase.

Charging Section

120-volt external power is connected. The converter will automatically “sense” the

Certain circuits, however, remain unchanged

DC current to 120-volt AC.

Current drawn from the house batteries passes

NOTICE

Do not block the converter cover vents in any way. The converter generates heat while operating and needs unrestricted airflow for proper cooling. Damage to the converter can result.

See the manufacturer’s operation, care, and

The converter charges house batteries while

SECTION 6 –

ELECTRICAL

condition of the battery. If it is below “full charge”, the Charging Section will start charging the batteries.

If the house batteries have been extremely discharged, they will accept charge at a relatively high amperage rate. If they are only slightly discharged, they will charge at a lower amperage rate. The rate of charge will decrease as the batteries reach “full charge”, then will continue “trickle” charging at a very low amperage rate. If your battery does not charge as described above, it is possible the battery is defective.

Thermal Overload

A thermal overload will “break” the 120-volt AC power to the converter section of the Power Center if the power converter becomes overheated. This can result from operating above its maximum limit for an extended period of time or by obstruction of ventilation to unit.

NOTE: The power converter section will

automatically route 12-volt lights and motors to house battery power in this event.

The thermal overload will reset itself after a period of time, and the lights and motors will again resume operation from the power converter section. If the breaker trips again shortly after reset, take immediate steps to correct the cause of overheating. A portion of the house 12-volt load (lights or motors or both) should be turned off to reduce total load. Also, inspect the power converter to make sure ventilation is not obstructed.

CIRCUIT BREAKERS – HOUSE 120-VOLT AC

The breaker panel protects all 120-volt components in the motorhome from either an overload on the circuit or a short in the wiring or component itself. When an overload or short develops, the breaker will open preventing damage to the system.

Shut off the equipment (example: roof air conditioner) and allow a brief cooling period. Then reset the breaker by moving the switch to

6-3

SECTION 6 –

120-Volt Circuit Breakers

-Typical View

WARNING

•Push to Reset circuit after monthly testing or ground fault tripping.

•Push to Test at least monthly. Should break circuit. Press Reset button to reconnect.

GFCI Outlet

(Ground Fault Protector)

ELECTRICAL

“Off” and back to “On”. If the breaker is continually tripped and no overload is evident, have the system checked for a short in the wiring or the appliances.

NOTE: Typical view of breaker panel. Breaker

arrangement may vary according to appliance and equipment options. Fuses and breakers are labeled on panel.

If the GFCI keeps tripping, have the electrical system checked and repaired, if necessary, before using again.

ELECTRICAL OUTLETS – HOUSE 120-VOLT AC

A number of standard household electrical outlets are provided throughout the coach for connecting small appliances such as televisions, radios, toasters, etc.

An exterior outlet is also located on the outside of the coach near the entrance door or in a storage compartment on the passenger side of the coach.

GROUND FAULT CIRCUIT INTERRUPTER

Bath, galley, and exterior outlets are connected to a GFCI (Ground Fault Circuit Interrupter), which is an extremely sensitive circuit breaker that will help to protect against severe electrical shock if a ground fault develops. If such a condition occurs, the GFCI will break the circuit by turning off the power to the protected outlets. Should this occur, unplug all the appliances on that circuit and press the reset button on the GFCI equipped outlet.

The GFCI will not completely eliminate the risk of electrical shock. Infants and small children may still be affected.

ELECTRICAL GENERATOR – 120-VOLT

–If Equipped

Careless handling of the generator and electrical components can be fatal. Never touch electrical leads or appliances when your hands are wet, or when standing in water or on wet ground. Do not attempt to repair the generator yourself. Service should be performed by a qualified service center.

6-4

SECTION 6 –

WARNING

Power CordGenerator

Receptacle

WARNING

ELECTRICAL

To use the 120-volt generator, plug the power cord into the generator receptacle within the utility compartment before starting the generator.

Refer to the hourmeter to determine when periodic maintenance is due and to record services which have been performed.

Operation Warnings and Cautions

The exhaust of all internal combustion engines contains carbon monoxide (CO). This poisonous gas is colorless, odorless, tasteless, and lighter than air. The exhaust systems of both your motorhome engine and your generator engine have been installed with your safety in mind. However, certain precautions must be taken when using them to protect yourself from conditions beyond the control of the manufacturer.

Do not plug the power cord into the generator receptacle while the generator is running. Electrical shock can cause personal injury.

Generator Operation

See the manufacturer’s operation, care and

maintenance in your InfoCase.

Generator Hourmeter

This meter is located on the monitor panel. It registers the total number of hours that the generator has been operated.

1. Do not simultaneously operate the generator and a power vent, which could draw exhaust gases into the vehicle.

2. Do not open windows or vents on the end or side of the vehicle where exhaust pipe of the generator is located.

3. Park the vehicle so that the wind will carry the exhaust away from the vehicle. Also, note the position of other vehicles to be sure their exhaust will not enter your vehicle.

4. Do not operate the generator engine while parked if vegetation, snow, buildings, vehicles, or any other object can deflect the exhaust under or into the vehicle.

NOTE: Check auxiliary generator oil level

frequently during periods of use.

Refer to the generator manufacturer’s maintenance information in your InfoCase for specific recommendations.

ELECTRICAL SYSTEM – HOUSE 12-V OLT DC

The DC voltage system consists of the chassis battery, the 12-volt house batteries, and the 12volt power converter.

6-5

SECTION 6 –

House/Coach Battery Disconnect Switch

(Located near entrance door)

-Typical View

ELECTRICAL Converter

See “Power Center.”

Chassis Battery

The chassis battery is used to operate the engine starter and automotive accessories and controls found on the instrument panel. The slideout room systems and the electric step are also connected to the chassis battery.

See your chassis manual for further information on chassis batteries and chassis electrical system.

House Batteries

House batteries are “deep-cycle” type batteries specially designed for recreational vehicle use. They will provide longer lasting power than standard automotive starting batteries and will withstand the frequent drain-andrecharge cycles that occur under the demanding conditions of a camping outing.

The house batteries supply power to 12-volt equipment located in the living area of the motorhome. This includes the following 12-volt powered components (if equipped): interior 12volt lighting, range exhaust fan, propane furnace fan, fresh water pump, systems monitor panel, refrigerator, roof vent fans, and 120-volt electrical generator starter.

The house batteries can also provide emergency power to start the engine if the chassis battery is discharged. (See “Battery Boost Switch” in Section 3 - Driving Your Motorhome).

House batteries are automatically charged by the chassis alternator while the engine is running.

Always leave this switch ON while using the

coach.

NOTE: Some electronic displays and memory

functions may need to be reset after power has been reconnected.

See also “Battery Care” elsewhere in this

section.

BATTERY ACCESS

The house batteries are located in a front driver or passenger side compartment, depending on model. The batteries are mounted on an extendable slide tray for your convenience.

Accessing House Batteries

1. Open battery compartment door.

2. Slide locking device over to release battery

tray.

HOUSE/COACH BATTERY DISCONNECT SWITCH

(COACH BATT)

The House/Coach Battery Disconnect switch lets you disconnect the house batteries from the 12-volt system of your coach during storage periods to avoid battery drain by electrical items that are hooked directly to the house batteries, such as clock displays and radio memories, etc.

6-6

SECTION 6 –

WARNING

ELECTRICAL

3. Extend battery tray.

4. To store, push the battery tray in until it “clicks” into locked position.

NOTE: Chassis batteries are located under the

front hood.

NOTICE

The two best defenses against sulfating and insufficient charge are to:

1. Turn of f the House/Coach Battery Disconnect switch to avoid parasitic discharge (the trickle discharge caused by directly connected components like propane gas detectors or digital clock displays, etc.)

2. Check the battery and recharge as necessary at least once a month during long storage periods. Turn the House/Coach Battery Disconnect switch off to avoid electrical arcing when attaching or detaching charger clamps.

California Proposition 65 Warning:

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer and reproductive harm. Wash hands after handling.

Always refasten battery retainers when returning a battery to the compartment.

BATTERY CARE

Lead-acid type batteries are electro-chemical devices for storing and releasing electrical charge. As such, they are simply an electrical reservoir, not an electrical source. As soon as energy is removed from the battery, it should be replaced by the engine alternator or the coach converter system.

If a battery sits unused for 30 days or more, especially during warm weather, it can develop a deposit of sulfate crystals on the metal plates inside the battery. This condition is called “sulfating” and prevents the battery from either releasing or accepting a charge. If this condition occurs, the battery must be replaced.

If a battery does not contain at least 80% charge during freezing temperatures, the electrolyte can freeze and crack the battery case.

NOTE: Do not leave the shoreline plugged in

during storage. Follow regular battery inspection and maintenance.

Further precautions are:

• Check the state of charge periodically to avoid discharge or sulfating.

To ensure that the battery will always accept and hold a charge, follow these simple maintenance practices:

• Make sure the batteries always remain

securely clamped in the battery tray.

• Make sure battery cable clamps are tight on

the terminal posts and are free of corrosion.

• Neutralize corrosion buildup or acid film on

top of battery by washing with a baking soda/ water solution. Rinse with clear water.

NOTE: Make sure vent caps are on securely to

prevent baking soda solution from entering the battery and contaminating the electrolyte fluid.

6-7

SECTION 6 –

WARNING

ELECTRICAL

Before removing any battery cables or battery, make sure all 12-volt equipment in the motorhome is off and the power cord has been disconnected. Be sure to replace the battery terminal boot, if supplied, back onto the positive terminal after servicing. Care must be taken to avoid pinching the cable between any metal parts. Should the cable be damaged, a short circuit could result in personal injury or damage to equipment. Replace any damaged cables at once. Always remove jewelry and wear protective clothing and eye covering when checking or handling batteries.

• Clean and tighten battery terminals and have the specific gravity checked at least once a year.

• Check the battery fluid level every month, or more often in hot weather. Fill to approximately 3/8 inch above the plates. DO NOT OVERFILL. If fluid is added during freezing weather, the motorhome should be driven several miles to mix water and electrolyte to prevent freezing.

• Fluid level check may be omitted if equipped with maintenance-free batteries.

To prevent wiring damage, it is essential when replacing the cables on the battery , or when using a “booster” battery , that the positive post and the positive cable be attached and the negative post and negative cable be attached. The posts are marked (+) plus and (-) minus. If a “boost charger” is used while battery is in the motorhome, disconnect both battery cables before connecting the charger to avoid damage to engine electronic components. Never attempt to charge or boost a frozen battery . An explosion can occur resulting in personal injury.

Chassis Battery

If your coach is going to be unoccupied for two weeks or more, Winnebago Industries® recommends disconnecting the chassis battery in your coach to avoid battery discharge.

Disconnect the ground cable on the chassis battery (located under front hood) to disconnect battery.

CIRCUIT BREAKERS AND FUSES – HOUSE 12-VOLT DC

All 12-volt circuits and equipment in the coach area of the motorhome are protected by either a fuse panel or breaker panel. When a circuit is overloaded or a short develops in any part of the system, a fuse or breaker will shut down that circuit. If this happens, turn off all affected lights or appliances and reset the breaker or replace the fuse with a new one of equal amperage rating.

6-8

House 12-Volt Fuses

A label on the House 12-Volt Fuse panel states the amperage rating and circuit protected for each fuse.

The fuse panel accepts only blade type plug-in

House 12-Volt Fuses

(Located on the right-hand side

of the power converter)

-Typical View

Functional Non-Functional

Automotive Chassis and House

12-Volt Circuit Breakers

(Located inside passenger compartment)

-Typical View

fuses. Always replace fuses with those of the same amperage rating.

SECTION 6 –

ELECTRICAL

Battery Charge Meter

See related item under “Systems Monitor

Panel” in Section 4 - Appliances.

Battery Boost Switch

See Section 3 - Driving Your Motorhome for

information on the Battery Boost switch.

Automotive Chassis and House 12-Volt Circuit Breakers

A label on the Automotive Chassis and House 12-Volt Circuit Breaker panel states the amperage rating and circuit protected for each breaker.

NOTE: Breakers are labeled on panel.

Arrangement may vary according to appliance and equipment options.

6-9

SECTION 7 – PLUMBING

Water Tank Gravity Fill

-Typical View

Fresh (City) Water Inlet

-Typical View

FRESH WATER SYSTEM

The fresh water system provides water to the galley sink, shower, bathroom lavatory, toilet and water heater. Water may be supplied by either of two sources:

• a fresh water tank and water pump located

within the motorhome, or

• any external fresh water source to which the

motorhome may be connected, known as “city water”.

Water Pressure Regulators

Because city water pressure varies from location to location, we recommend obtaining an in-line water pressure regulator to prevent damage to any components, connections, and seals in your fresh water system.

These devices simply connect in-line between the supply hose and the city water input on the coach. We recommend regulators that control water pressure to 50 psi. max.

Water pressure regulators are commonly available at most RV dealerships and many large retail discount or home supply centers.

Filling the Fresh Water Tank

Always fill the fresh water tank at an approved potable water filling facility or a known purified drinking water source.

The gravity tank fill tube is located behind a small, lockable door on the left (driver) sidewall toward the back of the coach.

Insert hose into fill opening and turn water supply on. Tank is full when water flows from tank vent tube beneath coach.

Using City Water

When connected to an outside source of water, the water bypasses the water pump and storage tank and supplies pressure directly to individual faucets and toilet. A check valve built into the water pump prevents water from entering the pump and filling the storage tank.

Connecting City Water Source:

1. Turn the Water Pump switch OFF.

2. Attach an RV city water hose from the

external water source to the city water connection (typically located in the water service center or on the left sidewall of your vehicle).

5 - DASH / AUTO

NOTE: Always leave gravity fill door OPEN

while filling tank.

3. Turn on the external water source.

7-1

SECTION 7 –

Water Pump Strainer

-Typical View

Unscrew bowl

and remove to

clean strainer

PLUMBING

NOTE: Always keep the tank fill valve in Normal

position unless you are filling the tank. If this valve is left in the Tank Fill position while using the city water, water will keep flowing into the tank and out the tank vent tube onto the ground and the water pump will run without delivering water to faucets.

Disconnecting from City Water

1. Turn the city water source OFF.

2. Open a faucet on the coach (such as the exterior wash station, if equipped) to relieve line pressure.

3. Disconnect the city water hose from the coach and replace the cap on the fresh water inlet.

WATER PUMP

When your coach is not connected to a city water supply, water is supplied from the fresh water tank by a water system demand pump. A demand pump is designed to run only when you are using water. When you open a faucet, the waterline pressure drops and the pump begins to run, and it will continue to run as long as the faucet is open. When you close the faucet, the line pressure backs up to the pump, and it shuts itself off.

The pump is self-priming and will run briefly to build up line pressure when the Water Pump Switch is first turned on. See “Initial Waterline Priming” for instructions on using the water system for the first time.

Pump Strainer

The pump is equipped with a cleanable strainer to capture any possible tank-borne particles that could damage pump components.

NOTE: We recommend that you check and clean

the strainer after each tankful of water during the first few uses of the water pump system. Thereafter, remember to check it at least yearly, and be sure to empty water from it during winterization procedures.

To Clean Pump Strainer

• Be sure all water pump switches are OFF.

• Twist the inlet cap (bowl) counter-clockwise to unscrew from the strainer assembly.

• Remove the bowl and pull the strainer screen out of the bowl to tap out any particles and rinse clean.

• Insert the strainer screen back into the bowl, then screw the bowl back onto the strainer assembly.

NOTE: You must also empty the strainer when

winterizing your coach to avoid water freezing and cracking the filter bowl.

Water Pump Switch

The water pump switch is located near the systems monitor panel. (Some models may have an additional switch within the bathroom area or exterior shower for your convenience).

While the switch is ON, the pump will automatically supply water as it is needed.

We recommend that you turn the water pump switch off whenever you will be away from the vehicle or not using the water system. In time, a slow leak in a faucet could drain the water tank, fill the holding tank, and discharge the house batteries.

Initial Waterline Priming

1. Make sure that all water drain valves are

closed, including water heater valve.

7-2

SECTION 7 –

Water Pump

(Located beneath bed -

lift mattress to expose access hole)

-Typical View

WARNING

PLUMBING

2. Turn water pump switch to “OFF” position.

3. Fill water tank.

4. Open all faucets, hot and cold.

5. Turn on water pump switch.

6. Close each faucet as it begins to deliver a steady stream of water (close cold water first). Leave hot water faucets on until they also deliver a steady stream of water. This will ensure that the water heater is filled with water.

7. Check to be sure pump stops soon after all faucets have been closed.

8. Pump is now ready for automatic operation. Pump will start when a faucet is opened and stop when the faucet is closed.

Further Information

See the water pump manufacturer’s operation, care, and maintenance information in your InfoCase.

system, one that has not been used for a period of time, or one that could have become contaminated.

This procedure is also recommended before

long periods of storage such as over winter.

1. Prepare a chlorine solution using 1 gallon of water and 1/4 cup of household chlorine bleach (sodium hypochlorite solution). With tank empty, pour chlorine solution into the tank. Use 1 gallon solution for each 15 gallons of tank capacity . This procedure will result in a residual chlorine concentration of 50 ppm in the water system.

If a 100 ppm concentration is desired as discussed in step 4, use 1/2 cup of household bleach with 1 gallon of water to prepare the chlorine solution. One gallon of this solution should be used for each 15 gallons of tank capacity.

DISINFECTING YOUR FRESH WATER SYSTEM

(As required by NFPA®1192 Standard on Recreational V ehicles)

To ensure complete disinfection of the potable water system, it is recommended that the following procedure be followed on a new

Chlorine is poisonous. Do not misuse. Recap bottle and clean all utensils after use.

2. Complete filling of tank with fresh water.

3. Open each faucet in the coach and run the water until a distinct odor of chlorine can be detected in the water discharged. Do not forget the hot water faucets.

4. Let the system stand at least 4 hours when disinfecting with 50 ppm residual chlorine. (If

a shorter time period is desired, then a 100 ppm chlorine concentration should be allowed to stand in the system for at least 1 hour.)

5. Drain the water tank and refill with fresh water.

6. Open each faucet again and run fresh water to flush chlorinated water from the lines. Run the water until there is no odor of chlorine detected in the water discharged. Do not forget the hot water faucets. (You may need to leave a hot water faucet

7-3

SECTION 7 –

Exterior Shower/Wash Station

-Typical View

Flush

Add Water

PLUMBING

open for some time to flush the water heater with clean water. You may also want to turn the water heater off until this is done to avoid wasting energy trying to heat “unused” water).

7. Water system is now disinfected.

Continuous Tank Disinfection (Superchlorination)

Some RVers like to ensure continuous sanitation of their fresh water tank by “superchlorination”– maintaining an effective low level of chlorine in the tank at all times.

• Add 1 teaspoon of household chlorine bleach

(sodium hypochlorite) to your tank for each 10 gallons of tank capacity . When you fill the tank, this will result in a 6.7 ppm level of chlorine, which should kill harmful bacteria and slime-forming organisms.

EXTERIOR SHOWER/WASH STATION

–If Equipped

The exterior wash station feature allows you to do things such as rinse off sand or salt after a swim, rinse off muddy boots, or bathe your pet outside the coach. Some models may have a water pump switch located near the shower faucet for convenience.

• Chlorine may be removed from drinking water by the cold water filter at the galley faucet (if equipped) or by installing an activated carbon water purifier at the galley sink cold water line or a separate drinking water faucet with filter.

• Superchlorination does not affect city water usage, only the fresh water tank.

SHOWER HOSE VACUUM BREAKER

After using the shower, you may notice water dripping from the shower faucet assembly. The dripping results when vacuum in the shower hose (after closing the shower faucet) slowly releases and allows water remaining in the hose to drain down. This is a normal function of the shower valve assembly and is not a leak or defect.

If items are placed into the shower tub before shower valve vacuum release is complete, they may become wet.

TOILET

The toilet in your motorhome is very similar to the household type, except that it is designed to use only a small amount of water per flush. It uses a high velocity jet of water, producing a swirl effect, to efficiently cleanse the bowl.

7-4

Important “Don’ts”

• Don't use facial tissue or regular toilet tissue in

the RV toilet. These will not disintegrate sufficiently and will often cling to the sides of

SECTION 7 –

Holding Tank Dump Valves (Located in mid-driver side

access compartment)

-Typical View

PLUMBING

the holding tank. Toilet tissue made specifically for use in RV toilets and holding tanks is available at most RV supply centers.

• Don’t dispose of sanitary napkins or other non-dissolving items in the toilet.

• Don’t put automotive antifreeze or caustic chemicals, such as laundry bleach or heavy detergents into the toilet or holding tank. These products may damage plastic or rubber parts in the system.

Further Information

See the toilet manufacturer’s operation information in your InfoCase for complete operating, care and maintenance information.

See winterizing instructions at the end of this section to prepare the toilet for storage in freezing conditions.

DRAINAGE SYSTEM (P-TRAPS)

Ensure there is an adequate amount of water in the drainage system p-traps to avoid sewer odor from entering your coach.

If you should experience a sewer odor, pour approximately 1 cup of water down each sink and shower drain in the coach.

WASTE WATER SYSTEM

(Holding Tanks)

The drainage system is self-contained and uses two separate holding tanks to contain the waste water until it can be dumped at an appropriate waste water disposal site. This means you can use the toilet, sinks, and shower even in areas where utility hookups are not available.

The black water holding tank contains the sewage from the toilet and may include bathroom lavatory on some models. The gray water holding tank contains the waste water from the galley sink and shower, and may include bathroom lavatory.

See “Specifications” in Section 1 - Introduction for tank capacities for your model.

Dumping Holding Tanks

1. Remove sewage drain hose from rear bumper storage.

2. Remove dust cap from sewage drain outlet and connect sewer hose. Be sure it is firmly attached.

NOTE: The sewage drain outlet on your coach

may swivel downward (depending on model) when necessary to avoid bends in the sewage drain hose, which could trap solids while dumping or to provide more direct drainage while using on-site sewer hook-ups.

3. Place the outlet end of sewage drain hose into disposal opening.

7-5

SECTION 7 –

1st - Pull Black Waste Tank Drain valve to drain black water (sewage) tank then close.

2nd - Pull Gray W aste Tank Drain valve to drain gray water (sink/ shower) tank then close.

Sewage Drain

Outlet/Dust Cap

PLUMBING

NOTE: Black and Gray tank valve positions may

be reversed depending on floorplan and tank location.

4. Open the Black W aste Tank Drain valve with a quick pull and make sure there are no sags in the hose. Move the hose gently about to dislodge any waste and ensure complete drainage. Close Black Waste Tank Drain valve as soon as tank is empty.

NOTE: DO NOT OPEN BOTH VALVES AT

ONCE. Do not open the Gray W aste Tank Drain valve until the black tank is drained and Black Waste Tank Drain valve is closed to avoid sewage back-up into gray tank. Gray water also rinses any black water solids from the sewage drain hose.

5. Open the Gray Waste Tank Drain valve. Be sure there are no sags in the hose to ensure complete drainage. Close Gray Waste Tank Drain valve as soon as tank is empty.

6. Add an odor control chemical to the sewage

holding tank through the toilet. These chemicals are available at most RV stores.

7-6

7. Rinse sewage drain hose thoroughly with water and stow.

NOTE: We recommend that you dump all

holding tanks before traveling to avoid carrying unnecessary weight.

Using On-Site Sewer Hook-Ups

The sewage drain hose may remain attached to the dump outlet and be routed out the bottom of the compartment while the motorhome is parked and connected to an on-site sewage hook-up.

NOTE: Always keep service access passage

closed while utility connection is not in use.

When using a sewer hook-up, keep the dump valves closed until a tank becomes full or when preparing to leave the site. This keeps the solids in suspension, allowing them to be carried out with the liquids when the dump valve is opened. If the valve is left open, the liquids will drain off, leaving solids in the tank. Should this accidentally happen, disconnect the hose, fill the tank about half full with water, and drive a few miles to dislodge the solids. A few starts and stops will aid in the process. Then reconnect the hose and drain in the normal manner.

Holding Tank Level Indicators

See “Systems Monitor Panel” in Section 4 Appliances for further information on the

monitor panel and checking tank levels.

See “Specifications” in Section 1 - Introduction for tank capacities for your model.

WASTE WATER SYSTEM WASTE PUMP (MODEL 26Q)

(Holding Tanks)

The black water holding tank contains the sewage from the toilet and may include the bathroom lavatory on some models. The gray

SECTION 7 –

Waste Pump (Located on driver side of coach behind rear wheel)

-Typical View

Sewage Drain Outlet

(Located beneath coach on mid-driver side)

-Typical View

Sewage Drain

Outlet/Dust Cap

Black Waste Tank Drain Valve

(Located beneath coach on mid-driver side)

-Typical View

PLUMBING

water holding tank contains the waste water from the galley sink, shower, and may include bathroom lavatory.

See “Specifications” in Section 1–

Introduction for tank capacities for your model.

Waste Pump

The 12-volt Waste Pump disposes gray

holding tank waste through a small diameter sewer hose, which is then drained through the main sewage drain outlet.

2. Remove dust cap from sewage drain outlet and connect sewage drain hose. Be sure it is firmly attached.

3. Place the outlet end of sewage drain hose into disposal opening.

NOTE: If Waste Pump stalls, check breaker in

the load center. If problem persists, remove end cap and manually turn pump shaft (located on the end of the Waste Pump) with a screwdriver.

Further Information

For further information and operating cautions, see the Waste Pump operating instructions included in your InfoCase.

Dumping Holding Tanks

1. Remove sewage drain hose from rear bumper

storage.

NOTE: DO NOT OPEN BOTH VALVES AT

ONCE. Do not open the Gray W aste Tank Drain valve until the black tank is drained and dump valve closed to avoid

7-7

SECTION 7 –

Gray Waste Tank Drain Valve

(Located beneath driver side of

coach ahead of rear wheel)

-Typical View

Waste Pump Switch

(Located near exterior shower)

-Typical View

PLUMBING

sewage back-up into gray tank. Gray water also rinses any black water solids from the sewage drain hose.

5. Open the Gray Waste Tank Drain valve (located beneath driver side of coach ahead of rear wheel) and press and hold the Waste Pump switch (located near the exterior shower .) Release the W as te Pump switch and close the Gray Waste Tank Drain valve as soon as the gray tank is empty.

NOTE: Sound of Waste Pump will change

significantly when tank is empty.

6. Add an odor control chemical to the sewage holding tank through the toilet. These chemicals are available at most RV stores.

7. Rinse sewage drain hose thoroughly with water and stow.

NOTE: We recommend that you dump all

holding tanks before traveling to avoid carrying unnecessary weight.

Using On-Site Sewer Hook-Ups

The sewage drain hose may remain attached to the sewage drain outlet while the motorhome is parked and connected to an on-site sewage hookup.

NOTE: Always keep sewage drain outlet capped while sewage connection is not in use.

7-8

SECTION 7 –

Holding Tank Heater Switch

(Located near monitor panel)

-Typical View

DRAIN

IN-LINE VALVE

LINE-END VALVE

Waterline Drain Valves

(Typical)

Waterline Drain Valve (Typical)

PLUMBING

Holding Tank Level Indicators

See “Systems Monitor Panel” in Section 4–

Appliances for further information on the

monitor panel and checking tank levels.

See “Specifications” in Section 1–

Introduction for tank capacities for your model.

HOLDING T ANK HEATER

–If Equipped

Your coach may be equipped with black water and gray water holding tank heaters to allow use of waste utilities in freezing temperatures. The holding tank heater power switch is located near the monitor panel. The illuminated switch will glow when the power is on.

batteries would not support overnight heating without a supplemental charging source.

WATERLINE & TANK DRAIN VALVES

The water drain valves are used to drain water from the water tank and the water supply lines when preparing the motor home for storage or when sanitizing the water system.

To open or close the drain valves, turn the handles in the directions indicated by the following illustration.

See the drain valve location chart at the end of this section for locations on your model.

DO NOT operate the holding tank heater unless you are providing a supplemental 12-volt power source to recharge the house batteries. This means either the shoreline cord must be plugged into a 120-volt source, the auxiliary generator must be operating, or the chassis engine must be running (such as when driving down the road). This will prevent excessive discharge of the house battery.

NOTE: The holding tank heater pads are

electrical resistant-type heating elements. This type of heating element typically uses a large amount of current while operating. If the tank heaters are used without a recharging source, they will drain the house batteries in a relatively short period. Typically, the

7-9

SECTION 7 –

Water Tank Drain Valve (Typical)

CAUTION

Normal Flow

By-Pass Mode

PLUMBING

Leave bypass valve handle in NORMAL FLOW position if draining water and blowing out waterlines. Place in BYP ASS position ONLY when using antifreeze solution in waterlines.

WATER HEA TER BYPASS AND ANTIFREEZE SIPHON VALVES

Your coach is equipped with a Water Heater Bypass valve and an Antifreeze Siphon (Winterization) valve for winterizing waterlines using RV antifreeze.

Turn the handle as shown to either bypass or flow mode.

Refer to the “Water System Drain Valve Locations” chart at the end of this section for locations on your model.

WINTERIZING PROCEDURE

You can winterize the water and plumbing system of your coach using one of the following two methods – 1) Blow out waterlines using compressed air or – 2) Fill waterlines with RV water system antifreeze.

Method 1 – Blow Out Procedure

(Drain and purge waterlines using compressedair)

1. Level the Motorhome. If the coach is not

level, there may be “low points” in waterlines that can trap water in the lines and prevent it from draining properly.

2. Drain Fresh Water Tank and Waterlines.

Open all waterline drain valves and drain fresh water tank. (See “Water System Drain Valve Locations” chart at end of this section for locations of drain valves on your model).

3. Drain Exterior Shower/Wash Station (if

equipped).

Open exterior shower knobs and lay shower head on ground as shown to drain any water left in the shower line. Also place the tip of your finger into the city water inlet and gently

7-10

SECTION 7 –

Using exterior shower to drain

waterline (if equipped)

-Typical View

Water Heater Drain Plug

(Remove with socket)

Pressure-Temperature

Relief Valve

(Lift handle only when water heater is cold)

City Water Connection

Fresh Water

Inlet

Blow-out

Plug

Air Hose

PLUMBING

press the backflow valve button in the center of the inlet to drain any water trapped in the inlet line.

4. Open Faucets. Turn on the water pump and

open all sink faucets and shower head knobs. Leave open after water stops flowing.

5. Drain Toilet. Press the toilet flush pedal and

hold until water stops flowing in the toilet. Then turn water pump switch off.

6. Drain Water Heater. Turn off the water

heater power switch before draining the water heater tank to avoid damage to the heating element. Drain the water heater by removing the plug from the base of the water heater tank, accessible from the outside of the coach. (Requires socket and ratchet).

• Also, open the Pressure-Temperature Relief valve at the top right portion of the tank to prevent air locking in the tank while draining.

7. Connect Air Pressure. After water has stopped draining at all faucets and drain valves, leave faucets open and connect a “blow-out” plug to the city water connection on the coach. Then use a compressed air hose regulated to 30 psi or less to force air through the system. A “blow-out” plug can be

purchased at any Winnebago® or Itasca® dealer.

NOTICE

Limit air pressure to 30 psi to avoid damage to equipment.

NOTE: DO NOT burst air into the system. This

can damage the water pump. It is better to let air in slowly.

7-11

SECTION 7 – PLUMBING

8. Let air flow for five minutes until water is

completely drained out of faucets and drain valves. Then close faucets one at a time.

9. Drain Toilet. Operate and hold toilet flush

lever until water is completely drained from toilet.

10. Turn air pressure off. Disconnect water

purge adapters. Recap the city water inlet to avoid contamination by dirt or insects.

After Disconnecting Air Pressure

11. Close all waterline drains, tank drain valves, and all faucets to avoid contamination by dirt, insects, or rodents.

12. Reinstall the Water Heater drain plug and close the P-T Relief Valve.

13. Pour about one cup of non-toxic R V antifreeze down the galley sink drain(s), bathroom lavatory sink drain, and shower drain. This fills the drain traps to prevent holding tank odors from entering the coach during storage.

NOTE: It is not necessary to add antifreeze to

the toilet since the flush valve will be closed. Do not add automotive antifreeze or caustic chemicals such as bleach or laundry detergents into the toilet bowl or holding tanks. Although these products may have a deodorizing effect, they may damage plastic and rubber parts in the system.

14. Empty the water pump strainer filter bowl to avoid water freezing and cracking the filter bowl. See “Water Pump” previously in this section.

Dump and Clean Holding Tanks

15. Completely drain the sewage and waste water holding tanks at an approved waste disposal site. Drain the sewage tank first so the following waste water can rinse any waste solids from the sewage drain outlet and sewer hose.

16. Close dump valves and refit the dust cap onto the sewage drain outlet. This will inhibit rust formation on valve shafts

and prevent entry and contamination by airborne debris, insects, and rodents.

Your drainage and fresh water systems are

now winterized.

See instructions for removal from storage in

Section 11 - Maintenance and Storage.

Method 2 – Antifreeze Fill Procedure

(Fill plumbing lines with RV water system antifreeze)

NOTE: As an alternative to totally draining the

waterlines, you may winterize tanks and lines by filling them with non-toxic RV water system antifreeze through the plumbing system. This product is available from your dealer and from most RV supply stores and national retail outlets. Follow directions on the container to determine the correct amount to use for your coach.

Your coach is equipped with a manually operated waterline winterization system for your convenience in winterizing fresh waterlines.

The system features a Winterization (diverter) valve with siphon tube (located near the water pump) to draw non-toxic RV water system antifreeze into the waterlines. There is also a Water Heater Bypass valve to avoid filling the water heater with antifreeze.

Leave the Water Heater Bypass valve handle in NORMAL FLOW position if draining water and blowing out waterlines. Place in BYPASS position ONLY when using antifreeze solution in waterlines.

7-12

WARNING

NEVER use automotive antifreeze/

Antifreeze Siphon Tube

• (insert into container of RV water system antifreeze)

Winterization Valve

• (point toward siphon tube to winterize)

RV Antifreeze Siphon Tube and

Winterization Valve

-Typical View

(See Water System Drain V alve Locations chart at end

of this section for valve locations on your model)

coolant in your RV water system. Auto antifreeze contains ethylene glycol which, if ingested, can cause blindness and can be fatal.

Set Up Winterization Valves

1. Turn Water Heater Bypass valve to BYPASS position. (See “Water System Drain Valve Locations” chart at the end of this section for location of bypass valve on your model).

2. Remove and save the protective cap from the end of the antifreeze siphon tube (save cap to cover tube after use). Insert the end of the siphon tube into a pail or other container with 2 to 3 gallons of non-toxic RV antifreeze solution.

SECTION 7 –

PLUMBING

NOTE: Ensure that all drain valves are

CLOSED before pumping RV antifreeze into the water system. Refer to the “Water System Drain Valve Locations” chart at the end of this section for valve locations on your model.

Fill Lines

4. Turn the Water Pump switch ON.

5. Open each hot and cold water faucet handle/ knob in the coach – one at a time each in turn until antifreeze solution just begins to flow from the faucet, then close. Do not forget exterior shower/wash station knobs (if equipped).

6. Press the toilet flush pedal and hold until antifreeze begins flowing into the toilet. Leave small amount of antifreeze that remains in the bowl.

When Done Adding RV Antifreeze

7. Turn the Water Pump switch OFF.

8. Turn the Winterization Valve handle so it points toward the waterline to the water pump. This will stop the flow from the antifreeze siphon tube and revert the tank line flow to the water pump.

9. Replace the protective cap onto the end of the antifreeze siphon tube to keep out insects or debris when not in use.

3. Turn the W interization Valve handle so that it points toward the siphon tube. (See “Water System Drain Valve Locations” chart at the end of this section for location on your

model).

Drain Water Heater

10. Turn off the Water Heater power switch before draining the water heater tank to avoid damage to the heating element.

• Drain the water heater by removing the plug

from the base of the water heater tank, accessible from the outside of the coach (requires socket and ratchet).

7-13

SECTION 7 –

Water Heater Drain Plug

(Remove with socket)

Pressure-Temperature Relief Valve

(Lift handle only when water heater is cold)

Waste Pump Drain

(Located on driver side of coach

ahead of rear wheel)

* Model 26Q only

PLUMBING

• Open the Pressure-T emperature Relief valve at the top right portion of the tank to prevent air locking in the tank while draining.

and prevent entry and contamination by airborne debris, insects, and rodents.

Your drainage and fresh water systems are

now winterized.

See instructions for removal from storage in

Section 11 - Maintenance and Storage.

To Winterize the Waste Pump

-If Equipped

• Ensure that black and gray holding tanks are completely empty.

• Remove W aste Pump Drain (located on driver side of coach ahead of rear wheel) to drain any gray water trapped in the drain line. Remove with socket/wrench.

• Reinstall the water heater drain plug and close the P-T Relief valve when drained.

Fill Drainage System P-T raps

11. Pour about one cup of RV antifreeze down each drain for the galley sink, lavatory sink, and shower/tub. This fills the drain trap pipes to prevent holding tank odors from entering the coach during storage.

Dump and Clean Holding Tanks

12. Completely drain the sewage and waste water holding tanks at an approved waste disposal site. Drain the sewage tank first so the following waste water can rinse any waste solids from the sewage drain outlet and sewer hose.

13. Close dump valves and refit the dust cap onto the sewage drain outlet. This will inhibit rust formation on valve shafts

7-14

• Pour about one cup of R V antifreeze down the toilet and either the bathroom or kitchen sink.

• Press and Hold the Waste Pump switch for approximately 5-10 seconds to get antifreeze into the pump.

SECTION 7 –

PLUMBING

WATER SYSTEM DRAIN VALVE LOCATIONS

MODEL SYSTEM DRAIN VALVE LOCATIONS

24V Waterlines • Two (2) valves beneath shower. Access through

removable panel on lower front of shower cabinet.

• Two (2) valves beneath the bed. Lift mattress to expose access hole.

Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button” in center of connector) to drain any water left in the city waterline.

Water Tank • One (1) valve beneath the bed. Lift mattress to expose

access hole.

Water Heater • Drain plug on outside of coach behind service door. Use

socket to remove drain plug.

Water Heater

• Beneath bed. Lift mattress to expose access hole.

Bypass Valve Winterization

• Beneath bed. Lift mattress to expose access hole.

(Antifreeze) Valve

26Q Waterlines • Two (2) valves in galley. Remove bottom drawer under

stove.

Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button” in center of connector) to drain any water left in the city waterline.

Water Tank • One (1) valve beneath the bed. Lift mattress to expose

access hole.

Water Heater • Drain plug on outside of coach behind service door. Use

socket to remove drain plug.

Water Heater Bypass Valve

Winterization

• Beneath galley sink. Open doors and remove panel to access.

• Beneath the bed. Lift mattress to expose access hole.

(Antifreeze) Valve

7-15

SECTION 7 – PLUMBING

31J Waterlines • Two (2) valves beneath lavatory sink. Access through

removable panel.

Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button” in center of connector) to drain any water left in the city waterline.

Water Tank • One (1) valve beneath the bed. Lift mattress to expose

access hole.

Water Heater • Drain plug on outside of coach behind service door. Use

socket to remove drain plug.

Water Heater

• Beneath galley sink. Remove panel to access.

Bypass Valve Winterization

• Beneath the bed. Lift mattress to expose access hole.

(Antifreeze) Valve

31R Waterlines • Two (2) valves beneath the bed. Lift mattress to expose

access hole.

Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button” in center of connector) to drain any water left in the city waterline.

Water Tank • One (1) valve beneath the bed. Lift mattress to expose

access hole.

Water Heater • Drain plug on outside of coach behind service door. Use

socket to remove drain plug.

Water Heater

• One (1) valve under galley sink behind removable panel.

Bypass Valve Winterization

• Beneath bed. Lift mattress to expose access hole.

(Antifreeze) Valve

7-16

SECTION 7 –

PLUMBING

31W Waterlines • Two (2) valves inside cabine t door on galley end. Remove

panel to access.

Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button” in center of connector) to drain any water left in the city waterline.

Water Tank • One (1) valve beneath the bed. Lift mattress to access. Water Heater • Drain plug on outside of coach behind service door. Use

socket to remove drain plug.

Water Heater Bypass Valve

Winterization (Antifreeze) Valve

• Beneath galley sink. Remove panel to access.

• Beneath bed. Lift mattress to expose access hole.

7-17

SECTION 8 – ENTERTAINMENT

VIDEO SELECTION SYSTEM

–If Equipped

The Video Selection System allows you to switch the antenna, AUX/VCR, cable TV, satellite TV, or DVD signal to any TV set location in the coach.

This means one person can watch a program coming in on the roof antenna on the bedroom TV while another person watches a satellite or cable TV program or video on the front TV.

To Watch Broadcast TV (Antenna)

• Press TV ANT button on MAIN TV section of

Video Selection System panel.

To Watch Cable TV

• Press CABLE TV button on MAIN TV

section of Video Selection System panel.

To Watch Satellite TV (Dish)

-If Equipped

• Press SAT button on MAIN TV section of

Video Selection System panel.

To Watch DVD

• To watch a DVD on your main TV, change the

TV to either Channel 3 or 4 by pressing the button with “Modulator” marked above the switch and “Ch. 3/Ch. 4” marked below the switch. If the switch is pressed IN, you tune to channel 4. If the switch is not tune to Channel 3.

pressed in, you

• The Video Selection System allows you to watch DVD’s from either the lounge area (main TV), bedroom, or the exterior entertainment center (if equipped.) Press the button with “DVD” marked above the switch and “Main TV” marked below the switch. To watch a DVD on other TV’s, press the button “DVD” marked above the switch in the corresponding section of the unit.

To Watch VCR (if self-installed)

• Press VCR button on MAIN TV section of Video Selection System panel.

To Watch Rear/Bedroom TV (if equipped)

• Video selection for the rear TV is similar to front TV viewing except all selections are made with buttons in the TV2 grouping.

VCR Group Buttons

• The buttons in the VCR group are for selecting the signal input to a self-installed VCR for taping programs.

• If you wish to record a program from cable TV, press the CABLE button. If the program is on the dish, press SAT, and so forth.

Further Information

See the manufacturer’s user guide provided in your InfoCase for complete operating instructions.

5 - DASH / AUTO

8-1

SECTION 8 –

Entrance Door TV

(View shown from entrance step)

ENTERTAINMENT

TV – (SWING-OUT)

–If Equipped (Typical View - your coach may vary in

appearance according to floorplan)

Your coach may be equipped with a TV swivel/telescoping mechanism, which allows you to angle the TV to best suit your viewing needs.

To Swivel TV

1. Pull the black strap (located on back side of

TV) straight DOWN to release the TV from the mounting bracket.

Further Information

See the television manufacturer’s user guide provided in your InfoCase for complete operating instructions.

TV – ENTRANCE DOOR

–If Equipped

Your coach may be equipped with a TV located above the entrance door. Take caution when entering and exiting the coach to avoid personal injury.

Caution labels are located on the back side of the TV to make persons aware of object when entering the coach.

2. Pull the TV out and pivot to desired position.

3. Rotate TV back to center position and press straight back towards wall. You will hear a “click” when the TV is secured into locked position.

Further Information

See the television manufacturer’s user guide provided in your InfoCase for complete operating instructions.

FRONT TV IGNITION SWITCH INTERLOCK

–If Equipped

If your coach is equipped with a front overhead TV, it is plugged into a special electrical outlet with a built-in ignition switch interlock. The device allows the front overhead TV to operate only when the ignition key is in the Off or Accessory positions.

8-2

BEDROOM TV 12-VOLT

Front TV Ignition Switch Interlock

-Typical View

Bedroom TV 12-Volt

Master Power Switch

(Located on cabinet or wall near TV)

-Typical installation shown

MASTER POWER SWITCH

–If Equipped

The Bedroom TV 12-Volt Master Power switch is powered by 12-volt coach current and is located on a cabinet or wall near the TV.

Turn OFF the Bedroom TV 12-Volt Master Power switch when not using the TV to conserve house battery charge.

SECTION 8 –

ENTERTAINMENT

AUDIO-VIDEO SYSTEM BASIC OPERATION

NOTE: For your convenience, we have also

included a handy, tear -out version of this “A/V System Basic Operation” guide in Section 8 of your Operator’s Manual Supplement. See your InfoCase for specific operating guides for audio and video components.

DVD HOME THEATER SYSTEM

–If Equipped

The available DVD home theater system operates from 120-volt AC household current only, so you must have either the shoreline connected, the generator running, or the inverter turned on (if equipped).

The TV is connected to the home theater system, which plays through theater speakers in the lounge area of the coach.

NOTE: This switch must be ON for the bedroom

TV to operate.

Set TV Video Input

• Turn TV and DVD player ON.

• Press FUNCTION

button on front of TV or remote and select HDMI1 input. TV screen will display DVD player logo when correct input is selected.

Play DVD with Theater Sound

• Insert DVD into player. DVD will begin to

load automatically. TV screen will typically show “READING” or “LOADING”.

• DVD may load directly to

main title/menu screen or it may begin to play previews. Y ou may be able to skip previews if desired by pressing the PRESET+ button until you see the main menu screen.

8-3

SECTION 8 –

ENTER

T/F

ENTER

PLAY/ PAUSE

ENTERTAINMENT

• When main menu screen appears, use arrow buttons on remote to select desired entry or press the center button on remote (or “Play” button on DVD player) to begin playing feature.

• Volume is adjusted with remote (or volume buttons on DVD player).

TV Sound Through Home Theater Speakers

When watching TV programs alone, the TV normally plays sound through its own built-in stereo speakers. If you wish to connect TV stereo sound output to the home theater speakers for a richer sound quality, follow these steps:

• Turn TV and DVD player ON.

• Press FUNCTION button on DVD player or

remote to set DVD player to TV CABLE.

• Use TV Menu button to set TV audio output to

“Variable Audio Output”. This routes TV stereo sound output through home theater system. > Audio (turn speaker Off) > Setup (change to Variable)

• Select TV channels and adjust volume with

remote for either the TV or DVD.

NOTE: T urn the volume level up significantly on

the DVD player when using the home theater as an amp for the TV through the stereo system.

The DVD player is connected to the TV and plays through the TV stereo speakers or the deluxe sound rear radio speakers in the lounge area of the coach.

Set TV Sound Output

• Use the TV Menu button to set TV audio

output to Variable Audio Output. (See TV owner’s manual for instructions.) This will connect TV stereo sound output to the deluxe speakers in the lounge area.

• Volume is adjusted with the TV remote or

volume buttons.

Set TV Video Input

• Turn TV and DVD player ON.

• Press the SOURCE or INPUT button on the

TV or TV remote to select “INPUT 1” or “AV1”.

• The TV screen will display

the DVD player logo when the correct input is selected.

Play DVD

• Insert DVD into player. DVD will begin to

load automatically. TV screen will typically show “READING” or “LOADING”.

• The DVD may load directly to the main title/

menu screen or it may begin to play previews. Y ou may be able to skip previews if desired by pressing the NEXT button until you see the main menu screen.

DVD PLAYER (Without Home Theater)

–If Equipped

8-4

• When the main menu screen appears, use the

arrow buttons on the DVD remote to select the desired entry or press the ENTER or PLAY buttons on the remote (or “Play” button on DVD player) to begin playing the feature.

SECTION 8 –

ENTERTAINMENT

• Volume is adjusted with the DVD remote (or volume buttons on DVD player).

FLIP-DOWN SCREEN VIDEO PLAYERS

(Rear Bunk models only)

–If Equipped

The flip-down LCD screen DVD Video Players are mounted overhead in each of the bunk beds.

The Video Players operate independently so the occupant of one bunk may watch a DVD while the other watches a different DVD. The same DVD can be watched on both players at the same time as well. The top player is the master unit. Place the DVD in the top player and begin playing the DVD. Select AV1 input on the unit in the lower bunk to view the DVD playing in the upper bunk.

The players each contain auxiliary audiovideo inputs for connection of a video game system or other audio-video equipment if desired.

• See Video Player instruction guide in your InfoCase for remote control instructions and additional information on wireless headphones.

12-Volt Master Power

• The Video Players operate on 12-volt DC current. Turn on the 12-volt master power (TV) switch shown, located on the backwall of the top bunk.

NOTE: To avoid drain on the 12-volt house

battery, we recommend turning the master power switch off when Video Players will not be in use.

Video Player Power ON/OFF

• Press the POWER button on either the remote control or the unit once to turn the power on. Press the same button to turn the player off.

• Push the open button (located on the front of your screen) and lower the monitor to the desired level. You may also adjust the swivel angle.

To Play DVD

• Insert the DVD label side down (facing you) into the slot on the side of the player. The player will automatically switch to DVD mode. The screen will display the DVD logo and begin to read the disc.

Remote Control and Wireless Sound

• A sensor array above the screen of each Video Player receives command signals from the remote control.

• The sensor array also continuously transmits wireless sound signals for reception on IR

wireless headphones.

• The DVD may load directly to the main title/ menu screen or it may begin to play previews. Y ou may be able to skip previews if desired by pressing the NEXT button on the remote until you see the main menu screen.

• When the main menu screen appears, press the PLAY button on the player or ENTER button on the remote control to begin playing the feature, or use the arrow buttons to select the desired entry.

• V olume is adjusted with the +/- buttons on the player or the remote control.

8-5

SECTION 8 –

WARNING

300-Watt DC-AC Power Inverter

• Turn Inverter On to operate TV.

• Low Battery indicator will light if 12V house batteries are becoming drained. (Turn Off inverter to avoid total drain).

• Turn Inverter Off when not in use to avoid draining house batteries.

• The inverter will shut down when the House/ Coach Battery Disconnect Switch is turned off.

ENTERTAINMENT To Play CD Audio (or CD Video)

• The Video Player is also capable of playing CD Audio music and CD Video discs.

• Insert the CD label side down (facing you) into the slot on the side of the player. The player will automatically switch to proper mode to play audio or video CD.

To Connect Game Systems or Other A/V Components

• Plug the audio and

video cables of the game system or component into the audio-video input jacks at the rear underside of the Video Player.

• Switch the game system or component ON.

• Press AV button on Video Player to select. VIDEO 1 or VIDEO 2 input. (The component logo or other indication may appear on screen when proper input is selected).

• Operate game system or component using the component’s controller(s).

• See Video Player instruction guide in your InfoCase for more information.

Reading Lights

• Push the light button to turn the reading lights on and off.

ELECTRICAL INVERTER

300-Watt DC-to-AC

–If Equipped

The inverter changes 12-volt DC automotive current into 120-volt AC household current. This allows you to operate your TV and DVD player from the house batteries when shoreline hookup or generator power are not available.* In some models the inverter is also connected to the 120Volt AC outlet for the bedroom TV.

The inverter is typically located in the video

center cabinet or on the lower face of the galley cabinet.

8-6

*NOTE: Running high-amperage appliances

like the TV and DVD on inverter power can drain the house battery rapidly unless the chassis engine is running so the alternator can charge the batteries.

Further Information

See manufacturer’s information provided in

your InfoCase for more information.

TV ANTENNA - DIGITAL

(Jack® Digital HDTV Over-the-Air Antenna)

Your coach is featured with a digital antenna, which provides crystal clear digital HD reception of over-the-air channels in addition to superior broad reception range.

The digital antenna is equipped with a built-in amplifier for maximum VHF and UHF programming.

Never allow the antenna to touch electrical power lines or any other electrical wires.

SECTION 8 –

Video Selection Box

(Located near entertainment center cabinet)

Digital Antenna Signal Meter

(Located on ceiling)

• Signal Meter Power Switch

• Attenuator Dial

• Release Button

• Rotational Knob

(arrow indicates which direction antenna is pointing)

TV Signal Amplifier Switch

(Located on Video Selection System)

Cable TV Connection

(Located in utility compartment)

-Typical installation shown

ENTERTAINMENT

Operating the Digital Antenna

1. Turn the Video Selection box ON.

2. Turn ON the Signal Meter Power switch

(located on the side of the Signal Meter).

Further Information

See the antenna manufacturer’s user guide provided in your InfoCase for complete operating and maintenance information.

TV SIGNAL AMPLIFIER

The TV Signal Amplifier is built into the antenna and can be turned on or off with a power switch on the video selection system (located on a wall near the TV or in the entertainment center cabinet, depending on model).

An indicator light will glow when the switch is on and the signal amplifier is active.

3. Rotate the Attenuator Dial fully CLOCKWISE.

4. Press Release Button on the Rotational Knob and rotate antenna (until maximum number of LED lights illuminate on the Signal Meter).

NOTE: LED lights will illuminate from left to

right. All LED lights may not illuminate, depending on signal strength.

5. Rotate Attenuator Dial COUNTERCLOCKWISE until the last illuminated LED light flickers.

6. Rotate antenna to illuminate the last flickering LED light.

7. Repeat Steps 5 and 6 to pinpoint signal reception.

NOTE: Refer to television manufacturer’s

instructions to scan for available channels.

CABLE TV CONNECTION

Your coach is equipped with a cable television input connection (located in the utility compartment) for your convenience.

8-7

SECTION 8 –

Exterior Cable TV / 12-Volt Connection

(Located near entrance door)

-Typical View

Interior Connection for Satellite Dish

(Located near entertainment center cabinet)

HDMI Cable

(Located near entertainment center cabinet)

-If Equipped

ENTERTAINMENT

EXTERIOR CABLE TV - 12V CONNECTION

–If Equipped

The exterior cable TV/12-volt connection receptacle on your coach provides connection for use of a TV and/or 12-volt device for your outdoor entertainment.

TV DIGITAL SATELLITE SYSTEM WIRING

Your coach is pre-wired for installation of a digital satellite TV system. Coaxial cable and HDMI cable connections are available to hook up your satellite receiver and are located near the entertainment center cabinet.

A second connection may be included inside a cabinet in the bedroom for the rear TV (if equipped).

See your authorized Winnebago Industries dealer for proper installation and sealing of roof mounted components.

8-8

SECTION 9 – FURNITURE AND SOFTGOODS

WARNING

CAUTION

WARNING

Do not exceed 225 lbs. maximum weight capacity.

Misuse of ladder could result in death or serious injury.

See Operators Manual before using ladder.

Attaching Bunk Ladder

•Lift ladder horizontally

•Slide C-shaped retainer ends at top of ladder onto brackets at rear edge of mattress.

SLEEPING FACILITIES

Sleeping facilities are not intended for use while vehicle is in motion. For safety , passengers must use safety belted seating positions while vehicle is in motion.

FRONT OVERHEAD BUNK

–If Equipped

The overhead front bunk is located above the driver’s compartment. The rear mattress section can be stacked on top of the front section for storage while traveling or when not in use.

Before Using Bunk Ladder

• Inspect the ladder to make sure it is not

damaged. Never use a damaged ladder.

• Keep the rungs of the ladder clean and dry

while in use. Do not step onto the rungs if the rungs are wet, or if your shoes are wet or carry debris that could result in a loss of footing.

• Never ignore warning labels or weight limits

defined on your ladder. The following warning label is located on or near the ladder:

• Maximum Capacity: 225 lbs.

• Do not overload. Ladder is intended for one

person.

• Make sure you are physically capable to

safely use the ladder . Strength, flexibility and stability are required.

• Grasp the side rails firmly and always use

both hands as you climb the ladder. Keep your body centered between the side rails. Do not over-reach.

• To protect children, do not leave the ladder

set up and unattended.

• Always store the ladder in a safe and dry

location when not in use. Stow properly while in transit.

• Do not store items on the ladder. You could

damage the ladder.

To Use the Bunk Ladder

The top of the bunk ladder must be hooked onto the brackets on the rear edge of the bunk as shown.

5 - DASH / AUTO

T o avoid injury , never use the bunk ladder in any other manner or for any other purpose than described in the following instructions.

9-1

SECTION 9 –

•Lower ladder to floor.

•Make sure top of ladder is properly engaged onto retainer brackets and ladder is resting firmly on floor before using.

Front Overhead Bunk

Shown with bunk sections and ladder in position

Security Latch

(Located on front of sofa)

- Pull OUT to release

FURNITURE AND SOFTGOODS

Straps are provided on the mattress section to secure and store the ladder while traveling or when not in use.

SOFA/BED CONVERSION

-If Equipped

Sofa to Bed

• Pull OUT on security latch (located on front of

sofa) to release sofa seat.

• Lift the front edge of the sofa seat upward and outward from the wall while gently pushing downward on the backrest until the cushions lie flat.

• The bed is now ready for use.

Bed to Sofa

• Push the front edge of the sofa seat toward the wall while lifting upward on the backrest until the sofa is fully seated against the wall and security latch “clicks” into locked position.

SOFA/BED CONVERSION

-If Equipped

Sofa to Bed

• Press DOWN on security latch handle (accessible through front sofa opening) to release sofa seat.

9-2

SECTION 9 –

Security Latch Handle accessible

through front sofa opening

Security Latch Handle

(Shown with sofa seat lifted)

- Press DOWN to release

FURNITURE AND SOFTGOODS

DINETTE/BED CONVERSION

–If Equipped

(Typical view – your coach may differ)

Dinette to Bed

1. Release the catch on the table leg brace and fold the leg up against the bottom of the table.

• Lift the front edge of the sofa seat upward and pull outward from the wall while gently pushing downward on the backrest until the cushions lie flat.

• The bed is now ready for use.

Bed to Sofa

• Push the front edge of the sofa seat toward the wall while lifting upward on the backrest until the sofa is fully seated against the wall and security latch “clicks” into locked position.

2. Remove the table from the wall support bracket by lifting the end of the table. Then lower the table to rest on the cleats attached to each dinette bench.

9-3

SECTION 9 –

Table

Bracket

Wall

Support

FURNITURE AND SOFTGOODS

3. Arrange dinette cushions to cover bed area.

Bed to Dinette

1. Reattach the table onto the wall support and lower the table leg.

DINETTE/BED CONVERSION DREAM DINETTE

–If Equipped (Typical view – your coach may differ)

™

Dinette to Bed

1. Release the lock rod (located on the bottom of the table) by turning the lock rod clockwise.

2. Make sure that the table leg is secured into the floor support bracket and the leg brace is locked.

2. Lift the dinette cushions upward and push table straight down.

3. Secure the lock rod (located on the bottom of the table) by turning the lock rod counterclockwise.

9-4

4. Arrange dinette cushions to cover bed area.

SECTION 9 –

FURNITURE AND SOFTGOODS

2. Lift edges of the dinette cushions up and push the dinette table straight down. Make sure the table is lowered as far as it will go so when arranging the cushions to cover the bed area, they are even with the other dinette cushions.

5. Reverse steps to convert back into dinette.

U-SHAPED DINETTE/BED CONVERSION

–If Equipped (Typical view – your coach may differ)

The U-Shaped Dinette can be converted into additional sleeping space when needed by lowering the dinette table and arranging the dinette cushions.

1. Release both latches on the table leg to unlock.

NOTE: You may find it easier to remove the

dinette cushions completely before lowering the table, especially if just one person is converting the dinette into bed position.

3. Secure both latches on the table leg to lock in lowered position.

9-5

SECTION 9 –

-Typical View

FURNITURE AND SOFTGOODS

4. Arrange cushions to cover bed area.

NOTE: The cushions to cover the dining table

section are located under the center dinette seat (lift removable panel below seat cushion to access) or you may use the back dinette seat cushion and two bolster cushions, depending on model.

2. Insert dinette pedestal leg(s) into the metal receiver(s) on the floor in front of sofa.

3. Place dinette table(s) securely onto the dinette pedestal leg(s).

Reverse steps to reassemble to dinette

configuration.

DINETTE CONVERSION

–If Equipped

(Typical view – your coach may be featured with two dinette tables and pedestal legs, depending on model)

Dinette Table Setup

1. Remove the dinette table(s) and pedestal leg(s) from rear wardrobe or galley cabinet, depending on model.

9-6

Reverse steps to store dinette table(s) and

pedestal leg(s).

COMFORT SOFA SLEEPER

–If Equipped

(Typical View - your coach may vary according to floorplan)

Your coach may be equipped with a Comfort Sofa Sleeper, which is featured with an air bed that can be adjusted to the firmness of your choice.

Sofa to Bed

1. Remove seat back cushions and set aside.

SECTION 9 –

FURNITURE AND SOFTGOODS

2. Using the pull strap (attached to the back side of the sofa), pull the sofa back out and extend all the way down to the floor.

4. Unfold the bottom section of the sofa bed and extend all the way down to the floor.

5. Unfold the air mattress so it is covering the sofa bed.

3. Rotate the lever lock (located on the bottom right-hand side of the sofa bed) “clockwise” to release the bottom section of the sofa bed.

9-7

SECTION 9 –

Air Bed Control

(Located at head of mattress)

Air Bed Control

(Located at head of mattress)

FURNITURE AND SOFTGOODS

NOTE: The air mattress is plugged into an AC

power outlet behind the sofa. It may be necessary to press the “Reset” button on the galley GFCI outlet before operating.

6. Turn the Comfort Adjust dial (located on the Air Bed Control) to desired firmness - Plush, Medium, or Firm.

7. Turn the Inflate/Deflate switch “clockwise” to the INFLATE position.

NOTE: Pump will automatically turn off once

selected firmness level is reached and the Inflate/Deflate switch will automatically return to the OFF position.

Turn the Comfort Adjust dial to the OFF position to disable the Silent Night Comfort Adjust feature.

Bed to Sofa

1. Turn the Comfort Adjust dial (located on the

Air Bed Control) to the OFF position (to keep the pump from automatically turning on during storage).

2. Turn the Inflate/Deflate switch “counter-

clockwise” to the DEFLATE position for complete air removal.

NOTE: Pump will automatically turn off and the

Inflate/Deflate switch will automatically return to the OFF position upon complete deflation.

Silent Night Comfort Adjust

If your air bed pressure drops below the predetermined pressure level, the Silent Night Comfort Adjust Pump will automatically turn on to re-inflate. The pump operates silently so that it will not disturb your sleep.

9-8

3. Fold mattress edges back 6 inches and foot end of mattress back 20 inches.

NOTICE

To avoid mattress damage, fold edges back 6 inches and foot end back 20 inches before returning to sofa position.

SECTION 9 –

FURNITURE AND SOFTGOODS

6. Grasp the pull strap and proceed to bring sofa all the way up. Once the sofa is back in original position, replace the sofa back cushions.

4. Lift up the bottom section of the sofa bed and bring all the way up.

5. Rotate the lever lock “counter-clockwise”, securing the bottom section of the sofa bed back into locked position.

Further Information

See the air bed manufacturer’s user guide provided in your InfoCase for complete operating instructions, safety precautions, and repair information.

ROLLER SHADES (MANUAL) SOLAR DAY/NIGHT

–If Equipped

Your coach may feature two-stage day/night roller shades that provide both solar heat protection and light-blocking capabilities.

The shade can easily be lowered by hand to any position, then retracted with a slight downward pull movement. When raising the

9-9

SECTION 9 – FURNITURE AND SOFTGOODS

shade, there is no need to hold onto the bottom of the shade - just simply let it go and it will rise at a slow, controlled rate.

You can pre-set the auto-stop positioning of your shade, which allows your shade to retract to a cushioned stop, at the positioning of your choice.

Further Information

For further operating information and care instructions, see the manufacturer’s user guide provided in your InfoCase.

WOOD FURNITURE AND CABINETRY

–If Equipped

People are drawn to the natural beauty of wood. At Winnebago Industries work with the art found in each piece of wood to create cabinets of superior quality, backed by the Winnebago Industries warranty.

• Oak is a strong, open-grained hardwood that

ranges in color from white to pink and reddish tones. Streaks of green, yellow, and even black may appear due to mineral deposits. Oak may also contain wormholes and wild, varying grain patterns. This distinct graining is considered a desirable quality and has made oak one of the most popular woods used for cabinetry.

• Maple is a close-grained hardwood that is

predominately white to creamy-white in color, with occasional reddish-brown tones. While maple typically features uniform

, our craftsmen

graining as compared to other wood species, characteristic markings may include fine brown lines, wavy or curly graining, bird's eye dots and mineral streaks. These traits are natural and serve to enhance maple's natural beauty.

• Cherry is characterized by its red undertones, but may vary in color from white to a deep, rich brown. Cherry is a close-grained wood with fairly uniform texture, revealing pin knots and curly graining. All wood will age with time and the finish will darken. This is especially true for cherry. This is a soughtafter quality in cherry cabinetry, and those who select it expect this evolution.

No matter which species you choose for your new Winnebago Industries motorhome cabinetry, please keep in mind that no two pieces of wood are exactly the same.

Stains are likely to exaggerate the difference between open and closed grains and other markings in wood. Grain variation and color change should be expected. As hardwood ages, it will darken when exposed to different types of light. Color differences or changes in wood can also be caused by exposure to harsh chemicals, extreme heat, or other contributing external conditions.

Any color change that occurs in both the finish and the wood is considered part of the natural aging process and is not to be considered defect or damage.

Additionally, wood species exhibit other defining characteristics, such as mineral deposits/streaks, knots, sap runs, pin holes, and wormholes. These markings make the wood unique and contribute to its enduring beauty.

Therefore, since wood is a product of nature and will have certain natural characteristics and variances, they are not covered under the warranty.

9-10

SECTION 10 – SLIDEOUT ROOMS

WARNING

Master Slideout Room Keylock

(Located near interior

slideout control switches)

CAUTION

Slideout Switch

(Your coach may have one or more

slideout switches depending on model,

options, and available equipment)

-Typical View

SLIDEOUT ROOM KEYLOCK

A Master Slideout Room Keylock is located near the interior slideout control switch(es). This keylock must be turned ON to operate slideout room(s).

Rear slideout switches are typically located on a wall in the rear of the coach in or near the slideout room. Location varies by model and floorplan.

SLIDEOUT ROOM OPERATION – ELECTRIC

Slideout rooms provide a spacious living area

at the push of a button.

Front slideout room switches are typically located near the Systems Monitor Panel. Location varies by model and floorplan.

Never drive the vehicle with a slideout room extended!

The slideout room system uses 12-volt DC motorized mechanisms with an electronic control system to provide smooth operation and positive weather seal.

NOTE: We recommend that you KEEP THE

ENGINE RUNNING WHILE EXTENDING OR RETRACTING SLIDEOUT ROOMS so the engine alternator can provide maximum power for proper operation of the slideout mechanisms.

5 - DASH / AUTO

10-1

SECTION 10 –

WARNING

SLIDEOUT ROOMS

CRUSH HAZARD. Keep people and objects clear of the inside and outside of the slideout room when operating. Failure to comply could result in death or serious injury.

To Extend Slideout Room

Before Extending!

• Level the coach and set the Parking Brake.

• Ensure exterior compartment doors are closed so that they will not interfere with slideout operation.

• Check inside and outside the vehicle to make sure that there are no people who could be harmed or obstacles that could cause damage due to room extension.

• If the slideout room has a couch or other furniture, make sure no people or pets are seated on them until the room has been fully extended.

Extend Procedure:

See “Before Extending!” before proceeding.

To Retract Slideout Room

Before Retracting!

• Be sure the coach is level and the Parking Brake is set.

• Ensure exterior compartment doors are closed so that they will not interfere with slideout operation.

• Check inside and outside the vehicle to make sure that there are no people who could be harmed or obstacles that could cause damage due to room retraction.

• Stow all furniture extensions before retracting slideout rooms to avoid property damage.

• If the slideout room has a couch or other furniture, make sure no people or pets are seated on them until the room has been fully retracted.

• Remove all items from the coach living room floor and close cabinet doors and drawers. Be sure there are no items at the end of the bed, behind the driver seat, or protruding from compartments, which could be crushed or cause damage to floor covering or cabinets when the room is retracted.

• Start the engine so the alternator can provide maximum power for proper operation of slideout mechanisms.

• Insert the safety lock key into Slideout Room Master Keylock and turn to activate slideout room control switch.

• Press the Slideout Room “EXTEND/OUT” switch and hold until the room is fully extended, then release the switch.

• T o stop extending the room during operation, release the button.

• Deactivate the slideout switch with the Slideout Room Master Keylock.

10-2

NOTICE

Because the slideout roof is drawn into the interior of the coach when retracted, be sure there is no debris, such as excessive dirt, tree seeds, twigs, leaves, etc. on the roof before retracting.

Retract Procedure:

See “Before Retracting!” before proceeding.

• Start the engine so the alternator can provide maximum power for proper operation of slideout mechanisms.

• Insert the safety lock key into Slideout Room Master Keylock and turn to activate slideout room control switch.

• Press the Slideout Room “RETRACT/IN”

Slideout Cover-Awning

-Typical View

switch and hold until the room is fully retracted, then release the switch.

• T o stop retracting the room during operation, release the button.

• After the room is retracted, deactivate the slideout switch with the Slideout Room Master Keylock.

SECTION 10 –

SLIDEOUT ROOMS

SLIDEOUT ROOM TROUBLESHOOTING (LIPPERT)

-If Equipped

Battery Voltage or Circuit Breaker Problems

If the slideout room will not work:

SLIDEOUT ROOM – EXTREME WEATHER PRECAUTION

Certain extreme weather conditions, such as heavy rains, heavy snow, and high winds, or any combination of these, could cause damage to the slideout room cover-awning (if equipped) or reduce effectiveness of the slideout room weather seals.

• Turn the House/Coach Battery Disconnect switch OFF and then ON again. This will, in many cases, reset power to the slideout system.

• The house battery may be low on charge. Plug in the external power cord (shoreline), start the engine, or start up the generator (if equipped). This may assist slideout room operation.

• he chassis battery may be low on charge. Press and Hold the Battery Boost switch (located on the dash) while pressing the interior slideout control switch. This momentarily connects the house batteries to assist in slideout room operation.

• The circuit breaker may be tripped. The circuit breaker, labeled “Slideout Power” is located on a panel on an interior wall of the passenger side storage compartment just behind or ahead of the entrance door.

Also, freezing rain and snow can prevent the slideout cover-awning (if equipped) from closing and may cause damage to the cover-awning, slideout room, weather seals, and mechanisms.

To avoid potential damage, we recommend retracting your slideout room during extreme weather conditions.

10-3

SECTION 10 –

Slideout Room Controller

(Located in a driver or passenger side

compartment, depending on model)

- Remove panel to access

•Status LED’s

• Motor Direction

• Mode Button

• Motor 1 Connection

• Motor 2 Connection

SLIDEOUT ROOMS

• (8) - HALL SIGNAL NOT PRESENT.

Encoder is not providing a signal. This is usually a wiring problem.

• (9) - HALL POWER SHORT TO GROUND. Power to encoder has been shorted to ground. This is usually a wiring problem.

NOTE: When an error code is present, the

slideout control panel needs to be reset. Operating the Extend/Retract switch will reset the slideout control panel. Operate the Extend/Retract switch again for normal operation.

Manual Override

In the event that the slideout room fails to retract and manual operation is required:

• Locate the slideout control panel (located in passenger side compartment).

Error Codes

When an error occurs during slideout room operation, the slideout control panel (located in passenger side compartment) will use LED display lights to indicate where the problem exists.

For specific motor faults, the green LED light will blink 1 time for Motor 1 and 2 times for Motor 2. The red LED light will blink from 2 to 9 times, depending on the error code. The error codes are as follows:

• (2) - BATTERY DROP OUT. Battery

capacity low enough to drop below 6 volts while running.

• (3) - LOW BA TTERY . Voltage below 8 volts

at start of cycle.

• (4) - HIGH BA TTERY. Voltage greater than

18 volts.

• (5) - EXCESSIVE MOTOR CURRENT.

High amperage (also indicated by one side of slideout room continually stalling).

• (6) - MOTOR SHORT CIRCUIT. Motor or

wiring to motor has shorted out.

10-4

• Press the Mode button 6 times, quickly . Press a 7th time and hold for approximately 5 seconds.

Red and green LED lights will begin to flash, confirming the override mode.

• Release Mode button.

• Use the slideout control switch (located inside the coach) to retract the room.

NOTE: If slideout room fails to retract using the

Manual Override method, see “Slideout Emergency Retraction” elsewhere in this section.

Further Information

See the slideout room operating guide included in your InfoCase for further instructions and troubleshooting information.

SLIDEOUT EMERGENCY RETRACTION (LIPPER T)

-If Equipped

If the slideout mechanism is malfunctioning and the room will not retract using the interior control switch or exterior control panel, you may need to access the slideout motors and manually push the room in to the travel position.

There are two slideout motors equipped on the

Slideout Motor Retention Screw

(Located along exterior slideout trim)

-If Equipped

Slideout Motor

(Located behind slideout wipe seal)

• Use a screwdriver to push slideout motor UP (disengage).

• Ensure slideout motor is disengaged approximately 1/2” from base.

end wall of each slideout room. Pull back wipe seal to access motors.

Push-In Procedure

1. Remove slideout motor retention screw (located along exterior slideout trim), if equipped.

Repeat on opposite slideout trim.

NOTE: If your coach is not equipped with

slideout motor retention screws, proceed to Step 2.

SECTION 10 –

SLIDEOUT ROOMS

2. Pull back wipe seal to access slideout motor.

3. Using a flat-head screwdriver, push bottom of slideout motor UP to disengage (approximately 1/2” from base).

Repeat on opposite slideout motor.

4. Push slideout room in to travel position, ensuring both sides are relatively even.

NOTE: Several people may be needed to push

the room in.

10-5

SECTION 10 –

Slideout Travel Support

-Typical installation shown

• Place support item (e.g. 2x4 wood board) above interior slideout room as shown.

SLIDEOUT ROOMS

5. When the slideout room is fully retracted, secure the room with a support item (e.g. 2x4 wood board) above the interior slideout room to secure room during travel.

NOTE: For larger slideout r ooms, place a travel

support item on each end of the interior slideout room.

Slideout Room Seal Care and Maintenance

While most household cleaners work well for cleaning slideout room seals, certain chemical agents may cause the seals to degrade. Typically, 409® and Lysol® type products work well. Use a product, such as Armor All® to keep seals soft.

In addition, certain caulks and sealers may include chemicals that may adversely effect the performance of the seals. See your authorized dealer for caulks and sealers recommended for your coach.

6. See your dealer for service of the slideout motors before using again.

Further Information

Please refer to the slideout manufacturer’s user guide provided in your InfoCase for further instructions and troubleshooting information.

GENERAL SLIDEOUT CARE

• Keep slideout room seals clean.

• Clean the floors inside the coach before

retracting the slideout room to avoid floor scratches or carpet pile snags.

• Wipe outer slideout room seals occasionally

with talc or 303 brand protectant for smooth, quiet operation.

• See your authorized dealer for regular

maintenance and service of the slideout mechanism.

10-6
