Page 1
Please read this instructions before operating the device and retain them for future reference.
19”/ 28.6”/ 38” Bar-Type
Chassis Panel PC
Freescale® Cortex® A9 i.MX6 Dual Core 1 GHz
W19FA3S-CHA1
W28FA3S-CHA2
W38FA3S-CHA1
User Manual
V1.0
For more information on this
and other Winmate products,
please visit our website at:
www.winmate.com
Document Part Number: 9152111I102P
Page 2
USER MANUAL CONTENTS
- 2 -
CONTENTS
PREFACE ................................................................................................................. - 4 -
ABOUT THIS USER MANUAL ............................................................................... - 12 -
CHAPTER 1: INTRODUCTION ............................................................................... - 14 -
1.1 Product Features .................................................................................... - 14 -

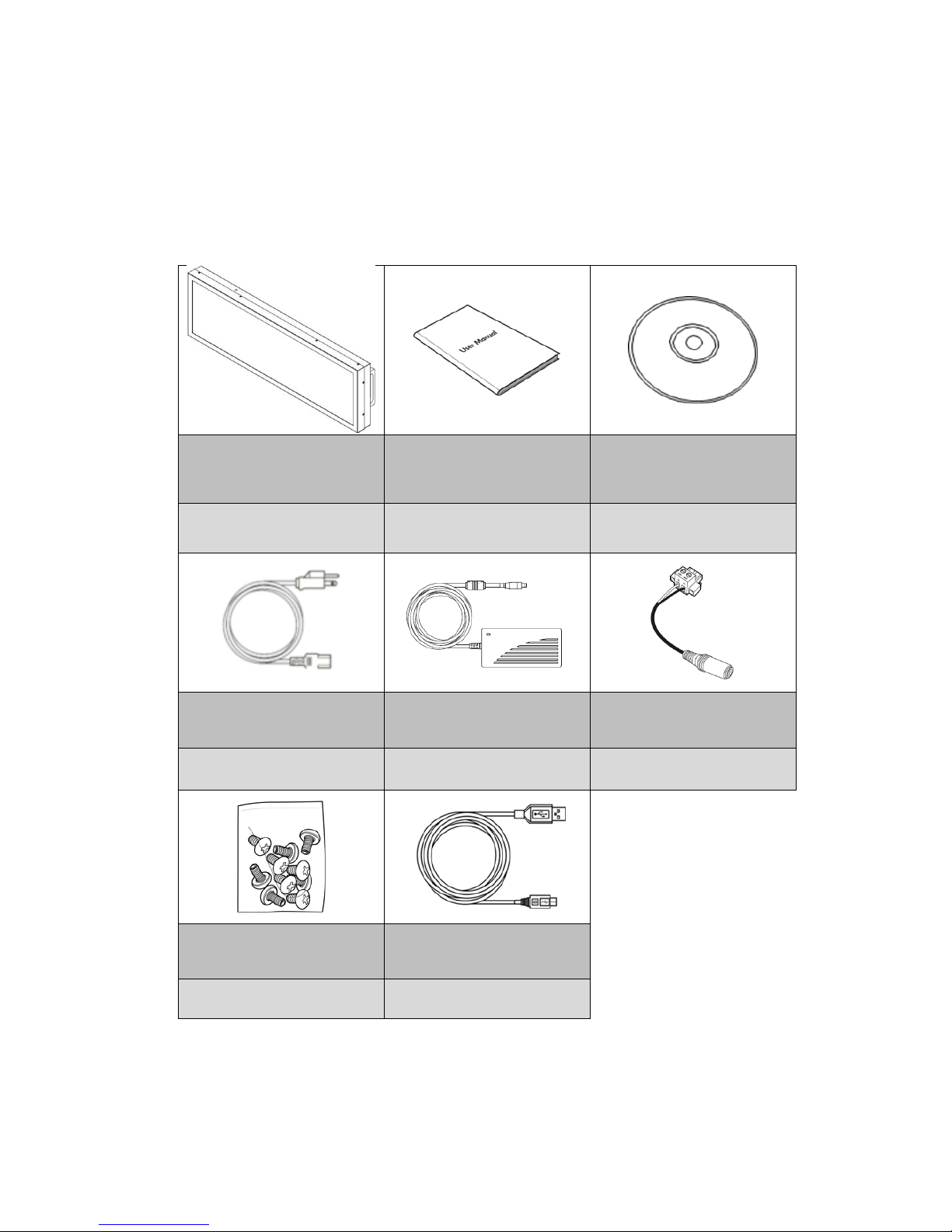

1.2 Package Content .................................................................................... - 15 -

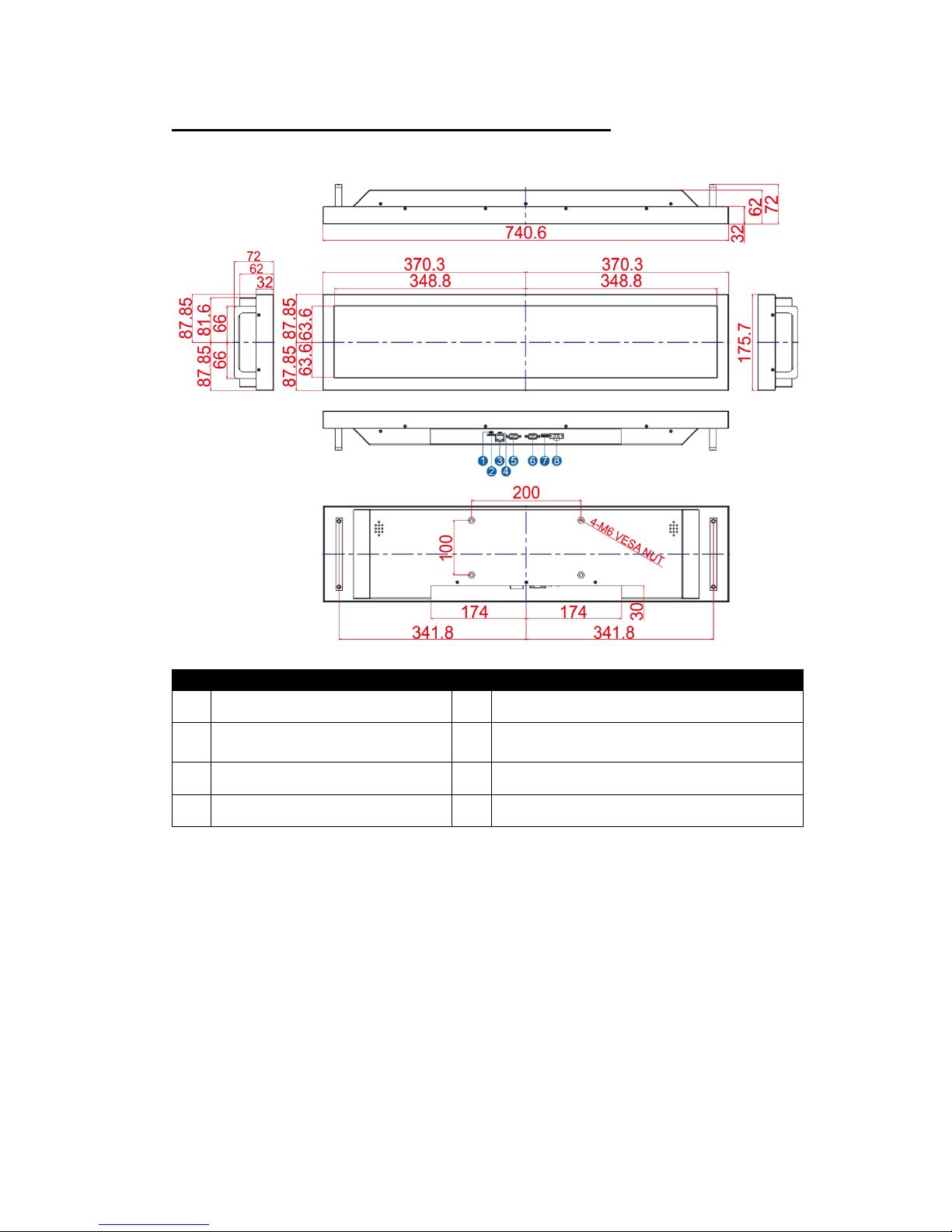

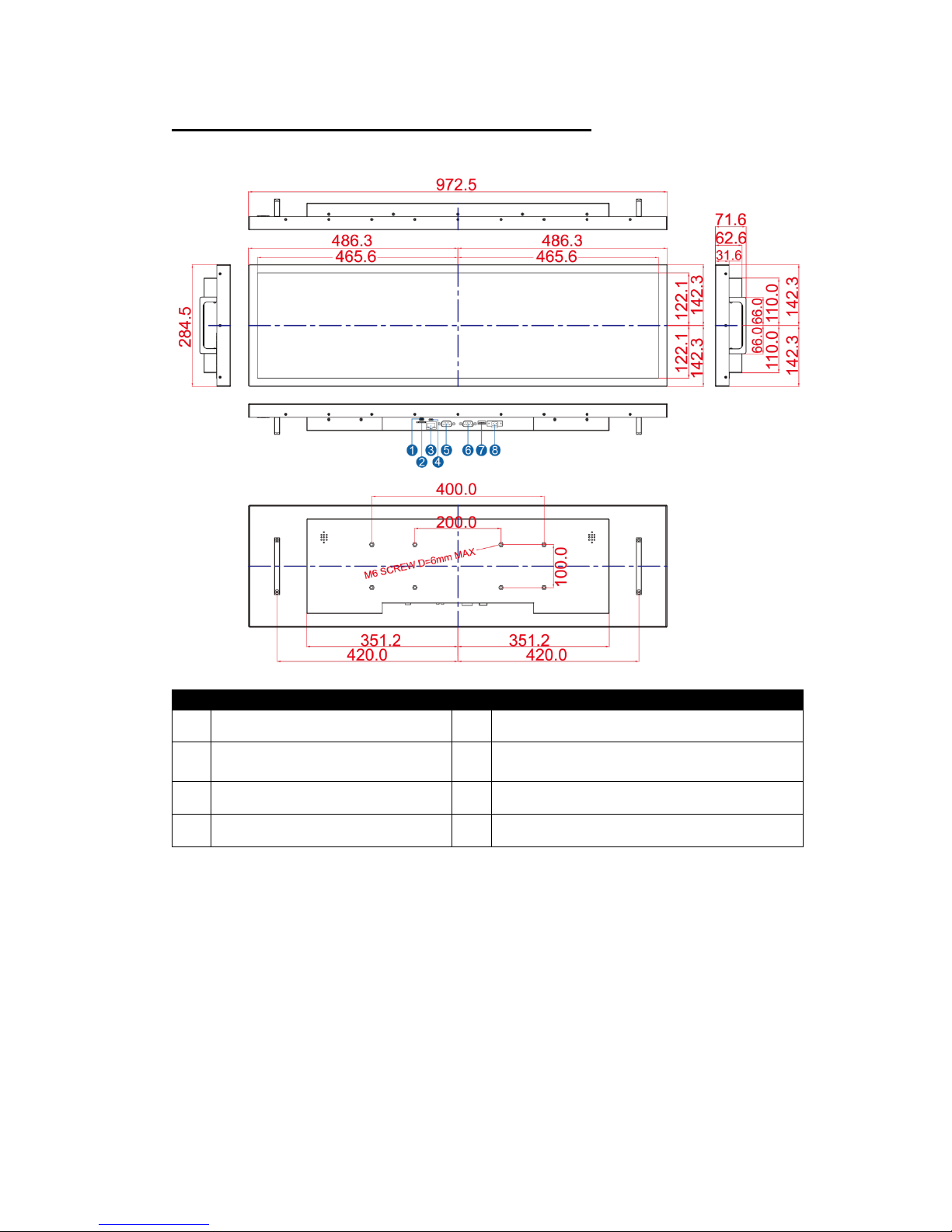

1.3 Schematics and Dimensions ................................................................... - 16 -

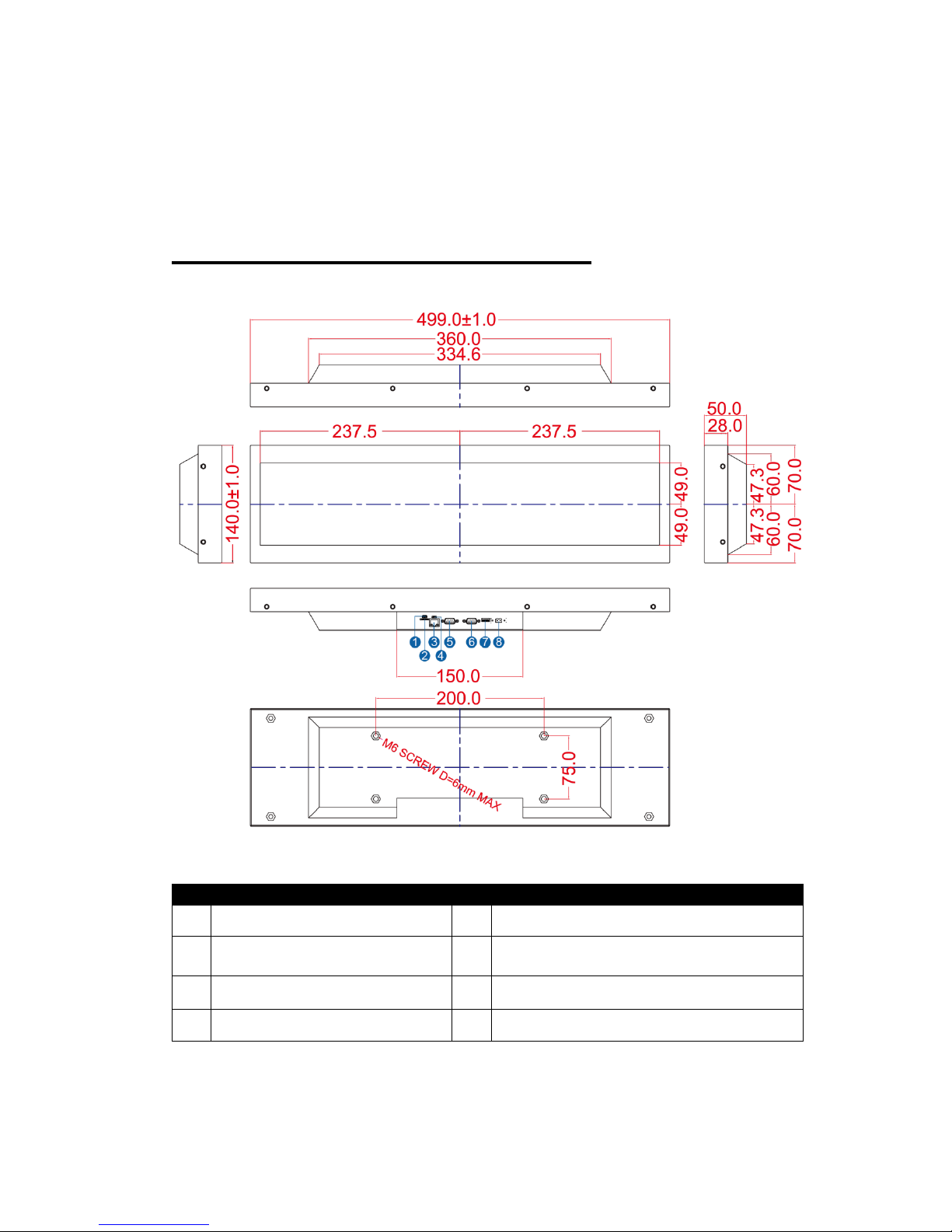

1.3.1 Schematics and Dimensions 19” ................................................... - 16 -
1.3.2 Schematics and Dimensions 28.6” ................................................ - 17 -
1.3.2 Schematics and Dimensions 38” ................................................... - 18 -
CHAPETR 2: INSTALLATION ................................................................................ - 20 -
2.1 Safety Precautions .................................................................................. - 20 -
2.2 Cable Mounting Considerations .............................................................. - 20 -

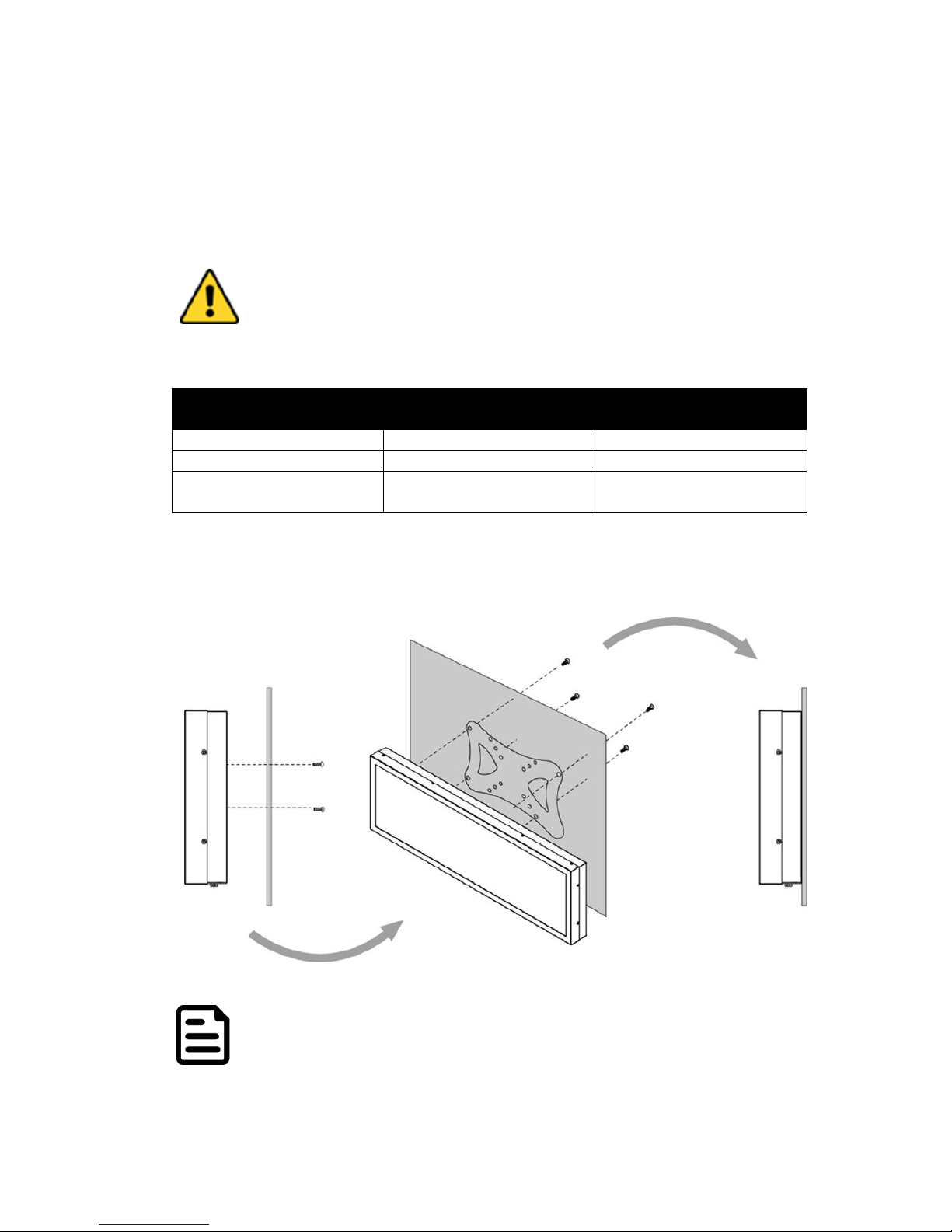

2.3 VESA Mounting Guide ............................................................................ - 21 -
2.4 Powering On ........................................................................................... - 22 -

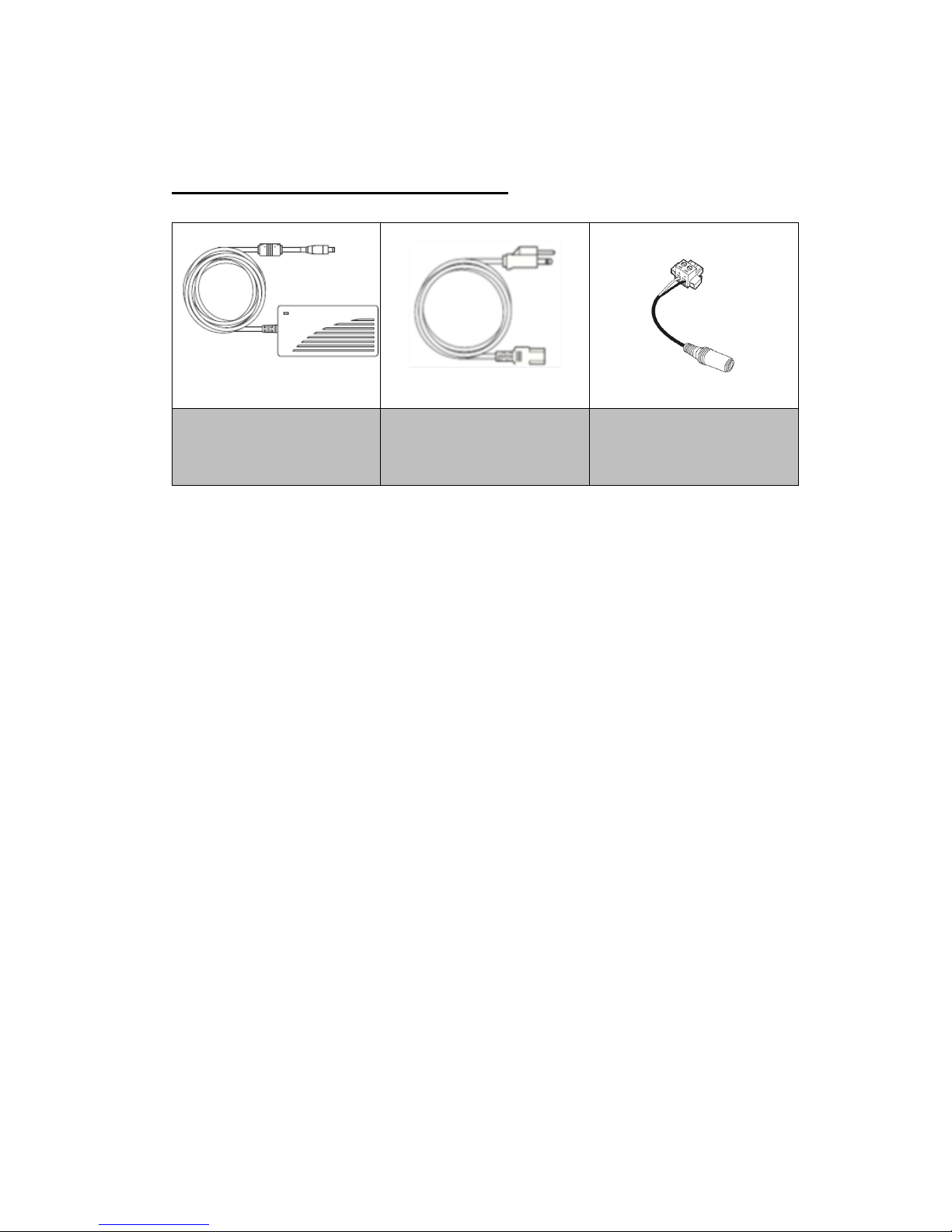

2.4.1 AC Adapter Components .............................................................. - 22 -
2.4.2 Power Considerations ................................................................... - 23 -

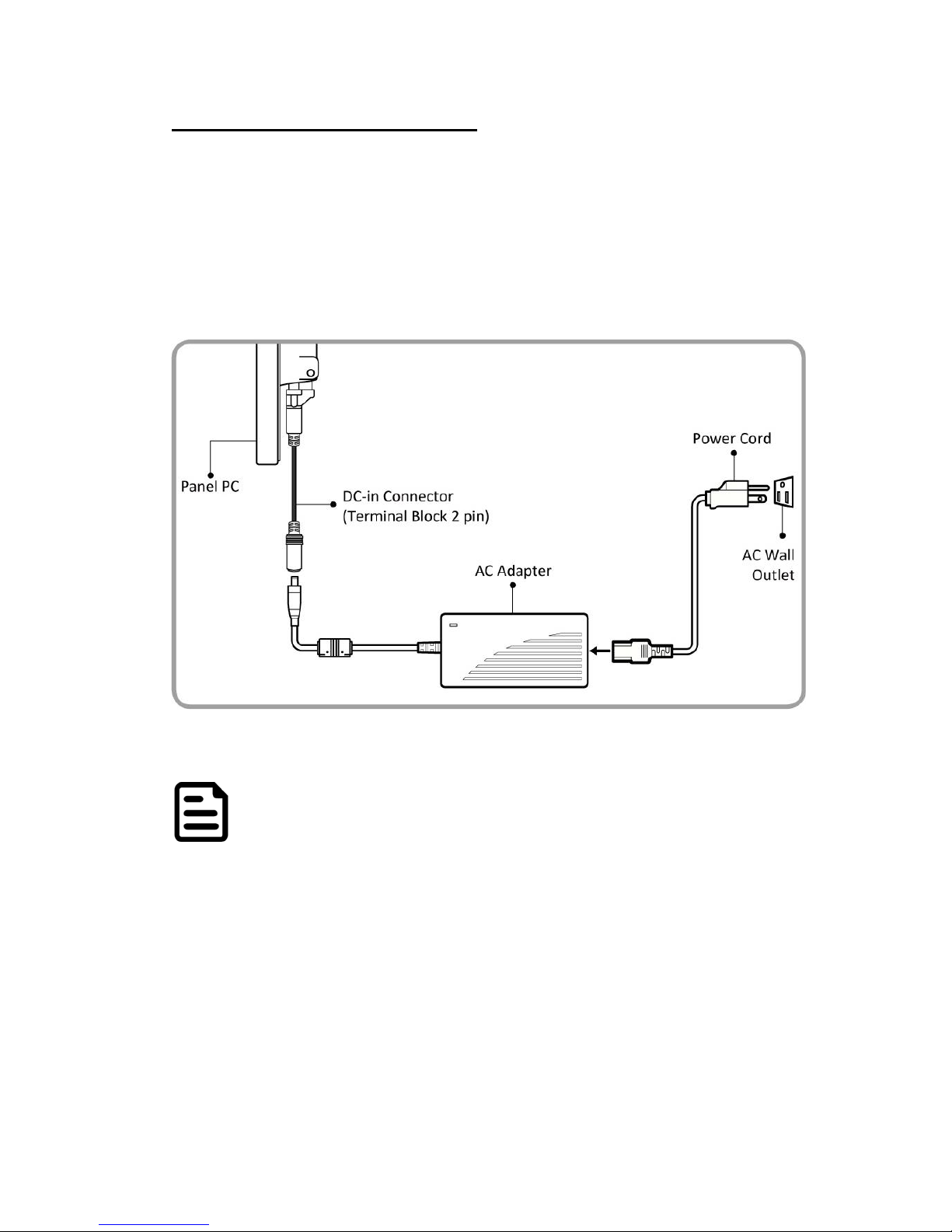

2.4.3 Connecting the Power ................................................................... - 24 -

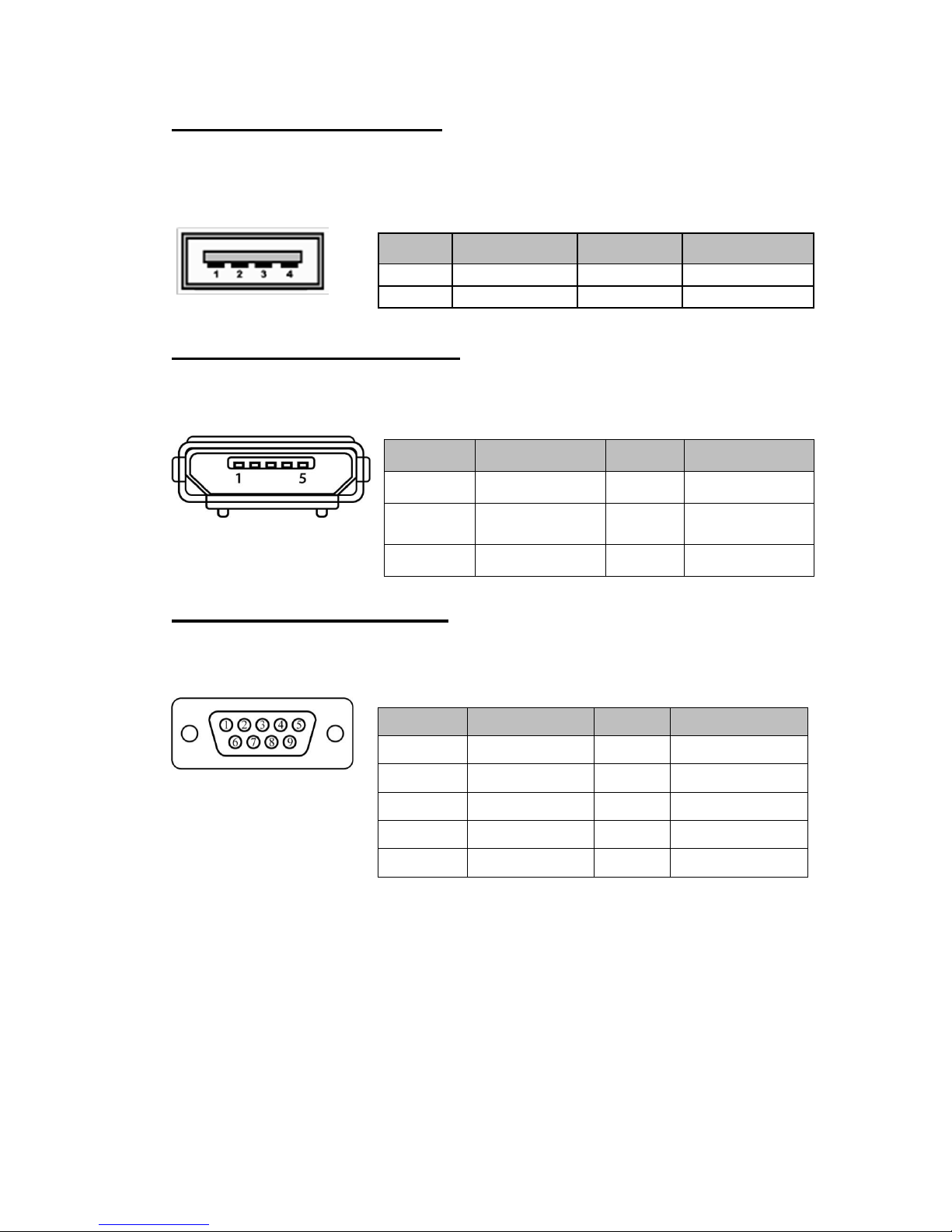

2.5 Connector Description ............................................................................ - 25 -

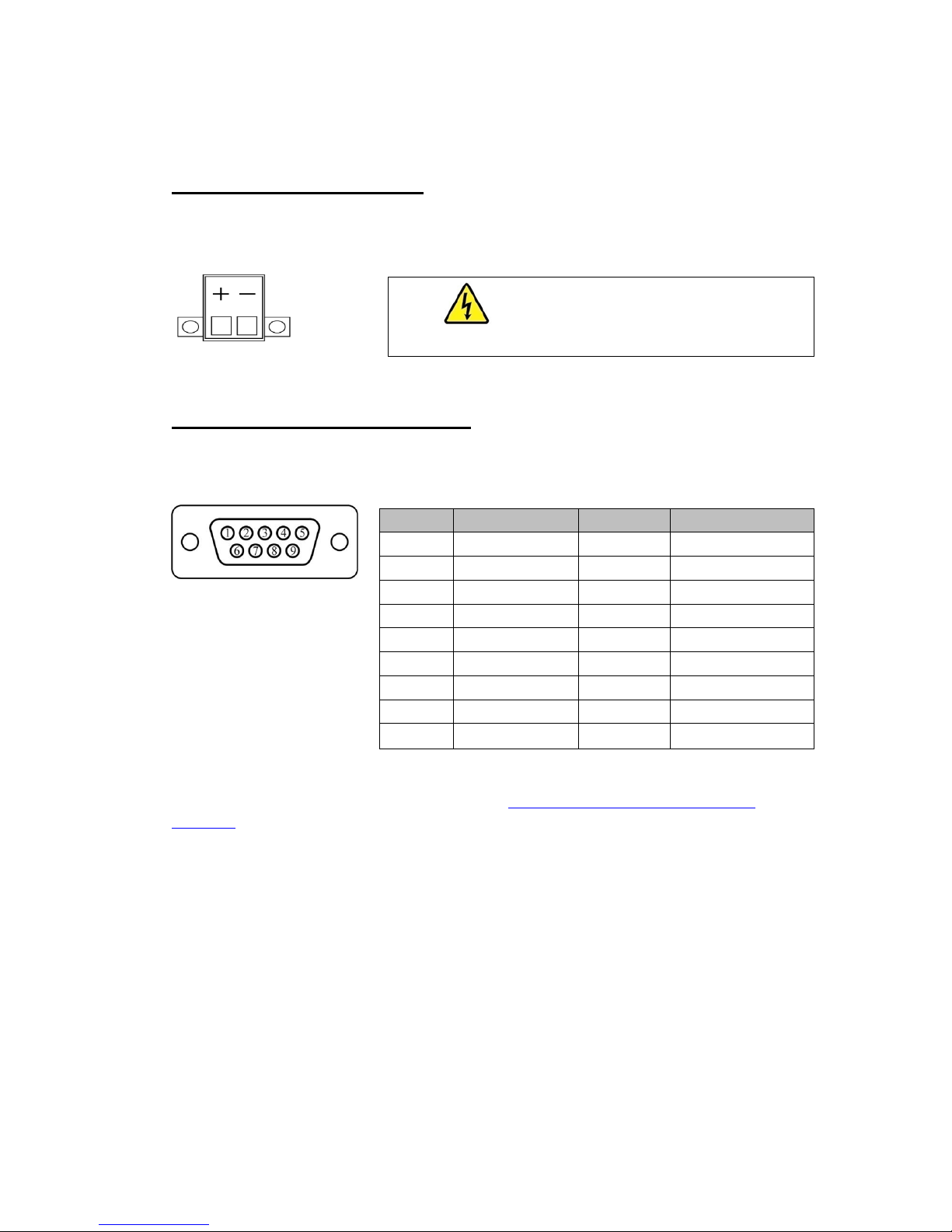

2.5.1 Power Connector .......................................................................... - 25 -
2.5.2 Serial Port Connector .................................................................... - 25 -
2.5.3 USB 2.0 Connector ....................................................................... - 26 -
2.5.4 USB OTG Connector..................................................................... - 26 -
2.5.5 CANBus Connector ....................................................................... - 26 -

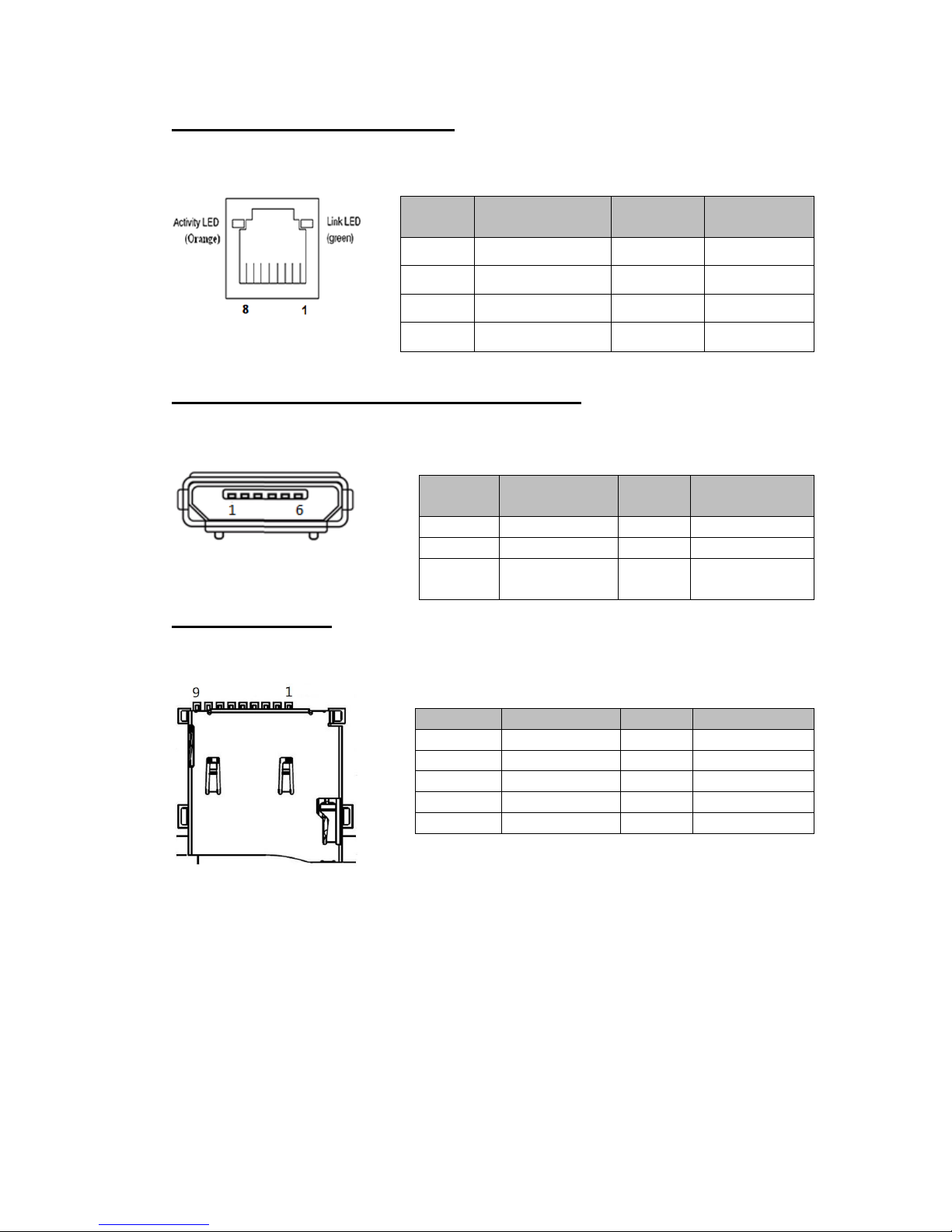

2.5.6 Ethernet Connector ....................................................................... - 27 -
2.5.7 Mini USB Connector (Linux OS) .................................................... - 27 -
2.5.8 Micro SD ....................................................................................... - 27 -
2.6 Turning On and Off the Device ............................................................... - 28 -

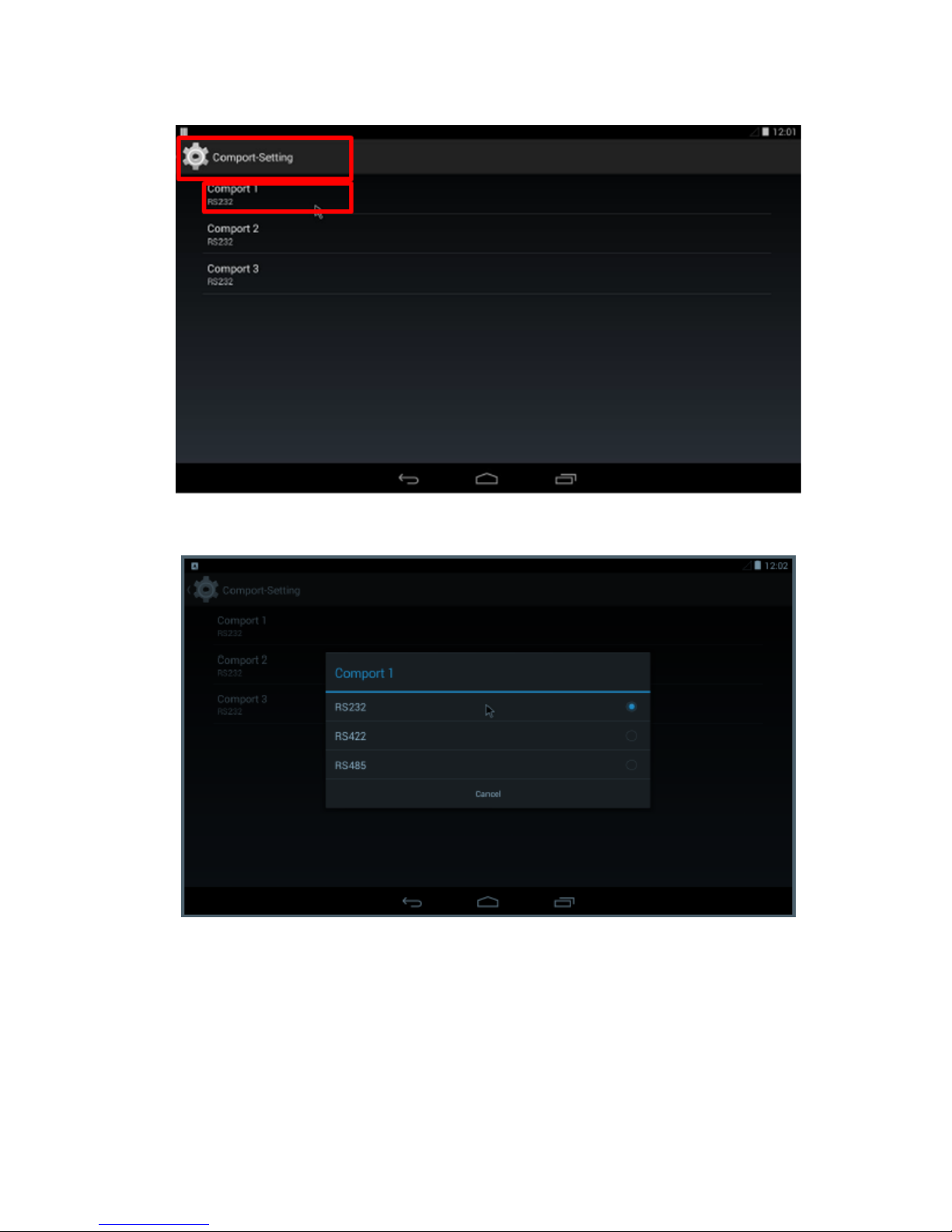

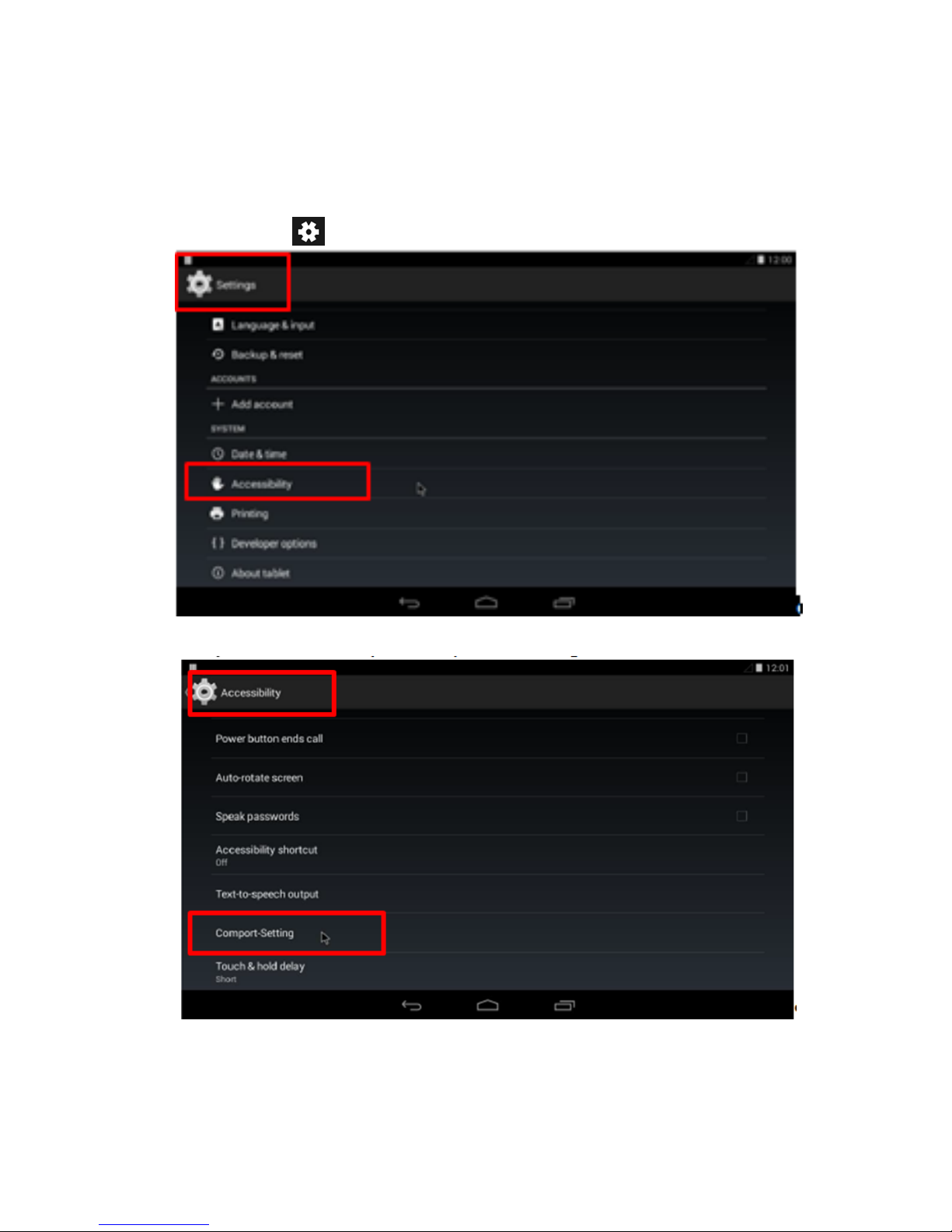

2.7 Configuring Serial Port Settings .............................................................. - 29 -
CHAPTER 3: OPERATING THE DEVICE .............................................................. - 32 -
3.1 Operating System ................................................................................... - 32 -

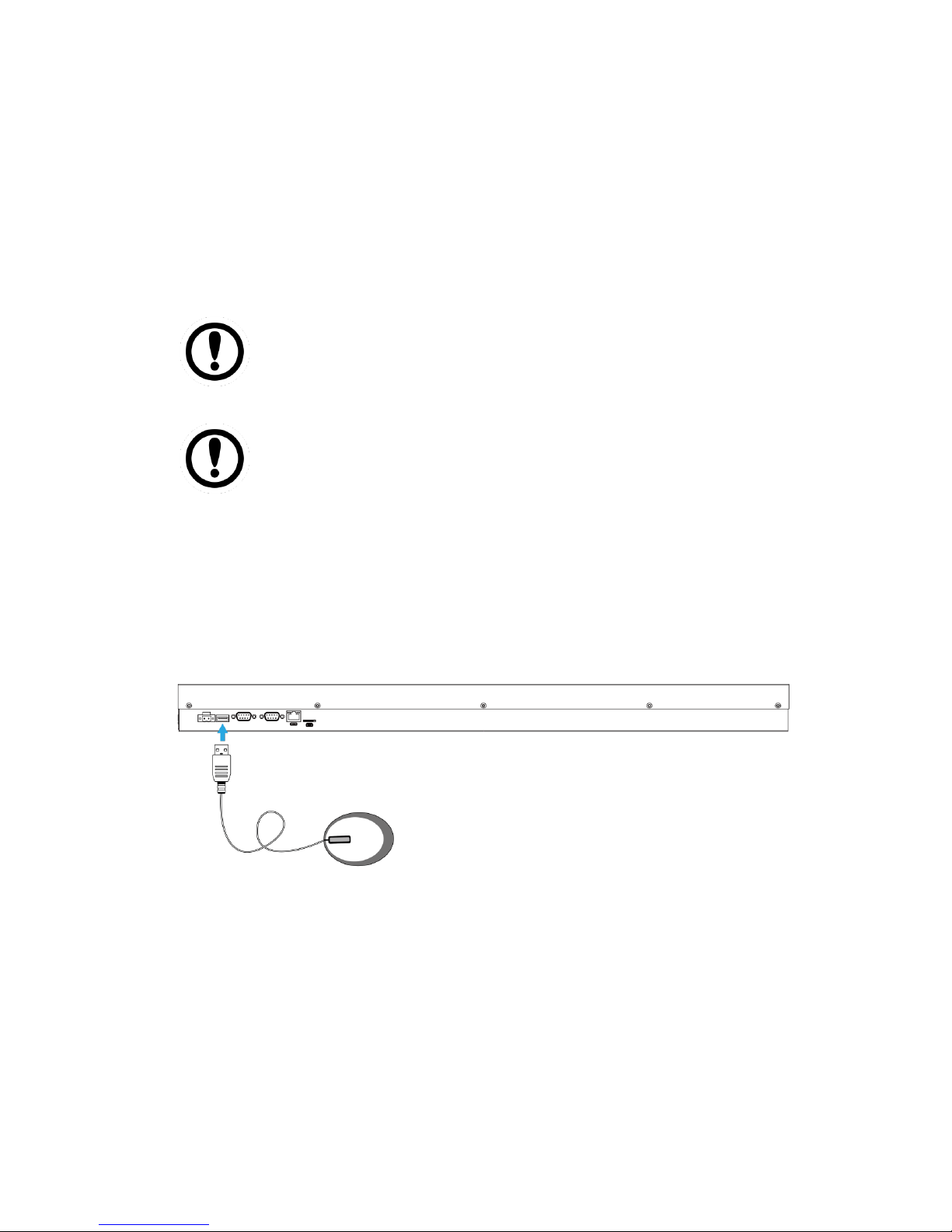

3.2 Connecting a Mouse ............................................................................... - 32 -
3.3 System Settings ...................................................................................... - 33 -
Page 3
USER MANUAL CONTENTS
- 3 -
3.3.1 Set up the Device .......................................................................... - 33 -

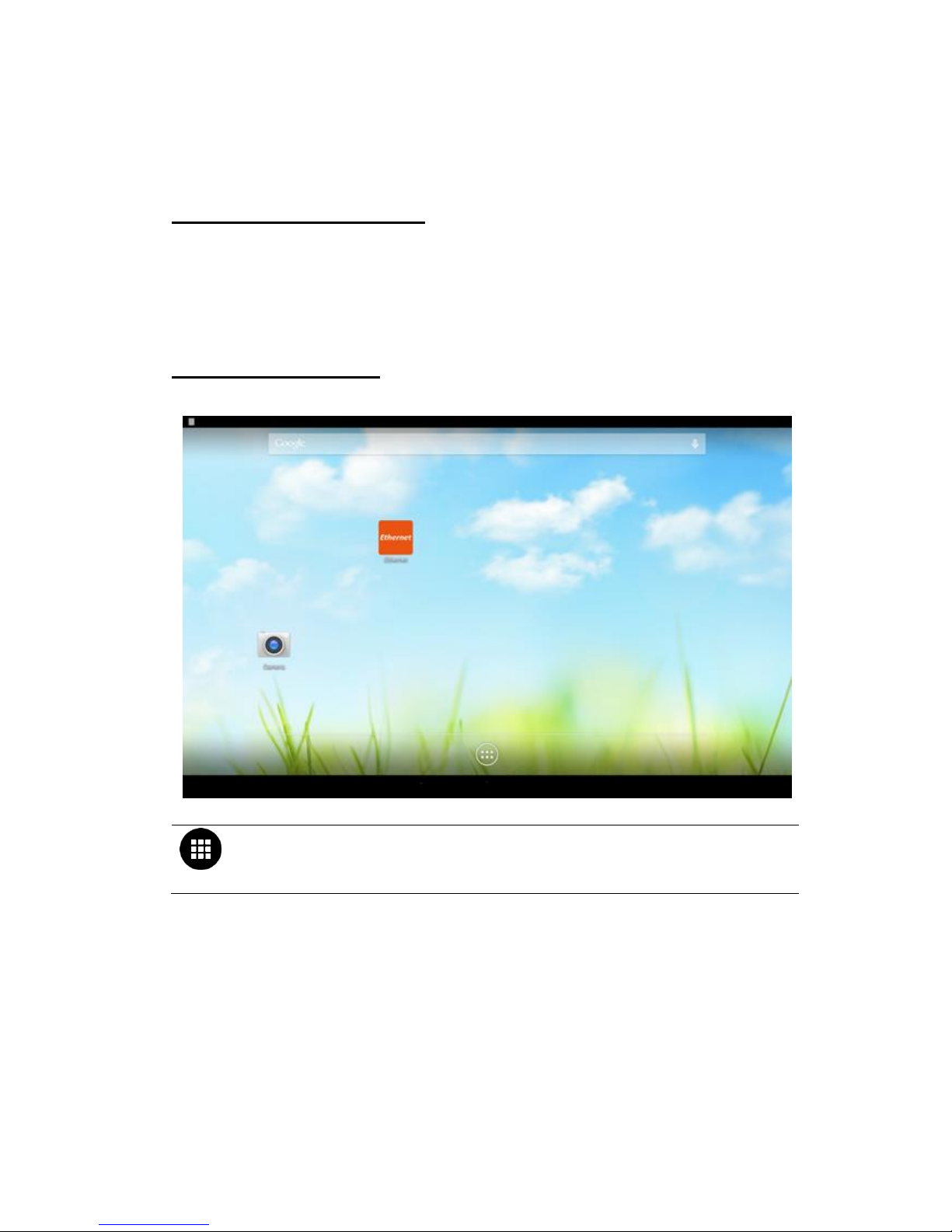

3.3.2 Home Screen ................................................................................ - 33 -
3.3.3 Quick Settings ............................................................................... - 34 -
3.4 Ethernet .................................................................................................. - 35 -

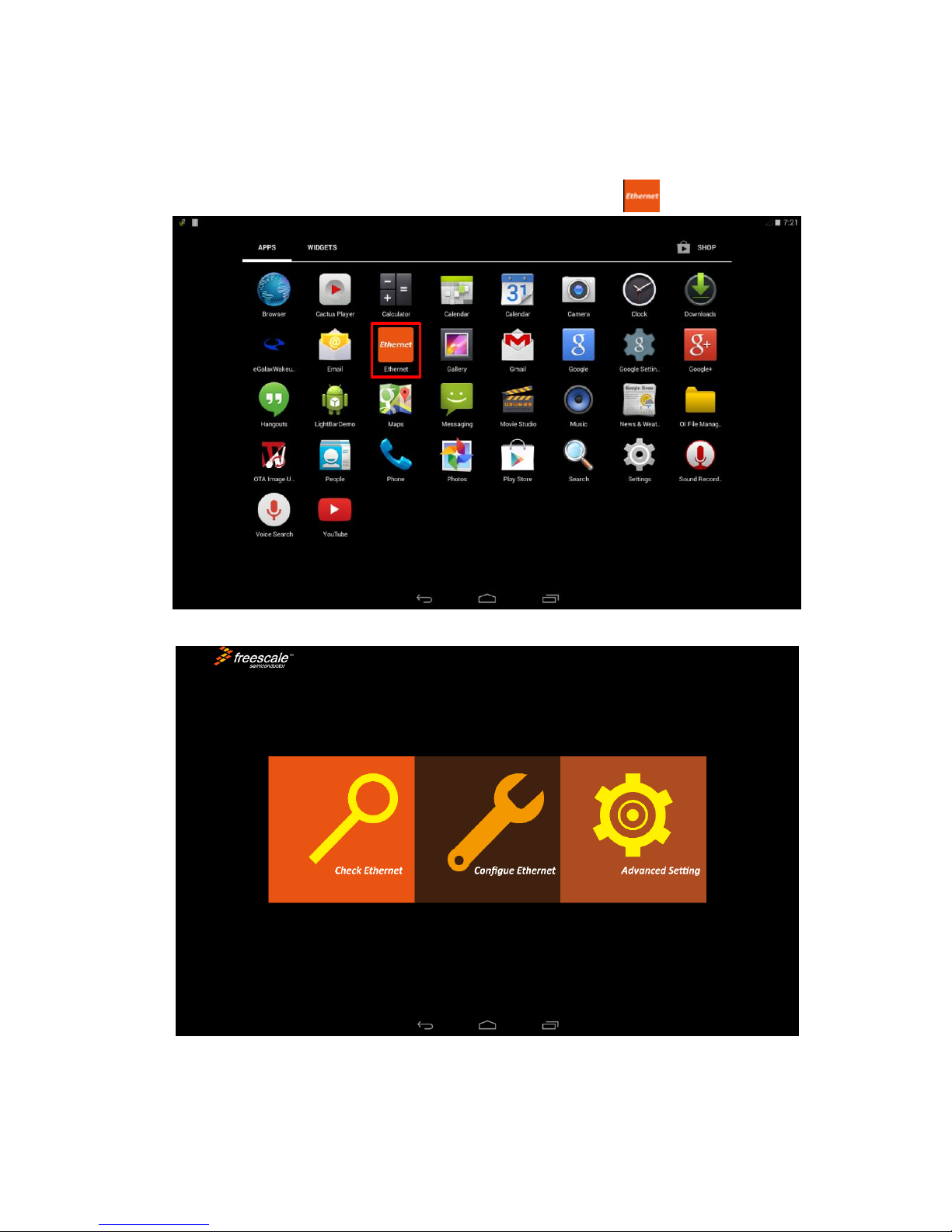

3.4.1 Configuring Ethernet ..................................................................... - 36 -

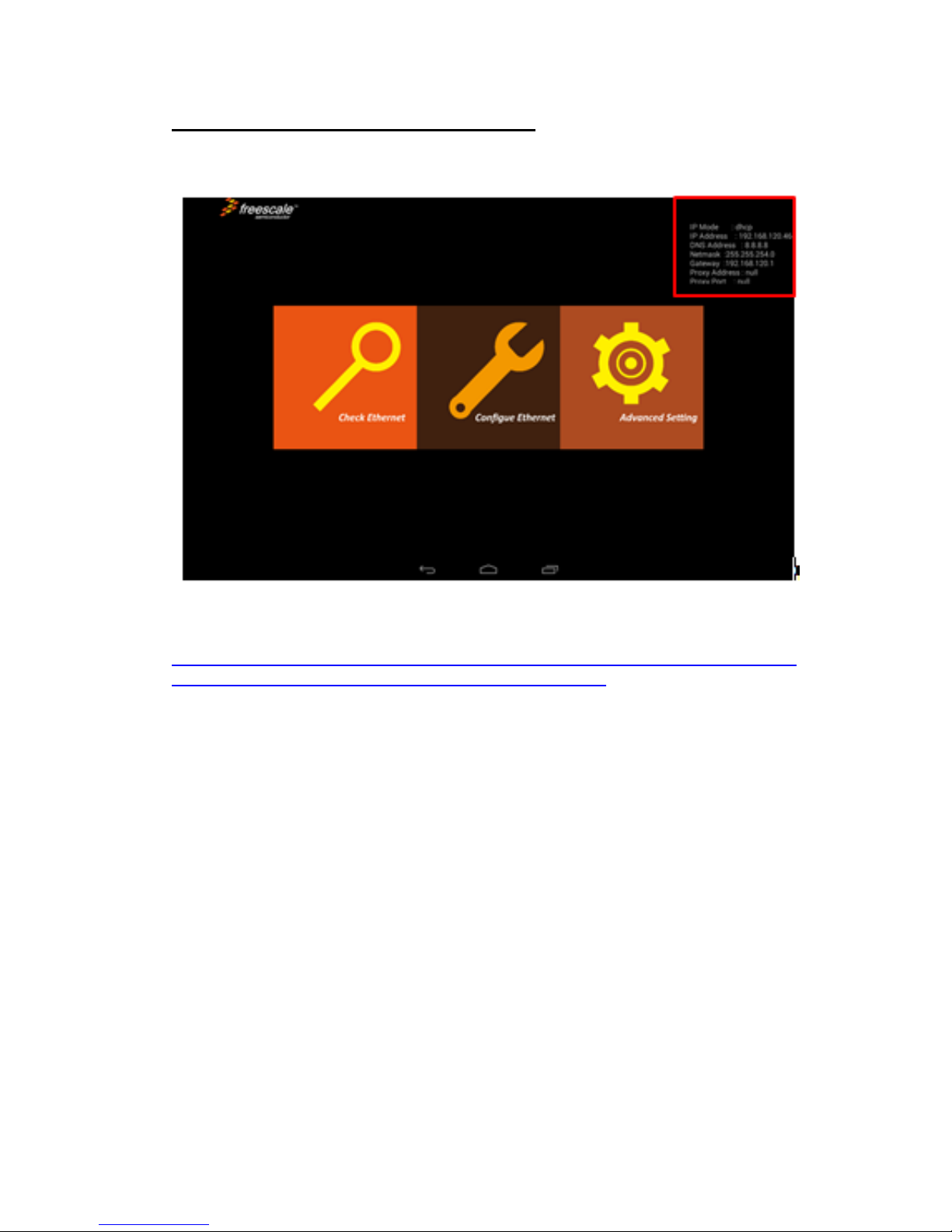

3.4.2 Checking Ethernet Settings ........................................................... - 37 -

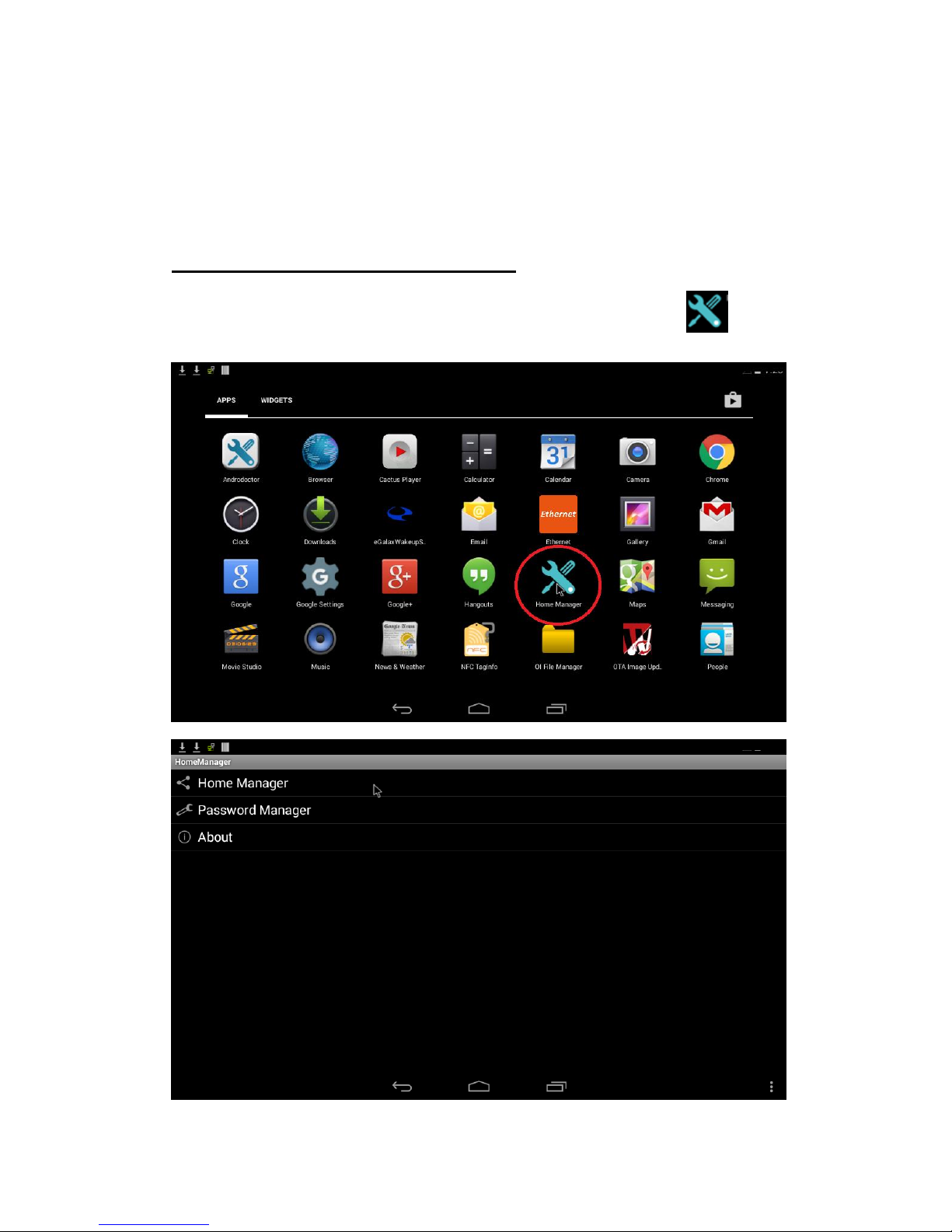

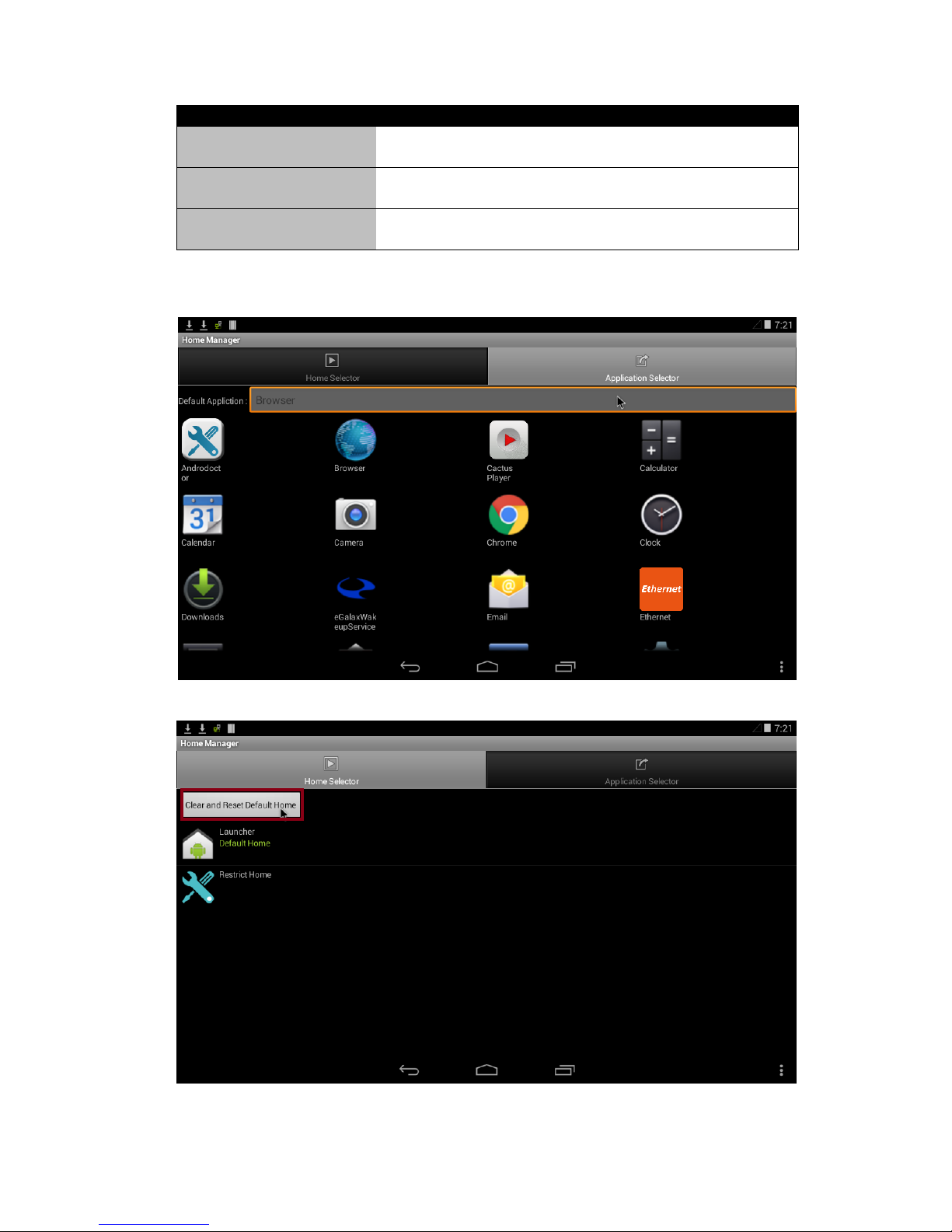

3.5 Winmate® Home Manager (WHM) ......................................................... - 38 -

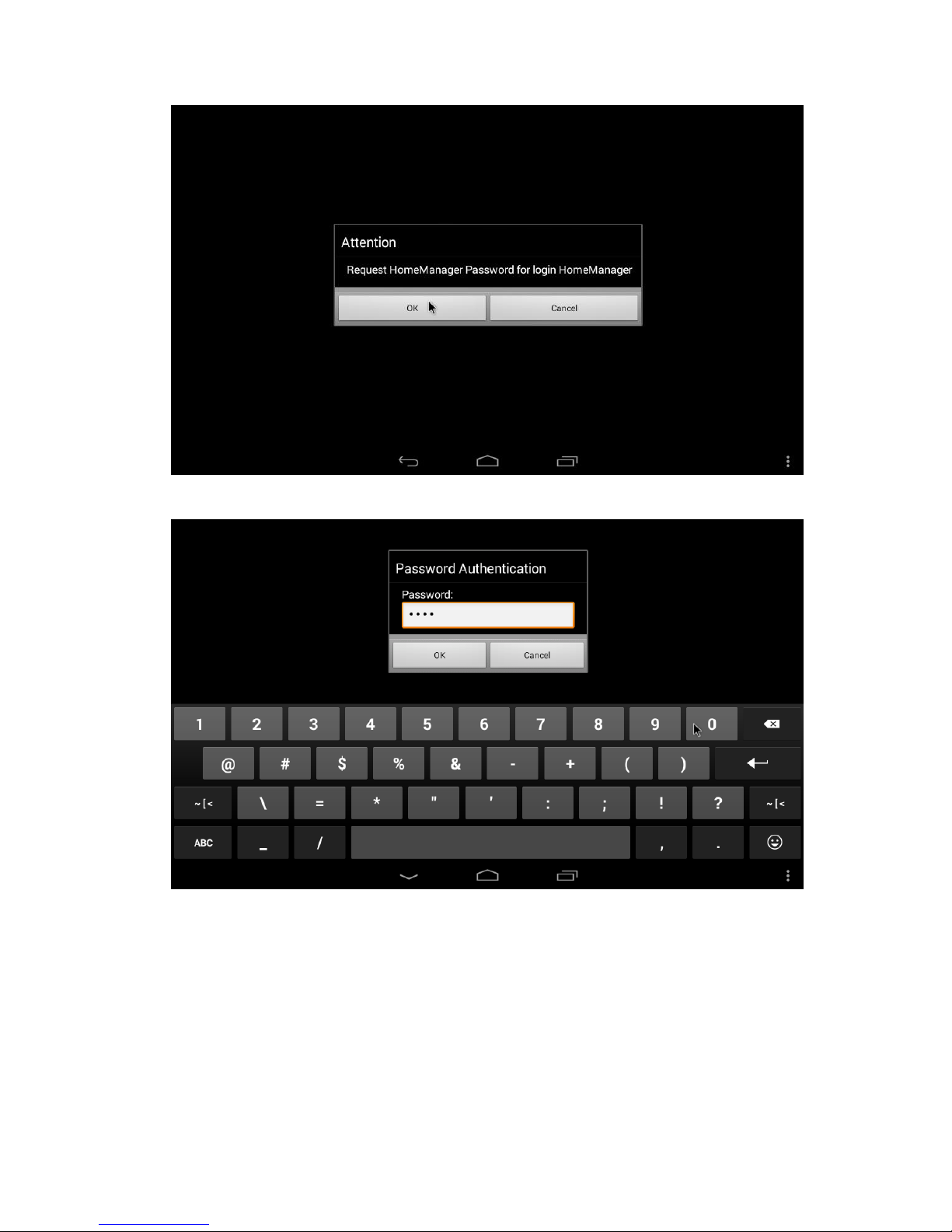

3.5.1 How to Lock Applications .............................................................. - 38 -
3.5.2 How to Reset WHM ....................................................................... - 40 -
3.5.3 How to Change WHM Password ................................................... - 42 -
CHAPTER 4: SOFTWARE INSTALLATION .......................................................... - 44 -

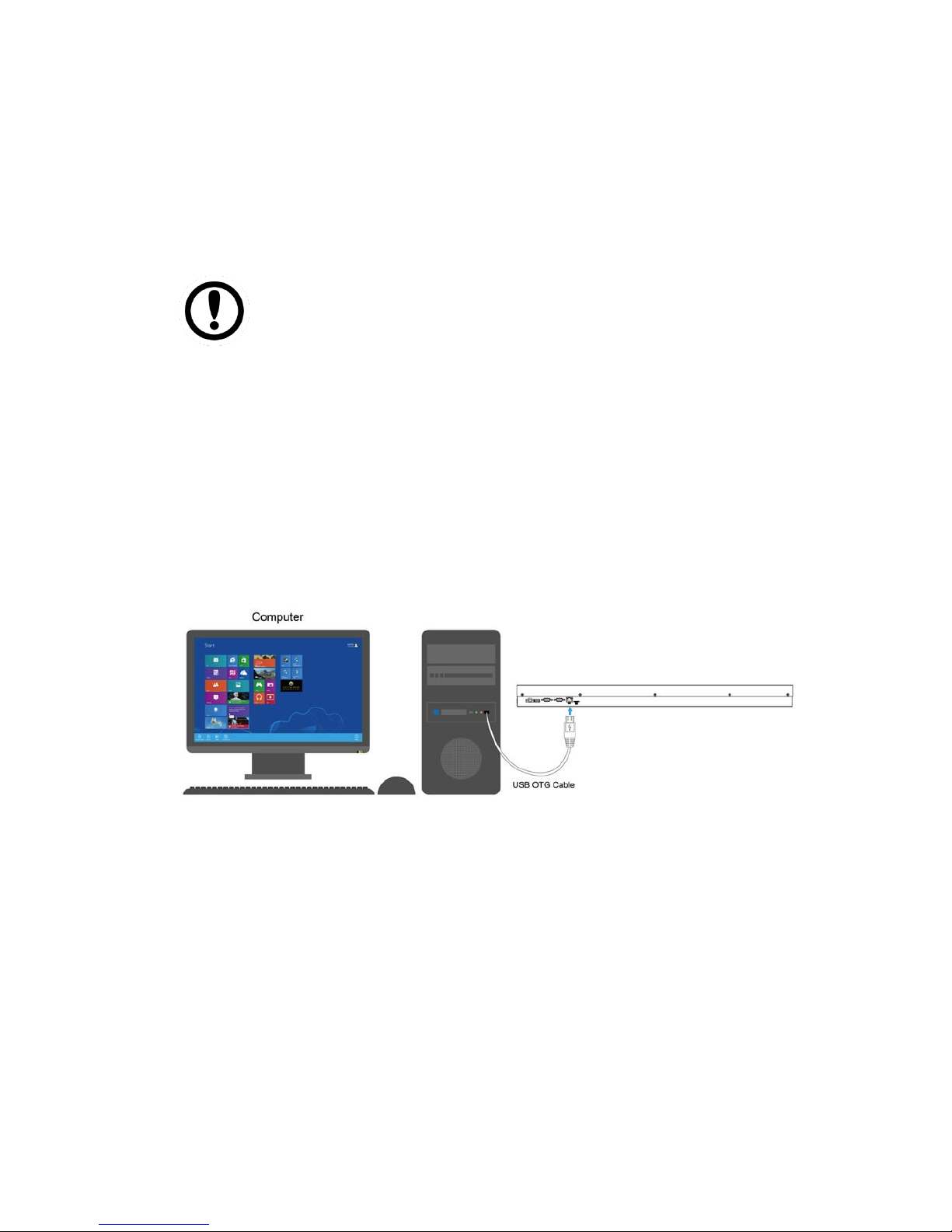

4.1 Android Debug Bridge (ADB) Driver Installation ..................................... - 44 -

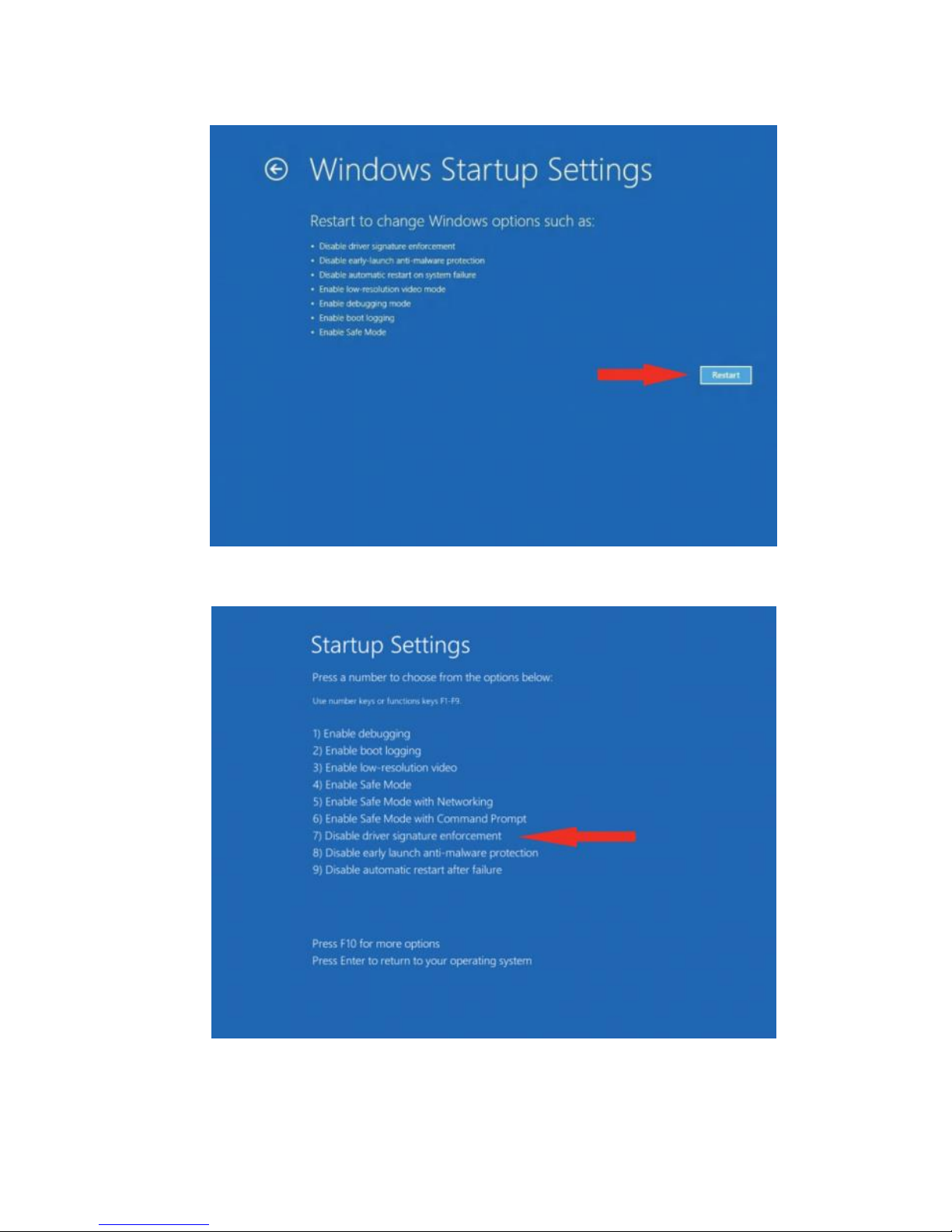

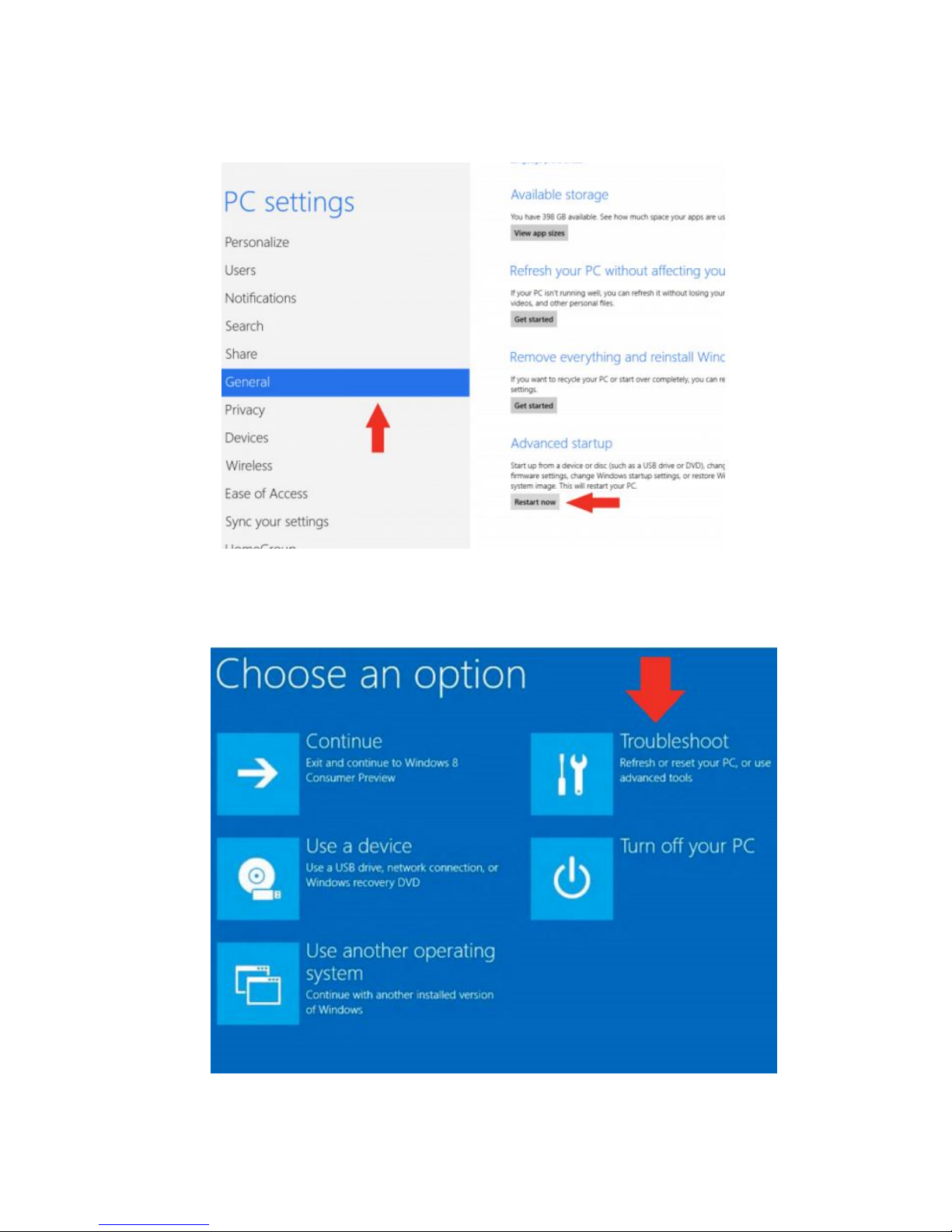

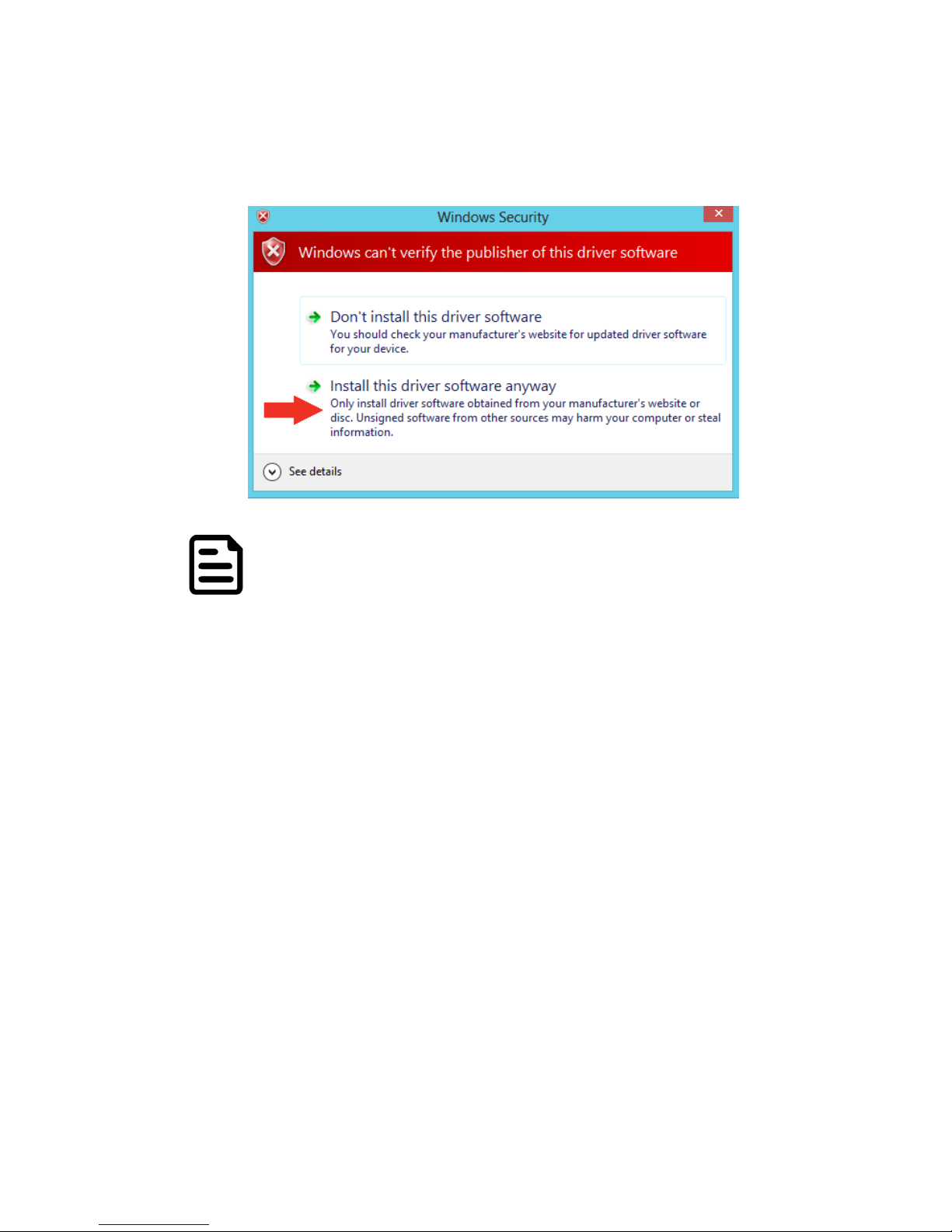

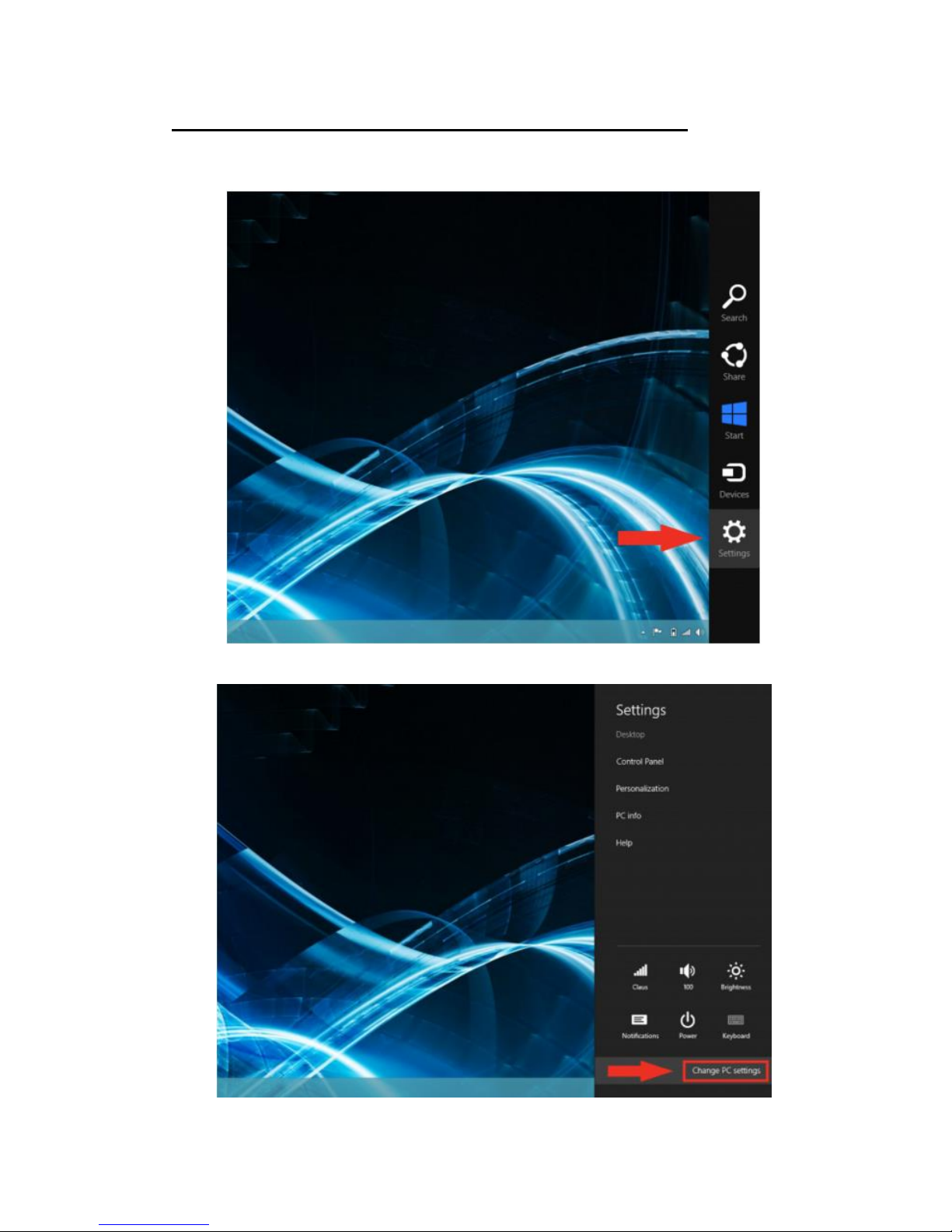

4.1.1 Disabling Driver Signature on Windows 8 ..................................... - 45 -

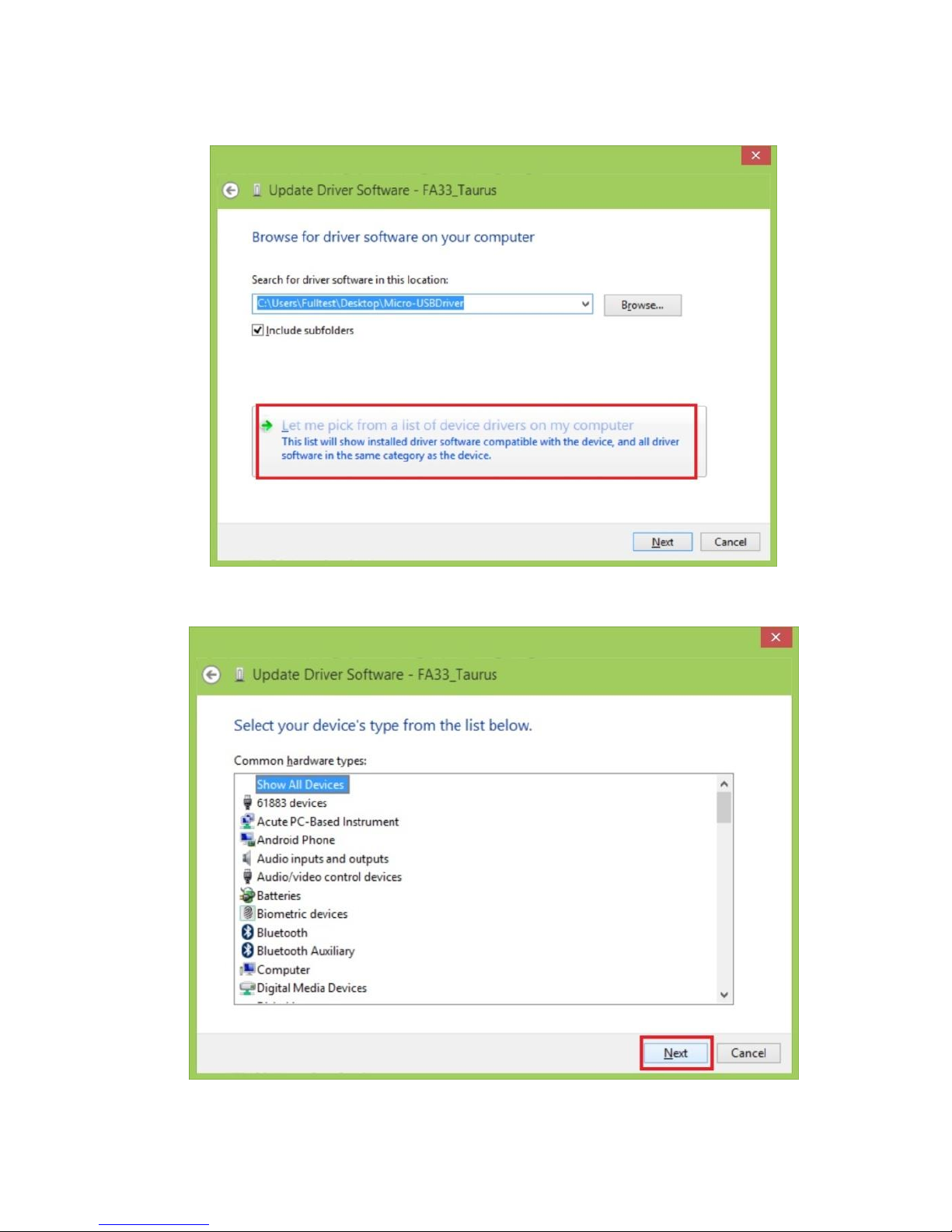

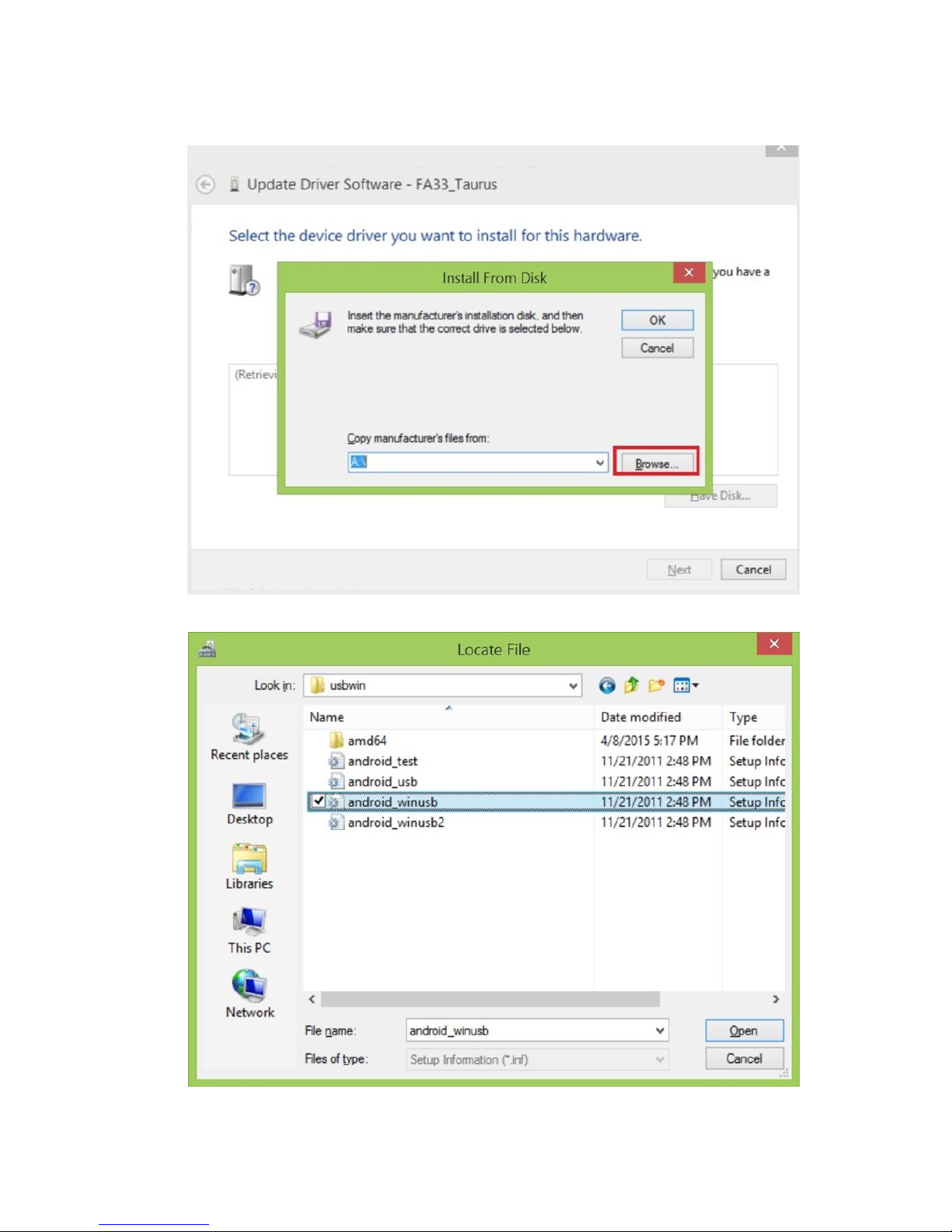

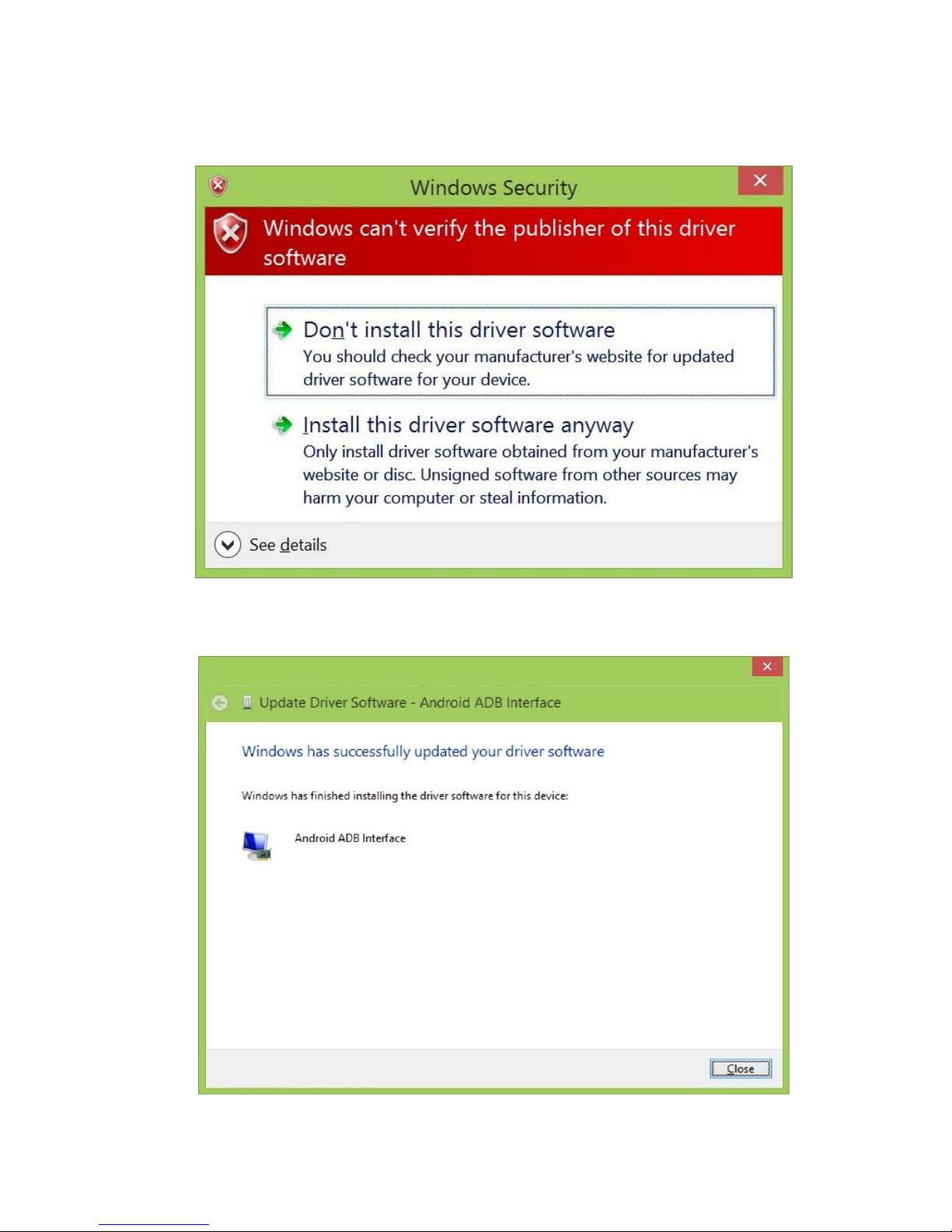

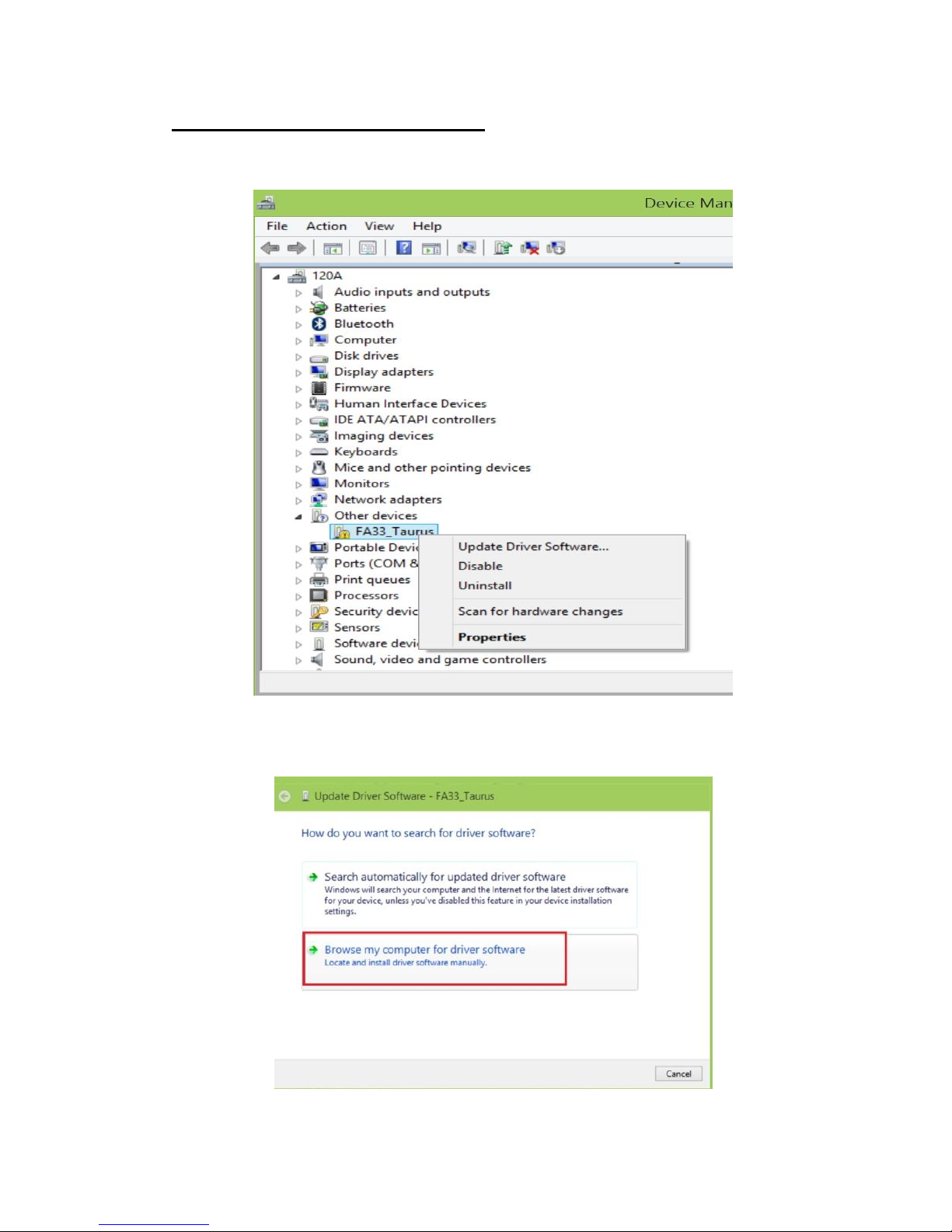

4.1.2 ADB Driver Installation .................................................................. - 50 -

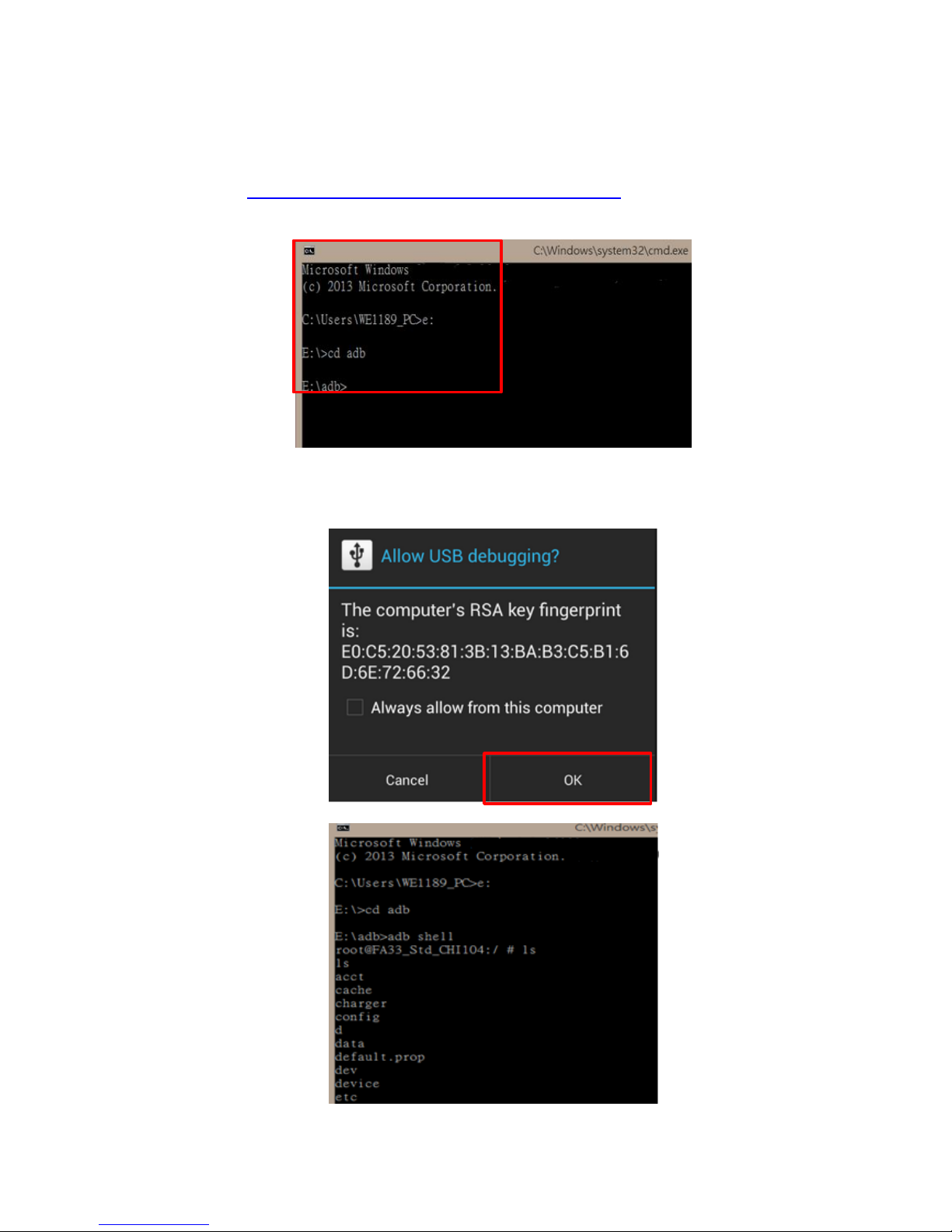

4.2 Installing Android Debug Bridge (ADB) ................................................... - 54 -
4.3 Downloading Image Tool ........................................................................ - 55 -

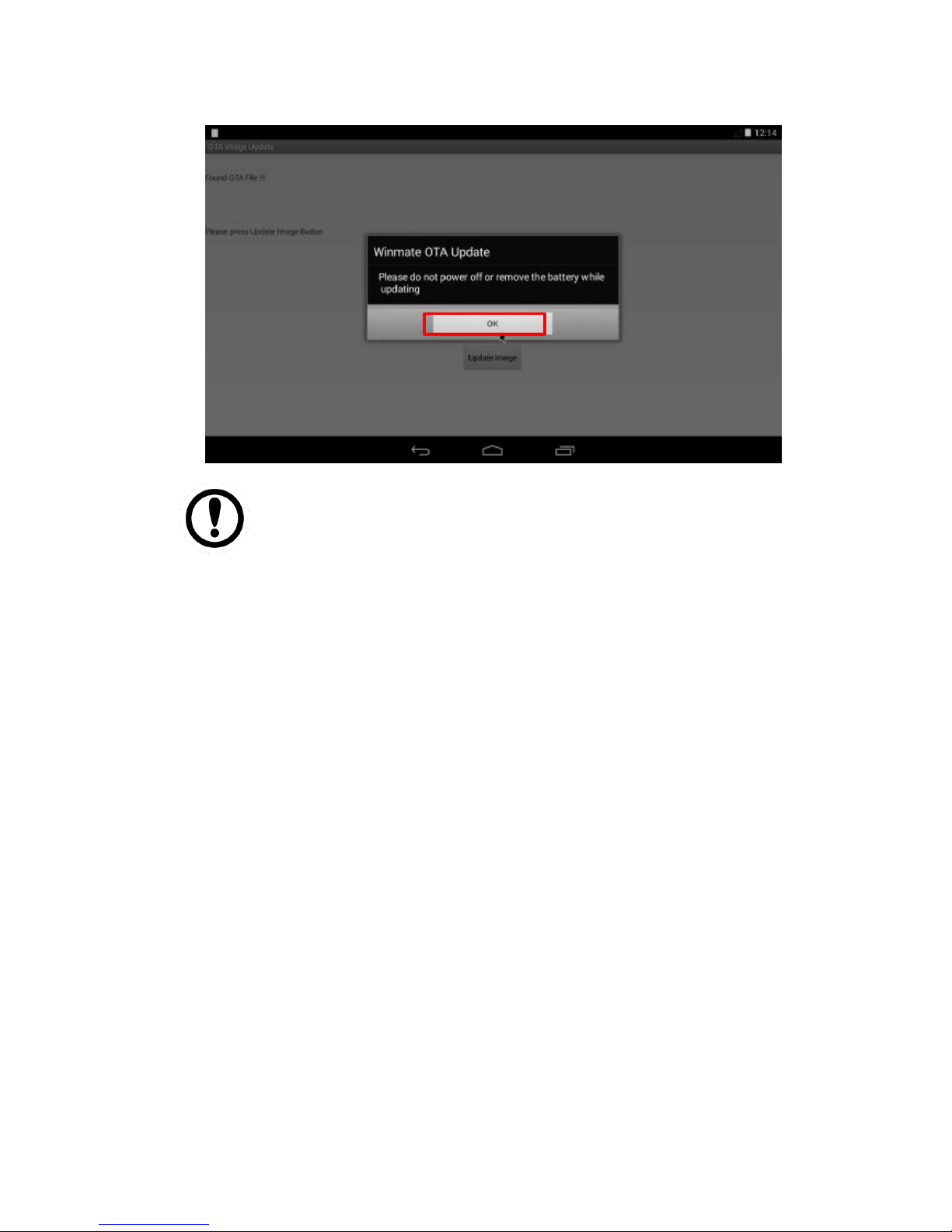

4.4 OTA Update Guide ................................................................................. - 55 -
4.5 OS Image Update Guide ......................................................................... - 59 -
CHAPTER 5: TECHNICAL SUPPORT ................................................................... - 61 -
5.1 Introduction ............................................................................................. - 61 -
6.2 Problem Report Form ............................................................................. - 62 -
APPENDIX A: PRODUCT SPECIFICATIONS ........................................................ - 64 -
Page 4
USER MANUAL PREFACE
- 4 -
PREFACE
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in
any form or by any means, electronic or mechanical, for any purpose, without the
prior written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of the
described product(s) conveys no license or title under any patent, copyright, or
masks work rights to these products, and make no representations or warranties that
these products are free from patent, copyright, or mask work right infringement,
unless otherwise specified. Applications that are described in this manual are for
illustration purposes only. We make no representation or guarantee that such
application will be suitable for the specified use without further testing or modification.
Warranty
Our warranty guarantees that each of its products will be free from material and
workmanship defects for a period of one year from the invoice date. If the customer
discovers a defect, we will, at his/her option, repair or replace the defective product
at no charge to the customer, provide it is returned during the warranty period of one
year, with transportation charges prepaid. The returned product must be properly
packaged in its original packaging to obtain warranty service. If the serial number
and the product shipping data differ by over 30 days, the in-warranty service will be
made according to the shipping date. In the serial numbers the third and fourth two
digits give the year of manufacture, and the fifth digit means the month (e. g., with A
for October, B for November and C for December).
For example, the serial number 1W17Axxxxxxxx means October of year 2017.
Page 5
USER MANUAL PREFACE
- 5 -
Customer Service
We provide a service guide for any problem by the following steps: First, visit the
website of our distributor to find the update information about the product. Second,
contact with your distributor, sales representative, or our customer service center for
technical support if you need additional assistance.
You may need the following information ready before you call:
Product serial number
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every business
day. We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products.
Page 6
USER MANUAL PREFACE
- 6 -
Advisory Conventions
Four types of advisories are used throughout the user manual to provide helpful
information or to alert you to the potential for hardware damage or personal injury. These
are Notes, Important, Cautions, and Warnings. The following is an example of each type
of advisory.
NOTE:
A note is used to emphasize helpful information
IMPORTANT:
An important note indicates information that is important for you to know.
CAUTION/ ATTENTION
A Caution alert indicates potential damage to hardware and explains how to
avoid the potential problem.
Une alerte d’attention indique un dommage possible à l’équipement et
explique comment éviter le problème potentiel.
WARNING!/ AVERTISSEMENT!
An Electrical Shock Warning indicates the potential harm from electrical
hazards and how to avoid the potential problem.
Un Avertissement de Choc Électrique indique le potentiel de chocs sur des
emplacements électriques et comment éviter ces problèmes.
ALTERNATING CURRENT / MISE À LE TERRE!
The Protective Conductor Terminal (Earth Ground) symbol indicates the
potential risk of serious electrical shock due to improper grounding.
Le symbole de Mise à Terre indique le risqué potential de choc électrique
grave à la terre incorrecte.
Page 7
USER MANUAL PREFACE
- 7 -
Safety Information
WARNING! / AVERTISSEMENT!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections while
the power is on. Sensitive electronic components can be damaged by
sudden power surges. Only experienced electronics personnel should
open the PC chassis.
Toujours débrancher le cordon d’alimentation du chassis lorsque vous
travaillez sur celui-ci. Ne pas brancher de connections lorsque
l’alimentation est présente. Des composantes électroniques sensibles
peuvent être endommagées par des sauts d’alimentation. Seulement du
personnel expérimenté devrait ouvrir ces chassis.
CAUTION/ATTENTION
Always ground yourself to remove any static charge before touching the
CPU card. Modern electronic devices are very sensitive to static electric
charges. As a safety precaution, use a grounding wrist strap at all times.
Place all electronic components in a static-dissipative surface or staticshielded bag when they are not in the chassis.
Toujours verifier votre mise à la terre afin d’éliminer toute charge
statique avant de toucher la carte CPU. Les équipements électroniques
moderns sont très sensibles aux décharges d’électricité statique.
Toujours utiliser un bracelet de mise à la terre comme précaution.
Placer toutes les composantes électroniques sur une surface conçue
pour dissiper les charge, ou dans un sac anti-statique lorsqu’elles ne
sont pas dans le chassis.
Safety Precautions
For your safety carefully read all the safety instructions before using the device.
Keep this user manual for future reference.
Always disconnect this equipment from any AC outlet before cleaning. Do
not use liquid or spray detergents for cleaning. Use a damp cloth.
For pluggable equipment, the power outlet must be installed near the
equipment and must be easily accessible.
Keep this equipment away from humidity.
Put this equipment on a reliable surface during installation. Dropping it or
letting it fall could cause damage.
The openings on the enclosure are for air convection and to protect the
equipment from overheating.
CAUTION/ATTENTION
Do not cover the openings!
Ne pas couvrir les ouvertures!
Page 8
USER MANUAL PREFACE
- 8 -
Before connecting the equipment to the power outlet make sure the
voltage of the power source is correct.
Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient over-voltage.
Never pour any liquid into an opening. This could cause fire or electrical
shock.
Never open the equipment. For safety reasons, only qualified service
personnel should open the equipment.
All cautions and warnings on the equipment should be noted.
*Let service personnel to check the equipment in case any of the following
problems appear:
o The power cord or plug is damaged.
o Liquid has penetrated into the equipment.
o The equipment has been exposed to moisture.
o The equipment does not work well or you cannot get it to work
according to the user manual.
o The equipment has been dropped and damaged.
o The equipment has obvious signs of breakage.
Do not leave this equipment in an uncontrolled environment where the
storage temperature is below -20°C (-4°F) or above 60°C (140°F). It may
damage the equipment.
Cover workstations with approved anti-static material. Use a wrist strap
connected to a work surface and properly grounded tools and
equipment.
Use anti-static mats, heel straps, or air ionizer for added protection.
Handle electrostatic-sensitive components, PCB’s and assemblies by
the case or the edge of the board.
Avoid contact with pins, leads, or circuitry.
Turn off power and input signals before inserting and removing
connectors or test equipment.
Keep the work area free of non-conductive materials, such as ordinary
plastic assembly aids and Styrofoam.
Use filed service tools, such as cutters, screwdrivers, and vacuum
cleaners that are conductive.
Always put drivers and PCB’s component side on anti-static foam.
Page 9
USER MANUAL PREFACE
- 9 -
CAUTION/ATTENTION
Use the recommended mounting apparatus to avoid risk of injury.
Utiliser l’appareil de fixation recommandé pour éliminer le risque
de blessure.
WARNING! / AVERTISSEMENT!
Only use the connection cords that come with the product. When
in doubt, please contact the manufacturer.
Utiliser seulement les cordons d’alimentation fournis avec le
produit. Si vous doutez de leur provenance, contactez le
manufacturier.
WARNING!/ AVERTISSEMENT!
Always ground yourself against electrostatic damage to the
device.
Toujours vérifier votre mise à la terre afin que l’équipement ne se
décharge pas sur vous.
Page 10
USER MANUAL PREFACE
- 10 -
Important Information
Countries/
Area
Symbol
This equipment complies with essential
requirements of:
USA
FCC Part 15 Subpart B Regulations Class B
European Union
Electromagnetic Compatibility Directive(2014/30/EU)
Low Voltage Directive (2014/35/EU)
Restrictions of the use of certain hazardous
substances (RoHS) Directive (2011/65/EU)
Federal Communications Commission Radio Frequency
Interface Statement
This device complies with part 15 FCC rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "B"
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at him
own expense.
Page 11
USER MANUAL PREFACE
- 11 -
EC Declaration of Conformity
This equipment is in conformity with the requirement of the following EU legislations
and harmonized standards. Product also complies with the Council directions.
Electromagnetic Compatibility Directive (2014/30/EU)
EN55024: 2010/ A1: 2015
o IEC61000-4-2: 2009
o IEC61000-4-3: 2006+A1: 2007+A2: 2010
o IEC61000-4-4: 2012
o IEC61000-4-5: 2014
o IEC61000-4-6: 2014
o IEC61000-4-8: 2010
o IEC61000-4-11: 2004
EN55032: 2012/AC:2013
EN61000-3-2:2014
EN61000-3-3:2013
Low Voltage Directive (2014/35/EU)
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013
Page 12
USER MANUAL ABOUT THIS USER MANUAL
- 12 -
ABOUT THIS USER MANUAL
This User Manual provides information about using the Winmate® Bar-Type Panel PC.
This User Manual applies to the Bar-Type Panel PC W19FA3S-CHA1, W28FA3S-CHA2,
and W38FA3S-CHA1.
The documentation set for the Bar-Type Panel PC with Freescale® Cortex® A9 i.MX6
Dual Core processor provides information for specific user needs, and includes:
Bar-Type Panel PC User Manual – contains detailed description on how to use
the panel PC, its components and features.
NOTE:
Some pictures in this guide are samples and can differ from actual
product.
Document Revision History
Version
Date
Note
1.0
10-Oct-2016
Initial document release
Page 13
USER MANUAL CHAPTER 1 IINTRODUCTION
- 13 -
Introduction
This chapter gives you product
overview, describes features and
hardware specification. You will find all
accessories that come with the panel
PC in the packing list. Mechanical
dimensions and drawings included in
this chapter.
Page 14
USER MANUAL CHAPTER 1 IINTRODUCTION
- 14 -
CHAPTER 1: INTRODUCTION
Congratulations on purchasing Winmate® Bar-Type Panel PC. Winmate® BarType Panel PC is a fascinating ultra-wide series. This panel PC is equipped with
a Freescale® i.MX6Q processor and capable of running demanding signage and
multimedia applications.
Depending on different applications, Winmate® Bar-Type can be used in both
horizontal and vertical installation to show different content with one single image
or split screens in different places. Bar-Type can be a perfect choice to replace
traditional LED digital signage for applications where the space is limited such as
public transportation, elevators and other public places.
1.1 Product Features
Winmate® Bar-Type Panel PC features:
Freescale® Cortex® A9 i.MX6 Dual Core 1GHz
Android/Linux Operating System (Customizable and easy to use)
Fanless cooling system and Ultra-low power consumption
Power over Ethernet (Data and Power connections in a single cable)
Widescreen stretched design for digital signage in narrow spaces
Public transportation, public advertisement in retail store, information
stands, digital signage in elevators
Page 15
USER MANUAL CHAPTER 1 IINTRODUCTION
- 15 -
1.2 Package Content
Carefully remove the box and unpack your device. Please check if all the items
listed below are inside your package. If any of these items are missing or
damaged contact us immediately.
Standard factory shipment list:
Bar-Type Panel PC
User Manual
(Hardcopy)
Driver CD
Varies by product
specifications
9152111I102P
FA30-210:
9171111I103L
Power Cord
AC Adapter
(12V/ 80W)
2 pin Terminal Block
Varies by country
922D084W12V1
94J602G020K0
VESA Mount Screws
USB to Micro USB
Cable
913511105000
9487049050K0
Page 16
USER MANUAL CHAPTER 1 IINTRODUCTION
- 16 -
1.3 Schematics and Dimensions
This section describes mechanical dimensions of Bar-Type Panel PC. Notice that
this is a simplified drawing and some components are not marked in detail.
Please contact our sales representative if you need further product information.
1.3.1 Schematics and Dimensions 19”
Unit: mm
No
Description
No
Description
①
Mini USB Debug(Linux use)
⑤
RS232/422/485
②
Micro SD
⑥
CAN BUS
③
LAN
⑦
1 x USB 2.0
④
USB OTG
⑧
12V DC (Phoenix type)
Page 17
USER MANUAL CHAPTER 1 IINTRODUCTION
- 17 -
1.3.2 Schematics and Dimensions 28.6”
Unit: mm
No
Description
No
Description
①
Mini USB Debug(Linux use)
⑤
RS232/422/485
②
Micro SD
⑥
CAN BUS
③
LAN
⑦
1 x USB 2.0
④
USB OTG
⑧
9-24V DC (Phoenix type)
Page 18
USER MANUAL CHAPTER 1 IINTRODUCTION
- 18 -
1.3.2 Schematics and Dimensions 38”
Unit : mm
No
Description
No
Description
①
Mini USB Debug(Linux use)
⑤
RS232/422/485
②
Micro SD
⑥
CAN BUS
③
LAN
⑦
1 x USB 2.0
④
USB OTG
⑧
12V DC (Phoenix type)
Page 19
USER MANUAL CHAPTER 2 INSTALLATION
- 19 -
INSTALLATION
This chapter provides hardware
installation instructions and mounting
guide for all available mounting
options. Pay attention to cautions
and warning to avoid any damages.
Page 20
USER MANUAL CHAPTER 2 INSTALLATION
- 20 -
CHAPETR 2: INSTALLATION
This chapter provides information on how to connect the Panel PC to the source
of power, connector pinouts and the guideline to turn on/off the device.
2.1 Safety Precautions
Observe the following common safety precautions before installing any electronic
device:
• Use separate, non-intersecting paths to route power and networking
wires. If power wiring and device wiring paths must be crossed make sure
the wires are perpendicular at the intersection point.
• Keep the wires separated according to the interface. Wires that share
similar electrical characteristics must be bundled together.
• Do not bundle input wiring with output wiring. Keep them separate.
When necessary, it is strongly advised that you label wiring to all devices
in the system.
2.2 Cable Mounting Considerations
For a nice look and safe installation, make sure cables are neatly hidden
behind the Panel PC. Refer to Chapter 2, section 2.1 for the cable installation
instruction.
CAUTION/ ATTENTION
Observe all local installation requirements for connection cable
type and protection level.
Suivre tous les règlements locaux d’installations, de câblage et
niveaux de protection.
CAUTION/ ATTENTION
Turn off the device and disconnect other peripherals before
installation.
Éteindre l’appareil et débrancher tous les périphériques avant
l’installation.
ALTERNATING CURRENT / MISE À LE TERRE!
To prevent electrical shock, the Safety Ground location on the
rear must be bonded to the local earth ground through a
minimum 12 AWG wire as short as possible
Pour éviter les chocs électriques, l’emplacement de la prise terre
à l’arrière doit être lié à terre locale, à travers un 12 AWG
minimum et aussi court que possible.
Page 21
USER MANUAL CHAPTER 2 INSTALLATION
- 21 -
2.3 VESA Mounting Guide
Bar-Type Panel PC supports VESA Mount suitable for most of the industrial and
commercial applications. The device supports flexible mounting in both horizontal
and vertical installations.
CAUTION/ ATTENTION
Follow mounting instructions and use recommended mounting
hardware to avoid the risk of injury.
Suivez les instructions de montage et d'utilisation recommandé le
matériel de montage pour éviter le risque de blessure.
Size
VESA Plate
Dimensions
Screw Hole Diameter
19”
75 x 75 mm
VESA M6
28.6”
300 x 100 mm
VESA M6
38”
200 x 200 mm
400 x 200 mm
VESA M6
Mounting Instruction:
1. Screw VESA bracket to the fixture (ex. wall) with four M6 VESA screws.
2. Place the device on VESA bracket.
*with customer’s bracket
NOTE:
Notice that both hooks on bracket should lock the notches on
the back cover of the device.
Page 22
USER MANUAL CHAPTER 2 INSTALLATION
- 22 -
2.4 Powering On
2.4.1 AC Adapter Components
Safety Precautions:
Do not use the adapter in a high moisture environment
Never touch the adapter with wet hands or foot
Allow adequate ventilation around adapter while using
Do not cover the adapter with paper or other objects that will reduce
cooling
Do not use the adapter while it is inside a carrying case
Do not use the adapter if the cord is damaged
There are NO serviceable parts inside
Replace the unit if it is damaged or exposed to excess moisture
While using the AC Adapter always:
Plug-in the power cord to easy accessible AC outlet
Plug-in the AC adapter to a grounded outlet
AC Adapter
(12V/ 80W)
Power Cord
2pin Terminal Block to
DC Jack
Page 23
USER MANUAL CHAPTER 2 INSTALLATION
- 23 -
2.4.2 Power Considerations
The Panel PC operates on external DC power. Use the AC adapter included in
the package.
CAUTION/ATTENTION
Use only the AC adapter included in your package
(Rating: Output 12 V/ 6.6A). Using other AC adapters may
damage the device.
Utiliser seulement le convertisseur AC inclu avec votre appareil
(Puissance: Sortie 12 V/ 6.6A). Utiliser d’autres convertisseurs
pourraient endommager l’appareil.
ALTERNATING CURRENT / MISE À LE TERRE!
This product must be grounded. Use only a grounded AC
outlet. Install the additional PE ground wire if the local
installation regulations require it.
*If you do not use a grounded outlet while using the device, you
may notice an electrical tingling sensation when the palms of
your hands touch the device.
Ce produit doit être mis à la terre. Utiliser seulement un cordon
d’alimentation avec mise à la terre. Si les règlements locaux le
requiert, installer des câbles de mise à la terre
supplémentaires.
*Si vous n’utiliser pas une prise d’alimentation avec mise à la
terre, vous pourriez remarquer une sensation de picotement
électrique quand la paume de vos mains touche à l’appareil.
Page 24
USER MANUAL CHAPTER 2 INSTALLATION
- 24 -
2.4.3 Connecting the Power
Bar-Type Panel PC operates on external power. Follow the instructions below to
connect the device to the source of power.
Cable Mounting Steps
1. Connect a 2-pin terminal block to the connector on the Panel PC.
2. Connect the other side of the terminal block to the AC adapter.
3. Connect the AC adapter to the power cord.
Plug in the power
4. cord to a working AC wall outlet .The device will boot automatically.
Note:
Power cords vary in appearance by region and country.
Page 25
USER MANUAL CHAPTER 2 INSTALLATION
- 25 -
2.5 Connector Description
2.5.1 Power Connector
The Bar-Type Panel PC uses 2-pin terminal block connector that accepts 12V DC
in power input. The connector secured to the enclosure with two screws.
2.5.2 Serial Port Connector
The Bar-Type Panel PC uses COM1 D-SUB 9pin connector to connect serial
interfaces. The connector secured to the enclosure with two screws.
Serial COM1 settings can be configured for RS-232, RS-422 or RS-485 by
Winmate application for Android OS. Refer to Ch.2, Configuring Serial Port
Settings section of this user manual for the instruction on how to configure COM1
serial port settings.
Voltage
Minimum Voltage 11.4V
Maximum Voltage 12.6V
Maximum Current 4.2A
Pin №
RS-232
RS-422
RS-485
1
DCD
TxD-
D-
2
RXD
TxD+
D+
3
TXD
RxD+
NC
4
DTR
RxD-
NC
5
GND
GND
GND
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
Page 26
USER MANUAL CHAPTER 2 INSTALLATION
- 26 -
2.5.3 USB 2.0 Connector
The Bar-Type Panel PC has one USB2.0 Type A connector. Use USB2.0
connector to connect external devices such as mouse or keyboard to the Panel
PC.
2.5.4 USB OTG Connector
The Bar-Type Panel PC has USB OTG connector to connect USB flash drives,
digital cameras, mice or keyboard to the Panel PC.
2.5.5 CANBus Connector
The Bar-Type Panel PC has CANBus connector. The connector secured to the
motherboard with two screws.
*PIN9 default is NC
Pin №
Signal Name
Pin №
Signal Name
1
+5V
2
Data-
3
Data+
4
GND
Pin №
Signal Name
Pin №
Signal Name
1
+5V
2
USB_OTG_D-
3
USB_OTG_D
+
4
USB_OTG_ID
5
GND
Pin №
Signal Name
Pin №
Signal Name
1
GND
2
CAN_L
3
GND
4
NC
5
NC 6 NC
7
CAN_H
8
GND
9*
+5V/NC
Page 27
USER MANUAL CHAPTER 2 INSTALLATION
- 27 -
2.5.6 Ethernet Connector
The Bar-Type Panel PC supports one RJ45 10/100/1000 Mbps Ethernet interface
for connecting to the internet.
2.5.7 Mini USB Connector (Linux OS)
The Bar-Type Panel PC uses Mini USB connector only for debug purpose in
Linux OS.
2.5.8 Micro SD
The Bar-Type Panel PC equipped with one Micro SD card slot.
Pin №
Signal Name
Pin №
Signal
Name
1
TX1+
2
TX1- 3 TX2+
4
TX2- 5 TX3+
6
TX3-
7
TX4+
8
TX4-
Pin №
Signal
Name
Pin №
Signal Name
1
TXD233
2
NC
3
NC
4
RXD232
5
DBUG-
VBUS
6
GND
Pin №
Signal Name
Pin №
Signal Name
1
DATA2
2
DATA3
3
CMD
4
+3.3V
5
CLK
6
GND
7
DATA0
8
DATA1
9
Card_Det
Page 28
USER MANUAL CHAPTER 2 INSTALLATION
- 28 -
2.6 Turning On and Off the Device
This section describes how to turn on / off the Panel PC.
To turn on the Panel PC:
1. Connect the device to the source of power
2. The unit is configured to Power ON when is connected to the power
source.
Refer to Ch.2, “Powering On” of this User Manual for more details on how to
power on the device.
To turn off the Panel PC:
1. Disconnect the power cord from the device to completely turn off the
device.
Page 29
USER MANUAL CHAPTER 2 INSTALLATION
- 29 -
2.7 Configuring Serial Port Settings
Serial COM Port can be configured for RS-232, RS-422 or RS-485. Winmate
provide COM port settings application for Android OS.
Step 1 Settings > Accessibility
Step 2 Accessibility > Comport-Setting
Page 30
USER MANUAL CHAPTER 2 INSTALLATION
- 30 -
Step 3 Comport-Setting > Comport 1/ Comport 2/ Comport 3
* Select Comport 1/ Comport 2/ Comport 3 that you want to configure.
Step 4 Comport 1 > RS232/RS422/RS485
* Configure Comport 1 settings
Page 31
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 31 -
OPERATING THE DEVICE
This chapter provides detailed information on
how to operate the device. If you have been
using Android touch-screen Panel PCs before,
the interface may look familiar. Sections include
system settings parameters.
Page 32
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 32 -
CHAPTER 3: OPERATING THE DEVICE
In this chapter you will find instructions on how to operate the Panel PC.
3.1 Operating System
Bar-Type Panel PC support Android 4.4 (Default), Linux Ubuntu 16.04 (Optional)
and Linux Kernel 3.0.35, QT 5.4 Browser (Optional).
IMPORTANT:
The device is shipped with the OS System according to your order.
Contact us if you have any questions regarding OS settings.
IMPORTANT:
The watchdog timer is set by default. The system will automatically
reboot if it hangs after 30 seconds. If the app hangs, watchdog
function will not be activated.
3.2 Connecting a Mouse
You need to connect the external mouse to navigate the Bar-Type Panel PC.
Connect USB2.0 compatible mouse to the USB2.0 connector located on the rear
of the Bar-Type Panel PC.
Page 33
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 33 -
3.3 System Settings
This section explains how to adjust main system settings in Android 4.4.
3.3.1 Set up the Device
When you first turn on the Panel PC, you’ll see a Welcome screen. Choose the
language you want and touch Start or the Start icon. When prompted, you can
sign in with your Google Account or create one at that time. You can also choose
to skip this step and create one later.
3.3.2 Home Screen
Your Panel PC runs on Android 4.4 Operation System.
All APPs Icon
Opens a list of all applications.
Page 34
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 34 -

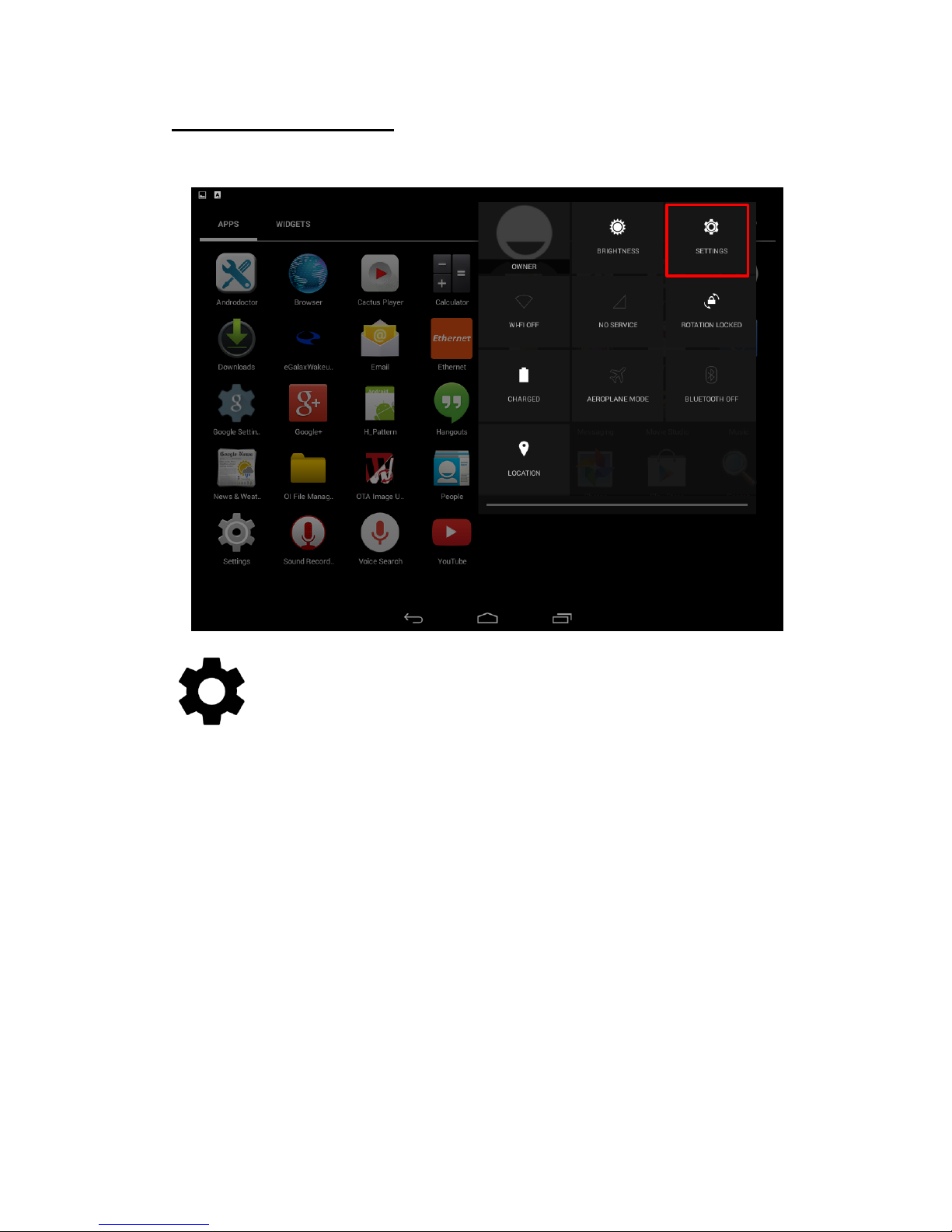

3.3.3 Quick Settings
Quick setting menu allows easy and fast access to the Panel PC system settings.
Settings
Swipe down from the top right of the screen and touch the
Settings icon.
You can open your device’s Settings app from the All Apps
screen or from Quick Settings. For example, to change
notification sounds, and volume go to Settings > Device > Sound
to change the volume.
Page 35
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 35 -
3.4 Ethernet
Step 1 Connect Ethernet Cable to the device.
Step 2 Open Ethernet application, go to APPS > Ethernet .
Step 3 Ethernet APP main menu appears.
Page 36
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 36 -
Setting
Description
Check Ethernet
Check Ethernet connection parameters: IP mode, IP
address, DNS address and others
Configure Ethernet
Enable Ethernet connection and configure its such as
connection type
Advanced Settings
Configure advanced parameters of the Ethernet

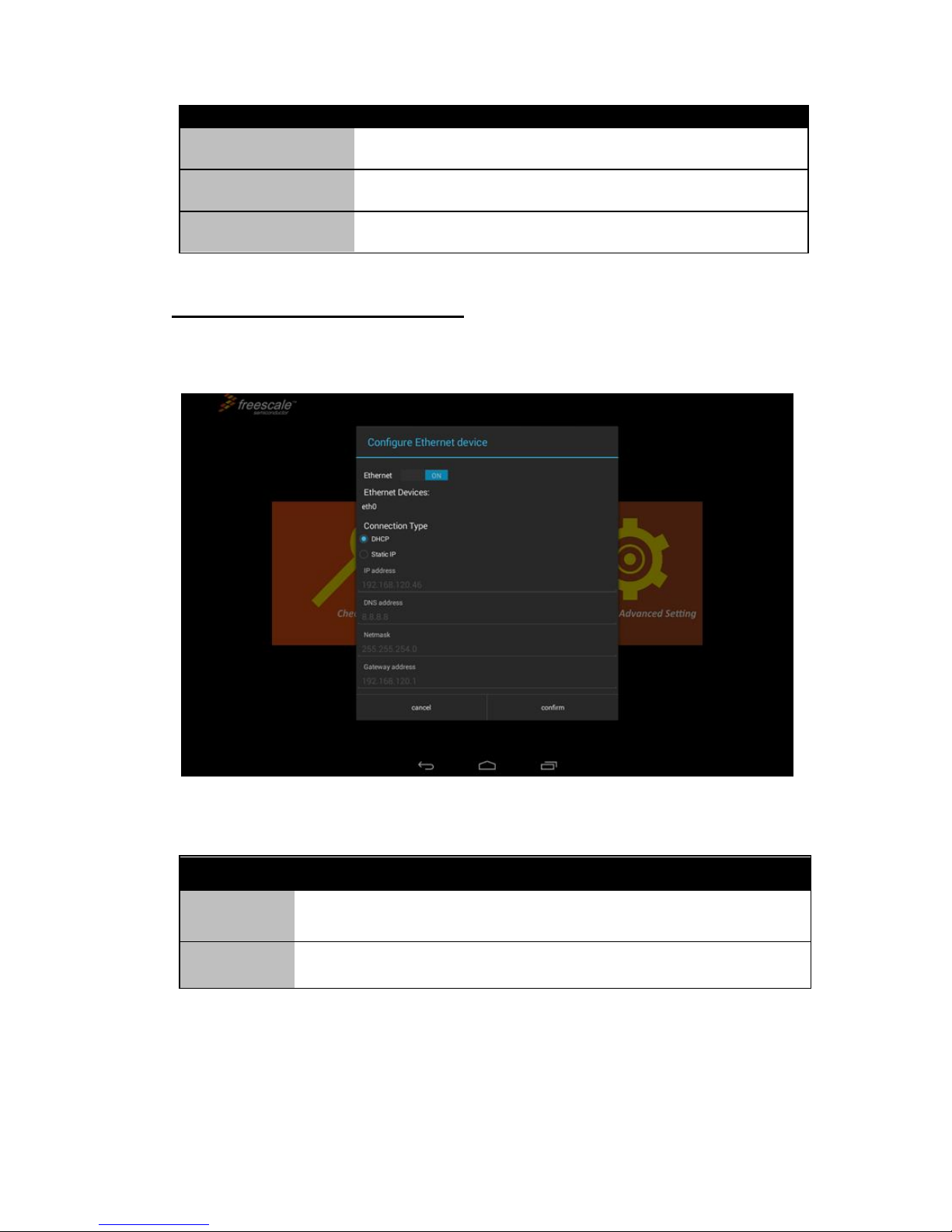

3.4.1 Configuring Ethernet
Go to Apps > Ethernet > Configure Ethernet.
*Ethernet OFF is set by default. Swipe Ethernet ON to activate Ethernet
connection.
Connection Type
Setting
Description
DHCP
(default)
The device automatically capture IP-address from the router
Static IP
Allows to manually set up IP-address, DNS, Network and
Gateway
Page 37
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 37 -
3.4.2 Checking Ethernet Settings
Go to APPS > Ethernet > Check Ethernet
Ethernet settings menu appears on the top right side of the desktop.
For a more detailed Android 4.4 user guide, follow the download path below:
http://static.googleusercontent.com/media/www.google.com/en/us/help/hc/image
s/android/android_ug_42/Android-Quick-Start-Guide.pdf
Page 38
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 38 -
3.5 Winmate® Home Manager (WHM)
Winmate® Bar-Type Panel PC comes with preinstalled APP named Winmate®
Home Manager (WHM) which let the device manager to lock the launcher then
the user can only use one application assigned by the device manager.
3.5.1 How to Lock Applications
Step 1 In the main APPS window, select the Home Manager APP and tap
it to open.
Page 39
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 39 -
Item
Description
Home Manager
User can set which app to run up automatically after
booting.
Password Manager
User can set WHM password. Default password is
“0000”.
About
In this menu user can check information about
WHM
Step 2 Go to “Application Selector”, and chose the app which you want to run
up automatically after booting.
Step 3 Go back to “Home Selector” and press “Clear and Reset Default Home”.
Page 40
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 40 -

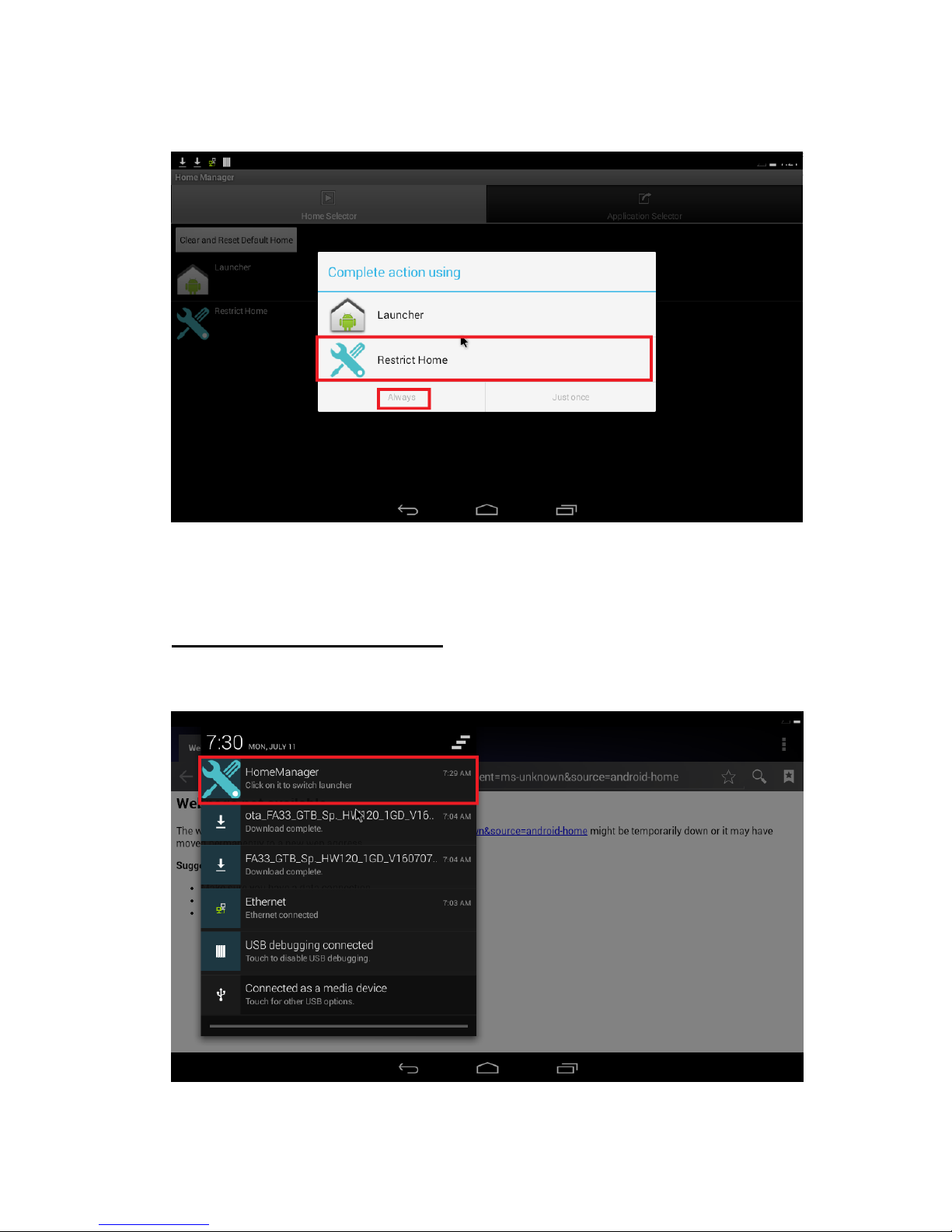

Step 4 Select “Restrict Home” and “Always”, and then restart the computer to
enable these settings.
The system will automatically start the application which you selected and lock it.
Any time user presses home key or back key, the system will go back to the
same application which you have selected.
3.5.2 How to Reset WHM
Step 1 If you want to reset the home manager, pull down the left side to open the
status bar and open HomeManager service.
Step 2 System will request the password to login.
Page 41
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 41 -
Default password is “0000”.
Step 3 Restart the system and you will go back to the normal Launcher.
Step 4 In the Home manager->Home Selector Tab-> click the “Clear and Rest
Default Home”. Specify the “Launcher 3” and “Always”, it would go back to the
origin launcher.
Page 42
USER MANUAL CHAPTER 3 OPERATING THE DEVICE
- 42 -

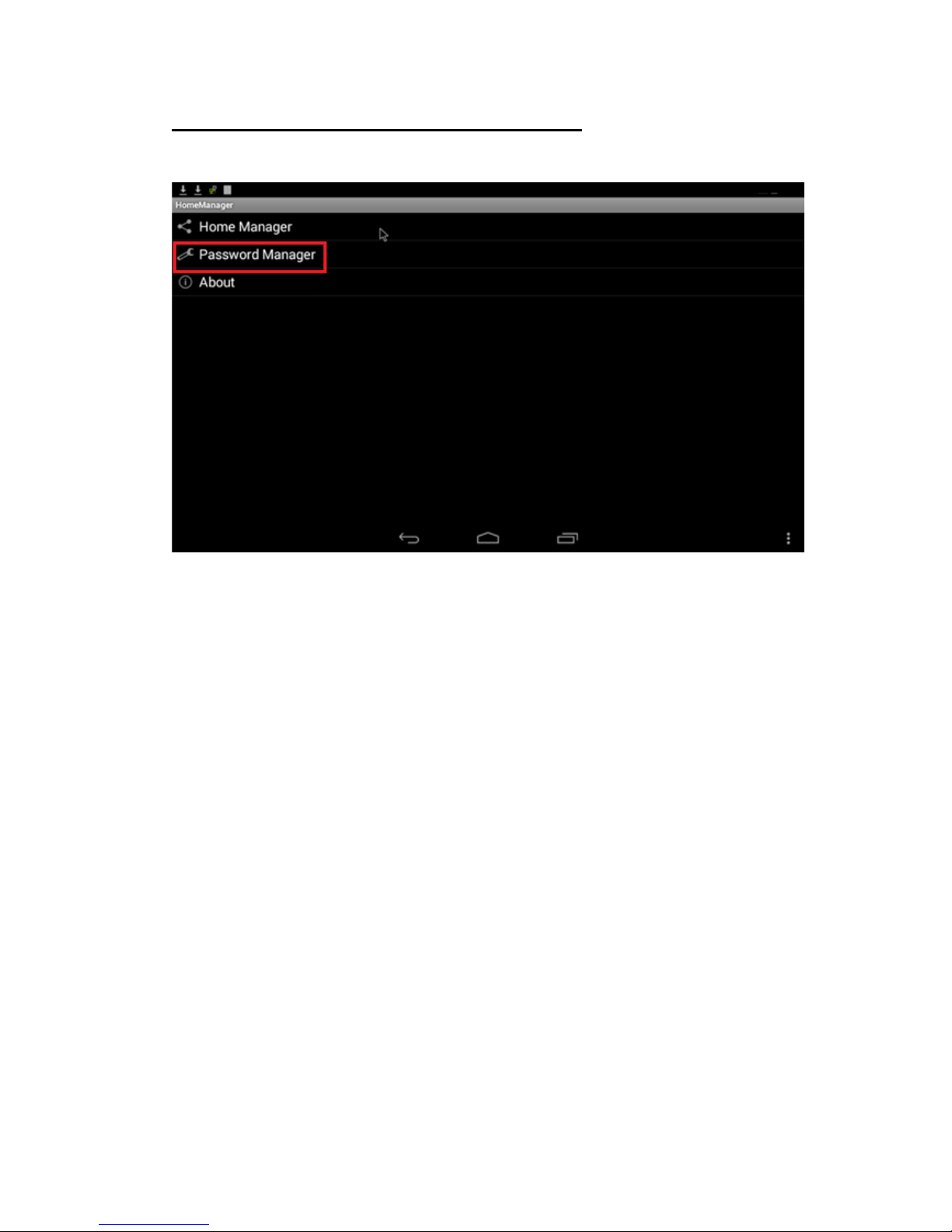

3.5.3 How to Change WHM Password
Step 1 Go to Password Manager and set your own password for this APP.
Step 2 The default password is “0000”. Enter a new password in New Password
field, and then tap Change Password.
Page 43
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
43
SOFTWARE
INSTALLATION
This chapter contains software
installation and update guides.
Page 44
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 44 -
CHAPTER 4: SOFTWARE INSTALLATION
This chapter contains software installation and updates guide. All the programming
guides can be found in the driver CD included in the package.
4.1 Android Debug Bridge (ADB) Driver Installation
You can find FA34_USB_OTG_driver in the following locations:
CDM v2.08.28 Certified\ftdibus.inf
CDM v2.08.28 Certified\ftdiport.inf
You need to connect the Panel PC to the computer with the USB OTG cable.
When using a USB cable (not supplied with your Panel PC), verify that the cable or
cable packaging bears the “Certified USB™” mark to guarantee USB OTG
compliance.
*I/O layout of the device on the picture is for demonstration purposes only. Your
I/O layout may vary from the picture above.
IMPORTANT:
If your computer is running on Windows Embedded 8 Standard or
Windows 8.1 Industry Pro OS system, you need to disable driver
signature.
For Win XP / Win 7 skip disabling driver signature section, and directly
proceed to ADB driver installation.
Page 45
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 45 -
4.1.1 Disabling Driver Signature on Windows 8
Step 1 Hold down the Windows key on your keyboard and press the letter C to
open the Charm menu, and then click the gear icon (Settings).
Step 2 Click Change PC Settings.
Page 46
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 46 -
Step 3 Click General.
Step 4 Under Advanced Startup, click Restart Now.
NOTE: In Windows 8.1, the ‘Restart Now’ button has moved to ‘PC Setting ->
Update & Recovery -> Recovery.’

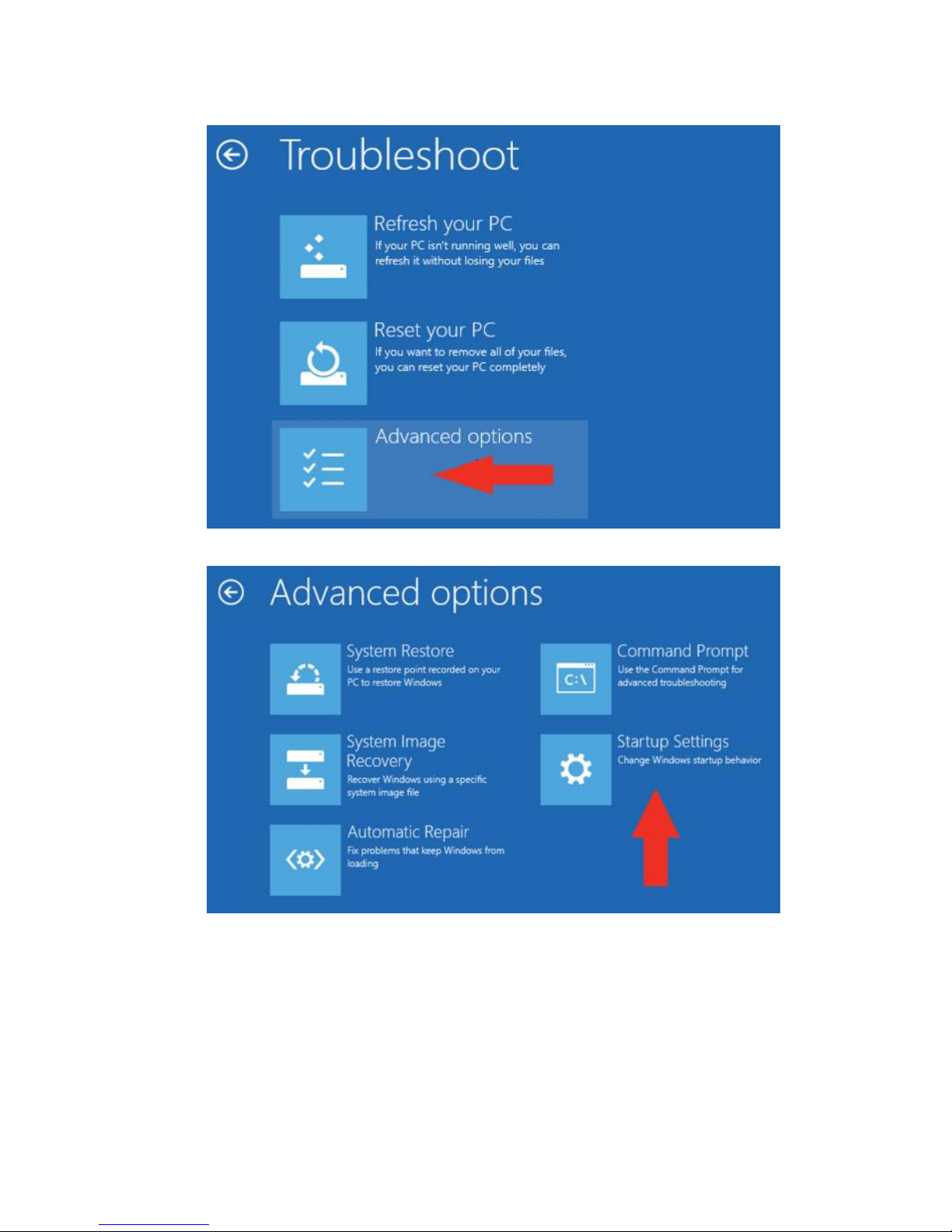

Step 5 After restarting, click Troubleshoot.
Page 47
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 47 -
Step 6 Click Advanced Options.
Step 7 Click Windows Startup Settings.
Page 48
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 48 -
Step 8 Click Restart.
Step 9 After restarting your computer a second time, choose Disable driver
signature enforcement from the list by typing the number 7 on your keyboard.
Your computer will restart automatically.
Page 49
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 49 -
Step 10 After restarting, you will be able to install the ADB drivers normally;
however, Windows will display a warning message. When the warning appears,
click Install this driver software anyway. If you are unfamiliar with installing drivers,
check out our Installing ADB driver tutorial for a step by step guide.
NOTE:
The next time you restart your computer, driver signature
enforcement will be in effect again. You will have to repeat this
process for any new boards. If you have multiple boards to use
with the same computer, we recommend installing the drivers for
each one before you shut down or restart your computer.
Page 50
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 50 -
4.1.2 ADB Driver Installation
Step 1 Confirm whether the USB device was found by the system.
Device Manager > 120A > Other devices > FA34 > Update Driver Software
Step 2 In the Update Driver Software window choose Browse my computer for
driver software.
Page 51
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 51 -
Step 3 Select Let me pick from a list of device drivers on my computer. Click
Next.
Step 4 Select from your computer.
Step 5 In the Update driver software window, click show All Devices and then click
Next.
Page 52
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 52 -
Step 6 The system is looking for the driver folder. Click Browse.
Step 7 Select the driver for your OS system. Click Open.
Page 53
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 53 -
Step 8 Windows Security window will pop up. This message is used to confirm
whether the user wants to install the driver. Select Install this driver software
anyway to continue.
Step 9 When the installation is successfully completed you will see Android ADB
Interface driver in the Update Driver Software window. Now adb debug can be
carried out.
Page 54
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 54 -
4.2 Installing Android Debug Bridge (ADB)
For detailed Android Debug Bridge (ADB) information refer to Android Developers
Platform: http://developer.android.com/tools/help/adb.html .
Step 1 Decompress adb.zip. Open ADB terminal and move into the adb archive.
ADB Terminal window
Step 2 Connect FA34 motherboard to the computer via USB. FA34 will ask you to
confirm USB debugging. Tap OK.
After ADB connection established, install APP or check system log via adb.
Page 55
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 55 -
4.3 Downloading Image Tool
Download OS Image Tool update guide:
1. Winmate Download Center
http://www.winmate.com.tw/ > Support > Download Center > Bar-Type PPC
(Freescale) > OS Image
2. Winmate File Share
http://www.winmate.com.tw/ > Support > Partner Portal > Public Documents >
Panel PC > Bar-Type Panel PC > FA34 > OS Image Update Guide
4.4 OTA Update Guide
OTA is a tool which can help you to update OS image. To receive Android OS
image file contact our sales representatives. Once you get the image file follow the
guideline below.
Step 1 Copy image files ota_FA34_X_X_X_X.zip and FA34_X_X_X_X. md5 and
to micro SD card.
Step 2 Insert micro SD card to the slot in the computer.

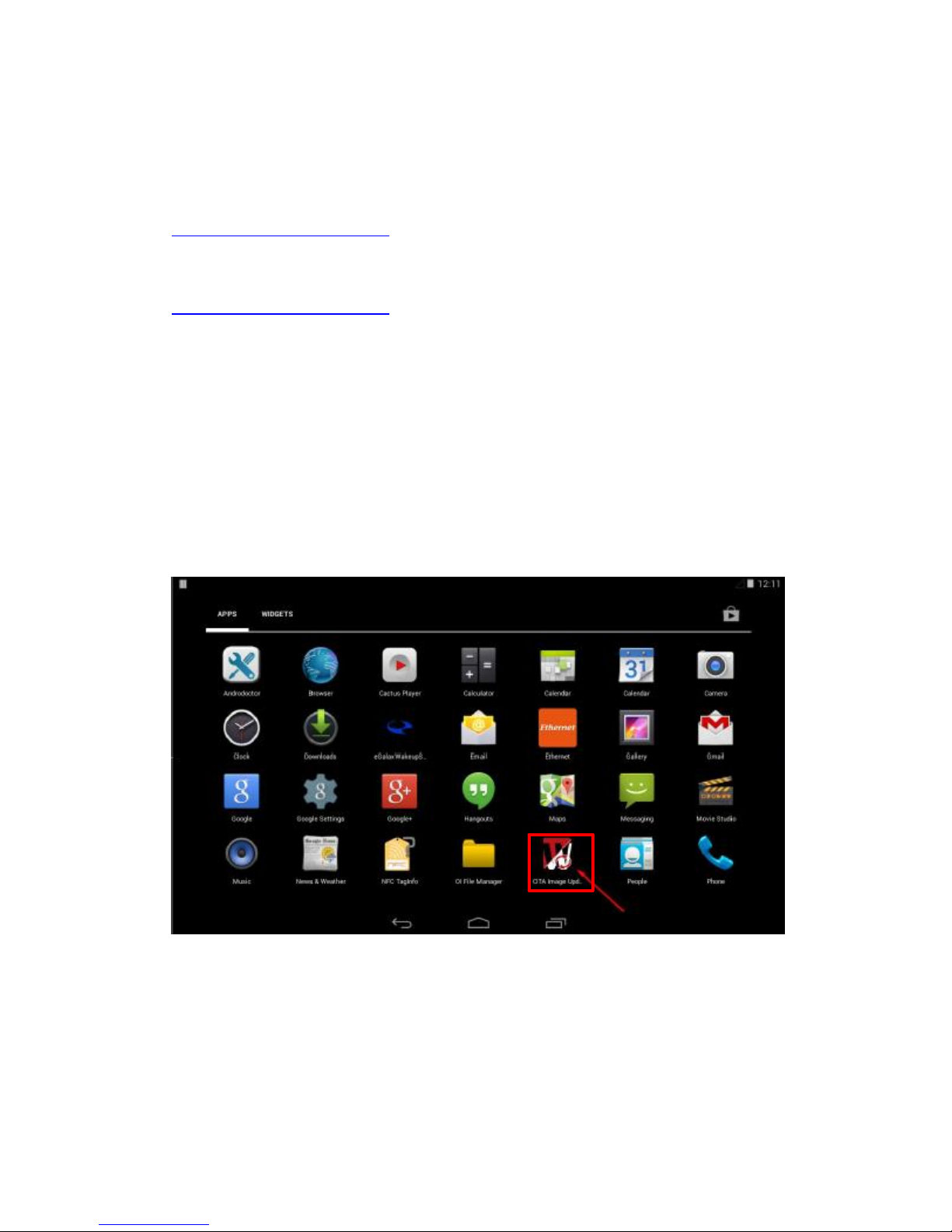

In the APPs menu tap OTA Image Upd.

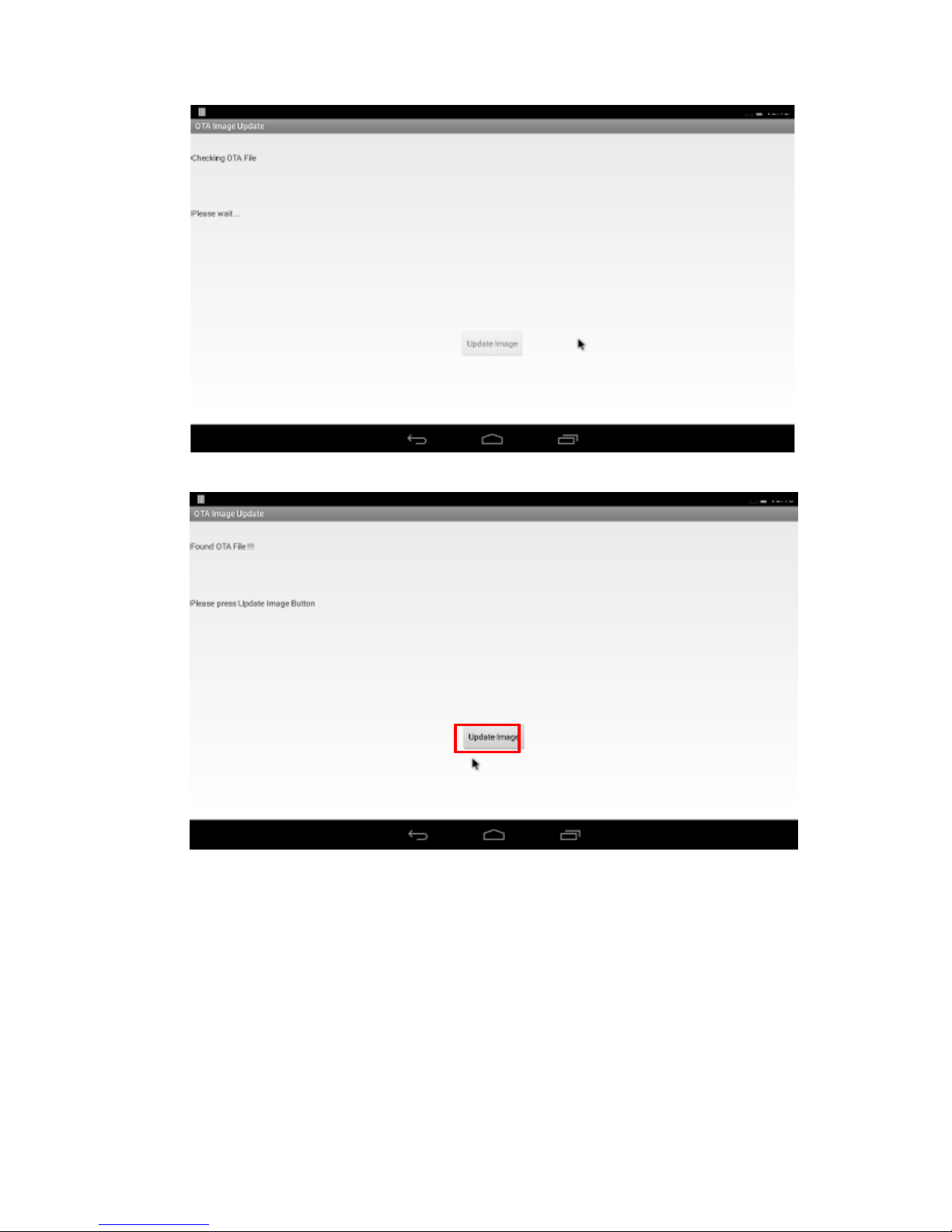

Step 3 The system is checking OTA File. It may take some time.
Page 56
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 56 -
Step 4 Tap Update Image
Page 57
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 57 -

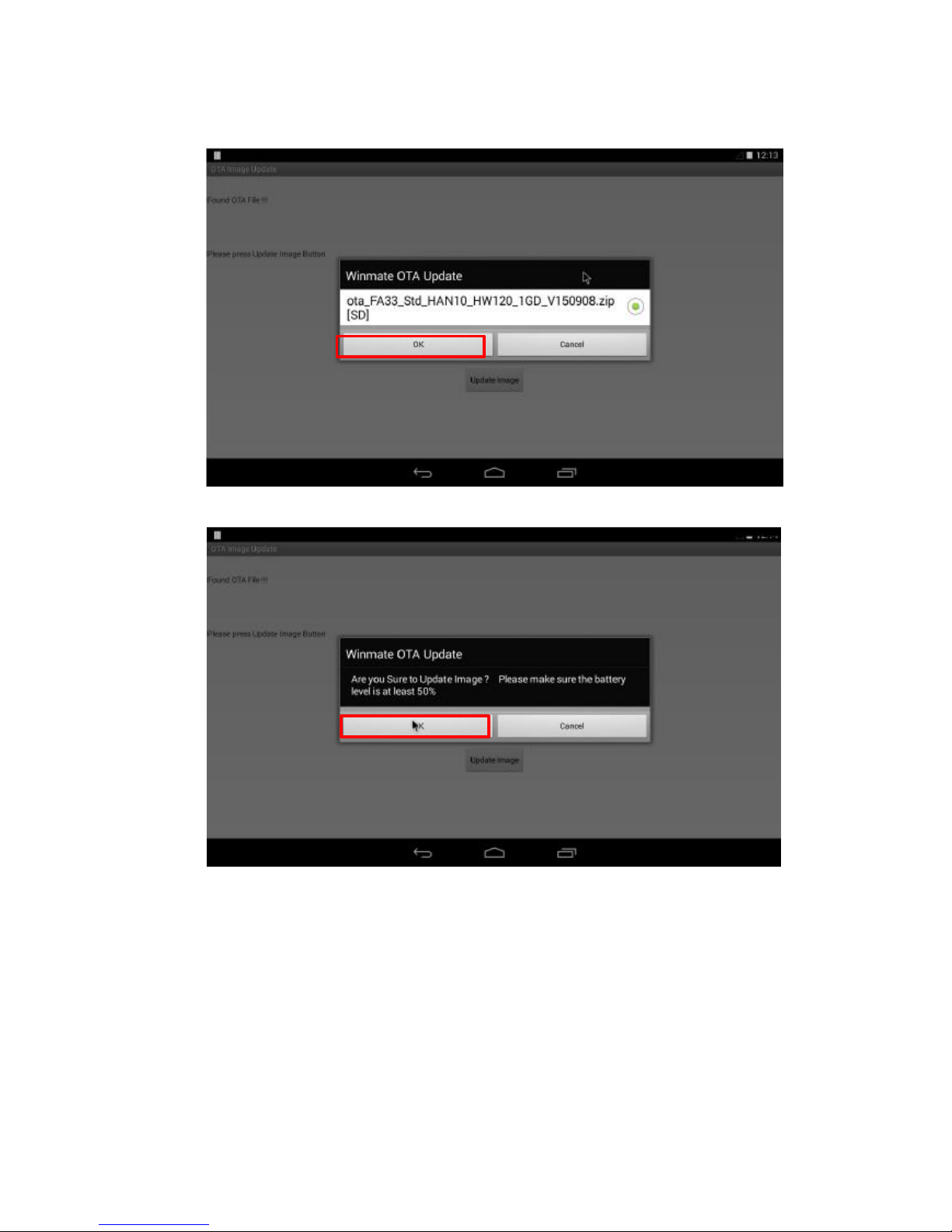

Step 5 Make sure the file founded by the system is image update file.
Tap OK.
Step 6 Tap OK. Make sure the battery level is at least 50%.
Page 58
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 58 -
Step 7 Tap OK.
IMPORTANT:
Do not disconnect the power source!
Do not remove the battery!
Page 59
USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION
- 59 -

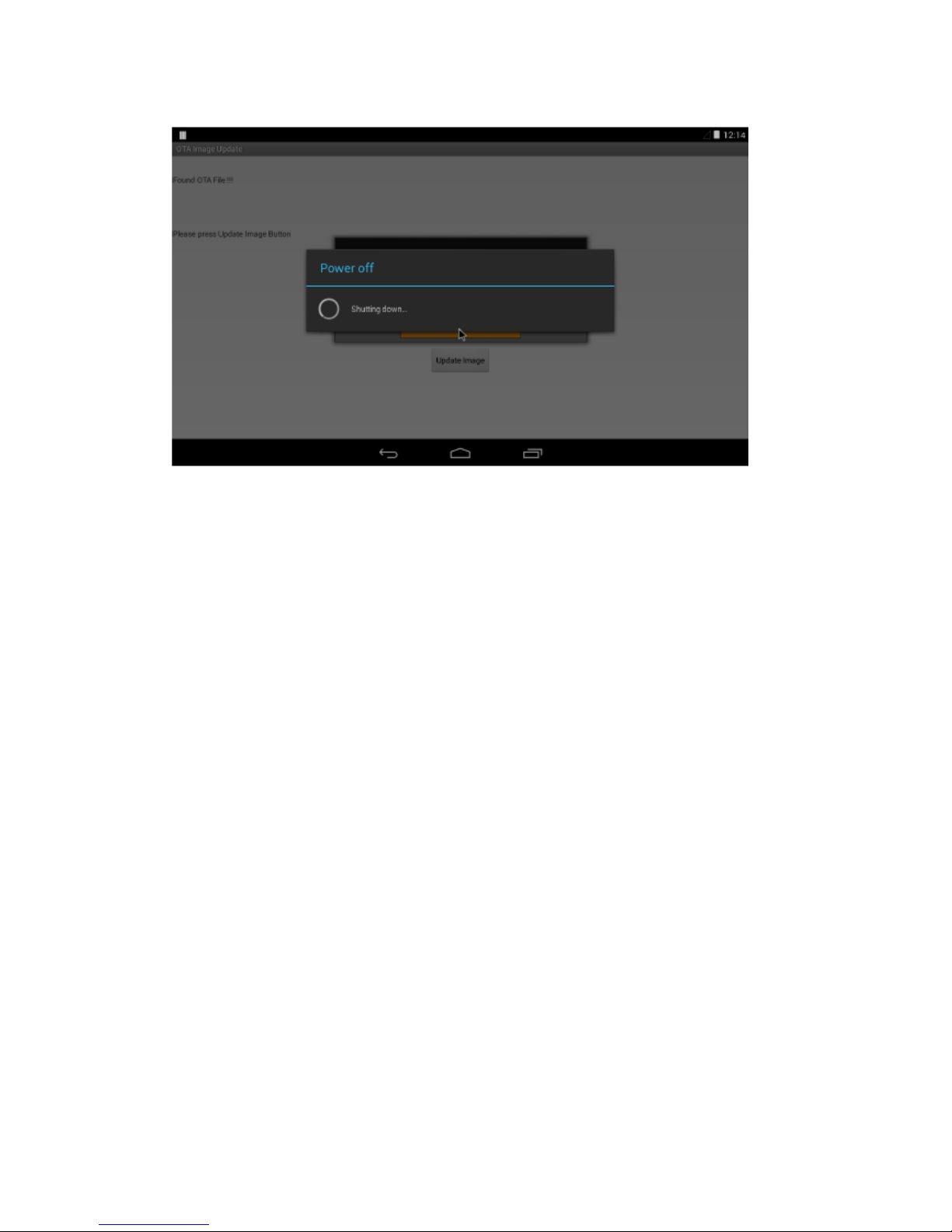

Step 8 After update the system will automatically restart.
4.5 OS Image Update Guide
You can find OS Image Update Guide on the website.
Page 60
USER MANUAL CHAPTER 5 TECHNICAL SUPPORT
- 60 -
TECHNICAL SUPPORT
This chapter includes the directory for
technical support.
Page 61
USER MANUAL CHAPTER 5 TECHNICAL SUPPORT
- 61 -
CHAPTER 5: TECHNICAL SUPPORT
This chapter includes the directory for technical support. Free technical support is
available from our engineers every business day. We are always ready to give
advice on application requirements or specific information on the installation and
operation of any of our products. If any problem occurs fill in problem report form
enclosed and immediately contact us.
5.1 Introduction
Winmate provides the following drivers and SDK for Bar-Type Panel PC with
Freescale® Cortex® A9 i.MX6 Dual Core 1GHz processor:
Item
Driver
Description
1
Android Driver
USB Driver
2
Android Driver
USB OTG Driver
3
SDK
Android SDK
4
SDK
Linux SDK
5
Reference Guide
Download OS Image Tool
To find the Drivers and SDK, please refer to the Driver CD that comes in the
package or contact us. Also, you can download drivers from Winmate Download
Center or Winmate File Share.
Winmate Download Center
Go to http://www.winmate.com/ > Support > Download Center > Digital Signage >
Bar-Type (FA34)
Or follow the link:
Winmate File Share
Go to http://www.winmate.com/ > Support > File Share > Public Documents >
Digital Signage > Bar-Type Panel PC > FA34
Or follow the link: https://winmate.box.com/v/Bar-Type-PPC-FA34
Page 62
USER MANUAL CHAPTER 5 TECHNICAL SUPPORT
- 62 -
6.2 Problem Report Form
Bar-Type Panel PC
Customer name:
Company:
Tel.:
Fax:
E-mail:
Date:
Product Serial Number:
____________________________________________________
Problem Description: Please describe the problem as clearly as possible.
Detailed description of the occurred problem will allow us to find the best solution
to solve the problem as soon as possible.
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
Page 63
USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS
- 63 -
PRODUCT
SPECIFICATIONS
This section includes product
specifications.
Appendix
Page 64
USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS
- 64 -
APPENDIX A: PRODUCT SPECIFICATIONS
Model Name
W19FA3S-CHA1
W28FA3S-CHA2
W38FA3S-CHA1
Display
Size/ Type
19”
28.6”
38”
Resolution
1680x342
1920 x 540
1920 x 540
Brightness
300 nits
1000 nits
1000 nits
Contrast Ratio
2000:1 (typ.)
1000:1 (typ.)
4000:1 (typ.)
Viewing Angle
-89~89 (H);89~89(V)
-89~89 (H);-
89~89(V)
-89~89 (H);-89~89(V)
Max Colors
16.7M
16.7M
1.07B
Mechanical Specifications
Dimensions,
mm(W x H x D)
498.2x129.2x7
4 (mm)
736.5x234.4x70
(mm)
928.3x282.1x69
(mm)
Mounting
VESA Mount
75x75
VESA Mount
200x100
VESA Mount
400x200/ 200x200mm
Cooling System
Fanless
Fanless
Fanless
System Specifications
Processor
Freescale® Cortex® A9 i.MX6 Dual Core 1GHz
System Memory
1GB LPDDR3
Storage
Onboard 16GB eMMC /Micro SD card
OS
Android 4.4 (Default)
Linux Ubuntu 16.04 (Optional)
Linux Kernel 3.0.35,QT 5.4 Browser (Optional)
Input / Output
Power
1 x Terminal Block (2pin)
USB Ports
1 x USB 2.0 host, 1 x USB OTG
Serial Ports
1 x RS232 (Optional 422/485)
CAN BUS
1 x CANBus
Ethernet
1 x RJ45, 10/100/1000 LAN
SD Slot
1 x Micro SD Card Slot
Console
1 x Mini USB Console (for Linux use)
Power Specifications
Power Input
9~36V DC
Environment Considerations
Operating
Temperature
0°C ~ +50°C
Operating
Humidity
30 ~ 90% (non-condensing)
Options
Glass
3mm Glass (Anti-reflective)
Page 65
NOTES
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
Page 66
_________________________________________________________________
NOTES
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________
Page 67
Page 68
