V270 Motherboard
Mini-ITX Fan/Fanless SBC w/ VIA C7
NanoBGA2 processors, VGA, LCD, Giga
Ethernet, Mini-PCI and PCMCIA Slot
Interface.
USER MANUAL Version 1.0
V270 Motherboard User Manual
II
FCC Statement
This device complies with part 15 FCC rules. Operation is subject to
the following two conditions：
z This device may not cause harmful interference.
z This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "a"
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at him
own expense.
V270 Motherboard User Manual
III
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
We reserves the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of the
described product(s), conveys no license or title under any patent, copyright, or masks
work rights to these products, and makes no representations or warranties that these
products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. We make no representation or warranty that such application will be
suitable for the specified use without further testing or modification.
Warranty
Our warranty that each of its products will be free from material and workmanship
defects for a period of one year from the invoice date. If the customer discovers a
defect, we will, at its option, repair or replace the defective product at no charge to the
customer, provided it is returned during the warranty period of one year, with
transportation charges prepaid. The returned product must be properly packaged in it’s
original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial numbers
the third and fourth two digits give the year of manufacture, and the fifth digit means
the month (e. g., with A for October, B for November and C for December).
For example, the serial number 1W08Axxxxxxxx means October of year 2008.
V270 Motherboard User Manual
IV
Packing List
Before using this Motherboard, please make sure that all the items listed below are
present in your package：
¾ V270 Motherboard
¾ V270 SBC User Manual
¾ HDD IDE Cable
¾ User’s Manual & Driver CD
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Customer Service
We provide service guide for any problem as follow steps：First, visit the website of
distributor to find the update information about the product. Second, contact with your
distributor, sales representative, or our customer service center for technical support if
you need additional assistance. You may have the following information ready before
you call：
¾ Product serial number
¾ Peripheral attachments
¾ Software (OS, version, application software, etc.)
¾ Description of complete problem
¾ The exact wording of any error messages
In addition, free technical support is available from our engineers every business day.
We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products. Please do not
hesitate to call or e-mail us.
V270 Motherboard User Manual
V
Safety Precautions
Warning!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronic
personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static-shielded bag when they are
not in the chassis.
7
V270 Motherboard User Manual
VI
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user's manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not use
liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the equipment
and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or electrical shock.
13. Never open the equipment. For safety reasons, only qualified service personnel
should open the equipment.
14. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according to
the user’s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
15. Do not leave this equipment in an uncontrolled environment where the storage
temperature is below -20° C (-4°F) or above 60° C (140° F). It may damage the
equipment.
V270 Motherboard User Manual
VII
Revision History
Version Date Note Author
1.0 2008.07.15 9 First version Tim Lai
V270 Motherboard User Manual
VIII
Contents
CHAPTER 1
GENERAL INFORMATION.......................................1
1.1 INTRODUCTION ...............................................................................1
1.2 FEATURE .........................................................................................1
1.3 MOTHERBOARD SPECIFICATIONS ....................................................2
1.4 FUNCTION BLOCK...........................................................................3
1.5 BOARD DIMENSIONS........................................................................4
CHAPTER 2 INSTALLATIONS.........................................................6
2.1 MEMORY MODULE（SODIMM）INSTALLATION...........................6
2.2 I/O EQUIPMENT INSTALLATION .......................................................7
2.3 JUMPERS AND CONNECTORS ...........................................................8
2.4 JUMPER SETTING.............................................................................9
2.5 CONNECTORS AND PIN ASSIGNMENT ............................................12
CHAPTER 3 GRAPHIC DRIVER INSTALLATION....................19
3.1 GRAPHIC DRIVER INSTALLATION.........................................................19
CHAPTER 4 CHIPSET DRIVER INSTALLATION .....................22
4.1 CHIPSET DRIVER INSTALLATION .......................................................22
CHAPTER 5 ETHERNET DRIVER INSTALLATION..................27
5.1 INSTALLATION OF ETHERNET DRIVER ...........................................27
CHAPTER 6 AUDIO DRIVER INSTALLATION..........................31
6.1
INTRODUCTION .................................................................................31
6.2 INSTALLATION OF AUDIO DRIVER .................................................31
CHAPTER 7 AMI BIOS INSTALLATION.........................................36
7.1 BIOS INTRODUCTION ...................................................................36
7.2 BIOS SETUP .................................................................................36
7.3 MAIN SETUP .................................................................................37
7.4 ADVANCED BIOS SETUP...............................................................38
7.5 BOOT SETTING..............................................................................42
7.6 SECURITY SETUP...........................................................................44
7.7 SECURITY SETUP...........................................................................46
V270 Motherboard User Manual
1
General Information
This chapter includes V270 Motherboard background
information.
Sections include:
z Introduction
z Feature
z Motherboard Specification
z Function Block
z Board Dimensions
C H A P T E R
1
V270 Motherboard User Manual
1
Chapter 1 General Information
1.1 Introduction
V270 SBC is equipped VIA VX700 All-in-One System Processor, is designed to
enable high quality digital video streaming and DVD playback in a new
generation of fanless, small form factor PCs and IA devices. The VX700 features
the embedded VIA UniChrome™ Pro II 2D/3D MPEG-2, MPEG-4 and WMV9
video decoding acceleration, DDR2 533MHz support, dual-display support to
ensure a rich overall entertainment experience. Outstanding connectivity features
include USB 2.0, Giga LAN and ATA/133.
In peripheral connectivity, V270 SBC with flexible I/O ports, as one PCMCIA
slot, Mini-PCI, four serial ports, one PATA connector, one SATA II connector,
and six Hi-Speed USB connectors.
Thus, V270 SBC is designed to satisfy most of the applications in the industrial
computer market, such as Gaming, POS, KIOSK, Industrial Automation, and
Programmable Control System. It is a compact design to meet the demanding
performance requirements of today’s business and industrial applications.
1.2 Feature
¾ Mini-ITX Form Factor ( 170mm x 170mm)
¾ Onboard VIA C7-M ULV/ C7-M NanoBGA2 processors, up to 1.6GHz
¾ 1 x DDR2 533 MHz SO-DIMM supporting up to 1GB
¾ Integrated VIA VX 700 Chipset
¾ VIA UniChrome Pro II AGP graphics with MPEG-2 / 4, WMV9 decoding
acceleration
¾ Realtek RTL8110SC Gigabit Ethernet
¾ VT1708A High Definition Audio Controller, up to 8 high definition audio
channels.
¾ 1 x PCMCIA slot, 1 x Mini PCI slot, 4 x COM, 6 x USB2.0,
¾
1 x 40 pins IDE, 1 x SATA II,
¾
Graphic Output : 1 x VGA, 1 x S-Video(Optional), 1 x LVDS(or DVI)
V270 Motherboard User Manual
2
1.3 Motherboard Specifications
CPU T ype Onboard VIA C7-M ULV/ C7-M NanoBGA2 processors, up to 1.6GHz
CPU FSB 400 MHz / 800 MHz
CPU Socket Onboard VIA NanoBGA2 package
Chipset VIA VX 700
BIOS AMI 8Mbit Flash
VGA
VIA VX 700 integrated VIA UniChrome™ Pro II
Graphics Engine
Up to 128MB shared with system memory
LVDS Built in single- or Dual-channel LVDS, support up to 1600 x 1200, 24bit
LAN 1 x Giga LAN (Realtek RTL8110SC Controller )
Memory Type 1 x DDR2 SODIMM socket, supports up to 1GB DDR2 533 SDRAM
LPC I/O Winbond W83627EHG integrated hardware monitoring
Keyboard/Mouse 1 x Mini-DIN connector supports PS/2 Keyboard/Mouse connectors
IDE Interface Dual channels; supports Ultra DMA 33/66/100
Sound VIA VT1708A (Line-in, Line-out, Mic in)
USB 6 ports, USB 2.0 (2 x USB Connector, 4 x USB pin-header )
Serial 4 serial ports(1 x RS-232/422/485 Connector, 3 x RS-232 pin-header)
Edge
Connectors
1 x 12V DC-IN Jack
1 x Mini-DIN PS/2 connector for keyboard/mouse
1 x VGA out connector
1 x S-Video Connector (Optional)
1 x DB9 for COM1 (RS-232/422/485)
1 x RJ-45 for Gigabit LAN
2 x USB 2.0 ports
On Board
Pin-Header
Connectors
1 x 40 pins box-header
1 x 10pins pin-header for Front Panel
1 x 3pins pin-header for CPU Fan
1 x 3pins pin-header for System FA N
1 x 8pins pin-header for 5V/12V external power
1 x 2pins pin-header for 5V external power
1 x 2pins pin-header for 12V external power
1 x 4pins ATX 12V connector
2 x 2pins pin-header for Front Audio (with Amp.)
1 x 12pins pin-header for Front Audio
2 x 8pins pin-header for USB 3/4/5/6
1 x 20pins pin-header for COM 2/3
1 x 10pins pin-header for COM 4
1 x 40pins DF13 Connector for LVDS
1 x 3pins digital panel backlight brightness controller
1 x 7pins digital panel backlight controller
1 x 10pins pin-header for Digital IO
Power
Connector
Input: Din-4Pin DC 12V Power input
Expansion Slots 1 x PCMCIA type II, 1 x Mini-PCI
Form Factor Mini-ITX
Dimensions 170mm x 170mm
Mechanical &
environmental
Operating temperature: 0 deg. C to 60 deg. C
Operating Humidity: 30 ~ 90% Relative humidity, non-condensing
Certification: CE, FCC, RoHS
V270 Motherboard User Manual
3
1.4 Function Block
V270 Motherboard User Manual
4
1.5 Board dimensions
V270 Motherboard User Manual
5
Installations
This chapter provides information on how to use the
jumps and connectors on V270Motherboard.
The Sections include:
z Memory Module Installation
z I / O Equipment Installation
z Setting the Jumpers
z Connectors on V270Motherboard
C H A P T E R
2
V270 Motherboard User Manual
6
Chapter 2 Installations
2.1 Memory Module（SODIMM）Installation
The V270 Motherboard provides one 200-pin SODIMM slot. The socket
supports up to 2GB DDR2 533 SDRAM. When installing the Memory device,
please follow the steps below：
Step.1. Firmly inserts the SODIMM at an angle into its slot. Align the SODIMM
on the slot such that the notch on the SODIMM matches the break on the slot.
Step.2. Press downwards on SODIMM until the retaining clips at both ends fully
snap back in place and the SODIMM is properly seated.
¾
Caution!
The SODIMM only fits in one correct orientation. It will cause
permanent damage to the development board and the SODIMM if
the SODIMM is forced into the slot at the incorrect orientation.
V270 Motherboard User Manual
7
2.2 I/O Equipment Installation
2.2.1 12V DC-IN
The Motherboard allows plugging 12V DC-IN jack on the board without another
power module converter under power consumption by VIA C7-M NanoBGA2
processor in VX700 chipset.
2.2.2 PS/2 Keyboard and PS/2 Mouse
The Motherboard provides one Mini-DIN connector supports PS/2 interface.
Mini-DIN connector supports Keyboard or Mouse. In other cases, especially in
embedded applications, a mouse is not used. Therefore, the BIOS standard setup
menu allows you to select* “All, But Keyboard” under the “Halt On”. This
allows no-keyboard operation in embedded system applications without the
system halting under POST.
2.2.3 Serial COM ports
One serial connector build in the rear I/O supports RS232/422/485 selection
through jumper setting and three internal RS-232 ports pin-header. When an
optional touch-screen is ordered with PPC, serial com port can connect to a serial
or an optional touch-screen.
2.2.4 Internal VGA
The Motherboard has one VGA port that can be connected to an external CRT/
LCD monitor. Use VGA cable to connect to an external CRT / LCD monitor, and
connect the power cable to the outlet. The VGA connector is a standard 15-pin
D-SUB connector.
2.2.5 Ethernet interface
The Motherboard is equipped with one Realtek RTL8110SC chipsets which is
fully compliant with the PCI 10/100/1000 Mbps Ethernet protocol compatible. It
is supported by major network operating systems. The Ethernet ports provide one
standard RJ-45 jacks.
2.2.6 USB ports
Six USB devices (four with pin headers) may be connected to the system though
an adapter cable. Various adapters may come with USB ports. USB usually
connect the external system to the system. The USB ports support hot plug-in
connection. Whatever, you should install the device driver before you use the
device.
2.2.7 Audio Jack ( Pin-header)
The Audio 7.1 channel capabilities are provided by a VIA VT1708A chipset
supporting digital audio outputs. The audio interface includes Mic-in, line-in and
line-out.
V270 Motherboard User Manual
8
2.3 Jumpers and Connectors
TOP
BOTTOM
VGA
PS/2 DC Jack
S-Video
(Optional)
COM RJ-45 USB
J1 JP1
FAN 1
SATA 1
CON 1
IDE 1
FAN 2
FAN 2
J4
CON 2 / CON 3
Panel 1
J7
Mini PCI
J8
J9
J10
CON 5
J7
CN4
J6
CN2
J5
JP2
USB 1 / USB 2
J3
J2
V270 Motherboard User Manual
9
2.4 Jumper Setting
A pair of needle-nose pliers may be helpful when working with jumpers. If you
have any doubts about the best hardware configuration for your application,
contact your local distributor or sales representative before you make any
changes. Generally, you simply need a standard cable to make most connections.
The jumper setting diagram is as below. If a jumper shorts pin 1 and pin 2, the
setting diagram is shown as the right one.
The following tables list the function of each of the board's jumpers.
Label Function Note
JP1 Clear CMOS 3x1 header , pitch 2.0mm
JP2 L VDS / DVI Selector 3x1 header , pitch 2.0mm
J2 RS232 / RS422 / RS485 Selector 3x4 header , pitch 2.0mm
J3 RS232 / RS422 / RS485 Selector 3x2 header , pitch 2.0mm
CN2 Panel Voltage Selector 2x3 header , pitch 2.0mm
1
2
3
V270 Motherboard User Manual
10
2.4.1 JP1: Clear CMOS
User must make sure the power supply to turn off the power supply before
setting Clear CMOS. Users remember to setting jumper back to Normal before
turning on the power supply.
Default: 2 short 3.
2.4.2 JP2: LVDS / DVI Selector
The jumper can select CN4 connector providing LVDS or DVI signal.
Default: 1 short 2.
2.4.3 J2: RS232 / RS422 / RS485 Selector
The jumper can be configured to operate COM1 in RS-232/422/485 mode. And
the setting must be cooperated with J3 settings.
2.4.4 J3: COM1 RS232 / RS422 / RS485 Function Selector
The jumper can be configured to operate COM1 in RS-232/422/485 mode. And
the setting must be cooperated with the 2.4.3 settings.
Default 1 short 2.
Pin No. Functions
1 Short 2 Clear CMOS
2 Short 3 Normal
Pin No. Functions
1 Short 2 LVDS
2 Short 3 DVI
RS232 RS422/485
1-2 2-3
4-5 5-6
7-8 8-9
10-11 11-12
Pin No. Functions
1 Short 2 RS232
3 Short 4 RS422
5 Short 6 RS485
1
2
3
Clear CMOS
1
2
3
Normal
RS232
1
3
5
2
4
6
RS422
1
3
5
2
4
6
RS485
1
3
5
2
4
6
1
2
3
LVD S
1
2
3
DVI
RS232
1
4
7
10
3
6
9
12
RS422/485
1
4
7
10
3
6
9
12
V270 Motherboard User Manual
11
2.4.5 CN2: Panel Voltage Select
CN2 can be configured to operate in 3.3Volts / 5Volts / 12Volts mode.
Pin No. Functions
1 Short 2 3.3Volts Selected
3 Short 4 5Volts Selected
5 Short 6 12Volts Selected
5Volts
1
3
5
2
4
6
3.3Volts
1
3
5
2
4
6
12Volts
1
3
5
2
4
6
V270 Motherboard User Manual
12
2.5 Connectors and Pin Assignment
The table below lists the function of each of the board’s connectors.
Rear I/O connectors:
Label Function Note
CON6 12V DC Jack 4x1 Pin Jack
PSKBM1 PS2 Keyboard/Mouse Connector PS/2 Conn.
CN8 VGA Output Connector D-sub 15pin VGA
CN6 S-Video
CN7 RS-232/422/485 Connector D-sub 9pin COM
LAN1 RJ-45 Connector RJ-45 Giga LAN
J11 Dual USB Connector USB 2.0
Internal I/O Pin-headers:
Label Function Note
CN4 LVDS LCD Output Connector DF13-40DP-1.25V
J7 Backlight Brightness Control 3x1 header, pitch 2.54mm
J6 Inverter Connecter 7x1 header, pitch 2.54mm
J4 COM2/COM3 Serial Port 2x10 header, pitch 2.0mm
J5 COM4 Serial Port 2x5 header, pitch 2.0mm
IDE2 IDE Connector 40Pin IDE Conn.
SATA1 SATA Connector SATA Conn.
USB1 USB 3/USB 4 4x2 header, pitch 2.0 mm
USB2 USB 5/USB 6 4x2 header, pitch 2.0 mm
FAN1 FAN Connector 3x1 header, pitch 2.54mm
FAN1 FAN Connector 1x3 header, pitch 2.54mm
PANEL1 System Function Connector 2x5 header ,pitch 2.0mm
J8 Front Audio (Right) 1x2 header ,pitch 2.54mm
J9 Front Audio (Left) 1x2 header ,pitch 2.54mm
CON2 12V External Power 2x1 header, pitch 2.54mm
CON3 5V External Power 2x1 header, pitch 2.54mm
CON1 5V/12V External Power 4x2 header ,pitch 2.54mm
J10 Audio Function Connector 6x2 header ,pitch 2.0mm
CON4 Digital I/O 2x5 header ,pitch 2.0mm
CON5 12V DC Jack 4 Pin Jack
V270 Motherboard User Manual
13
2.5.1 CN4: LVDS Connector
Pin No. SYMBOL Pin No. SYMBOL
1 LCDVDD 2 LVDS_LTX03 LCDVDD 4 LVDS_LTX0+
5 LCDVDD 6 LVDS_LTX17 GND 8 LVDS_LTX1+
9 GND 10 LVDS_LTX211 GND 12 LVDS_LTX2+
13 GND 14 LVDS_LCLK15 GND 16 LCDS_LCLK
17 GND 18 NC
19 GND 20 NC
21 GND 22 LVDS_UTX023 GND 24 LVDS_UTX0+
25 GND 26 LVDS_UTX127 GND 28 LVDS_UTX1+
29 GND 30 LVDS_UTX231 GND 32 LVDS_UTX2+
33 GND 34 LVDS_UCLK35 GND 36 LVDS_UCLK
37 GND 38 NC
39 GND 40 NC
2.5.2 J7: Digital Panel Backlight Brightness Control
Pin No. SYMBOL
1 VCC
2 Black Light Control
3 GND
V270 Motherboard User Manual
14

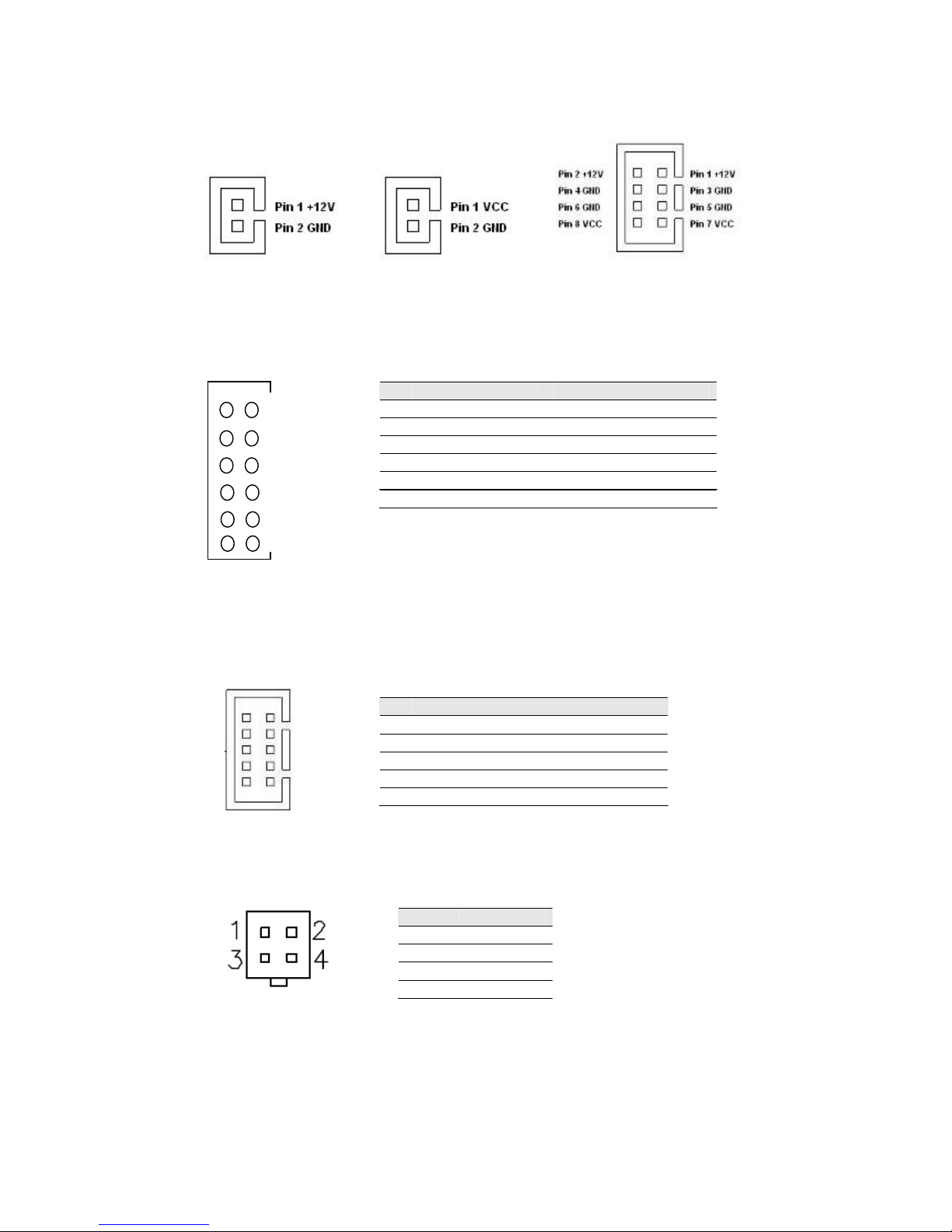

2.5.3 J6: Inverter Power connector
2.5.4 J4: COM2/COM3 serial Ports
The J4 serial port, which provides dual RS-232 function.
Pin No. SYMBOL
1 +12V
2 +12V
3 +12V
4 GND
5 Black Light Control
6 GND
7 Black Light EN 5V
Pin No. SYMBOL Pin No. SYMBOL
20 GND 19 GND
18 FK NRI2 17 FK NDTR2
16 FK NCTS2 15 FK NSOUT2
14 FK NRTS2 13 FK NSIN2
12 FK NDSR2 11 FK NDCD2
10 GND 9 GND
8 FK NRI1 7 FK NDTR1
6 FK NCTS1 5 FK NSOUT1
4 FK NRTS1 3 FK NSIN1
2 FK NDSR1 1 FK NDCD1
V270 Motherboard User Manual
15
2.5.5 J5: COM4 Serial port
The J5 serial port, which provides one RS-232 function.
2.5.6 IDE1: 40 pins IDE Connector
Signal Name Pin # Pin #
Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect
Address 1 33 34 No connect
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
Pin SYMBOL Pin SYMBOL
2 NDSR1A 1 NDCD1A
4 NRTS1A 3 NRXD1A
6 NCTS1A 5 NTXD1A
8 NRI1A 7 NDTR1A
10 GND 9 GND
1
3
5
7
9
2
4
6
8
10
V270 Motherboard User Manual
16
2.5.7 USB1 / USB2: USB PIN HEADER
2.5.8 FAN1/ FAN2: FAN CONNECTOR
FAN1 FAN2
2.5.9 PANEL1: Front Panel System Function Connector
2.5.10 J8/J9: Front Audio
J8 J9
USB1 / USB2
Pin SYMBOL Pin SYMBOL
2 USBVCC 1 USBVCC
4 USB_P6- 3 USB_P76 USB_P6+ 5 USB_P7+
8 GND 7 GND
Pin SYMBOL Pin SYMBOL
2 HD_LED+ 1 PW_LED+
4 HD_LED- 3 PW_LED6 RT_BT1 5 PW_BT1
8 RT_BT2 7 PW_BT2
10 5VSB 9 RSEV
1
4
5
7
3
8
6
2
1
3
5
7
9
2
4
6
8
10
V270 Motherboard User Manual
17
2.5.11 CON2/CON3/CON1: External Power
CON2 CON3 CON1
2.5.12 J10: Audio Connector
2.5.13 CON4: Digital: Digital I/O Connector
2.5.14 ATX12V1: 12V DC Connector
Pin SYMBOL Pin SYMBOL
2 GND 1 Mic in L
4 GND 3 Mic in R
6 Mic in Sensor 5 Line out R
8 Line in Sensor 7 Front IO Sensor
10 Line out Sensor 9 Line out L
12 Line in L 11 Line in R
Pin SYMBOL Pin SYMBOL
2 Vcc 1 GND
4 Out1 3 Out3
6 Out0 5 Out2
8 IN1 7 IN3
10 IN0 9 IN2
Pin SYMBOL
1 Ground
2 Ground
3 +12V
4 +12V
2
12
1
11
1
3
5
7
9
2
4
6
8
10
V270 Motherboard User Manual
18
Graphic Driver Installation
This chapter offers information on the chipset software
Installation utility
z Installation of Graphic Driver
z Panel Resolution Setting
C H A P T E R
3
V270 Motherboard User Manual
19
Chapter 3 Graphic Driver Installation
3.1 Graphic Driver Installation
V270 Motherboard is equipped with VIA VX 700 integrated VIA UniChrome™
Pro II Graphics Engine. The VIA Graphic Drivers should be inst alled first, and it
will enable “Video Controller (VGA compatible). Follow the instructions below
to complete the installation. You will quickly complete the installation.

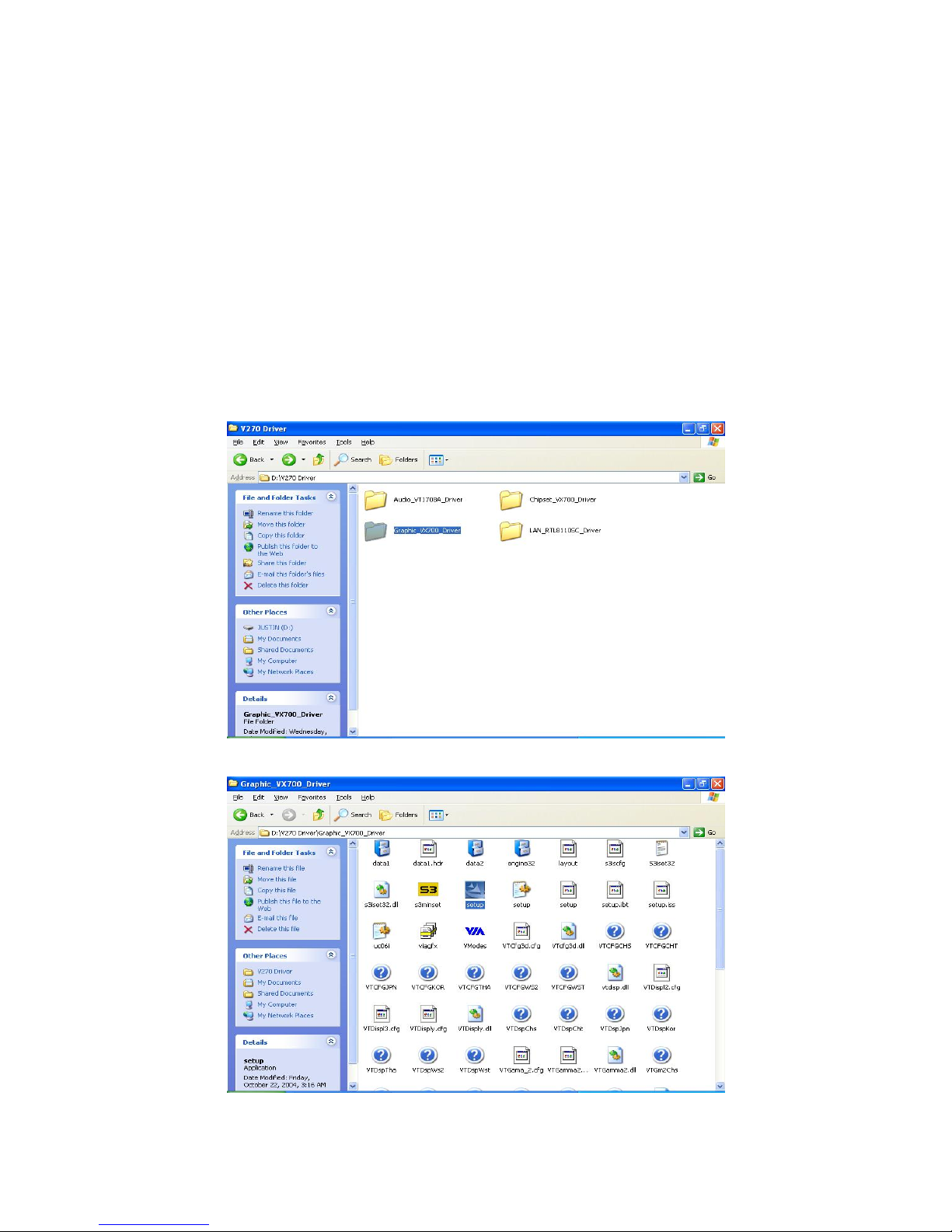

Step.1. Insert the CD that comes with the Motherboard. Open the file
document “Graphic_VX700_Driver “.
Step.2. Click on “Setup.exe” to execute the setup.
V270 Motherboard User Manual
20
Step.3. It will be auto-install Graphic Driver.
Step.4. Click on “Finish“ to install Driver.
V270 Motherboard User Manual
21
Chipset Driver Installation
This chapter offers information on the chipset software
Installation utility
z Installation of Chipset Driver
z Further information
C H A P T E R
4
V270 Motherboard User Manual
22
Chapter 4 Chipset Driver Installation
4.1 Chipset Driver Installation
Setp.1. Insert the CD that comes with the motherboard. Open the file document
“Chipset_VX700_Driver”.
Setp.2.
Click on “Setup“ to install driver.
V270 Motherboard User Manual
23
Setp.3.
Click on “Next“ to install driver.
V270 Motherboard User Manual
24
Setp.4. Click on “Next“ to install driver.
Setp.5.
Click on “Next“ to install driver.
V270 Motherboard User Manual
25
Step.6. Click on “Yes, I want to restart this computer now“ to go on.
V270 Motherboard User Manual
26
Ethernet Driver Installation
This chapter offers information on the Ethernet software
installation utility.
Sections include:
z Introduction
z Installation of Ethernet Driver
C H A P T E R
5
V270 Motherboard User Manual
27
Chapter 5 Ethernet Driver Installation
5.1 Installation of Ethernet Driver
The Users must make sure which operating system you are using in the
V270Motherboard before installing the Ethernet drivers. Follow the steps
below to complete the installation of the Realtek RTL8110SC LAN drivers. You
will quickly complete the installation.
Step.1. Insert the CD that comes with the motherboard. Open the file
document “LAN Driver”.
Step.2 Click on “Setup” to execute the setup.
V270 Motherboard User Manual
28
Step.3. Click on “Next“ to install driver.
Step.3.
Click on “Install“ to install driver.
V270 Motherboard User Manual
29
Setp.3. Click on “Finish“ and go on.
V270 Motherboard User Manual
30
Audio Driver Installation
This chapter offers information on the Audio software
installation utility.
Sections include:
z Introduction
z Installation of Audio Driver
C H A P T E R
6
V270 Motherboard User Manual
31
Chapter 6 Audio Driver Installation
6.1 Introduction
The V270Motherboard is equipped with the VIA Vinyl VT1708 chipset. The VIA
VT1708 series deliver top quality audio performance, supporting the latest 8-channel,
24-bit, 192KHz audio content for an all-round high fidelity experience.
6.2 Installation of Audio Driver
The users must make sure which operating system you are using in the V270 Motherboard
before installing the Audio drivers. Follow the steps below to complete the installation of the
VIA Vinyl VT1708 Audio drivers. You will quickly complete the installation.
Step.1. Insert the CD that comes with the motherboard. Open the file document
“Audio_VT708A_Driver” to execute the setup.
V270 Motherboard User Manual
32
Step.2. Click on “Setup” to execute the setup
V270 Motherboard User Manual
33

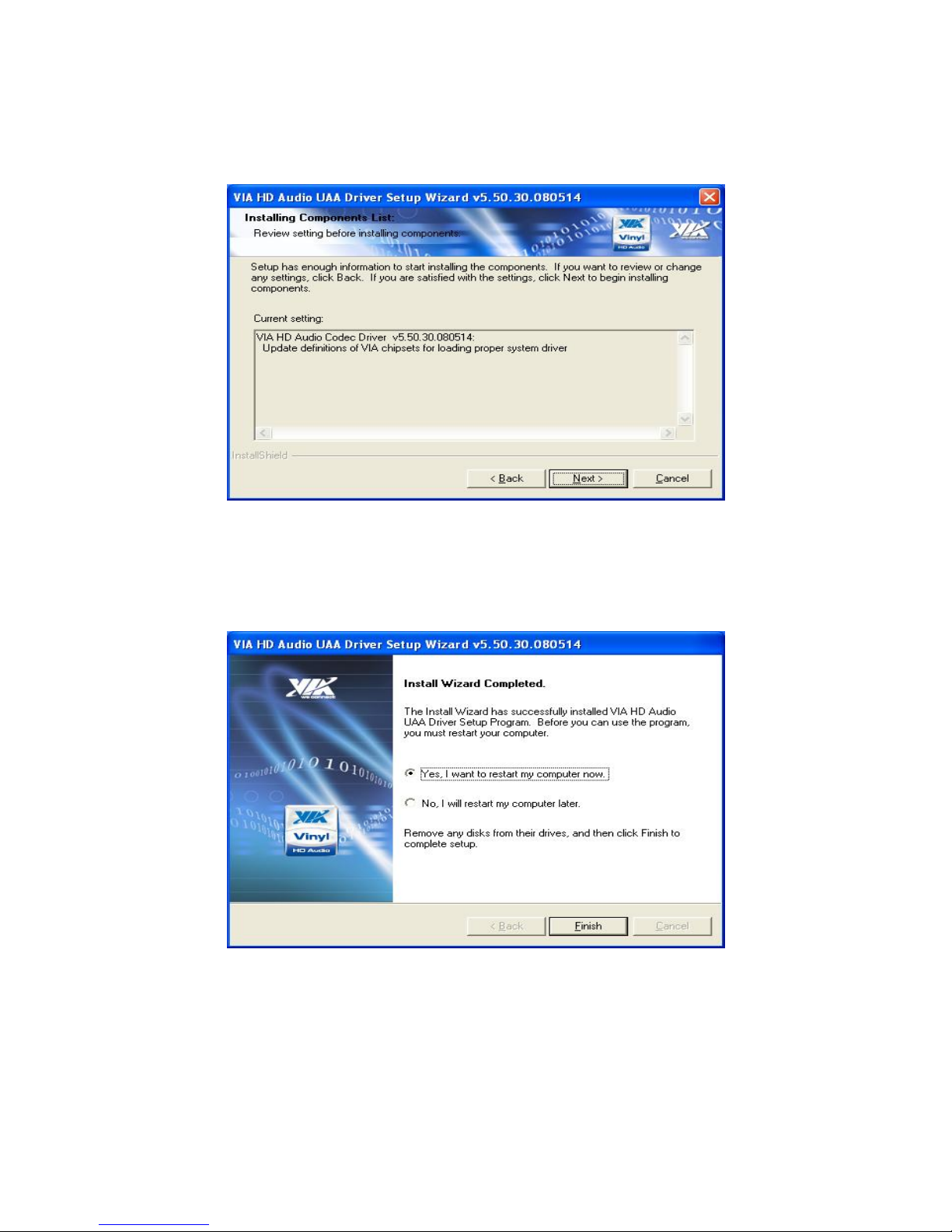

Step.3. Click on “Next“ to install driver.
Step.4. Click on “Next“ to install driver.
V270 Motherboard User Manual
34
Step.5. Click on “Next“ to install driver.
Step.6. Click on “Yes, I want to restart this computer now“ to go on.
V270 Motherboard User Manual
35
AMI BIOS Installation
This chapter describes the different settings available in
the AMI BIOS that comes with the board. This chapter
offers information on the AMI BIOS installation utility.
Sections include:
z BIOS Introduction
z BIOS Setup
z Standard CMOS Setup
z Advanced BIOS Features
z Advanced Chipset Features
z Integrated Peripherals
z Power Management Setup
z PC Health Status
z Load Fail-Safe Defaults
z Load Optimized Defaults
z Set Supervisor/User Password
z Save & Exit Setup
z Exit Without Saving
C H A P T E R
7
V270 Motherboard User Manual
36
Chapter 7 AMI BIOS Installation
7.1 BIOS Introduction
AMI BIOS (Basic Input/Output System) installed in your computer system’s ROM
supports Intel processors. The BIOS provides critical low-level support for a standard
device such as disk drives, serial ports and parallel ports. It also adds virus and
password protection as well as special support for detailed fine-tuning of the chipset
controlling the entire system.
7.2 BIOS Setup
The Main BIOS setup menu screen has two main frames. The left frame displays all
the options that can be configured. “Grayed-out” options cannot be configured.
Options is blue can be. The right frame displays the key legend. Above the key legend
is an area reserved for a text message. When an option is selected in the left frame, it
is highlighted in white. Often a text message will accompany it.
The BIOS setup/utility uses a key-based navigation system called hot keys. Most of
the BIOS setup utility hot keys can be used at any time during the setup navigation
process. These keys include <F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, and so
on.
V270 Motherboard User Manual
37
7.3 Main Setup
When you first enter the Setup Utility, you will enter the Main setup screen. You can
always return to the Main setup screen by selecting the Main tab. There are two Main
Setup options. They are described in this section. The Main BIOS Setup screen is
shown below.
9 System Time/System Date
Use this option to change the system time and date. Highlight System Time or System
Date using the <Arrow> keys. Enter new values through the keyboard. Press the
<Tab> key or the <Arrow> keys to move between fields. The date must be entered in
MM/DD/YY format. The time is entered in HH:MM:SS format.
Note: The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00,
and 5:30 P.M. as 17:30:00.
V270 Motherboard User Manual
38
7.4 Advanced BIOS Setup
Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup
screen.
You can select any of the items in the left frame of the screen, such as CPU
Configuration, to go to the sub menu for that item. You can display an Advanced
BIOS Setup option by highlighting it using the <Arrow> keys. All Advanced BIOS
Setup options are described in this section. The Advanced BIOS Setup screen is
shown below.
The sub menus are described on the following pages.
9 CPU Configuration
You can use this screen to show the information for processor detail specifications. An
example of the CPU Configuration screen is shown below.
V270 Motherboard User Manual
39
9 IDE Configuration Settings
You can use this screen to select options for the IDE Configuration Settings. Use the
up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to
change the value of the selected option. A description of the selected item appears on
the right side of the screen. The settings are described on the following pages. An
example of the IDE Configuration screen is shown below.
SATA Device, IDE Master, IDE Slave
Select one of the hard disk drives to configure it. Press <Enter> to access
its’ the sub menu. The options on the sub menu are described in the
following sections.
V270 Motherboard User Manual
40
9 APM Configuration
You can use this screen to select options for the ACPI Advanced Configuration
Settings.
Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus>
keys to change the value of the selected option. A descri ption of the selected item
appears on the right side of the screen. The settings are described on this page. The
screen is shown below.
ACPI V ersion Features
Set this value to allow or prevent the system to be complaint with the ACPI
3.0 specification.
ACPI APIC support
APIC stands for Advanced Programmable Interrupt Controller.
The default setting is Enabled.
AMI OEMB table
Set this value to allow the ACPI BIOS to add a pointer to an OEMB table in
the Root System Description Table (RSDT) table.
The default setting is Enabled.
Headless mode
This option is used to update the ACPI FACP table to indicate headless
operations.
The default setting is Disabled.
V270 Motherboard User Manual
41
9 APM Configuration
Set this value to allow Power Management/APM support. The Optimal and Fail-Safe
default setting is Enabled.
Power Button Mode
This option specifies how the externally mounted power button on the front
of the computer chassis is used.
The default setting is On/Off.
Suspend Power Saving Type
Set this value to allow the Suspend Power Saving type to be specified.
The default setting is C3.
Restore on AC/Power Loss
Set the system status after AC power loss.
The default setting is Power on.
Option Description
Power Off System always Powers Off
Keep Current System always Powers On
Last State System returns to the last state before AC power loss
V270 Motherboard User Manual
42
7.5 Boot Setting
9 Boot Device Priority
Use this screen to specify the order in which the system checks for the device to boot
from. To access this screen, select Boot Device Priority on the Boot Setup screen and
press <Enter>. The following screen displays:
1st Boot Device
Set the boot device options to determine the sequence in which the computer
checks which device to boot from. The settings are Removable Dev., Hard
Drive, or USB-CDROM.
V270 Motherboard User Manual
43
To change the boot order, select a boot category type such as Hard disk
drives, USB devices, or SATA devices from the boot menu. For example, if
the 1st boot device is set to SATA devices, then BIOS will try to boot to SATA
devices first.
Note: When you select a boot category from the boot menu, a list of devices in that
category appears. For example, if the system has three hard disk drives connected,
then the list will show all three hard disk drives attached.
V270 Motherboard User Manual
44

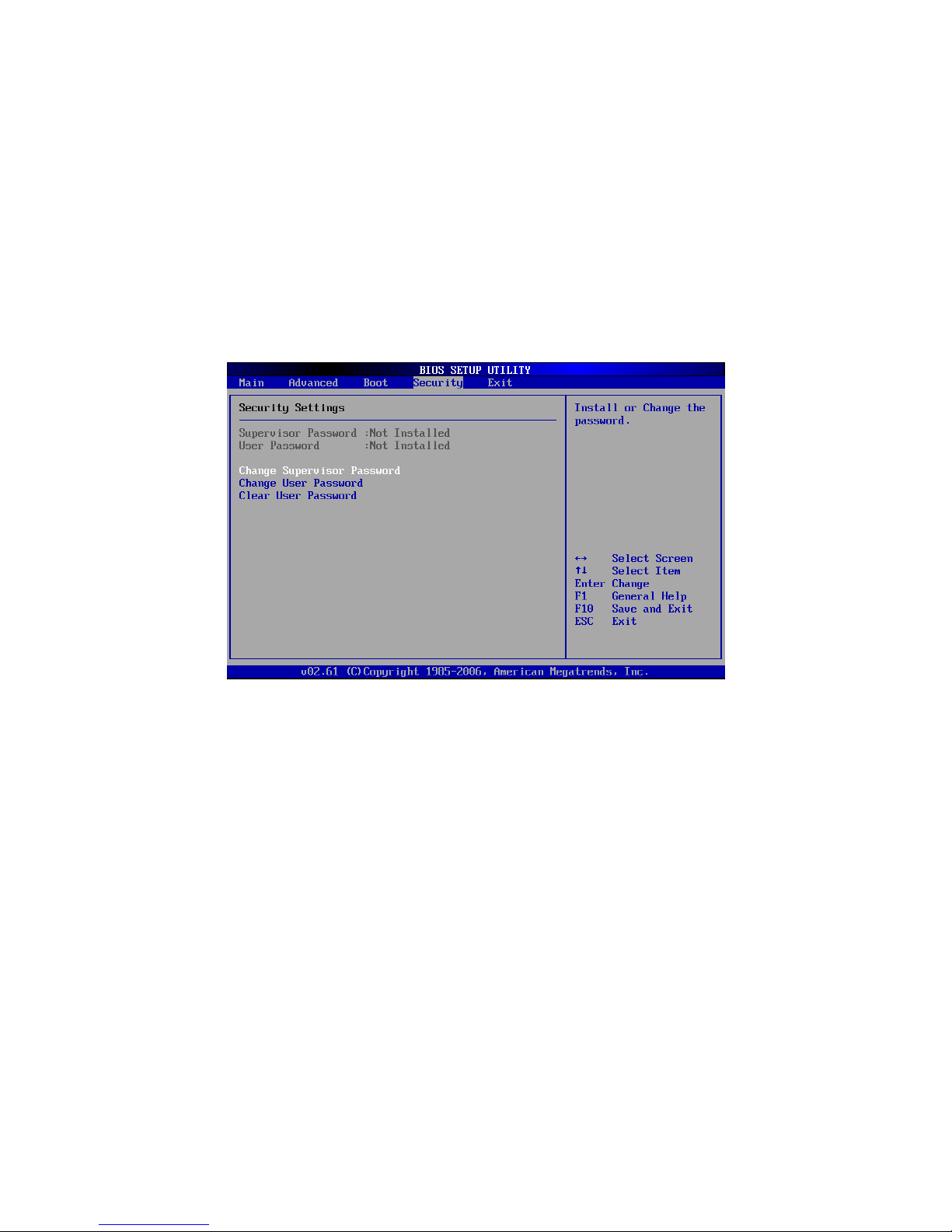

7.6 Security Setup
Two Levels of Password Protection provides both a Supervisor and a User password.
If you use both passwords, the Supervisor password must be set first. The system can
be configured so that all users must enter a password every time the system boots or
when Setup is executed, using either or either the Supervisor password or User
password.
The Supervisor and User passwords activate two different levels of password security.
If you select password support, you are prompted for a one to six character password.
Type the password on the keyboard. The password does not appear on the screen
when typed. Make sure you write it down. If you forget it, you must drain NVRAM
and reconfigure.
Select Security Setup from the Setup main BIOS setup menu. All Security Setup
options, such as password protection and virus protection, are described in this section.
To access the sub menu for the following items, select the item and press <Enter>:
Change Supervisor Password
Change User Password
Clear User Password
V270 Motherboard User Manual
45
The Security Setup screen is shown below. The sub menus are documented on
the following pages.
Supervisor Password
Indicates whether a supervisor password has been set. If the password has
been installed, Installed displays. If not, Not Installed displays.
User Password
Indicates whether a user password has been set. If the password has been
installed, Installed displays. If not, Not Installed displays.
Change Supervisor Password
Select this option and press <Enter> to access the sub menu. You can use
the sub menu to change the supervisor password.
Change User Password
Select this option and press <Enter> to access the sub menu. You can use
the sub menu to change the user password.
Clear User Password
Select this option and press <Enter> to access the sub menu. You can use
the sub menu to clear the user password.
V270 Motherboard User Manual
46
7.7 Security Setup
Select the Exit tab from the setup screen to enter the Exit BIOS Setup screen. You can
display an Exit BIOS Setup option by highlighting it using the <Arrow> keys. All
Exit BIOS Setup options are described in this section. The Exit BIOS Setup screen is
shown below.
Saving Changes and Exit
When you have completed the system configuration changes, select this
option to leave Setup and reboot the computer so the new system
configuration parameters can take effect. Select Exit Saving Changes from
the Exit menu and press <Enter>.
Save Configuration Changes and Exit Now?
[Ok] [Cancel]
appears in the window. Select Ok to save changes and exit.
Discarding Changes and Exit
Select this option to quit Setup without making any permanent changes to
the system configuration. Select Exit Discarding Changes from the Exit
menu and press <Enter>.
Discard Changes and Exit Setup Now?
[Ok] [Cancel]
appears in the window. Select Ok to discard changes and exit.
Discard Changes
Select Discard Changes from the Exit menu and press <Enter>.
V270 Motherboard User Manual
47
Load Optimal Defaults
Automatically sets all Setup options to a complete set of default settings
when you select this option. The Optimal settings are designed for maximum
system performance, but may not work best for all computer applications.
In particular, do not use the Optimal Setup options if your computer is
experiencing system configuration problems.
Select Load Optimal Defaults from the Exit menu and press <Enter>.
Loading...
