IHMH100

Intel® Core ™ i5-5200U 2.70 GHz

Winmate M-Series Box PC

User Manual

Version 1.0

Document Part Number:

91521117100A

Page 2

IHMH100 M-Series Box PC

Preface

No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

We reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. We make no representation or warranty that such application will be suitable for the specified use without further testing or modification.

Warranty

We warrant that each of its products will be free from material and workmanship defects for a period of one year from the invoice date.(Standard is one year, extended warranty will need to discuss with our sales representatives. If the customer discovers a defect, we will, at its option, repair or replace the defective product at no charge to the customer, provided it is returned during the warranty period of one year, with transportation charges prepaid. The returned product must be properly packaged in its original packaging to obtain warranty service.

If the serial number and the product shipping data differ by over 30 days, the in-warranty service will be made according to the shipping date. In the serial numbers the third and fourth two digits give the year of manufacture, and the fifth digit means the month (e. g., with A for October, B for November and C for December).

For example, the serial number 1W16Axxxxxxxx means October of year 2016.

Page 3

IHMH100 M-Series Box PC

III

Customer Service

We provide a service guide as below for any problem by the following steps: First, contact your distributor, sales representative, or our customer service center for technical support if you need additional assistance. You need to prepare the following information before you call:

 Product serial number  Peripheral attachments  Software (OS, version, application software, etc.)  Detailed problem description  The exact wording of any error messages

In addition, free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products. Please do not hesitate to call or e-mail us.

Advisory Conventions

Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.

NOTE:

A note is used to emphasize helpful information

IMPORTANT:

An important note indicates information that is important for you to know.

CAUTION

A Caution alert indicates potential damage to hardware and explains how to avoid the potential problem.

WARNING!

An Electrical Shock Warning indicates the potential harm from electrical hazards and how to avoid the potential problem.

Page 4

IHMH100 M-Series Box PC

Safety Precautions

WARNING! Always completely disconnect the power from OPS module whenever

you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges.

CAUTION Always ground yourself to remove any static charge before touching

the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.

Safety and Warranty

1. Please read these safety instructions carefully and keep this user manual for later

reference.

2. Please disconnect this equipment from any AC outlet before cleaning. Do not use

liquid or spray detergents for cleaning. Use a damp cloth.

3. For pluggable equipment, the power outlet must be installed near the equipment

and must be easily accessible.

4. Put this equipment on a reliable surface during installation. Dropping it or letting it

fall could cause damage.

5. Make sure the voltage of the power source is correct before connecting the

equipment to the power outlet.

6. Position the power cord so that people cannot step on it. Do not place anything

over the power cord.

7. If the equipment is not used for a long time, disconnect it from the power source to

avoid damage by transient over-voltage.

8. If any of the following situations arises, get the equipment checked by service

personnel:

A. The power cord or plug is damaged. B. Liquid has penetrated into the equipment. C. The equipment has been exposed to moisture. D. The equipment does not work well, or you cannot get it to work according to

the user’s manual.

E. The equipment has been dropped and damaged. F. The equipment has obvious signs of breakage.

Page 5

IHMH100 M-Series Box PC

About This User Manual

This User Manual provides information about using the Winmate® M-Series Box PC with Intel® Core ™ i5-5200U 2.70 GHz processor. The documentation set for the M -Series Box PC provides information for specific user needs, and includes:

 M-Series Box PC User Manual – contains detailed description on how to use the

Box PC, its components and features.

NOTE:

Some pictures in this guide are samples and can differ from actual product.

Document Revision History

Version

Date

Note

Author

1.0

9-Sep-2016

Initial release

Raven Hsu

Page 6

IHMH100 M-Series Box PC

Contents

PREFACE .................................................................................................................................................... II

ABOUT THIS USER MANUAL ..................................................................................................................... V

CHAPTER 1 GENERAL INFORMATION ......................................................................................................... 1

1.1 INTRODUCTION .......................................................................................................................................... 1

1.2 FEATURES ................................................................................................................................................. 1

1.3 PRODUCT SPECIFICATIONS............................................................................................................................ 2

1.3.1 Hardware Specifications ............................................................................................................... 2

1.3.2 Software Support .......................................................................................................................... 3

1.4 PACKING LIST ............................................................................................................................................ 4

1.5 PHYSICAL DESCRIPTION ............................................................................................................................... 5

1.5.1 I/O Placement ............................................................................................................................... 5

1.5.2 Dimensions .................................................................................................................................... 6

CHAPTER 2 HARDWARE INSTALLATION ..................................................................................................... 8

2.1 CONNECTOR PIN ASSIGNMENTS .................................................................................................................... 8

2.1.1 Isolated DC in Connector ............................................................................................................... 8

2.1.2 Audio in/ Audio out ....................................................................................................................... 8

2.1.3 COM1 Serial Port Connector .......................................................................................................... 8

2.1.4 COM2 Serial Port Connector .......................................................................................................... 9

2.1.5 USB 3.0 Connector ......................................................................................................................... 9

2.1.6 VGA Output Connector .................................................................................................................. 9

2.1.7 HDMI Output Connector ............................................................................................................. 10

2.1.8 POE/LAN (RJ45) Connector .......................................................................................................... 10

2.2 HARDWARE INSTALLATION ......................................................................................................................... 11

2.2.1 Hard Disk Replacement ............................................................................................................... 11

2.2.2 PCI Card/ RAM/ Internal SSD/ Fuse Replacement ....................................................................... 12

3 DRIVER INSTALLATION .......................................................................................................................... 15

3.1 CHIPSET DRIVER ...................................................................................................................................... 15

3.2 GRAPHICS DRIVER .................................................................................................................................... 18

3.3 AUDIO DRIVER ........................................................................................................................................ 22

3.4 ETHERNET DRIVER .................................................................................................................................... 25

3.5 FINTEK COM PORT DRIVER ....................................................................................................................... 29

3.6 INTEL® MANAGEMENT ENGINE SOFTWARE ................................................................................................... 31

3.7 USB 3.0 DRIVER INSTALLATION (WINDOWS 7) .............................................................................................. 34

Page 7

IHMH100 M-Series Box PC

VII

4 AMI UEFI BIOS SETUP ........................................................................................................................... 39

4.1 WHEN AND HOW TO USE BIOS SETUP ........................................................................................................ 39

4.2 BIOS FUNCTIONS .................................................................................................................................... 39

4.2.1 Main Menu .................................................................................................................................. 40

4.2.2 Advanced Menu .......................................................................................................................... 42

4.2.3 Chipset Menu .............................................................................................................................. 55

4.2.4 Security Menu ............................................................................................................................. 62

4.2.5 Boot Menu................................................................................................................................... 64

4.2.6 Save & Exit .................................................................................................................................. 66

4.3 USING RECOVERY WIZARD TO RESTORE COMPUTER ......................................................................... 69

CHAPTER 5 TECHNICAL SUPPORT ............................................................................................................ 72

5.1 SOFTWARE DEVELOPER SUPPORT ................................................................................................................ 72

5.2 PROBLEM REPORT FORM ........................................................................................................................... 73

APPENDIX A: EXPANSION PCIE CARD DIMENSIONS ................................................................................. 75

Page 8

IHMH100 M-Series Box PC

General Information

This chapter includes IHMH100 M-Series Box PC background information.

Page 9

User Manual Chapter 1 General Information

IHMH100 M-Series Box PC

Chapter 1 General Information

This chapter includes Winmate® IHMH100 M-Series Box PC background information such as features, hardware specification, dimensions and appearance.

1.1 Introduction

Thank you for choosing the Winmate® IHMH100 M-Series Box PC. This is versatile and cost-effective solution for your industrial needs. Intel® Core ™ i5-5200U 2.70 GHz processor onboard with fanless cooling system assures steady performance and silent functioning. Motherboard offers various inputs/ output connectors: two Ethernet ports, four USB3.0, HDMI and VGA outputs, two serial ports and one 2.5” SSD Bay.

M-Series Box PC perfectly fits in applications where total costs of ownership (TCO) and quick recovery of failure is important. The flexible system design provides easy access to components and can be serviced by local maintenance team.

Versatile, easy-to-service and upgradable IHMH100 offers the best solution for industrial and building automation.

1.2 Features

Winmate® IHMH100 M-Series Box PC has the following features:

 Modular design  Auto detection of the connected display, No settings necessary  Quick & Easy Replaceable Hard Disk Design, No Tools needed  Support wide range 12-24V isolation DC input  Optional with Modular front Display as a Panel PC  Expansion slot for PCIex4  Two Quick & Easy Removable 2.5” SSD Bay Slots

Page 10

User Manual Chapter 1 General Information

IHMH100 M-Series Box PC

1.3 Product Specifications

1.3.1 Hardware Specifications

Model Name

IHMH100

System

Specifications

CPU

Intel® Core™ i5-5200U Processor, 3M Cache 2.2Ghz (Turbo to 2.7GHz)

BIOS

AMI UEFI BIOS

Graphic Chipset

Intel® HD graphics 5500

System Memory

SODIMM DDR3L-1600 4GB, option up to 8GB (2 slots)

Main Storage

Default 2.5" 64GB SSD

Second Storage (Optional)

Two Removable 2.5” SSD Ethernet

1000 Base-Tx Gigabit Ethernet Compatible

Audio

Realtek ALC886 codec

I/O Interface

Front I/O

1 x DC in 12-24V with isolation (Terminal Block 3pin) 2 x Gigabite LAN 4 x USB3.0 1 x HDMI Output 1 x D-Sub15 (VGA) Output 1 x RS232/422/485 selectable serial port 2 x RS232 isolation serial port 1 x Audio in Jack 1 x Audio out Jack

Physical Buttons

1 x Reset Key 1 x Power Button

Indicator

Two 2.5” SSD indicators

Power Supply

Power Input

12-24V isolation DC in with protection Fuse

Power Adapter

110-240 AC to 12V DC out 80W power Adapter

Mechanical

Specifications

Housing

Aluminum housing

Mounting

Desktop/Wall Mount (Optional Panel Mount with Front Display)

Dimensions

276.18(L) x 228.80(W) x 45.20(H)

Page 11

User Manual Chapter 1 General Information

IHMH100 M-Series Box PC

Environmental

Specifications

Operating Temp.

0°C~+50°C

Operating Humidity

30%-95% at 40 (non-condensing, RH)

Optional

Operating

System

Operating System

Windows 10 IoT Enterprise Windows Embedded 8 Standard Windows Embedded Standard 7

1.3.2 Software Support

The following drivers are available for the IHMH100 M-Series Box PC:

Item

Driver

Windows 7

Windows 8

Windows 10

Chipset Driver

☑ ☑ ☑

Graphics Driver

☑ ☑ ☑

Audio Driver

☑ ☑ ☑

Ethernet Driver

☑

Intel Sideband Fabric Device (Intel MBI) Driver

☒

☑

Intel Trusted Engine Interface (Intel TXE) Driver

☑ ☑ ☑

USB 3.0 Driver

☑ ☒ ☒

Winmate Watchdog Driver

☑

Winmate provides the following development kits (SDK) for IHMH100 M-Series Box PC:

Item

File Type

Description

Watchdog SDK & AP

Watchdog SDK and AP

Page 12

User Manual Chapter 1 General Information

IHMH100 M-Series Box PC

1.4 Packing List

Carefully remove the box and unpack your IHMH100 M-Series Box PC. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately.

Standard factory shipment list:

IHMH100 Box PC

Driver CD

User Manual

(Hardcopy)

3-pin Terminal Block

Female Connector

Power Cord

AC Adapter

(12V/ 80W)

Page 13

User Manual Chapter 1 General Information

IHMH100 M-Series Box PC

1.5 Physical Description

This section explains physical characteristics of the IHMH100 M-Series Box PC.

1.5.1 I/O Placement

The module front panel consists of 2.5” SSD Bay, power/reset buttons, audio jacks, two RJ45 connectors, HDMI and VGA outputs, and four USB3.0 ports.

Description

①

12-24V isolation DC-in

⑨

COM2

②

PCIe Slot Cover ( 1 x Half-length PCIe x4 Card)

⑩

COM1

③

LAN

⑪

Two 2.5” SSD Bay

④

LAN

⑫

Audio in

⑤

2 x USB 3.0

⑬

Audio out

⑥

2 x USB3.0

⑭

HDD indicators

⑦

HDMI output

⑮

Reset

⑧

VGA Output

⑯

Power Button

Page 14

User Manual Chapter 1 General Information

IHMH100 M-Series Box PC

1.5.2 Dimensions

Figure below shows the dimensions of the Winmate® IHMH100 M-Series Box PC.

Measurements shown in mm

All Dimensions are ± 0.5 mm

*Note: this is a simplified drawing and some components are not marked in detail.

Page 15

IHMH100 M-Series Box PC

Hardware Specifications

This chapter provides information on how to use jumpers and connectors on the motherboard, and the IHMH100 M-Series Box PC hardware specifications and installation instruction.

Page 16

User Manual Chapter 2 Hardware Installation

IHMH100 M-Series Box PC

Chapter 2 Hardware Installation

This chapter provides information on external connectors on IHMH100 M-Series Box PC and hardware specifications and installation instruction.

2.1 Connector Pin Assignments

This section includes I/O side connectors and its pinouts.

2.1.1 Isolated DC in Connector

IHMH100 has a 3pin terminal block that accepts DC in 12~24V.

2.1.2 Audio in/ Audio out

2.1.3 COM1 Serial Port Connector

The IHMH100 Box PC uses D-SUB 9pin connector to connect serial interfaces. Serial COM1 settings can be configured for RS-232, RS-422 or RS-485 by jumpers located on the motherboard.

Voltage

Minimum Voltage 12V Maximum Voltage 24V Maximum Current 6.6A

Color

Signal

Blue

Line In

Green

Line Out

Pin №

RS-232

(Default)

RS-422

RS-485

DCD

TxD-

D-

RXD

TxD+

D+

TXD

RxD+

DTR

RxD-

GND

DSR

RTS

CTS

Page 17

User Manual Chapter 2 Hardware Installation

IHMH100 M-Series Box PC

2.1.4 COM2 Serial Port Connector

The IHMH100 uses D-SUB 9pin connector to connect serial interfaces.

2.1.5 USB 3.0 Connector

Use USB3.0 connectors to connect external devices such as mouse or keyboard to the device.

2.1.6 VGA Output Connector

The IHMH100 has VGA connector (D-Sub 15pin Female). Use VGA cable to connect the display to the PC system.

Pin №

Signal Name

Pin №

Signal Name

DCD 2 DSR

RXD 4 RTS

TXD 6 CTS

DTR 8 RI

GND

Pin №

Signal Name

Pin №

Signal Name

+5V

USB_D-

USB_D+

GND

STDA_SSRX-

STDA_SSRX+

GND_DRAIN

STDA_SSTX-

STDA_SSTX+

Pin №

Signal Name

Pin №

Signal Name

RED 2 GREEN

BLUE

ID2/RES

GND

RED_RTN

GREEN_RTN

BLUE_RTN

KEY/PWR

GND

ID0/RES

ID1/SDA

HSync

VSync

ID3/SCL

Page 18

User Manual Chapter 2 Hardware Installation

IHMH100 M-Series Box PC

2.1.7 HDMI Output Connector

Use HDMI A Type19-pin female output connector to connect the HMI device to an external display.

2.1.8 LAN Connector

The IHMH100 equipped with one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the internet.

Pin №

Signal Name

Pin №

Signal Name

TMDS_DATA2+

GND

TMDS_DATA2-

TMDS_DATA1+

GND

TMDS_DATA1-

TMDS_DATA0+

GND

TMDS_DATA0-

TMDS_CLOCK+

GND

TMDS_CLOCK-

CEC

DDC_CLOCK

DDC_DATA

GND

Hot Plug Detect

Pin №

Signal Name

Pin №

Signal Name

TX1+

TX1-

TX2+

TX2-

TX3+

TX3-

TX4+

TX4-

Page 19

User Manual Chapter 2 Hardware Installation

IHMH100 M-Series Box PC

2.2 Hardware Installation

This section explains how to replace HDD/SDD, install PCI Card/ RAM/ Internal SSD, and replace fuses on the IHMH100 M-Series Box PC.

WARNING!

Switch off the power and unplug the power cord. Each time the IHMH100 M-Series Box PC is serviced, users should be aware of this condition.

2.2.1 Hard Disk Replacement

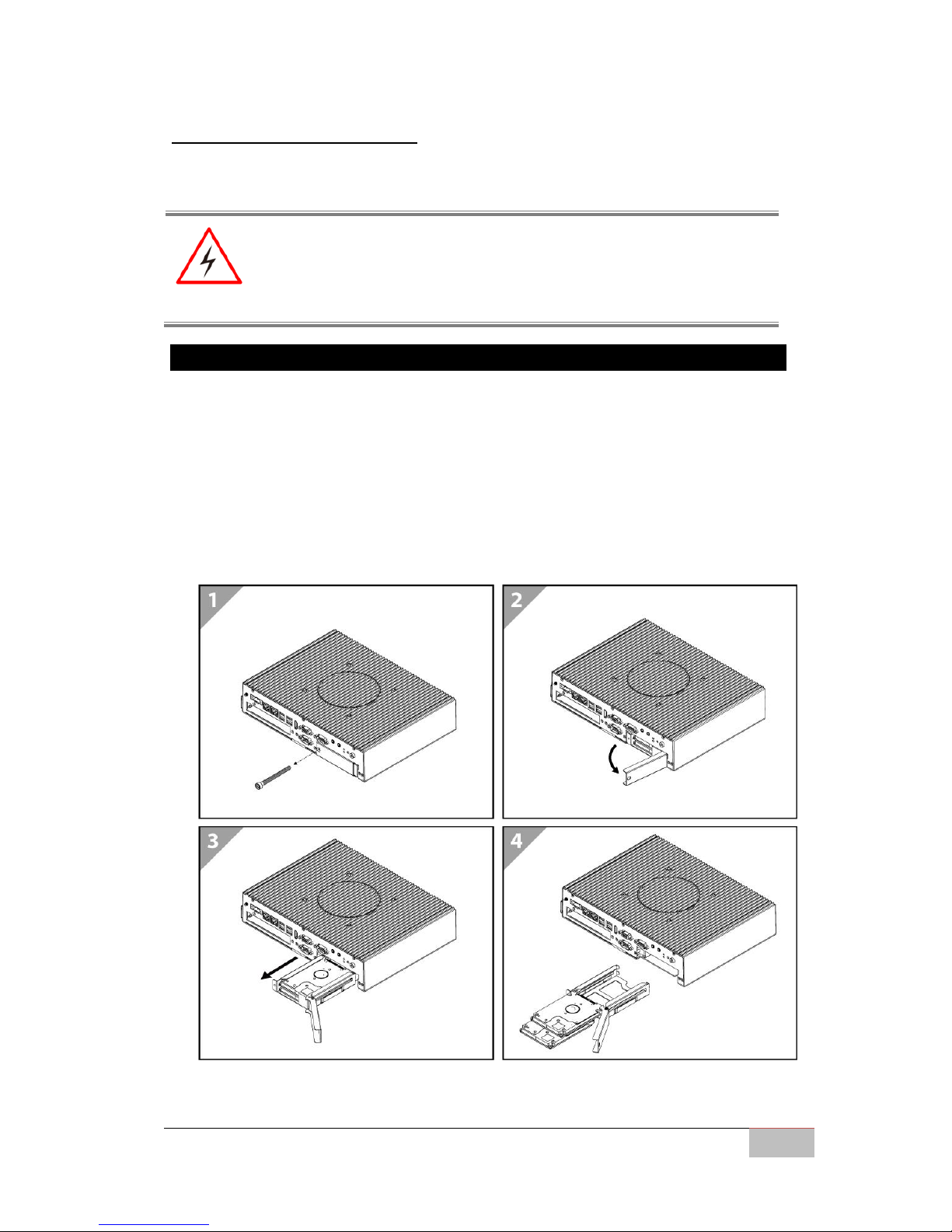

To remove the hard disk:

1. Loosen by hand one thumbscrew on the rear bottom side of the device. In

order to loosen the screw slightly push the screw and turn it to the left.

2. Open the cover door.

3. Carefully pull the 2.5” hard disk bay out of the slot.

4. The hard disk bay don’t not fall out by itself, the retaining springs hold it in

place. Hard disk can’t be inserted in the wrong direction.

Reverse this procedure to install the hard disk bay.

Page 20

User Manual Chapter 2 Hardware Installation

IHMH100 M-Series Box PC

2.2.2 PCI Card/ RAM/ Internal SSD/ Fuse Replacement

To remove the PCI card/ RAM/ Internal SSD/ Fuse:

1. Turn the device right-side up, with the back toward you.

2. Loosen two Philips M3x5 screws that secure side cover.

3. Loosen four Philips M3x5 screws that secure top cover.

4. Remove PCI card/ RAM/ Internal SSD/ Fuse

Page 21

User Manual Chapter 2 Hardware Installation

IHMH100 M-Series Box PC

Reverse this procedure to install the PCI card/ RAM/ Internal SSD/ Fuse.

Page 22

IHMH100 M-Series Box PC

Driver Installation

This chapter provides driver installation instructions.

Page 23

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

3 Driver Installation

This chapter provides driver installation instructions.

3.1 Chipset Driver

The Intel Chipset Drivers should be installed first before the software drivers enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation.

Step 1 Insert the CD that comes with the motherboard. Open the file document “Chipset Driver” and click “SetupChipset.exe” to install driver.

Page 24

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

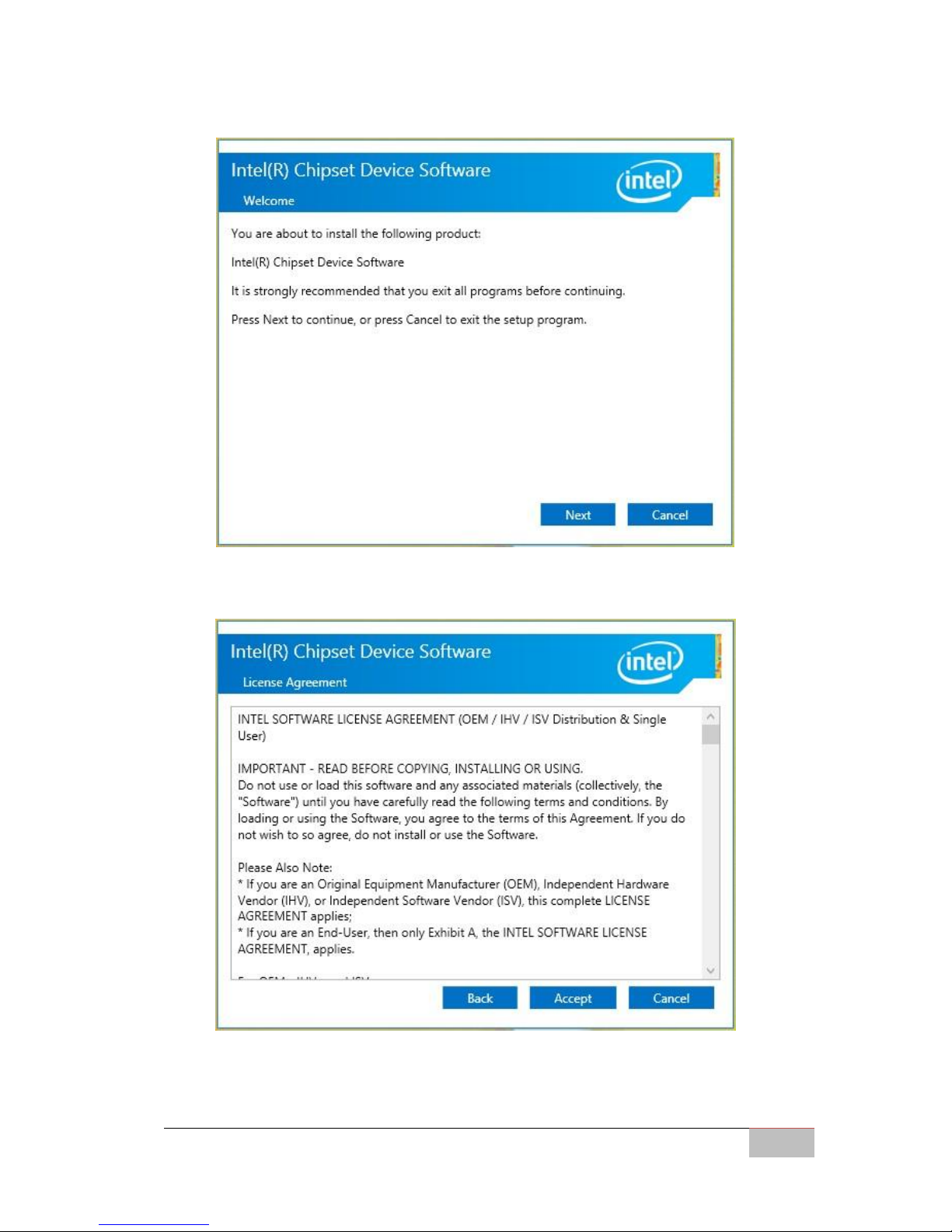

Step 2 Click “Next” to start the installation.

Step 3 Click Accept to agree with the license terms and continue the installation.

Page 25

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

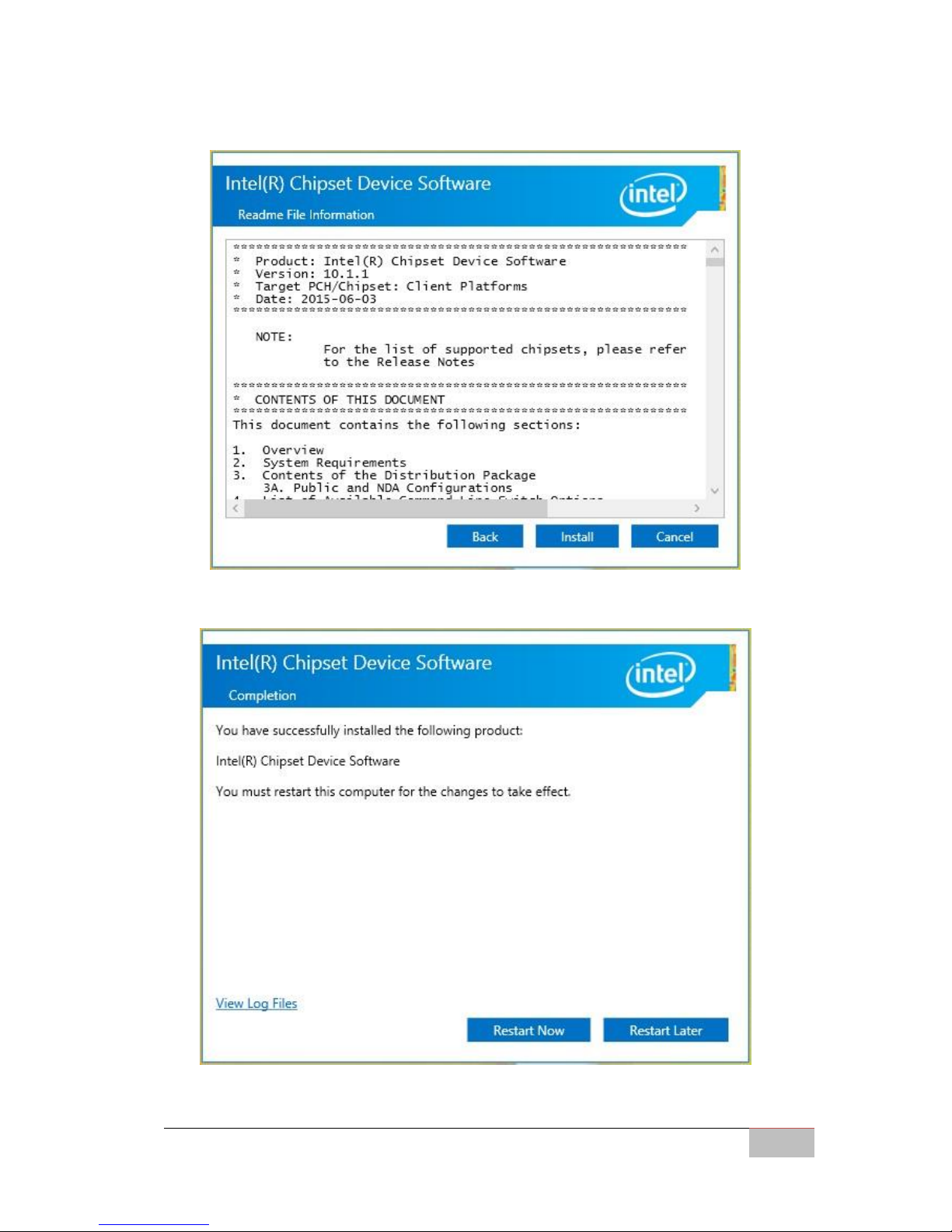

Step 4 Check ReadMe File information, and then click Install to continue.

Step 5 Click Restart Now to finish the installation and restart the computer.

Page 26

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

3.2 Graphics Driver

The Box PC with Intel mobile Core i5 Dual Core CPU and integrated graphic controller. You need to install the Graphic driver to enable the function. Intel Graphic supports versatile display options and 32-bit 3D graphics engine. Triple independent display, enhanced display modes for widescreen flat panels for extend, twin, and clone display mode.

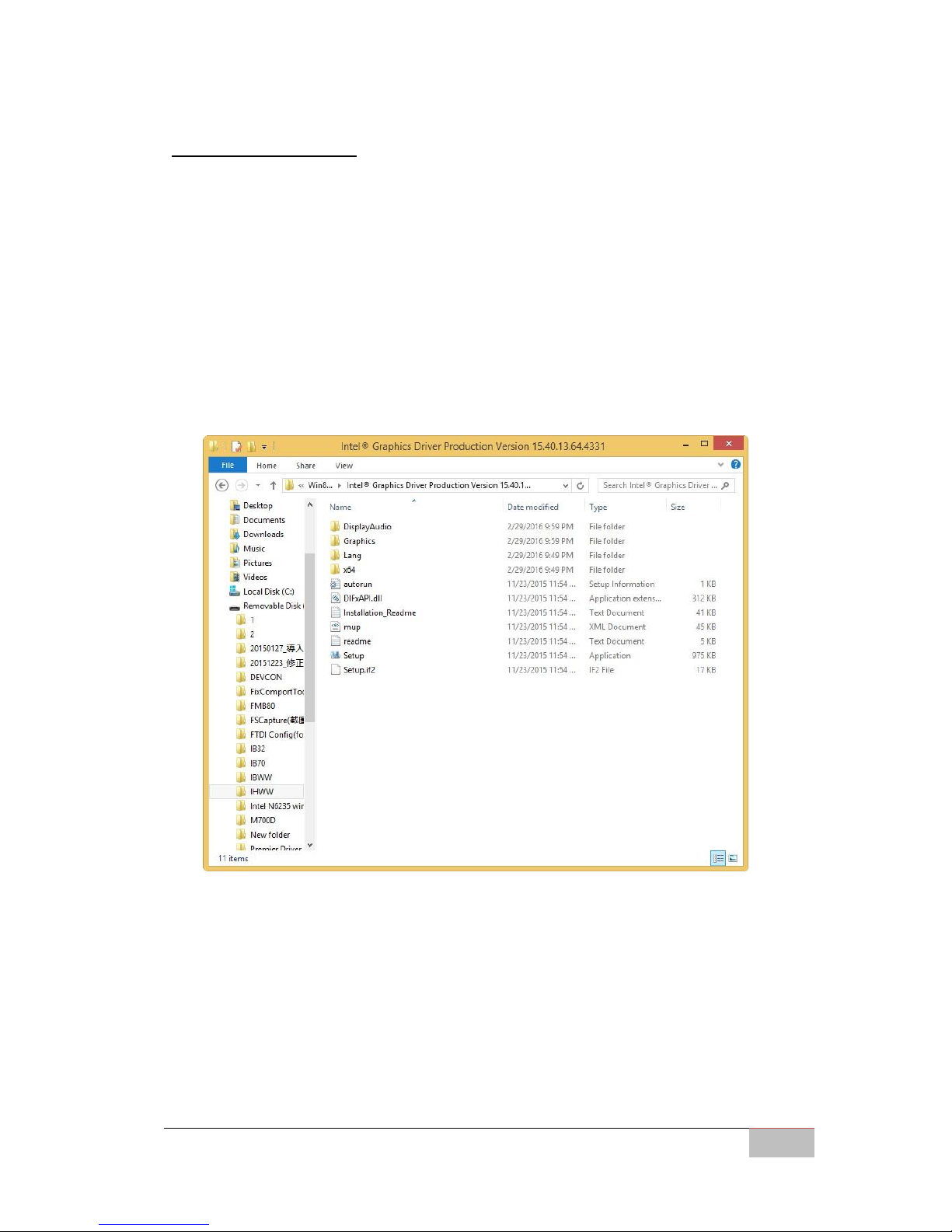

Step 1 Insert the driver CD into your system's CD-ROM drive. You can see the driver folders items. Navigate to the “Graphic Driver” folder and click "setup.exe" to start the installation.

Page 27

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 2 Click Next to continue.

Step 3 Click Yes to agree with the license terms and continue the installation.

Page 28

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 4 Check ReadMe File Information and then click Next to install the driver.

Step 5 Wait while the following operations are performed.

Page 29

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

And then click Next to continue.

Step 6 Select “Yes, I want to restart this computer now”, and click Finish to complete the installation.

Page 30

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

3.3 Audio Driver

The ALC886 series are high-performance 7.1+2 Channel High Definition Audio Codecs providing ten DAC channels that simultaneously support 7.1 sound playbacks, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. The series integrates two stereo ADCs that can support a stereo microphone, and feature Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technology. Follow the steps below to complete the installation of the Realtek ALC886 Audio drivers. You will quickly complete the installation.

Step 1 Insert the CD that comes in the package. Open the folder “Realtek Audio Driver” and click Win7_Win8_Win81_R273 to execute the setup.

Page 31

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 2 Wait while the InstallShield Wizard extracts the files needed to install Realtek HD Audio on your computer, and then click Next to continue the installation.

Step 3 Click Next to continue the installation.

Page 32

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 4 Select “Yes, I want to restart my computer now”, and then click Finish to complete the installation.

Page 33

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

3.4 Ethernet Driver

The users must confirm which operating system is used on the motherboard before installing the Ethernet drivers. Follow the steps below to complete the installation of the Intel® I210IT Gigabit-LAN Controller + I218LM Gigabit-LAN drivers. You will quickly complete the installation.

Step 1 Open the folder “Intel® Network Connections Software” and open PROWin64_Win7_20.4.1 archive to execute the setup.

Step 2 Wait while the system is extracting files to temporary folder, and then click Install.

Page 34

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 3 Click Next to continue.

Step 4 Click Yes to agree with the license terms and continue the installation.

Page 35

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 5 Select the program features you want to install, and then click Next to continue.

Step 6 Click Install to continue the installation.

Page 36

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 7 Please wait while the install wizard installs Intel ® Network Connections, and then click Next to continue.

Step 8 Click Finish to complete the installation.

Page 37

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

3.5 Fintek COM Port Driver

Step 1 If your system is WIN7, please first close UAC (refer to the following “Disabling

User Account”) Control (UAC) in Windows 7”

Step 2 Extract the Patch_0408.zip to a folder.

Step 3 Double-click batch file (patch.bat) to install the driver.

Step 4 Check the driver installation success.

There is a screenshot before the update below.

There is a screenshot after the update and update success below.

Page 38

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 5 Restart the computer to complete driver installation. Type in this command from the Run menu:

C:\Windows\System32\UserAccountControlSettings.exe or UAC

To turn off UAC move the slider to the Never notify position, and then click OK. If you're prompted for an administrator password or confirmation, type the password or provide confirmation.

To turn UAC back on, move the slider to choose when you want to be notified, and then click OK. If you're prompted for an administrator password or confirmation, type the password or provide confirmation.

You will need to restart your computer for UAC to be turned off.

Page 39

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

3.6 Intel® Management Engine Software

This installation program installs the Intel® ME software components required for the platform on which you are installing, and installs only those components that match your platform’s capabilities.

Step 1 Insert the driver CD and select the “Intel ME 9.0” folder and click “Setup.exe”

Step 2 Click “Next” to continue the installation.

Page 40

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 3 Click “Yes” to agree with the License terms.

Step 4 Choose “I accept the terms of the license agreement”, and click “Next” to

continue.

Page 41

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 5 Click “Finish” to complete the software installation.

Page 42

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

3.7 USB 3.0 Driver Installation (Windows 7)

NOTE:

If the operating system of the device is Windows 10 IoT or Windows Embedded 8 Standard, please skip this installation.

Step 1 Locate the hard drive directory where the driver files are stored with the browser or the explore feature of Windows*. Double-click the “Setup.exe” from this directory.

Page 43

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 2 Click “Next” to continue

Step 3 Read the License Agreement and click “Yes” to proceed.

Page 44

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 5 Review Readme File Information and click “Next” to proceed.

Step 6 When the Setup Progress is complete click “Next” to proceed.

Page 45

User Manual Chapter 3 Driver Installation

IHMH100 M-Series Box PC

Step 7 Click “Yes, I want to restart this computer now” to finish and then restart your computer.

Page 46

IHMH100 M-Series Box PC

AMI UEFI BIOS Setup

BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu.

Page 47

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4 AMI UEFI BIOS Setup

4.1 When and How to Use BIOS Setup

To enter the BIOS setup, you need to connect an external USB keyboard, press <Del> key when the prompt appears on the screen during start up. The prompt screen shows only few seconds, you need to press <Del> key quickly. If the message disappears before your respond, restart the system by turning it OFF and ON, and enter the BIOS again.

IMPORTANT:

Updated BIOS version may be published after the manual released. Check the latest version of BIOS on the website.

Run BIOS setup utility for:

1. Error message on screen indicates to check BIOS setup

2. Restoring the factory default settings.

3. Modifying the specific hardware specifications

4. Necessity to optimize specifications

4.2 BIOS Functions

BIOS Navigation Keys

BIOS navigation keys for keyboard control are listed below. The following keys are enabled during Power-On Self-Test (POST):

Key

Function

Del

Enters the BIOS setup menu.

Display the boot menu. Lists all bootable devices that are connected to the system. With cursor ↑and cursor ↓and by pressing <ENTER>, select the device used for the boot.

Pause

Pressing the [Pause] key stops the POST. Press any other key to resume the POST.

Page 48

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

The following Keys can be used after entering the BIOS Setup.

Key

Function

General Help

Previous Values

Optimized Defaults

Save & Exit

Esc

Exit

+/-

Change Opt.

Enter

Select or execute command

Cursor ↑

Moves to the previous item

Cursor ↓

Goes to the next item

Cursor ←

Moves to the previous item

Cursor →

Goes to the next item

NOTE: You can press the F1, F2, F3, F4, –/+, and Esc keys by connecting a USB keyboard to your device.

4.2.1 Main Menu

When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date. Immediately after the [DEL] key is pressed during startup, the main BIOS setup menu appears.

Page 49

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

BIOS

Setting

Description

Setting Option

Effect

System Language

Displays the system language. [English] is set up by default.

Adjustment of the language

Set the language in other language. The language in this device is English.

System Date/Time

This is current date setting. The time is maintained by the battery when the device is turned off.

Date and time changes.

Set the date in the format [mm/dd/yyyy]; The time in the format: [hh/mm/ss]

Access Level

The current user access settings

Changes to the level of access

Administrator is set up by the default

Page 50

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.2 Advanced Menu

The advanced menu also uses to set configuration of the CPU and other system devices. There are sub menus on the left frame of the screen.

IMPORTANT:

Handle advanced BIOS settings page with caution. Any changes can affect the operation of your computer.

For items marked ► press <Enter> for more options.

Advanced Configuration and Power Interface (ACPI) settings allow to control how the power switch operates. The power supply can be adjusted for power requirements. You can use the screen to select options of ACPI configuration. A description of the selected items will appear on the right side of the screen.

Page 51

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

BIOS Setting

Description

Setting Option

Effect

CPU Configuration

Configures CPU settings

Enter

Opens submenu

Trusted Computing

Configures Trusted Computing settings

Enter

Opens submenu ACPI Settings

Configures ACPI Settings

Enter

Opens submenu

F81866 Super IO Configuration

Configures F81866 Super IO settings

Enter

Opens submenu

Hardware Monitor

Configures Hardware Monitor settings

Enter

Opens submenu

RTC Wake Settings

Configures RTC Wake parameters

Enter

Opens submenu SATA Configuration

Configures SATA parameters

Enter

Opens submenu

CSM Configuration

Configures CSM parameters

Enter

Opens submenu

USB Configuration

Configures USB Settings

Enter

Opens submenu

For items marked ► press <Enter> for more options.

Page 52

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.2.1 CPU Configuration

CPU Configuration allows you to change CPU settings. Use key arrows to navigate through the menu.

BIOS Setting

Description

Setting Option

Effect

Hyper-threading

Hyper-threading is a function in processors that speeds up computer performance.

Enable/ Disable

Enables or Disables this function

Execute Disabled Bit

EDB is a hardware-based security component used in the central processing unit (CPU) to separate areas of a memory as storage of processor instructions or as storage

Enable

Reduces a computer

system's, or a server’s,

vulnerability to viruses and malicious code attacks

Disable

Increases the risk to be infected by viruses

Page 53

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

of data.

Intel Virtualization Technology

Enables a CPU to act as if you have several independent computers, in order to enable several operating systems to run at the same time on the same machine.

Enable/ Disable

Enable or disable this function

Boot Performance Mode

This feature selects the performance state the BIOS will set before the OS hand-off.

Auto

Auto mode

Standard

Allows processor cores to run at the frequency recommended by the manufacturer.

Turbo

Allows processor cores to run faster than the frequency recommended by the manufacturer.

EIST

Enhanced Intel SpeedStep Technology gives your OS the ability to switch the processor's speed and voltage up and down, to preserve power when not much is being computed.

Enabled/ Disabled

Enable or disable this function Turbo Mode

Adjusts the power and clock speed of processor cores as needed to better match processor power to your needs.

Enabled/ Disabled

Enable or disable this function

CPU C states

Configure CPU C states parameters

Enabled/ Disabled

Enable or disable this function

CPU DTS

Digital Thermal Sensors (DTS) parameters.

Enabled/ Disabled

Enable or disable this function

Page 54

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.2.2 Trusted Computing

BIOS Setting

Description

Setting Option

Effect

Security Device Support

Enable or disable BIOS support for security device.

Enabled/ Disabled

Enable or disable this function.

TPM State

Trusted Platform Module (TPM) parameters.

Enabled/ Disabled

Enable or disable this function.

Pending operation

Pending operation parameters

None

Shows the number of pending operations

Device Select

Selects the device

Auto

Page 55

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.2.3 ACPI Settings

BIOS Setting

Description

Setting Option

Effect

Enable ACPI Auto Configuration

Enable or disable BIOS ACPI Auto Configuration

Enabled/ Disabled

Enable or disable this function

Enable Hibernation

To enable or disable hibernation

Enabled/ Disabled

Enable or disable this function

Page 56

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.2.4 F81866 Super IO Configuration

BIOS Setting

Description

Setting Option

Effect

Serial Port 1,2 Configuration

Set Parameters of Serial Ports. User can Enable/Disable the serial port and select optimal settings for the super IO Device.

Enabled/ Disabled

Default: Enable

Enable or disable Serial Port (COM)

Watch Dog Timer Select

This watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function after the programmed period.

Enabled/ Disabled

Enable or disable this function

Page 57

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.2.5 Hardware Monitor

You can check PC Health Status parameters such as system temperature, fan speed etc.

Page 58

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.2.6 RTC Wake Settings

BIOS Setting

Description

Setting Option

Effect

Wake system from S5

Configure wake from full shutdown and boot mode (S5) system setting

Enabled/ Disabled

Enable or disable this function. When enabled, the system will wake on full shutdown and boot mode.

Page 59

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.2.7 SATA Configuration

BIOS Setting

Description

Setting Option

Effect

SATA Controller(s)

Allows users to enable or disable the SATA controller(s).

Enabled/ Disabled

Enable or disable this function

SATA Mode Selection

Allows users to select mode of SATA controller(s).

AHCI

Work in AHCI mode of SATA controller(s)

SATA Controller Speed

Allows users to select mode of SATA Controller Speed.

Default

SATA Controller Speed default settings

Serial ATA Port 0/1/2

Allows users to enable or disable the SATA Port.

Enabled/ Disabled

Enable or disable this function

Page 60

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.2.8 CSM Configuration

Compatability Support Module Configuration.

BIOS Setting

Description

Setting Option

Effect

CSM Support

The Compatibility Support Module (CSM) is a component of the UEFI firmware that provides legacy BIOS compatibility by emulating a BIOS environment, allowing to use legacy OS and some option ROMs that do not support UEFI.

Enabled/ Disabled

Enable or disable the Compatibility Support Module

GetaA20 Active

Activate GetaA20

Upon Request

Enable or disable this function

Option ROM Messages

Receiving ROM Messages Settings

Force BIOS

Set ROM messages parameters

Network

Specifies which Network option ROM is booted

UEFI

Only UEFI option ROMs are booted

Page 61

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

Legacy

Only Legacy option ROMs are booted

4.2.2.9 USB Configuration

BIOS Setting

Description

Setting Option

Effect

Legacy USB Support

User can enable or disable USB port.

Auto

Disable legacy support if no USB devices are connected

Disable

Will keep USB devices available only for EFI applications.

Enable

Enable all the USB devices

XHCI Hand‐off

This is a workaround for OSs

without XHCI hand‐ off

Disable

Disables this function

Page 62

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

support. The XHCI ownership Change should claim by XHCI driver.

Enable

Enables this function

EHCI Hand‐off

This is a workaround for OSs

without ECHI hand‐ off

support. The EHCI ownership change should be claimed by EHCI driver.

*Disabled

Disables this function

Enable

Enables this function

USB Mass Storage Driver Support

User can Enable or disable USB mass storage driver support. Disable

Disables this function

Enable

Enables this function

USB Transfer

time‐ out

The time‐out value for control,

bulk, and interrupt transfers.

1 Sec 5 Sec 10 Sec *20 Sec

Depends on the time‐

out value

Device Reset time‐ out

USB mass storage device start unit command time‐ out.

10 Sec *20 Sec 30 Sec 40 Sec

Depends on the time‐

out value

Device power‐

up delay

Maximum time the device will take before it properly reports itself to the host controller.

Auto

Uses default value: for a root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor

Page 63

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.3 Chipset Menu

BIOS Setting

Description

Setting Option

Effect

System Agent (SA) Configuration

System Agent (SA) Parameters

Enter

Opens submenu

PCH-IO Configuration

PCH Parameters

Enter

Opens submenu

Page 64

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.3.1 System Agent (SA) Configuration

BIOS Setting

Description

Setting Option

Effect

VT-d

VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environment.

Enable/Disable

Enables or

disables this

function

Graphics Configuration

Configures Graphics parameters

Enter

Opens

submenu

Page 65

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.3.1.1 Graphics Configuration

BIOS Setting

Description

Setting Option

Effect

Graphics Turbo IMON Current

Graphics turbo IMON current values supported 14~31

14~31

Set up the value of Graphics turbo IMON current

Internal Graphics

Configures Internal Graphics parameters

Auto

Set up internal graphics parameters

Aperture Size

Configures aperture size settings

256MB

Set up aperture size parameters

DVMT Pre-Allocation

Configures DVMT Pre-Allocation parameters

32M

Set up DVMT Pre-Allocation parameters

DVMT Total Gfx Mem

Configures DVMT Total Gfx Mem parameters

256M

Set up DVMT Total Gfx Mem parameters

Gfx Low Power Mode

Configures Gfx Low Power Mode settings

Enable/Disable

Enables or disables this function

Page 66

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.3.2 PCI Configuration

BIOS Setting

Description

Setting Option

Effect

PCI Express Configuration

Configures PCI Express parameters

Enter

Opens submenu

USB Configuration

Configures USB parameters

Enter

Opens submenu

PCH LAN Controller

Configures PCH LAN Controller parameters

Enable/Disable

Enables or disables this function

Wake on LAN

Set up wake on LAN function

Enable/Disable

Enables or disables this function

SLP_A4 Assertion Width

Configures SLP_A4 Assertion Width parameters

4-5 seconds

Set up SLP_A4 Assertion Width parameters

Restore AC Power Loss

Enabling this will allow the computer to power up once house hold power is established.

Power On

Set Restore AC Power Loss parameters

Page 67

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.3.2.1 PCI Express Configuration

BIOS Setting

Description

Setting Option

Effect

DMI Link ASPM Control

The control of Active State Power Management on both NB side and SB side of the DMI Link.

Enable/ Disable

Enables or disables this function

DMI Link Extended Synch Control

The control of DMI Link Extended Synch parameters

Enable/ Disable

Enables or disables this function

PCI Express Root Port 1~6

PCI Express Root Port 1~6 parameters

Enter

Opens sub-menu (see next section)

Page 68

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

PCI Express Root

BIOS Setting

Description

Setting Option

Effect

PCI Express Root Port 1

The control of PCI Express Root Port

Enable/

Disable

Enables or disables this function

ASPM Support

Configures ASPM Support parameters

Enable/

Disable

Enables or disables this function

L1 Substates

Configures L1 Substates parameters

L1.1 &

L1.2

Setting up L1 Substates parameters

PCI Speed

Configures PCI Speed parameters

Auto

Setting up PCI Speed

Detect Non-Compliance Device

Detect the device that is not compliant to the system settings

Enable/

Disable

Enables or disables this function

Extra Bus Reserved

Configures Extra Bus Reserved parameters

Set the

value

Setting up the value

Page 69

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

Reserved Memory

Configures Reserved Memory parameters

Set the

value

Setting up the value

Prefetchable Memory

Configures Prefetchable Memory parameters

Set the

value

Setting up the value

Reserved IO

Configures Reserved IO parameters

Set the

value

Setting up the value

PCI LTR

Configures PCI LTR parameters

Enable/

Disable

Enables or disables this function

PCI LTR Lock

Configures PCI LTR Lock parameters

Enable/

Disable

Enables or disables this function

Snoop Latency Override

Configures Snoop Latency Override parameters

Auto

Enables or disables this function

Non-Snoop Latency Override

Configures Non-Snoop Latency Override parameters

Auto

Enables or disables this function

USB Configuration

Page 70

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

BIOS Setting

Description

Setting Option

Effect

USB Precondition

Allows user to enable or disable USB Precondition

Enable/ Disable

Enables or disables this function

XHCI Mode

Allows user to enable or disable XHCI Mode

Smart Auto/ Enable/ Disable

Enables or disables this function

BTCG

Configures BTCG Parameters

Enable/ Disable

Enables or disables this function

USB Ports Per-Port Disable Control

Control each of the USB ports (0~XX) disabling

Enable/ Disable

Enables or disables this function

4.2.4 Security Menu

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Page 71

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

BIOS Setting

Description

Setting Option

Effect

Administrator Password

Displays whether or not an administrator password has been set.

Enter

Enter password

User Password

Display whether or not a user Password has been set.

Enter

Enter password

Secure Boot Menu

This feature designed to prevent malicious software and unauthorized media from loading during the boot process.

Enter

Opens sub-menu

4.2.4.1 Security Boot Menu

BIOS Setting

Description

Setting Option

Effect

Secure Boot

Secure Boot is a feature designed to prevent malicious software and unauthorized media from loading during the boot process.

Enable/ Disable

Enables or disables this function

Secure Boot Management

Manage Secure Boot settings

Custom

Configure Secure Boot parameters

Page 72

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

Key Management

Setting Key Management parameters

Enter

Opens sub-menu

4.2.4.1.1 Key Management

4.2.5 Boot Menu

Page 73

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

BIOS Setting

Description

Setting Option

Effect

Setup Prompt Timeout

Allows user to configure the number of seconds to stay in BIOS setup prompt screen.

Enter

Set the prompt timeout

Boot NumLock State

Enables or disables NumLock feature on the numeric keypad of the keyboard after the POST (Default: On).

Remains On

Off

Remains OFF

Quite Boot

Determines if POST message or OEM logo (default = Black background) is displayed.

Disabled

Disables this function

Enabled

Enables this function

Fast Boot

Enables or disables Fast Boot to shorten the OS boot process. (Default: Disabled).

Disabled

Disables this function

Enabled

Enables this function

Boot Option Priorities

Specifies the overall boot order from the available devices

Ex: Boot Option#1 (network);

Options:

#1~#7

Ex.: Set Network as the first priority

Hard Drive BBS Priorities

Specifies the boot order for Hard Drive BBS parameters

Enter

Enter the submenu

Page 74

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.2.6 Save & Exit

Page 75

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

BIOS Setting

Description

Setting Option

Effect

Save Changes and Exit

This saves the changes to the CMOS and exits the BIOS Setup program.

<YES>

Save changes

Discard Changes and Exit

This exits the BIOS Setup without saving the changes made in BIOS Setup to the CMOS. <YES>

Saves the changes

<NO>

Return to the BIOS Setup Main Menu

Save Changes and Reset

Reset the system after saving the changes.

<YES>

Saves the changes

<NO>

Return to the BIOS Setup Main Menu

Discard Changes and Reset

Reset system setup without saving any changes

<YES>

Saves the changes

<NO>

Return to the BIOS Setup Main Menu

Save Changes

Save changes done so far to any of the setup options.

<YES>

Saves the changes

<NO>

Return to the BIOS Setup Main Menu

Discard Changes

Discard changes done so far to any of the setup options.

<YES>

Saves the changes

<NO>

Return to the BIOS Setup Main Menu

Restore Defaults

Restore/load default values for all the setup options.

<YES>

Saves the changes

<NO>

Return to the BIOS Setup Main Menu

Save as User Defaults

Save the changes done so far as User defaults. <YES>

Saves the changes

<NO>

Return to the BIOS Setup Main

Page 76

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

Restore User Defaults

Restore the User Defaults to all the setup options.

<YES>

Saves the changes

<NO>

Return to the BIOS Setup Main Menu

Launch EFI Shell

Launch Extensible Firmware Interface menu

<YES>

Saves the changes

<NO>

Return to the BIOS Setup Main Menu

Page 77

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

4.3 Using Recovery Wizard to Restore Computer

Note:

Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process.

To enable quick one-key recovery procedure:

 Plug-in the AC adapter to the series computer. Make sure the computer stays

plugged in to power source during the recovery process.

 Turn on the computer, and when the boot screen shows up, press the F6 to initiate

the Recovery Wizard.

 The following screen shows the Recovery Wizard. Click Recovery button to continue.

A warning message about data loss will show up. Make sure the data is backed up before

recovery, and click Yes to continue.

Page 78

User Manual Chapter 4 AMI UEFI BIOS Setup

IHMH100 M-Series Box PC

Wait the recovery process to complete. During the recovery process, a command prompt

will show up to indicate the percent of recovery process complete. The system will restart

automatically after recovery completed.

Page 79

IHMH100 M-Series Box PC

Technical Support

This chapter contains directory to technical support.

Page 80

User Manual Chapter 5 Technical Support

IHMH100 M-Series Box PC

Chapter 5 Technical Support

This chapter includes technical support documents and software developing kit (SDK). If any problem occurs fill in problem report form enclosed and immediately contact us.

5.1 Software Developer Support

Winmate provides the following development kits (SDK) for IHMH100 M-Series Box PC:

Item

File Type

Description

Watchdog SDK & AP

Watchdog SDK and AP

You can download drivers and SDK and other from Winmate File Share or Winmate Download Center.

Winmate Download Center:

http://www.winmate.com/DownCenter/DownLoadCenter.asp?DownType=2906&Onl yContent=

Winmate File Share: https://winmate.box.com/v/Winmate-M-Series-Box-IHMH100

Page 81

User Manual Chapter 5 Technical Support

IHMH100 M-Series Box PC

5.2 Problem Report Form

M-Series Box PC (Modular Design)

Customer name:

Company:

Tel.:

Fax:

E-mail:

Date:

Product Serial Number: ___________________________________________________

Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible. _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________

Page 82

IHMH100 M-Series Box PC

Expansion PCIe Card Dimensions

This section includes mechanical

dimensions of Expansion PCIe Card

Appendix

Page 83

User Manual Appendix A Expansion PCIe Card Dimensions

IHMH100 M-Series Box PC

Appendix A: Expansion PCIe Card Dimensions

This section includes mechanical dimensions of Expansion PCIe Card.

Expansion PCIe Card Dimensions

PCIe Card Height Limit

Page 84

Winmate Inc.

9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C

Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com
