Winmate IV70 User Manual

IV70 Motherboard

Mini ITX SBC with Intel ® 3rd Generation Core™ i7/i5 Processors HDMI,

LVDS, VGA, Dual Giga Ethernet, 4 x USB3.0, PCle x16

V120

User Manual

Version 1.3

Document Part Number:

9171111I102J

IV70 Motherboard

II

Preface

Copyright Notice

No part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective
owners.

Disclaimer

We reserve the right to make changes, without notice, to any product, including circuits
and/or software described or contained in this manual in order to improve design and/or
performance. We assume no responsibility or liability for the use of the described
product(s), conveys no license or title under any patent, copyright, or masks work rights
to these products, and makes no representations or warranties that these products are
free from patent, copyright, or mask work right infringement, unless otherwise specified.
Applications that are described in this manual are for illustration purposes only. We
make no representation or warranty that such application will be suitable for the
specified use without further testing or modification.

Warranty

We warrant that each of its products will be free from material and workmanship defects
for a period of one year from the invoice date. (Standard is one year, extended warranty
will need to discuss with our sales representatives. If the customer discovers a defect, we
will, at its option, repair or replace the defective product at no charge to the customer,
provided it is returned during the warranty period of one year, with transportation
charges prepaid. The returned product must be properly packaged in its original
packaging to obtain warranty service.

If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial numbers
the third and fourth two digits give the year of manufacture, and the fifth digit means
the month (e. g., with A for October, B for November and C for December).

For example, the serial number 1W16Axxxxxxxx means October of year 2016.

IV70 Motherboard

III

Packing List

Before using this Motherboard, please make sure that all the items listed below are
present in your package:

 IV70 Motherboard
 User Manual & Driver CD

If any of these items are missing or damaged, contact your distributor or sales
representative immediately.

Customer Service

We provide a service guide as below for any problem by the following steps: First,
contact your distributor, sales representative, or our customer service center for
technical support if you need additional assistance. You need to prepare the following
information before you call:

 Product serial number
 Peripheral attachments
 Software (OS, version, application software, etc.)
 Detailed problem description
 The exact wording of any error messages

In addition, free technical support is available from our engineers every business day. We
are always ready to give advice on application requirements or specific information on
the installation and operation of any of our products. Please do not hesitate to call or
e-mail us.

IV70 Motherboard

IV

Advisory Conventions

Four types of advisories are used throughout the user manual to provide helpful
information or to alert you to the potential for hardware damage or personal injury.
These are Notes, Important, Cautions, and Warnings. The following is an example of each
type of advisory.

NOTE:

A note is used to emphasize helpful information

IMPORTANT:

An important note indicates information that is important for you to know.

CAUTION

A Caution alert indicates potential damage to hardware and explains how to
avoid the potential problem.

WARNING!

An Electrical Shock Warning indicates the potential harm from electrical
hazards and how to avoid the potential problem.

Safety Precautions

CAUTION

Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static-shielded bag when they are
not in the chassis.

IV70 Motherboard

V

Safety and Warranty

1. Please read these safety instructions carefully.

2. Please keep this user manual for later reference.

3. Please disconnect this equipment from any AC outlet before cleaning. Do not

use liquid or spray detergents for cleaning. Use a damp cloth.

4. For pluggable equipment, the power outlet must be installed near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it or

letting it fall could cause damage.

7. Make sure the voltage of the power source is correct before connecting the

equipment to the power outlet.

8. Position the power cord so that people cannot step on it. Do not place anything

over the power cord.

9. All cautions and warnings on the equipment should be noted.

10. If the equipment is not used for a long time, disconnect it from the power

source to avoid damage by transient over-voltage.

11. If any of the following situations arises, get the equipment checked by service

personnel:

A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according

to the user’s manual.

E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.

IV70 Motherboard

VI

About This User Manual

This User Manual provides information about using the IV70 Motherboard. The
documentation set for the IV70 Motherboard provides information for specific user
needs, and includes:

 IV70 Motherboard User Manual – contains detailed description on how to

use the motherboard, its components and features.

NOTE:

Some pictures in this guide are samples and can differ from actual
product.

Document Revision History

Version

Date

Note

Author

1.0

12-Dec-2012

Initial release

Henry Hsu

1.1

26-Mar-2015

Add jumper, connector

Austin Chang

1.2

1-Jul-2016

Revise format.
Revise board connector pinouts.
Add Intel ME & USB 3.0 Driver
Installation

Austin Chang

1.3

3-Oct-2016

IV70 V120

Austin Chang

IV70 Motherboard

VII

Contents

Table of Contents

PREFACE .............................................................................................................................................. I

ABOUT THIS USER MANUAL ..............................................................................................................VI

CHAPTER 1 GENERAL INFORMATION .................................................................................................. 1

1.1 INTRODUCTION ................................................................................................................................... 1

1.2 FEATURES .......................................................................................................................................... 1

1.3 MOTHERBOARD SPECIFICATIONS ............................................................................................................ 2

1.4 FUNCTIONAL DESCRIPTION.................................................................................................................... 4

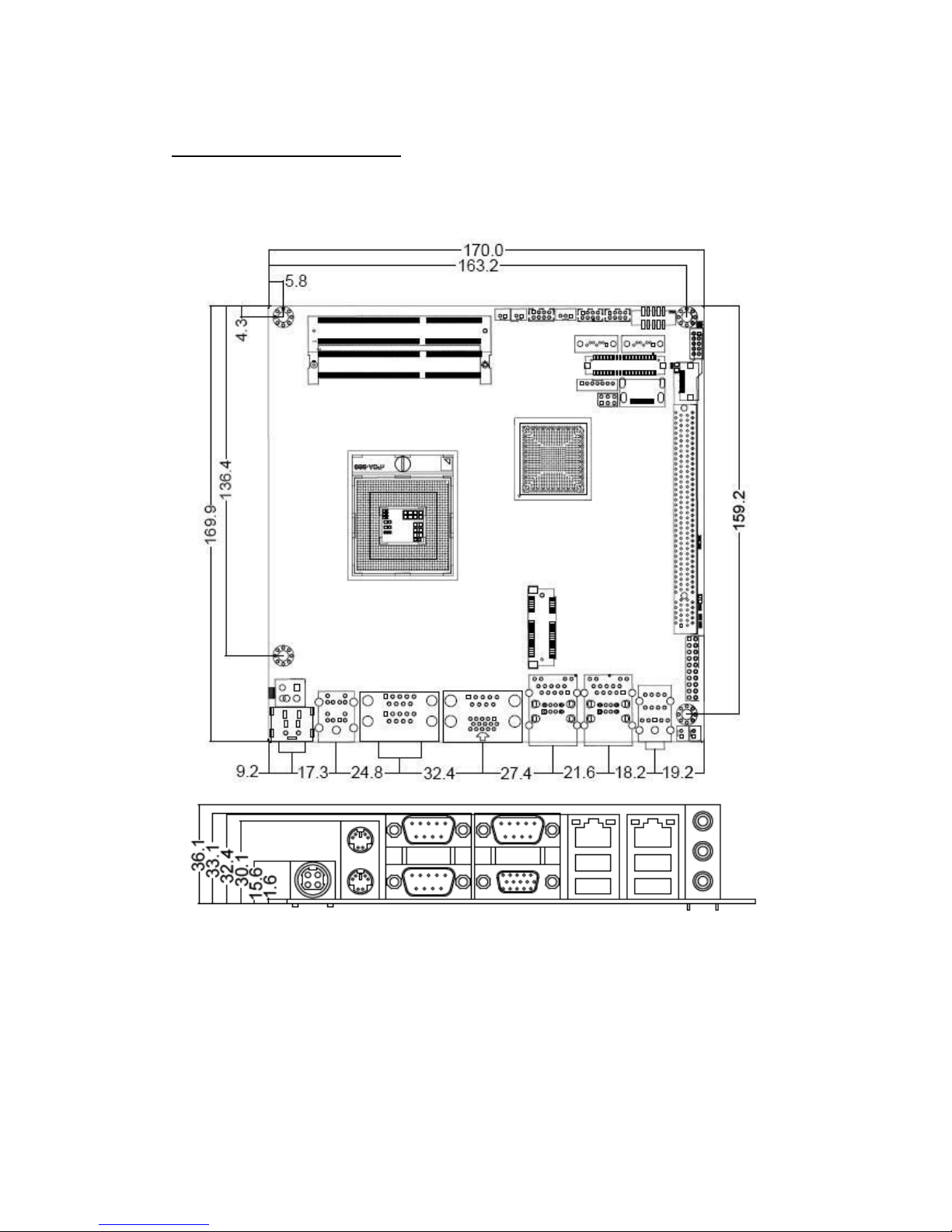

1.5 PHYSICAL DESCRIPTION ........................................................................................................................ 5

CHAPTER 2 HARDWARE INSTALLATION .............................................................................................. 7

2.1 MOTHERBOARD COMPONENTS .............................................................................................................. 7

2.1.1 Front Side ............................................................................................................................... 7

2.1.2 I/O Side ................................................................................................................................... 8

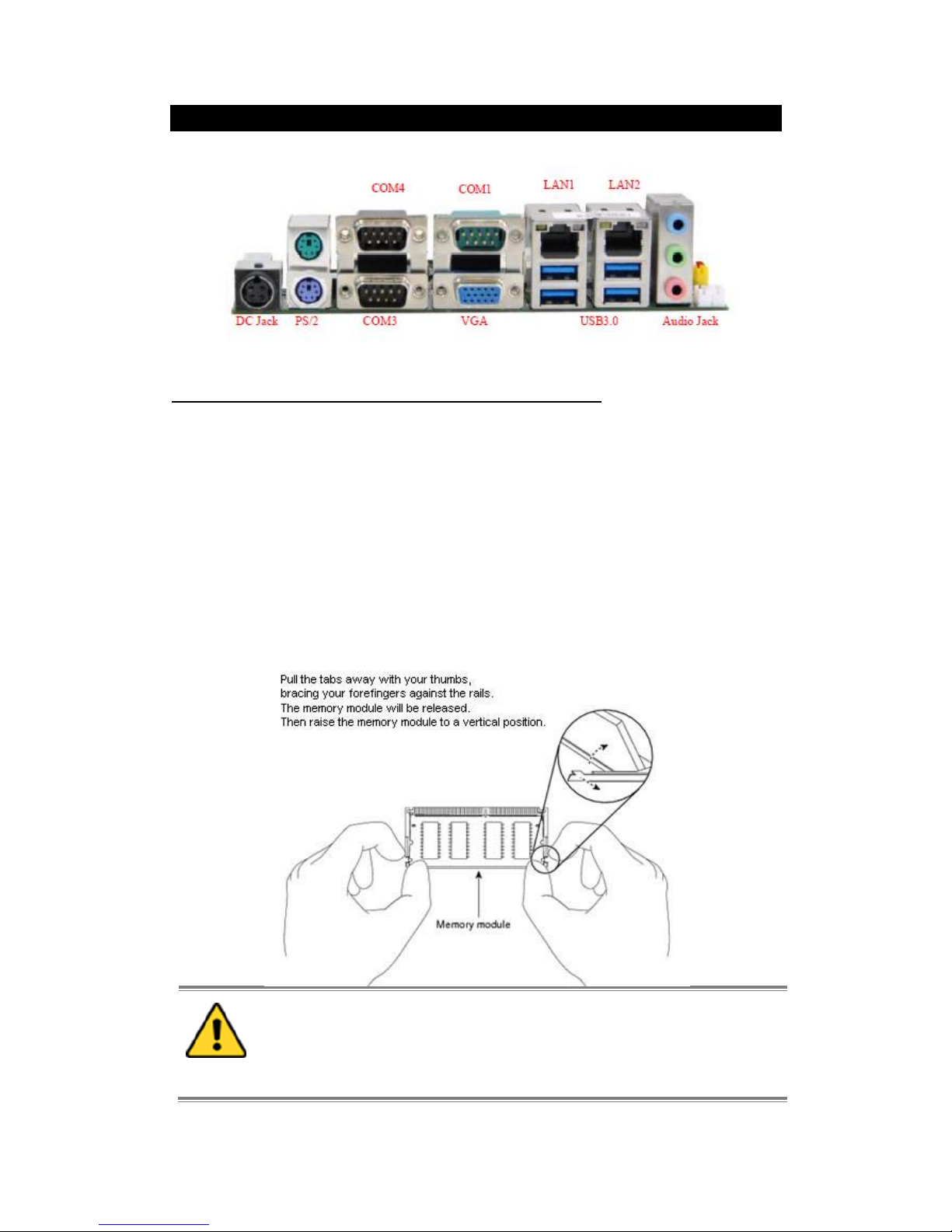

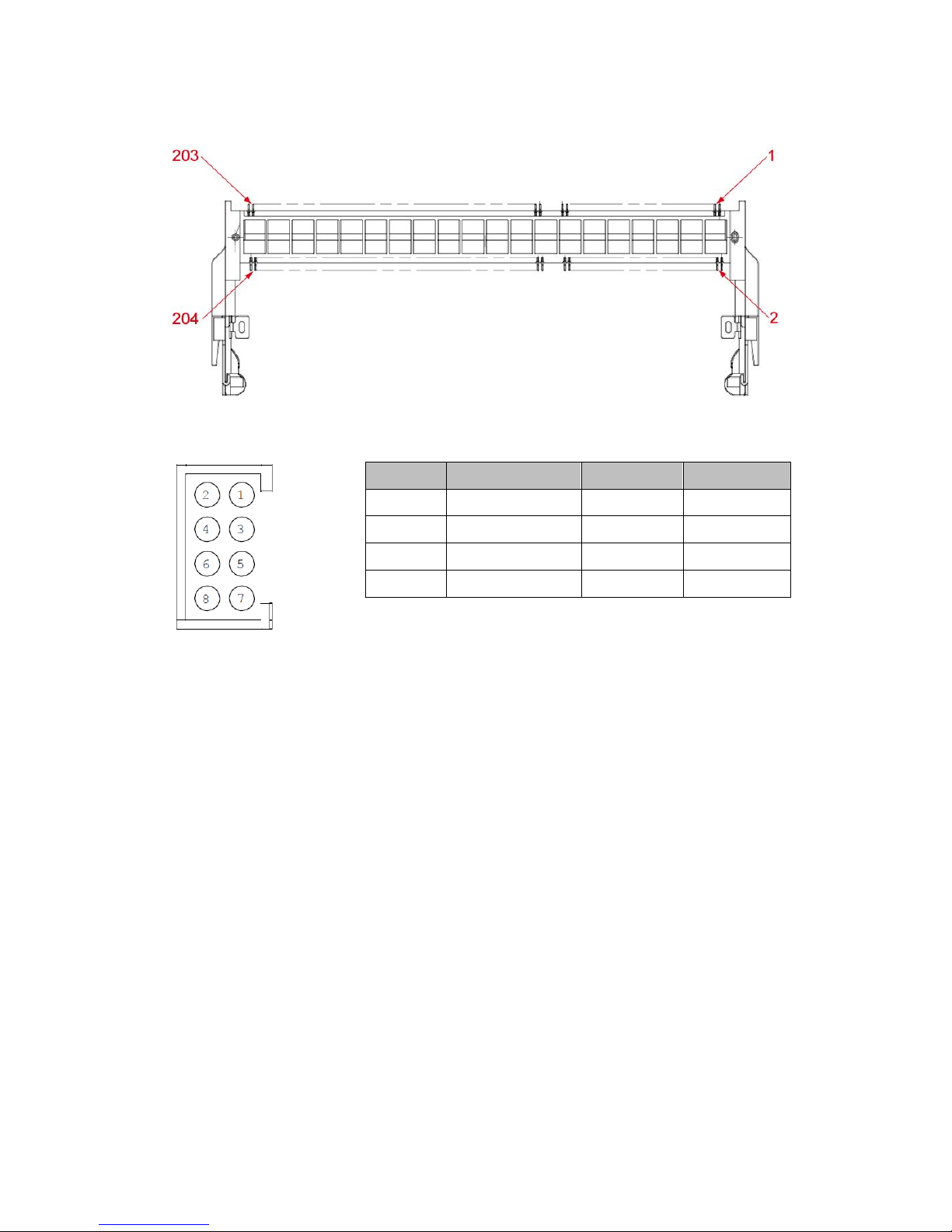

2.2 MEMORY MODULE (SO-DIMM) INSTALLATION ....................................................................................... 8

2.3 I/O EQUIPMENT INSTALLATION .............................................................................................................. 9

2.3.1 12V DC-IN ............................................................................................................................... 9

2.3.2 PS/2 Keyboard and PS/2 Mouse ............................................................................................. 9

2.3.3 Serial COM Ports .................................................................................................................... 9

2.3.4 Internal VGA ........................................................................................................................... 9

2.3.5 Ethernet Interface .................................................................................................................. 9

2.3.6 USB Ports ................................................................................................................................ 9

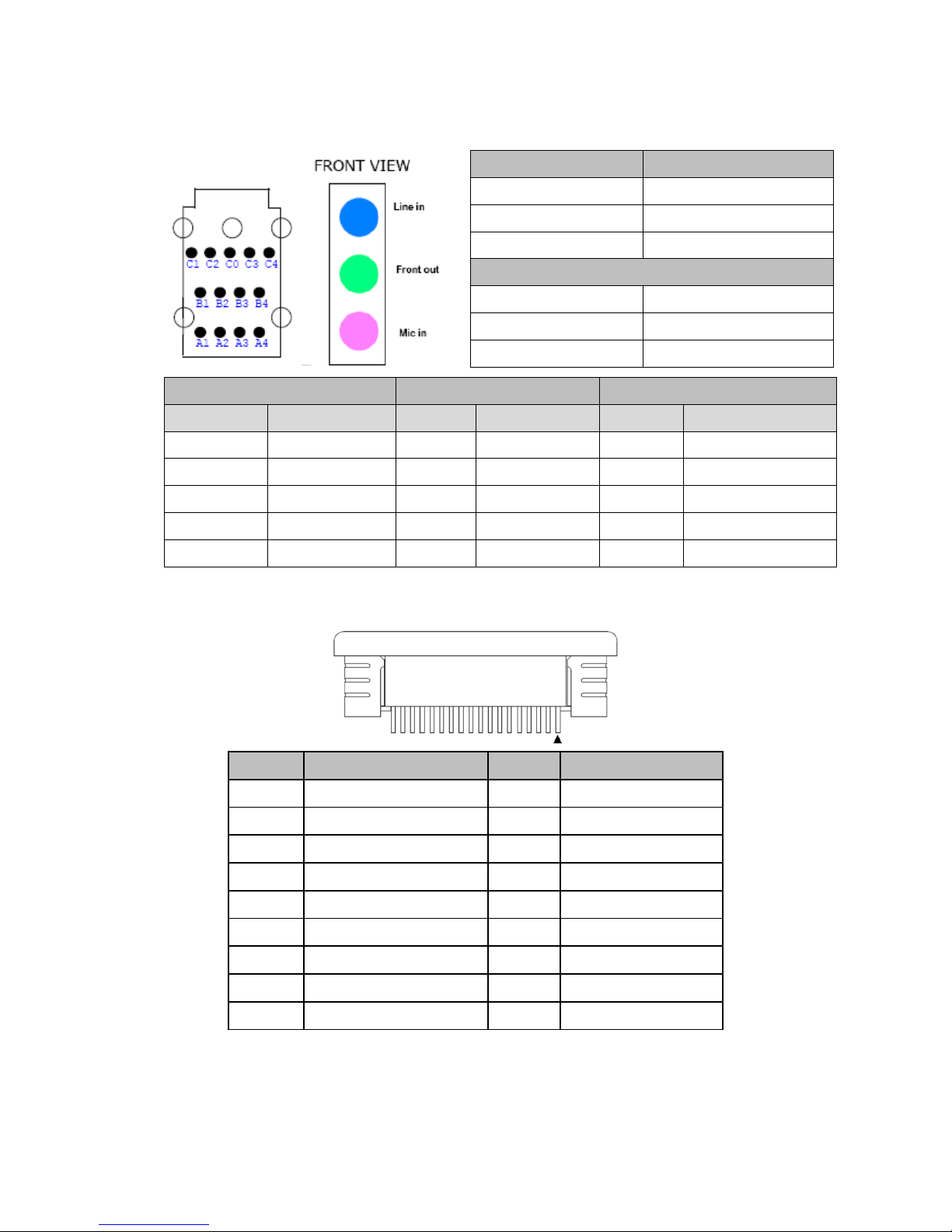

2.3.7 Audio Jack ( Pin-header) ....................................................................................................... 10

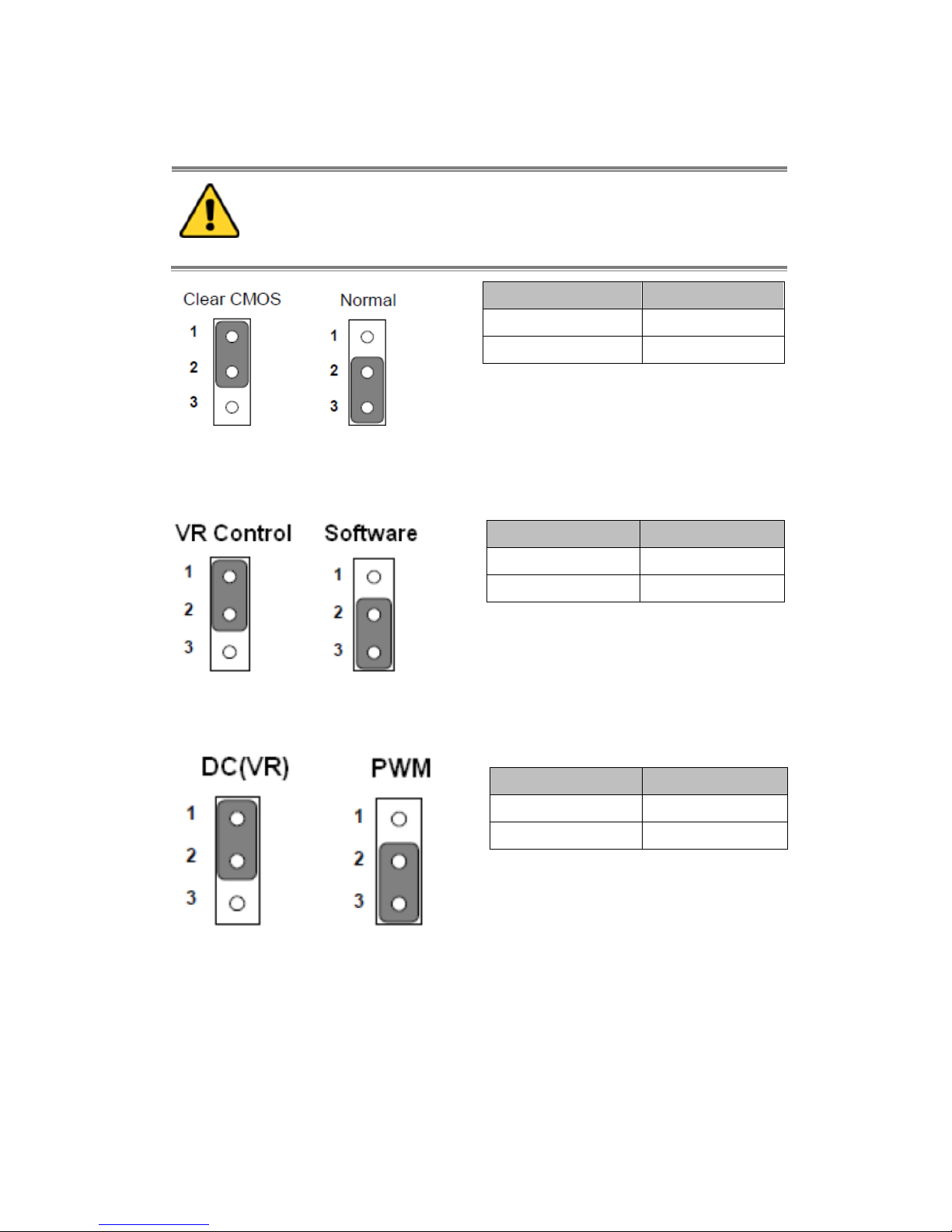

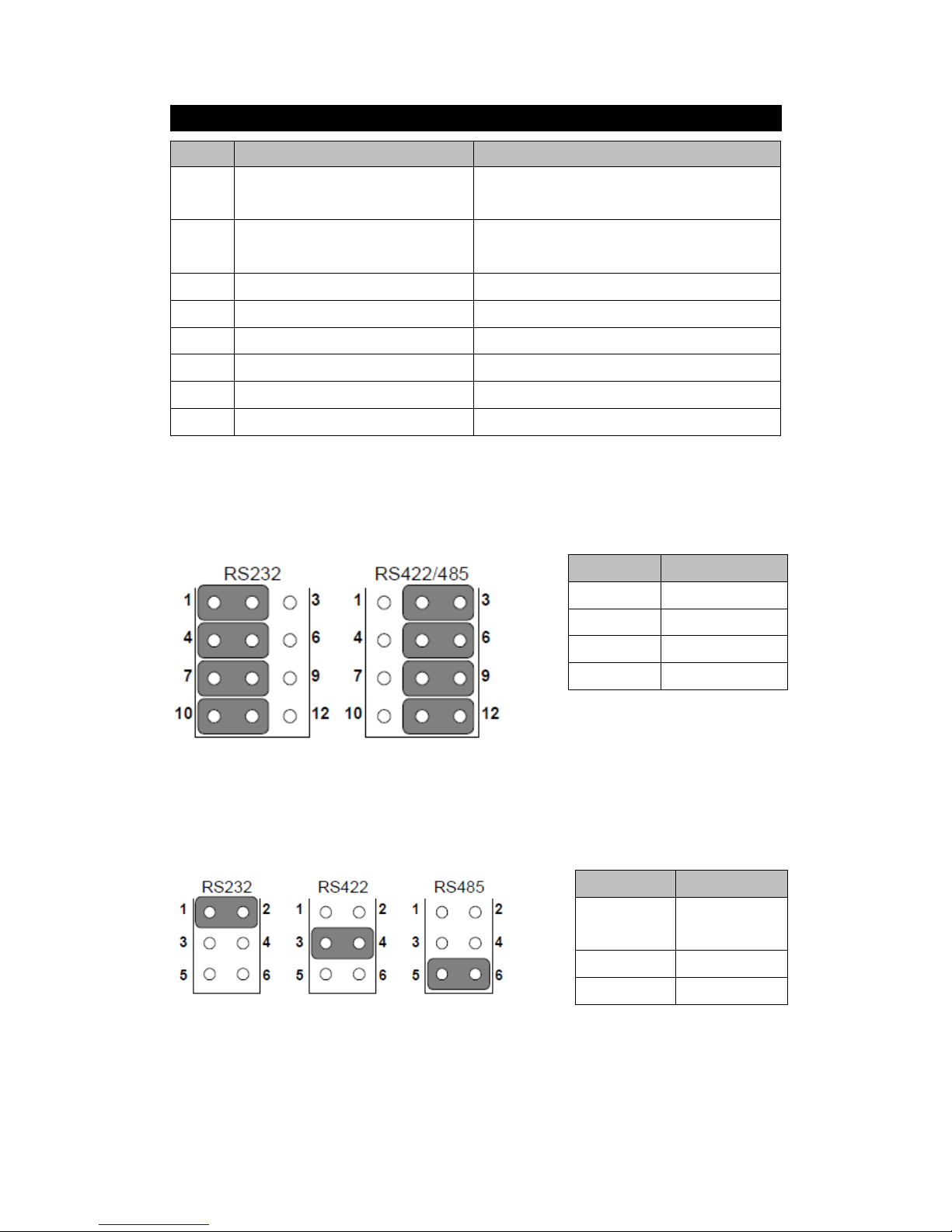

2.4 JUMPER SETTINGS ............................................................................................................................. 10

2.3.1 Jumper List ........................................................................................................................... 11

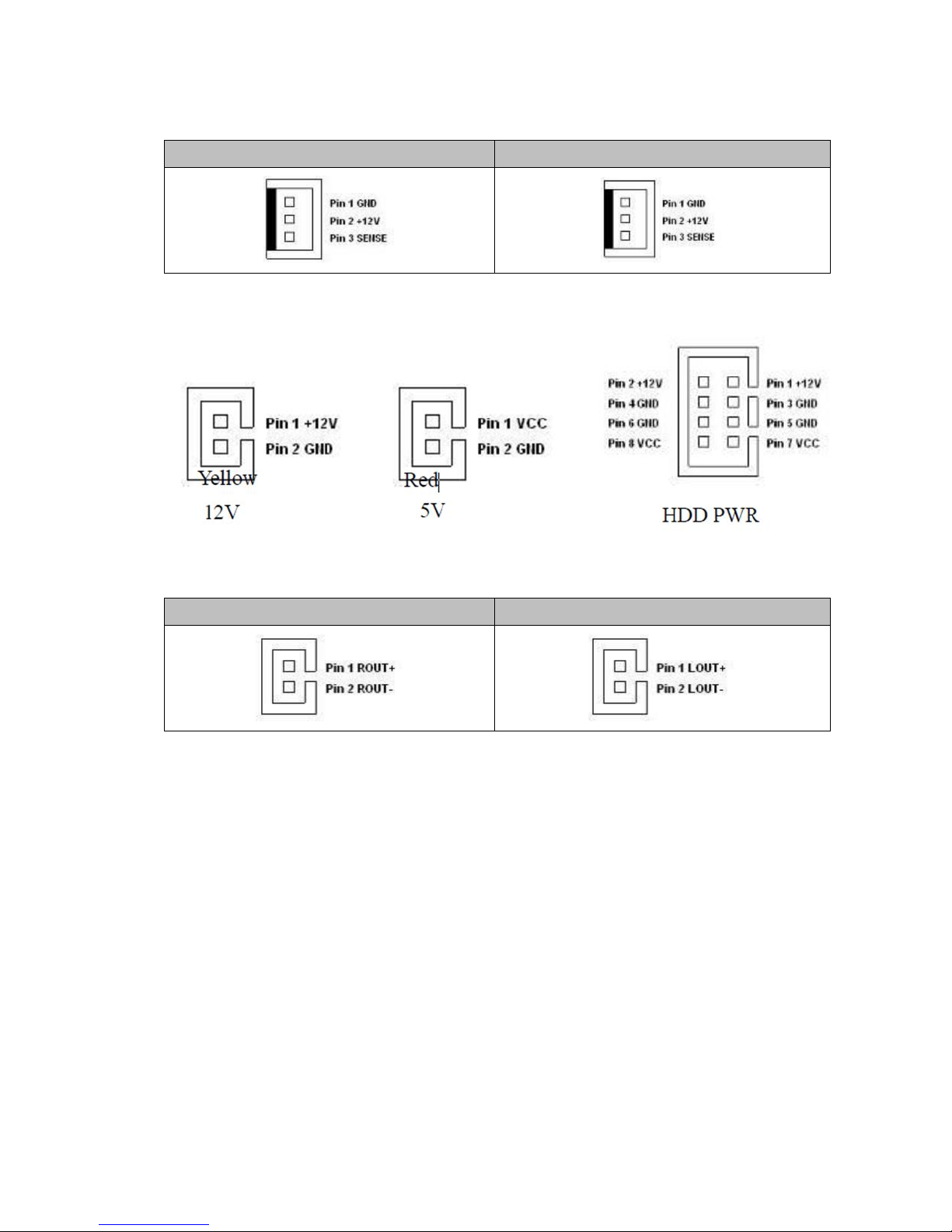

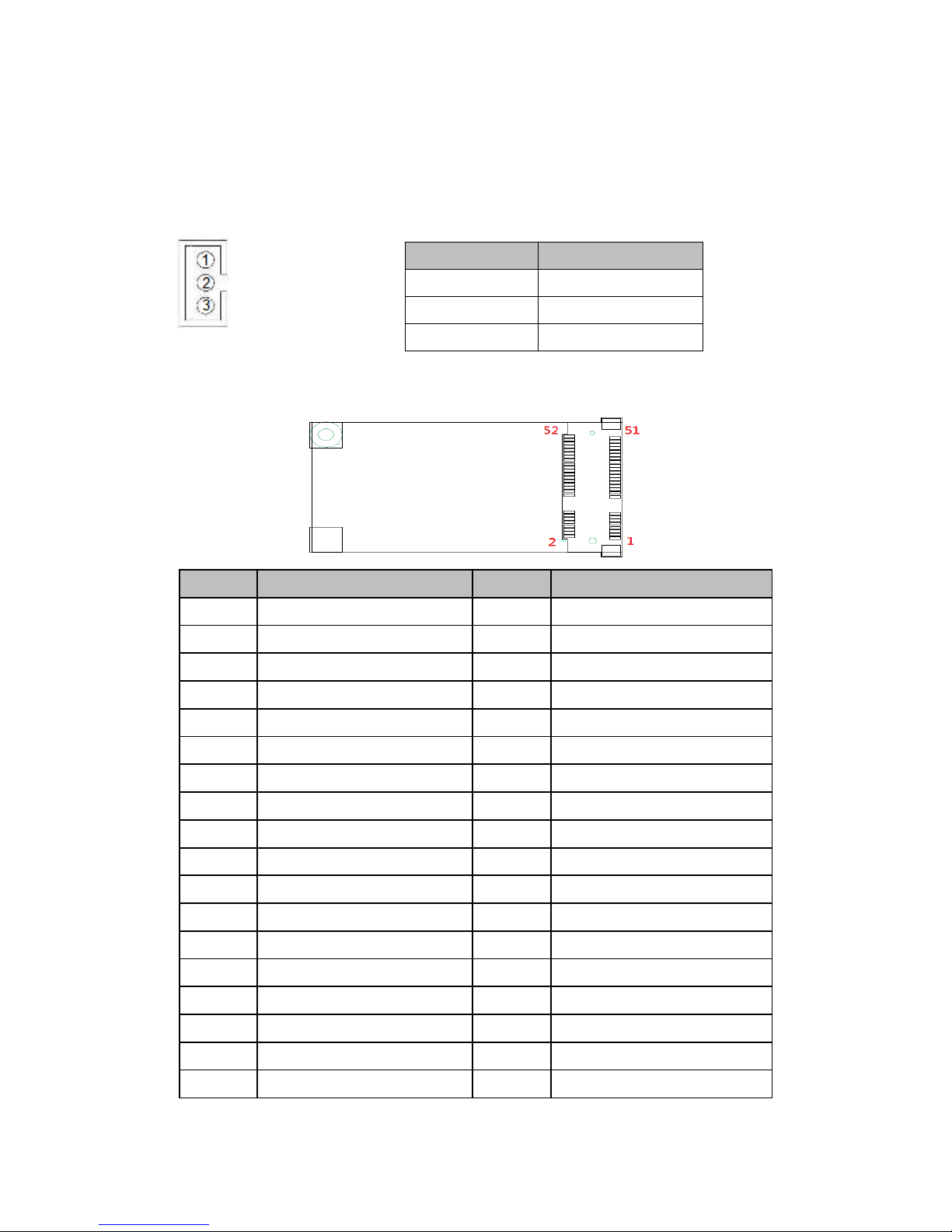

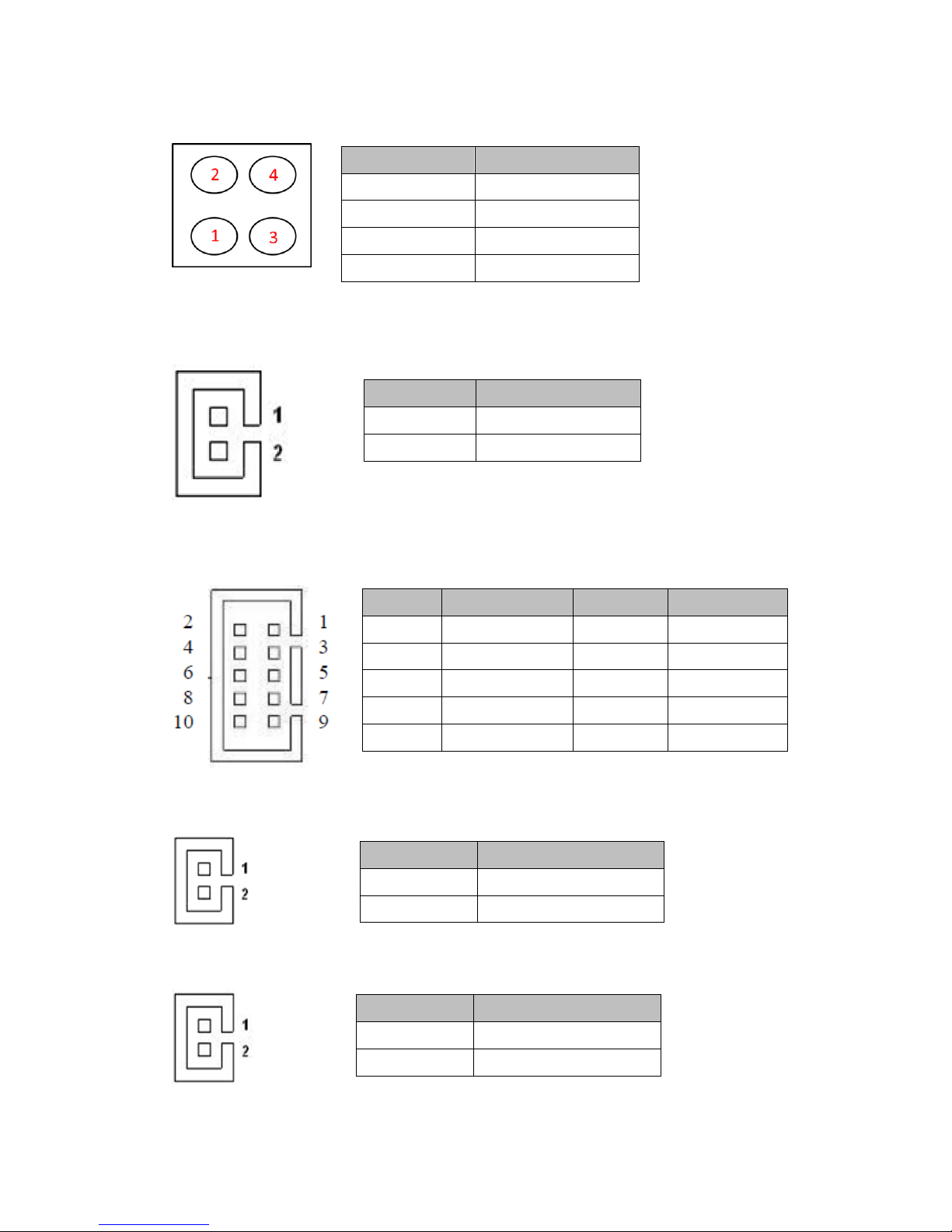

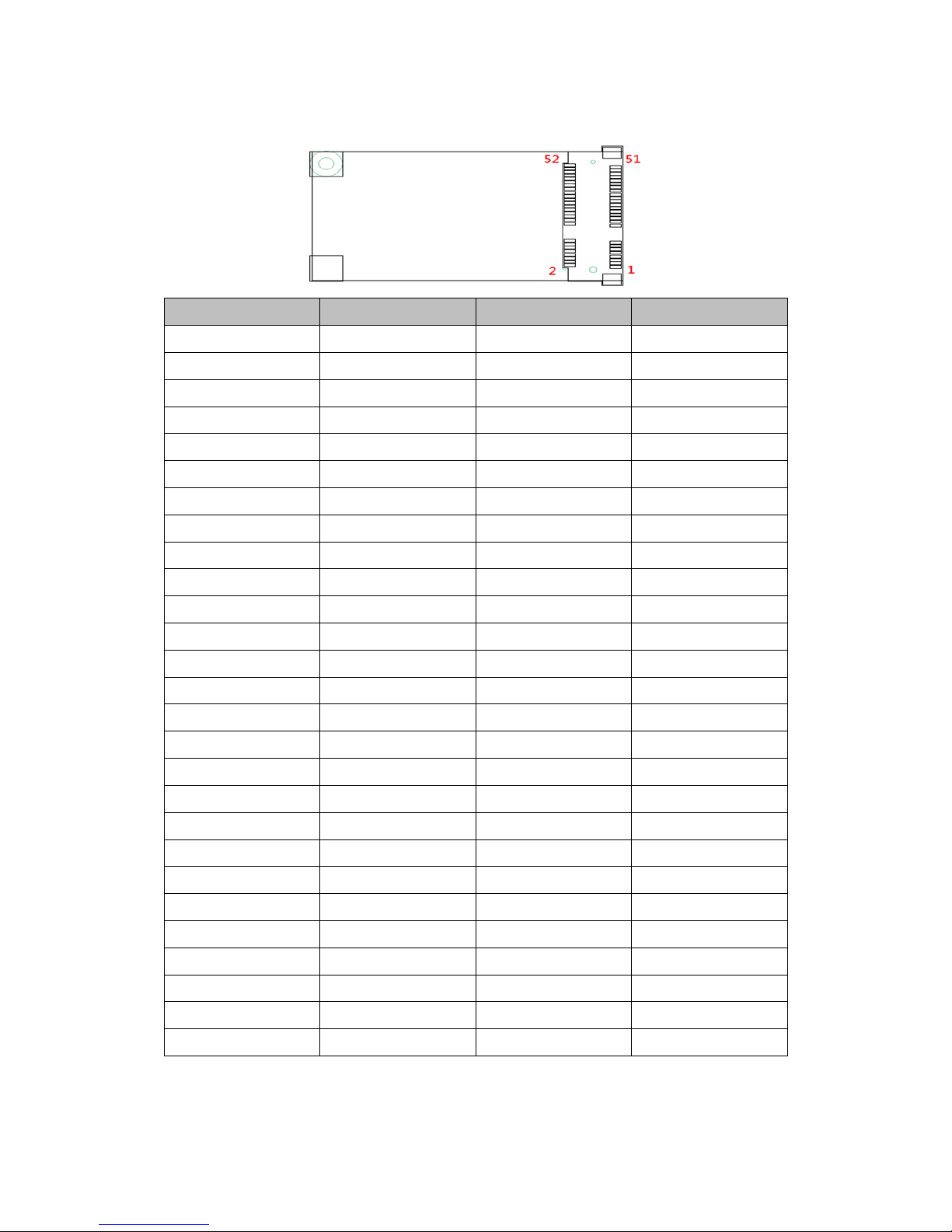

2.3.2 Connectors and Pin Assignment ........................................................................................... 14

2.3.3 I/O Side ................................................................................................................................. 25

CHAPTER 3 DRIVER INSTALLATION ................................................................................................... 29

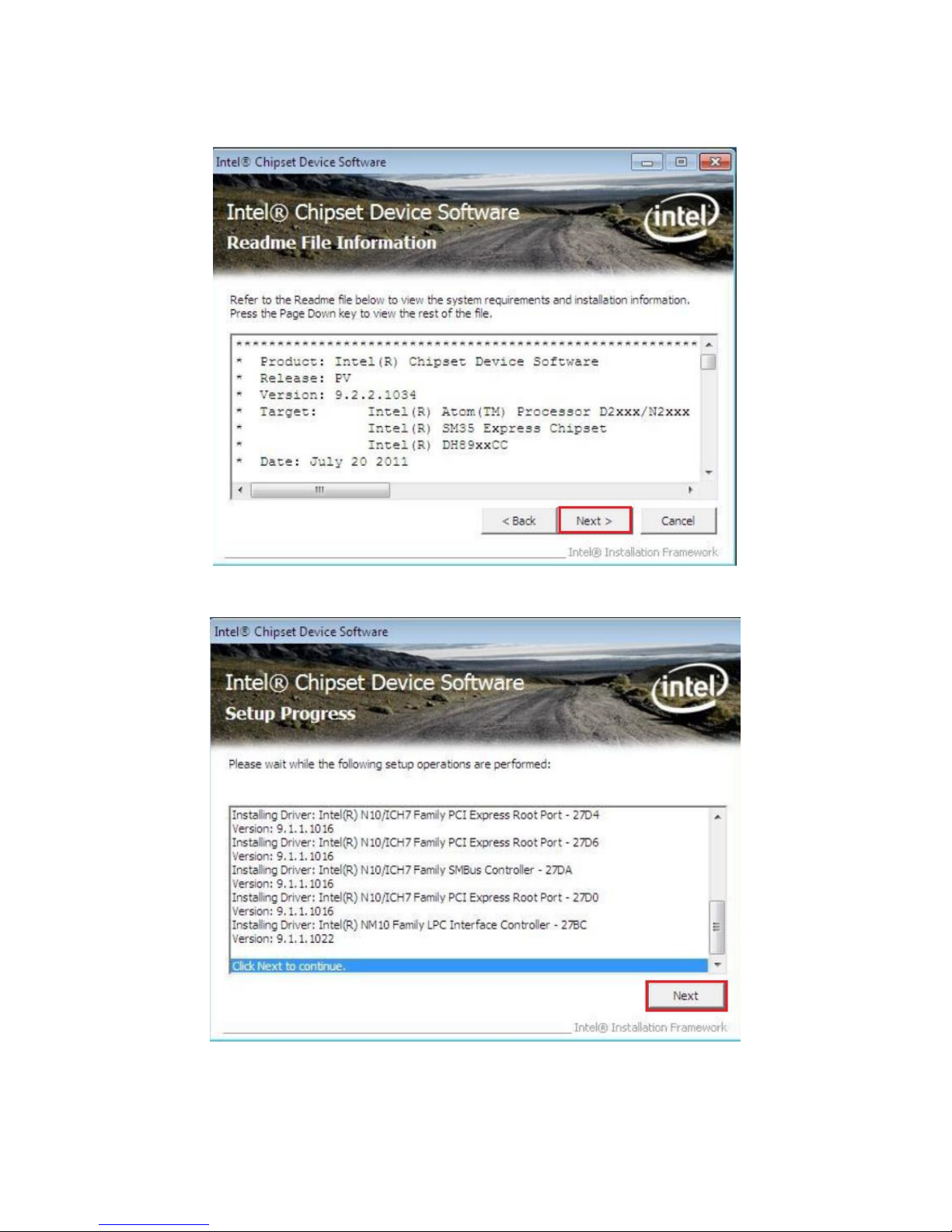

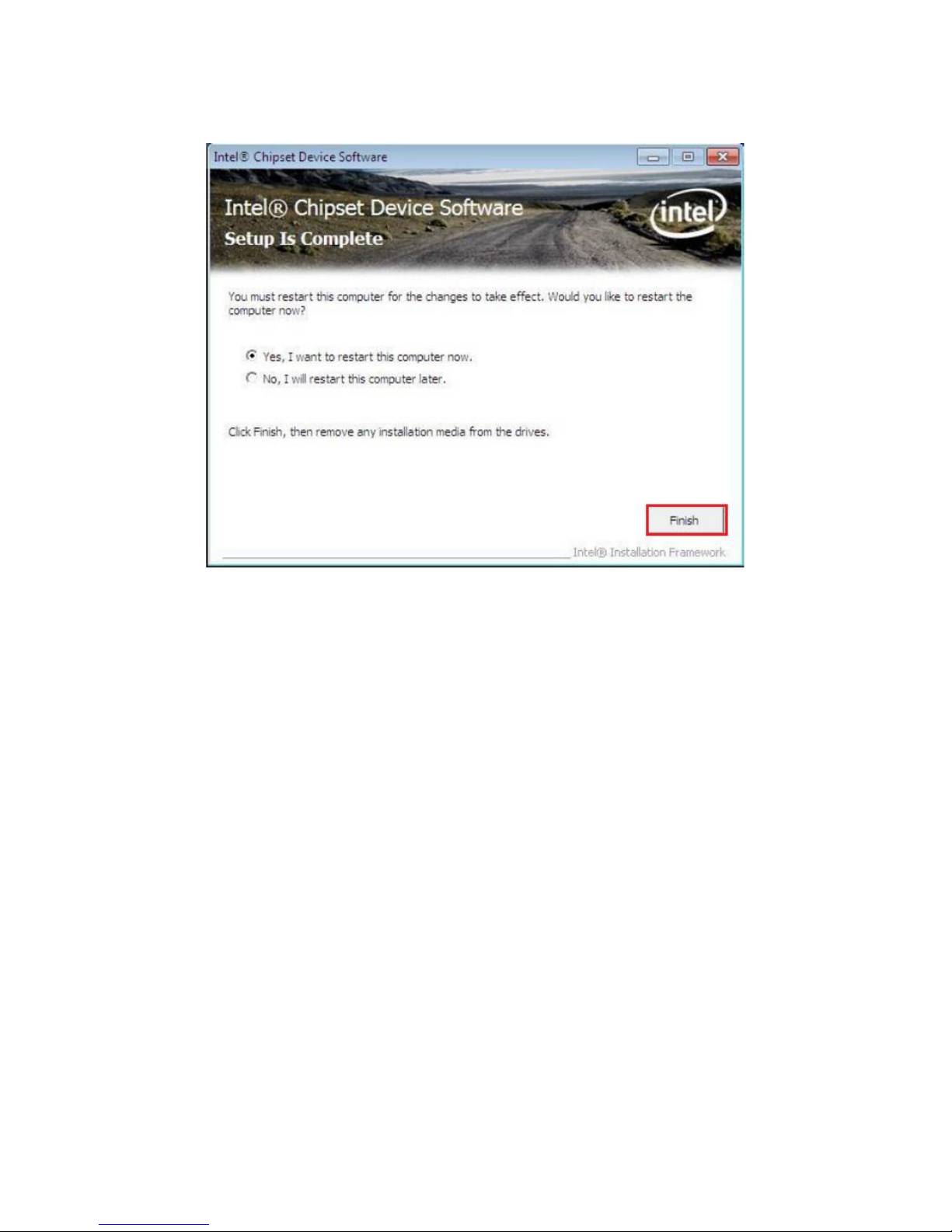

3.1 CHIPSET DRIVER INSTALLATION ............................................................................................................ 29

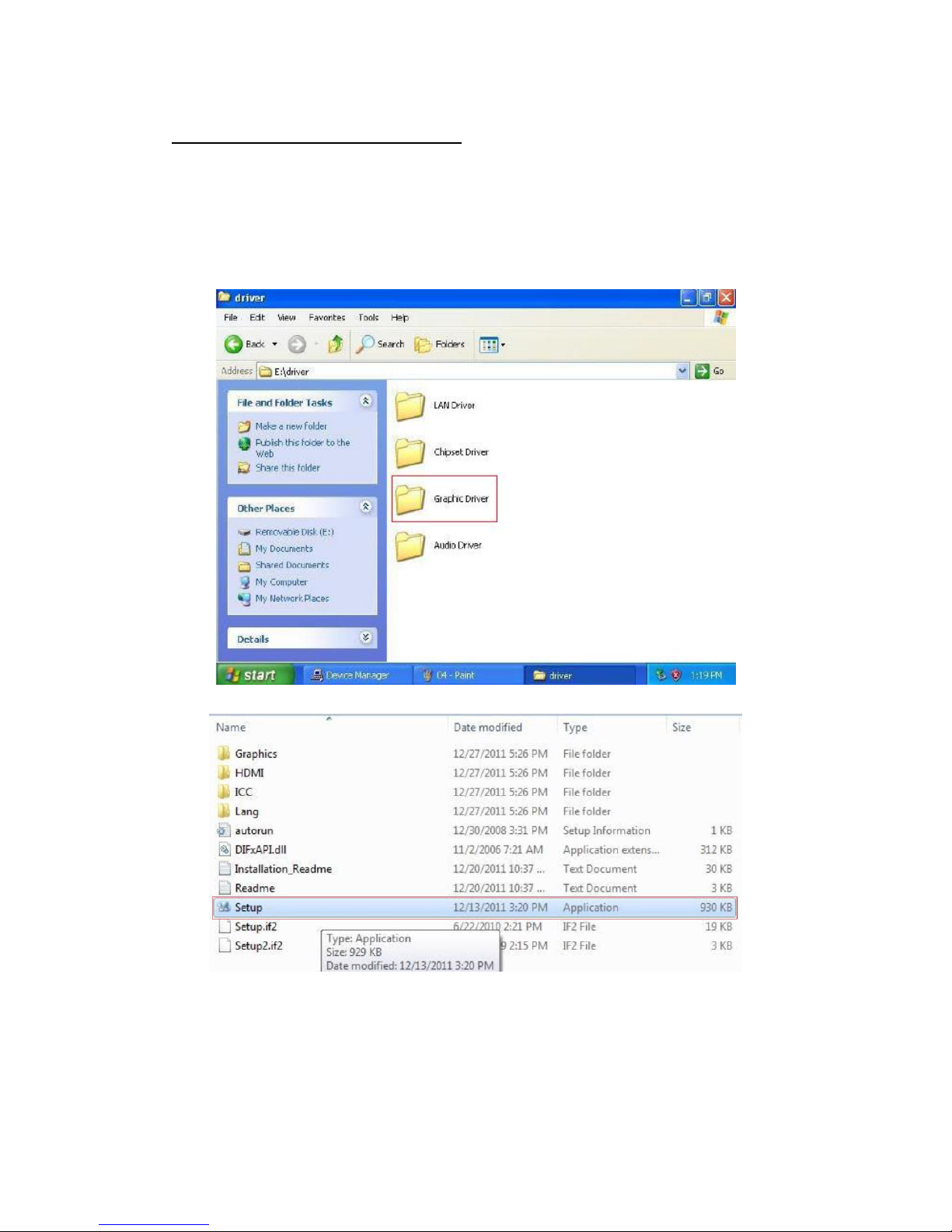

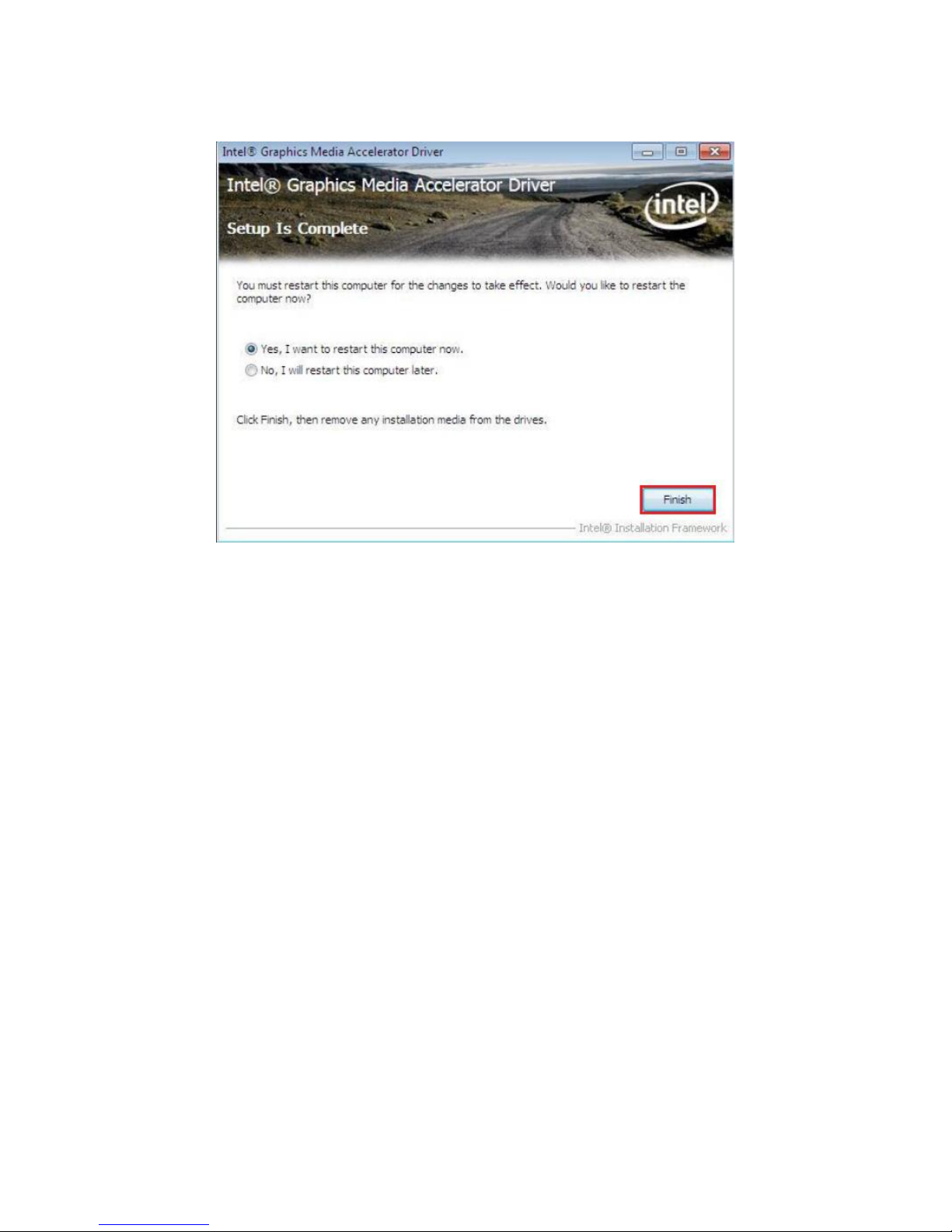

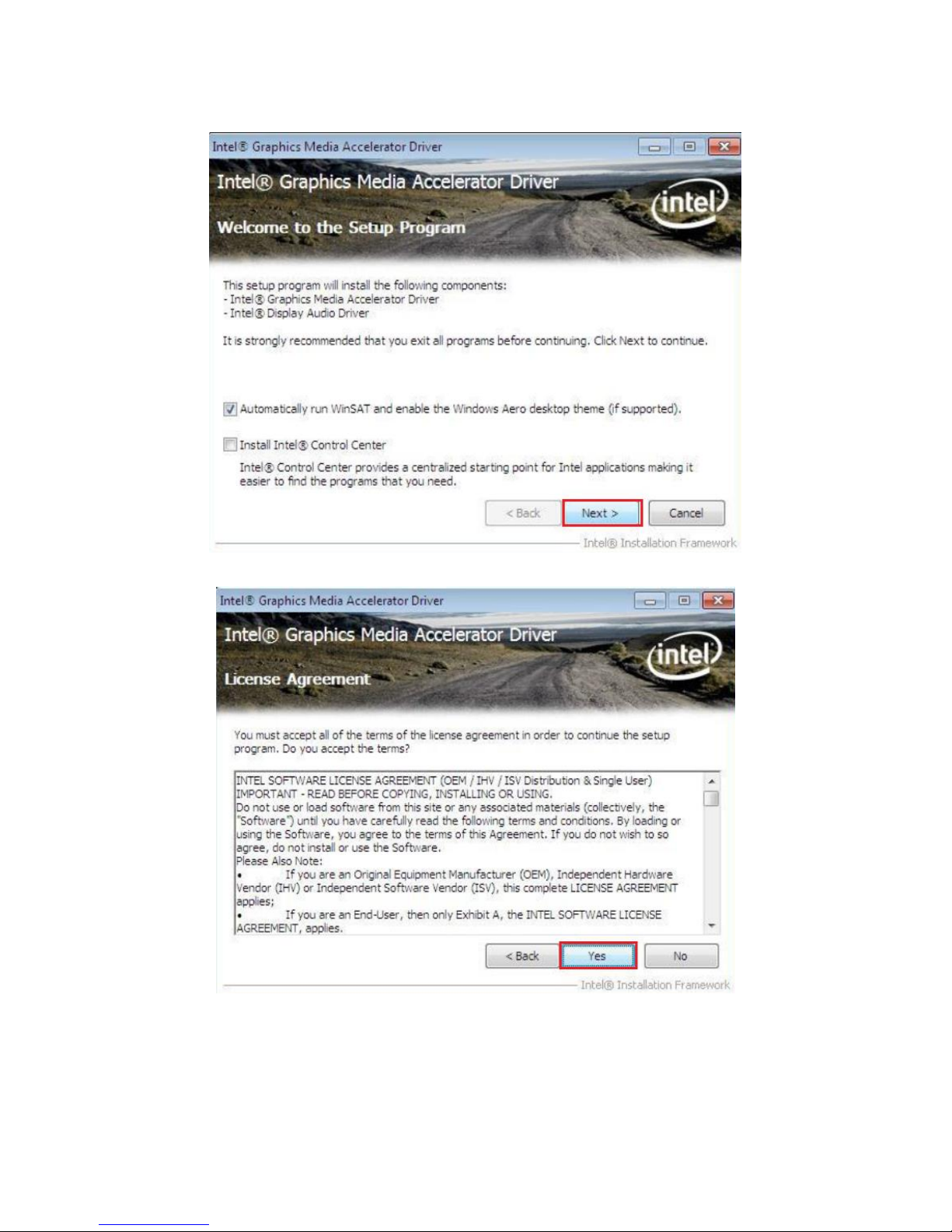

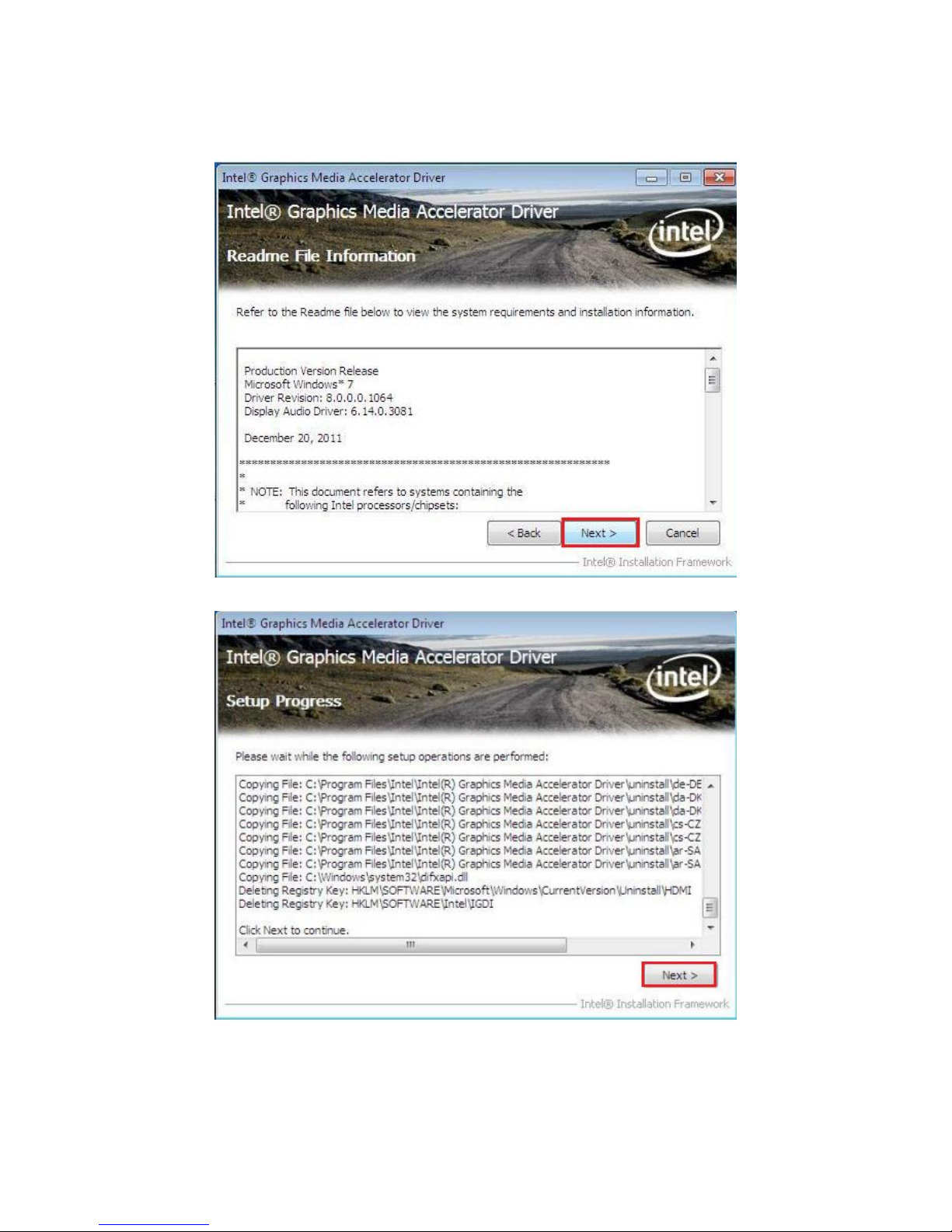

3.2 GRAPHIC DRIVER INSTALLATION ........................................................................................................... 32

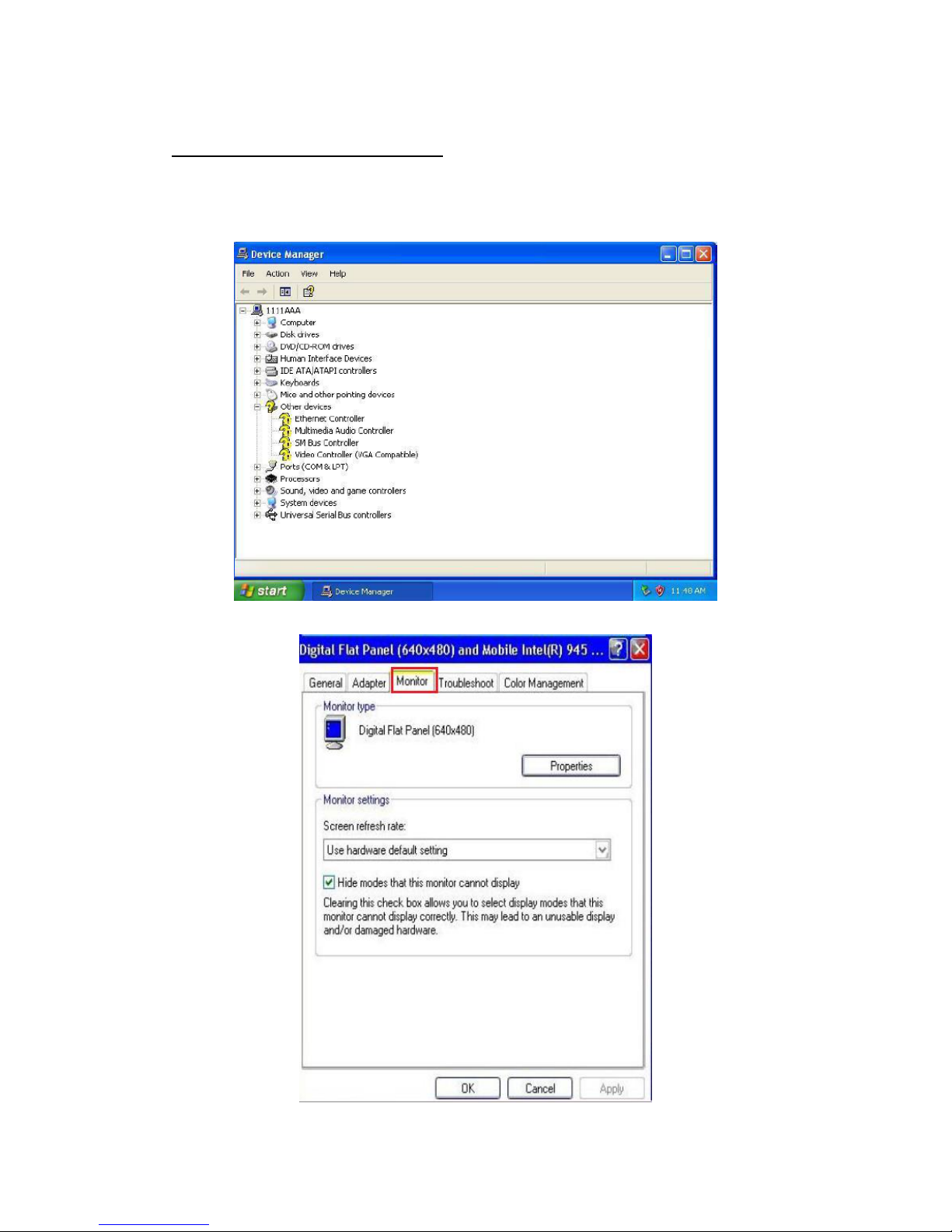

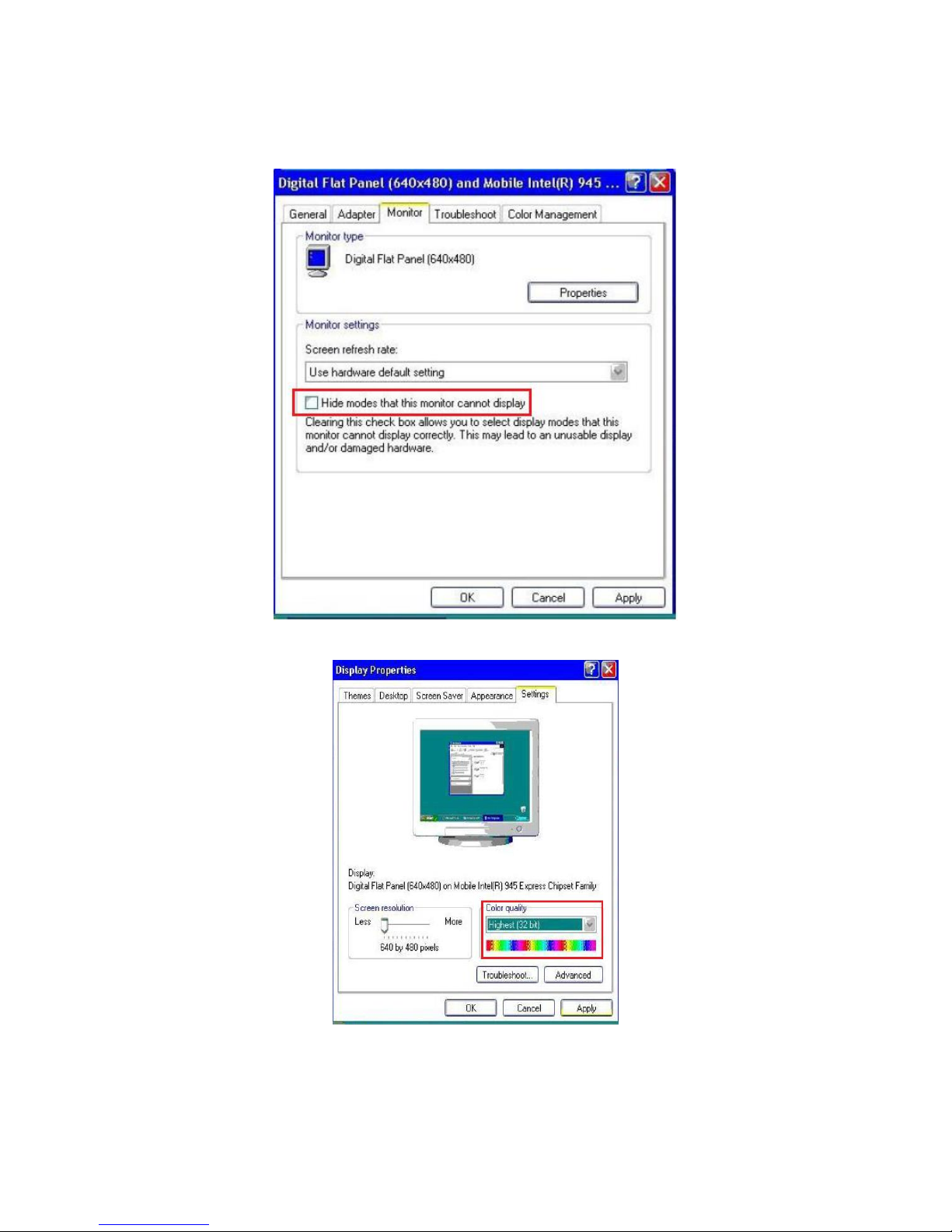

3.3 PANEL RESOLUTION SETTING ............................................................................................................... 36

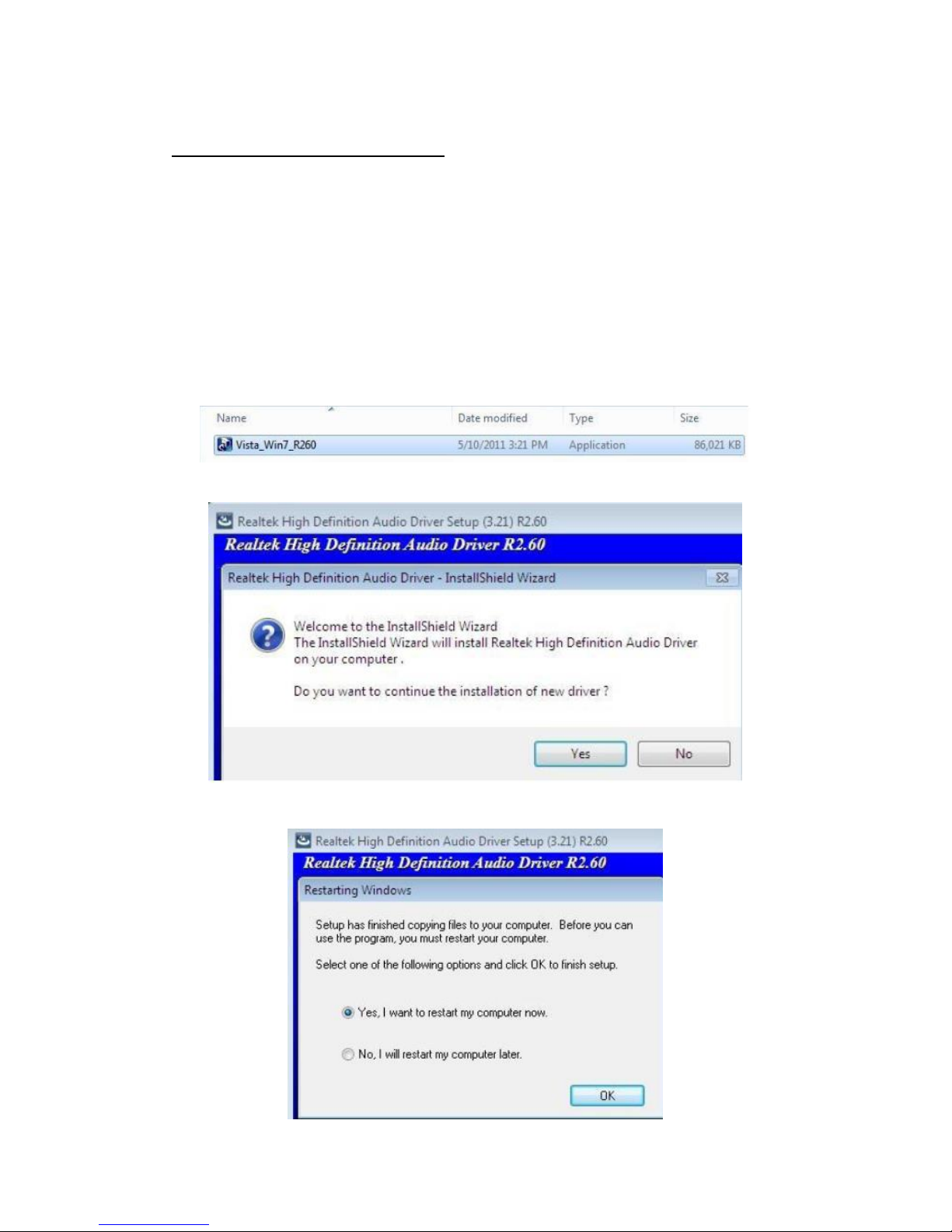

3.4 AUDIO DRIVER INSTALLATION .............................................................................................................. 38

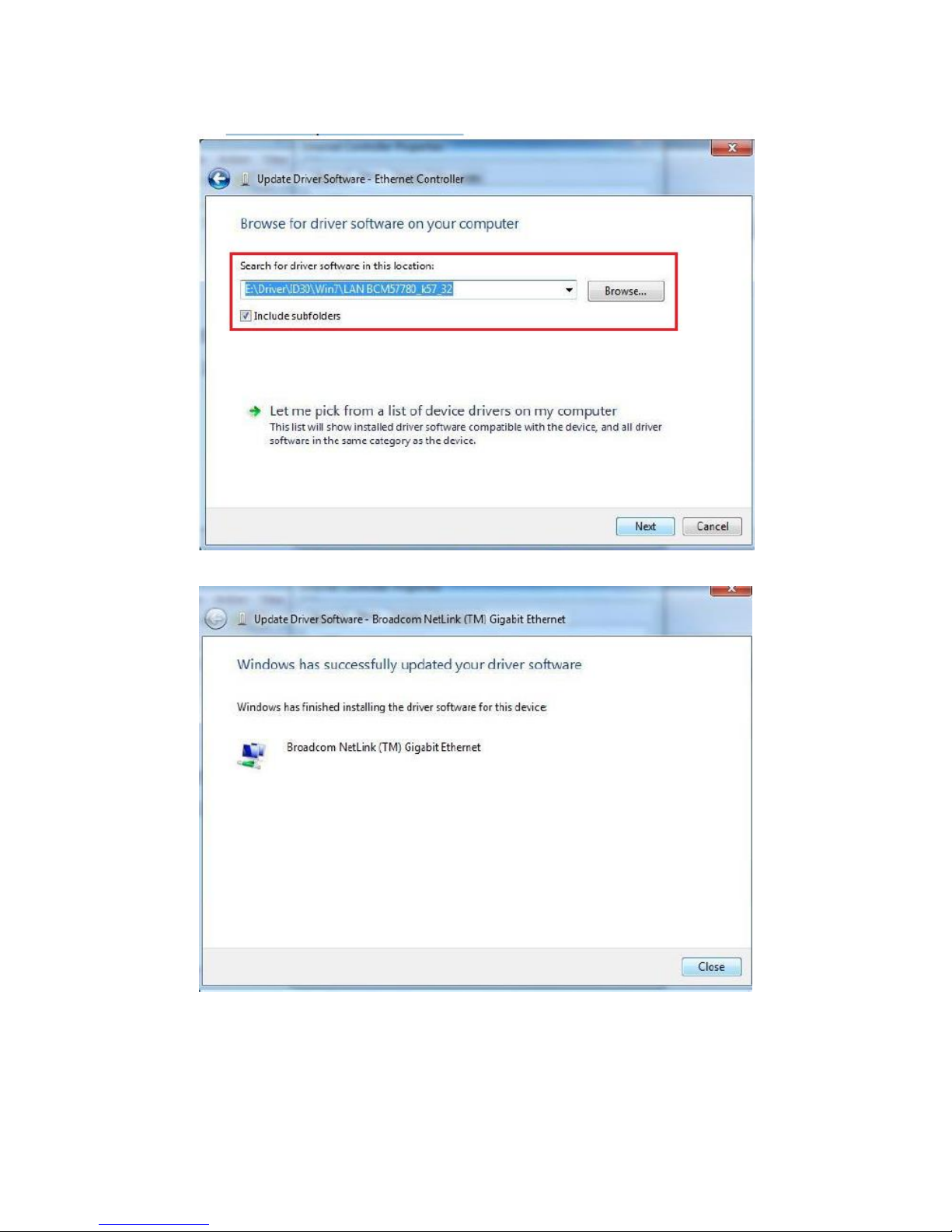

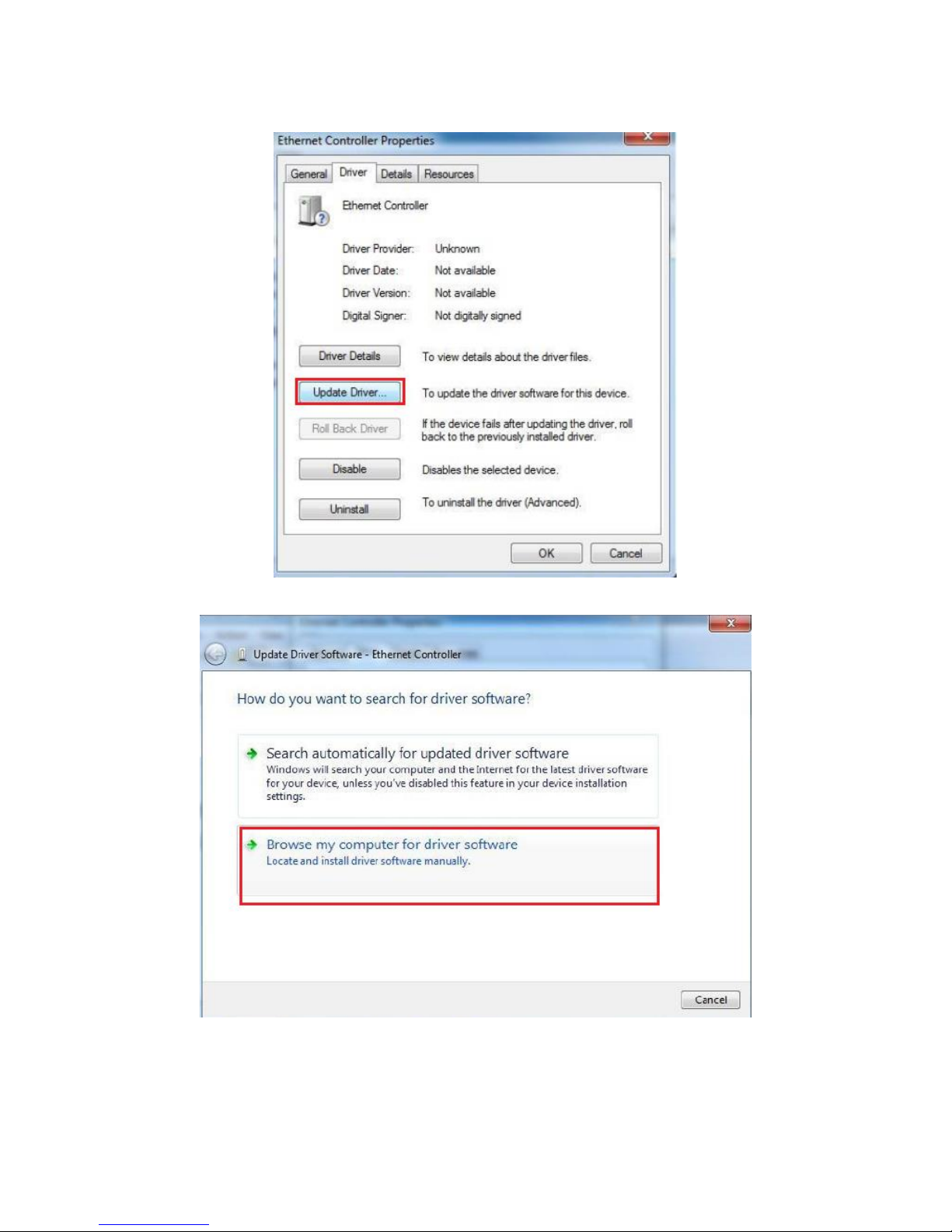

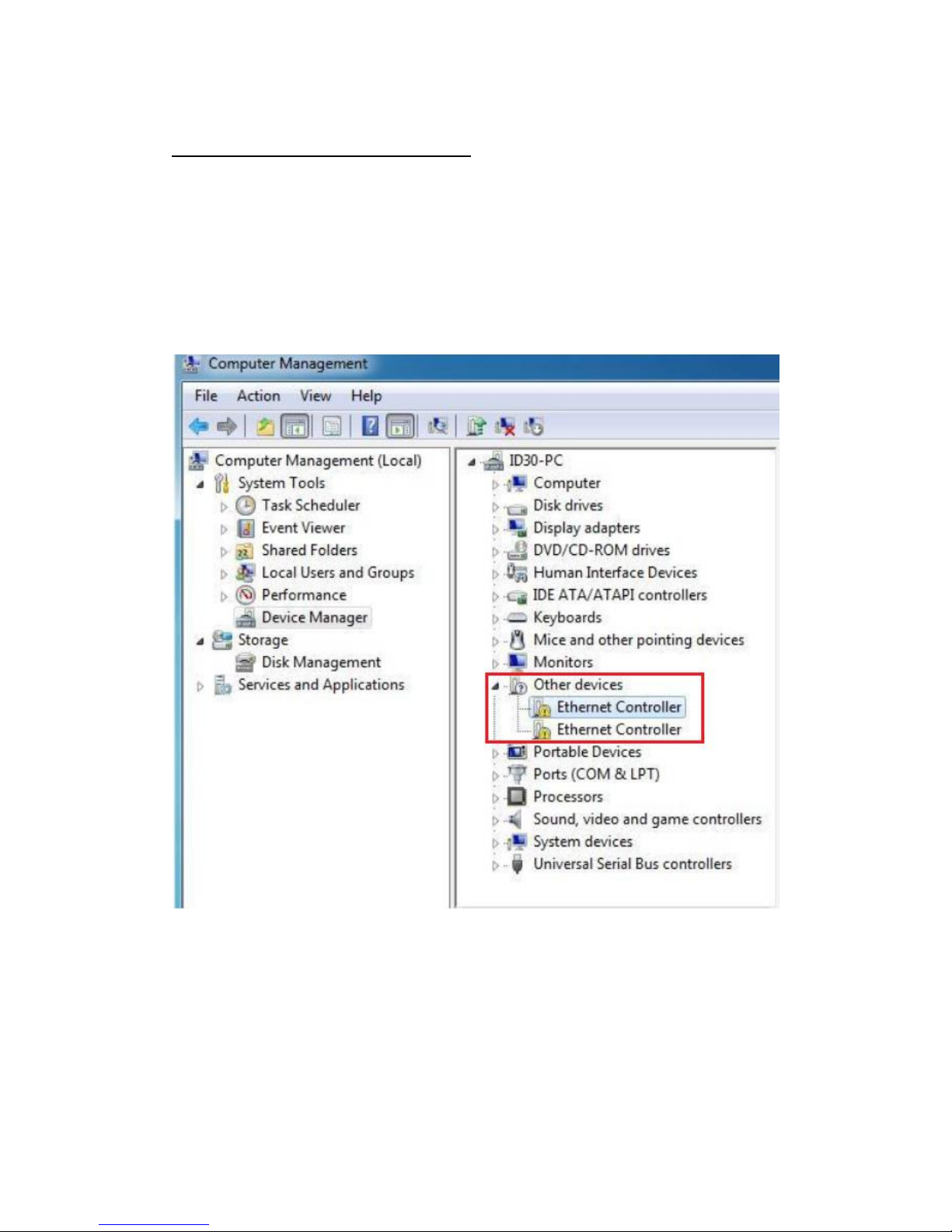

3.5 ETHERNET DRIVER INSTALLATION .......................................................................................................... 39

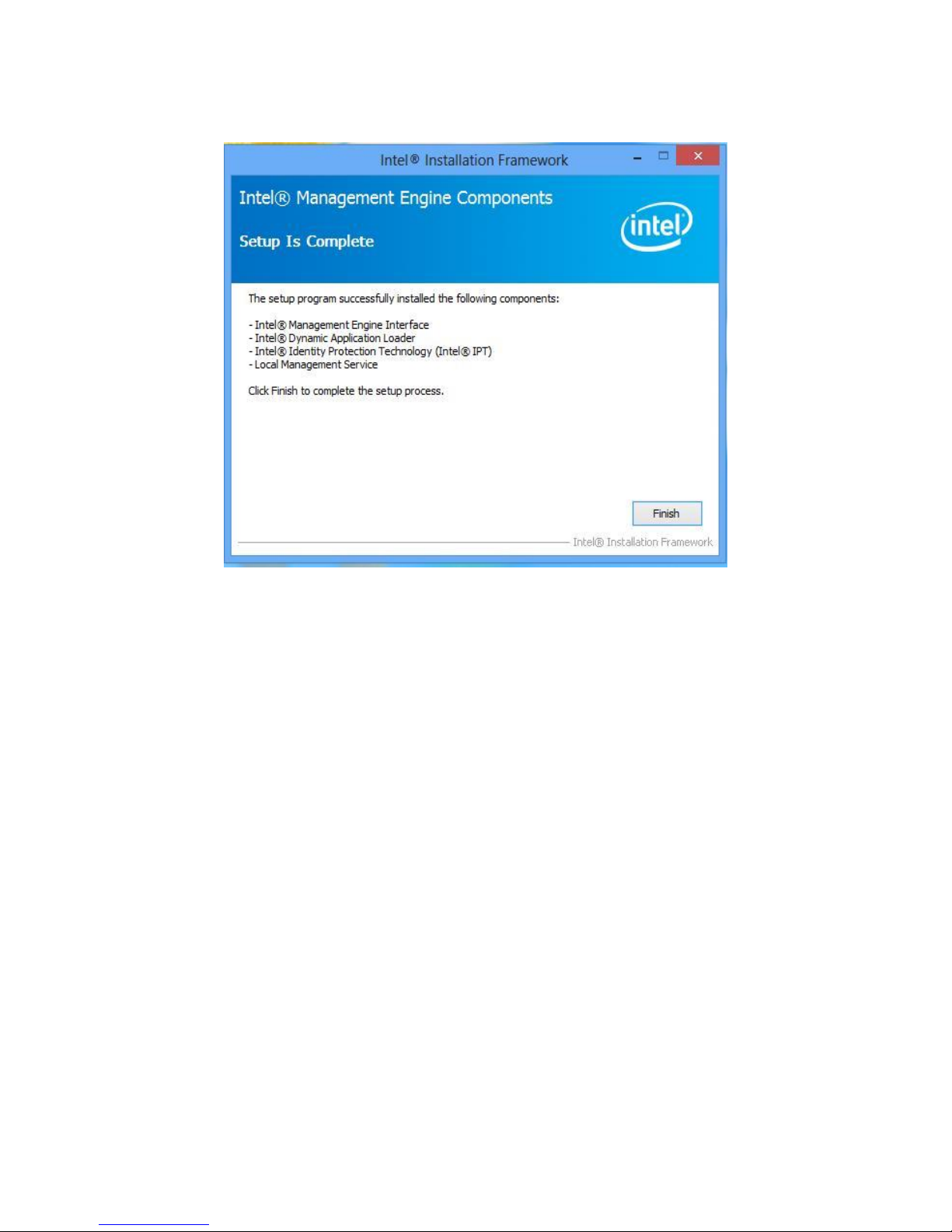

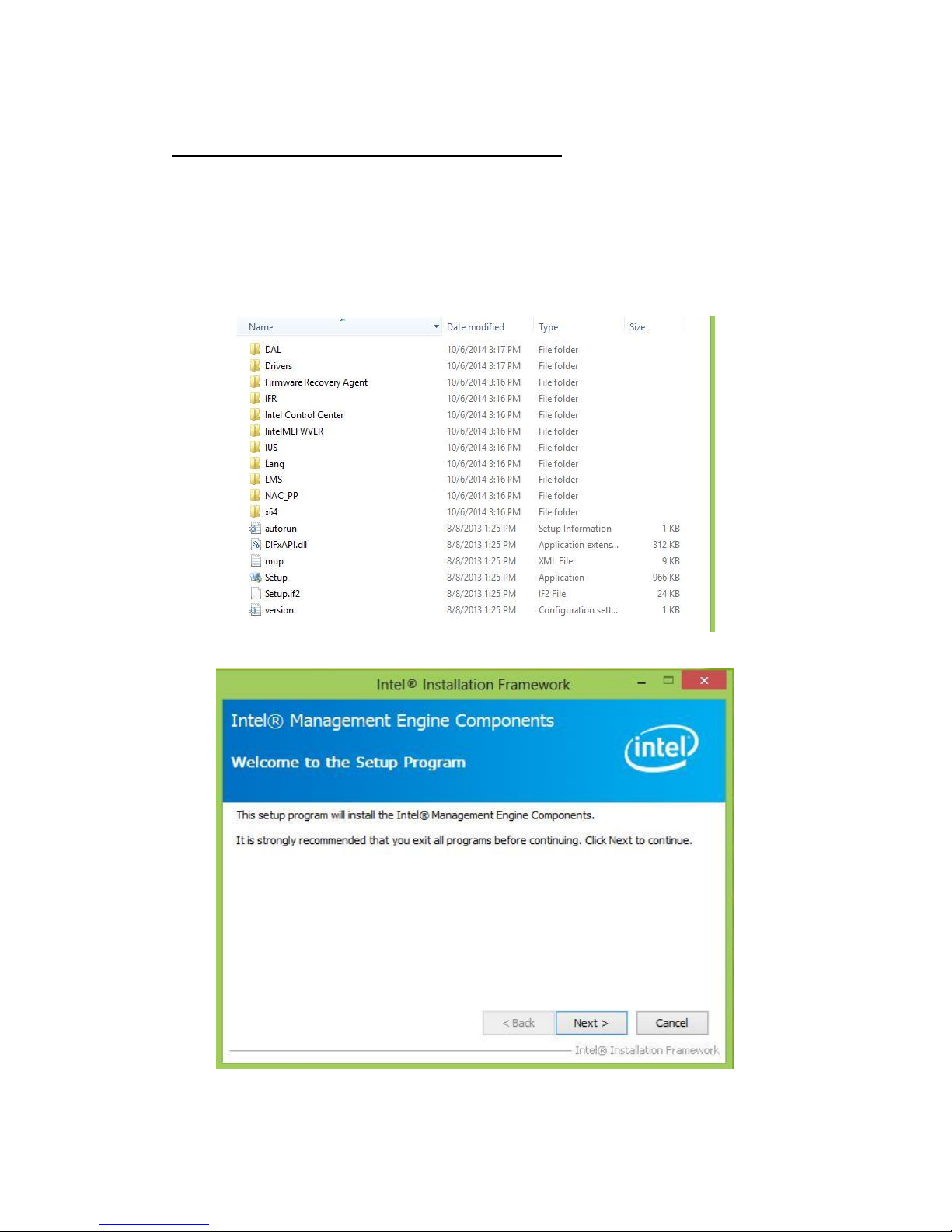

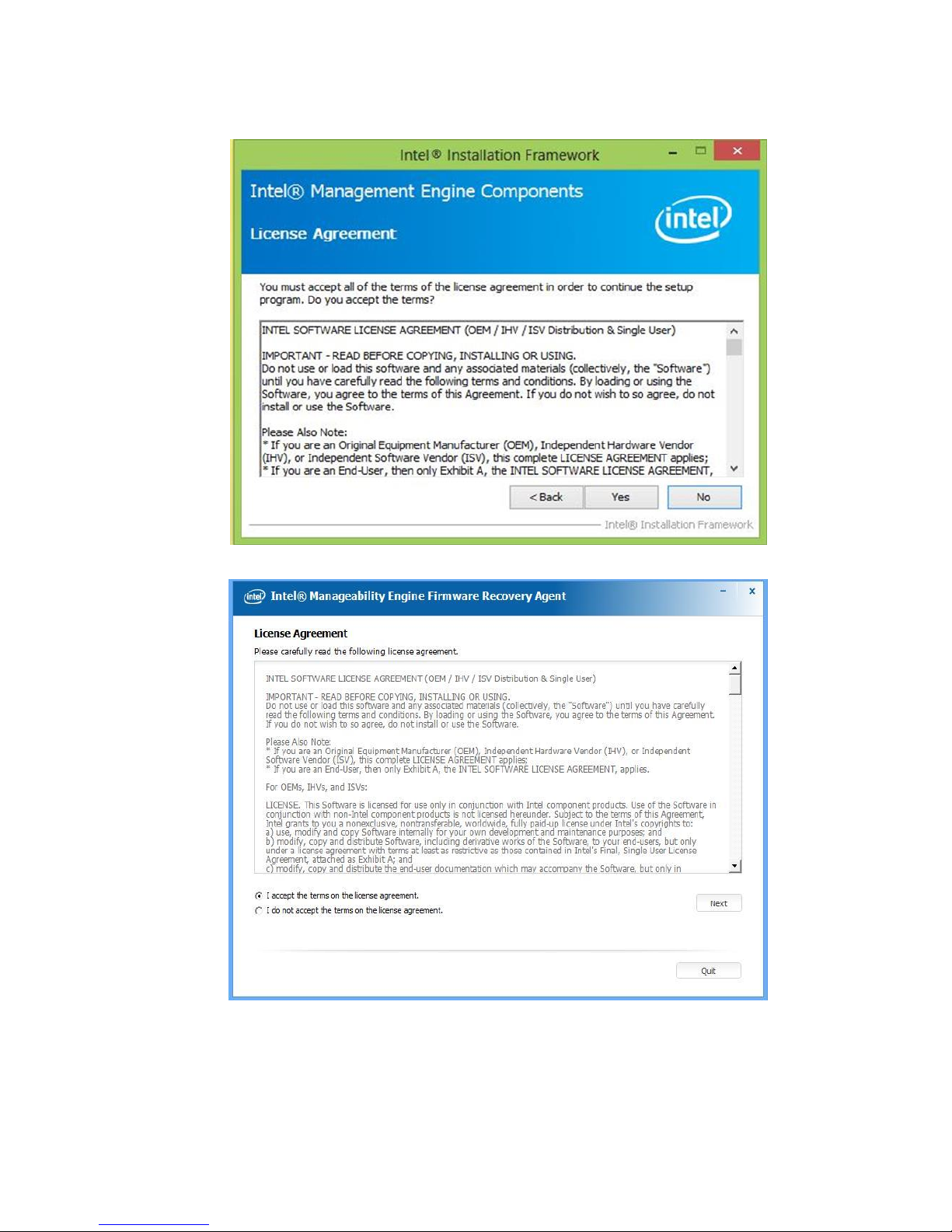

3.6 INTEL® MANAGEMENT ENGINE SOFTWARE ............................................................................................ 42

IV70 Motherboard

VIII

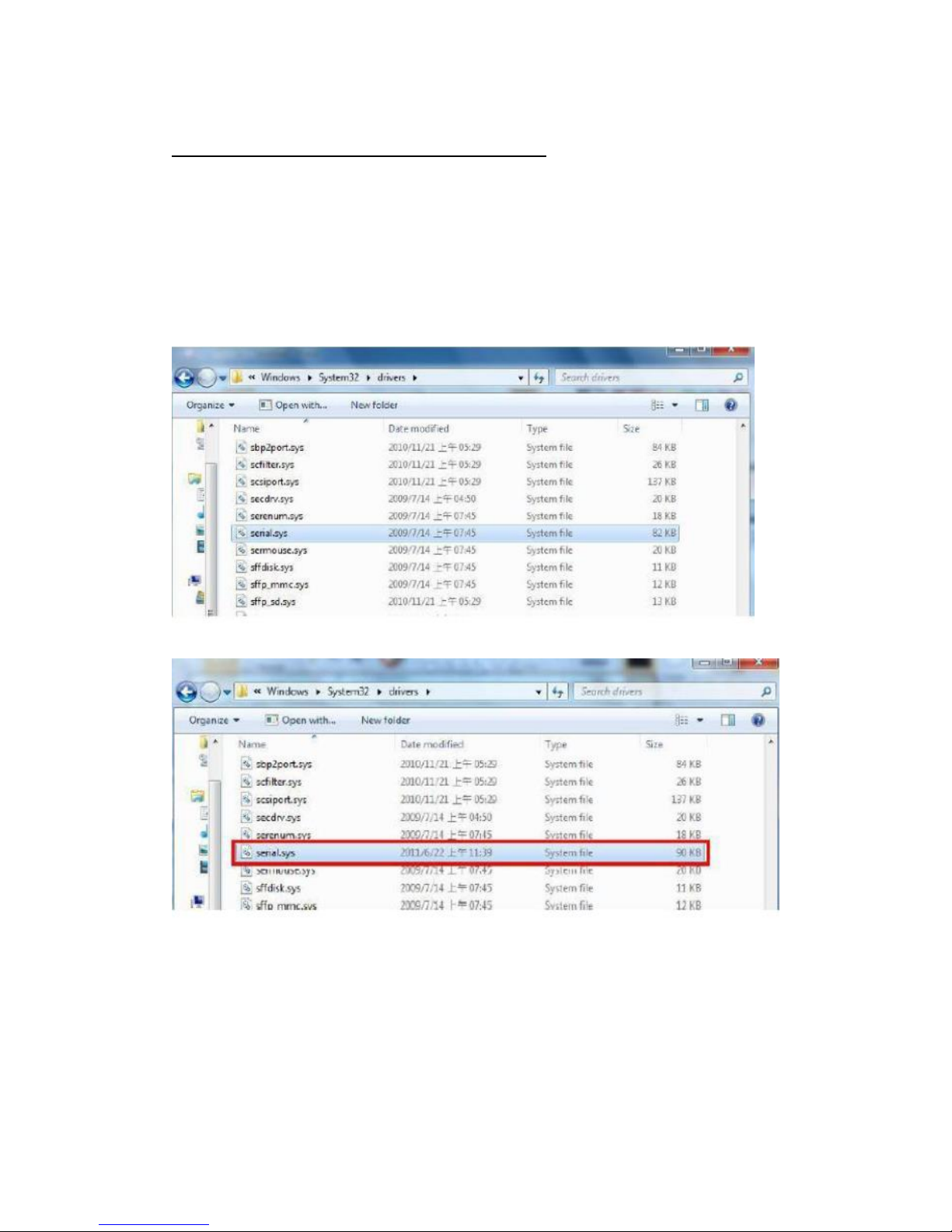

3.7 FINTEK COM PORT DRIVER INSTALLATION ............................................................................................. 45

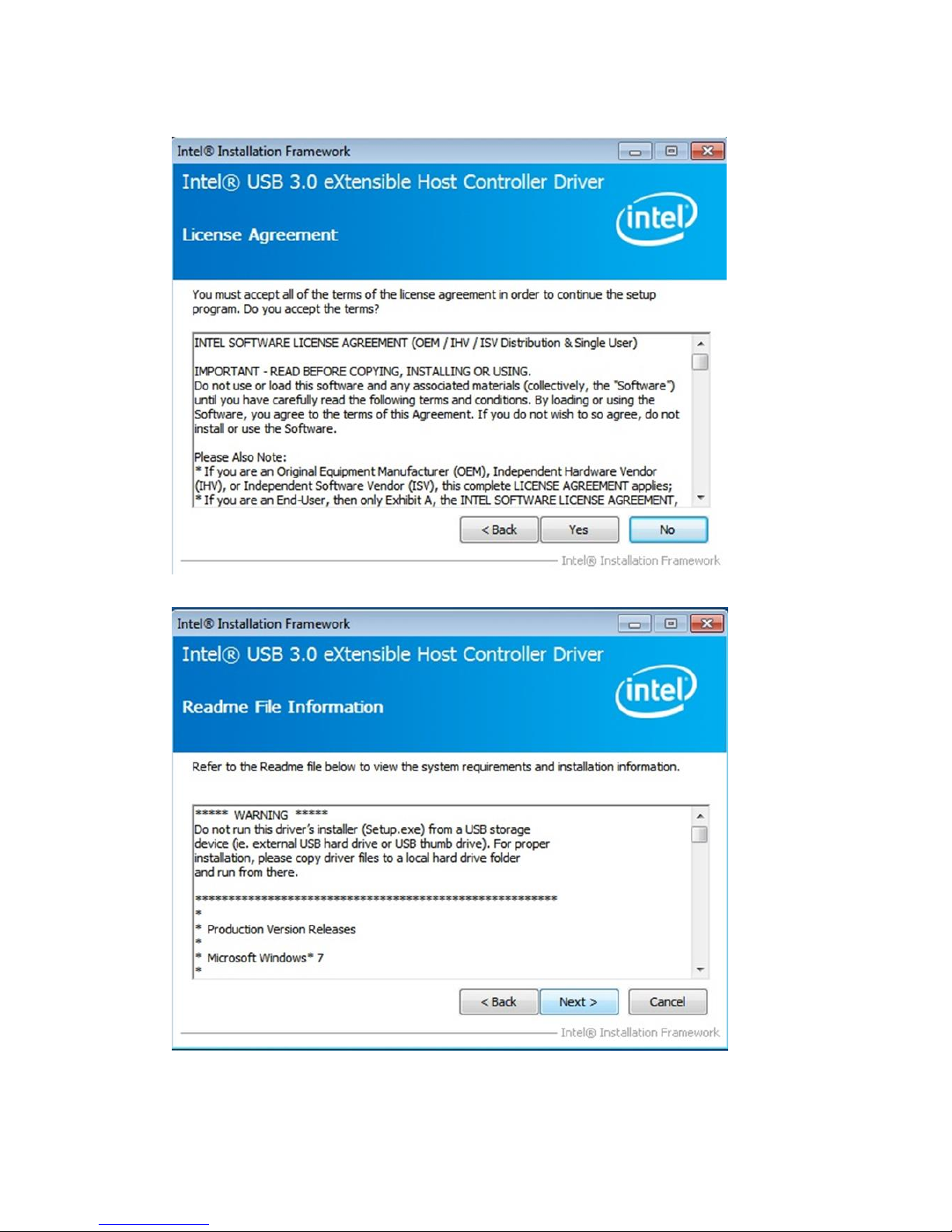

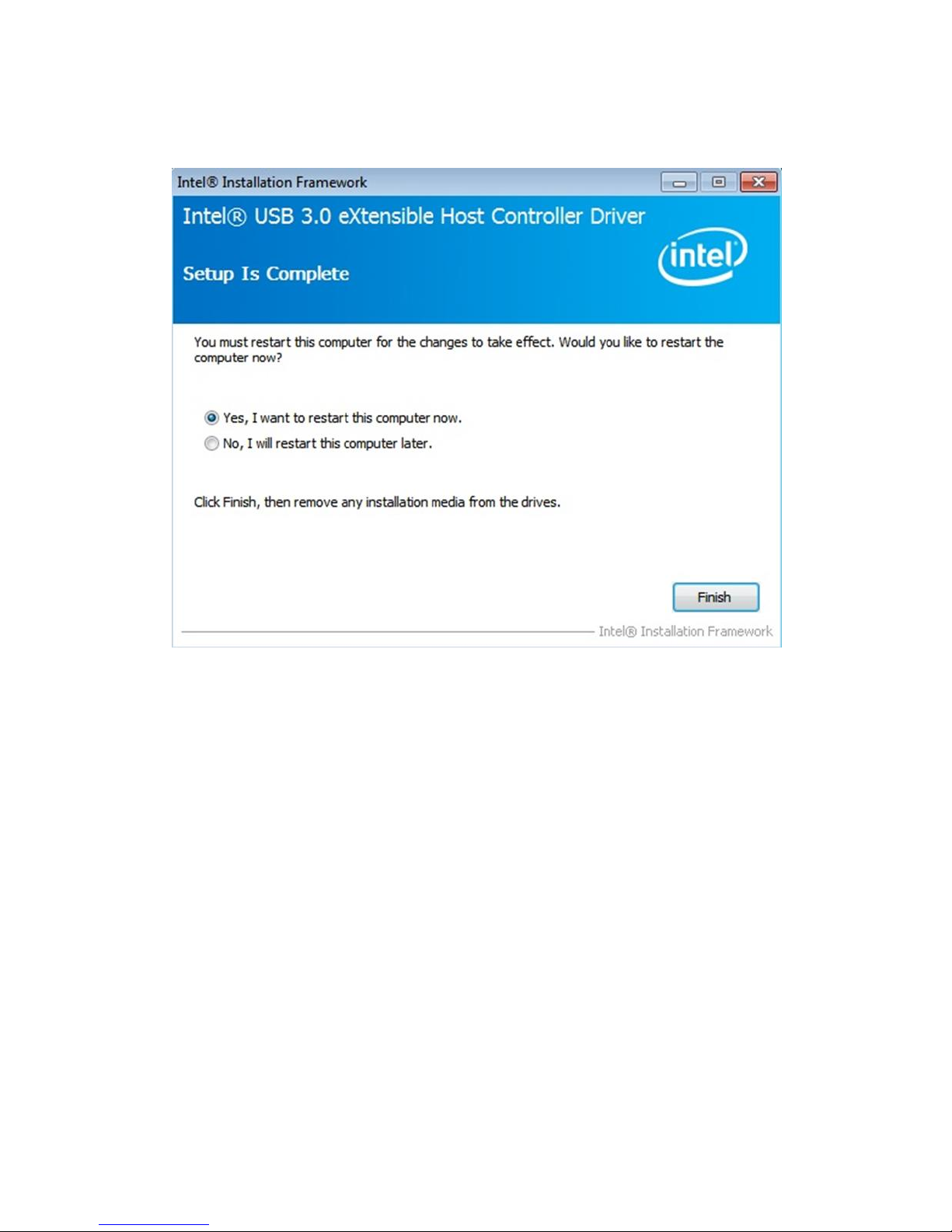

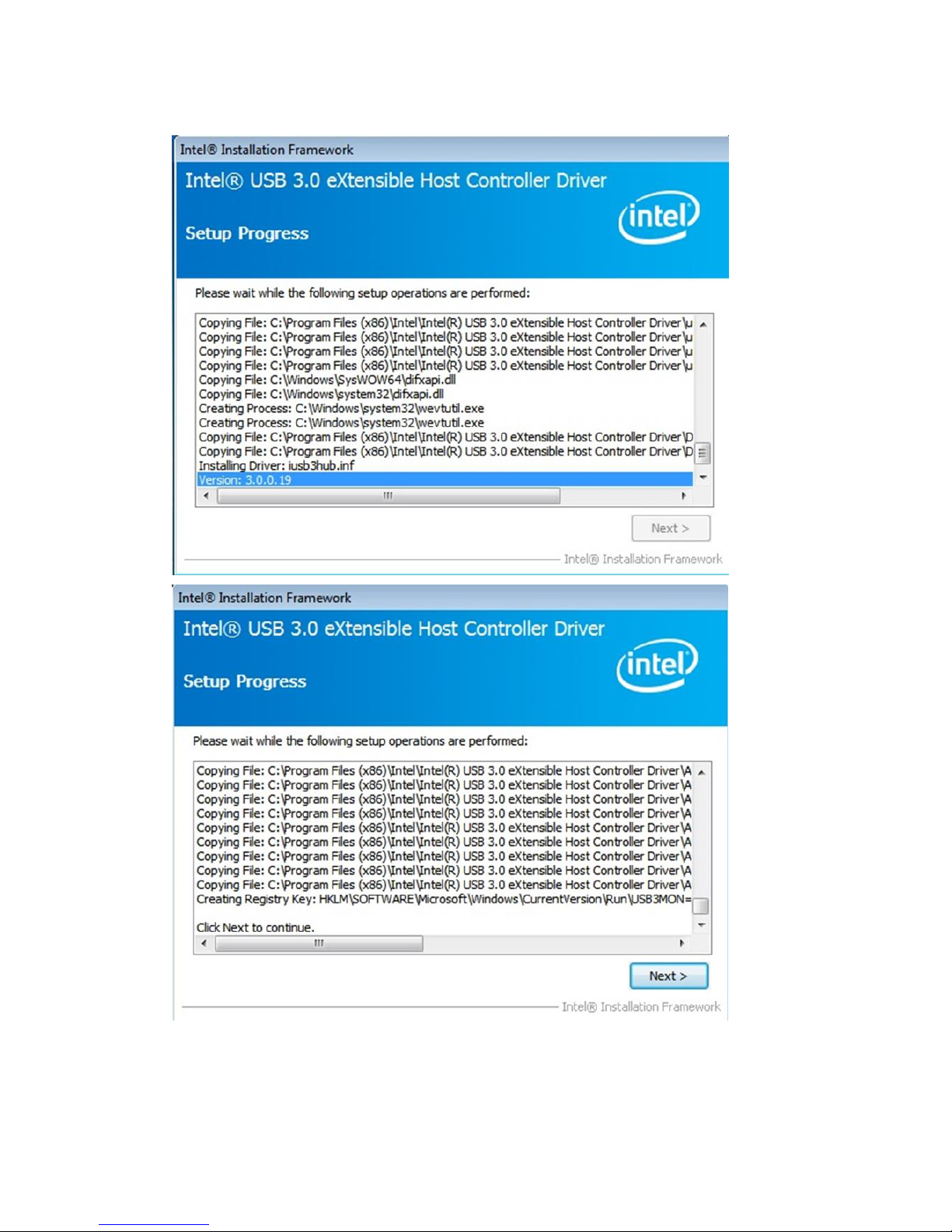

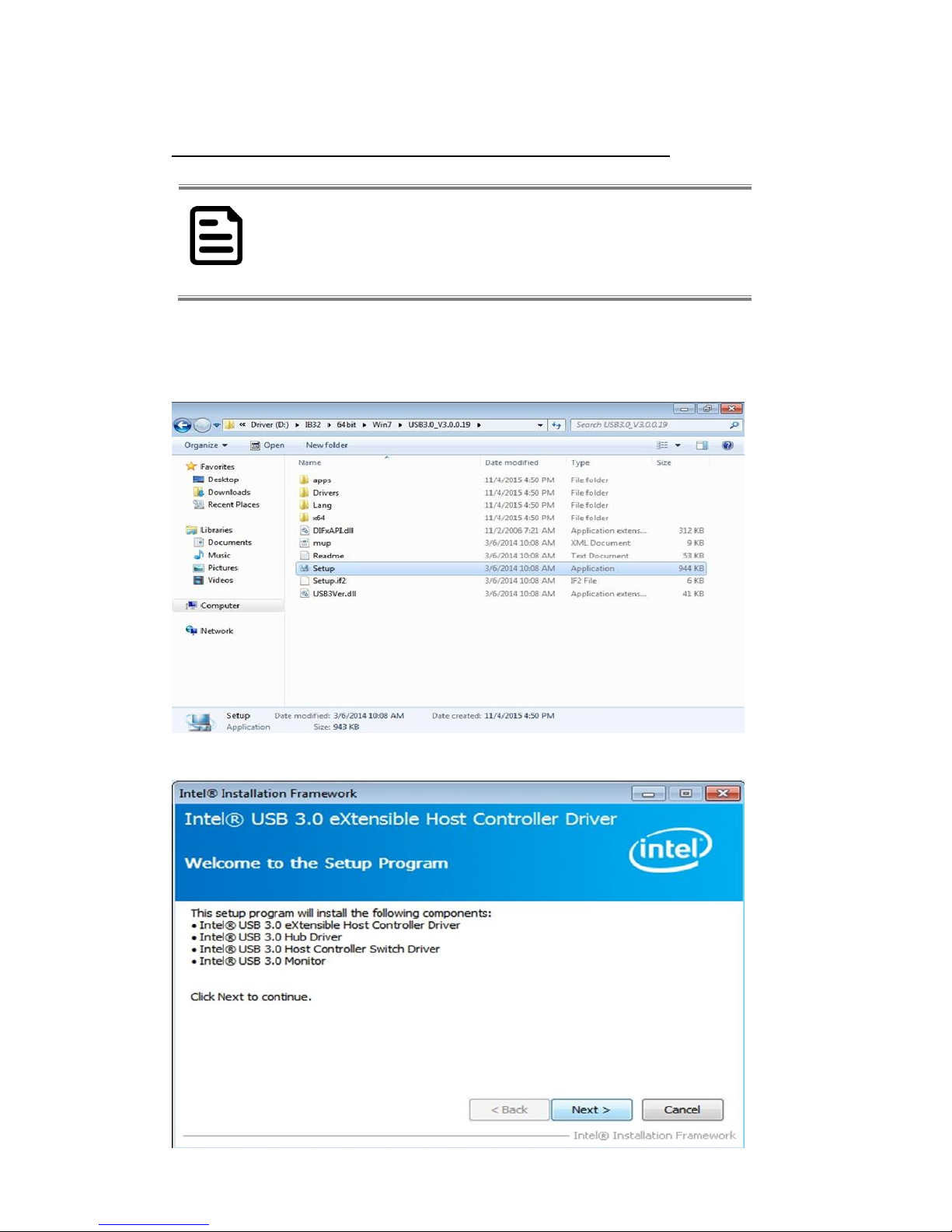

3.8 USB 3.0 DRIVER INSTALLATION (ONLY FOR WINDOWS 7) ......................................................................... 48

CHAPTER 4 AMI BIOS SETUP ............................................................................................................ 53

4.1 WHEN AND HOW TO USE BIOS SETUP ................................................................................................. 53

4.2 BIOS FUNCTIONS ............................................................................................................................. 55

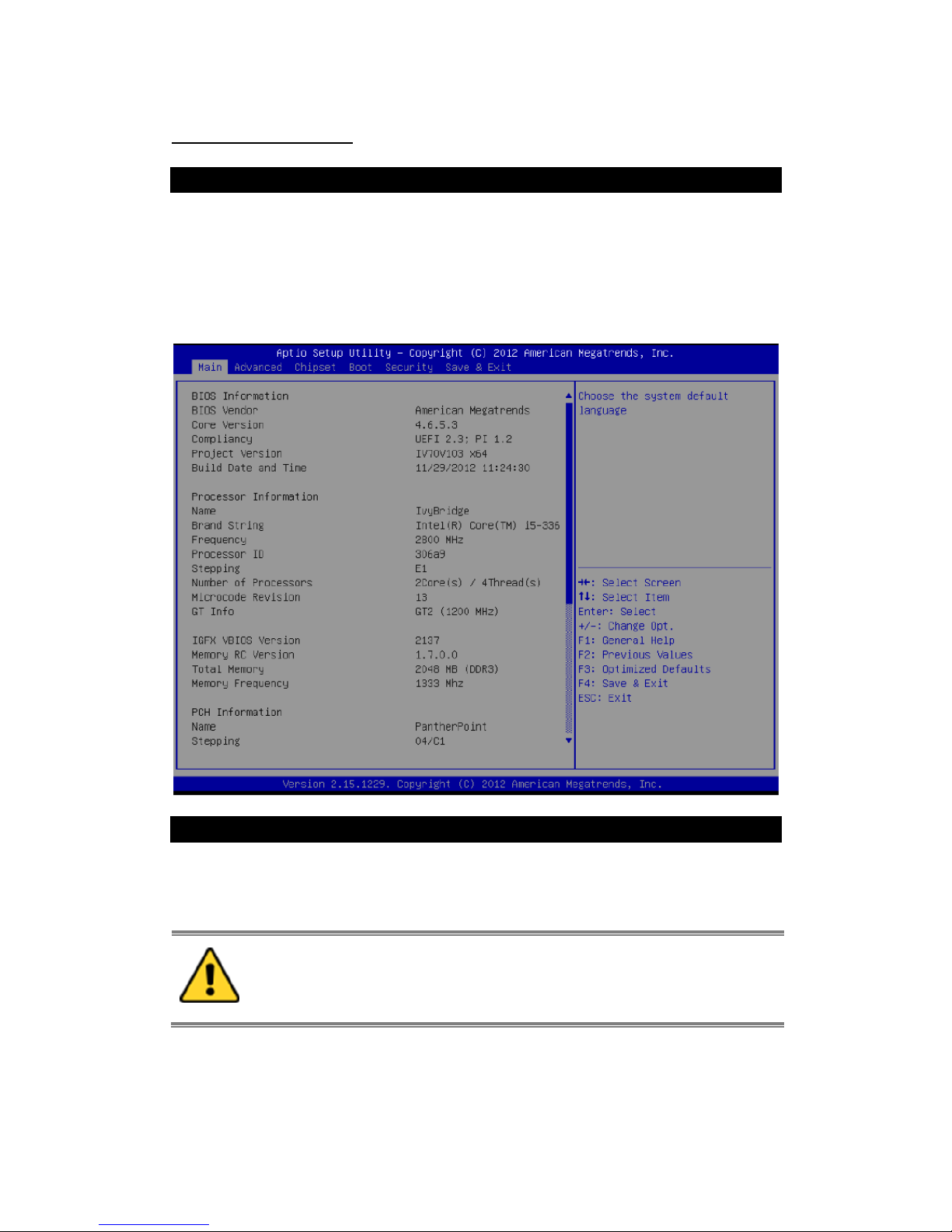

4.2.1 Main Menu ........................................................................................................................... 55

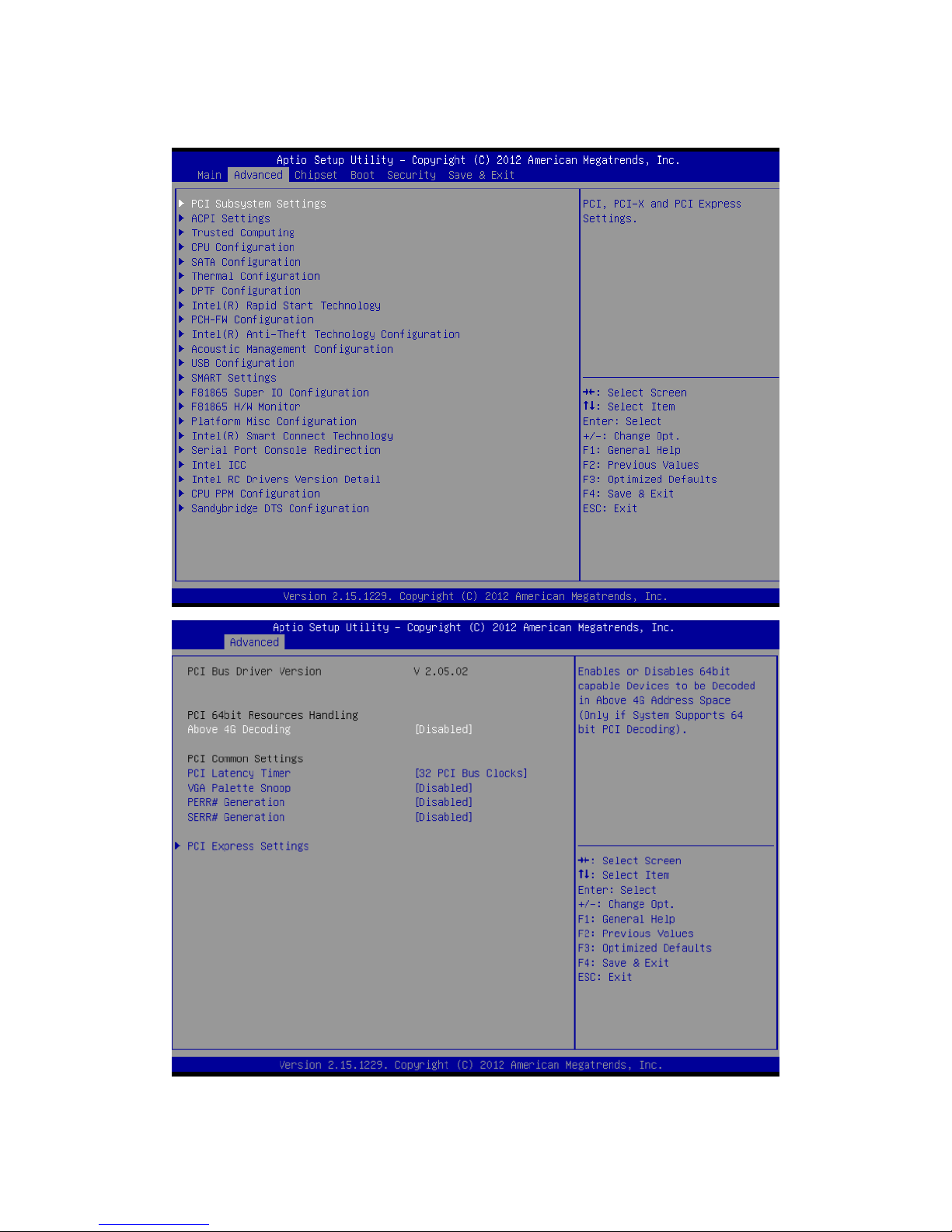

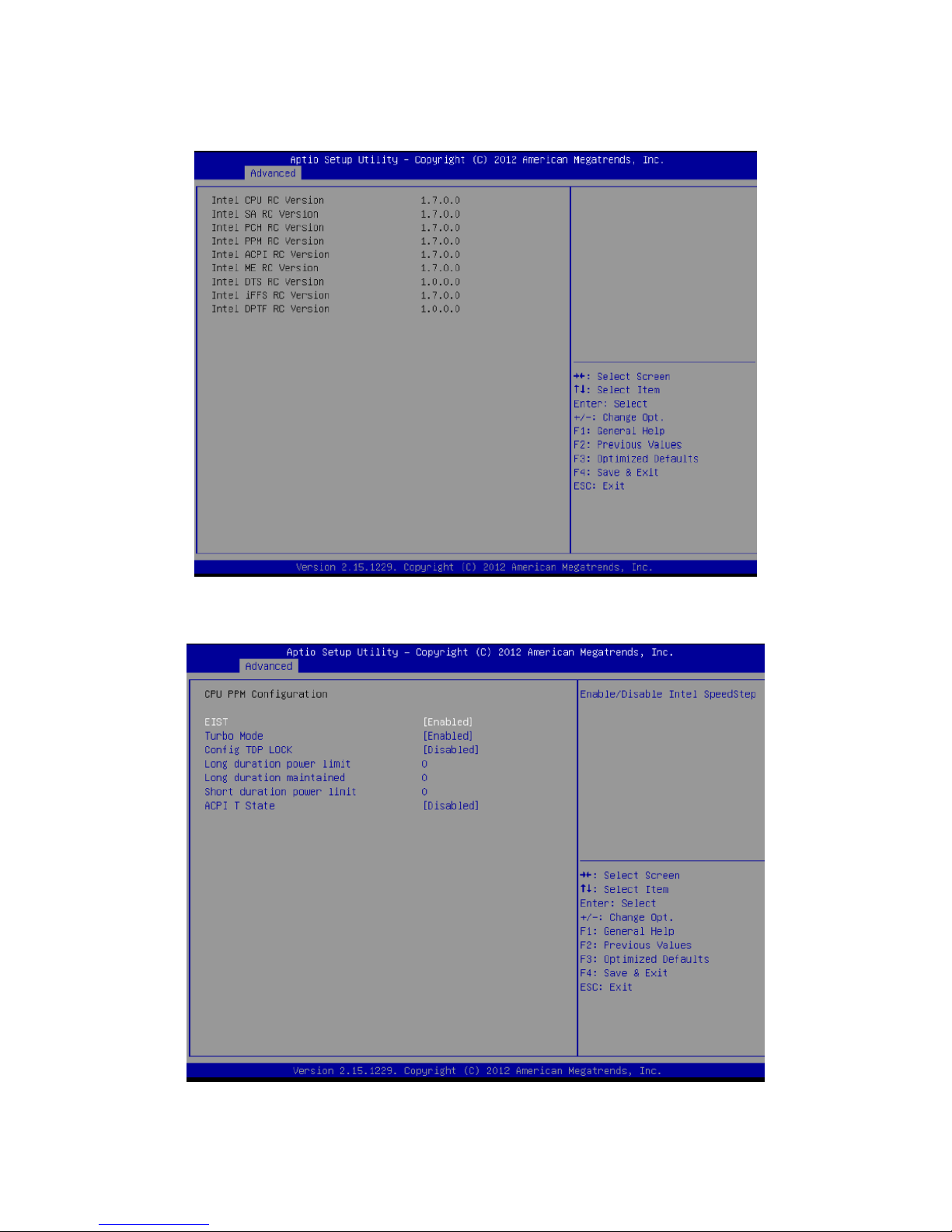

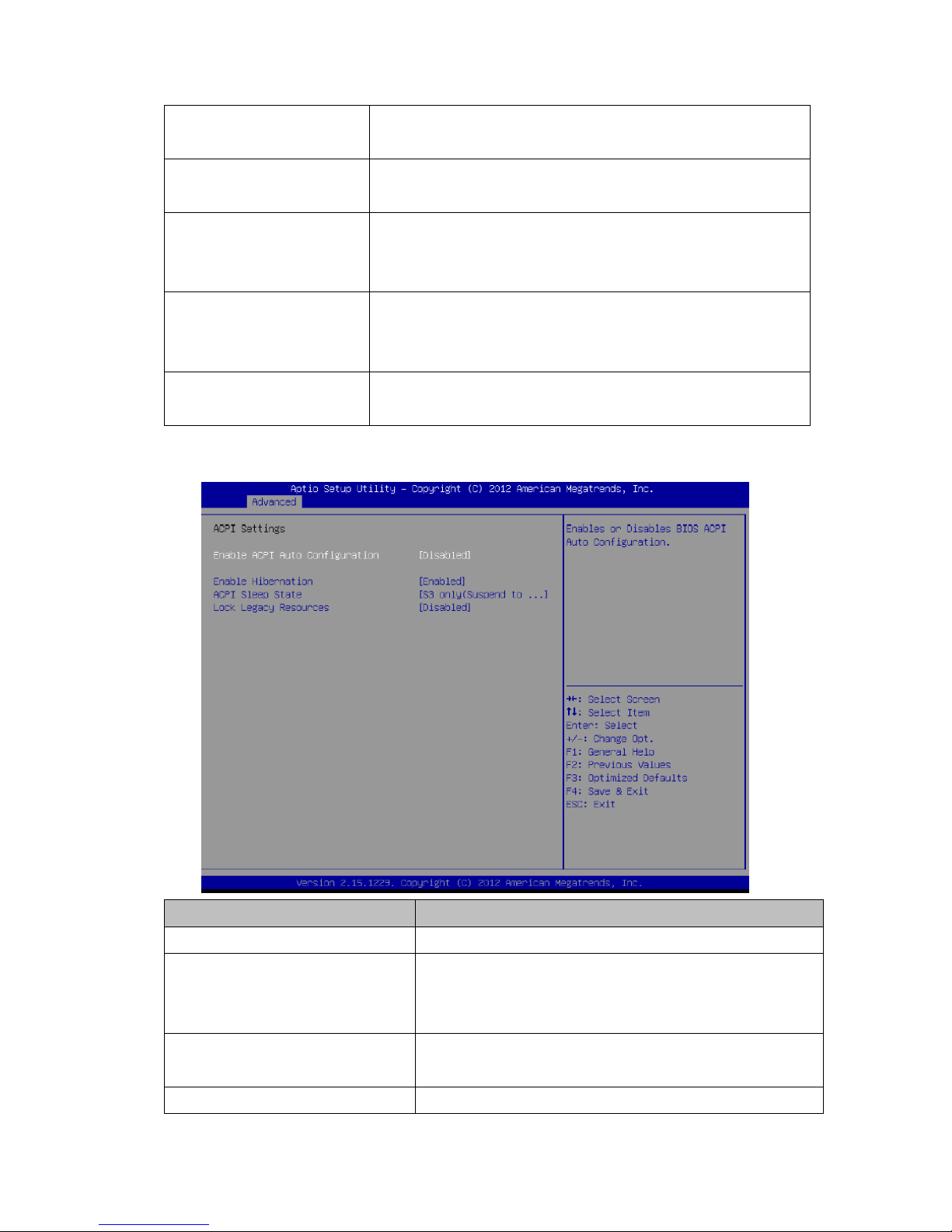

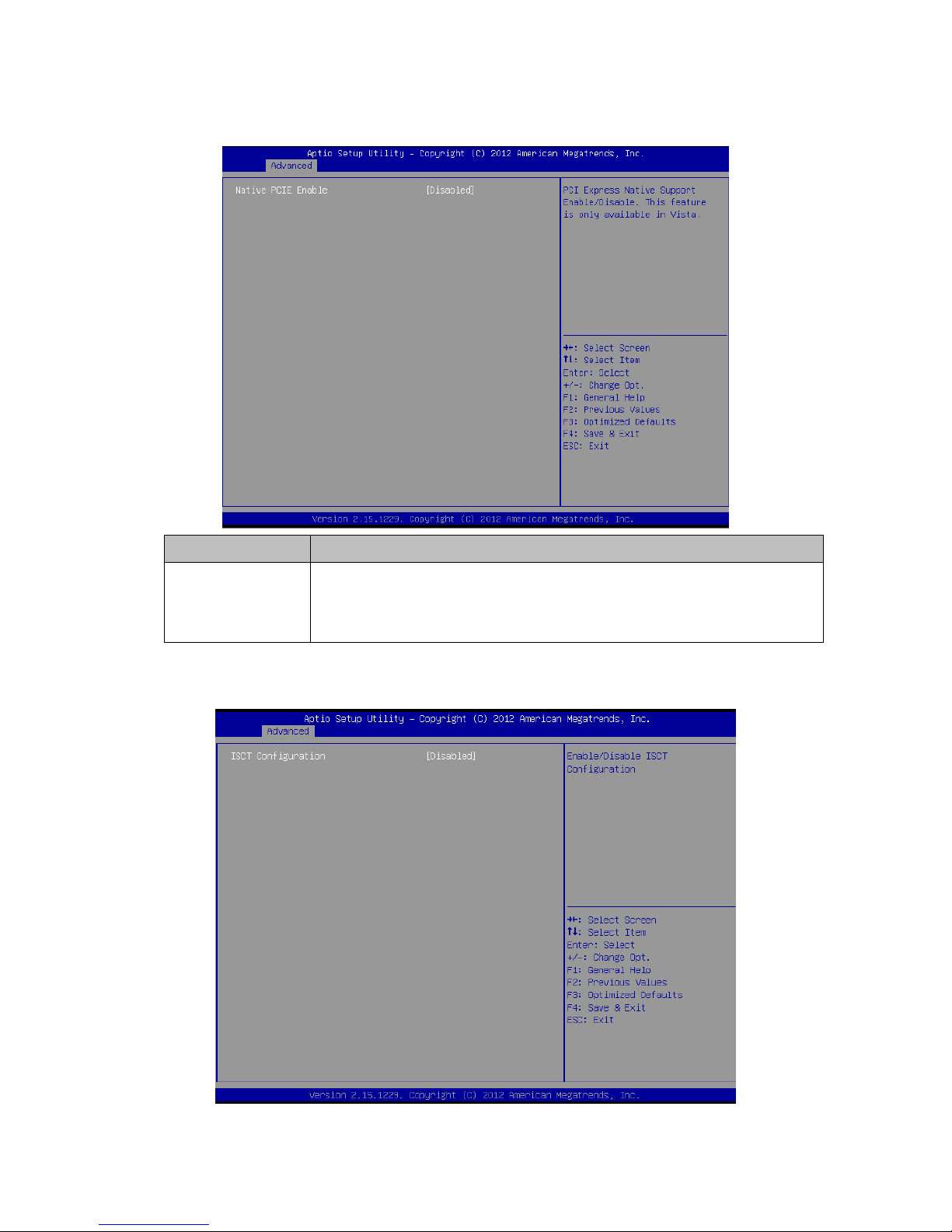

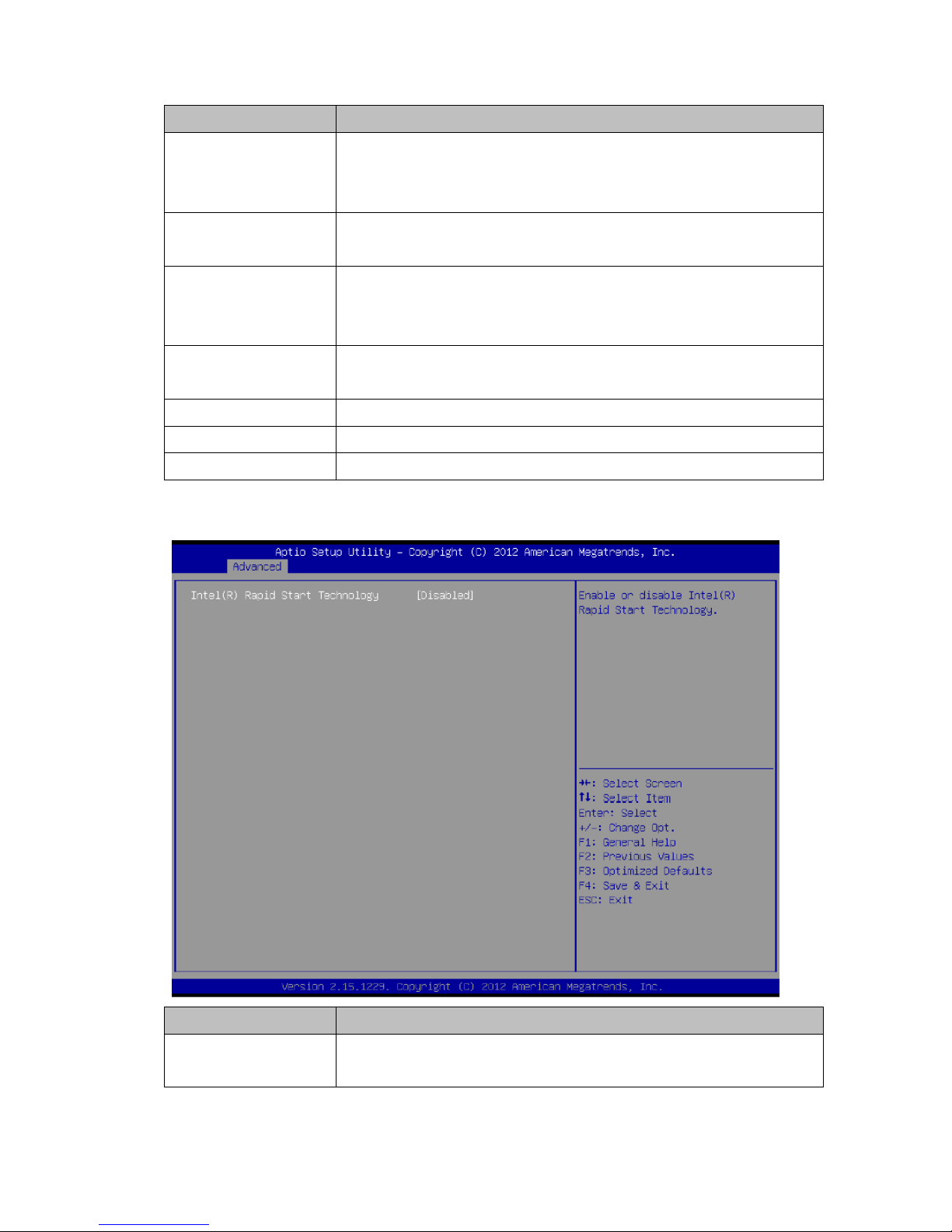

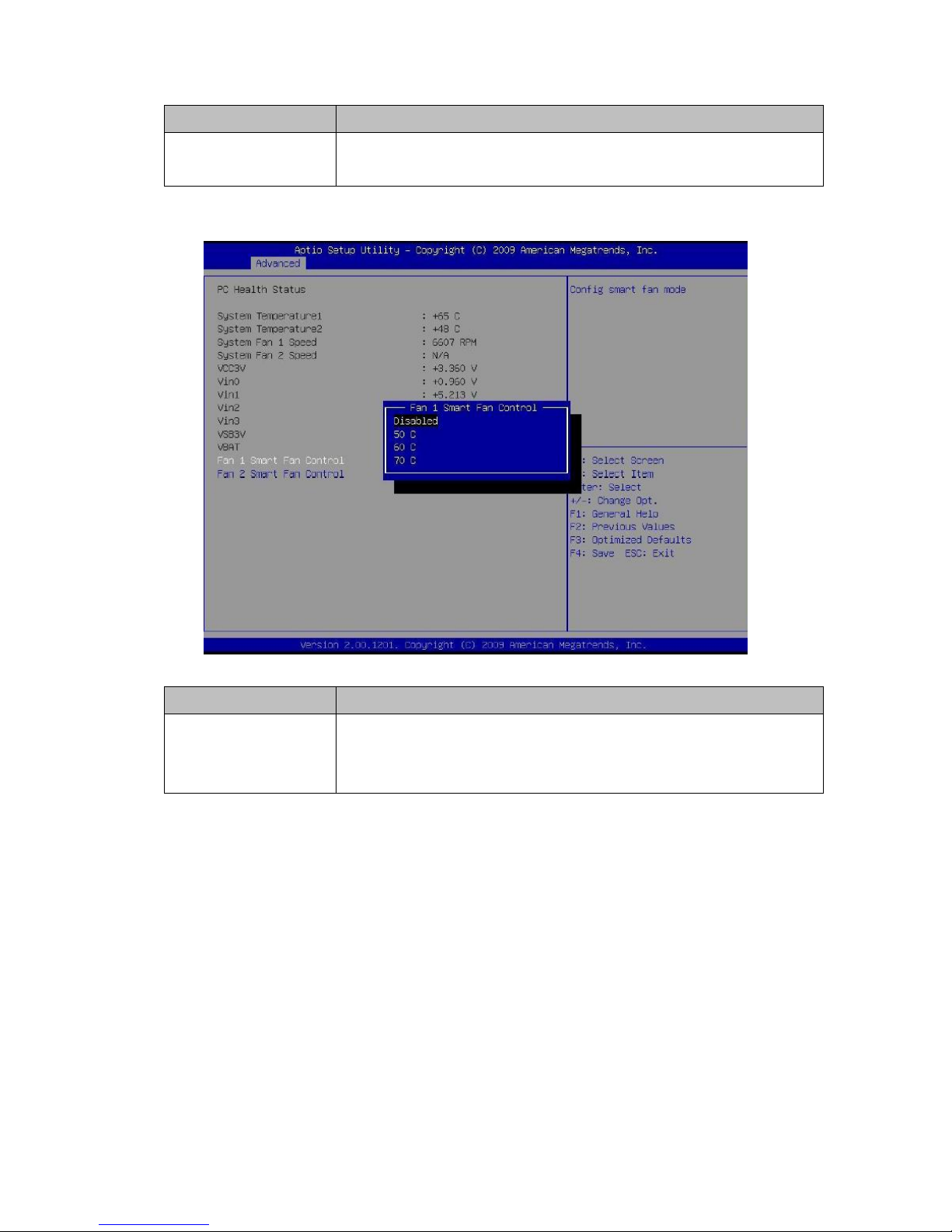

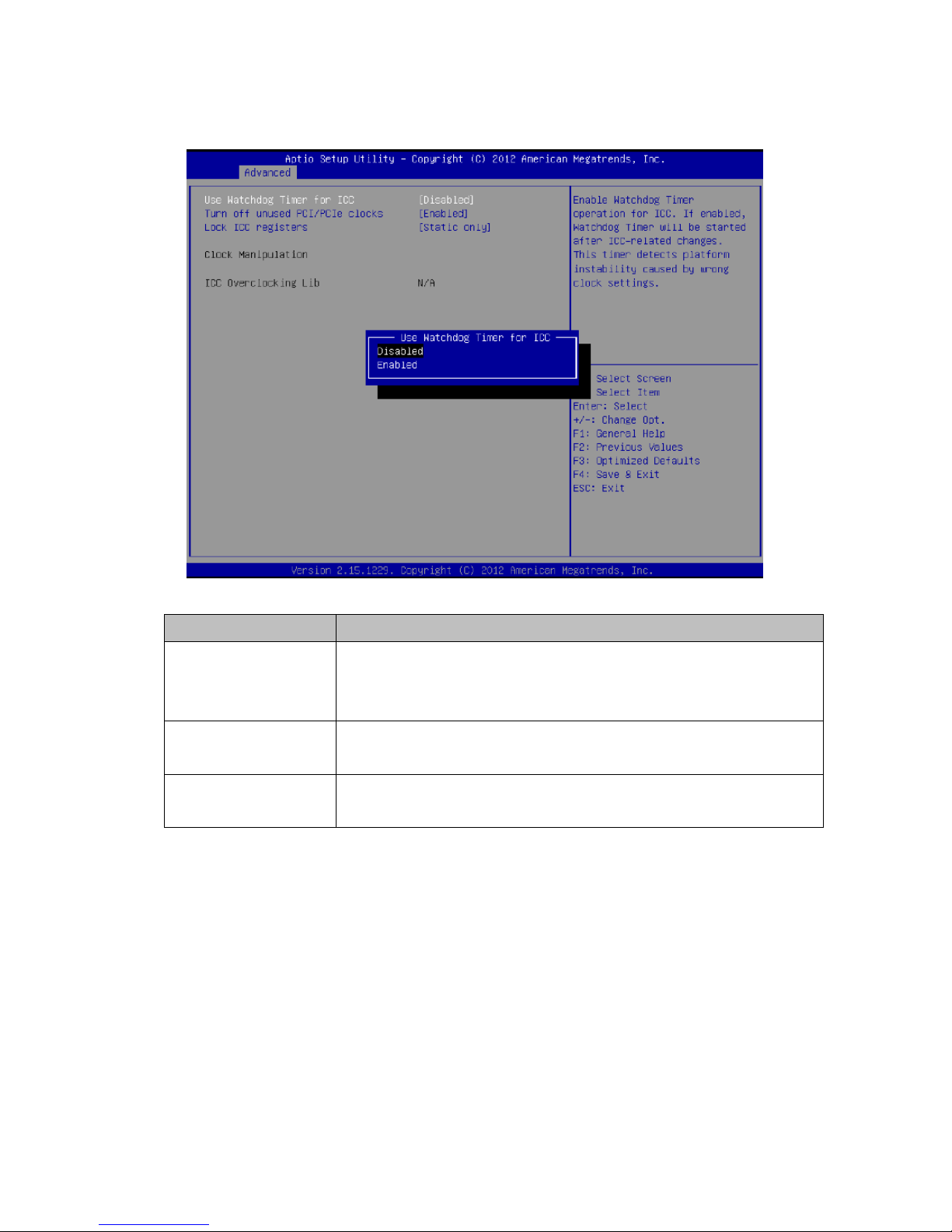

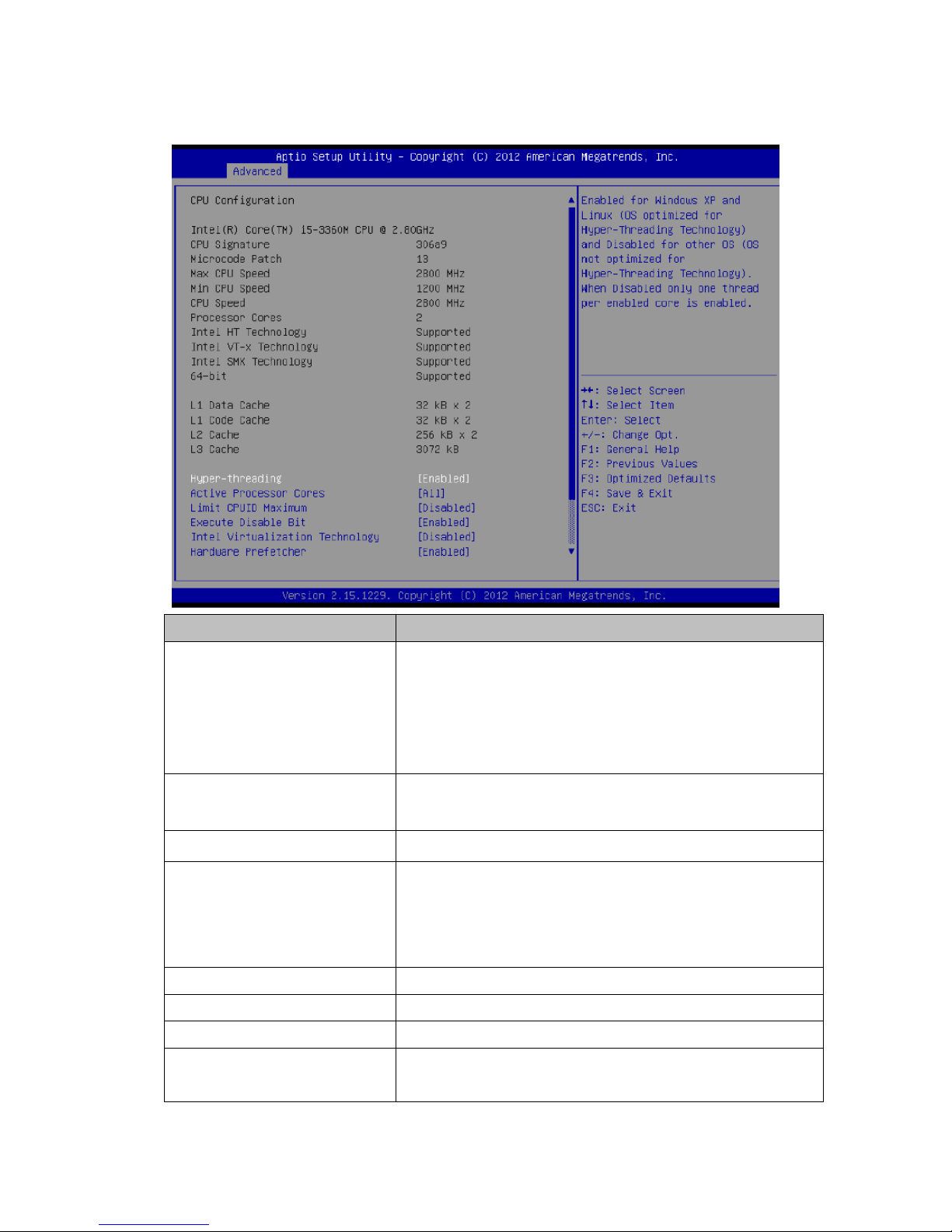

4.2.2 Advanced Settings ................................................................................................................ 55

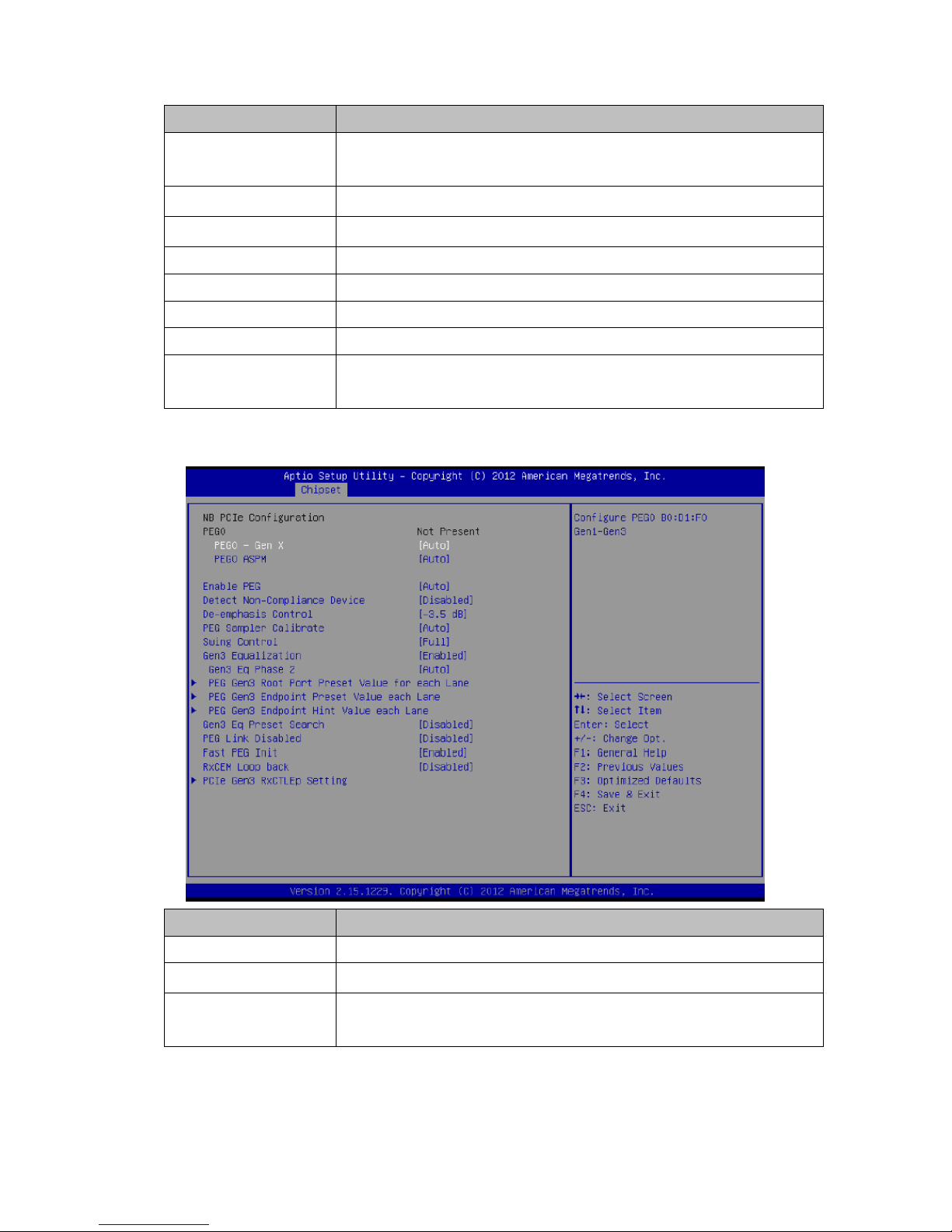

4.2.3 Chipset Setting ..................................................................................................................... 74

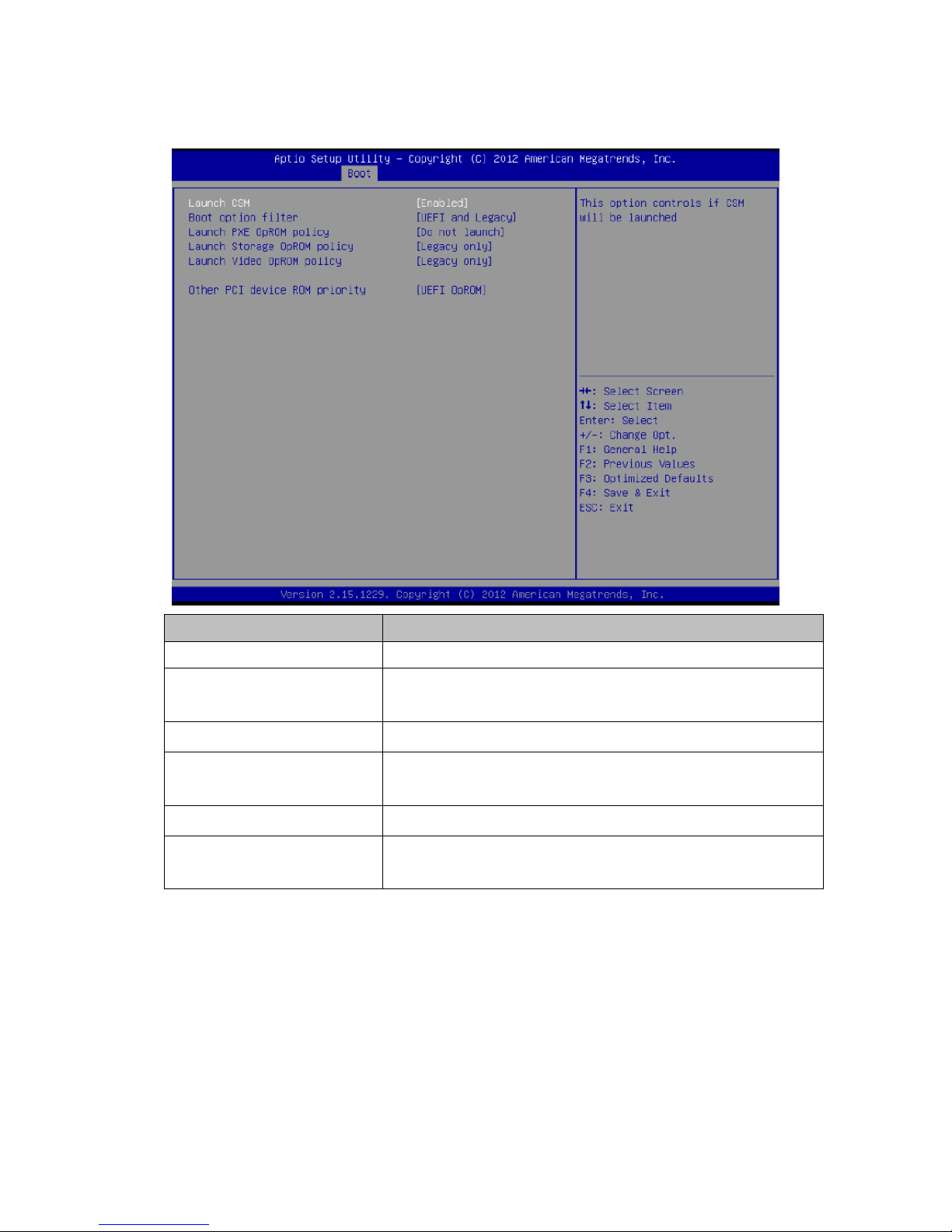

4.2.4 Boot ...................................................................................................................................... 80

4.2.5 Security ................................................................................................................................. 83

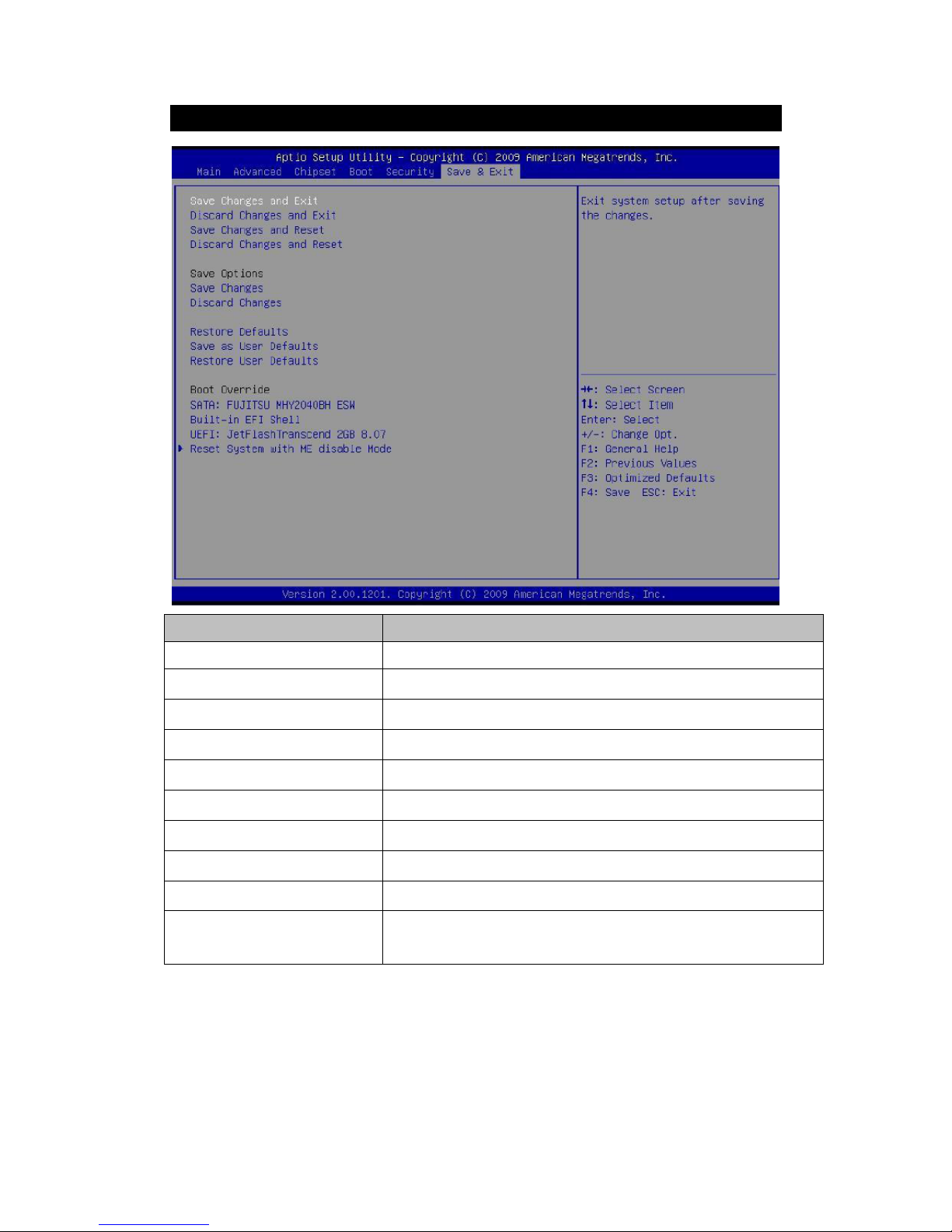

4.2.6 Save & Exit ........................................................................................................................... 84

CHAPTER 5 TECHNICAL SUPPORT ..................................................................................................... 86

5.1 DRIVERS .......................................................................................................................................... 86

5.2 SOFTWARE DEVELOPMENT KIT (SDK) ................................................................................................... 86

IV70 Motherboard

1

General Information

This chapter includes the IV70 Motherboard
background information.

User Manual Chapter 1 General Information

IV70 Motherboard

1

Chapter 1 General Information

This chapter includes the IV70 Motherboard background information.

1.1 Introduction

Thank you for choosing the IV70 Motherboard. The IV70 Motherboard is powered by
Intel® HM76 chipset which designed with Intel’s mobile platform. Intel® HM76 platform
delivers the performance and high scalability cutting-edge embedded computing
application. In peripheral connectivity, IV70 Motherboard features one PCIE x16 and
three Mini-PCIE slot (one for SATA SSD), two SATA connectors (one SATA III), and eight
Hi-Speed USB connectors (four USB3.0 on the I/O side).

Abundant I/O connectors and expandability makes IV70 Motherboard to be the right fit
in the majority of industrial computer applications such as Gaming, POS, KIOSK Systems,
Industrial Automation, and Programmable Control System. Powerful processor in a
compact form-factor meets the demanding performance requirements of today’s
business and industrial applications.

1.2 Features

IV70 Motherboard features:

 Socket G2 for Intel® Core™ i7 / i5 / i3 Processor
 Mini ITX Form Factor ( 170 x 170 mm )
 DDR3 1333/1600MHz Dual-channel
 SO-DIMM support up to 16 GB
 12V Single Voltage Power Input
 Dual display supported by VGA / Dual-channel

 24-bit LVDS / HDMI / DVI

User Manual Chapter 1 General Information

IV70 Motherboard

2

1.3 Motherboard Specifications

System

Specifications

CPU

Socket G2 (PGA988B) Intel® Core™ i3-3120M/ i5-3230M/

i7-3520M

System Memory

Two DDR3 1333/1600MHz SO-DIMM ( max. 16GB )

Chipset

Intel® 7 series Chipset HM76(QM77 optional)

BIOS

AMI UEFI BIOS

Super IO Chipset

FINTEK F81865

Audio

Realtek ALC888 HD codec (Line-in, Line out, Mic-in)

Ethernet

Broadcom BCM57780 GbE controller

Display

Specifications

Display Interface

Supports DirectX 11 and OpenGL 4.0

Analog monitor resolution up to 2048 x 1536 @75Hz

HDMI/DVI interface supports max. resolution 2560 x 1600

@60Hz

Dual-channel 18/24-bit LVDS, supports max resolution 1920

x 1200 @60Hz

I/O Ports

Specification

Rear I/O

4 x USB 3.0

2 x RS-232 (COM3, COM4)

1 x RS-232/422/485 (COM1)

2 x RJ-45 for LAN

1 x VGA

1 x Audio Jack (Line-in, Line-out, Mic-in)

2 x PS/2 (KB/MS)

1 x (+12V) DC-in Power Jack

Internal I/O

1 x RS-232 (COM2) 2x5 pin-header

2 x RS-232 (COM5, COM6) 2x10 pin-header

4 x USB 2.0

1 x DVI/HDMI by FFC connector

1 x LVDS

1 x SATA II, 1 x SATA III

1 x 2x4-pin wafer for SATA power

2 x 2-pin pin-header for speaker (with Amplifier): Left, Right

1 x 10-pin pin-header for DIO

1 x 3-pin digital panel backlight brightness controller

1 x 7-pin inverter

1 x 2x2-pin DC-in 12V connector

1 x 10-pin wafer for Front Panel(2x5)

User Manual Chapter 1 General Information

IV70 Motherboard

3

2 x 2-pin wafer for +5V external power (Red)

1 x 2-pin wafer for 12V external power (Yellow)

1 x 3-pin pin-header for CPU Fan (smart fan)

Expansions Slot

1 x Mini PCIe Slot (for mSATA SSD, Support SATA 3.0)

1 x Mini PCIe Slot (for Full size module)

1 x Mini PCIe Slot (for half size Wifi module)

1 x PCIe (x16) slot 1 x PCIe ( x 4 ) slot

Mechanical

Specifications

Dimensions

(W x L)

170 x 170 mm

Environment

Considerations

Operating Temp.

-20°C ~ 60°C

Storage Temp.

-40°C ~ 70°C

Operating

Humidity

10% ~ 95%, non-condensing

Power

Management

Power Supply

+12V Power Input

Packing List

Standard

IV70-100 Single Board Computer

IV70 SBC Use Manual V1.0

IV70 Manual & Driver CD V1.0

User Manual Chapter 1 General Information

IV70 Motherboard

4

1.4 Functional Description

Function block (V120)

User Manual Chapter 1 General Information

IV70 Motherboard

5

1.5 Physical Description

Board Dimensions (V120)

IV70 Motherboard

6

Hardware Installation

This chapter provides information on how to use
jumpers and connectors on the IV70 motherboard.

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

7

Chapter 2 Hardware Installation

This chapter provides information on how to use jumpers and connectors on the
IV70 Motherboard. Be cautious while working with these modules. Carefully read the
content of this chapter in order to avoid any damages.

2.1 Motherboard Components

2.1.1 Front Side

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

8

2.1.2 I/O Side

2.2 Memory Module (SO-DIMM) Installation

The IV70 SBC Motherboard has two 204-pin SODIMM slot. The socket supports up to
8GB DDR3L 1333/1600 SDRAM. When installing the –memory unit, please follow the
steps below:
Step 1 Firmly insert the SO-DIMM at an angle of about 30-degree into the slot. Align
the SO-DIMM with the slot until it is fully inserted. The notch on the SO-DIMM
should match the break on the slot.
Step 2 Press downwards on SO-DIMM until the retaining clips at both ends fully snap
closed and the SO-DIMM is properly seated.

CAUTION

The SO-DIMM only fits in one correct orientation. It will cause
permanent damage to the development board and the SO-DIMM if the
SO-DIMM is forced into the slot at the incorrect orientation.

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

9

2.3 I/O Equipment Installation

2.3.1 12V DC-IN

The Motherboard allows plugging 12V DC-IN jack on the board without another
power module converter under power consumption by Intel Socket G2 processor in
HM76 with Intel® 7 series chipset.

*Without power/reset OSD, short circuit pin 5 and 6 together to boot up the
motherboard (Front Panel Connector).

2.3.2 PS/2 Keyboard and PS/2 Mouse

The Motherboard provides two PS/2 interface. The PS/2 connector supports
Keyboard 7 IV70 Motherboard User Manual and Mouse. In other cases, especially in
embedded applications, a mouse is not used. Therefore, the BIOS standard setup

menu allows you to select* “All, But Keyboard” under the “Halt On”. This allows

no-keyboard operation in embedded system applications without the system halting
under POST.

2.3.3 Serial COM Ports

Three RS-232 connectors build in the rear I/O. Fourth optional COM ports support
RS-232. When an optional touch-screen is ordered with PPC, serial com port can
connect to a serial or an optional touch-screen. One optional COM port supports
RS232/422/485 choice through jumper setting.

2.3.4 Internal VGA

The Motherboard has one VGA port that can be connected to an external CRT/ LCD
monitor. Use VGA cable to connect to an external CRT / LCD monitor, and connect
the power cable to the outlet. The VGA connector is a standard 15-pin D-SUB
connector.

2.3.5 Ethernet Interface

The Motherboard is equipped with Broadcom BCM57780 chipset which is fully
compliant with the PCI 10/100/1000 Mbps Ethernet protocol compatible. It is
supported by major network operating systems. The Ethernet ports provide two
standard RJ-45 jacks.

2.3.6 USB Ports

Eight USB devices (four with pin headers) may be connected to the system though an
adapter cable. Various adapters may come with USB ports. USB usually connect the

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

10

external system to the system. The USB ports support hot plug-in connection.
Whatever, you should install the device driver before you use the device.

2.3.7 Audio Jack ( Pin-header)

The Audio 5.1 channel capabilities are provided by a Realtek ALC886 chipset supporting
digital audio outputs. The audio interface includes Mic-in,: line-in and line-out.

2.4 Jumper Settings

This section explains how to set jumpers for correct configuration of the
motherboard.

NOTE:
A pair of needle nose pliers may be helpful when working with jumpers.
If you have any doubts about the best hardware configuration for your
application, contact your local distributor or sales representative before
you make any changes. Generally, you simply need a standard cable to
make most connections.

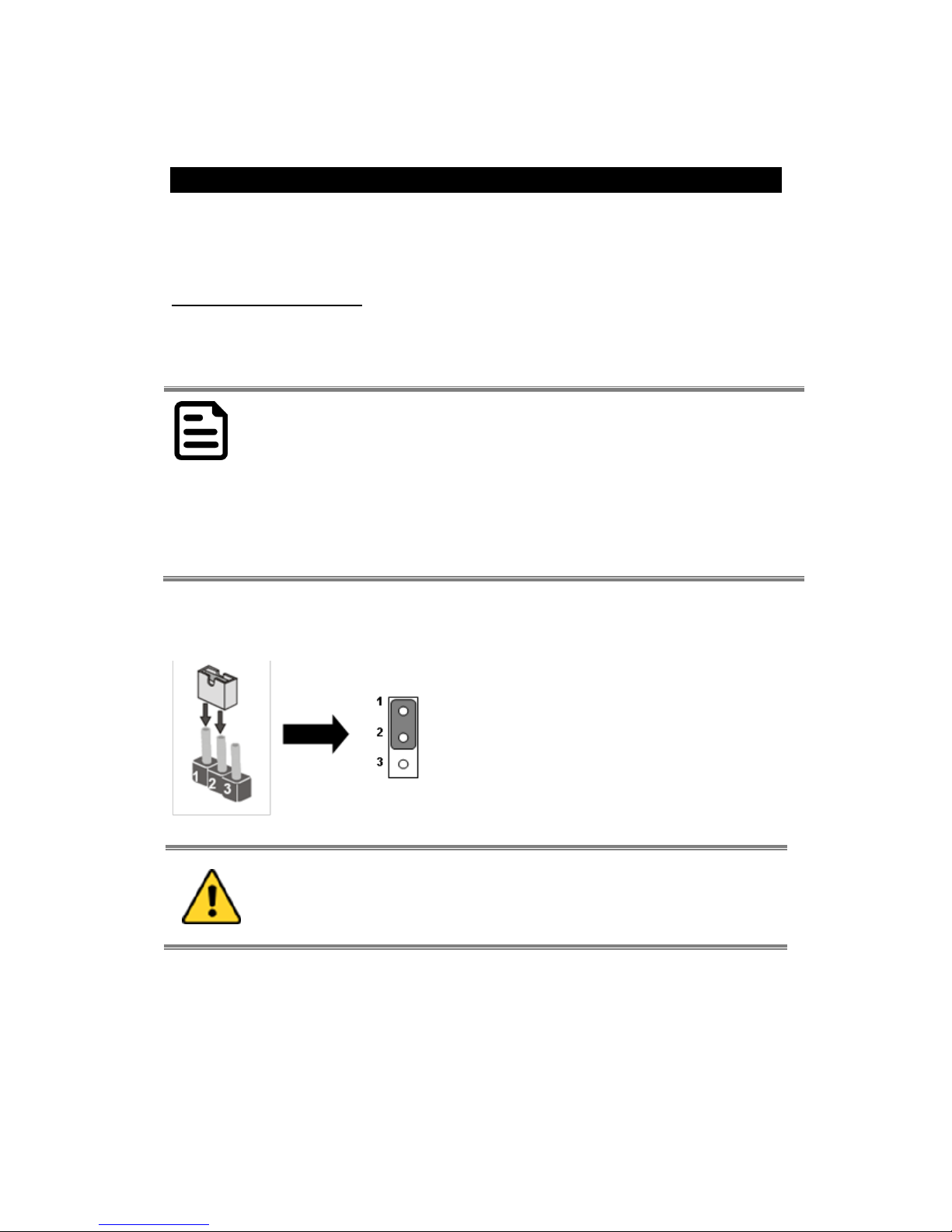

The jumper setting diagram is shown below. When the jumper cap is placed on both
pins, the jumper is SHORT. The illustration below shows a 3-pin jumper; pins 1 and 2
are short. If you remove the jumper cap, the jumper is OPEN.

PIN 1-2 SHORT
PIN 3 OPEN

CAUTION

To avoid damaging the module, always turn off the power supply
before setting jumpers or clearing CMOS.

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

11

2.3.1 Jumper List

Label

Function

Note

JP1

RSS232 / RS422 / RS485
Selector

3x4 header , pitch 2.0mm

JP2

RS232 / RS422 / RS485
Selector

2x3 header , pitch 2.0mm

JP5

Clear CMOS

3x1 header , pitch 2.0mm

JP6

VR/Software

3x1 header , pitch 2.0mm

JP7

PWM/DA

3x1 header , pitch 2.0mm

JP8

Back Light PWR

3x1 header , pitch 2.5mm

JP9

PWM Level

3x1 header , pitch 2.0mm

JP10

LVDS PWR Selector

2x3 header , pitch 2.5mm

JP1: RS232 / RS422 / RS485 Selector

The jumper can be configured to operate COM1 in RS-232/422/485 mode. And the
setting must be cooperated with JP2 settings.

JP2: COM1 RS232 / RS422 / RS485 Function Selector

The jumper can be configured to operate COM1 in RS-232/422/485 mode. And the
setting must be cooperated with the JP1 settings.

RS232

RS422/485

1-2

2-3

4-5

5-6

7-8

8-9

10-11

11-12

Pin №

Function

1-2

(Default

RS232

3-4

RS422

5-6

RS485

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

12

JP5: Clear CMOS

Remember to set jumper back to Normal before turning on the power supply.

CAUTION

TURN OFF the power supply before setting Clear CMOS.

JP6: Brightness Control (VR/Software)

JP7: Brightness Control (DC/PWM)

Pin №

Function

1-2

Clear CMOS

2-3 (Default)

Normal

Pin №

Function

1-2

VR Control

2-3

Software

Pin №

Function

1-2

DC (VR)

2-3

PWM

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

13

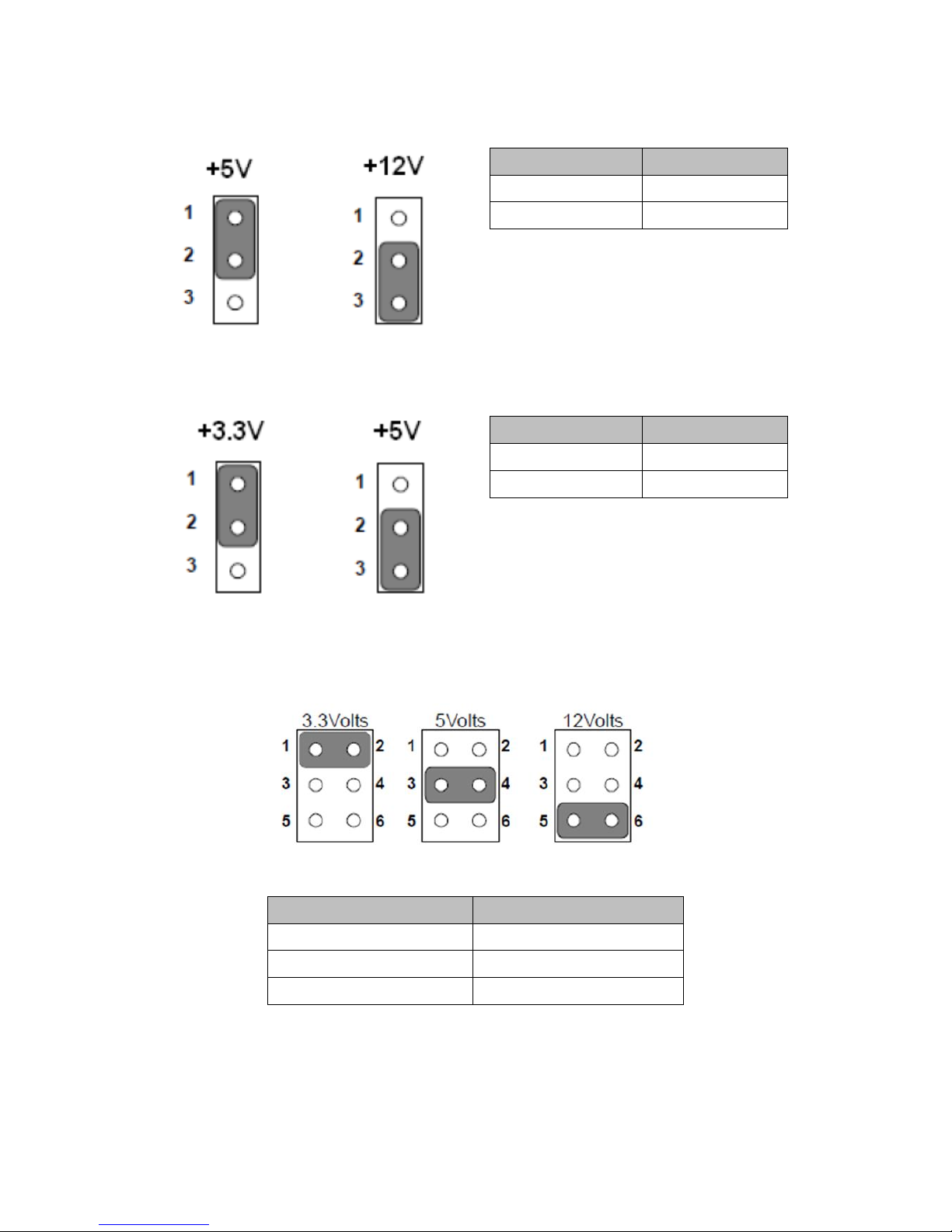

JP8: Back Light PWR

JP9: PWM Level

JP10: LCD Panel Voltage Select

JP10 can be configured to operate in 3.3Volts / 5Volts / 12Volts mode.

Pin №

Function

1-2

+5V

2-3

+12V

Pin №

Function

1-2

+3.3V

2-3

+5V

Pin №

Name

1-2*

+3.3V

3-4

+5V

5-6

+12V

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

14

2.3.2 Connectors and Pin Assignment

Label

Function

Note

ATX12V

ATX12V DC Connector

2x2 wafer, pitch 4.2mm

CN6

12V Output

1x2 wafer, pitch 2.0mm

CN7

Digital I/O

10 pin Digital I/O function

CN8

5V Output

1x2 wafer, pitch 2.0mm

CN9

5V Output

1x2 wafer, pitch 2.0mm

CN13

PCIE x 4

PCI_Express_x4

CN17

VR Control

Wafer 1x3, 2mm

CN18

Mini-PCIE

CM-MINIPCI52-5H6-WHS-D4

CN19

Mini-PCIE

CM-MINIPCI52-5H6-WHS

COM2/5/6

Serial port COM2/5/6

5x2 header, pitch 2.0mm

CON1

LVDS LCD Output Connector

Wafer 2x20, 1.25mm

CPU_FAN1

FAN CONNECTOR

3x1 Pin Header

HDD PWR

5V/ 12V External Power

4x2 header ,pitch 2.54mm

INVERTER

Inverter Connector

7x1 header, pitch 2.54mm

J1

Front Audio (Left)

1x2 header ,pitch 2.54mm

J2

Front Audio (Right)

1x2 header ,pitch 2.54mm

J6

DVI

18 pin FFC

J7

HDMI

18 pin FFC

LPT1

Parallel Port

10x2 header ,pitch 2.54mm

NB_FAN1

FAN CONNECTOR

3x1 Pin Header

PANEL1

System Function Connector

DF11-10DP-2DSA

SATAI / SATA II

SATA Connector

SATA-tP-DIPI80

SIM

SIM card connector

6 pin Header

DIMM1 /
DIMM2

DDR3L Connector

DDR3-SODIMM_204P
USB1/2

USB PIN HEADER

4x2 header, pitch2.0mm

12V (Yellow)

12V External Power

2x1 header, pitch 2.54mm

5V (Red)

5V External Power

2x1 header, pitch 2.54mm

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

15

ATX_PWR / Input: 12V DC Connector

CN6: 12V Output

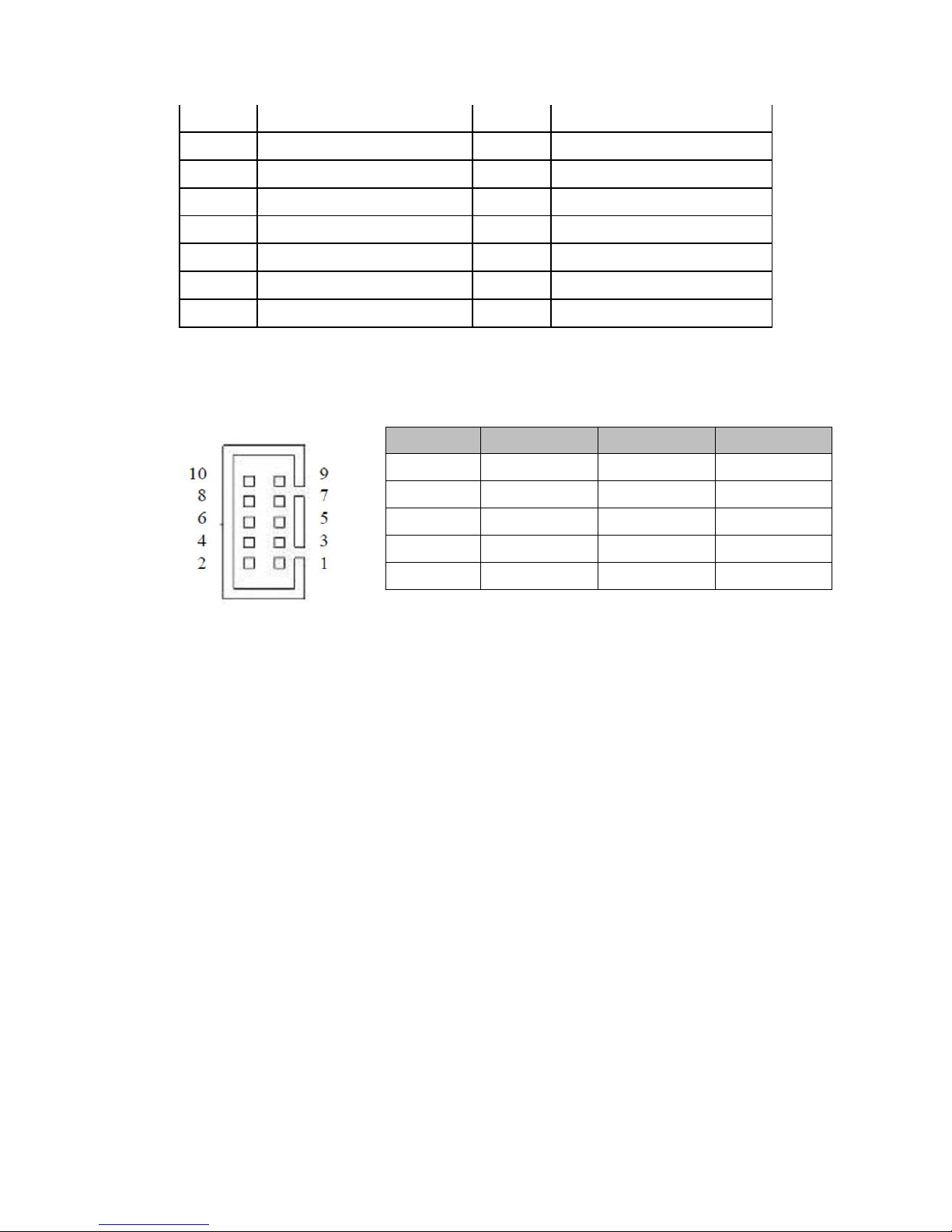

CN7: Digital I/O Connector

CN8: 5V output

CN9: 5V Output

Pin №

Signal Name

1

Ground

2

Ground

3

+12V

4

+12V

Pin №

Signal Name

1

+12V

2

GND

Pin №

Signal Name

Pin №

Signal Name

1

GND

2

+5V 3 Out3

4

Out1

5

Out0

6

Out2 7 IN3

8

IN1 9 IN2

10

IN0

Pin №

Signal Name

1

+5V

2

GND

Pin №

Signal Name

1

+5V

2

GND

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

16

CN10: Mini PCIe

Pin №

Signal Name

Pin №

Signal Name

1

PCIE_WAKE#

2

+V3.3V_MINIPCIE1

3

NA 4 GND

5

NA

6

+V1.5S

7

CLK_SLOT4_OE#

8

VREG_USIM

9

GND

10

NA

11

CLK_PCIE_SLOT4_N

12

NA

13

CLK_PCIE_SLOT4_P

14

NA

15

GND

16

NA

17

NA

18

GND

19

NA

20

WLAN-RFON2

21

GND

22

BUF_PLT_RST2#

23

PCIE_RXN3_SLOT4

24

+V3.3A

25

PCIE_RXP3_SLOT4

26

GND

27

GND

28

+V1.5S

29

GND

30

SMB_CLK

31

PCIE_TXN3_SLOT4

32

SMB_DATA

33

PCIE_TXP3_SLOT4

34

GND

35

GND

36

USB_PN5

37

GND

38

USB_PP5

39

+3.3V_MINIPCIE1

40

GND

41

+3.3V_MINIPCIE1

42

NA

43

GND

44

NA

45

NA

46

NA

47

NA

48

NA

49

NA

50

GND

51

NA

52

+V3.3_MINIPCIE1

M1

GND

M2

GND

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

17

CN13: PCIE x 4

*PCI Express x 4 standard

CN17: VR Control

CN18/ CN19: Mini PCIe 3G/Wi-Fi

Pin №

Signal Name

Pin №

Signal Name

1

PCIE_WAKE#

2

+3.3V

3

NC

4

GND

5

BT_EN

6

+1.5V

7

CLK_OE#

8

USIM_PWR

9

GND

10

USIM_DATA

11

PCIE_CLKM

12

USIM_CLOCK

13

PCIE_CLKP

14

USIM_RESET

15

GND

16

USIM_VPP

17

NC

18

GND

19

NC

20

Wireless_ENABLE

21

GND

22

PCIE_RESET

23

PCIE_RXM

24

+3.3V

25

PCIE_RXP

26

GND

27

GND

28

+1.5V

29

GND

30

SMB_CLK

31

PCIE_TXM

32

SMB_DATA

33

PCIE_TXP

34

GND

35

GND

36

USB_D-

Pin №

Signal Name

1

VCC(5V)

2

Black Light Control

3

GND

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

18

37

GND

38

USB_D+

39

+3.3V

40

GND

41

+3.3V

42

NC

43

GND

44

NC

45

NC

46

NC

47

NC

48

+1.5V

49

NC

50

GND

51

+3.3V

52

+3.3V

COM2/ COM5/COM6: Serial port

The serial port which is Winbond I/O support is RS232 only.

Pin №

Signal Name

Pin №

Signal Name

1

NDCD1A

2

NDSR1A

3

NRXD1A

4

NRTS1A

5

NTXD1A

6

NCTS1A

7

NDTR1A

8

NRI1A

9

GND

10

GND

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

19

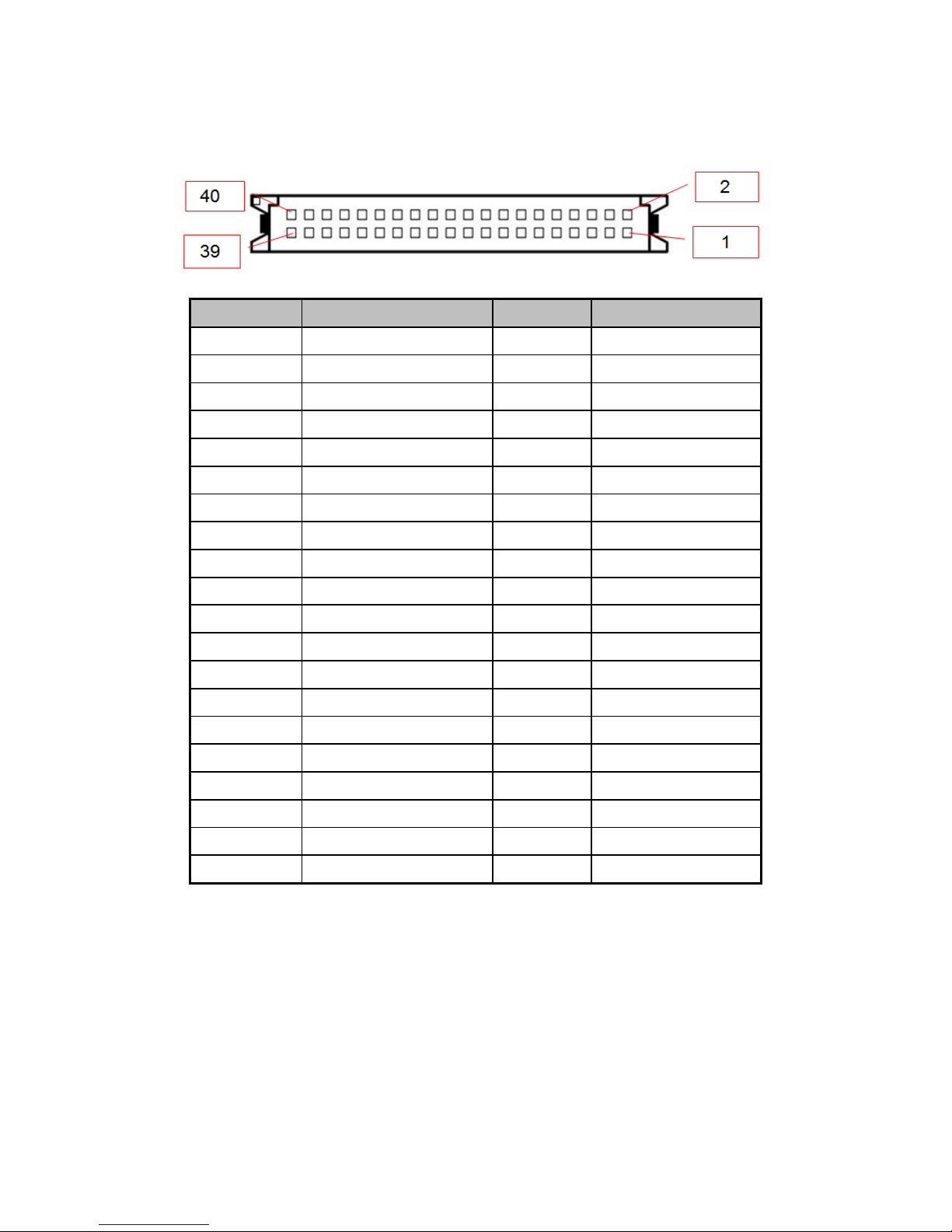

CON1: LVDS Connector

Pin №

Signal Name

Pin №

Signal Name

1

LCDVDD

2

LVDS0_TX0_N

3

LCDVDD

4

LVDS0_TX0_P

5

LCDVDD

6

LVDS0_TX1_N

7

GND

8

LVDS0_TX1_P

9

GND

10

LVDS0_TX2_N

11

GND

12

LVDS0_TX2_P

13

GND

14

LVDS0_CLK_N

15

GND

16

LVDS0_CLK_P

17

GND

18

LVDS0_TX3_N

19

GND

20

LVDS0_TX3_P

21

GND

22

LVDS1_TX0_N

23

GND

24

LVDS1_TX0_P

25

GND

26

LVDS1_TX1_N

27

GND

28

LVDS1_TX1_P

29

GND

30

LVDS1_TX2_N

31

GND

32

LVDS1_TX2_P

33

GND

34

LVDS1_CLK_N

35

GND

36

LVDS1_CLK_P

37

GND

38

LVDS1_TX3_N

39

GND

40

LVDS1_TX3_P

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

20

CPU_FAN1 / NB_FAN1: FAN Connectors

FAN1_NB

FAN2_CPU

HDD PWR: 5V/ 12V External Power

J1/J2: Front Audio

J1

J2

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

21

AUDIO1: Audio Jack (Pin-header)

MIC (J3)

Line Out

Line In

Pin №

Signal Name

Pin №

Signal Name

Pin №

Signal Name

C0

MIC1_L

B1

AZ_FOUT_L

A1

LINE1_L

C1

SW_B

B2

LINE2_JD

A2

SW_C

C2

AUGND

B3

AUGND

A3

AUGND

C3

AUGND

B4

AZ_FOUT_R

A4

LINE1_R

C4

MIC1_R

J6: DVI Connector

Pin №

Signal Name

Pin №

Signal Name

1

GND

2

TMDS0-

3

TMDS0+

4

GND

5

DDC_CLK

6

DDC_DATA

7

GND

8

TMDS1-

9

TMDS1+

10

GND

11

TMDS2-

12

TMDS2+

13

GND

14

CLK+

15

CLK-

16

HPD2

17

DVI_EXT_5V

18

DVI_EXT_5V

Color

Signal

Blue

Line In

Green

Line Out

Pink

Microphone

Pin-Header

C0~C4

Mic In

B1~B4

Line Out

A1~A4

Line In

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

22

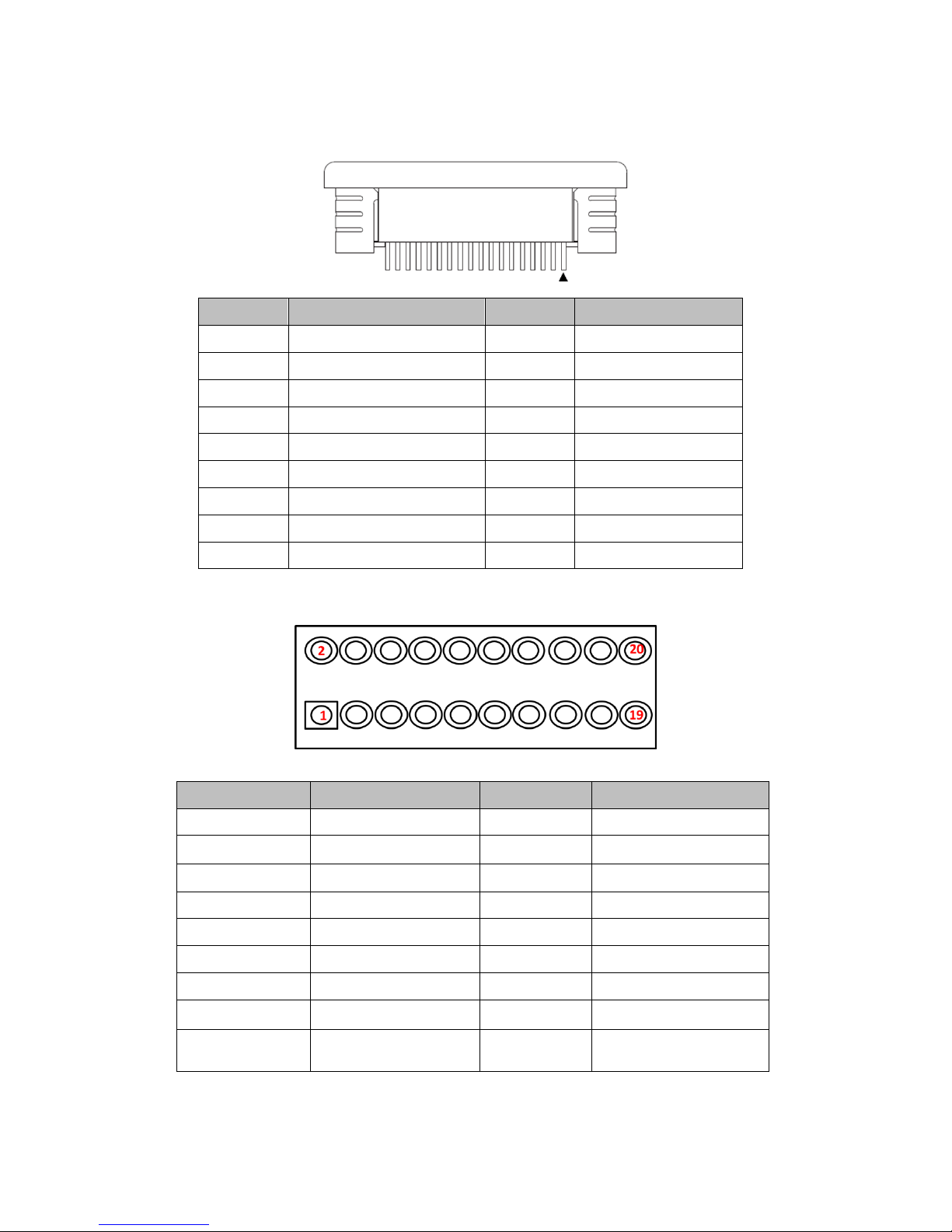

J7: HDMI Connector

Pin №

Signal Name

Pin №

Signal Name

1

GND

2

TMDS0-

3

TMDS0+

4

GND

5

DDC_CLK

6

DDC_DATA

7

GND

8

TMDS1-

9

TMDS1+

10

GND

11

TMDS2-

12

TMDS2+

13

GND

14

CLK+

15

CLK-

16

HPD1

17

HDMI_EXT_5V

18

HDMI _EXT_5V

LPT1: Parallel Port

Pin №

Signal Name

Pin №

Signal Name

1

LPT_STB#

2

LPT_PD0

3

LPT_PD1

4

LPT_PD2

5

LPT_PD3

6

LPT_PD4

7

LPT_PD5

8

LPT_PD6

9

LPT_PD7

10

ACK#

11

Busy

12

PE

13

SLCT

14

LPT_AFD#

15

ERR#

16

LPT_INIT#

17

LPT_SLIN#

18-25

GND

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

23

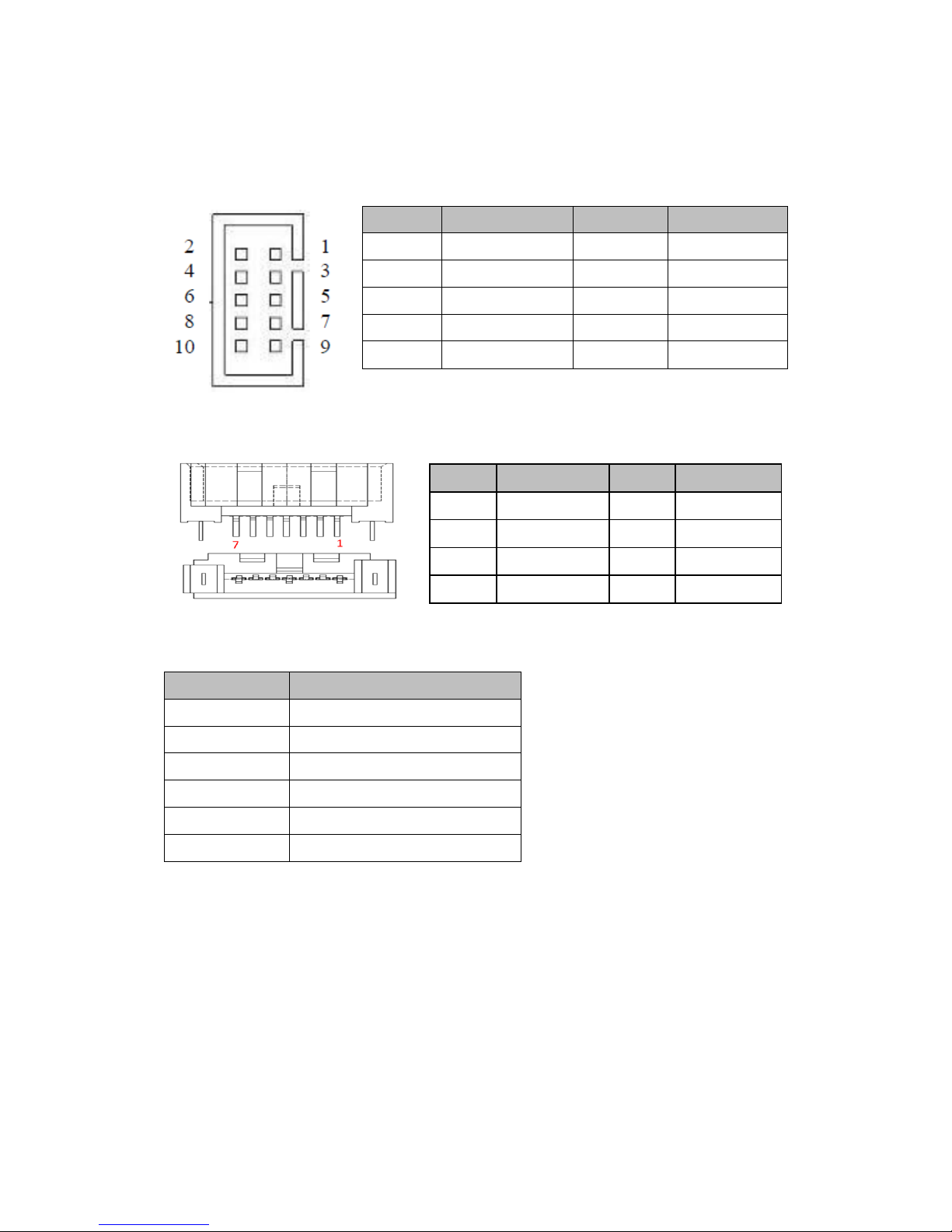

PANEL1: Front Panel System Function Connector

*Without power/reset OSD, short circuit pin 5 and 6 together to boot up the
motherboard.

SATAI / SATA II: SATA Connector

SIM: SIM Card Connector

Pin №

Signal Name

Pin №

Signal Name

1

PW_LED+

2

HD_LED+

3

PW_LED-

4

HD_LED-

5

PW_BT1

6

RT_BT1

7

PW_BT2

8

RT_BT2

9

RSEV

10

5VSB

Pin №

Signal Name

Pin №

Signal Name

1

GND

2

SATA_TXP

3

SATA_TXN

4

GND

5

SATA_RXN

6

SATA_RXP

7

GND

Pin №

Signal Name

1

VREG_USIM

2

MSM_USIM_RESET

3

MSM_USIM_CLK

4

GND

5

MSM_USIM_VPP

6

MSM_USIM_DATA

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

24

DIMM1 / DIMM2: DDR3L Connector

USB1/2: USB PIN HEADER

Pin №

Signal Name

Pin №

Signal Name

1

+5V

2

+5V

3

USB_DATA0-

4

USB_DATA1-

5

USB_DATA0+

6

USB_DATA1+

7

GND

8

GND

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

25

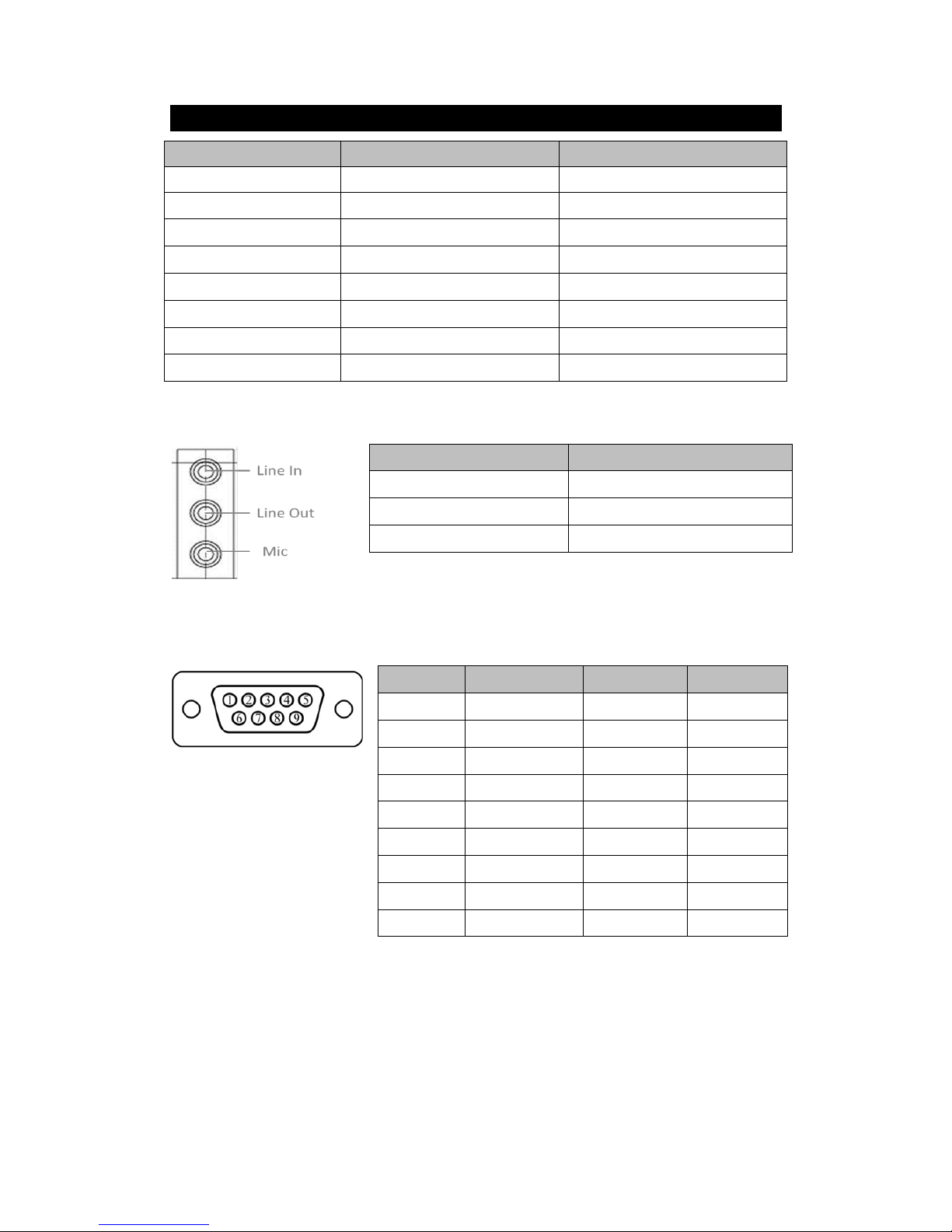

2.3.3 I/O Side

Label

Function

Note

AUDIO

Line In/Line Out/Mic

COM1

Serial port (RS232/422/485)

D-Sub 9

COM2/ COM4

Serial port (RS232/422/485)

D-Sub 9

12V DC Input

12V DC INPUT

DIN-4P

LAN1, LAN2

Gigabit Ethernet

RJ45+LED

PS/2

Mouse/Keyboard

MiniDIN-6P

USB

USB 3.0

USB Type A

VGA

Video Graphics Array

D-Sub 15

2.3.3.1 Audio: Line In/Line Out/Mic

2.3.3.2 COM1: D-Sub 9

Color

Signal

Blue

Line In

Green

Line Out

Pink

Microphone

Pin №

RS232

RS422

RS485

1

DCD

TxD-

D- 2 RXD

TxD+

D+ 3 TXD

RxD+

NC 4 DTR

RxD-

NC 5 GND

GND

GND 6 DSR

NC

NC 7 RTS

NC

NC 8 CTS

NC

NC 9 RI

NC

NC

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

26

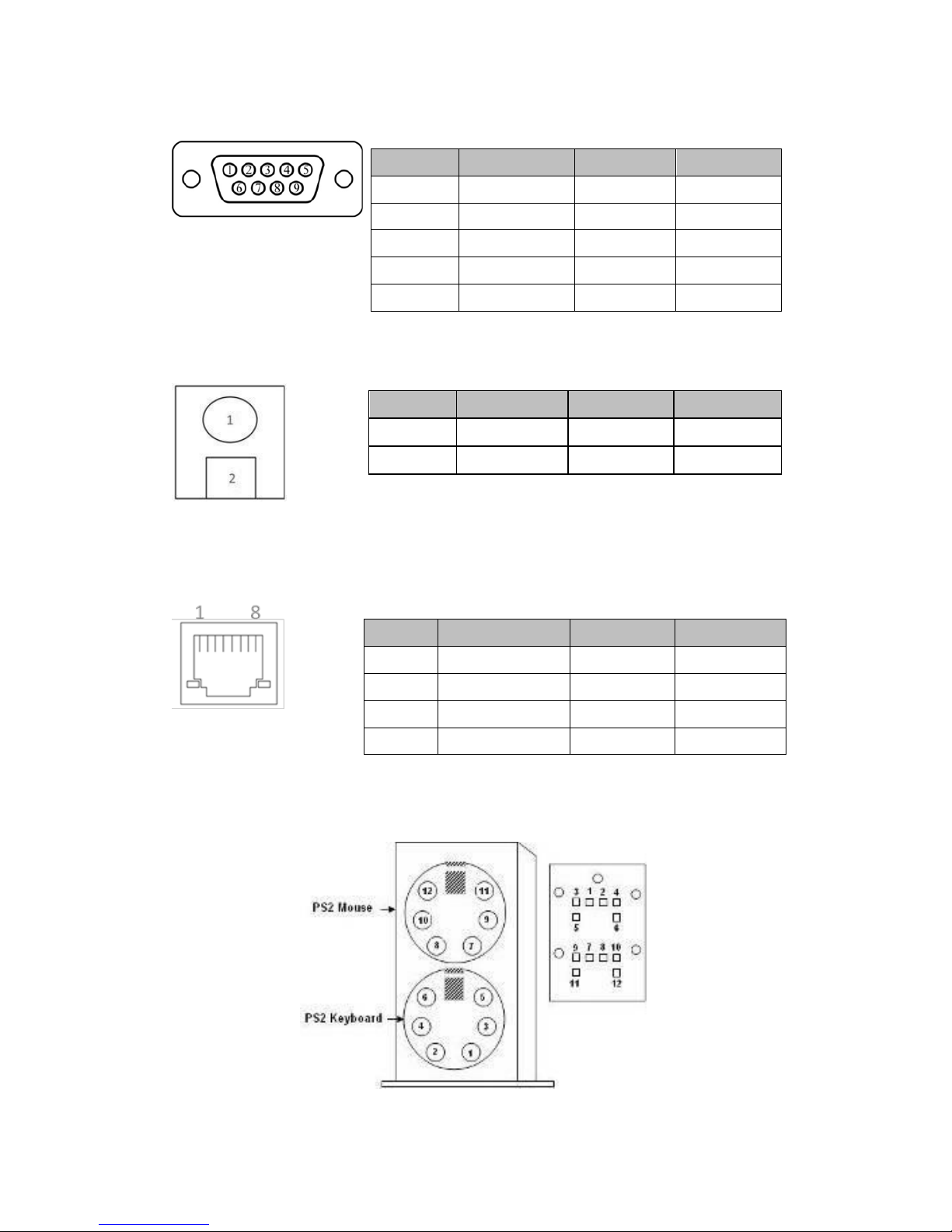

2.3.3.3 COM2, COM4: Serial port (232)

2.3.3.4 12V DC Input: 12V DC INPUT

*Note: Pin 3 is not visible for use

2.3.3.5 LAN1, LAN2: Gigabit Ethernet

2.3.3.6 PSKBM1: PS2 Keyboard/Mouse Connector

Pin №

Signal Name

Pin №

Signal Name

1

DCD

2

DSR 3 RXD

4

RTS 5 TXD

6

CTS 7 DTR 8 RI 9 GND

Pin №

Signal Name

Pin №

Signal Name

1

+12V

2

GND

3*

GND

Pin №

Signal Name

Pin №

Signal Name

1

TX1+

2

TX1- 3 TX2+

4

TX2- 5 TX3+

6

TX3- 7 TX4+

8

TX4-

User Manual Chapter 2 Hardware Installation

IV70 Motherboard

27

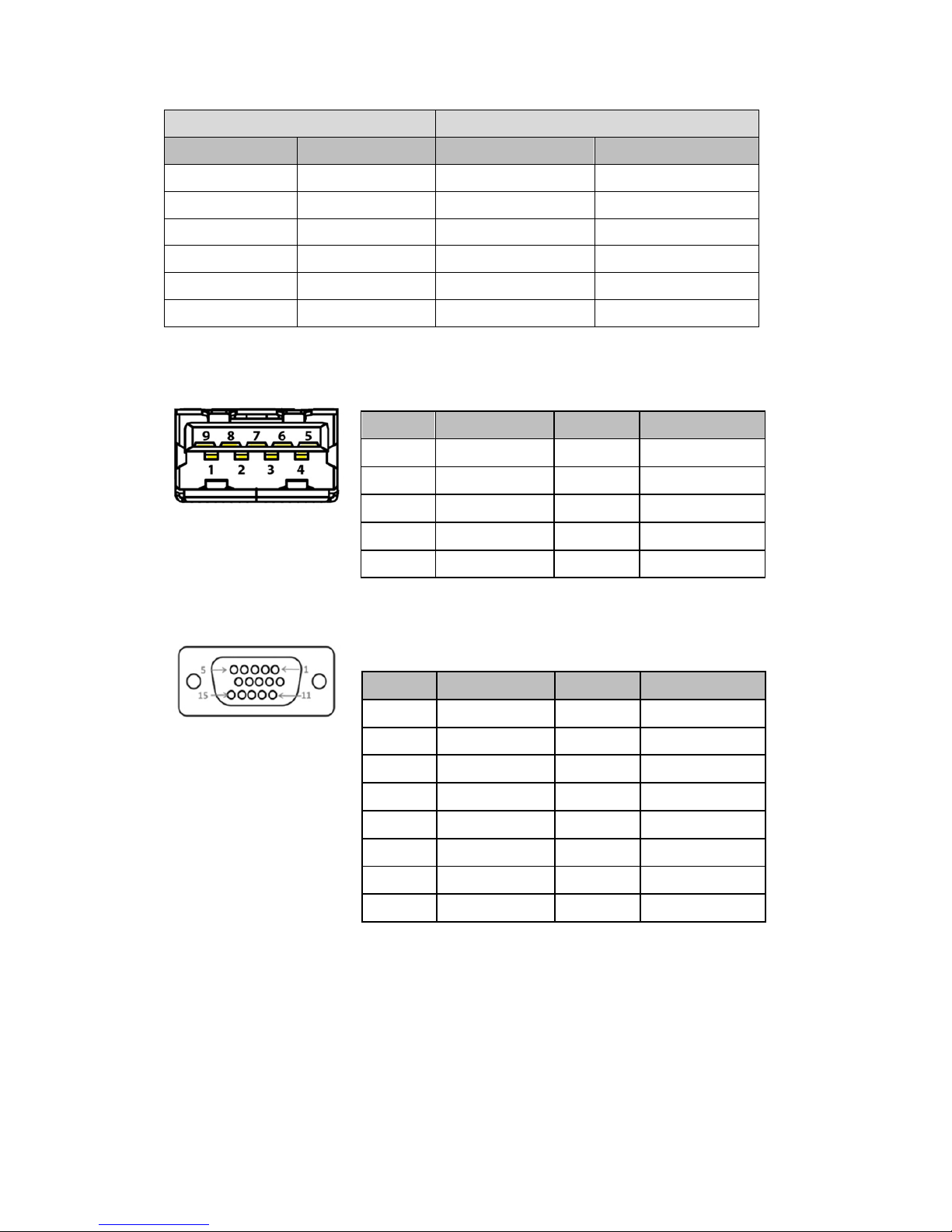

2.3.3.7 USB: USB 3.0

2.3.3.8 VGA: Video Graphics Array

PS/2 Keyboard

PS/2 Mouse

Pin №

Signal Name

Pin №

Signal Name

1

KDATA

7

MDATA

2

NC1 8 NC3

3

Ground

9

Ground

4

VCC (5V)

10

VCC (5V)

5

KBCLK

11

MSCLK

6

NC2

12

NC4

Pin №

Signal Name

Pin №

Signal Name

1

+5V

2

USB_D-

3

USB_D+

4

GND

5

STDA_SSRX-

6

STDA_SSRX+

7

GND_DRAIN

8

STDA_SSTX-

9

STDA_SSTX+

Pin №

Signal Name

Pin №

Signal Name

1

RED

2

GREEN

3

BLUE

4

ID2/RES

5

GND

6

RED_RTN

7

GREEN_RTN

8

BLUE_RTN

9

KEY/PWR

10

GND

11

ID0/RES

12

ID1/SDA

13

HSync

14

VSync

15

ID3/SCL

IV70 Motherboard

28

Driver Installation

This chapter contains driver installation
instructions for IV70 motherboard.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

29

Chapter 3 Driver Installation

This chapter contains driver installation guide. Follow the instructions below to
complete the installation. You will quickly complete the installation.

3.1 Chipset Driver Installation

Step 1 Insert the CD that comes with the motherboard. Open the file document

“Chipset Driver”.

Step 2 Double-click “infinst_auto.exe” to install the driver.

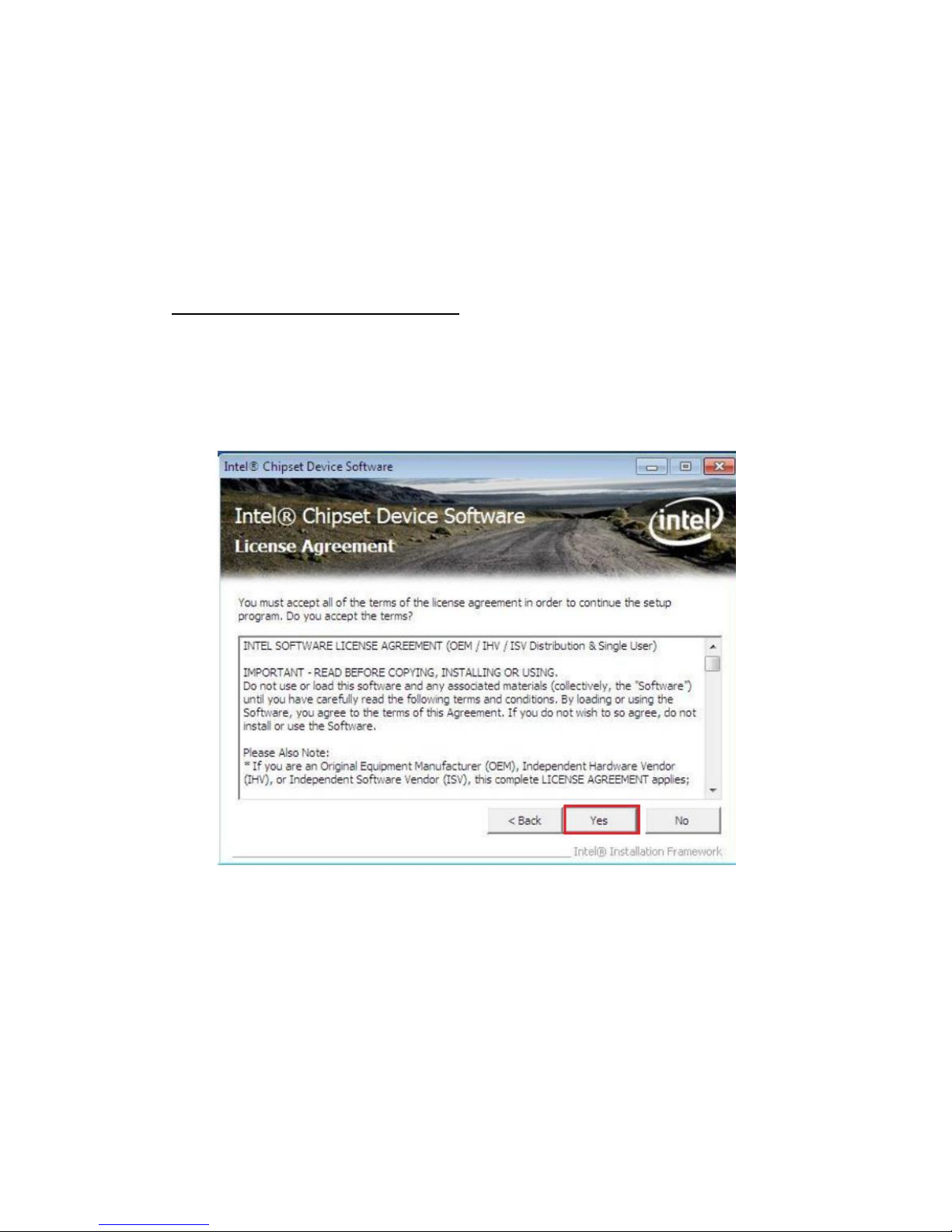

Step 3 Click on “Yes” to agree with the license terms.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

30

Step 4 Click “Next” to install the driver.

Step 5 Click “Next” to continue.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

31

Step 6 Click “Yes, I want to restart this computer now“ to continue.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

32

3.2 Graphic Driver Installation

IV70 Motherboard is equipped with Intel NM10 Companion Device. The Intel Graphic
Drivers should be installed first, and it will enable “Video Controller (VGA
compatible).
Step 1 Insert the CD that comes with the Motherboard. Open the file document

“Graphic Driver”.

Step 2 Click “setup” to execute the setup.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

33

Step 3 Click on “Next” to install the driver.

Step 4 Click on “Yes” to agree with the license terms.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

34

Step 5 Click “Next” to continue the installation.

Step 6 Click “Next” to continue the installation.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

35

Step 7 Click “Yes, I want to restart this computer now” to continue.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

36

3.3 Panel Resolution Setting

Step 1 Right-click on the desktop, in the drop-down menu choose Properties.
Step 2 In the Display Properties dialog box, go to the Settings tab.

Step 3 Go to the Monitor tab.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

37

Step 4 Click on “Hide modes that this monitor cannot display” to remove this
option.

Step 5 Click on “Setting”, then could choose 32bit color qualify.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

38

3.4 Audio Driver Installation

The ALC888 series are high-performance 7.1+2 Channel High Definition Audio Codecs
providing ten DAC channels that simultaneously support 7.1 sound playback, plus 2
channels of independent stereo sound output (multiple streaming) through the front
panel stereo outputs. The series integrates two stereo ADCs that can support a
stereo microphone, and feature Acoustic Echo Cancellation (AEC), Beam Forming (BF),
and Noise Suppression (NS) technology.
Step 1 Insert the CD that comes with the motherboard. Open the file document
“alc655_driver” and click on “Vista_Win7_R260.exe” to execute the setup.

Step 2 Click Yes to install the driver.

Step 3 Click “Yes, I want to restart my computer now” to finish installation.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

39

3.5 Ethernet Driver Installation

The Users must make sure which operating system you are using on the IV70
Motherboard before installing the Ethernet drivers. Follow the steps below to
complete the installation of the Broadcom BCM57780 Gigabit Ethernet controller
LAN drivers. You will quickly complete the installation.

Step 1 Right-click the desktop, and then click Properties.
Step 2 In the Other device dialog box, click the Settings tab.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

40

Step 3 Click on “Update Driver” to execute the setup.

Step 4 Click on “Browse my computer for driver software” to install driver.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

41

Step 5 Choose the path to install driver.

Step 6 Click on “Close” to exit driver installation menu.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

42

3.6 Intel® Management Engine Software

This installation program installs the Intel® ME software components required for the
Platform on which you are installing, and install only those components that matches
your platform capabilities.

Step 1 Insert the driver CD and select the “Intel ME 9.0” folder and click “Setup.exe”

Step 2 Click the checkbox for Install Intel® Control Center & click “Next”.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

43

Step 3 Click “Yes” to agree with the License terms.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

44

Step 5 Click “Finish” to complete the software installation.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

45

3.7 Fintek COM Port Driver Installation

This chapter describes the step by step method to install the Fintek COM port driver.

Step 1 If your OS system is WIN7; first close UAC (Refer to “Disabling User Account
Control (UAC) in Windows 7”).

Step 2 Extract the Patch_0408.zip to a folder.
Step 3 Double-click batch file (patch.bat) to install driver.
Step 4 Check driver install success. Before the update or update fail.

After the update and update success.

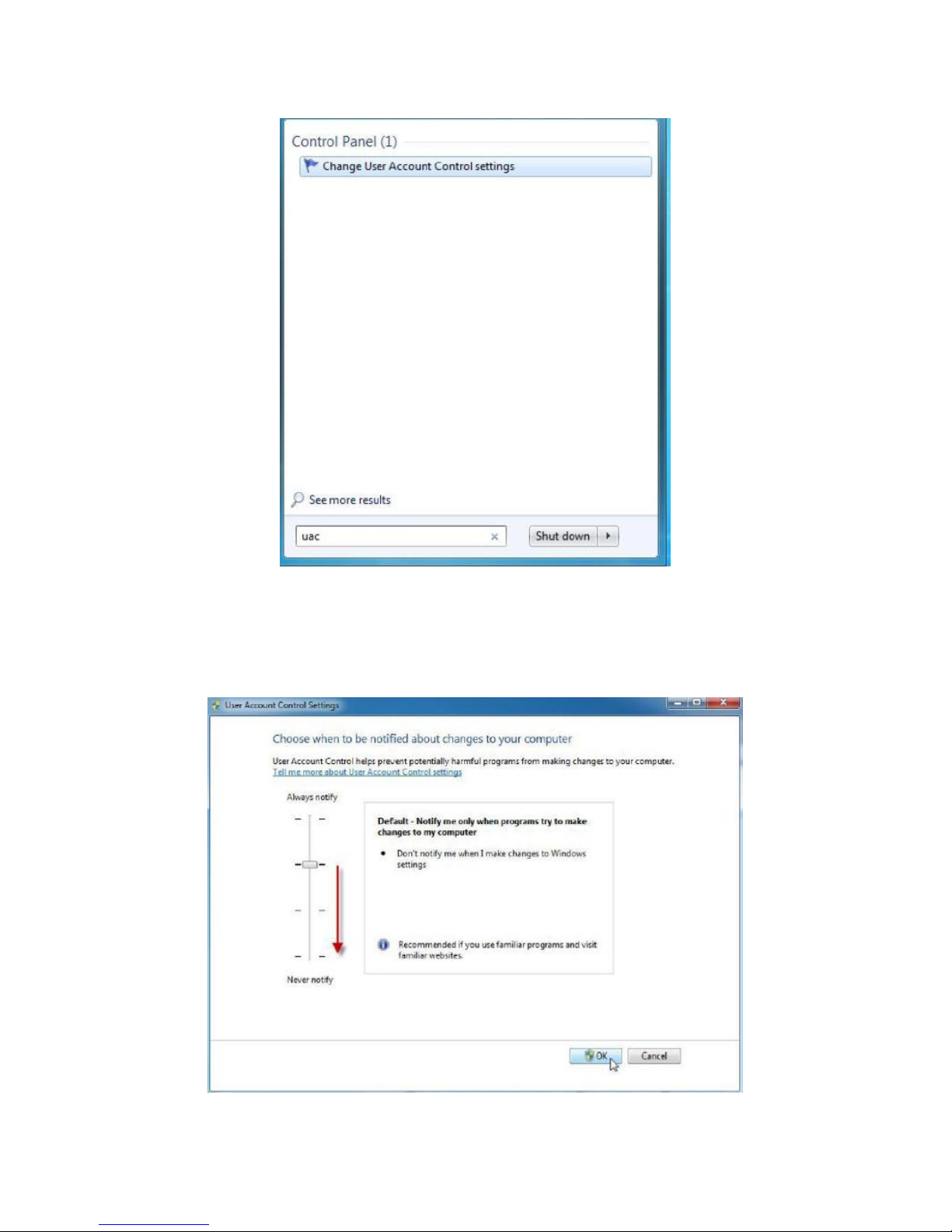

Step 5 You need to restart your computer. Type in this command from the Run
menu: C:\Windows\System32\UserAccountControlSettings.exe or uac

User Manual Chapter 3 Driver Installation

IV70 Motherboard

46

To turn off UAC, move the slider to the Never notify position, and then click OK. If
you're prompted for an administrator password or confirmation, type the password
or provide confirmation.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

47

To turn UAC back on, move the slider to choose when you want to be notified, and
then click OK. If you're prompted for an administrator password or confirmation,
type the password or provide confirmation.

Restart your computer to turn off UAC.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

48

3.8 USB 3.0 Driver Installation (only for Windows 7)

NOTE:

If the operating system of the device is Windows Embedded 8.1
Industry or Windows Embedded 8 Standard, users can skip this
installation.

Step 1 Locate the hard drive directory where the driver files are stored with the
browser or the explore feature of Windows*.

Step 2 Double click the “Setup.exe” from this directory.

Step 3 Click “Next” to continue.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

49

Step 4 Read License Agreement and click “Yes” to proceed.

Step 5 Review Readme File Information and click “Next” to proceed.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

50

Step 6 When the Setup Progress is complete click “Next” to proceed.

User Manual Chapter 3 Driver Installation

IV70 Motherboard

51

Step 7 Click “Yes, I want to restart this computer now” to finish the installation and
restart your computer.

IV70 Motherboard

52

AMI BIOS Setup

This chapter describes the different settings
available in the AMI BIOS that comes with the
board. This chapter offers information on the
Award BIOS installation utility.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

53

Chapter 4 AMI BIOS Setup

This chapter describes the different settings available in the AMI BIOS that comes
with the board. This chapter offers information on the Award BIOS installation utility.

4.1 When and How to Use BIOS Setup

Your computer comes with a hardware configuration program called BIOS Setup that
allows you to view and set system parameters. The BIOS (Basic Input / Output System)
is a layer of software, called “firmware” that translates instructions from software
(such as the operating system) into instructions that the computer hardware can
understand. The BIOS settings also identify installed devices and establish special
features.

To enter the BIOS setup, you need to connect an external USB keyboard, press Del
key when the prompt appears on the screen during start up. The prompt screen
shows only few seconds so need press Del key quickly.

IMPORTANT:

Updated BIOS version may be published after the manual released.
Check the latest version of BIOS on the website.

You may need to run BIOS setup utility for reasons listed below:

1. Error message on screen indicates to check BIOS setup

2. Restoring the factory default settings.

3. Modifying the specific hardware specifications

4. Necessity to optimize specifications

BIOS Navigation Keys

The following keys are enabled during POST:

Key

Function

Del

Enters the BIOS setup menu.

F7

Display the boot menu. Lists all bootable devices that are connected to

the system. With cursor ↑and cursor ↓and by pressing <ENTER>,

select the device used for the boot.

Pause

Pressing the [Pause] key stops the POST. Press any other key to resume
the POST.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

54

The following Keys can be used after entering the BIOS Setup.

Key

Function

F1

General Help

F2

Previous Values

F3

Optimized Defaults

F4

Save & Exit

Esc

Exit

+/-

Change Opt.

Enter

Select or execute command

Cursor ↑

Moves to the previous item

Cursor ↓

Goes to the next item

Cursor ←

Moves to the previous item

Cursor →

Goes to the next item

NOTE:

You can press the F1, F2, F3, F4, –/+, and Esc keys by connecting a USB
keyboard to your computer.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

55

4.2 BIOS Functions

4.2.1 Main Menu

The Main BIOS setup screen has two main frames. The left frame displays all the
options that can be configured. Grayed-out options cannot be configured; blue-out
options can be configured. The right frame displays the key legend. Above the key
legend is an area reserved for a text message. When an option is selected in the left
frame, it is highlighted in white. Often a text message will accompany it.

4.2.2 Advanced Settings

The advanced menu also uses to set configuration of the CPU and other system
devices. There are sub menus on the left frame of the screen.

CAUTION

Handle advanced BIOS settings page with caution. Any changes can
affect the operation of your computer.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

56

4.2.2.1 PCI Subsystem Settings

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

57

BIOS Setting

Description

Above 4G Decoding

Enables or Disables 64 bit capable devices to be decoded
in above 4G address space

PCI Latency Timer

Value to be programmed into PCI Latency Timer Register
(32~248).

VGA Palette Snoop

Enables or Disables VGA palette registers snooping

PERR# Generation

Enables or Disables PCI device to generate PERR#

SERR# Generation

Enables or Disables PCI device to generate SERR#

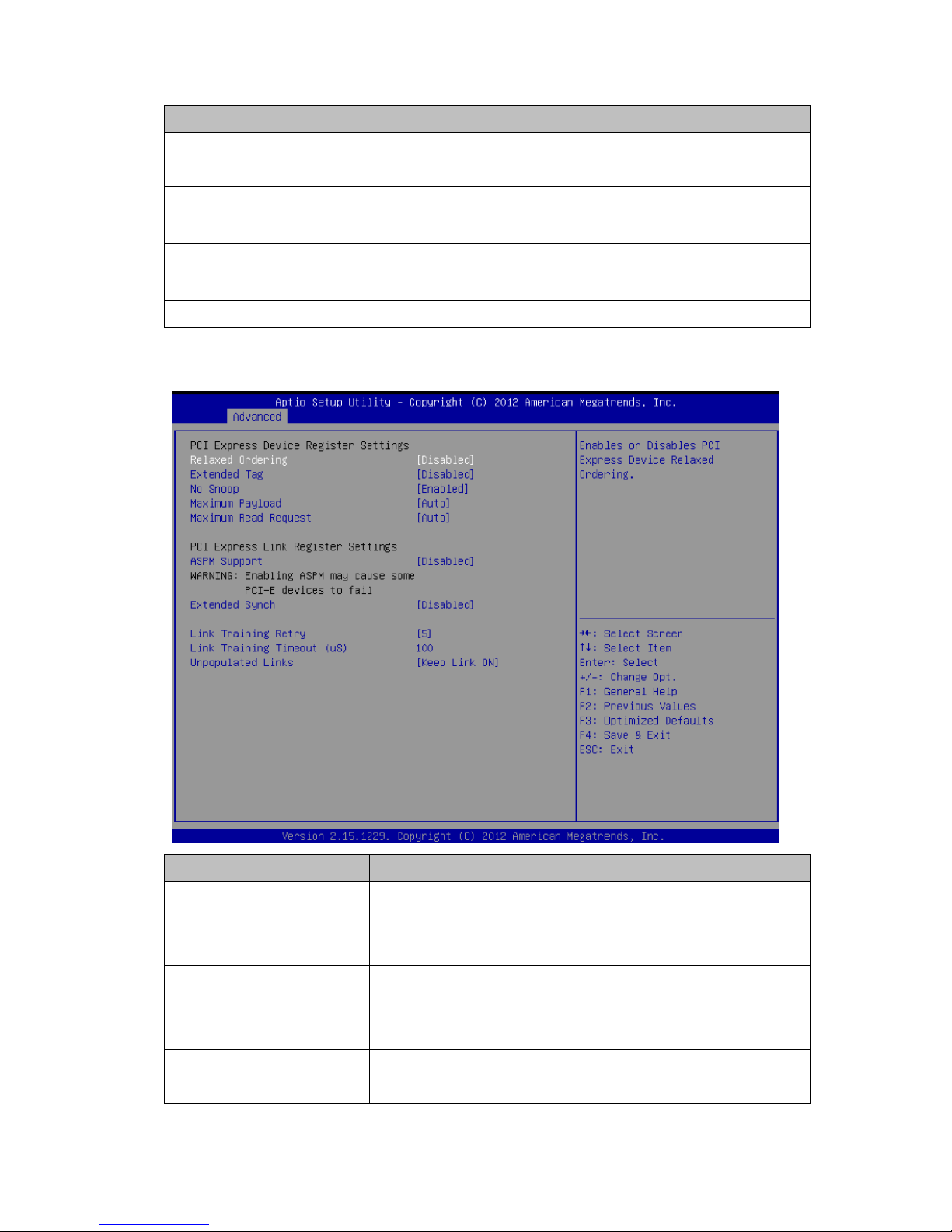

4.2.2.2 PCI Express Settings

BIOS Setting

Description

Relaxed Ordering

Enables or Disables PCI Express Device Relaxed Ordering

Extended Tag

If Enabled allows device to use 8-bit tag field as a requester
No Snoop

Enables or Disables PCI Express Device No Snoop option

Maximum Payload

Set maximum payload of PCI express device or allow
system BIOS to select the value(128~4096 bytes)

Maximum Read Request

Set maximum Read Request size of PCI express device or
allow system BIOS to select the value(128~4096 bytes)

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

58

ASPM Support

Set the ASPM Level: Force L0S-Force all links to L0s State:
Auto- BIOS auto configure: Disabled- disables ASPM

Extended Synch

If Enabled allows generation of extended Synchronization
patterns

Link Training Retry

Defines number of retry attempts software will take to
retrain the link if previous training attempt was
unsuccessful

Link Training Timeout

Defines number of microseconds software will wait before

polling ‘Link Training” bit in link status register. Value range

from 10 to 1000 uS

Unpopulated Links

In order to save power, software will disable unpopulated
PCI express links, if this option set to ‘Disabled’

4.2.2.3 ACPI Settings

BIOS Setting

Description

Enabled ACPI Auto Configuration

Enables or Disables BIOS ACPI Auto Configuration.

Enable Hibernation

Enables or Disables System ability to Hibernate (OS/S4
Sleep State). This option may be not effective with
some OS.

ACPI Sleep State

Select the ACPI sleep state the system will enter, when
the SUSPEND button is pressed.

Lock Legacy Resources

Enables or Disables lock of legacy resources.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

59

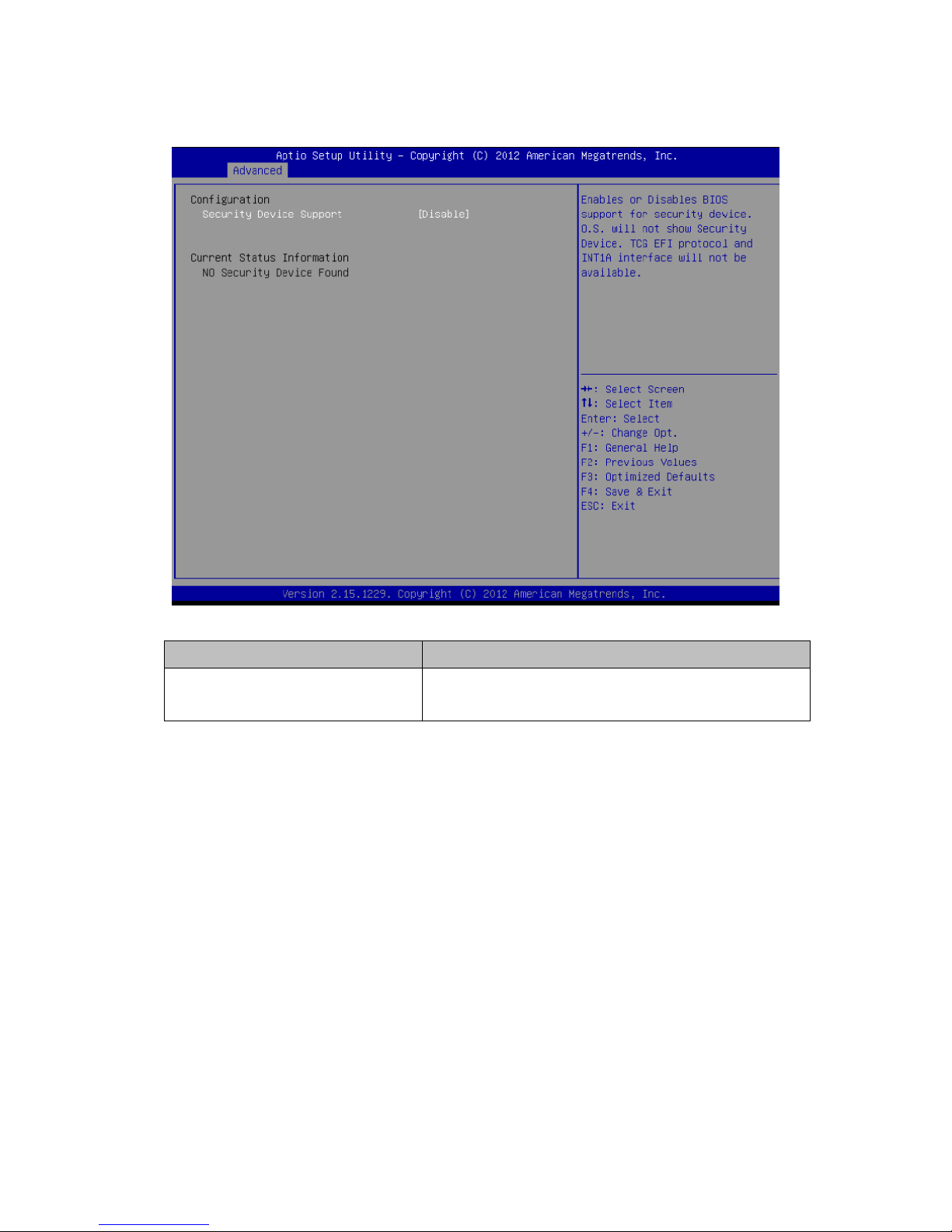

4.2.2.4 Trusted Computing

BIOS Setting

Description

Security Device Support

Security Device Support Enable or disable BIOS
support for security device.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

60

4.2.2.5 CPU Configuration

BIOS Setting

Description

Hyper-threading

Enabled for Windows XP and Linux (OS optimized for
Hyper-Threading Technology) and Disabled for other OS
(OS not optimized for Hyper-Threading Technology).
When Disabled, only one thread per enabled core is
enabled.

Active Processor Cores

This field is used to enter the number of cores to enable
in each processor package.

Limit CPUID Maximum

Disabled for Windows XP.

Execute Disable Bit

XD can prevent certain classes of malicious buffer
overflow attacks when combined with a supporting OS
(Windows Server 2003 SP1, Windows XP SP2, SuSE Linux

9.2, RedHat Enterprise 3 Update 3)

Hardware Prefetcher

Turns on/off the MLC streamer prefetcher.

Adjacent Cache Line Prefetch

To turn on/off prefetching of adjacent cache lines.

TCC Activation offset

Offset from the factory TCC activation temperature.

Primary Plane Current value

The maximum instantaneous current allow for Primary
plane.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

61

Secondary Plane Current
value

The maximum instantaneous current allow for Second
plane.

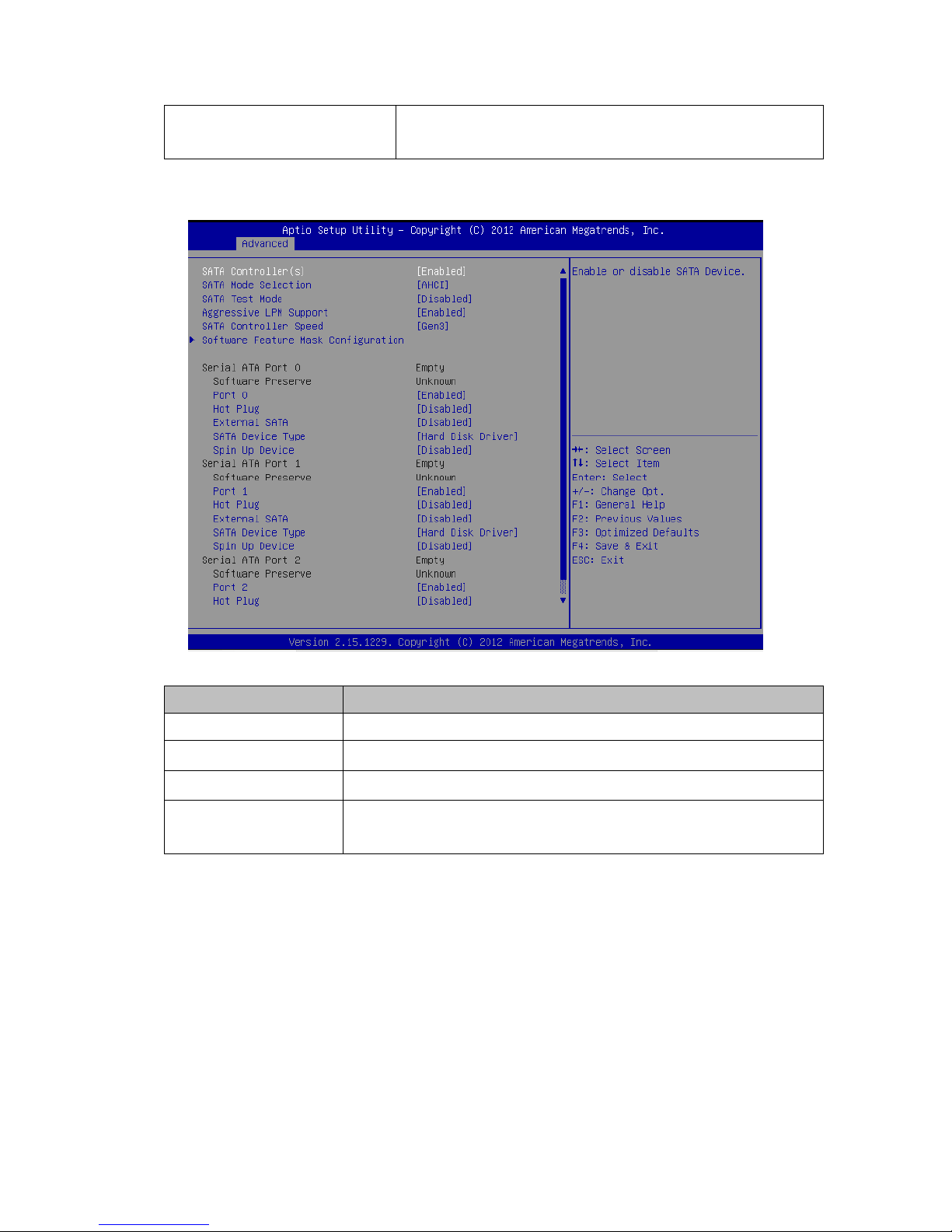

4.2.2.6 SATA Configuration

BIOS Setting

Description

SATA Controller(s)

This item allows users to enable or disable the SATA controller(s).

SATA Mode Selection

This item allows users to select mode of SATA controller(s).

SATA Test Mode

This item allows users to enable or disable the Test mode.

Aggressive LPM
Support

Enable PCH to aggressively enter link power state.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

62

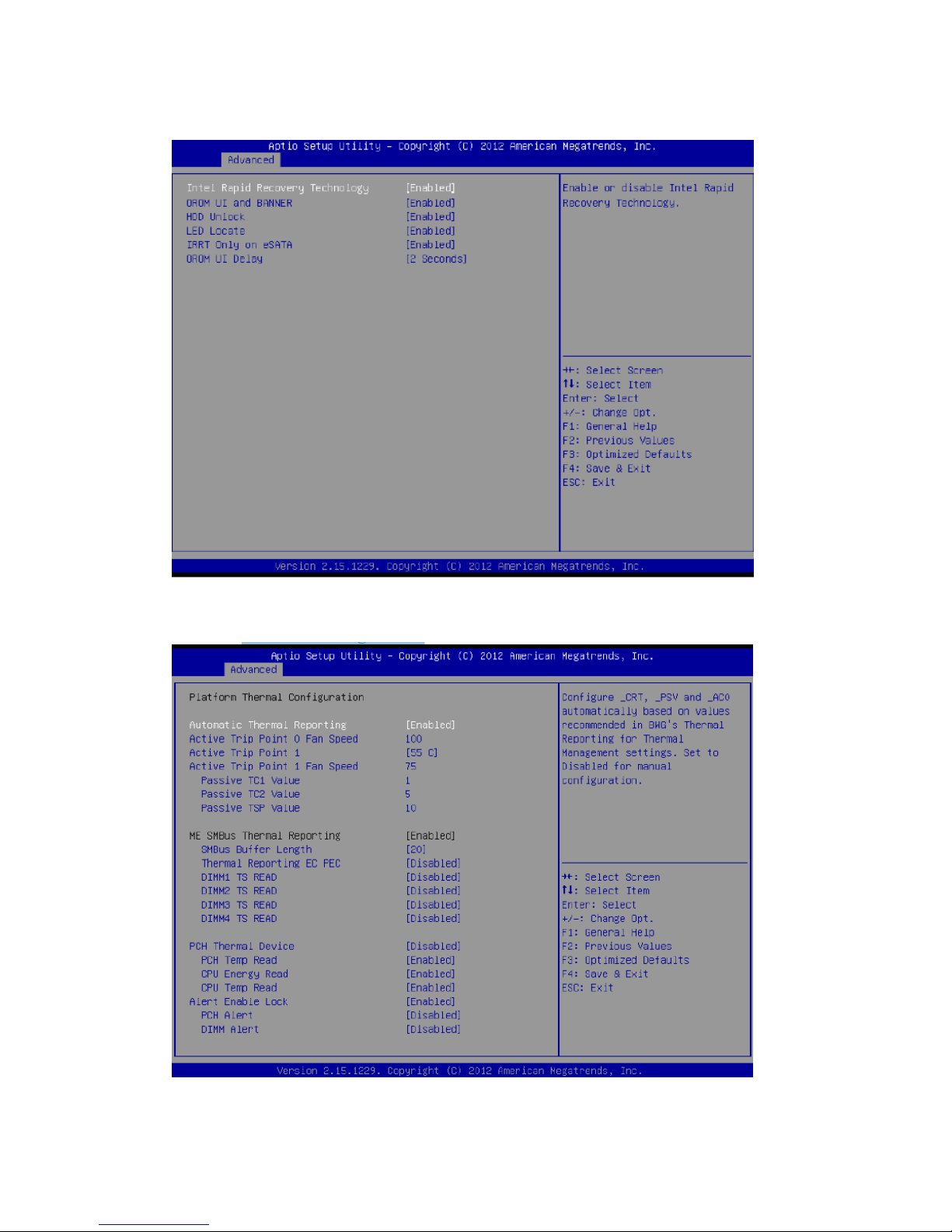

Software Feature Mask Configuration

4.2.2.7 Thermal Configuration

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

63

BIOS Setting

Description

Automatic thermal
reporting

Configure _CRT,_PSV and _ACO automatically based on values

recommended in BWG’s thermal reporting for thermal

management settings. Set to disabled for manual configuration.

Active trip point 0 fan
speed

Active trip point 0 fan speed in percentage.

Active trip point 1

This value controls the temperature of the ACPI active trip point
1- the point in which the OS will turn the processor fan on active
trip point1 fan speed.

Active trip point 1 fan
speed

Active trip point 1 fan speed in percentage.

Passive TC1 value

This value sets the TC1 value for the ACPI passive cooling formula.

Passive TC2 value

This value sets the TC2 value for the ACPI passive cooling formula.

Passive TSP value

This value sets the TSP value for the ACPI passive cooling formula.

4.2.2.8 Intel® Rapid Start Technology

BIOS Setting

Description

Intel® Rapid Start
Technology

This item allows users to enable or disable Intel rapid start
technology.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

64

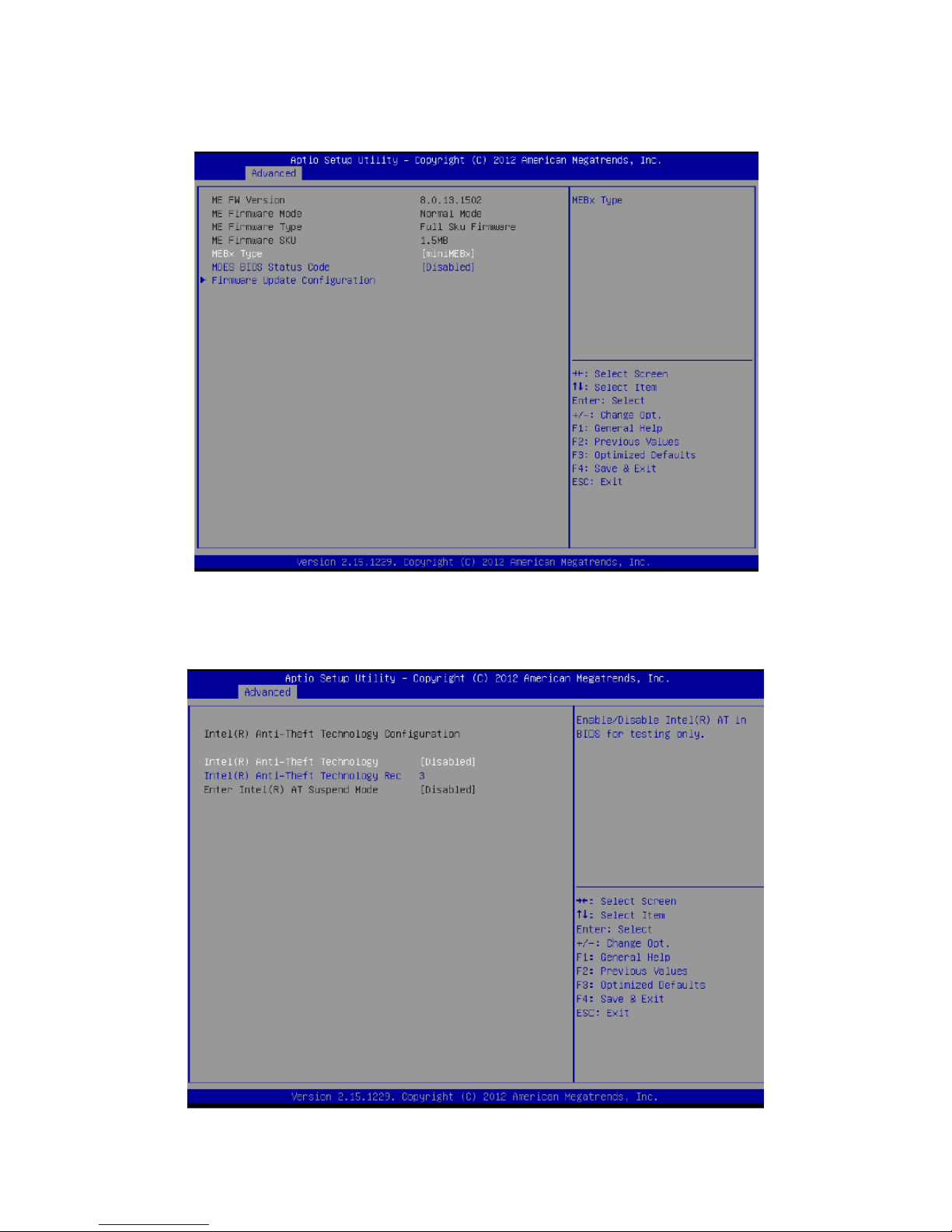

4.2.2.9 PCH-FW Configuration

This item allows users to enable or disable Me FW image re-flash function.

4.2.2.10 Intel Anti-Theft Technology Configuration

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

65

BIOS Setting

Description

Intel® Anti-theft
Technology

This item allows users to enable or disable Intel AT in bios for
testing only.

Intel® Anti-theft
Technology Rec

Set the number of times recovery attempted will be allowed.

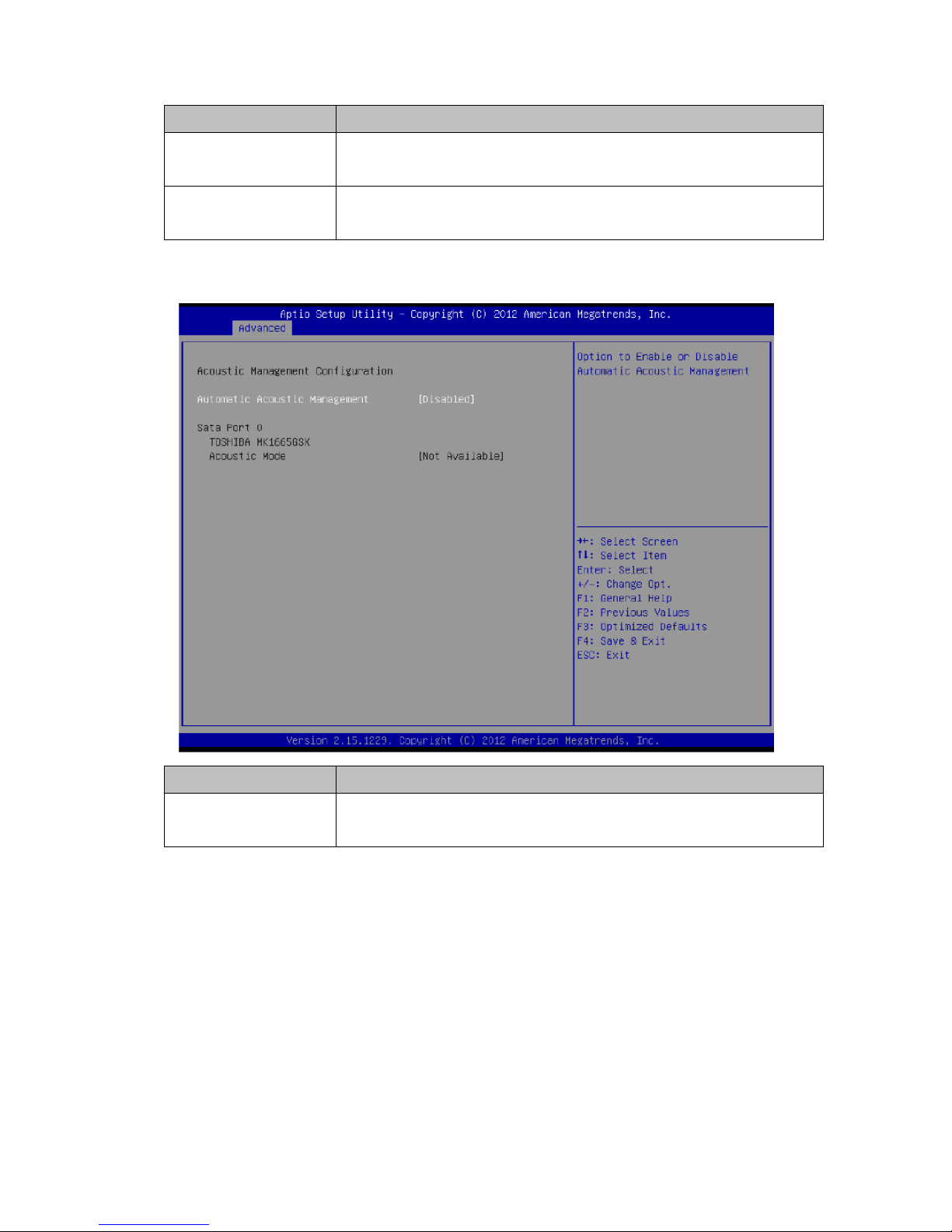

4.2.2.11 Acoustic Management Configuration

BIOS Setting

Description

Automatic Acoustic
Management

Option to enable or disable automatic acoustic management.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

66

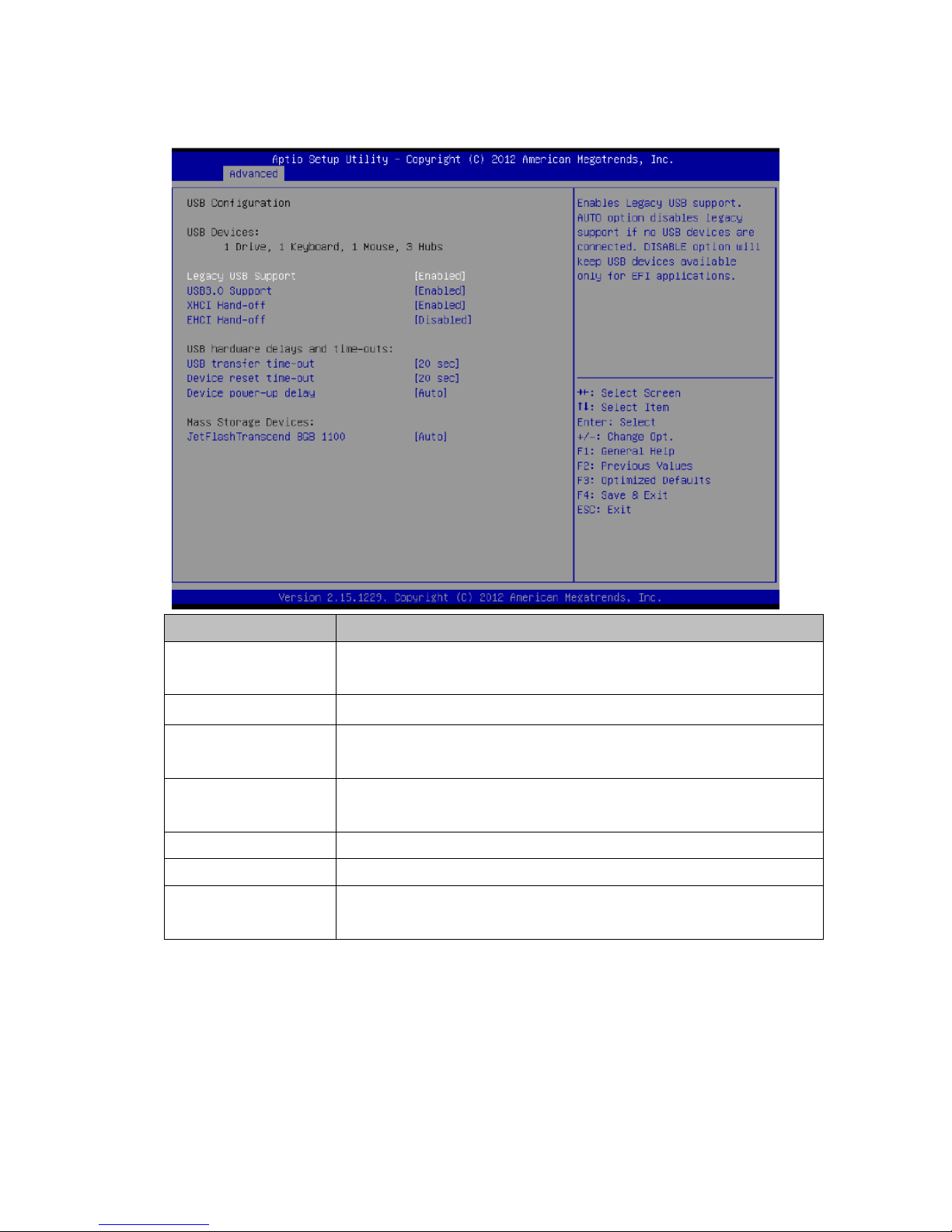

4.2.2.12 USB Configuration

BIOS Setting

Description

Legacy USB Support

Enables support for legacy USB. Auto option disables legacy
support if no USB devices are connected.

USB3.0 support

This item allows user to enable or disable USB3.0 function.

XHCI Hand-off

This is a workaround for OS without XHCI hand-off support. The
XHCI ownership change should claim by XHCI driver.

EHCI Hand-off

This is a workaround for OS without EHCI hand-off support. The
EHCI ownership change should claim by EHCI driver.

USB transfer time-out

Time-out value for control, bulk, and interrupt transfers.

Device reset time-out

USB mass storage device starts unit command time-out.

Device power-up
delay

Maximum time the device will take before it properly report itself
to the host controller.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

67

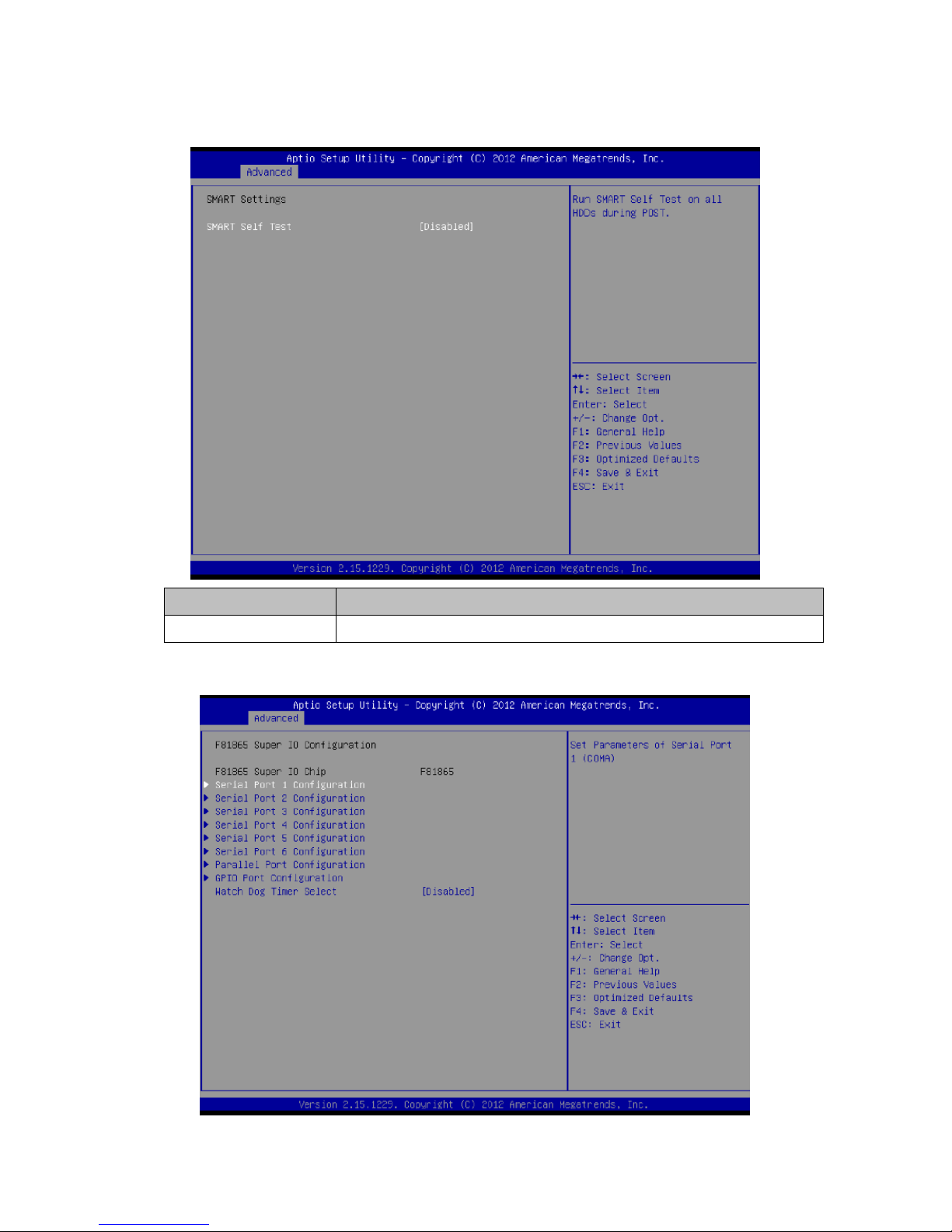

4.2.2.13 SMART Settings

BIOS Setting

Description

Smart Self Test

Enable or disable Run SMART Self Test on all HDDs during Post.

4.2.2.14 F81865 Super IO Configuration

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

68

BIOS Setting

Description

Serial Port
Configuration

Set Parameters of Serial Ports. User can Enable/Disable the serial
port and Select optimal settings for the Super IO Device.

4.2.2.15 F81865 H/W Monitor

BIOS Setting

Description

Fan1/Fan2 Smart Fan
Control

This field enables or disables the smart fan feature. At a certain
temperature, the fan starts turning. Once the temperature drops
to a certain level, it stops turning again.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

69

4.2.2.16 Platform Misc Configuration

BIOS Setting

Description

Native PCIE
Enable

Fan1/Fan2 Smart Fan Control. This field enables or disables the smart
fan feature. At a certain temperature, the fan starts turning. Once the
temperature drops to a certain level, it stops turning again.

4.2.2.17 Intel Smart Connect Technology

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

70

BIOS Setting

Description

ISCT Configuration

Enable/Disable ISCT configuration.

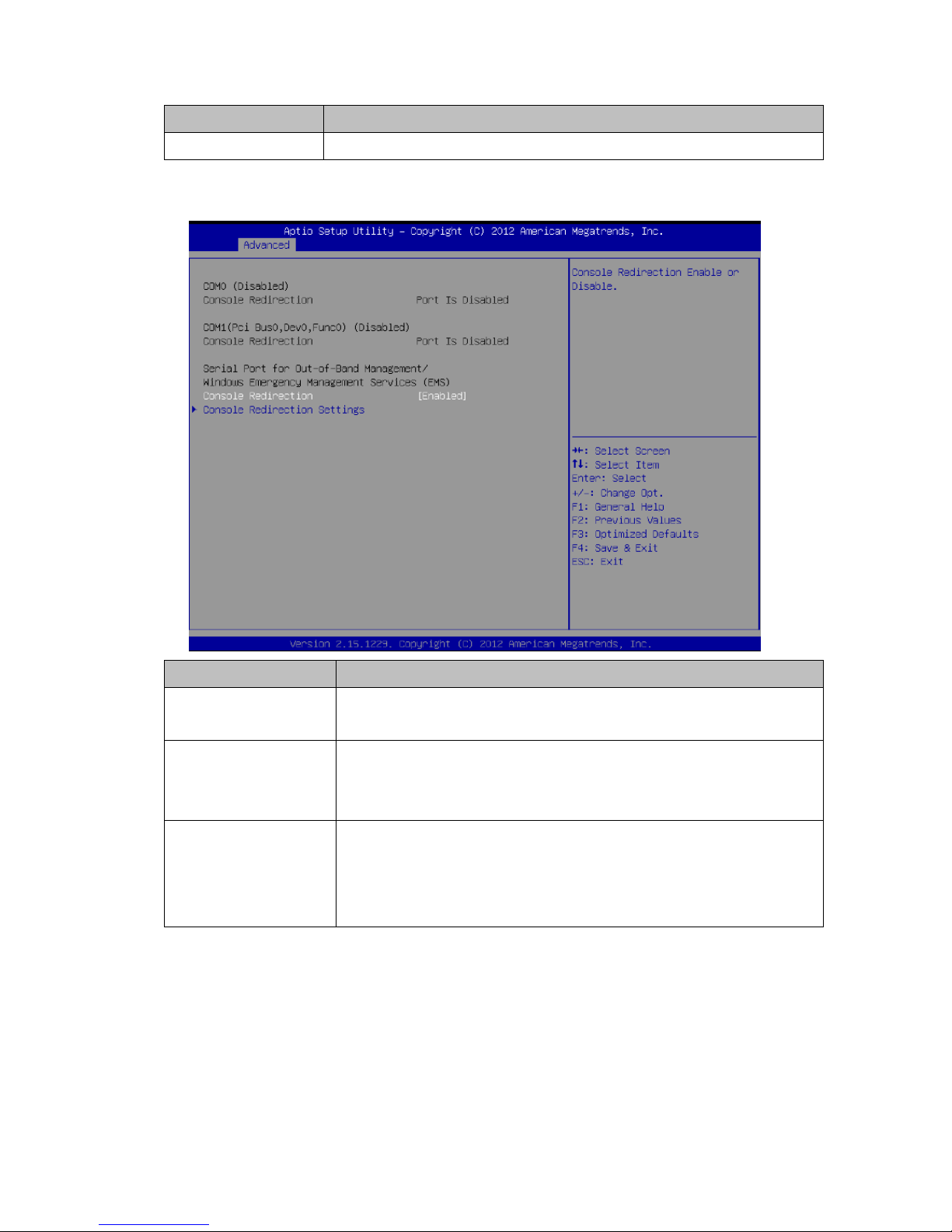

4.2.2.18 Serial Port Console Redirection

BIOS Setting

Description

Console Redirection

This item allows users to enable or disable console redirection for
Microsoft Windows Emergency Management Services (EMS).

Out-of-Band Mgmt
Port

Select the port for Microsoft Windows Emergency Management
Services (EMS) to allow for remote management of a Windows
Server OS.

Terminal Type

VT-UTF8 is the preferred terminal type for out-of-band
management. The next best choice is VT100+ and then VT100.
See above, in Console Redirection Settings page, for more Help
with Terminal Type/Emulation.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

71

4.2.2.19 Intel ICC

BIOS Setting

Description

Use Watchdog Timer
for ICC

Enables watchdog timer operation for ICC. If enabled, watchdog
timer will be started after ICC-related changes. This timer detects
platform instability caused by wrong clock settings.

Turn off unused
PCI/PCIe clocks

Disabled: all clocks turned on. Enabled: clocks for empty PCI/PCIe
slots will be turned off to save power.

Lock ICC registers

All registers: all ICC registers will be locked. Static only: only static
ICC registers will be locked.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

72

4.2.2.20 Intel RC Drivers Version Detail

4.2.2.21 CPU PPM Configuration

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

73

BIOS Setting

Description

EIST

CPU runs at its default speed if disabled; CPU speed is controlled
by the operating system if enabled.

Turbo Mode

This item allows users to enable or disable turbo mode.

Config TDP lock

Lock the config TDP control register

Long duration power
limit

Long duration power limit in watts, 0 means use factory default.

Long duration
maintained

Time window which the long duration power is maintained.

Short duration power
limit

This item allows users to enable or disable CPU TDP lock function.
ACPI T state

This item allows users to enable or disable ACPI T state function.

4.2.2.22 Sandybridge DTS Configuration CPU

BIOS Setting

Description

CPU DTS

This item allows users to select the ACPI thermal management
uses EC reported temperature value function.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

74

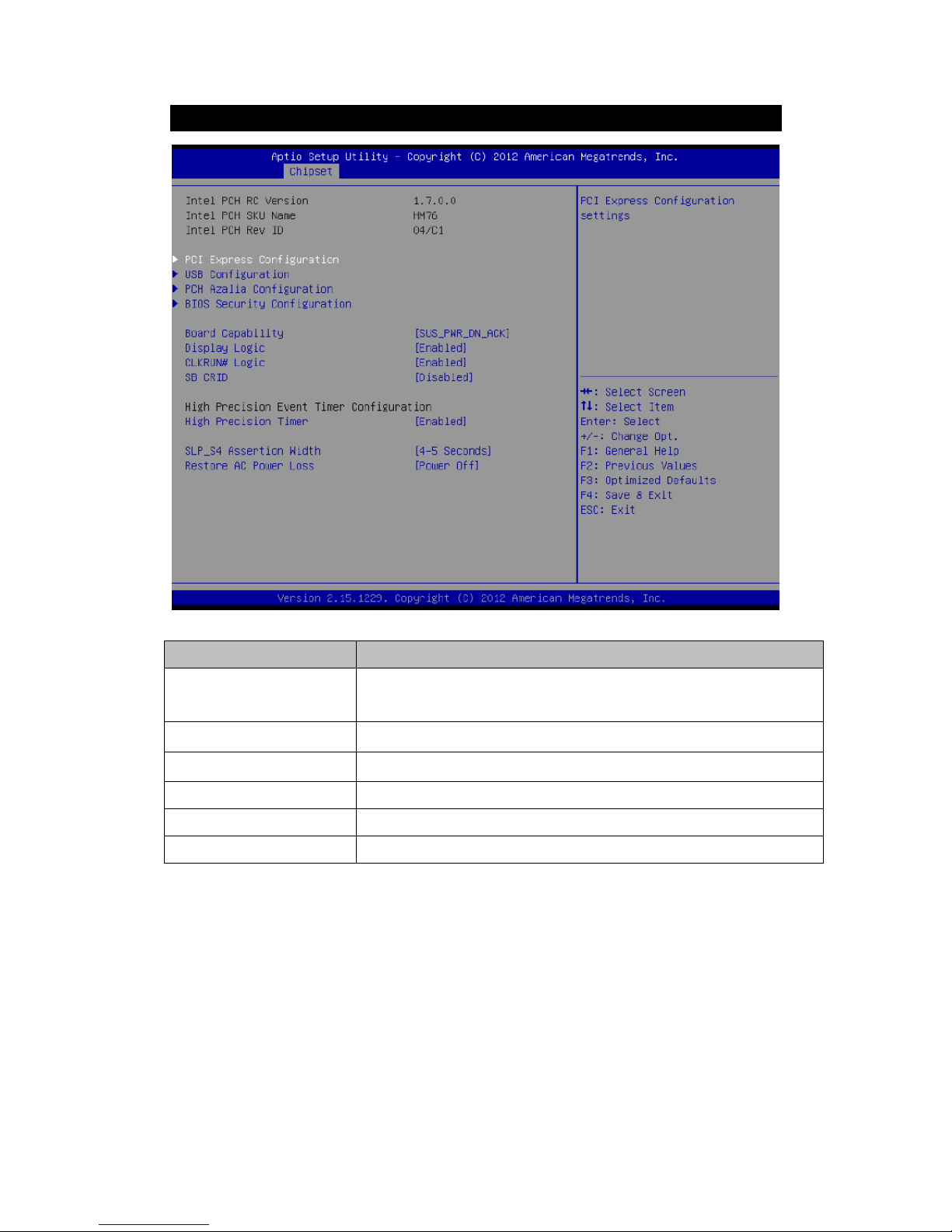

4.2.3 Chipset Setting

BIOS Setting

Description

PCI Express
Configuration

Detail of PCI Express items.
USB Configuration

Details of USB items.

PCH Azalia Configuration

Details of PCH azalia items.

High Precision Timer

Enables or disables the high precision timer.

SLP_S4 Assertion Width

This item allows users to set a delay of sorts.

Restore AC Power Loss

This item allows users to select off, on and last state.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

75

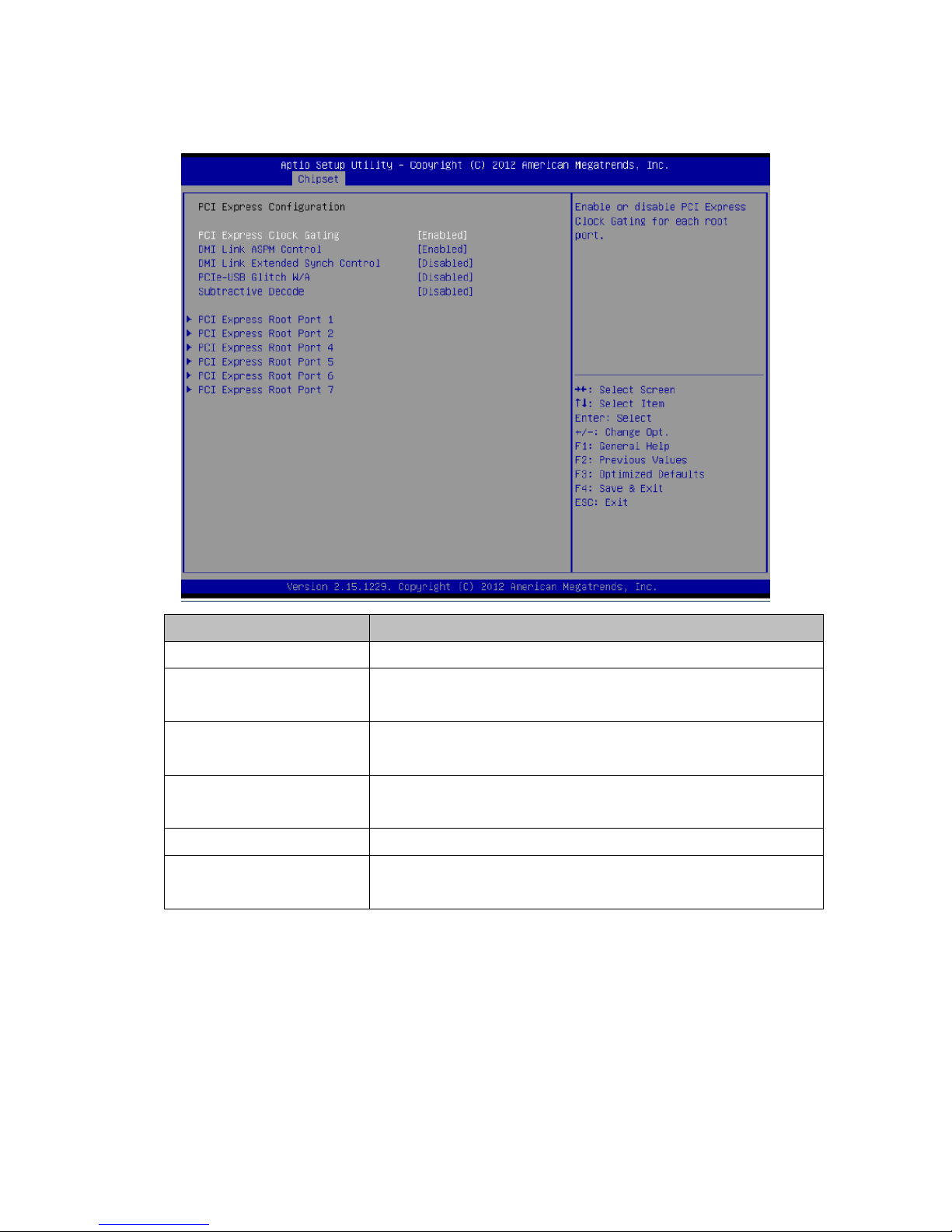

4.2.3.1 PCI Express Configuration

BIOS Setting

Description

PCI Express Clock Gating

Enable or disable PCI Express clock gating for each root port.

DMI Link ASPM Control

The control of active state power management on both NB
side and SB side of the DMI link.

DMI Link Extended Synch
Control

The control of extended synch on SB side of the DMI link.

PCIe-USB Glitch W/A

PCIe-USB glitch W/A for bad USB device connected behind
PCIE/PEG port.

Subtractive Decode

Enable or disable PCI Express subtractive decode.

PCI Express Root Port 1~7

This item allows users to enable or disable the PCI Express
Root Port.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

76

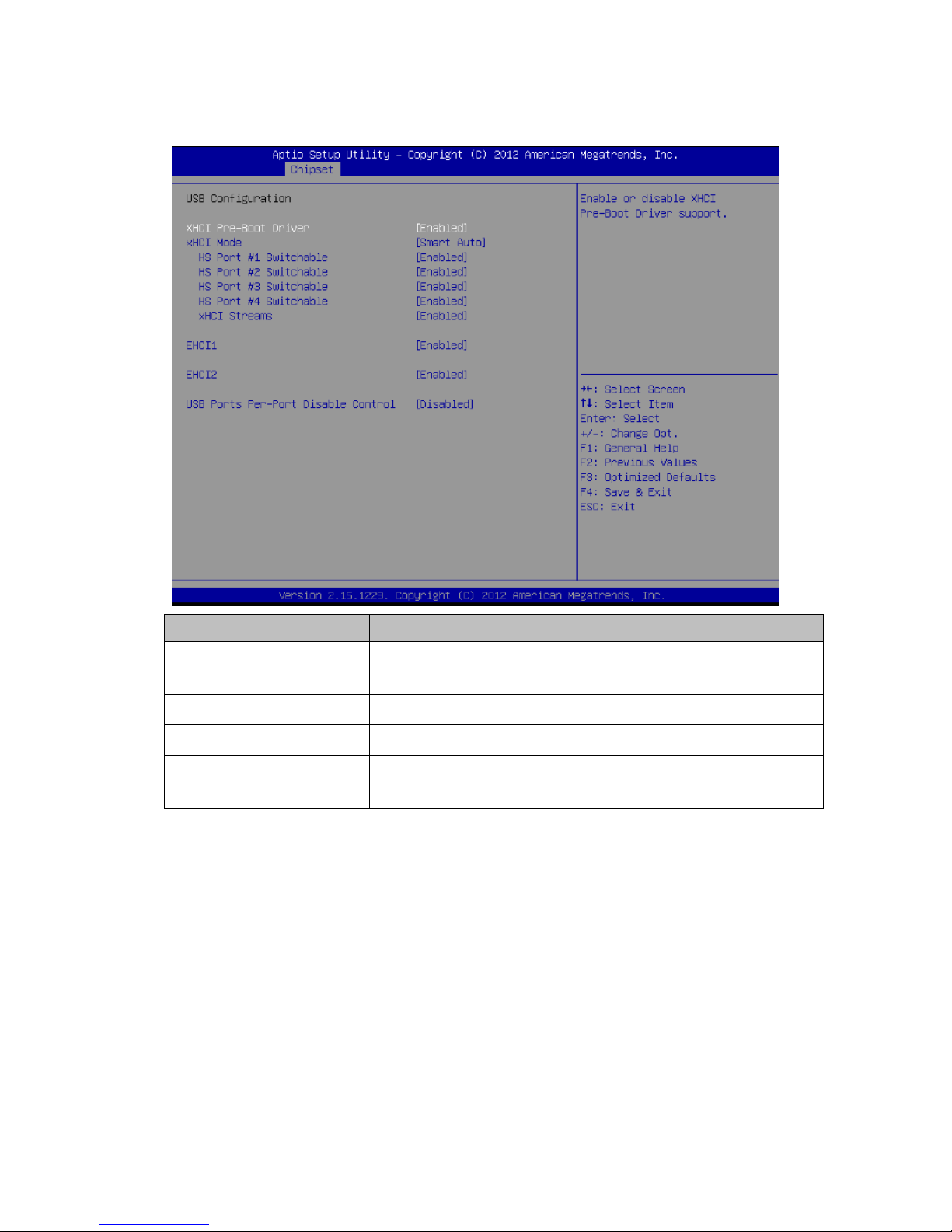

4.2.3.2 USB Configuration

BIOS Setting

Description

XHCI Pre-Boot Driver

This item allows user to enable or disable XHCI Pre-boot
driver.

XHCI Mode

This item allows user to enable or disable XHCI Mode.

EHCI 1/2

Enables or disables the EHCI controller.

USB Ports pre-port Disable
Control

This item allows users to enable or disable each USB port
individually.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

77

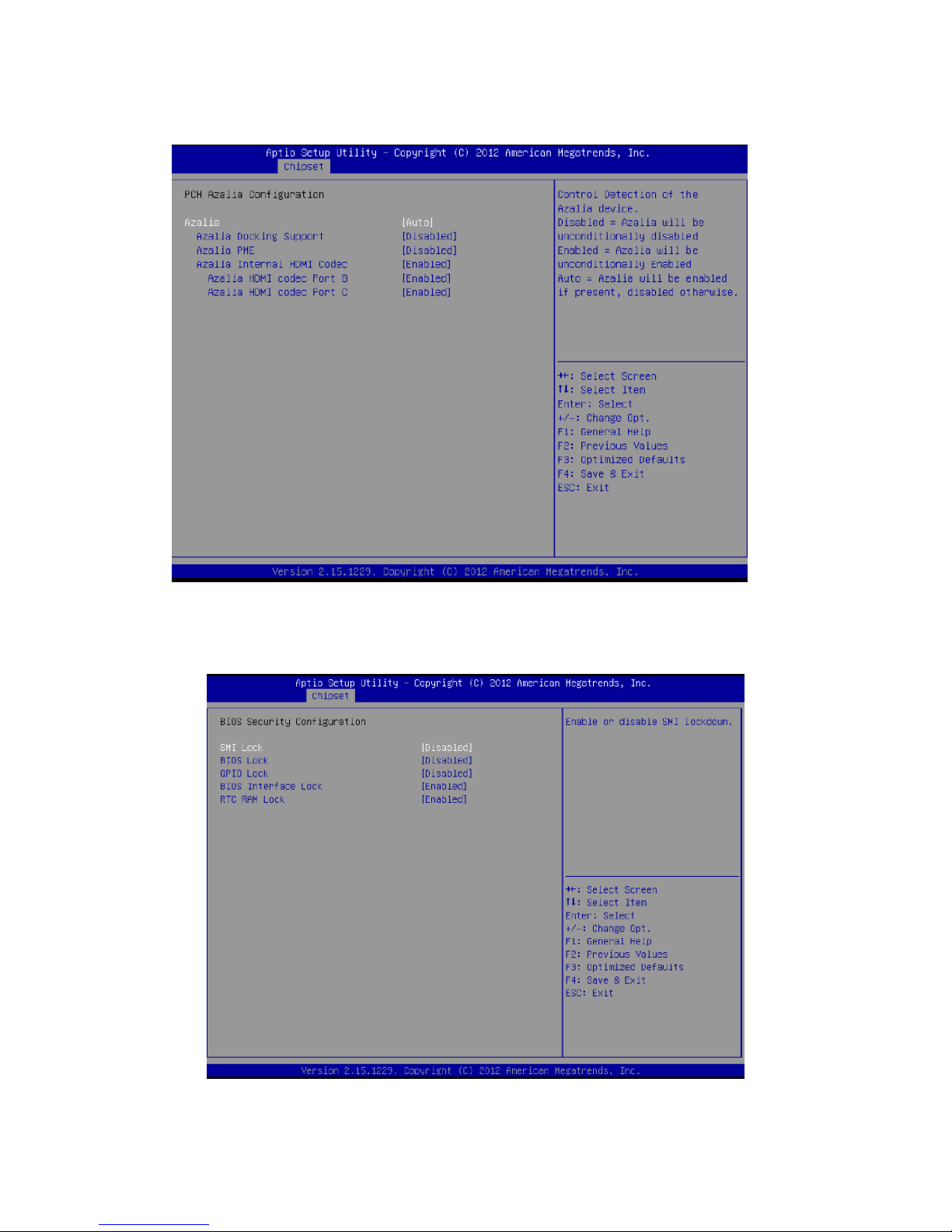

4.2.3.3 PCH Azalia Configuration

This item allows user to enable or disable azalea device.

4.2.3.4 BIOS Security Configuration

Enable or disable SMI/BIOS/GPIO/BIOS interface/RTC RAM Lock.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

78

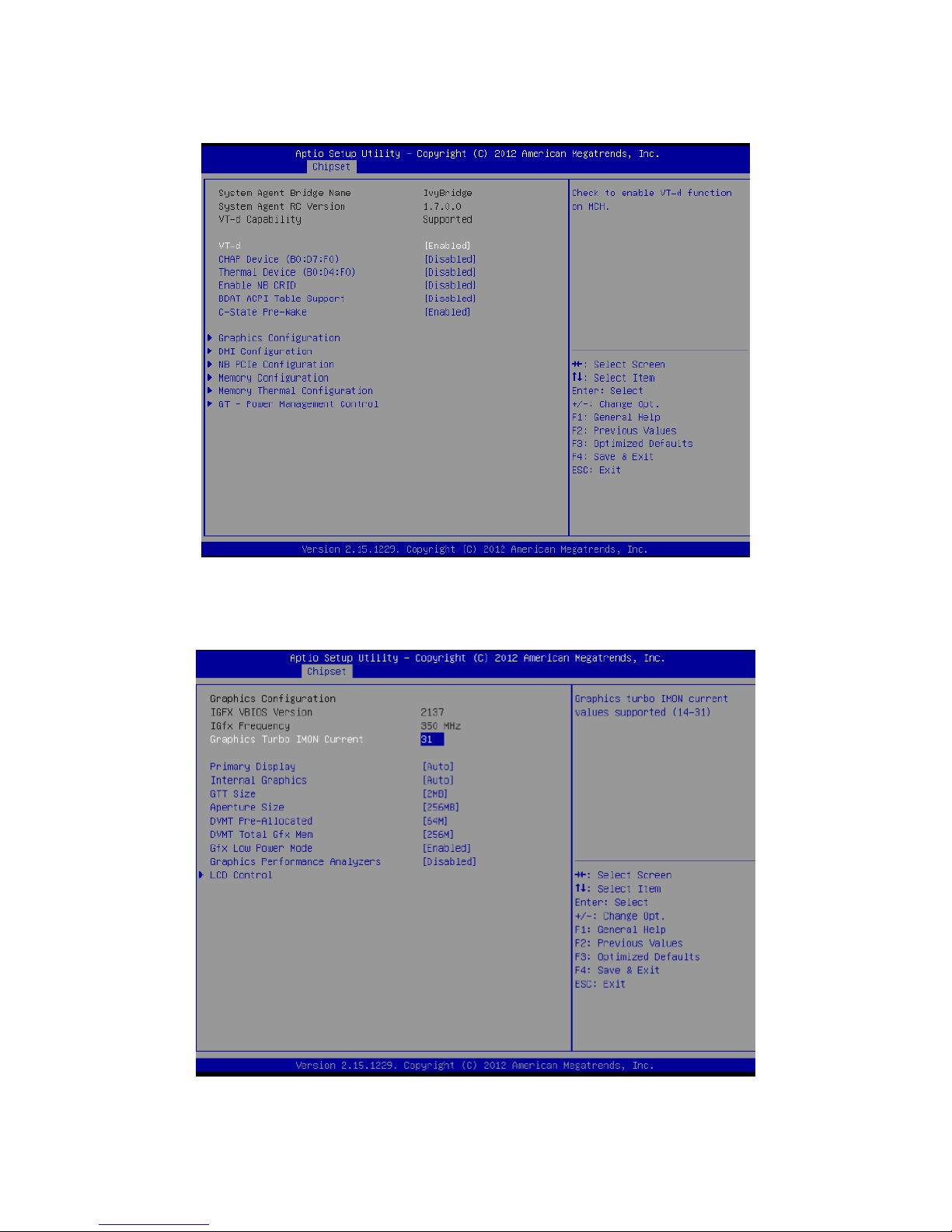

4.2.3.5 System Agent Bridge Name

This item allows users to enable or disable VT-d.

4.2.3.6 Graphic Configuration

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

79

BIOS Setting

Description

Primary Display

This item allows users to select which graphics controller to use as
the primary boot device.

Internal Graphics

This item allows users to enable or disable IGD.

GTT Size

This item allows users to select GTT size.

Aperture Size

This item allows users to select aperture size.

DVMT Pre-Allocated

This item allows users to select DVMT pre-allocated memory size.

DVMT Total Gfx Mem

This item allows users to select DVMT total memory size.

Gfx Low Power Mode

This item allows users to enable or disable IGD low power mode.

Graphic Performance
Analyzers

This item allows users to enable or disable graphic performance
analyzer function.

4.2.3.7 NB PCIe Configuration

BIOS Setting

Description

PEG0 - Gen x

Select PEG0 speed.

Enable PEG

This item allows users to enable or disable PEG always.

PEG Sampler
Calibrate

This item allows users to enable or disable PEG sampler calibrate
function.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

80

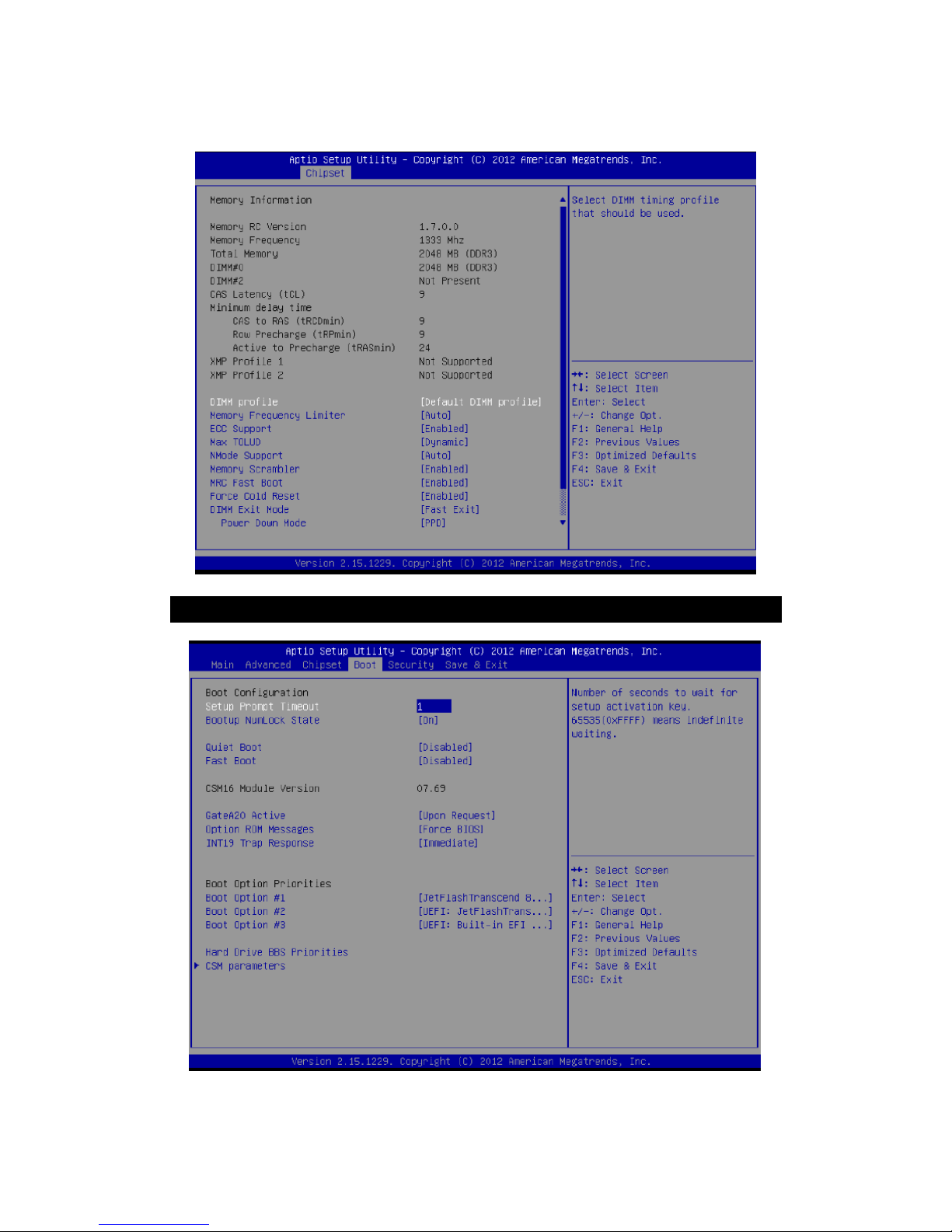

4.2.3.8 Memory Information

4.2.4 Boot

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

81

BIOS Setting

Description

Setup Prompt Timeout

This item allows you to change number of seconds to wait for
setup activation key.

Bootup NumLock State

This allows you to determine the default state of the numeric
keypad. By default, the system boots up with NumLock on
wherein the function of the numeric keypad is the number keys.
When set to Off, the function of the numeric keypad is the
arrow keys.

Quiet Boot

If this option is set to Disabled, the BIOS display normal POST
messages. If Enabled, an OEM Logo is shown instead of POST
messages.

Fast Boot

Enables/Disables boot with initialization of a minimal set of
devices required to launch active boot option. Has no effect for
BBS boot options.

GateA20 Active

UPON REQUEST – GA20 can be disabled using BIOS services.
ALWAYS – do not allow disabling GA20; this option is useful
when any RT code is executed above 1MB.

OptionROM Messages

Set display mode for Option ROM. Options are Force BIOS and
Keep Current.

INT19 Trap Response

This item allows option ROMs to trap interrupt 19

Boot Option #1, #2, #3

Selects the boot sequence of the device.

Hard Drive BBS
Priorities

Set the order of the legacy devices in this group.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

82

4.2.4.1 CSM parameters

BIOS Setting

Description

Launch CSM

This option controls if CSM will be launch.

Boot option filter

This option controls what devices system can boot to the
system.

Launch PXE OpROM policy

Controls the execution of UEFI and legacy PXE OpROM.

Launch Storage OpROM
policy

Controls the execution of UEFI and legacy storage OpROM.
Launch Video OpROM policy

Other PCI device ROM
priority

For PCI device than Network, mass storage or video defines
which OpROM to launch.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

83

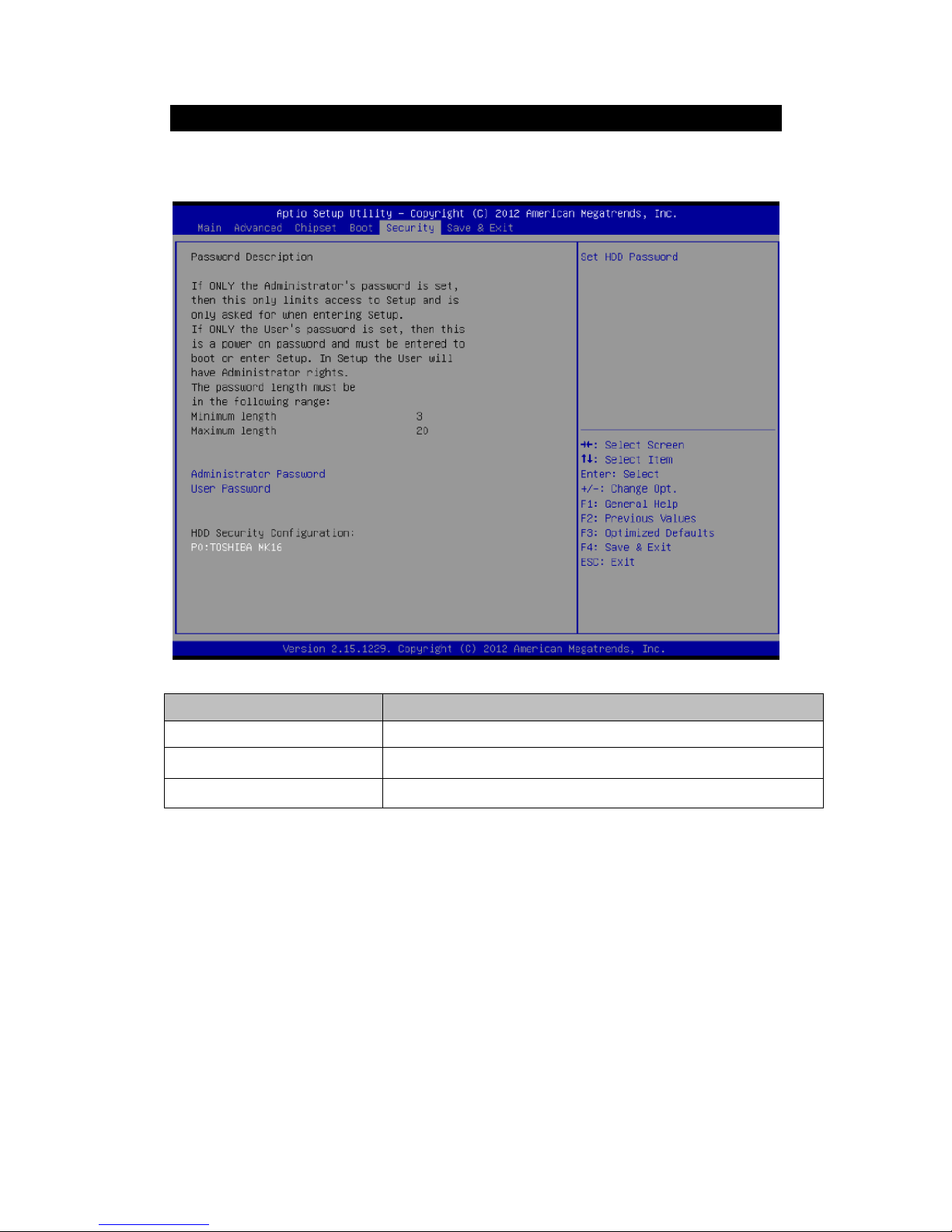

4.2.5 Security

This section allows you to configure and improve your system and allows you to set
up some system features according to your preference.

BIOS Setting

Description

Administrator Password

Sets Setup Administrator Password.

User Password

Sets User Password.

HDD 0: FUJITSU MHY2

Sets the HDD password.

User Manual Chapter 4 AMI BIOS Setup

IV70 Motherboard

84

4.2.6 Save & Exit

BIOS Setting

Description

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Changes

Save Changes done so far to any of the setup options.

Discard Changes

Discard Changes done so far to any of the setup options.

Restore Defaults

Restore/Load Defaults values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults

Restore the User Defaults to all the setup options.

Reset System with ME
disable Mode

ME will run into the temporary disable mode.

IV70 Motherboard

85

Technical Support

This chapter contains directory to technical
support.

User Manual Chapter 5 Technical Support

IV70 Motherboard

86

Chapter 5 Technical Support

This chapter includes the directory for technical support. Free technical support is
available from our engineers every business day. We are always ready to give advice
on application requirements or specific information on the installation and operation
of any of our products. If any problem occurs immediately contact us.

5.1 Drivers

The list of drivers available for IV70 Motherboard:

Item

Driver

1

Windows 10 64bit

2

Windows 10 32bit

3

Windows 8 64bit

4

Windows 8 32bit

5

Windows 7 64bit

6

Windows 7 32bit

7

Windows XP 32bit

To find the Drivers, please refer to the Driver CD that comes in the package or contact
us.

5.2 Software Development Kit (SDK)

The list of SDK available for IH32 Motherboard

Item

File Type

Description

1

SDK

Watchdog SDK

2

SDK

Digital I/O SDK

To find the SDK, please refer to the Driver CD that comes in the package or contact
us.
