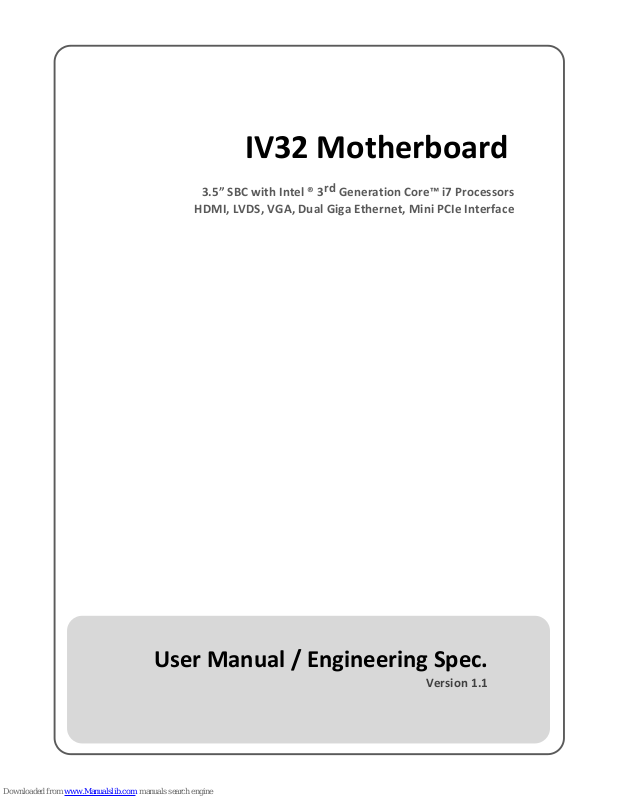

IV32 Motherboard
3.5” SBC with Intel ® 3rd Generation Core™ i7 Processors
HDMI, LVDS, VGA, Dual Giga Ethernet, Mini PCIe Interface
User Manual / Engineering Spec.
Version 1.1
Page 2
IV32 Motherboard User Manual
II
FCC Statement
This device complies with part 15 FCC rules. Operation is subject to
the following two conditions：
﹒ This device may not cause harmful interference.
﹒ This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "a"
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at him
own expense.
Page 3
IV32 Motherboard User Manual
III
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of the
described product(s), conveys no license or title under any patent, copyright, or masks
work rights to these products, and makes no representations or warranties that these
products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Winmate Communication Inc. makes no representation or warranty
that such application will be suitable for the specified use without further testing or
modification.
Warranty
We warrant that each of its products will be free from material and workmanship
defects for a period of one year from the invoice date. If the customer discovers a
defect, We will, at its option, repair or replace the defective product at no charge to
the customer, provided it is returned during the warranty period of one year, with
transportation charges prepaid. The returned product must be properly packaged in its
original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the inwarranty service will be made according to the shipping date. In the serial numbers
the third and fourth two digits give the year of manufacture, and the fifth digit means
the month (e. g., with A for October, B for November and C for December).
For example, the serial number 1W13Axxxxxxxx means October of year 2013.
Page 4
IV32 Motherboard User Manual
4
Packing List
Before using this Motherboard, please make sure that all the items listed below are
present in your package：
IV32 Motherboard
User Manual
User‟s Manual & Driver CD
HDD SATA Cable
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Customer Service
We provide service guide for any problem as follow steps：The first, contact with your
distributor, sales representative, or our customer service center for technical support if
you need additional assistance. You may have the following information ready before
you call：
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every business day.
We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products. Please do not
hesitate to call or e-mail us.
Page 5
IV32 Motherboard User Manual
5
Safety Precautions
。 Warning!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronic
personnel should open the PC chassis.
。 Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static-shielded bag when they are
not in the chassis.
Page 6
IV32 Motherboard User Manual
6
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user's manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not
use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the equipment
and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or electrical shock.
13. Never open the equipment. For safety reasons, only qualified service personnel
should open the equipment.
14. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according to
the user‟s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
15. Do not leave this equipment in an uncontrolled environment where the storage
temperature is below -20° C (-4°F) or above 60° C (140° F). It may damage the
equipment.
Page 7
IV32 Motherboard User Manual
VII
Revision History
Version
Date
Note
Author
1.1 2015.03.26
Jumper , Connector
Austin Chang
1.0 2013.06.25
Initial Draft
Pirson Liang
Page 8
IV32 Motherboard User Manual
VIII
Contents
CONTENTS ................................................................................... .. VIII
CHAPTER 1 GENERAL INFORMATION ...................................... 2
1.1 INTRODUCTION .................................................................................. 2
1.2 FEATURE .............................................................................................. 2
1.3 MOTHERBOARD SPECIFICATIONS ................................................ 3
1.4 FUNCTION BLOCK ............................................................................. 4
1.5 BOARD DIMENSION........................................................................... 5
CHAPTER 2 INSTALLATIONS ........................................................ 7
2.1 MEMORY MODULE（SO-DIMM）INSTALLATION ..................... 7
2.2 I / O EQUIPMENT INSTALLATION................................................... 8
2.3 JUMPER AND CONNECTOR LOCATION ........................................ 9
2.4 JUMPERS ........................................................................................... 10
2.5 CONNECTORS AND PIN ASSIGNMENT ....................................... 14
CHAPTER 3 DRIVER INSTALLATION .......................................25
3.1 INSTALLATION OF ALL DRIVERS ............................................... 25
3.2 INSTALLATION OF COM PORT‟S DRIVER ................................. 27
CHAPTER 4 BIOS SETUP ...............................................................31
4.1ENTERING BIOS SETUP .................................................................... 31
4.2ADVANCED SETTING ....................................................................... 33
4.3CHIPSET CONFIGURATION .............................................................. 51
4.4 BOOT SETTING .................................................................................. 57
4.5SECURITY SETUP ............................................................................... 59
4.6SAVE & EXIT ....................................................................................... 60
Page 9
IV32 Motherboard User Manual
1
C
H
A
P
T
E
R
1
General Information
This chapter includes the IV32 Motherboard background
information.
The section includes:
•
Introduction
•
Feature
•
Motherboard Specification
•
Function Block
•
Board Dimension
Page 10
IV32 Motherboard User Manual
2
Chapter 1 General Information
1.1 Introduction
The IV32 SBC is integrated with Intel
®
Express Chipset HM76 (22x22mm) and
3
rd
Generation Intel
®
Core
TM
i7 Processors which offers a high performance
computing platform with low power consumption. The new motherboard
supports 204-pin SO-DIMM DDR3 at speeds of 1333/1600 MHz, up to 8GB.
One SATAII 3.0Gb/s and one SATAIII 6.0Gb/s interfaces provide ample capacity.
With dual Gigabit Ethernet, four COM ports, three USB 3.0 and four USB 2.0,
IV32 SBC meets the requirements of today‟s various applications.
Display requirements are met with rich interfaces, such as HDMI, LVDS, and
CRT. The graphic engine adopts Intel
®
Express Chipset HM76 to offer high
definition display function, and it also supports 24-bit Dual-Channel LVDS.
With all of the integrated features, IV32 SBC is designed to satisfy most of the
applications in the industrial computer market, such as Gaming, POS, KIOSK,
Industrial Automation, and Programmable Control System. It is a compact
design to meet the demanding performance requirements of today‟s business and
industrial applications.
1.2 Feature

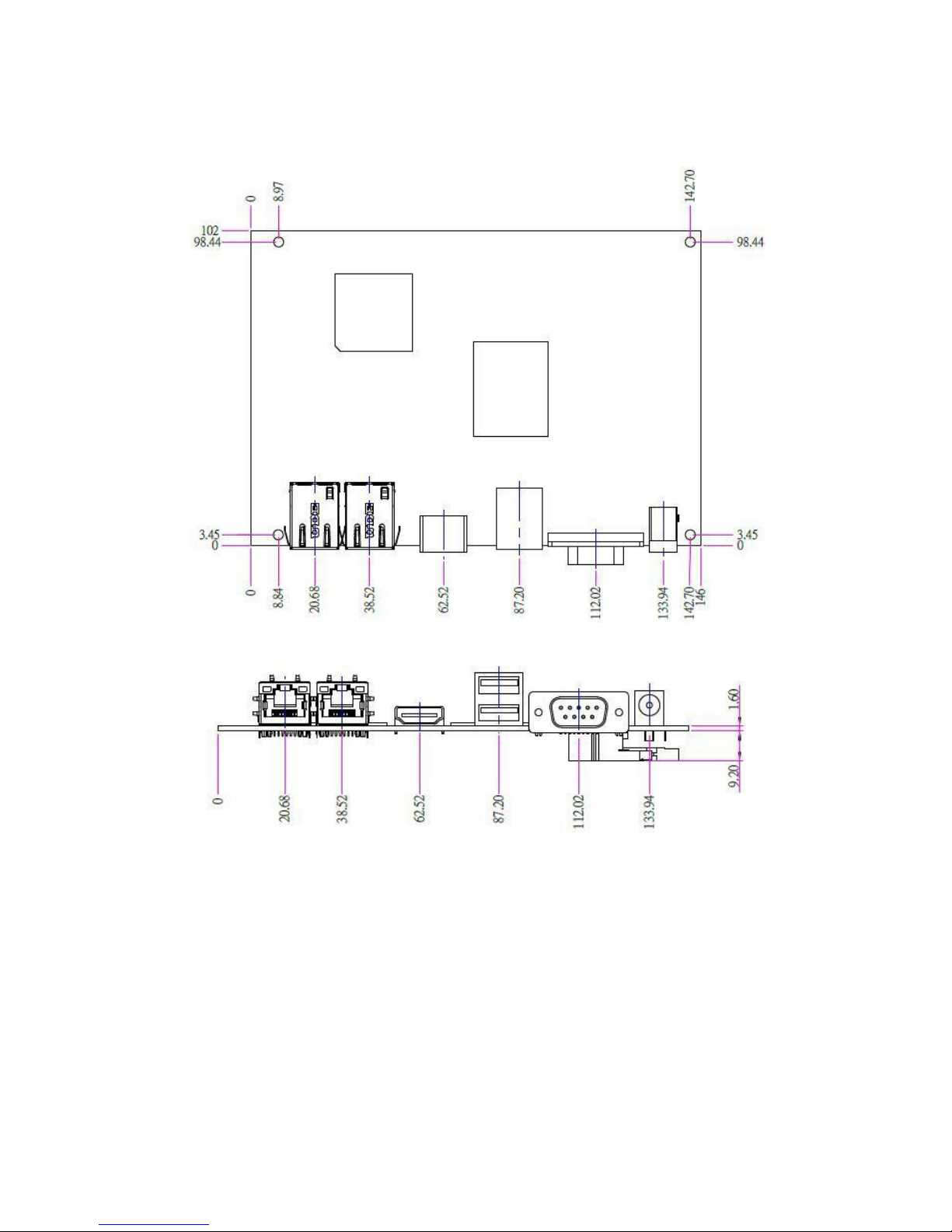

3.5-inch Form Factor (146mm x 102mm / 5.7 x 4 inches)
Support 3
rd
Generation Intel®CoreTMi7 processors
Intel®ExpressChipsetHM7
204-pin SO-DIMM DDR 1333/1600 MHz, up to 8GB
Intel
®
Graphic Accelerator 4000 Integrated Graphics Engine
VGA, 18/24-bit Dual-Channel LVDS, 2 x HDMI
Intel
®
82579-LM GbE PHY and Intel
®
WG82574L GbE
1 x Mini PCIe, 1 x Mini Card Slot (for mSATA SSD), 4 x COM, 3 x USB
3.0, 4 x USB 2.0, 1 x SATA II, 1 x SATA III, 12-bit GPIO, 1 x 1394b
+12V only operation
Page 11
IV32 Motherboard User Manual
3
1.3 Motherboard Specifications
Processor
Intel
®
Core i7-3555LE 2.5GHz / Core i7-3517UE 1.7GHz
Chipset
Intel
®
Express Chipset HM76
BIOS
AMI 16Mbit Flash
Graphic
Intel
®
Graphic Accelerator 4000 support DX11, OpenGL 3.1
LCD Interface
Dual-Channel 18/24-bit LVDS up to 1920 x 1200 @ 60Hz
Resolution
Up to 1920 x 1200 for VGA, HDMI
LAN
2 x Giga LAN
(Intel
®
82579-LM GbE PHY and Intel
®
WG82574L GbE)
System Memory
204-pin SO-DIMM DDR 1333/1600 MHz, up to 8GB
Super I/O
Fintek F81866
Sound
Realtek ALC886 HD Audio Codec
USB
3 x USB 3.0, 4 x USB 2.0
COM
4 x COM ports
Edge Connectors
1 x DC-IN Power Jack (+12V)
1 x RS232/422/485
2 x USB 3.0
1 x HDMI
2 x Gigabit LAN RJ-45
On Board
Pin-Header
Connectors
3 x RS-232 / 10-pin(2x5)
1 x USB 3.0 / 10-pin(2x5)
4 x USB 2.0 / 8-pin(2x4)
1 x LVDS / 40-pin(2x20) DF-13 connector
1 x SATA II 3.0Gb/s
1 x SATA III 6.0Gb/s
1 x SATA Power
1 x Digital I/O(12-bit GPIO) / 14-pin(2x7)
1 x Power-input / 2-pin
1 x +12V for external power(Yellow) / 2-pin
1 x +5V for external power(Red) / 2-pin
1 x +3.3V for external power(Blue) / 2-pin
1 x Fan / 3-pin
1 x Panel inverter / 7-pin
1 x Front panel / 10-pin(2x5)
1 x Backlight brightness controller / 3-pin
2 x Speaker with Amp. / 2-pin
1 x HDMI (DVI-D) / 20-pin(2x10)
1 x VGA / 10-pin(2x5)
1 x 1394b / 10-pin(2x5)
1 x Audio (Mic-in / Line-in / Line-out) / 12-pin(2x6)
1 x Battery / 2-pin
Power Connector
2-pin Power-input connector
Expansion Slots
1 x Mini PCIe for wireless, 1 x Mini Card Slot for mSATA SSD
Form Factor
3.5 inch
Dimensions
146mm x 102mm
Environmental
Operating Temperature: 0~60°C (32~140°F)
Operating Humidity: 10~90% Relative Humidity,
non-condensing
Shock: Operating 15G, 11ms duration
Vibration: Operating 5 Hz~500Hz / 1Grms / 3 Axis
Certification: CE, FCC, RoHS
Page 12
IV32 Motherboard User Manual
4
1.4 Function Block
Page 13
IV32 Motherboard User Manual
5
1.5 Board Dimension
Page 14
IV32 Motherboard User Manual
6
C
H
A
P
T
E
R
2
Installations
This chapter provides information on how to use the jumpers
and connectors on the IV32 Motherboard.
The section includes:
﹒
Memory Module Installation
﹒
I / O Equipment Installation
﹒
Jumper and Connector Location
﹒
Jumpers
﹒
Connectors and Pin Assignment
Page 15
IV32 Motherboard User Manual
7
Chapter 2 Installations
2.1

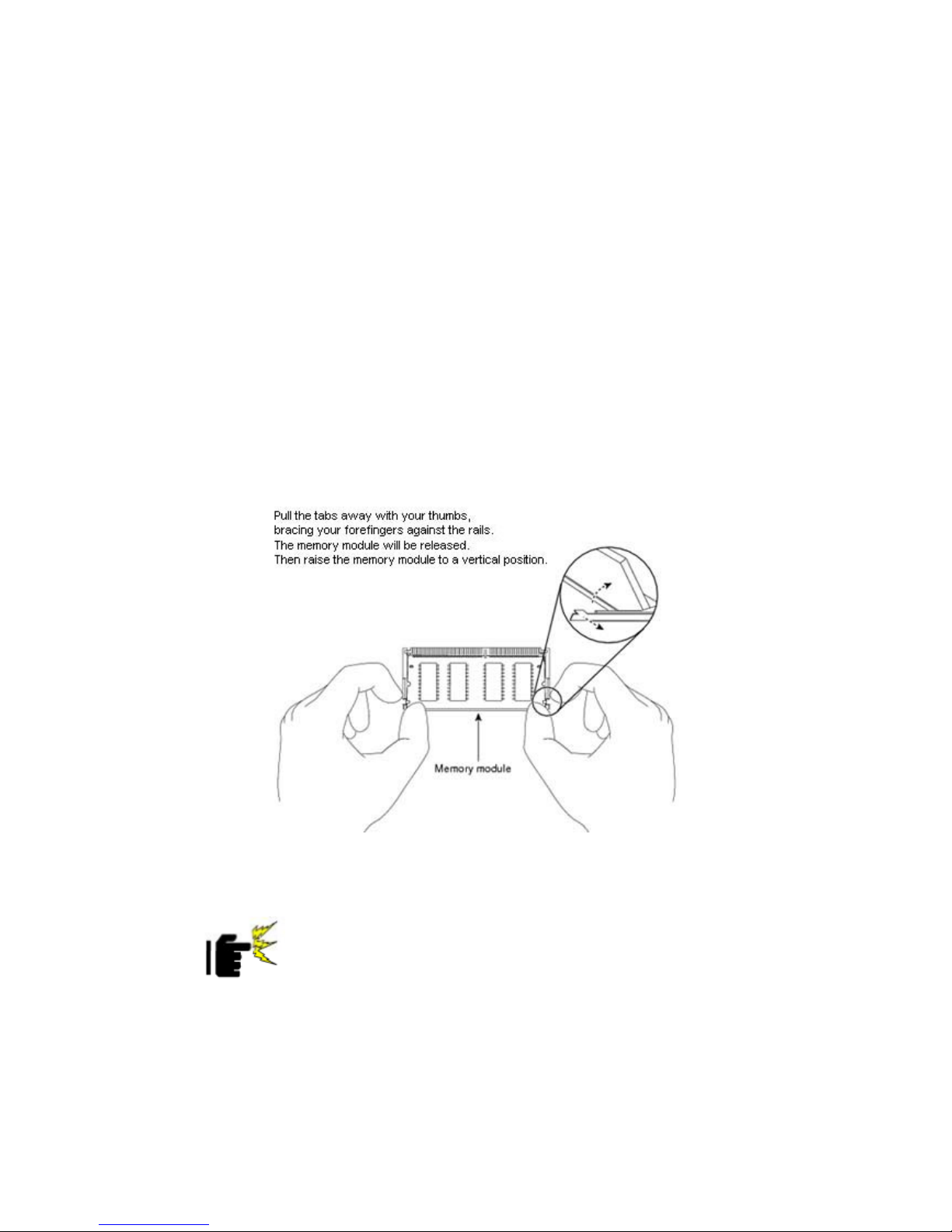

Memory Module（SO-DIMM）Installation
The IV32 Motherboard provides one 204-pin SO-DIMM slot, and it supports up to
8GB DDR3 1333/1600MHz. When installing the Memory device, please follow the
steps below：
Step 1. Firmly insert the SO-DIMM at an angle into its slot. Align the SO-DIMM on
the slot such that the notch on the SO-DIMM matches the break on the slot.
Step 2. Press downwards on SO-DIMM until the retaining clips at both ends fully
snap back in place and the SO-DIMM is properly seated.
y
Caution
!
The SO-DIMM only fits in one correct orientation. It will cause
permanent damage to the development board and the SO-DIMM if
the SO-DIMM is forced into the slot at the incorrect orientation.
Page 16
IV32 Motherboard User Manual
8
2.2 I / O Equipment Installation
2.2.1 12V DC-IN
The Motherboard allows plugging 12V DC-IN jack on the board without another
power module converter under power consumption of 3
rd
Generation Intel
®
Core
TM
Processor (Socket FCBGA1023) with Express Chipset HM76.
※Without power/reset OSD, short circuit pin 5 and 6 together to boot up the
motherboard.(Front Panel Connector)
2.2.2 Serial COM ports
One COM port connector which supports RS232/422/485 function by jumper setting
has been built-in the rear I/O, and one internal COM port can be connected to a serial
or an optional touch-screen when an optional touch-screen is ordered with Panel PC.
2.2.3 External HDMI
The Motherboard has one HDMI port that can be connected to an external LCD
monitor by using HDMI cable, and it also needs to be connected to the outlet by
power cable. The HDMI connector is a standard 19-pin Type A connector.
2.2.4 Ethernet interface
The Motherboard is equipped with Intel
®
Gigabit Ethernet Controller which is fully
compliant with the PCI 10/100/1000 Mbps Ethernet protocol compatible. It is
supported by major network operating systems. The Ethernet ports provide two
standard RJ-45 jacks.
2.2.5 USB ports
Seven USB devices (five with pin headers) may be connected to the system through
an adapter cable. Various adapters may come with USB ports. USB usually connect
the external system to the system. The USB ports support hot plug-in connection.
Whatever, you should install the device driver before you use the device.
※Note
Page 17
IV32 Motherboard User Manual
9

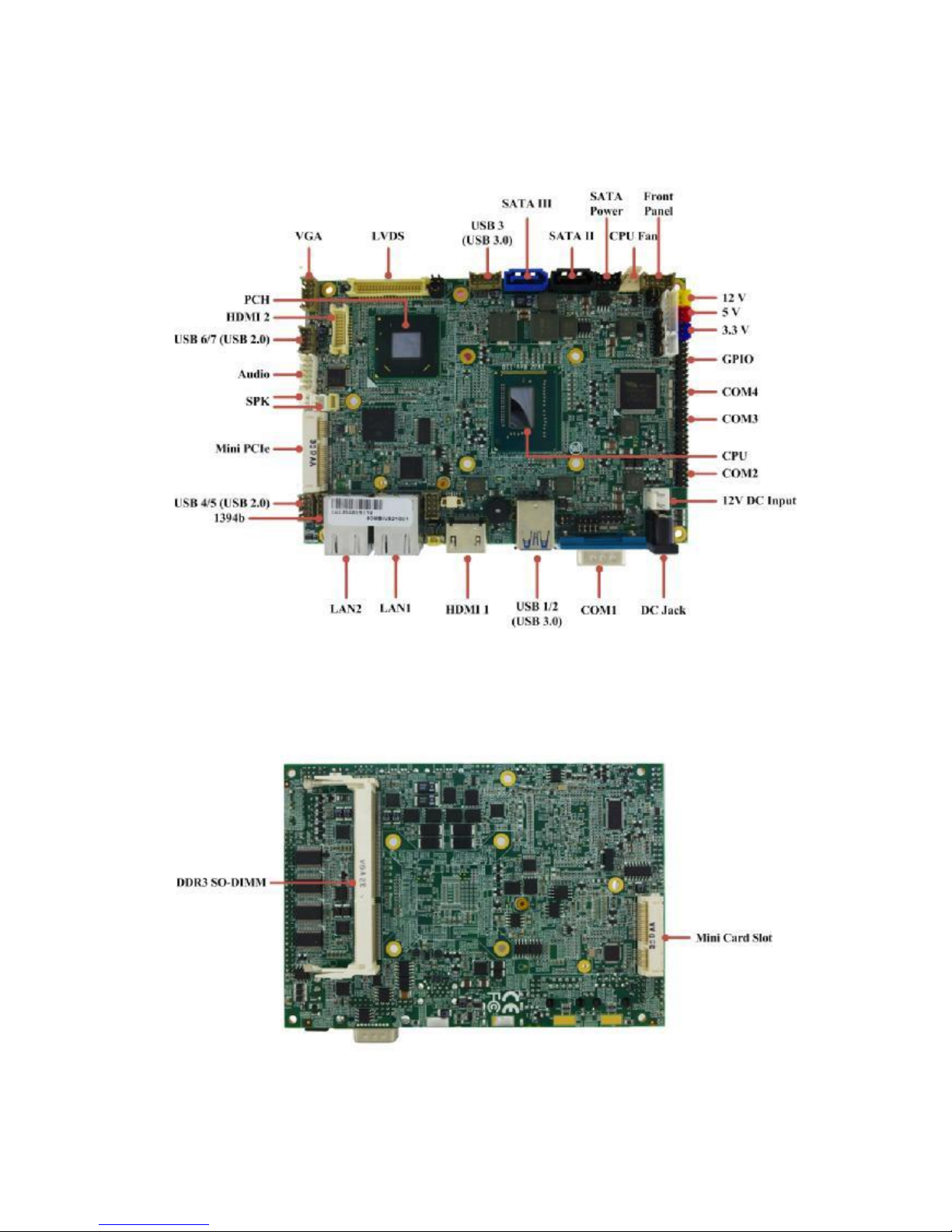

2.3 Jumper and Connector Location
Component Side
Solder Side
Page 18
IV32 Motherboard User Manual
10
2.4 Jumpers
2.4.1 Jumper List
The following table lists the function of each of the board's jumpers.
Label
Function
Note
JP1
Clear CMOS
3x1 header , pitch 2.0mm
JP3
COM1 Setting (RS232/422/485)
2x3 header , pitch 2.0mm
JP4
COM1 Setting (RS232 or RS422/485)
3x4 header , pitch 2.0mm
JP5
Backlight Inverter VCC Selection
3x1 header , pitch 2.0mm
JP6
Backlight Inverter VCC Control
3x1 header , pitch 2.0mm
JP7
Operating VDD Selection
3x1 header , pitch 2.0mm
JP8
Backlight Brightness Control Mode Selection
3x1 header , pitch 2.0mm
JP9
DC Capacitor
3x1 header , pitch 2.0mm
CON1
LCD Panel Voltage Selection
2x3 header , pitch 2.0mm
2.4.2 Jumper Settings
A metal-bridge jumper used to close an electric circuit, and it usually consists of two
metal pins and one small clip protected by a plastic cover that slides over the pins to
connect them. Users can connect the pins with the clip to close a jumper, and remove
the clip to open a jumper. Generally, a jumper will have three pins which labeled 1, 2,
and 3. In this case, you would connect either pins 1 and 2, or 2 and 3.

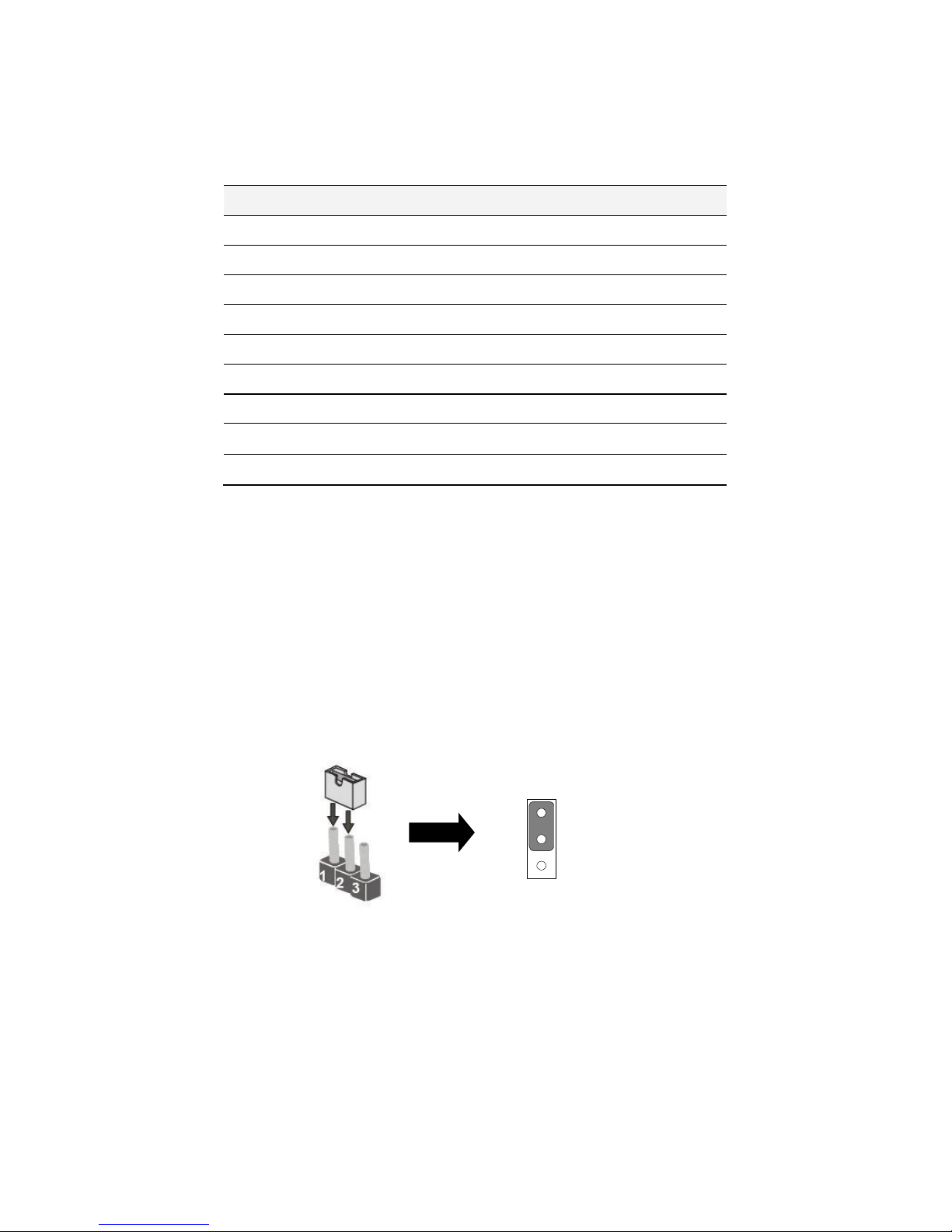

The jumper setting diagram is as below. If a jumper shorts pin 1 and pin 2, the setting
diagram is shown as the right one.
1
2
3
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes.
Page 19
IV32 Motherboard User Manual
11

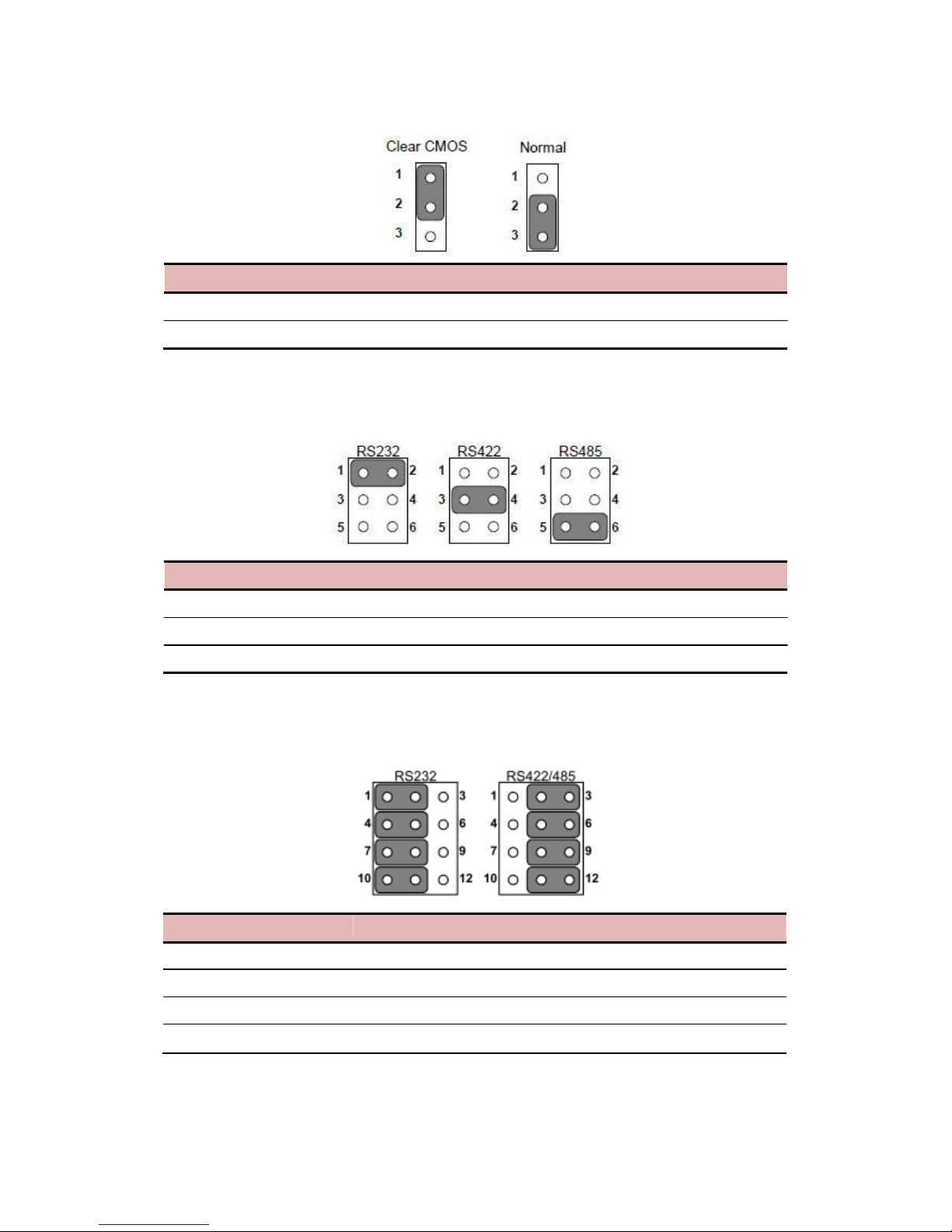

JP1: Clear CMOS
Pin No. Functions
1-2 Clear CMOS
2-3 Normal (Default)
JP3: COM1 Setting (RS232/422/485)
Pin No. Functions
1-2 RS232 (Default)
3-4 RS422
5-6 RS485
JP4: COM1 Setting (RS232 or RS422/485)
RS232 (Default)
RS422 / 485
1-2
2-3
4-5
5-6
7-8
8-9
10-11
11-12
Page 20
IV32 Motherboard User Manual
12

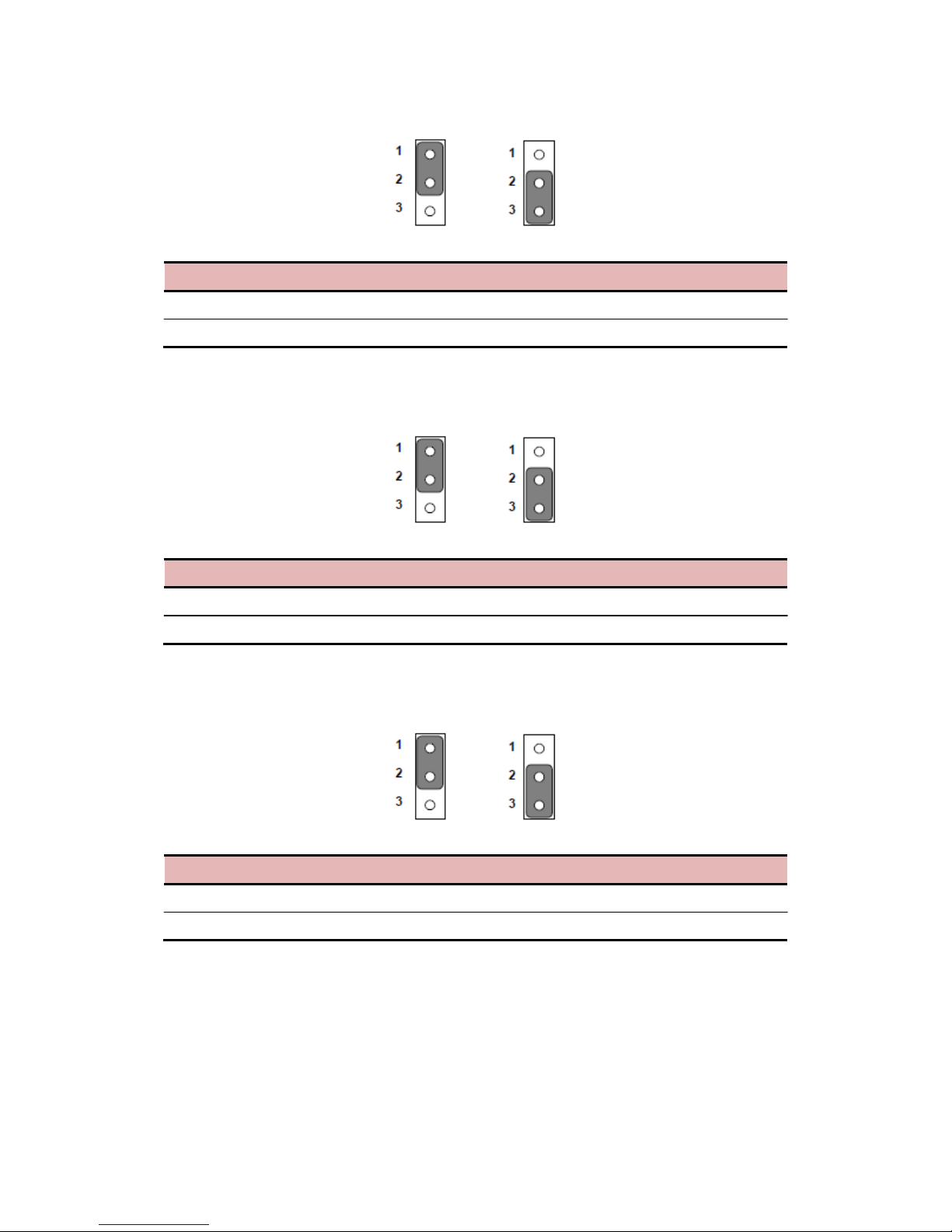

JP5: Backlight Inverter VCC Selection
+5V +12V
Pin No. Functions
1-2 +5V (Default)
2-3 +12V
JP6: Backlight Inverter VCC Control
BIOS GND
Pin No. Functions
1-2 BIOS (Default)
2-3 GND
JP7: Operating VDD Selection
+3.3V +5V
Pin No. Functions
1-2 +3.3V (Default)
2-3 +5V
Page 21
IV32 Motherboard User Manual
13
JP8: Backlight Brightness Control Mode Selection
DC PWM
Pin No. Functions
1-2 DC Mode
2-3 PWM Mode (Default)
JP9: DC Capacitor
Capacitor
N/C
Pin No.
Functions
1-2
Capacitor
2-3
N/C (Default)
CON1: LCD Panel Voltage Selection
Pin No. Functions
1-2 +3.3V (Default)
3-4 +5V
5-6 +12V
Page 22
IV32 Motherboard User Manual
14
2.5 Connectors and Pin Assignment
The table below lists the function of each of the board‟s connectors.
Label Function
DC Jack 12V Power Input
COM1 RS232/422/485
USB 1/2 USB 3.0 Ports
HDMI 1 HDMI Connector
LAN1 / 2 Intel
®
LAN Ports
1394b 1394b (FireWire 800)
SPK 2W External Speaker
Audio Line_in / Line_out / Mic_in
VGA VGA Internal Wafer
HDMI 2 HDMI Internal Wafer
LVDS LVDS Port
SATA II SATA 2.0 3Gb/s Port
SATA III SATA 3.0 6Gb/s Port
SATA Power SATA Power
CPU Fan CPU Fan
Front Panel System Function (Power / Reset)
3.3V 3.3V Output
5V 5V Output
12V 12V Output
GPIO General Purpose I/O
12V DC Input 12V DC Power Input Wafer
USB 3 USB 3.0 Wafer
USB 4/5 USB 2.0 Wafer
USB 6/7 USB 2.0 Wafer
COM2 RS232
COM3 RS232
COM4 RS232
Mini PCIe Full / Half-Size Mini PCIe
Mini Card Slot For mSATA SSD Card
DDR3 SO-DIMM DDR3 SO-DIMM Socket
Page 23
IV32 Motherboard User Manual
15

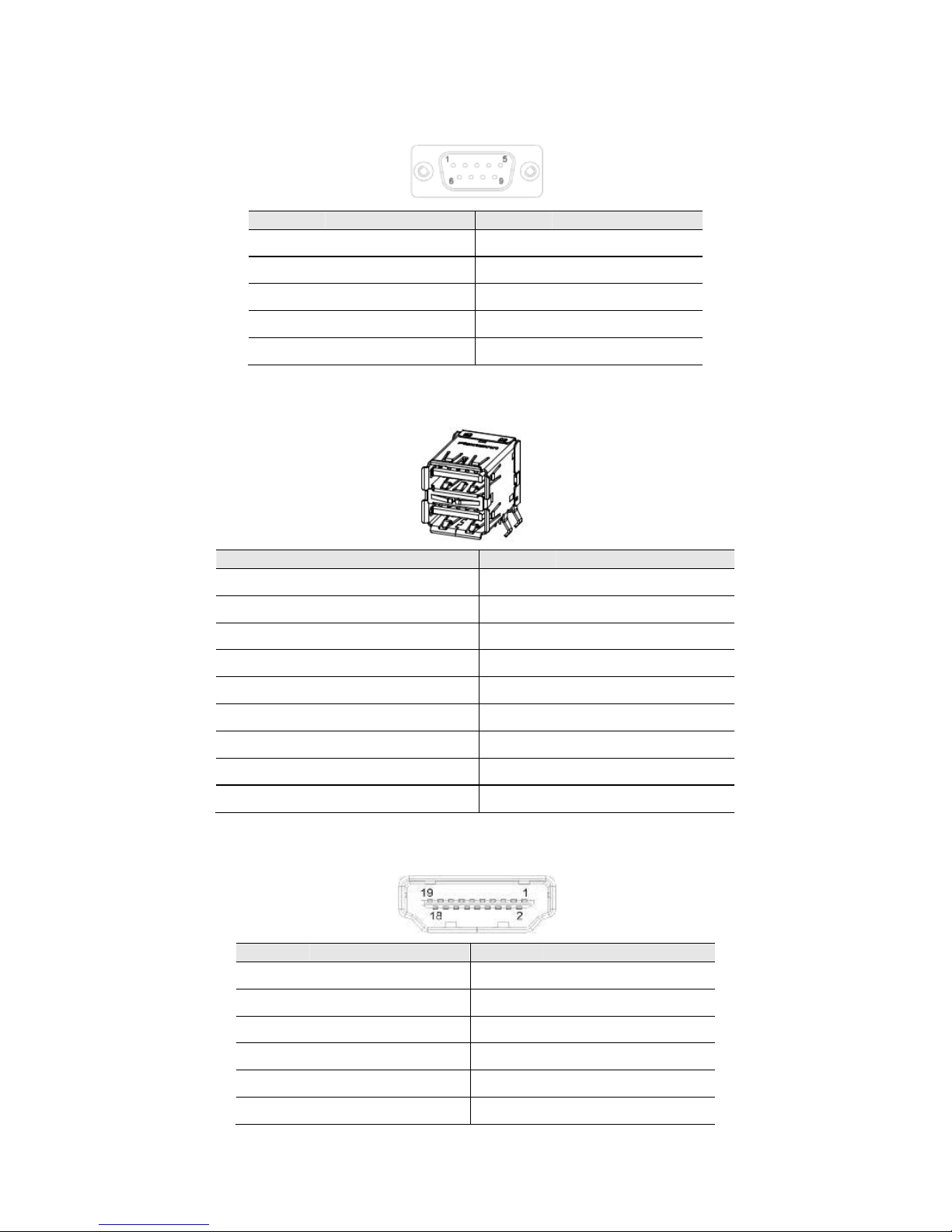

2.5.1 COM1: RS232/422/485
Pin No.
SYMBOL
Pin No.
SYMBOL
1
DCD
2
DxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTX
8
CTS
9
RI
2.5.2 USB 1/2: USB 3.0 Ports
Pin No.
SYMBOL
Pin No.
SYMBOL
1
+5VUSB3.0_CONNA
10
+5VUSB3.0_CONNB
2
USB_PN0_C
11
USB_PN1_C
3
USB_PP0_C
12
USB_PP1_C
4
USB_GND
13
USB_GND
5
USB3_RXN1_C
14
USB3_RXN2_C
6
USB3_RXP1_C
15
USB3_RXP2_C
7
USB_GND
16
USB_GND
8
USB3_TXN1_C
17
USB3_TXN2_C
9
USB3_TXP1_C
18
USB3_TXP2_C
2.5.3 HDMI 1: HDMI Connector
Pin No.
SYMBOL
Pin No.
SYMBOL
1
HDMIB_TMDS0+
2
GND
3
HDMIB_TMDS0-
4
HDMIB_TMDS1+
5
GND
6
HDMIB_TMDS1-
7
HDMIB_TMDS2+
8
GND
9
HDMIB_TMDS2-
10
HDMIB_CLK+
11
GND
12
HDMIB_CLK-
Page 24
IV32 Motherboard User Manual
16
13
GND
14
NC
15
HDMI_DDC_CLK
16
HDMI_DDC_DATA
17
GND
18
+5V
19
HDMI_HPD1

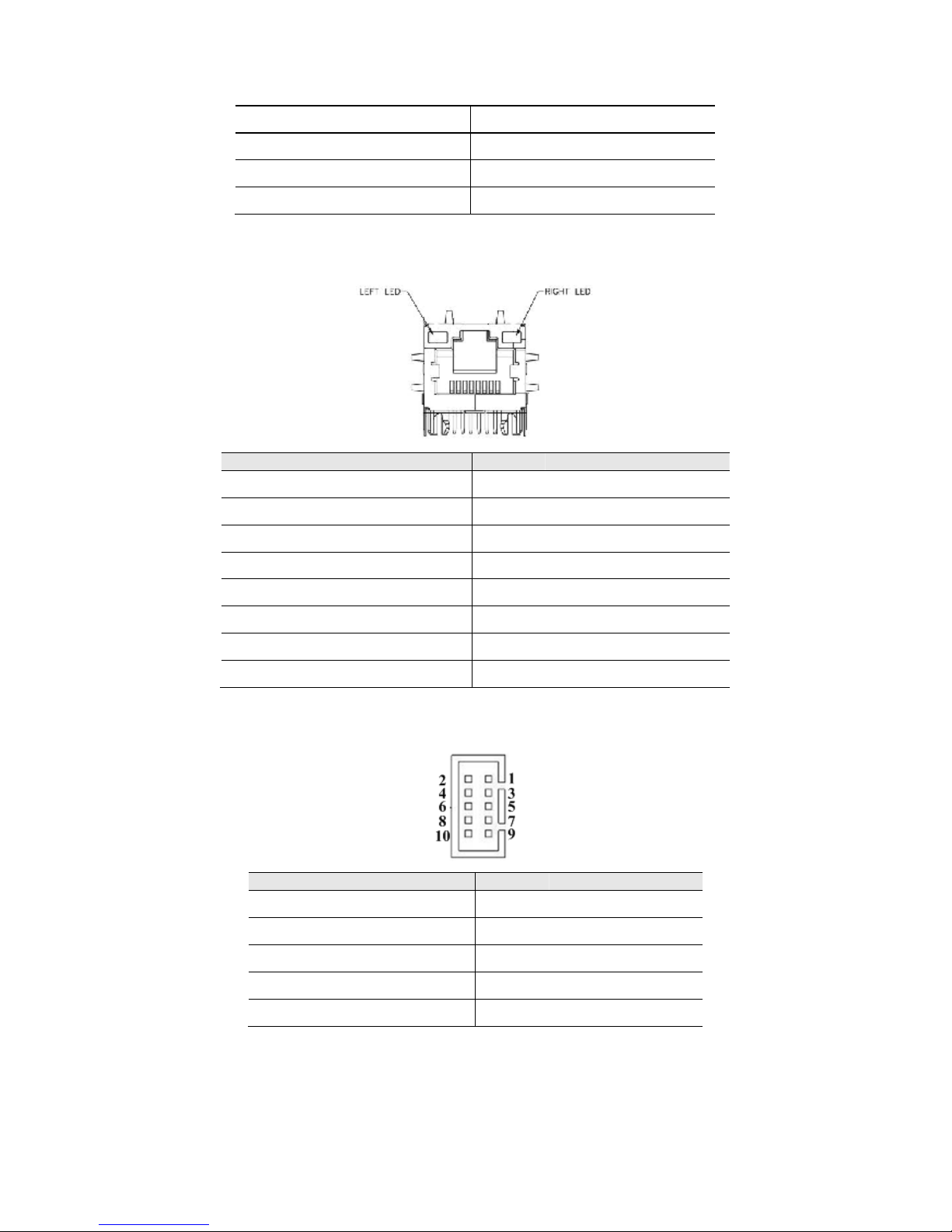

2.5.4 LAN1 (LAN2): Intel
®
LAN Ports (RJ-45)
Pin No.
SYMBOL
Pin No.
SYMBOL
1
MDI0_IN+
2
MDI0_IN-
3
MDI1_IN+
4
MDI1_IN-
5
VLAN_12
6
LAN1_DGND
7
MDI2_IN+
8
MDI2_IN-
9
MDI3_IN+
10
MDI3_IN-
11
LAN_VDD(1.9V)
12
LAN_TRAFFICLED#
13
LAN_SPD100LED#
14
LAN_SPD1000LED#
15
UGND
16
UGND
2.5.5 1394b: FireWire 800
Pin No.
SYMBOL
Pin No.
SYMBOL
1
1394b_TPB0+
2
1394b_TPA0+
3
1394b_TPB0-
4
1394b_TPA0-
5
GND
6
GND
7
+12V
8
N/C
9
N/C
10
N/C
Page 25
IV32 Motherboard User Manual
17

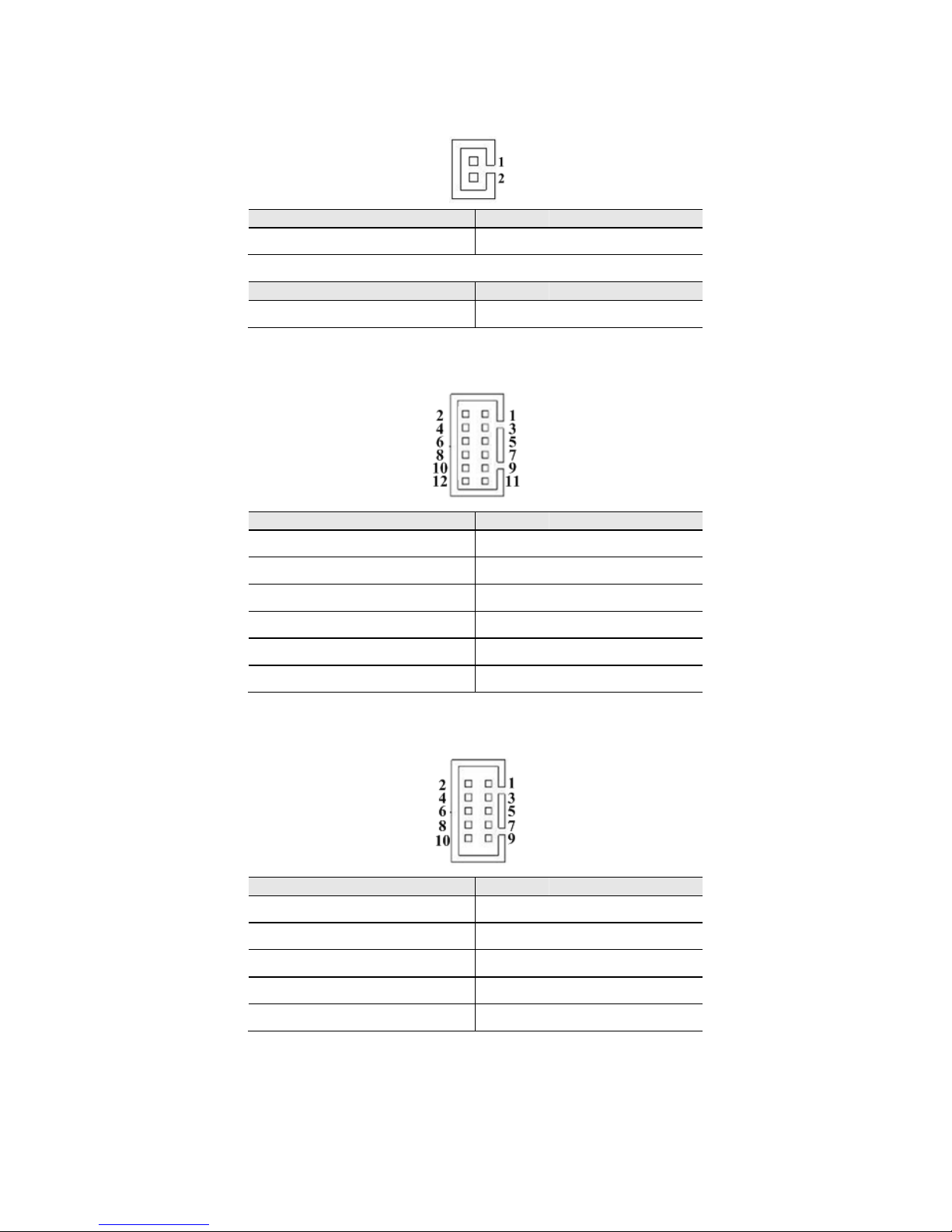

2.5.6 SPK: 2W External Speaker
Pin No.
SYMBOL
Pin No.
SYMBOL
1
LOUT+
2
LOUT-
Pin No.
SYMBOL
Pin No.
SYMBOL
1
ROUT+
2
ROUT-
2.5.7 Audio: Line_in / Line_out / Mic_in
Pin No.
SYMBOL
Pin No.
SYMBOL
1
AZ_FOUT_R
2
AZ_FOUT_L
3
+5V
4
AUGND
5
LINE1_R
6
LINE1_L
7
MIC1_R
8
MIC1_L
9
AUGND
10
Font_SENSE
11
Mic_SENSE
12
Line_SENSE
2.5.8 VGA: VGA Internal Wafer
Pin No.
SYMBOL
Pin No.
SYMBOL
1
DAC_SDAT0
2
VGA_5V
3
DAC_SCL0
4
R_FILTER
5
3VHSYNC0
6
G_FILTER
7
3VVSYNC0
8
B_FILTER
9
GND
10
GND
Page 26
IV32 Motherboard User Manual
18

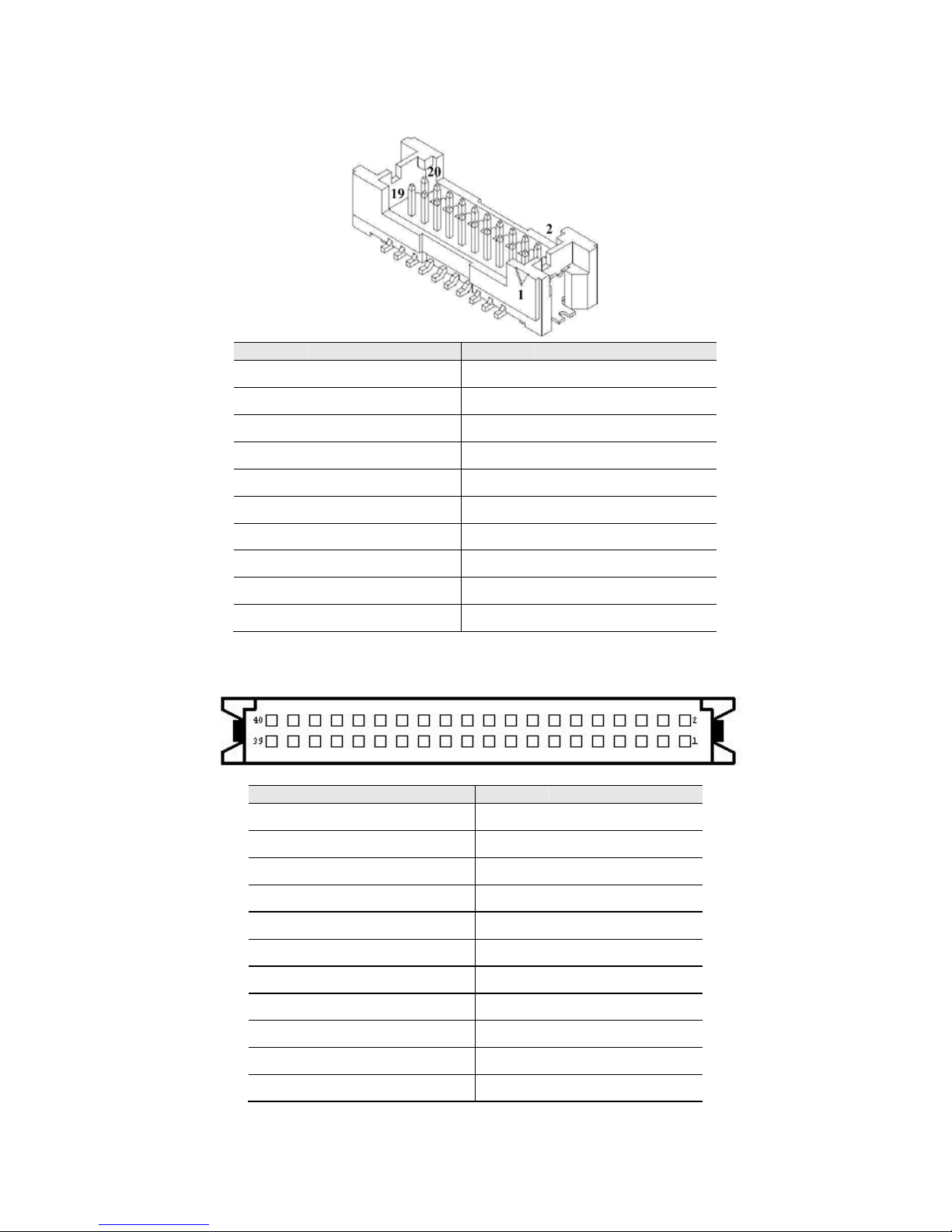

2.5.9 HDMI 2: HDMI Internal Wafer
Pin No.
SYMBOL
Pin No.
SYMBOL
1
GND
2
HDMIC_TMDS2-
3
GND
4
HDMIC_TMDS2+
5
N/C
6
HDMIC_TMDS1-
7
N/C
8
HDMIC_TMDS1+
9
N/C
10
HDMIC_TMDS0-
11
HDMIC_HPD2
12
HDMIC_TMDS0+
13
N/C
14
HDMIC_CLK-
15
N/C
16
HDMIC_CLK+
17
+5V
18
HDMIC_DDC_CLK
19
+5V
20
HDMIC_DDC_DATA
2.5.10 LVDS: LVDS Port
Pin No.
SYMBOL
Pin No.
SYMBOL
1
LCDVDD
2
TXOUT_L0-
3
LCDVDD
4
TXOUT_L0+
5
LCDVDD
6
TXOUT_L1-
7
GND
8
TXOUT_L1+
9
GND
10
TXOUT_L2-
11
GND
12
TXOUT_L2+
13
GND
14
TXCLK_L-
15
GND
16
TXCLK_L+
17
GND
18
TXOUT_L3-
19
GND
20
TXOUT_L3+
21
GND
22
TXOUT_U0-
Page 27
IV32 Motherboard User Manual
19
23
GND
24
TXOUT_U0+
25
GND
26
TXOUT_U1-
27
GND
28
TXOUT_U1+
29
GND
30
TXOUT_U2-
31
GND
32
TXOUT_U2+
33
GND
34
TXCLK_U-
35
GND
36
TXCLK_U+
37
GND
38
TXOUT_U3-
39
GND
40
TXOUT_U3+

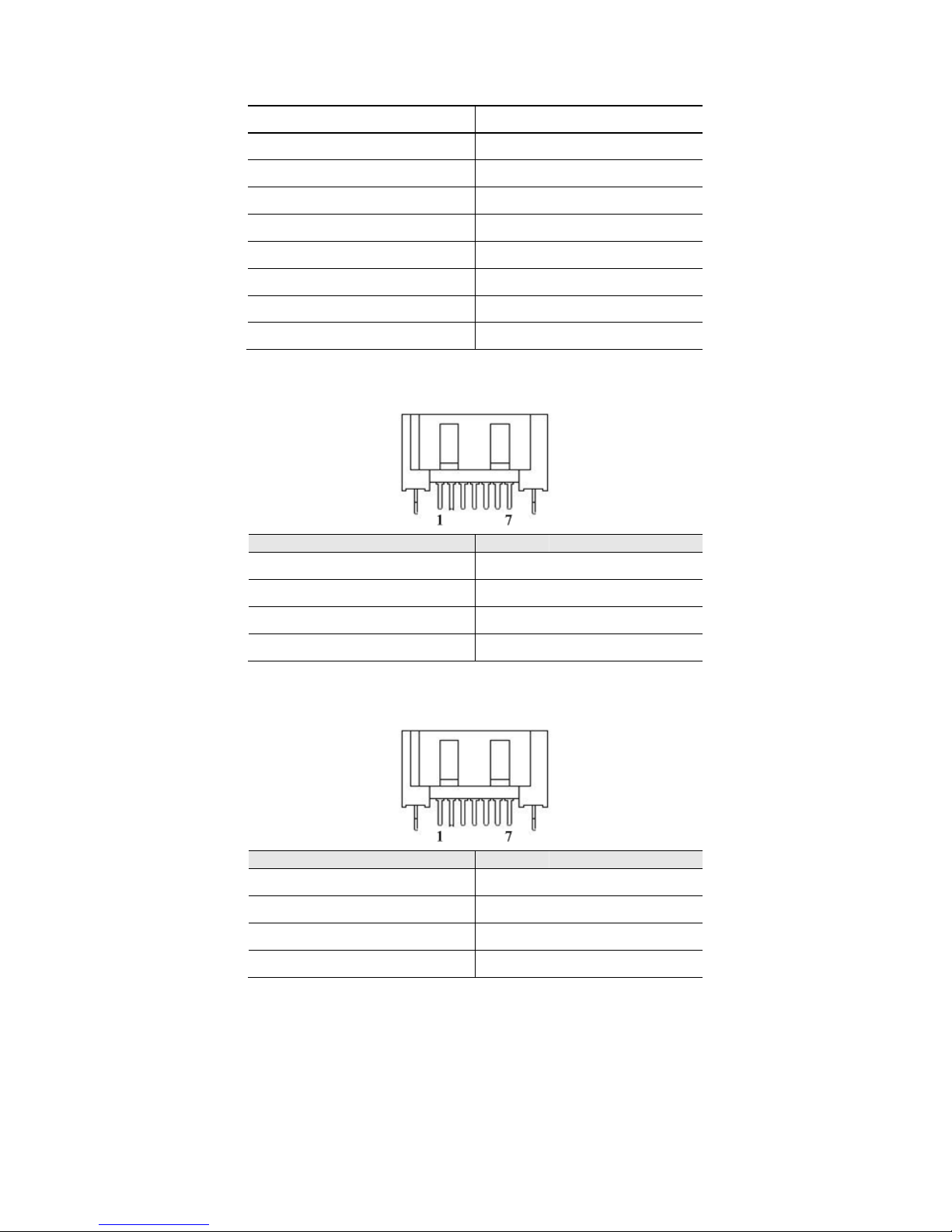

2.5.11 SATA II: SATA 2.0 3Gb/s Port
Pin No.
SYMBOL
Pin No.
SYMBOL
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
2.5.12 SATA III: SATA 3.0 6Gb/s Port
Pin No.
SYMBOL
Pin No.
SYMBOL
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
Page 28
IV32 Motherboard User Manual
20

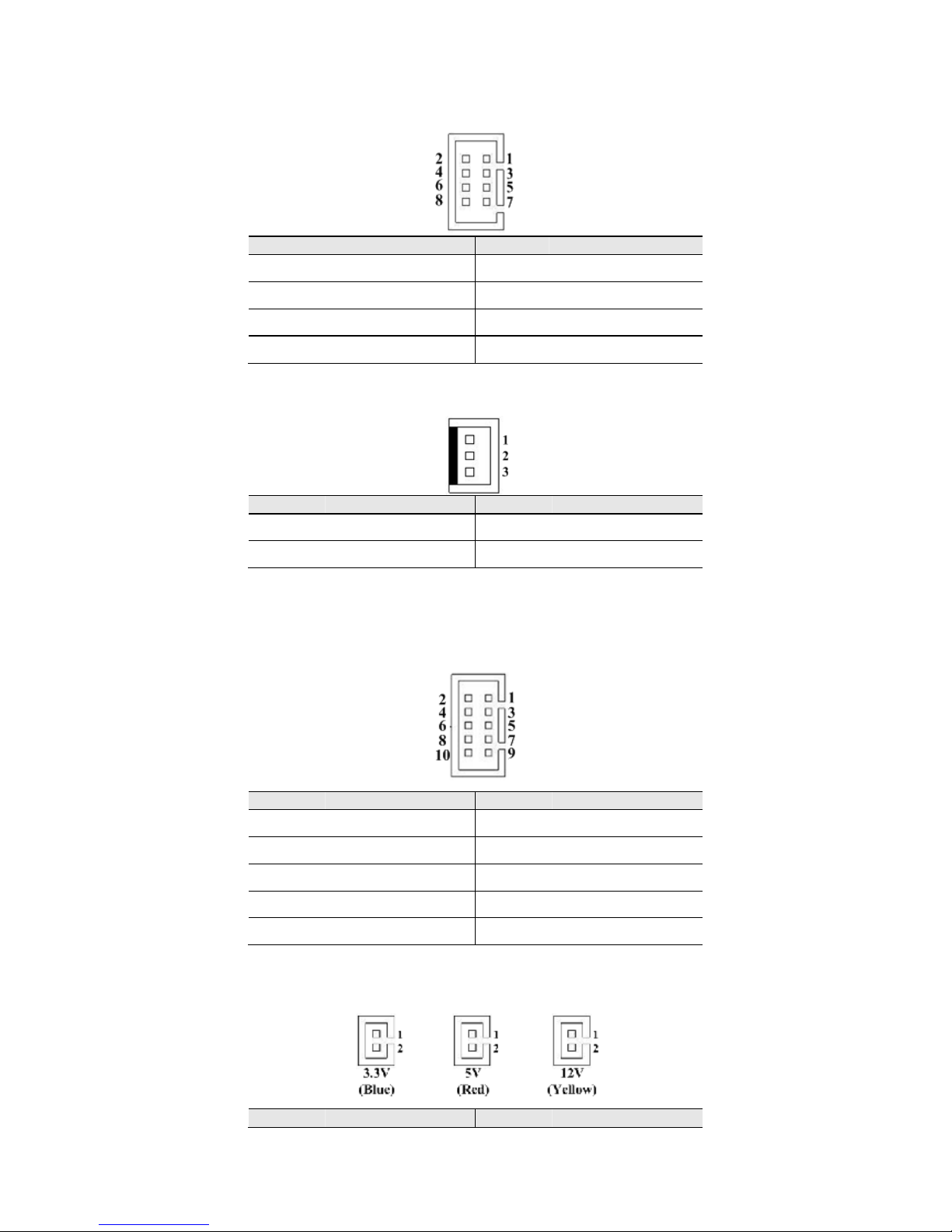

2.5.13 SATA Power:
Pin No.
SYMBOL
Pin No.
SYMBOL
1
+12V
2
+12V
3
GND
4
GND
5
GND
6
GND
7
+5V
8
+5V
2.5.14 CPU Fan:
Pin No.
SYMBOL
Pin No.
SYMBOL
1
GND
2
+12V
3
SENSE
2.5.15 Front Panel: System Function (Power / Reset)
※Without power/reset OSD, short circuit pin 5 and 6 together to boot up the motherboard.
Pin No.
SYMBOL
Pin No.
SYMBOL
1
PW_LED+
2
HD_LED+-
3
PW_LED-
4
HD_LED-
5
PW_BT1
6
RT_BT1
7
PW_BT2
8
RT_BT2
9
RSEV
10
+5V
2.5.16 (3.3V /5V / 12V): Power Output
Pin No.
SYMBOL
Pin No.
SYMBOL
Page 29
IV32 Motherboard User Manual
21
2.5.13 SATA Power:
1
3.3V/ 5V/ 12V
2
GND
Page 30
IV32 Motherboard User Manual
22

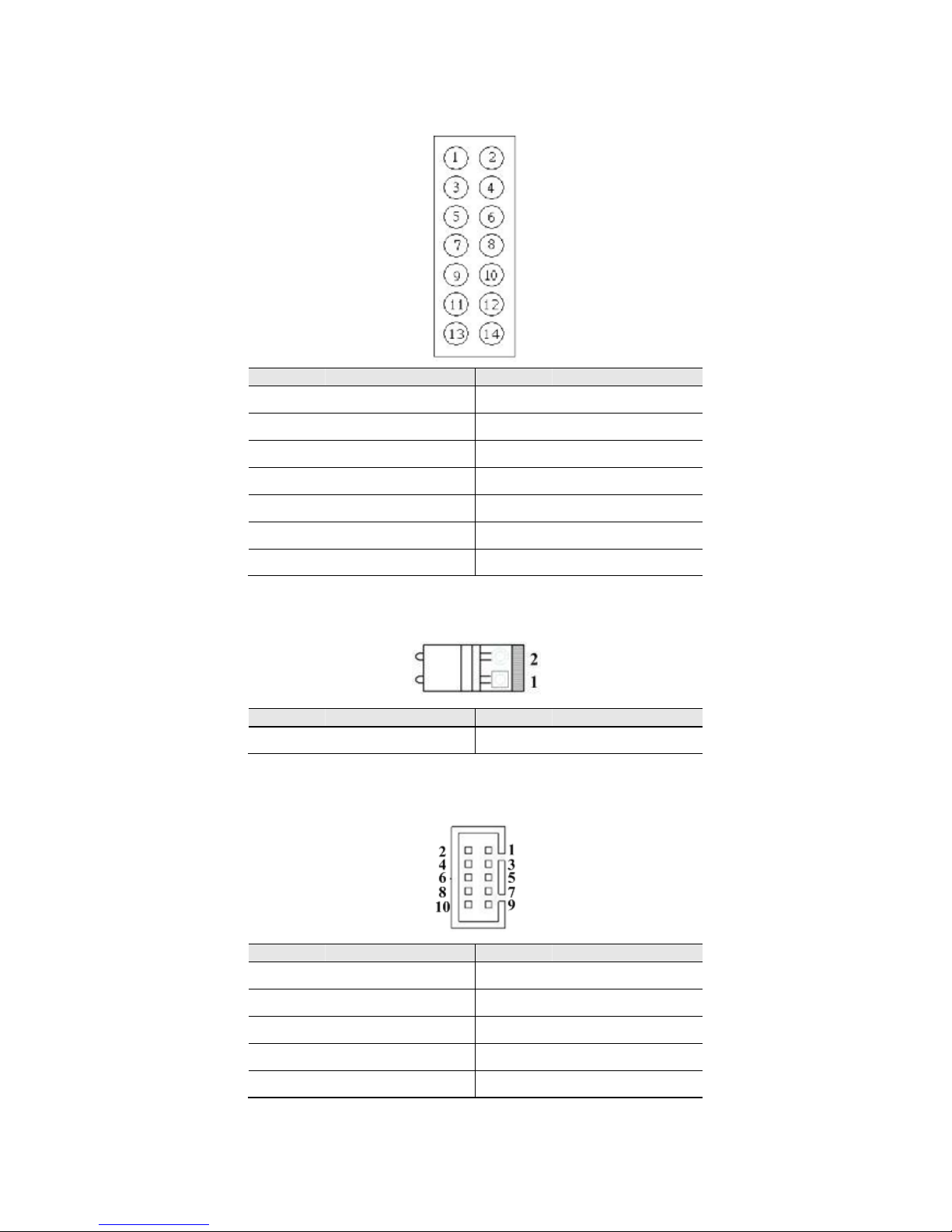

2.5.17 GPIO: General Purpose I/O
Pin No.
SYMBOL
Pin No.
SYMBOL
1
GND
2
+5V
3
DOUT3
4
DOUT1
5
DOUT2
6
DOUT0
7
DINT3
8
DINT2
9
DINT1
10
DINT0
11
GPIO53_IN0
12
GPIO56_OUT0
13
GPIO54_IN1
14
GPIO57_OUT1
2.5.18 12V DC Input: 12V DC Power Input Wafer
Pin No.
SYMBOL
Pin No.
SYMBOL
1
+12V
2
GND
2.5.19 USB 3: USB 3.0 Wafer
Pin No.
SYMBOL
Pin No.
SYMBOL
1
+5V
2
+5V
3
StdRx-
4
D- 5 StdRx+
6
D+
7
StdTx-
8
GND
9
StdTx+
10
GND
Page 31
IV32 Motherboard User Manual
23

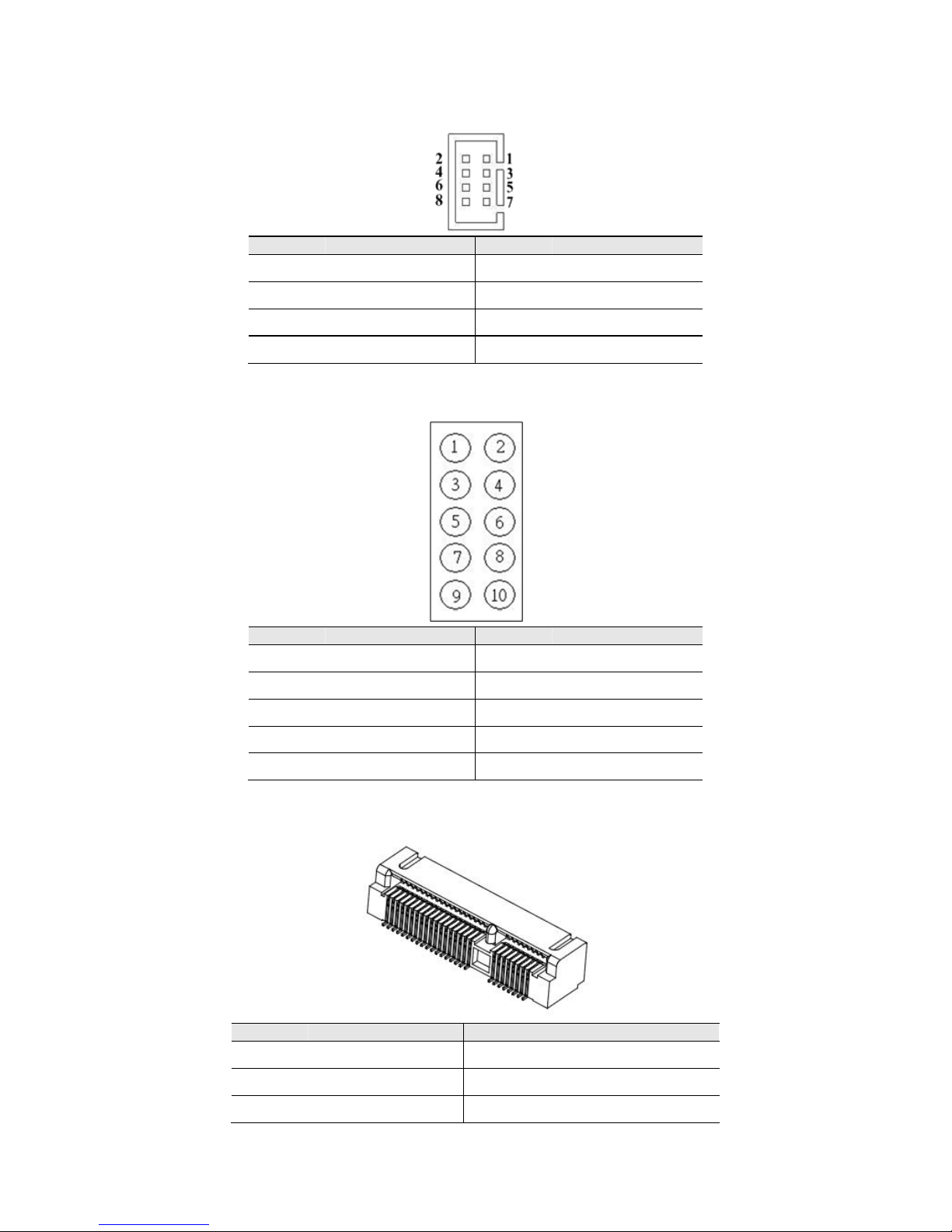

2.5.20 USB 4/5 (USB 6/7): USB 2.0 Wafer
Pin No.
SYMBOL
Pin No.
SYMBOL
1
VCC(5V)
2
VCC(5V)
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND
8
GND
2.5.21 COM2 (COM3 / COM4): RS232
Pin No.
SYMBOL
Pin No.
SYMBOL
1
FK_NDCD[2:4]
2
FK_NDSR[2:4]
3
FK_NSIN[2:4]
4
FK_NRTS[2:4]
5
FK_NSOUT[2:4]
6
FK_NCTS[2:4]
7
FK_NDTR[2:4]
8
FK_NRI[2:4]
9
GND
10
GND
2.5.22 Mini PCIe: Full / Half-Size Mini PCIe
Pin No.
SYMBOL
Pin No.
SYMBOL
2
3.3V_MINIPCIE1
1
PCIE_WAKE#
4
GND
3
NA
6
+V1.5S
5
NA
Page 32
IV32 Motherboard User Manual
24
8
VREG_USIM
7
CLK_SLOT4_OE#
10
NA 9 GND
12
NA
11
CLK_PCIE_SLOT4_N
14
NA
13
CLK_PCIE_SLOT4_P
16
NA
15
GND
18
GND
17
NA
20
WLAN-RFON2
19
NA
22
BUF_PLT_RST2#
21
GND
24
+V3.3A
23
PCIE_RXN3_SLOT4
26
GND
25
PCIE_RXP3_SLOT4
28
+V1.5S
27
GND
30
SMB_CLK
29
GND
32
SMB_DATA
31
PCIE_TXN3_SLOT4
34
GND
33
PCIE_TXP3_SLOT4
36
USB_PN5
35
GND
38
USB_PP5
37
GND
40
GND
39
3.3V_MINIPCIE1
42
NA
41
3.3V_MINIPCIE1
44
NA
43
GND
46
NA
45
NA
48
NA
47
NA
50
GND
49
NA
52
3.3V_MINIPCIE1
51
NA
m2
GND
m1
GND
Page 33
IV32 Motherboard User Manual
24
2.5.23 mSATA Card Slot
Pin No.
SYMBOL
Pin No.
SYMBOL
2
+V3.3_
1
NA 4 GND
3
NA
6
+V1.5S
5
NA
8
NA 7 NA
10
NA 9 GND
12
NA
11
NA
14
NA
13
NA
16
NA
15
GND
18
GND
17
NA
20
NA
19
NA
22
NA
21
GND
24
+V3.3A
23
SATA_RXP1
26
GND
25
SATA_RXN1
28
+V1.5S
27
GND
30
NA
29
GND
32
NA
31
SATA_TXN1
34
GND
33
SATA_TXP1
36
NA
35
GND
38
NA
37
GND
40
GND
39
+V3.3_
42
NA
41
+V3.3_
44
NA
43
GND
46
NA
45
NA
48
+V1.5S
47
NA
50
GND
49
SSD_LED#
52
+V3.3_MINIPCIE1
51
NA
m2
GND
m1
GND
Page 34
IV32 Motherboard User Manual
25
C
H
A
P
T
E
R
3
Driver Installation
This chapter offers information on the drivers and
installation utilities
The section includes:
•
Installation of all drivers
•
Installation of COM Port‟s driver
Page 35
IV32 Motherboard User Manual
25
Chapter 3 Driver Installation
3.1 Installation of all drivers
The IV32 comes with AutoRun DVD-ROM that contains all drivers, utilities, and an
installation AP that will help the user to install the driver successfully.
While inserting the driver DVD, an installation AP will be run automatically. After

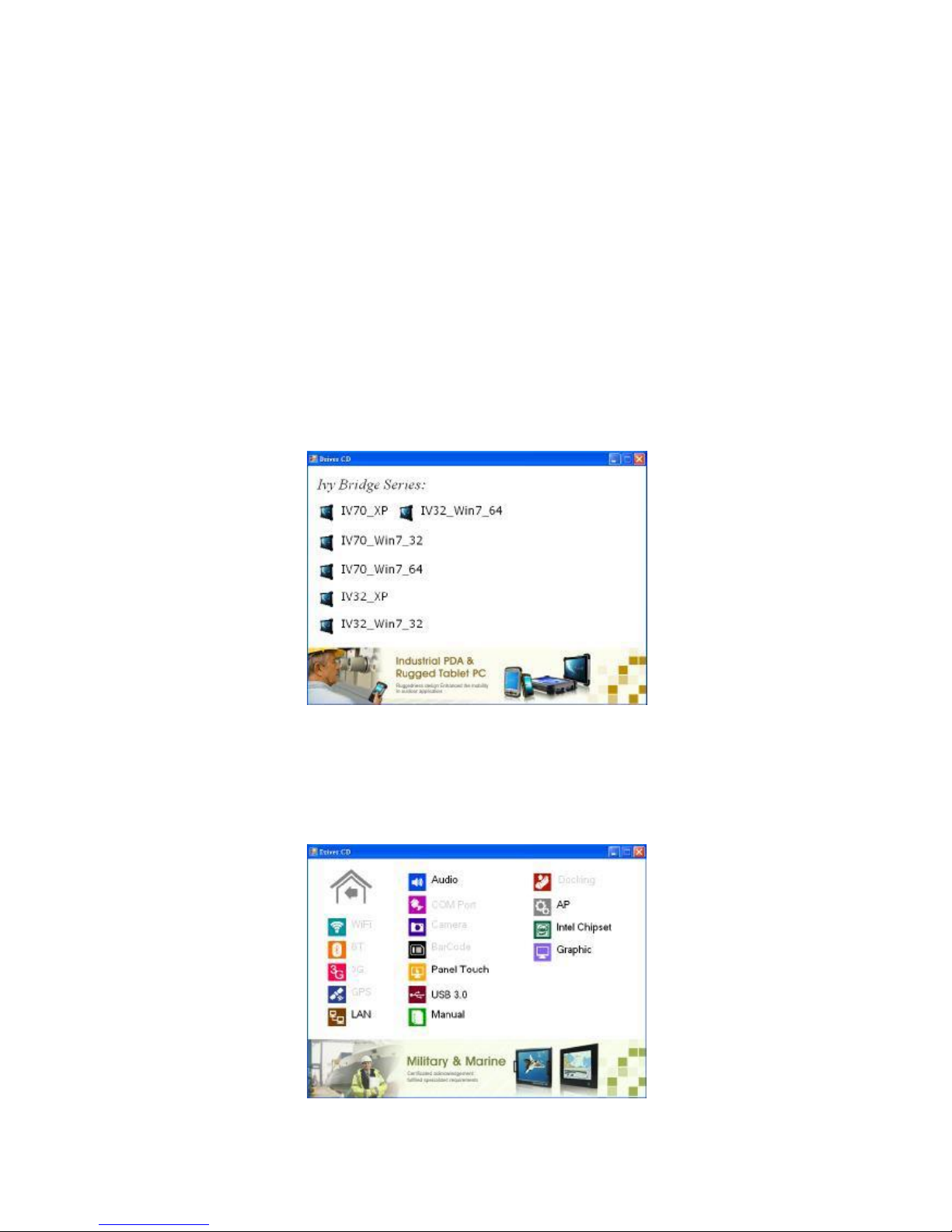

executing the AP, the UI shown below is used for driver installation. It will contain
the drivers of all mother boards of Ivy Bridge which support Windows
®
XP and
Windows
®
7 (32-bit / 64-bit).
Depends on your operating system‟s version, select the corresponding one to find the
drivers you need. (e.g. IV32_Win7_32 is used for IV32 with 32-bit Windows
®
7)
Then, each driver will be shown by various icons in the UI, and please follow the
sequence below to install the drivers.
Page 36
IV32 Motherboard User Manual
26
Follow the sequence below to install the drivers：
Step 1. Install Intel
®
Chipset Driver
Step 2. Install Graphic Driver
Step 3. Install LAN Driver
Step 4. Install Audio Driver
Step 5. Install Intel
®
ME Driver (in the icon AP)
Step 6. Install USB 3.0 Driver (Windows
®
7 only)
Please read the instruction below for further detailed installation.
Installation：
Insert the Ivy Bridge DVD-ROM into the DVD-ROM drive, and install the drivers
step by step.
Step 1. Install Intel
®
Chipset Driver
3.1.1Click on the icon Intel Chipset and the installation process will
be executed.
3.1.2 Follow the instruction that the window shows.
3.1.3 The system will help you install the driver automatically.
Step 2. Install Graphic Driver
1. Click on the icon Graphic and the installation process will be executed.
2. Follow the instruction that the window shows.
3. The system will help you install the driver automatically.
Step 3. Install LAN Driver
1. Click on the icon LAN and the installation process will be executed.
2. Follow the instruction that the window shows.
3. The system will help you install the driver automatically.
Step 4. Install Audio Driver
1. Click on the icon Audio and the installation process will be executed.
2. Follow the instruction that the window shows.
3. The system will help you install the driver automatically.
Step 5. Install Intel
®
ME Driver
1. Click on the icon AP and Intel ME folder, and select the OS folder your
system is.
Page 37
IV32 Motherboard User Manual
27
2. Double click on the Setup.exe file located in each OS folder.
3. Follow the instruction that the window shows.
4. The system will help you install the driver automatically.
Step 6. Install USB 3.0 Driver (Windows
®
7 only)
1. Click on the icon USB 3.0 and the installation process will be executed.
2. Follow the instruction that the window shows.
3. The system will help you install the driver automatically.
3.2 Installation of COM Port’s driver
Step 1. If the system is WIN7, the UAC needs to be closed at first. (Refer to following
“Disabling User Account Control (UAC) in Windows 7”)
Step 2. Extract the Patch_0408.zip to a folder.
Step 3. Double click on the batch file (patch.bat), and the driver will be installed.
Step 4. Check whether the driver has been installed successfully.

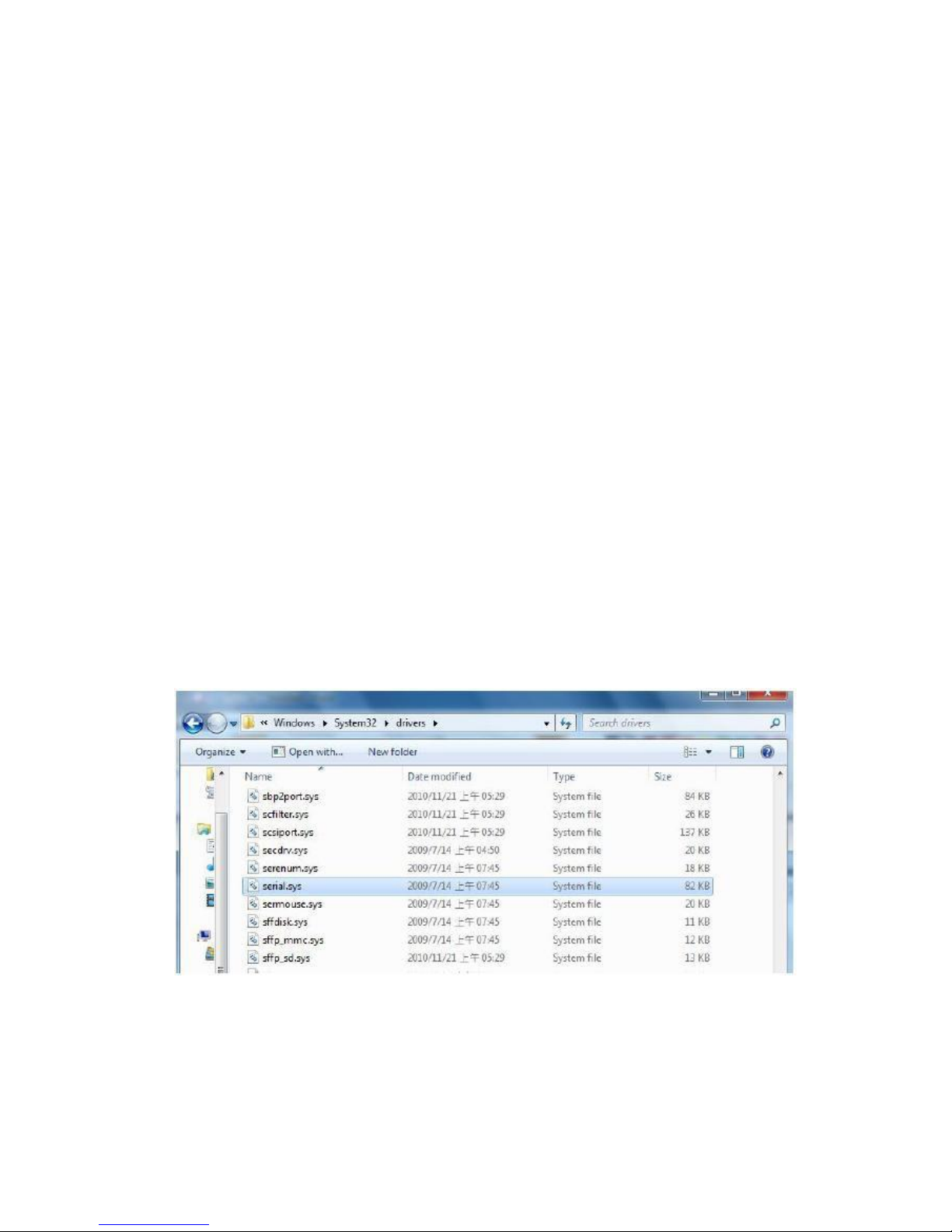

Before the update or update fail.
Page 38
IV32 Motherboard User Manual
28

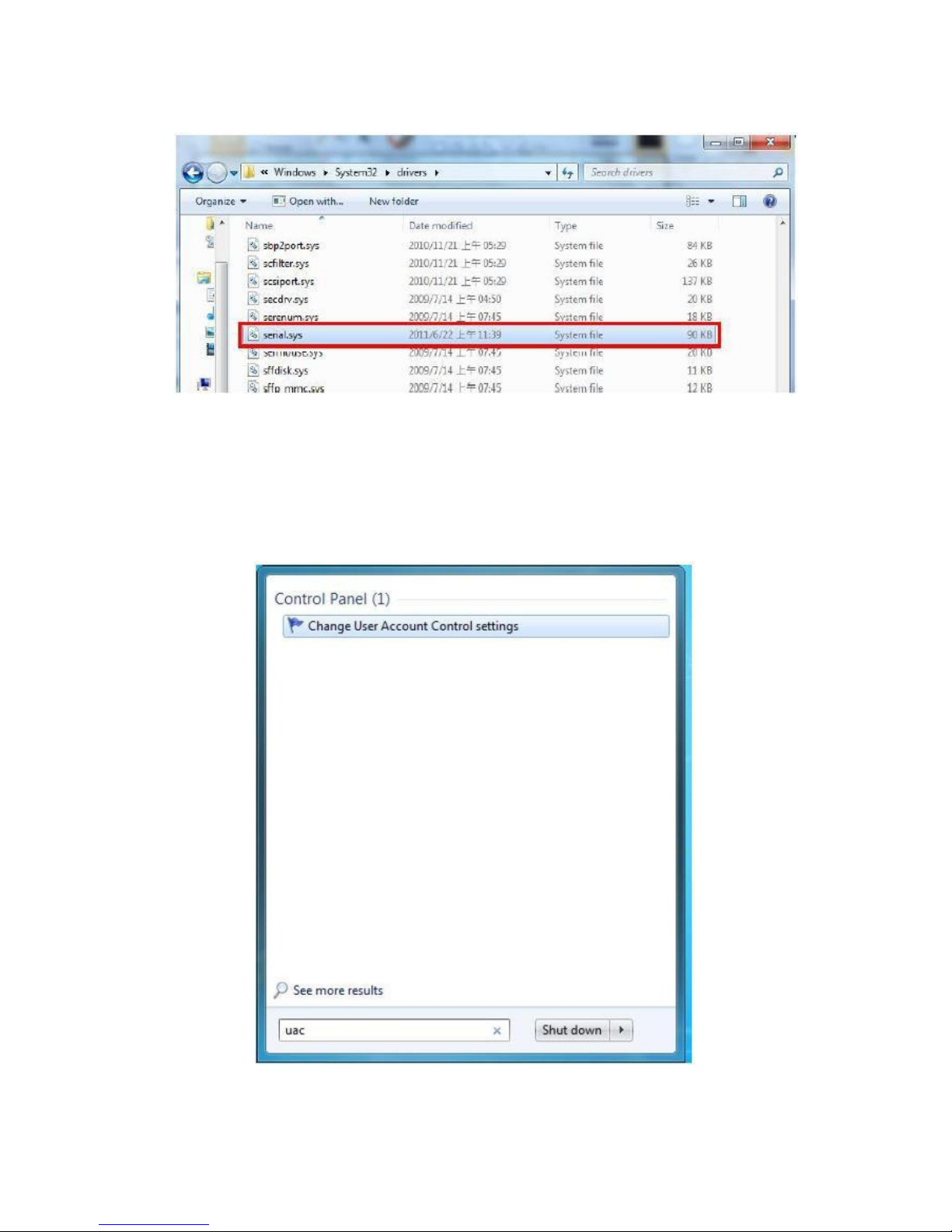

After the update and update success.
Step 5. You will need to restart your computer for driver install success.
Type in the following command on the Run Menu:
C:\Windows\System32\UserAccountControlSettings.exe
or
uac
Page 39
IV32 Motherboard User Manual
29

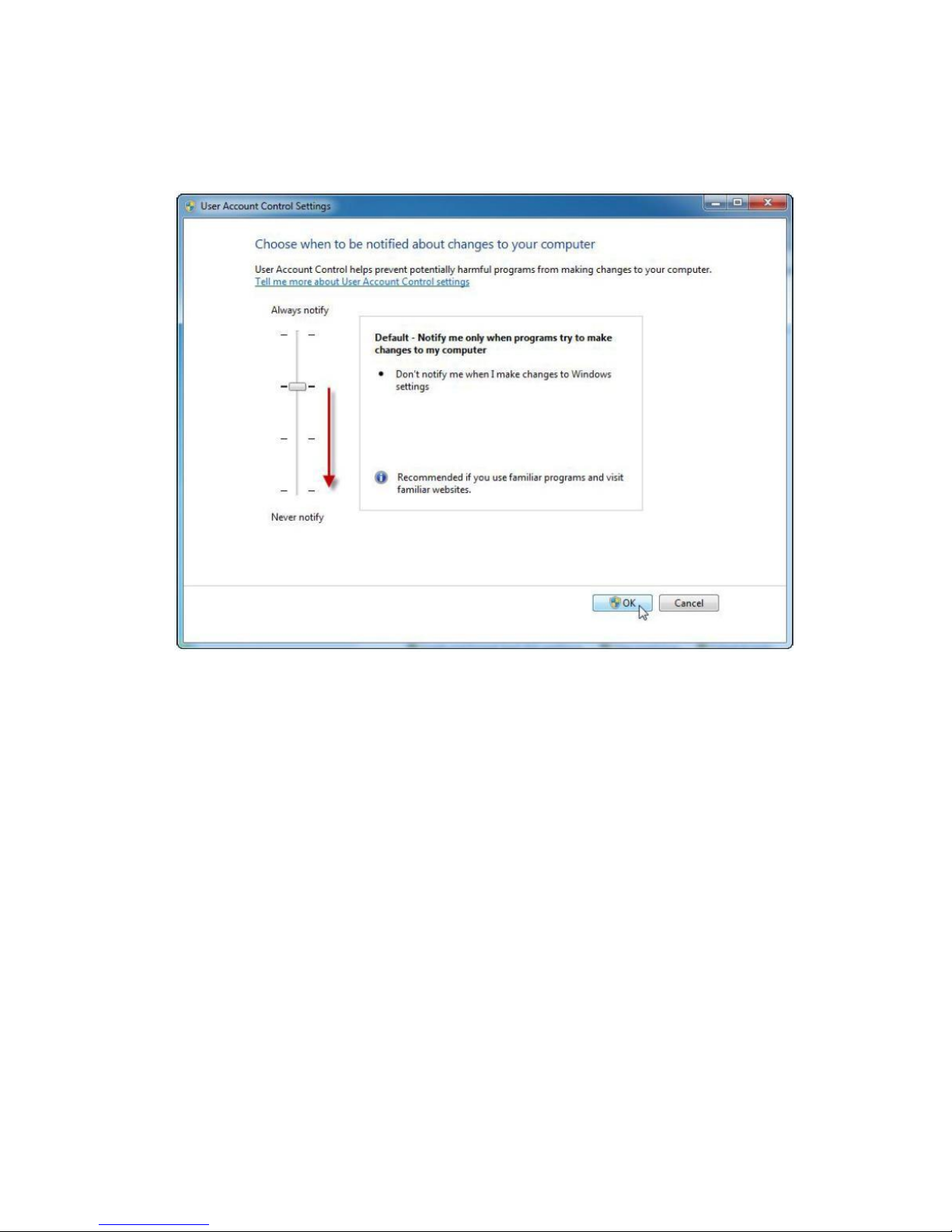

To turn off the UAC, move the slider to the Never notify position, and then click OK.
If you're prompted for an administrator password or confirmation, type the password
or provide confirmation.
To turn UAC back on, move the slider to choose when you want to be notified, and
then click OK. If you're prompted for an administrator password or confirmation, type
the password or provide confirmation.
You will need to restart your computer for UAC to be turned off.
Page 40
IV32 Motherboard User Manual
30
C
H
A
P
T
E
R
4
BIOS Setup
This chapter describes how to set up the
BIOS configuration.
The section includes:
•
Entering BIOS Setup
•
Advanced Setting
•
Chipset Configuration
•
Boot Setting
•
Security Setup
•
Save & Exit Setup
Page 41
IV32 Motherboard User Manual
31
Chapter 4 BIOS Setup
Your computer comes with a hardware configuration program which called BIOS
Setup that allows you to view and set up the system parameters.
The BIOS (Basic Input / Output System) is a layer of the software called „firmware‟
which translates instructions from software (such as the operating system) into
instructions that allow the computer hardware to understand the software programs.
The BIOS settings also identify installed devices and establish many special features.
4.1 Entering BIOS Setup
You can access the BIOS program just after you turn on your computer. Just press the
“DEL” key when the following prompt appears:
Press <DEL> to enter Setup.
When you press <DEL> to enter the BIOS Setup image, the system interrupts the
Power-On Self-Test (POST).

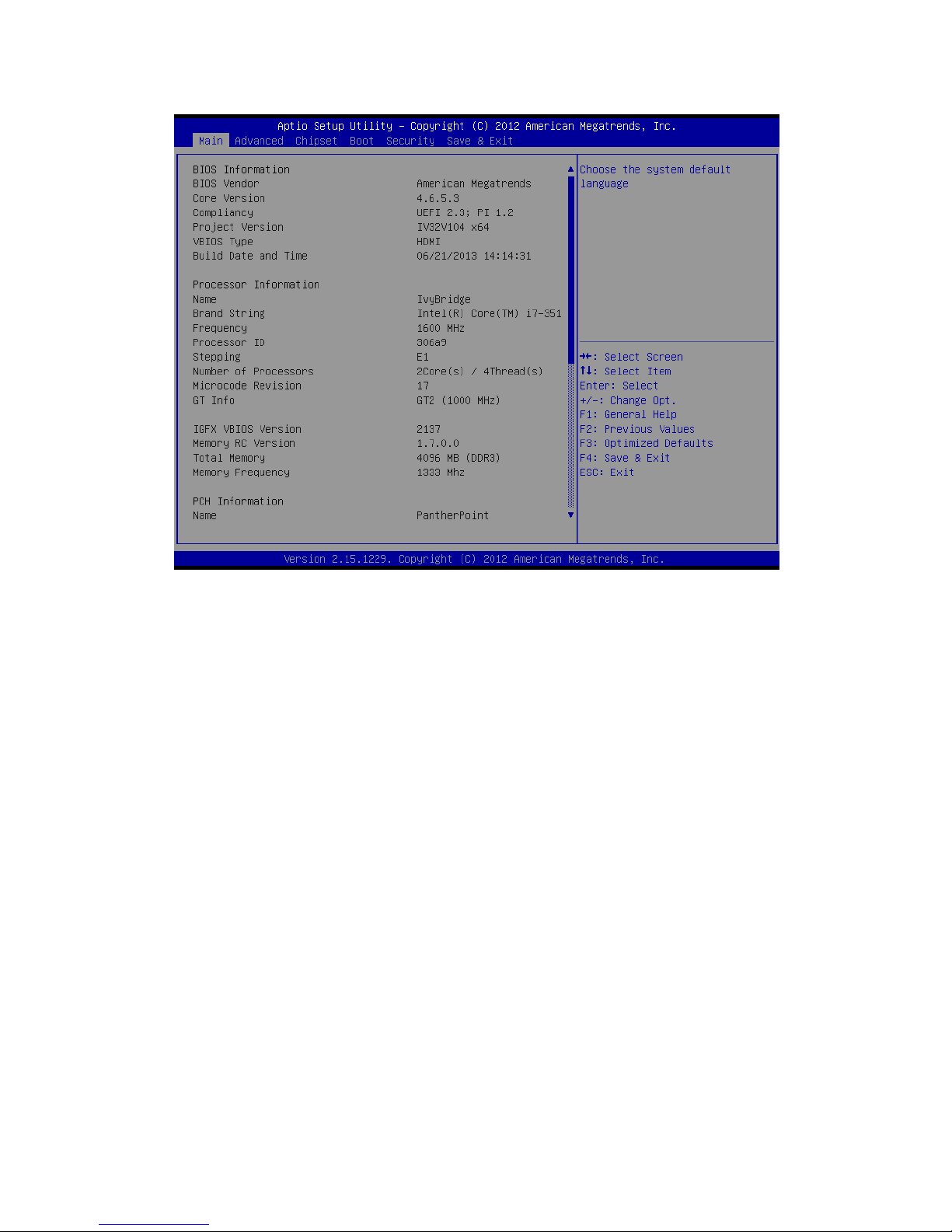

When you first enter the BIOS Setup Utility, you will enter the Main setup image. You
can always return to the Main setup image by selecting the Main tab. There are two
Main Setup options. They are described in this section. The Main BIOS Setup image
is shown as below.
Control Keys
Above 4G Decoding
Enables or Disables 64 bit capable devices to be decoded in above 4G address
space
<Enter>
Select Item
<Esc>
Main Menu – Quit and not save changes into CMOS
Sub Menu – Exit current page and return to Main Menu
<Page Up/+>
Increase the numeric value or make changes
<Page Down/->
Decrease the numeric value or make changes
<F1>
General help, for Setup Sub Menu
<F2>
Load Previous Values
<F3>
Load Setup Defaults
<F4>
Save all CMOS changes
Page 42
IV32 Motherboard User Manual
32
The Main BIOS setup image has two main frames. The left frame displays all the
options that can be configured. Grayed-out options cannot be configured. On the
contrary, options in blue can be configured. The right frame displays the key legend.
Above the key legend is an area reserved for a text message. When an option is
selected in the left frame, it is highlighted in white. Often a text message will
accompany it.
Page 43
IV32 Motherboard User Manual
33

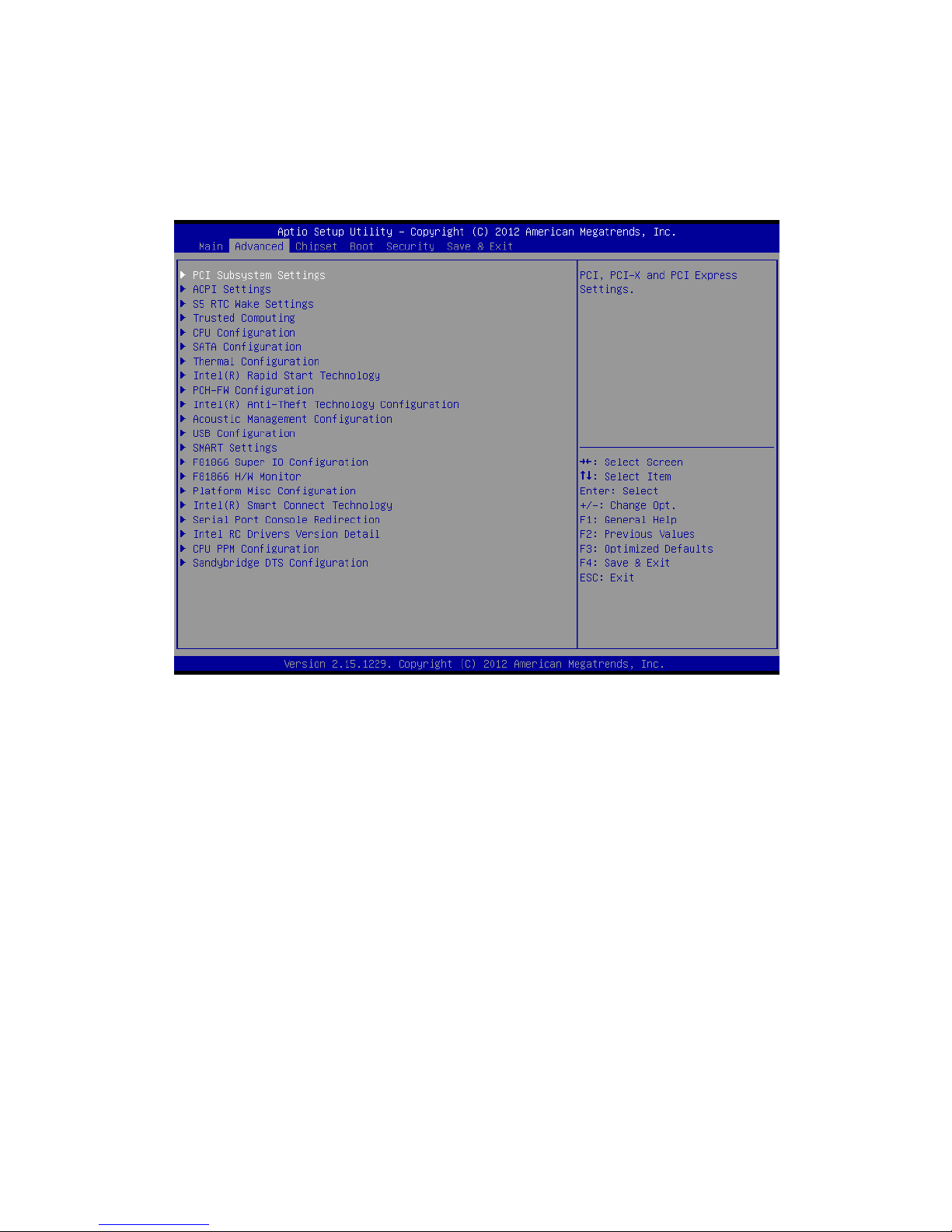

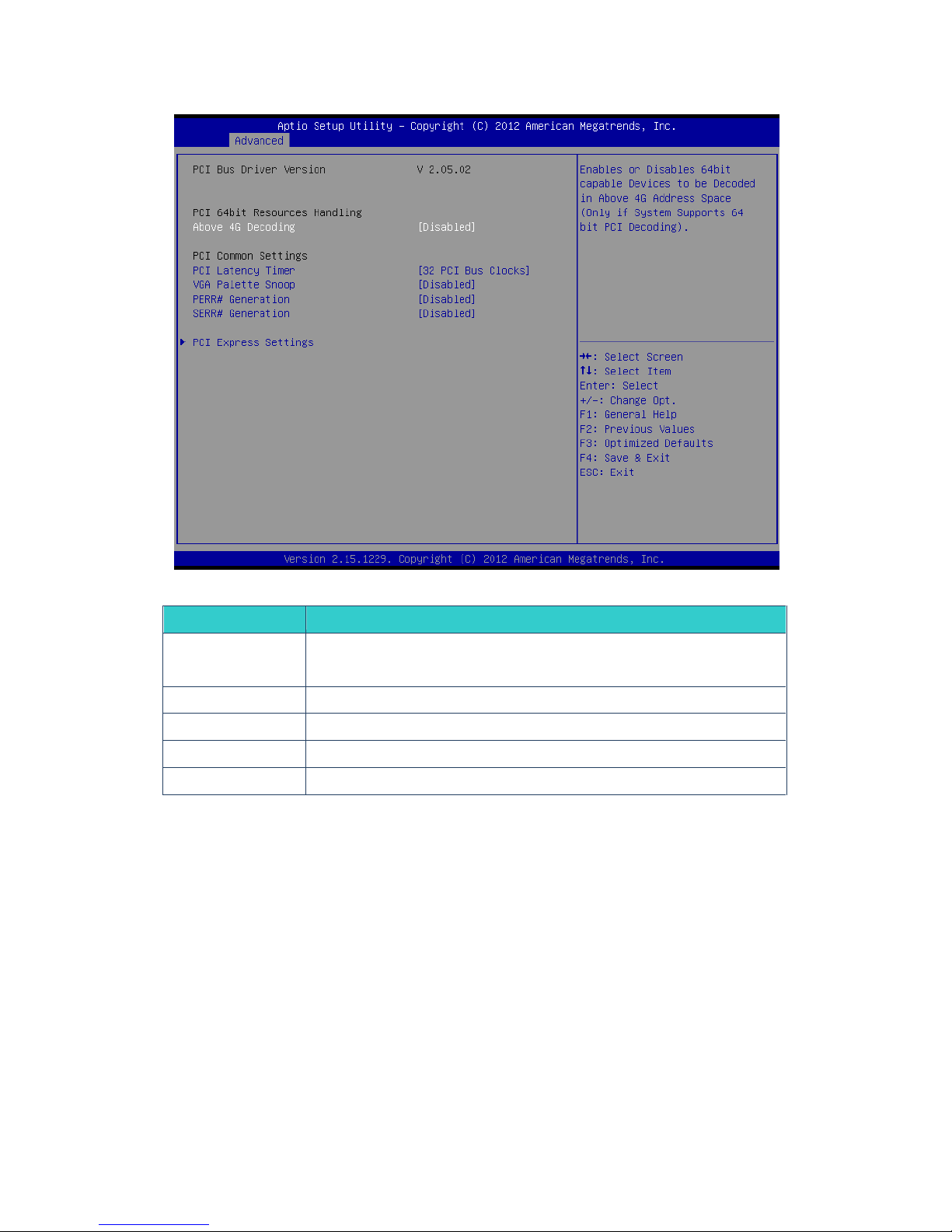

4.2 Advanced Setting
PCI Subsystem Setting
Page 44
IV32 Motherboard User Manual
34
SETTING
DESCRIPTION
Above 4G Decoding
Enables or Disables 64 bit capable devices to be decoded in above 4G address
space
PCI Latency Timer
Value to be programmed into PCI Latency Timer Register.(32~248)
VGA Palette Snoop
Enables or Disables VGA palette registers snooping
PERR# Generation
Enables or Disables PCI device to generate PERR#
SERR# Generation
Enables or Disables PCI device to generate SERR#
Page 45
IV32 Motherboard User Manual
35

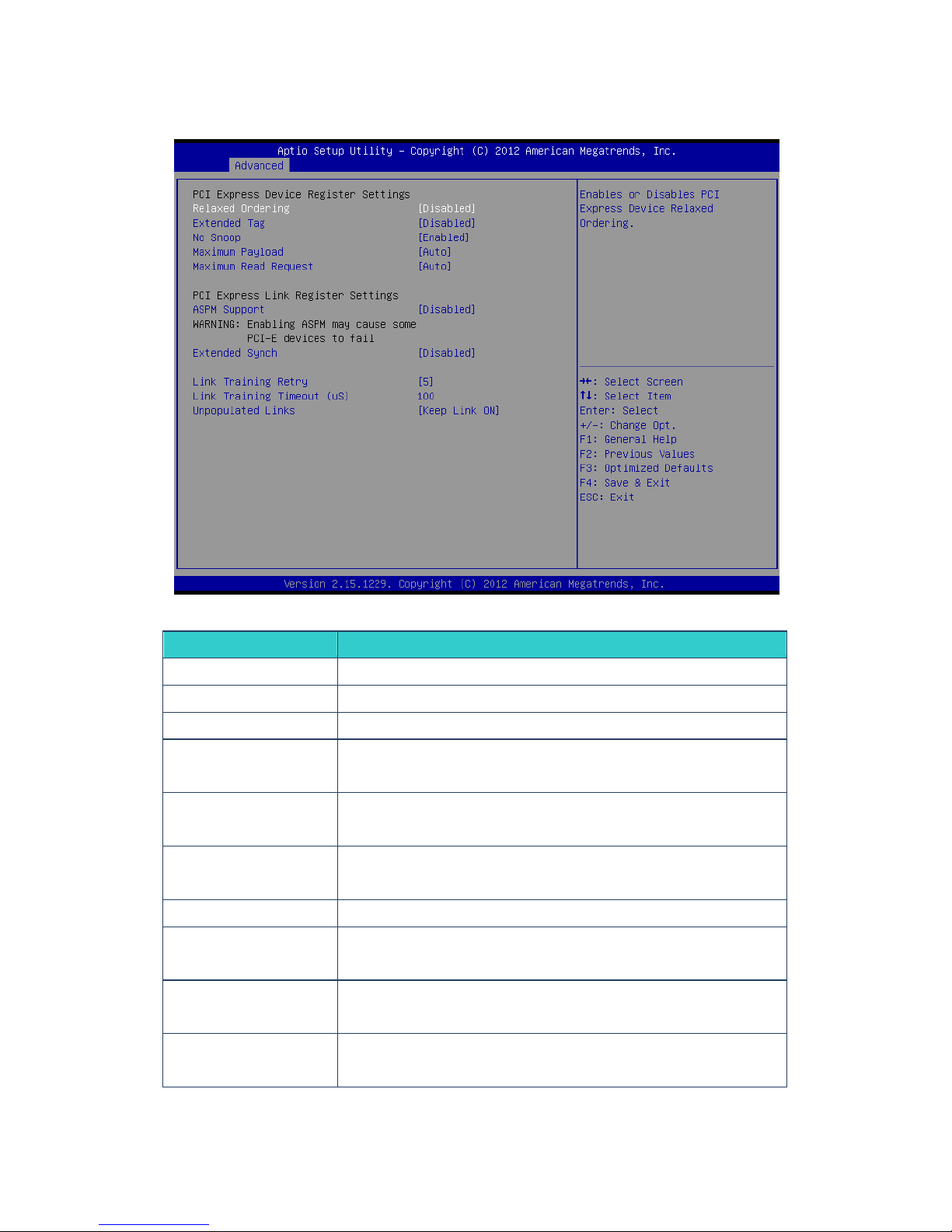

PCI Express Setting
SETTING
DESCRIPTION
Relaxed Ordering
Enables or Disables PCI Express Device Relaxed Ordering
Extended Tag
If Enabled allows device to use 8-bit tag field as a requester
No Snoop
Enables or Disables PCI Express Device No Snoop option
Maximum Payload
Set maximum payload of PCI express device or allow system BIOS to
select the value(128~4096 bytes)
Maximum Read Request
Set maximum Read Request size of PCI express device or allow system
BIOS to select the value(128~4096 bytes)
ASPM Support
Set the ASPM Level: Force L0S-Force all links to L0s State: Auto- BIOS
auto configure: Disabled- disables ASPM
Extended Synch
If Enabled allows generation of extended Synchronization patterns
Link Training Retry
Defines number of retry attempts software will take to retrain the link if
previous training attempt was unsuccessful
Link Training Timeout
Defines number of microseconds software will wait before polling „Link
Training” bit in link status register. Value range from 10 to 1000 uS
Unpopulated Links
In order to save power, software will disable unpopulated PCI express
links, if this option set to „Disabled‟
Page 46
IV32 Motherboard User Manual
36

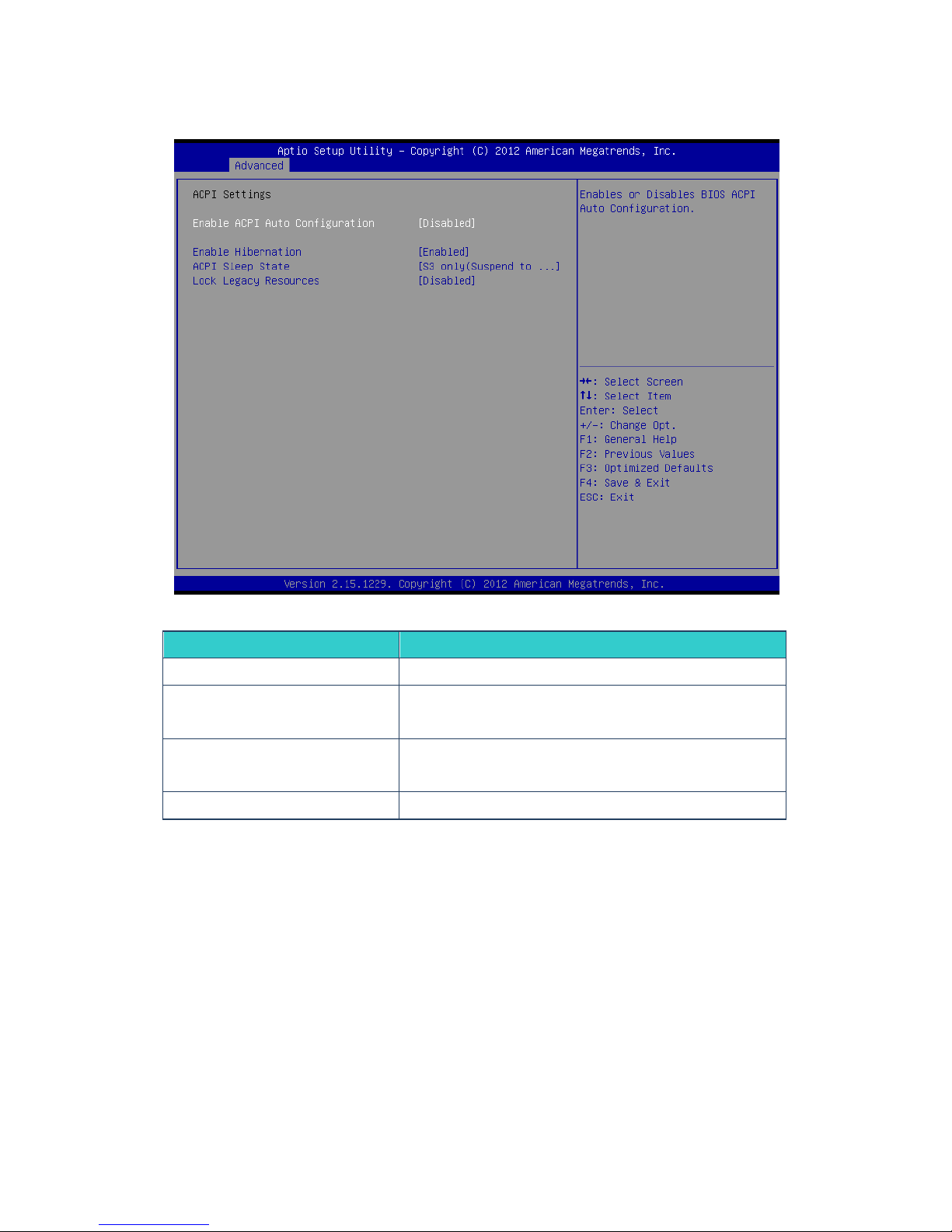

ACPI Setting
SETTING
DESCRIPTION
Enabled ACPI Auto Configuration
Enables or Disables BIOS ACPI Auto Configuration.
Enable Hibernation
Enables or Disables System ability to Hibernate (OS/S4 Sleep
State). This option may be not effective with some OS.
ACPI Sleep State
Select the ACPI sleep state the system will enter, when the
SUSPEND button is pressed.
Lock Legacy Resources
Enables or Disables lock of legacy resources.
Page 47
IV32 Motherboard User Manual
37

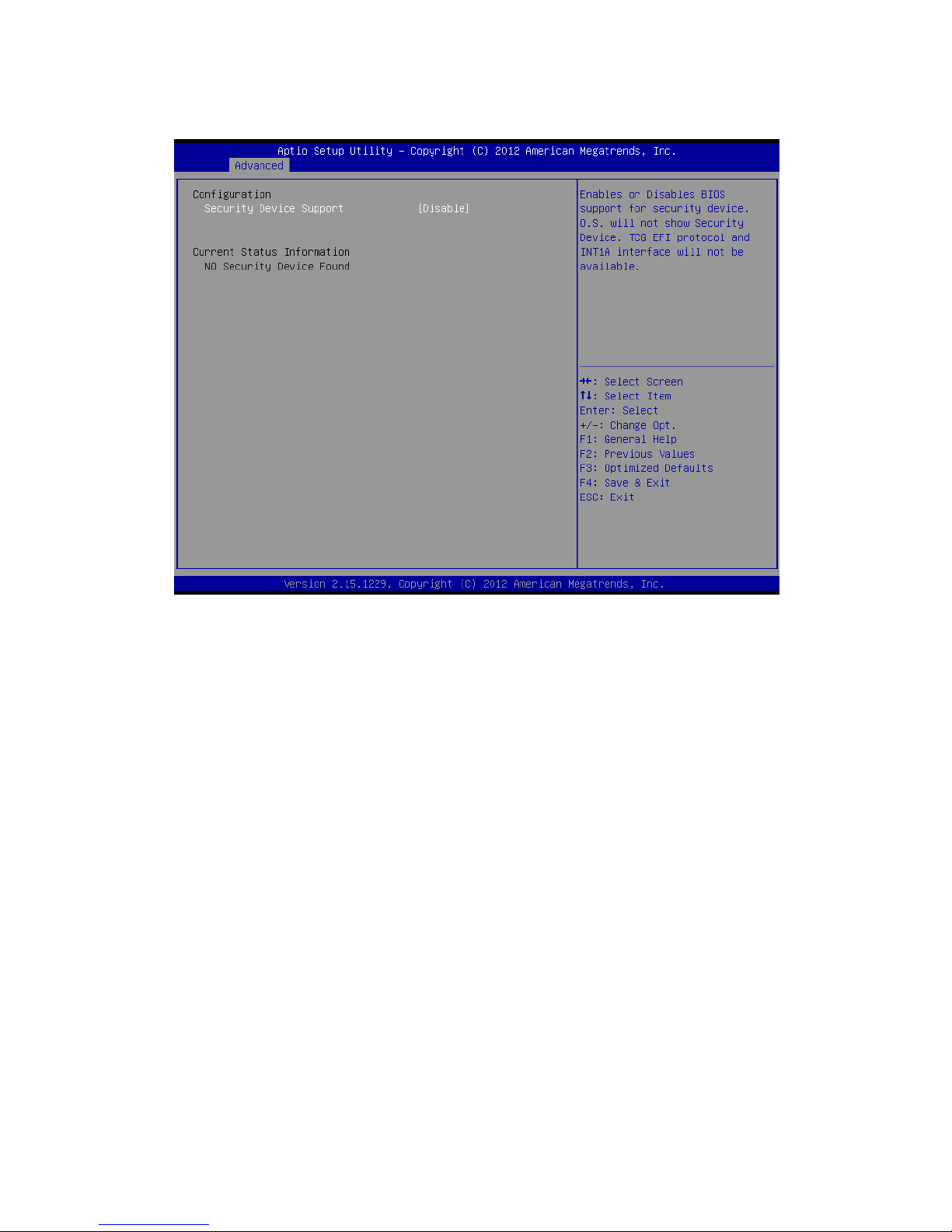

Trusted Computing
Security Device Support Enable or Disable BIOS support for security device
Page 48
IV32 Motherboard User Manual
38

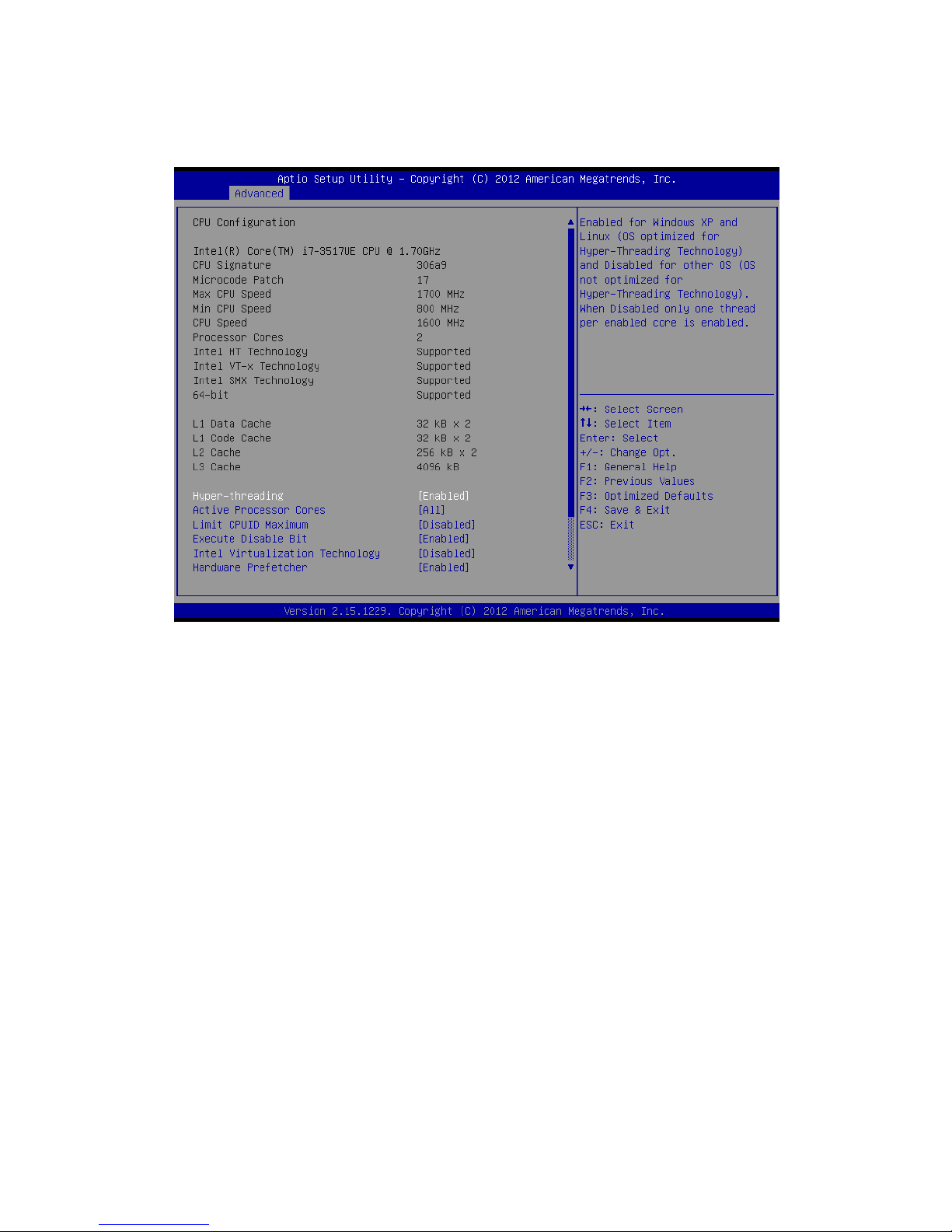

CPU Configuration
This section shows the CPU Configuration parameters.
Hyper-threading
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology)
and Disabled for other OS (OS not optimized for Hyper-Threading Technology).
When Disabled, only one thread per enabled core is enabled.
Active Processor Cores
This field is used to enter the number of cores to enable in each processor package.
Limit CPUID Maximum
Disabled for Windows XP.
Execute Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when combined
with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2,
RedHat Enterprise 3 Update 3.)
Hardware Prefetcher
Turns on/off the MLC streamer prefetcher.
Adjacent Cache Line Prefetch
To turn on/off prefetching of adjacent cache lines.
TCC Activation offset
Offset from the factory TCC activation temperature.
Page 49
IV32 Motherboard User Manual
39
Primary Plane Current value
The maximum instantaneous current allow for Primary plane.
Secondary Plane Current value
The maximum instantaneous current allow for Second plane.

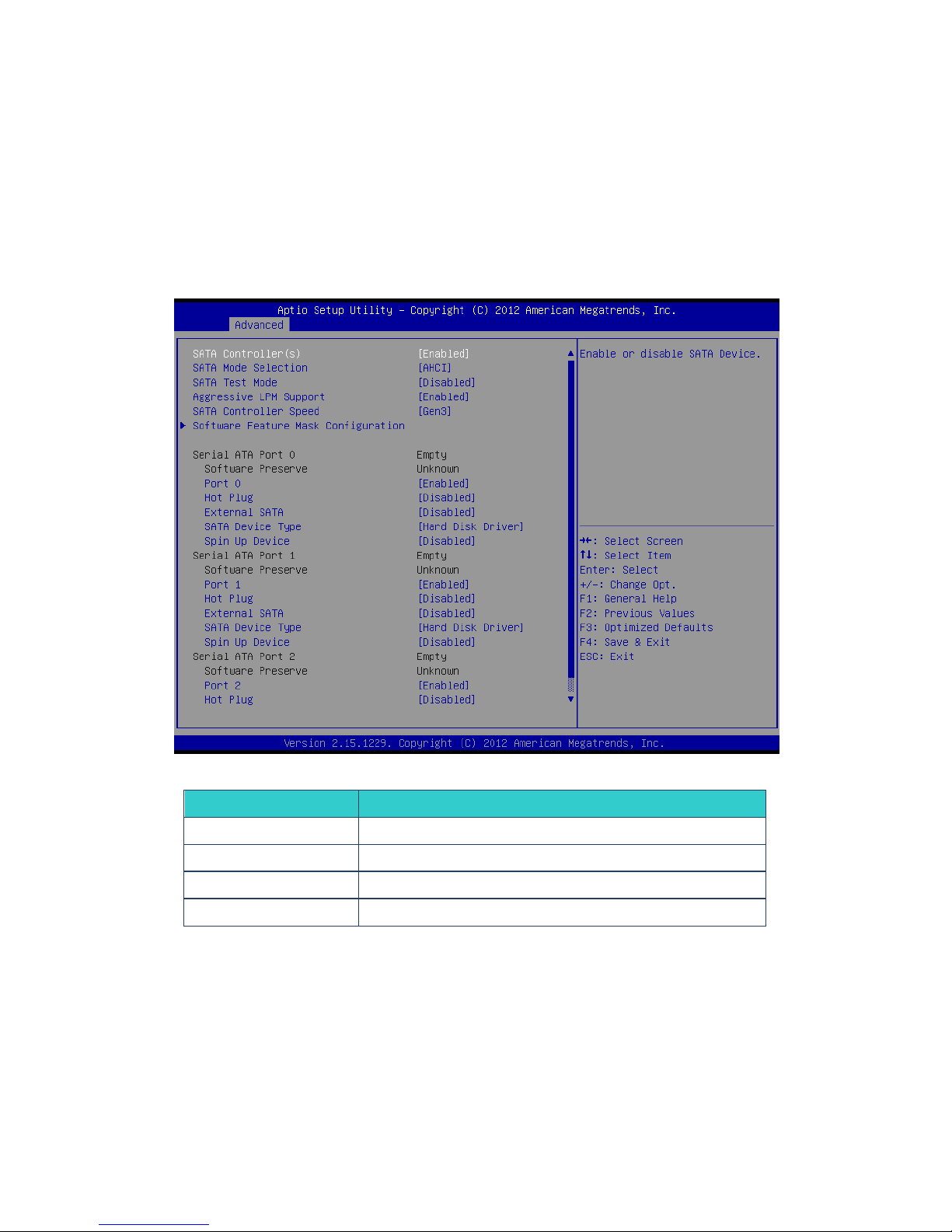

SATA Configuration
SATA Device Configuration
SETTING
DESCRIPTION
SATA Controller(s)
This item allows users to enable or disable the SATA controller(s).
SATA Mode Selection
This item allows users to select mode of SATA controller(s).
SATA Test Mode
This item allows users to enable or disable the Test mode.
Aggressive LPM Support
Enable PCH to aggressively enter link power state.
Page 50
IV32 Motherboard User Manual
40

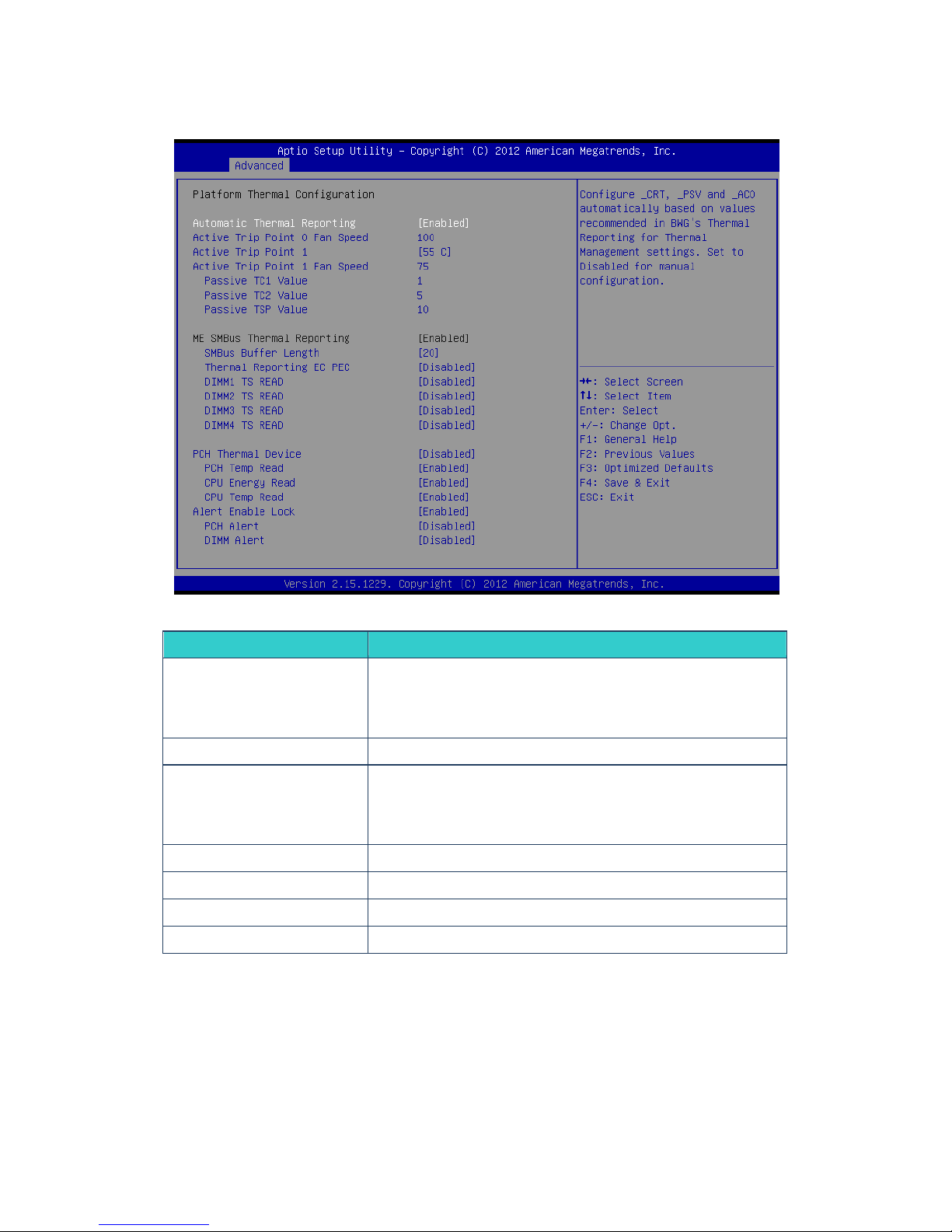

Thermal Configuration
SETTING
DESCRIPTION
Automatic thermal reporting
Configure _CRT,_PSV and _ACO automatically based on values
recommended in BWG‟s thermal reporting for thermal management
settings. Set to disabled for manual configuration.
Active trip point 0 fan speed
Active trip point 0 fan speed in percentage.
Active trip point 1
This value controls the temperature of the ACPI active trip point 1the point in which the OS will turn the processor fan on active trip
point1 fan speed.
Active trip point 1 fan speed
Active trip point 1 fan speed in percentage.
Passive TC1 value
This value sets the TC1 value for the ACPI passive cooling formula.
Passive TC2 value
This value sets the TC2 value for the ACPI passive cooling formula.
Passive TSP value
This value sets the TSP value for the ACPI passive cooling formula.
Page 51
IV32 Motherboard User Manual
41

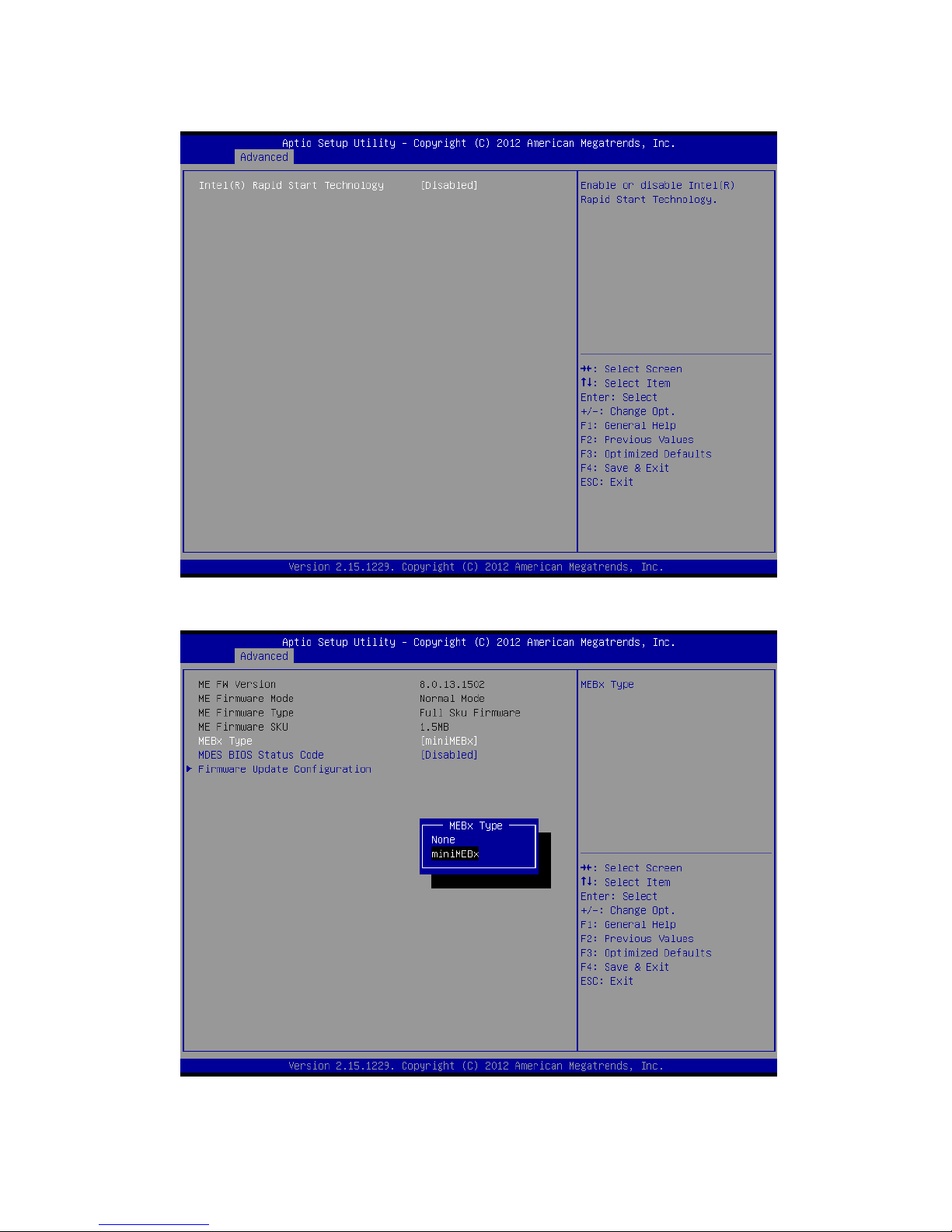

Intel
®
Rapid Start Technology
This item allows users to enable or disable Intel
®
rapid start technology.
PCH-FW Configuration
This item allows users to enable or disable ME FW image re-flash function.
Page 52
IV32 Motherboard User Manual
42
Intel
®

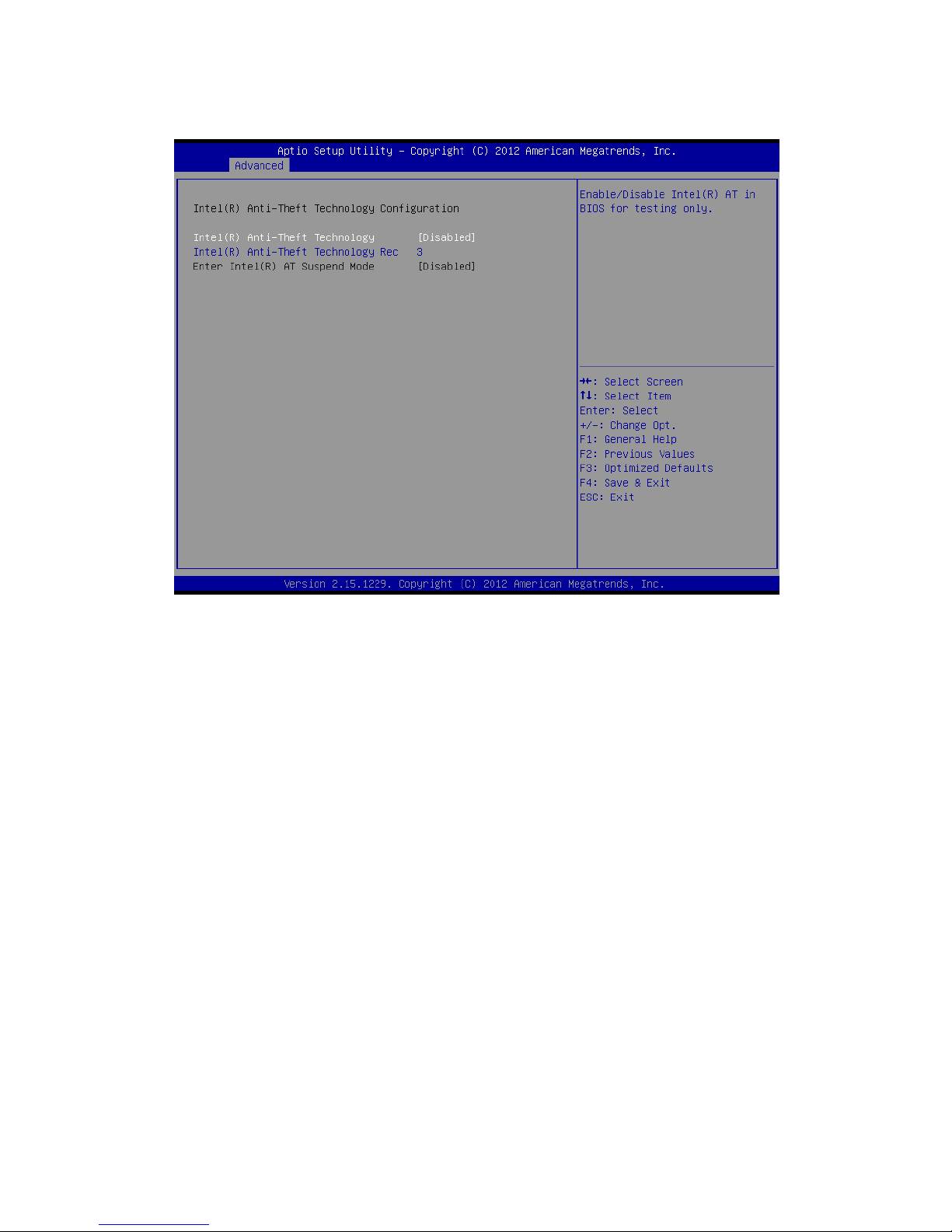

Anti-Theft Technology Configuration
Intel® Anti-theft Technology
This item allows users to enable or disable Intel
®
AT in bios for testing only.
Intel® Anti-theft Technology Rec
Set the number of times recovery attempted will be allowed.
Page 53
IV32 Motherboard User Manual
43

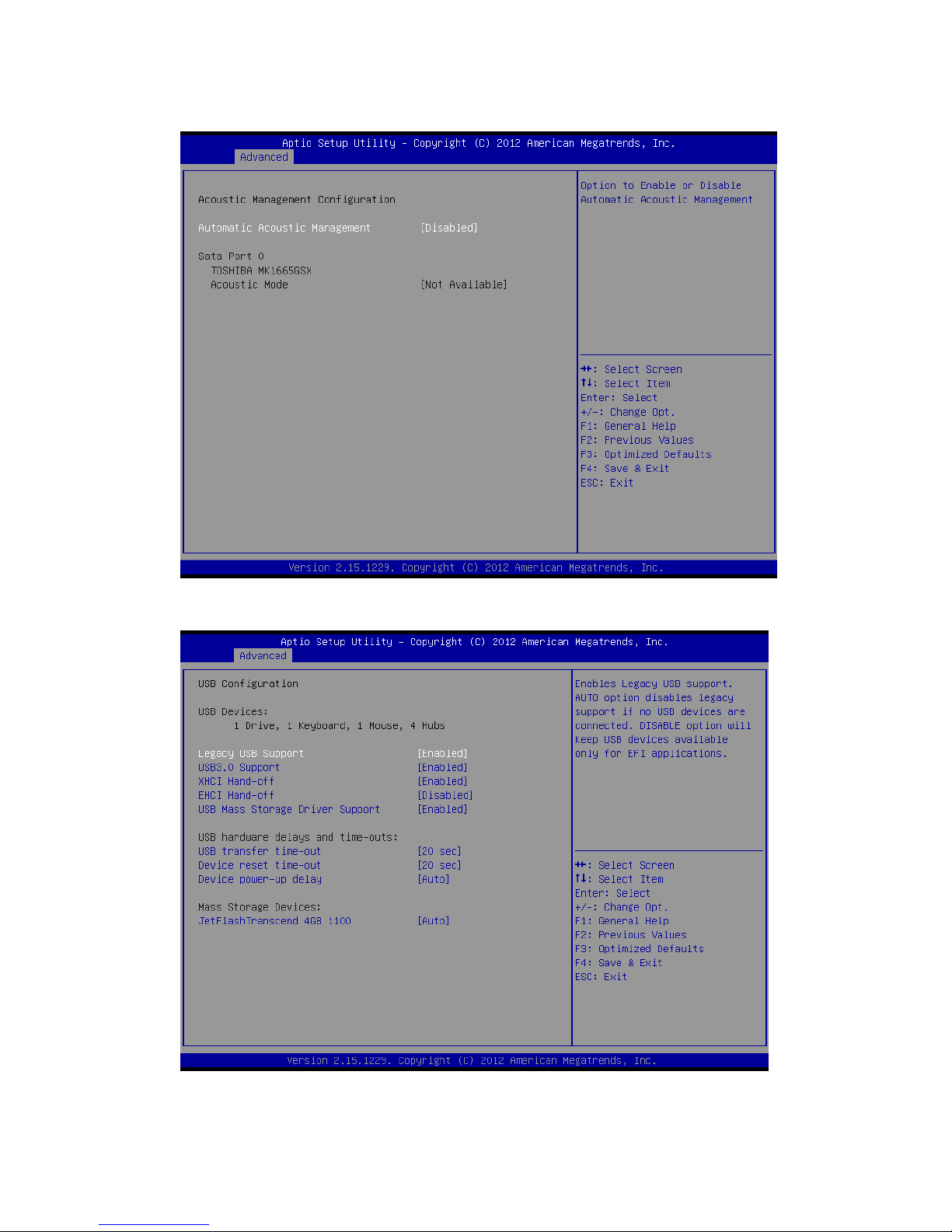

Acoustic Management Configuration
Option to enable or disable automatic acoustic management.
USB Configuration
Page 54
IV32 Motherboard User Manual
44
SETTING
DESCRIPTION
Legacy USB Support
Enables support for legacy USB. Auto option disables legacy support if no
USB devices are connected.
USB3.0 support
This item allows user to enable or disable USB3.0 function.
XHCI Hand-off
This is a workaround for OS without XHCI hand-off support. The XHCI
ownership change should claim by XHCI driver.
EHCI Hand-off
This is a workaround for OS without EHCI hand-off support. The EHCI
ownership change should claim by EHCI driver.
USB transfer time-out
Time-out value for control, bulk, and interrupt transfers.
Device reset time-out
USB mass storage device starts unit command time-out.
Device power-up delay
Maximum time the device will take before it properly report itself to the
host controller.

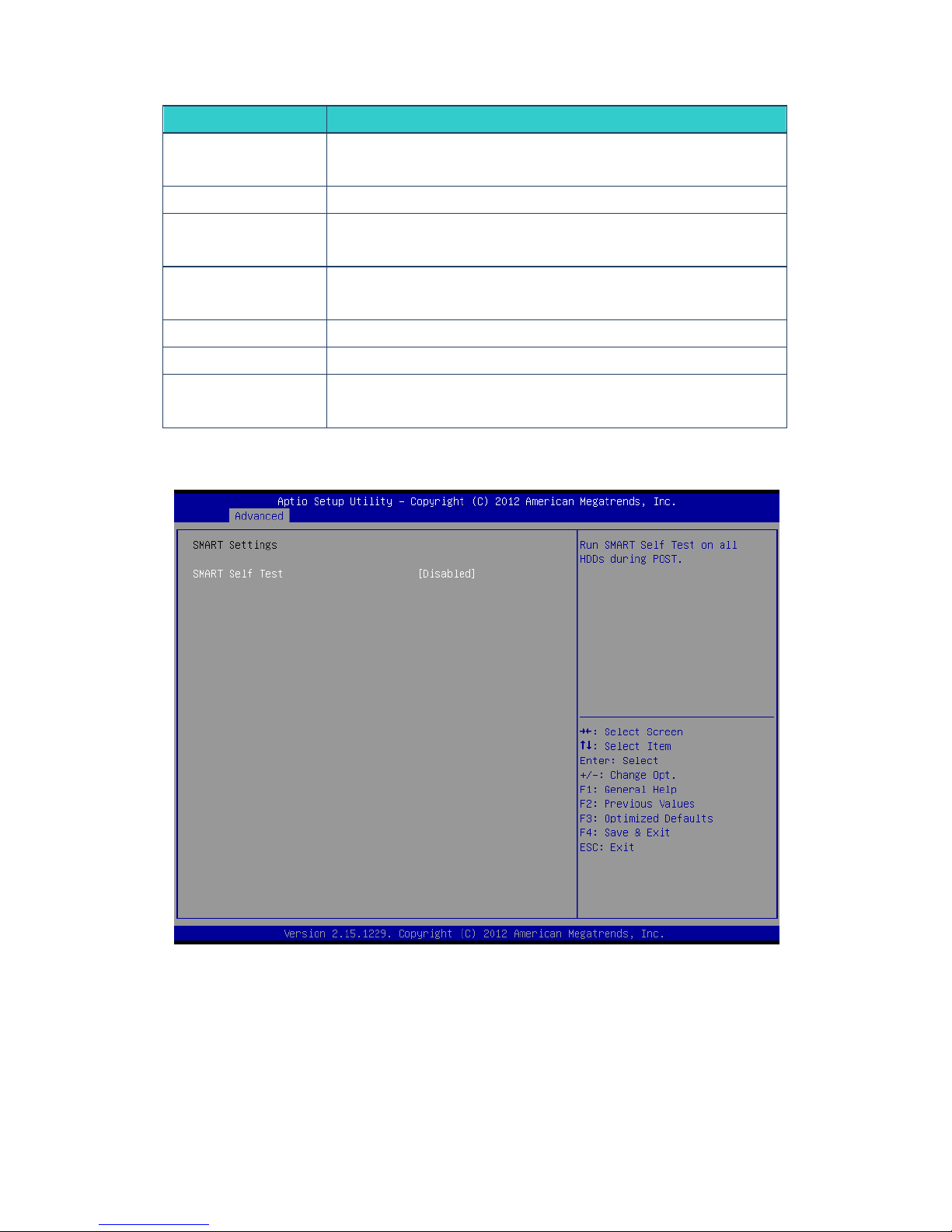

SMART Setting
Smart Self Test
Enable or disable Run SMART Self test on all HDDs during Post.
Page 55
IV32 Motherboard User Manual
45

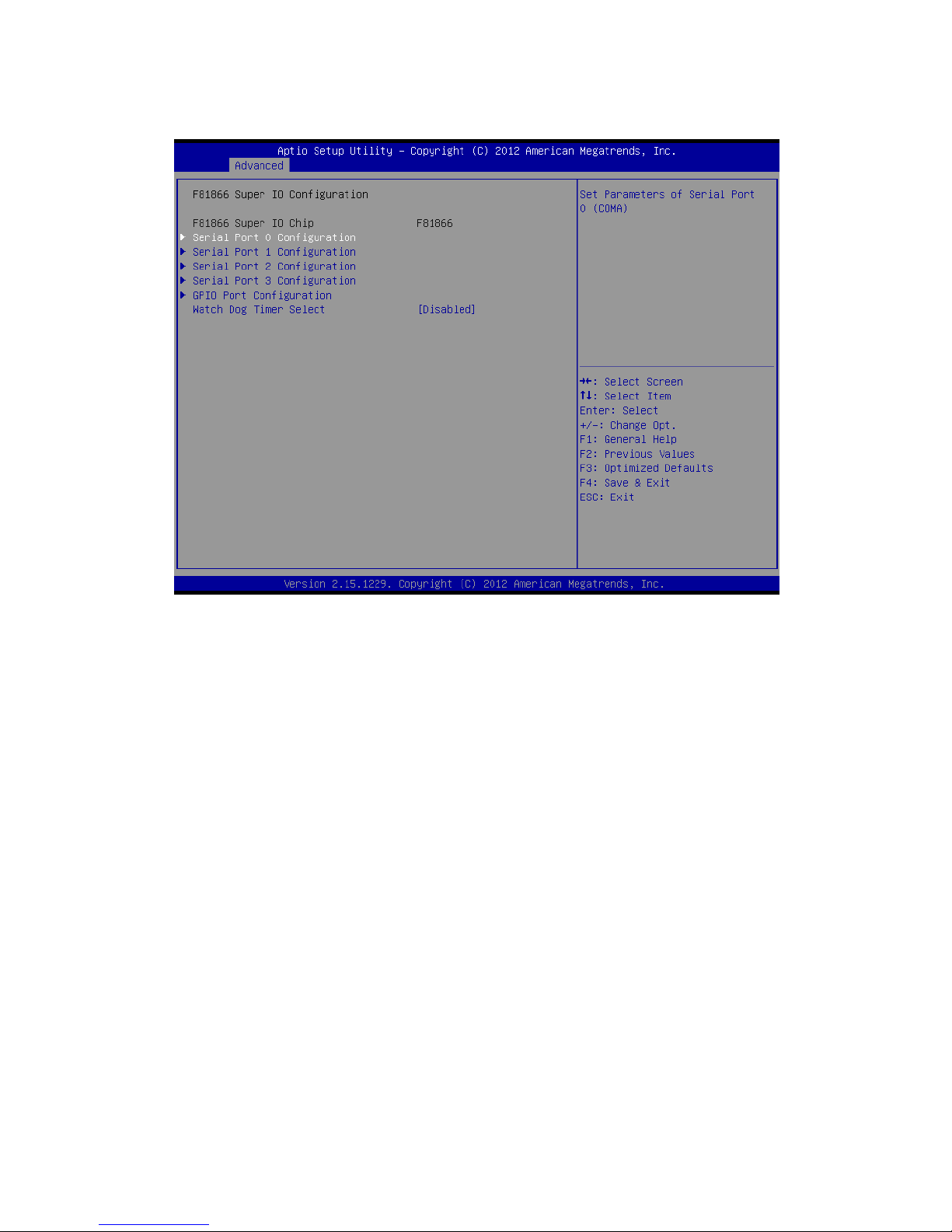

F81866 Super I/O Configuration
Serial Port Configuration
Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select
an optimal settings for the Super IO Device.
Page 56
IV32 Motherboard User Manual
46
Smart Fan Control

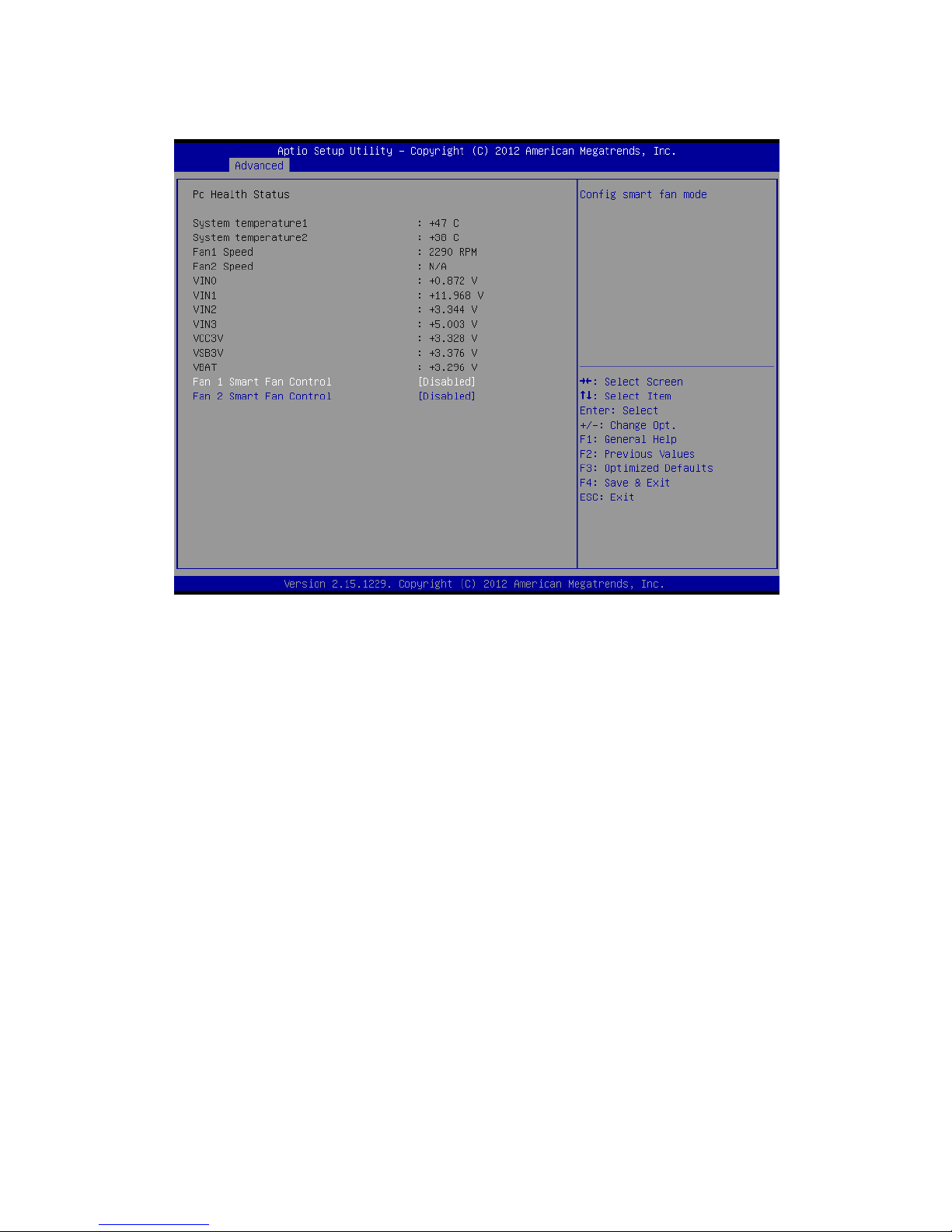

Fan1/Fan2 Smart Fan Control
This field enables or disables the smart fan feature. At a certain temperature, the
fan starts turning. Once the temperature drops to a certain level, it stops turning
again.
Page 57
IV32 Motherboard User Manual
47

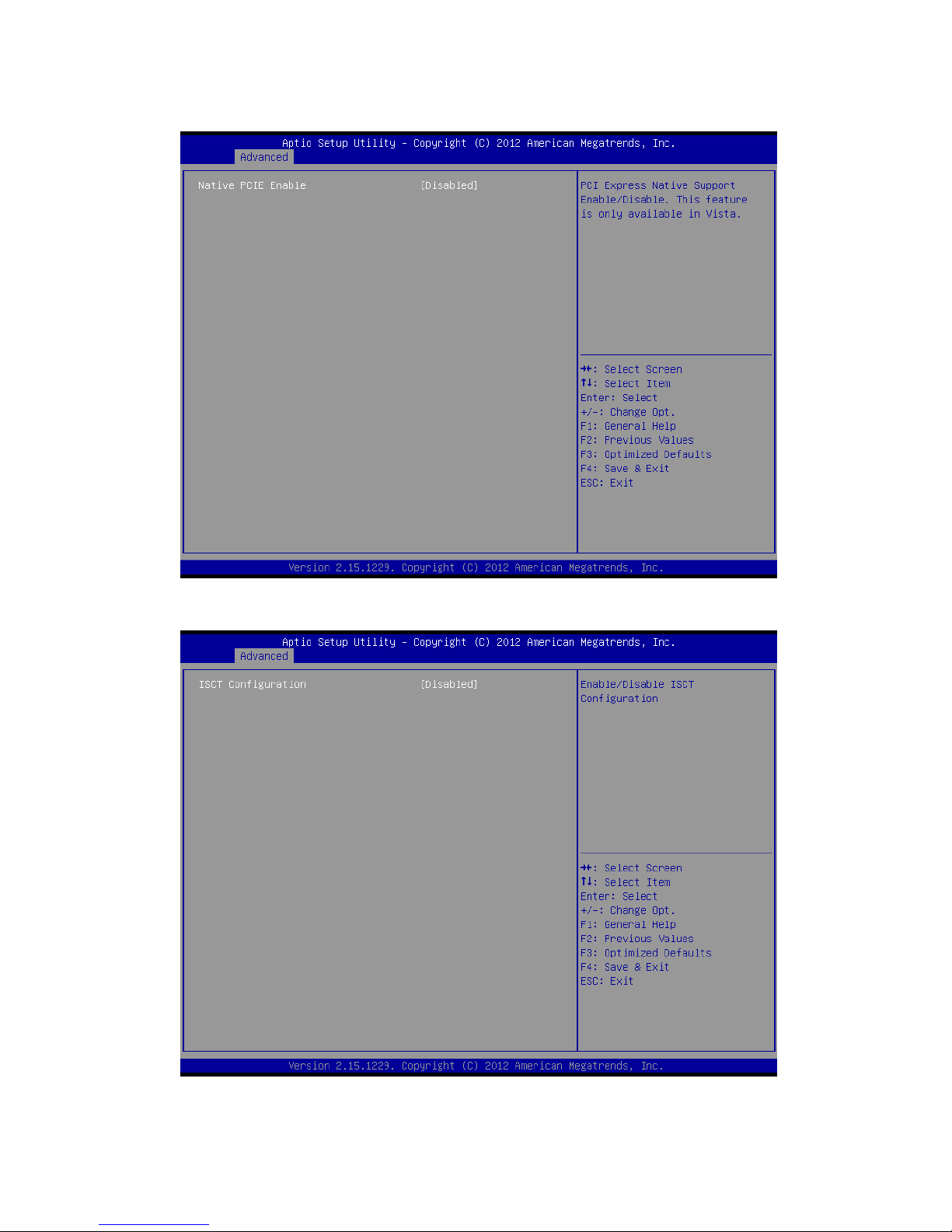

Platform Misc Configuration
PCI Express Native Support Enable/Disable. This feature is only available in vista.
Intel
®
Smart Connect Technology
Enable/Disable ISCT configuration
Page 58
IV32 Motherboard User Manual
48

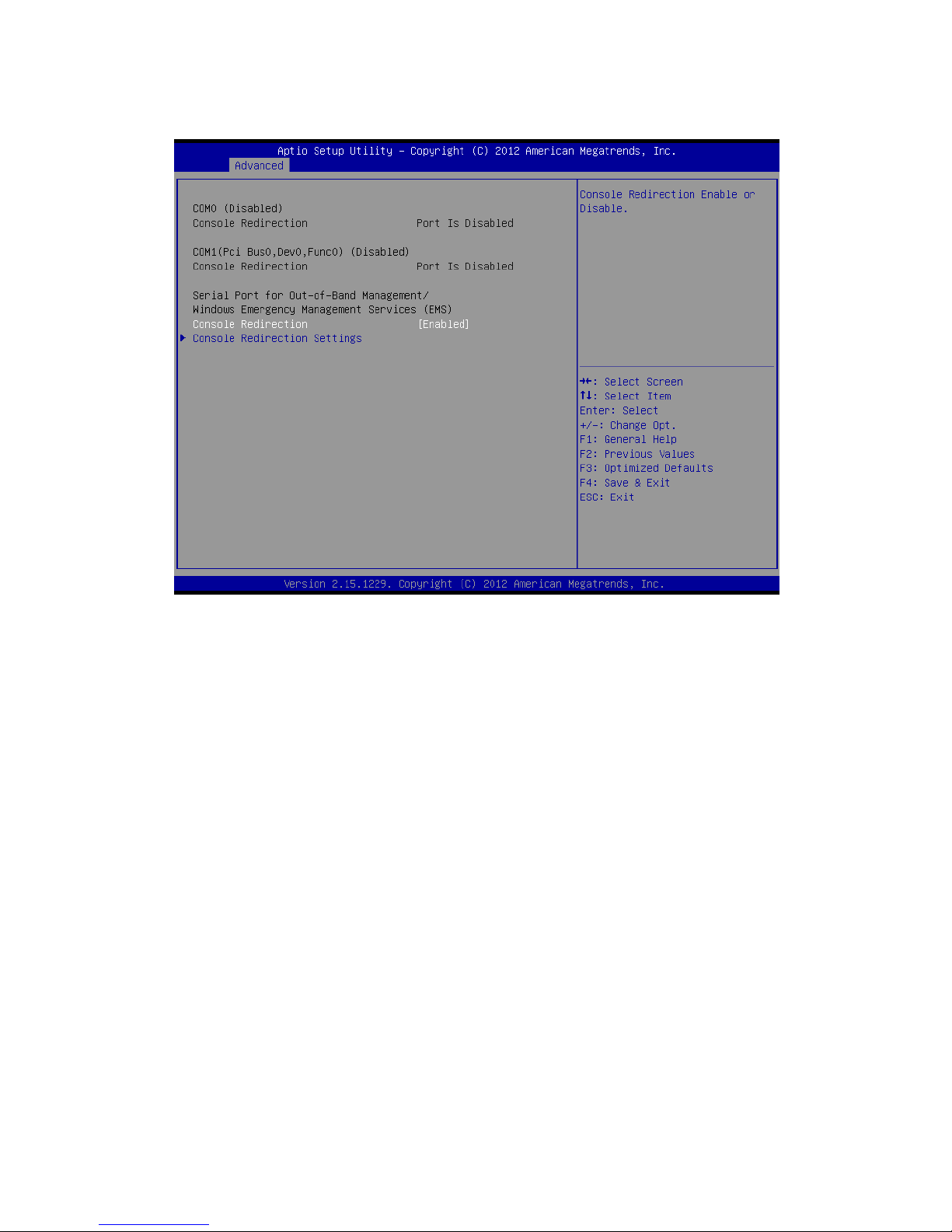

Serial Port Console Redirection
Console Redirection
This item allows users to enable or disable console redirection for Microsoft
Windows Emergency Management Services (EMS).
Out-of-Band Mgmt Port
Select the port for Microsoft Windows Emergency Management Services (EMS)
to allow for remote management of a Windows Server OS.
Terminal Type
VT-UTF8 is the preferred terminal type for out-of-band management. The next
best choice is VT100+ and then VT100. See above, in Console Redirection
Settings page, for more Help with Terminal Type/Emulation.
Page 59
IV32 Motherboard User Manual
49
Intel
®

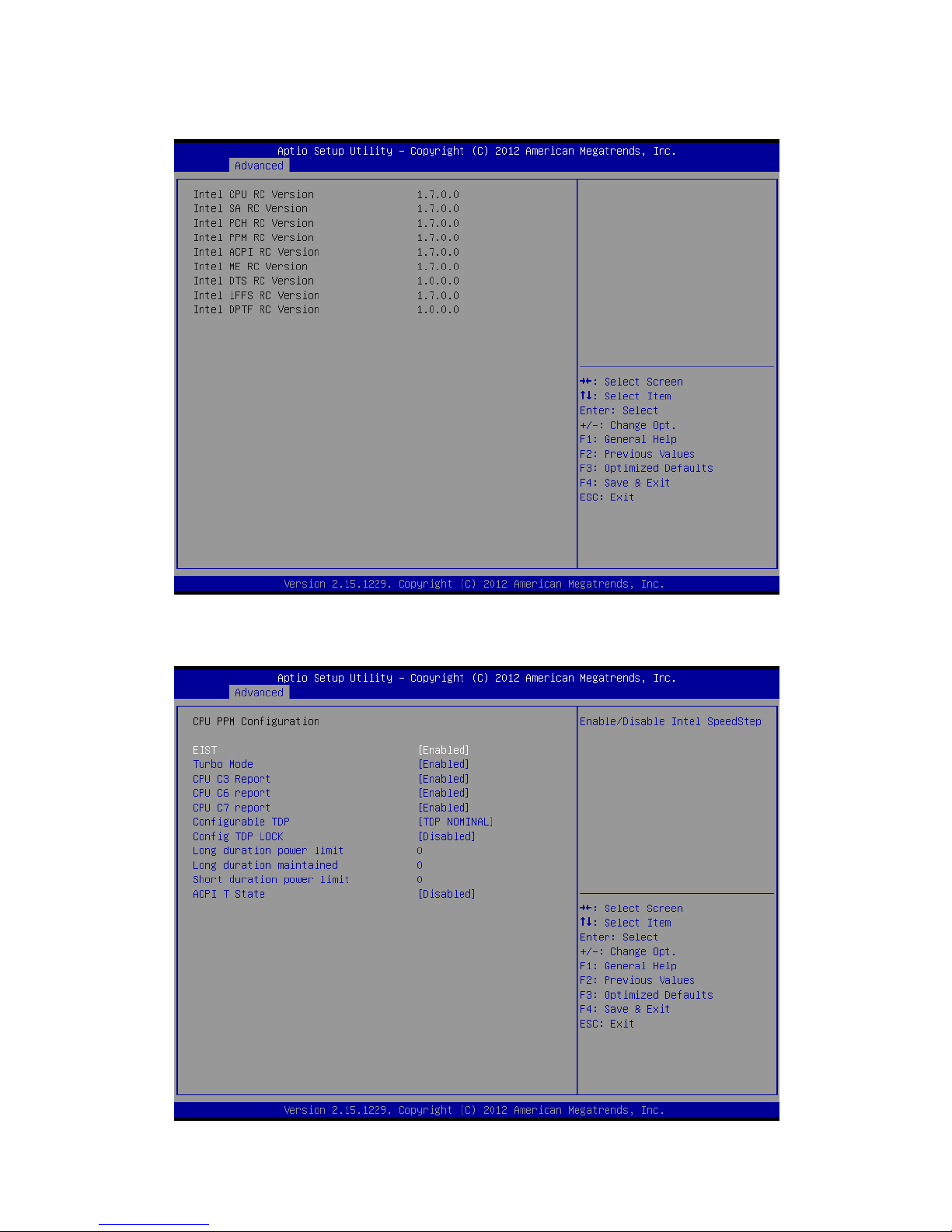

RC Drivers Version Detail
CPU PPM Configuration
Page 60
IV32 Motherboard User Manual
50
SETTING
DESCRIPTION
EIST
CPU runs at its default speed if disabled; CPU speed is controlled by
the operating system if enabled.
Turbo Mode
This item allows users to enable or disable turbo mode.
Config TDP lock
Lock the config TDP control register
Long duration power limit
Long duration power limit in watts, 0 means use factory default.
Long duration maintained
Time window which the long duration power is maintained.
Short duration power limit
This item allows users to enable or disable CPU TDP lock function.
ACPI T state
This item allows users to enable or disable ACPI T state function.

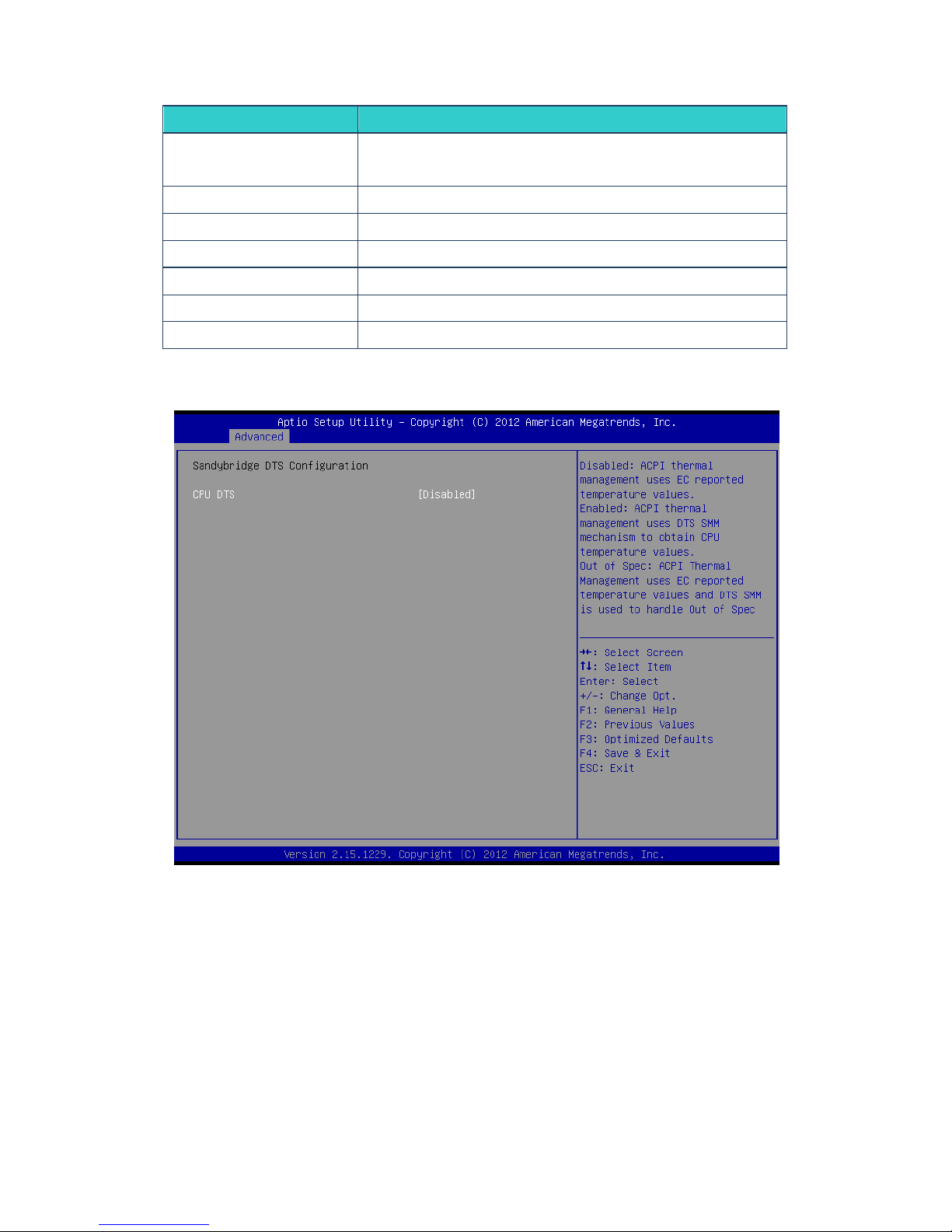

DTS Configuration
CPU DTS
This item allows users to select the ACPI thermal management uses EC reported
temperature value function.
Page 61
IV32 Motherboard User Manual
51

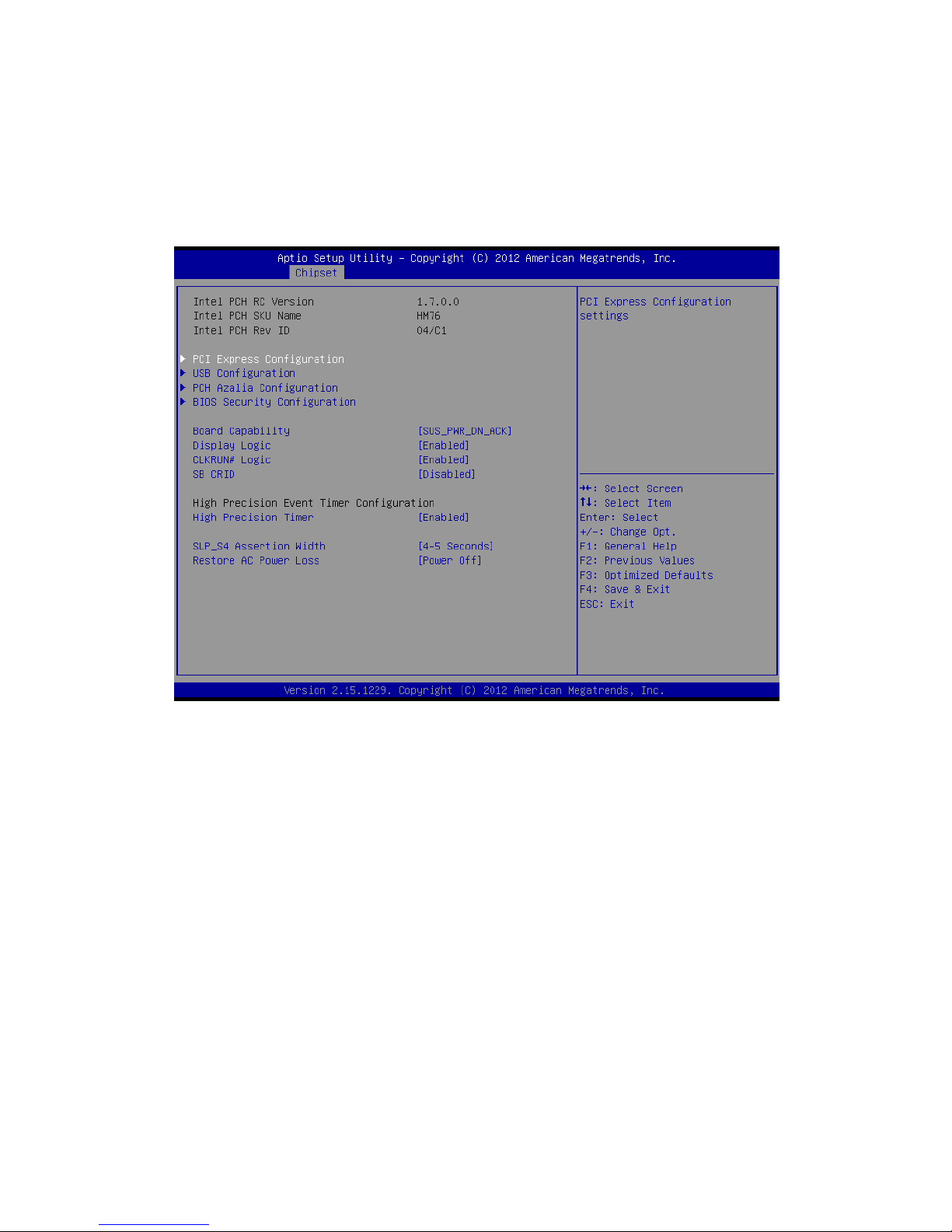

4.3 Chipset Configuration
This section allows you to configure and improve your system and allows you to set
up some system features according to your preference.
PCI Express Configuration
Detail of PCI Express items.
USB Configuration
Details of USB items.
PCH Azalia Configuration
Details of PCH azalia items.
High Precision Timer
Enables or disables the high precision timer.
SLP_S4 Assertion Width
This item allows users to set a delay of sorts.
Restore AC Power Loss
This item allows users to select off, on and last state.
Page 62
IV32 Motherboard User Manual
52
PCI Express Configuration
SETTING
DESCRIPTION
PCI Express Clock Gating
Enable or disable PCI Express clock gating for each root
port.
DMI Link ASPM Control
The control of active state power management on both NB
side and SB side of the DMI link.
DMI Link Extended Synch Control
The control of extended synch on SB side of the DMI link.
PCIe-USB Glitch W/A
PCIe-USB glitch W/A for bad USB device connected behind
PCIE/PEG port.
Subtractive Decode
Enable or disable PCI Express subtractive decode.
PCI Express Root Port 1~7
This item allows users to enable or disable the PCI Express
Root Port.
Page 63
IV32 Motherboard User Manual
53

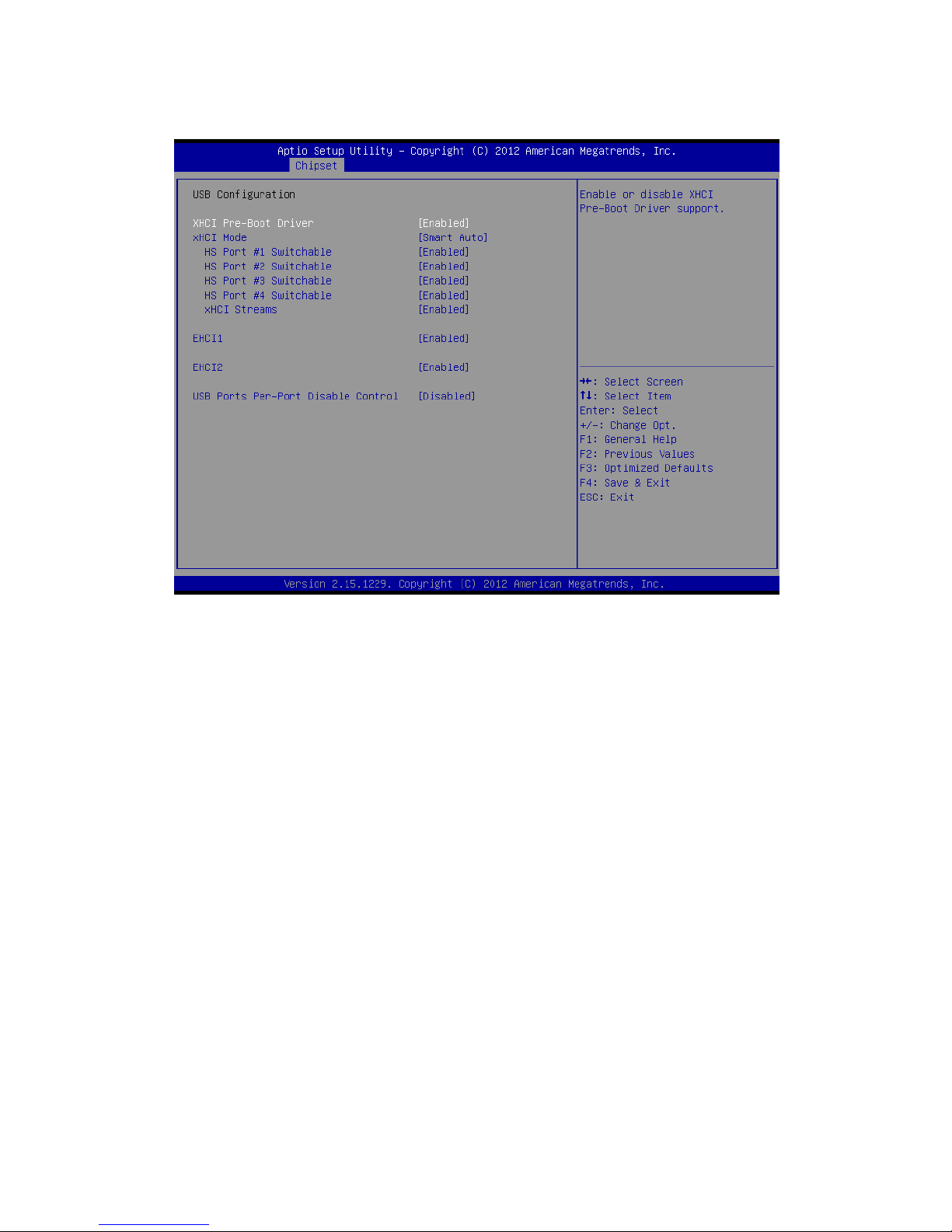

USB Configuration
XHCI Pre-Boot Driver
This item allows user to enable or disable XHCI Pre-boot driver.
XHCI Mode
This item allows user to enable or disable XHCI Mode.
EHCI 1/2
Enables or disables the EHCI controller.
USB Ports pre-port Disable Control
This item allows users to enable or disable each USB port individually.
Page 64
IV32 Motherboard User Manual
54

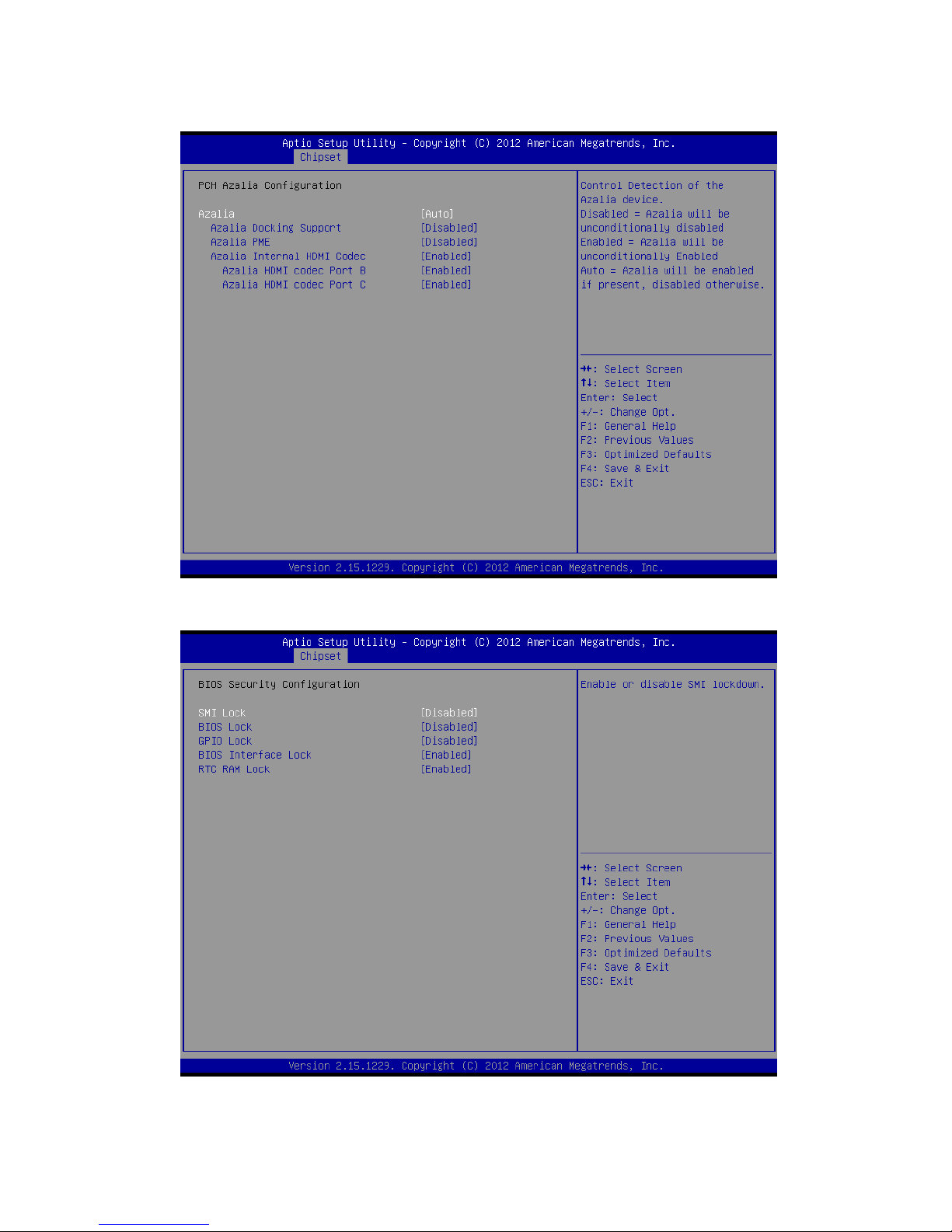

PCH Azalia Configuration
This item allows user to enable or disable azalea device.
BIOS Security Configuration
Enable or disable SMI/BIOS/GPIO/BIOS interface/RTC RAM Lock.
Page 65
IV32 Motherboard User Manual
55
System Agent Bridge Name
This item allows users to enable or disable VT-d.

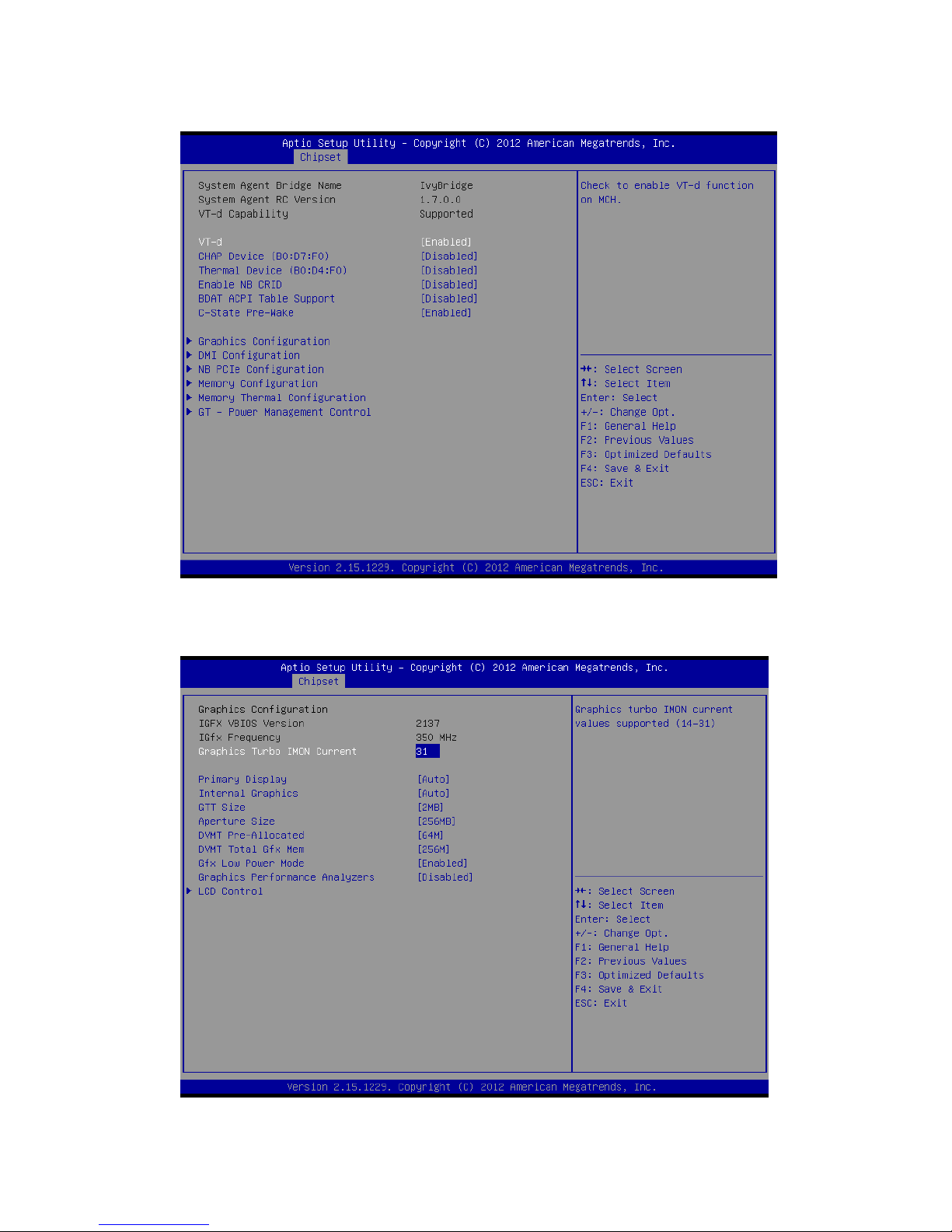

Graphic Configuration
Page 66
IV32 Motherboard User Manual
56
SETTING
DESCRIPTION
Primary Display
This item allows users to select which graphics controller to use
as the primary boot device.
Internal Graphics
This item allows users to enable or disable IGD.
GTT Size
This item allows users to select GTT size.
Aperture Size
This item allows users to select aperture size.
DVMT Pre-Allocated
This item allows users to select DVMT pre-allocated memory
size.
DVMT Total Gfx Mem
This item allows users to select DVMT total memory size.
Gfx Low Power Mode
This item allows users to enable or disable IGD low power
mode.
Graphic Performance Analyzers
This item allows users to enable or disable graphic performance
analyzer function.
NB PCIe Configuration
PEG0 - Gen x
Select PEG0 speed.
Enable PEG
This item allows users to enable or disable PEG always.
PEG Sampler Calibrate
This item allows users to enable or disable PEG sampler calibrate function.
Page 67
IV32 Motherboard User Manual
57

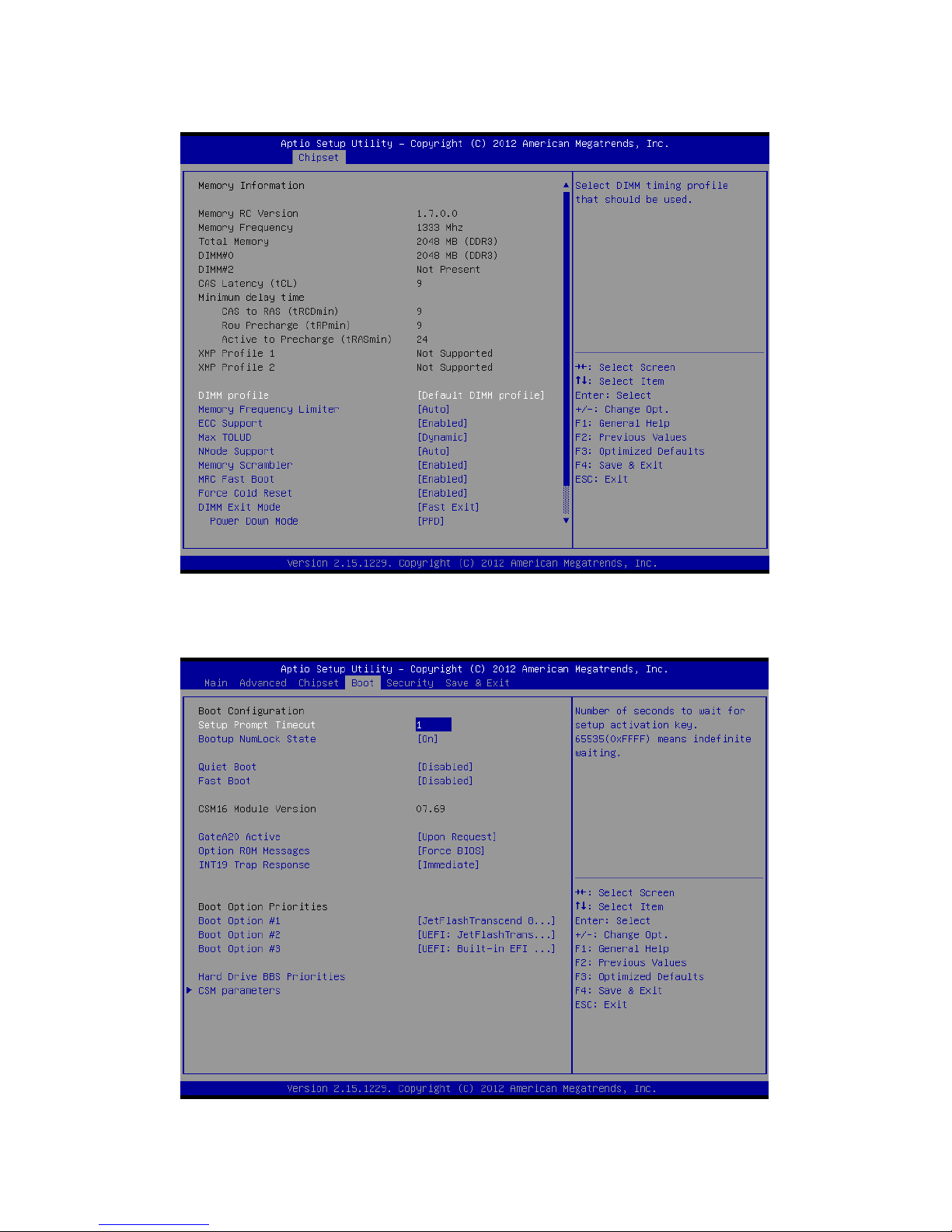

Memory Information
4.4 Boot Setting
Page 68
IV32 Motherboard User Manual
58
SETTING
DESCRIPTION
Setup Prompt Timeout
This item allows you to change number of seconds to wait for setup activation
key.
Bootup NumLock State
This allows you to determine the default state of the numeric keypad. By
default, the system boots up with NumLock on wherein the function of the
numeric keypad is the number keys. When set to Off, the function of the
numeric keypad is the arrow keys.
Quiet Boot
If this option is set to Disabled, the BIOS display normal POST messages. If
Enabled, an OEM Logo is shown instead of POST messages.
Fast Boot
Enables/Disables boot with initialization of a minimal set of devices required to
launch active boot option. Has no effect for BBS boot options.
GateA20 Active
UPON REQUEST – GA20 can be disabled using BIOS services. ALWAYS –
do not allow disabling GA20; this option is useful when any RT code is
executed above 1MB.
OptionROM Messages
Set display mode for Option ROM. Options are Force BIOS and Keep Current.
INT19 Trap Response
This item allows option ROMs to trap interrupt 19
Boot Option #1、#2、#3
Selects the boot sequence of the device.
Hard Drive BBS Priorities
Set the order of the legacy devices in this group.

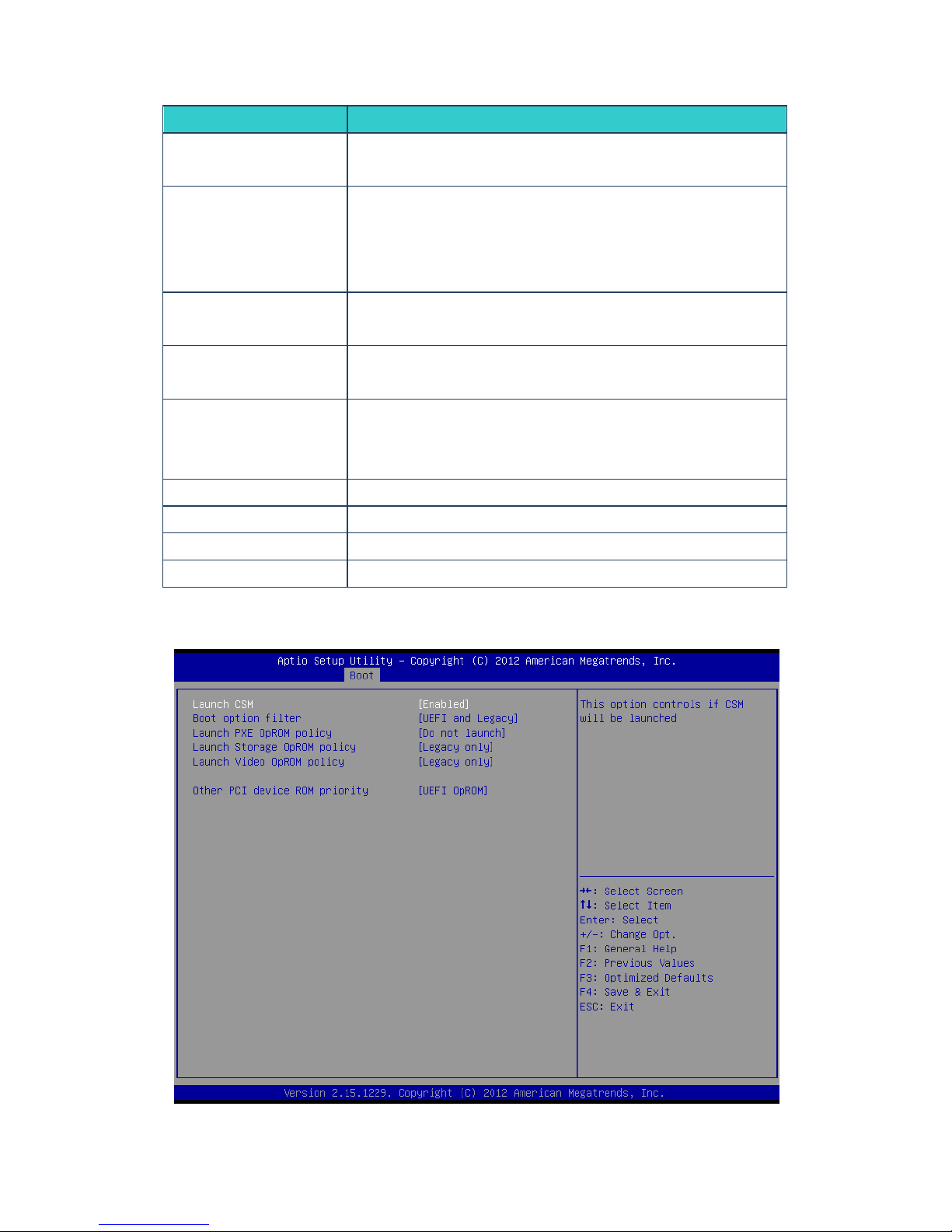

CSM Parameters
Page 69
IV32 Motherboard User Manual
59
SETTING
DESCRIPTION
Launch CSM
This option controls if CSM will be launch.
Boot option filter
This option controls what devices system can boot to.
Launch PXE OpROM policy
Controls the execution of UEFI and legacy PXE OpROM.
Launch Storage OpROM policy
Controls the execution of UEFI and legacy storage OpROM.
Launch Video OpROM policy
Controls the execution of UEFI and legacy video OpROM.
Other PCI device ROM priority
For PCI device than Network, mass storage or video defines which
OpROM to launch.

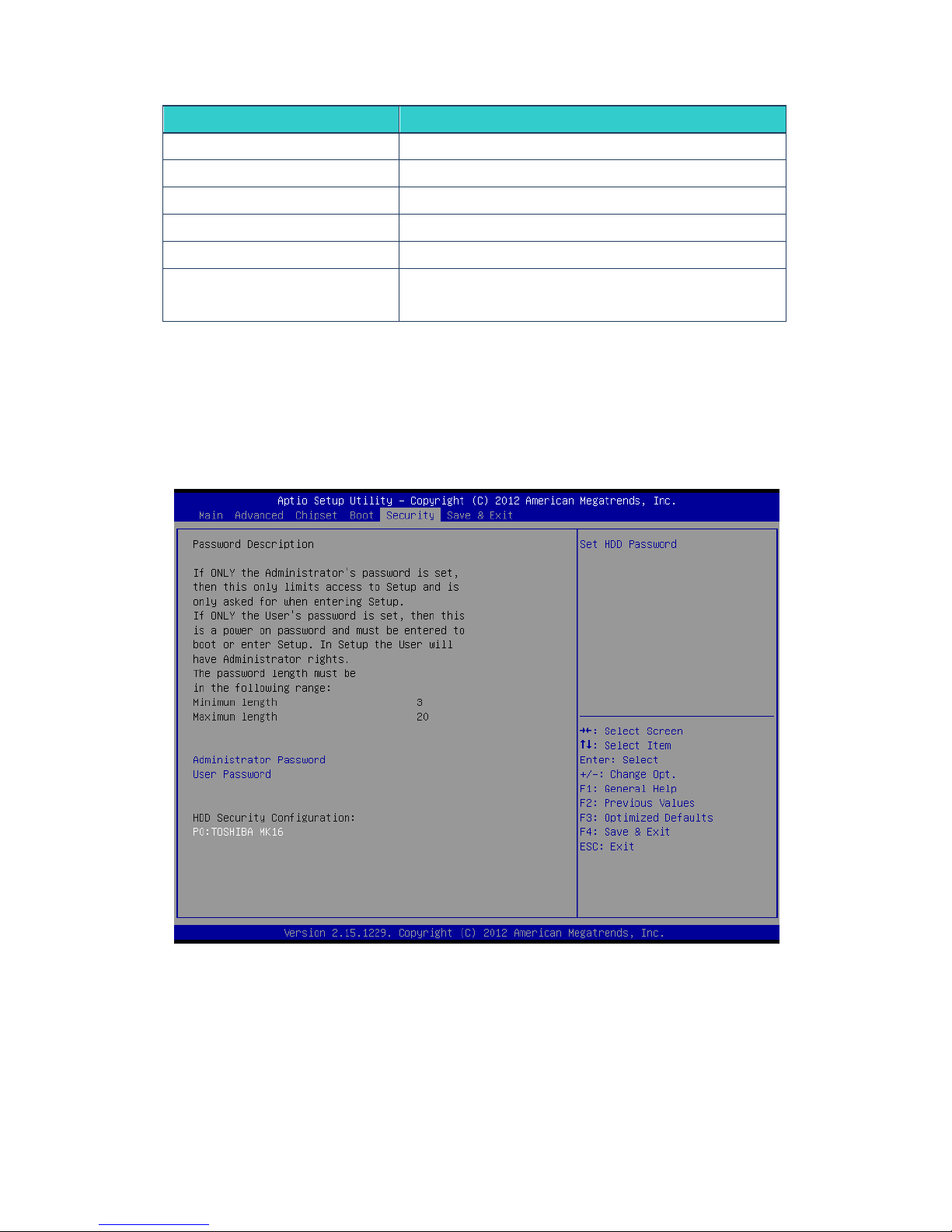

4.5 Security Setup
This section allows you to configure and improve your system and allows you to set
up some system features according to your preference.
Administrator Password
Set Setup Administrator Password.
User Password
Set User Password.
HDD 0: FUJITSU MHY2
Set the HDD password.
Page 70
IV32 Motherboard User Manual
60

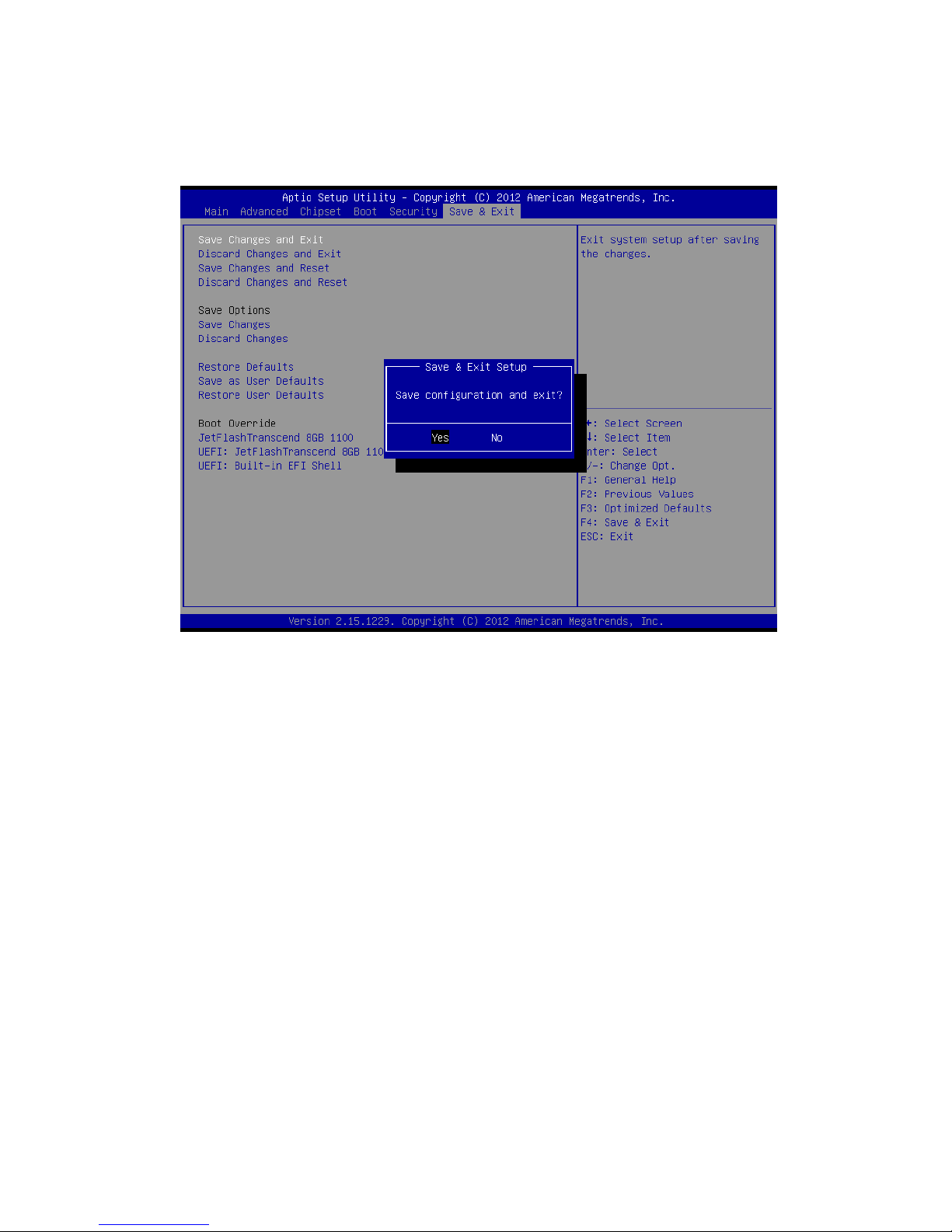

4.6 Save & Exit
Save Changes and Exit
Exit system setup after saving the changes.
Discard Changes and Exit
Exit system setup without saving any changes.
Save Changes and Reset
Reset the system after saving the changes.
Discard Changes and Reset
Reset system setup without saving any changes.
Save Changes
Save Changes done so far to any of the setup options.
Discard Changes
Discard Changes done so far to any of the setup options.
Restore Defaults
Restore/Load Defaults values for all the setup options.
Save as User Defaults
Save the changes done so far as User Defaults.
Restore User Defaults
Restore the User Defaults to all the setup options.
Page 71
IV32 Motherboard User Manual
61
Service / Update
Official Website
The relevant information about IV32 including the latest news and downloads will be
presented in the website below:
http://www.winmate.com.tw/BoxPc/EmbeddedSpec.asp?Prod=05_0156
Please go there to obtain further details of IV32 Motherboard.
Company Information
WinMate Communication INC.
9F, No.111-6, Shin- De Rd,. San- Chung City Taipei 241, Taiwan, R.O.C.
Tel: 886-2-8511-0288
Fax: 886-2-8511-0211
Contact US: [email protected]
Distributor and more Products (Please refer to our website): www.winmate.com.tw
Loading...
