IK32 Motherboard
3.5” SBC with Intel® 7th Generation Dual Core i5 Processor, HDMI,
LVDS, VGA, Dual Giga Ethernet, and M.2 Interface
V100
User Manual
Version 1.0
9171111K102L
Page 2
USER MANUAL CONTENTS
- 2 -
CONTENTS
PREFACE ................................................................................................................................................ - 4 -
ABOUT THIS USER MANUAL .................................................................................................................. - 8 -
CHAPTER 1: GENERAL INFORMATION ................................................................................................. - 10 -
1.1 INTRODUCTION .................................................................................................................................... - 10 -
1.2 FEATURES ........................................................................................................................................... - 10 -
1.3 MOTHERBOARD SPECIFICATIONS ............................................................................................................. - 11 -
1.4 FUNCTIONAL DESCRIPTION ..................................................................................................................... - 13 -
1.5 PHYSICAL DESCRIPTION ......................................................................................................................... - 14 -
CHAPTER 2: HARDWARE INSTALLATION .............................................................................................. - 16 -
2.1 MAINBOARD CONNECTORS AND PIN ASSIGNMENT ..................................................................................... - 16 -
2.1.1 Component Side Connectors ................................................................................................... - 16 -
2.1.2 Solder Side Connectors ............................................................................................................ - 23 -
2.1.3 External I/O Side Connectors ................................................................................................... - 24 -
2.2 MEMORY MODULE (SO-DIMM) INSTALLATION ........................................................................................ - 26 -
2.3 I/O EQUIPMENT INSTALLATION ............................................................................................................... - 27 -
2.3.1 12V DC in ................................................................................................................................. - 27 -
2.3.2 Serial COM Port ....................................................................................................................... - 27 -
2.3.3 External HDMI ......................................................................................................................... - 27 -
2.3.4 Ethernet Interface .................................................................................................................... - 27 -
2.3.6 USB Ports ................................................................................................................................. - 27 -
2.3.7 Audio ....................................................................................................................................... - 27 -
2.4 JUMPER SETTINGS ................................................................................................................................ - 28 -
2.4.1 JP1: Backlight Power Selector .................................................................................................. - 29 -
2.4.2 JP2: PWM/DC Mode Control Selector...................................................................................... - 29 -
2.4.3 JP3: Panel Power Selector ........................................................................................................ - 29 -
2.4.4 JP4: VR/Chipset Control Selector ............................................................................................. - 30 -
2.4.5 SW1: Clear CMOS .................................................................................................................... - 30 -
CHAPTER 3: INSYDE H20 BIOS SETUP .................................................................................................. - 32 -
3.1 HOW AND WHEN TO USE BIOS SETUP .................................................................................................... - 32 -
3.2 BIOS FUNCTIONS................................................................................................................................. - 34 -
3.2.1 Main Menu .............................................................................................................................. - 34 -
3.2.2 Advanced ................................................................................................................................. - 35 -
3.2.3 Boot ......................................................................................................................................... - 52 -
3.2.3 Security .................................................................................................................................... - 55 -
Page 3
USER MANUAL CONTENTS
- 3 -
3.2.4 Power ...................................................................................................................................... - 56 -
3.2.5 Exit .......................................................................................................................................... - 57 -
3.3 USING RECOVERY WIZARD TO RESTORE COMPUTER .................................................................................... - 58 -
3.4 HOW TO ENABLE WATCHDOG ................................................................................................................. - 59 -
CHAPTER 4: DRIVER INSTALLATION ..................................................................................................... - 62 -
3.1 CHIPSET DRIVER INSTALLATION ............................................................................................................... - 62 -
3.2 GRAPHICS DRIVER INSTALLATION ............................................................................................................. - 65 -
3.3 AUDIO DRIVER INSTALLATION ................................................................................................................. - 68 -
3. 4 ETHERNET DRIVER INSTALLATION ............................................................................................................ - 70 -
3.5 INTEL® MANAGEMENT ENGINE SOFTWARE ............................................................................................... - 73 -
3.6 WATCHDOG DRIVER INSTALLATION .......................................................................................................... - 76 -
CHAPTER 5: TECHNICAL SUPPORT ....................................................................................................... - 81 -
5.1 DRIVERS ............................................................................................................................................. - 81 -
5.2 SOFTWARE DEVELOPMENT KIT (SDK) ...................................................................................................... - 81 -
Page 4
USER MANUAL PREFACE
- 4 -
PREFACE
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in
any form or by any means, electronic or mechanical, for any purpose, without the
prior written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of
the described product(s), conveys no license or title under any patent, copyright,
or masks work rights to these products, and makes no representations or
warranties that these products are free from patent, copyright, or mask work right
infringement, unless otherwise specified. Applications that are described in this
manual are for illustration purposes only. We make no representation or warranty
that such application will be suitable for the specified use without further testing or
modification.
Warranty
We warrant that each of its products will be free from material and workmanship
defects for a period of one year from the invoice date. (Standard is one year,
extended warranty will need to discuss with our sales representatives. If the
customer discovers a defect, we will, at its option, repair or replace the defective
product at no charge to the customer, provided it is returned during the warranty
period of one year, with transportation charges prepaid. The returned product
must be properly packaged in its original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial
numbers the third and fourth two digits give the year of manufacture, and the fifth
digit means the month (e. g., with A for October, B for November and C for
December).
For example, the serial number 1W16Axxxxxxxx means October of year 2016.
Page 5
USER MANUAL PREFACE
- 5 -
Packing List
Before using this Motherboard, please make sure that all the items listed below
are present in your package:
IK32 Motherboard
User Manual & Driver CD
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Customer Service
We provide a service guide as below for any problem by the following steps:
First, contact your distributor, sales representative, or our customer service center
for technical support if you need additional assistance.
You need to prepare the following information before you call:
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Detailed problem description
The exact wording of any error messages
In addition, free technical support is available from our engineers every business
day. We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products. Please do not
hesitate to call or e-mail us.
Page 6
USER MANUAL PREFACE
- 6 -
Advisory Conventions
Four types of advisories are used throughout the user manual to provide helpful
information or to alert you to the potential for hardware damage or personal injury.
These are Notes, Important, Cautions, and Warnings. The following is an example
of each type of advisory.
NOTE:
A note is used to emphasize helpful information
IMPORTANT:
An important note indicates information that is important for you to
know.
CAUTION
A Caution alert indicates potential damage to hardware and
explains how to avoid the potential problem.
WARNING!
An Electrical Shock Warning indicates the potential harm from
electrical hazards and how to avoid the potential problem.
Page 7
USER MANUAL PREFACE
- 7 -
Safety Precautions
CAUTION
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded bag
when they are not in the chassis.
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not
use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or
letting it fall could cause damage.
7. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
8. Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
9. All cautions and warnings on the equipment should be noted.
10. If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient over-voltage.
11. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according
to the user’s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
Page 8
USER MANUAL ABOUT THIS USER MANUAL
- 8 -
ABOUT THIS USER MANUAL
This User Manual provides information about using the IK32 Motherboard. The
documentation set for the IK32 Motherboard provides information for specific user
needs, and includes:
IK32 Motherboard User Manual – contains detailed description on how to
use the motherboard, its components and features.
NOTE:
Some pictures in this guide are samples and can differ from actual
product.
Document Revision History
Version
Date
Note
1.0
22-Jun-2017
Initial document release
Page 9
USER MANUAL CHAPTER 1 GENERAL INFORMATION
- 9 -
GENERAL INFORMATION
This chapter includes the IK32 Motherboard
background information.
1.1 Introduction
1.2 Features
1.3 Motherboard Specifications
1.4 Functional Description
1.5 Physical Description
Page 10
USER MANUAL CHAPTER 1 GENERAL INFORMATION
- 10 -
CHAPTER 1: GENERAL INFORMATION
This chapter includes the IK32 Motherboard background information.
1.1 Introduction
Thank you for choosing the IK32 Motherboard. This motherboard can be
integrated with Intel® Core i5-7200U Dual Core 2.5GHz (up to 3.1GHz) which
offers a high performance computing platform with low power consumption. The
new motherboard supports 204-pin SO-DIMM DDR4 at speeds of 2133 MHz, up
to 16GB. This motherboard support two generations of Intel® Core™ processors:
Intel®7th Generation Core™ based on 64-bit, multi-core processor and built on
14-nanometer processor technology.
There is an advanced full set of I/O ports including two USB 3.0, four USB 2.0, two
LAN ports and audio jack for microphone, line-in and line-out. The motherboard is
designed in 3.5” form factor and measures 146mm x 102mm.
Abundant I/O connectors and expandability makes IK32 Motherboard to be the
right fit in the majority of industrial computer applications such as machine vision
and control, gaming, POS, KIOSK systems, industrial automation, and others.
Powerful processor in Mini ITX form-factor meets the demanding performance
requirements of modern industrial applications.
1.2 Features
IK32 Motherboard features:
3.5” Form Factor (146mm x 102mm)
Intel® Core™ i5-7200U Processor
Intel® SoC Integrated Chipset
One DDR4-2133 SO-DIMM RAM
Intel® Gigabit-LAN Controller I211AT + PHY I219LM
2 x SATA III, 5 x COM, 2 x USB 3.0, 3 x USB 2.0
1 x M.2 2242 Key B slot (for SATA III SSD)
1 x M.2 2230 Key E slot (for PCIe + USB 2.0 wireless module)
1 x HDMI
Page 11
USER MANUAL CHAPTER 1 GENERAL INFORMATION
- 11 -
1.3 Motherboard Specifications
Model Name
IK32
System
Specifications
CPU
Intel® Core™ i5-7200U 2.5GHz,up to 3.1GHz
Chipset
Intel® SoC Integrated
System
Memory
260 pin DDR4-2133 non-ECC SO-DIMM RAM
(up to 16 GB)
Storage
M.2 B Key SATA III (up to 256GB)
BIOS
Insyde H20 BIOS
Graphic
Controller
Intel® HD Graphics 620
Graphic
Resolution
HDMI Mode: 4096x2304@ 24Hz
eDP Mode: 4096x2304@ 60Hz
LCD Interface
Dual-channel 18/24-bit LVDS Up to 1920x1200 @ 60Hz
Super IO
Chipset
FINTEK F81867D
Audio Codec
Realtek ALC283 HD Audio Codec
Audio Interface
Mic-in / Line-in / Line-out
LAN
Intel®Gigabit-LAN Controller I211AT + PHY I219LM
Ethernet
Interface
1000 Base-Tx Gigabit Ethernet Compatible
I/O Ports
Specification
Rear I/O
2 x RJ-45
1 x RS-232/RS422/RS485
2 x USB 3.0
1 x HDMI (HDMI 1.4)
1 x DC-in Power Jack (+12V)
Internal I/O
1 x eDP / 30-pin(2x15) DF-13 connector
1 x VGA / 10-pin(2x5) (1920 x 1200 @60Hz)
2 x SATA III
2 x SATA Power
3 x USB 2.0
1 x Digital I/O(12-bit GPIO) / 10-pin(2x5)
1 x Power-input / 2-pin
1 x +12V for external power(Yellow) / 2-pin
1 x +5V for external power(Red) / 2-pin
1 x +3.3V for external power(Blue) / 2-pin
Page 12
USER MANUAL CHAPTER 1 GENERAL INFORMATION
- 12 -
1 x Fan / 3-pin
1 x Brightness control /3-pin
1 x VR/Software brightness switch jumper/3-pin
1 x PWM/DA brightness switch jumper/3-pin
1 x 3.3V/5V PWM Level switch jumper/3-pin
1 x Panel inverter / 7-pin
1 x Front panel / 10-pin(2x5)
2 x Speaker with Amp. / 2-pin
1 x Audio (Mic-in / Line-in / Line-out) / 12-pin(2x6)
1 x RTC Battery / 2-pin
Expansions
Slot
1 x M.2 slot (for PCIe + USB 2.0 wireless module)
1 x M.2 slot (for SATA III SSD)
Mechanical
Specifications
Dimensions
146 x 102 mm / 5.7 x 4 inches (3.5" Form Factor)
Environment
Considerations
Operating
Temp.
-10°C ~ 50°C
Storage Temp.
-20°C ~ 60°C
Operating
Humidity
10~95% RH@40°C, non-condensing
Power
Management
Power Input
12V 2.5ф DC-IN Power Jack
Power
Consumption
15W
Operating
System
OS Support
Windows 10 IOT Enterprise
Packing List
Standard
IK32 Motherboard
IK32 Manual & Driver CD
Page 13
USER MANUAL CHAPTER 1 GENERAL INFORMATION
- 13 -
1.4 Functional Description

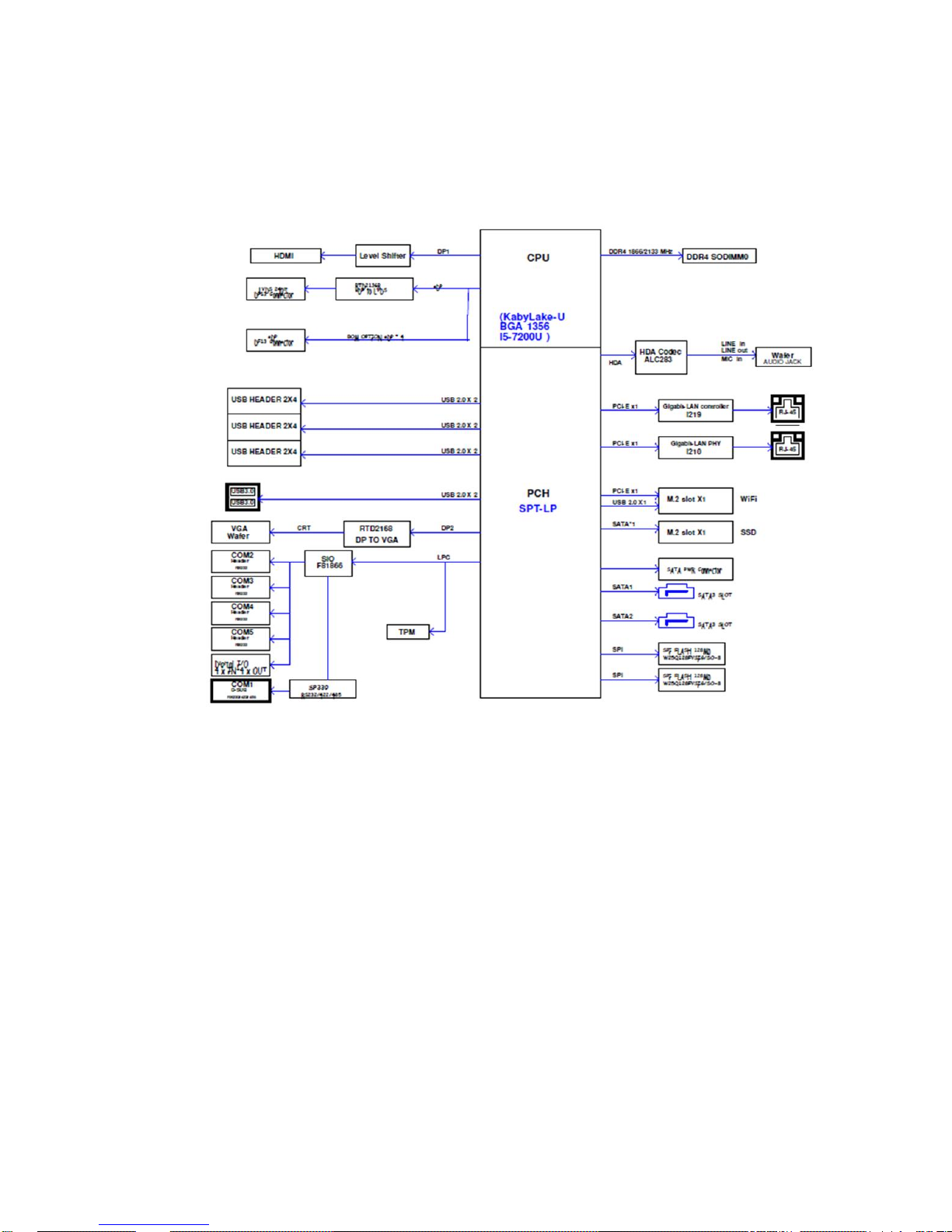

IK32 Motherboard Function Block (V100)
Page 14
USER MANUAL CHAPTER 1 GENERAL INFORMATION
- 14 -
1.5 Physical Description

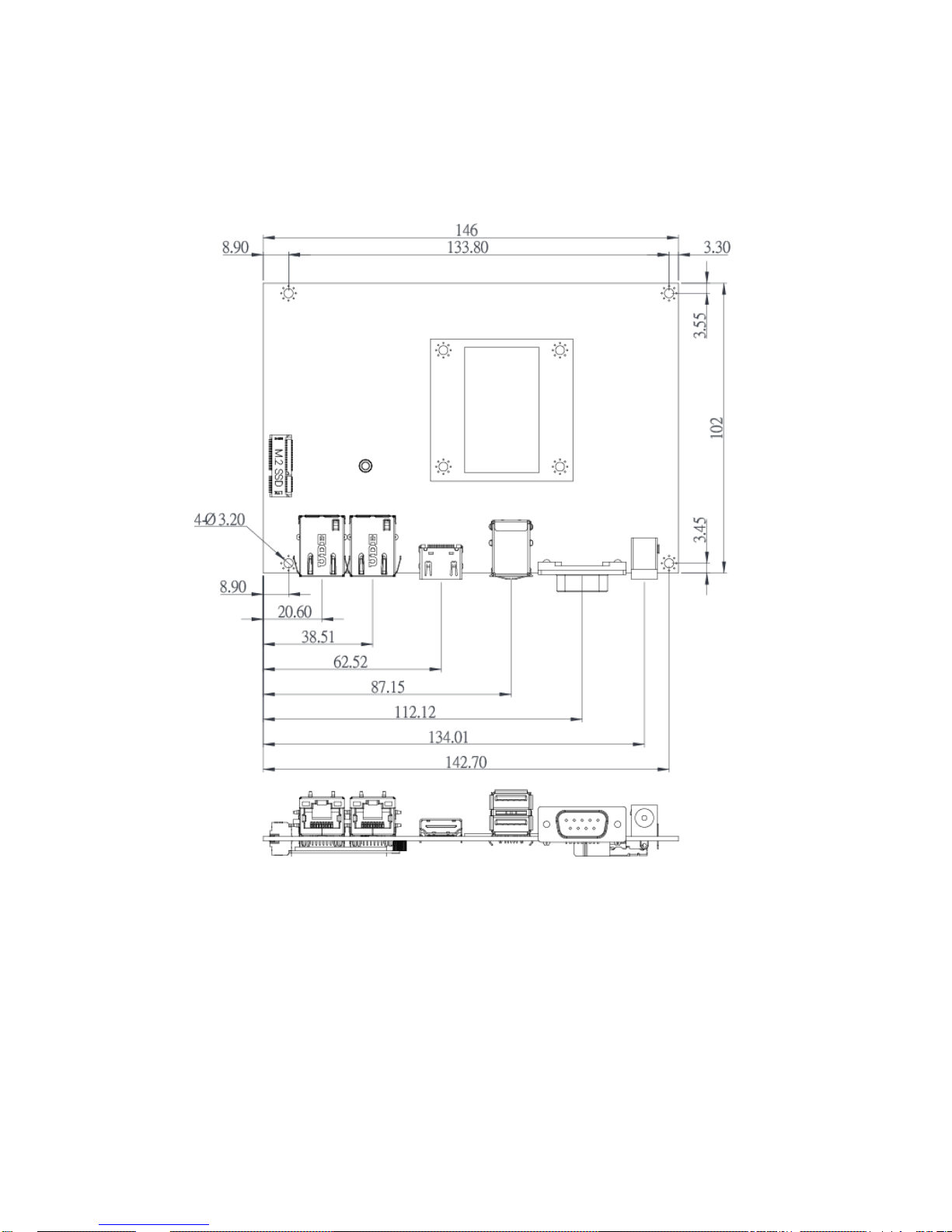

IK32 Motherboard Dimensions (V100)
Page 15
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 15 -
HARDWARE INSTALLATION
This chapter provides information on how to use
jumpers and connectors on the IK32
motherboard.
2.1 Motherboard Components
2.2 Memory Module Installation
2.3 I/O Equipment Installation
2.4 Jumper Settings
2.5 Motherboard Connectors
Page 16
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 16 -
CHAPTER 2: HARDWARE INSTALLATION
This chapter provides information on how to use jumpers and connectors on the
IK32 Motherboard. Be cautious while working with these modules. Carefully read
the content of this chapter in order to avoid any damages.

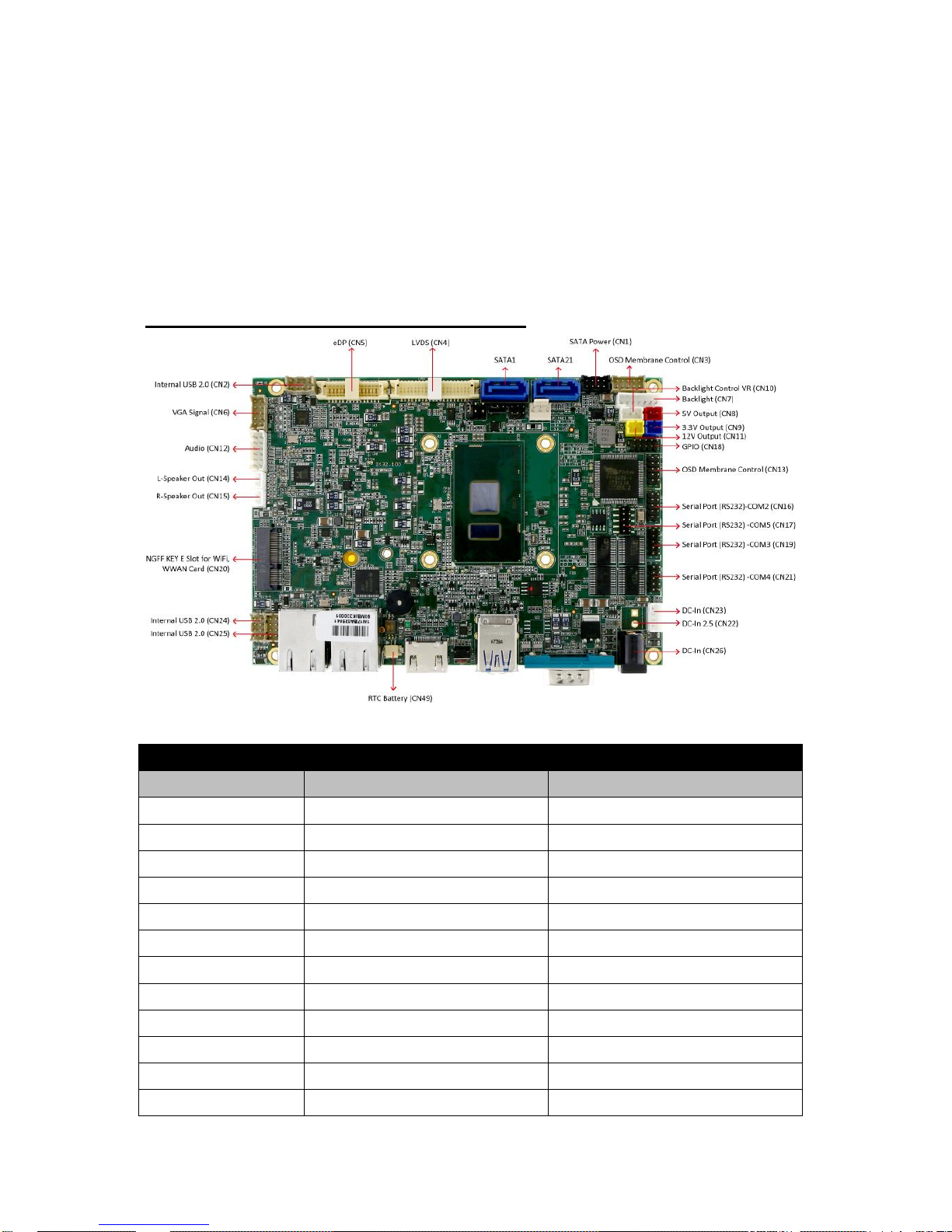

2.1 Mainboard Connectors and Pin Assignment
2.1.1 Component Side Connectors
The table below lists component side motherboard jumpers and connectors.
Connectors
Label
Function
Note
CN1
SATA Power
2x4 wafer, pitch 2.0mm
CN2, CN24, CN25
Internal USB 2.0
2x4 wafer, pitch 2.0mm
CN3
OSD Membrane Control
2x5 wafer, pitch 2.0mm
CN4
LVDS
2x20 wafer, pitch 1.25mm
CN5
eDP
2x15 wafer, pitch 1.25mm
CN6
VGA Signal
2x5 header, pitch 2.0mm
CN7
Backlight
1x7 wafer, pitch 2.0 mm
CN8
5V Output
1x2 wafer, pitch 2.0 mm
CN9
3.3V Output
1x2 wafer, pitch 2.0 mm
CN10
Backlight Control VR
1x3 wafer, pitch 2.0mm
CN11
12V Output
1x2 wafer, pitch 2.0 mm
CN12
Audio
2x6 wafer, pitch 2.0mm
Page 17
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 17 -
CN13
OSD Membrane Control
2x5 wafer, pitch 2.0mm
CN14
L-Speaker Out
1x2 wafer, pitch 2.0 mm
CN15
R-Speaker Out
1x2 wafer, pitch 2.0 mm
CN16
Serial Port (RS232)-COM2
2x5 header, pitch 2.0mm
CN17
Serial Port (RS232) -COM5
2x5 header, pitch 2.0mm
CN18
GPIO
2x5 header, pitch 2.0mm
CN19
Serial Port (RS232) -COM3
2x5 header, pitch 2.0mm
CN20
NGFF KEY E Slot for WiFi, WWAN
Card
NGFF KEY E
CN21
Serial Port (RS232) -COM4
2x5 header, pitch 2.0mm
CN22
DC-In 2.5
1x2P wafer, pitch 3.96mm
CN23
DC-In
1x4 header, pitch 2.0mm
CN26
DC-In
3p 2.5-5.5ψ DC Jack
CN27
NGFF KEY B for SSD
NGFF KEY B Slot
CN49
RTC Battery
2P wafer, pitch 1.25 mm
CPU_FAN1
CPU Fan
3P wafer, pitch 2.54mm

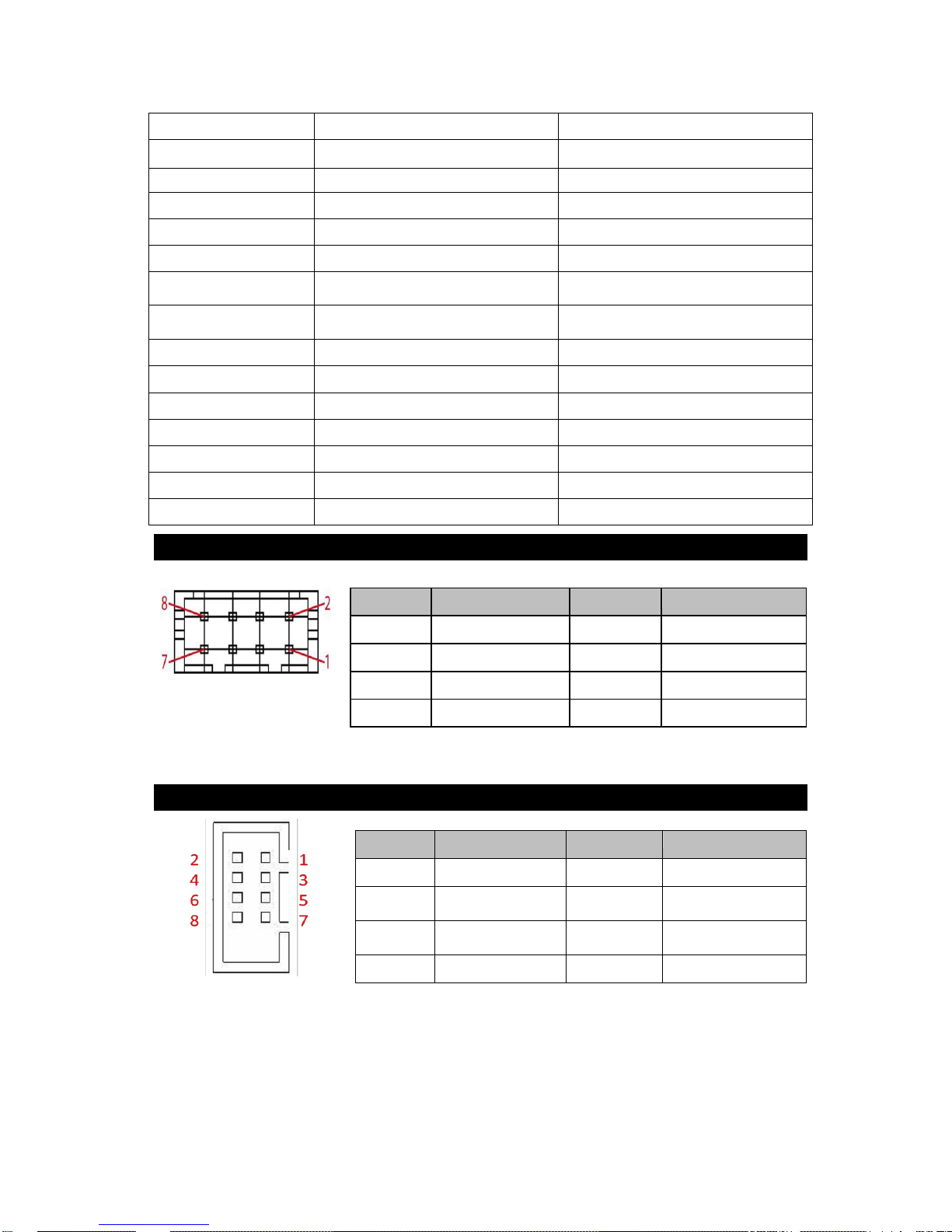

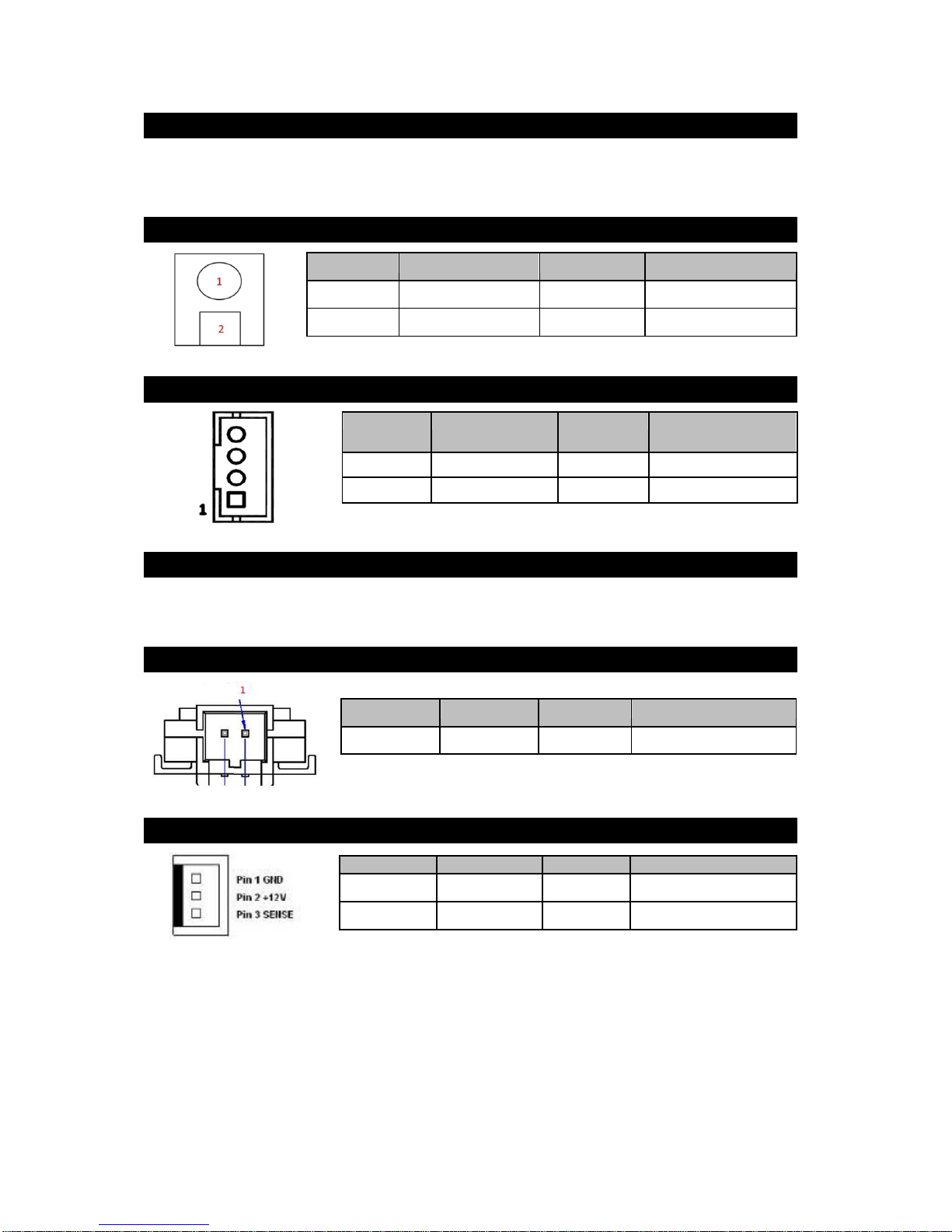

2.1.1.1 CN1: SATA Power
2.1.1.2 CN2, CN4, CN25 Internal USB 2.0
Pin №
Signal Name
Pin №
Signal Name
1
+12V
2
+12V
3
GND
4
GND
5
GND
6
GND
7
+5V 8 +5V
Pin №
Signal Name
Pin №
Signal Name
1
+5V 2 +5V
3
USB_
D-
4
USB_
D-
5
USB_
D+
6
USB_
D+
7
GND 8 GND
Page 18
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 18 -

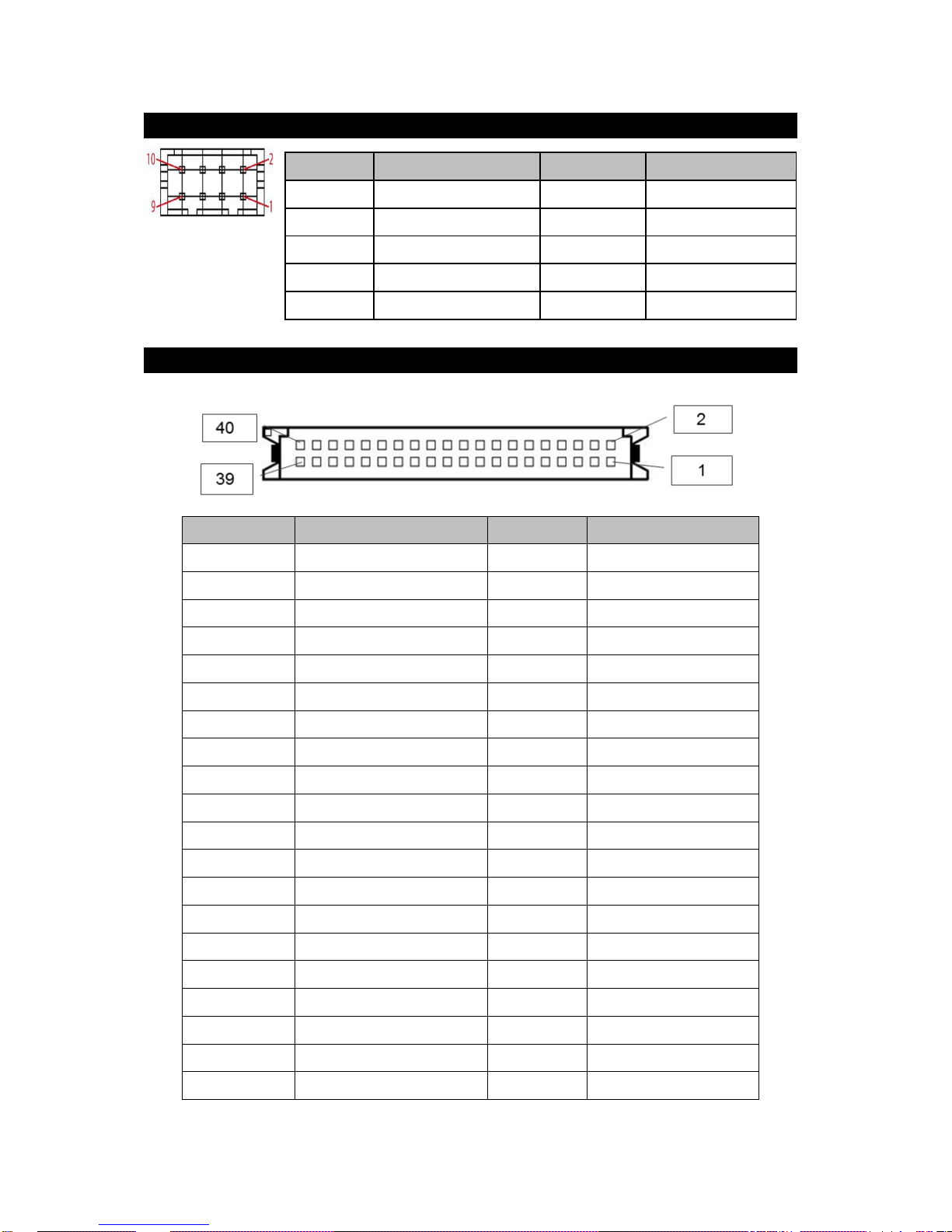

2.1.1.3 CN3: OSD Membrane Control
2.1.1.4 CN4: LVDS Connector
Pin №
Signal Name
Pin №
Signal Name
1
LCDVDD
2
LVDS0_TX0_N
3
LCDVDD
4
LVDS0_TX0_P
5
LCDVDD
6
LVDS0_TX1_N
7
GND
8
LVDS0_TX1_P
9
GND
10
LVDS0_TX2_N
11
GND
12
LVDS0_TX2_P
13
GND
14
LVDS0_CLK_N
15
GND
16
LVDS0_CLK_P
17
GND
18
LVDS0_TX3_N
19
GND
20
LVDS0_TX3_P
21
GND
22
LVDS1_TX0_N
23
GND
24
LVDS1_TX0_P
25
GND
26
LVDS1_TX1_N
27
GND
28
LVDS1_TX1_P
29
GND
30
LVDS1_TX2_N
31
GND
32
LVDS1_TX2_P
33
GND
34
LVDS1_CLK_N
35
GND
36
LVDS1_CLK_P
37
GND
38
LVDS1_TX3_N
39
GND
40
LVDS1_TX3_P
Pin№
Signal Name
Pin №
Signal Name
1
+5V
2
+3.3V 3 GND
4
SATA_LED#
5
PWRBTN#
6
GND
7
Backlight_ADJ+
8
FP_RST_N
9
Backlight_ADJ-
10
+5V
Page 19
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 19 -

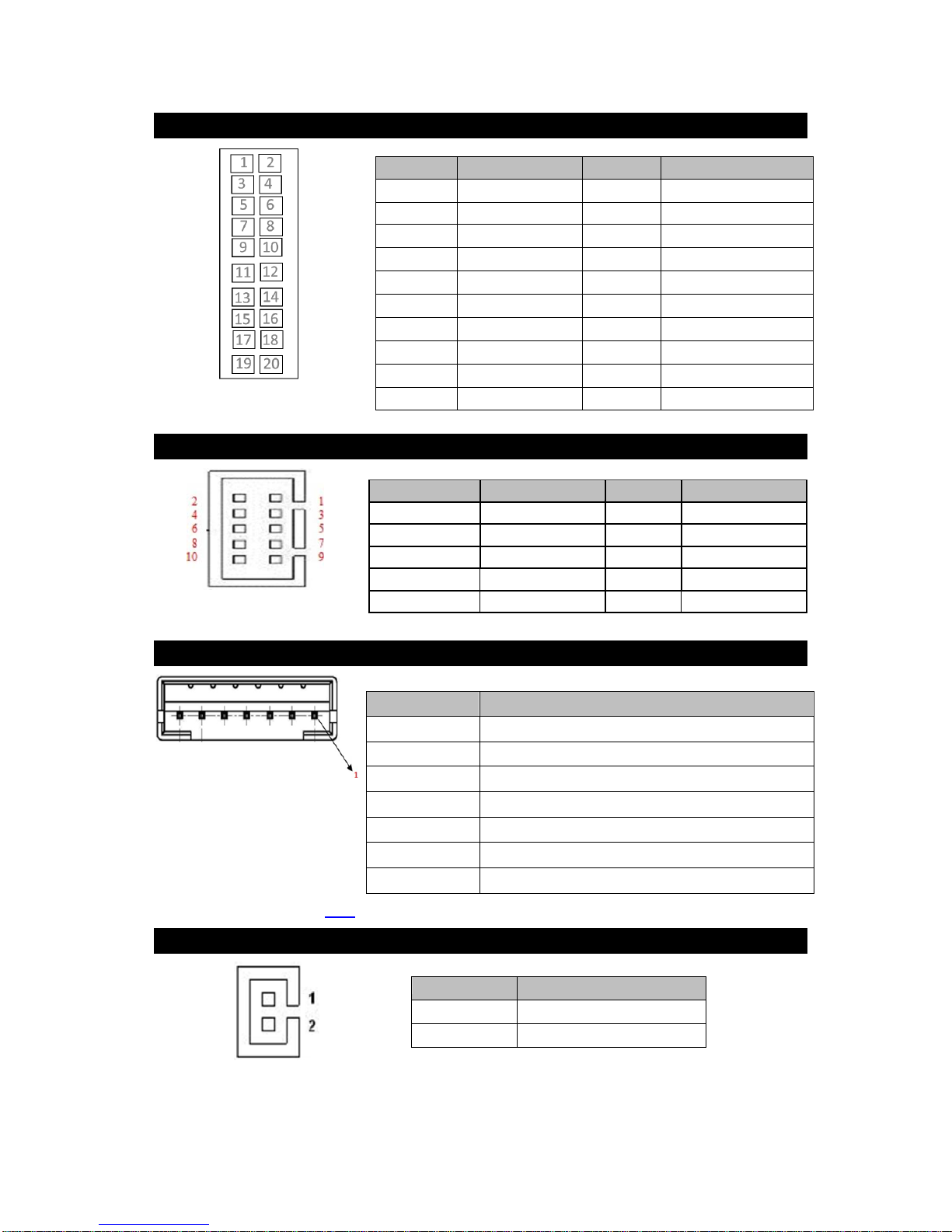

2.5.1.5 CN5: eDP Connector
2.5.1.6 CN6: VGA Signal
2.1.1.7 CN7: Backlight Connector
Note: Please refer to JP1 settings to select Power Rating.
2.1.1.8 CN8: 5V Output
Pin №
Signal Name
Pin №
Signal Name
1
DP_TXP0_C
2
LCDVDD
3
DP_TXN0_C
4
LCDVDD
5
GND
6
+VCC_EDP_BKLT
7
DP_TXP1_C
8
+VCC_EDP_BKLT
9
DP_TXN1_C
10
+VCC_EDP_BKLT
11
GND
12
EDP_HPD
13
EMB_AUXP
14
GND
15
EMB_AUXN
16
GND
17
L_BKLT_EN
18
GND
19
L_BKLT_CTRL
20
GND
Pin №
Name
Pin №
Name
1
DDC_DATA
2
+5V
3
DDC_CLOCK
4
RED
5
Horizontal Sync
6
GREEN
7
Vertical Sync
8
BULE
9
GND
10
GND
Pin №
Signal Name
1
Backlight Power
2
Backlight Power
3
Brightness Adjust
4
Brightness Enable
5
Backlight Power
6
GND
7
GND
Pin №
Signal Name
1
+5V 2 GND
Page 20
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 20 -

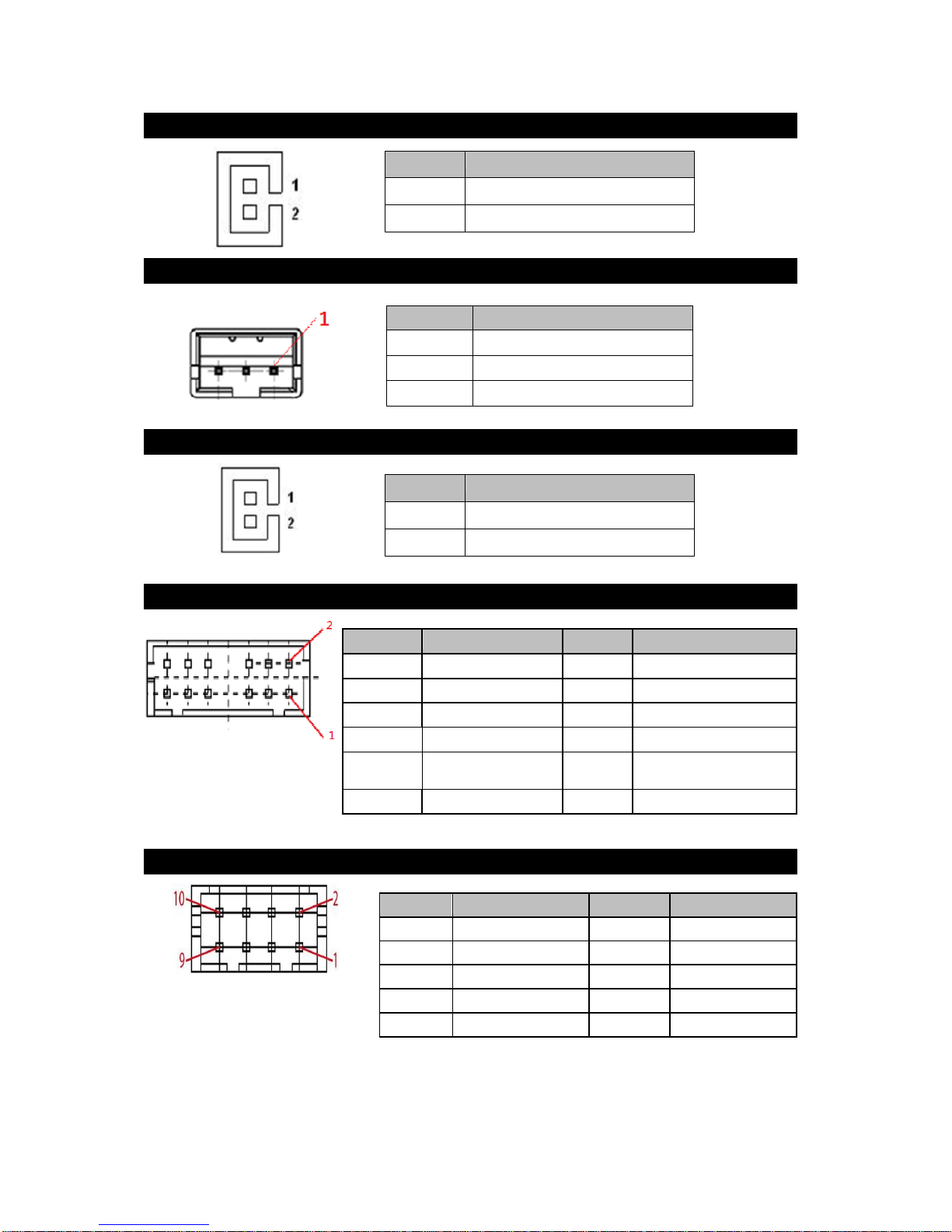

2.1.1.9 CN9: 3.3V Output
2.1.1.10 CN10: Backlight Control VR
VR Knob
2.1.1.11 CN11: 12V Output
2.1.1.12 CN12: Audio
2.1.1.13 CN13: OSD Membrane Control
NOTE: Backlight_ADJ+ / Backlight_ADJ are optinal functions.
Pin №
Name
1
+3.3V
2
GND
Pin №
Signal Name
1
+V5S
2
VRD_ADC
3
GND
Pin №
Name
1
+12V
2
GND
Pin №
Signal Name
Pin №
Signal Name
1
LINE_OUT_R
2
LINE_OUT_L
3
+5V 4 GND
5
LINE_IN_R
6
LINE_IN_L
7
MIC_R
8
MIC_L
9
GND
10
LINE_OUT_JACK
DET
11
MIC_JACK DET
12
LINE_IN_JACK DET
Pin №
Signal Name
Pin №
Signal Name
1
+5V
2
+3.3V
3
GND
4
SATA_LED#
5
PWRBTN#
6
GND
7
Backlight_ADJ+
8
FP_RST_N
9
Backlight_ADJ-
10
+5V
Page 21
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 21 -

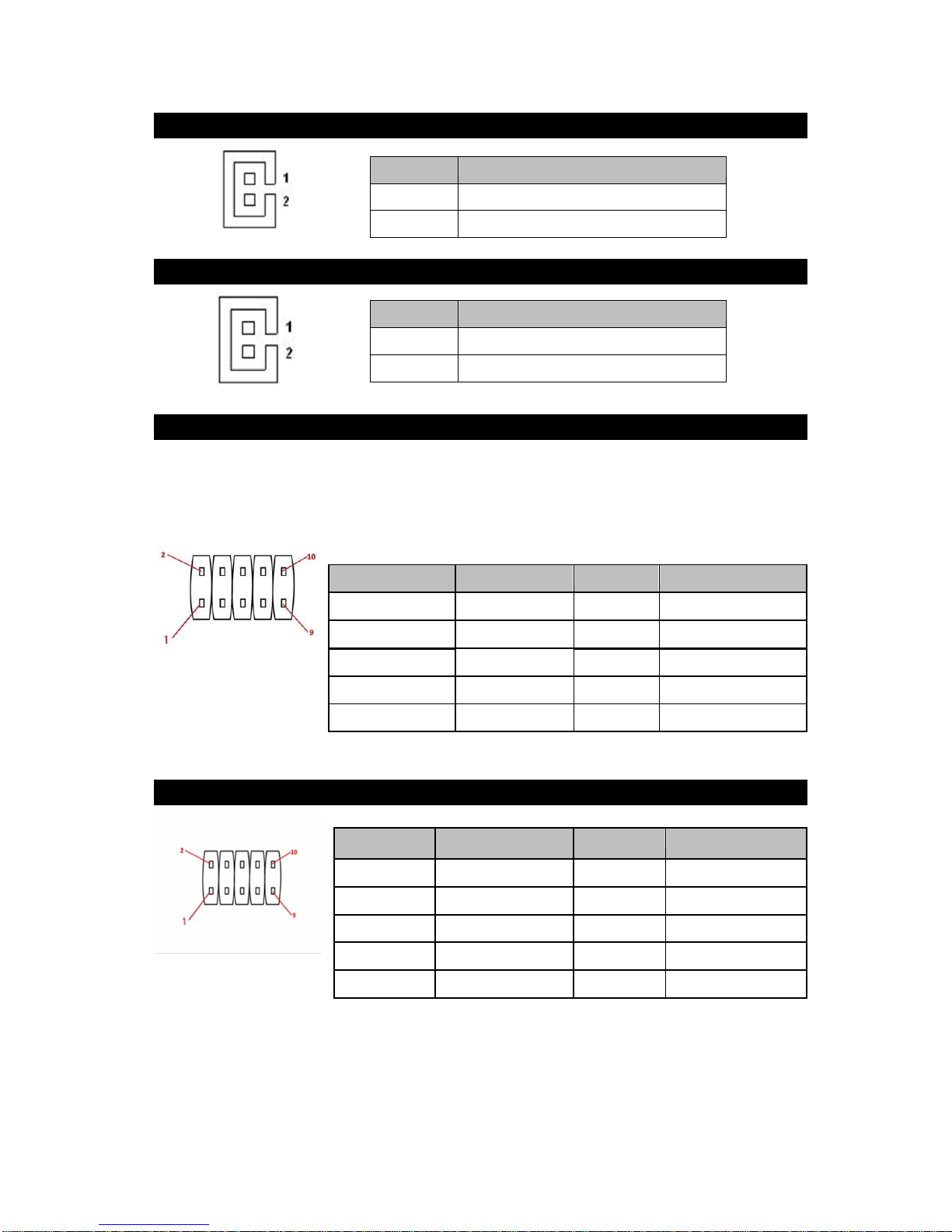

2.1.1.14 CN1: L-Speaker Out
2.1.1.15 CN1: R-Speaker Out
2.1.1.16 CN16, CN17, CN19, CN21: Serial Ports
CN16 Serial Port (RS232-COM2
CN17 Serial Port (RS232 -COM5
CN19: Serial Port (RS232) -COM3
CN21: Serial Port (RS232) –COM4
Note: IO_PWR:
default is 5V, optional 3.3V
2.1.1.17 CN18: GPIO
Pin №
Name
1
LOUT+
2
LOUT-
Pin №
Name
1
ROUT+
2
ROUT-
Pin №
Name
Pin №
Name
1
DCD 2 DSR
3
RXD 4 RTS
5
TXD 6 CTS
7
DTR 8 RI
9
GND
10
IO_PWR
Pin №
Name
Pin №
Name
1
GND
2
+5V
3
DOUT3
4
DOUT1
5
DOUT2
6
DOUT0
7
DINT3
8
DINT1
9
DINT2
10
DINT0
Page 22
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 22 -
2.1.1.18 CN20: NGFF KEY E Slot
IK32 has NGFF KEY E slot for Wi-Fi or WWAN Card
2.1.1.19 CN22: DC-In 2.5
2.1.1.20 CN23, CN26: DC-In
2.1.1.21 CN27: NGFF KEY B for SSD
IK32 M.2 NGFF KEY B connector supports Mini-PCIe card application:
SATA SSD
2.1.1.22 CN49: RTC Battery
2.1.1.23 CPU_FAN1: CPU FAN
Pin №
Signal Name
Pin №
Signal Name
1
DC_IN
2
GND
3*
GND
Pin №
Signal Name
Pin №
Signal Name
1
+12V 2 +12V
3
GND 4 GND
Pin №
Signal Name
Pin №
Signal Name
1
GND 2 +.3.3V
Pin №
Signal Name
Pin №
Signal Name
1
GND
2
+12V
3
SENSE
Page 23
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 23 -
2.1.2 Solder Side Connectors
The tables below lists solder side motherboard jumpers and connectors.
Label
Function
Note
Connector
J1
DDR4 (RAM)
260 pin, SODIMM slot
CN27
SSD Connector m.2 SSD (SSD)
m.2 SSD connector

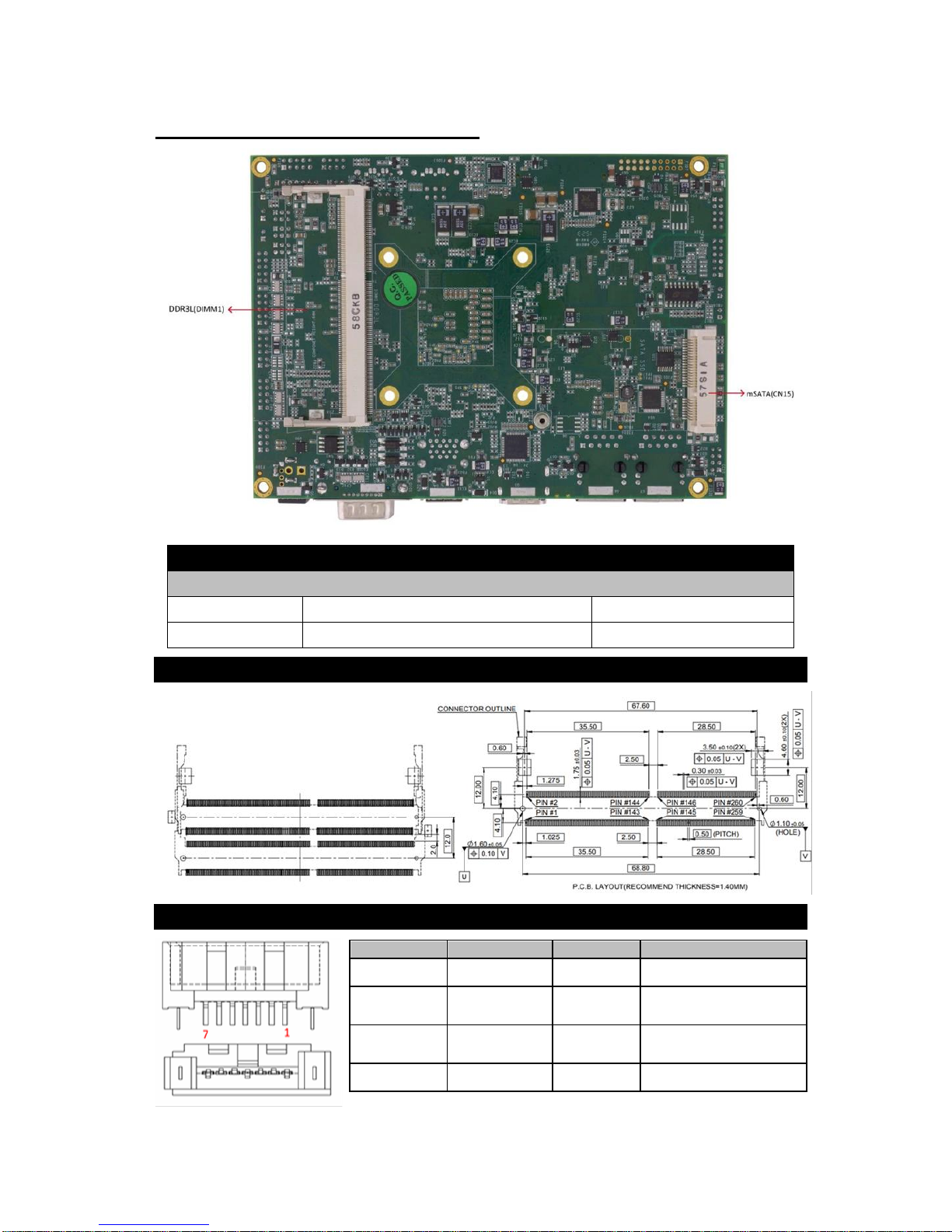

2.1.2.1 J1B:DDR4
2.1.2.2 M.2 SSD: SSD Connector
Pin №
Signal Name
Pin №
Signal Name
1
GND
2
SATA_TXP
3
SATA_TX
N
4
GND
5
SATA_RX
N
6
SATA_RXP
7
GND
Page 24
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 24 -

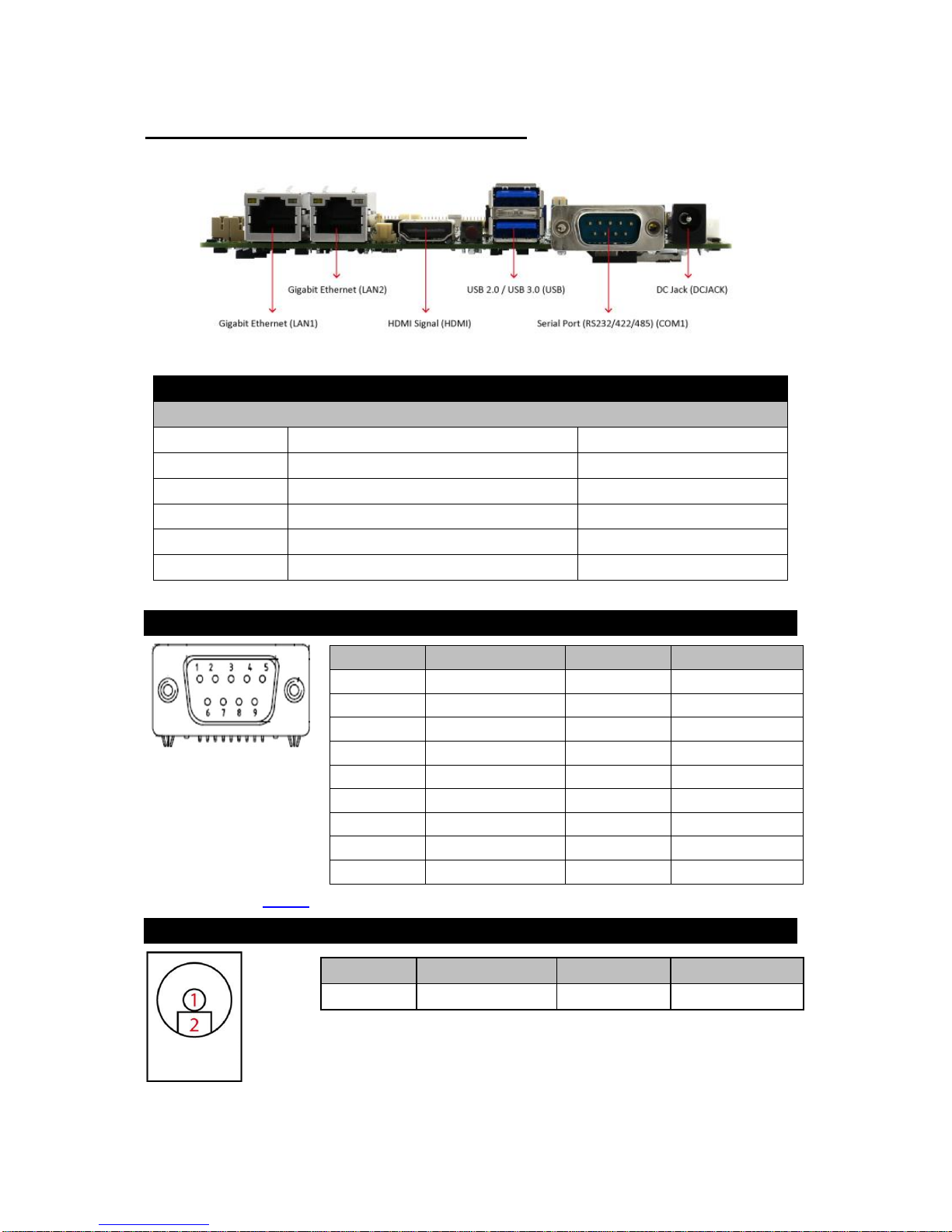

2.1.3 External I/O Side Connectors
The table below lists external I/O side motherboard jumpers and connectors.
Label
Function
Note
Connector
COM1
Serial port (RS232/422/485)
D-Sub9 (Male)
DCJACK
DC Jack
2.5 DC Jack
HDMI
HDMI 1.4 Signal
HDMI Type A
LAN1
Gigabit Ethernet
RJ45+LED
LAN2
Gigabit Ethernet
RJ45+LED
USB
USB 2.0 / USB 3.0
USB Type A
2.1.3.1 COM1: D-Sub 9 (Male)
Note: Refer to BIOS to change serial COM port settings.
2.1.3.2 DCJACK: 2.5’ DC Jack
Pin №
RS232
RS422
RS485
1
DCD
TxD-
D-
2
RXD
TxD+
D+
3
TXD
RxD+
NC
4
DTR
RxD-
NC
5
GND
GND
GND
6
DSR
NC
NC 7 RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
Pin №
Name
Pin №
Name
1
DC_IN
2
GND
Page 25
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 25 -

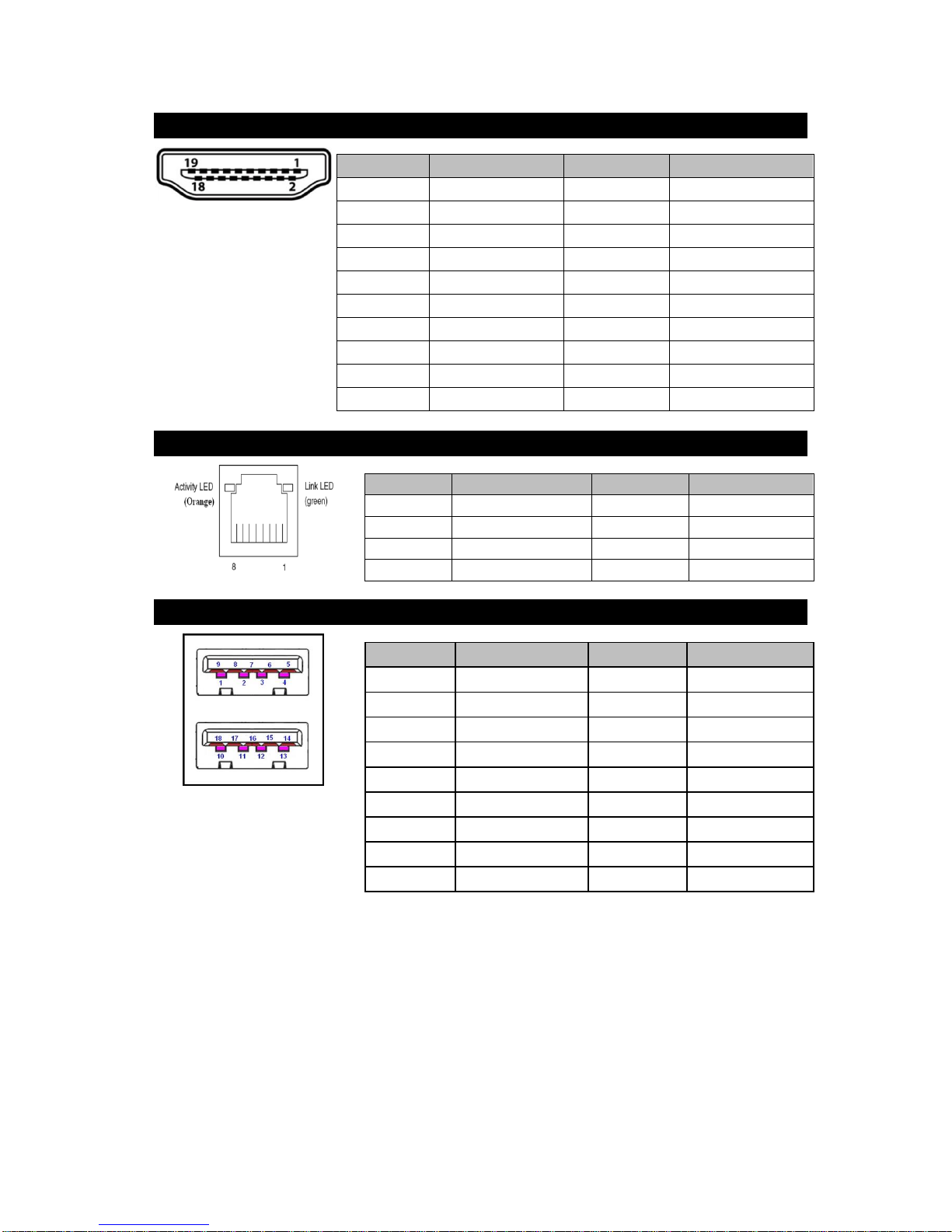

2.1.3.3 HDMI: HDMI 1.4 Type A
2.1.3.4 LAN1/ LAN2: Gigabit Ethernet
2.1.3.5 Two USB 3.0 (Compliable with USB 2.0)
Pin №
Name
Pin №
Name
1
HDMI_DET
2
NC
3
HDMI_D2P
4
GND
5
HDMI_D2M
6
HDMI_D1P
7
GND
8
HDMI_D1M
9
HDMI_D0P
10
GND
11
HDMI_D0M
12
HDMI_CLKP
13
GND
14
HDMI_CLKM
15
HDMI_CEC_OUT
16
GND
17
DDC_CLOCK
18
DDC_DATA
19
+5V
20
GND
Pin №
Name
Pin №
Name
1
TX1+
2
TX1- 3 TX2+
4
TX2- 5 TX3+
6
TX3-
7
TX4+
8
TX4-
Pin №
Name
Pin №
Name
1
+5V
2
USB_D-
3
USB_D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND_DRAIN
8
STDA_SSTX-
9
STDA_SSTX+
10
+5V
11
USB_D-
12
USB_D+
13
GND
14
STDA_SSRX-
15
STDA_SSRX+
16
GND
17
STDA_SSTX-
18
STDA_SSTX+
Page 26
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 26 -
2.2 Memory Module (SO-DIMM) Installation
The IK32 SBC Motherboard has two 260-pin SODIMM slot. The socket supports
DDR4.
When installing the memory unit, please follow the steps below:

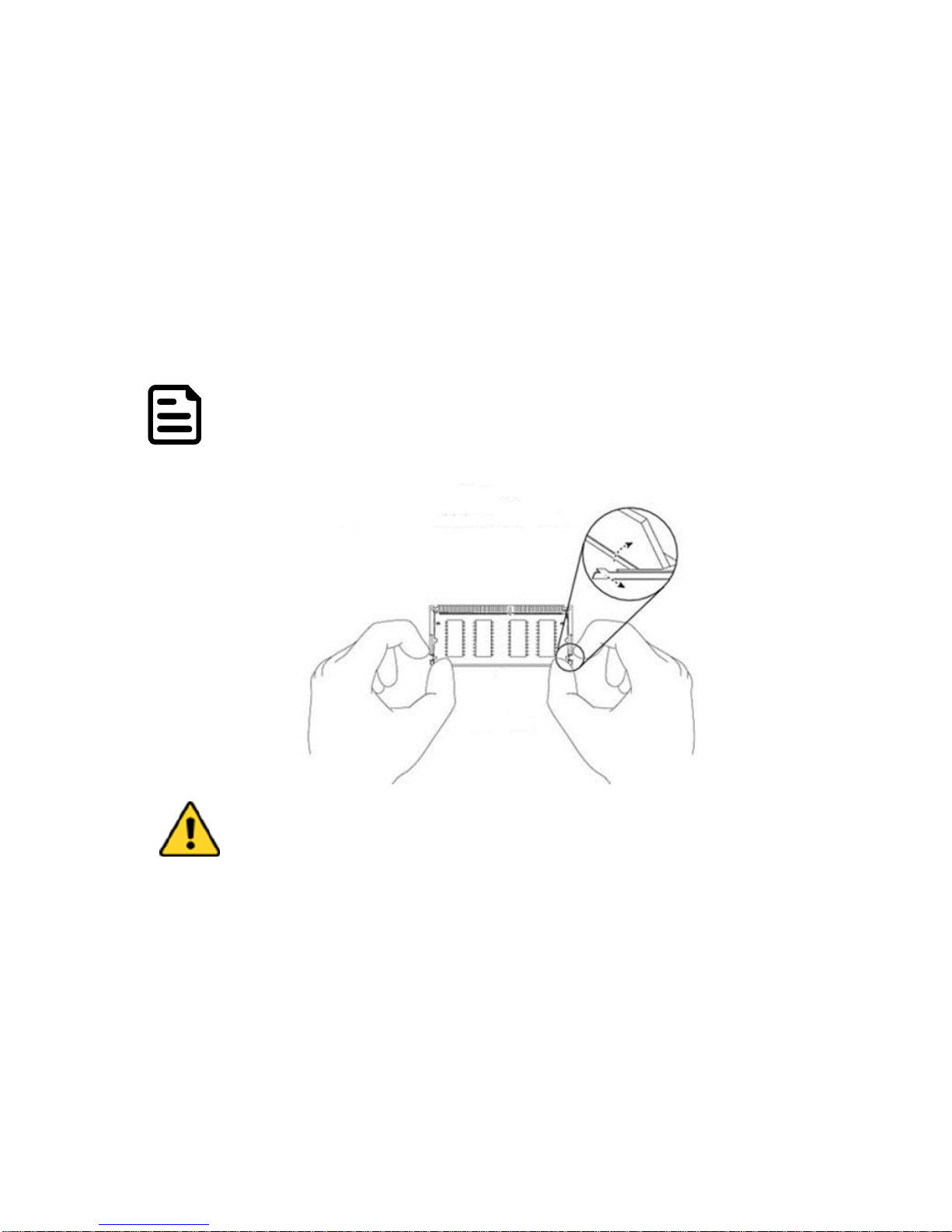

1. Firmly insert the SO-DIMM at an angle of about 30-degree into the slot. Align
the SO-DIMM with the slot until it is fully inserted. The notch on the SO-DIMM
should match the break on the slot.
2. Press downwards on SO-DIMM until the retaining clips at both ends fully
snap closed and the SO-DIMM is properly seated.
NOTE:
Pull tabs away with your thumbs, bracing your forefingers against
the rails. The memory module will be released. Then raise the
memory module to a vertical position.
CAUTION
The SO-DIMM only fits in one correct orientation. It will cause
permanent damage to the development board and the SO-DIMM if
the SO-DIMM is forced into the slot at the incorrect orientation.
Page 27
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 27 -
2.3 I/O Equipment Installation
2.3.1 12V DC in
The IK32 Motherboard allows plugging 12V DC-IN jack on the board without another
power module converter under power consumption by Intel® 7th Generation Core i5
Processor.
2.3.2 Serial COM Port
Three RS-232 connectors build-in the rear I/O. One optional COM port supports
RS-422/ 485. When an optional touch-screen ordered with PPC, serial COM port
can be connected to a serial or an optional touch-screen. You can change serial
COM port setting through BIOS.
2.3.3 External HDMI
The Motherboard has one HDMI port that can be connected to an external LCD
monitor by HDMI cable, and it also needs to be connected to the outlet by power
cable. The HDMI connector is a standard 19-pin Type A connector.
2.3.4 Ethernet Interface
The Motherboard is equipped with Intel® I211-AT Gigabit-LAN Controller + I219-LM
Gigabit-LAN PHY which is fully compliant with the PCI 10/100/1000 Mbps Ethernet
protocol compatible. It is supported by major network operating systems. The
Ethernet ports provide two standard RJ-45 jacks.
2.3.6 USB Ports
Six USB devices (four with pin headers) can be connected to the system through an
adapter cable. Various adapters may come with USB ports. USB usually connected
the external system. The USB ports support hot plug-in connection. Whatever, you
should install the device driver before you use the device.
2.3.7 Audio
The Audio 7.1 channel capabilities are provided by a Realtek ALC283 chipset
supporting digital audio outputs. The audio interface includes three jacks: line-in,
line-out and mic-in
Page 28
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 28 -
2.4 Jumper Settings
This section explains how to set jumpers for correct configuration of the
motherboard.
NOTE:
A pair of needle nose pliers may be helpful when working with
jumpers. If you have any doubts about the best hardware
configuration for your application, contact your local distributor or
sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.

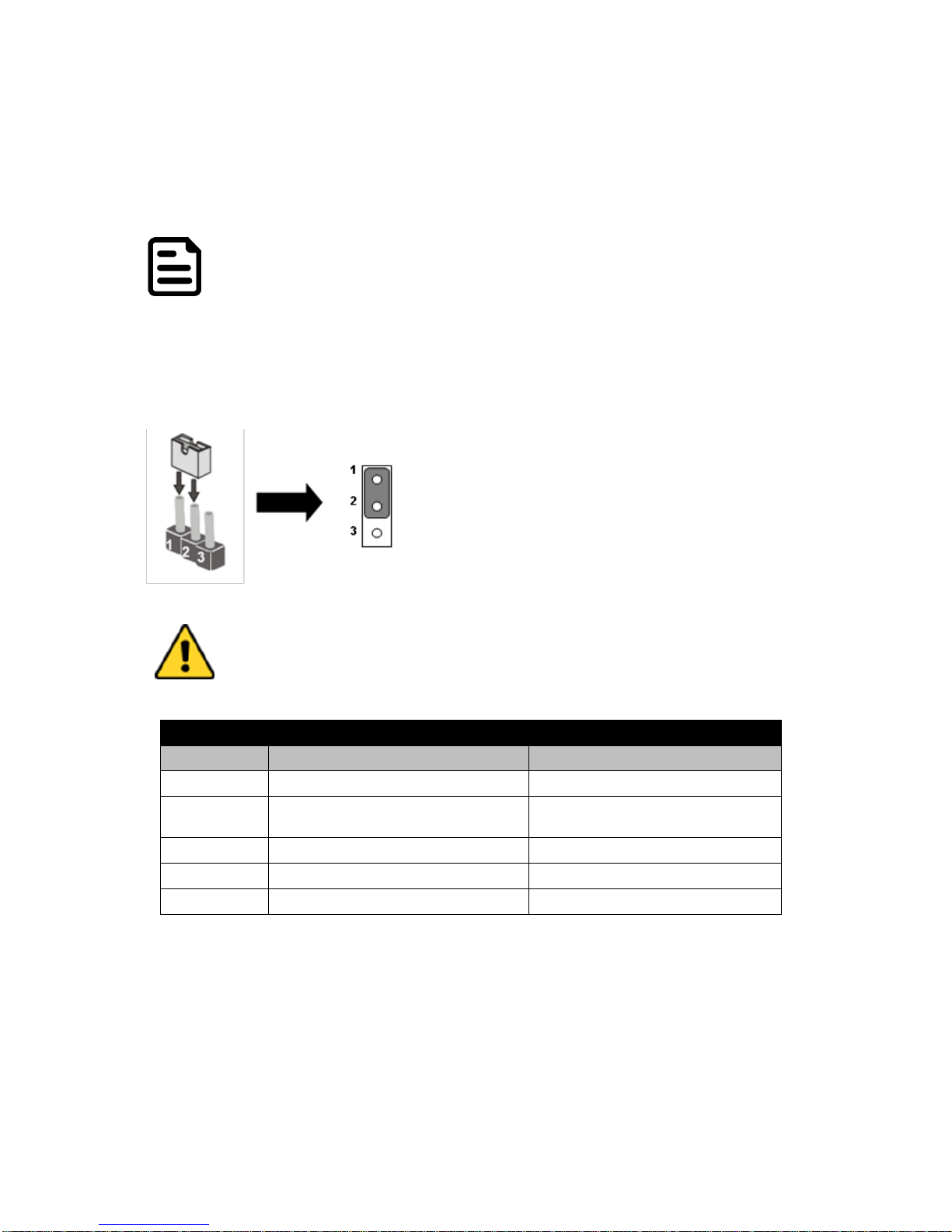

The jumper setting diagram is shown below. When the jumper cap is placed on both
pins, the jumper is SHORT. The illustration below shows a 3-pin jumper; pins 1 and
2 are short. If you remove the jumper cap, the jumper is OPEN.
PIN 1-2 SHORT
PIN 3 OPEN
CAUTION
To avoid damaging the module, always turn off the power supply
before setting jumpers or clearing CMOS.
Jumpers
Label
Function
Note
JP1
Backlight Power Selector
2x3 header, pitch 2.0mm
JP2
PWM/DC Mode Control
Selector
2x3 header, pitch 2.0mm
JP3
Panel Power Selector
2x3 header, pitch 2.54mm
JP4
VR/Chipset Control Selector
2x3 header, pitch 2.0mm
SW1
Clear CMOS
1x3 header, pitch 2.0mm
Page 29
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 29 -

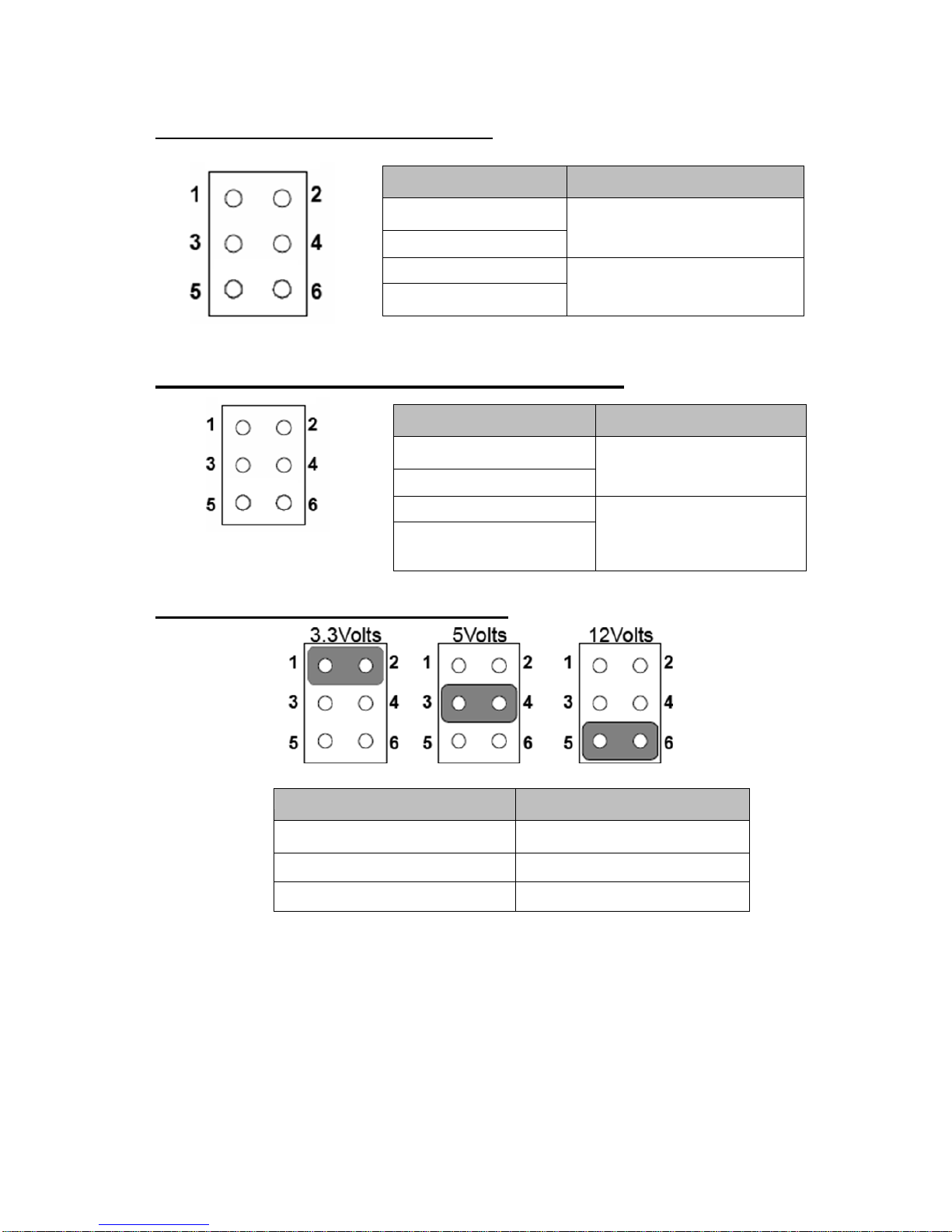

2.4.1 JP1: Backlight Power Selector
2.4.2 JP2: PWM/DC Mode Control Selector
2.4.3 JP3: Panel Power Selector
Setting
Function
1-2 (Default)
+3.3V
3-4
+5V
5-6
+12V
Setting
Function
1-3 (Default)
+5V
2-4 (Default)
3-5
+12V
4-6
Setting
Function
1-3 (Default)
PWM
Mode
2-4 (Default)
3-5
DC
Mode
4-6
Page 30
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION
- 30 -

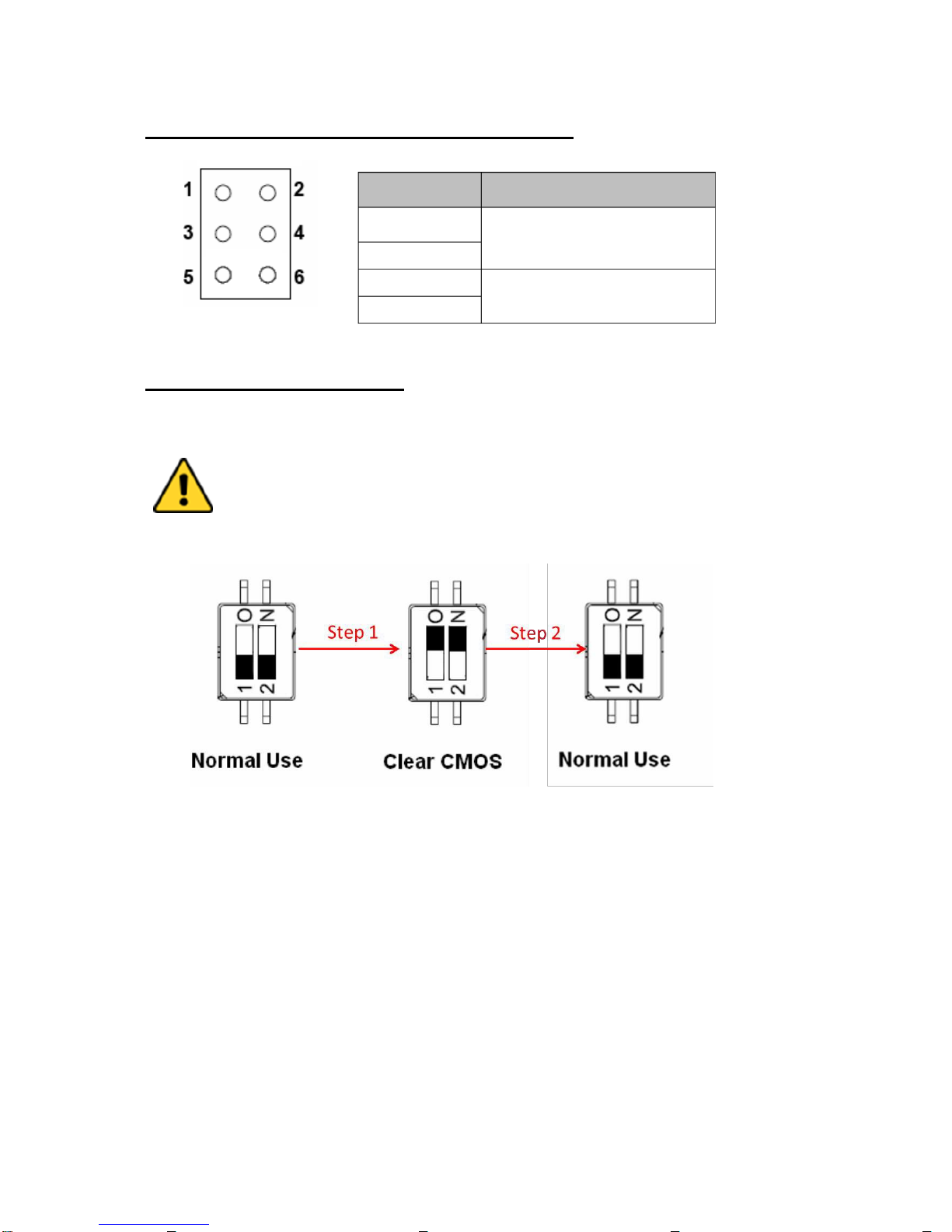

2.4.4 JP4: VR/Chipset Control Selector
2.4.5 SW1: Clear CMOS
Please follow the instructions below to change CMOS settings. Remember to set
jumper back to Normal before turning on the power supply.
CAUTION
TURN OFF the power supply before setting Clear CMOS.
Step 1: To set the jumper to “clear” position, switch 1 to 0, 2 to N.
Step 2: To set the jumper to “normal” position, switch 0 to 1, N to 2.
Setting
Function
1-3 (Default)
VR Control
2-4 (Default)
3-5
Chipset
4-6
Page 31
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 31 -
INSYDE H20 BIOS SETUP
This chapter describes the different settings
available in the AMI BIOS that comes with the
board. This chapter offers information on the Award
BIOS installation utility.
3.1 How and When to Use BIOS Setup
3.2 BIOS Functions
3.3 Using Recovery Wizard to Restore Computer
3.4 How to Enable Watchdog
Page 32
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 32 -
CHAPTER 3: INSYDE H20 BIOS SETUP
This chapter provides information on how to use BIOS setup, its functions and
menu.
3.1 How and When to Use BIOS Setup
To enter the BIOS setup, you need to connect an external USB keyboard, external
monitor and press Del key when the prompt appears on the screen during start up.
The prompt screen shows only few seconds so need press Del key quickly.
IMPORTANT:
Updated BIOS version may be published after the manual
released. Check the latest version of BIOS on the website.
You may need to run BIOS setup utility for reasons listed below:
1. Error message on screen indicates to check BIOS setup
2. Restoring the factory default settings.
3. Modifying the specific hardware specifications
4. Necessity to optimize specifications
BIOS Navigation Keys
The following keys are enabled during POST:
Key
Function
Del
Enters the BIOS setup menu.
F7
Display the boot menu. Lists all bootable devices that are
connected to the system. With cursor ↑and cursor ↓and by pressing
<ENTER>, select the device used for the boot.
Pause
Pressing the [Pause] key stops the POST. Press any other key to
resume the POST.
Page 33
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 33 -
The following Keys can be used after entering the BIOS Setup.
Key
Function
F1
Help
F5/ F6
Change Values
F9
Setup Defaults
F10
Save & Exit
Esc
Exit
Enter
Select SubMenu
↑/ ↓
Select Item
← / →
Select Item
NOTE:
You can press the F1, F2, F3, F4, –/+, and Esc keys by connecting
a USB keyboard to your computer.
For items marked ► press <Enter> for more options.
Page 34
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 34 -
3.2 BIOS Functions
3.2.1 Main Menu

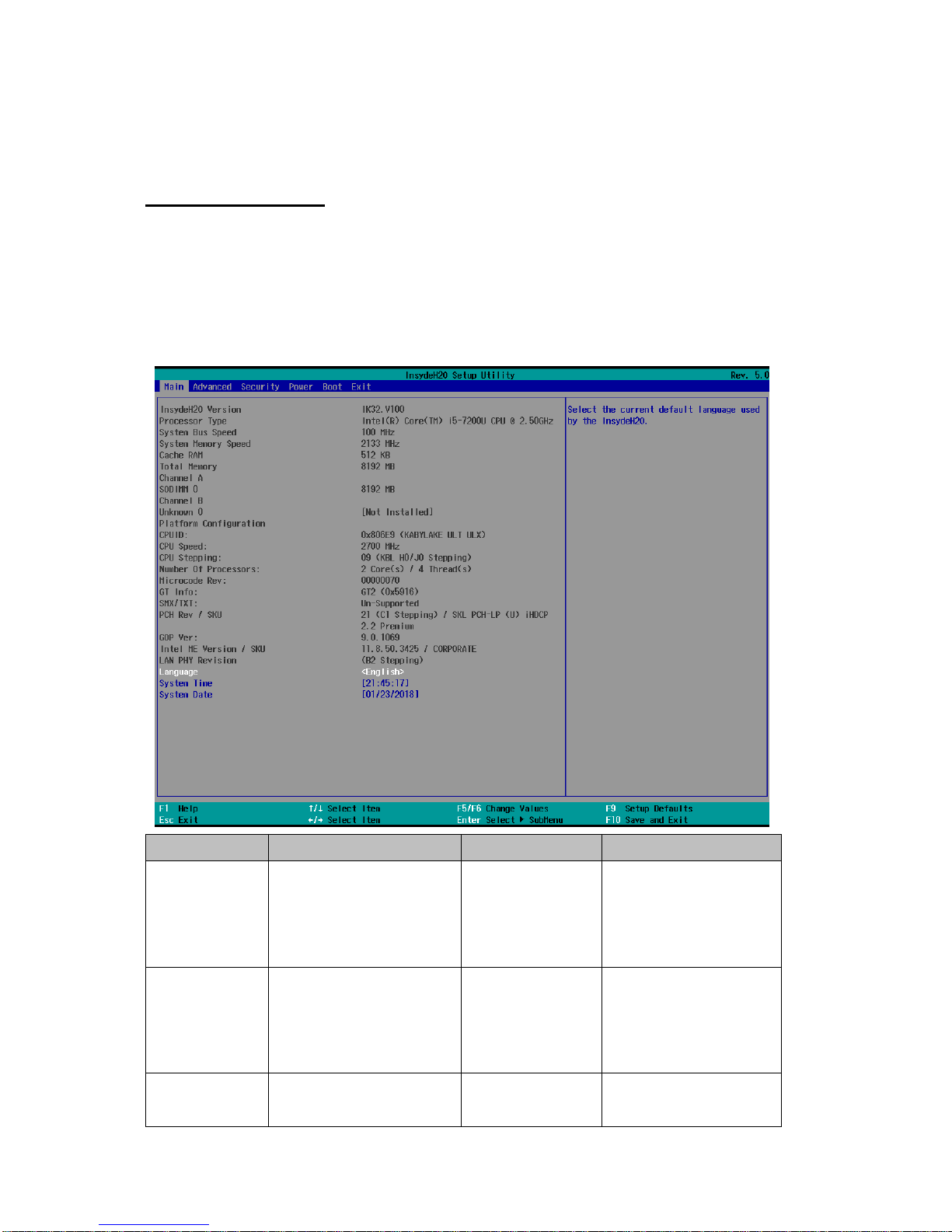

The Main menu displays the basic information about yoursystem including BIOS
version, processor RC version, system language, time, and date. When you enter
BIOS setup, the first menu that appears on the screen is the main menu.It
contains the system information including BIOS version, processor RC version,
system language, time, and date.
BIOS Setting
Description
Setting Option
Effect
Language
Displays the system
language. [English] is set
up by default.
Adjustment of the
language
Set the language in
other language. The
language in this
device is English.
System Time
This is current time setting.
The time is maintained by
the battery when the device
is turned off.
Date and time
changes.
Set the time in the
format:
[hh/mm/ss]
System Date
This is current date setting.
Date and time
changes.
Set the date in the format
[mm/dd/yyyy];
Page 35
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 35 -

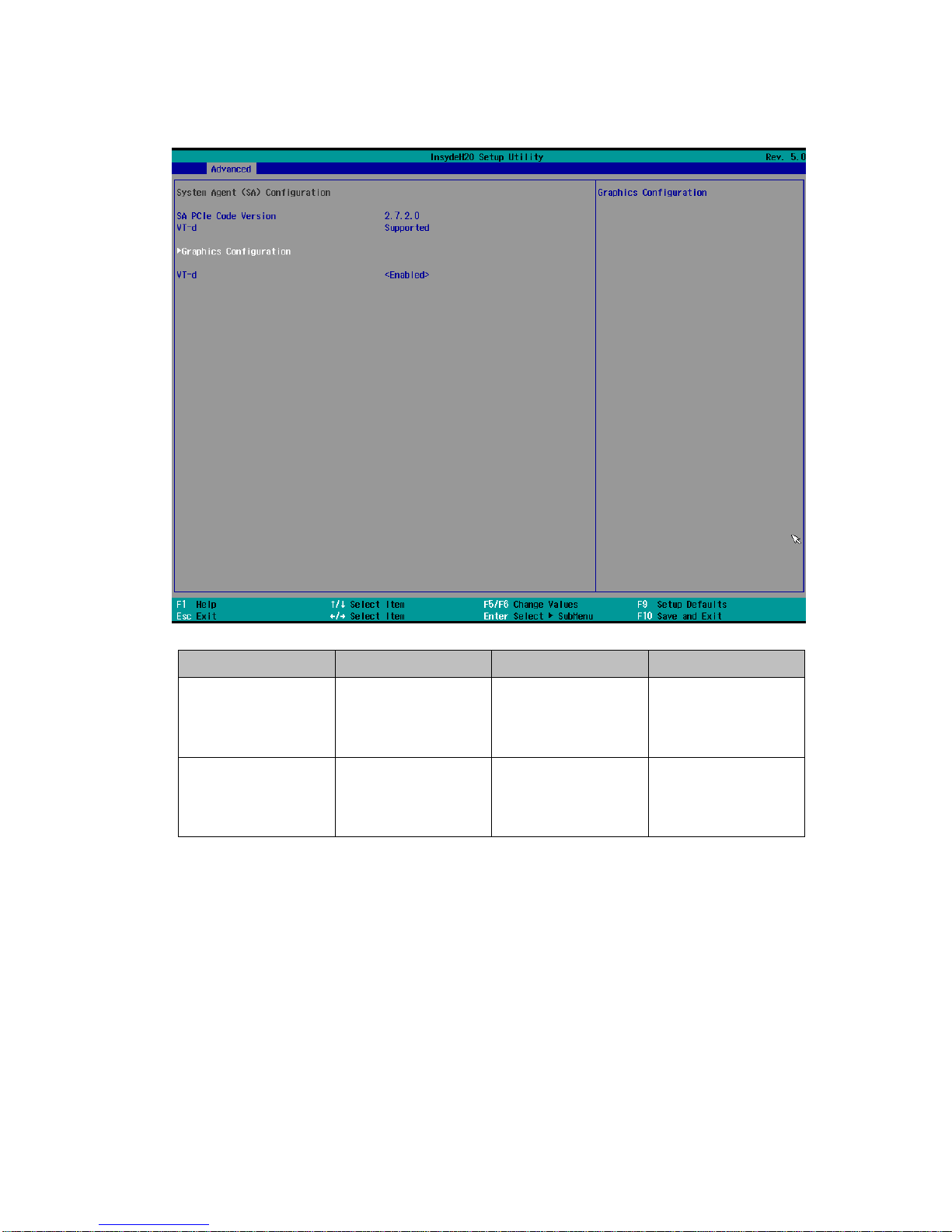

3.2.2 Advanced

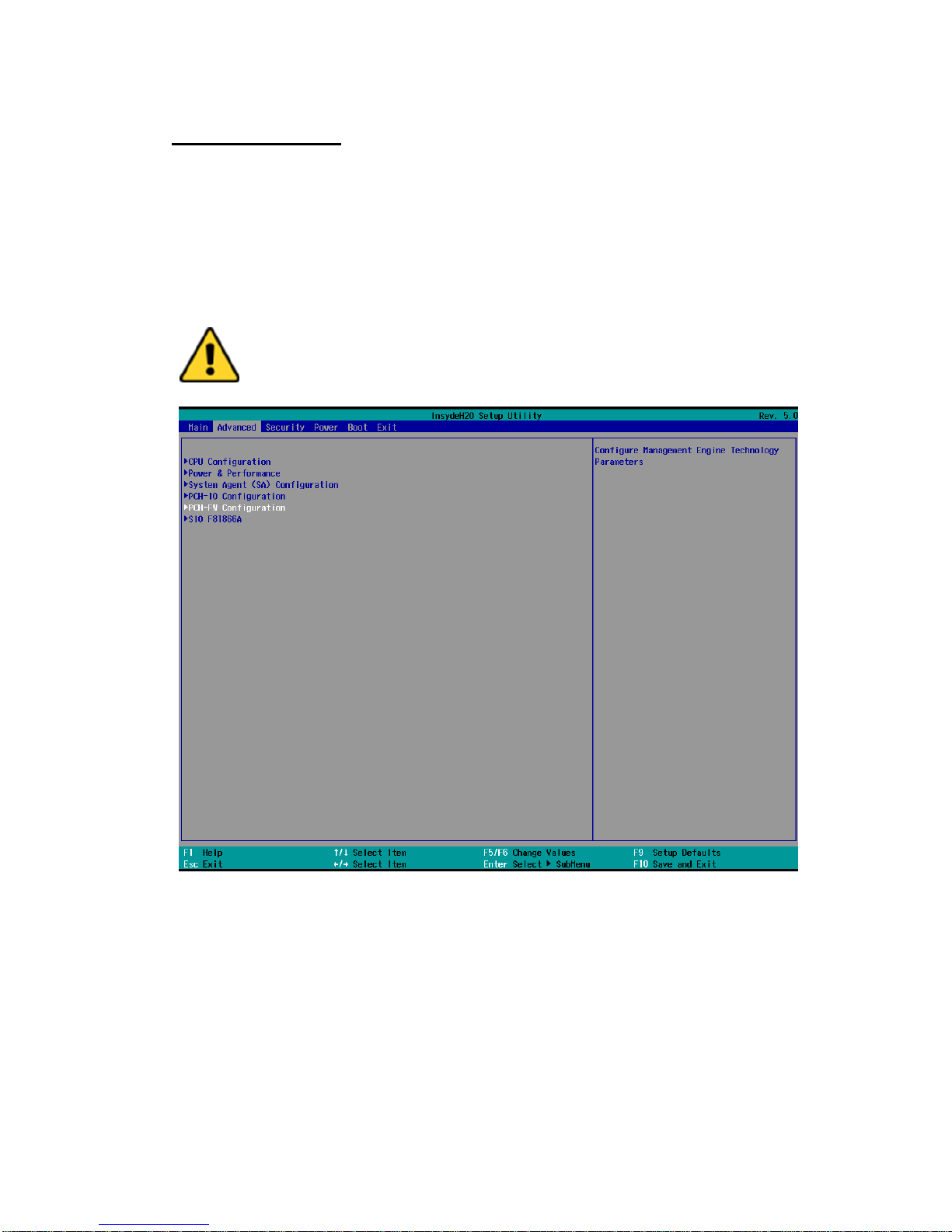

Select the Advanced Tab from the setup menu to enter the advanced BIOS setup
screen. You can select any of the items on the left frame of the screen to go to the
sub menu for the item, such as CPU Configuration. You can use the <Arrow> keys
enter all advanced BIOS setup options. The advanced BIOS setup menu is shown
below. The submenus described on the following pages.
CAUTION
Handle advanced BIOS settings page with caution. Any changes
can affect the operation of your computer.
Page 36
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 36 -
BIOS Setting
Description
Setting
Option
Effect
CPU
Configuration
Configures Trusted Computing
parameters
Enter
Opens submenu
Power &
Performance
Configures Power &
Performance parameters
Enter
Opens submenu
System Agent
Configuration
Configures System Agent
Configuration parameters
Enter
Opens submenu
PCH-OI
Configuration
Configures PCH-OI parameters
Enter
Opens submenu
PCH-FM
Configuration
Configures PCH-FM parameters
Enter
Opens submenu
SIO F81866A
Configures SIO F81866A
parameters
Enter
Opens submenu

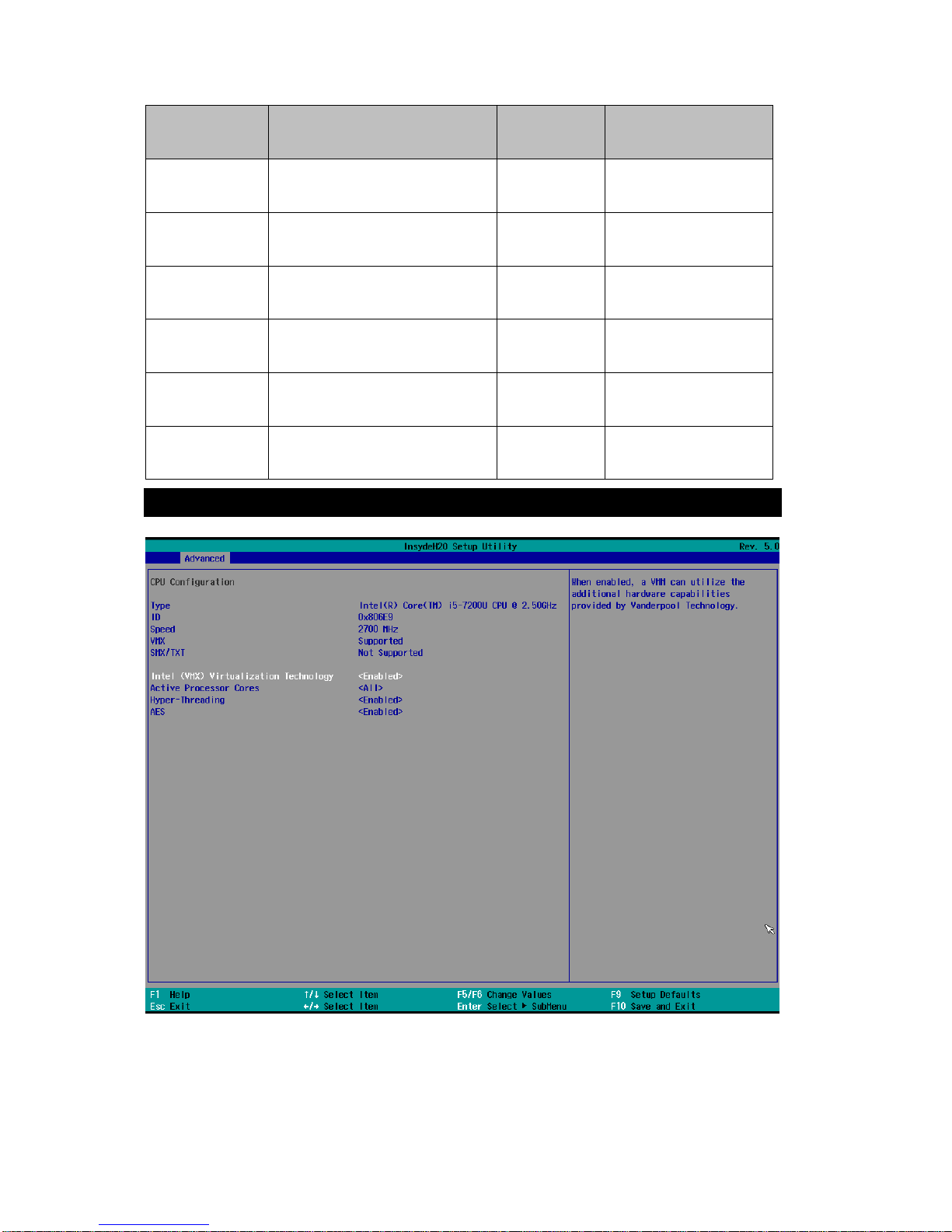

3.2.2.1 CPU Configuration
Page 37
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 37 -
BIOS Setting
Description
Setting Option
Effect
Intel (VMM)
Virtualization
Technology
Enable or disable Intel
Virtualization
Technology.
Enable/Disable
When enabled, a
VMM can utilize the
additional hardware
capabilities provided
by Vanderpool
Technology.
Active Processor Cores
Number of core to
enable in each
processor package
AII / 1 / 2/ 3
Select number of
core to enable in
each processor
package
Hyper Threading
Intel Hyper-Threading
Technology allows a
single processor to
execute two or more
separate threads
concurrently.
Enable / Disable
Enable or disable
Hyper Threading
AES
Enable or disable AES
(Advanced Encyption
Standard)
Enable/Disable
Enable or disable
AES
Page 38
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 38 -

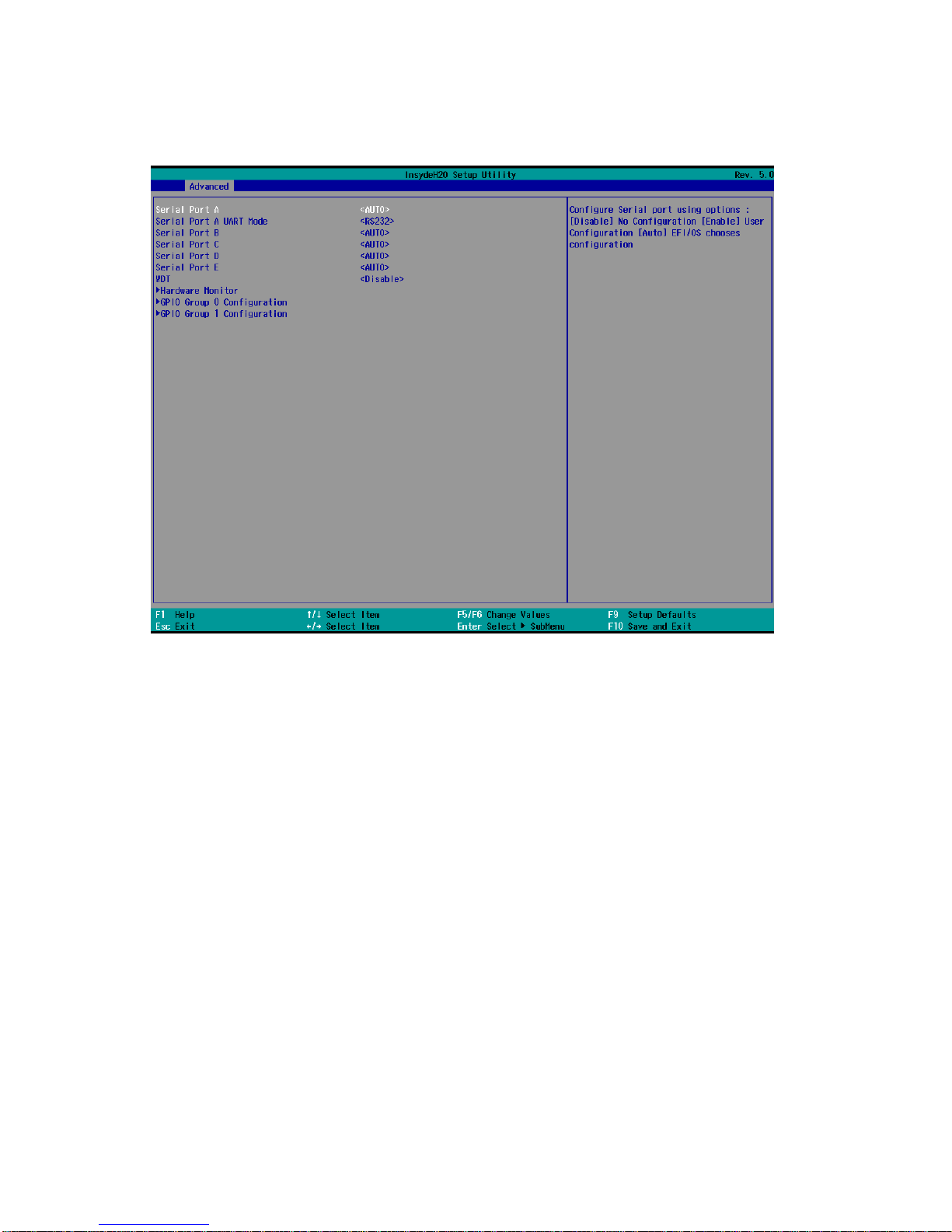

3.2.2.2 F81886A Configuration
BMP
Page 39
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 39 -

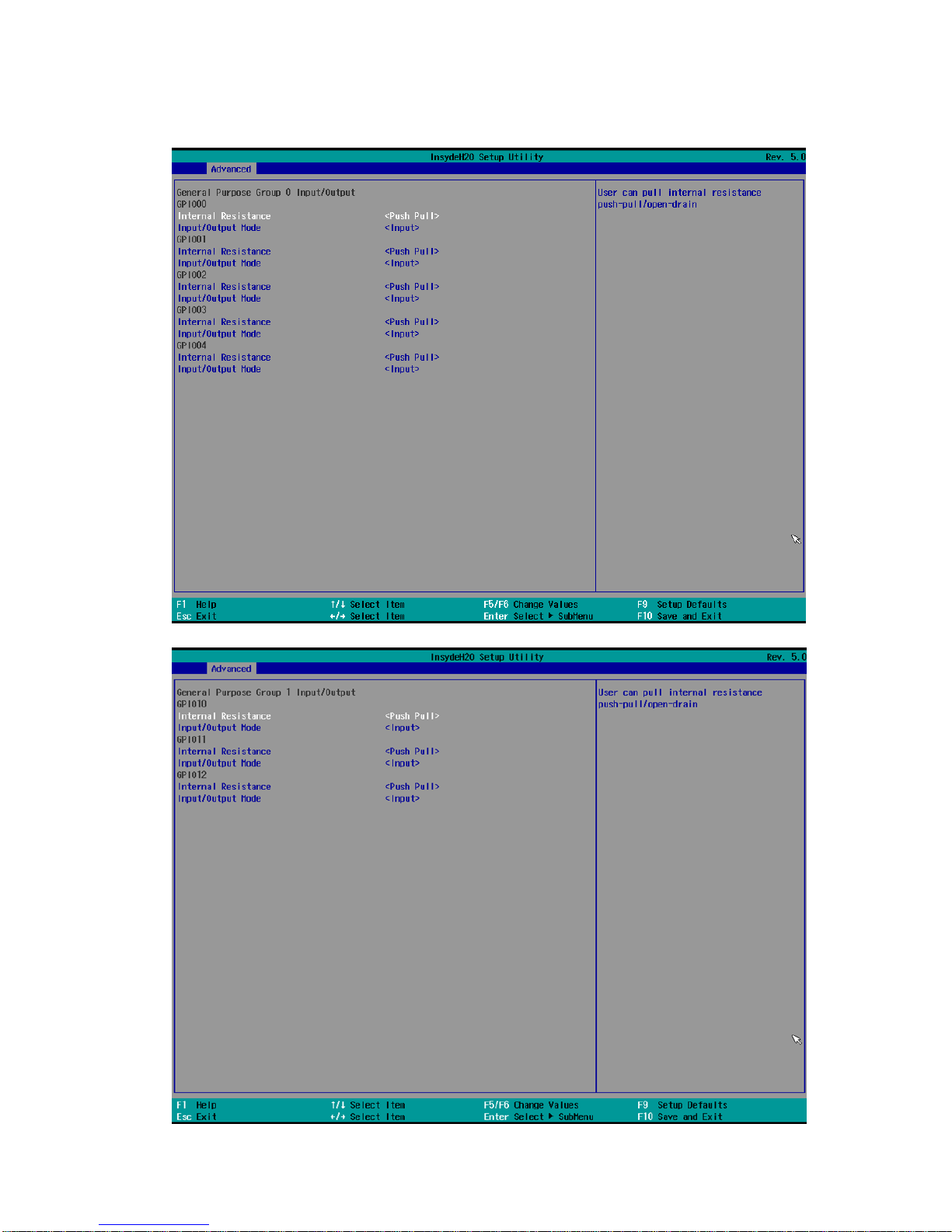

3.2.2.3 GPIO Configuration
Page 40
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 40 -

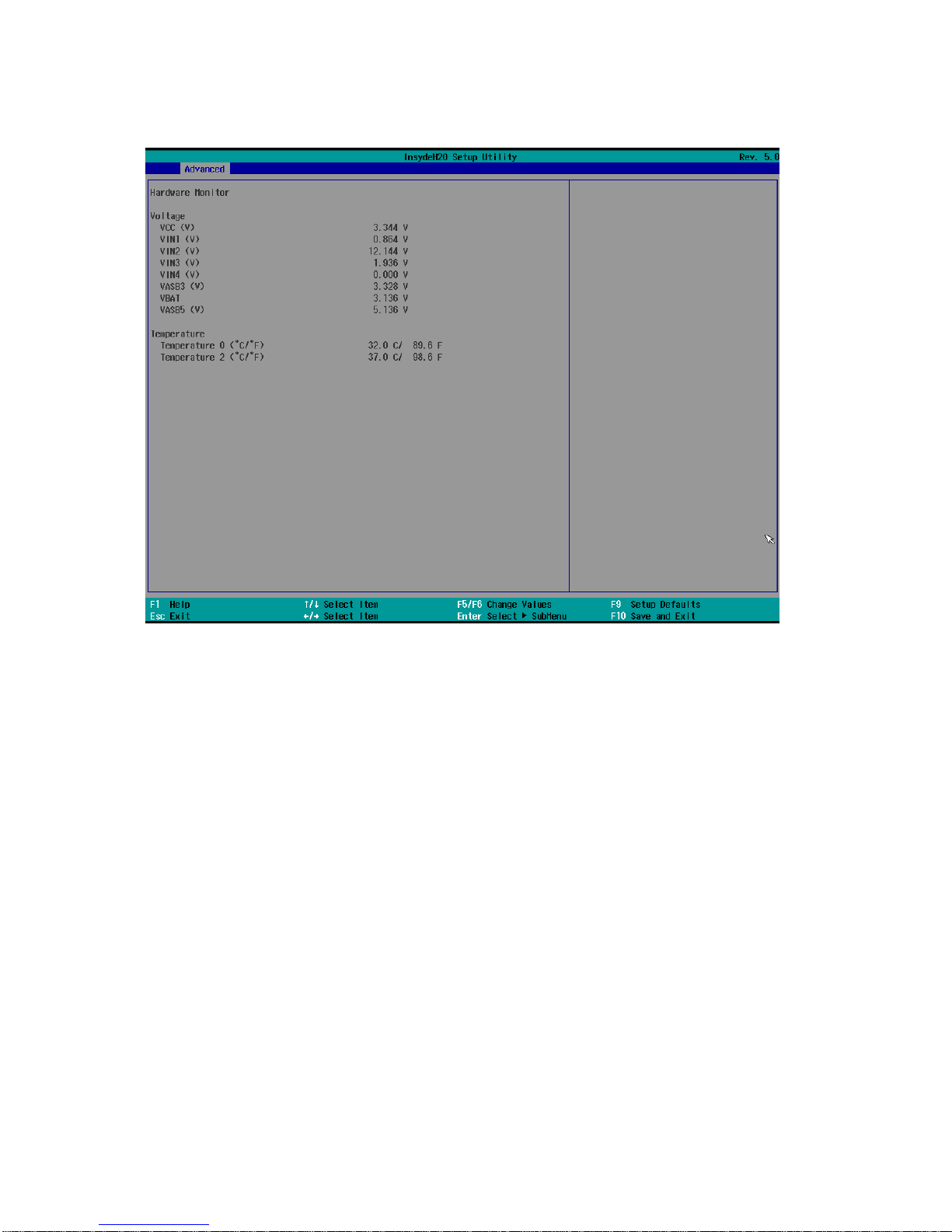

3.2.2.4 Hardware Monitor
Page 41
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 41 -

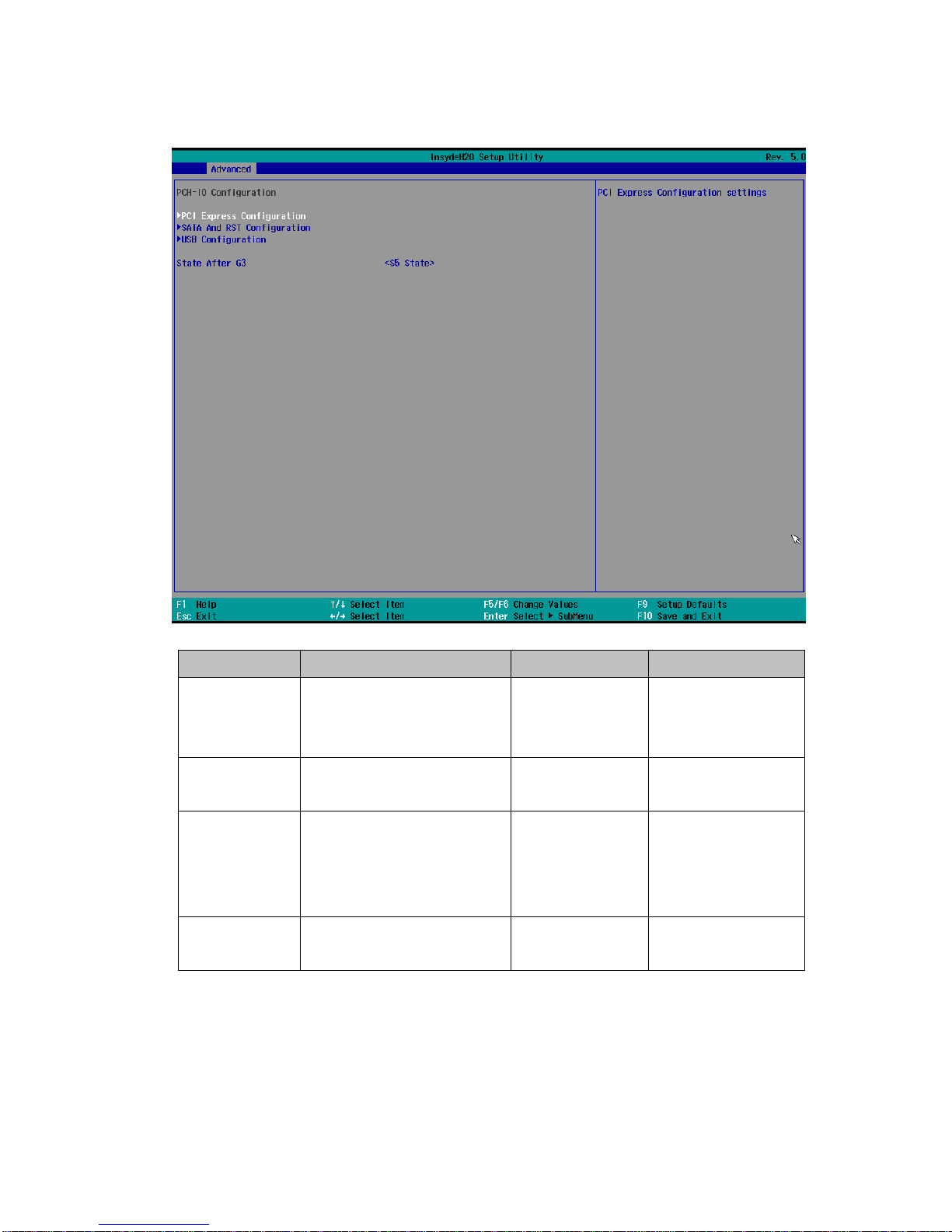

3.2.2.5 PCH-IO Configuration
BIOS Setting
Description
Setting Option
Effect
PCI Express
Configuration
PCI Express clock gating
enable/disable for each root
port.
Enter
Opens sub-menu
SATA And RST
Configuratuion
Enable/ Disable SATA device
Enter
Opens sub-menu
USB
Configuration
Selectively enable/ disable
the corresponding USB port
from reporting a Device
Connection to the controller.
Enter
Opens sub-menu
State After G3
System power state setting
S0 State
S5 State
Page 42
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 42 -

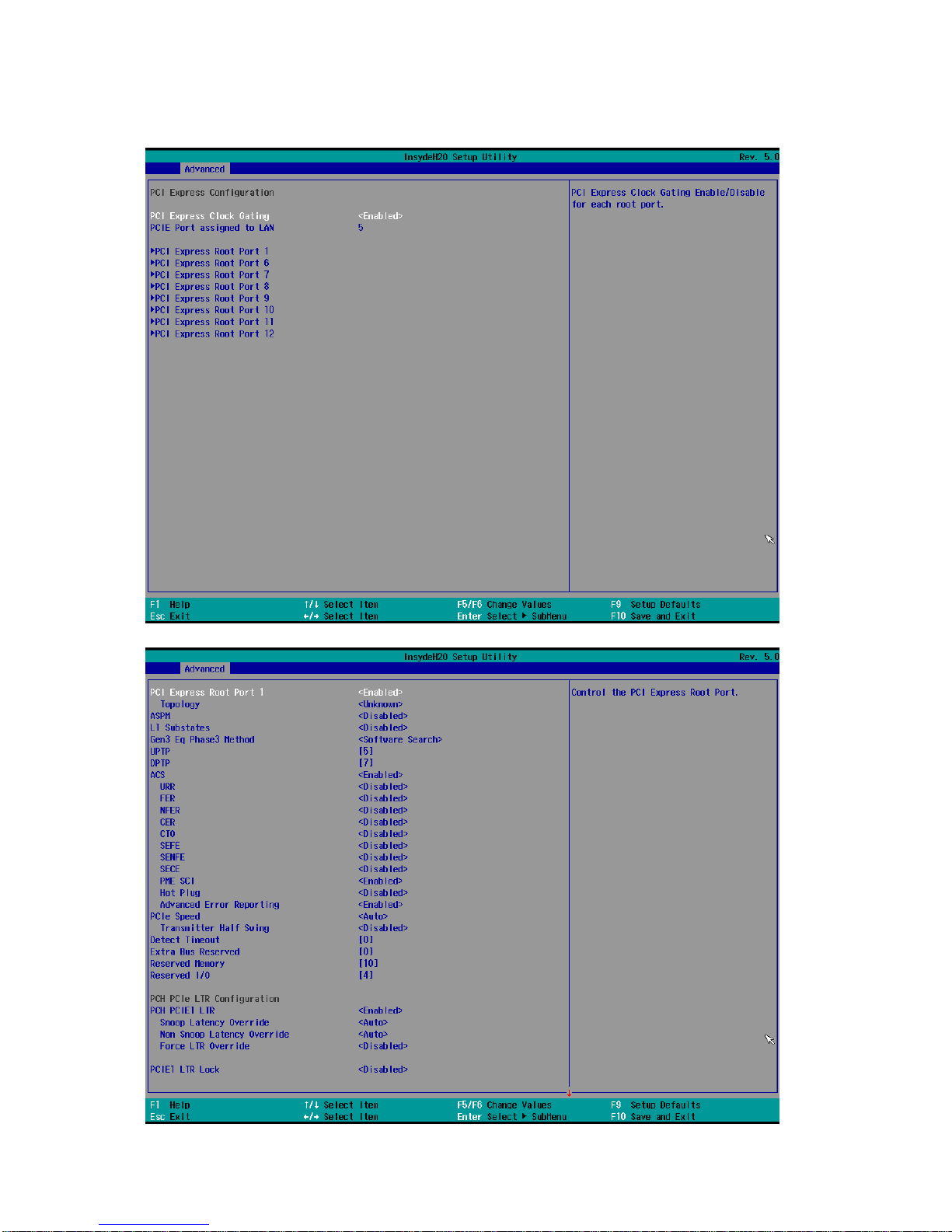

3.2.2.6 PCI Express Configuration
Page 43
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 43 -

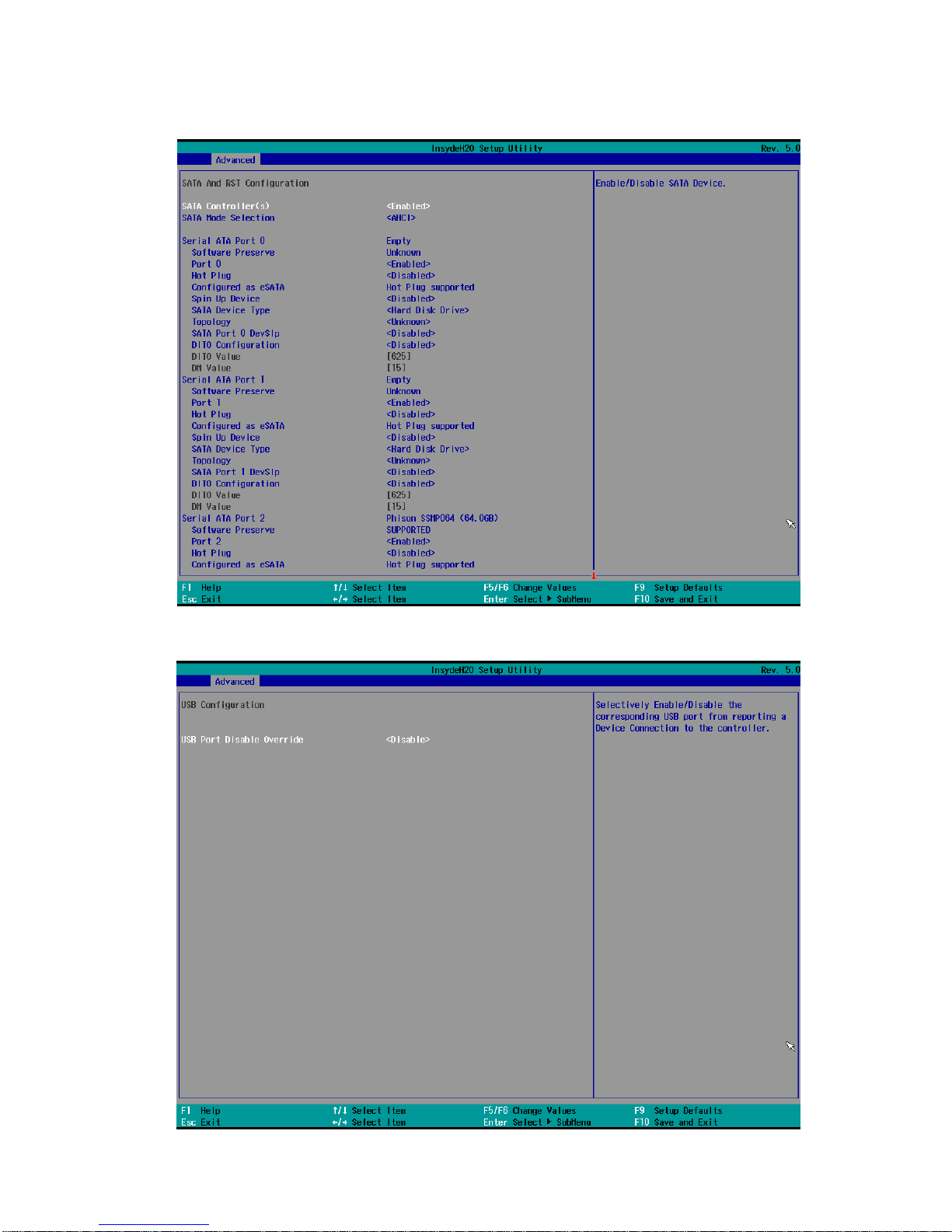

3.2.2.7 SATA and RST Configuration
3.2.2.8 USB Configuration
Page 44
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 44 -

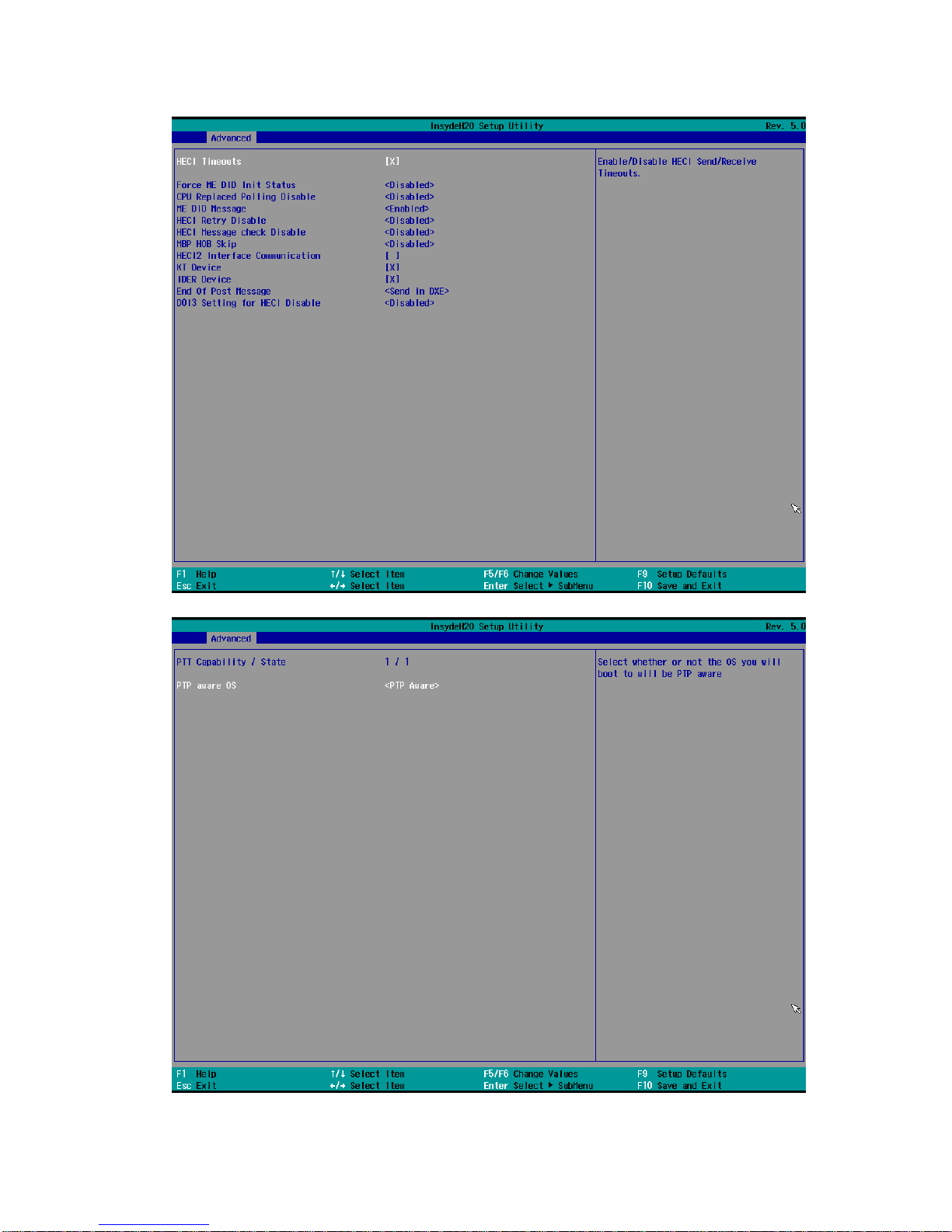

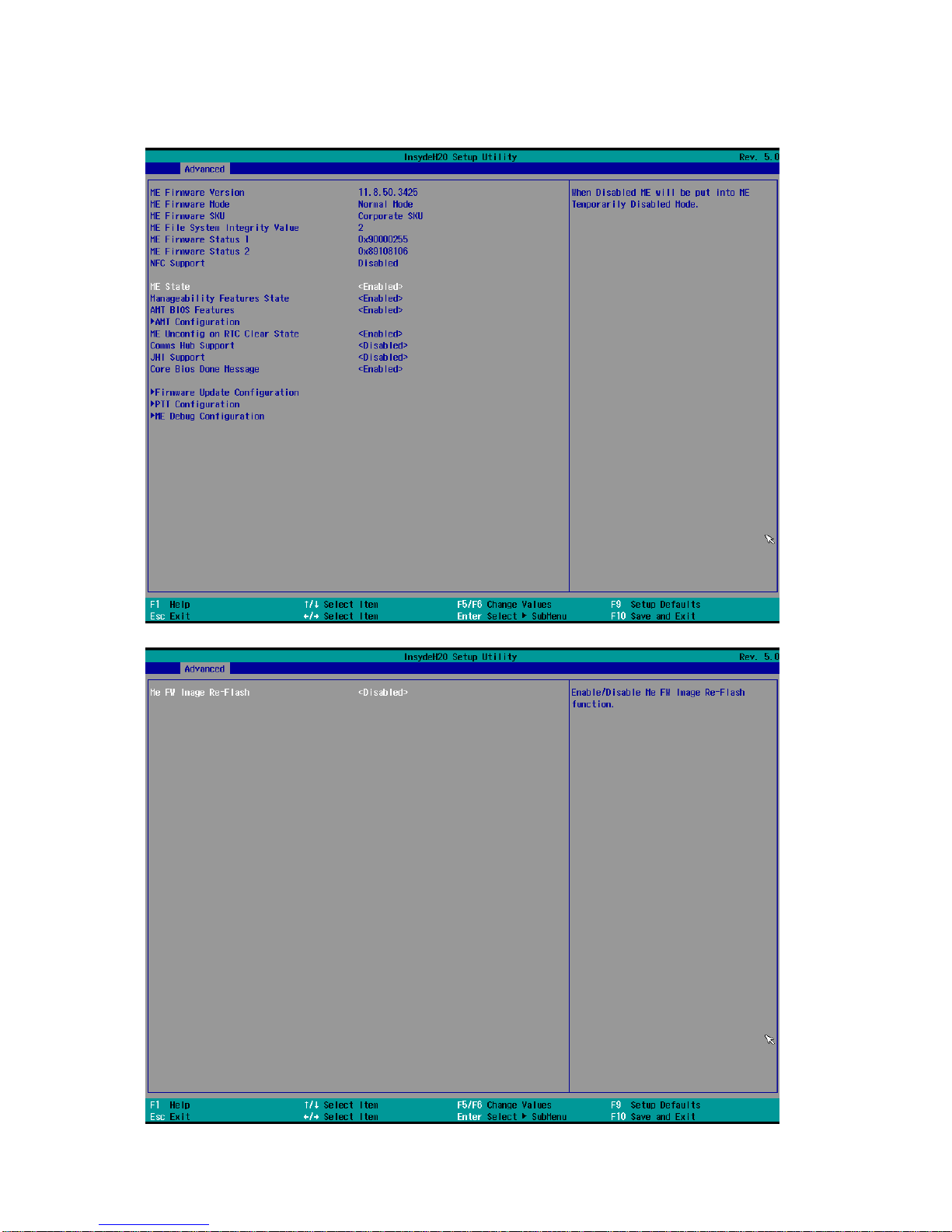

3.2.2.9 ME Firmware Configuration
Page 45
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 45 -
Page 46
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 46 -

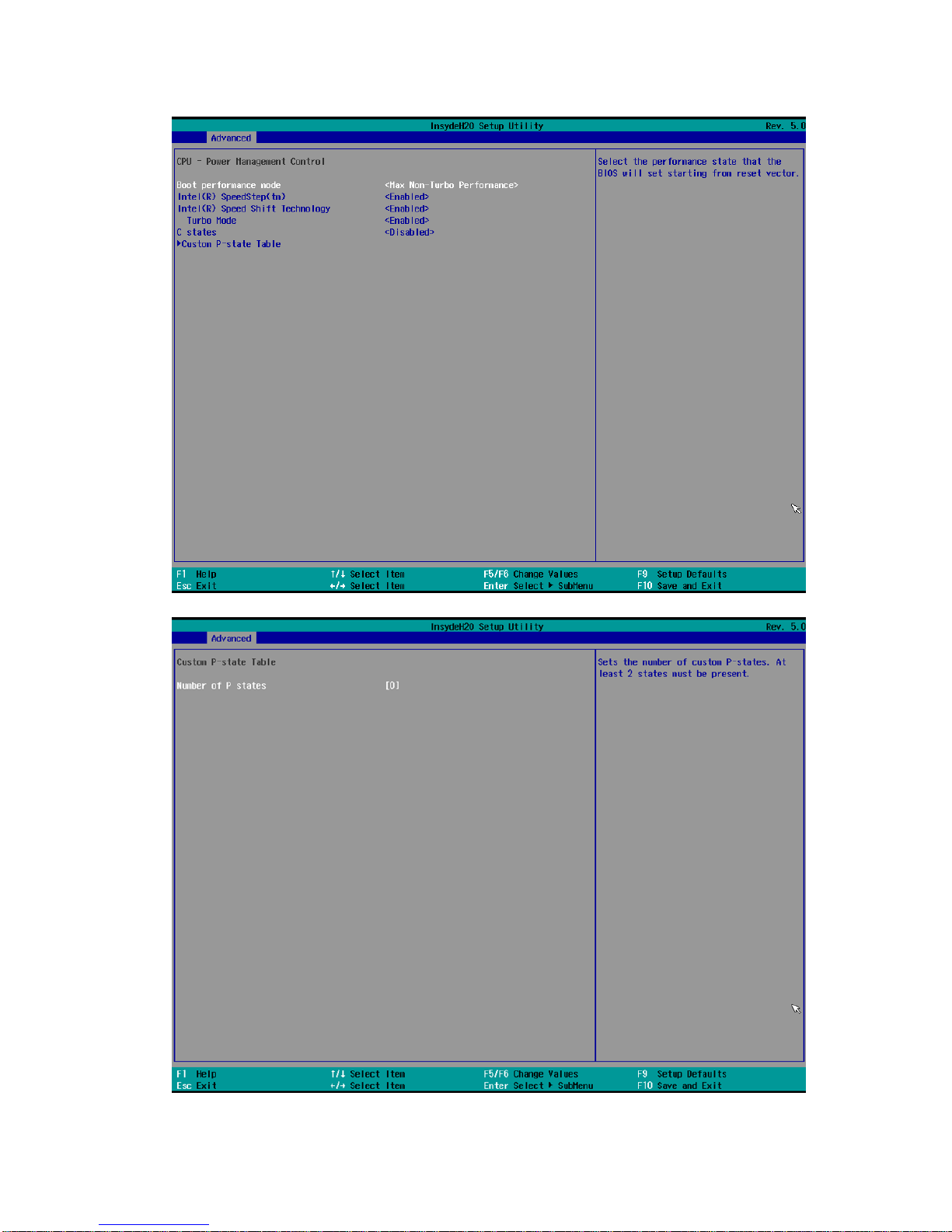

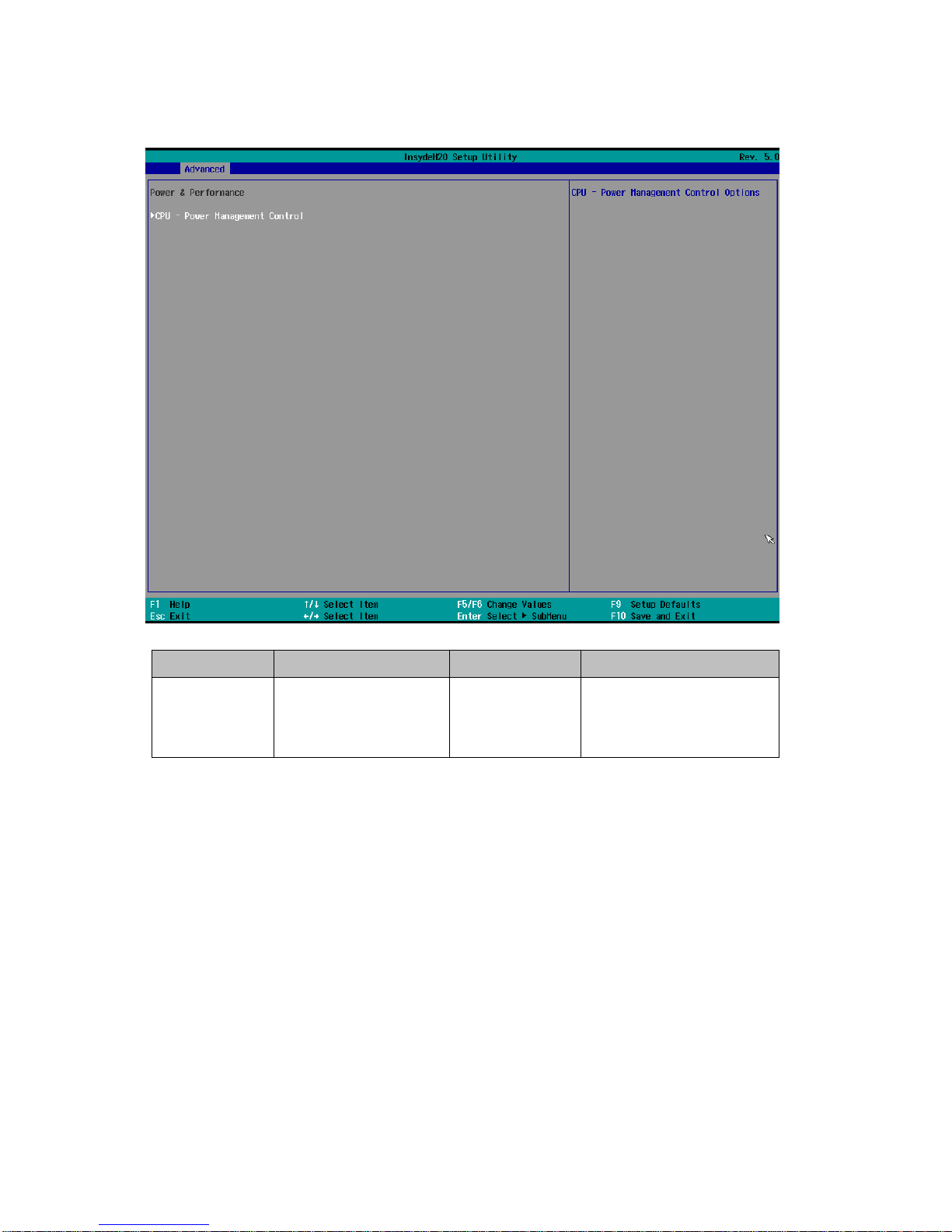

3.2.2.10 Power & Performance
BIOS Setting
Description
Setting Option
Effect
CPU – Power
Management
Control
Configure CPU –
Power Management
parameters
Enter
Opens sub-menu
Page 47
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 47 -
Page 48
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 48 -
BIOS Setting
Description
Setting Option
Effect
Boot
Performance
Mode
Configure Boot
Performance Mode
parameters
-Max non-turbo
performance
-Max battery
-Turbo
Performance
Select the performance
state that the BIOS will
set starting from reset
vector
Intel
SpeedStep (ta)
Configure Intel
SpeedStep (ta)
parameters
Enabled/
Disabled
Allows more than two
frequency ranges to be
supported
Intel Speed
Shift
Technology
Configure Intel Speed
Shift Technology
parameters
Enabled/
Disabled
Enable/ Disable Intel
Speed Shift Technology
support. Enabling will
expose the CPP v2
interface to allow for
hardware controlled
P-states
-Turbo Mode
Enable or disable
Turbo Mode
Enabled/
Disabled
Enable/ Disable
processor Turbo Mode
(requires EMTTM
enabled too). Auto means
enabled, unless max
turbo ratio is bigger than
16 – SKL AO W/A
C states
Enable or disable
C states
Enabled/
Disabled
Enable/ Disable CPU
Power Management.
Allows COU to go to C
states when it is not
100% utilized
Custom
P-state Table
Configure Custom
P-state Table
parameters
Enter
Enters sub-menu
-Number of
P-states
Select the number of
custom P-states.
[Number]
Set the number of custom
P-states. At least 2 states
must be present
Page 49
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 49 -

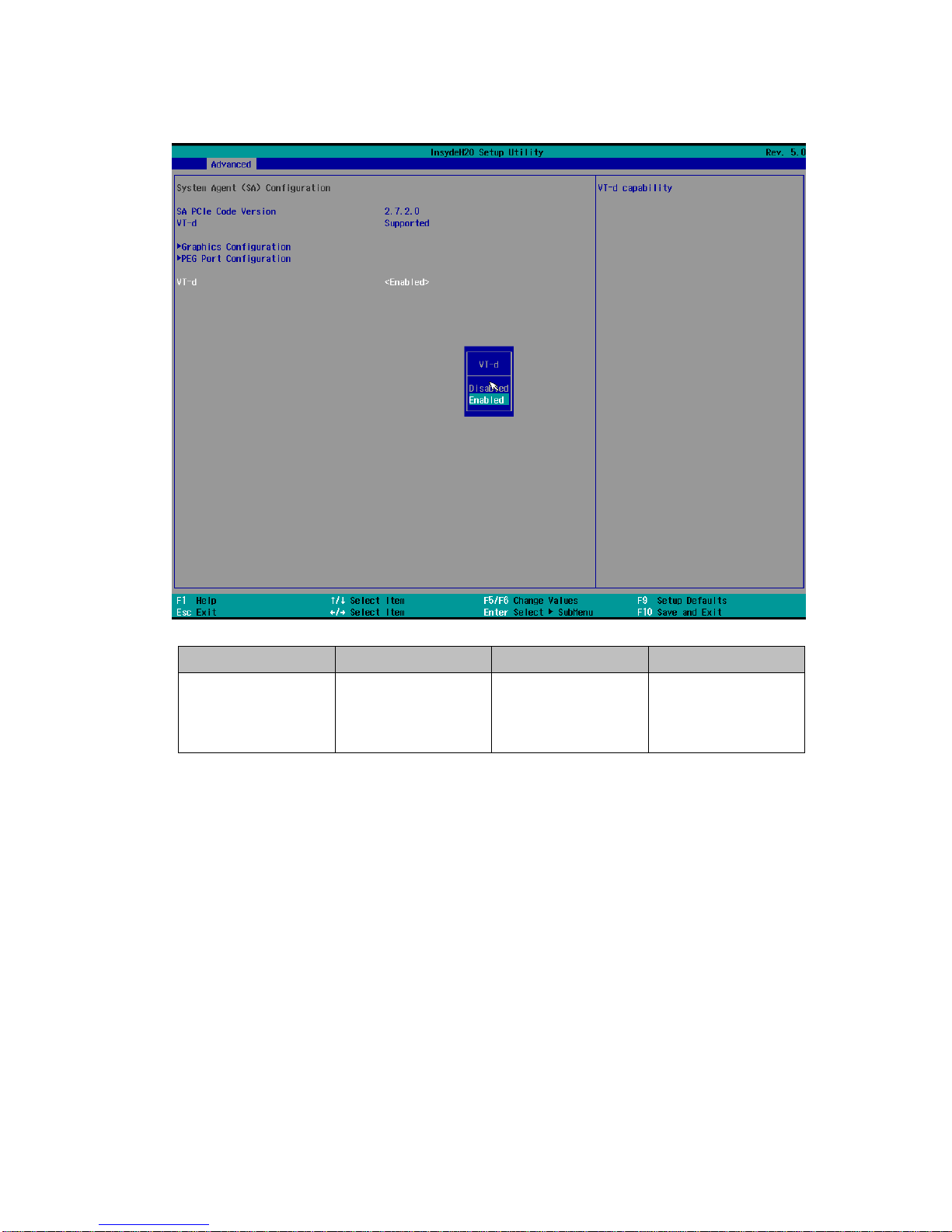

3.2.2.7 System Agent (SA) Configuration
BIOS Setting
Description
Setting Option
Effect
Graphics
Configuration
Configure Graphics
Configuration
parameters
Enter
Opens sub-menu
Vt-d
Intel® Virtualization
Technology for
Directed I/O
Enabled
Disabled
Vt-d capability
Page 50
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 50 -

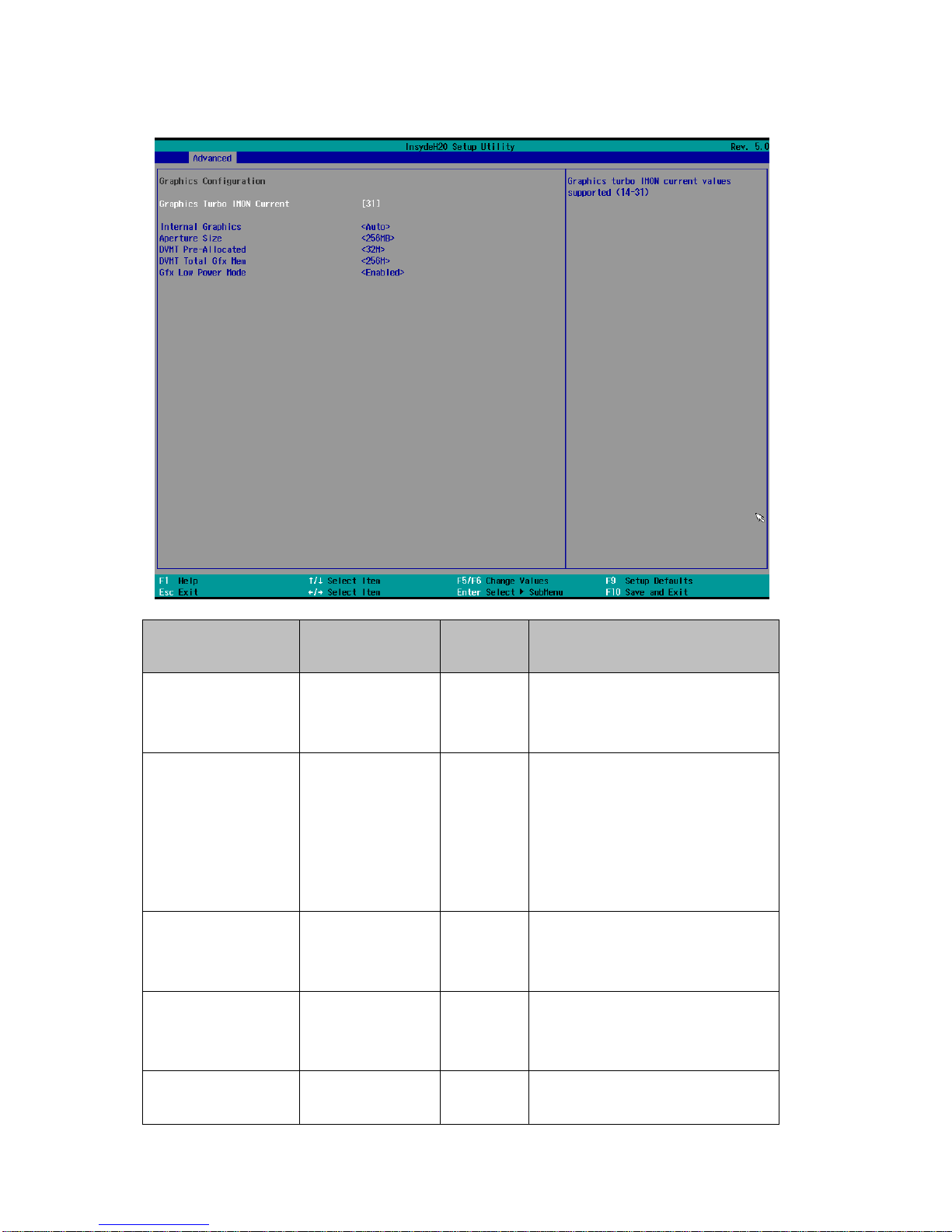

3.2.2.7.1 Graphics Configuration
BIOS Setting
Description
Setting
Option
Effect
Internal Graphics
Internal Graphics
settings
Auto
Enabled
Disabled
Keep IGFX enabled based on the
setup options
Aperture Size
Select the aperture
size
128MB
256MB
512MB
1024MB
2048 MB
Select the aperture size
Note: Above 4MB MMIO BIOS
assignment is automatically enabled
when selecting 2048MB aperture.
To use this feature please disable
CSM port
DVMT Pre-Allocated
Select DVMT
Pre-Allocated
0M~60M
Select DVMT 5.0 Pre-Allocated
(Fixed) Graphic Memory size used
by Internal Graphic Device
DVMT Total Gfx Mem
Select DVMT Total
Gfx Mem
256M
128M
MAX
Select DVMT 5.0 Total Graphic
Memory size used by the Internal
Graphic Device
Gfx Low Power Mode
Select Gfx Low
Power Mode
Enabled/
Disabled
This option is applicable for SFF
only
Page 51
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 51 -
3.2.2.7.2 Vt-d
BIOS Setting
Description
Setting Option
Effect
Vt-d
Intel® Virtualization
Technology for
Directed I/O
Enabled
Disabled
Vt-d capability
Page 52
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 52 -

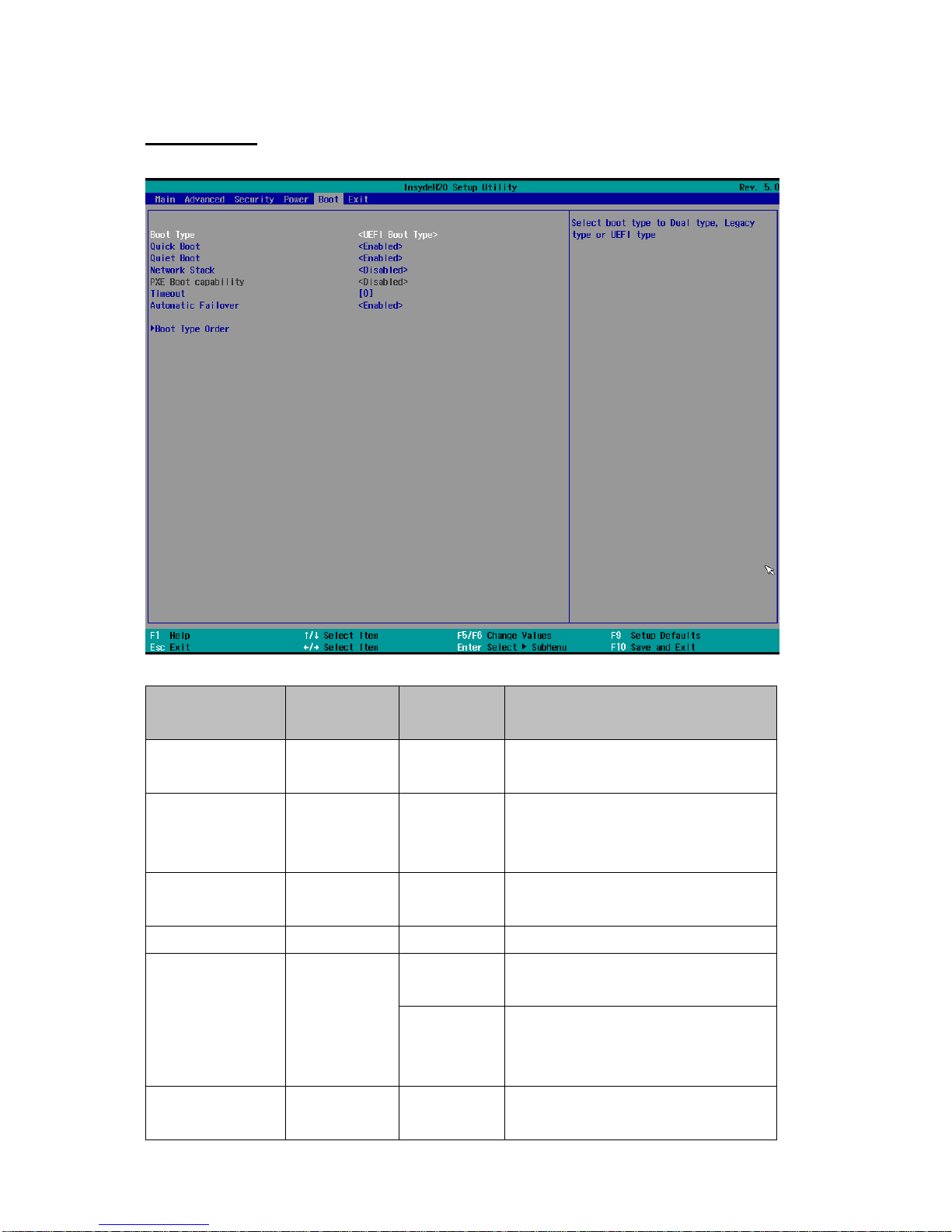

3.2.3 Boot
BIOS Setting
Description
Setting
Option
Effect
Boot Type
Boot Type
configuration
UEFI Boot
Type
Select boot type to Dual type, Legacy
type or UEFI type
Quick Boot
Quick Boot
configuration
Enabled
Disabled
Allows InsydeH20 to skip certain tests
while booting. This will decrease the
time needed to boot the system
Quiet Boot
Quiet Boot
configuration
Enabled
Disabled
Disable or enable booting in text Mode.
Timeout
Timeout
[Value]
Timeout settings
Automatic Failover
Enable
If boot to default device fail, it will
directly try to boot next device
Disable
If boot to default device fail, it will pop
warning message then go to firmware
UI
Boot Type Order
Boot Type
Order
Enter
Opens sub-menu
Page 53
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 53 -

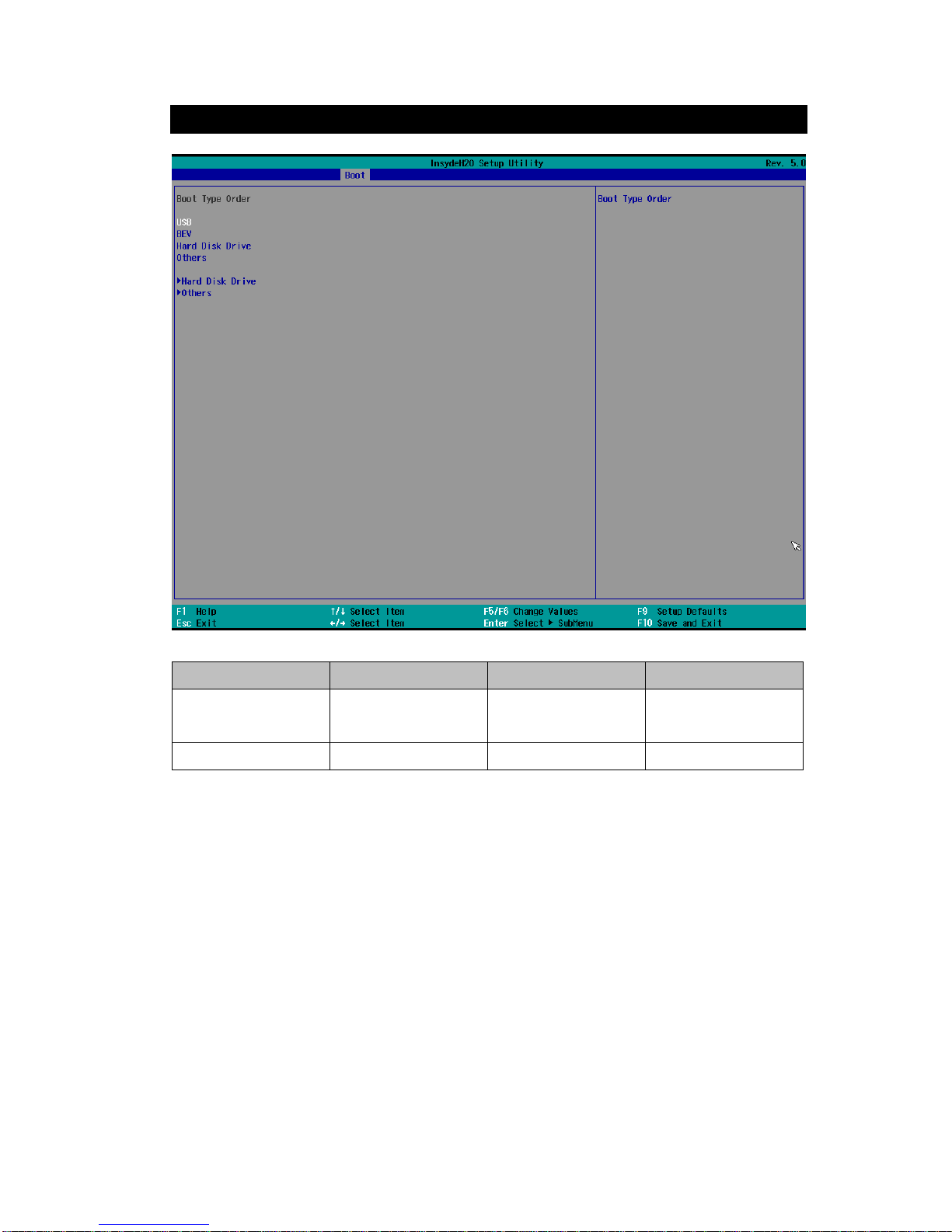

3.2.3.1 Boot Type Order
BIOS Setting
Description
Setting Option
Effect
Hard Disk Type
Hard Disk Type
configuration
Enter
Opens Sub-menu
Others
Other configuration
Enter
Opens Sub-menu
Page 54
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 54 -

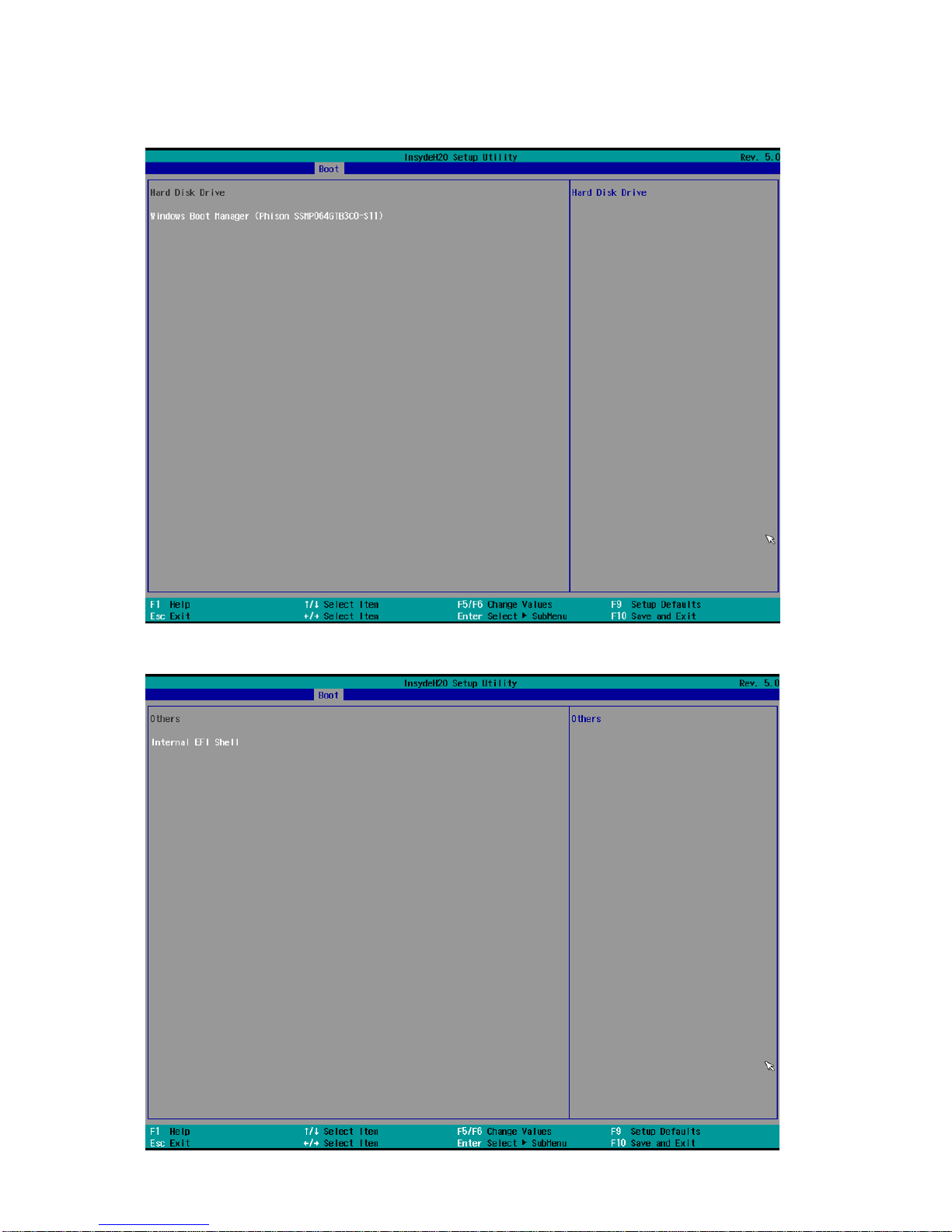

3.2.3.1.1 Hard Disk Type
3.2.3.1.2 Others
Page 55
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 55 -

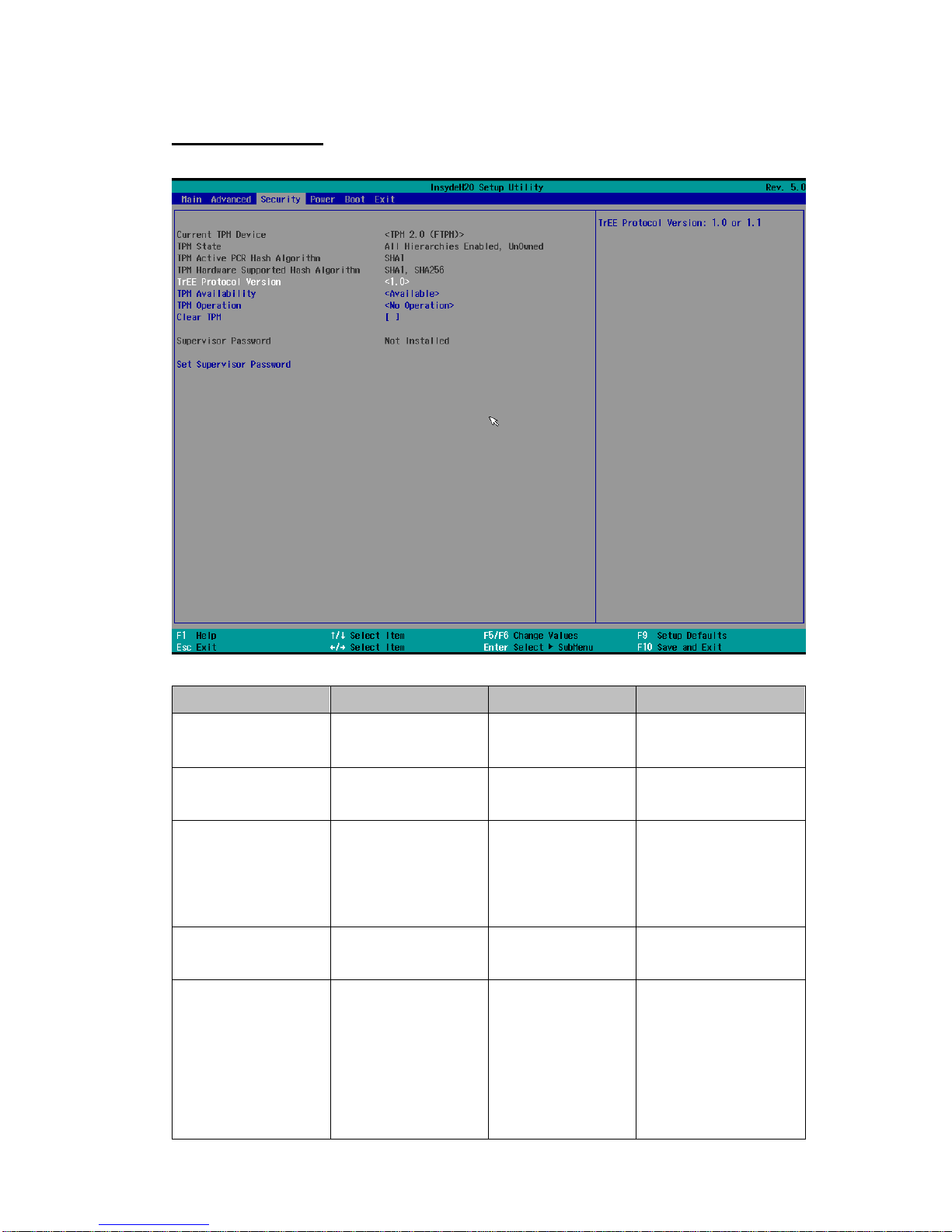

3.2.3 Security
BIOS Setting
Description
Setting Option
Effect
TrEE Protocol
Version
Choose TrEE
Protocol Version
1.0
1.1
TrEE Protovol
Version: 1.0 or 1.1
TPM Availability
TPM Availability
configuration
Available
Hidden
When hidden don’t
exposes TPM to 0
TPM Operation
TPM Operation
configuration
[ ]
Select one of the
supported
operation to
change TPM2state
Clear TPM
Clear TPM
configuration
[ ]
Select to Clear
TPM
Set Supervisor
Password
Set Supervisor
Password
Enter New
password
Install or Change
the password and
the length of
password must be
greater than one
character
Page 56
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 56 -

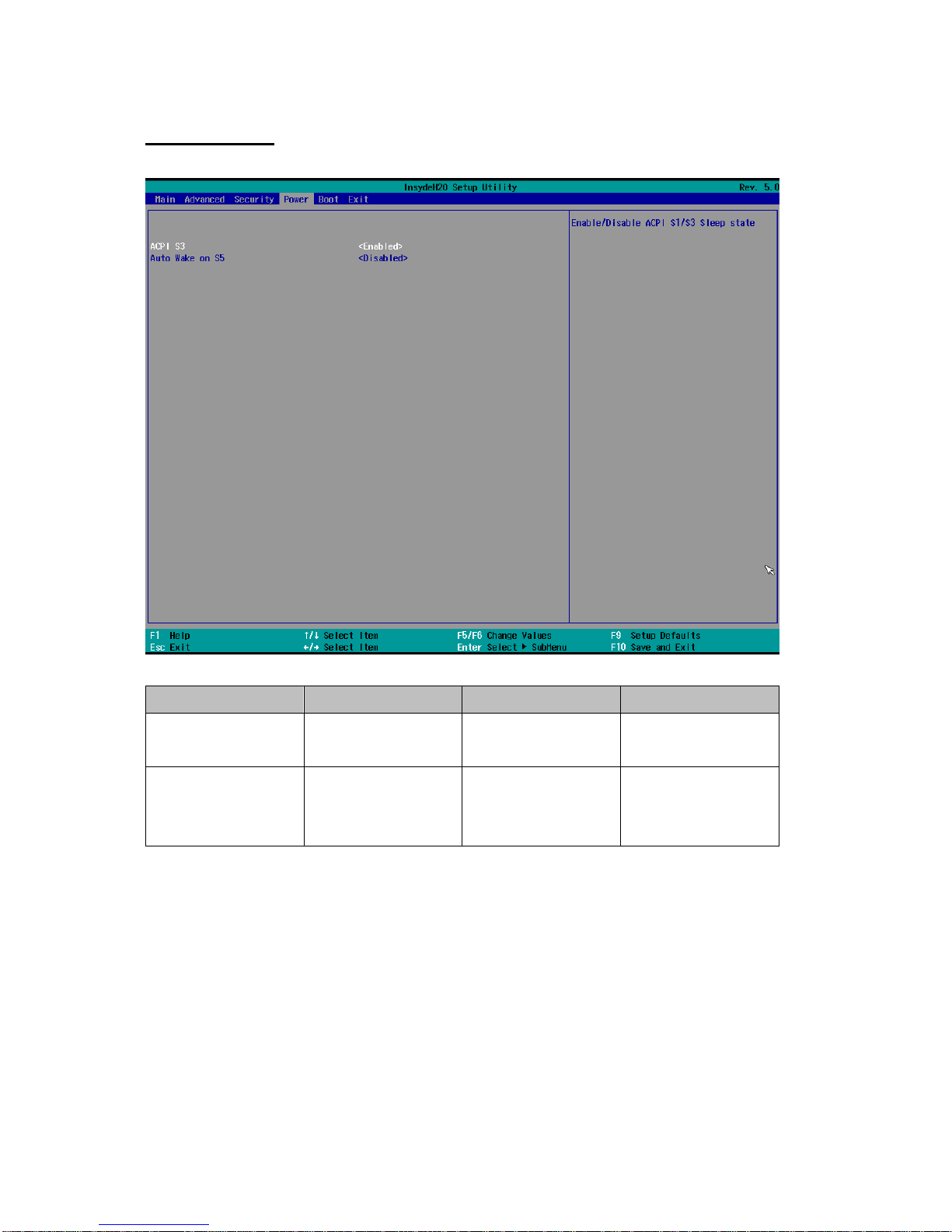

3.2.4 Power
BIOS Setting
Description
Setting Option
Effect
ACPI S3
ACPI S3
configuration
Disabled
Enabled
Enable/ Disable ACPI
S1/S3 Sleep state
Auto Wake on S5
Auto Wake on S5
configuration
Disabled
By Every Day
By Every Month
Auto Wake on S5, by
Day or Month or fixed
time of every day
Page 57
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 57 -

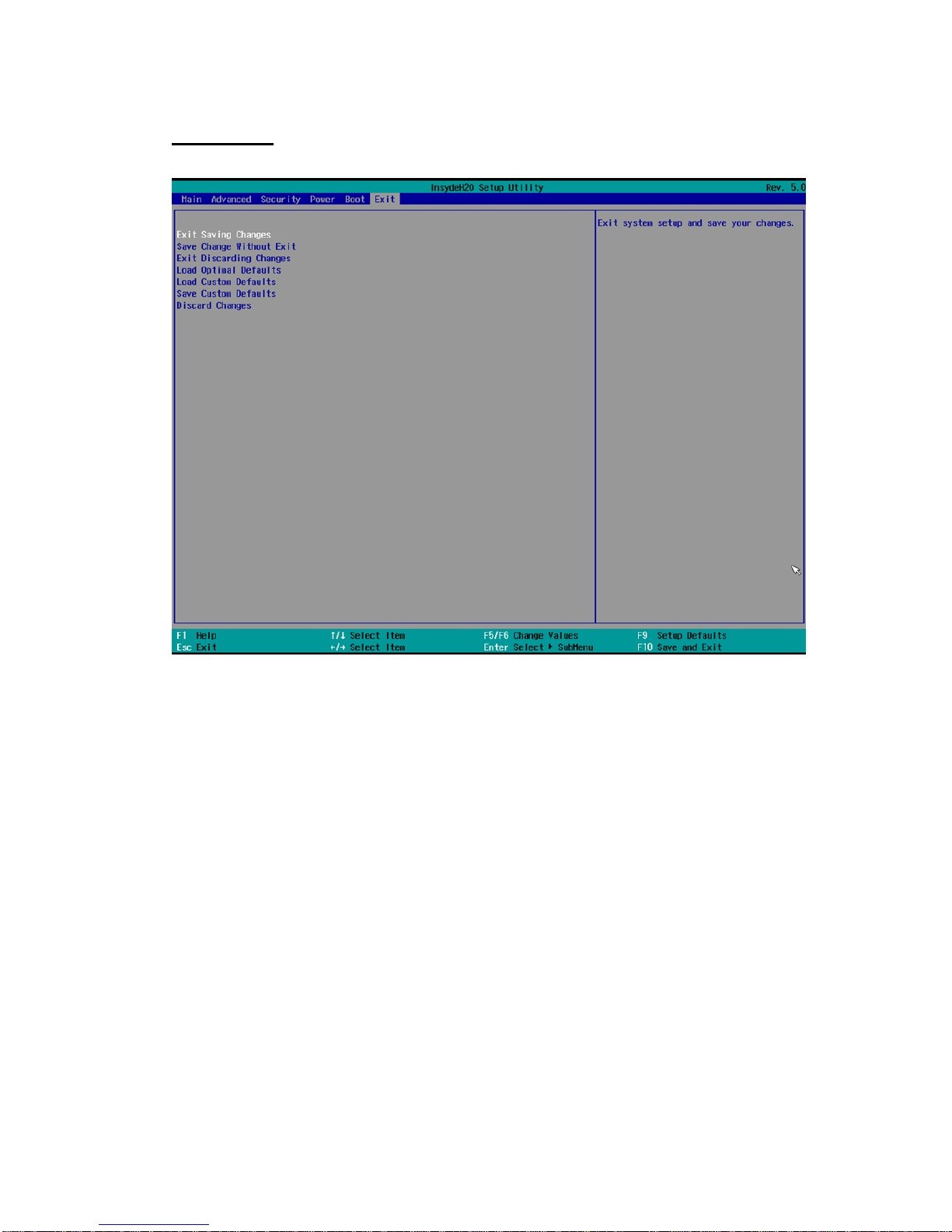

3.2.5 Exit
Page 58
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 58 -
3.3 Using Recovery Wizard to Restore Computer
NOTE:
Before starting the recovery process, make sure to backup all user
data. The data will be lost after the recovery process.
To enable quick one-key recovery procedure:
1. Connect the computer to the power source. Make sure the computer stays
plugged in to power source during the recovery process.
2. Turn on the computer, and when the boot screen shows up, press Tab+ F6
to initiate the Recovery Wizard.

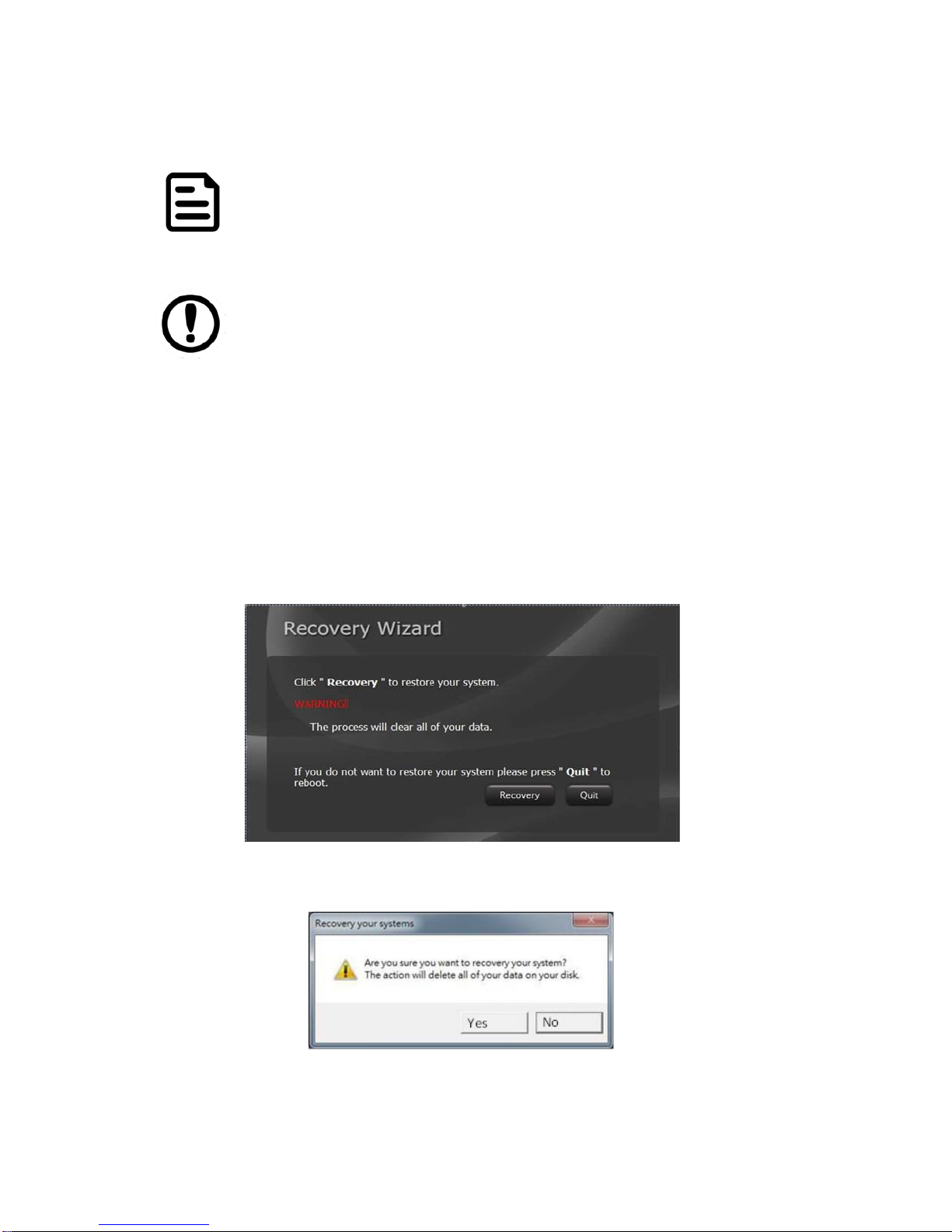

3. The following screen shows the Recovery Wizard. Click Recovery button to
continue.
4. A warning message about data loss will show up. Make sure the data is
backed up before recovery, and click Yes to continue.
5. Wait the recovery process to complete. During the recovery process, a
command prompt will show up to indicate the percent of recovery process
complete. The system will restart automatically after recovery completed.
IMPORTANT:
Before starting the recovery process, remove the PCI/ PCIe card
and CFast card.
Page 59
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 59 -
3.4 How to Enable Watchdog
To enable Watchdog, you need to download Winmate Watchdog utility. Find more
information on Watchdog in “Watchdog Guide” that you can download from
Winmate Download Center or File Share. Refer to the User Manual for more
details.
To enable watchdog in Watchdog AP follow the instructions below:

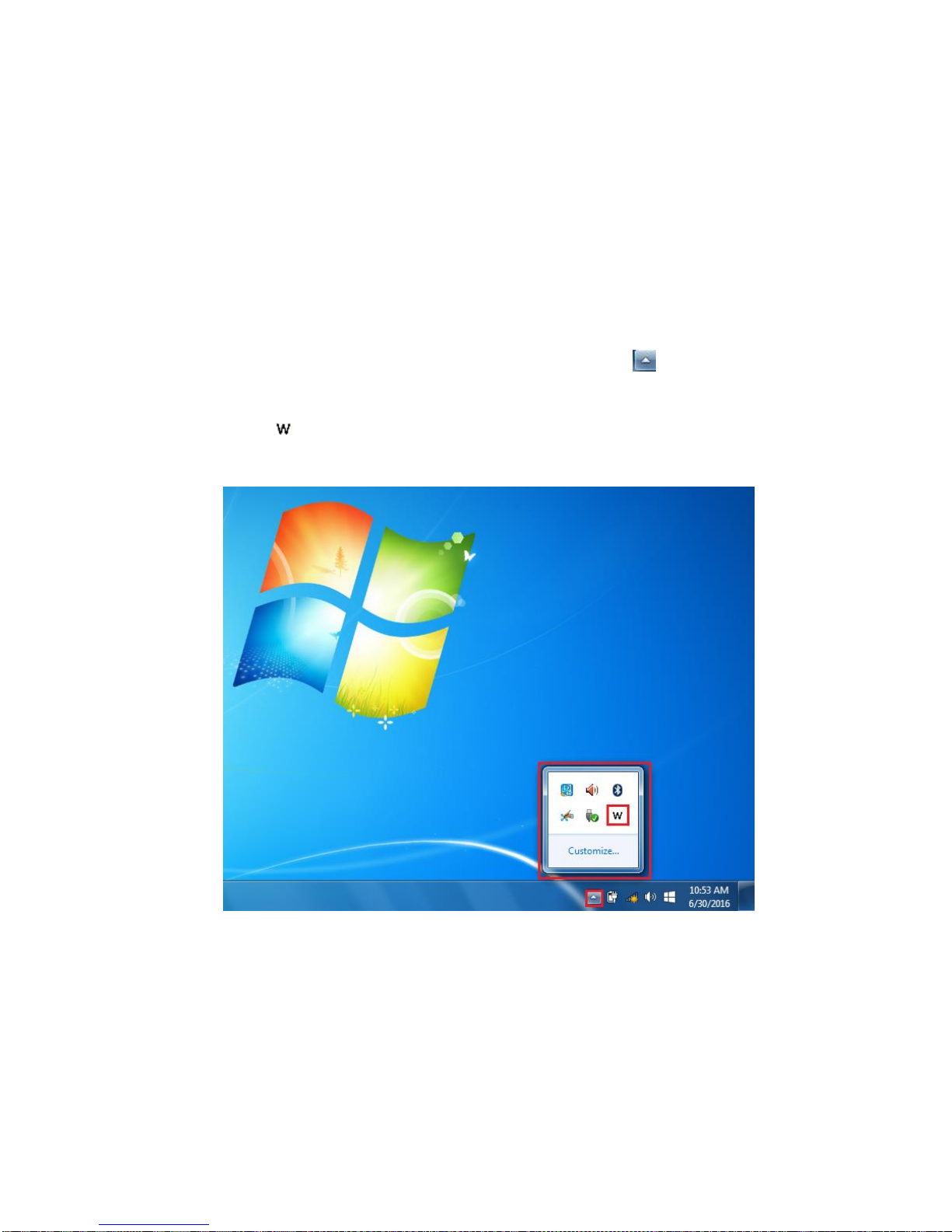

1. On the right bottom side of the desktop screen, click triangle button to
show hidden icons.
2. Click icon to open Watchdog utility.
Page 60
USER MANUAL CHAPTER 3 INSYDE H20 BIOS SETUP
- 60 -

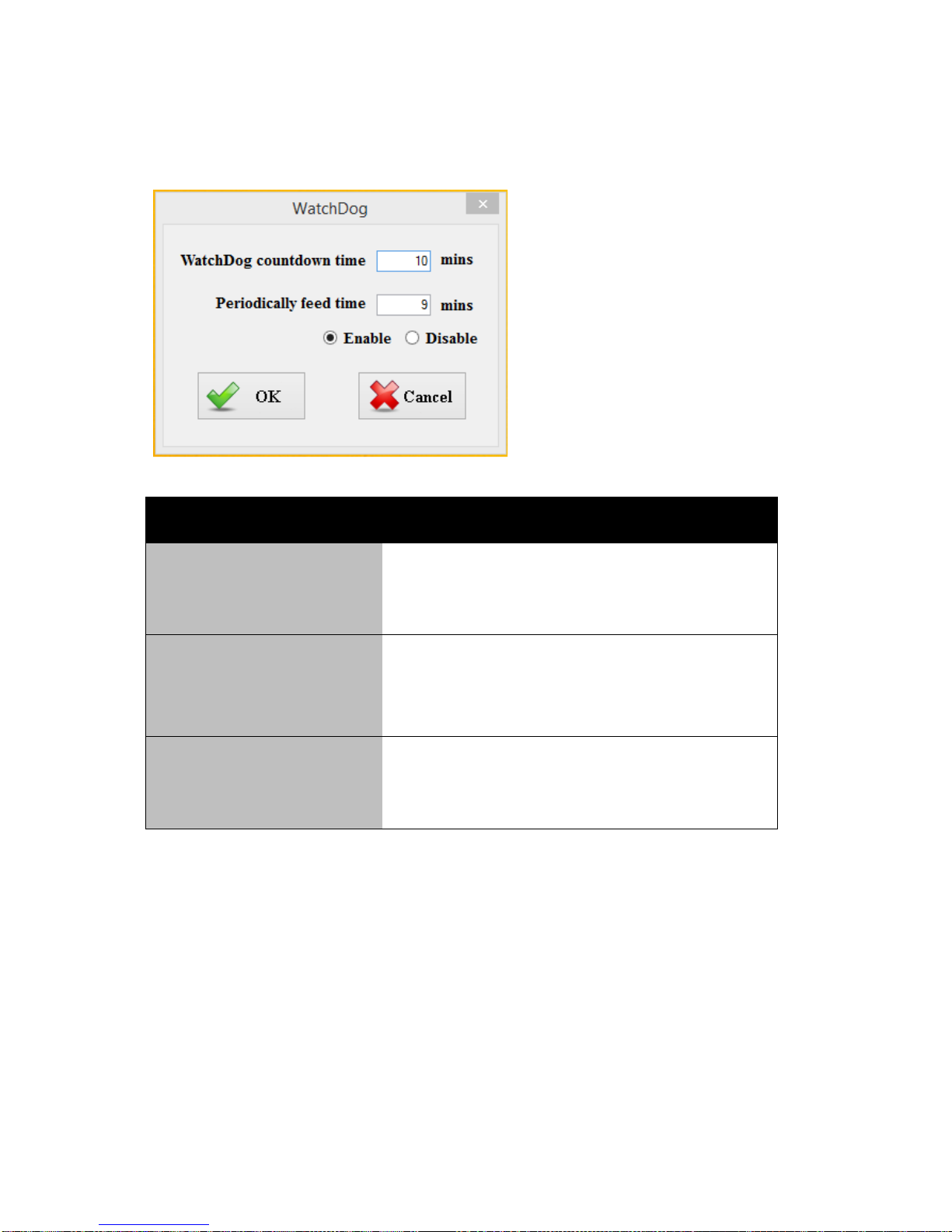

3. In Watchdog utility window set countdown time and periodically feed time,
or disable watchdog.
Example:
Every 10 min watchdog will
monitor the system, in case
any error occurs the system
will restart automatically
when the countdown time
reaches 0.
Every 9 min watchdog timer
will be reset to 10 min.
Setting
Description
Watchdog Countdown
Time
The system automaticity restarts when this
countdown time reaches zero.
Default: 10 min
Periodically Feed Time
To set a cycle time to automatically reset
watchdog timer.
Default: 9 min
Enable / Disable
Enable or disable watchdog.
Default: Enable
Page 61
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 61 -
DRIVER INSTALLATION
This chapter contains driver installation instructions
for IK32 motherboard.
4.1 Chipset Driver Installation
4.2 Graphics Driver Installation
4.3 Audio Driver Installation
4.4 Ethernet Driver Installation

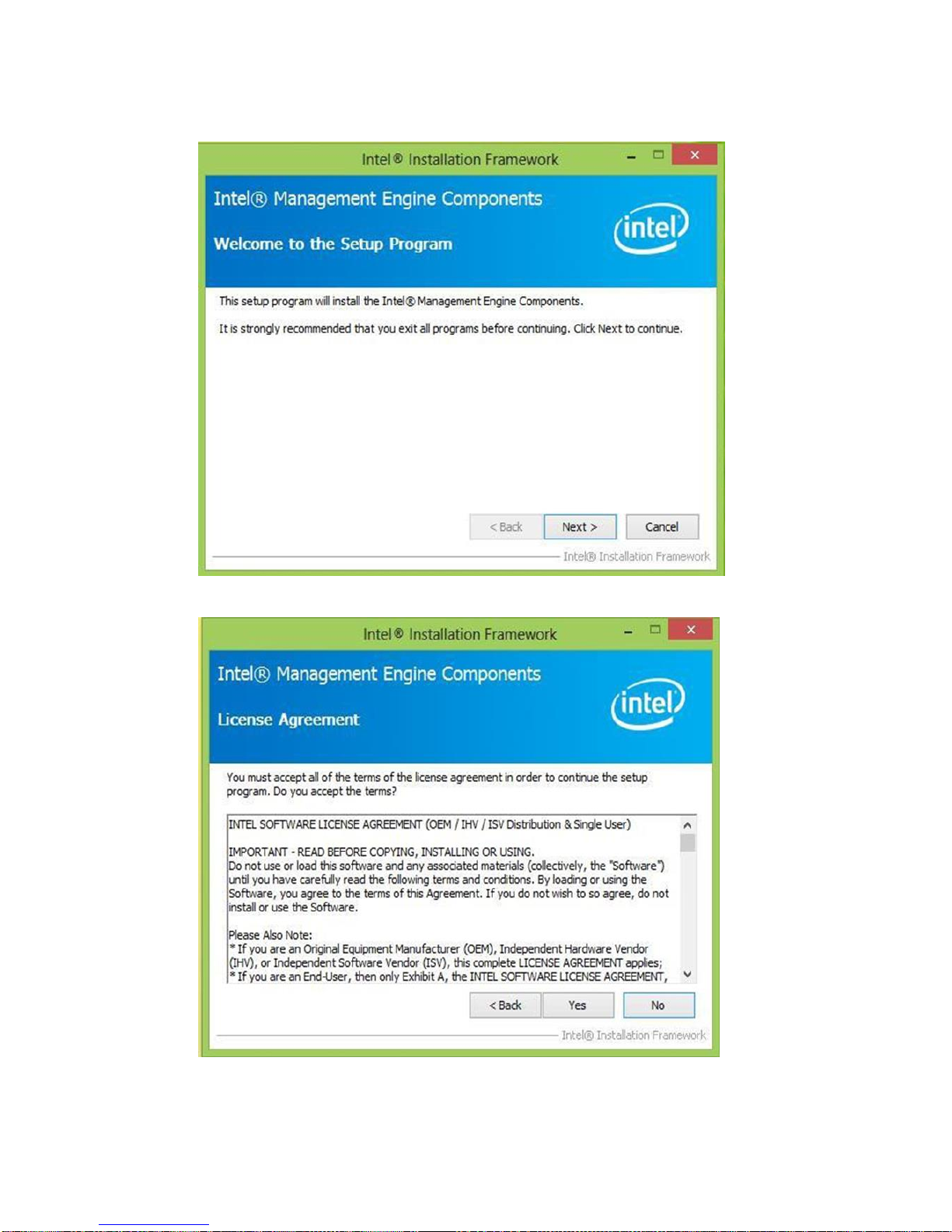

4.5 Intel® Management Engine Software Installation

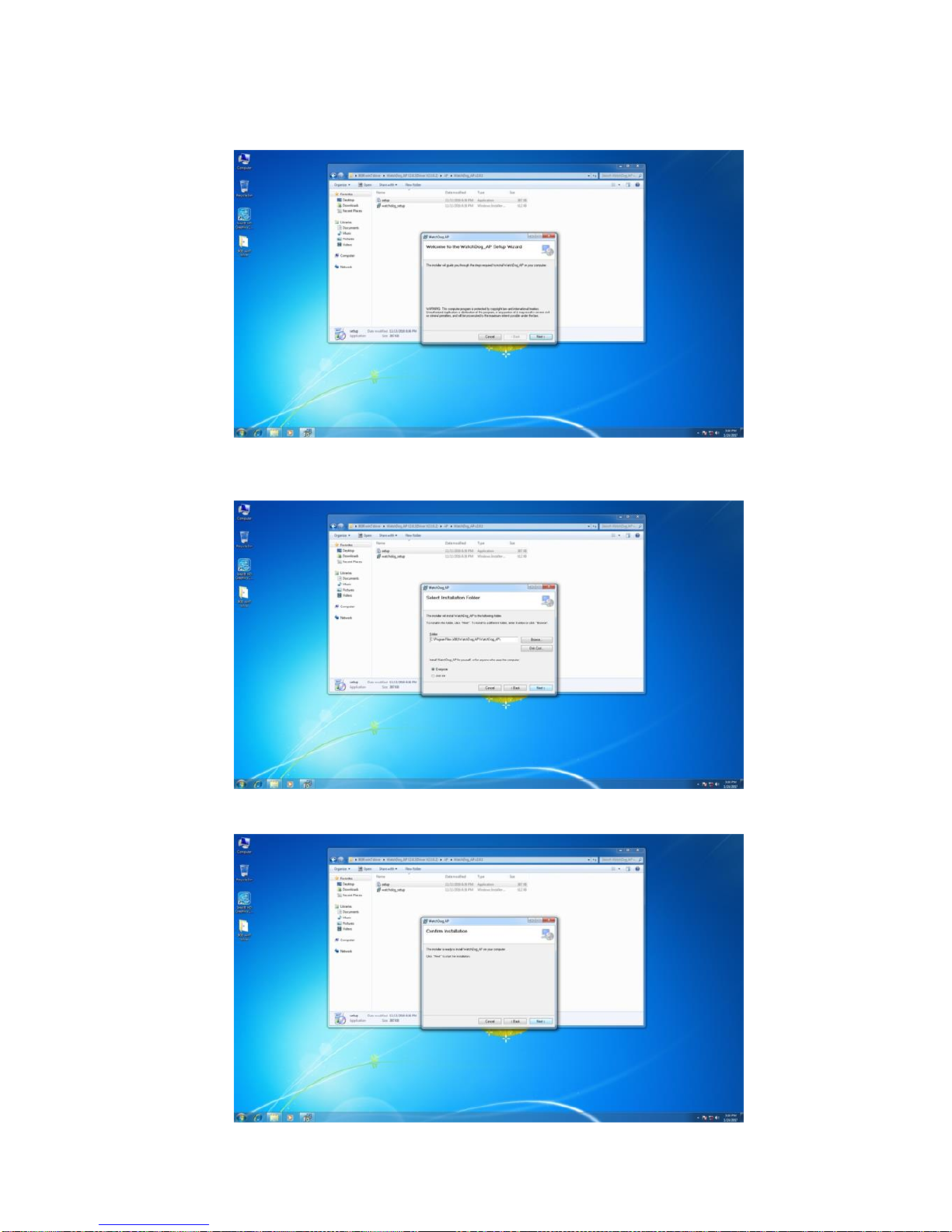

4.6 Watchdog Driver Installation
Page 62
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 62 -
CHAPTER 4: DRIVER INSTALLATION
This chapter contains driver installation guide. Follow the instructions below to
complete the installation. You will quickly complete the installation. This chapter
provides instructions on how to install drivers on the IK32 Motherboard.

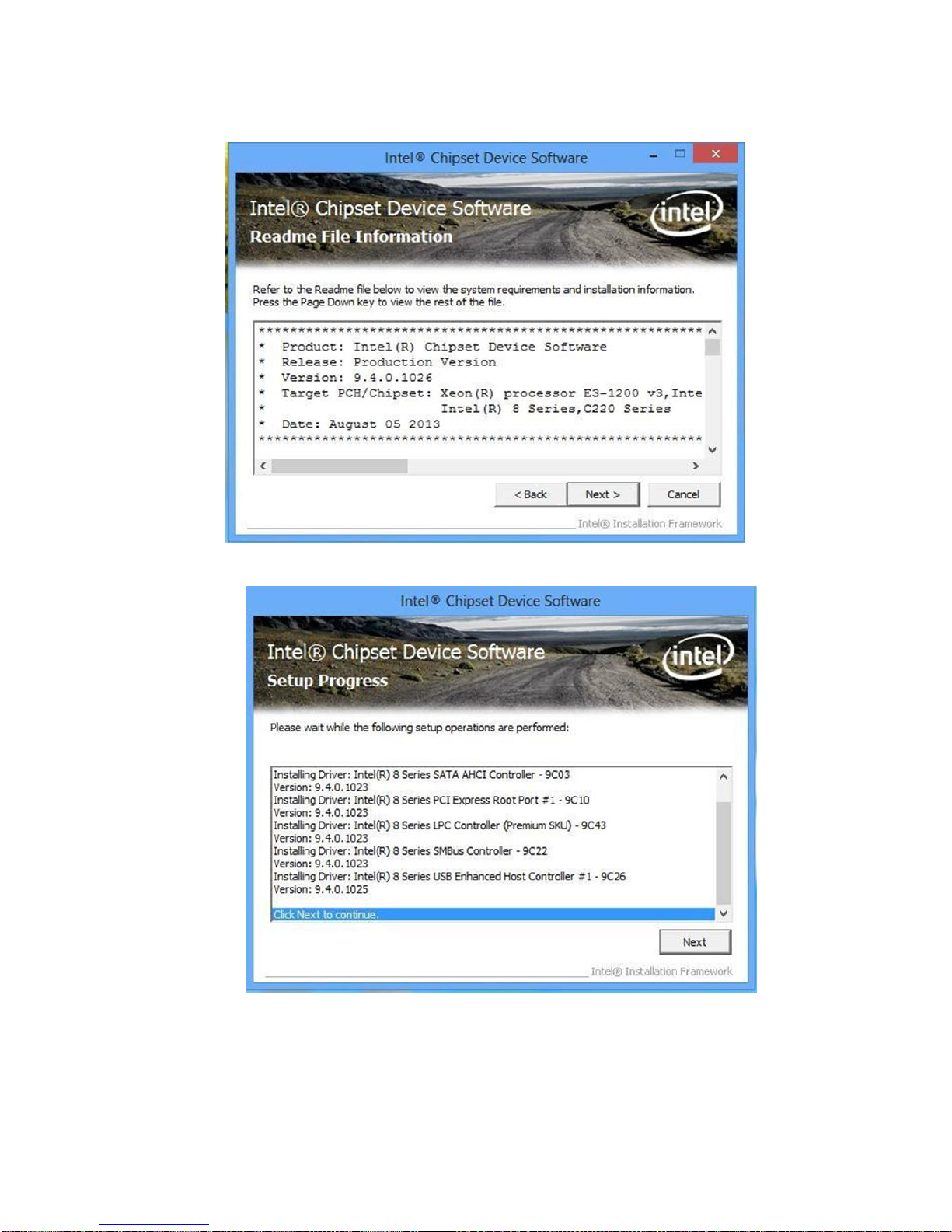

3.1 Chipset Driver Installation

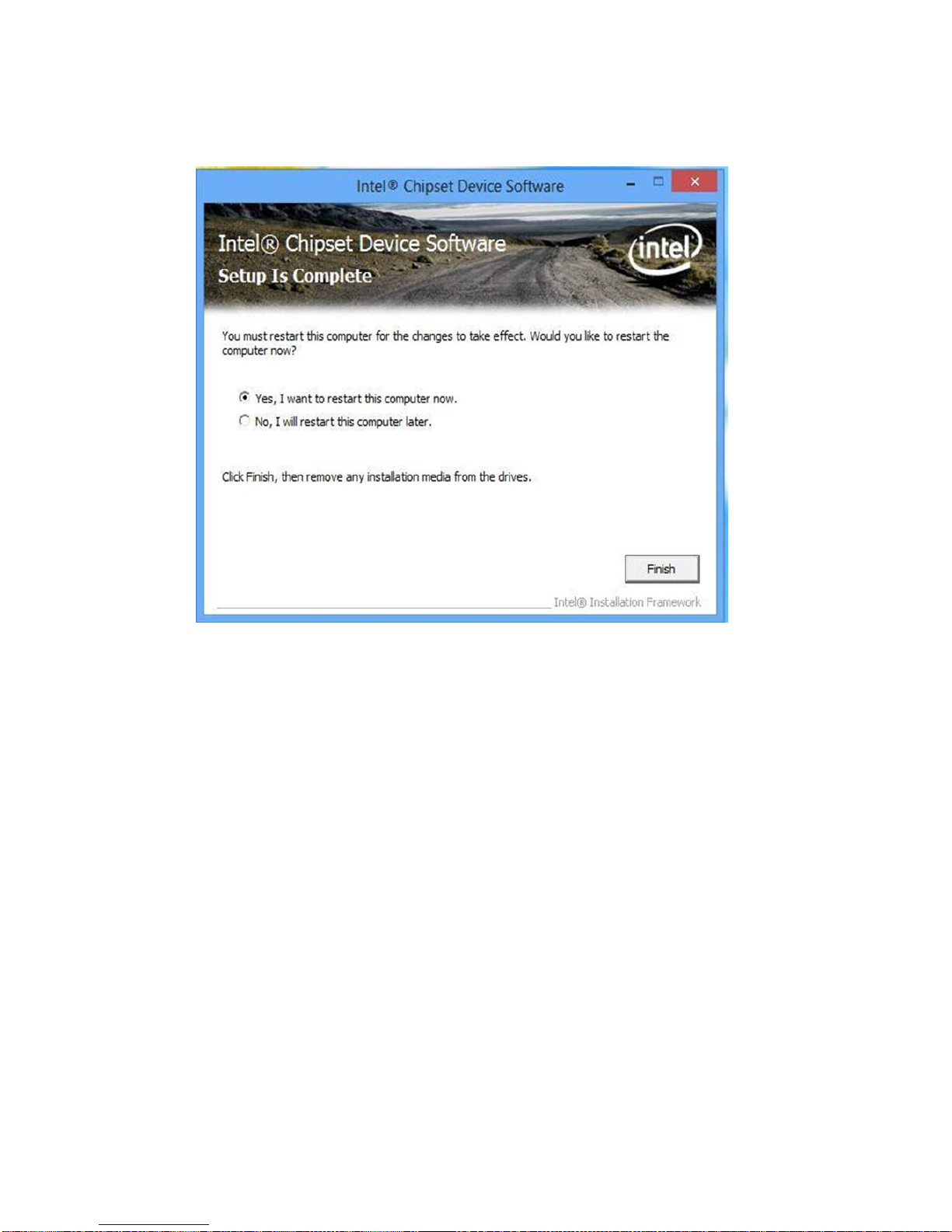

The Intel Chipset Drivers should be installed first before the software drivers
enable Plug & Play INF support for Intel chipset components.
Follow instructions below to install Chipset driver.

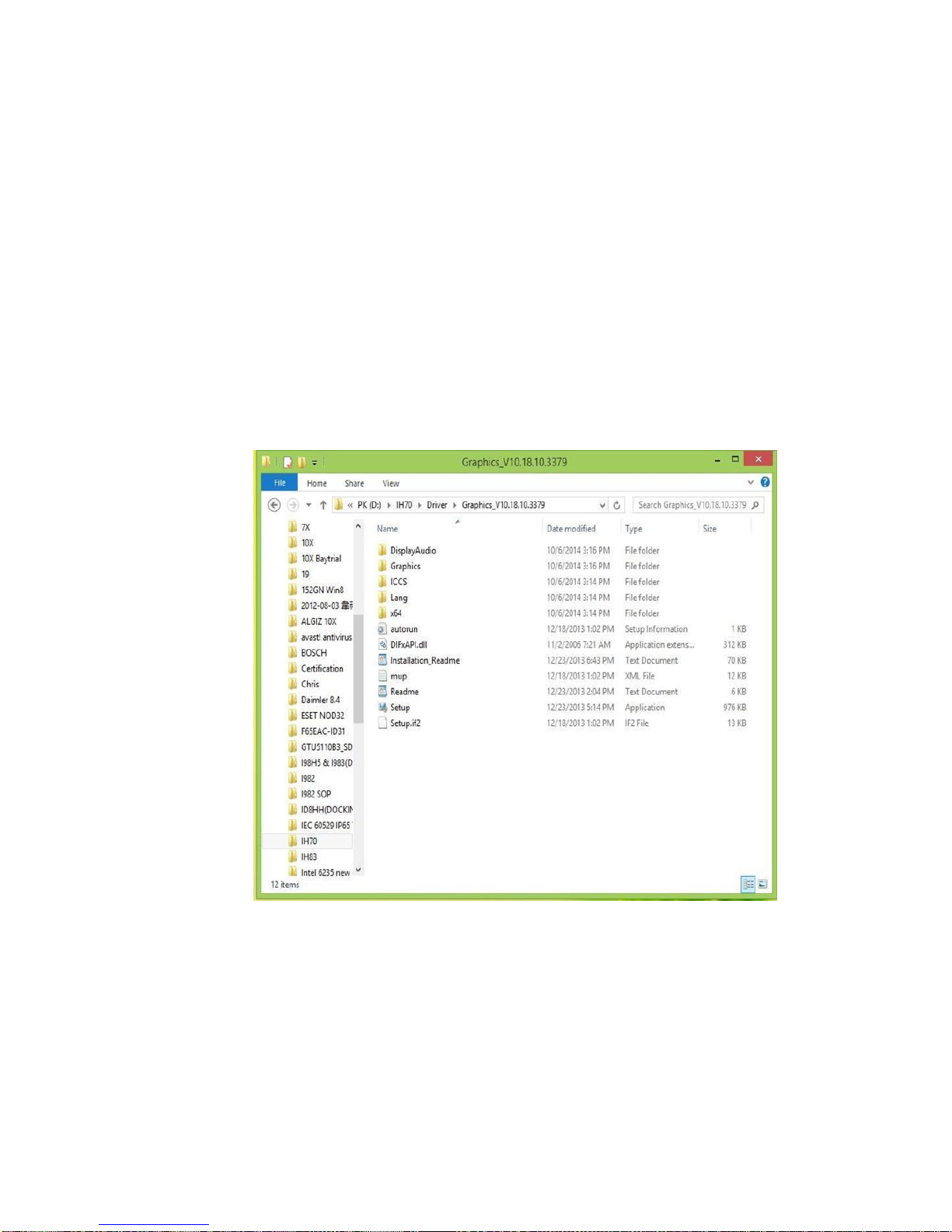

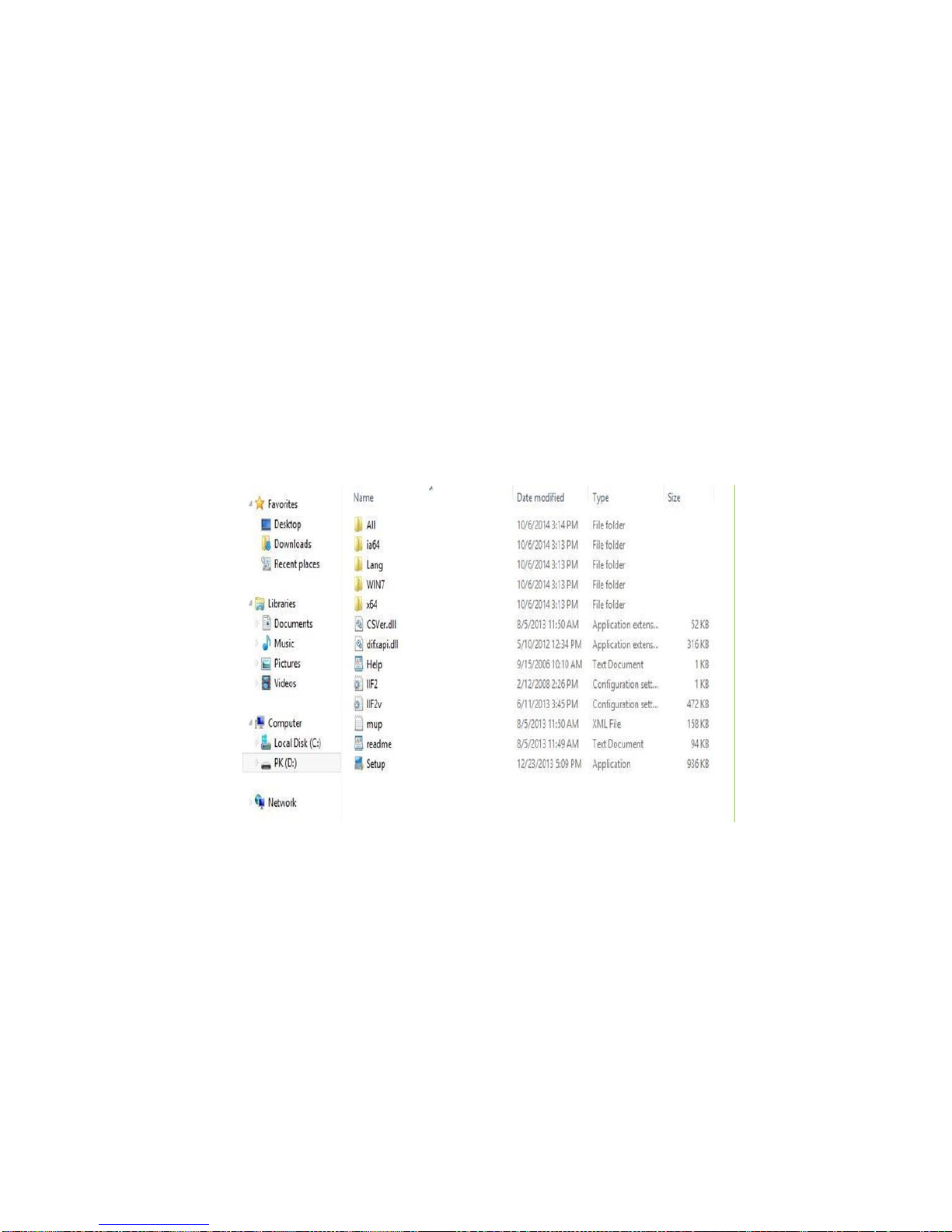

1. Open the Driver CD (included in the package) and select Chipset driver.
Page 63
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 63 -
2. Read ReadMe file information, then click Next.
3. Click Next to continue.
Page 64
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 64 -
4. When Setup is complete, select “Yes, I want to restart this computer now”
and click Finish. The system will restart your computer.
Page 65
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 65 -
3.2 Graphics Driver Installation
IK32 Motherboard comes with Intel® Core i5 Dual Core CPU and integrated
graphic controller. You need to install the Graphics driver to enable the function.
Intel® Graphic supports versatile display options and 32-bit 3D graphics engine.
Triple independent display, enhanced display modes for widescreen flat panels for
extend, twin, and clone display mode.
Follow instructions below to install Graphic driver.
1. Insert the driver CD into your system's CD-ROM drive. You can see the
driver folders items. Navigate to the “Graphic Driver” folder and click
"setup.exe" to complete the installation and select Graphic driver.
Page 66
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 66 -

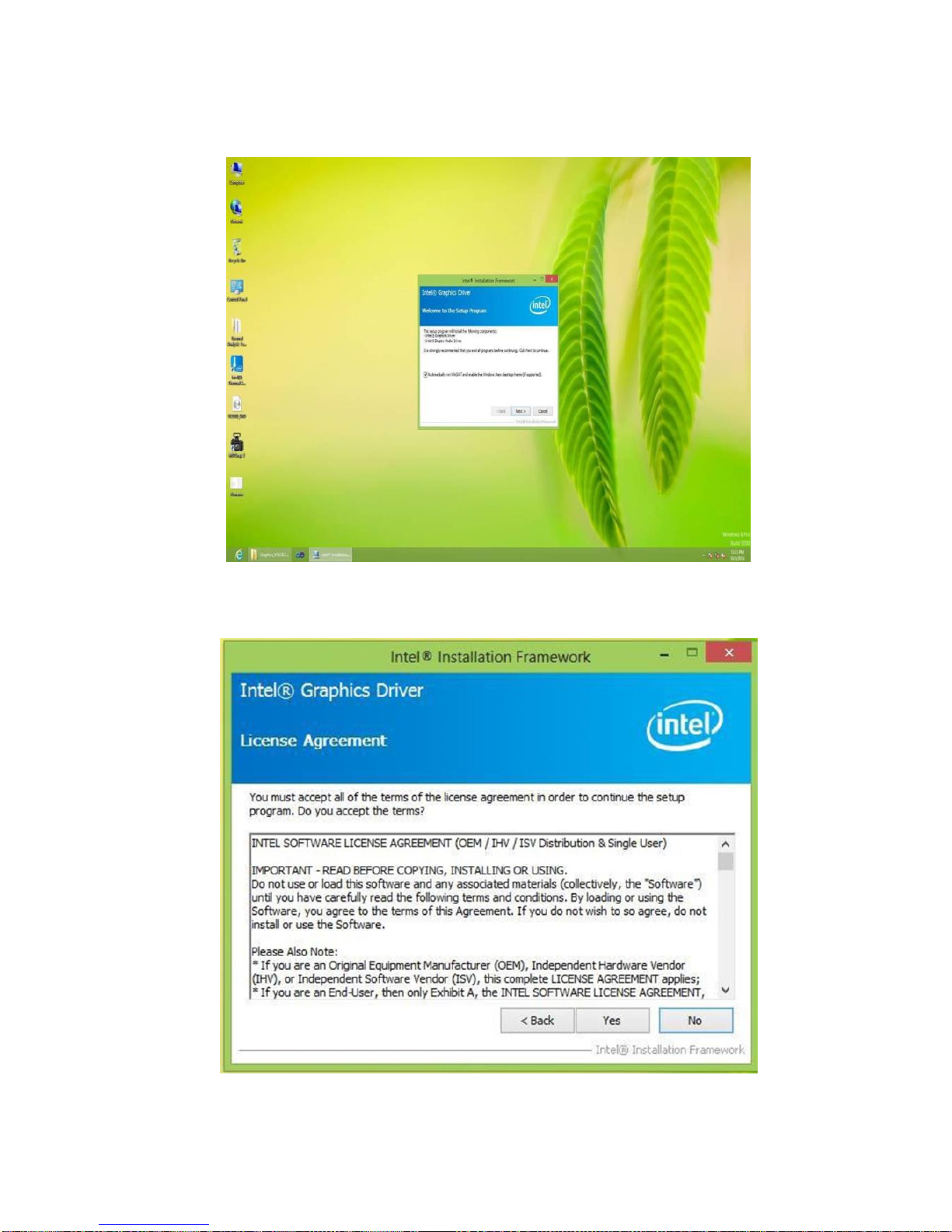

2. Installation window will pop up, click Next.
3. Click Yes to agree with the terms of license agreement.
Page 67
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 67 -

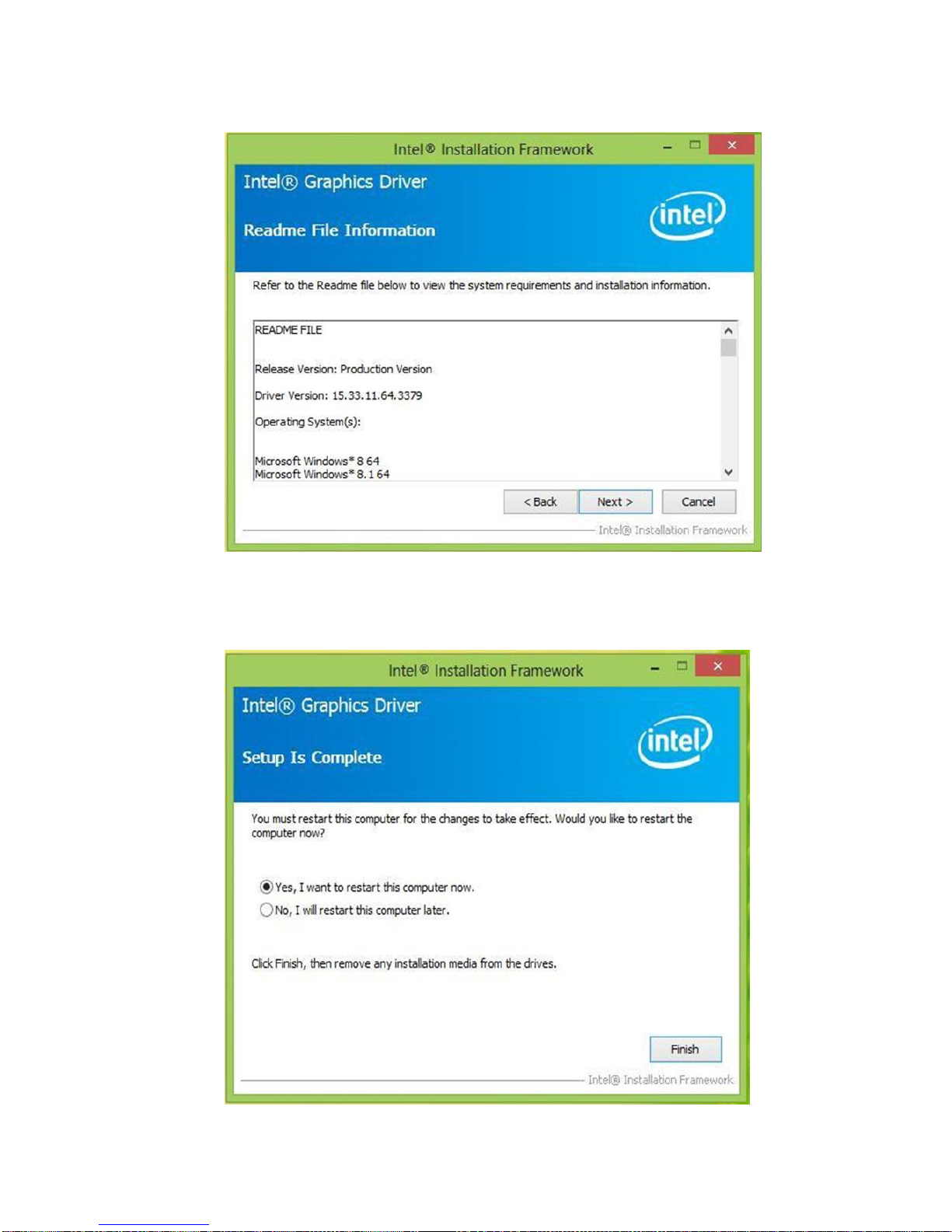

4. Click Next to install the driver.
5. After installation is complete, select “Yes, I want to restart this computer
now”, and then click Finish.
Page 68
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 68 -
3.3 Audio Driver Installation
The ALC283 series are high-performance 7.1+2 Channel High Definition Audio
Codecs providing ten DAC channels that simultaneously support 7.1 sound
playbacks, plus 2 channels of independent stereo sound output (multiple
streaming) through the front panel stereo outputs. The series integrates two
stereo ADCs that can support a stereo microphone, and feature Acoustic Echo
Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS)
technology.
The user must confirm which operating system is running on the IK32
Motherboard before installing the Audio driver.
Follow instructions below to install Audio driver.

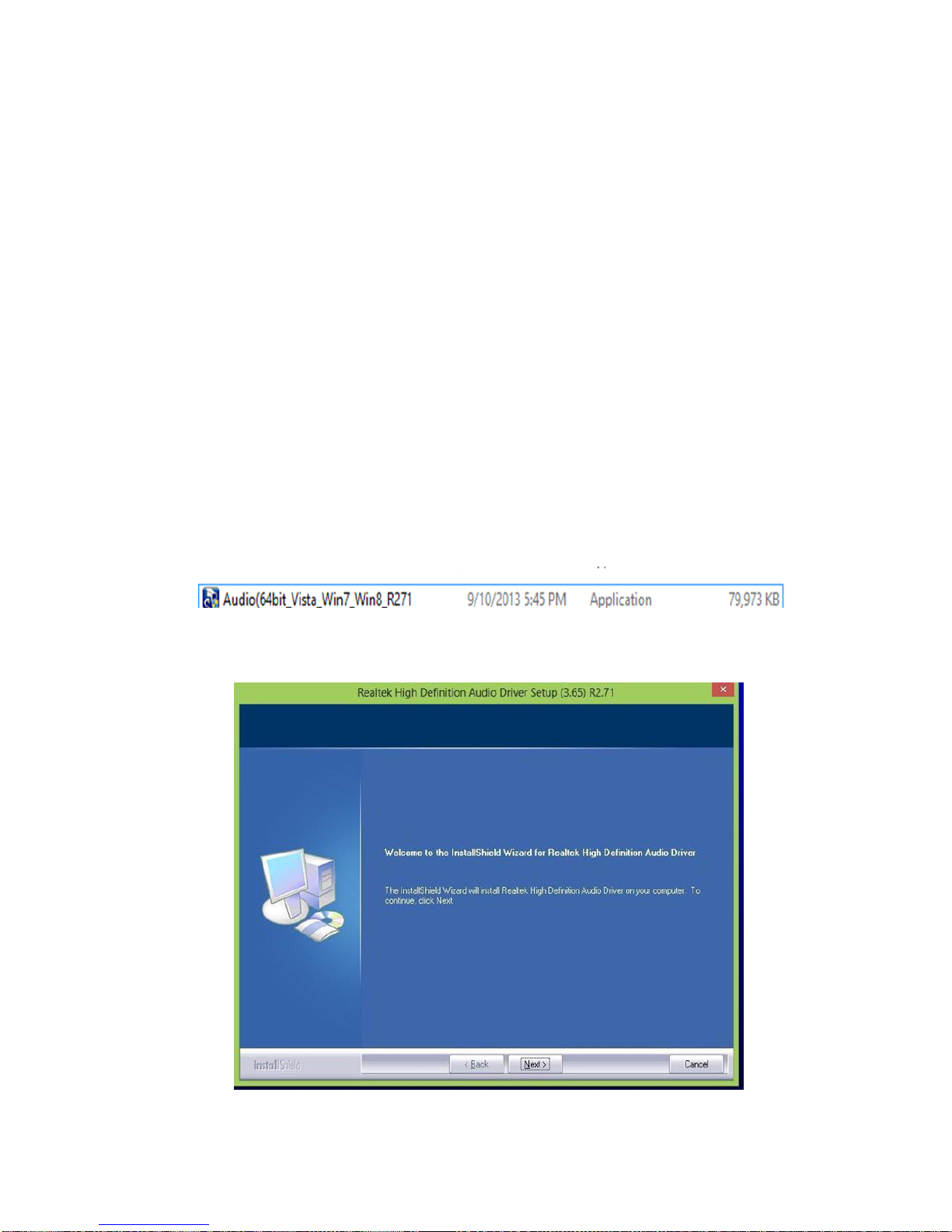

1. . Insert the CD that comes with the motherboard. Open the folder “Audio
Driver” and click Audio (64bit_Vista_Win7_Win8_R271) to execute the
setup.
2. Click Next to start the installation.
Page 69
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 69 -

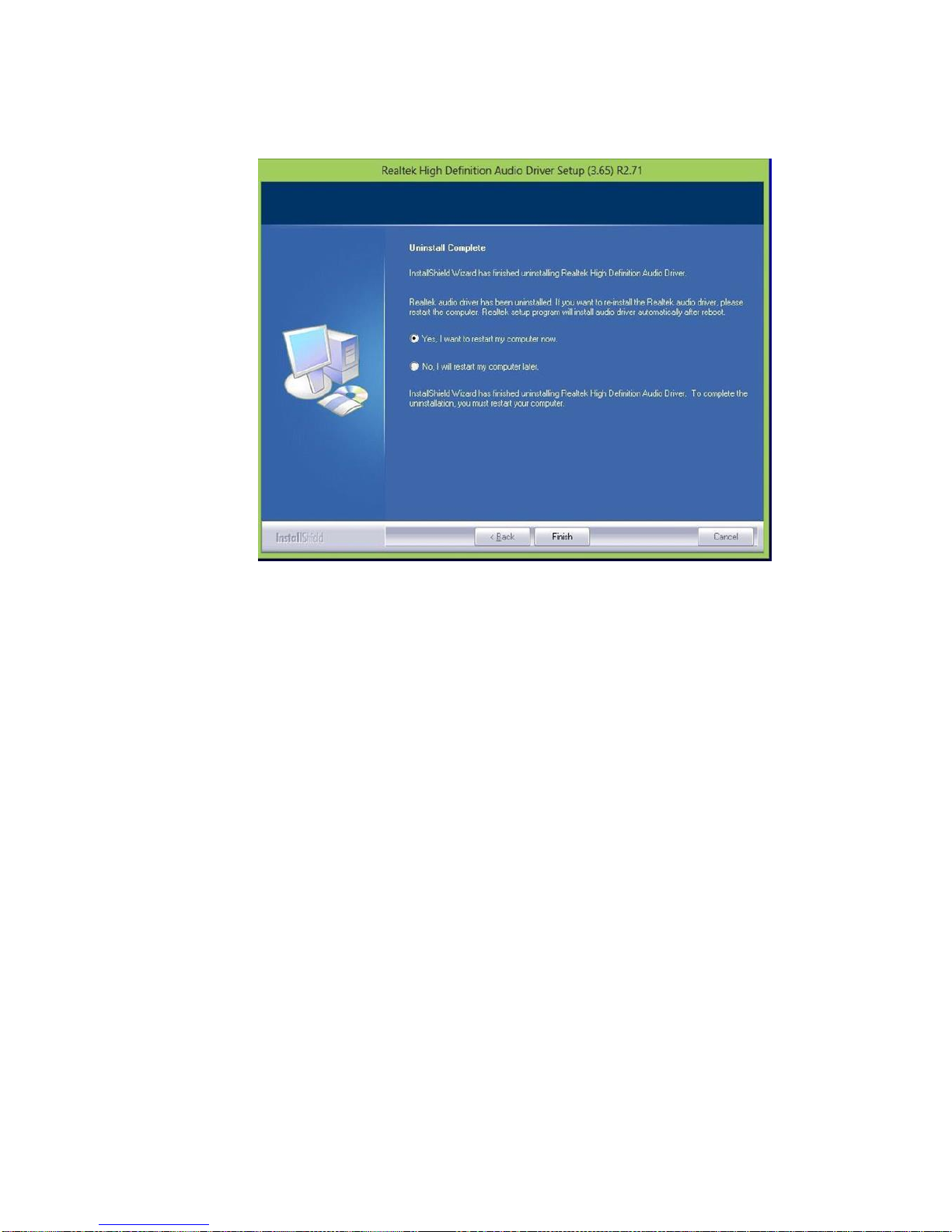

3. Click “Yes, I want to restart my computer now” to finish the installation.
Page 70
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 70 -
3. 4 Ethernet Driver Installation
Please confirm which operating system is used on the IK32 Motherboard before
installing the Ethernet drivers.
Follow instructions below to install Intel® I211IT Gigabit-LAN Controller + I219LM
Gigabit-LAN driver.

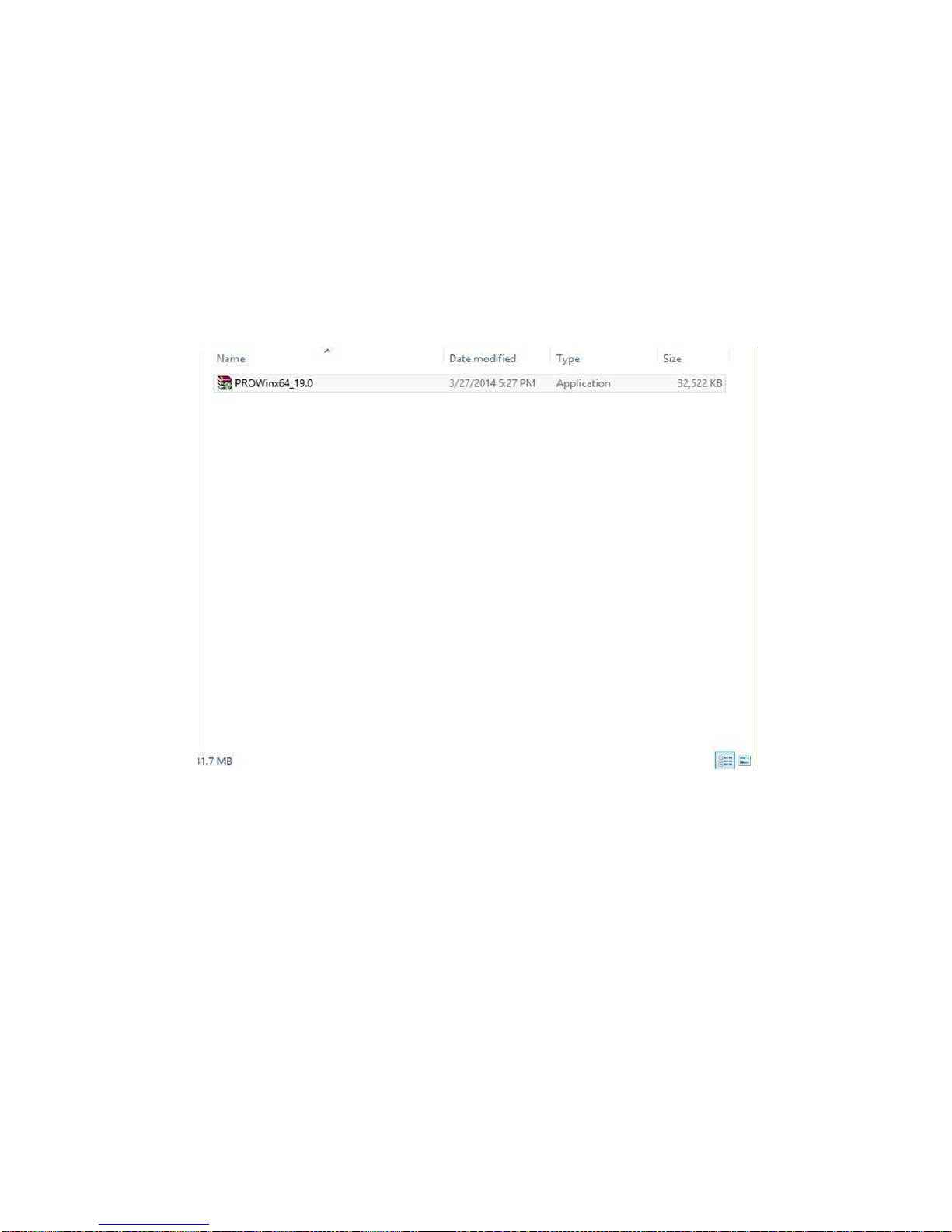

1. Open the Driver CD (included in the package) and open LAN driver folder.
Page 71
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 71 -

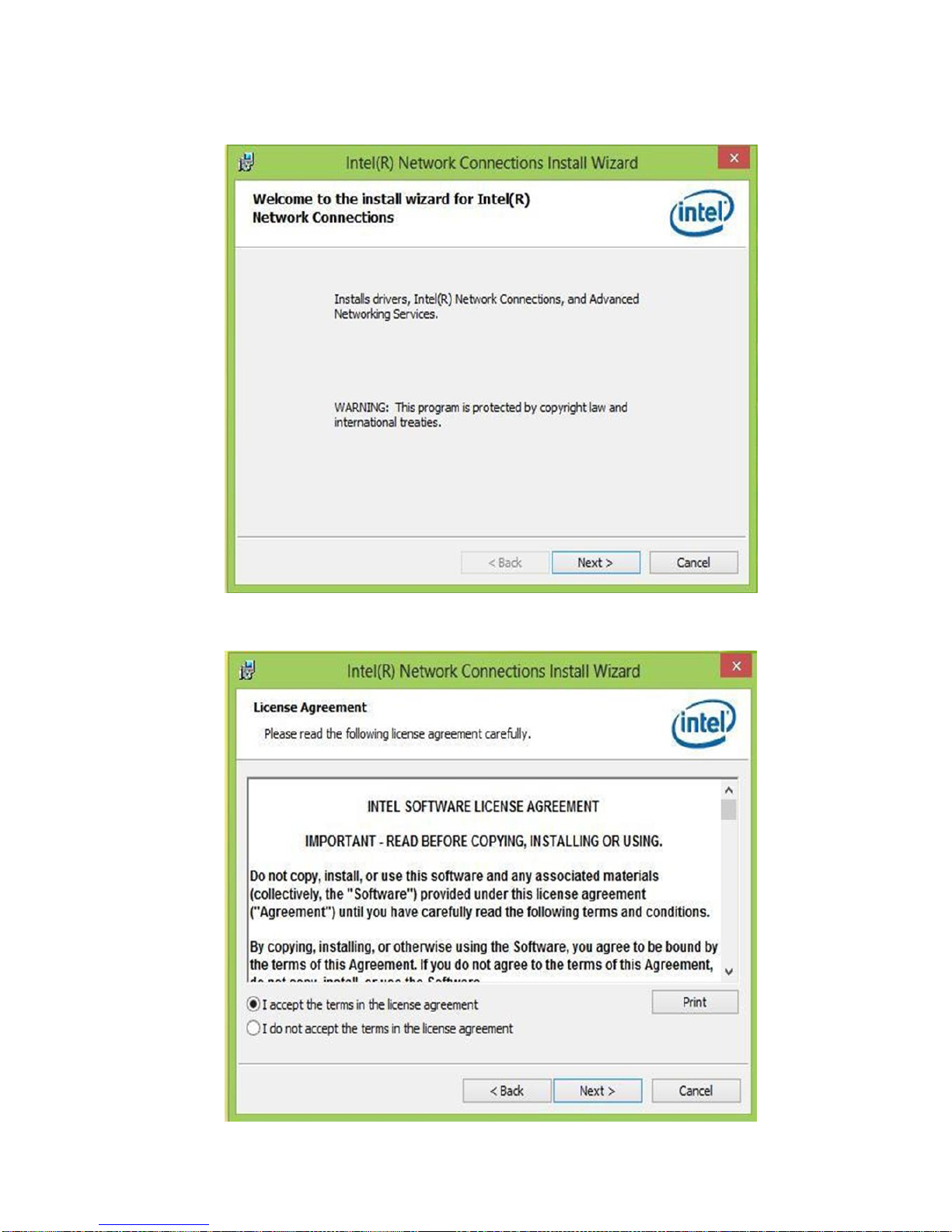

2. Extract the “PROWinX64_19.0” file and click Next to install the driver.
3. Click Next to agree with the license terms.
Page 72
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 72 -

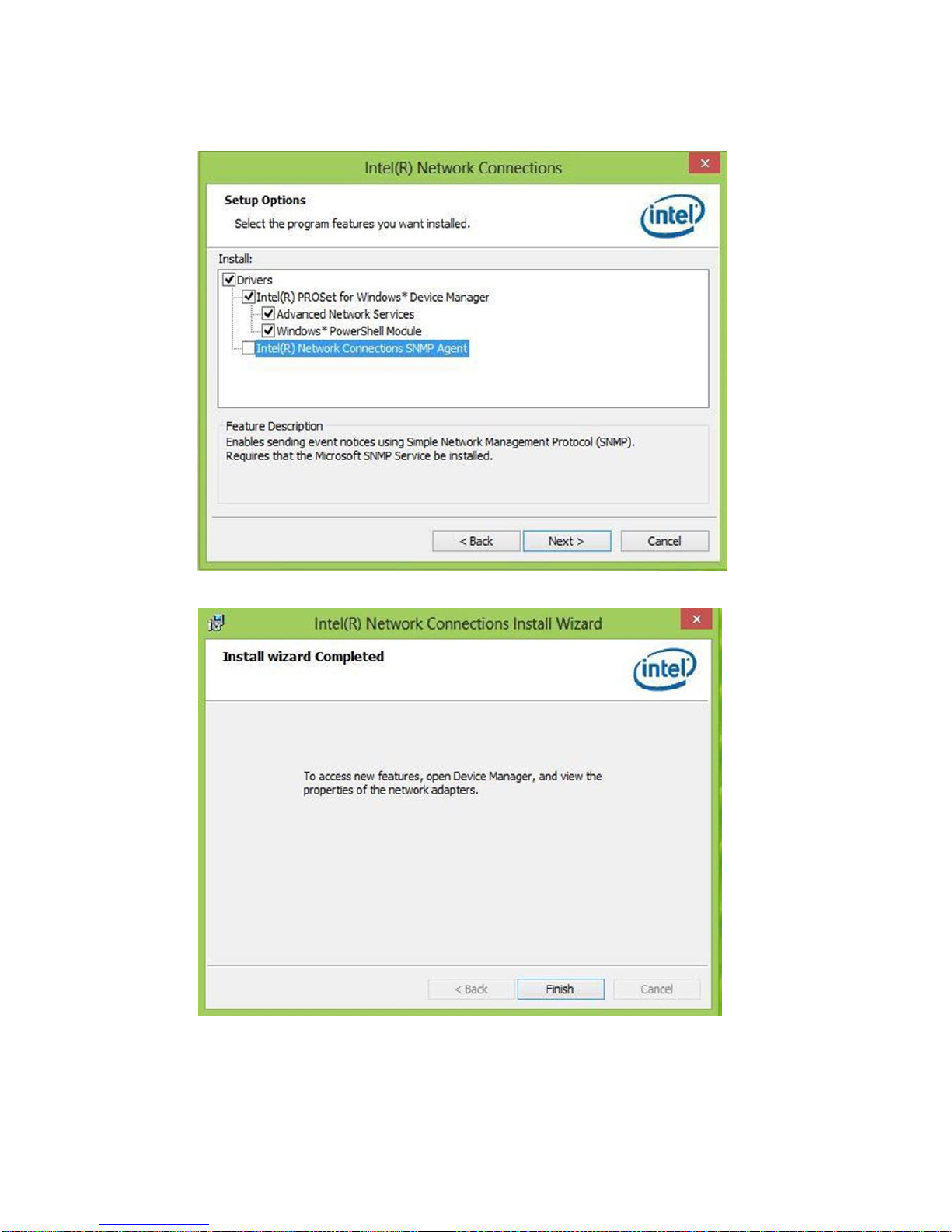

4. Click Next to install the driver.
5. Click Finish to complete the driver installation.
Page 73
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 73 -
3.5 Intel® Management Engine Software
This installation program installs the Intel® ME software components required for
the platform on which you are installing, and installs only those components that
match your platform’s capabilities.
Follow instructions below to install Intel® Management Engine Software.

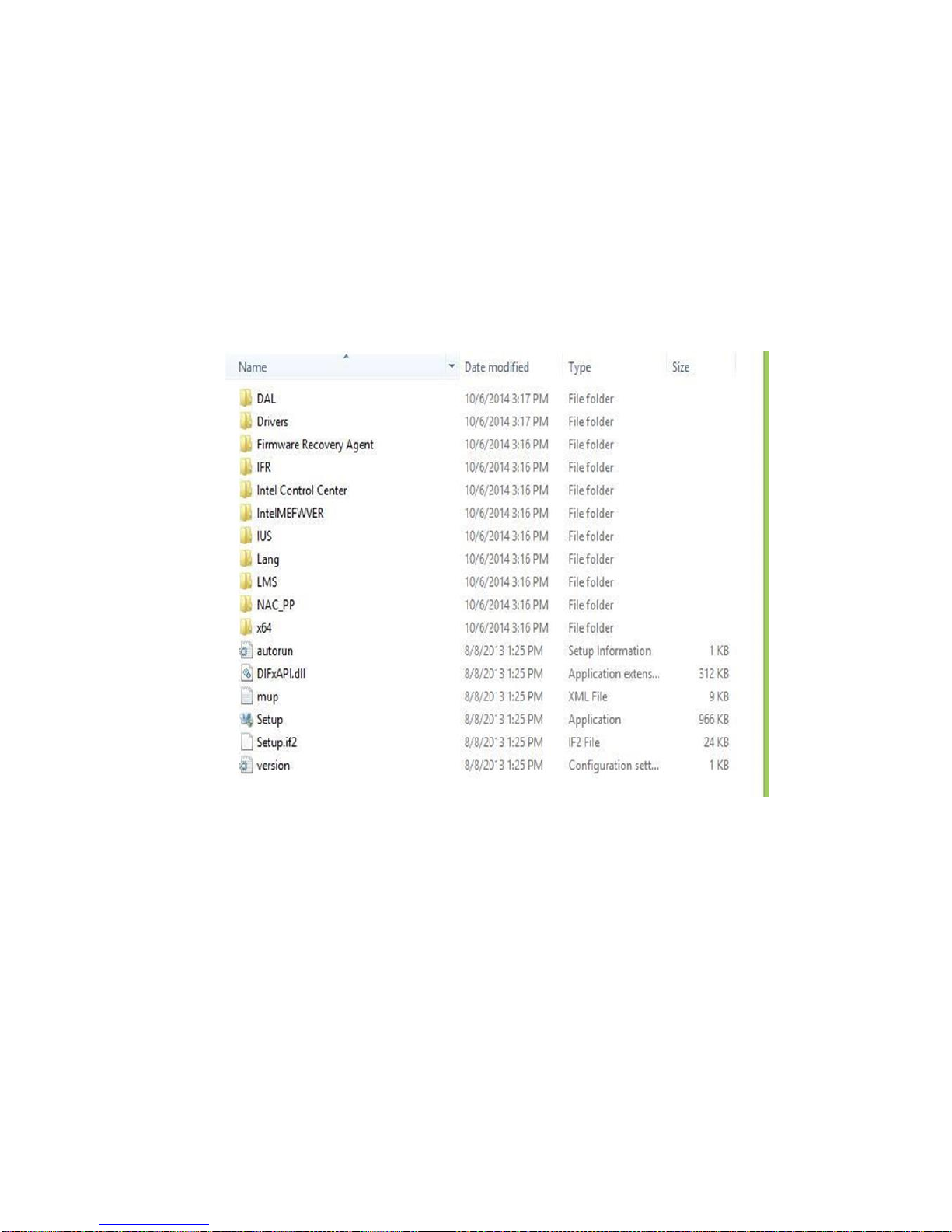

1. Insert the driver CD and select the “Intel ME 9.0” folder and click
“Setup.exe”.
Page 74
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 74 -
2. Click Next to continue the installation.
3. Click Yes to agree with the License terms.
Page 75
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 75 -

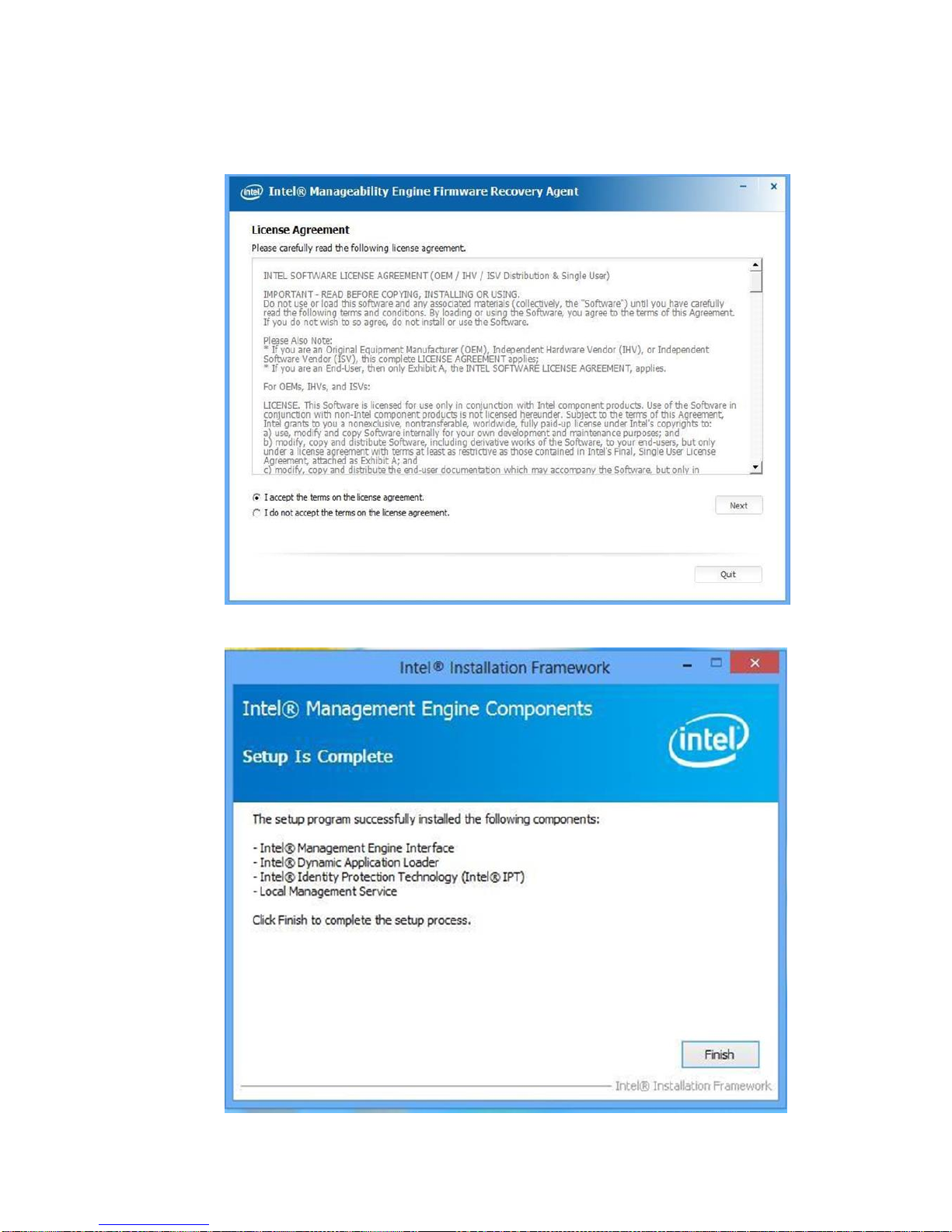

4. Choose “I accept the terms of the license agreement”, and click Next to
continue.
5. Click Finish to complete the software installation.
Page 76
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 76 -
3.6 Watchdog Driver Installation
For more details about Winmate Watchdog, please download Watchdog Guide
from Winmate Downloads Center:
http://dc.winmate.com.tw/_downloadCenter/2017/Embedded%20Computing/Wat
chdog%20Guide_IB_IH_IV_IK.pdf
Follow instructions below to install Watchdog driver.

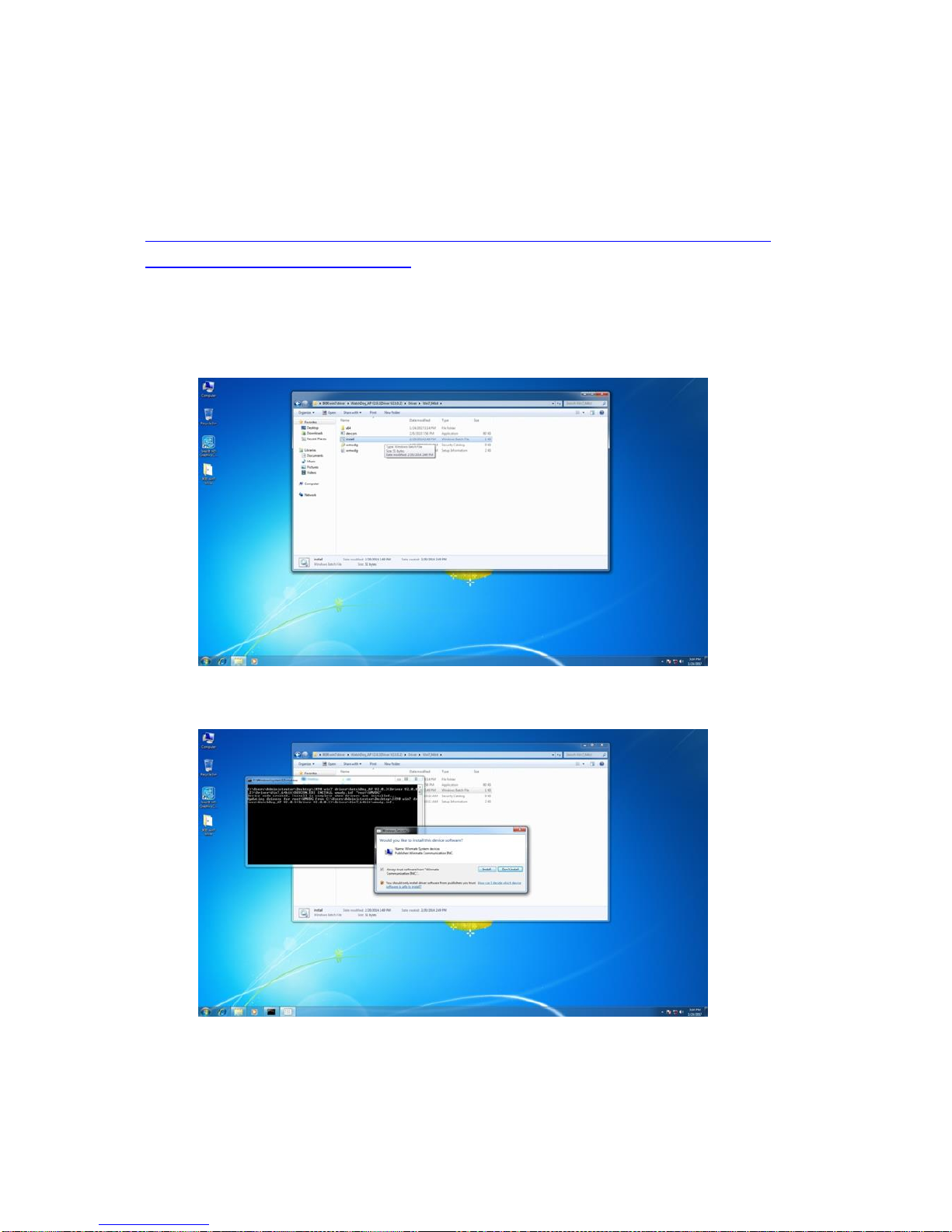

1. Open the Driver CD (included in the package) and select Watchdog driver.
2. Check message and select Install to begin the installation.
Page 77
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 77 -
3. Wait for installation to complete.
4. When installation is complete, press any key to close.
5. Open the Driver CD (included in the package) and select Watchdog AP.
Page 78
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 78 -
6. Select Next.
7. The installed storage location is displayed, select Next to continue.
8. Select Next to start the installation.
Page 79
USER MANUAL CHAPTER 4 DRIVER INSTALLATION
- 79 -
9. Wait for installation to complete.
10. When installation is completed, select Close to close the window.
Page 80
USER MANUAL CHAPTER 5 TECHNICAL SUPPORT
- 80 -
TECHNICAL SUPPORT
This chapter contains directory to technical
support.
5.1 Drivers
5.2 Software Development Kit (SDK)
Page 81
USER MANUAL CHAPTER 5 TECHNICAL SUPPORT
- 81 -
CHAPTER 5: TECHNICAL SUPPORT
This chapter includes the directory for technical support. Free technical support is
available from our engineers every business day. We are always ready to give
advice on application requirements or specific information on the installation and
operation of any of our products. If any problem occurs immediately contact us.
5.1 Drivers
The list of drivers available for IK32 Motherboard:
Item
Driver
1
Chipset Driver
2
Graphics Driver
3
Audio Driver
4
Ethernet Driver
5
Intel® Management Engine Software
6
Watchdog Driver
To find the Drivers, please refer to the Driver CD that comes in the package or
contact us.
5.2 Software Development Kit (SDK)
The list of SDK available for IK32 Motherboard
Item
File Type
Description
1
SDK
Watchdog SDK
To find the SDK, please refer to the Driver CD that comes in the package or
contact us
Page 82
NOTE
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
Page 83
NOTE
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
Page 84
Loading...
