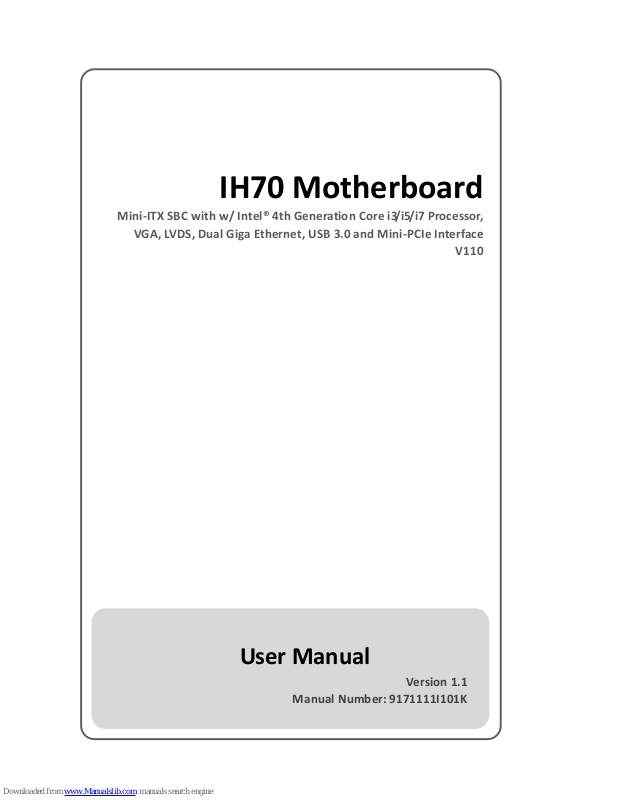

IH70 Motherboard
Mini-ITX SBC with w/ Intel® 4th Generation Core i3/i5/i7 Processor,
VGA, LVDS, Dual Giga Ethernet, USB 3.0 and Mini-PCIe Interface
V110
User Manual
Version 1.1
Manual Number: 9171111I101K
Page 2
IH70 Motherboard User Manual
ii
Preface
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in
any form or by any means, electronic or mechanical, for any purpose, without the
prior written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of
the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties
that these products are free from patent, copyright, or mask work right infringement,
unless otherwise specified. Applications that are described in this manual are for
illustration purposes only. We make no representation or warranty that such
application will be suitable for the specified use without further testing or
modification.
Warranty
We warrant that each of its products will be free from material and workmanship
defects for a period of one year from the invoice date. (Standard is one year,
extended warranty will need to discuss with our sales representatives. If the
customer discovers a defect, we will, at its option, repair or replace the defective
product at no charge to the customer, provided it is returned during the warranty
period of one year, with transportation charges prepaid. The returned product must
be properly packaged in its original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial
numbers the third and fourth two digits give the year of manufacture, and the fifth
digit means the month (e. g., with A for October, B for November and C for
December).
For example, the serial number 1W11Axxxxxxxx means October of year 2011.
Page 3
IH70 Motherboard User Manual
iii
Packing List
Before using this Motherboard, please make sure that all the items listed below are
present in your package:
IH70 SBC Motherboard
User Manual & Driver CD
Optional Accessories:
Power Cord
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Customer Service
We provide a service guide as below for any problem by the following steps: First,
contact your distributor, sales representative, or our customer service center for
technical support if you need additional assistance. You need to prepare the
following information before you call:
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Detailed problem description
The exact wording of any error messages
In addition, free technical support is available from our engineers every business day.
We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products. Please do not
hesitate to call or e-mail us.
Page 4
IH70 Motherboard User Manual
iv
Safety Precautions
Warning!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronic
personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static-shielded bag when they are
not in the chassis.
Page 5
IH70 Motherboard User Manual
v
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user- manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not
use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or
letting it fall could cause damage.
7. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
8. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
9. All cautions and warnings on the equipment should be noted.
10. If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient over-voltage.
11. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according
to the user’s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
Page 6
IH70 Motherboard User Manual
vi
Revision History
Manual
Version
Board
Version
Released
Date
Note
Author
1.0
V100
2014.10.7
Initial Draft
Patrick Hsien
1.1
V110
2015.12.30
Revised: BIOS Configuration,
Driver Installation,
Pin Assignment and Jumper
Setting
Austin,
edited by Anna
Kiseleva
Page 7
IH70 Motherboard User Manual
vii
CONTENTS
PREFACE ………………………………………………………………………………………..II
CHAPTER 1 GENERAL INFORMATION ................................................... 2
1.1 INTRODUCTION ....................................................................................... 2
1.2 FEATURES .............................................................................................. 2
1.3 MOTHERBOARD SPECIFICATIONS ................................................................ 3
CHAPTER 2 HARDWARE INSTALLATION ................................................ 7
2.1 MEMORY MODULE (SO-DIMM) INSTALLATION ........................................... 7
2.2 I/O EQUIPMENT INSTALLATION .................................................................. 8
2.2.1 12V DC-IN ...................................................................................................... 8
2.2.2 Serial COM Ports ............................................................................................ 8
2.2.3 VGA ................................................................................................................ 8
2.2.4 Ethernet Interface .......................................................................................... 8
2.2.5 USB Ports ....................................................................................................... 8
2.2.6 Audio Function ............................................................................................... 9
2.3 JUMPERS AND CONNECTORS .................................................................... 10
2.3.1 Component Side ........................................................................................... 10
2.3.2 Solder Side ................................................................................................... 11
2.3.3 I/O Side ........................................................................................................ 12
2.4 JUMPER SETTINGS ................................................................................. 13
2.4.1 Jumper List ................................................................................................... 13
2.4.2 Setting Jumpers ........................................................................................... 14
2.5 CONNECTORS AND PIN ASSIGNMENT ........................................................... 17
2.5.1 Front Side Setting Description ...................................................................... 17
2.5.2 I/O Side ........................................................................................................ 32
CHAPTER 3 AMI BIOS SETUP .............................................................. 38
3.1 WHEN AND HOW TO USE BIOS SETUP ........................................................ 38
3.2 BIOS FUNCTIONS .................................................................................... 39
3.2.1 Main Menu .................................................................................................. 39
3.2.2 Advanced Menu ........................................................................................... 41
3.2.3 Chipset Menu ............................................................................................... 56
3.2.4 Boot Menu ................................................................................................... 63
3.2.5 Security Menu .............................................................................................. 65
3.2.6 Save & Exit ................................................................................................... 66
Page 8
IH70 Motherboard User Manual
viii
3.3 USING RECOVERY WIZARD TO RESTORE COMPUTER ....................................... 68
CHAPTER 4 DRIVER INSTALLATION ..................................................... 71
4.1 INTEL CHIPSET DRIVER INSTALLATION........................................................... 71
4.2 GRAPHICS DRIVER INSTALLATION ................................................................ 73
4.3 AUDIO DRIVER INSTALLATION ..................................................................... 76
4.4 ETHERNET DRIVER INSTALLATION ................................................................ 78
4.5 INTEL® MANAGEMENT ENGINE SOFTWARE INSTALLATION ............................... 81
4.6 FINTEK COM PORT DRIVER INSTALLATION ................................................... 84
4.7 USB 3.0 DRIVER INSTALLATION (FOR WINDOWS 7) ....................................... 87
CHAPTER 5: TECHNICAL SUPPORT DOCUMENTS ................................. 92
5.1 DIGITAL I/O SDK .................................................................................... 92
5.2 WATCHDOG SDK ..................................................................................... 92
Page 9
General Information
This chapter includes the IH70 SBC Motherboard
background information.
Sections include:
1.1 Introduction
1.2 Features
1.3 Motherboard Specifications
Page 10
IH70 Motherboard User Manual
2
Chapter 1 General Information
1.1 Introduction
Thank you for choosing the IH SBC 70 motherboard. The motherboard is
integrated with Intel®QM87 chipset, 17x17mm, and Socket G3 Intel® 4th
Generation Core i7/i5/i3 Processor. The Intel®4th Generation Core™ processor
based on 64-bit, multi-core processors built on 22-nanometer process
technology. The processors are designed for a two-chip platform consisting of a
processor and Platform Controller Hub (PCH) to be used with the Mobile chipset.
IH70 is equipped with rich peripheral connectors: three Mini-PCIe I/O ports, two
Serial ATA III (6Gb/s)connectors, six serial ports (three connectors; three pin
headers), six super-speed USB 3.0 connectors (four connectors; two pin headers )
and four hi-speed USB 2.0 connectors(four pin headers). Additionally, IH70 SBC
features build-in a 12V DC-IN power adapter.
Thus, this model can be used in many applications in the industrial computer
market, such as Gaming, POS, KIOSK, Industrial Automation, and Programmable
Control System. Compact design and high performance meet the demanding
requirements of modern business and industrial applications.
1.2 Features
Mini-ITX Form Factor ( 170mm x 170mm)
Support Socket G3 Intel® 4
th
Generation Core i3/i5/i7 Processor
System memory up to 16GB DDR3L 1333/1600, SO-DIMM
Intel
®
QM87 Chipset
Intel
®
HD Graphics 4600. Integrated Graphics Engine.
Intel
®
I210IT Gigabit-LAN Controller + I218LM Gigabit-LAN PHY r
3 x Mini PCIe, 6 x COM, 6 x USB3.0, 4 x USB 2.0 ,2 x SATAIII, 8 x GPIO ports,
1 x HDMI,1xeDP(By BOM Option),1 x PCIe x 16, 1 x LPT port
Page 11
IH70 Motherboard User Manual
3
1.3 Motherboard Specifications
CPU Type
Intel® 4th Generation Core i3/i5/i7 Processor
Chipset
Intel® QM87
BIOS
AMI System BIOS
Graphic
Intel® HD Graphics 4600 support DX11, OGL4.0
LCD interface
Dual-channel 24 bit LVDS Up to 1440 x 900 @ 60Hz
Resolution
VGA mode: Up to 1920 x 1200 @ 60Hz
DVI: 1920 x 1200 @ 60Hz
HDMI:1920 x 1200 @ 60Hz
LVDS :1920 x 1200 @ 60Hz ; co-lay eDP(by BOM Option)
LAN
2 x Giga LAN (Intel® I210IT Gigabit-LAN Controller + I218LM
Gigabit-LAN PHY )
Memory Type
2 x SO-DIMM socket, supports up to 16GB DDR3L 1333/1600
Super I/O
Fintek F81867
Adio
Realtek ALC886 HD Audio Codec
USB
6 ports, USB 3.0 (4 x USB Connector, 2 x USB pin-header )
4 ports, USB 2.0 (4 x USB pin-header )
Edge Connectors
1 x DC-IN Jack (+12V)
1 x VGA out connector
2 x Gigabit LAN RJ-45
1 x RS232/422/485
2 x RS232
4 x USB 3.0 connector
2 x PS2
1 x Audio Jack(Line in, Line out, Mic in)
On Board
Pin-Header
Connectors
3 x RS-232 (COM2.COM5.COM6) 2x5 pin-header
4 x USB 2.0
2 x USB3.0
1 x DVI/HDMI by DF-13 20-pin connector
1 x LVDS by DF-13 40-pin connector
1 x eDP by DF-13 20-pin connector(Optional)
2 x SATA III
1 x 2x4-pin wafer for SATA power
2 x 2-pin pin-header for speaker (with Amplifier): Left, Right
1 x 10-pin pin-header for DIO
1 x 3-pin digital panel backlight brightness controller
1 x 7-pin inverter
1 x 2x2-pin DC-in 12V connector
1 x 10-pin wafer for Front Panel(2x5)
2 x 2-pin wafer for +5V external power (Red)
1 x 2-pin wafer for 12V external power (Yellow)
1 x 3-pin pin-header for CPU Fan (smart fan)
1 x 20-pin box header for LPT Port
1 x 6-pin wafer for external SIM Card daughter board
Power Connector
Input: 4-pin power-input connector
Expansion Slots
3 x Mini PCIe slot
1 x PCIe x 16 slot
Form Factor
Mini-ITX
Dimensions
170mm x 170mm
Mechanical &
Environmental
Operating temperature: 0°C to 60°C
Shock: Operating 15G, 11ms duration
Vibration: Operating 5 Hz~500Hz / 1Grms / 3 Axis
Certification: CE, FCC, RoHS
Page 12
IH70 Motherboard User Manual
4
Function block (V100)
Page 13
IH70 Motherboard User Manual
5

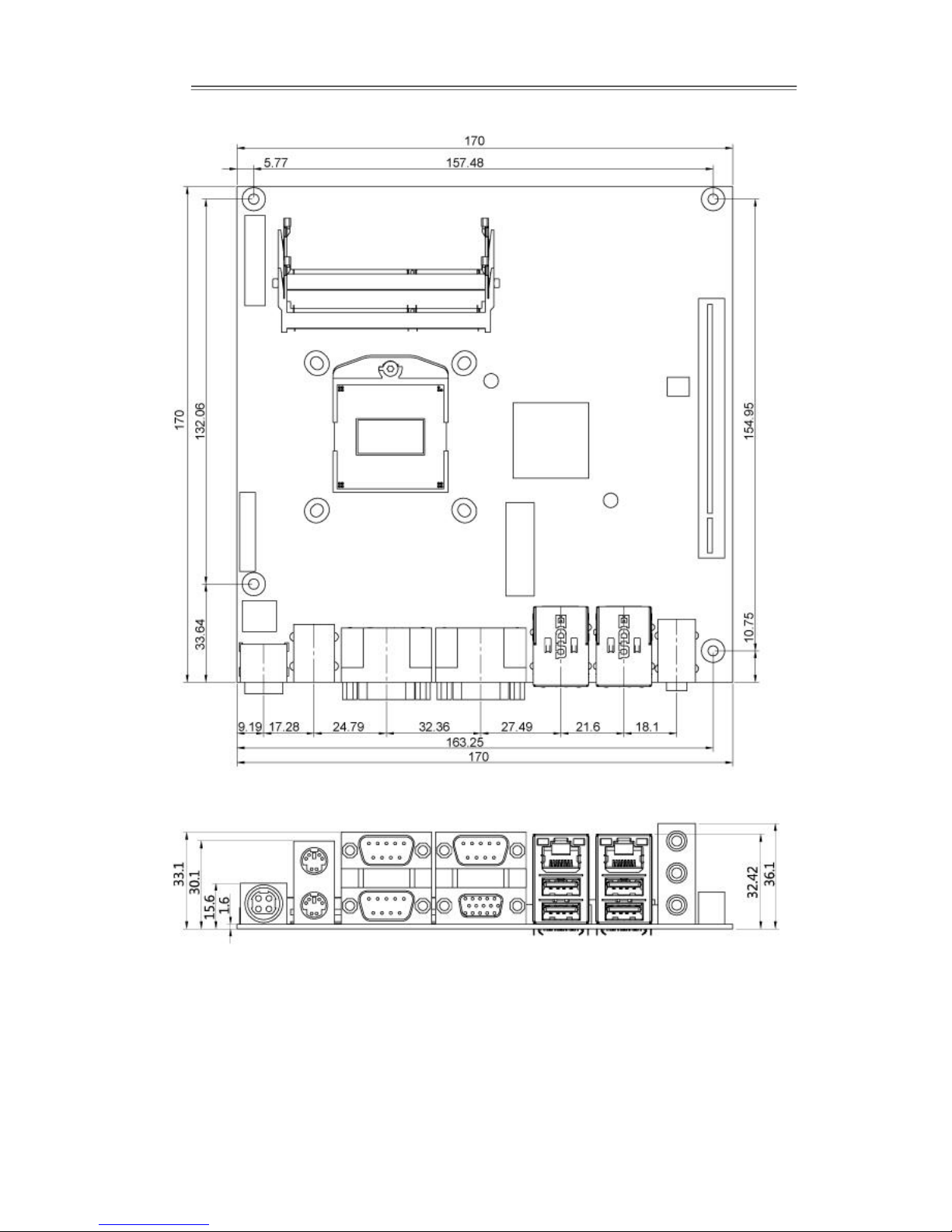

Board dimensions (V100)
Page 14
IH70 Motherboard User Manual
6
Hardware Installation
This chapter provides information on how to use
jumpers and connectors on the IH 70 SBC
Motherboard. Be cautious while working with
these modules. Please carefully read the content
of this chapter in order to avoid any damages.
The sections include:
2.1 Memory Module Installation
2.2 I / O Equipment Installation
2.3 Jumpers and Connectors
2.4 Jumper Settings
2.5 Connectors and Pin Assignment
Page 15
IH70 Motherboard User Manual
7
Chapter 2 Hardware Installation
2.1 Memory Module (SO-DIMM) Installation

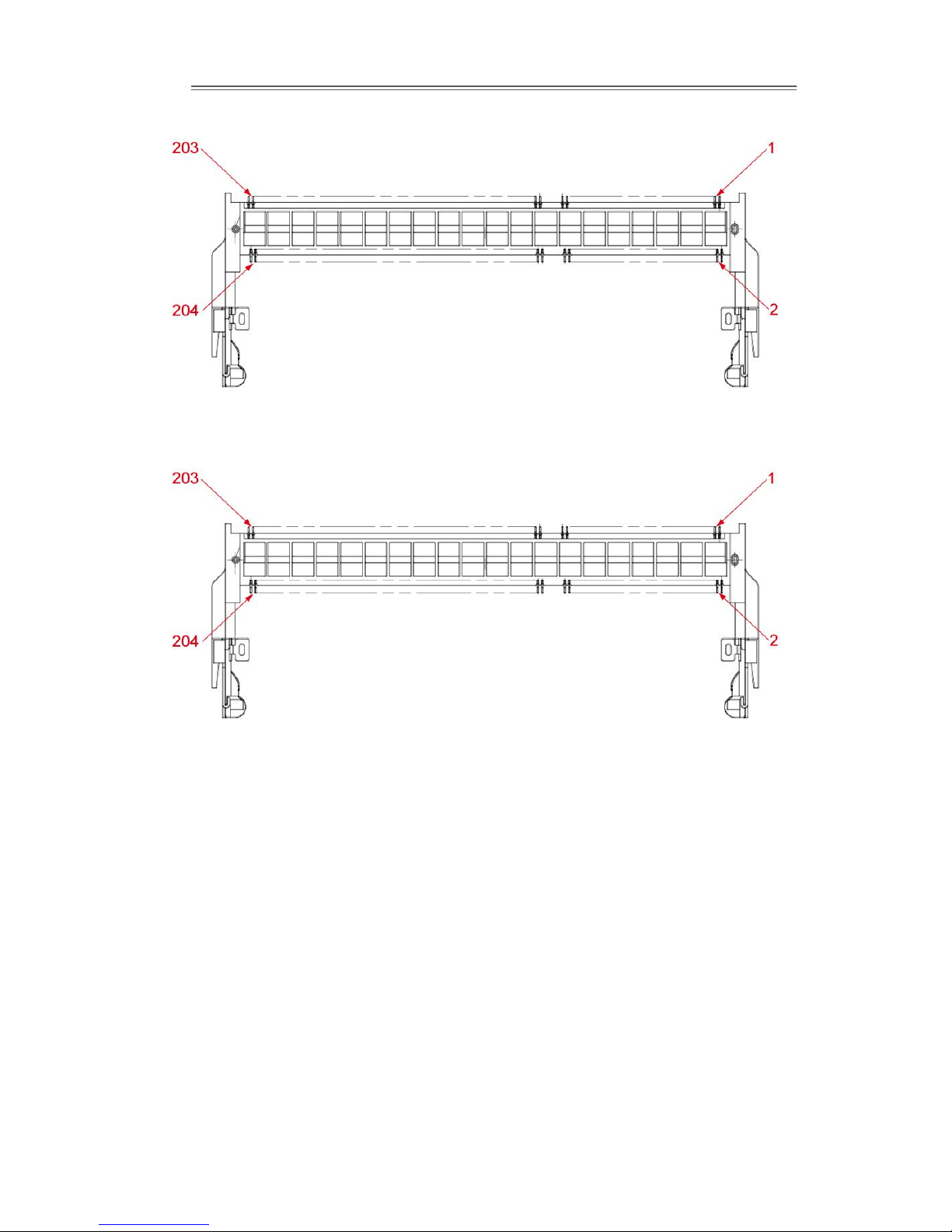

The IH70 SBC Motherboard has two 204-pin SODIMM slot. The socket supports up to
8GB DDR3L 1333/1600 SDRAM. When installing the –memory unit, please follow the
steps below:
Steps 1 Firmly insert the SO-DIMM at an angle of about 30-degree into the slot. Align
the SO-DIMM with the slot until it is fully inserted. The notch on the SO-DIMM
should match the break on the slot.

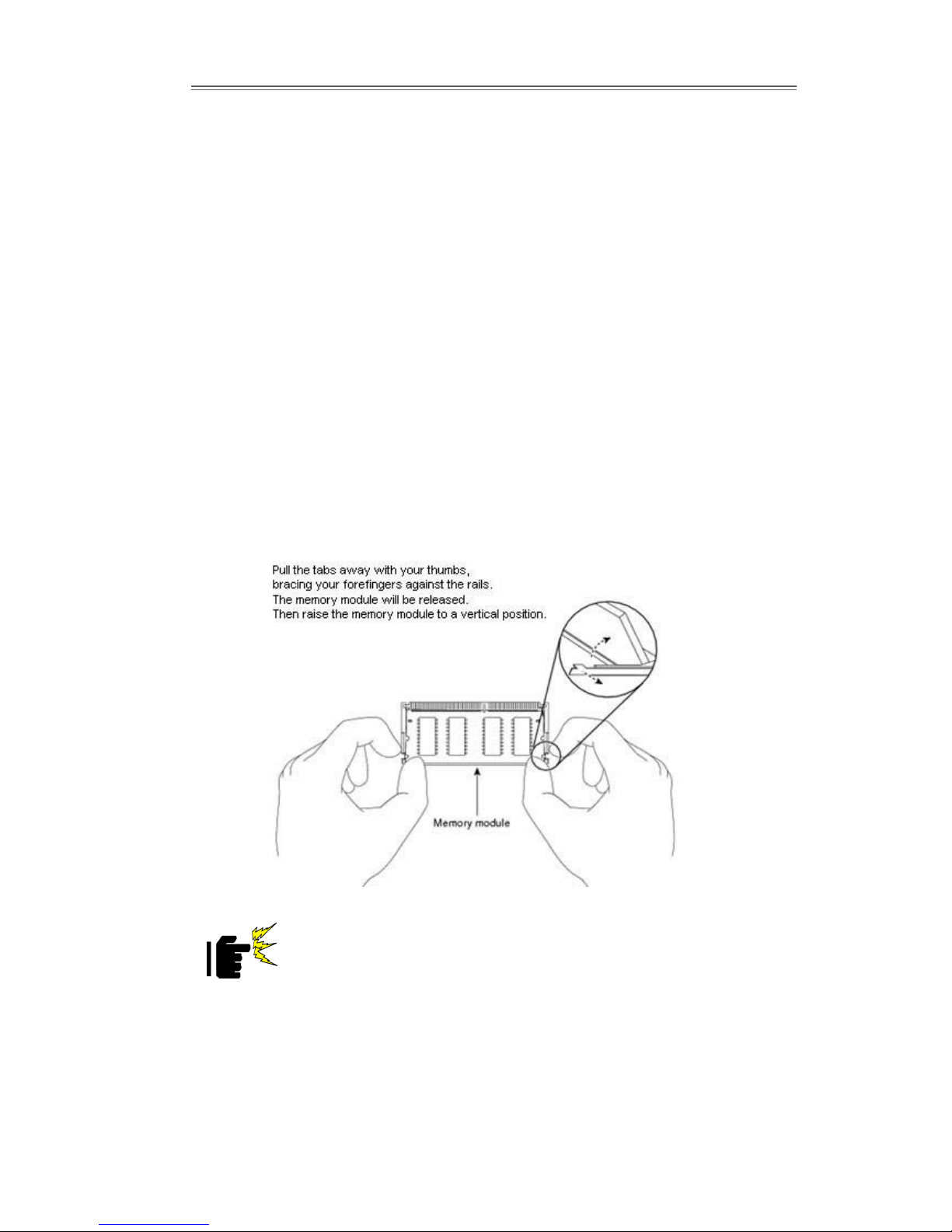

Step 2 Press downwards on SO-DIMM until the retaining clips at both ends fully snap
closed and the SO-DIMM is properly seated.
.
The SO-DIMM only fits in one correct orientation. It will cause
permanent damage to the development board and the SO-DIMM if
the SO-DIMM is forced into the slot at the incorrect orientation.
Page 16
IH70 Motherboard User Manual
8
2.2 I/O Equipment Installation
2.2.1 12V DC-IN
The IH 70 SBC Motherboard allows plugging 12V DC-IN jack on the board without
another power module converter under power consumption by Intel® 4th
Generation Core i7/i5/i3 Processor and QM87 chipset.
2.2.2 Serial COM Ports
Three RS-232 connectors build in the rear I/O. One optional COM ports support
RS-422/485. When an optional touch-screen is ordered with PPC, serial com port can
connect to a serial or an optional touch-screen
2.2.3 VGA
The Motherboard has one VGA port that can be connected to an external CRT/ LCD
monitor. Use VGA cable to connect to an external CRT / LCD monitor, and connect the
power cable to the outlet. The VGA connector is a standard 15-pin D-SUB connector.
2.2.4 Ethernet Interface
The Motherboard is equipped with Intel® 82574L Gigabit-LAN Controller + I218LM
Gigabit-LAN PHY which is fully compliant with the PCI 10/100/1000 Mbps Ethernet
protocol compatible. It is supported by major network operating systems. The
Ethernet ports provide two standard RJ-45 jacks.
2.2.5 USB Ports
Eight USB devices (four with pin headers) may be connected to the system though an
adapter cable. Various adapters may come with USB ports. USB usually connect the
external system to the system. The USB ports support hot plug-in connection.
Whatever, you should install the device driver before you use the device.
Page 17
IH70 Motherboard User Manual
9
2.2.6 Audio Function
The Audio 7.1 channel capabilities are provided by a Realtek ALC886 chipset
supporting digital audio outputs. The audio interface includes three jacks: line-in,
line-out and mic in.
Page 18
IH70 Motherboard User Manual
10

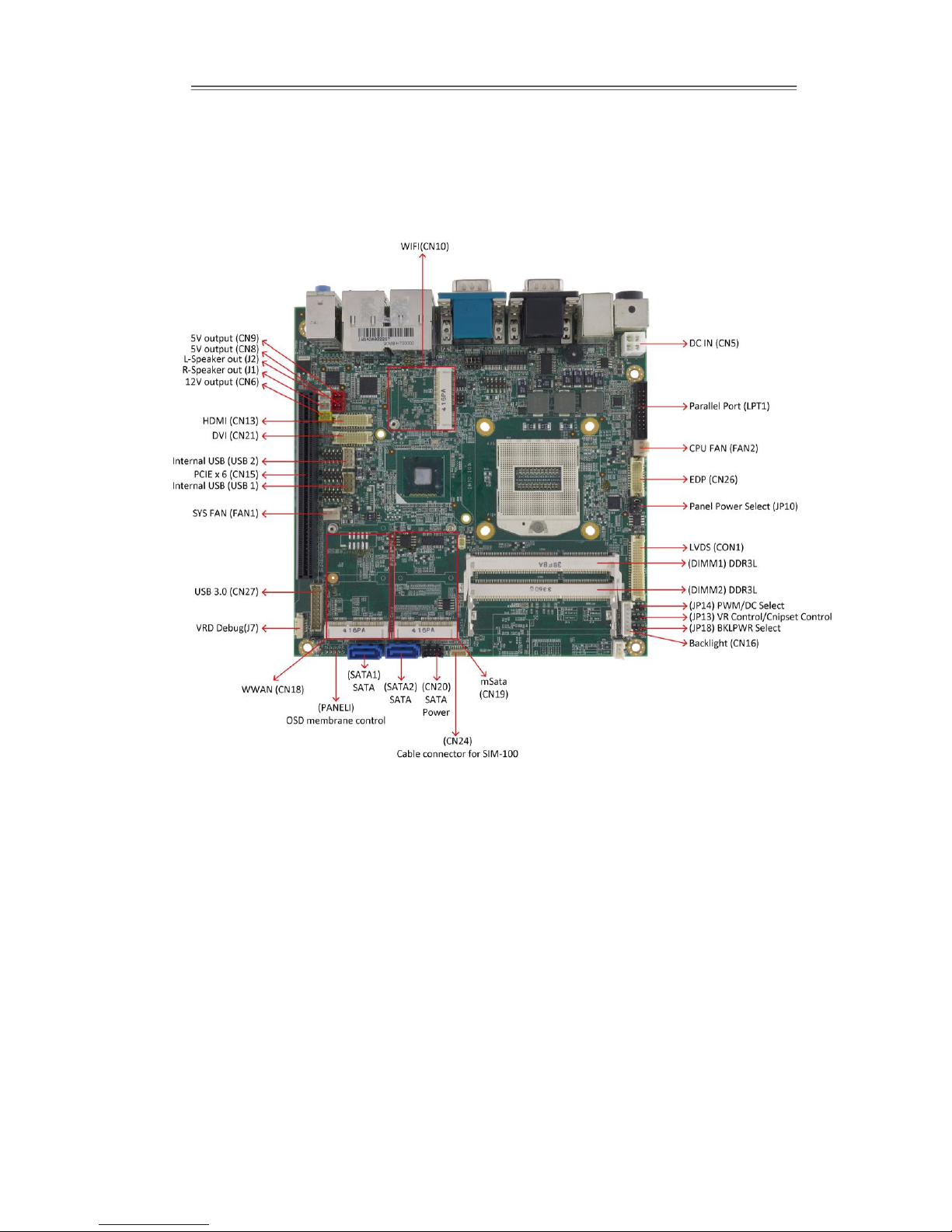

2.3 Jumpers and Connectors
2.3.1 Component Side
Page 19
IH70 Motherboard User Manual
11

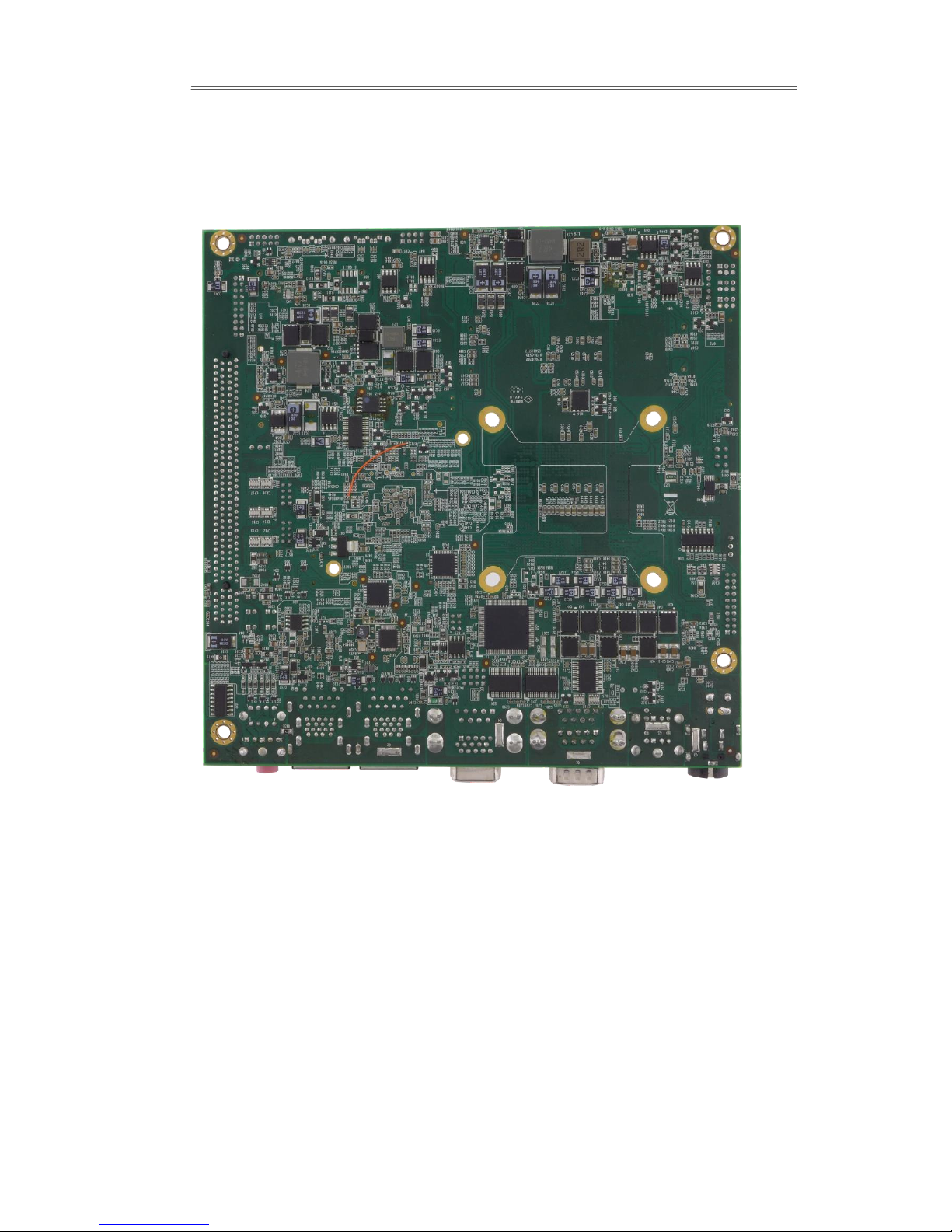

2.3.2 Solder Side
Page 20
IH70 Motherboard User Manual
12

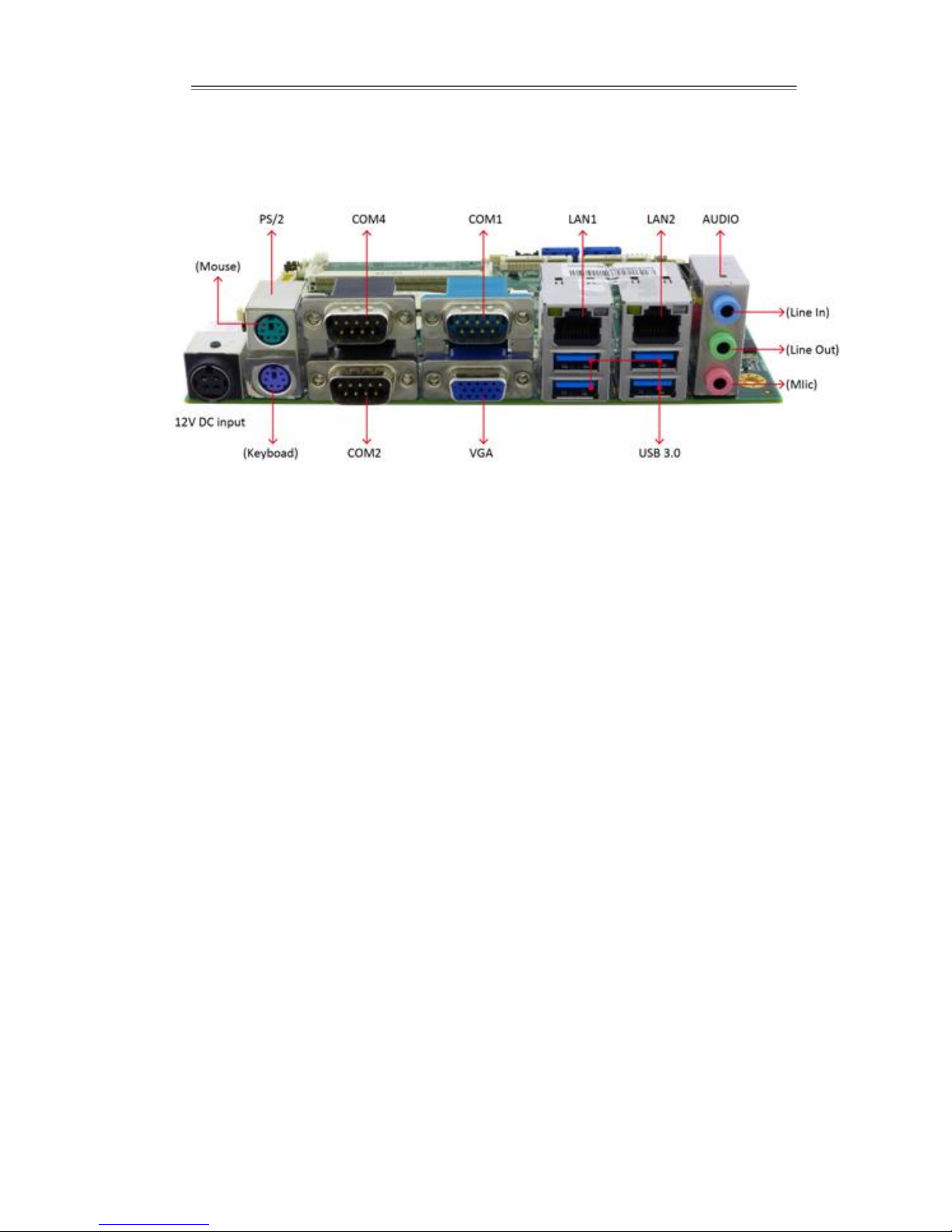

2.3.3 I/O Side
Page 21
IH70 Motherboard User Manual
13
2.4 Jumper Settings
This section explains how to set jumpers for correct configuration of the
motherboard.
Note
A pair of needle nose pliers may be helpful when working with jumpers.
If you have any doubts about the best hardware configuration for your
application, contact your local distributor or sales representative before
you make any changes. Generally, you simply need a standard cable to
make most connections.

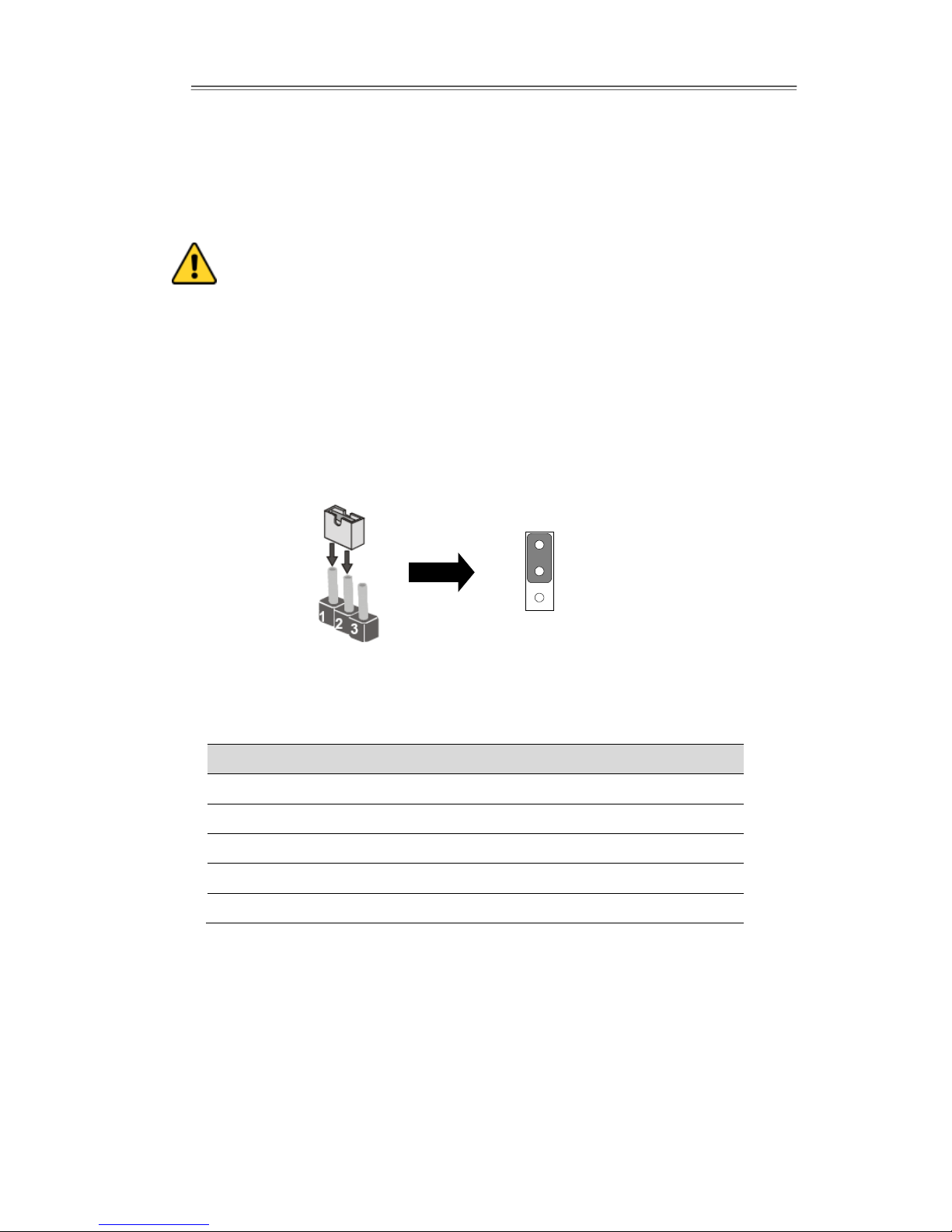

The jumper setting diagram is shown below. When the jumper cap is placed on both
pins, the jumper is SHORT. The illustration below shows a 3-pin jumper; pins 1 and 2
are short. If you remove the jumper cap, the jumper is OPEN.
2.4.1 Jumper List
The following table shows the function of each of the board's jumpers.
Label
Function
Note
JP1/JP2
JP8
BKLPWR Select
1x3 Wafer, pitch 2.0mm
JP10
Panel Power Select
1x3 header, pitch 2.0mm
JP13
VR Control/Chipset Control
1x3 header, pitch 2.0mm
JP14
PWM/DC Select
1x3 header, pitch 2.0mm
1
2
3
Page 22
IH70 Motherboard User Manual
14
2.4.2 Setting Jumpers

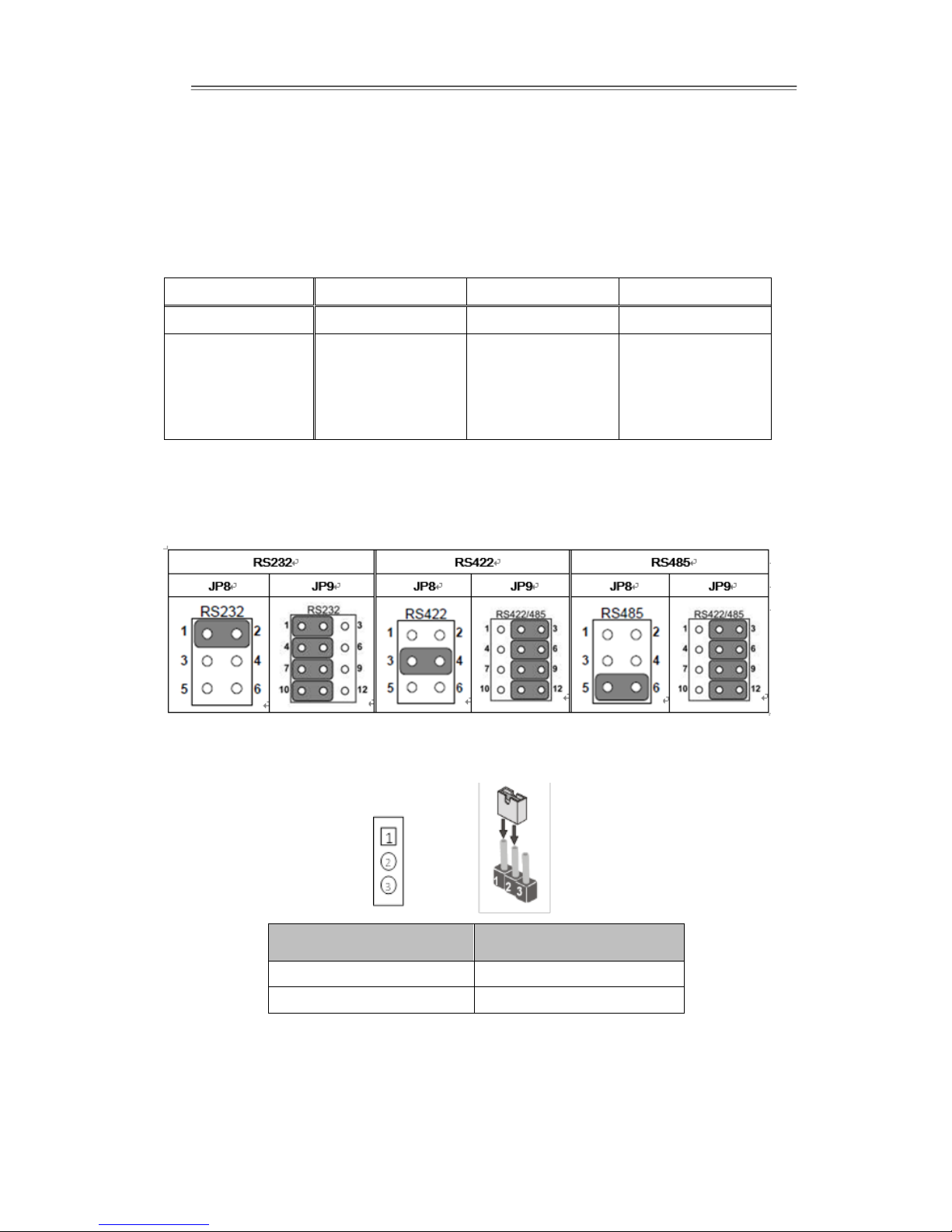

JP1/JP2: COM Serial Port (RS232/422/485) Select
Please refer to JP1/JP2 settings below.
RS232
RS422
RS485
JP8
1-2
3-4
5-6
JP9
1-2
4-5
7-8
10-11
2-3
5-6
8-9
11-12
2-3
5-6
8-9
11-12
For example: At the picture below you can see RS-232, RS-422, RS-485 (J8/J9) jumper
setting. To select RS-232 set Jumper 8 Pin 1-2 to the SHORT position, and Jumper 9
Pin1-2, 4-5, 7-8, 10-11 to the SHORT position.
JP8: BKLPWR Select
Setting
Function
1-2
+5V
2-3
+12V
Page 23
IH70 Motherboard User Manual
15

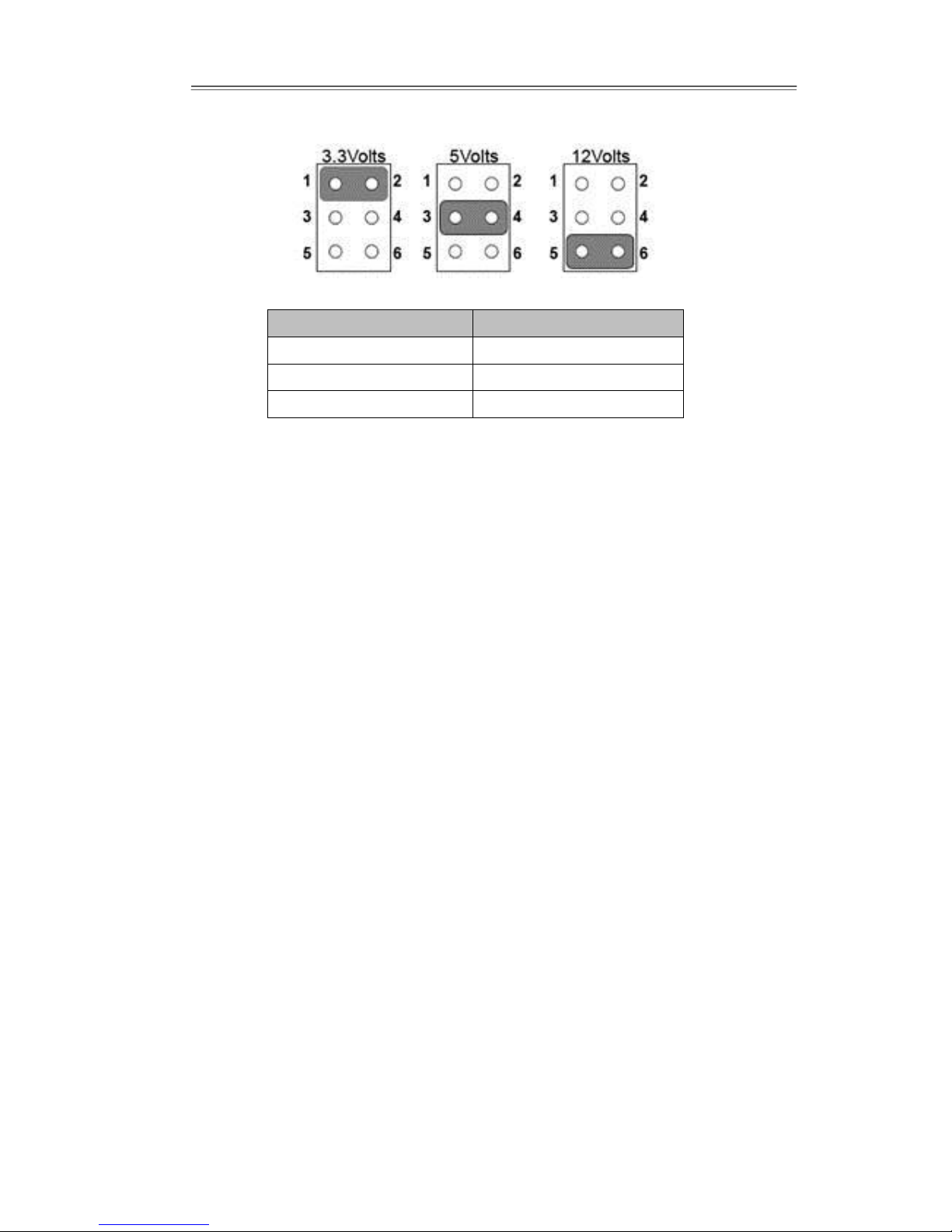

JP10: Panel Power Select
*Default
Pin №
Name
1-2*
+3.3V
3-4
+5V
5-6
+12V
Page 24
IH70 Motherboard User Manual
16

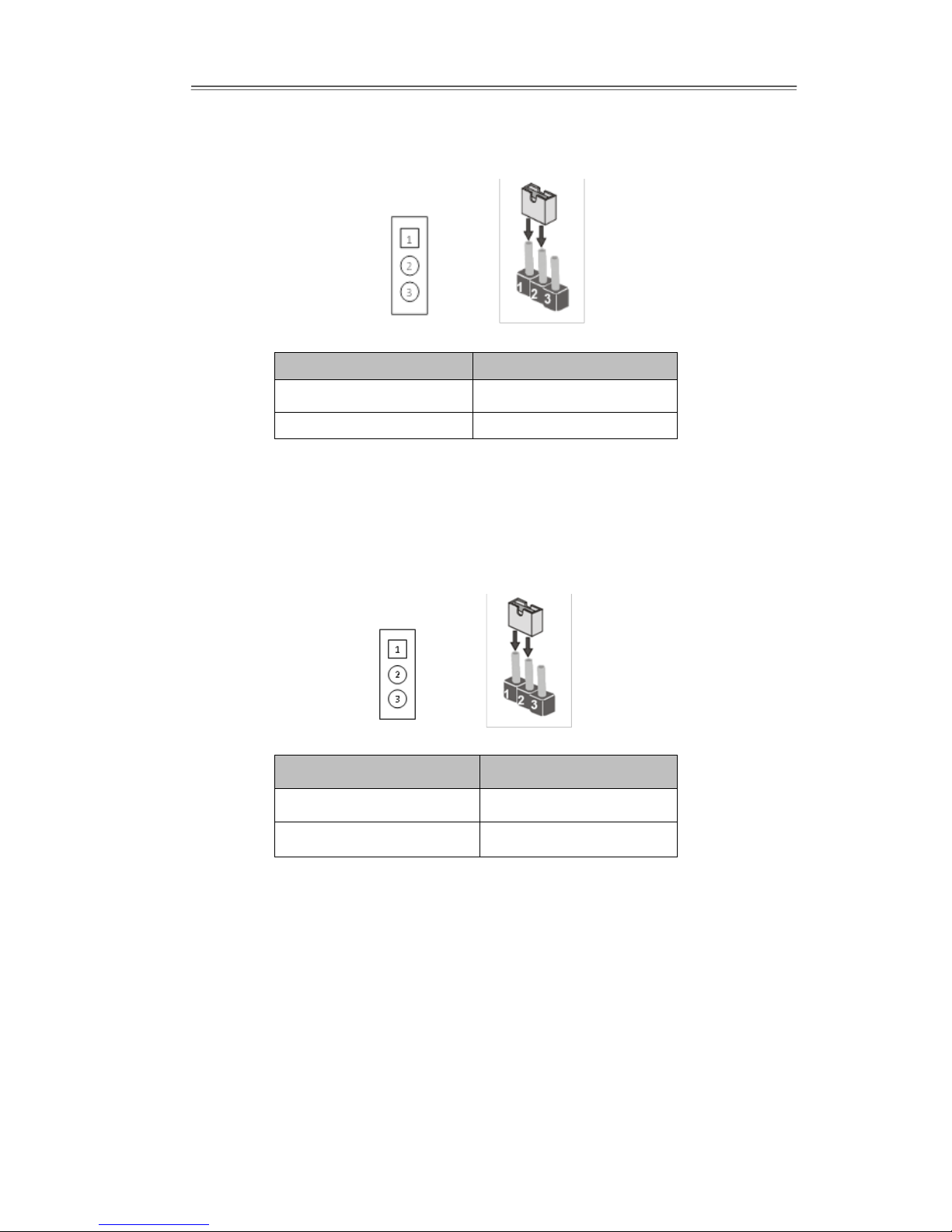

JP13: VR Control/Chipset Control
*Default
JP14: PWM/DC Select
*Default
Setting
Function
1-2
WM to DC mode by
2-3*
VRD Control Mode
Setting
Function
1-2*
+ 3.3V
2-3
+ 5.0V
Page 25
IH70 Motherboard User Manual
17
2.5 Connectors and Pin Assignment
2.5.1 Front Side Setting Description
The table below shows each of front side connectors and its functions.
Label
Function
Note
CN5
ATX PWR
2x2 wafer, pitch 4.2mm
CN6
12V output
1x2 wafer, pitch 2.0mm
CN8
5V output
1x2 wafer, pitch 2.0mm
CN9
5V output
1x2 wafer, pitch 2.0mm
CN10
WIFI
Mini-PCIe slot
CN13
HDMI
2x10 Wafer, pitch 1.25mm
CN15
PCIEX16
PCI Express x 16
CN16
Backlight
1x7 Wafer, pitch 2.0mm
CN18
WWAN
Mini-PCIe slot
CN19
mSATA
Mini-PCIe slot
CN20
SATA Power
2x4 Wafer, pitch 2.0mm
CN21
DVI
2x10 Wafer, pitch 1.25mm
CN24
Cable connector for SIM-100
6P Wafer, pitch 1.0mm
CN26
eDP
2x10 Wafer, pitch 1.0mm
CN27
Internal USB2.0
2x Wafer, pitch 2.0mm
CON1
LVDS
2x20 Wafer, pitch 1.25mm
DIMM1
DDR3L
204pin,SODIMM slot
DIMM2
DDR3L
204pin,SODIMM slot
FAN1
SYS_FAN1
3P Wafer, pitch 2.54mm
FAN2
CPU _FAN
3P Wafer, pitch 2.54mm
J1
R-Speaker out
1x2 Wafer, pitch 2.0mm
J2
L-Speaker out
1x2 Wafer, pitch 2.0mm
J7
VRD Debug
1x5 Wafer, pitch 1.25mm
LPT1
Parallel Port
2x10 header, pitch 2.0mm
PANEL1
OSD Membrane Control
2x5 Wafer, pitch 2.0mm
SATA1
SATA
SATA Connector
SATA2
SATA
SATA Connector
USB1
Internal USB2.0
2x4 Wafer, pitch 2.0mm
USB2
Internal USB2.0
2x4 Wafer, pitch 2.0mm
Page 26
IH70 Motherboard User Manual
18

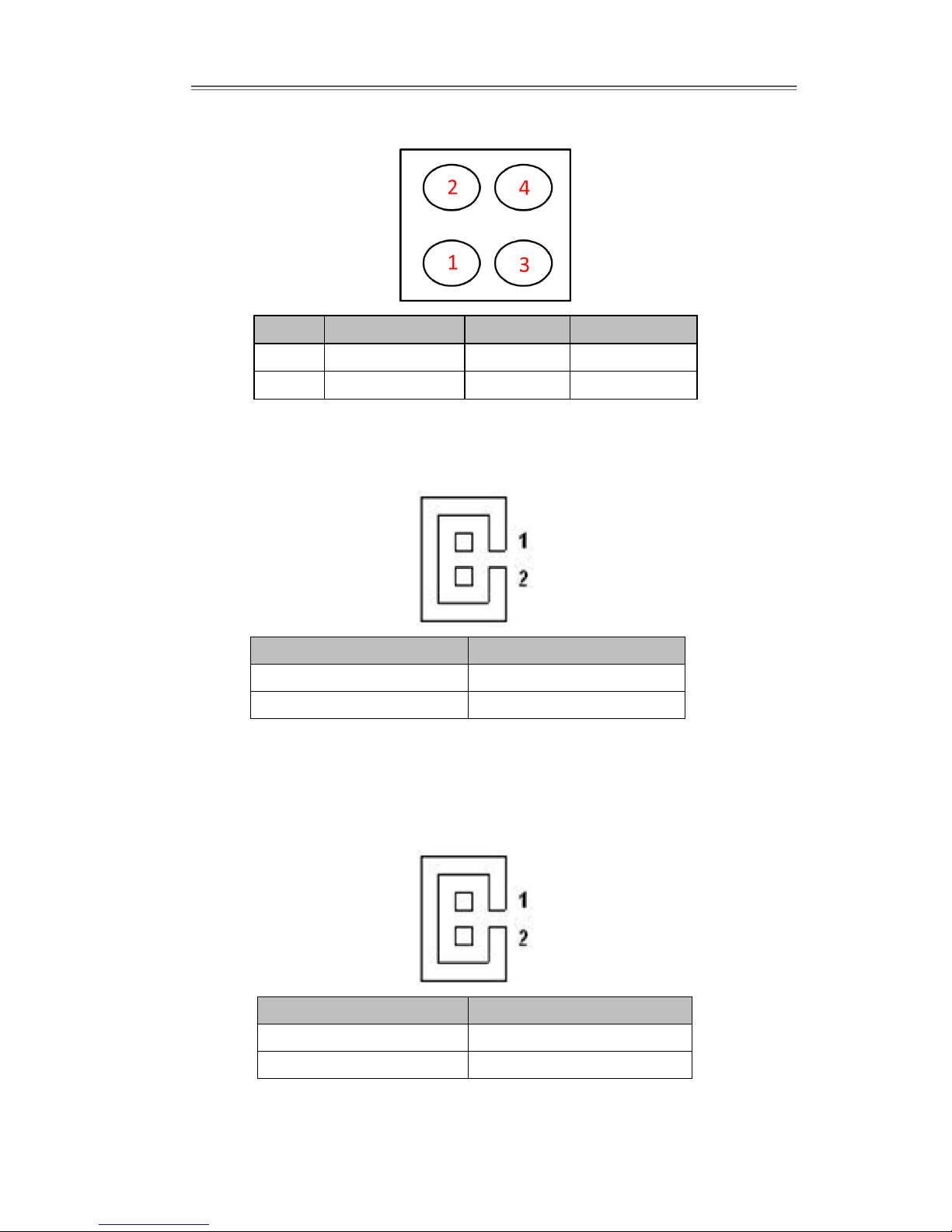

CN5: ATX PWR
CN6:12V Output
Pin №
Name
1
+12V
2
GND
CN8: 5V output
Pin №
Name
1
+5V
2
GND
Pin №
Name
Pin №
Name
1
GND
2
GND 3 VCC
4
VCC
Page 27
IH70 Motherboard User Manual
19

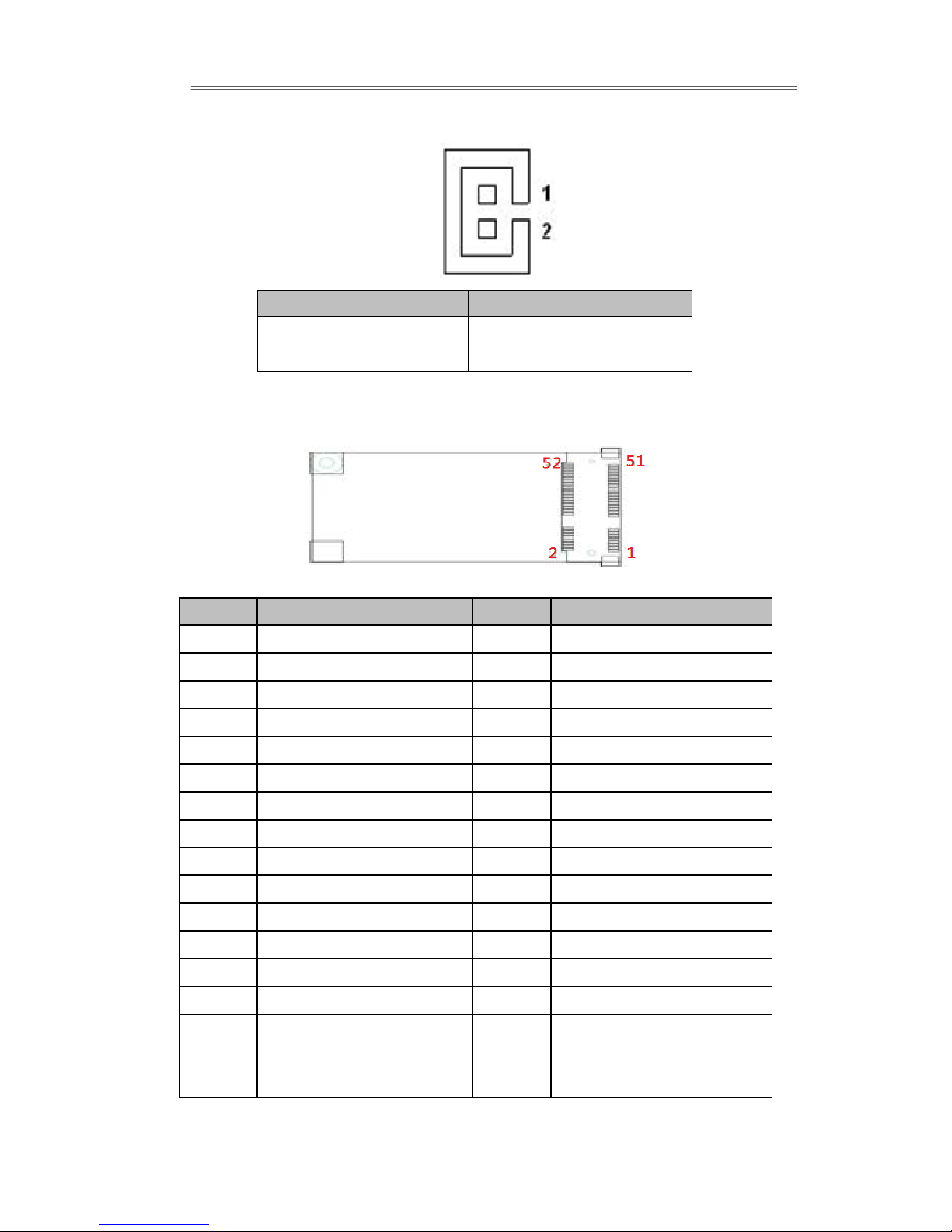

CN9: 5V Output
Pin №
Name
1
+5V
2
GND
CN10: Wifi
Pin №
Name
Pin №
Name
1
PCIE_WAKE#
2
3.3V
3
NC
4
GND
5
BT_EN
6
+1.5V
7
CLK_SLOT2_OE#
8
NC
9
GND
10
NC
11
CLK_PCIE_SLOT2_N
12
NC
13
CLK_PCIE_SLOT2_P
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
3G_EN
21
GND
22
PCIE_RESET
23
PCIE2_RXN2
24
+3.3V
25
PCIE2_RXP2
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_CLK
31
PCIE2_TXN2
32
SMB_DATA
33
PCIE2_TXP2
34
GND
Page 28
IH70 Motherboard User Manual
20
35
GND
36
USB_D-
37
GND
38
USB_D+
39
3.3V
40
GND
41
3.3V
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
+1.5 V
49
NC
50
GND
51
3.3V
52
3.3V
M1
GND
M2
GND

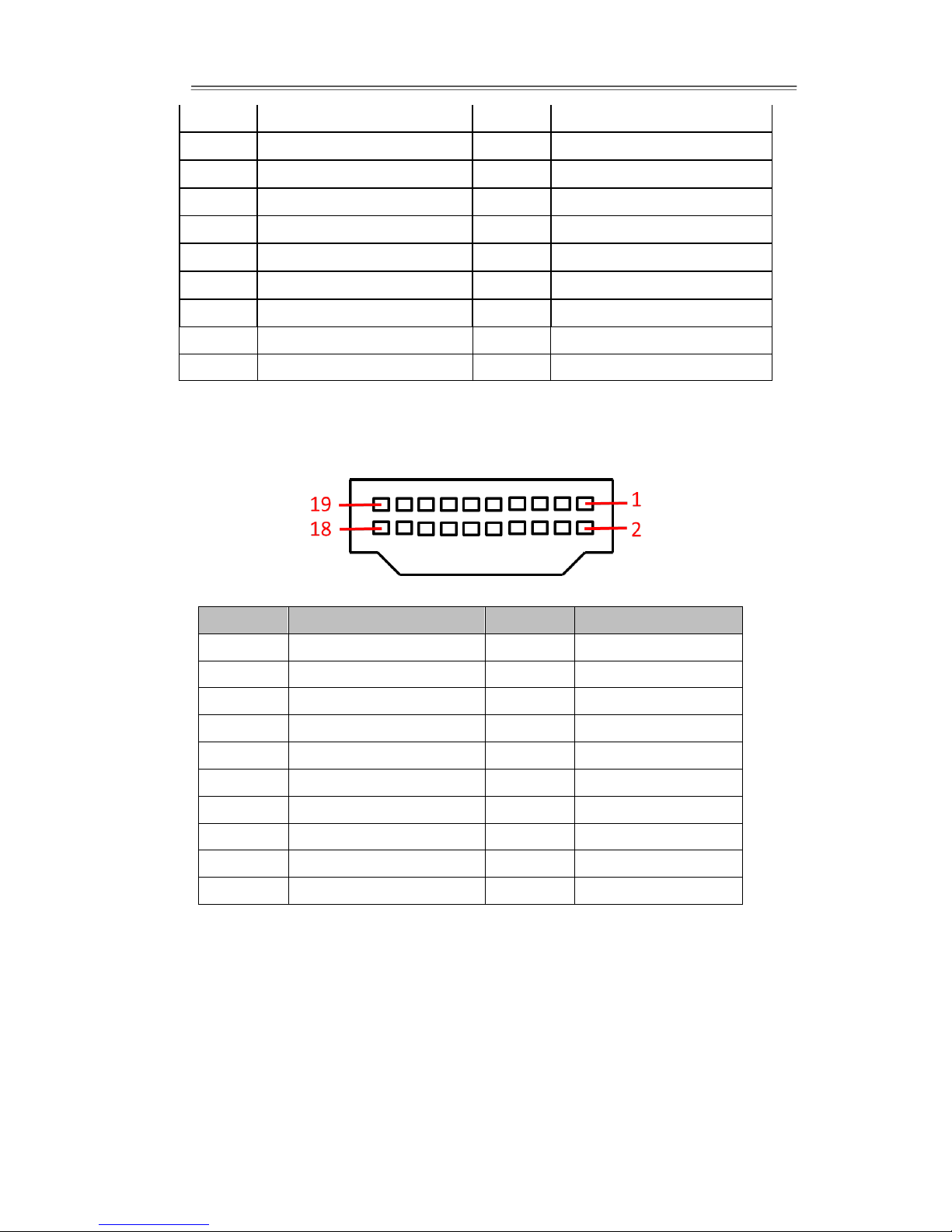

CN13: HDMI
Pin №
Name
Pin №
Name
1
TMDS_DATA2+
2
GND
3
TMDS_DATA2-
4
TMDS_DATA1+
5
GND
6
TMDS_DATA1-
7
TMDS_DATA0+
8
GND
9
TMDS_DATA0-
10
TMDS_CLOCK+
11
GND
12
TMDS_CLOCK-
13
CEC
14
NC
15
DDC_CLOCK
16
DDC_DATA
17
GND
18
5V
19
Hot Plug Detect
CN15: PCIEX16
*PCI Express x16 standard
Page 29
IH70 Motherboard User Manual
21

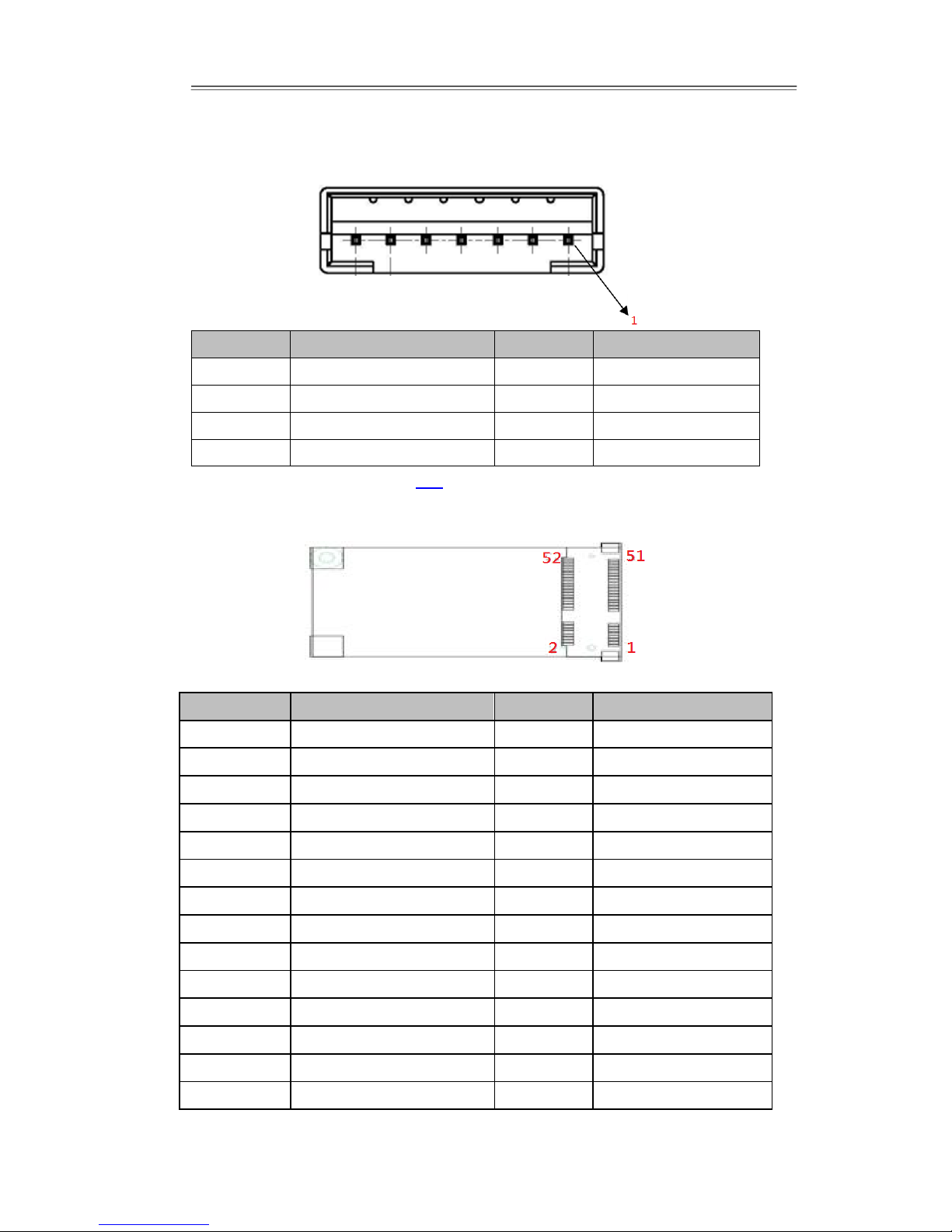

CN16: Backlight
Pin №
Name
Pin №
Name
1
Backlight Power
2
Backlight Power
3
Backlight Power
4
GND
5
Brightness Adjust
6
GND
7
Backlight Enable
Note: Please refer to JP8 settings to select POWER RATING
CN18: WWAN
Pin №
Name
Pin №
Name
1
PCIE_WAKE#
2
+3.3V
3
NC
4
GND
5
BT_EN
6
+1.5V
7
CLK_OE#
8
USIM_PWR
9
GND
10
USIM_DATA
11
PCIE_CLKM
12
USIM_CLOCK
13
PCIE_CLKP
14
USIM_RESET
15
GND
16
USIM_VPP
17
NC
18
GND
19
NC
20
Wireless_ENABLE
21
GND
22
PCIE_RESET
23
PCIE_RXM
24
+3.3V
25
PCIE_RXP
26
GND
27
GND
28
+1.5V
Page 30
IH70 Motherboard User Manual
22
29
GND
30
SMB_CLK
31
PCIE_TXM
32
SMB_DATA
33
PCIE_TXP
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
+3.3V
40
GND
41
+3.3V
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
+1.5V
49
NC
50
GND
51
+3.3V
52
+3.3V

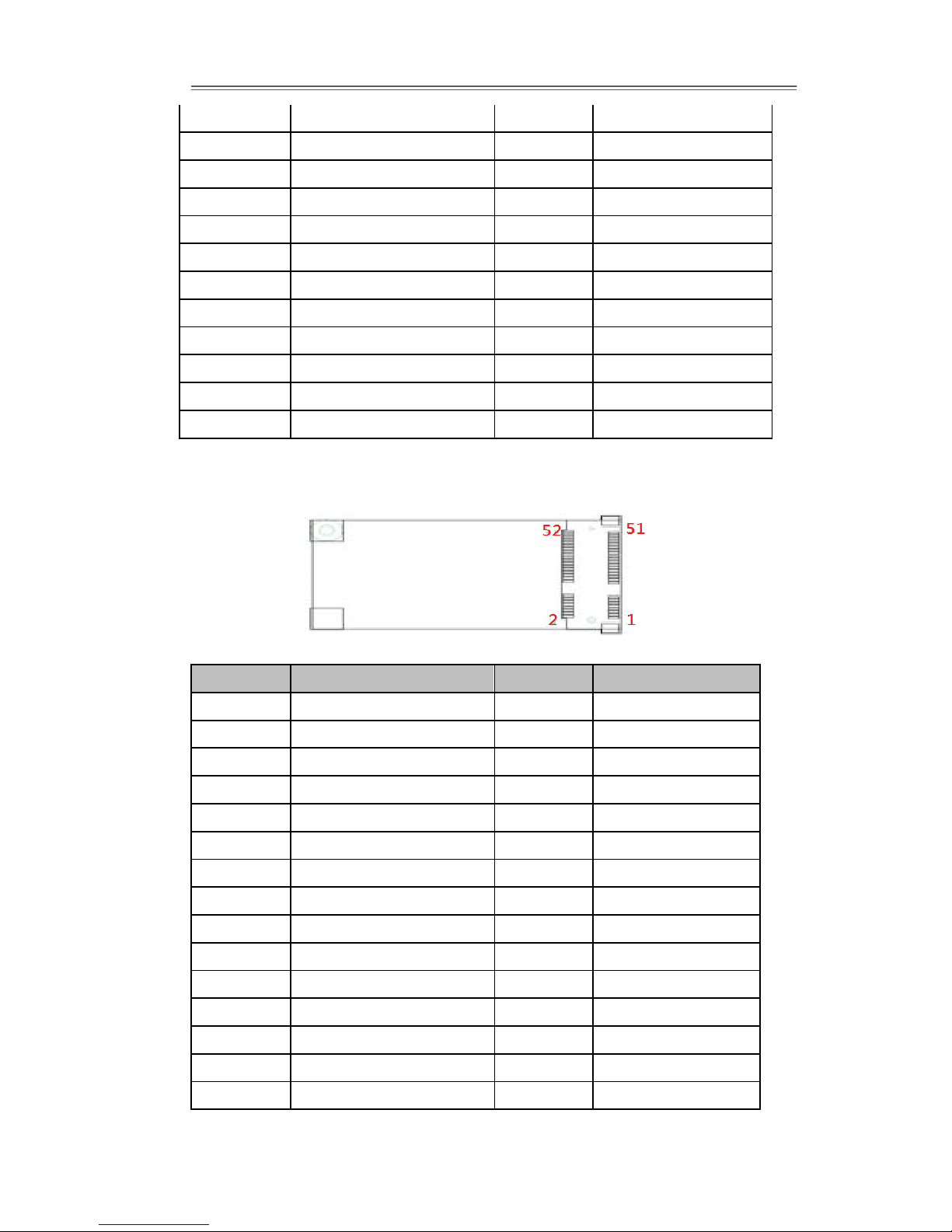

CN19: mSATA
Pin №
Name
Pin №
Name 1 NC
2
+3.3V 3 NC
4
GND 5 NC
6
+1.5V 7 NC
8
NC 9 GND
10
NC
11
NC
12
NC
13
NC
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
NC
21
GND
22
NC
23
SATA_RXP
24
+3.3V
25
SATA_RXN
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_Clock
Page 31
IH70 Motherboard User Manual
23
31
SATA_TXN
32
SMB_Data
33
SATA_TXP
34
GND
35
GND
36
NC
37
GND
38
NC
39
+3.3V
40
GND
41
+3.3V
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
+1.5V
49
SSD_LED#
50
GND
51
NC
52
+3.3V
CN20: SATA Power
Pin №
Name
Pin №
Name
1
+12V
2
+12V
3
GND
4
GND
5
GND
6
GND
7
+5V
8
+5V
Page 32
IH70 Motherboard User Manual
24

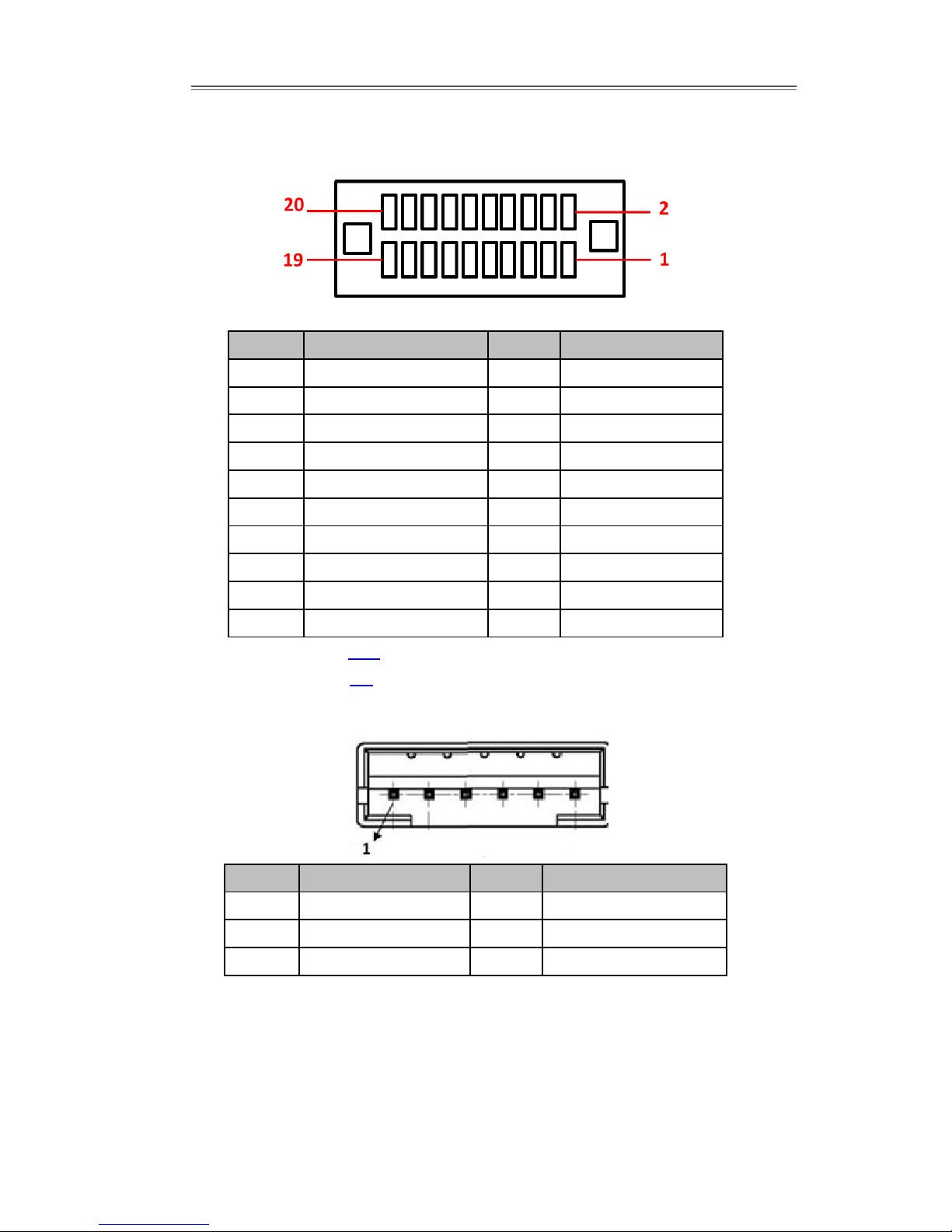

CN21: DVI
Pin №
Name
Pin №
Name
1
GND
2
TMDS2-
3
GND
4
TMDS2+
5
DVIC_LVDS_DET
6
TMDS1-
7
DVIC_BKLTEN
8
TMDS1+
9
DVIC_VDDEN
10
TMDS0-
11
DVIC_HPD2
12
TMDS0+
13
DVI VPNL
14
CLK-
15
DVI VPNL
16
CLK+
17
DVI_EXT_5V
18
DDC_CLK
19
DVI_EXT_5V
20
DDC_DATA
Note: 1) Refer to JP10 Settings to select POWER RATING for LCDVDD
2) Refer to JP8 settings to select BKLPWR
CN24: Cable connector for SIM-100
Pin №
Name
Pin №
Name
1
VREG_USIM
2
SIM_RESET
3
SIM_CLK
4
GND
5
SIM_VPP
6
SIM_DATA
Page 33
IH70 Motherboard User Manual
25

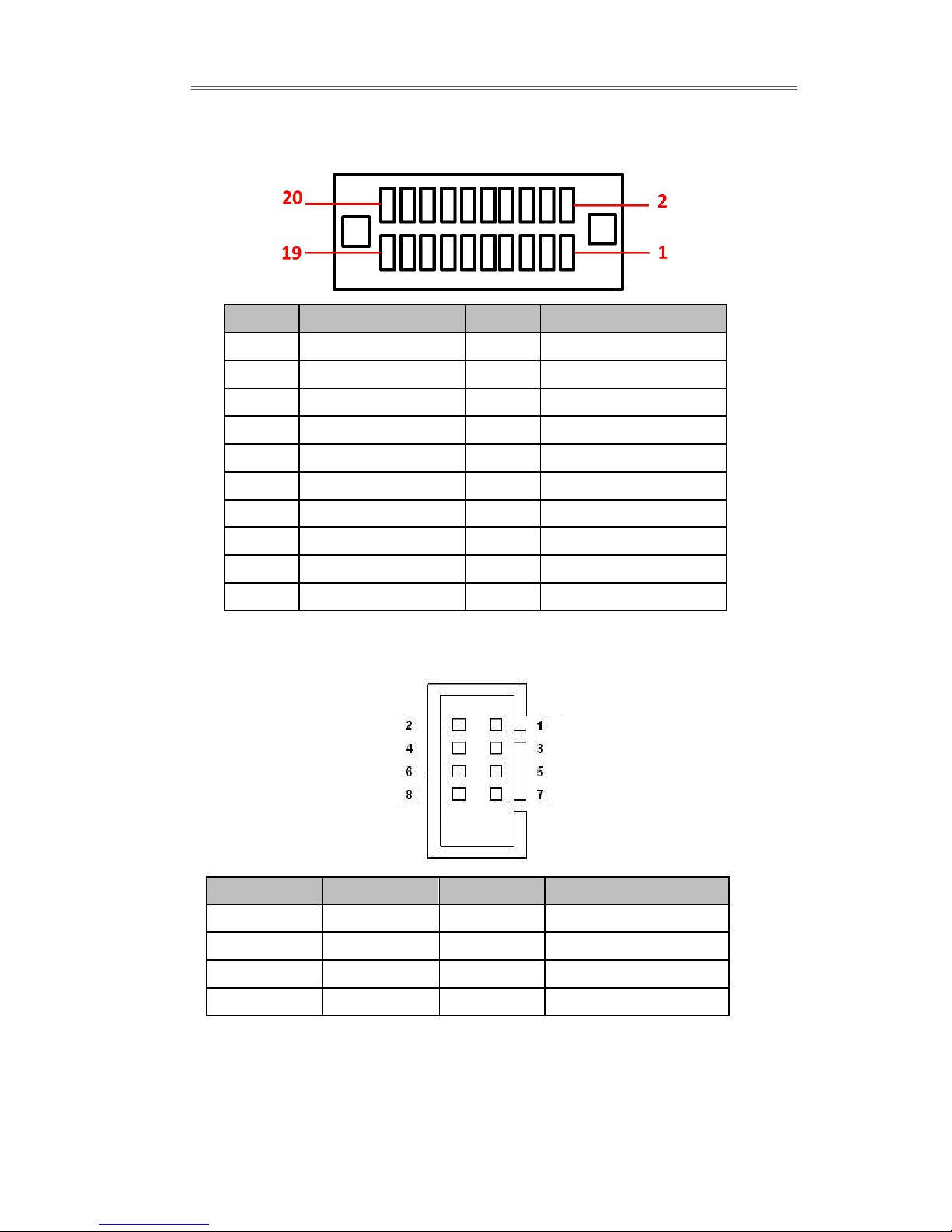

CN26: eDP Output Connector
Pin №
Name
Pin №
Name
1
TXP0_C
2
VDD_eDP
3
TXN0_C
4
VDD_eDP
5
GND
6
+VCC_EDP_BKLT
7
TXP1_C
8
+VCC_EDP_BKLT
9
TXN1_C
10
+VCC_EDP_BKLT
11
GND
12
EDP_HPD
13
AUXP
14
GND
15
AUXN
16
GND
17
BKLT_EN
18
GND
19
BKLT_CTRL
20
GND
CN27: Internal USB2.0
Pin №
Name
Pin №
Name
1
+5V 2 +5V
3
USB_D- 4 USB_D-
5
USB_D+ 6 USB_D+
7
GND 8 GND
Page 34
IH70 Motherboard User Manual
26

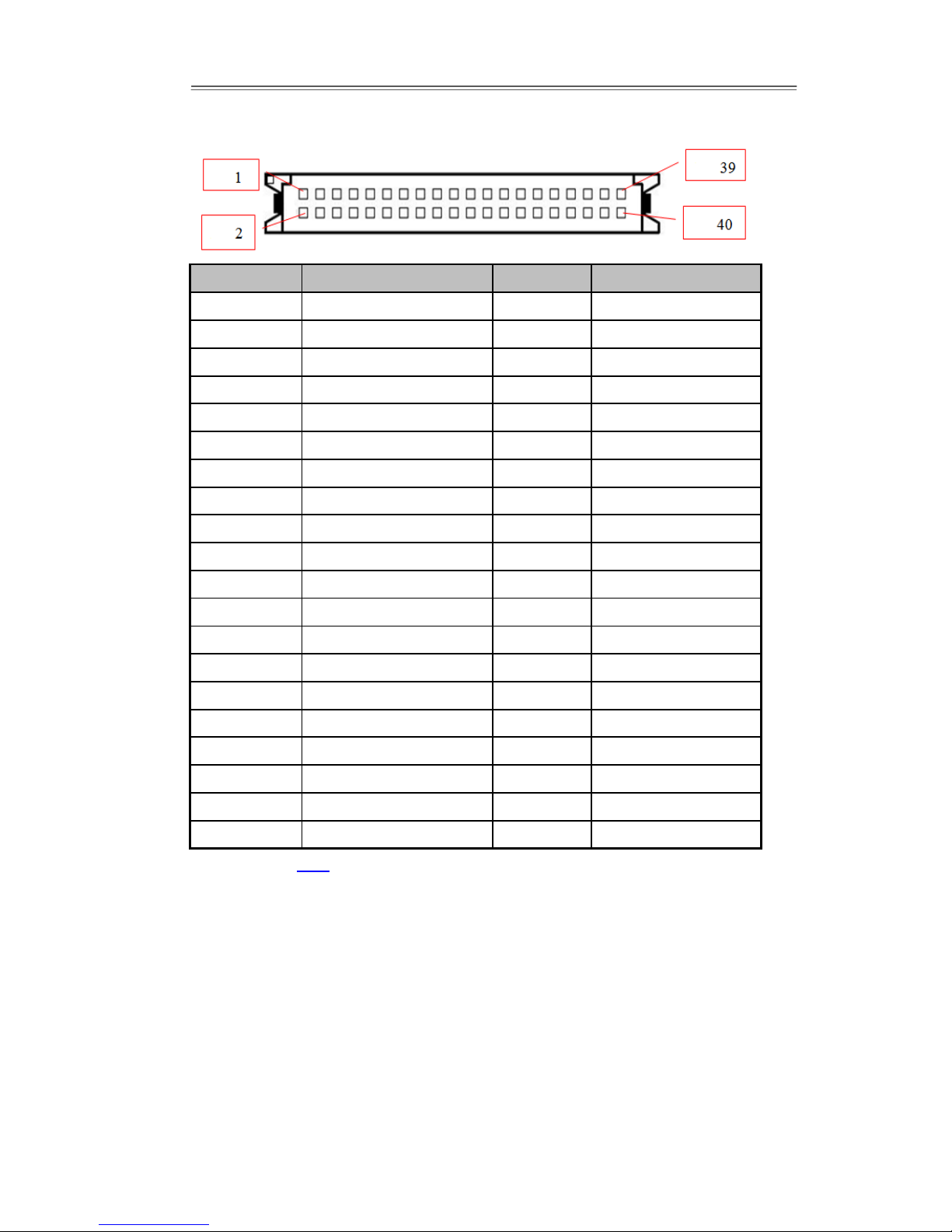

CON1: LVDS
Pin №
Signal Name
Pin №
Signal Name
1
LCDVDD
2
LVDS0_TX0_N
3
LCDVDD
4
LVDS0_TX0_P
5
LCDVDD
6
LVDS0_TX1_N
7
GND
8
LVDS0_TX1_P
9
GND
10
LVDS0_TX2_N
11
GND
12
LVDS0_TX2_P
13
GND
14
LVDS0_CLK_N
15
GND
16
LVDS0_CLK_P
17
GND
18
LVDS0_TX3_N
19
GND
20
LVDS0_TX3_P
21
GND
22
LVDS1_TX0_N
23
GND
24
LVDS1_TX0_P
25
GND
26
LVDS1_TX1_N
27
GND
28
LVDS1_TX1_P
29
GND
30
LVDS1_TX2_N
31
GND
32
LVDS1_TX2_P
33
GND
34
LVDS1_CLK_N
35
GND
36
LVDS1_CLK_P
37
GND
38
LVDS1_TX3_N
39
GND
40
LVDS1_TX3_P
Note: Refer to JP10 setting to select POWER RATING for LCDVDD
Page 35
IH70 Motherboard User Manual
27
DIMM1: DDR3L
DIMM2: DDR3L
Page 36
IH70 Motherboard User Manual
28

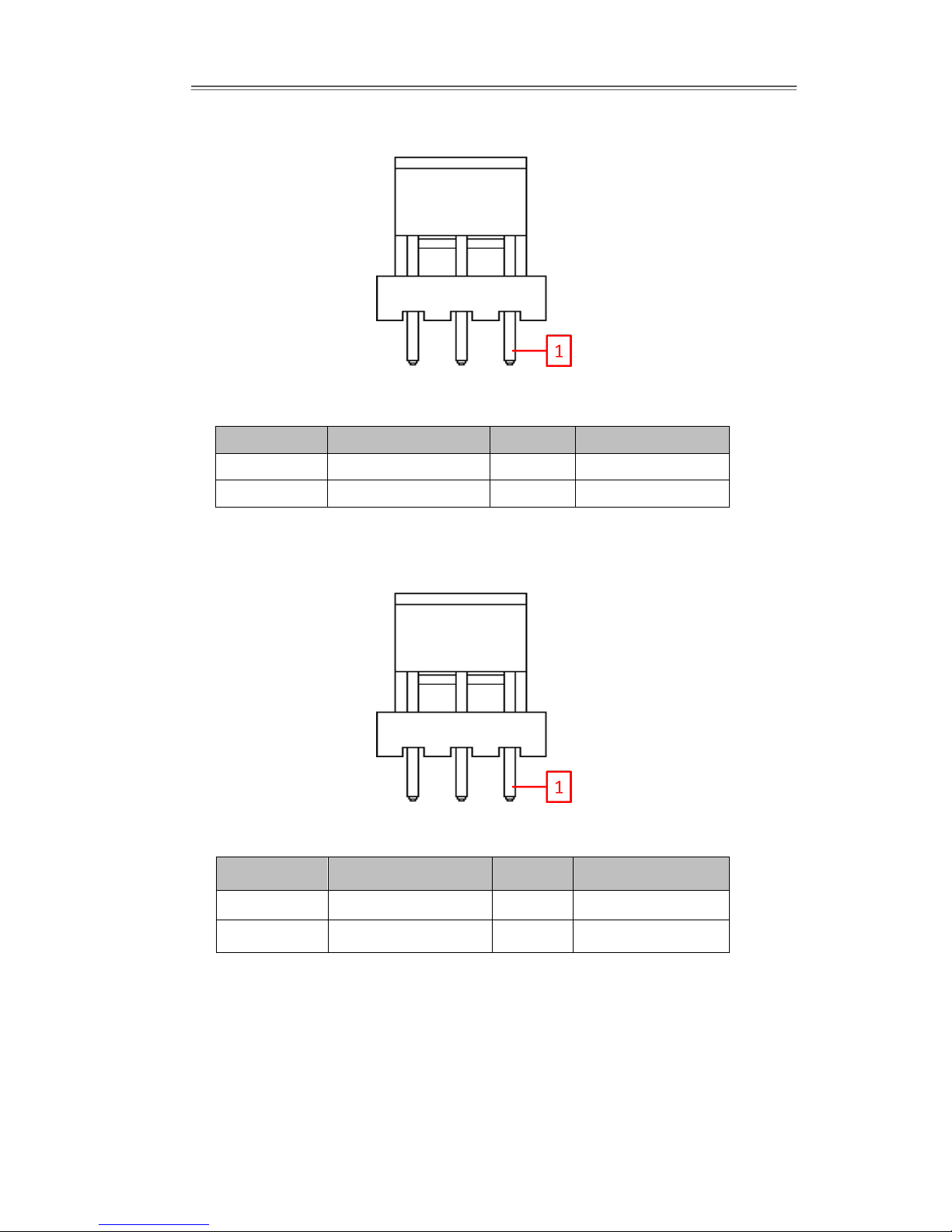

FAN1: SYS_FAN1
FAN2: CPU _FAN
Pin №
Name
Pin №
Name
1
GND
2
+12V
3
SENSE
Pin №
Name
Pin №
Name
1
GND
2
+12V
3
SENSE
Page 37
IH70 Motherboard User Manual
29

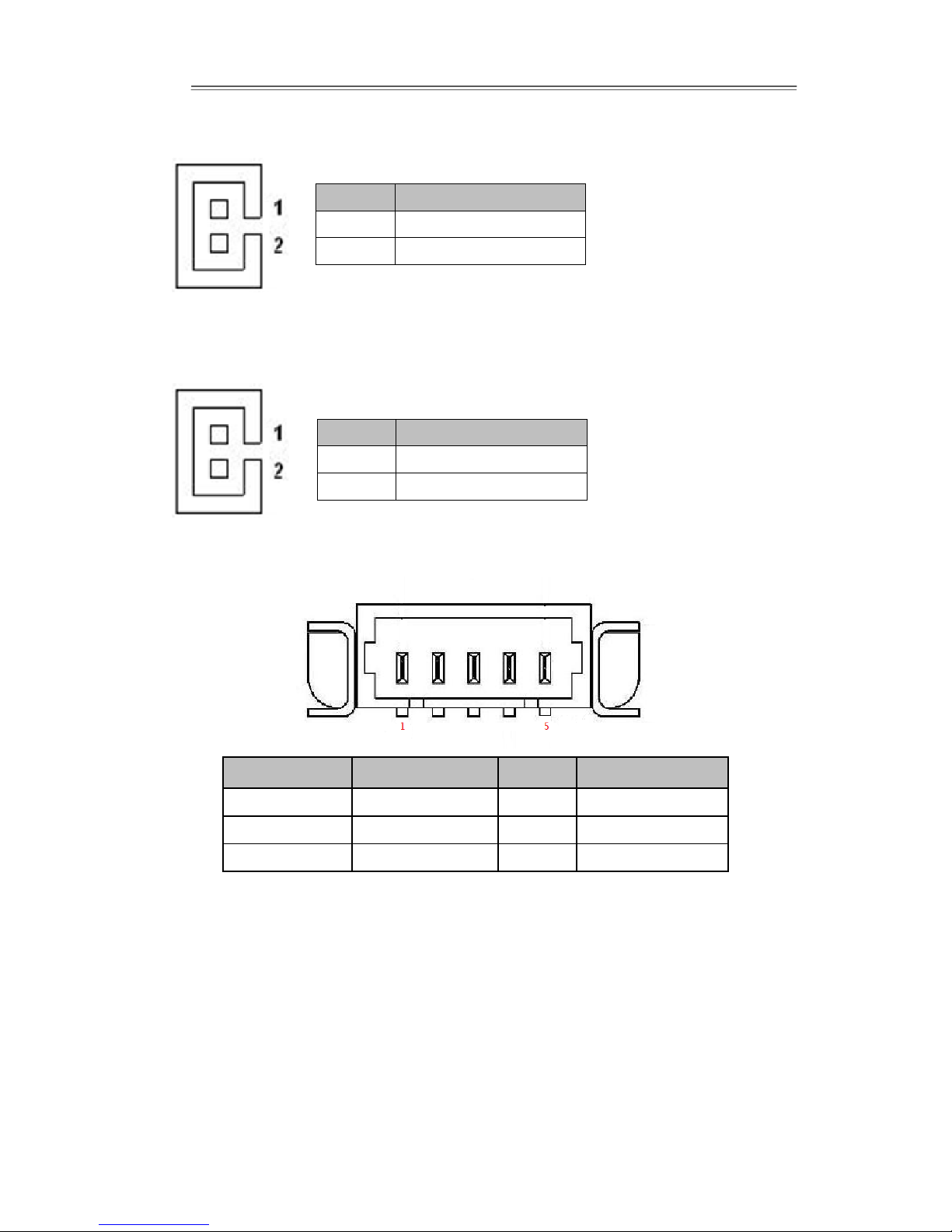

J1: R-Speaker out
J2: L-Speaker out
J7: VRD Debug
Pin №
Name
1
ROUT-
2
ROUT+
Pin №
Name
1
LOUT-
2
LOUT+
Pin №
Name
Pin №
Name
1
+3.3V
2
DATA
3
CLOCK
4
RESET
5
GND
Page 38
IH70 Motherboard User Manual
30

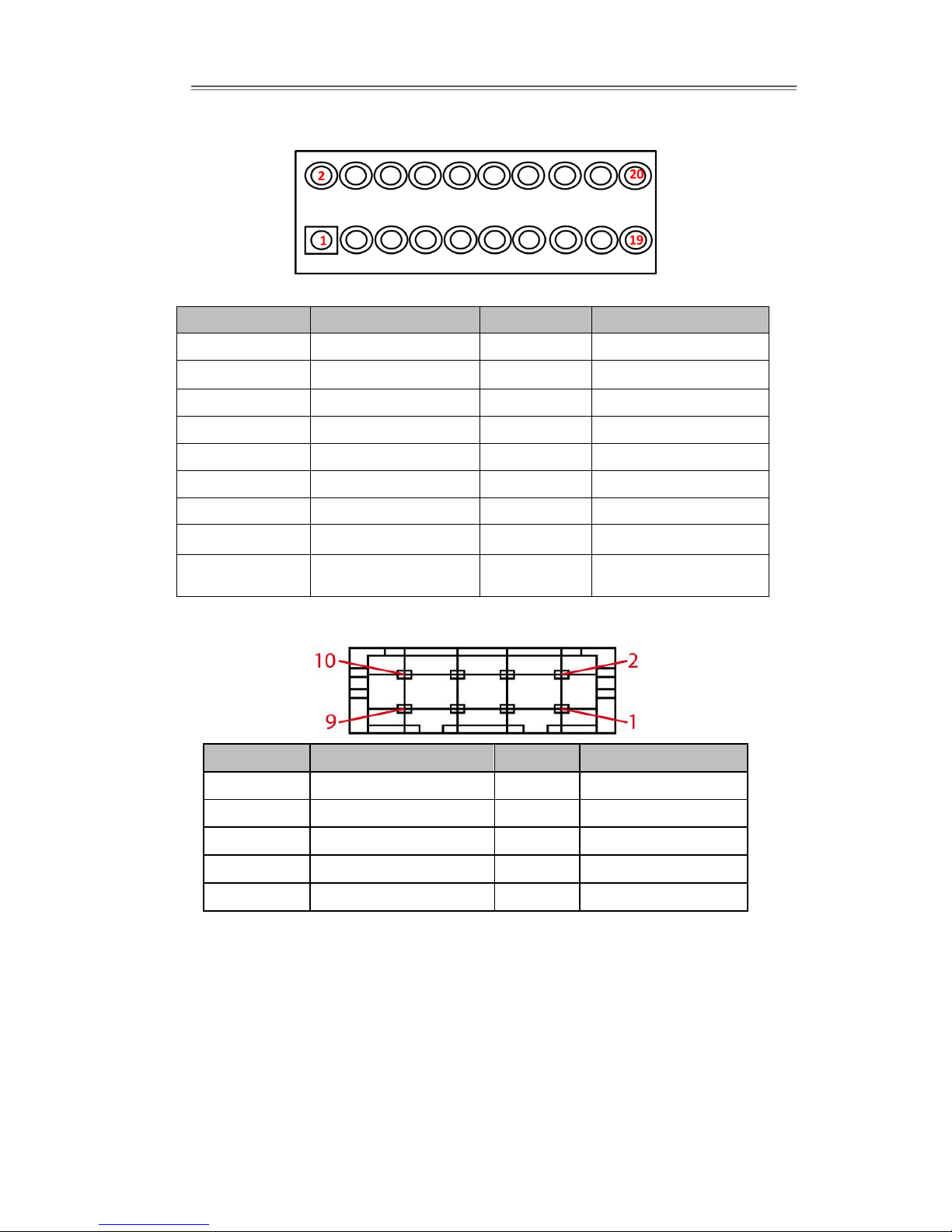

LPT1: Parallel Port
Panel1: OSD Membrane Control
Pin №
Name
Pin №
Name
1
+5V
2
+3.3V
3
GND
4
HDD_LED
5
PWRBTN#
6
GND
7
GND/ Backlight ADJ+
8
Reset
9
NC/Backlight ADJ-
10
+5V
NOTE: Backlight ADJ+ / Backlight ADJ- optional functions
Pin №
Name
Pin №
Name
1
LPT_STB#
2
LPT_PD0
3
LPT_PD1
4
LPT_PD2
5
LPT_PD3
6
LPT_PD4
7
LPT_PD5
8
LPT_PD6
9
LPT_PD7
10
ACK#
11
Busy
12
PE
13
SLCT
14
LPT_AFD#
15
ERR#
16
LPT_INIT#
17
LPT_SLIN#
18-25
GND
Page 39
IH70 Motherboard User Manual
31

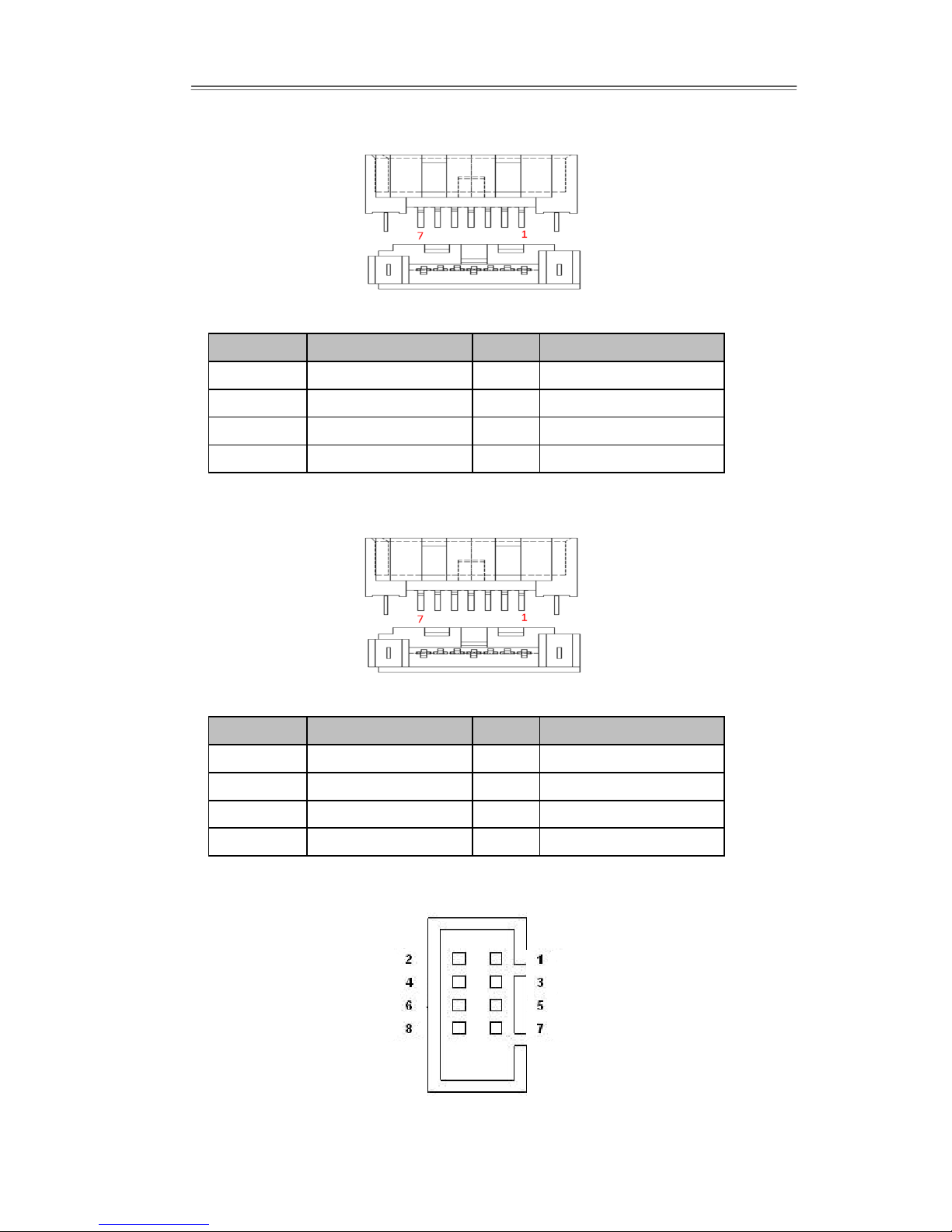

SATA1: SATA
SATA2: SATA
USB1: Internal USB2.0
Pin №
Name
Pin №
Name
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
Pin №
Name
Pin №
Name
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
Page 40
IH70 Motherboard User Manual
32

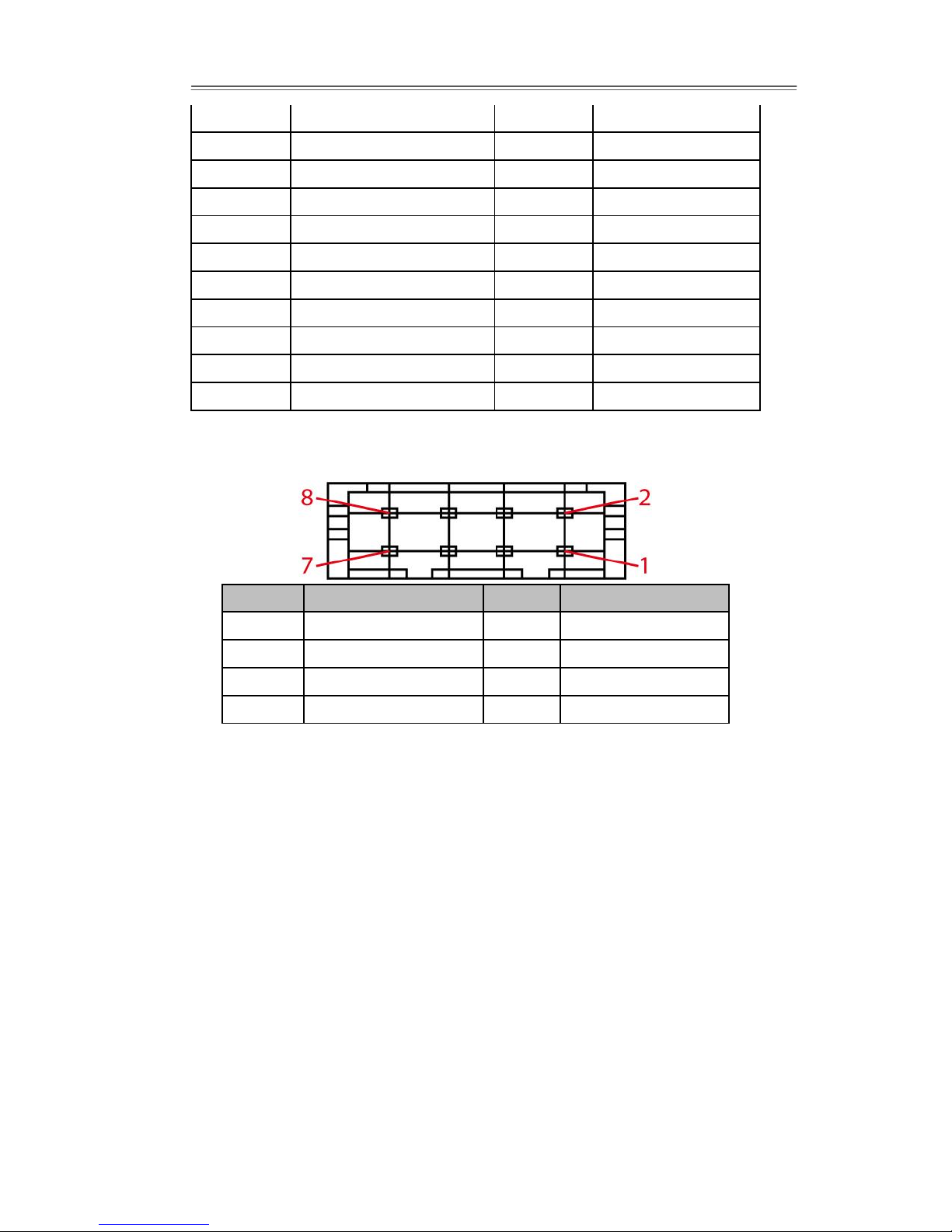

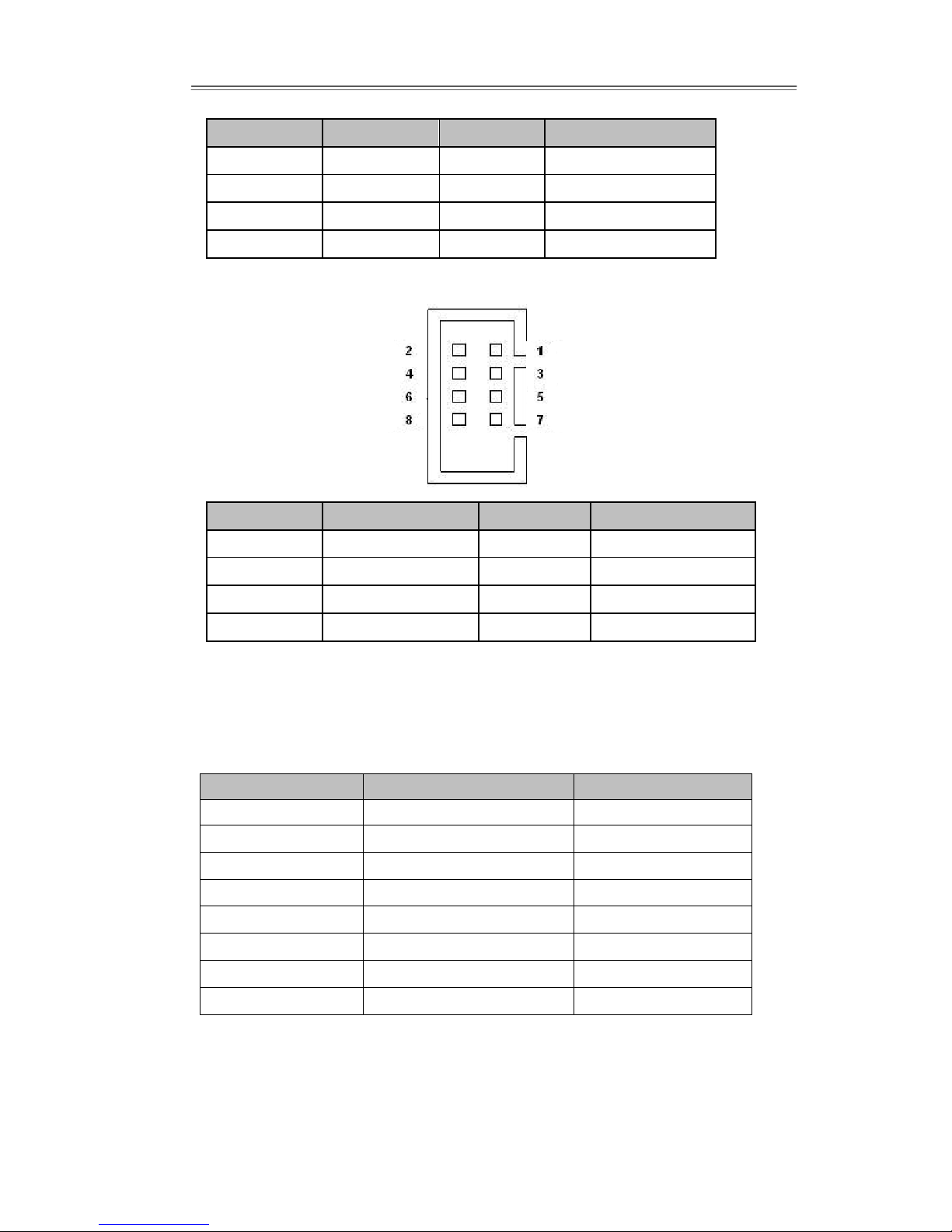

USB2: Internal USB2.0
2.5.2 I/O Side
The table below shows each of I/O side connectors and its functions.
Label
Function
Note
Audio
Line In/Line Out/Mic
COM1
Serial port (RS232/422/485)
D-Sub 9
COM2/ COM4
Serial port (RS232/422/485)
D-Sub 9
12V DC Input
12V DC INPUT
DIN-4P
LAN1, LAN2
Gigabit Ethernet
RJ45+LED
PS/2
Mouse/Keyboard
MiniDIN-6P
USB
USB 3.0
USB Type A
VGA
Video Graphics Array
D-Sub 15
Pin №
Name
Pin №
Name
1
+5V 2 +5V
3
USB_D- 4 USB_D-
5
USB_D+
6
USB_D+
7
GND 8 GND
Pin №
Name
Pin №
Name
1
+5V 2 +5V
3
USB_D-
4
USB_D-
5
USB_D+
6
USB_D+
7
GND
8
GND
Page 41
IH70 Motherboard User Manual
33

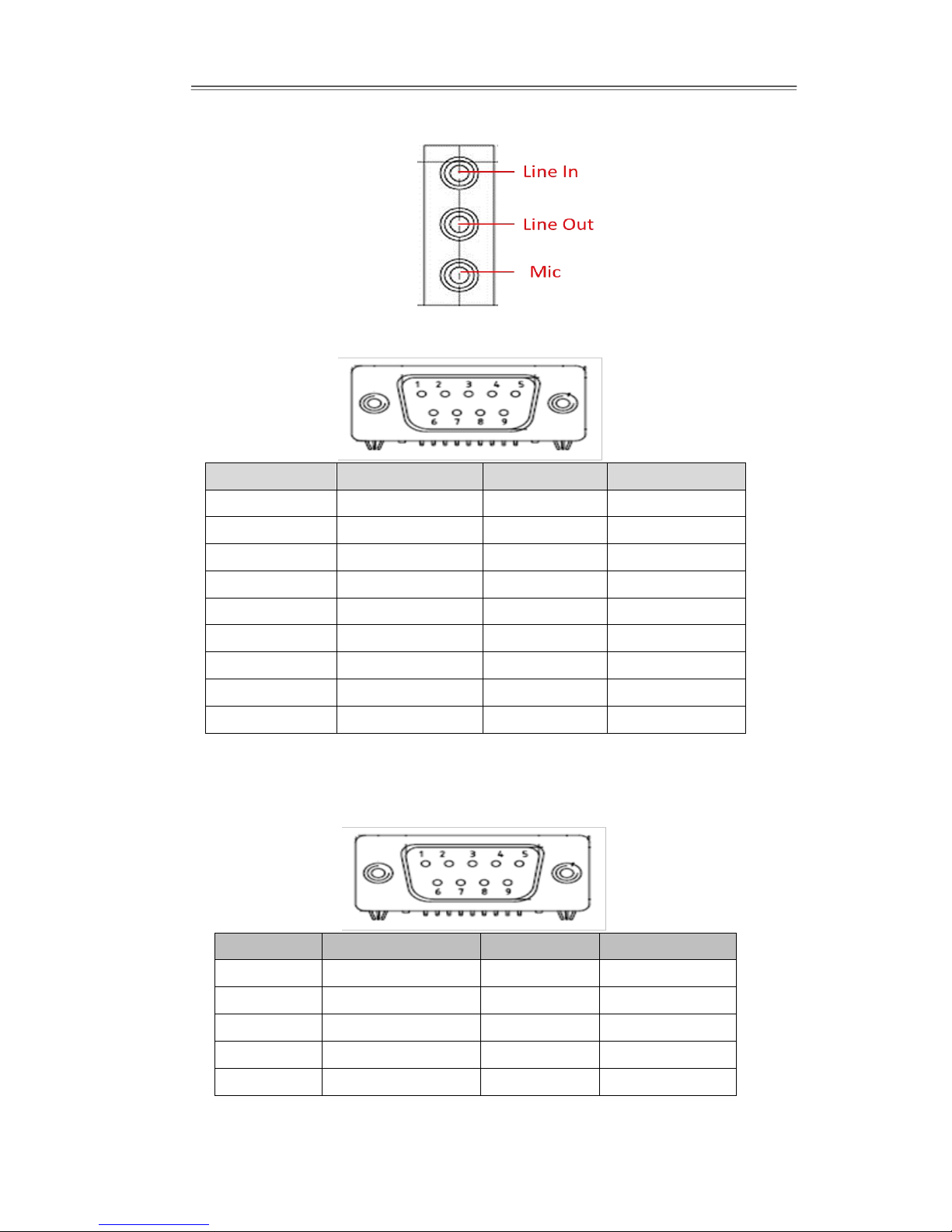

Audio: Line In/Line Out/Mic
COM1: D-Sub 9
Pin №
RS232
RS422
RS485
1
DCD
TxD-
D- 2 RXD
TxD+
D+ 3 TXD
RxD+
NC
4
DTR
RxD-
NC
5
GND
GND
GND 6 DSR
NC
NC 7 RTS
NC
NC 8 CTS
NC
NC 9 RI
NC
NC
COM2, COM4: Serial port (232)
Pin №
Name
Pin №
Name 1 DCD
2
DSR 3 RXD
4
RTS 5 TXD
6
CTS 7 DTR
8
RI
9
GND
10
GND
Page 42
IH70 Motherboard User Manual
34

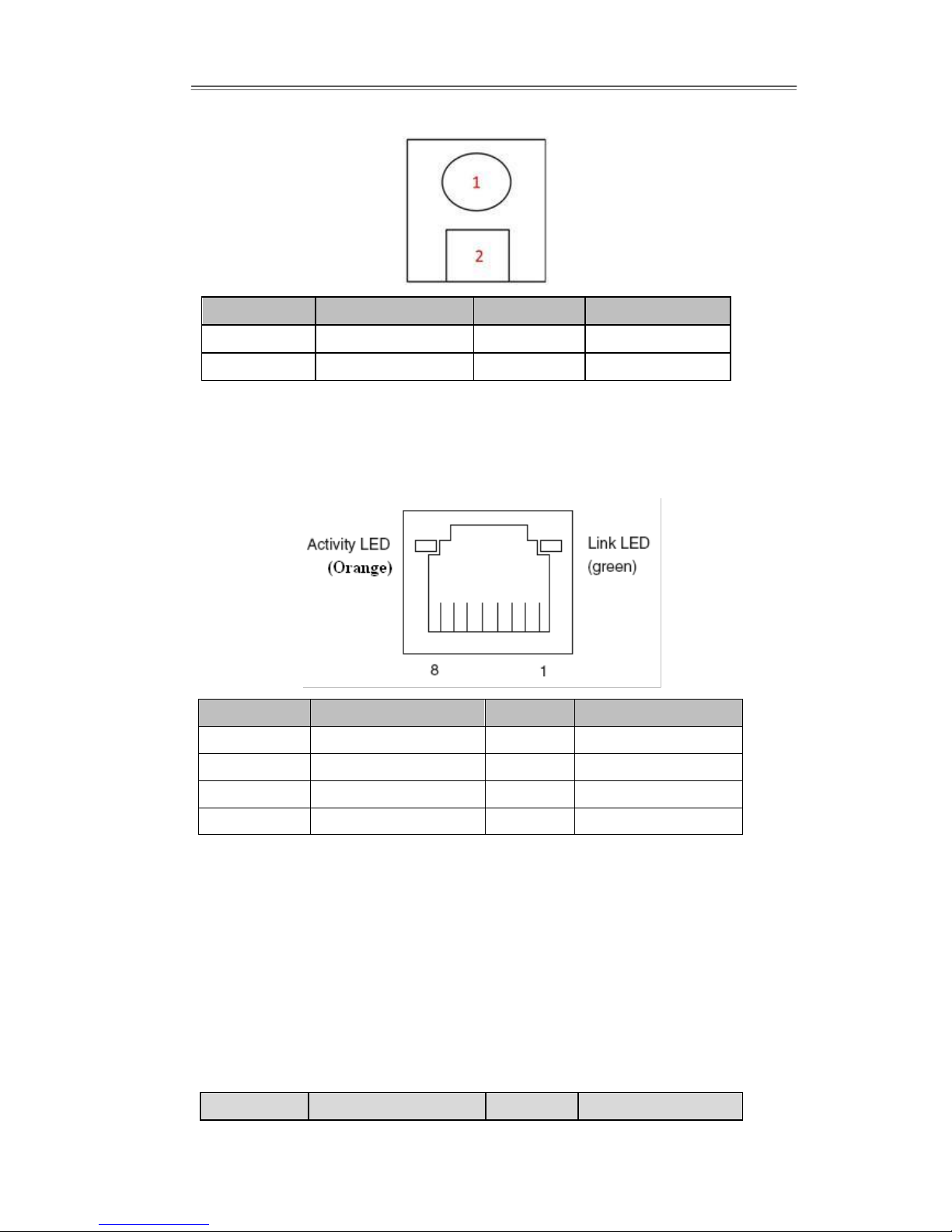

12V DC Input: 12V DC INPUT
*Note: Pin 3 is not visible for use
LAN1, LAN2: Gigabit Ethernet
Pin №
Name
Pin №
Name
1
TX1+
2
TX1-
3
TX2+
4
TX2-
5
TX3+
6
TX3-
7
TX4+
8
TX4-

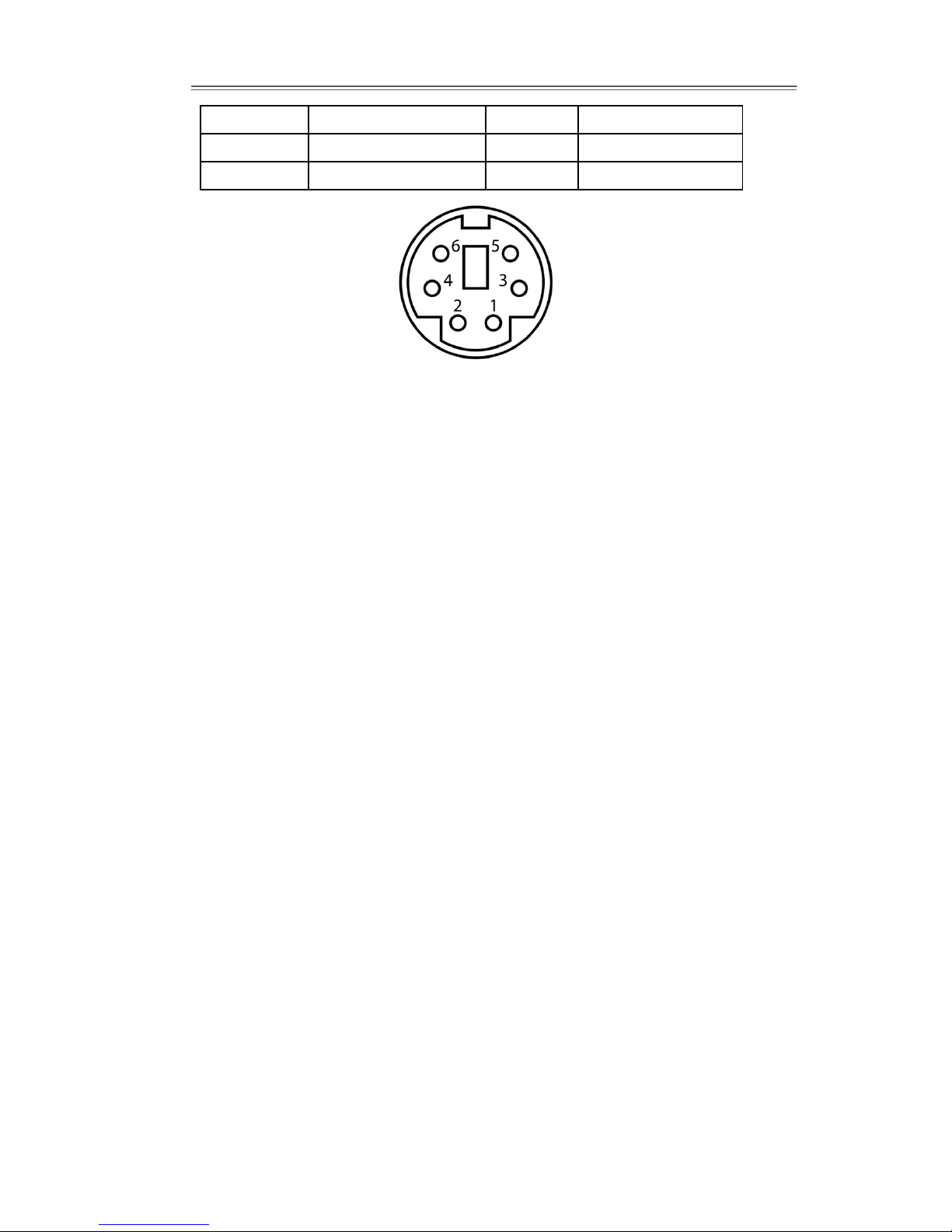

PS/2: Mouse/Keyboard
Pin №
Name
Pin №
Name
1
+12V
2
GND
3*
GND
Pin №
Name
Pin №
Name
Page 43
IH70 Motherboard User Manual
35
1
+DATA
2
Reserved
3
GND
4
Vcc 5 +CLK
6
Reserved
Page 44
IH70 Motherboard User Manual
36

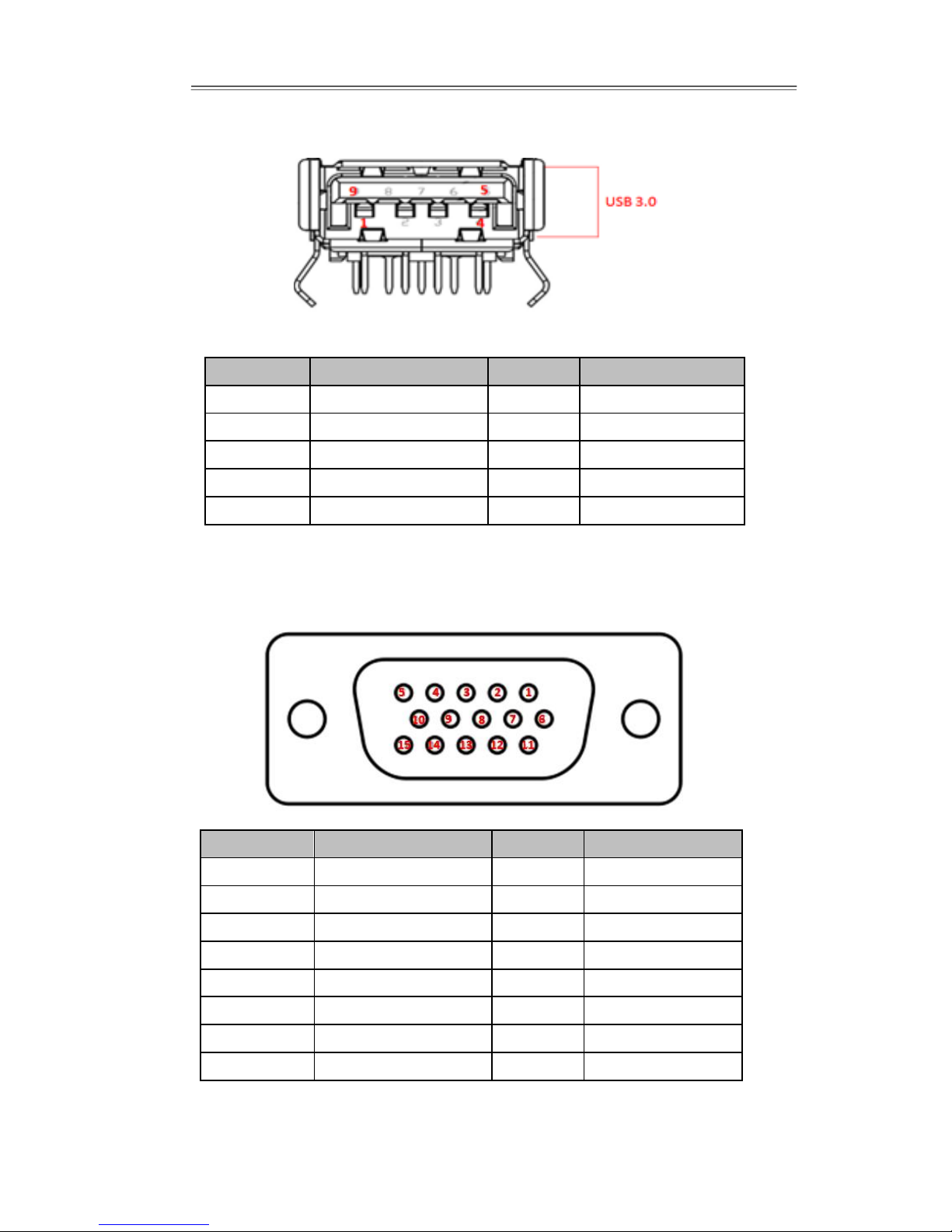

USB: USB 3.0
Pin №
Name
Pin №
Name
1
+5V
2
USB_D-
3
USB_D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND_DRAIN
8
STDA_SSTX-
9
STDA_SSTX+
VGA: Video Graphics Array
Pin №
Name
Pin №
Name 1 RED
2
GREEN
3
BLUE
4
ID2/RES
5
GND
6
RED_RTN
7
GREEN_RTN
8
BLUE_RTN
9
KEY/PWR
10
GND
11
ID0/RES
12
ID1/SDA
13
HSync
14
VSync
15
ID3/SCL
Page 45
IH70 Motherboard User Manual
37
AMI BIOS Setup
This chapter contains BIOS Configuration and OS
Recovery information.
Sections include:
3.1 When and How to Use BIOS Setup
3.2 BIOS Functions
3.3 Using Recovery Wizard to Restore Computer
Page 46
IH70 Motherboard User Manual
38
Chapter 3 AMI BIOS SETUP
3.1 When and How to Use BIOS Setup
To enter the BIOS setup, you need to connect an external USB keyboard, press Del
key when the prompt appears on the screen during start up. The prompt screen
shows only few seconds so need press Del key quickly.
Note
Updated BIOS version may be published after the manual released.
Check the latest version of BIOS on the website.
You may need to run BIOS setup utility for reasons listed below:
1. Error message on screen indicates to check BIOS setup
2. Restoring the factory default settings.
3. Modifying the specific hardware specifications
4. Necessity to optimize specifications
BIOS Navigation Keys
The following keys are enabled during POST:
Key
Function
Del
Enters the BIOS setup menu.
F7
Display the boot menu. Lists all bootable devices that are connected to
the system. With cursor ↑and cursor ↓and by pressing <ENTER>,
select the device used for the boot.
Pause
Pressing the [Pause] key stops the POST. Press any other key to resume
the POST.
The following Keys can be used after entering the BIOS Setup.
Key
Function
F1
General Help
F2
Previous Values
F3
Optimized Defaults
F4
Save & Exit
Esc
Exit
+/-
Change Opt.
Enter
Select or execute command
Cursor ↑
Moves to the previous item
Cursor ↓
Goes to the next item
Page 47
IH70 Motherboard User Manual
39
Cursor ←
Moves to the previous item
Cursor →
Goes to the next item
NOTE
You can press the F1, F2, F3, F4, –/+, and Esc keys by connecting
a USB keyboard to your tablet PC.
3.2 BIOS Functions
3.2.1 Main Menu

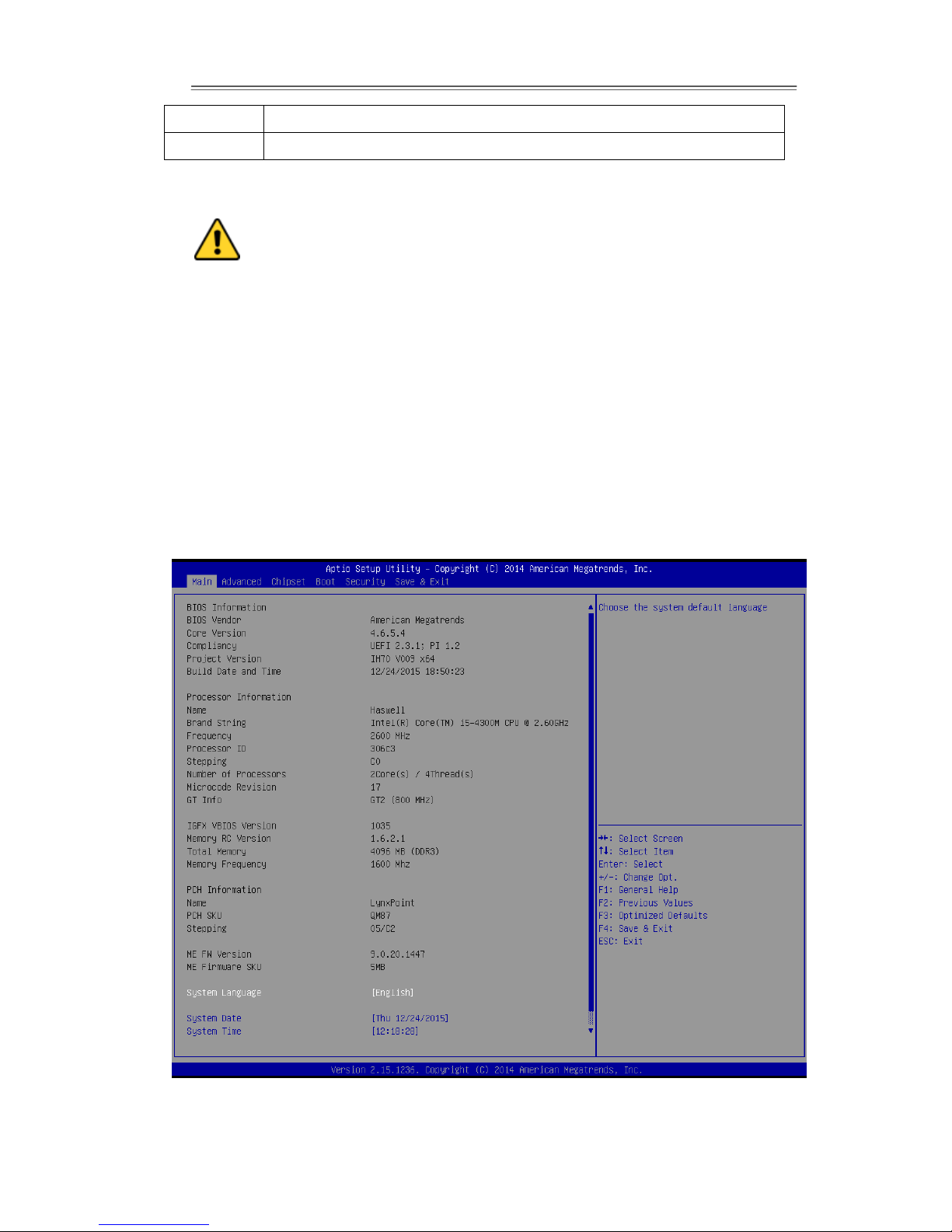

When you enter BIOS setup, the first menu that appears on the screen is the main
menu. The Main menu displays the basic information about yoursystem including
BIOS version, processor RC version, system language, time, and date. It contains the
system information including BIOS version, processor RC version, system language,
time, and date.
Page 48
IH70 Motherboard User Manual
40
BIOS Setting
Description
Setting Option
Effect
System
Language
Displays the system
language.
[English] is used by
default.
Select the
system
language
Set the system
language.
The language of this
device is English.
System Date
This is current date
setting.
Date changes.
Set the date in the
format [mm/dd/yyyy];
System Time
The time is
maintained by the
battery when the
device is turned off.
Time changes
Set the time in the
format: [hh/mm/ss]
Page 49
IH70 Motherboard User Manual
41

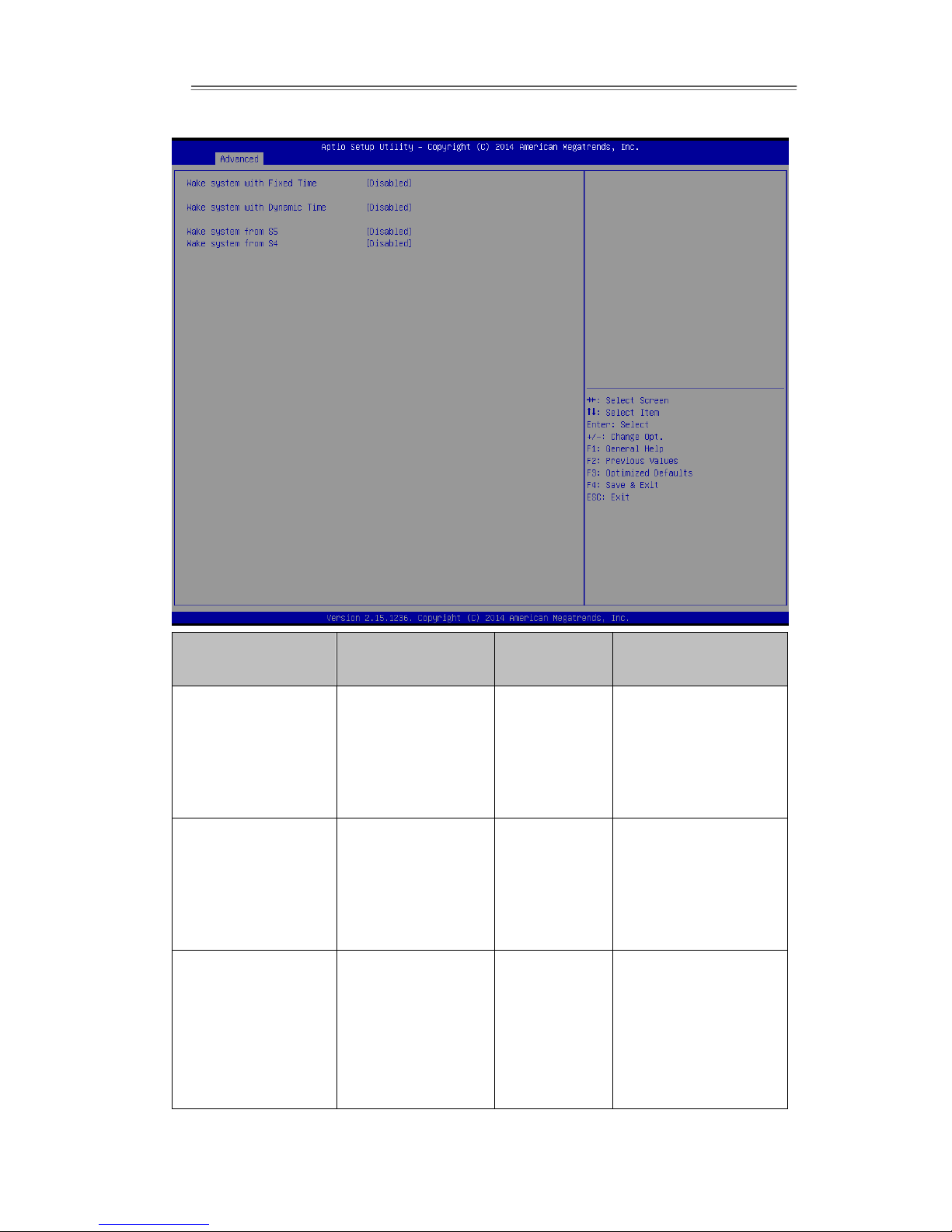

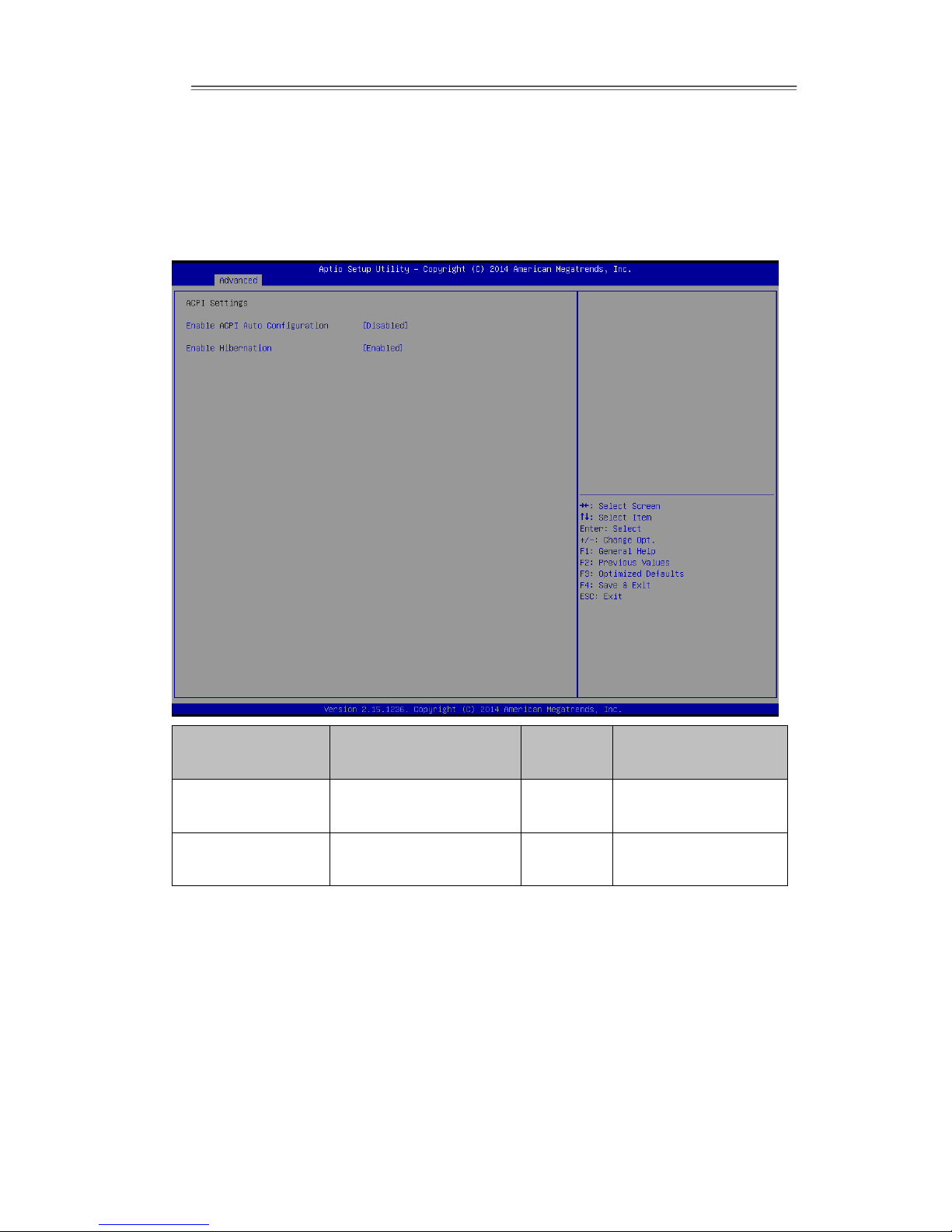

3.2.2 Advanced Menu

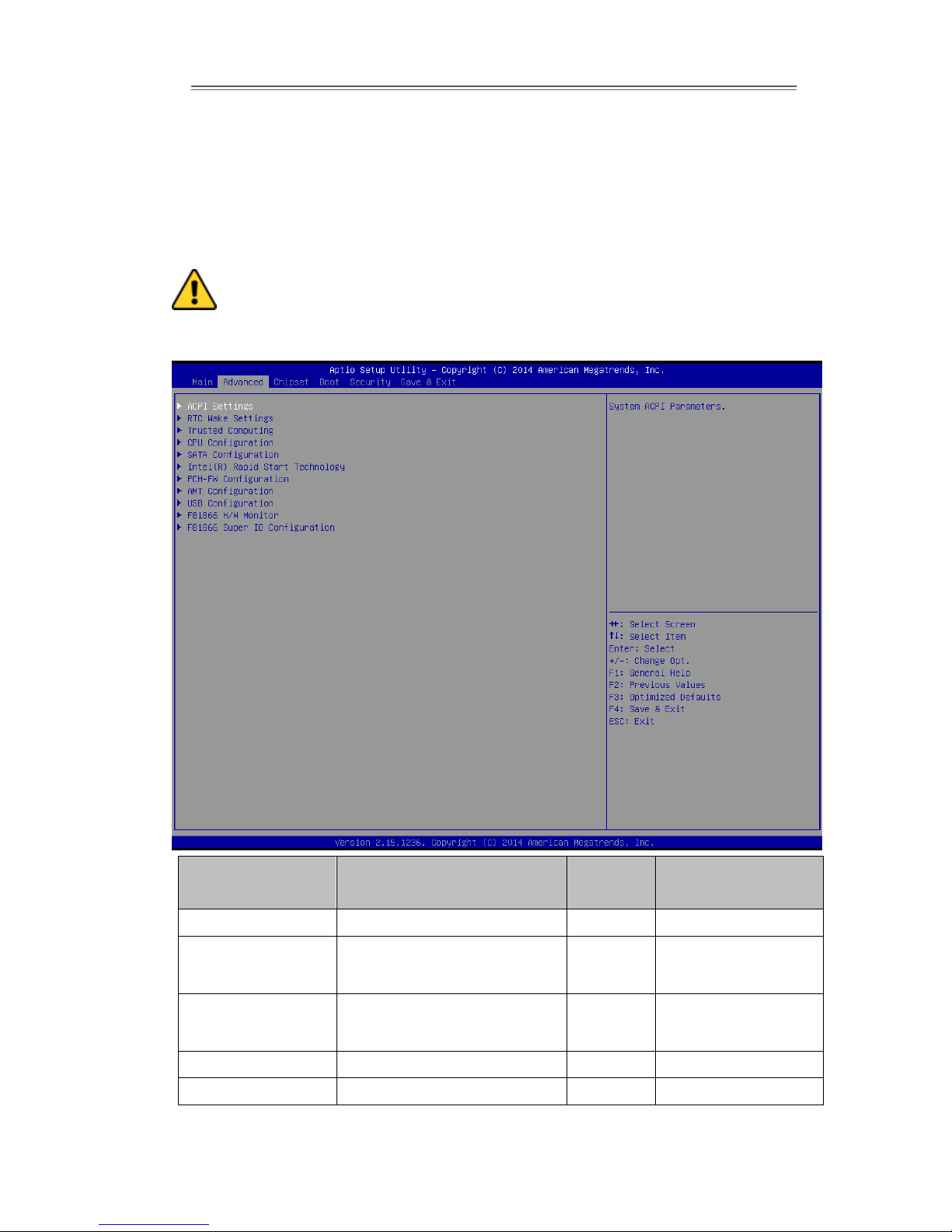

The advanced menu also uses to set configuration of the CPU and other system
devices. There are sub menus on the left frame of the screen.
Note
Handle advanced BIOS settings page with caution. Any changes can
affect the operation of your computer.
BIOS Setting
Description
Setting
Option
Effect
ACPI Settings
Configures ACPI settings
Enter
Opens submenu
RTC Wake Settings
Configures RTC Wake
parameters
Enter
Opens submenu
Trusted Computing
Configures Trusted
Computing parameters
Enter
Opens submenu
CPU Configuration
Configures CPU parameters
Enter
Opens submenu
SATA Configuration
Configures SATA parameters
Enter
Opens submenu
Page 50
IH70 Motherboard User Manual
42
Intel ®Rapid Start
Technology
Configures Intel ®Rapid Start
Technology parameters
Enter
Opens submenu
PCH-FW
Configuration
Configures PCH-FW
parameters
Enter
Opens submenu
AMT Configuration
Configures AMT parameters
Enter
Opens submenu
USB Configuration
Configures USB parameters
Enter
Opens submenu
F81866 H/W
Monitor
Configures F81866 Monitor
parameters
Enter
Opens submenu
F81866 Monitor
Super IO
Configuration
Configures F81866 Monitor
Super IO parameters
Enter
Opens submenu
You can select any of the items listed in the table below:
For items marked ► press <Enter> for more options.
Page 51
IH70 Motherboard User Manual
43
ACPI Settings
Advanced Configuration and Power Interface (ACPI) settings allow to control how the
power switch operates. The power supply can be adjusted for power requirements.
You can use the screen to select options of ACPI configuration. A description of the
selected items will appear on the right side of the screen.
BIOS Setting
Description
Setting
Option
Effect
Enable ACPI Auto
Configuration
Enable or disable BIOS
ACPI Auto Configuration
Enabled/
Disabled
Enable or disable this
function
Enable Hibernation
To enable or disable
hibernation
Enabled/
Disabled
Enable or disable this
function
Page 52
IH70 Motherboard User Manual
44
RTC Wake Settings
BIOS Setting
Description
Setting
Option
Effect
Wake system with
Fixed Time
System wake on
alarm event
Enabled/
Disabled
Enable or disable this
function. When
enabled, the system
will wake on the
hr: min: sec specified.
Wake system with
Dynamic Time
System wake on
alarm event
Enabled/
Disabled
Enable or disable this
function. When
enabled, the system
will wake on current
time+ time specified
Wake system from
S5
Configure wake
from full shutdown
and boot mode (S5)
system setting
Enabled/
Disabled
Enable or disable this
function. When
enabled, the system
will wake on full
shutdown and boot
mode.
Page 53
IH70 Motherboard User Manual
45
Wake system from
S4
Configure wake
from hibernation
mode (S4) system
setting
Enabled/
Disabled
When enabled, the
system will wake on
hibernation mode.

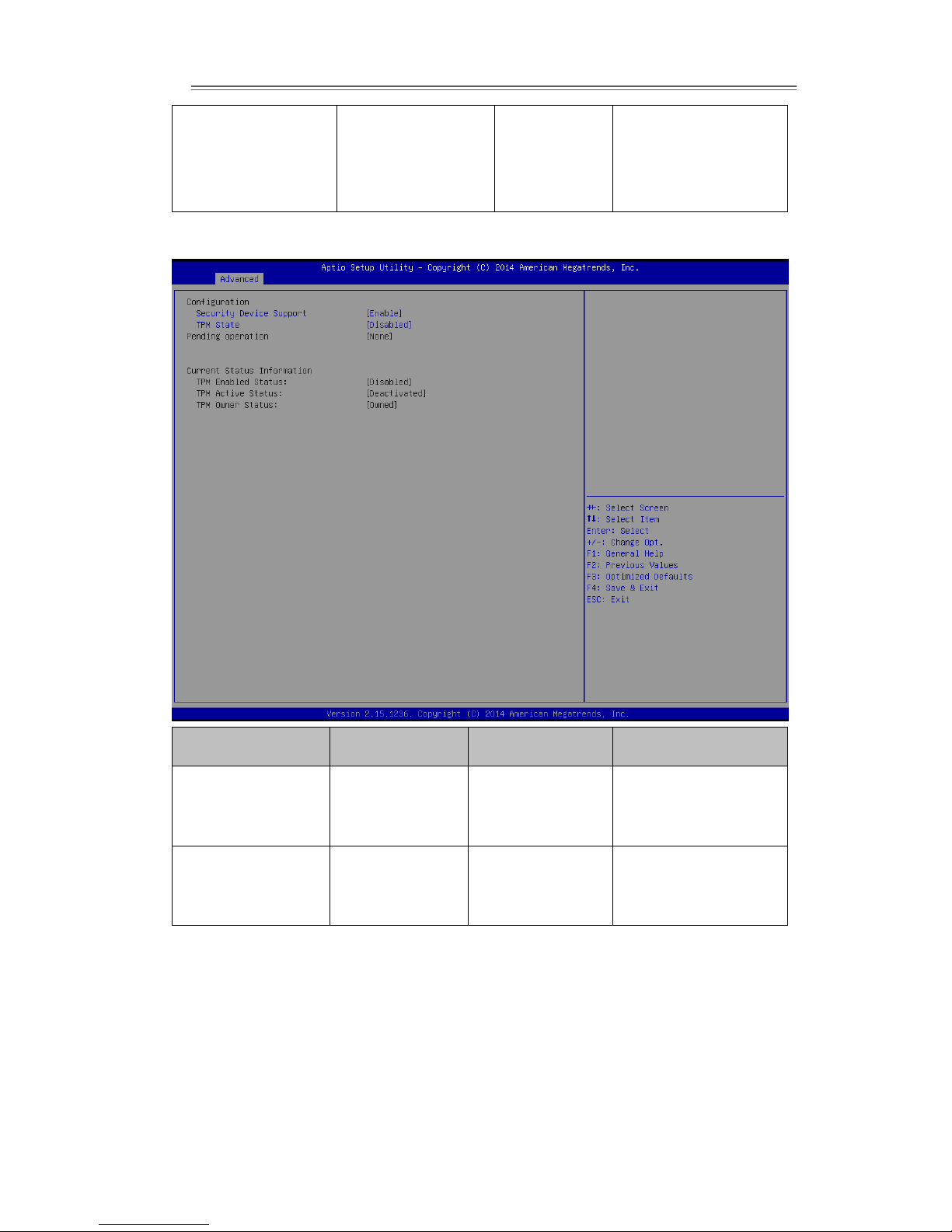

Trusted Computing
BIOS Setting
Description
Setting Option
Effect
Security Device
Support
Enable or disable
BIOS support for
security device.
Enabled/ Disabled
Enable or disable this
function.
TPM State
Trusted Platform
Module (TPM)
parameters.
Enabled/ Disabled
Enable or disable this
function.
Page 54
IH70 Motherboard User Manual
46

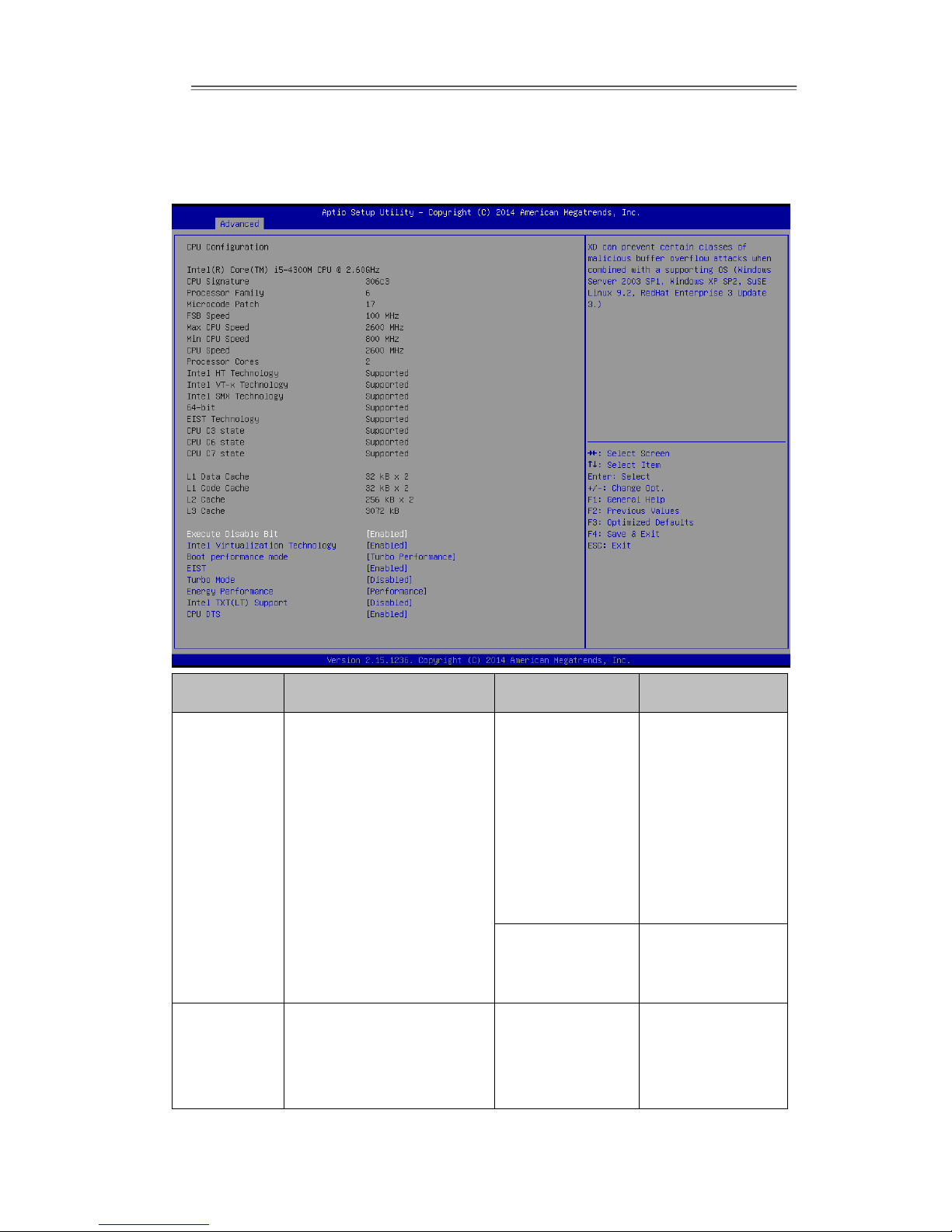

CPU Configuration
Press <Enter> to view current CPU configuration and make settings for the following
sub-items.
BIOS Setting
Description
Setting Option
Effect
Execute
Disable Bit
EDB is a hardware-based
security component used
in the central processing
unit (CPU) to separate
areas of a memory as
storage of processor
instructions or as storage
of data.
Enabled
Reduces a
computer
system's, or a
server’s,
vulnerability to
viruses and
malicious code
attacks
Disabled
Increases the risk
to be infected by
viruses
Intel
Virtualization
Technology
Enables a CPU to act as if
you have several
independent computers, in
order to enable several
Enabled/ Disabled
Enable or disable
this function
Page 55
IH70 Motherboard User Manual
47
operating systems to run
at the same time on the
same machine.
Boot
Performance
Mode
This feature selects the
performance state the
BIOS will set before the OS
hand-off.
Auto
Auto mode
Standard
Allows processor
cores to run at the
frequency
recommended by
the manufacturer.
Turbo
Allows processor
cores to run faster
than the
frequency
recommended by
the manufacturer.
EIST
Enhanced Intel SpeedStep
Technology gives your OS
the ability to switch the
processor's speed and
voltage up and down, to
preserve power when not
much is being computed.
Enabled/
Disabled
Enable or disable
this function
Turbo Mode
Adjusts the power and
clock speed of processor
cores as needed to better
match processor power to
your needs.
Enabled/
Disabled
Enable or disable
this function
Energy
Performance
This option manages the
internal "Power Control
Unit" of the processors
and optimizes the power
management functions of
the processors between
performance and energy
efficiency.
Performance/
Balanced
Performance/
Balanced Energy/
Energy Efficient
Select energy
perfoemance
mode
Intel TXT(LT)
Support
Configure Intel Trusted
Execution Technology
Enabled/
Disabled
Enable or disable
this function
Page 56
IH70 Motherboard User Manual
48
parameters
CPU DTS
Digital Thermal Sensors
(DTS) parameters.
Enabled/ Disabled
Enable or disable
this function

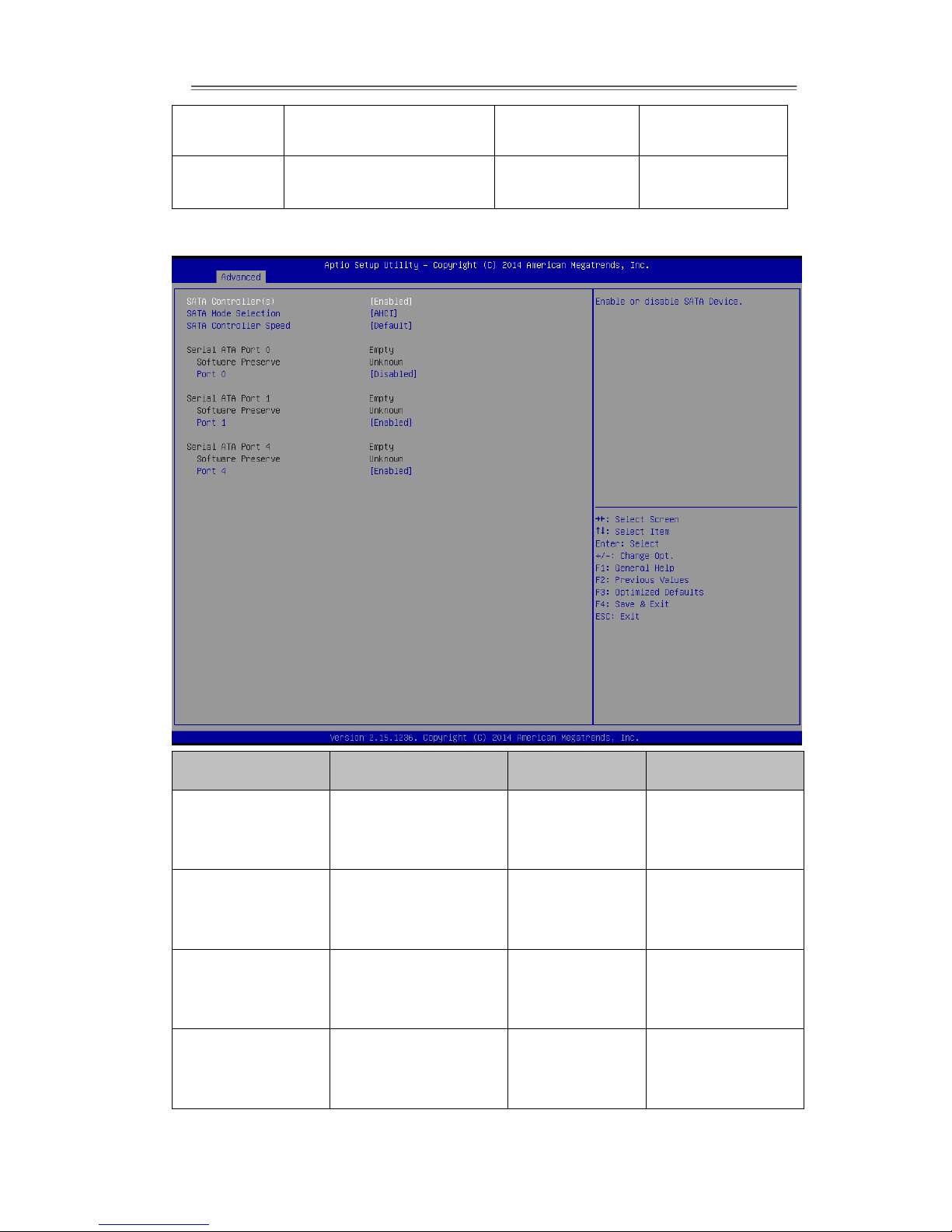

SATA Configuration
BIOS Setting
Description
Setting Option
Effect
SATA Controller(s)
Allows users to enable
or disable the SATA
controller(s).
Enabled/
Disabled
Enable or disable
this function
SATA Mode
Selection
Allows users to select
mode of SATA
controller(s).
AMCI
Work in AMCI
mode of SATA
controller(s)
SATA Controller
Speed
Allows users to select
mode of SATA
Controller Speed.
Default
SATA Controller
Speed default
settings
Serial ATA Port
0/1/4
Allows users to enable
or disable the SATA
Port.
Enabled/
Disabled
Enable or disable
this function
Page 57
IH70 Motherboard User Manual
49

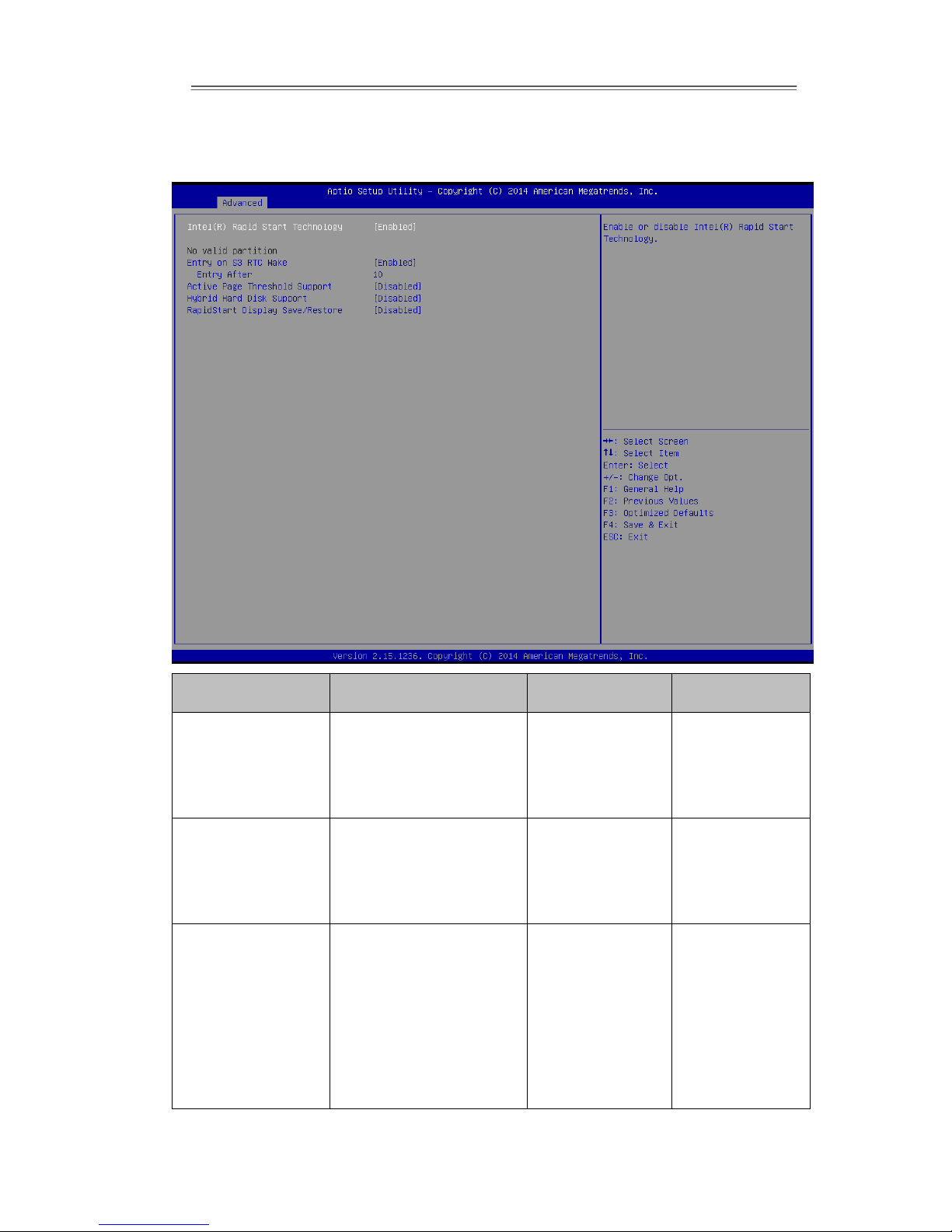

INTEL® Rapid Star Technology
Allows users to enable or disable Intel rapid start technology.
BIOS Setting
Description
Setting Option
Effect
Entry on S3 RTC
Wake
The system
automatically wakes up
and set to Rapid Start
Technology S3 mode.
Enabled/ Disabled
Enable or disable
this function
Entry After
Allows you to set the RTC
wake-up timer at S3
entry.
The time ranges
from 0 minute
(immediately) to
120 minutes
Set parameters
of Wake up
timer at S3 entry
Active Page
Threshold Support
The system
automatically goes into
sleep mode when the
partition size is not
enough for the Intel®
Rapid Start Technology
to work.
Enabled/ Disabled
Enable or disable
this function
Page 58
IH70 Motherboard User Manual
50
Hybrid Hard Disk
Support
Allows you to enable or
disable the hybrid hard
disk support
Enabled/ Disabled
Enable or disable
this function
Rapid Display
Save/Restore
Allows you to enable or
disable the Rapid Display
Save/ Restore
Enabled/ Disabled
Enable or disable
this function

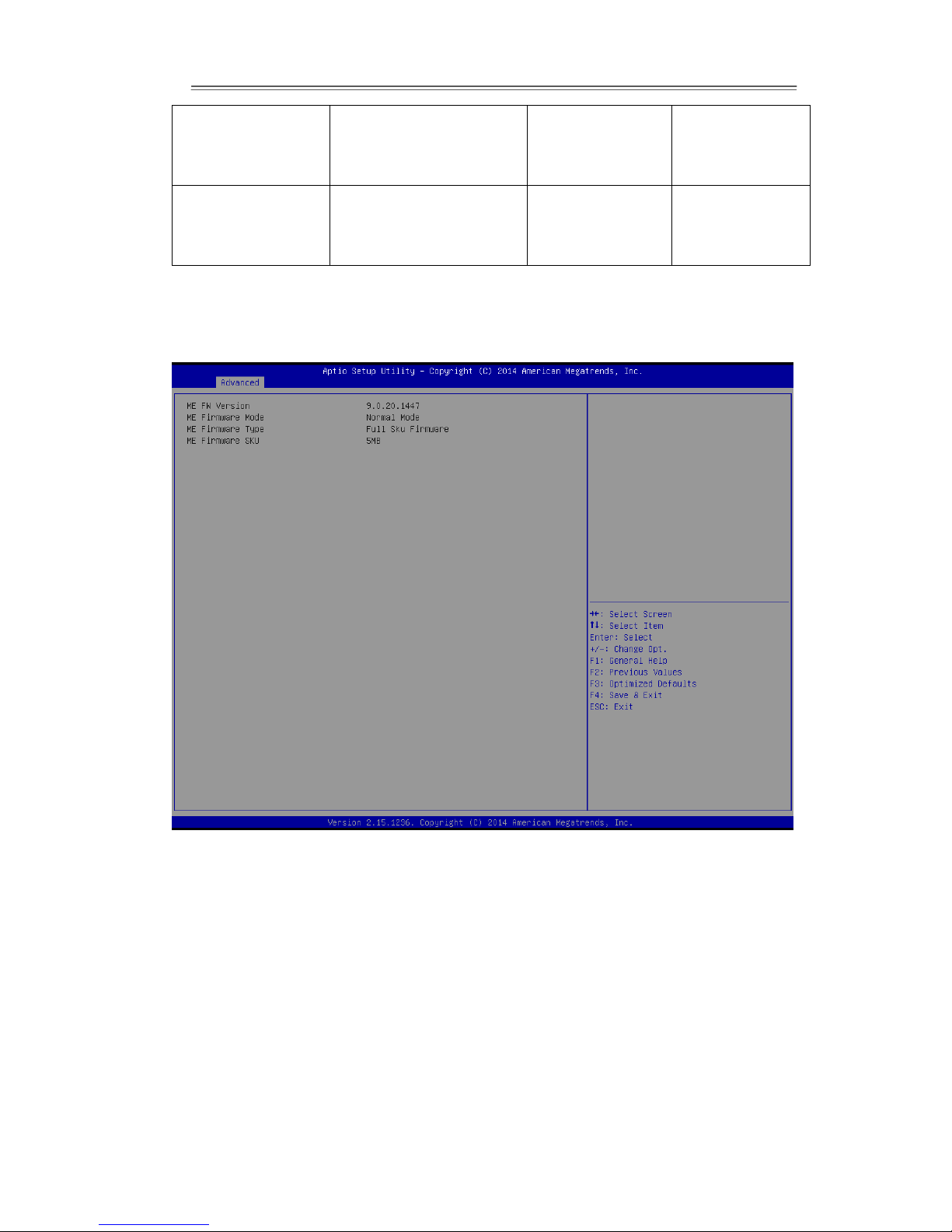

PCH-FW Configuration
This menu allows checking which FW Version, Mode, Type and SKU installed on your
computer.
Page 59
IH70 Motherboard User Manual
51

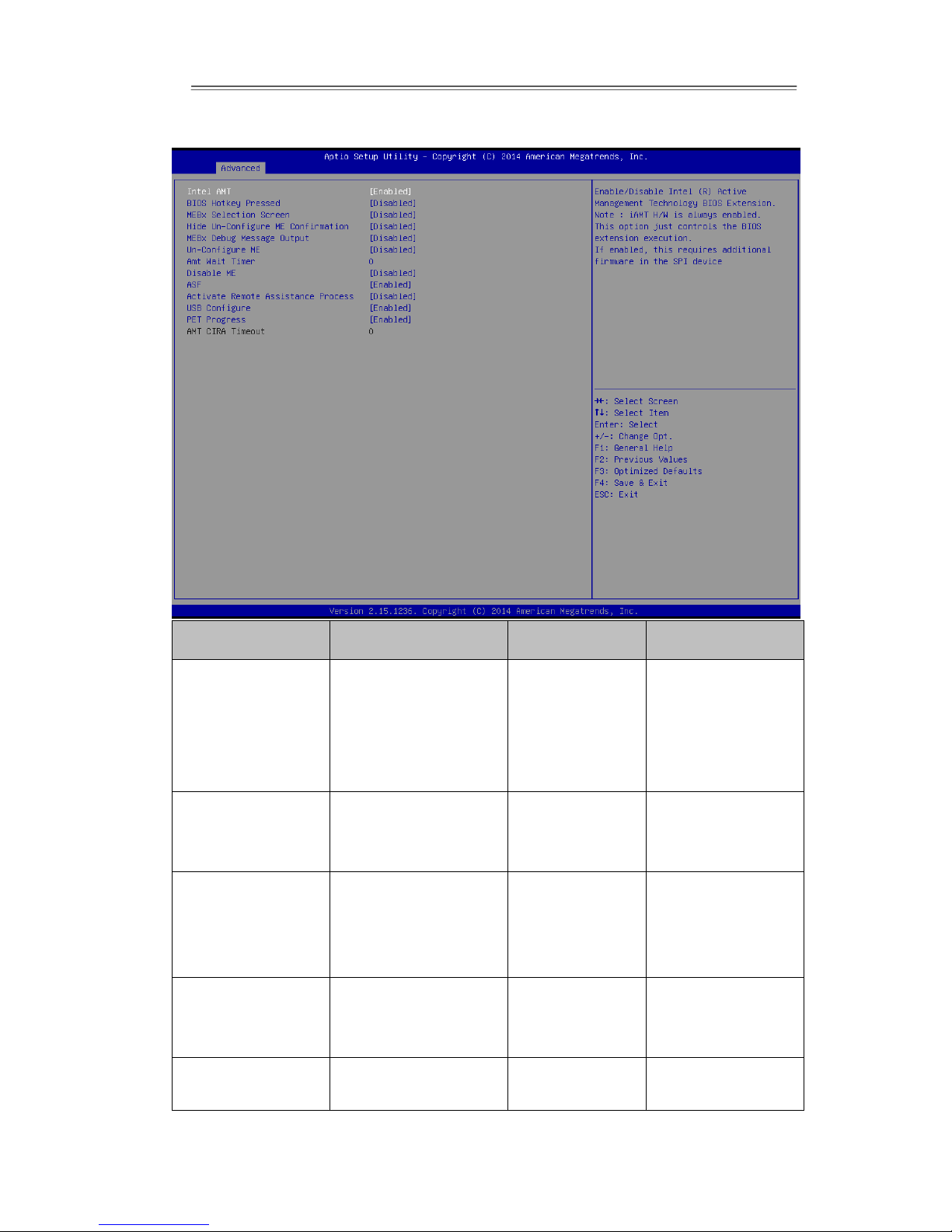

Intel AMT Configuration
BIOS Setting
Description
Setting Option
Effect
Intel AMT
Set parameters of
Intel ®Active
management
Technology BIOS
Extension.
Enabled/
Disabled.
Default: Enabled
Enable or disable
this function
BIOS Hotkey
Pressed
BIOS Hotkey Pressed
parameters
Enabled/
Disabled.
Use this item to
enable/disable
BIOS hotkey press.
MEDx Selection
Screen
MEDx Selection
Screen parameters
Enabled/
Disabled
Use this item to
enable/disable
MEBx selection
screen.
Hide MEDx
Selection
Information
Hide MEDx Selection
Information
Enabled/
Disabled
Enable or disable
this function
MEDx Debug
Message Output
MEDx Debug Message
Output parameters
Enabled/
Disabled
Enable or disable
this function
Page 60
IH70 Motherboard User Manual
52
Un-configure ME
Use this item to un-
configure ME
Enabled/
Disabled
Enable or disable
this function
AMT Wait Timer
Set up AMT Wait
Timer
0
Select wait time
number
Disable ME
Use this item to
disable ME
Enabled/
Disabled
Enable or disable
this function
ASF
Configure ASF
parameters
Enabled/
Disabled
Enable or disable
this function
Activate Remote
Assistant Process
Activate Remote
Assistant Process
parameters
Enabled/
Disabled
Enable or disable
this function
USB Configure
USB Configure
parameters
Enabled/
Disabled
Enable or disable
this function
PET Progress
PET Progress
parameters
Enabled/
Disabled
Enable or disable
this function

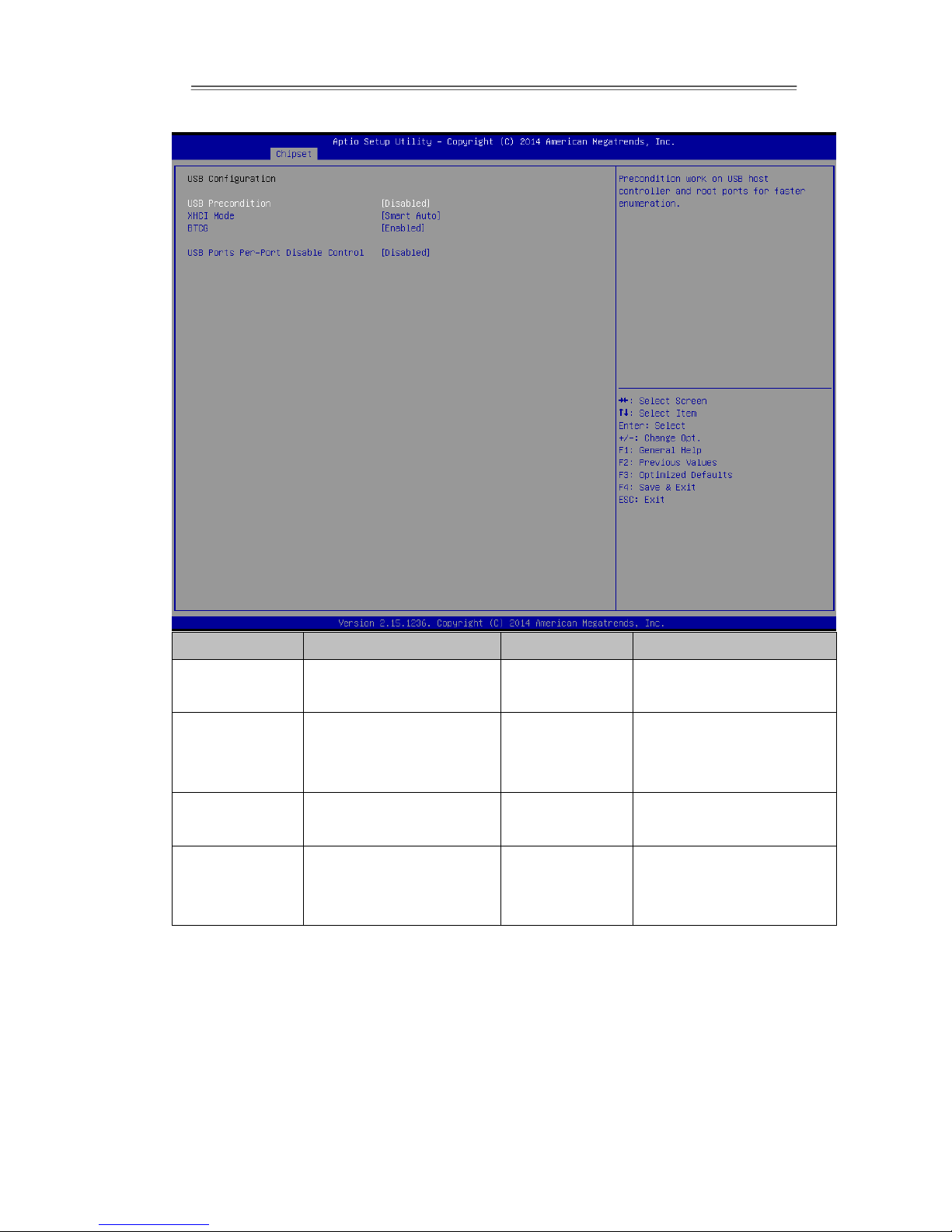

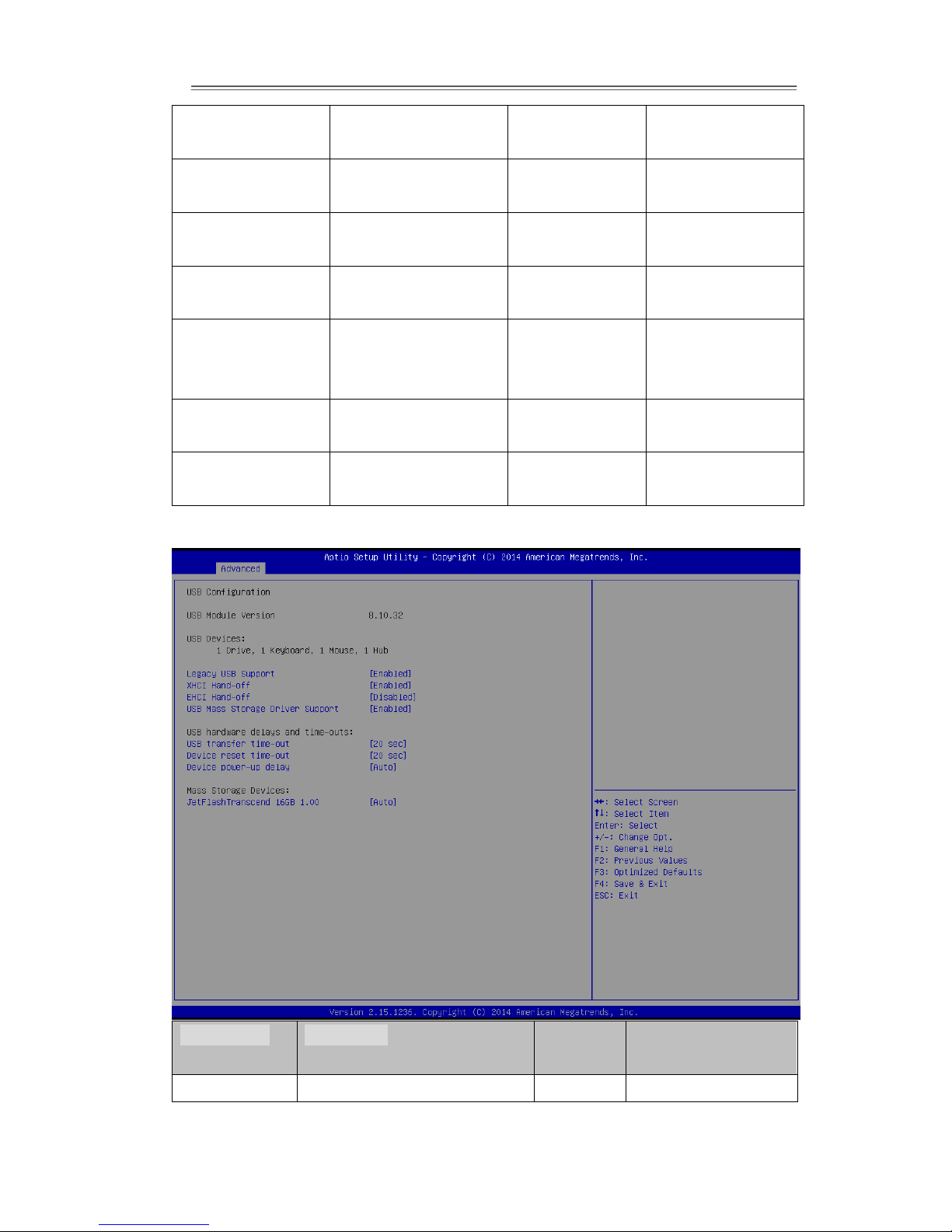

USB Configuration
BIOS Setting
Description
Setting
Option
Effect
Legacy USB
User can enable or disable USB
Auto
Disable legacy
Page 61
IH70 Motherboard User Manual
53
Support
port.
support if no USB
devices are
connected
Disable
Will keep USB
devices available only
for EFI applications.
Enable
Enable all the USB
devices
XHCI Hand‐off
This is a workaround for OSs
without XHCI hand‐ off
support. The XHCI ownership
Change should claim by XHCI
driver.
Disable
Disables this function
Enable
Enables this function
EHCI Hand‐off
This is a workaround for OSs
without ECHI hand‐ off
support. The EHCI ownership
change should be claimed by
EHCI driver.
*Disabled
Disables this function
Enable
Enables this function
USB Mass
Storage Driver
Support
User can Enable or disable USB
mass storage driver support.
Disable
Disables this function
Enable
Enables this function
USB Transfer
time‐ out
The time‐out value for control,
bulk, and interrupt transfers.
1 Sec
5 Sec
10 Sec
*20 Sec
Depends on the
time‐out value
Device Reset
time‐ out
USB mass storage device start
unit command time‐ out.
10 Sec
*20 Sec
30 Sec
40 Sec
Depends on the
time‐out value
Device
power‐up
delay
Maximum time the device will
take before it properly reports
itself to the host controller.
Auto
Uses default value:
for a root port it is
100 ms, for a Hub
port the delay is
taken from Hub
descriptor
Mass Storage
Device
Mass storage device emulation
type.
AUTO
Enumerates devices
less than 530MB as
floppies. Forced FDD
Page 62
IH70 Motherboard User Manual
54
option can be used to
force HDD formatted
drive to boot as FDD.

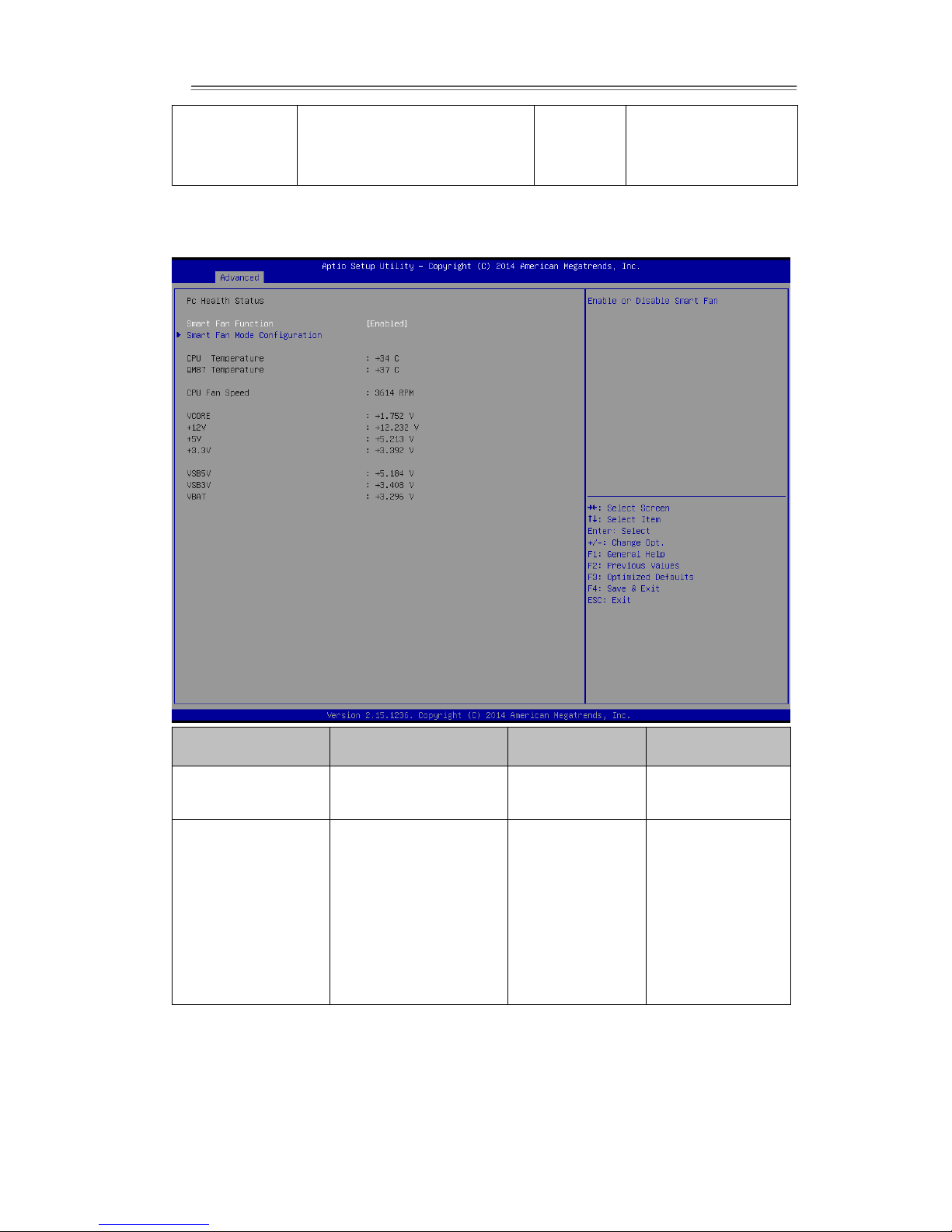

F81866 H/W Monitor
BIOS Setting
Description
Setting Option
Effect
Smart Fan Function
Set parameters of
smart fan function
Enabled/
Disabled
Enable or disable
this function
Smart Fan Mode
Configuration
CPU Smart Fan Mode
is responsible for
selecting the type of
fan design that allows
you to determine the
type of fan speed
control.
Possible Setting
Options:
Auto, Voltage,
PMW
Select the type of
fan speed control
Page 63
IH70 Motherboard User Manual
55

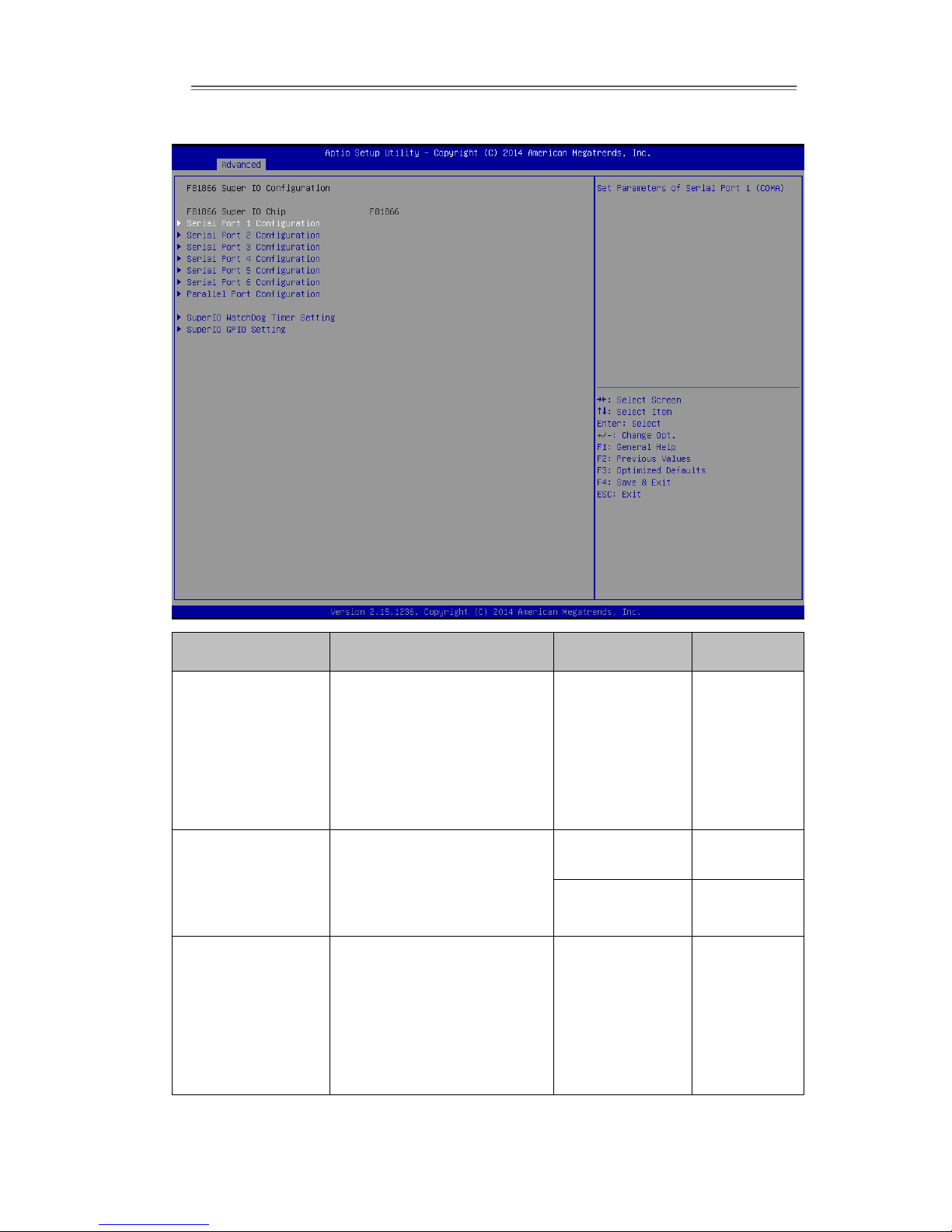

Super IO Configuration
BIOS Setting
Description
Setting Option
Effect
Serial Port
1,2,3 ,4,5,6
Configuration
Set Parameters of Serial
Ports. User can
Enable/Disable the serial
port and select optimal
settings for the super IO
Device.
Enabled/
Disabled
Default: Enable
Enable or
disable Serial
Port (COM)
Parallel Port
Configuration
This option enables
monitoring activity of the
devices connected to the
computer via parallel port.
Enabled
Allow
Disabled
Forbid
Super IO Watch
Dog Timer Setting
This watchdog timer can be
used to monitor system
software operation
and take corrective action if the
software fails to function after
the programmed period.
Enabled/
Disabled
Enable or
disable this
function
Page 64
IH70 Motherboard User Manual
56
Super IO GPI0
Setting
You can use the screen to
select options for Super IO
Configuration.
A description of
the selected
item appears on
the right side of
the screen. For
items marked
with ►, please
press <Enter> for
more options.
Change the
value of the
option
selected.

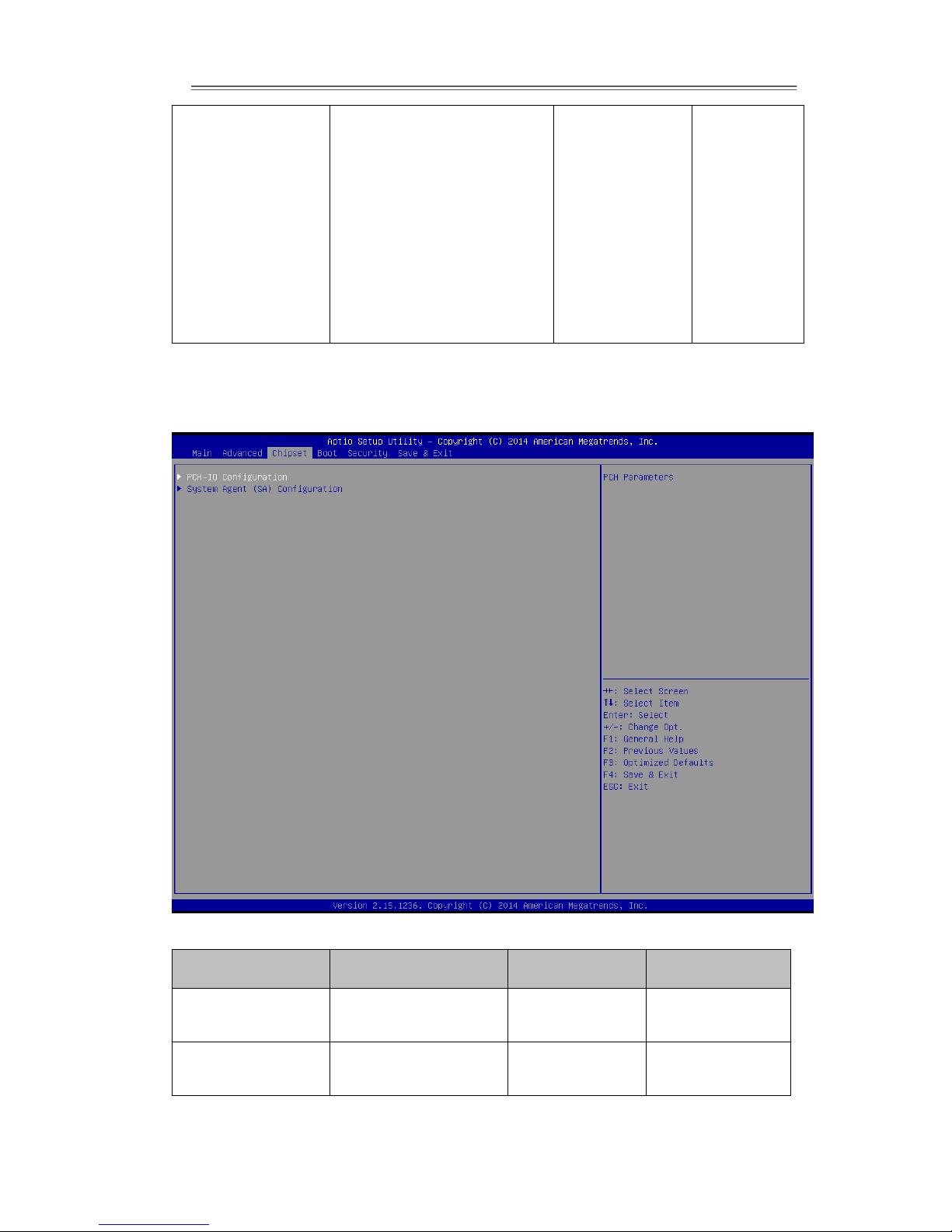

3.2.3 Chipset Menu
BIOS Setting
Description
Setting Option
Effect
PCH-IO
Configuration
PCH Parameters
Enter
Opens submenu
System Agent (SA)
Configuration
System Agent (SA)
Parameters
Enter
Opens submenu
Page 65
IH70 Motherboard User Manual
57

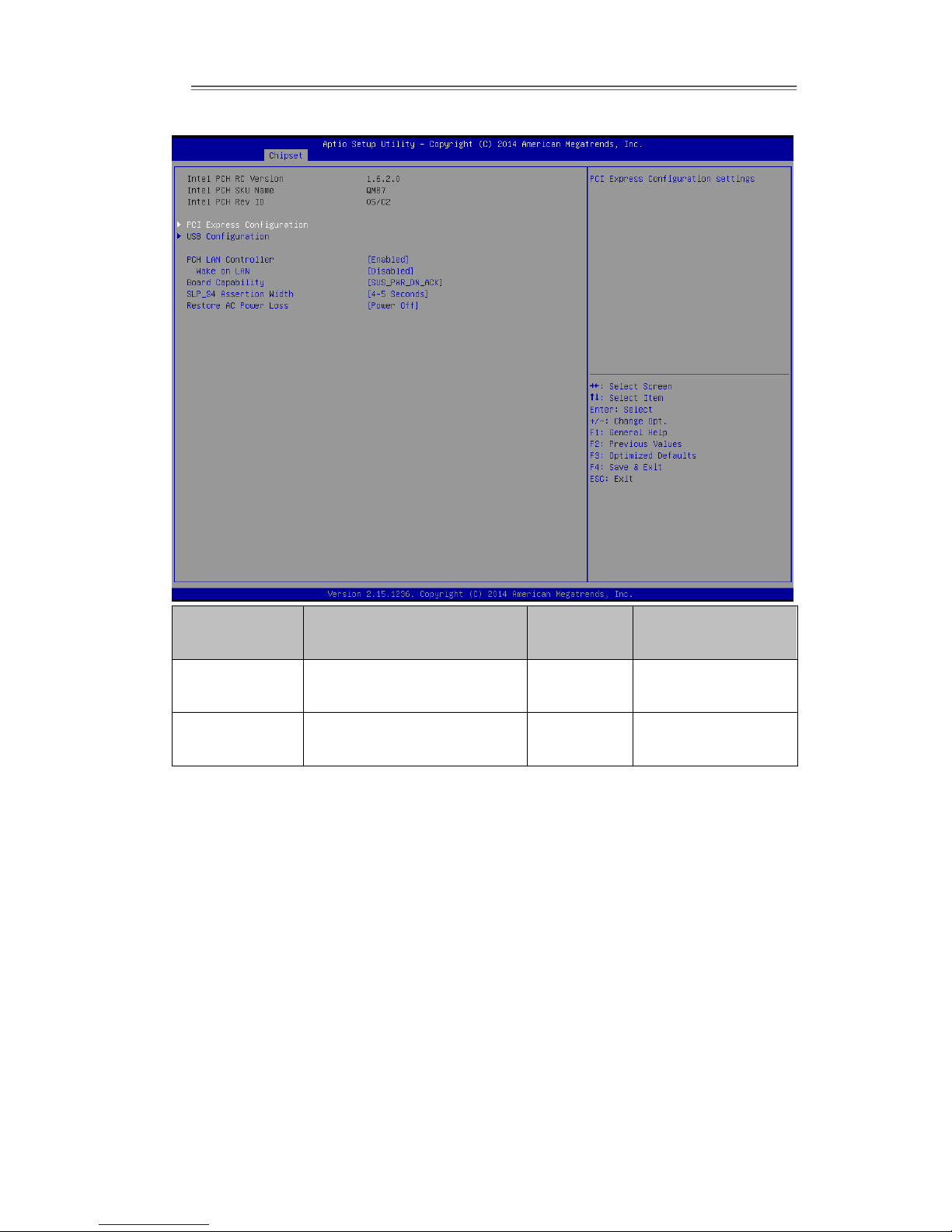

PCI –IO Configuration
BIOS Setting
Description
Setting
Option
Effect
PCI Express
Configuration
PCI Express Parameters
Enter
Opens submenu
USB
Configuration
USB parameters
Enter
Opens submenu
Page 66
IH70 Motherboard User Manual
58

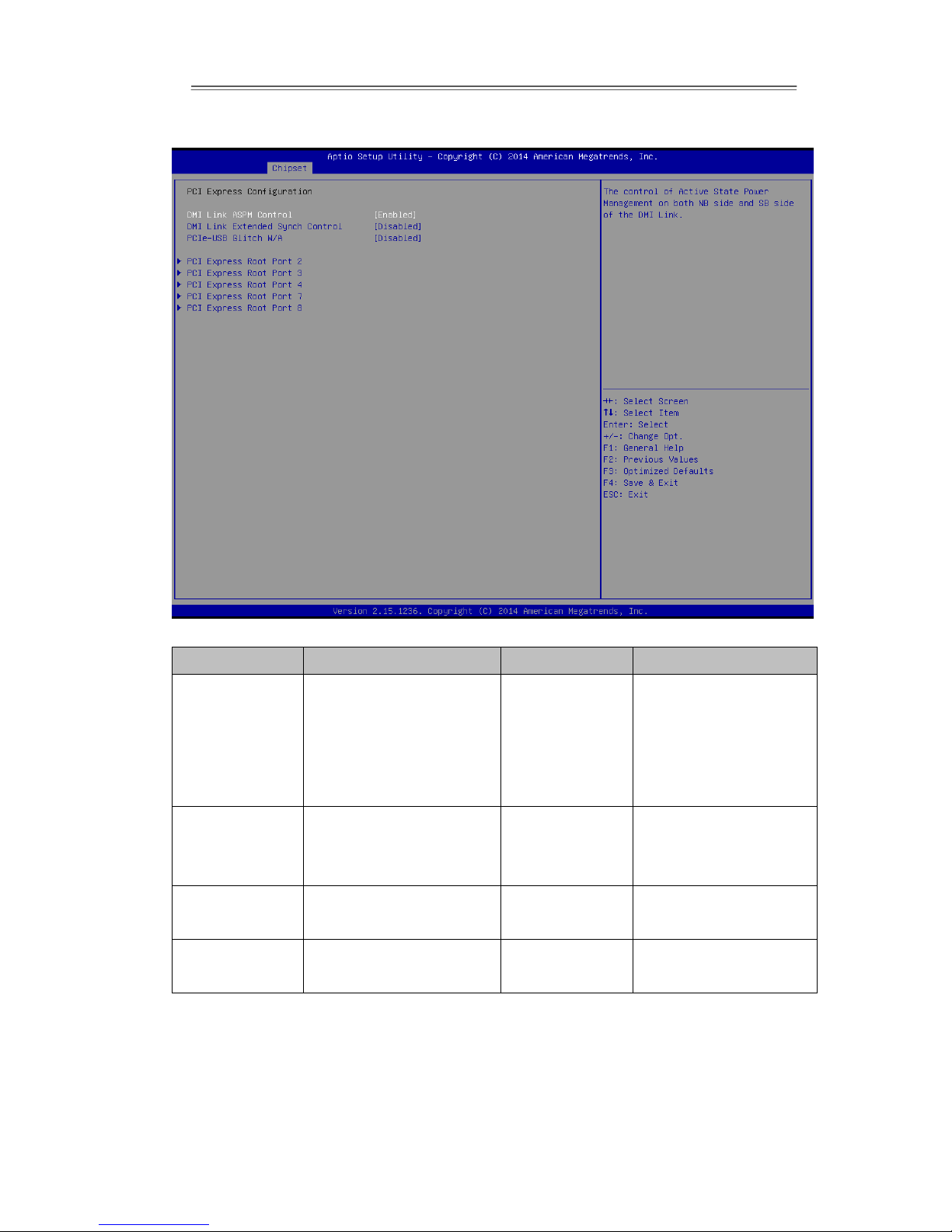

PCI Express Configuration
BIOS Setting
Description
Setting Option
Effect
DMI Link ASPM
Control
The control of Active
State Power
Management on both NB
side and SB side of the
DMI Line
Enabled/
Disabled
Enable or disable this
function
DMI Link
Extended Synch
Control
DMI Link Extended Synch
Control parameters
Enabled/
Disabled
Enable or disable this
function
PCIe- USB Glitch
W/A
PCIe- USB Glitch W/A
parameters
Enabled/
Disabled
Enable or disable this
function
PCI Express
Root Port 2~8
PCI Express Root Port
2~8 Parameters
Page 67
IH70 Motherboard User Manual
59
USB Configuration
BIOS Setting
Description
Setting Option
Effect
USB
Precondition
Allows user to enable or
disable USB Precondition
Enabled/
Disabled
Enable or disable this
function
XHCI Mode
Allows user to enable or
disable XHCI Mode
Smart Auto,
Enabled/
Disabled
Enabled/ Disabled
BTCG
BTCG Parameters
Enabled/
Disabled
Enabled/ Disabled
USB Ports
Per-Port Disable
Control
Control each of the USB
ports (0~13) disabling
Enabled/
Disabled
Enable or disable this
function
Page 68
IH70 Motherboard User Manual
60
System Agent (SA) Configuration
VT-d
Allows users to enable or disable Intel Virtualization Technology for Directed I/O.
Page 69
IH70 Motherboard User Manual
61

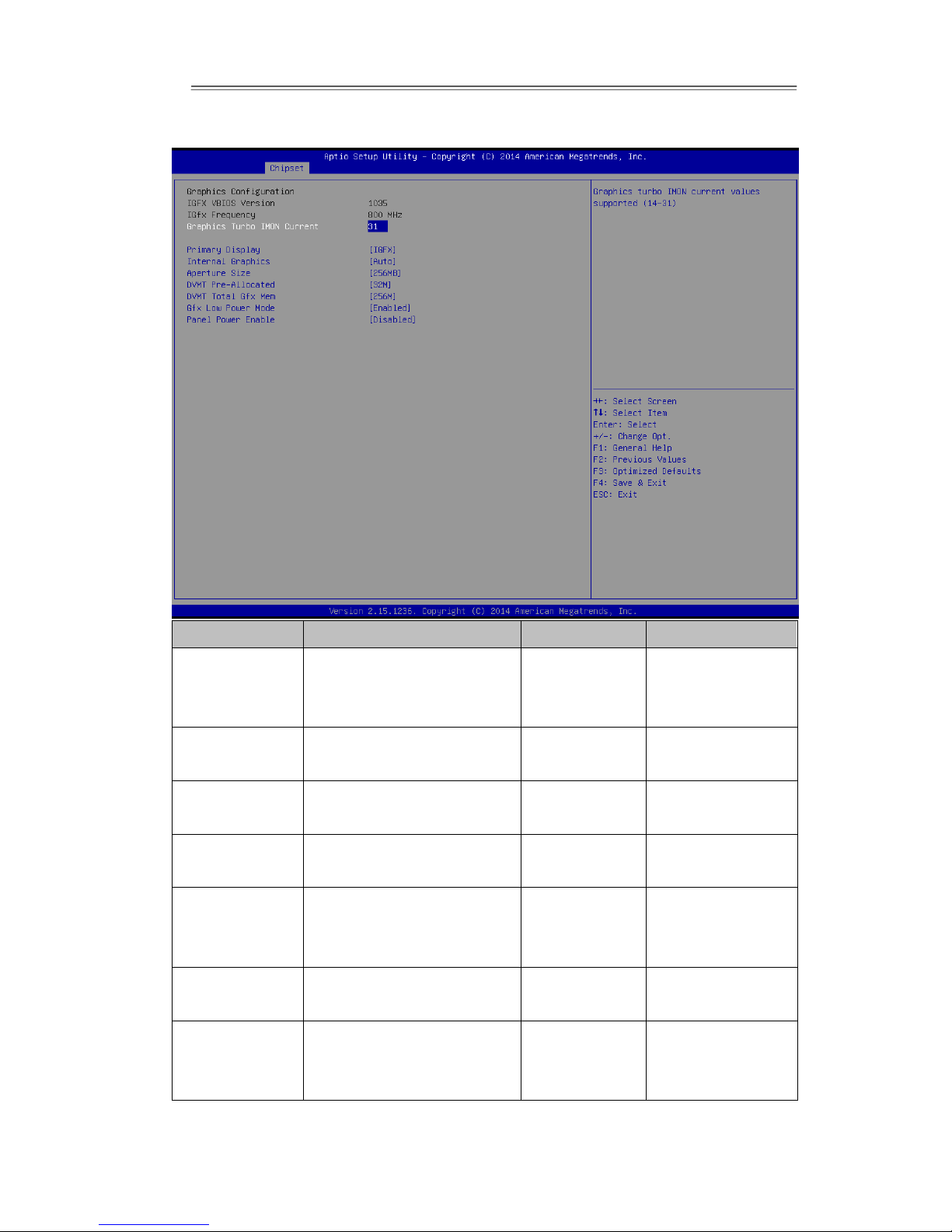

Graphics Configuration
BIOS Setting
Description
Setting Option
Effect
Graphics Turbo
IMON Current
Allows users to select which
Graphics Turbo IMON
Current.
31
Set Turbo IMON
Current parameter
Primary Display
Allows users to select
Primary Display
[IGFX], [Auto]
Select Primary
Display
Internal
Graphics
Allows users to enable or
disable IGD
Auto,Enabled/
DIsabled
Enabled or
Disabled IGD
Aperture Size
This item allows users to
select aperture size
256M
Select aperture
size
DVMT
Pre-Allocated
Allows users to select
DVMT pre-allocated
memory size.
32M
Select DVMT
pre-allocated
memory size.
DVMT Total Gfx
Mem
Allows users to select
DVMT total memory size.
256M
Select DVMT total
memory size
Gfx Low Power
Mode
Allows users to enable or
disable IGD low power
mode.
Enabled/
Disabled
Enable/Disable
this function
Page 70
IH70 Motherboard User Manual
62
Panel Power
Enable
Allows users to enable or
disable Panel Power.
Enabled/
Disabled
Enable/Disable
this function

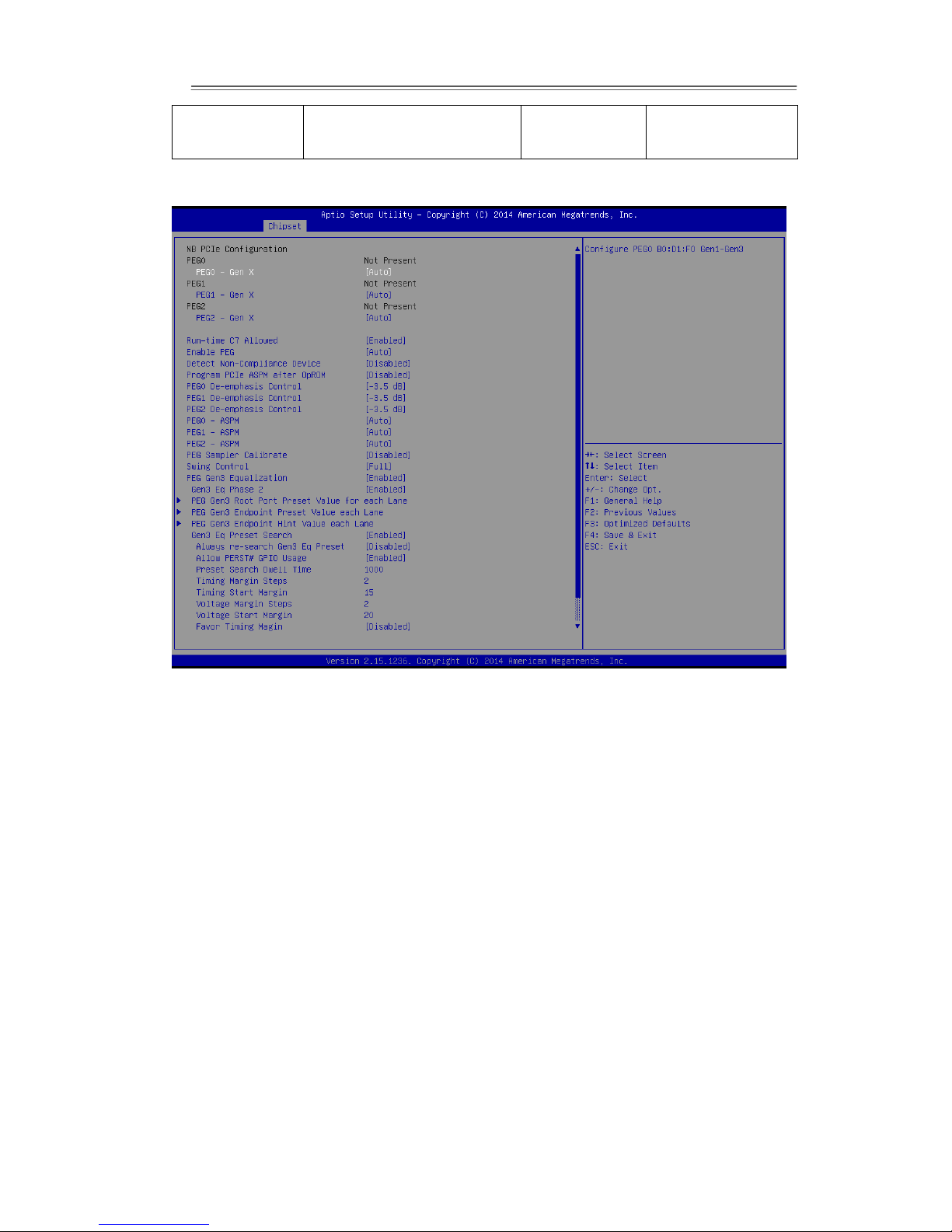

NB PCIe Configuration
Page 71
IH70 Motherboard User Manual
63

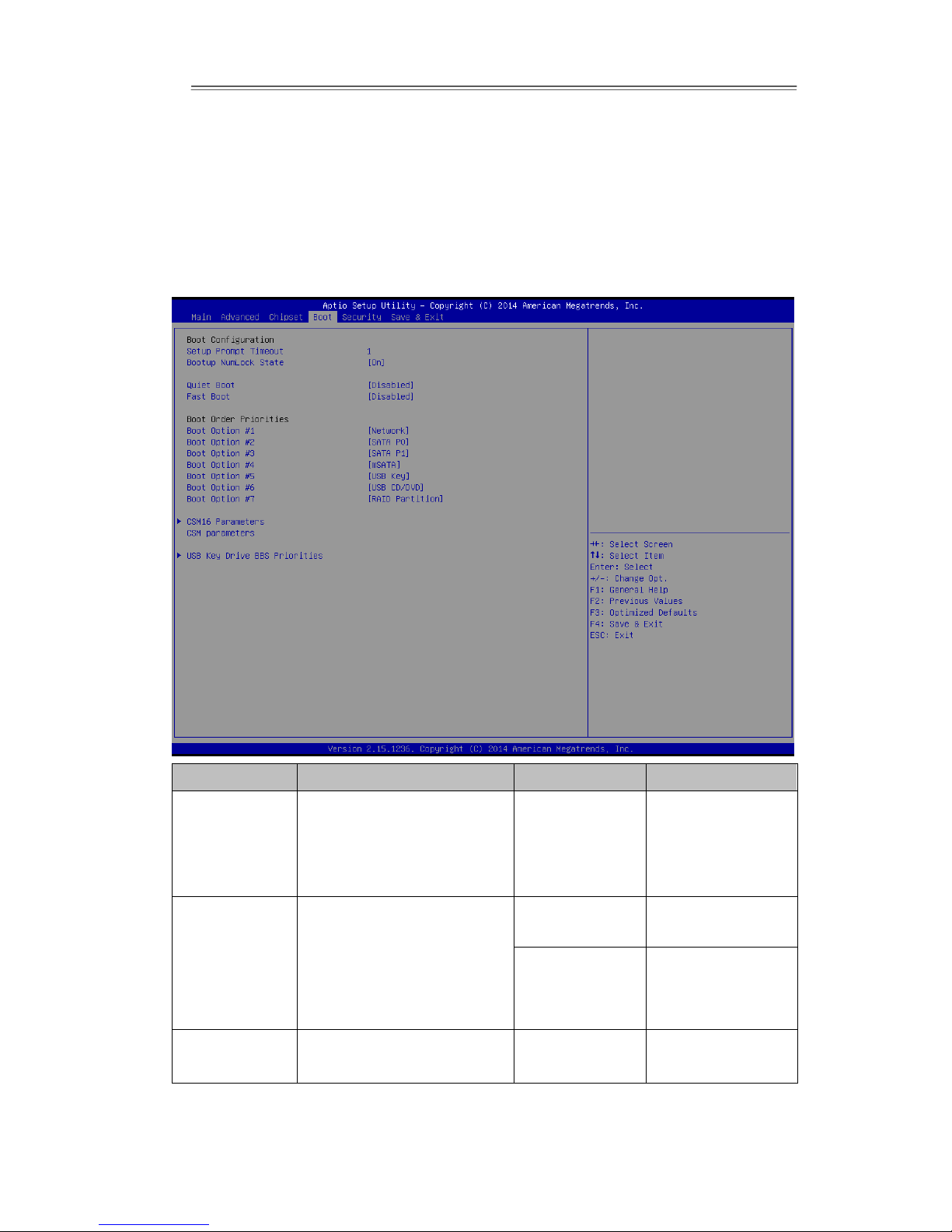

3.2.4 Boot Menu
The Boot menu sets the sequence of the devices to be searched for the operating
system. The bootable devices will be automatically detected during POST and shown
here, allowing you to set the sequence that the BIOS use to look for a boot device
from which to load the operating system.
BIOS Setting
Description
Setting Option
Effect
Setup Prompt
Timeout
Allows user to configure the
number of seconds to stay
in BIOS setup prompt
screen.
Enter
Set the prompt
timeout
Boot NumLock
State
Enables or disables
NumLock feature on the
numeric keypad of the
keyboard after the POST
(Default: On).
On
Remains On
Off
Remains OFF
Quite Boot
Determines if POST
message or OEM logo
Disabled
Disables this
function
Page 72
IH70 Motherboard User Manual
64
(default = Black
background) is displayed.
Enabled
Enables this
function
Fast Boot
Enables or disables Fast
Boot to shorten the OS boot
process. (Default: Disabled).
Disabled
Disables this
function
Enabled
Enables this
function
Boot Option
Priorities
Specifies the overall boot
order from the available
devices
Ex: Boot
Option#1
(network);
Options:
#1~#7
Ex.: Set Network
as the first priority
CSM 16
parameters
Specifies the boot order for
a CSM parameters
Enter
Enter the
submenu
USB Key Drive
BBS Priorities
Specifies the boot order for
USB Key Drive BBS
parameters
Enter
Enter the
submenu
Page 73
IH70 Motherboard User Manual
65

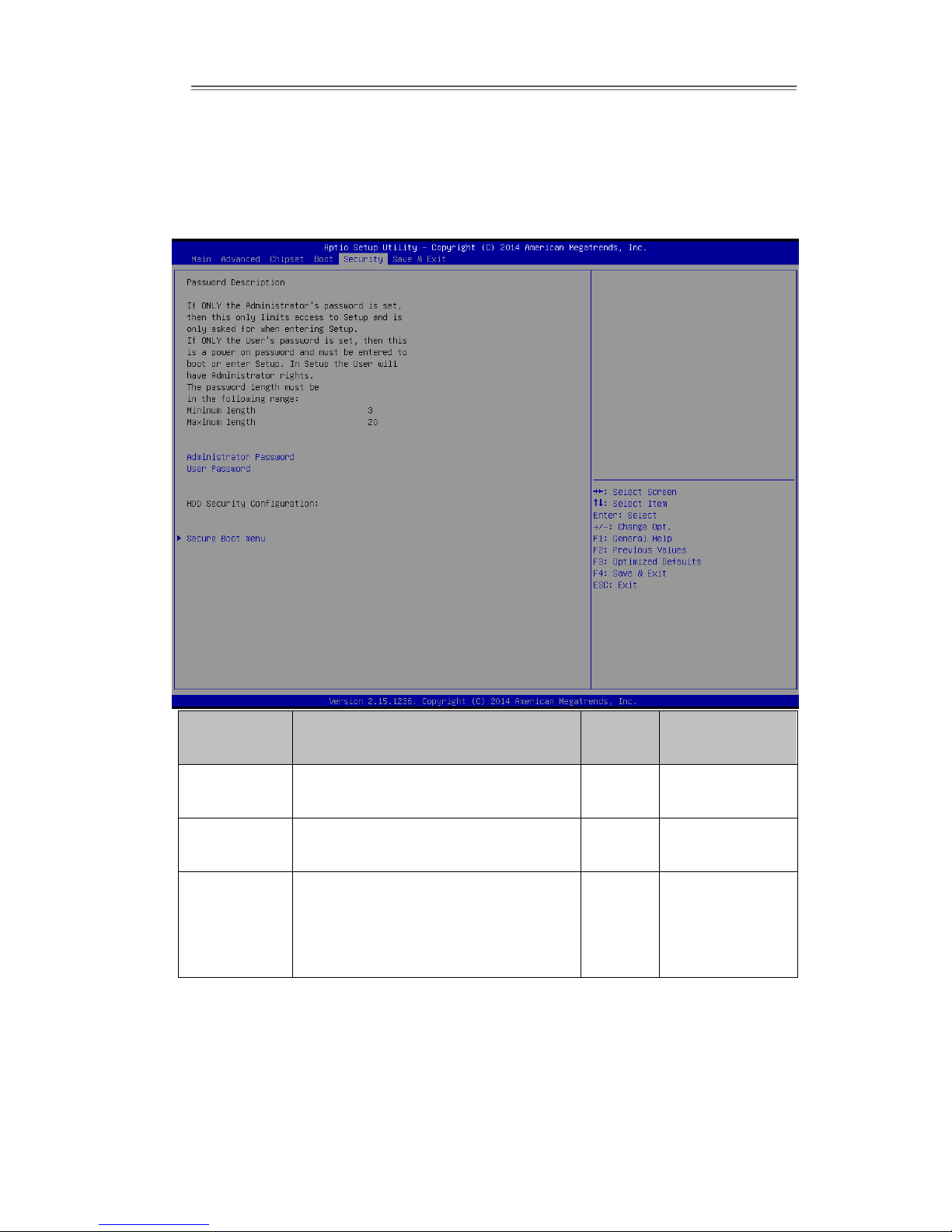

3.2.5 Security Menu
This section allows you to configure and improve your system and allows you to set
up some system features according to your preference.
BIOS Setting
Description
Setting
Option
Effect
Administrator
Password
Displays whether or not an
administrator password has been set.
Enter
Enter password
User
Password
Display whether or not a user
Password has been set.
Enter
Enter password
Secure Boot
Menu
This feature designed to prevent
malicious software and unauthorized
media from loading during the boot
process.
Enable/
Disable
Enable or
disable this
function
Page 74
IH70 Motherboard User Manual
66

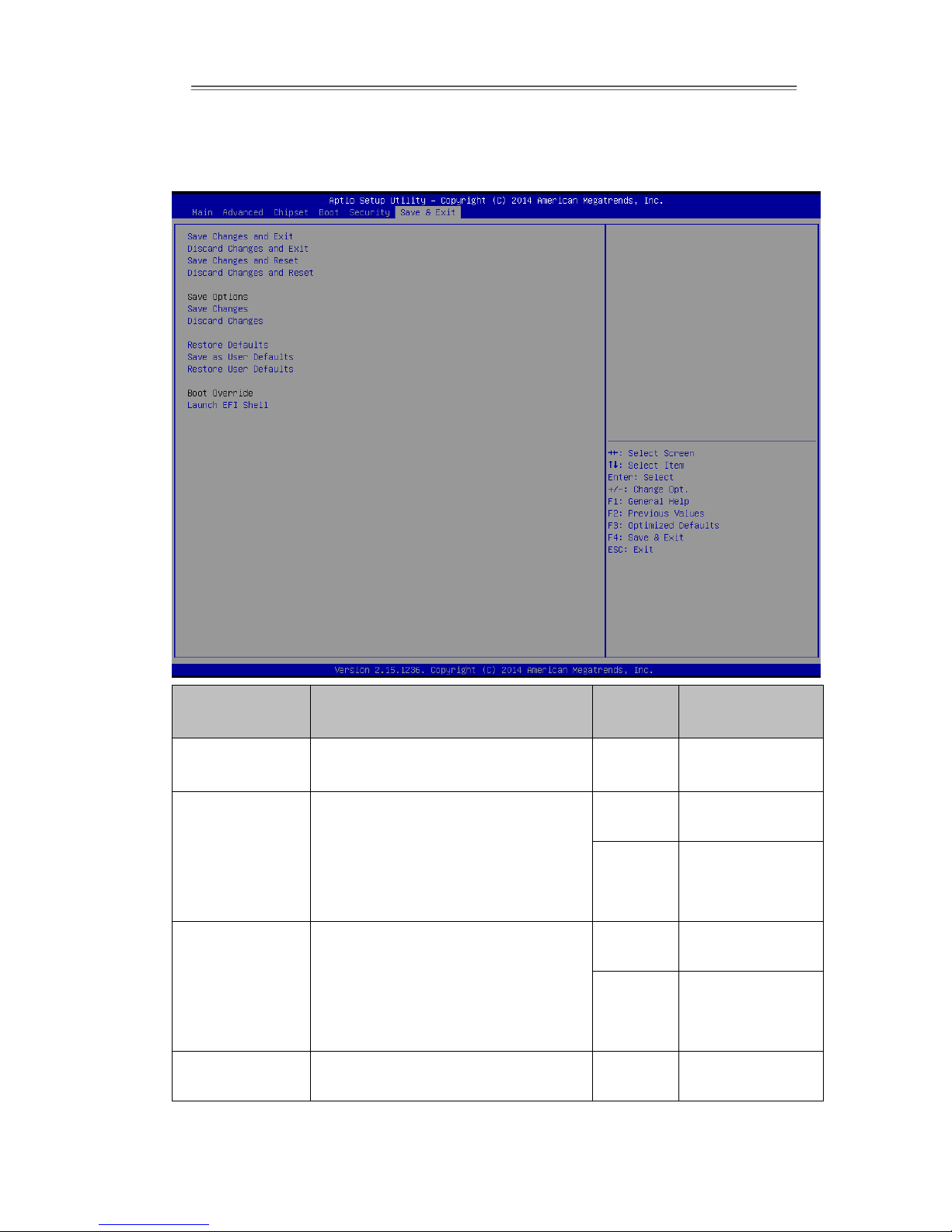

3.2.6 Save & Exit
BIOS Setting
Description
Setting
Option
Effect
Save Changes
and Exit
This saves the changes to the CMOS
and exits the BIOS Setup program.
<YES>
Save changes
Discard Changes
and Exit
This exits the BIOS Setup without
saving the changes made in BIOS
Setup to the CMOS.
<YES>
Saves the changes
<NO>
Return to the
BIOS Setup Main
Menu
Save Changes
and Reset
Reset the system after saving the
changes.
<YES>
Saves the changes
<NO>
Return to the
BIOS Setup Main
Menu
Discard Changes
Reset system setup without saving
<YES>
Saves the changes
Page 75
IH70 Motherboard User Manual
67
and Reset
any changes
<NO>
Return to the
BIOS Setup Main
Menu
Save Changes
Save changes done so far to any of
the setup options.
<YES>
Saves the changes
<NO>
Return to the
BIOS Setup Main
Menu
Discard Changes
Discard changes done so far to any of
the setup options.
<YES>
Saves the changes
<NO>
Return to the
BIOS Setup Main
Menu
Restore Defaults
Restore/load default values for all
the setup options.
<YES>
Saves the changes
<NO>
Return to the
BIOS Setup Main
Menu
Save as User
Defaults
Save the changes done so far as User
defaults.
<YES>
Saves the changes
<NO>
Return to the
BIOS Setup Main
Menu
Restore User
Defaults
Restore the User Defaults to all the
setup options.
<YES>
Saves the changes
<NO>
Return to the
BIOS Setup Main
Menu
Launch EFI Shell
Launch Extensible Firmware
Interface menu
<YES>
Saves the changes
<NO>
Return to the
BIOS Setup Main
Menu
Page 76
IH70 Motherboard User Manual
68
3.3 Using Recovery Wizard to Restore Computer
IH70 computer has a dedicate recovery partition stored on the hard drive of the PC to
enable quick one-key recovery process. This partition occupies about 11GB of the
storage space, and comes built-in to each IH70 series PC.
Before starting the recovery process, be sure to backup all user
data, as all data will be lost after the recovery process.
Warning: Follow the procedure below to enable quick one-key recovery procedure:
Plug-in the AC adapter to IH70 series computer. Make sure the computer
stays plugged in to power source during the recovery process.
Turn on the computer, and when the boot screen shows up, press the F6
to initiate the Recovery Wizard.

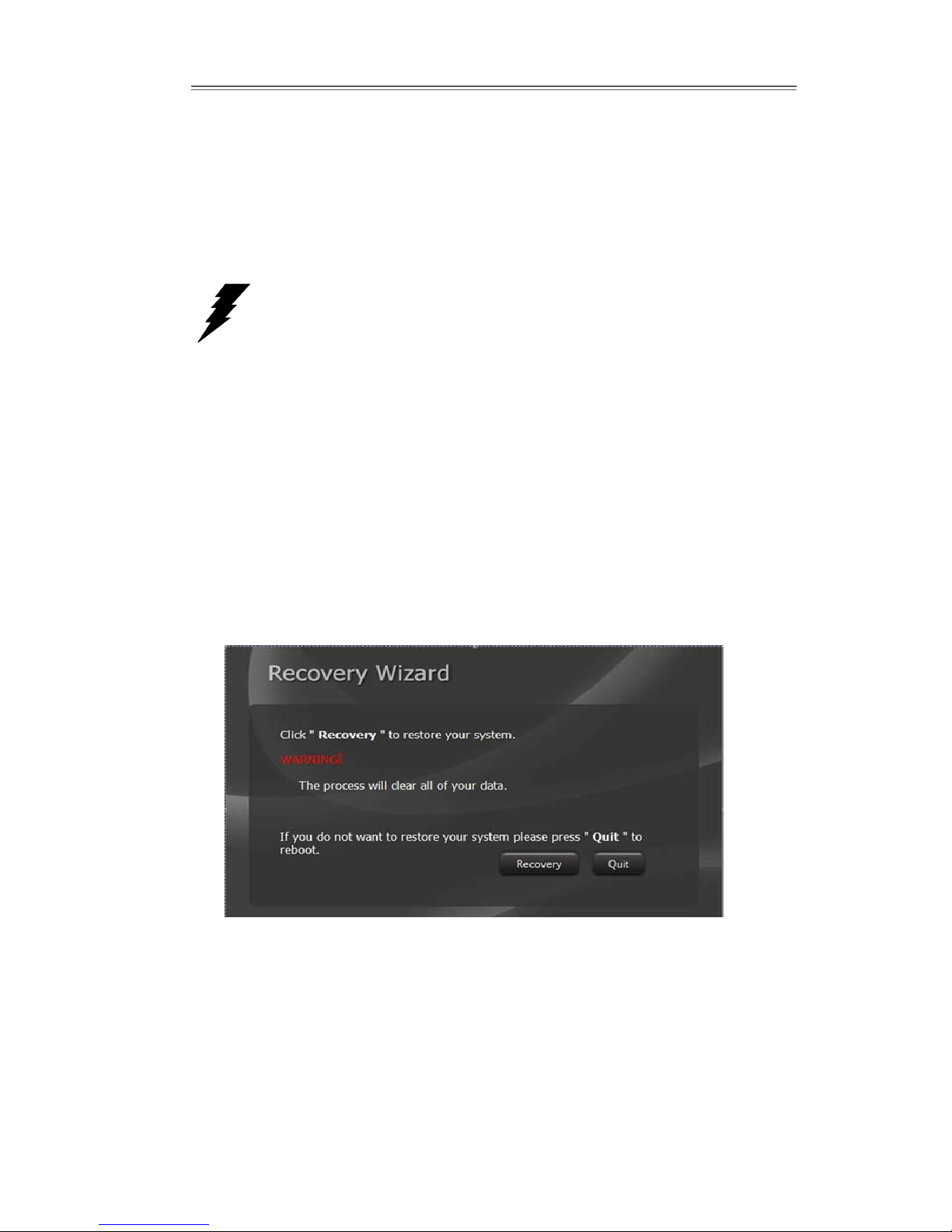

The following screen shows the Recovery Wizard. Click on “Recovery”
button to continue.

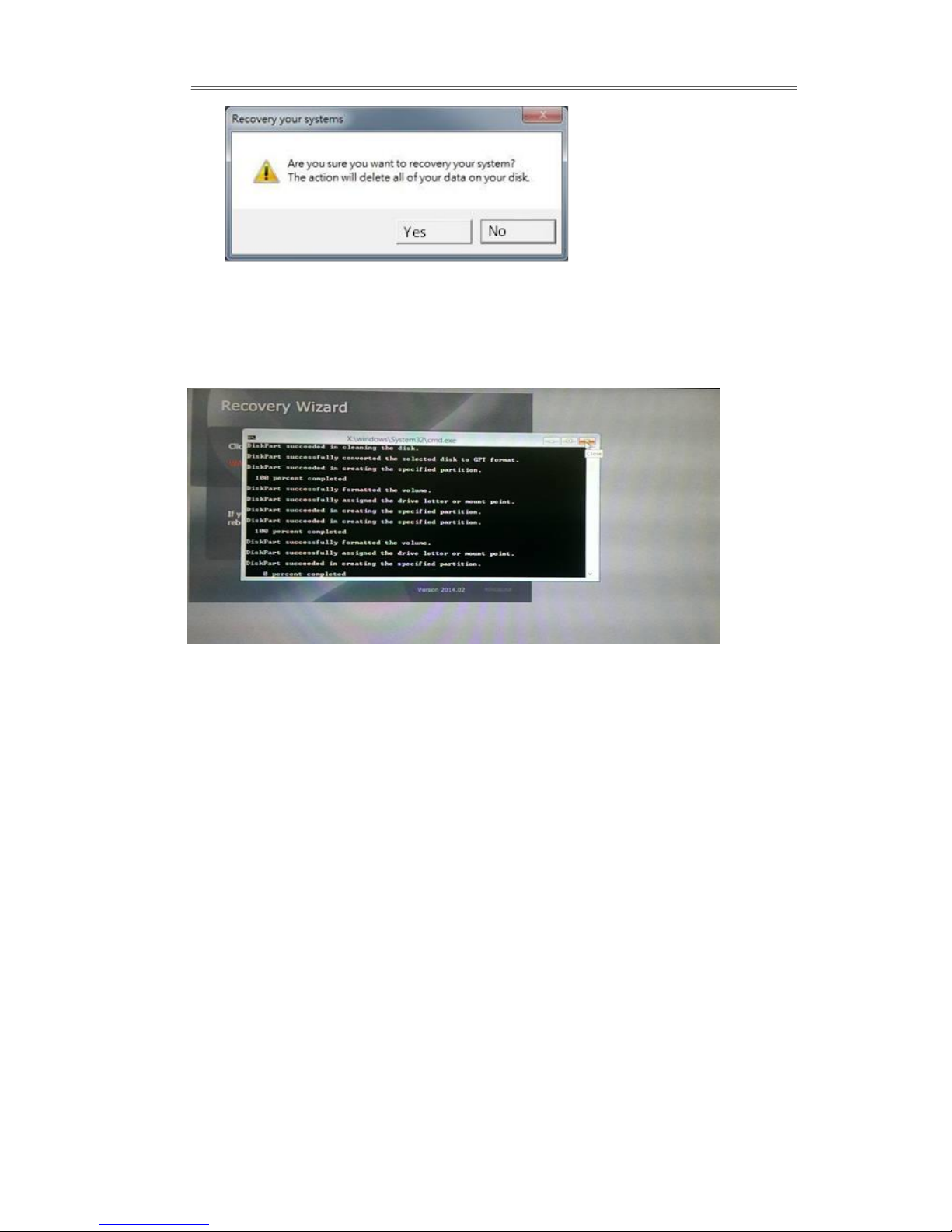

A warning message about data loss will show up. Make sure the data is backed up
before recovery, and click “Yes” to continue.
Page 77
IH70 Motherboard User Manual
69
Wait the recovery process to complete. During the recovery process, a command
prompt will show up to indicate the percent of recovery process complete. The
system will restart automatically after recovery completed.
Page 78
IH70 Motherboard User Manual
70
Driver Installation
This chapter offers information on all of the
recommend driver installation.
Sections include:
4.1 Intel Chipset Driver Installation
4.2 Graphics Driver Installation
4.3 Audio Driver Installation
4.4 Ethernet Driver Installation
4.5 Intel® Management Engine Software Installation
4.6 Fintek COM Port Driver Installation
4.7 USB 3.0 Driver Installation (for Windows 7)
Page 79
IH70 Motherboard User Manual
71
Chapter 4 Driver Installation
4.1 Intel Chipset Driver Installation
The Intel Chipset Drivers should be installed first before the software drivers to
enable Plug & Play INF support for Intel chipset components. Follow the instructions
below to complete the installation.

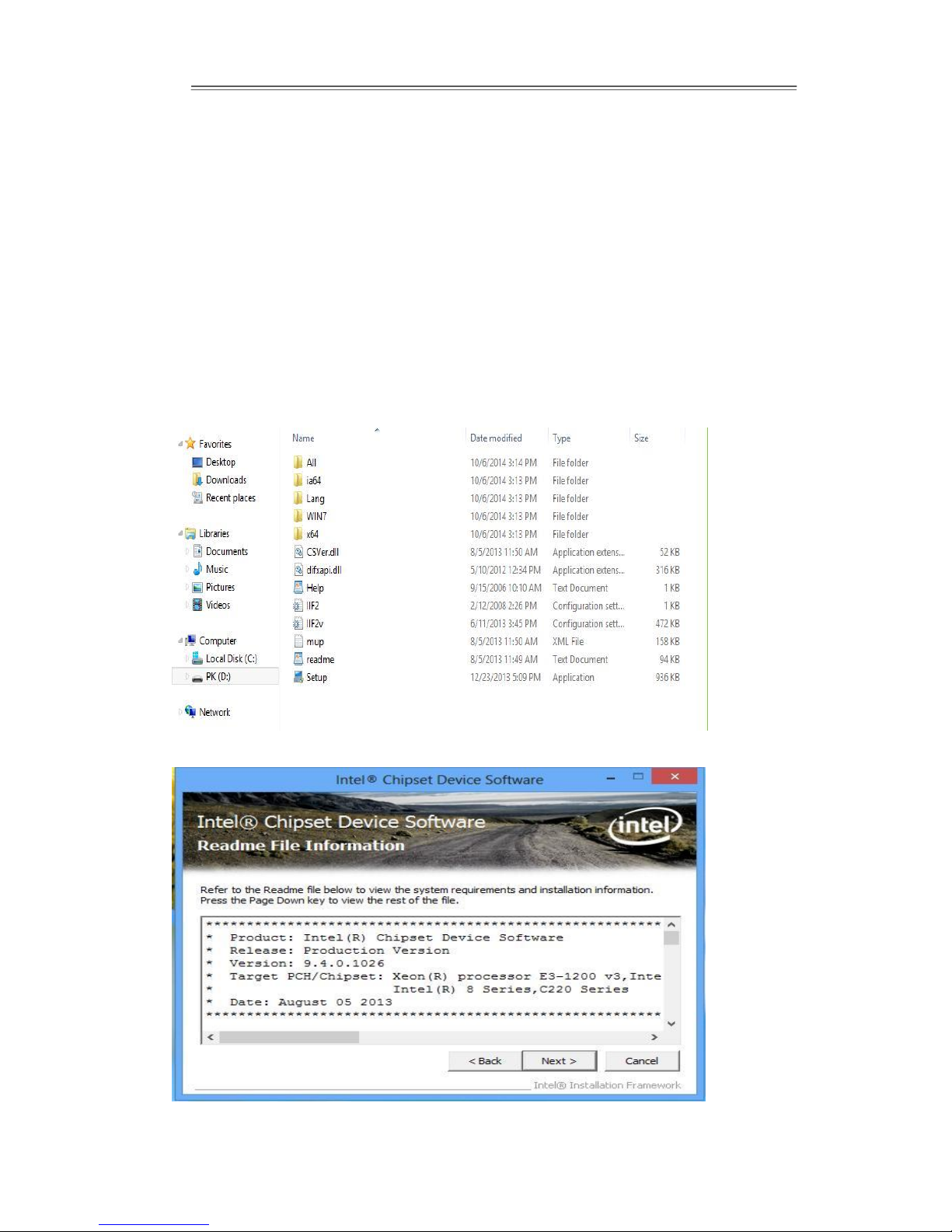

Step 1 Insert the CD that comes with the motherboard. Open the file document
“Chipset Driver” and click on “Setup.exe“ to install driver.
Step 2 Click on “Next“to install the driver.
Page 80
IH70 Motherboard User Manual
72

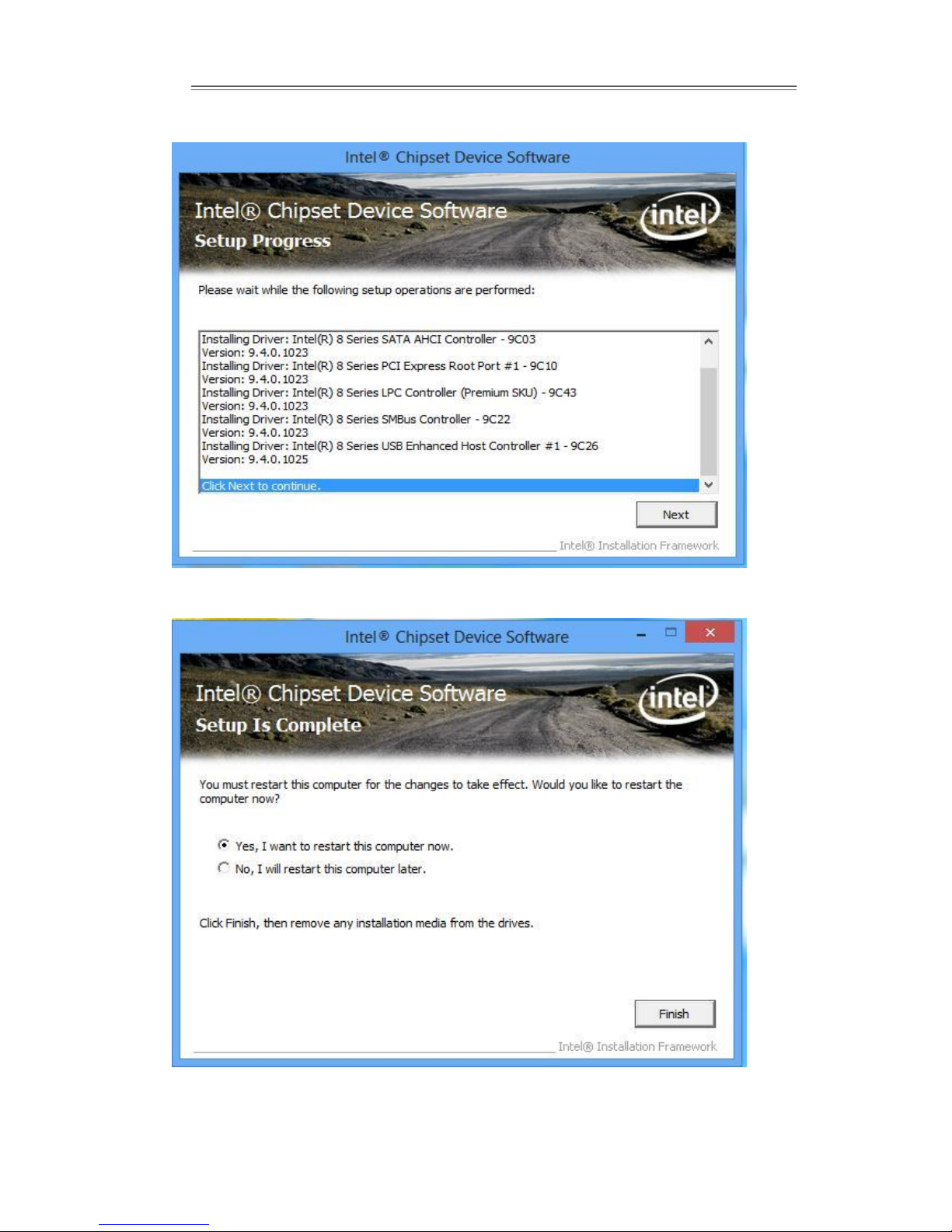

Step 3 Click Next to install the driver.
Step 4 Click “Yes, I want to restart this computer now “to continue.
Page 81
IH70 Motherboard User Manual
73

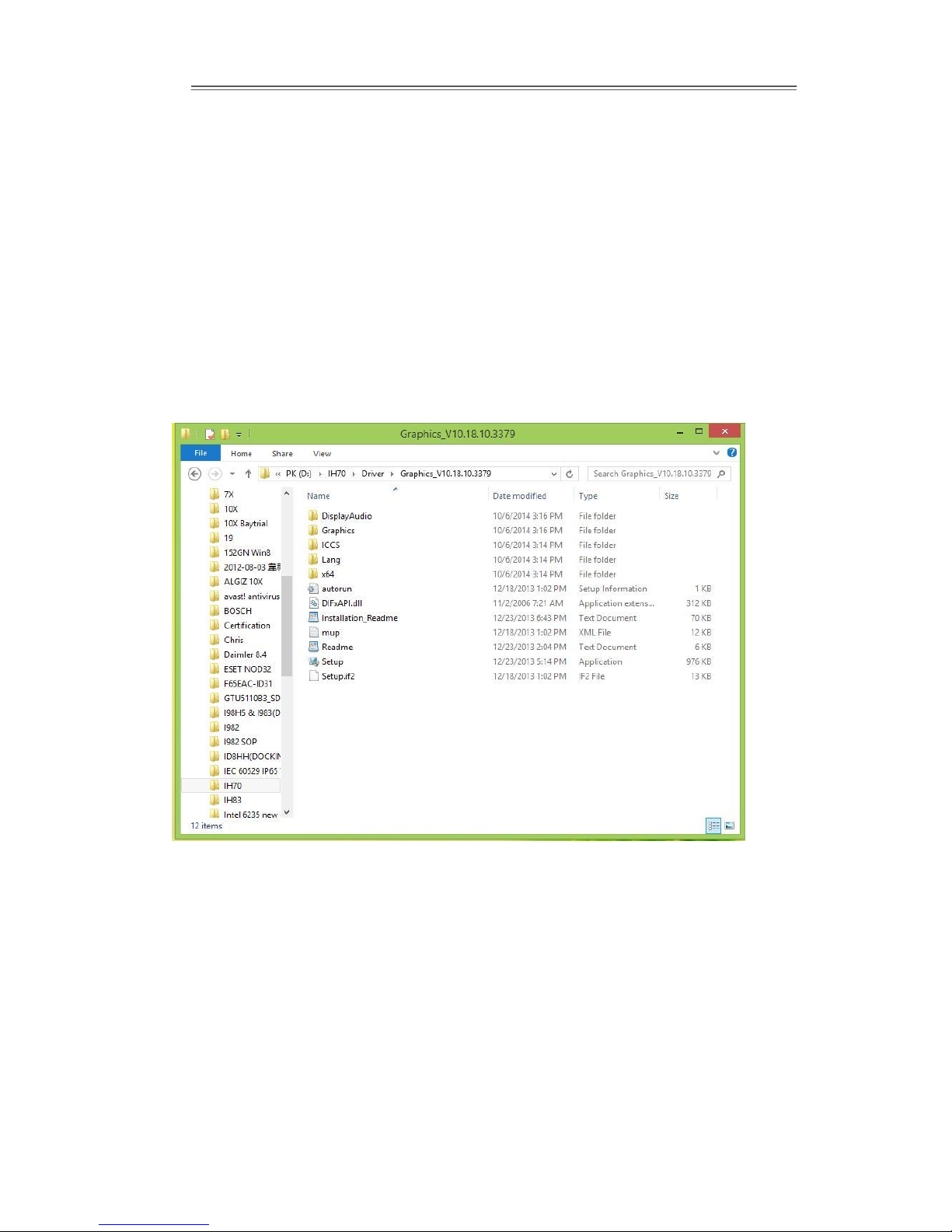

4.2 Graphics Driver Installation
IH70 Motherboard comes with Intel mobile Core i7/i5/i3 dual core CPU and with an
integrated graphics controller. You need to install the Graphic driver to enable the
function. Intel Graphic supports versatile display options and 32-bit 3D graphics
engine. Triple independent display, enhanced display modes for widescreen flat
panels for extend, twin, and clone display mode.
Step 1 Insert the driver CD into your system's CD-ROM drive. You can see the driver
folders items. Navigate to the “Graphic Driver” folder and click "setup.exe" to
complete the installation.
Page 82
IH70 Motherboard User Manual
74

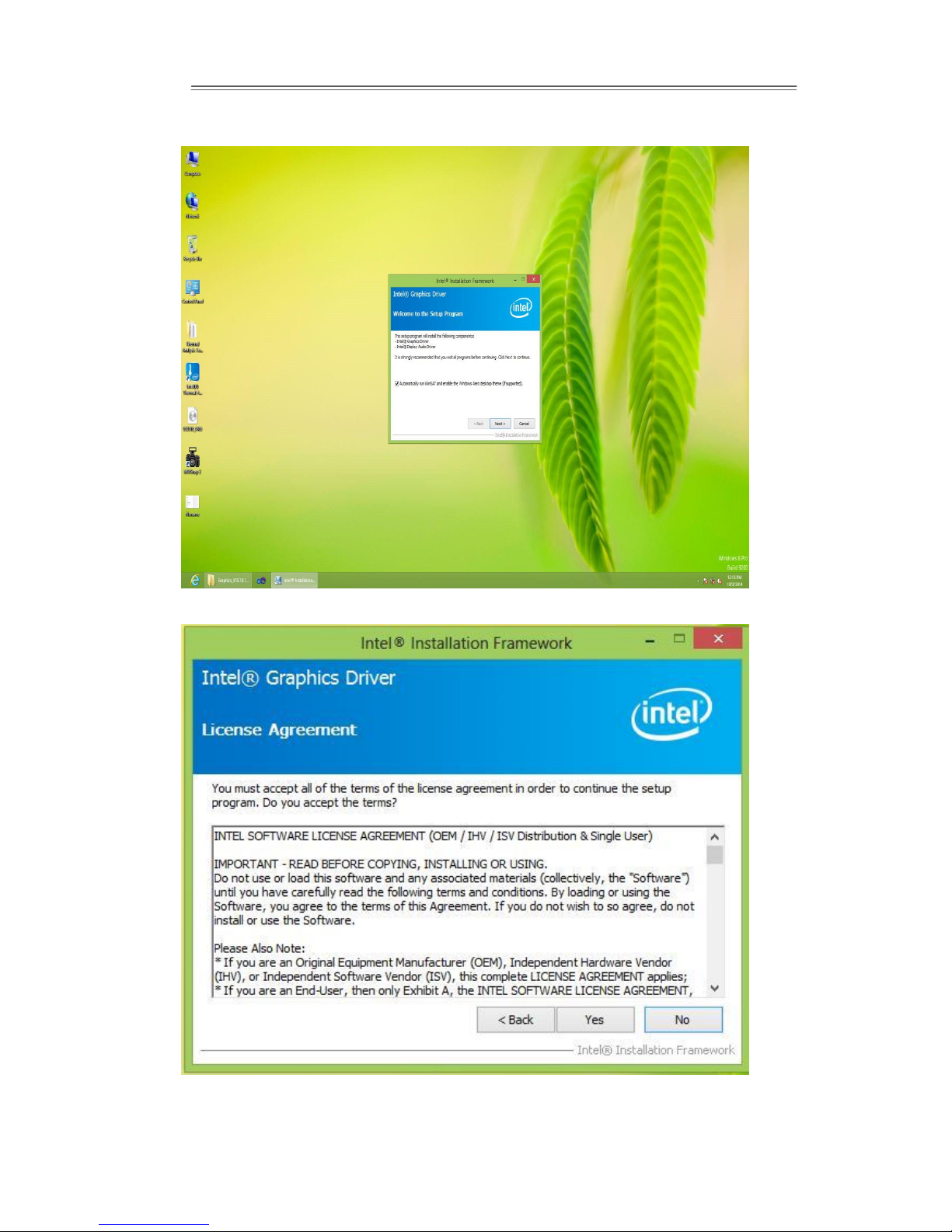

Step 2 Click on “Next “to install the driver.
Step 3 Click “Yes “to agree with the License terms.
Page 83
IH70 Motherboard User Manual
75

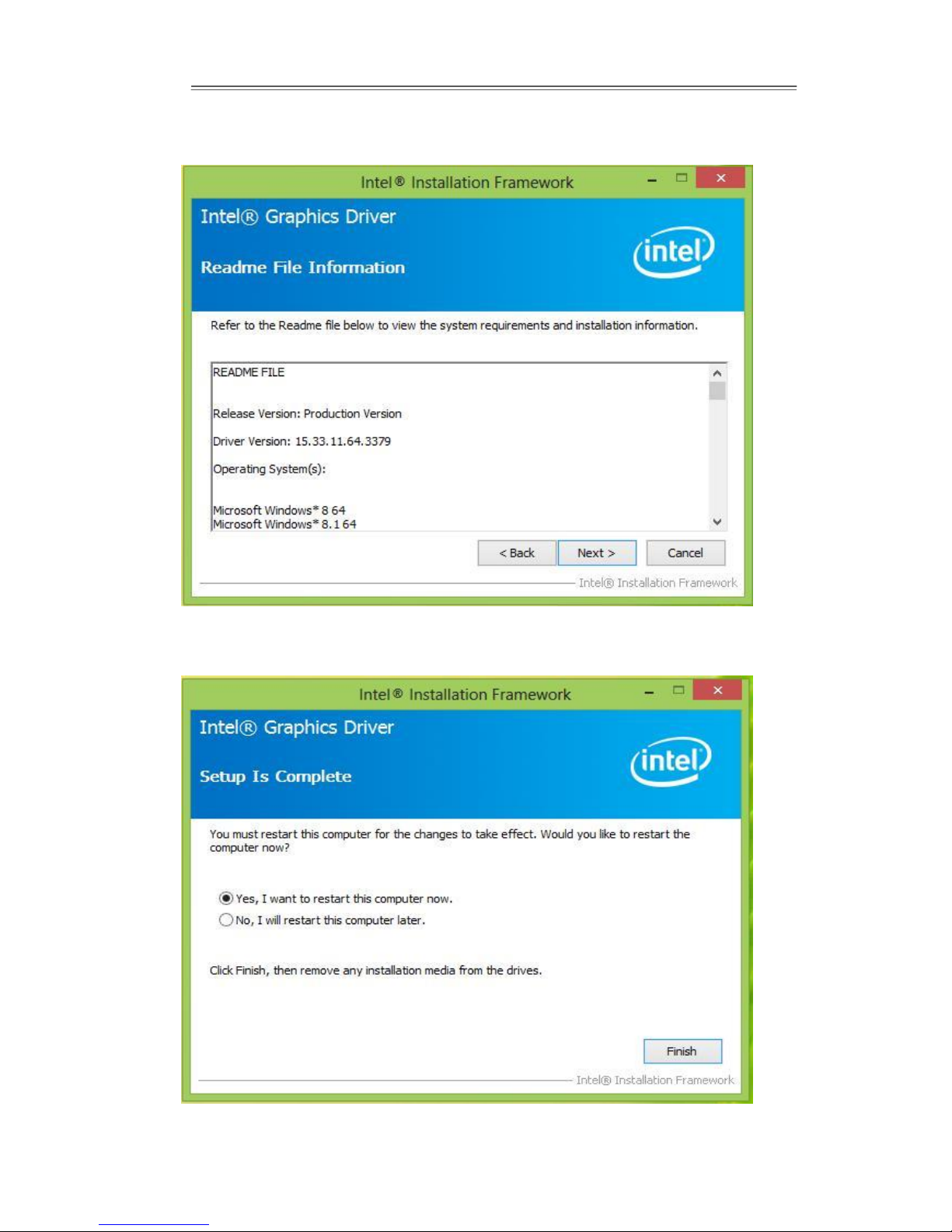

Step 4 Click “Next “to install the driver.
Step 5 Click “Yes, I want to restart this computer now” to finish the installation and
restart your computer.
Page 84
IH70 Motherboard User Manual
76

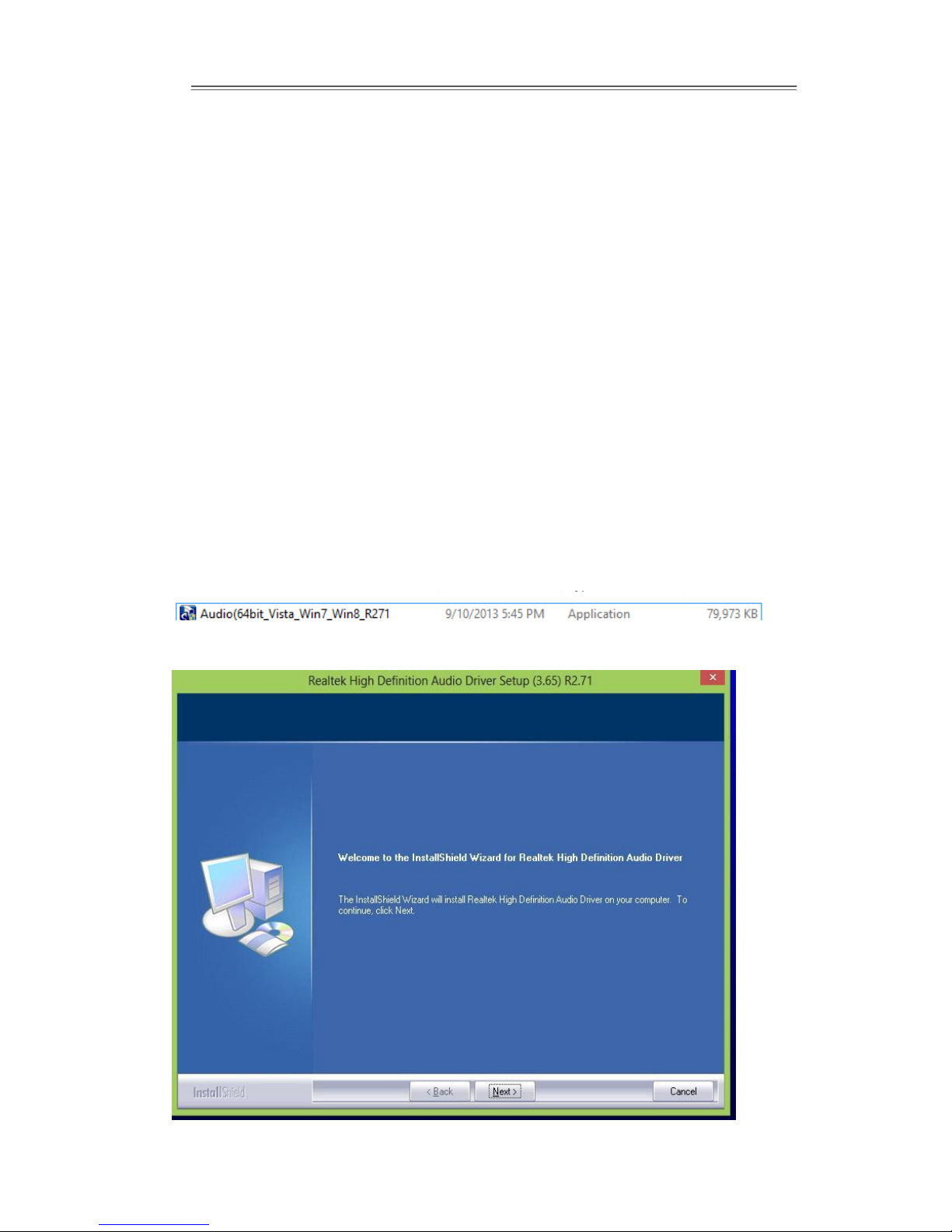

4.3 Audio Driver Installation
The ALC886 series are high-performance 7.1+2 Channel High Definition Audio Codecs
providing ten DAC channels that simultaneously support 7.1 sound playbacks, plus 2
channels of independent stereo sound output (multiple streaming) through the front
panel stereo outputs. The series integrates two stereo ADCs that can support a stereo
microphone, and feature Acoustic Echo Cancellation (AEC), Beam Forming (BF), and
Noise Suppression (NS) technology.
The user must make sure which operating system you are using in the IH70
Motherboard before installing the Audio drivers. Follow the steps below to complete
the installation of the Realtek ALC886 Audio drivers. You will quickly complete the
installation.
Step 1 Insert the CD that comes with the motherboard. Open the folder “Audio
Driver” and click “Audio (64bit_Vista_Win7_Win8_R271) to execute the setup.
Step 2 Click “Next“to install the driver.
Page 85
IH70 Motherboard User Manual
77

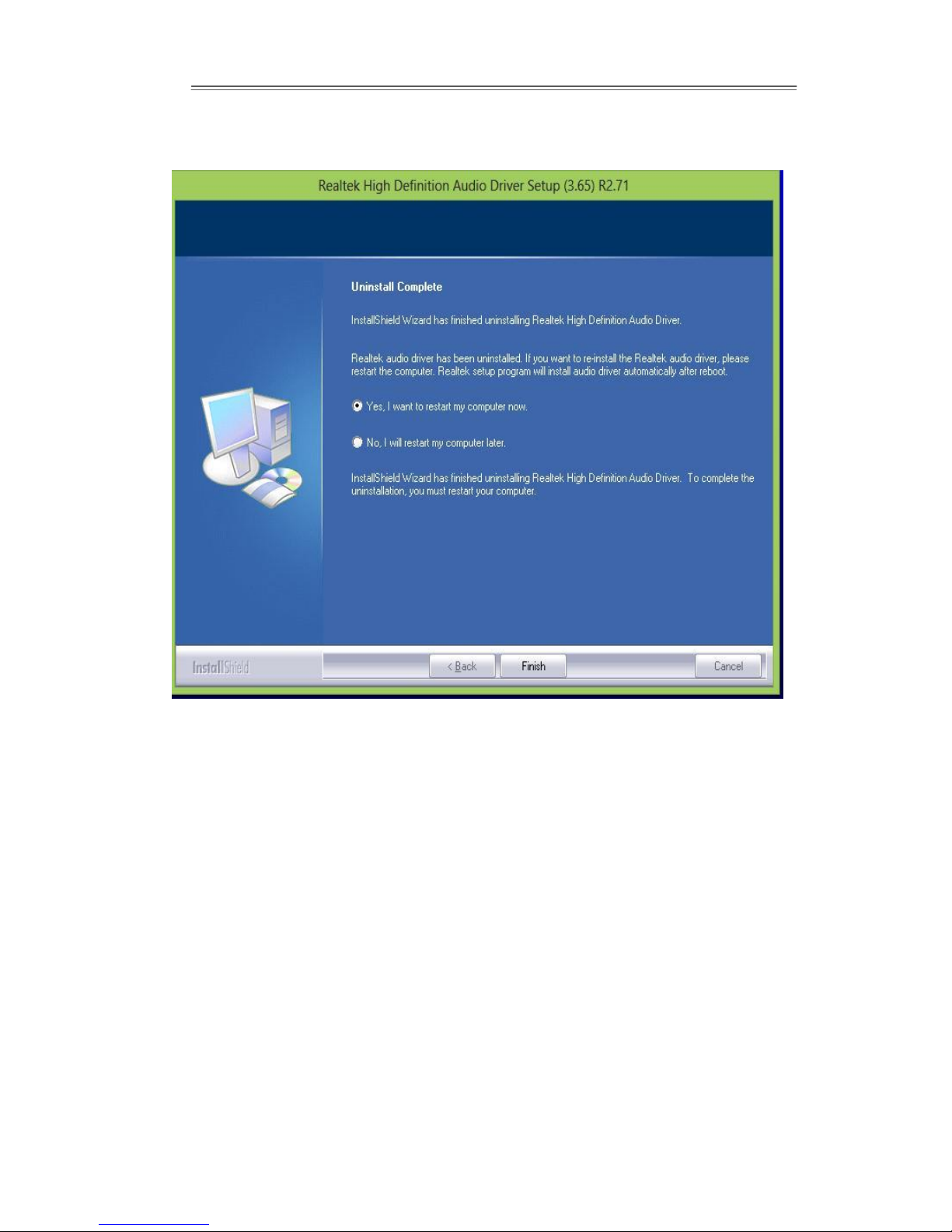

Step 3 Select “Yes, I want to restart my computer now” to finish the installation and
restart the computer, and click Finish.
Page 86
IH70 Motherboard User Manual
78
4.4 Ethernet Driver Installation
The users must confirm which operating system is used on the IH70 Motherboard
before installing the Ethernet drivers. Follow the steps below to complete the
installation of the Intel® I210IT Gigabit-LAN Controller + I218LM Gigabit-LAN drivers.
You will quickly complete the installation.

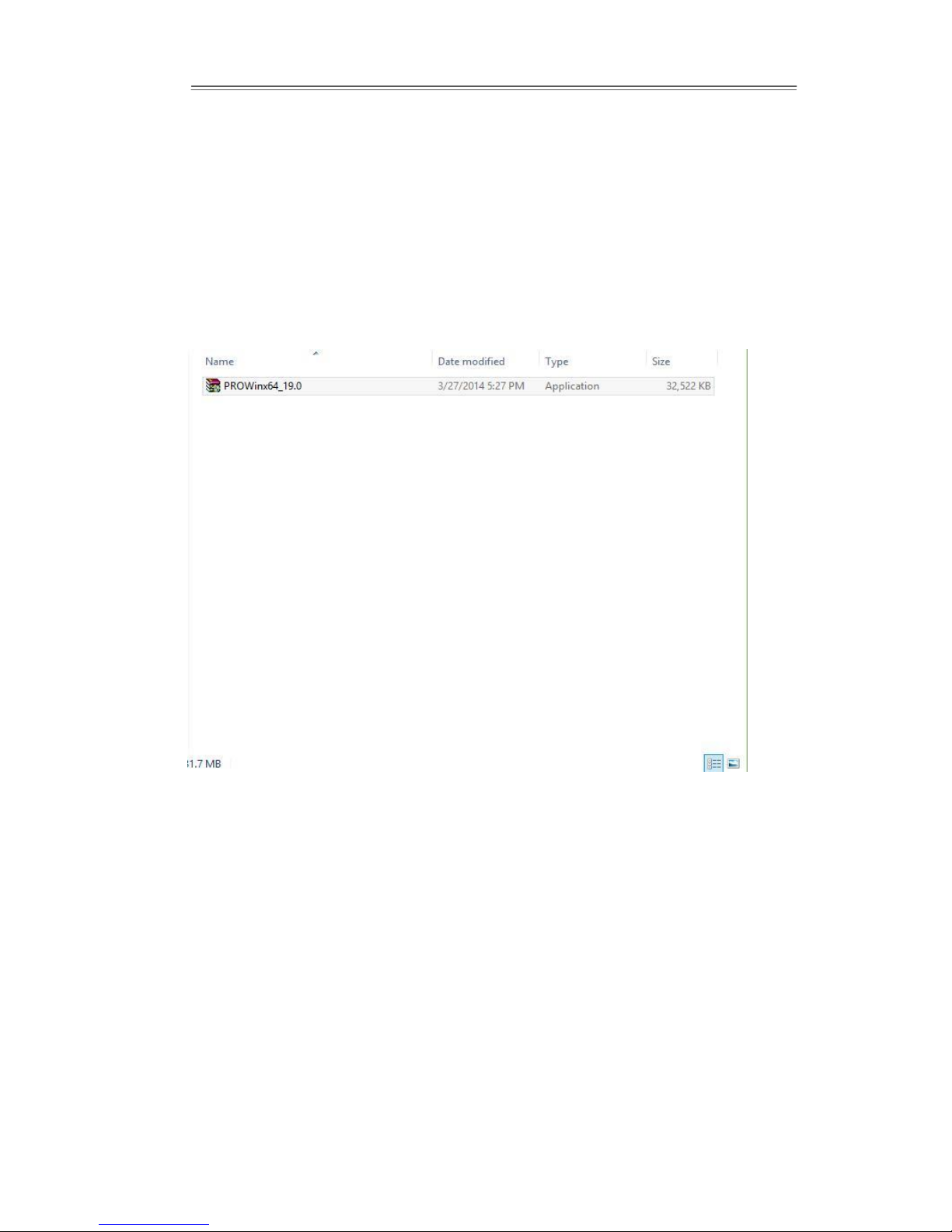

Step 1 Insert the driver CD and select the “LAN Driver” folder.
Page 87
IH70 Motherboard User Manual
79

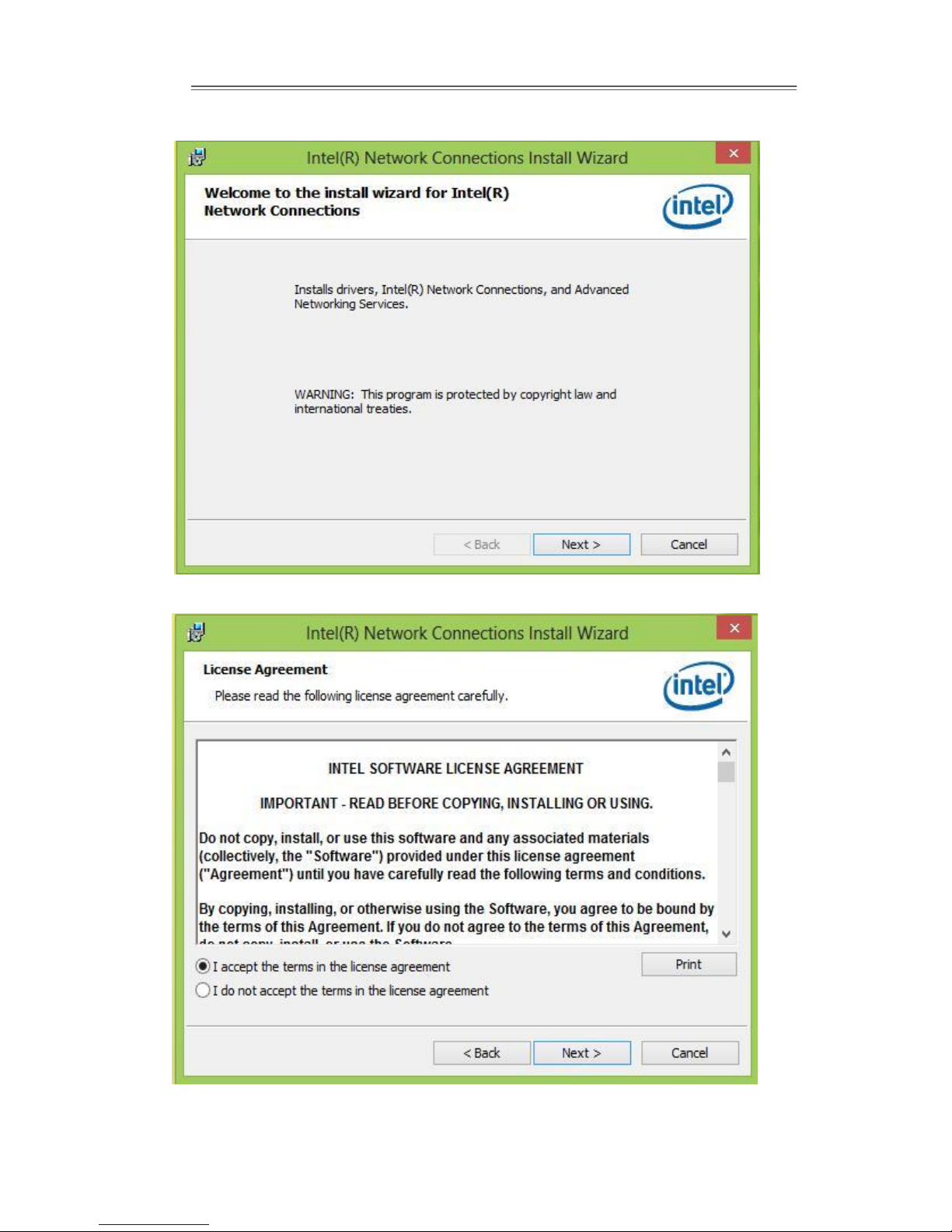

Step 2 Extract the “PROWinX64_19.0” file and click “Next” to install the driver.
Step 3 Click “Next” to agree with the License terms.
Page 88
IH70 Motherboard User Manual
80

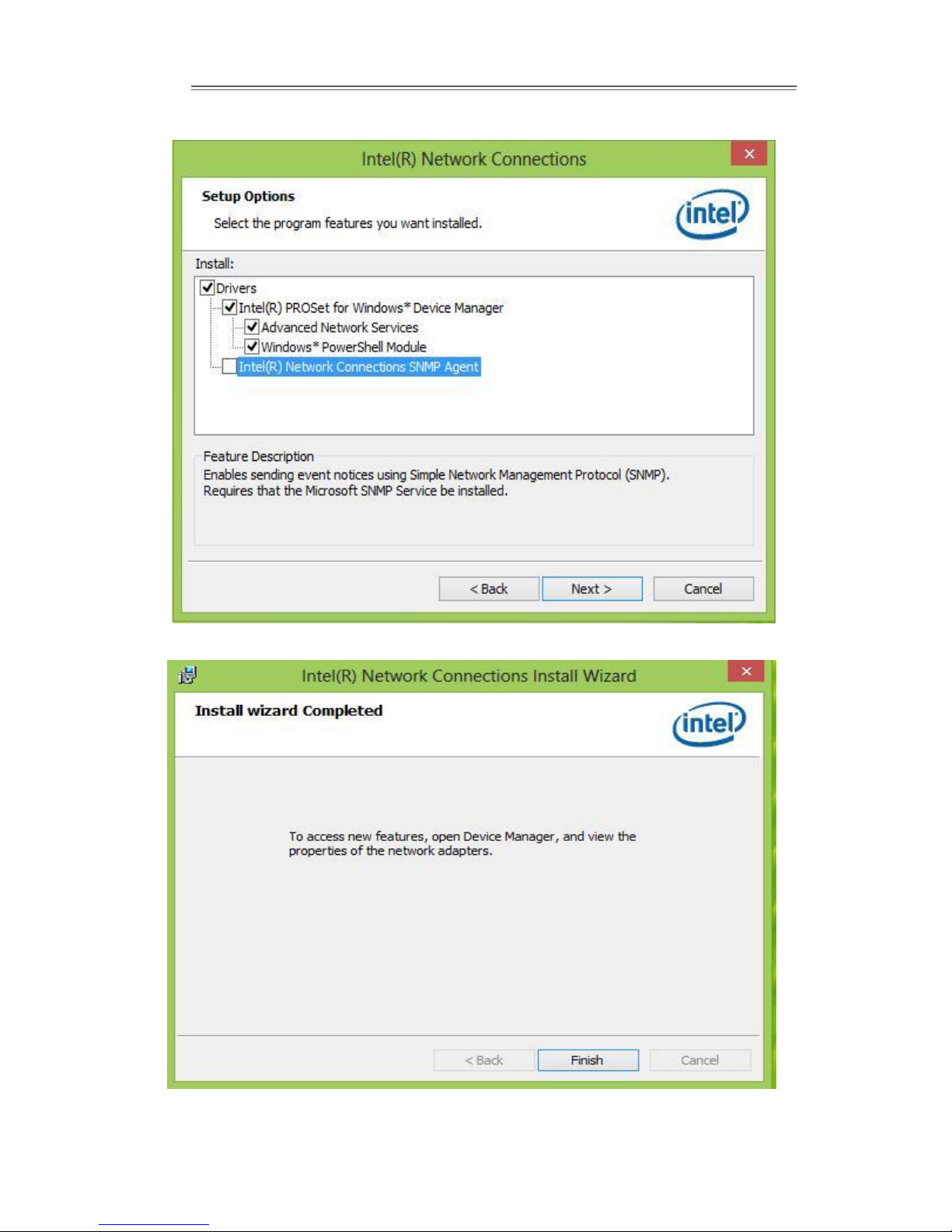

Step 4 Click “Next” to install the driver.
Step 5 Click “Finish” to complete the driver installation.
Page 89
IH70 Motherboard User Manual
81
4.5 Intel® Management Engine Software Installation
This installation program installs the Intel® ME software components required for the
Platform on which you are installing, and install only those components that matches
your platform capabilities.

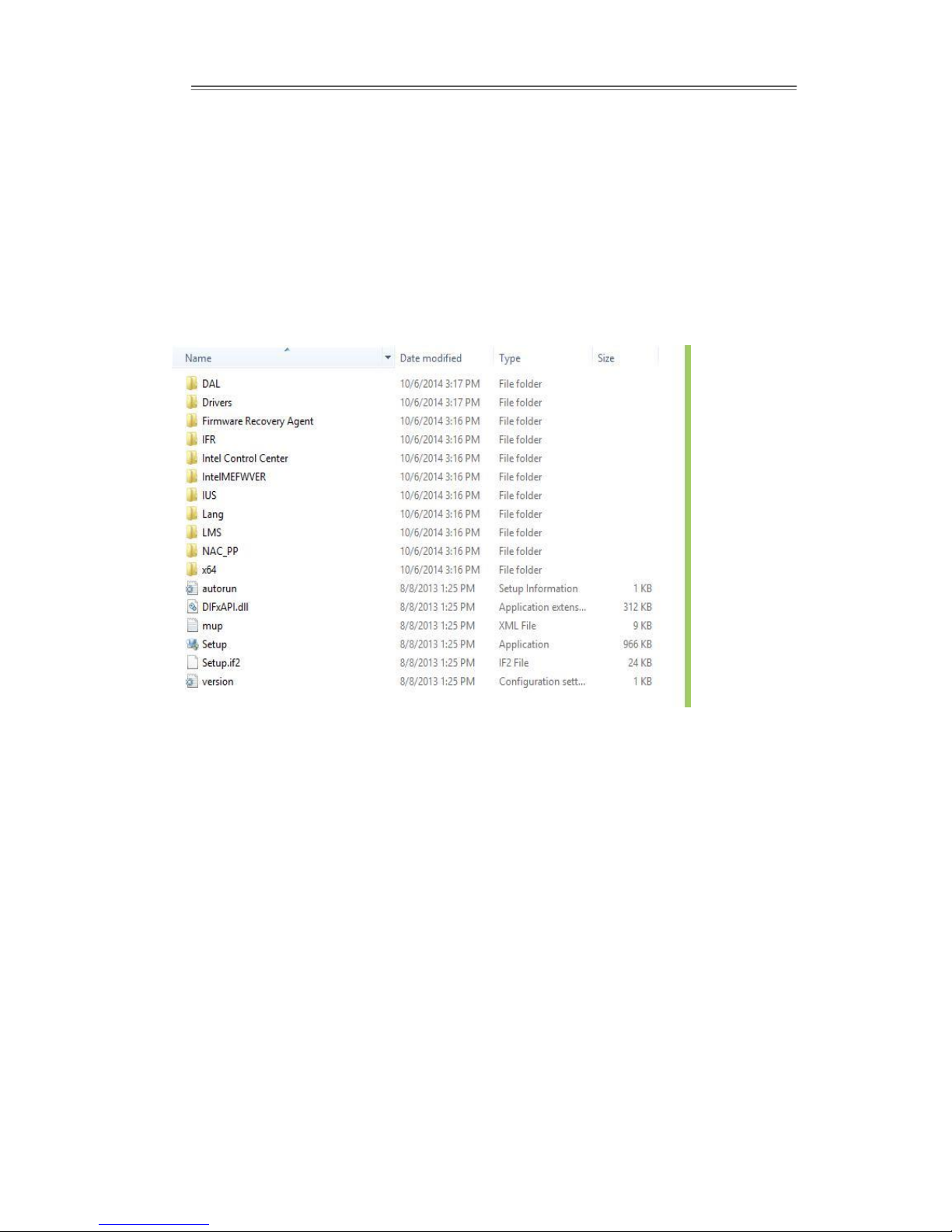

Step 1 Insert the driver CD and select the “Intel ME 9.0” folder and click “Setup.exe”
Page 90
IH70 Motherboard User Manual
82

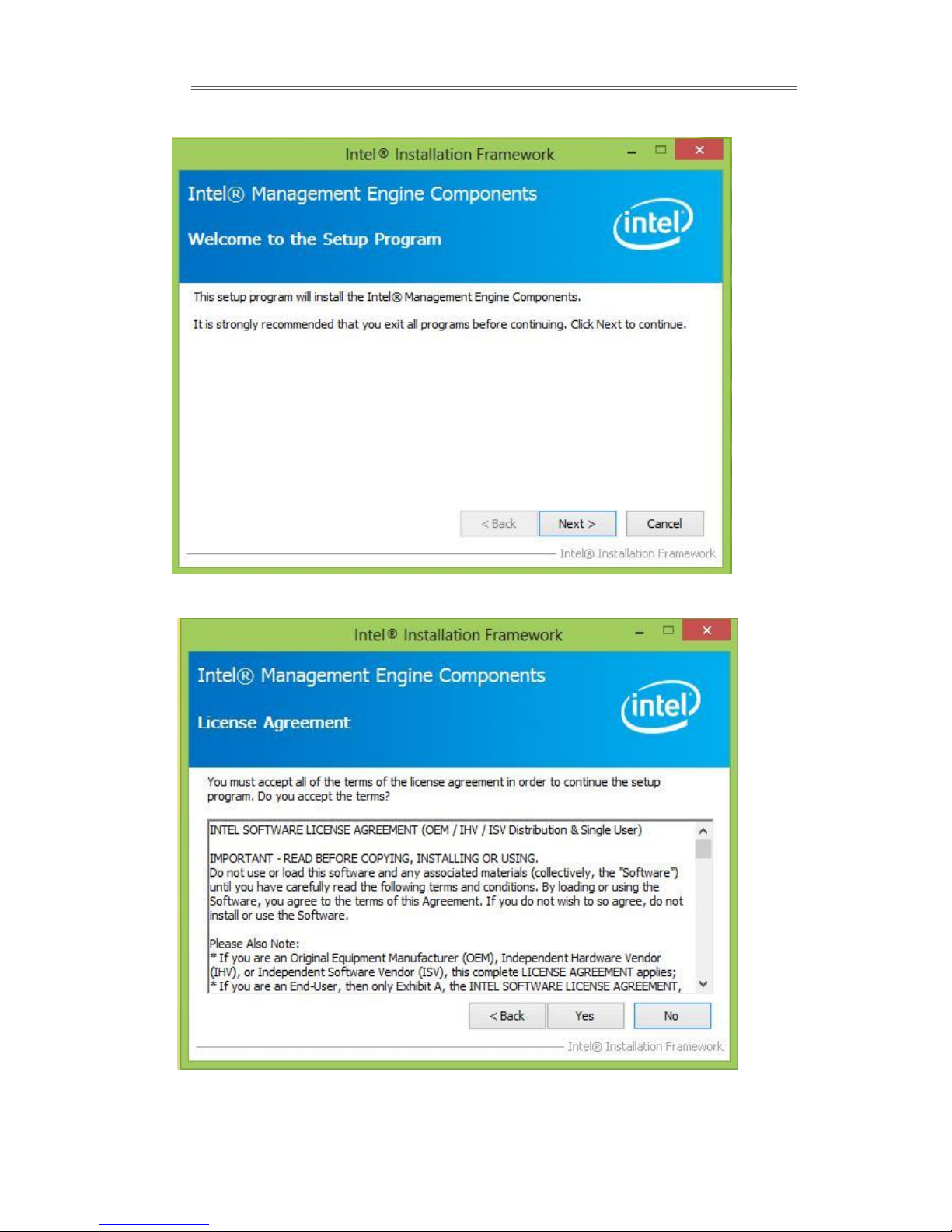

Step 2 Click the checkbox for Install Intel® Control Center & click “Next”.
Step 3 Click “Yes” to agree with the License terms.
Page 91
IH70 Motherboard User Manual
83

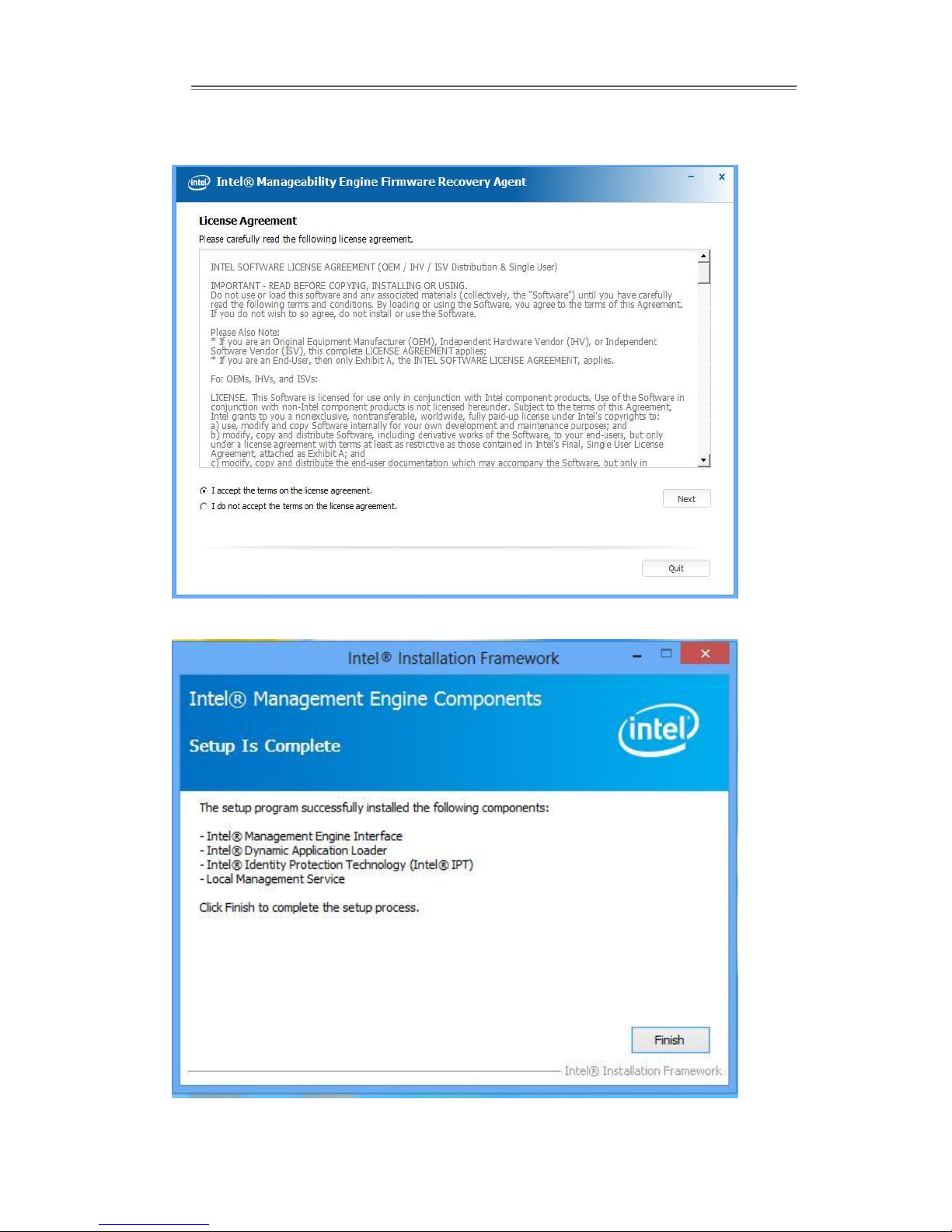

Step 4 Carefully read the License Agreement and select “I accept the terms of the
license agreement” to continue the installation.
Step 5 Click “Finish” to complete the software installation.
Page 92
IH70 Motherboard User Manual
4.6 Fintek COM Port Driver Installation
STEP 1 If the system is WIN7 please firstly close UAC (Refer following “Disabling User
Account Control (UAC) in Windows 7”)
STEP 2 Extract the Patch_0408.zip to a folder.
STEP 3 Double-click batch file (patch.bat) will install driver.

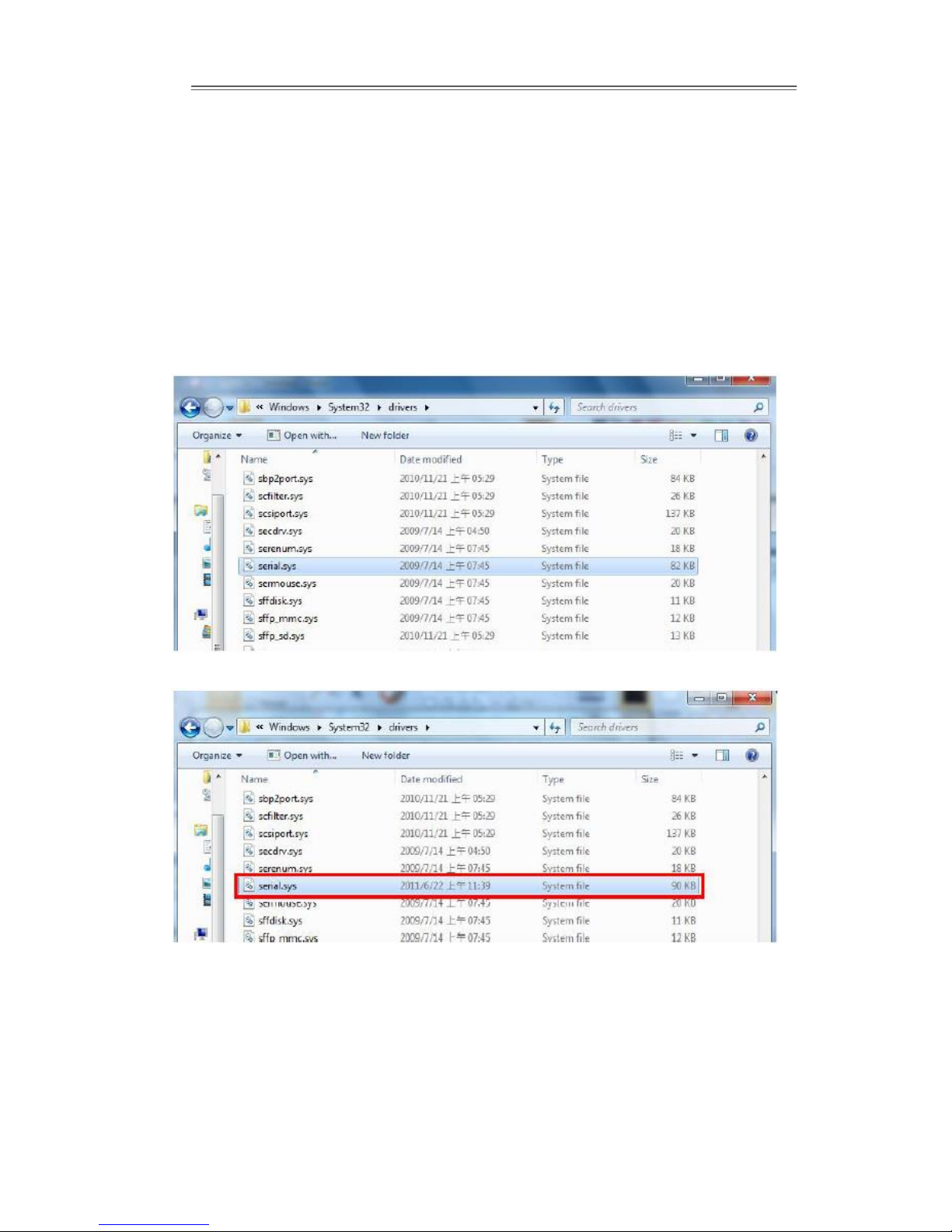

STEP 4Check driver install success.
Before the update or update fail.
After the update and update success.
STEP 5You will need to restart your computer for driver install success.

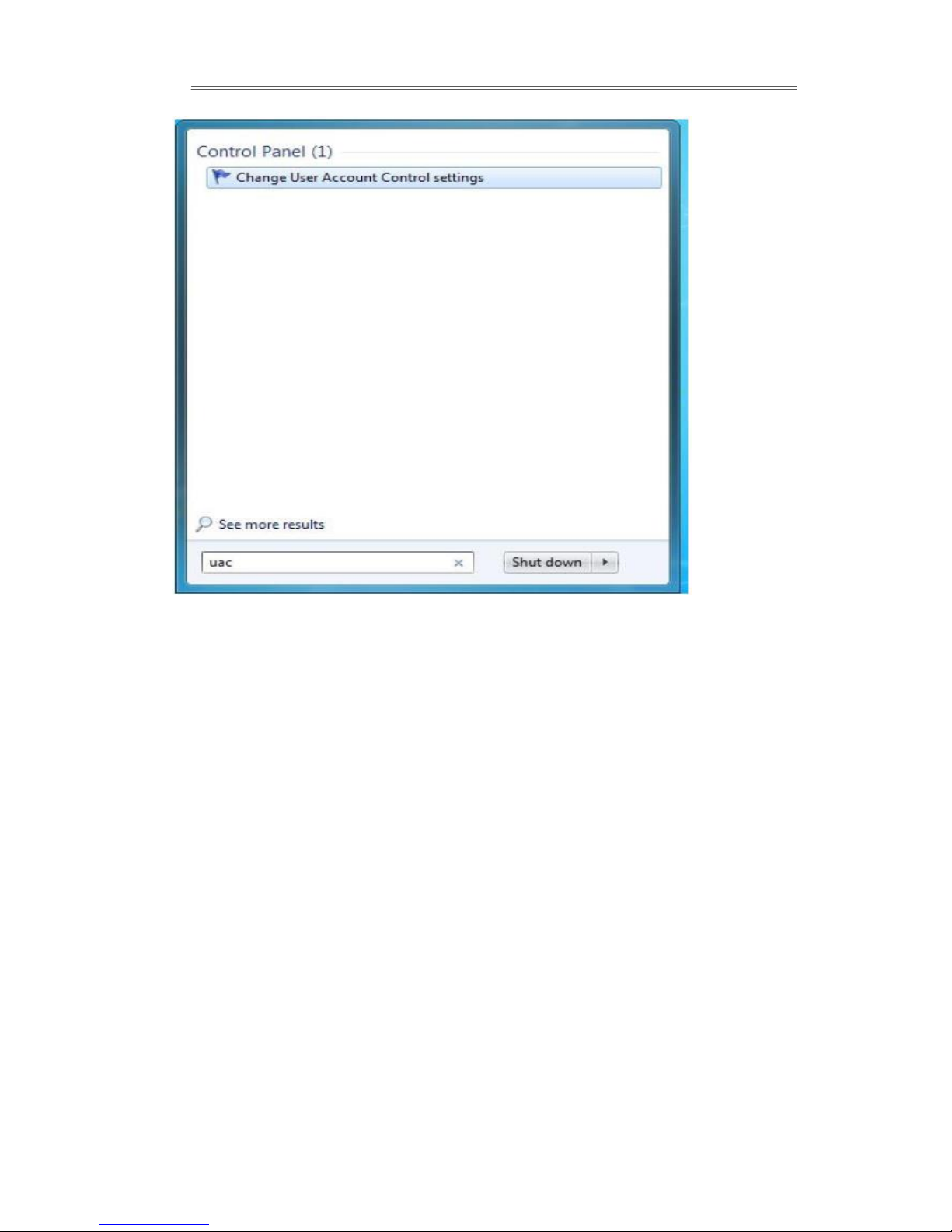

Type in this command from the Run menu:
C:\Windows\System32\UserAccountControlSettings.exe or uac
Page 93
IH70 Motherboard User Manual

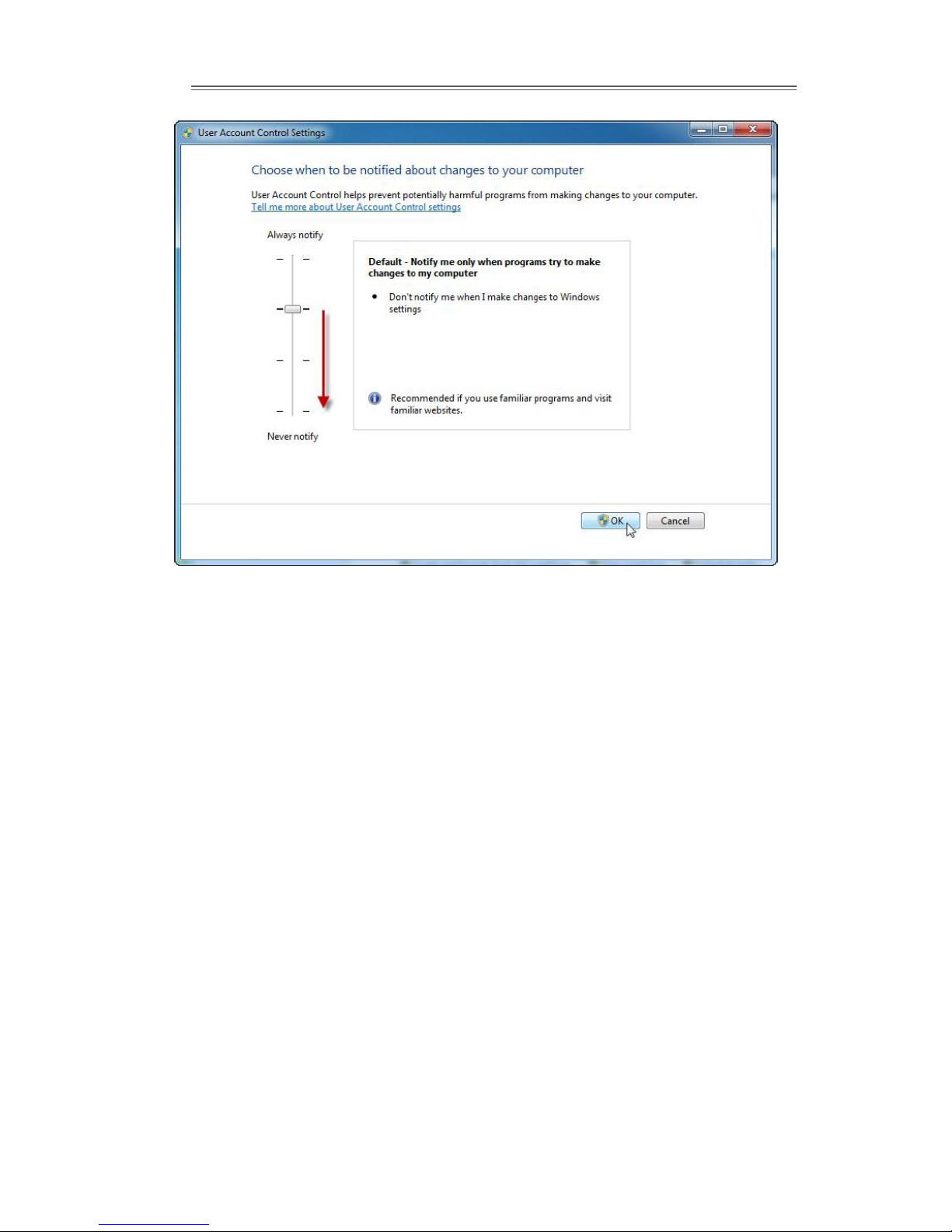

To turn off UAC, move the slider to the Never notify position, and then click OK. If
you're prompted for an administrator password or confirmation, type the password
or provide confirmation.
Page 94
IH70 Motherboard User Manual
To turn UAC back on, move the slider to choose when you want to be notified, and
then click OK. If you're prompted for an administrator password or confirmation,
type the password or provide confirmation.
You will need to restart your computer for UAC to be turned off.
Page 95
IH70 Motherboard User Manual

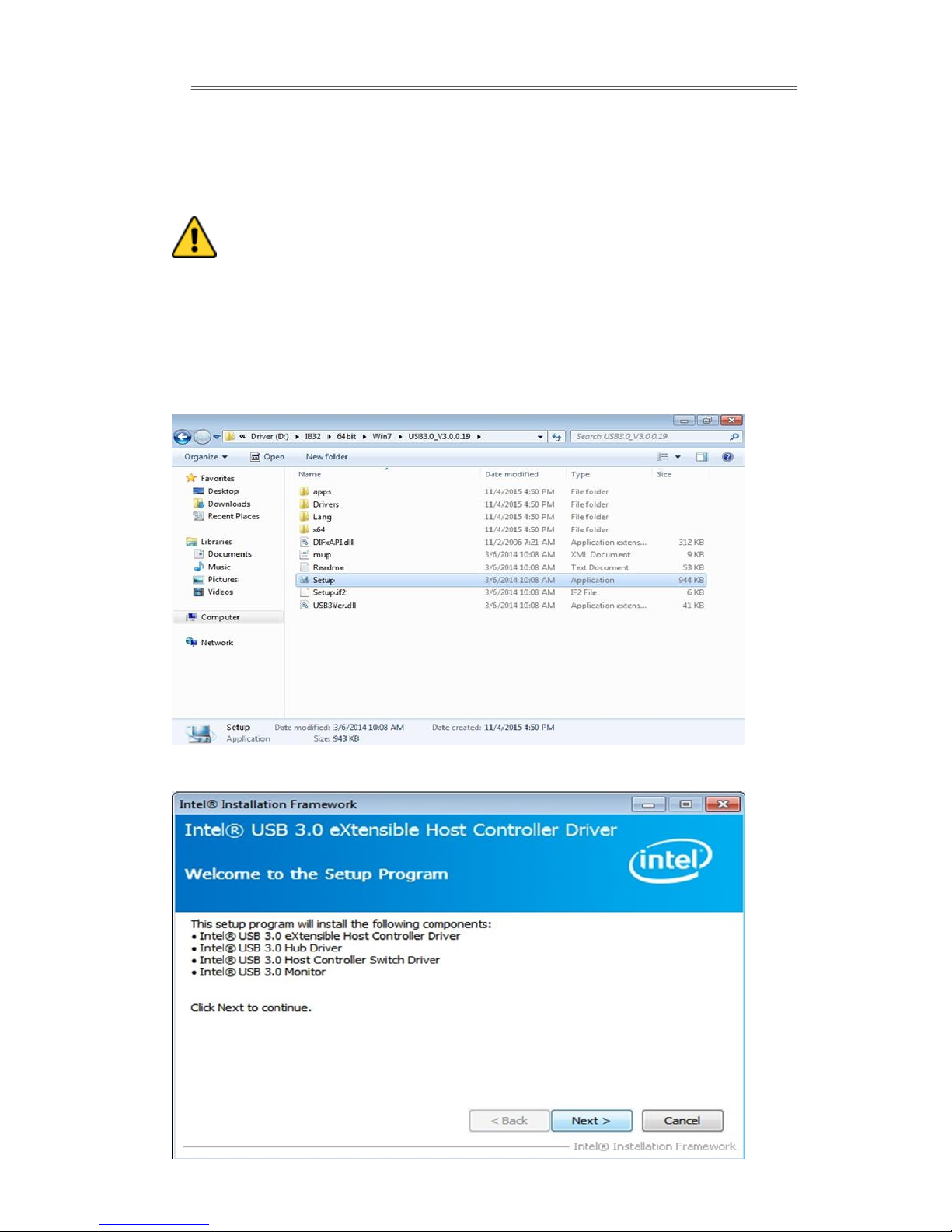

4.7 USB 3.0 Driver Installation (for Windows 7)
Note
If the operating system of the device is Windows Embedded 8.1
Industry or Windows Embedded 8 Standard, users can skip this
installation.
Step 1 Locate the hard drive directory where the driver files are stored with the
browser or the explore feature of Windows*.
Step 2 Double click the “Setup.exe” from this directory.
Step 3 Click “Next” to continue.
Page 96
IH70 Motherboard User Manual

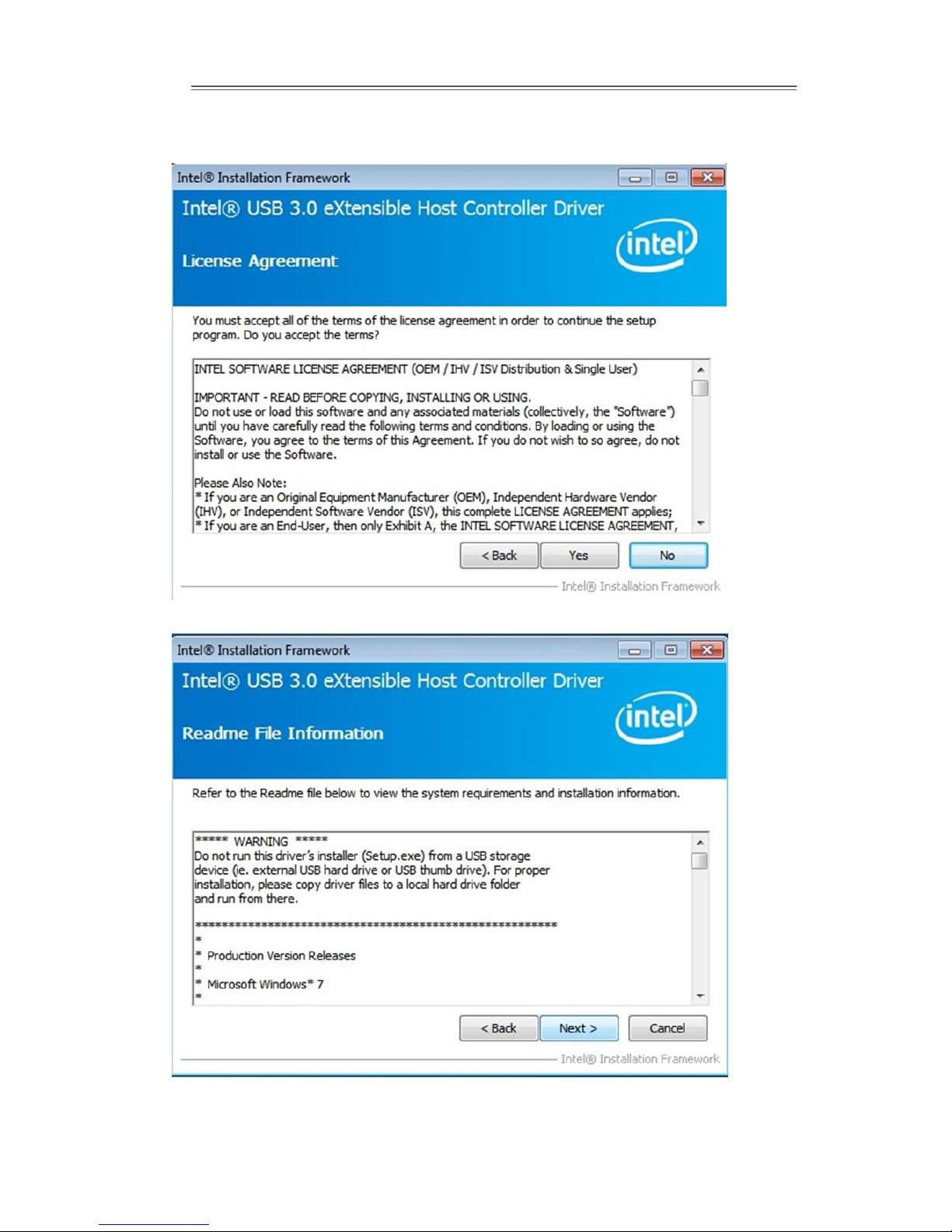

Step 4 Read License Agreement and click “Yes” to proceed.
Step 5 Review Readme File Information and click “Next” to proceed.
Page 97
IH70 Motherboard User Manual

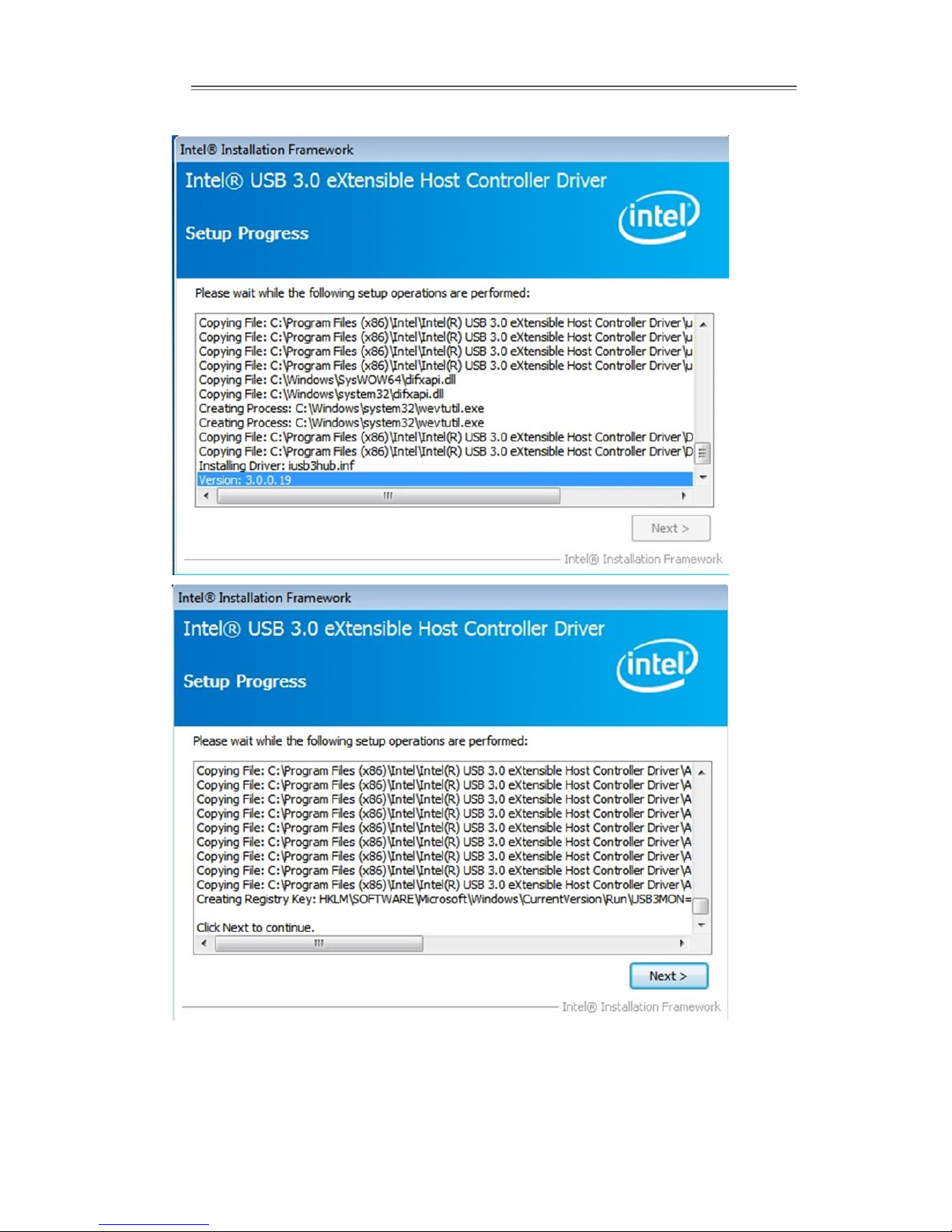

Step 6 When the Setup Progress is complete click “Next” to proceed.
Page 98
IH70 Motherboard User Manual

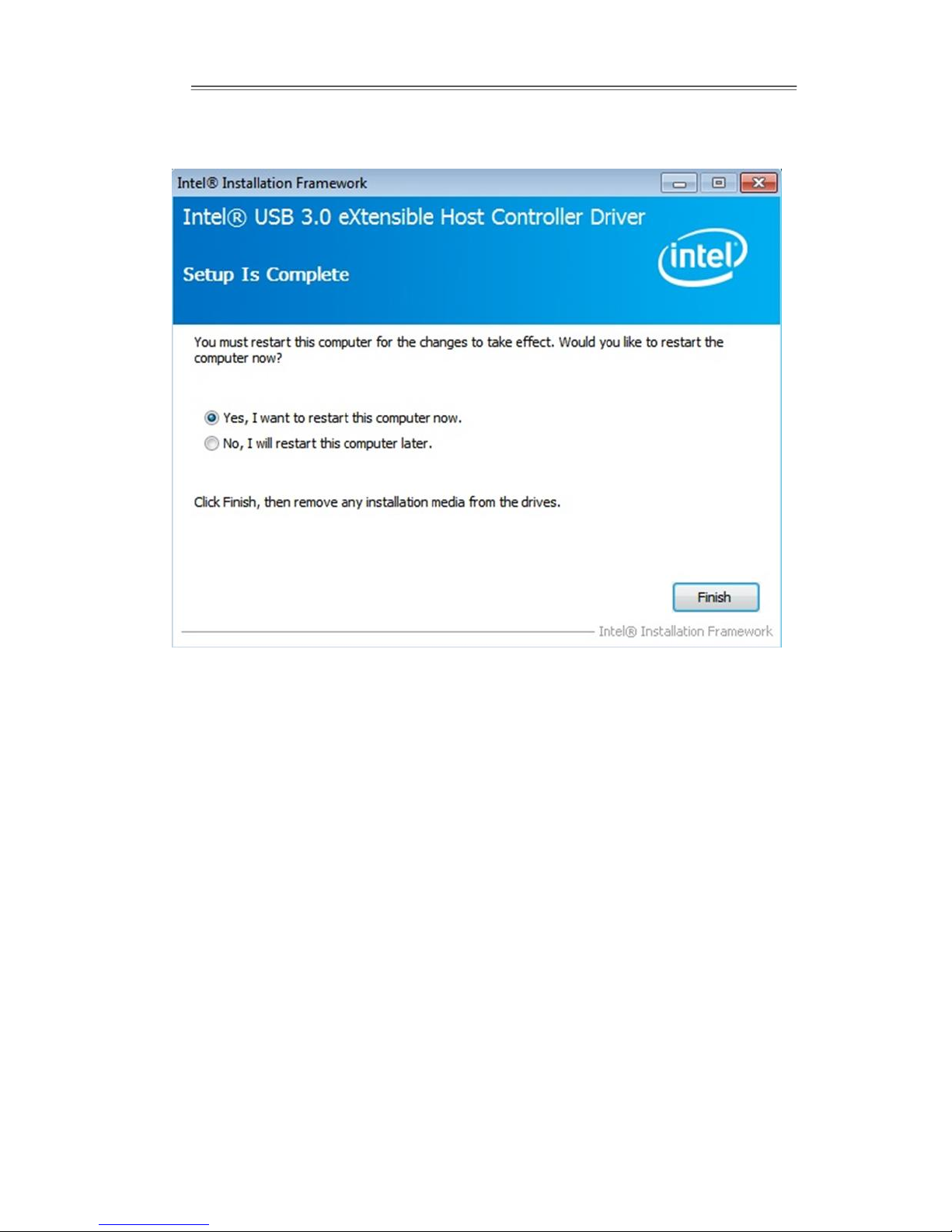

Step 7 Click “Yes, I want to restart this computer now” to finish the installation and
restart your computer.
Page 99
IH70 Motherboard User Manual
Technical Support Documents
This chapter includes SDK list for this User Manual.
5.1 Digital I/O SDK
5.2 Watchdog SDK
Page 100
IH70 Motherboard User Manual
Chapter 5: Technical Support Documents
SDK List
You can download SDK from our download center, please click the link below.
https://www.dropbox.com/s/l3lklrmiqy2lip6/SDK.rar?dl=0
5.1 Digital I/O SDK
To find the Digital I/O Sample code, please refer to the IH70 driver CD SDK or contact
us.
5.2 Watchdog SDK
To find the Watchdog Sample code, please refer to the IH70 driver CD SDK or contact
us
Loading...
