Winmate E430M2 Series PDA
User Guide
Version 1.00
Revision A
June 2012
Winmate E430M2 Series PDA
User Guide
1
Contents
Chapter 1: Safety Information
Exposure to Radio Use ........................................................................................ 3
RF Exposure Information ...................................................................................... 3
Battery Safety Information ..................................................................................... 4
Electrostatic Discharge ......................................................................................... 4
Driving ................................................................................................................... 4
Chapter 2: About Winmate E430M2 Series
About E430M2 ..................................................................................................... 5
Features ............................................................................................................... 5
Getting started ....................................................................................................... 6
Sim Card and SD Card Installation ................................................................ .. 7
Battery Installation ........................................................................................... 8
Battery Charging ............................................................................................. 8
Turning On and Off the Device .............................................................................. 9
Turning the E430M2 On .................................................................................. 9
Turning the E430M2 Off ................................................................................ 10
Resetting to Factory Defaults .............................................................................. 10
Chapter 3: Using Android 2.3.4 Operating System
Wake Up the Phone ........................................................................................... 11
Using the Touch Screen ..................................................................................... 11
Using the Home Screen ..................................................................................... 11
Personalizing Home Screen .......................................................................... 12
View other parts of the Home Screen ............................................................ 13
Status and Notification Icons ................................ ............................................... 15
Using the Menu ................................................................................................... 16
Using the On-Screen Keyboard .......................................................................... 16
Enter Text by Typing ..................................................................................... 16
Editing Text ................................................................................................... 17
Display Setting .................................................................................................... 18
Audio Profile Setting ........................................................................................... 19
Sounds Setting .............................................................................................. 19
Adjust Volume ............................................................................................... 19
Language & Keyboard Setting ............................................................................ 19
Winmate E430M2 Series PDA
User Guide
2
Change the keyboard language ..................................................................... 20
USB Debugging Setting ..................................................................................... 20
Using the Phone .................................................................................................. 21
To Make a Phone Call ................................................................................... 21
To Make a Phone Call Using Contact List ..................................................... 22
Answering or Declining Calls ......................................................................... 22
Messaging ........................................................................................................... 22
Send a Text Message .................................................................................... 22
Open and Respond to Text Message ............................................................ 23
About Phone ...................................................................................................... 23
Chapter 4: Connecting to Network and Devices
Connecting to Mobile Networks .......................................................................... 24
Determine the GSM Networks ....................................................................... 24
Limit User Data Connection to 2G Networks.................................................. 24
Connecting to Wi-Fi Networks ............................................................................ 24
Turn On the Wi-Fi and Connect to a Wi-Fi Network ....................................... 24
Add a Wi-Fi Networks .................................................................................... 25
Connecting to Bluetooth Devices......................................................................... 26
Turn Bluetooth On or Off ............................................................................... 26
Connect to a Bluetooth Device ...................................................................... 26
Disconnect from a Bluetooth Device .............................................................. 26
Connecting to Computer via USB ........................................................................ 27
Chapter 5: Using the Camera
Open Camera ..................................................................................................... 28
Take a Picture ..................................................................................................... 28
Switch between Front and Back Cameras ........................................................... 28
Shoot a Video...................................................................................................... 29
Chapter 6: Accessories
E430M2 Standard Accessories .......................................................................... 30
E430M2 Optional Accessories ........................................................................... 30
Winmate E430M2 Series PDA
User Guide
3
Chapter 1: Safety Information
Exposure to Radio Use
E430M2 series is equipped with Bluetooth, WI-Fi and Cellular modem radio. In some
situation or area, user may be required to turn off the radios. For example;
User’s needs to turn the phone OFF when in an area posted “TURN OFF RADIO
SIGNAL.” to avoid interfering with blasting operations.
User needs to turn OFF the radio signal in health care facilities. Hospitals or health
care facilities may be using devices that sensitive to Radio Frequency energy.
Aviation authority regulations prohibit user from using phone while in the aircraft.
In order to prevent the handheld from emitting radio signals, do the following step:
To turn off the device:
Press and hold the power button to display the Phone Options menu for 3 sec then
tap the Power Off
To set the device into airplane mode:
Press and hold the power button to display the Phone Options menu for 3 sec then
tap Airplane mode
To turn off the Communication options e.g. Bluetooth, Wi-Fi, cellular modem radio:
Select MENU, tap Setting, and then tap Wireless & networks.
If any radios are on, tap them to uncheck all the radios’ checkboxes in the devices
RF Exposure Information
This PDA meets the government’s requirement for exposure to radio waves. This PDA is
designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government. The exposure standard for wireless devices employs a unit of measurement
known as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6W/Kg.
Test for SAR are conducted using standard operating positions accepted by the FCC with
the device transmitting at its highest certified power level in all tested frequency bands.
Although SAR is determined at the highest certified power level, the actual SAR level of the
device while operating can be well below the maximum value. This is because the PDA is
designed to operate at multiple power levels so as to use only the poser required to reach
the network. In general, the closer user to a wireless base station antenna, the lower the
power output.
For body worn operation, this PDA has been tested and meets the FCC RF exposure
guidelines for use with an accessory that contains no metal and the positions of the handset
minimum of 1.5 cm from the body. User of other enhancements may not ensure compliance
Winmate E430M2 Series PDA
User Guide
4
with FCC RF exposure guidelines. If user do not use a body-worn accessory and are not
holding the PDA at the ear, position the handset a minimum of 1.5 cm from your body when
the device is switched on.
Battery Safety Information
Do not use other battery which is not intended for the product. Use only the
battery compatible for the device and follow battery usage, storage, and charging
guidelines in this user guide.
A damage rechargeable Lithium-ion polymer battery can cause explosion or fire.
To prevent personal injury and/or property damage:
Do not open, disassemble, puncture, or crush the battery
Do not leave or store the PDA in an area which is near a heat source such
as vehicle dashboard, dryer or other heat source.
Do not attempt to insert foreign object into the battery or allow conductive
objects to contact the battery
In the event of battery leak:
Do not have any contact with the battery fluid
If battery fluid leaks onto the skin or cloth, wash the affected area with
clean water
Please contact your current Winmate distributor or local Winmate vendor if you
suspect damage to your PDA or battery for inspection and reparation.
Electrostatic Discharge
Please follow proper electrostatic discharge precaution to prevent static damage
that can harm electronic components inside your device
Driving
Using mobile device or accessory while driving may cause distraction and maybe
illegal in some areas where you drive. Please obey the laws and regulations on
the use of mobile device
Winmate E430M2 Series PDA
User Guide
5
Chapter 2: About Winmate E430M2 Series
About E430M2
Winmate E430M2 Industrial PDA is based on the ARM Cortex-A9 processor running at 1
GHz. The 4.3-inch capacitive multi-touch display offers 480 x 800 pixel WVGA resolution.
Other new era tech includes dual cameras, a micro-SD card slot, 802.11 a/b/g/n Wi-Fi, Built
in GPS and 3G mobile broadband.
Features
This section provides the features of the E430M2 series and describes how to set this device
for the first time
Winmate E430M2 Series PDA
User Guide
6
Features
1
Earpiece
Use to listen during phone conversation
2
3.5 mm headset connector
Use to connect a headset (differs by product type)
3
Webcam
To capture a front view picture and use for Video call
4
Proximity & Light Sensor
Proximity function is used specifically towards near field
proximity applications. In mobile phones, the proximity detection
can detect when the user positions of mobile phone is close to
their ear
Light sensor detect the availability of light and automatically
control the brightness of a screen backlight intensity
5
IR (optional)
Use for sending and receiving infrared signals
6
LED indicator
LED indicator indicates the battery power or charging status
7
Power Button
Press and hold the button for 3 seconds to turn on E430M2
Press to turn on/off the screen
Press and hold the button for 3 seconds to select:
Power Off -- to turn off the E430M2
press button for 8 Sec to force system power off
Airplane mode -- to disable all wireless connection
Silent mode -- to disable all the sounds except for the alarms
Vibration mode – to vibrate all the notifications across the
entire device
Normal mode – Return to the user setting mode
8
Function Key
Use to trigger the barcode reader for E430M2 series with
barcode reader (differs by product type)
9
Volume Up / Down
Increases or decreases the call volume when a call is in
progress. In other applications, it controls the volume of music
or other audio
10
4.3” Touch screen
Display all information needed to operate E430M2
11 Opens the home screen with single touch
12
Opens a menu with items that affect the current screen or
application
13
Opens the previous screen and to close onscreen keyboard if it
is open and Return to the previous action
14
Opens the search widget for searching the web, applications,
and contacts
15
Micro USB
Use for charging and communication
16
Microphone
Use for making a phone call or voice recordings
17
Speaker
Provides audio output for music and video
18
LED
Use it as a flashlight
19
5 MP Rear Camera
Takes photos or record videos
Getting started
To start using the E430M2 for the first time:
Install SIM Card and SD Card
Install the battery
Charging the Battery
Winmate E430M2 Series PDA
User Guide
7
Sim Card and SD Card Installation
To Install the SIM Card and SD Card:
1. Place the E430M2 facing down and then locate the screws on the backside
2. Unscrew the screws and gently pull the back cover
3. Pull the plastic strap and then remove the battery
4. Locate the SIM card holder
5. Insert the SIM card (with the gold parts facing down and cut-off corner facing
out) in the direction of the arrow as shown in the figure
6. Locate the SD card holder
7. Push the SD card holder in the direction of the arrow to unlock it.
Winmate E430M2 Series PDA
User Guide
8
8. Pick and raise the SD card holder up in upright position and then put the SD
Card into the socket
9. Close the SIM card holder and push it into lock position until there is a click
sound
Battery Installation
1. Reinsert the battery by latching the bottom first and then push it down.
2. After battery installation, put back the back cover and make sure all the 6 screw
holes fit. Screw and fix the back cover by using gentle torque of 2 Kg
Check the Sealing
Battery charging
Please charge the battery before using the PDA for the first time, charge the battery until
the LED indicator turns solid green. To charge the E430M2, use a cable or a docking
with appropriate power supply. For more information about the E430M2 accessories, see
chapter 6.

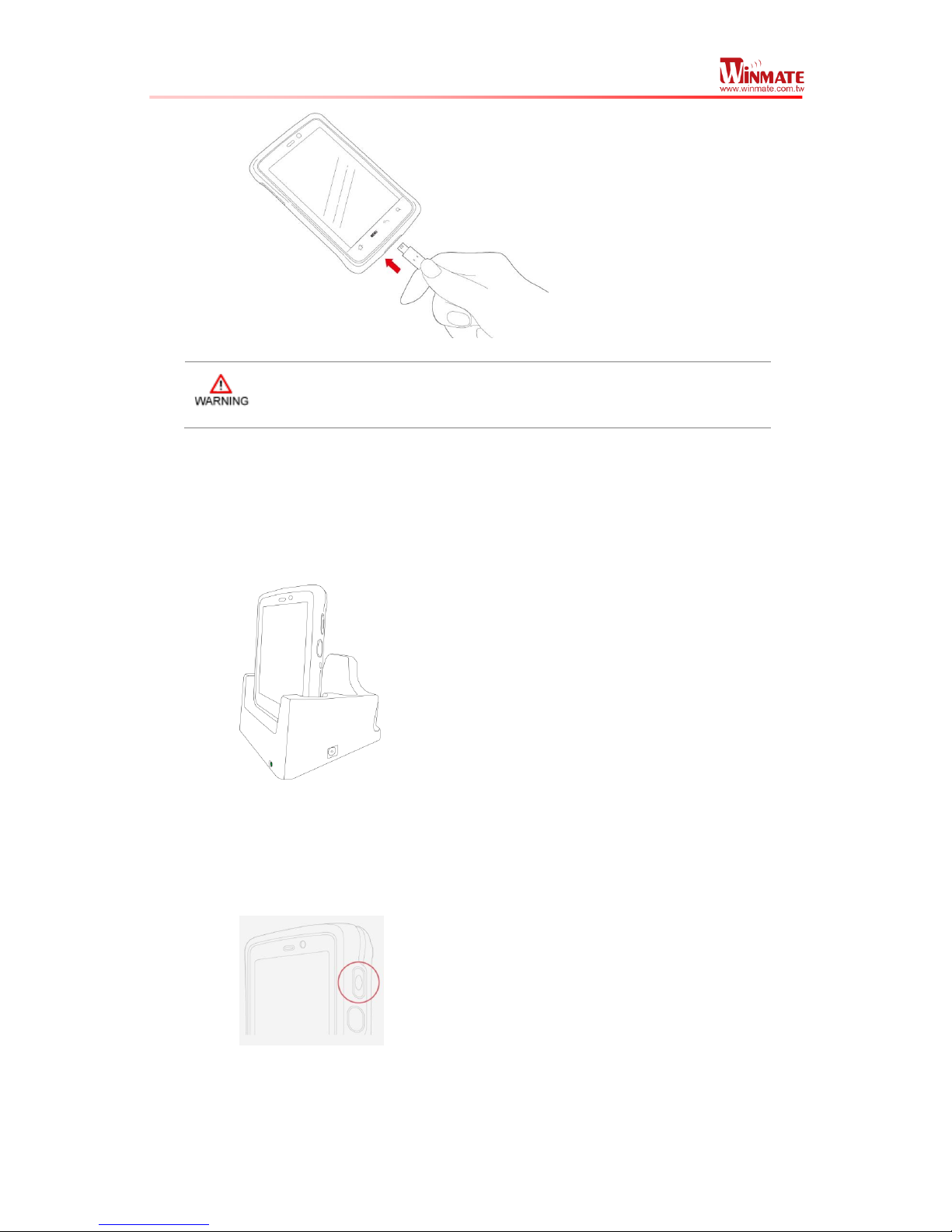

To charge the battery using USB/ Charge cable:
1. Connect the power supply output connector to the input power port on the
USB/Charge cable.
2. Remove the protective rubber and connect the USB/ Charge cable to the bottom of
E430M2. The battery charge LED indicates the battery charging status
LED Status
Indication
OFF
E430M2 is not charging or not properly connected
Solid Red
Low battery
Solid Orange
Charging in progress
Solid Green
Charging complete
Winmate E430M2 Series PDA
User Guide
9
This product uses a non-removable battery. The battery should
only be removed when you want to change the SD Card or SIM
Card
To charge the battery using Docking:
1. Connect the docking to power, Insert the E430M2 into the slot to begin
charging
2. The E430M2 LED indicator indicates the status of the battery charging
This docking provides Input: 12V/36W DC in
Turning On and Off the Device
Turning the E430M2 On
1. Press and hold the power button for 3 seconds, located on the right side of the
unit
2. When the device vibrates, release the power button
The desktop screen is displayed
Turning the E43M2 Off
Loading...
