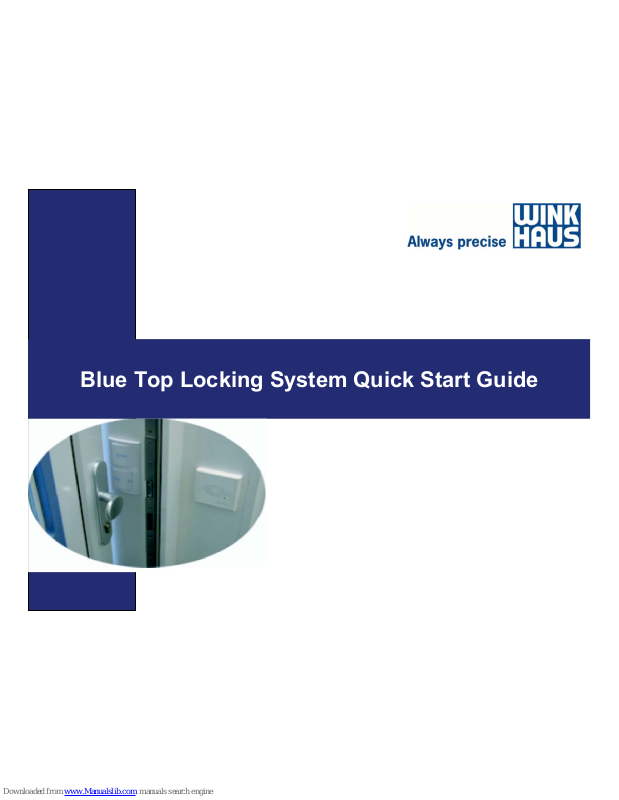

Blue Top Locking System Quick Start Guide

Contents:

Page 1: Overview

Page 2: Quick Start Guide

Page 3: What do I need to order?

Page 4: Operating Options

Page 5: Blue Top Order Form

Page 6: Lock Connection

Page 7: System Wiring schematic

Page 8: Wiring Power Supply

Page 9: Wiring Power Supply

Page 10: Wiring of Opening Devices

Page 11: Transponder Set

Page 12: Sender Remote Set

Page 13: Trouble Shooting

Blue Top Locking System

Overview

This document is designed to be a brief version of the full Blue Top Operators Manual.

For any further or more comprehensive Information please refer to the manual or contact;

Winkhaus UK Ltd.
1950 Kettering Parkway,
Kettering,
Northants.
NN15 6XZ
Tele: (0) 1536 316056

Quick Start

Blue Top Locking System

Receiver unit11

Day/night switch10

Handle furniture12

Push to open switch9

Terminal block (Auxiliary interface)8

Transformer6

Access control Fob reader7

Battery back up unit6.1

Manual Override operating levers5

Actuation Magnet4

Centre keep3

Dead Bolt keep2

Lock motor1.1

Blue Top Security Locking System1

DescriptionItem

number

What do I need to order:

Blue Top Locking System

A n otherPush Button/Switch13

WHTransponder Set 14

WHSender Remote Set15

Operating Equipment Inside (select one of the following)

A n otherMains power supply to Transformer4

Operating Equipment Outside (select one of the following)

WHDoor Push Pull Handles9

WHSender Remote Set11

WHTransponder Set 10

A n otherOther access control system, Wired via WH Terminal Block (Auxiliary interface)12

A n otherDigital pad16

WHAuxiliary Power supply (battery back-up) optional6

WHTransformer5

WHTerminal block (Auxiliary Interface) and lock connecting cable7

WHManual Override operating levers (located inside)8

SupplierBasic Equipment

WHMagnetic Bush3

WHBlue Top keep set2

WHBlue Top Security Locking System1
