WINIX AIR PURIFIER
User Manual
Model
Use & Care
Guide
Tower XQ
ˍPlease read and follow all safety rules and instructions in this
manual before operating.
ˍThe product warranty is printed on the back of this guide, so
please keep it in a safe place for future use.
ˍThis product is manufactured for use only in North America.
CONTENTS
4-STAGE AIR PURIFICATION
CONTROLS
WHERE TO USE
INSTALLING / REPLACING FILTERS
FILTER CARE
SAFETY AND PRECAUTIONS
INITIAL OPERATION
CLEANING CARE
FREQUENTLY ASKED QUESTIONS
UNIT SPECIFICATIONS
SAFETY INSTRUCTIONS
PRODUCT WARRANTY
····························································
························································
··························································
······················································
·············································
···········································
···················································
·················································
···············································
················································
······································
10
11
12
13
······································
17
18
19
20
3
4
7
8
▶
This product is suitable for 120V only.
Tower XQEnglish
2
4-STAGE AIR PURIFICATION
Grill
Air Quality Indicator (AQI)
Button Control Section
Display
True HEPA lter
Front panel
Rear panel
Side vent
Carbon Filter
Pre-lter
User Manual
WINIX AIR PURIFIER
AM90
Model
Please read and follow all safety rules and instructions
ㆍ
Use & Care
in this manual before operating.
Guide
The product warranty is printed on the back of this
ㆍ
guide, so please keep it in a safe place for future use.
This product is manufactured for use only in USA/CA
ㆍ
Unit (2) Pre-lter / (2) True HEPA Filter /
User Manual
(2) Coated DeOdorization (CD)
Carbon Filters
English Tower XQ
3
CONTROLS
Display
Display
Indicator
Child Lock
Indicator
Grill
Timer
Air Quality
Indicator (AQI)
Button Control
Section
Side vent
Wi-Fi
Indicator
Sleep Mode
Indicator
Check Filter
Indicator
Ultrafine Dust
Ultrafine
dust density
Indicator
Mode
Indicator
English Tower XQ
Plasmawave
Indicator
4
CONTROLS
Button Control Section
Sleep Mode /
Child Lock
Wi-Fi Button /
Device Pairing
Filter Life /
Filter Reset
Button
Plasmawave®
Button
Button Description
Power Button
ˍTurns on/off the unit.
Fan Speed Adjustment Button
ˍPressing the Fan Speed Adjustment Button will change the
unit's fan speed.
ˍ Auto → Level 1 → Level 2 → Level 3 → Turbo → Auto.
Timer Button
ˍA quick press of the timer Button will set the timer.
ˍThe timer can be set, in hours, in the order of
0 (Default) → 1 → 2 → 4 → 8 → 12→ 0.
ˍ The amount of time, in hours, is indicated on the front
numeric display.
ˍTimer Indicator displays when timer is in use
PlasmaWave® Operation Button
ˍTurns on/off the PlasmaWave
®
Timer
Power Button
Fan Speed
Button
feature.
English Tower XQ
5
CONTROLS
Button Description
Sleep Mode / Child Lock Button
ˍA quick press of the Sleep Mode /Child Lock Button cycles
the unit in order from
Sleep Mode→ General Mode → Sleep Mode.
ˍIn Sleep Mode, the Sleep Mode LED Icon on the front indicator
dims to 50% brightness. All other LEDs are turned off.
ˍIf you press Sleep Mode /Child Lock Button for 3seconds child
lock will be initiated and the buttons will not operate. and a
chime will sound if pressed.
Filter Life / Filter Reset Button
ˍA quick press will show the remaining filter life; indicated on
the front display (100 ~ 0%).
ˍA long press of 10seconds will reset the filter life indicator.
-Use when replacing the filters
-Filter Reset button can be used even after the power is
turned off.
-The filter life will be reset to 100%.
Wi-Fi / Pairing
ˍA quick press will turn Wi-Fi on/off
ˍA long press of 3 seconds will activate pairing mode.
ˍA Wi-Fi indicator will display on the front while Wi-Fi is active.
English Tower XQ
6
WHERE TO USE
Allow 12 ~ 18 in. of space between TVs, radios, and other electronic products
Electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and vibrations.
12~18 in 12~18 in
WARNING
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships, etc.)
Do not place near any flammable
materials (aerosols, fuel, gases etc.)
Do not place below any electrical outlet
This unit is not intended to be used to preserve documents or in art conservation.
•
English Tower XQ
Follow these instructions to reduce the risk of serious injury
or death and to reduce risk of damaging the unit.
Do not place around heating elements
Do not place in an area with excessive
amounts of noxious gases
Do not have unit facing into wind or draft
Do not place in excessively humid areas
where unit may become wet
7
Latch
INSTALLING / REPLACING FILTERS
This product comes with all the required filters. The protective plastic wrap must be
removed from the filters before use.
Operating the unit without removing the plastic wrap may result in product failure.
•
Unplug and make sure the unit is turned off before installing filters.
•
①
Remove the front/rear panel by grasping
its upper edge and gently pulling forward.
ˍTo remove the front/rear panel release
the latch at the lower edge of the panel.
②
Press the Pre-filter tabs near the top of
the filter, release and remove.
③
If replacing the filters pull out the used (CD)
Carbon Filter and True HEPA filter.
English Tower XQ
8
INSTALLING / REPLACING FILTERS
Latch
④
Remove the new filters from protective
plastic wrap.
ˍOperating the unit without removing
filters from plastic wrap may cause
abnormal noise, deformation or fire as a
result of overheating.
⑤
Install the new filters until they fit securely
in place.
Filters must be installed in this order:
3 True HEPA filter (rear)
2 (CD) Carbon filter (middle)
1 Pre-filter (front)
ˍTo install the Pre-filter, insert bottom tabs
into the slots on either side of the lower part
of the unit, then rotate upward to insert the
upper tabs into the slots at the top part of
the unit until sides audibly click into place.
⑥
Replace the front panel by first inserting
the latch at the bottom edge into the base
of the unit, then rotate the panel upward
toward the top of the unit until the magnets
pull the lid closed.
⑦
Resetting the Unit
ˍAfter replacing the filters, turn the power
onto the unit and then press and hold the
Filter Reset Button for 10 seconds.
English Tower XQ
9
Filter Care
Filter Indicator Light
1 Pre-filter
2 Coated DeOdorization
(CD) Carbon filter
3 True HEPA filter
Intervals between filter replacement may vary depending on environment.
•
For optimal use, Pre-filter can be cleaned once every 14 days which can extend the
•
life of other filters.
none
When to
service
Clean once every
14days
Can NOT be
WASHED
When to replace
Permanent
Replace every
12 months
Lasts up to
12 months
To purchase replacement
Winix filters:
(877)-699-4649
www.winixamerica.com
NOTICE
ˍFor optimal performance, only Winix filters should be used
with this unit.
NOTE
English Tower XQ
ˍThe filters’ life varies depending on the level of pollutants in
the air. The more dust present in the environment, the more
dust accumulates in the filters, shortening the life.
ˍIf the filters are heavily soiled or have a bad odor, or if the fan
strength is significantly weakened, replace filters even if the
Change Filter indicator has not yet turned on.
10
SAFETY AND PRECAUTIONS
Before operating this equipment, carefully read and follow these safety cautions
Ensure filters are inserted before running unit.
Running unit without filters can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit.
Objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands.
The high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked.
Blockage may lead to increased internal termperatures causing product failure and derformation.
Do not use the unit as a step stool or place heavy objects on it.
Personal injury may occur or product failure and deformation.
WARNING
Do not pull on the power cord when
unplugging the unit
If the unit becomes submerged in water,
unplug it and contact customer service
Unplug unit when not in operation for
extended periods of time
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it
Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Do not tie or knot power cord when unit
is in operation
Do not unplug or move the unit while in
operation
Do not touch the plug with wet hands
English Tower XQ
11
INITIAL OPERATION
①
Insert the power cord into an electrical
outlet.
②
Press the ‘Power’ button.
NOTE
③
By default, when the unit first powers on, the
mode will be set to Auto with PlasmaWave®
enabled.
ˍWhen in Auto mode, the fan speed will
be automatically adjusted according to
the environments air quality.
ˍPlasmaWave® works to remove harmful
airborne contaminants.
NOTE
ˍDuring the first 4 minutes of power up, the Air Quality
Indicator will flash as the Smart Sensors measure the air
quality in the environment, after which normal operation will
begin.
ˍIn Auto mode, as the indoor air quality improves, the fan
speed will automatically be reduced to Low.
ˍWhen the unit is running, you may hear a chirping or buzzing
sound. The sound is from large particles passing through
PlasmaWave®, it is normal and does not signify product
failure. To disable PlasmaWave®, see page 5.
English Tower XQ
12
CLEANING CARE
1. Cleaning the Exterior & Interior
①
Wipe with a soft damp cloth using room
temperature water. Afterwards, wipe down
with a clean dry cloth.
ˍTo keep unit in peak condition, clean
every 1-2 months.
②
Open the front panel and clean the interior
with a hand vacuum.
ˍFor optimal performance, clean every
1-2 months.
NOTICE
English Tower XQ
ˍWhen cleaning the unit, always unplug the power cord first
and then wait until the unit has cooled down.
ˍNever disassemble, repair, or modify this unit yourself.
ˍDo not use flammable sprays or liquid detergents on or near
the unit. .
ˍDo not allow children to clean or maintain the unit.
ˍBefore cleaning or maintaining, ensure unit is unplugged.
13
CLEANING CARE
2. Cleaning the Top
①
Grasp the back of the grill and lift it up.
②
Wipe the interior and grill with a soft damp
cloth.
③
To reinstall the grill insert the two front tabs
of the grill into the corresponding holes in
the product.
English Tower XQ
14
CLEANING CARE

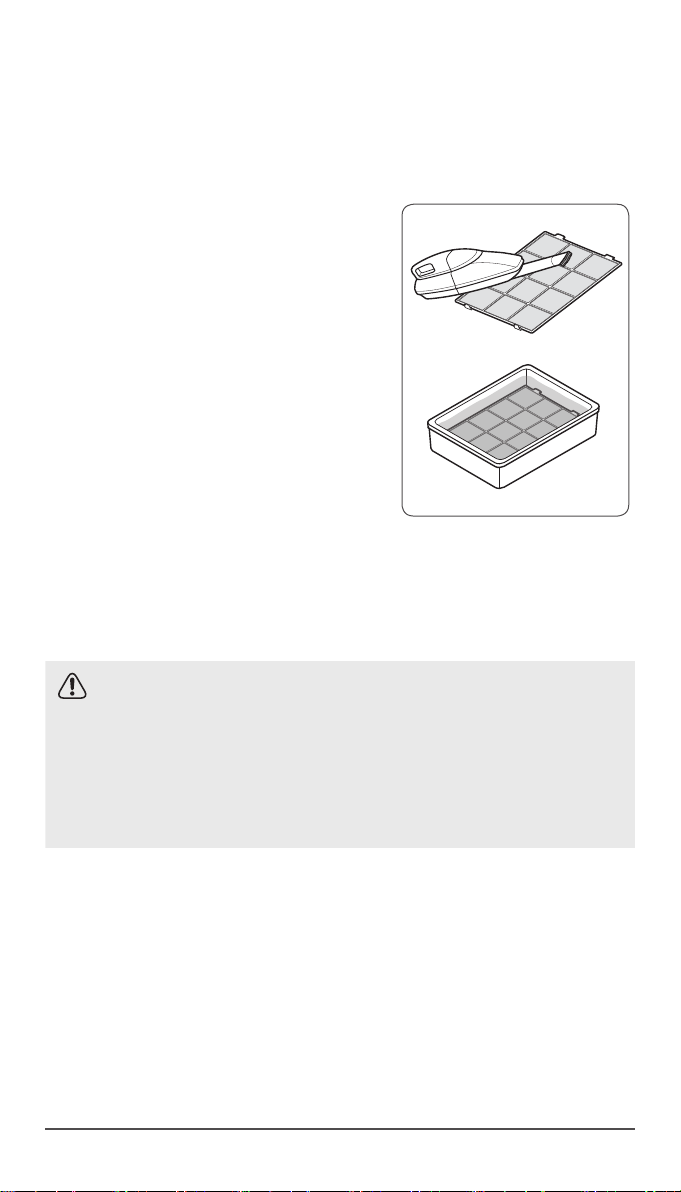

3. Cleaning the Pre-Filter
Intervals between pre-filter cleaning may vary depending on the air quality.
①
Use a handheld vacuum or soft brush to
clean the pre-filter. If it is excessively dirty,
rinse in room temperature water.
ˍDo not use detergent or soap.
ˍAllow the filter to fully dry before using.
If the pre-filter becomes damaged or in any way needs replacement:
•
Please contact Winix
Call: (877)-699-4649
Visit: www.winixamerica.com
NOTICE
English Tower XQ
ˍDo not use benzene, alcohol, or other volatile fluids, which
may cause damage or discoloration.
ˍThe Pre-filter is reusable after cleaning, ensuring it is
completely dry.
ˍAllow it to dry completely in a well ventilated area.
Otherwise, it may develop a bad odor.
ˍDo not use hot water over 104oF or volatile fluids such as
paint thinner.
15
CLEANING CARE
Lens
Cotton
swab
Lens
4. Cleaning the Particle Sensor
①
Open the Particle Sensor cover on the back
of the unit.
②
Use a damp cotton swab to wipe the lens
and intake area of the Particle sensor.
ˍTo clean the sensor area, use only water.
ˍDo not use volatile substances such as
alcohol or acetone.
③
Wipe away any remaining moisture with a
dry cotton swab.
④
Close the Particle Sensor cover.
ˍThe Particle Sensors cover may be
cleaned using a handheld vacuum.
English Tower XQ
16
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take
ˍIs the plug securely attached to the outlet?
-Make sure the outlet has power going to it, and
The unit does not
turn on at all.
The unit doesn’t
work in Auto
Mode.
ensure the plug is secured.
ˍIs there a power outage?
-Check to see if other lights and electrical
equipment are working and try again.
ˍHas Auto Mode been selected?
-Press the Mode button until Auto Mode is
selected.
ˍIs the sensor blocked or clogged?
-Wipe Odor Sensor with a wet cloth, then dry.
The unit vibrates
and makes a lot of
noise.
The unit power
plug and outlet
feel hot.
There is a strange
smell.
The fan strength
is weak.
The unit is not
purifying the air.
The display panel
is dim/off.
ˍIs it running on a slanted or uneven surface?
-Move the unit to a hard, flat, even area of the
floor.
ˍIs the plug securely plugged in?
-Make sure the plug is properly plugged into the
outlet.
ˍIs the unit being used in a place with a lot of smoke,
dust, or odors?
-Clean the air intakes on either side and clean
the pre-filter.
-Replace the Carbon filter and True HEPA filter.
ˍIs the Check Filter indicator light on?
-Change the filters as required.
ˍIs sleep mode on?
-Check the display and press the Sleep Mode
button to cycle Sleep Mode on/off.
ˍIs the Light Sensor blocked by debris?
-When Auto Mode is on, Sleep Mode is
automatically activated when the Light Sensor
detects that the room is dark.
English Tower XQ
17
UNIT SPECIFICATIONS
Model Name Tower XQ
Power Voltage
AC 120 V / 60 Hz
Power Rate 90W
Room Area Served 628 ft
Dimensions
14.6 in(W) x 14.6 in(D) x 31.3 in(H)
2
Weight 30.86 lbs
The exterior, design and product specifications may be changed without
•
prior notice to improve product performance.
Information regarding ENERGY EFFICIENCY RATING LABEL
•
The energy costs indicated on the ENERGY EFFICIENCY RATING LABEL may differ
from your actual energy costs, depending on your energy consumption, usage
hours, and billing changes, such as utility price increases.
Warning : Change or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note : This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures.
ˍReorient or relocate the receiving antenna.
ˍIncrease the separation between the equipment and receiver.
ˍConnect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
ˍConsult the dealer or on experienced radio/TV technician for help.
This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the
following two conditions:
ˍThis device may not cause interference and
ˍThis device must accept any interference, including interference that may cause undesired
operation of the device.
English Tower XQ
18
SAFETY INSTRUCTIONS
Thank you for purchasing a Winix air purifier. This product is for indoor use only.
IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER
WARNING : Follow the instructions in this
manual to reduce the risk of electric shock,
short circuit, and/or fire.
ˍDo not repair or modify the unit unless
specifically recommended in this manual.
All other repairs should be completed by a
qualified technician.
ˍThe plug for this unit is polarized with one
blade wider than the other. Do not force
the plug into an electrical outlet. Do not
alter the plug in any way. If the does not fit
into the outlet, reverse the plug.
If it still does not fit, contact a qualified
technician to install a proper outlet.
ˍDo not use if the power cord or plug is
damaged or the connection to the wall
outlet is loose.
ˍUse AC 120V only.
ˍDo not damage, break, forcefully bend, pull,
twist, bundle, coat, pinch, or place heavy
objects on the power cord.
ˍPeriodically remove dust from the power
plug. This will reduce the risk of shock due
to humidity build up.
ˍIf the power plug is damaged, it must be
replaced by the manufacturer or a qualified
technician.
ˍRemove the power plug from the outlet
before cleaning the unit. When removing
the power plug, grasp by holding the plug
itself, never hold by the cord.
ˍRemove the power plug from the outlet
when not in use.
ˍDo not handle the power plug with wet
hands.
ˍDo not operate the unit when using indoor
smoke-generating insecticides.
ˍDo not clean unit with benzene or paint
thinner. Do not spray insecticides on the unit.
ˍDo no
t use the unit where it is humid or
where the unit may become wet, such as
the bathroom.
ˍDo not insert fingers or foreign objects into
air intake or outlet.
ˍDo not use the unit near flammable gases.
Do not use near cigarettes, incense, or
other spark-creating items.
ˍUnit will not remove carbon monoxide
emitted from heating appliances or other
sources.
ˍDo not block the intake or outlet vents.
ˍDo not use near hot objects, such as a
stove.
ˍDo not use where the unit may come into
contact with steam.
ˍDo not use the unit on its side.
ˍKeep away from products that generate
oily residue, such as a deep fryer.
ˍDo not use detergent to clean the unit.
ˍDo not operate without a filter.
ˍDo not wash and reuse the True HEPA Filter
or the CD Carbon Filter.
ˍHold the handle on the back of the unit to
transport.
ˍDo not hold by the front panel.
English Tower XQ
19
PRODUCT WARRANTY
The terms of the warranty are as follows.
1
This product is manufactured under stringent quality control and inspections.
2
Warranty void if product failure is a result of negligence or misuse by the consumer,
shipping. Service fees may be incurred even during the warranty period.
3
The warranty must be presented upon bringing the product for service.
4
Store the warranty in a safe place, as it cannot be reissued.
5
This warranty is valid only in the USA and Canada.
Product Name
Model Name
Purchase Date
Warranty period
Place of purchase
Place of purchase Tel.
Address
Customer
After purchase, be sure to complete all of the above information.
•
Name
Tel .
Air Purifier
Tower XQ
Two (2) years
English Tower XQ
20
MEMO
English Tower XQ
21
0000-0000-00 Rev.00
Contact for product
related inquiries and
customer service
To expedite service, please specify the model name and number, the
nature of the problem, your contact information, and your address.
●
Dedicated Call Center : (877) 699-4649
●
Website : www.winixamerica.com
Loading...
