MICROWAVE OVEN
KOR-86CH7
OPERA TING
INSTRUCTIONS
Before operating this oven, please read these instructions completely.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damaged to the: (1) door (bent), (2) hinges and
latches(broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service.
TABLE OF CONTENTS
• IMPORTANT SAFETY INSTRUCTIONS.
• READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. ............................................................................2
• FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT...........3
• GROUNDING INSTRUCTIONS...............................................................................................................................3
• INSTALLATION........................................................................................................................................................4
• FEATURES DIAGRAM.............................................................................................................................................5
• FEATURES DIAGRAM (CONTINUED)...................................................................................................................6
• OPERATION PROCEDURE....................................................................................................................................7
• CONTROLS..............................................................................................................................................................8
SETTING THE CLOCK ............................................................................................................................................8
TIME DEFROSTING ................................................................................................................................................8
WEIGHT DEFROSTING ..........................................................................................................................................9
COOKING IN ONE STAGE....................................................................................................................................10
COOKING IN TWO STAGES.................................................................................................................................10
KITCHEN TIMER MODE........................................................................................................................................11
SPEEDY COOK......................................................................................................................................................12
ONE TOUCH COOKING........................................................................................................................................12
LESS, MORE..........................................................................................................................................................14
CHILD SAFETY LOCK...........................................................................................................................................14
TO STOP THE OVEN WHILE THE OVEN IS OPERATING.................................................................................14
• CARE OF YOUR MICROWAVE OVEN.................................................................................................................15
• QUESTIONS AND ANSWERS..............................................................................................................................16
• BEFORE YOU CALL FOR SERVICE....................................................................................................................17
• CARE AND CLEANING .........................................................................................................................................17
• SPECIFICATIONS..................................................................................................................................................17
• COOKING INSTRUCTIONS ..................................................................................................................................18
• USE YOUR MICROWAVE OVEN SAFELY ..........................................................................................................19
• ARCING..................................................................................................................................................................19
• MICROWAVING PRINCIPLES..............................................................................................................................20
• HOW MICROWAVES COOK FOOD.....................................................................................................................20
• CONVERSION CHARTS .......................................................................................................................................20
• COOKING TECHNIQUES......................................................................................................................................21
• DEFROSTING GUIDE............................................................................................................................................22
• COOKING & REHEATING CHART.......................................................................................................................23
• VEGETABLE CHART.............................................................................................................................................25
• RECIPES................................................................................................................................................................26
1
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
11. Read all instructions before using the appliance.
12. Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found on page 1.
13. This appliance must be grounded. Connect only to
properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found on page 3.
14. Install or locate this appliance only in accor-dance with
the provided installation instructions.
15. Some products such as whole eggs and sealed
containers - for example, closed glass jars-are able to
explode and should not be heated in this oven.
16. Use this appliance only for its intended use as described
in this manual. Do not use corrosive chemicals or vapors
in this appliance. This type of oven is specifically
designed to heat, cook, or dry food. It is not designed for
industrial or laboratory use.
17. Only allow children to use the oven without supervision
when adequate instructions have been given so that the
child is able to use the oven in a safe way and
understands the hazards of improper use.
18. Do not operate this appliance if it has a damaged cord or
plug, if it is not working properly, or if it has been
damaged or dropped.
19. This appliance should be serviced only by qualified
service personnel.
Contact nearest authorized service facility for
examination, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this
product near water — for example, near a kitchen sink, in
a wet basement, or near a swimming pool, or similar
locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. Either:
a) When cleaning surfaces of door and oven that comes
together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or
soft cloth , or
b) When separate cleaning instructions are provided, See
door surface cleaning instructions on.
16. To reduce the risk of fire in the oven cavity:
a) Do not overcook food. Carefully attend appliance when
paper, plastic, or other com-bustible materials are
placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c) If materials inside the oven ignite, keep oven door
closed, turn oven off, and disconnect the power cord,
or shut off power at the fuse or circuit breaker panel.
d) Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in the
cavity when not in use.
17. Do not use this microwave oven to heat corrosive
chemicals (for example, sulfides and chlorides). Vapours
from such corrosive chemicals may interact with the
contact and springs of the safety interlock switches
thereby rendering them inoperable.
18. Keep the waveguide cover clean at all times.
Wipe the oven interior with a soft damp cloth after each
use. If you leave grease or fat anywhere in the cavity it
may overheat, smoke or even catch fire when next using
the oven.
19. Never heat oil or fat for deep frying as you cannot control
the temperature and doing so may lead to overheating
and fire.
20. Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to
be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present. THIS COULD
RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
a) Do not overheat the liquid.
b) Stir the liquid both before and halfway through heating
it
c) Do not use straight-sided containers with narrow
necks.
d) After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
e) Use extreme care when inserting a spoon or other
utensil into the container.
21. Do not operate the oven without the glass tray in place. Be
sure it is properly sitting on the rotating base.
SAVE THESE INSTRUCTIONS
2
FEDERAL COMMUNICA TIONS COMMISSION
RADIO FREQUENCY INTERFERENCE ST ATEMENT
WARNING:
This equipment generates and uses ISM frequency energy and if not installed and used
properly, that is in strict accordance with the manufacturer's instructions, may cause
interference to radio and television reception.
It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part
18 of FCC Rules, which are designed to provide reasonable protection against such
interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the followings.
• Reorient the receiving antenna of radio or television.
• Relocate the Microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave oven and receiver are
on different branch circuits.
THE MANUFACTURER is not responsible for any radio or TV interference caused by
UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of the user to
correct such interference.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces
the risk of electric shock by providing an escape wire for electric current. This appliance is equipped
with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that
is properly installed and grounded.
WARNING:
Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded, and either :
(1) If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade
grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked
rating of the extension cord shall be equal to or greater than the electrical rating of the
appliance. or
(2) Do not use an extension cord, if the power supply cord is too short, have a qualified electrician
or serviceman install an outlet near the appliance.
(3) Do not cut or remove the third (ground) prong from the power cord under any circumstances.
3
INSTALLATION
1. Examine the oven after unpacking.
Check for damage such as a misaligned door, broken door or dent in the cavity.
If any damage is visible, DO NOT INSTALL, and notify your dealer immediately.
2. Level, flat location.
Install the microwave oven on a level, flat surface.
3. Ventilation.
Do not block air vents. If they are blocked during operation, the oven may overheat and eventually
cause a failure.
For proper ventilation, allow 3 inches of space between oven top, sides, rear and adjacent surfaces.
4. Away from radio and TV sets.
Poor television reception and radio interference may result if the oven is located close to a TV, radio,
antenna, feeder, etc.
Place the oven as far from them as possible.
5. Away from heating appliances and water taps.
Keep the oven away from heat, steam or splashing liquids. These things can adversely affect oven
wiring and contacts.
6. Power supply.
This microwave oven requires a power supply of approximately 20 Amperes, 120 Volts, 60Hz
and a grounded outlet. A short power cord is provided to reduce the risk of the user becoming
entangled in or tripping over a longer cord. Longer cord sets or extension cords are available
and may be used if care is exercised in their use.
If an extension cord is used, the marked electrical rating of the cord should be at least as great
as the electrical rating of the oven.
The extension cord must be a grounding-type 3-wire cord. The longer cord should be arranged
so that it will not drape over the table top or counter where it can be pulled on by children or tripped
over unintentionally.
7. The minimum height of free space necessary above the top surface of the oven is 100mm.

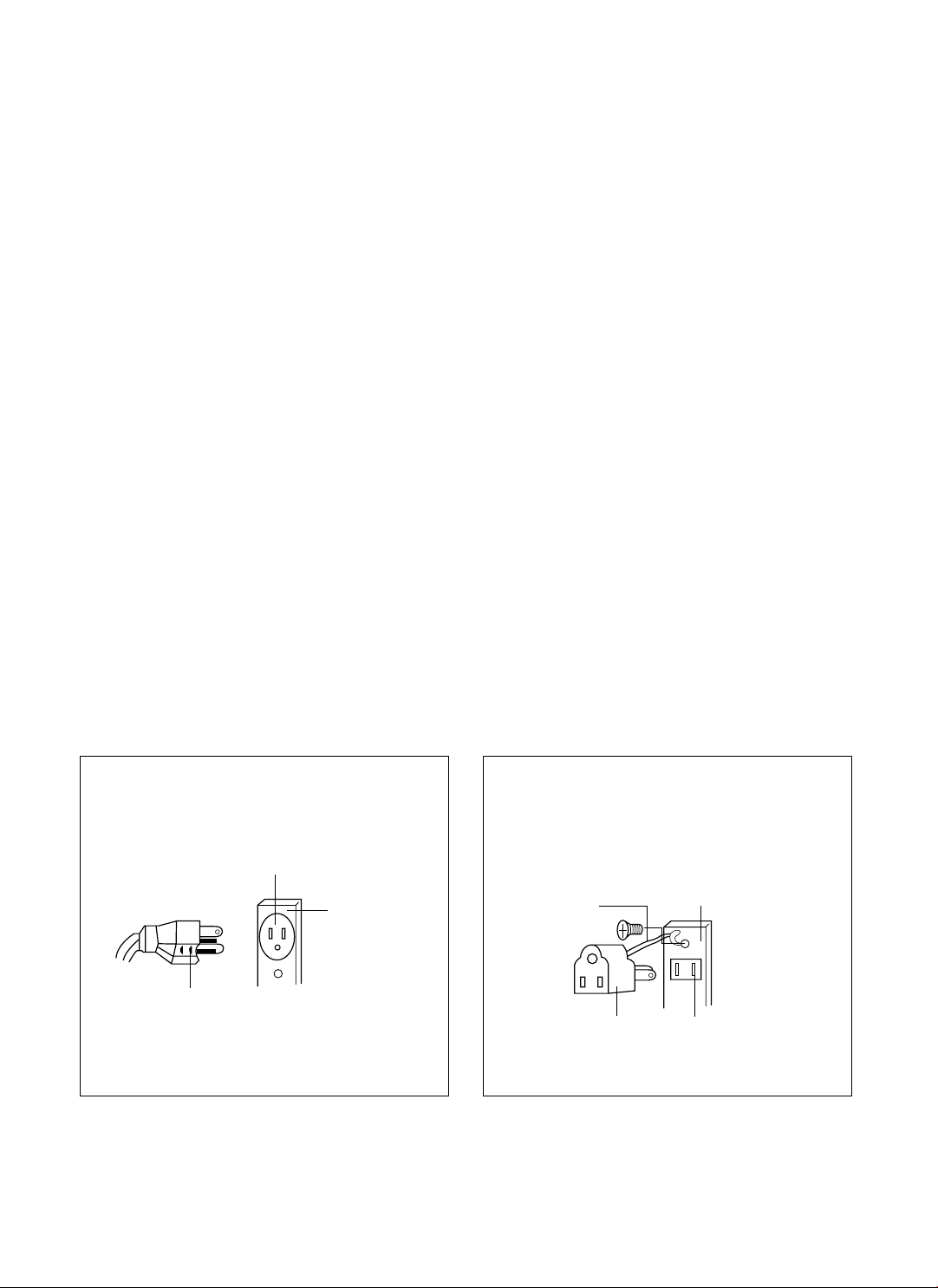

When use 3-pronged plug
3-prong Receptacle
Receptacle
Box cover
3-prong plug
When use grounding adaptor, make sure
the receptacle box is fully grounded.
Grounding
Lead
Grounding
Adaptor
Receptacle Box Cover
Receptacle
“THE CANADIAN ELECTRICAL CODE DOES NOT ALLOW THE USE OF THE GROUNDING ADAPTOR”
4
FEATURES DIAGRAM
2
9
1
6
5437
8
1. Door latch-When the door is closed it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will automatically shut off.
2. Door seal-The door seal maintains the
microwave within the oven cavity and
prevents microwave leakage.
3. Oven cavity
4. Spatter shield-Protects the microwave
outlet from splashes of cooking foods.
5. Safety interlock system-Prevents the oven
from operating while the door is opened.
The oven will only operate with the door fully
closed. When the door is open, the oven turns
off and will only start again after the door is
closed.
6. Door release button-Pushing this button
stops oven operation and opens the door.
7. Glass cooking tray-Made of special heat
resistant glass. The tray must always be
in proper position before operating.
Do not cook food directly on the tray.
8. Roller guide-Supports the glass cooking tray.
9. Door screen-Allows viewing of food.
The screen is designed so that light
can pass through, but not the microwaves.
5

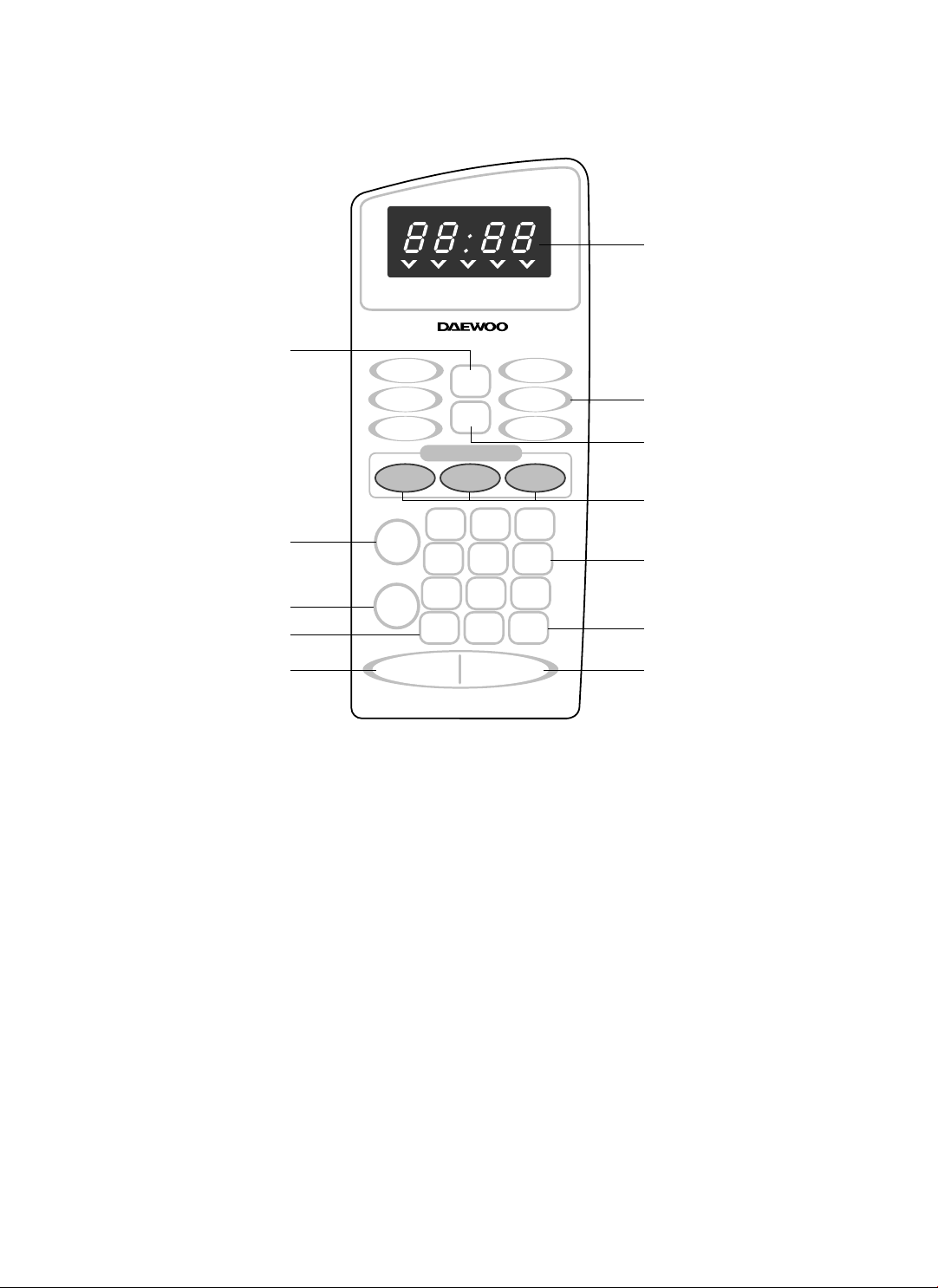

FEATURES DIAGRAM (continued)
M/W Def. Timer Lock lb
MORE
LESS
AUTO DEFROST
MEAT
POWER
DEF.
STOP/CLEAR
123
456
7809
START/
SPEEDY COOK
KITCHEN
TIMER
CLOCK
POULTRY
FISH
BEVERAGE POPCORN
FRESH
VEGETABLE
FROZEN
PIZZA
FROZEN
VEGETABLE
DINNER
PLATE
MICROWAVE OVEN RANGE KOR-861H
⑪
⑫
⑩
⑲
⑳
⑰
⑯
⑬
⑱
⑭
⑮
10. Time set pad-Used to set the cooking time
and the present time.
11. Display-Cooking time, power level, indicators
and present time are displayed.
12. One touch-Used to cook or reheat specific
quantities of food.
13. More-Used to add time to cooking.
14. Less-Used to remove time from cooking.
15. Auto Defrost-Used to defrost foods.(for
weight defrost)
16. Power-Used to set power level.
17. Defrost-Used to defrost foods.(for time
defrost)
18. Kitchen Timer-Used as a minute timer, to
delay the start of cooking, or to set a holding
time after cooking.
19. Clock-Used to set clock.
20. Stop/Clear-Used to stop the oven operation
or to delete the cooking data.
21. Start/Speedy cook-Used to start the oven
and also used to set a reheat time.
6
OPERATION PROCEDURE
This section includes useful information about oven operation.
1. Plug power supply cord into a standard 3-pronged 20 Amp, 120V AC 60Hz power outlet.
2. After placing the food in a suitable container, open the oven door and put it on the glass tray.
The glass tray and roller guide must always be in place during cooking.
3. Shut the door. Make sure that it is firmly closed.
The oven light is on only when the microwave
1
oven is operating.
The oven door can be opened at any time
2
during operation by pushing the door release
button on the control panel. The oven will
automatically shut off.
Each time a pad is touched, a BEEP will sound
3
to acknowledge the touch.
The oven automatically cooks on full power
4
unless set to a lower power level.
The display will show “ : 0” when the oven is
5
plugged in.
Time clock returns to the present time when the
6
cooking time ends.
When the STOP/CLEAR pad is touched during the
7
oven operation, the oven stops cooking and all
information retained. To erase all information(except
the present time), touch the STOP/CLEAR pad
once more. If the oven door is opened during the
oven operation, all information is retained.
If the START pad is touched and the oven does
8
not operate, check the area between the door
and door seal for obstructions and make sure the
door is closed securely. The oven will not start
cooking until the door is completely closed or the
program has been reset.
Make sure the oven is properly installed and
plugged into the electrical outlet.
W ATTAGE OUTPUT CHART
• The power-level is set by touching the POWER pad. The chart shows the display, the power level and
the percentage of power.
Touch POWER pad Power level (Display) Approximate Percentage of Power
once P-HI 100%
twice P-90 90%
3 times P-80 80%
4 times P-70 70%
5 times P-60 60%
6 times P-50 50%
7 times P-40 40%
8 times P-30 30%
9 times P-20 20%
10 times P-10 10%
11 times P-00 0%
7
CONTROLS
SETTING THE CLOCK
When the oven is first plugged in, the display will flash “:0” and a tone will sound. If the AC power
ever goes off, the display shows “ : 0” when the power comes back on.
1. Touch CLOCK pad.
CLOCK
This is a 12 hour clock system.
2. Touch CLOCK pad once more.
This is a 24 hour clock system.
3. Enter the correct time of day by touching the time set
pads in sequence.
4. Touch CLOCK pad.
CLOCK
NOTE: If you attempt to enter an incorrect time, the time will not be set and a error signal tone will
sound. Touch the CLOCK pad and re-enter the time.
NOTE : This oven has multiple clock
systems. If you want 12 hour
clock system, omit this step.
The display stops blinking, and the colon starts
blinking. If you selected 12 hour clock system,
this digital clock allows you to set from 1:00 to
12:59. If you selected 24 hour clock system, this
digital clock allows you to set from 0:00 to 23:59.
TIME DEFROSTING
When DEFROST is selected, the automatic cycle divides the defrosting time into periods of
alternating defrost and stand times by cycling on and off.
1. Touch DEFROST pad.
DEFROST
2. Touch the time set pads for the
desired defrosting time.
The DEF indicator lights and “ : 0” is displayed.
The display will show what you touched.
Note : Your oven can be programmed for
59 minutes 99 seconds. ( 59 : 99 )
3. Touch START pad.
When you touch START pad, the DEF indicator starts blinking to show the oven is in the DEFROST mode.
The display counts down the time to show you how much defrosting time is left in the DEFROST mode.
The oven beeps during the defrosting cycle to signal that the food needs to be turned or rearranged. When
the defrosting time ends, you will hear 3 beeps.
8
Loading...
