MICROWAVE OVEN
KOR-1D
OPERATING
INSTRUCTIONS
Before operating this oven, please read these instructions completely.
KOR-1D(�)_DAEOO.indd 2 2016-10-13 �� 4:59:35
CONTENTS
• Precautions to Avoid Possible Exposure to Excessive Microwave Energy ........................................ 2
• Important Safety Instructions ..............................................................................................................3
• Federal Communication Commission Radio Frequency Interference Statement ................................4
• Grounding Instructions .......................................................................................................................4
• Installation Guide .............................................................................................................................. 5
• Specications ................................................................................................................................... 6
• Features Diagram .......................................................................................................................... 7-8
• Operation Procedure .......................................................................................................................... 9
• Controls ...................................................................................................................................... 10-17
• Care of Your Microwave Oven ..................................................................................................... 18-19
• Questions and Answers ................................................................................................................... 20
• Cooking Instructions ................................................................................................................... 21-30
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the
safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches
(broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualied service
personnel.
2
KOR-1D(�)_DAEOO.indd 2 2016-10-13 �� 4:59:35
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
11. Read all instructions before using the appliance.
12. Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found on page 2.
13. This appliance must be grounded. Connect only to
properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found on page 5.
14. Install or locate this appliance only in accordance with
the provided installation instructions.
15. Some products such as whole eggs and sealed
containers - for example, closed glass jars are able to
explode and should not be heated in this oven.
16. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook, or dry food.
It is not designed for industrial or laboratory use.
17. As with any appliance, close supervision is necessary
when used by children.
18. Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
19. This appliance should be serviced only by qualified
service personnel.
Contact nearest authorized service facility for
examination, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this
product near water — for example, near a kitchen
sink, in a wet basement, near a swimming pool, or
similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. Either.
a) When cleaning surfaces of door and oven that
comes together on closing the door, use only mild,
non-abrasive soaps or detergents applied with a
sponge or soft cloth., or
b) See door surface cleaning instructions on page 20.
16. To reduce the risk of fire in the oven cavity:
a) Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c) If materials inside the oven ignite, keep oven door
closed, turn oven off, and disconnect the power
cord, or shut off power at the fuse or circuit breaker
panel.
d) Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
17. Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed
from the microwave oven is not always present. THIS
COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
a) Do not overheat the liquid.
b) Stir the liquid both before and halfway through
heating it.
c) Do not use straight-sided containers with narrow
necks.
d) After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
e) Use extreme care when inserting a spoon or other
utensil into the container.
18. Do not use this microwave oven to heat corrosive
chemicals (for example, sulfides and chlorides).
Vapors from such corrosive chemicals may interact
with the contact and springs of the safety interlock
switches thereby rendering them inoperable.
19. Keep the waveguide cover clean at all times.
Wipe the oven interior with a soft damp cloth after
each use. If you leave grease or fat anywhere in the
cavity it may overheat, smoke or even catch fire when
next using the oven.
20. Never heat oil or fat for deep frying as you cannot
control the temperature and doing so may lead to
overheating and fire.
21. Do not operate the oven without the glass tray in
place. Be sure it is properly sitting on the rotating base.
SAVE THESE INSTRUCTIONS
3
KOR-1D(�)_DAEOO.indd 3 2016-10-13 �� 4:59:35
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
WARNING:
This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in
strict accordance with the manufacturer's instructions, may cause interference to radio and television
reception.
It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC
Rules, which are designed to provide reasonable protection against such interference in a residential
installation.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the followings.
• Reorient the receiving antenna of radio or television.
• Relocate the Microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave oven and receiver are on different
branch circuits.
THE MANUFACTURER is not responsible for any radio or TV interference caused by
UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of the user to correct
such interference.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces the risk of
electric shock by providing an escape wire for electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and
grounded.
WARNING:
Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if
doubt exists as to whether the appliance is properly grounded, and either :
(1) If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding
plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension
cord shall be equal to or greater than the electrical rating of the appliance.
or
(2) Do not use an extension cord, if the power supply cord is too short, have a qualified electrician or
serviceman install an outlet near the appliance.
WARNING:
Do not cut or remove the third (ground) prong from the power cord under any circumstances.
4
KOR-1D(�)_DAEOO.indd 4 2016-10-13 �� 4:59:35
INSTALLATION GUIDE
1. Examine the oven after unpacking.
Check for damage such as a misaligned door, broken door or dent in the cavity.
If any damage is visible, DO NOT INSTALL, and notify your dealer immediately.
2. Level, flat location.
Install the microwave oven on a level, flat surface.
3. Ventilation.
Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause a
failure.
For proper ventilation, allow 3 inches of space between oven top, sides, rear and adjacent surfaces.
4. Away from radio and TV sets.
Poor television reception and radio interference may result if the oven is located close to a TV, radio, antenna,
feeder, etc.
Place the oven as far from them as possible.
5. Away from heating appliances and water taps.
Keep the oven away from heat, steam or splashing liquids. These things can adversely affect oven wiring and
contacts.
6. Power supply.
• Check your local power source.
This microwave oven requires a current of approximately 13 amperes, 120Volts, 60Hz and a grounded outlet.
1. A short power-supply cord is provided to reduce the risks of the user becoming entangled in or tripping over
a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If a long cord or extension cord is used:
• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical
rating of the oven.
• The extension cord must be a grounding type 3-wire cord.
• The longer cord should be arranged so that it will not drape the table top or counter where it can be pulled
on by children or tripped over unintentionally.
7. The minimum height of free space necessary above the top surface of the oven is about 4 inches.

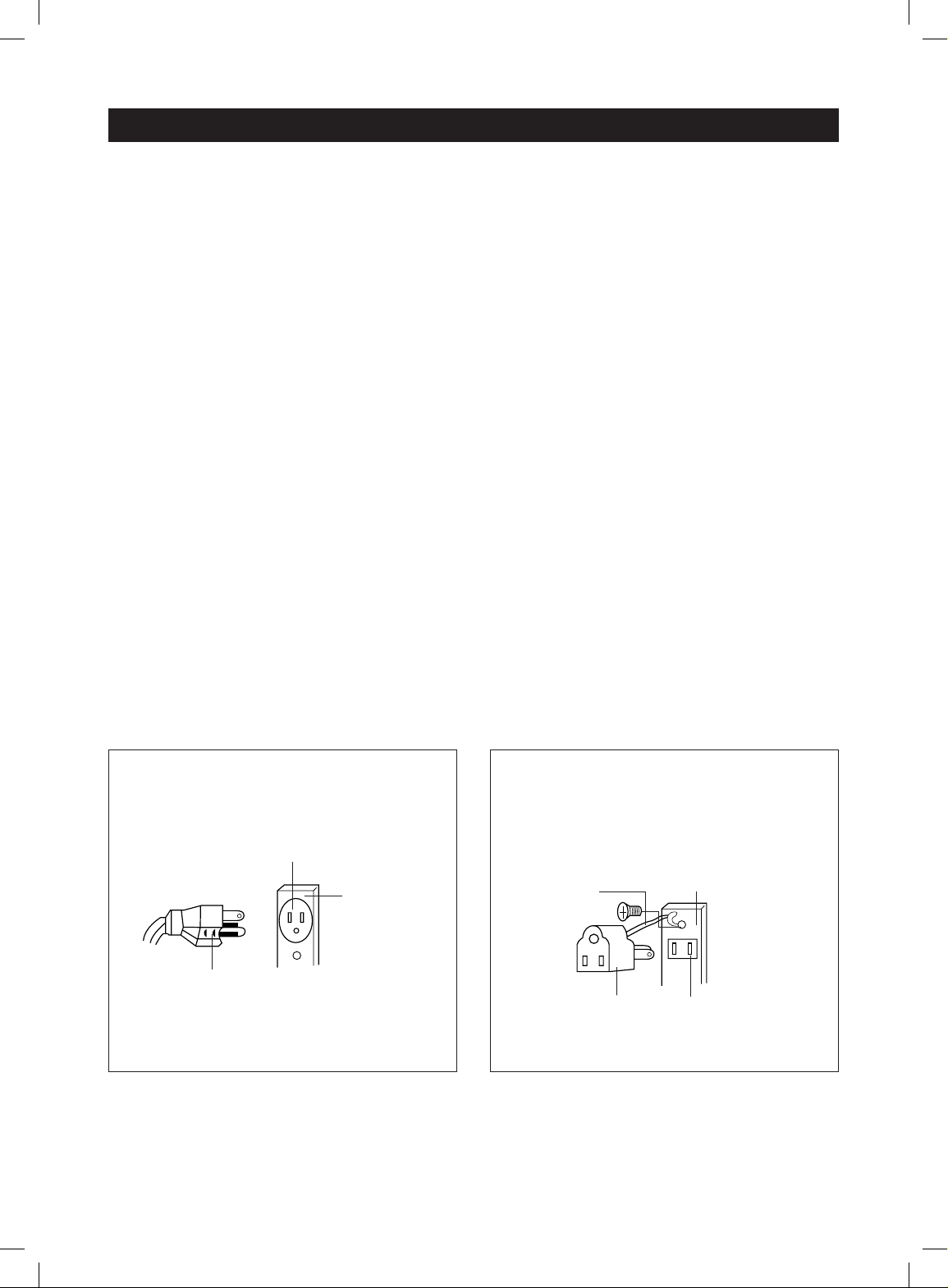

When use 3-pronged plug
3-prong Receptacle
Receptacle
Box cover
3-prong plug
“THE CANADIAN ELECTRICAL CODE DOES NOT ALLOW THE USE OF THE GROUNDING ADAPTOR”
When use grounding adaptor, make sure
the receptacle box is fully grounded.
Grounding
Lead
Grounding
Adaptor
Receptacle Box Cover
Receptacle
5
KOR-1D(�)_DAEOO.indd 5 2016-10-13 �� 4:59:35

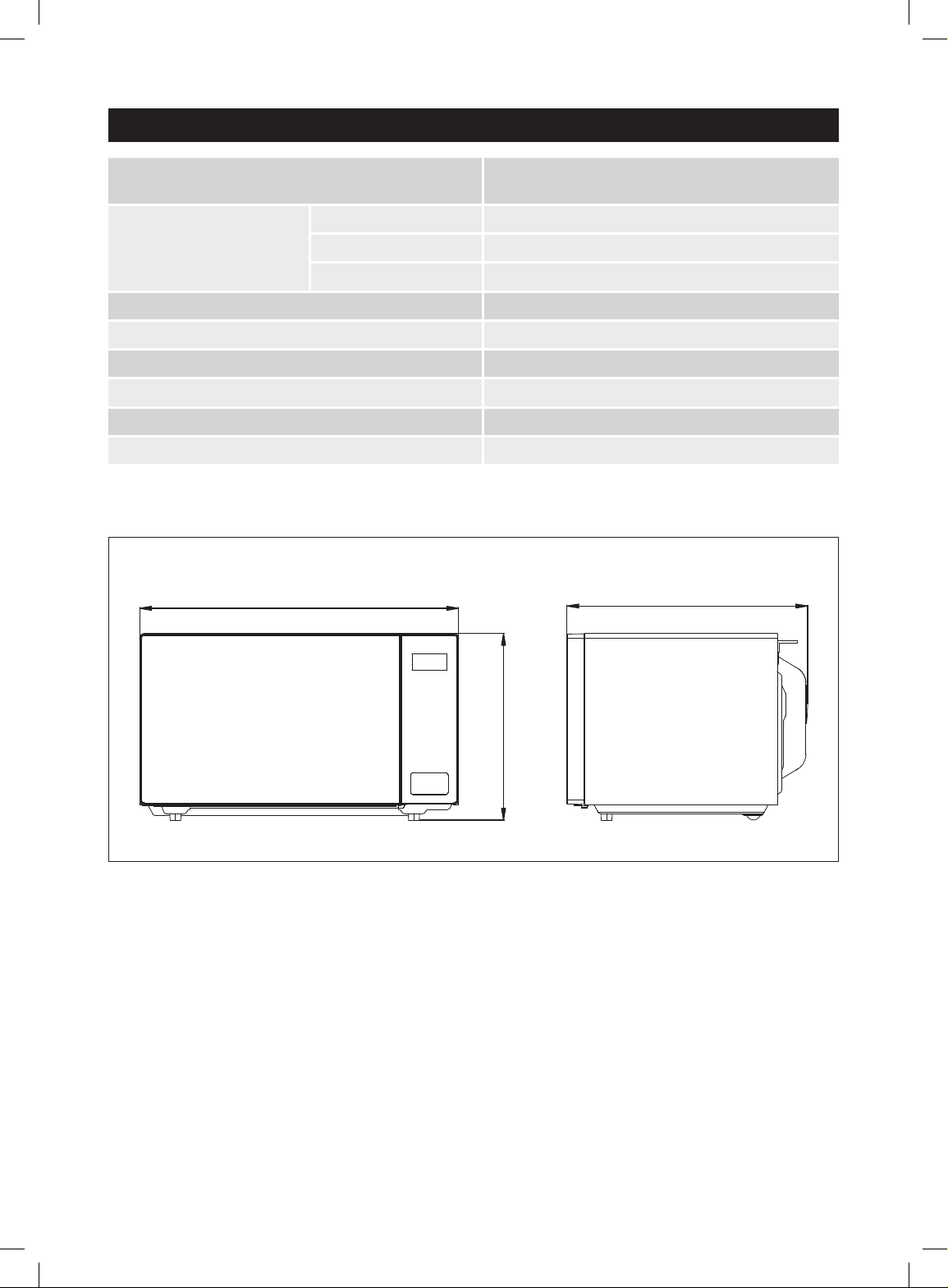

SPECIFICATIONS
POWER SUPPLY
INPUT POWER 1500 W
MICROWAVE
OUTSIDE DIMENSIONS (W x H x D) 21.3 x 12.4 x 16.1 in.
CAVITY DIMENSIONS (W x H x D) 15.4 x 10.0 x 15.4 in.
CAVITY VOLUME 1.4 cu.ft
NET WEIGHT APPROX. 31.6 lbs
TIMER 59 min. 99 sec.
POWER SELECTIONS 10 Levels
* Specifications are subject to change without notice.
ENERGY OUTPUT 1000 W
FREQUENCY 2,450MHz
120V AC, 60Hz SINGLE PHASE WITH
GROUNDING
21.3
16.1
12.2
6
KOR-1D(�)_DAEOO.indd 6 2016-10-13 �� 4:59:36
35
FEATURES DIAGRAM
12 4
6
7
1 Door latch - When the door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will automatically shut off.
2 Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
3 Oven cavity
4 Oven lamp - Automatically turns on during
oven operating.
5 Safety interlock system
6 Control panel
7 Door open button - To open the door push
the door open button.
890qw
8 Waveguide cover - Protects the microwave
outlet from splashes of cooking foods.
9 Roller guide - This must always be used for
cooking together with the glass cooking tray.
0 Coupler - This fits over the shaft in the
center of the oven cavity floor.
This is to remain in the oven for all cooking.
q Glass cooking tray - Made of special heat
resistant glass. The tray must always be in
proper position before operating. Do not
cook food directly on the tray.
w Viewing screen - Allows viewing of food.
The screen is designed so that light can
pass through, but not the Microwave energy.
7
KOR-1D(�)_DAEOO.indd 7 2016-10-13 �� 4:59:36
FEATURES DIAGRAM
2
1
4
5
8
9
q
e
t
1 DISPLAY - Cooking time, power level,
indicators and current time are displayed.
2 SENSOR COOK - Used to cook many of
favorite food.
3
6
7
w
r
y
9 +30 SEC - Used to extend heating time by
30 second increments or for an "instant on"
for 30 seconds.
0 SOFTEN - Used to soften food.
3 ONE TOUCH COOK - Used to cook or
reheat specific quantites of food.
4 SENSOR REHEAT - Used to reheat food.
5 TIME COOK - Microwave for a selected
amount of time.
6 POWER LEVEL - Used to set power level.
7 TIME DEFROST - Used to defrost foods for
time.
8 AUTO DEFROST PAD - Press to select
DEFROST feature by weight.
KOR-1D(�)_DAEOO.indd 8 2016-10-13 �� 4:59:37
q TIME SET PAD - Used to set the cooking
time and the current time.
w EXPRESS COOK - Used to set a cooking
time quickly.
e KITCHEN TIMER - Used as a minute timer
r CLOCK - Used to set clock.
t STOP / CLEAR - Used to stop the oven
operation or to delete the cooking data.
y START - Used to start the oven.
8
OPERATION PROCEDURE
This section includes useful information about oven operation.
Plug power supply cord into a standard 3-pronged
1
13 Amp, 120V AC 60Hz power outlet.
After placing the food in a suitable container, open
2
the oven door and put it on the glass tray.
The glass tray and roller guide must always be in
place during cooking.
Close the door. Make sure that it is firmly closed.
3
The oven light is on when the microwave oven is
4
operating.
The oven door can be opened at any time during
5
operation by pushing the door open button of
control panel. The oven will automatically shut off.
Each time a pad is touched, a BEEP will sound to
6
acknowledge the touch.
The oven automatically cooks on full power
7
unless set to a lower power level.
The display will show “ : 0” when the oven is
8
plugged in.
Time clock returns to the present time when the
19
cooking time ends.
When the STOP/CLEAR pad is touched during the
10
oven operation, the oven stops cooking and all
information retained. To erase all information(except
the present time), touch the STOP/CLEAR pad once
more. If the oven door is opened during the oven
operation, all information is retained.
If the START pad is touched and the oven does not
11
operate, check the area between the door and door
seal for obstructions and make sure the door is
closed securely. The oven will not start cooking until
the door is completely closed or the program has
been reset.
Make sure the oven is properly installed and
plugged into the electrical outlet.
WATTAGE OUTPUT CHART
The power-level is set by touching the Power pad and number pad. If you wish to use a different power level,
•
touch the POWER LEVEL pad before touching START pad. Enter the power level desired by touching the
appropriate number pad.
The chart shows the display, the power level and the percentage of power. (See TIME COOK Cooking Guide)
TOUCH POWER PAD AND NUMBER
POWER LEVEL + 1 + 0 PL10 100%
POWER LEVEL + 9 PL-9 90%
POWER LEVEL + 8 PL-8 80%
POWER LEVEL + 7 PL-7 70%
POWER LEVEL + 6 PL-6 60%
POWER LEVEL + 5 PL-5 50%
POWER LEVEL + 4 PL-4 40%
POWER LEVEL + 3 PL-3 30%
POWER LEVEL + 2 PL-2 20%
POWER LEVEL + 1 PL-1 10%
POWER LEVEL + 0 PL-0 0%
POWER LEVEL (DISPLAY)
APPROXIMATE PERCENTAGE OF POWER
9
KOR-1D(�)_DAEOO.indd 9 2016-10-13 �� 4:59:37
Loading...
