Page 1

STOPSELECT

QUICK COPYPOWER

- CHANNEL +EJECT

VIDEO AUDIO RL

REC

DVD

VHS

REW PLAY/PAUSE FF OPEN/CLOSE

DV6T812N DV6T512N

[Hi-Fi] [MONO]

DVD-VIDEO PLA YER

Owner’s Manual

◆In the initial settings, exclusive channel for DVD/Video is set to CH 3. Set the TV channel to CH3 before using it.

◆Region code of DVD/Video player for home is 1 or ALL. In inserting a disc with other region code, it does not operate. Please only use a disc with region code 1 or ALL.

◆ is a ‘Prohibition’ mark. If this mark is displayed in operating the product, please wait for a while, then use it. If " Prohibition" mark continues to be displayed in pressing a button after that, it means the button does not function in the currently played disc.

◆Press a product button on the REMOTE then use the product.

• DVD operation : [DVD] button

• Video operation : [VCR] button

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`A

Page 2

Product Information

Important Safeguards

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

IMPORTANT FOR LASER PRODUCTS

• LASER : This Digital Video Disc Player employs a Laser System. To ensure proper use of this product please read

this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location - see service procedure.

Use of control adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure.

To prevent direct exposure to the laser beam, do not try to open the enclosure. Visible laser radiation when open and interlocks defeated. DO NOT STARE INTO THE BEAM.

• DANGER : Visible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

• CAUTION : Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

CLASS 1 LASER PRODUCT

FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception; which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experience radio/TV technical for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Any changes or modification in construction of this device which are not expressly approved by the

party responsible for compliance could void the user’s authority to operate the equipment.

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`1

Page 3

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

1 READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2 RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3 HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4 FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5 CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6 ATTACHMENTS

Do not use attachments unless recommended by the unit’s manufacturer as they may cause hazards.

7 WATER AND MOISTURE

Do not use this unit near water- for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like. Caution : Maintain electrical safety. Powerline operated equipment or accessories connected to this unit should bear the UL listing mark or CSA certification mark on the accessory itself and should not be modified so as to defeat the safety features. This will help avoid any potential hazard from electrical shock or fire. If in doubt, contact qualified service personnel.

8 ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or adult as well as serious damage to the unit. Use this unit only with a cart, stand , tripod, bracket, or table recommended by the manufacturer.

A unit and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart combination to overturn.

9 VENTILATION

Slots and openings in the case are provided for ventilation to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. These openings must not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat radiator. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10 POWER SOURCES

This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

11 GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating -current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your obsolete outlet.To prevent electric shock, do not use this polarized plug with an extension cord, receptacle, or other outlet

PORTABLE CART WARNING

(symbol provided by RETAC)

Important Safeguards

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`2

Page 4

Product Information

unless the blades can be fully inserted without blade exposure. If you need an extension cord, use a polarized cord.

12 POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

13 Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984 (Section 54 of Canadian Electrical Code, Part 1) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See example as shown.

14 Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines, other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching or approaching such power lines or circuits as contact with them might be fatal. Installing an outdoor antenna can be hazardous and should be left to a professional antenna installer.

15 LIGHTNING

For added protection for this unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

16 DISC TRAY

Keep your fingers well clear of the disc as it is closing. It may cause serious personal injury.

17 OVERLOADING

Do not overload wall outlets of extension cords as this can result in a risk of fire or electric shock.

18 OBJECT AND LIQUID ENTRY

Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or “shortout” parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

19 BURDEN

Do not place a heavy object on or step on the product. The object may fall, causing serious personal injury and serious damage to the product.

20 DISC

Do not use a cracked, deformed or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.

21 SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

22 DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions.

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ANTENNA LEAD IN WIRE

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250 PART H)

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

EXAMPLE OF ANTENNA GROUNDING

NEC - NATIONAL ELECTRICAL CODE

Important Safeguards

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`3

Page 5

A. When the power-supply cord or plug is damaged. B. If liquid has been spilled, or objects have fallen into the unit. C. If the unit has been exposed to rain or water. D. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are

covered by the operating instructions. Improper adjustment of other controls may result in damage and will often

require extensive work by a qualified technician to restore the unit to its normal operation. E. If the unit has been dropped or the cabinet has been damaged. F. When the unit exhibits a distinct change in performance-this indicates a need for service.

23 REPLACEMENT PARTS

When replacement parts are required, have the service technician verify that the replacements he uses have the same safety characteristics as the original parts. Use of replacements specified by the unit manufacturer can prevent fire, electric shock, or other hazards.

24 SAFETY CHECK

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks recommended by the manufacturer to determine that the unit is in safe operating condition.

25 WALL OR CEILING MOUNTING

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

26 HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Important Safeguards

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`4

Page 6

Product Information

Advantages of This Product Are .....

• DVD, VCD, CD, CD-R(MP3), CD-RW, VHS, SVHS playback function

• DVD one-touch record function

• Watching DVD for recording broadcast

• Integrated REMOTE (VCR, DVD)

• Ultra power savings : less than 3W for stand-by mode

• VISS function

• Multiplex sound playback/record

• High Sound Quality of 6 head Hi-Fi

• One T ouch timer Recording (OTR)

• MP3 file playback function (CD-R disc having records of MP3 files)

• V arious video type-supported (AUTO, NTSC and PAL)

• GUI (Graphical User Interface) OSD (On Screen Display)

By using the [DISPLAY] button on the remote control, information on the DVD/VCD/CD player and disc, can be displayed on the TV screen.

• Screensaver function (DVD)

• 3D sound (3D sound effect using 2 speakers)

• High bit / high sampling with 27MHz / 10bit video encoder

This unit has 27MHz / 10bit capability, that enables the faithful reproduction of fine images.

• High bit / high sampling with 96KHz / 24bit audio D/A converter

With this 96KHz / 24bit linear Pulse Code Modulated signals, which constitute the highest specifications in the DVD standards, you can enjoy faithfully reproduced sound in all of its various modes. To support 96KHz sampling / 24bit sound, the shaping noise of this multi-level digital sigma type of D/A converter is kept flat up to 44KHz, thus preventing the important audio signals from being affected.

• Coaxial, Optical digital output (PCM, Dolby Digital, dts)

You can enjoy high-level digital audio by connecting with amp embedded with Dolby Digital / dts decoder.

• Built-in Dolby Digital decoder (DVD)

• Analog audio 2-channels output for DOWNMIX (x1)

• Composite video out (x1)

• S-Video out (x1)

• Slow Forward / reverse (DVD) playback

• Fast Forward / reverse playback

• Search of title, chapter, and time in DVD disc, and search of track and time in VCD and CD

• V arious TV aspect (DVD)

4:3 for Pan and Scan, 4:3 for Letter Box, and 16:9 for Wide

• Repeat playback (title and chapter for DVD, track and disc for VCD/CD)

• Bookmark function (DVD)

Playback position can be made to remember up to 3 positions for speedy search.

• Selective Play (DVD/VCD/CD)

You can select and play the desired title / chapter of DVD and track of Video CD/CD in STOP mode.

• 3 languages OSD (On Screen Display) function (DVD)

You can select and display OSD in 3 languages. (English, French, Spanish)

• Parental Lock function (DVD)

This function can prevent playback of software that may be unsuitable for children.

• Multi Audio function (DVD)

The audio soundtrack can be heard in up to 8 languages. In the case of SVCD or CVD, it depends on the disc. (The number of audio languages depends on the software.)

• Multi Subtitle function (DVD)

The subtitle can be seen in up to 32 languages. In the case of SVCD or CVD, it depends on the disc. (The number of subtitle languages depends on the software.)

• Multi Angle function (DVD)

This function allows you to choose the viewing angle of scenes which were shot from a number of different angles. (The number of angles depends on the software.)

• Screen zoom function (DVD/VCD)

• Thumbnail view function (in VCD with inactivated PBC)

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`5

Page 7

Read Carefully before Using

Cautions in use of DVD-Video player are described below. Please read carefully before using a DVD-Video player.

✔Installation place and handling

• When you place this player near other devices, they may affect poorly together.

• When you place DVD-Video player and TV in the upper and lower sides, it may cause flickering of pictures or failure (tape is not ejected).

• When you place this player near strong magnetic materials, it may affect image or voice poorly or damage recording.

• Do not spill volatile liquids like insect spray over the player. Do not leave rubber or plastic products in contact with the player for a long time. They will cause deterioration or paint peel-off.

✔Not in use

• When the unit is not in use, be sure to remove the disc or tape and turn off the power.

• If you do not use the unit for a long period, remove batteries in REMOTE to prevent leakage.

• In case you don’t use the unit for a long time, the unit may not function properly in the future. Turn on and use the player occasionally.

✔Moving

• Repack the unit as it was originally packed at the factory. Alternatively, pack this product with towel not to be damaged.

• Eject any videotape.

✔Cleaning

• Dust off dirt in cabinet or control panel part smoothly with a soft cloth.

• For heavy dirt, soak the cloth in a weak detergent solution, wring it well and wipe. Use a dry cloth to wipe it out.

• Follow instructions in using chemical cleaners.

• Do not use any type of solvent such as gasoline or benzene, as they may cause deterioration or paint peel-off.

✔Checking

• Video is a high precision device. To obtain a clear screen, we recommend regular inspection and maintenance every 1,000 hours of use by technical engineers.

• For checking, contact your dealer or your nearest service center.

✔Checking and Replacement of Antenna

• Antenna is subject to change in its direction or damage by wind and rain. For clean screen, contact and consult your nearest service center about checking and replacement.

✔In recording important screen

• Be sure to record the screen and check whether recording is performed properly. We beg you to understand compensation of recording if recording is not performed by badness of used tape or video.

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`6

Page 8

Product Information

✔Copyright

• Do not use your recordings without permission of a copyrighter except personal usage.

✔Tape and Disc Handling

• Do not use any tape and disc below. Damage of video head or cut/coiling of tape may cause failure.

- Tape with mold

- Tape or disc stained with juice or attachments

- Tape having breakage connection

- Disassembled tape

- Disc with severe scratch

• Moisture condensation may occur in tape. Moisture condensation damages the tape. Please use the tape after

the moisture condensation is disappeared.

• After use, store tape vertically in a case to prevent loose.

• Do not store the following places.

- High temperature and humidity

- Subject generation of mold

- Subject to direct sunlight

- Much dirt or dust

- Near strong magnetic materials such as speaker

Read Carefully before Using

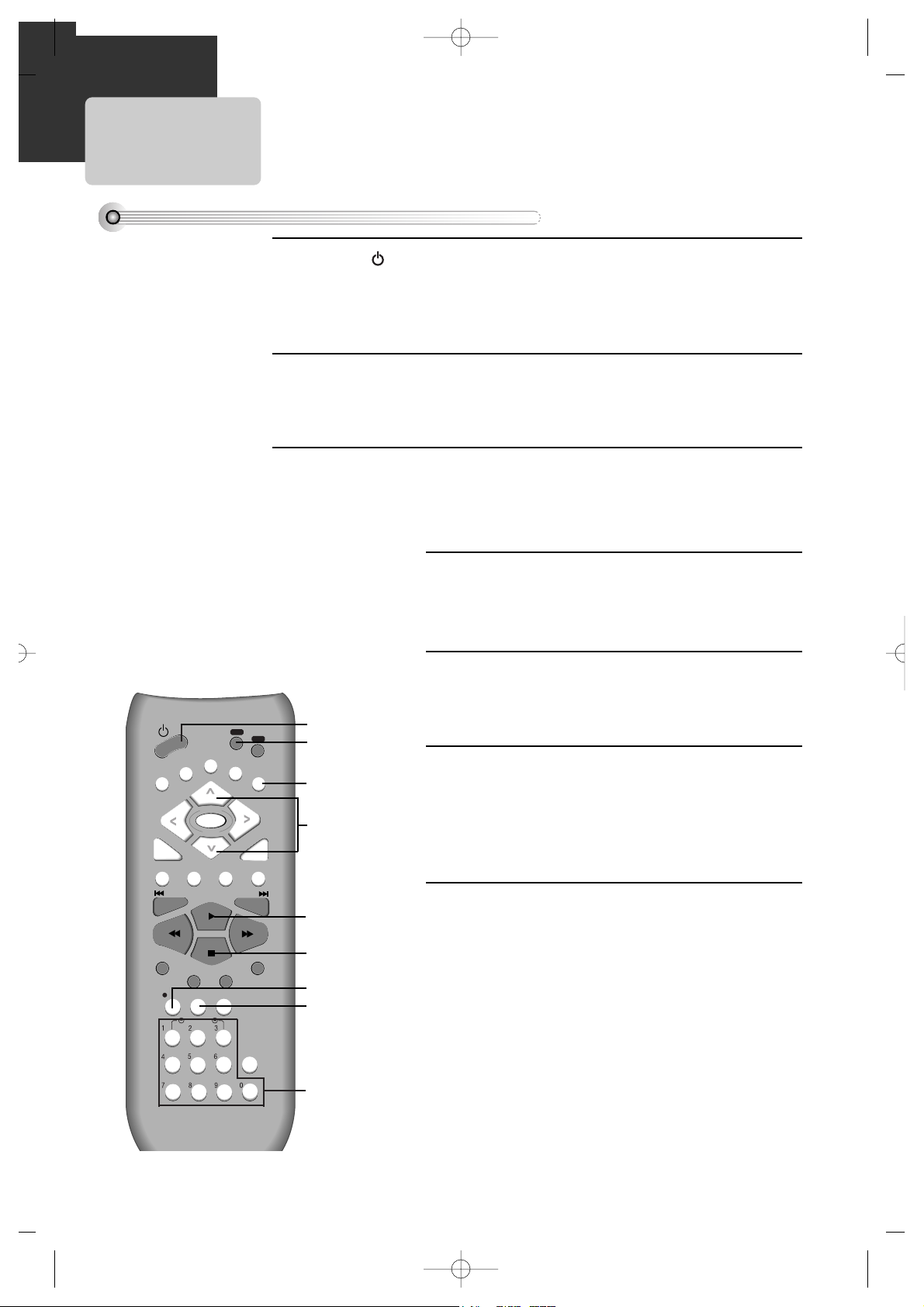

Instructions in Using REMOTE

STOPSELECT

QUICK COPYPOWER

- CHANNEL +EJECT

VIDEO AUDIORL

REC

DVD

VHS

REW PLAY/PAUSE FF OPEN/CLOSE

REPEAT

OPEN/CLOSE

DISPLAY

TITLE/PBC

PR +

PR -

OUTPUT

PREV.

REC

PROGRAM

CLK/CNT

SPEED/ANGLE

TRACKING

TV/VCR

MARK

SYSTEM

PLAY/PAUSE

ZOOM

AUDIO

SUBTITLE

SETUP

CLEAR/3D

ENTER

VCR

DVD

• Operate REMOTE within 7m from the unit.

• Do not press 2(two) buttons at the same time.

• Do not light up sending part of REMOTE.

• Do not keep in the place with much dust and humidity.

REPEAT

OPEN/CLOSE

DISPLAY

TITLE/PBC

PR +

PR -

OUTPUT

PREV.

REC

PROGRAM

CLK/CNT

SPEED/ANGLE

TRACKING

TV/VCR

MARK

SYSTEM

PLAY/PAUSE

ZOOM

AUDIO

SUBTITLE

SETUP

CLEAR/3D

ENTER

VCR

DVD

REPEAT

OPEN/CLOSE

DISPLAY

TITLE/PBC

PR +

PR -

OUTPUT

PREV.

REC

PROGRAM

CLK/CNT

SPEED/ANGLE

TRACKING

TV/VCR

MARK

SYSTEM

PLAY/PAUSE

ZOOM

AUDIO

SUBTITLE

SETUP

CLEAR/3D

ENTER

VCR

DVD

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`7

Page 9

Contents

Important Safeguards ............................................... 1

Advantages of This Product Are .... ........................ 5

Read Carefully before Using ................................... 7

Contents ................................................................... 9

Identification of Controls ....................................... 11

Remote Control ..................................................... 14

Connecting with TV ............................................... 16

Connecting with Cable Box ..................................18

Connecting with Other VCR or Camcorder .......... 20

Connecting with Audio ......................................... 22

Connecting TV with S-Video/Component Jack,

Amp with Digital Audio Out Jack ........................ 23

Clock Set ............................................................... 24

Output Select ......................................................... 25

DVD Playback ....................................................... 26

VCR Playback ....................................................... 27

Recording .............................................................. 29

VCR Operation

Memorizing TV Channels .................................... 32

Timer Recordings ................................................ 36

Watching and Recording Cable TV ...................... 40

Using advanced features ....................................... 41

Indexing VISS Signals / Searching VISS Signals...... 43

Counter 0 Stop........................................................ 44

Displaying Clock/Counter ..................................... 45

Changing the on-screen menu language .............. 46

Hi-Fi Stereo Playback ............................................ 47

Recording Stereo or Secondary Audio Programs (SAP)

.. 47

Basic Operation

Installation

Skipping from a current scene to a desired scene.. 48

Confirming the current PLAY mode on screen ..... 55

Selecting an AUDIO language, SUBTITLE language .

and 3D AUDIO...................................................... 56

Selecting ZOOM and Multi Angle......................... 57

Memorizing a scene .............................................. 58

Displaying menus in a disc.................................... 59

Basic SETUP Mode................................................. 60

LANGUAGE Setup................................................. 61

VIDEO Setup.......................................................... 62

AUDIO Setup........................................................ 63

Others Setup .......................................................... 65

About DVD ............................................................ 67

Basic information about VCR and Videotape....... 70

Before doubting about troubles (DVD) ................. 72

Before doubting about troubles (VCR) ................... 74

Specifications ......................................................... 78

Region Code ......................................................... 79

Setup

DVD Operation

The others

Product Information

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`8

Page 10

Product Information

Identification of Controls

Main body (front panel)

STOPSELECT

QUICK COPYPOWER

- CHANNEL +EJECT

VIDEO AUDIO RL

REC

DVD

VHS

REW PLAY/PAUSE FF OPEN/CLOSE

& * ) 1 2 3 456 7 8^

@#$

(

POWER (STANDBY/ON) button

Use to power the device on/off if AC power supply is connected.

Place to insert videotape

COPY button

Use to copy contents of disc into a videotape.

Disc tray

VIDEO INPUT jack

AUDIO INPUT jack

EJECT button

RECORD button

(

CHANNEL Up/Down button

)

Operation Display Window

Display operation of device. For more information, see “Operation Display Window” in the next page.

DVD operation display lamp

VCR operation display lamp

SELECT button

Use to change DVD mode to VCR mode, and vice versa.

STOP button

Use to stop playing .

REWIND button

Use to rewind currently being played videotape or disc; or to playback back rapidly.

Playback/PAUSE button

Playback videotape or disc. Press this button to pause a screen.

FAST FORWARD button

Use to wind currently being played videotape or disc; or to playback rapidly.

OPEN/CLOSE T ray button

Operation Display Window

}

REC

DVD

Time, Counter and Current Operation

Tray is opened Tray is closed Disc is loaded There is no disc in tray Disc has some error Menu screen is displayed Setup menu is displayed Power is ON Power is OFF

3D Sound Indicator DVD Disc Operation

DVD

VCR Operation REC and TIMER REC display

Recording , TIMER Recording , To be Timer-recorded, To be Timer-recorded state ERROR (No Tape or Tape without tab)

Copying

Use to copy contents of disc into videotape.

AM/PM dts Disc Indicator Title

This is displayed in VCD and CD disc.

Chapter This is displayed in DVD disc.

REC

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`9

Page 11

Main body (Rear Panel)

ANT.IN

RF OUT

OUT

AUDIO

VIDEO

COAXIAL

AUDIO OUT

DIGITAL

AUDIO OUT

COMPONENT OUT

% &^$#

POWER CORD

It is a jack for supplying power to the unit. Connect to outlet in a wall.

DIGITAL OUTPUT (COAXIAL) Jack

To enjoy sound quality of theater level in home, connect this jack with amp or unit embedded with digital audio decoder.

AUDIO OUT Jack

COMPONENT OUT Jack

To obtain better screen quality, connect the unit to TV or monitor with COMPONENT(480i) input.

A/V OUTPUT Jack

A/V INPUT Jack

Connection to ANTENNA Cable

Connection to TV

✔DV6T812N

ANT.IN

RF OUT

OUT

AUDIO

VIDEO

COAXIAL

AUDIO OUT

DIGITAL

AUDIO OUT

COMPONENT OUT

% &^$#

✔DV6T512N

Identification of Controls

Accessories

REPEAT

OPEN/CLOSE

DISPLAY

TITLE/PBC

PR +

PR -

OUTPUT

PREV.

REC

PROGRAM

CLK/CNT

SPEED/ANGLE

TRACKING

TV/VCR

MARK

SYSTEM

PLAY/PAUSE

ZOOM

AUDIO

SUBTITLE

SETUP

CLEAR/3D

ENTER

VCR

DVD

REMOTE 2 Batteries RF cable

Connecting cable to

Audio/Video jack

Owner’s Manual/

Warranty

• To purchase accessories or not supplied parts additionally, contact your nearest dealer or service center. But, owner’s manual and warranty are not sold additionally.

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`10

Page 12

Product Information

Remote Control

REPEAT

OPEN/CLOSE

DISPLAY

TITLE/PBC

PR +

PR -

OUTPUT

PREV.

REC

PROGRAM

CLK/CNT

SPEED/ANGLE

TRACKING

TV/VCR

MARK

SYSTEM

PLAY/PAUSE

ZOOM

AUDIO

SUBTITLE

SETUP

CLEAR/3D

ENTER

VCR

DVD

@ #

& * (

)

1 2 3

7 8 9

“

‘ + =

Q q W w E

[DVD]

MENU button

POWER button

[DVD]

TITLE /PBC button

[DVD]

OPEN/CLOSE button,

[VCR]

EJECT button

[DVD, VCR]

MOVE/SELECT in OSD,

[VCR]

Channel

Up/Down button

SETUP button

[DVD]

REPEAT Playback button

[DVD]

ZOOM button

(

[DVD]

PREVIOUS button (move into a previous

chapter or track)

)

REVERSE SEARCH button

[VCR]

PROGRAM button

[DVD, VCR]

CLOCK/COUNTER button

[DVD]

ANGLE,

[VCR]

Record SPEED button

[VCR]

Record button

[DVD, VCR]

NUMBER button ,

[VCR]

TRACKING -/+

button

VCR SELECT button

DVD SELECT button

[DVD, VCR]

OSD DISPLAY button

OUTPUT Selection button

ENTER/OK button

“

CLEAR/3D button

‘

[DVD]

SUBTITLE Select button

[DVD]

AUDIO LANGUAGE Select,

[VCR]

AUDIO

Select button

[DVD]

NEXT button (Move into a next chapter or

track) ,

[VCR]

Frame Advance button in pause mode

PLAY/PAUSE button

FORWARD SEARCH button

STOP button

[DVD]

Chapter/Title/Time SEARCH button

[DVD]

BOOKMARK button

[DVD, VCR]

TV/VCR button

[DVD]

SYSTEM button (Select Auto/NTSC/PAL)

Press the power [ ] button of the remote for about 8 seconds. No buttons of front panel and remote can be operated now and Lock indicator (“ ”) will be displayed on window display. To release child lock, press the power [ ] button of the remote control for about 8 seconds.

Child Lock!!!

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`11

Page 13

How to Connect with RF cable, Audio/Video jack

INPUT 1

ANT IN

INPUT 2

Rear Panel of DVD-VIDEO

Outside Antenna or

Wall Antenna Outlet

Rear Panel of TV

AUDIO/VIDEO CABLE

RF CABLE

Remove circular cable (RF cable) (surplus cable) plugged in “ANT.IN” Jack in rear panel of TV. Connect the cable to “ANT.IN” jack in rear panel of DVD-Video.

Connect TV to DVD-Video. Connect “RF OUT” jack in DVD-Video with “ANT.IN” jack in TV with RF cable.

(If there is AUDIO/VIDEO INPUT jack in TV) Connect VIDEO OUT jack in DVD-Video to VIDEO IN jack in TV, and AUDIO OUT jack in DVD-Video to

AUDIO IN jack in TV with connecting cable of Audio/Video jack. Select VCR mode by pressing TV/INPUT button in TV, you can view more clear screen and sound than

connection with RF cable only.

■ In the initial SET, exclusive channel for video is set to CH 3. To change this setting, set again in “CHANNEL SET”

screen in VCR operation.

■ In connecting RF cable to TV, set TV channel to CH3.

Connecting with TV

• VHF: 2 ~13 channels of TV

• UHF: 14~69 channels of TV

• CATV: Broadcasting is transmitted with cable from broadcasting station by contract with the station and consumers. It does not need any antenna.

• In/Out jack in Audio/Video terminal:

- In: A jack used to receive signal required in this unit from other units.

- Out: A jack used to send signal of this unit to other units.

• Connect with Audio/Video terminal, you can enjoy more clear video and audio. (Use OUTPUT button in this REMOTE to select video mode.)

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`12

OUT

AUDIO

VIDEO

ANT.IN

RF OUT

Page 14

Installation

Connecting with Cable Box

How to connect

INPUT 1

OUT

ANT IN

INPUT 2

Rear Panel of TVConverter Box

A/B Switch

SPLITTER (Not supported)

Cable Antenna

Rear Panel of DVD-VIDEO

AUDIO/VIDEO CABLE

RF CABLE

OUT

If your cable system only requires you to use a converter box for some channels

(i.e., pay-TV channels), follow these steps: Find the primary incoming RF cable. Plug this cable into a splitter (available at your local electronics store.) Connect one RF cable between one OUT terminal on the splitter and

■ You should install a distributor additionally.

How to watch general broadcasting with recording CATV

Set Channel Select switch of Converter Box to CH 3 or 4 as same as video exclusive channel. Press [SET] button in [VCR] operation to set video exclusive channel in “CHANNEL SET” screen.

Press channel button of Converter Box to select channel to be recorded. In this case, if you want to watch CATV to be recorded, press [TV/INPUT] button of TV to select “Out(VCR)”.

Press [REC] button in DVD-Video.

To watch general broadcasting, press channel button in TV to select the desired channel.

the IN terminal on the converter box. Connect another RF cable between the other OUT terminal on the splitter and the A-IN terminal on an A/B switch

(available at your local electronics store.) Connect a third RF cable between the OUT terminal on the converter box and the B-IN terminal on the A/B switch.

Connect a RF cable between the OUT terminal on the A/B switch and the ANT. IN on your DVD-VIDEO. When the A/B switch is in the B position, use the converter box to change channels ; when the A/B switch is in the A

position, use the DVD-VIDEO to change channels.

• For some types of TV, you should press [TV/INPUT] button in TV REMOTE and convert from Out 1( VCR 1) or Out 2(VCR

2) mode to Broadcasting Channel mode to change TV channel.

• Change channel selection of CATV receiver in recording, contents of recording is changed.

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`13

OUT

AUDIO

VIDEO

ANT.IN

RF OUT

Page 15

POWER

- CHANNEL +EJECT

VIDEO AUDIO RL

REC

Connecting with Other VCR or Camcorder

How to Connect with Jack in Rear Panel

How to Connect with Jack in Front Panel

INPUT 1

OUT

VIDEO (L) AUDIO (R)

ANT IN

INPUT 2

Front Panel of DVD-VIDEO

Rear Panel of Playback VCR(CAMCORDER)

Rear Panel of TV

Rear Panel of DVD-VIDEO

AUDIO/VIDEO CABLE

RF CABLE

INPUT 1

OUT

VIDEO (L) AUDIO (R)

ANT IN

INPUT 2

Rear Panel of DVD-VIDEO

Rear Panel of Playback VCR(Camcorder)

Rear Panel of TV

AUDIO/VIDEO CABLE

RF CABLE

Connect AUDIO/VIDEO OUT jack in Camcorder (or playback video) to AUDIO/VIDEO IN jack in rear panel (or front panel) of DVD-Video with connecting cable.

Connect “ANT. IN” jack in TV to “RF.OUT” jack in DVD-Video with RF cable.

To record contents of camcorder or playback video with DVD-Video, insert recording tape attached recording tab in DVD-Video.

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`14

OUT

AUDIO

VIDEO

OUT

ANT.IN

RF OUT

AUDIO

VIDEO

ANT.IN

RF OUT

Page 16

Installation

How to Copy(Edit) T ape with Other VCR or Camcorder

Turn on DVD-Video.

Press [OUTPUT] button of remote control and adjust DVD-Video to display “External Input 1” or “External Input 2” in TV screen.

Press [PLAY] button in Camcorder or playback video.

Press [REC] button in DVD-Video if you want to record contents of camcorder or playback video.

Press [Pause] button in DVD-Video when unnecessary or undesired scene is displayed in recording.

(Caution) Recording is released automatically after 5 minutes since pressing [PAUSE] button. Press [REC] button

if you want to record again.

How to Playback Chapter Photographed by Camcorder

Turn DVD-Video on.

Press [OUTPUT] button of remote control and adjust DVD-Video to display “External Input 1” or “External Input 2” in TV screen.

Insert tape in camcorder and playback it.

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`15

Page 17

Connecting with Audio

How to Connect with Stereo Unit such as Audio

Rear Panel of DVD-VIDEO

(L) AUDIO (R)

Rear Panel of STEREO Unit

AUDIO CABLE

Connect Audio jack. Connect AUDIO OUT in rear panel of DVD-Video to IN jack of stereo sound unit.

For Input Select in stereo unit, Select “External Input” connected with DVD-Video.

Playback DVD disc or Hi-Fi videotape, you can hear sound in speaker of stereo unit.

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`16

COMPONENT OUT

AUDIO OUT

COAXIAL

DIGITAL

AUDIO OUT

OUT

AUDIO

VIDEO

ANT.IN

RF OUT

Page 18

Installation

Connecting TV with Component Jack, Amp with Digital Audio Out Jack

How to Connect

Rear Panel of DVD-VIDEO

COMPONENT IN

Amplifier of Dolby Digital Rear Panel of TV

CONNECTING CABLE (NOT SUPPORTED)

Select COMPONENT IN to connect to TV.

Select COAXIAL to connect to amp of Dolby Digital. ** If you want to know about “Dolby Digital”, please refer to [About DVD] in

68p.

If screen is broken in connecting COMPONENT OUT to Pr, Pb, Y of TV COMPONENT IN jack , connect to Cr, Cb, Y.

■ Use in S-VIDEO or COMPONENT In jack attached in TV or amp supporting Dolby Digital.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

MOVE: SELECT:ENTER EXIT:SETUP

VVIIDDEEOO AUDIO OTHERS

TV ASPECT 4:3 LB TV TYPE NTSC VIDEO OUT S-VIDEO

LANGUAGE

COMPONENT

✔

S-VIDEO

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`17

COMPONENT OUT

AUDIO OUT

COAXIAL

DIGITAL

AUDIO OUT

OUT

AUDIO

VIDEO

ANT.IN

RF OUT

Page 19

Clock Set

Press [SETUP] button.

Press [ENTER] button to select CLOCK SET.

Select Time and Date Set with [ENTER] button in CLOCK SET screen.

■ Set TV to CH 4 (or 3).

■ Press [VCR] button on remote control to change into VCR Mode and follow the

procedure below.

Set the current date and time with [ , , ,

] button or [NUMBER] button.

For DATE SET, follow the order of Month / Day / Year ; for TIME SET, follow the order of Hour/Minute in CLOCK SET screen.

If CLOCK SET is completed, press [ENTER/OK] button.

SETUP

CLOCK SET TIMER RECORDINGS CHANNEL SET FUNCTIONS LANGUAGE SELECT

Move: Select: End:

SETUP

ENTER

CLOCK SET

Time and Date Set Auto DST : ON

TIME AND DATE SET

Move: Select: End:

SETUP

ENTER

Move: Input: End:

SETUP

Move: Input: End:

SETUP

Time - - : - -

(hh:mm)

Date - - / - - / 20 - -

Time 11 : 01 AM Date 05 / 25 / 2002 (Sat)

(mm/dd/yy)

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`18

Page 20

Basic Operation

Output Select

STOPSELECT

QUICK COPYPOWER

- CHANNEL +EJECT

VIDEO AUDIO RL

REC

DVD

VHS

REW PLAY/PAUSE FF OPEN/CLOSE

To Select VCR

Press [VCR] button.

If VCR mode is correctly selected, VCR on the operation display window is lighted. Then, REMOTE button works as VCR function. Press the [VCR] button, then it becomes to the VCR OPERATION mode.

To Select Watch Modes or External Input

Press [OUTPUT] button.

Whenever you press [OUTPUT] button, DVD, VCR PLAYBACK, BROADCASTING RECEPTION and EXTERNAL INPUT is selected in order and the DISPLAY of DVD and VCR will be changed accordingly.

Timer Program Setting

Press [PROGRAM] button.

You can set the Timer Program. Before timer program setting, clock should be set correctly (see page 24)

and video mode should be selected. (See screen #3 in page 36)

To Select DVD

REPEAT

OPEN/CLOSE

DISPLAY

TITLE/PBC

PR +

PR -

OUTPUT

PREV.

REC

PROGRAM

CLK/CNT

SPEED/ANGLE

TRACKING

TV/VCR

MARK

SYSTEM

PLAY/PAUSE

ZOOM

AUDIO

SUBTITLE

SETUP

CLEAR/3D

ENTER

VCR

DVD

VCR

DVD

OUTPUT SELECT

PROGRAM

DVD

STOPSELECT

QUICK COPYPOWER

- CHANNEL +EJECT

VIDEO AUDIO RL

REC

DVD

VHS

REW PLAY/PAUSE FF OPEN/CLOSE

Press [DVD] button.

If DVD mode is correctly selected, DVD on the operation display window is lighted. Then, REMOTE button works as DVD function. Press the [DVD] button, then the mode of DVD-Video Player becomes to the OPERATION mode.

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`19

Page 21

DVD Playback

Press [ ] button to power on.

Press [DVD] button of REMOTE to change into DVD mode.

Press [OPEN/CLOSE] button to open the disc tray.

Place a disc firmly on the disc tray, making its label look upward.

Insert the disc and press [OPEN/CLOSE] button to close the tray.

The disc tray is closed and after checking the disc’s condition, Playback or Stop function starts to operate.

T o playback it, press [PLAY/PAUSE] button.

• In the case of DVD,

DVD menus and titles are displayed on TV screen.

• In the case of S-VCD and VCD2.0

the menus are displayed on TV screen and it is converted into PBC(Playback Back Control) mode.

• In the case of CD, VCD1.1 and MP3,

the disc plays in order of its track numbers.

T o stop it, press [ ] button.

For pause, press [PLAY/PAUSE] button in playback mode.

If you press this button once more, it starts playback again.

Press [OPEN/CLOSE] button to remove the disc.

REPEAT

OPEN/CLOSE

DISPLAY

TITLE/PBC

PR +

PR -

OUTPUT

PREV.

REC

PROGRAM

CLK/CNT

SPEED/ANGLE

TRACKING

TV/VCR

MARK

SYSTEM

PLAY/PAUSE

ZOOM

AUDIO

SUBTITLE

SETUP

CLEAR/3D

ENTER

VCR

DVD

OPEN /CLOSE

PLAYBACK /PAUSE

STOP

POWER

STOPSELECT

QUICK COPYPOWER

- CHANNEL +EJECT

VIDEO AUDIO RL

REC

DVD

VHS

REW PLAY/PAUSE FF OPEN/CLOSE

DV6T812N-LT(GB) 02.8.5 9:23 PM ˘`20

Page 22

Basic Operation

Various Playback Methods

■ If you want fast playback,

press [ ] button in Playback mode. You can watch fast playing screen. Every time you press the button, play speed changes in the below orders

x 2 x 4 x 8 x 20 PLAY x 2...

■ If you want fast reverse playback,

press [ ] button in Playback mode. You can watch fast reverse screen. Every time you press the button, reverse play speed changes in the below orders

x 2 x 4 x 8 x 20 PLAY x 2...

**This reverse playback can be unavailable for certain DVD. Unavailable for MP3.

■ If you want slow playback,

press [ ] button in Pause mode. You can watch the desired screen in the slow forward playback. Every time you press the button, slow play speed changes in the below orders.

1/2 1/4 1/8 1/2 ....

■ If you want slow reverse playback,

press [ ] button in Pause mode. You can watch the desired screen in the slow reverse playback. Every time you press the button, slow reverse-play speed changes in the below orders.

1/2 1/4 1/8 1/2 ....

** For the case of Video CD, this reverse slow playback function is unavailable. The mark will appear.

■ If you want still picture,

press [PAUSE] button in Playback mode. You can watch the desired screen in Pause status.

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`21

Page 23

VCR Playback

Press [ ] button to power on.

Press [VCR] button of remote control to change into VCR mode.

Insert the desired tape.

If you want to playback it, press [PLAY/PAUSE] button.

When the operational status is flickering or poor, adjust it with [TRACKING +/-] button.

T o stop it, press [ ] button.

For pause, press [PLAY/PAUSE] button in playback mode.

If you press this button once more, it starts playback again.

T o playback forward fast or to rewind it, press [ ] or [ ] button, respectively.

Press [EJECT] button in the front part or [OPEN/CLOSE] button on remote control to remove the tape.

REPEAT

OPEN/CLOSE

DISPLAY

TITLE/PBC

PR +

PR -

OUTPUT

PREV.

REC

PROGRAM

CLK/CNT

SPEED/ANGLE

TRACKING

TV/VCR

MARK

SYSTEM

PLAY/PAUSE

ZOOM

AUDIO

SUBTITLE

SETUP

CLEAR/3D

ENTER

VCR

DVD

REWIND PLAYBACK/PAUSE FAST FORWARD STOP

POWER

STOPSELECT

QUICK COPYPOWER

- CHANNEL +EJECT

VIDEO AUDIO RL

REC

DVD

VHS

REW PLAY/PAUSE FF OPEN/CLOSE

• If the product, which has a auto-detector, detects a contaminated head(s), it shows the conditions to notice the contamination on screen.

* In case of the notice on screen, please rub the heads with a head-cleaner followed

by “How to use a head-cleaner”. (70P)

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`22

Page 24

Basic Operation

To Adjust Display

Various Playback Methods

■ If you want fast forward playback,

press [ ] button in Playback mode. You can watch fast playing screen.

■ If you want fast reverse playback,

press [ ] button in Playback mode. You can watch fast rewinding screen.

■ If you want Still picture,

press [PLAY/PAUSE] in Playback mode. You can watch the desired screen in pause status.

■ If you want slow-motion playback,

press [ ] or [ ] button in Pause mode. You can watch the desired screen in the slow forward or slow reverse playback.

* NOTE: VCR doesn’t have Slow Reverse Playback function.

■ If you want to watch a series of screens one by one, (FRAME ADVANCE)

press [NEXT ] button in Pause mode. Each time you press this button, the picture advances one frame.

This product includes automatic Tracking function and enables users to enjoy clear picture without an additional operation. Provided that the following problems can be solved by the manual adjustment, which improves display quality. (During automatic display adjustment, “Adjusting Display” are displayed on TV screen.)

- If the screen is poor in Playback mode,

- If noises occur in the upper or lower part of screen in slow playback mode,

- If paused picture vibrates up and down.

Use [TRACKING +/-] buttons of remote control

to adjust the display suitable for watching.

TRACKING

SYSTEM

VCR Playback

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`23

Page 25

Recording

Press [ ] button to power on.

• Press [VCR] button of remote control to change into VCR mode.

• Power on TV and select Ch 3, or press [INPUT] button of TV set to select External Input mode.

Insert a recordable tape.

Insert a tape with recording tab.

With [CHANNEL], [NUMBER] and [OUTPUT] buttons, select the desired broadcasting channel or external input unit to record.

Select the desired speed (SP or SLP) with [SPEED] button.

Press [REC] button.

Then, it starts recording.

If you want to pause recording, press [P AUSE] button.

After pressing [PAUSE] button, if the pause status continues for five minutes, the recording is released automatically.

T o exit recording, press [STOP] button.

REPEAT

OPEN/CLOSE

DISPLAY

TITLE/PBC

PR +

PR -

OUTPUT

PREV.

REC

PROGRAM

CLK/CNT

SPEED/ANGLE

TRACKING

TV/VCR

MARK

SYSTEM

PLAY/PAUSE

ZOOM

AUDIO

SUBTITLE

SETUP

CLEAR/3D

ENTER

VCR

DVD

PLAYBACK/PAUSE

NUMBER

STOP

REC SPEED

OUTPUT SELECT

POWER

CHANNEL

VCR

REC

To Record W ith VCR

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`24

Page 26

VCR Operation

This product incorporates copyright protection technology that is protected by method claims of certain U.S patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

To Copy From DVD To Videotape

To Enjoy Another TV Channel or DVD during recording

One Touch timer Recording (OTR)

When your urgent business happens suddenly in watching TV or you want to record the current TV program for the desired time, follow the procedures below.

To copy just with

buttons of remote control, after playing DVD, press [VCR] button and then [REC] button.

Recording

First, follow the steps 1 to 4 in “Recording With VCR”.

Press [REC] button as much as you want. See the “Recording Times Table” below.

Button Press Times ....... Operational Status

Once ............................. continuous recording until you press STOP button

Twice ............................ recording for thirty minutes from current time

3 (times)......................... recording for one hour

4 .................................... recording for one hour and thirty minutes

5 .................................... recording for two hours

6 .................................... recording for two hours and thirty minutes

7 .................................... recording for three hours

8 .................................... recording for three hours and thirty minutes

9 .................................... recording for four hours

10 ................................. returning to the status of Once Press

To stop Recording mode, press [STOP] button more than 8 seconds.

If you want to watch another TV channel during recording with video, press [TV/VCR] button.

It is available of changing into and watching another TV channel.

If you want to playback DVD during recording with video, insert a DVD disc.

Place the desired DVD disc on DVD tray, press [DVD] button to convert OUTPUT into DVD mode and press [PLAY] button. Then, you can watch DVD.

Insert the desired DVD disc.

When it is a DVD disc with copy protect function, you can’t copy it.

Insert a recordable tape.

Press [QUICK COPY] button on the front panel.

DVD plays and VCR starts recording.

To exit copy, press [VCR] button and then [ ] button.

If not, DVD plays again and video continues to copy.

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`25

Page 27

Memorizing TV Channels

Press [SETUP] button.

Press [ ] button to move into CHANNEL SET, and then select CHANNEL SET with [ENTER] button.

■ Set TV to Ch 3.

■ Prior to the setting, press [VCR] button of your REMOTE to change into VCR mode.

Select “AUTO CHANNEL SEARCH”.

Press [ENTER] button in CHANNEL SET window to select AUTO CHANNEL SEARCH.

Select “Detect Automatically”.

Press [ENTER] button in AUTO CHANNEL SEARCH window to detect the channel automatically.

Channel number changes successively from 01 to 125, while only broadcasting channels are memorized automatically. When memory process is completed, the lowest number’s one of memorized channels is displayed.

Please, check the memorized channels.

To check the memorized channels, press [PR+/-] button on remote control.

To Memorize Automatically Channels

SETUP

CLOCK SET TIMER RECORDINGS CHANNEL SET FUNCTIONS LANGUAGE SELECT

AUTO CHANNEL SEARCH

What type of signal are you using?

Cable TV Antenna Detect Automatically

AUTO CHANNEL SEARCH

Now scanning channel 11

Move: Select: End:

SETUP

ENTER

Move: Select: End:

SETUP

ENTER

End:

SETUP

CHANNEL SET

Auto Channel Search Add/Remove Channels Signal Type: CABLE Cable Box Setup Channel Change: CH3

Move: Select: End:

SETUP

ENTER

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`26

Page 28

VCR Operation

To Delete Channels Manually

After memorizing automatically channels, when the same broadcasting is memorized in more than two channels, or you want to delete badly displayed channels, follow the procedures below.

Press [SETUP] button and select “CHANNEL SET”. Select “Add/Remove Channels”.

Select the desired channel and delete it.

Press [NUMBER] button of remote control to select the desired channel to delete.

When [CLEAR] button is pressed, “ADDED” under the channel number converts into “REMOVED”.

Check the deleted channel.

To check the deleted channel, press [PR+/-] button on remote control.

ADD/REMOVE CHANNELS

Channel 02

is now REMOVED.

Add: Input: End:

SETUP

To Memorize Channels Manually

When the desired broadcasting finished or you want to add unmemorized channels owing to poor signals to the memory, follow the procedures below.

Press [SETUP] button and select “CHANNEL SET”.

Select “Add/Remove Channels”.

Move into “Add/Remove Channels” with [ ] button and then, select the desired item with [ENTER] button.

Select the desired channel and memorize it.

Press [NUMBER] button of remote control to select the desired channel to memorize.

When [>] button is pressed, “REMOVED” under channel number converts into “ADDED”.

Check the memorized channel.

To check the memorized channel, press [PR+/-] button on remote control.

CHANNEL SET

Auto Channel Search Add/Remove Channels Signal Type: CABLE Cable Box Setup Channel Change: CH3

Move: Select: End:

SETUP

ENTER

ADD/REMOVE CHANNELS

Channel 02

is now ADDED.

Remove: Input: End:

SETUP

Memorizing TV Channels

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`27

Page 29

Selecting cable or antenna viewing

You must set the viewing mode for your VCR, choosing either CABLE (cable system connection) or ANTENNA (antenna connection).

To set the viewing mode: Press [ENTER] to toggle the setting between CABLE and

ANTENNA in CHANNEL SET screen. When the desired viewing mode is displayed, press

[SETUP] twice to exit.

CHANNEL SET

Auto Channel Search Add/Remove Channels Signal Type: CABLE Cable Box Setup Channel Change: CH3

Move: Select: End:

SETUP

ENTER

Memorizing TV Channels

To Set Cable Box

To Set Output Channel

Press [SETUP] button and select “CHANNEL SET” .

Select “Channel Change”.

By pressing [ENTER] button, set the exclusive channel for video on the desired one of CH3 or CH4.

Press [SETUP] button and select “CHANNEL SET”.

Select “Cable Box Setup”.

Move into Cable box setup with [ ] button and then, select the desired item with [ENTER] button.

Select “Cable Box Channel”.

Press the channel number which matches to the output of the Cable Box to connect between Cable Box and this unit.

CABLE BOX SETUP

On what channel do you want to receive from the cable box?

- -

CHANNEL SET

Auto Channel Search Add/Remove Channels Signal Type: CABLE Cable Box Setup Channel Change: CH3

Move: Select: End:

SETUP

ENTER

CHANNEL SET

Auto Channel Search Add/Remove Channels Signal Type: CABLE Cable Box Setup Channel Change: CH3

Move: Select: End:

SETUP

ENTER

Input: Video: End:

SETUPOUTPUT

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`28

Page 30

VCR Operation

Timer Recordings

TIMER RECORDINGS

Press [SETUP] button and select “TIMER RECORDINGS”.

Move into “TIMER RECORDINGS” with [ ] and then, select the desired one with [ENTER] button.

Select “Make a New Program”.

Press [ENTER] button to select “Make a new Program”.

Select “Timer Recording method”.

Move into desired recording type with [ ] and then, select the desired one with [ENTER] button.

For Timer Recording method details, see “Various TIMER REC” in the next page.

Select “a broadcasting to record”.

Select the desired broadcasting channel with [NUMBER] buttons.

**If Converter Box and video are connected to

Video/Audio terminal, set “EXTERNAL INPUT” on TIMER REC CH by using “OUTPUT” button.

Set “the date and time to record”.

Select the date, start time and end time to record with [NUMBER] buttons.

■ Power on TV.

■ Make sure that current time is set correctly.

■ Insert a recordable tape with recording tab.

■ Prior to the setting, press [VCR] button to change to VCR mode.

When moves into “Cable”, select one of “Cable”/”Antenna” with [ ] or [ ] button.

SETUP

CLOCK SET TIMER RECORDINGS CHANNEL SET FUNCTIONS LANGUAGE SELECT

TIMER RECORDINGS

Make a New Program Review/Cancel Programs

PROGRAM1 (ONE TIME)

How often do you want

to record program?

One Time Daily (Sun-Sat) Weekdays (Mon-Fri) Weekly (Once a Week)

Channel 0 4 Cable Start Date - - / - Start Time - - : - - AM End Time - - : - - AM Tape Speed SP

PROGRAM1 (ONE TIME)

Channel 104 Cable Start Date - - / - Start Time - - : - - AM End Time - - : - - AM Tape Speed SP

Move: Select: End:

SETUP

ENTER

Move: Select: End:

SETUP

ENTER

Move: Select: End:

SETUP

ENTER

Move: Input: Video: End:

SETUPOUTPUT

Move: Input: Video: End:

SETUPOUTPUT

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`29

Page 31

Set proper “RECORDING SPEED”.

Select one of SP/SLP with [ ] or [ ] button. For more information on recording speed, see

“Types of Recording Speed” in the page 39.

Press [SETUP] button to complete the setting.

“Program # has been saved. For program

recording, insert a cassette....” message is

displayed. TIMER RECORDINGS indicator, is displayed in

the operation display window. On the reserved time, TIMER RECORDINGS starts

to operate.

To Confirm or Cancel TIMER RECORDINGS

Select “Review/Cancel Programs”.

Confirm reservation-recording details in turn with [ ] button and then, press [CLEAR] button on the position of the detail(s) to delete.

PROGRAM1 (ONE TIME)

Channel 104 Cable Start Date 06 / 04 Start Time 10 : 10 AM End Time 11 : 10 AM Tape Speed SP

PROGRAM1 (ONE TIME)

Channel 104 Cable Start Date 06 / 04 Start Time 10 : 10 AM End Time 11 : 10 AM Tape Speed SP

PROGRAM 1 (ONE TIME)

Channel 104 Cable Start Date 06 / 04 Start Time 10 : 10 AM End Time 11 : 10 AM Tape Speed SP

PROGRAM 1 has been saved. For program recording,

insert a cassette. To leave your cable box

on and tuned to preset channel.

TIMER RECORDINGS

Make a New Program Review/Cancel Programs

Move: Input: Video: End:

SETUPOUTPUT

Move: Input: Video: End:

SETUPOUTPUT

Move: Select: End:

SETUP

ENTER

Cancel: Move: End:

SETUP

CLEAR

If a recordable

tape is not inserted in Stop mode under Power ON, “Waiting for TIMER RECORDINGS. Insert a recordable tape” message is displayed in the center of screen, for all changes or output conversions incurred during TIMER RECORDINGS SET.

Timer Recordings

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`30

Page 32

VCR Operation

Using video cassettes

Before you play or record on a video cassette tape, be certain to read this information on the proper care and use of video cassettes.

Only use video cassettes that bear the VHS mark: . There are four types of video cassettes: T-60, T-90, T-120, and T-160. The amount you can record on a tape is

dependent upon the tape speed at which you record. The table below lists the recording time(hours:minutes) for each tape type according to recording speed.

Tape Type SP Mode (Standard Play) EP Mode (Extended Play)

T-60 1:00 3:00

T-90 1:30 4:30 T-120 2:00 6:00 T-160 2:40 8:00

Protecting video cassettes from accidental erasure

Cassettes have a safety tab to prevent erasure. Break off the safety tab with a screw driver. If you wish to record on a cassette without a safety tab, cover the hole with cellophane tape.

Inserting video cassettes

Firmly insert the cassette into the cassette compartment with the label up. An inverted cassette cannot be inserted.

Removing video cassettes

Press [EJECT] on the front panel and the VCR will eject the tape. Pull the cassette out gently.

• Audio-visual material may include works of copyright which must not be recorded without authorization of the copyright owner.

• If you insert a video cassette without a safety tab into the unit : After setting the timer recording program, “ ” will blink on the display panel in the power off mode and the unit will automatically eject the cassette. In the power on mode, the unit will playback automatically.

• If you insert a video cassette with a safety tab into the unit : After setting the timer recording program,the unit will be stand-by mode in power off mode.

• Do not attempt to pull out the video cassette once the unit begins to load the video cassette.

• Do not insert fingers or any foreign object beyond the door flaps of the cassette compartment; this could lead to injury or equipment damage.

• Do not attempt to insert a video cassette if the unit in unplugged.

Various TIMER RECORDINGS

One Time : It is available of TIMER RECORDINGS at the desired specified time. Daily : Once you set TIMER RECORDINGS of the desired program telecasted at the same time day after day, it is

available of daily recordings. It is available of TIMER RECORDINGS from Sunday to Saturday.

Weekday : It is similar to Daily TIMER RECORDINGS, but this TIMER RECORDINGS is available from Monday to

Friday.

Weekly : Once you select one day of the week, it is available of TIMER RECORDINGS in the same day weekly.

Timer Recordings

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`31

Page 33

Watching and Recording Cable TV

To Watch and Record Promptly Cable TV

Power on converter and then, set a channel to watch or to record. Power on DVD-video and then, set the channel of DVD-video to the

converter-connected channel (one of CH03/04/EXTERNAL INPUT).

Power on TV and then, set the video-connected channel (one of

CH03/04/VCR).

Simultaneous Recording and Watching

At this time, CH selected by the converter is displayed on TV screen. Simultaneously, press [REC] button of DVD-Video to record the CH selected by the converter, and press [REC] button more than two times to set on One Touch timer Recording (OTR).

TIMER RECORDINGS of Cable TV

Reserve VCR.

According to TIMER REC procedures, select TIMER RECORDINGS SET window and complete the settings. At this time, the video channel should be input in CH3 (or CH4, EXTERNAL INPUT) of the converter-connected channel. Enter date and time of the cable program for TIMER RECORDINGS.

Adjust Converter .

Set converter to the cable TV channel to record. e.g.) To record CH48, Display CH48 with CONVERTER CHANNEL SELECT button. If there is TIMER REC function of converter, it is available of reservation.

Complete Reservation.

If you power on converter, video powers on automatically and starts recording at the reserved time.

**Home watching cable TV is unavailable of simultaneous recording function (while

recording NBC program, watching CNN program). (Owing to mechanical features of converter, it is unavailable of simultaneous reception of two channels.)

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`32

Page 34

VCR Operation

Using advanced features

Play the tape automatically

This feature allows the VCR to automatically start playing when you insert a tape with the safety tab removed.

Press [SETUP] button and select “FUNCTIONS”.

Move into “FUNCTIONS” with [ ] and then, select the desired one with [ENTER] button.

Press [ENTER] to switch between ON and OFF.

- Select ON if you want a tape with its safety tab removed to start playing automatically when the tape is inserted.

- Select OFF if you do not want a tape with its safety tab removed to start playing automatically.

SETUP

CLOCK SET TIMER RECORDINGS CHANNEL SET FUNCTIONS LANGUAGE SELECT

FUNCTIONS

Auto Play: ON Auto TV/VCR: ON Index Search Go-To Search

Move: Select: End:

SETUP

ENTER

Move: Select: End:

SETUP

ENTER

Switch the VCR to TV or VCR mode automatically

This feature controls whether the TV/VCR switch changes automatically to the VCR mode when the VCR is turned on.

Press [SETUP] button and select “FUNCTIONS”.

Move into “FUNCTIONS” with [ ] and then, select the desired one with [ENTER] button.

Press [ENTER] to switch between ON and OFF.

- Select ON if you want the VCR to switch to the VCR mode when the VCR is turned on or a cassette is inserted. This only applies if you connect the ANT.IN and RF OUT jacks of your VCR and TV and watch your VCR on channel 3 of your TV.

- Select OFF if you want the VCR to remain in the TV mode. This is useful if you watch your VCR on the TV’s video input and you don’t want your antenna/cable signal interrupted by the VCR.

FUNCTIONS

Auto Play: ON Auto TV/VCR: ON Index Search Go-To Search

Move: Select: End:

SETUP

ENTER

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`33

Page 35

Press [SETUP] button and select “FUNCTIONS”.

Select “Index Search”.

■ When you record a programs, the VCR places an index mark at the start of the recording. To search for an index mark:

FUNCTIONS

Auto Play: ON Auto TV/VCR: ON Index Search Go-To Search

Move: Select: End:

SETUP

ENTER

If you want to search through a certain number of index marks, press two number buttons to enter the number of marks you want to search. Press CLEAR on the remote to correct an entry.

or Press REW to search backward or FF to search

forward. The VCR will locate your index mark and begin playback. If you did not enter a specific index number, the VCR will locate the next index mark and begin playback. Press STOP to stop index searching.

INDEX SEARCH

Press REW or FF to begin searching

or Enter a specific index number

- -

End:

SETUP

• If two

recordings overlap, the index mark for the second program will be erased. Therefore, when you use the index feature to find the second program, the VCR will skip over it.

• If you record multiple programs in one recording session, the VCR will only find the index mark that was placed on the video cassette tape when the recording session began.

Searching a cassette tape for programs (indexing)

Press [SETUP] button and select “FUNCTIONS”.

Select “Go-T o Search”.

■ You can mark a segment of the video cassette with the tape counter that will help you easily locate the segment later.

FUNCTIONS

Auto Play: ON Auto TV/VCR: ON Index Search Go-To Search

Move: Select: End:

SETUP

ENTER

The tape counter is displayed on the screen. Input the tape counter you want to go and press REW or FF, the VCR will search for the time counter you want.

GO-TO SEARCH

Current tape counter is

2 : 17 : 18

Press REW or FF to go to - : - - : 00

End:

SETUP

Some index marks that may

be missed by the VCR :

• A mark too close to your location on the tape.

• The mark at the beginning of a recorded segment of five minutes or less.

• The first index mark on the tape when you start at the beginning of the tape.

Searching with the tape counter (go- to search)

Using advanced features

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`34

Page 36

VCR Operation

Use PLAY, REW,or FF to reach the point on the tape that you would like to mark as 0:00:00.

Press [DISPLAY] button to display the tape counter on the screen.

Press [CLEAR] button to reset the tape counter to 0:00:00.

You can continue to play the tape or perform other functions with the VCR.

Marking a tape for zero search

Display (O.S.D)

Press [DISPLAY] button to display the tape counter, clock and status mode on the TV screen..

And, by one more pressing [DISPLAY] button before disappearing the OSD from the screen, only the tape counter will remain on the screen.

Press [SETUP] button and select “CLOCK SET”.

Move into “Auto DST” with [ ] .

Press [ENTER] to switch between ON and OFF.

- Select ON if you want the VCR’s clock to automatically adjust for daylight-saving time.

- Select OFF if you do not want the VCR’s clock to adjust for daylight-saving time.

SPRING Forward ; Fall Backward

In the Spring, daylight-saving time begins on the first Sunday in April. Because the clock automatically changes from 2:00 AM to 3:00 AM (forward one hour), remember to include the extra hour for timer recording falling within this time frame.

In the Autumn, daylight-saving time ends on the last Sunday in October. The VCR clock automatically changes from 2:00 AM to 1:00 AM (back one hour). Therefore, it can

affect your recording length.

Daylight-Saving Time

CLOCK SET

Time and Date Set Auto DST : ON

Move: Select: End:

SETUP

ENTER

Using advanced features

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`35

Page 37

Changing the on-screen menu language

Press [SETUP] button and select “LANGUAGE SELECT”.

Select the language among English, Spanish or French by pressing [ENTER] button.

You may select the language in which you would like the VCR’s menu to be displayed: English, Spanish, or French.

LANGUAGE SELECT

Select a language.

English

Spanish French

Move: Select: End:

SETUP

ENTER

SETUP

CLOCK SET TIMER RECORDINGS CHANNEL SET FUNCTIONS LANGUAGE SELECT

Move: Select: End:

SETUP

ENTER

Using advanced features

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`36

Page 38

VCR Operation

Hi-Fi Stereo Playback

Playing a tape in Hi-Fi high-quality

• “Hi-Fi” signal lights up in the top of a screen.

• Pressing [AUDIO] button changes menus one by one.

If there are some noises made in recording, please “Linear” to reduce them.

Forced Mono

Recording Stereo or Secondary Audio Programs (SAP)

• In some cases, while receiving a stereo or SAP (Secondary Audio Programs), receiving condition may be poor, which may cause the stereo or SAP broadcasting to be interfered frequently or its volume to be uncontrollable. Just pressing [AUDIO] in stereo or SAP forces to fix the condition into mono sound.

• To return it, you have two choices, pressing [AUDIO] button again or picking up the channel again.

Recording Stereo Broadcast

• Stereo : It separates sounds into dual signals and transfers them in order to achieve presence in a broadcasting station.

Hi-Fi

LINEAR

MIX

STEREO

MONO

SAP

• Programs are broadcast in mono or stereo audio, or with a SAP.

• Pressing [AUDIO] button changes STEREO, MONO, SAP one by one.

• While recording in stereo signal, it is recorded in Hi-Fi.

• SAP is available only in its service areas from stations.

• The following guidelines will help you decide on the best method for recording programs. Choose:

- Stereo reception for normal recording and to record broadcast stereo television.

- Mono reception if the stereo signal is weak and sound is too “ noisy.”

- SAP reception to record a second audio program. An example of a SAP is a program that is broadcast in English, but has a Spanish SAP.

• You can only record stereo and SAPs if the program is a broadcast in stereo or with a SAP. Consult a television guide for program broadcast information.

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`37

Page 39

Playing a desired scene

To skip scenes in a disc

T o move to next chapter (or track), press [ NEXT] button.

The current chapter (or track) moves to the next chapter (or track).

Press [ PREV] button.

The current scene moves to the previous chapter (or track) or first scene of current chapter (or track).

Directly moving to a desired title (DVD)

Press the [TITLE] button.

A list of the titles on the disc is displayed. Pressing the [TITLE] button again to resume play from the scene when the [TITLE] button was first pressed.

Press the [ENTER] button or [PLA Y] button after pressing the [ ] button to select the desired title.

The selected title now starts playing.

Some movie discs may contain multiple titles. If the disc has a movie title menu recorded on it, the [TITLE] button can be used to select the movie title. Details of operation may differ depending on the disc used.

* Selecting a title may not be available on certain DVD discs.

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`38

Page 40

DVD Operation

Playing a programmed order

While STOP, press [PROGRAM] button.

While the right figure is appearing, please input desired Title(T) and Chapter(C) number with NUMBER buttons.

* In case of VCD and CD, please input TRACK Number.

After completing setting, press [ENTER] button after moving a cursor to “Play Program”.

Then, titles and chapters (track) are played in the above-programmed order.

* To exit from Program mode, press the STOP button.

■ Available only in STOP.

Mode1 DVD Program Title - - Chapter --

T C T C T C T C 1 - - - - 4 - - - - 7 - - - - 10 - - - 2 - - - - 5 - - - - 8 - - - - 11 - - - 3 - - - - 6 - - - - 9 - - - - 12 - - - -

Clear ALL Play Program

Mode1 DVD Program Title - - Chapter --

T C T C T C T C 1 01 05 4 - - - - 7 - - - - 10 - - - 2 01 08 5 - - - - 8 - - - - 11 - - - 3 01 12 6 - - - - 9 - - - - 12 - - - -

Clear ALL Play Program

Random Playback

While STOP, press [PROGRAM] button twice.

With the right picture appearing, please press [ENTER] button. Regardless of titles or track numbers, it plays in random.

* To exit from Shuffle mode, press the STOP button.

Mode2 DVD Random

Playing a desired scene

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`39

Page 41

Repeating a defined period from A to B (DVD, VCD, CD)

You may repeat a defined period from A to B.

A MP3 disc may not be repeated from A to B.

At the point where you want to start the repeat playback, press [REPEAT] button.

The right figure appears and repeat playback start position (A) is set.

REPEAT A-

At the point where you want to end the repeat playback, press [REPEAT] button again.

The repeat playback end position (B) is set and a defined period from A to B is playback repeatedly.

T o exit from repeat playback mode, press [REPEAT] button.

It enters into Normal Playback mode.

REPEAT A-B

REPEAT OFF

Searching DVD with a title number , a chapter number or a time

If you want to search with a title and chapter number , press [SEARCH] button one time.

It shows total title numbers , chapter numbers and times.

Please enter the new title and chapter number to be searched using the [NUMBER] buttons.

In completing entering, please press [ENTER] button.

PLAY starts from the selected position.

TITLE - - - CHAPTER - - -

TIME - - : - - : - -

If you want to search with a time, press [SEARCH] button twice.

Please enter the new time to be searched using the [NUMBER] buttons.

2:00:181-2

1-8

2:00:181-2

1-8

Playing a desired scene

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`40

Page 42

DVD Operation

Searching VCD and CD with a track number or time

If you want to search with a track number , press [SEARCH] button one time.

In case of PBC OFF, the screen like the right figure appears.

Please enter the new track numbers to be searched using the [NUMBER] button.

* If it is PBC ON, above search screen doesn’t appear.

In completing entering, please press [ENTER].

PLAY starts from the selected position.

TRACK - - -

If you want to search with a time, press [SEARCH] button twice.

In case of PBC OFF, the screen like the right figure appears.

It shows current track’s time and the whole disc’s hours.

Please enter the new time to be searched using the [NUMBER] button.

* If it is PBC OFF, only the track’s time appears.

TRACK TIME - - DISK TIME - - -

LR OFF

VCD

00:45/30:35

1-2

LR OFF

VCD

00:45/30:35

1-2

Playing a desired scene

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`41

Page 43

Confirming the current PLAY mode on screen

Confirming the current DVD disc mode

Confirming the current VCD, CD disc mode

While in playing, press [DISPLAY] button.

It shows the disc type, current title, current chapter and time elapsed.

Press [DISPLAY] button again.

It shows the DVD disc logo, subtitle selected, audio selected, dolby digital logo, repeat playback mode and current angle.

While in playing, press [DISPLAY] button.

It shows the disc logo, current track, subtitle selected, audio selected, repeat playback mode, time elapsed and equalizer bar.

* In case of CD,subtitle and equalizer bar indicator will not

appear.

T o exit from Display mode, press [DISPLAY] button again.

ENG2CH/3 OFFENG/3 1/1

LR OFF1

2:00:181-2

1-8

VCD

00:45/30:35

1-2

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`42

Page 44

DVD Operation

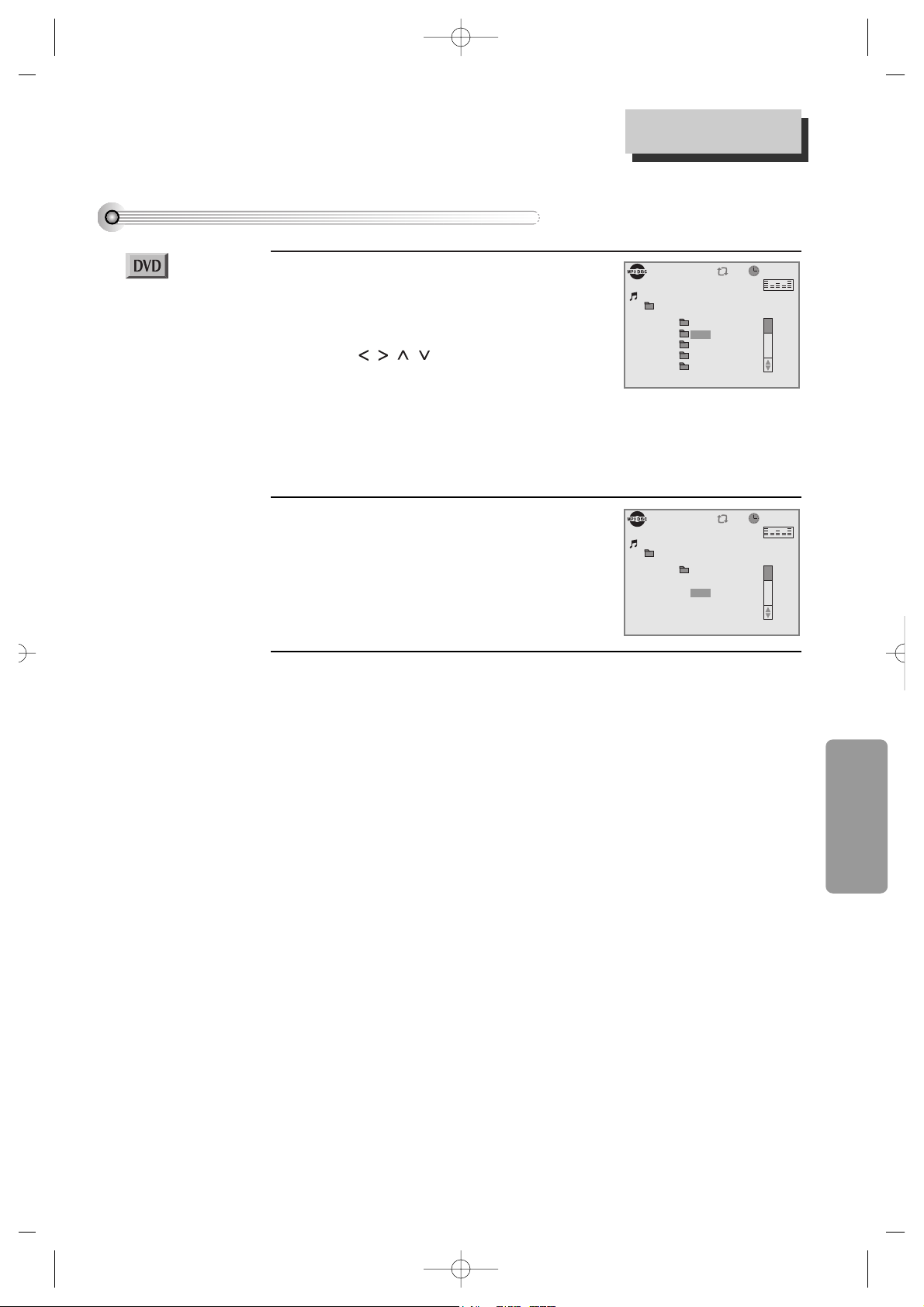

Confirming the current MP3 disc mode

Confirming the current PLAY mode on screen

While in playing, press [DISPLAY] button.

It shows the MP3 File information in disc, the directory, MP3 File name and directory list.

With [ ] buttons, you can move the cursor to directory or number of MP3 Music File. To go to desired directory or to playback MP3 File, press [ENTER] key.

* The information of MP3 File means the disc type, current

track, the amount of MP3 File, repeat playback mode, time elapsed and equalizer bar.

At the desired directory position, press [ENTER] button.

It shows the track list.

T o exit from Display mode, press [DISPLAY] button again.

00:45/30:35

1/517 128K

OFF

DIR_1

DIR_3 DIR_4 DIR_5

DIR_2

00:45/30:35

1/517 128K

OFF

...

TRACK_3 TRACK_4

TRACK_1

\ - - - - - - - - - - - - - - 1.MP3

\ - - - - -

TRACK_2

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`43

Page 45

Selecting an audio language

Selecting an AUDIO language, SUBTITLE language and 3D AUDIO

The user may select an audio language and subtitle language if a disc includes Multi-language.

Keep pressing [AUDIO] button till the user’s preferred language appears.

If DVD disc includes audio information, every time the user presses [AUDIO] button, English (ENG), French (FRE), Spanish (SPA) and others appear one by one.

Selecting a subtitle language

Keep pressing [SUBTITLE] button till the user’s preferred language appears.

If a DVD disc includes subtitle information, every time the user presses [SUBTITLE] button, English (ENG), French (FRE), Spanish (SPA) and others appear one by one.

A certain disc may not support audio select or subtitle select.

ENG2CH/3 OFFENG/3 1/1

FRE3CH/3 OFFENG/3 1/1

SPA1CH/3 OFFENG/3 1/1

ENG2CH/3 OFFENG/3 1/1

ENG2CH/3 OFFFRE/3 1/1

ENG2CH/3 OFFSPA/3 1/1

Selecting 3D Audio

Please press [3D] button.

If the right figure appears, move the cursor with [ ] buttons.

The user may select a “Sound fields” among Standard, Theater, Amphitheater, Live, Concert, Church, Wide, Hall or Stadium.

Also, select a “Graphics equalizer” among Standard, Classic, Rock, Jazz, Pop or User.

* When setting graphics equalizer, sound fields changes to

“Standard” automatically.

■ Sound Fields and Graphics Equalizer can be set.

This 3D function is operational only when the Audio Output is set to the Analog or SPDIF/PCM.

Movie

+8dB

- 8dB

Sound fields Standard Graphics equalizer Standard

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`44

Page 46

DVD Operation

Selecting ZOOM and Multi Angle

Using a zoom function

The user can enlarge the current screen about 1.3, 1.5 or 2.0 times.

Keep pressing [ZOOM] button till the preferred zoom appears.

Every time the user presses [ZOOM] button, a zoom magnification changes 1.3 times (X1.3) 1.5 times (X1.5)

2.0 times (X2.0) OFF 1.3 times (X1.3) ...

one by one. A base point to be enlarged is centre and the point can be

changed with the operation of [ ] button.

Different Angle

If a disc includes multi angle information, the user can watch a screen in multi angles. The function is limited to a DVD disc supporting multi angle information.

Keep pressing [ANGLE] button till the preferred angle appears.

Every time the user presses [ANGLE] button, an angle degrees changes in a consecutive order.

When “TV ASPECT” item is set to “4:3 PS” in setup screen, or with certain discs, 2 times Zoom may not function properly.

ENG2CH/3 OFFENG/3 1/2

ENG2CH/3 OFFENG/3 2/2

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`45

Page 47

Memorising a scene, Displaying menus in a disc

To display menus in a disc

If a disc includes menus, the user may use them.

Press [MENU] button.

• In case of a DVD disc, it shows menus in the disc. Also they are different according to discs

• If it is a VCD2.0, select PBC ON mode by pressing [TITLE/PBC] button.

* CD and VCD1.1 do not support the function.

If it is a DVD disc, move a cursor to a relative item with arrow buttons of

[ ] button and select one with [ENTER] button or [PLAY] button.

If it is a VCD 2.0 disc, it shows menus in the disc by pressing [ENTER] button.

To memorise a scene

Once memorising a scene, the user may watch it anytime.

While playing, press [MARK] button.

The right figure appears.

Then press [ENTER] button and the current scene is memorised in “A”.

If you want to memorise another preferred scene, press [>] button.

The right figure appears. Then press [ENTER] button and the current scene is

memorized in “B”.

** The user may memorise “C” continuously with the same

method.

T o playback a memorised scene, press [MARK] button.

Memorised bookmark appears on screen.

“BOOKMARK” function during the disc playback of SVCD or VCD2.0 is only available in “PBC OFF” mode. Select “PBC OFF” mode by pressing [TITLE/PBC] button.

2:00:181-2

1-8

Bookmark A --:--:-- B --:--:-- C --:--:--

2:00:181-2

1-8

Bookmark A 01:30:10 B --:--:-- C --:--:--

2:00:181-2

1-8

Bookmark A 01:30:10 B 01:40:00 C --:--:--

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`46

Page 48

DVD Operation Setup

LANGUAGE Setup

■ Before setting it, you should change into DVD mode by pressing [DVD] button on remote control.

While STOP or RESUME STOP, press [SETUP] button.

Selecting a OSD LANGUAGE.

Please select a language to be displayed on DVD screen.

** “OSD” means “On Screen Display”.

Selecting AUDIO LANGUAGE.

Set it as the preferred audio language. In case the audio language is set and recorded in the DISC, it is automatically played in the set language in every playing. For example, English is set and recorded as audio language in the DISC, it is played in English.

Selecting SUBTITLE LANGUAGE.

Please set it as the preferred language. In case the subtitle language is set and recorded in the DISC, it is automatically played in the set language in every playing. For example, English is set and recorded as subtitle language in the DISC, it is played in English.

Selecting DISC MENU LANGUAGE.

Please set it as the preferred DISC MENU language. In case the DISC MENU language is set and recorded in the DISC, it is automatically played in the set language in every playing. For example, English is set and recorded as a DISC MENU language in the DISC, it is played in English.

A user can set OSD language, Audio, Subtitle and Disc Menu.

In case a disc

does not include setting languages information, the selected language does not appear.

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OTHERS

OSD LANGUAGE ENGLISH AUDIO ENGLISH SUBTITLE ENGLISH DISC MENU ENGLISH

LANGUAGE

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OTHERS

OSD LANGUAGE AUDIO SUBTITLE DISC MENU

LLAANNGGUUAAGGEE

✔

ENGLISH FRENCH SPANISH PORTUGUESE

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OTHERS

OSD LANGUAGE ENGLISH AUDIO SUBTITLE DISC MENU

LLAANNGGUUAAGGEE

✔

ENGLISH FRENCH SPANISH PORTUGUESE CHINESE JAPANESE

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OTHERS

OSD LANGUAGE ENGLISH AUDIO ENGLISH SUBTITLE DISC MENU

LLAANNGGUUAAGGEE

✔

ENGLISH FRENCH SPANISH PORTUGUESE CHINESE JAPANESE

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OTHERS

OSD LANGUAGE ENGLISH AUDIO ENGLISH SUBTITLE ENGLISH DISC MENU

LLAANNGGUUAAGGEE

✔

ENGLISH FRENCH SPANISH PORTUGUESE CHINESE JAPANESE

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`47

Page 49

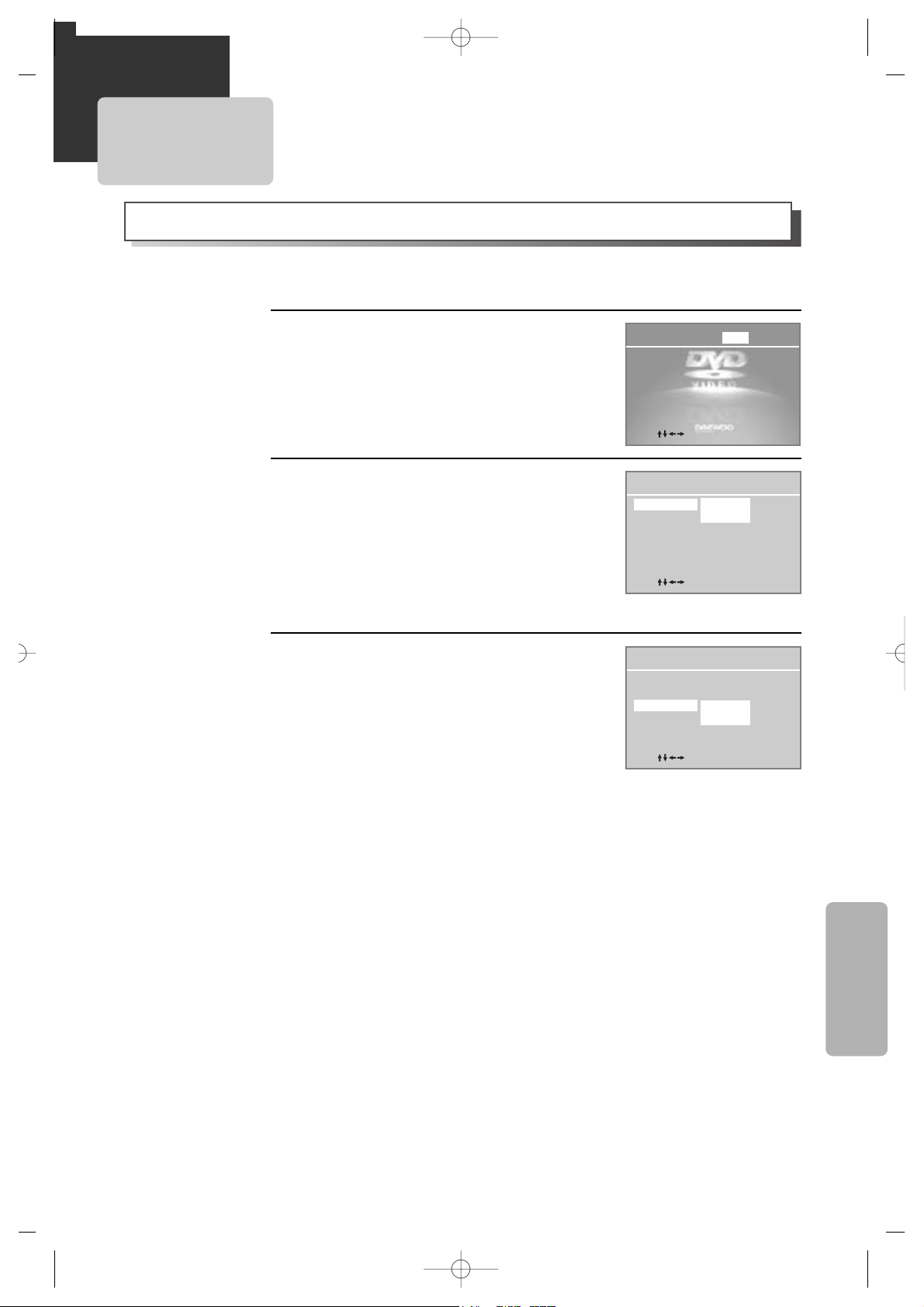

VIDEO Setup

■ Before setting it, you should change into DVD mode by pressing [DVD] button on remote control.

While STOP or RESUME STOP, press [SETUP] button.

Selecting TV ASPECT.

If a user selects “4:3 PS”, the user can watch only a center of the original scene of “16:9”.

If a user selects “4:3 LB”, the user can watch the original scene of “16:9”, but the top and bottom of the screen look black color.

If a disc size is originally recorded in 4:3, a user cannot watch it in a wide screen though a user sets a size as “16:9 WIDE”.

Selecting TV TYPE.

A user may select a TV TYPE. A user may select a type among NTSC, PAL or

AUTO. For example, NTSC type is used in North America.

A user can set up a connected TV condition and screen.

Selecting VIDEO OUT.

A user may select a VIDEO OUT between COMPONENT and S-VIDEO.

MOVE: SELECT:ENTER EXIT:SETUP

AUDIO OTHERS

TV ASPECT 4:3 LB TV TYPE NTSC VIDEO OUT S-VIDEO

LANGUAGE VIDEO

MOVE: SELECT:ENTER EXIT:SETUP

VVIIDDEEOO AUDIO OTHERS

TV ASPECT 4:3 LB TV TYPE NTSC VIDEO OUT S-VIDEO

LANGUAGE

✔

4:3 LB 4:3 PS 16:9 WIDE

MOVE: SELECT:ENTER EXIT:SETUP

VVIIDDEEOO AUDIO OTHERS

TV ASPECT 4:3 LB TV TYPE NTSC VIDEO OUT S-VIDEO

LANGUAGE

AUTO

✔

NTSC PAL

MOVE: SELECT:ENTER EXIT:SETUP

VVIIDDEEOO AUDIO OTHERS

TV ASPECT 4:3 LB TV TYPE NTSC VIDEO OUT S-VIDEO

LANGUAGE

COMPONENT

✔

S-VIDEO

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`48

Page 50

Setup

AUDIO Setup

■ Before setting it, you should change status into DVD by pressing [DVD] button on the remote control.

Select a DIGITAL OUTPUT.

You can set following 2 values of digital output;

• BITSTREAM: The same signal as audio signal recorded in disc goes to digital audio output terminal.

• LPCM: Decoded audio signal goes to digital output terminal.

Select a Front L/R Speaker Type.

Set ...

A user may select audio menu according to a user’s speaker set.

While STOP or Resume STOP, press [SETUP] button.

MOVE: SELECT:ENTER EXIT:SETUP

OTHERS

DIGITAL OUTPUT BITSTREAM SPEAKER SETUP

FRONT L/R TYPE SMALL

LANGUAGE VIDEO

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AAUUDDIIOO OTHERS

DIGITAL OUTPUT BITSTREAM SPEAKER SETUP

FRONT L/R TYPE SMALL

LANGUAGE

✔

BITSTREAM LPCM

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AAUUDDIIOO OTHERS

DIGITAL OUTPUT BITSTREAM SPEAKER SETUP

FRONT L/R TYPE SMALL

LANGUAGE

✔

LARGE SMALL

AUDIO

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`49

Page 51

Others Setup

■ Before setting it, you should change into DVD mode by pressing [DVD] button on remote control.

Select character display window .

Select "ON" to make OSD(On Screen Display) language displayed in screen.

Select screensaver .

If bright scenes continue to be displayed in screen, TV can be damaged. Set the screensaver to "ON", the screensaver functions automatically and DVD logo moves continuously if the resume stop, stop, open status is maintained for about 5 minutes.

Select defaults.

If you select defaults, every function set returns to FACTORY Defaults except PARENTAL.

Entering a password.

Input password display appears. Enter a user’s password by pressing 4 [Digit] buttons.

Select PARENTAL. Press [ENTER] button to set the selected

item .

It consists of 8 levels of parental control, violence, sexual scene, strong sexual scene and others to protect children from watching those scenes.

While STOP or RESUME STOP, press [SETUP] button.

“Parental Lock”

activates only if you set a password and the unit goes into Lock status. When the disc has no parental function even if the disc for adult only, Parental Lock doesn’t activate.

MOVE: SELECT:ENTER EXIT:SETUP

OSD ON SCREENSAVER ON DEFAULTS NO PARENTAL OFF

LANGUAGE VIDEO

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OOTTHHEERRSS

OSD ON SCREENSAVER ON DEFAULTS NO PARENTAL OFF

LANGUAGE

✔

ON OFF

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OOTTHHEERRSS

OSD ON SCREENSAVER ON DEFAULTS NO PARENTAL OFF

LANGUAGE

✔

ON OFF

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OOTTHHEERRSS

OSD ON SCREENSAVER ON DEFAULTS NO PARENTAL OFF

LANGUAGE

✔

NO RESET

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OOTTHHEERRSS

OSD ON SCREENSAVER ON DEFAULTS NO INPUT PASSWORD ◆◆◆◆

LANGUAGE

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OOTTHHEERRSS

OSD ON SCREENSAVER ON DEFAULTS NO PARENTAL OFF CHANGE PASSWORD

◆◆◆◆

LANGUAGE

AUDIO OTHERS

✔

OFF 1 KIDS 2 G 3 PG 4 PG-13 5 PG-R

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`50

Page 52

Setup

Changing a password.

For the change of a user’s password, please move to “CHANGE PASSWORD” and enter new password.

And confirm new password.

The initial password is

3308. In case you forget newly-input password, you can use 3308 as a password.

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OOTTHHEERRSS

OSD ON SCREENSAVER ON DEFAULTS NO PARENTAL 8 UNLOCK CHANGE PASSWORD

◆◆◆◆

LANGUAGE

MOVE: SELECT:ENTER EXIT:SETUP

VIDEO AUDIO OOTTHHEERRSS

OSD ON SCREENSAVER ON DEFAULTS NO PARENTAL 8 UNLOCK CHANGE PASSWORD

****

CONFIRM PASSWORD

◆◆◆◆

LANGUAGE

Others Setup

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`51

Page 53

About DVD

Playable Disc

• DVD, Video CD(Version 1.1, 2.0), S-VCD and Audio CD

Disc type Playable Restriction

DVD Possible Region number 1 or Region number All

Video CD Possible Version 1.0/1.1/2.0, SVCD/CVD

CD Possible PCM or dts

CD-G Possible Only Audio playback

CD-ROM Possible MP3 File, 200 Files in maximum

CD-R Possible Video-CD/CD/CD-ROM (MP3 File) CD-RW Possible Video-CD/CD/CD-ROM (MP3 File) DVD-R Possible DVD Video

DVD-ROM Impossible

DVD-RAM Impossible

DVD+RW Impossible

Photo CD Impossible

REGION MANAGEMENT INFORMATION

This unit is designed and manufactured to respond to the Region Management information that is recorded on a DVD disc. The region number of this player is “1”. If the region number described on the DVD discs does not correspond to the Region number of this player, the player will not play this disc. This player will play DVD discs made for “ALL” regions. Therefore, this player will play DVD discs marked with labels containing the region number “1” or “ALL”.

(Region 1) (Region ALL)

ALL

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`52

Page 54

The others

Terms related with DVD

DVD A DVD (abbreviation of Digital Versatile Disc or Digital Video Disc) can include 135 minutes of video

information. And for audio, it can hold up to 8 kinds of languages and 32 kinds of subtitle languages. By using MPEG-2 video compression and digital 3D surround sound, DVD realizes high-defined screen and quality sound like a movie theater.

CDDA A CDDA (abbreviation of Compact disc digital audio) is a music disc that is currently used. MP3 Audio compression format that enables audio files to be stored and transferred on a computer with a

relatively small file size. It enables you to enjoy CD quality music. (Short for MPEG-1 Layer 3)

PBC This is recorded on a Video CD 2.0, Video CD 3.0, SVCD and CVD. The scenes or information to be

viewed (or listened to) can be selected interactively with the TV monitor by looking at the menu shown on the TV monitor. It stands for PlayBack Control.

CHAPTER It means the information recorded in a DVD. A title in a DVD is divided into many tracks, of which a

track is called as a chapter. A certain scene of a screen can be quickly searched with the chapter number.

TITLE It means the information recorded in a DVD. A DVD can be divided into may titles. TRACK It means the information recorded in a video CD and audio CD. A disc consists of many a track, for

which a user can search a certain position.

dts Digital Theatre System is a 5.1 -channel surround sound system, which is widely used in movie theatres

around the world. It enables the bit rate to be increased to provide good sound quality. “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Multi Angle Some DVD discs contain the various scenes that have been simultaneously shot from a number of

different angles.

PCM Linear PCM is a signal-recording format used in a CD, while CD is recorded in 44.1kHz/16bit, a DVD

is recorded in 48KHz/16bit up to 96KHz/24bit.

Dolby Digital Dolby Digital enables the delivery of mono through 5.1-channel audio at data rates from 32 kbps to

640 kbps, thus offering flexibility and economical performance as well as uncompromised sound quality.

Bitstream Digital audio data that is decoded into an analog signal for subsequent output to speakers. Lt/Rt It indicates L/R of Dolby Digital 2CH Downmix output. Downmix DOWNMIX is reproducing the proper audio when audio format recorded on a disc differs from the

output audio channel configuration. For example, with just one stereo speaker system you can hear full

5.1 channel audio.

S-VIDEO The S-VIDEO output separates the color (C) and luminance (Y) signals before transmitting them to the

TV set in order to achieve a sharper picture. So this must be selected from the menu to enable the SVIDEO output to function.

COMPONENT

It is called color difference signal and is a technology to divide and transmit a color signal (C) into B-Y and R-Y color difference signal. This technology supplies clearer and more vivid picture than composite video type .

About DVD

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`53

Page 55

Handling Disc

• To keep a disc clean condition, please do not touch a side containing play information.

• Do not attach a bit of paper or sticky tape on it.

• Do not expose a disc to a direct sunlight or electric heating systems.

• After using it, please keep a disc in a case.

Cleaning Disc

• Before using it, please rub it from center toward outside with clean clothes.

• Do not use any type of solvent such as thinner, benzol (benzene), commercial cleaning goods or antistatic sprays.

About DVD

Region Code

The product and all DVD disc have region codes. So if both codes are not coincided each other, it does not work. Legion codes are like the below.

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`54

Page 56

The others

Basic information about VCR and V ideotape

What is dew condensation symptom?

• If a VCR is moved from a cool place to a warm and damp place or a place facing a direct cool wind from air-conditioner...and others, temperature varies sharply, which makes dew on head drums of VCR.

If dew condensation occurs,

1 First, turn it on for one or two hours before using it. 2 Do not use it because it may develop troubles of a VCR or videotape.

Terms related with VCR

AFT Automatic fine tuning, a circuit that automatically adjusts TV reception to optimum condition. CABLE Cable television. EP Extended play, the slowest recording speed. Designed to store the maximum amount of program

material on a single video cassette. There is some degradation in picture/audio quality.

Index Search A feature of this VCR that automatically records an index each time recording begins. It helps you locate

a particular segment of the tape quickly and easily.

LP Long Play, an intermediate tape recording speed that combines most of the picture/audio quality

obtainable at the standard recording speed with some of the tape economy of Extended Play (EP).

OSD On-screen display of information pertinent to the features of the VCR. OTR One-touch recording, a feature that allows you to record the program you’re watching by pressing the

REC key. Each press of the key increases the recording time by 30 minutes, up to four hours.

RF Radio frequency, the composite audio/video signal supplied to a TV receiver (or other video

component) by an antenna or cable system.

Safety tab The plastic tab at the back of a video tape cassette which, when removed, prevents accidental erasure

of a recording.

SP Standard play, the recording speed to use when the best picture quality is of prime importance (and

when total recording time is not).

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`55

Page 57

Noise

• Noise means poor screen conditions of VCR such as interruption or trembles in the top of bottom of a screen.

• If a noise occurs, please adjust a screen by operating “TRACKING” buttons .

• Adjustment may not improve quality screen if the tape is originally recorded mixed with some noise or kept in poor conditions.

• If some noise remains after adjusting it, VCR heads may be contaminated or worn.

• In case VCR heads are contaminated, please rub them cleanly.

Auto-detect the contamination of VCR heads

• If the product, which has a auto-detector, detects a contaminated head(s), it shows the conditions to notice the contamination on screen.

* In case of the notice on screen, please rub the heads with a head-cleaner followed by “How to use a head-

cleaner”.

How to use a head cleaner

• In case of a old or contaminated videotape, screen may not be clean from the contamination of VCR heads. Please remove contaminants using a head-cleaner like below order.

1 Insert a head-cleaner into VCR 2 Press “PLAY” for 5 seconds, and then press “FF” for about 10 seconds.

3 Eject a head-cleaner from VCR

• If the screen is not clean yet, please repeat the above 2 or 3 times more.

• A head-cleaner is not for sale. Please ask it for the nearest agent.

• In case a user ask the removal of contaminants of us, the user should pay extra charges.

PLAY (5secs)

FF (10secs)

What is a record tab of a videotape?

• The tab on a videotape enables a user to record and prevents the recorded area from rerecording.

• To record it, a user should use a videotape with a tab.

• If a user input a videotape without a tab to record, the videotape is ejected automatically.

• In order to avoid a recorded area to be rerecorded, a tab should be removed.

• To rerecord a recorded videotape, please scotch-tape on the removed tab position.

safety tab

Basic information about VCR and Videotape

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`56

Page 58

The others

Before doubting about troubles (DVD)

• The recorder does not play.

• No sound comes through.

• A disc is playing but screen does not appear or poor screen appears.

• Sound is irregular

• REMOTE does not work.

• Dolby Digital sound does not work

• “AUDIO” or “SUBTITLE” button does not work.

Checks

Symptom

➤ If a DVD is from overseas, it may not be played. Please check a DVD’s

region code whether it has the relative region code 1 or All.

➤ Please check whether a DVD is inserted in a right direction. ➤ If it is a CD-ROM for PC or DVD-ROM, it does not work.

➤ Play mode may be “SLOW” or “PAUSE”(In abnormal speed play,

no sound comes through)

➤ Did you connect the parts in right way? ➤ Please check the operative condition of TV or amplifier. ➤ From SETUP, please check “AUDIO” items.

➤ Did you turn on your TV sets? ➤ Did you connect the parts in right way? ➤ The play may be in “PAUSE”. ➤ A disc may have some contaminants or be damaged. ➤ A disc may be bad one.

➤ Please check the connection with Dolby Digital amplifier. ➤ Please check the plugs are connected with one another tightly. ➤ Some contaminants may be remained in connection terminal.

➤ Please check the degree of remote control, distance or any

interruption.

➤ Battery may be weak or exhausted. ➤ When you operate DVD, use it by pressing [DVD] button.

➤ Dolby Digital sound can be worked in the Dolby Digital

amplifier only.

➤ Please check “Dolby Digital ” mark on your DVD. ➤ In case of playing it through digital output, while pressing

“STOP”, please check whether “DIGITAL OUTPUT” is “BITSTREAM” by pressing “SETUP”.

➤ Please check the connection is correct.

➤ If a DVD does not include language information, it does not

support the function.

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`57

Page 59

• “ANGLE” button does not work

while a DVD is playing.

• “MENU” does not appear while a

DVD is playing.

• Screen shakes or appears only in

black and white. (or Subtitle shakes)

• The file name of MP3 (CD-R)

appears with strange letters.

• Any MP3 (CD-R) file isn’t

displayed.

Checks

Symptom

➤ “ANGLE” is supported only in a DVD contains multi angle

scenes. Also a user can confirm the support with the “ANGLE” mark on screen.

➤ Please check the degree of remote control, distance or any

interruption.

➤ Please check a battery in remote control whether it is exhausted

or not.

➤ A DVD may not contain menu information.

➤ The recorder may not coincide with your TV system. Please press

“SYSTEM” to match to NTSC system.

➤ A disc may have some contaminants or be damaged. ➤ If you playback a DVD disc of PAL system whose region code is

“ALL”, the playback screen may shake.

➤ The file name of MP3 recognize only the Alphabet (A~Z, a~z),

numbers (0~9) and a special symbol on keyboard (~, !, @, #, $

....) and 10 letters can be displayed in maximum.

➤ The letters except above case will be displayed like “----”.

➤ The number of MP3 file which can be displayed and playback is

200 in maximum.

➤ If the surface of disk is injured, the file display and playback can

be impossible.

Before doubting about troubles (DVD)

DV6T812N-LT(GB) 02.8.5 9:24 PM ˘`58

Page 60

The others

Before doubting about troubles (VCR)

• “Power On” does not work.

• It does not work even in “Power On”.

Checks

Symptom

■ Power

➤ Please check whether a power plug is inserted in an electric outlet.

➤ Please check whether a videotape is inserted in. ➤ Try to insert a plug again.

• A channel on video and a play screen does not appear.

• Noise (screen noise) appears on screen.

■ Screen and noise

➤ Please check your antenna’s connection. ➤ TV channel should be fixed on video channel (3 or 4). ➤ Please check your antenna’s signal whether it may be weak. In

case of its weakness, please use a frequency amplifier connected with the device.

➤ Press “TV/VCR” and then let “VCR” is displayed on the display

panel.

➤ While in no use of VCR, was it turned on? ➤ While in recording a program, do you watch another channel? ➤ Select TV by pressing [TV/VCR] button on remote control.

• A videotape is not inputted in.

• On inputting a videotape, the tape is re-ejected.

• A videotape is not ejected.

■ Input and ejection

➤ Please check whether a power plug is inserted in an electric outlet. ➤ Please check whether a videotape is in. ➤ Please check whether a videotape is inserted in a right direction

(a side of transparent window should be on the upside)

➤ Have you inputted a videotape again just after the tape was

ejected? Please try it again after fully ejecting it.

➤ When a videotape forces to be ejected, the tape may not be

inputted. In the case, please pull out an outlet, and then push the tape smoothly.

➤ That’s why a safe mode to protect a videotape is operated

automatically. Please pull out the tape and input it again.

➤ In case the product is used for a long time, a videotape may not be

ejected for a film inside may be stretched. In the case, please pull out a power plug for about 10mins and then press “EJECT” button.

DV6T812N-LT(GB) 02.8.5 9:25 PM ˘`59

Page 61

• Noise appears on screen after

recording.

• While in playing, noise appears.

• Sound and screen are irregular.

• Sound comes out but screen does

not appear.

• Screen is irregular and stripes appears.

• "Screen Error" message is displayed

in a screen.

• While recording and playing, the

top of screen extremely waves.

Checks

Symptom

➤ While in playing a videotape, there may happen some noise or

blot in the part of the beginning of a videotape or resuming “PAUSE”, which are not breakdown.

➤ Please press “TRACKING” for better screen. Videotape may be

poor. Try to change it to another one.

➤ Please use a head-cleaner to clean VCR heads. VCR heads may

be contaminated.

➤ Since VCR Play signals are not stable like a TV signals, screen

may be unstable or curved while in playing. To fix the problem, please horizontal adjustment.

• A screen is not clear.

• A screen at pause is trembling or

slow screen is not clear.

■ Play

➤ In case videotape is the one recorded by other products or old

one, stripe may appear on the screen.

➤ Try to adjust the screen by [TRACKING+/-] button ➤ Try to use a head-cleaner.

➤ Try to use a head-cleaner. ➤ Try to adjust the screen by [TRACKING+/-] button.

■ Recording

• Recording a TV program is

impossible.

➤ For recording, you should use videotape with a tab. ➤ Please check whether a channel is fixed on video. If not, you

have to turn it into “TV” by pressing “OUTPUT” button.

➤ Please check whether the timer recording info is right. ➤ Are RF cables inputted antenna connection terminal correctly? ➤ Does a CH number selected in display section appear? ➤ Please check a tab on a tape whether it is broken or not. (If it was

broken, please scotch-tape it)

Before doubting about troubles (VCR)

DV6T812N-LT(GB) 02.8.5 9:25 PM ˘`60

Page 62

The others

• Recording a TV program is impossible.

• Once pressing “REC”, a videotape is ejected automatically.

• Timer recording of Cable TV does not work.

• In spite of pressing “CHANNEL”, a channel can not be set.

• While duplicating, screen is not clean and distorted.

➤ Check whether a tape attached with a recording tap is inserted. ➤ Check whether the screen is displayed in VCR Only Channel.

Press [OUTPUT] button in this remote controller to adjust in "General Broadcast" condition.

➤ Is the rounded line (RF cable) connected in "ANT.IN" terminal? ➤ Is the selected channel number shown in Display? ➤ Is a tab of cassette tape broken? (Please cover a tab hole with

cellophane adhesive tape (Scotch tape).)

➤ Please check whether the clock is right. ➤ Does the display on your video show “” (Ready to timer

recording)? Please make it out.

➤ Please check whether the timer recording info is right. ➤ Please check a tab on a tape whether it is broke or not. (If it was

broken, please scotch-tape it)

➤ Was a cable data output code connected correctly? ➤ Were a converter manufacturer setup and output channel right? ➤ Did you enter a password? (Please cancel it.) ➤ Did you turn off your player? (Please turn it on.)

➤ You may not memorize channels. ➤ Please check your channel setting or press a number button.

➤ Some tapes or discs distributed in the market for lending is set to

prevent copy in manufacturing. These tapes cannot be duplicated in a good condition.

Checks

Symptom

• remote control does not work.

• Buttons on remote control do not work.

■ REMOTE

➤ Battery may be weak or exhausted. ➤ A receiver of remote control may be different with a sender.

➤ In case a videotape is positioned in the beginning, “VISS REW”

and “REW” do not work.

➤ In case a videotape is positioned in the end, “FF”, “VISS FF”,

“PLAY” and “REC” do not work.

➤ Please check whether another button is pressed.

Before doubting about troubles (VCR)

DV6T812N-LT(GB) 02.8.5 9:25 PM ˘`61

Page 63

Checks

Symptom

• VISS index search does not work.

• Cable broadcasting can not be

selected.

■ Others

➤ Are you playing a tape that is not recorded in this recorder? (Try

to record it with the recorder.)

➤ You may start recording it in “REC-PAUSE”. Please start recording

it from stop condition.

➤ Please select “CABLE” not “NETWORK” from the “CHANNEL

SETTING”.

Before doubting about troubles (VCR)

DV6T812N-LT(GB) 02.8.5 9:25 PM ˘`62

Page 64

The others

DVD Audio output standards

Specifications

Power AC 120V, 60Hz Consumed electricity 24W (supplementary 2.5W) Weight 5.7kg Dimension (WxHxD) 430mmx91mmx355.5mm Operative temperature +5°C~35°C Installation condition Horizontal / Relative humidity under 80% Received channels VHF: 2-13 CH / UHF: 14-69 CH / Cable: 1-125 Signal type NTSC COLOR Antenna Input/output U/V-mixed: 75Ω unbalanced VIDEO input 1.0 Vp-p unbalanced, RCA JACK AUDIO input -8.8dBm, RCA JACK VHF output 3 or 4 CH VIDEO output (

common use of DVD and VCR

) VIDEO output terminal, 1.0 Vp-p unbalanced, RCA JACK

VIDEO output (DVD only) S-VIDEO output (75Ω In load Y: 1.0Vp-p, C:0.286Vp-p)

COMPONENT output (75Ω In load Y: 1.0Vp-p, Pb:0.7Vp-p, Pr:0.7Vp-p)

AUDIO output (

common use of DVD and VCR)Audio output terminal (2 kinds): -8.8dBm(VCR), 2.0Vrms(DVD), RCA JACK

AUDIO output (DVD only) Analogue AUDIO output (2 CH): 2.0Vrms

Digital audio output (OPTICAL, COAXIAL) Playable tape Very high dense tapes with VHS marks Playable disc DVD, VIDEO-CD, CD (12mm), CD (8mm), MP3, CD-R, CD-RW Tape speed Standard: 33.35mm/s, 3 times: 11.12mm/s Playtime Standard: 2hrs, 3 times: 6hrs (use of T120tape) Clock display 12 hrs AM/PM Time Recording 8 programs a year Persistence in power failure 1min VIDEO S/N (VCR) Over 45dB(Standard recording) Resolution VCR Over 220 lines (Standard recording)

DVD Over 500 lines (DVD Disc PLAY) AUDIO (VCR) Over 69dB(Hi-Fi), over 40dB(Mono) AUDIO (DVD) 90dB AUDIO dynamic range 90dB

Disc type

DVD VIDEO-CD CD

Analogue Audio output 48/96KHz sampling 44.1KHz sampling 44.1KHz sampling Digital Audio output 48KHz sampling 44.1KHz sampling 44.1KHz sampling Optical digital audio output 48KHz sampling 44.1KHz sampling 44.1KHz sampling

Output

DV6T812N-LT(GB) 02.8.5 9:25 PM ˘`63

Page 65

Warranty

Daewoo Electronics Corporation of America warrants each new electronic product manufactured by it to be free from defective material and workmanship and agrees to remedy any such defect or to furnish a new part (at the Company’s option) in exchange for any part of any unit of its manufacture which under normal installation, use and service disclosed such defect, provided the unit is delivered by the owner to us or to our authorized distributor from whom purchased or authorized service station intact, for our examination with all transportation charges prepaid to our factory. To establish and receive warranty service at our factory or authorized service facilities, proof of purchase/dated sales invoice is required. Written authorization must be obtained before any merchandise is returned to the factory.

This warranty does not extend to any of our electronic products which have been subjected to misuse, neglect, accident, incorrect wiring not our own, improper installation, unauthorized modification, or used in violation of instructions furnished by us, nor units which have been repaired or altered outside of our factory, nor to cases where the serial number thereof has been removed, defaced or changed.

This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume for us any other liability in connection with the sale of our electronic products.

Over-the-counter exchange of initially defective units

A unit is described as initially defective when the dealer opens the unit and finds that it is inoperative or a customer opening a new unit finds that it is initially defective. This unit may be returned to the factory by the dealer for exchange. Under no circumstances will a customer be permitted to return an initially defective unit directly to the factory.

Model Parts Labor DV6T812N/DV6T512N 1 Year 3 months

This instrument is listed by Underwriter’s Laboratories, Inc. It is designed and manufactured to meet rigid U.L. safety standards against X-radiation, fire, casualty and electrical hazards.

Daewoo Electronics Corporation of America

120 Chubb Avenue Lyndhurst, NJ 07071

For more information about this or other Daewoo products, call 1-800-DAEWOO8.

DV6T812N-LT(GB) 02.8.5 9:25 PM ˘`64
