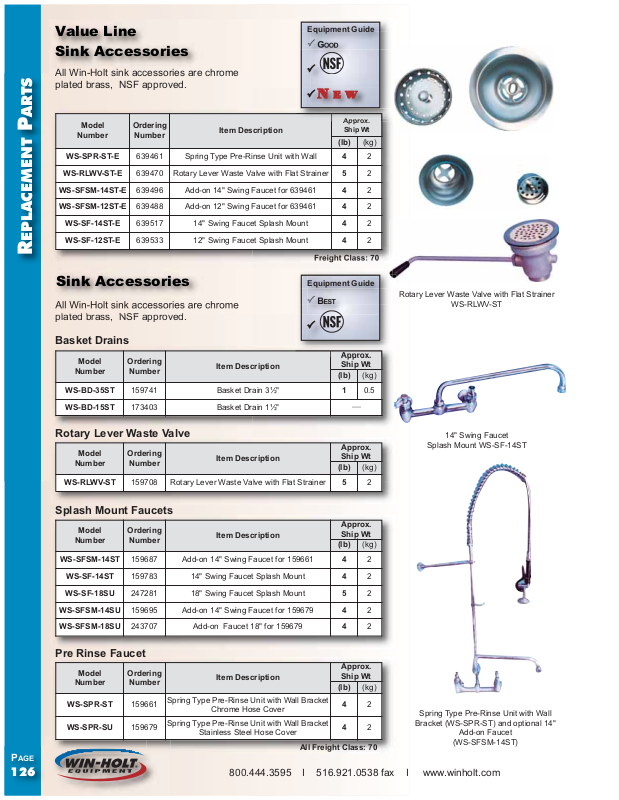

Win-Holt WS-SPR-SU User Manual

REPLACEMENT PARTS

PAGE

126

800.444.3595 I 516.921.0538 fax I www.winholt.com

All Win-Holt sink accessories are chrome
plated brass, NSF approved.

14" Swing Faucet

Splash Mount WS-SF-14ST

Rotary Lever Waste Valve with Flat Strainer

WS-RLWV-ST

Spring Type Pre-Rinse Unit with Wall

Bracket (WS-SPR-ST) and optional 14"

Add-on Faucet

(WS-SFSM-14ST)

Freight Class: 70

Sink Accessories

Model

Number

Ordering

Number

Item Description

Approx.
Ship Wt

(lb) (kg)

WS-RLWV-ST 159708 Rotary Lever Waste Valve with Flat Strainer 5 2

Model

Number

Ordering

Number

Item Description

Approx.
Ship Wt

(lb) (kg)

WS-SPR-ST 159661

Spring Type Pre-Rinse Unit with Wall Bracket

Chrome Hose Cover

4 2

WS-SPR-SU 159679

Spring Type Pre-Rinse Unit with Wall Bracket

Stainless Steel Hose Cover

4 2

Basket Drains

Model

Number

Ordering

Number

Item Description

Approx.
Ship Wt

(lb) (kg)

WS-BD-35ST 159741 Basket Drain 3½" 1 0.5

WS-BD-15ST 173403 Basket Drain 1½"

⎯

Rotary Lever Waste Valve

Model

Number

Ordering

Number

Item Description

Approx.
Ship Wt

(lb) (kg)

WS-SFSM-14ST 159687 Add-on 14" Swing Faucet for 159661 4 2

WS-SF-14ST 159783 14" Swing Faucet Splash Mount 4 2

WS-SF-18SU 247281 18" Swing Faucet Splash Mount 5 2

WS-SFSM-14SU 159695 Add-on 14" Swing Faucet for 159679 4 2

WS-SFSM-18SU 243707 Add-on Faucet 18" for 159679 4 2

Splash Mount Faucets

Pre Rinse Faucet



BEST



Equipment Guide

Model

Number

Ordering

Number

Item Description

Approx.
Ship Wt

(lb) (kg)

WS-SPR-ST-E 639461 Spring Type Pre-Rinse Unit with Wall 4 2

WS-RLWV-ST-E 639470 Rotary Lever Waste Valve with Flat Strainer 5 2

WS-SFSM-14ST-E 639496 Add-on 14" Swing Faucet for 639461 4 2

WS-SFSM-12ST-E 639488 Add-on 12" Swing Faucet for 639461 4 2

WS-SF-14ST-E 639517 14" Swing Faucet Splash Mount 4 2

WS-SF-12ST-E 639533 12" Swing Faucet Splash Mount 4 2

Value Line
Sink Accessories

 GOOD





N

EW

Equipment Guide

All Win-Holt sink accessories are chrome
plated brass, NSF approved.

All Freight Class: 70

PAGE

127

800.444.3595 I 516.921.0538 fax I www.winholt.com

REPLACEMENT PARTS

Model

Number

Order# Description

For Sink WSHS01410-5-F

WS-GNECK 382934 4” Gooseneck Faucet

For Sink WWHS1410SP

WS-GS-ST 173438 12” Gooseneck Rigid Faucet

WS-KV-ST 173420 Knee Valve

For Sink WSHS-1410-EF

WS-GSEM-6SP 480868 Electronic Faucet

For Sink WHWS1410HV

WS-SGF-12ST 250616 12” Deck Mount Gooseneck Faucet

For Sink WHPS1616

WS-FP-ST 173411 Foot Pedal

For Sink WHPS1110

WS-FP-K252000 567381 Foot Pedal

WS-TMV-ST 567496 Thermo Mixing Valve

Replacement Soap Dispenser for any sink

WS-SD-ST 173446 Replacement Soap Dispenser

Hand Sinks Wall Mount
& Pedestal Hand Sinks
Replacement Parts

WS-FP-K252000

Foot Pedal

WS-KV-ST

Knee Valve

WS-SD-ST

Soap Dispenser

 BEST



Equipment Guide

All Win-Holt sink accessories are chrome
plated brass, NSF approved.

UPS and the UPS brandmark are trademarks that are used with
permission by the owner, United Parcel Service of America, Inc.
All rights reserved.

Freight Class:70

WS-FP-ST
Foot Pedal

WS-GSEM-6SP

Electronic Faucet

WS-GNECK

4” Goosneck Faucet
