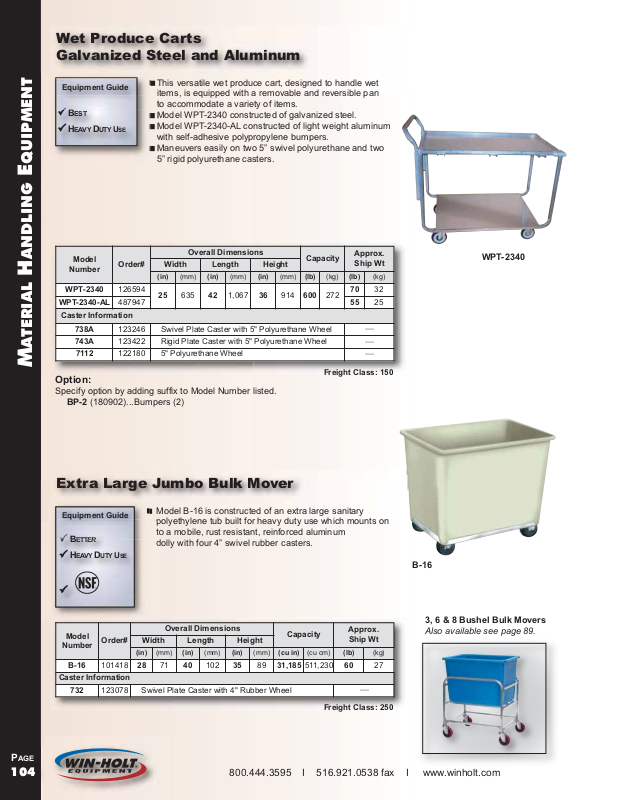

Win-Holt B-16 User Manual

MATERIAL HANDLING EQUIPMENT

PAGE

104

800.444.3595 I 516.921.0538 fax I www.winholt.com

B-16

Extra Large Jumbo Bulk Mover

 Model B-16 is constructed of an extra large sanitary

polyethylene tub built for heavy duty use which mounts on
to a mobile, rust resistant, reinforced aluminum
dolly with four 4” swivel rubber casters.

Model

Number

Order#

Overall Dimensions

Capacity

Approx.
Ship Wt

Width Length Height

(in) (mm) (in) (mm) (in) (mm) (cu in) (cu cm) (lb) (kg)

B-16 101418 28 71 40 102 35 89 31,185 511,230 60 27

Caster Information

732 123078 Swivel Plate Caster with 4" Rubber Wheel

⎯

Wet Produce Carts
Galvanized Steel and Aluminum

This versatile wet produce cart, designed to handle wet

items, is equipped with a removable and reversible pan
to accommodate a variety of items.

Model WPT-2340 constructed of galvanized steel.
Model WPT-2340-AL constructed of light weight aluminum

with self-adhesive polypropylene bumpers.

Maneuvers easily on two 5” swivel polyurethane and two

5” rigid polyurethane casters.

WPT-2340

Model

Number

Order#

Overall Dimensions

Capacity

Approx.
Ship Wt

Width Length Height

(in) (mm) (in) (mm) (in) (mm) (lb) (kg) (lb) (kg)

WPT-2340 126594

25 635 42 1,067 36 914 600 272

70 32

WPT-2340-AL 487947 55 25

Caster Information

738A 123246 Swivel Plate Caster with 5" Polyurethane Wheel

⎯

743A 123422 Rigid Plate Caster with 5" Polyurethane Wheel

⎯

7112 122180 5" Polyurethane Wheel

⎯

Freight Class: 150



BEST



HEAVY DUTY USE

Equipment Guide

Option:

Specify option by adding suffix to Model Number listed.

BP-2 (180902)...Bumpers (2)

Freight Class: 250

3, 6 & 8 Bushel Bulk Movers

Also available see page 89.



BETTER

 HEAVY DUTY USE



Equipment Guide
