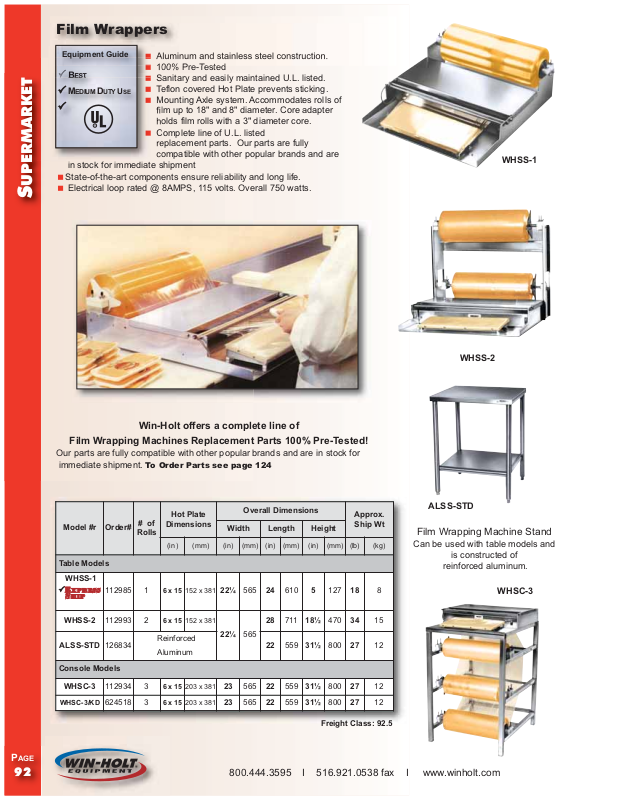

Win-Holt ALSS-STD Parts List
SUPERMARKET
PAGE
92
800.444.3595 I 516.921.0538 fax I www.winholt.com
Aluminum and stainless steel construction.
100% Pre-Tested
Sanitary and easily maintained U.L. listed.
Teflon covered Hot Plate prevents sticking.
Mounting Axle system. Accommodates rolls of
film up to 18" and 8" diameter. Core adapter
holds film rolls with a 3" diameter core.
Complete line of U.L. listed
replacement parts. Our parts are fully
compatible with other popular brands and are
in stock for immediate shipment
State-of-the-art components ensure reliability and long life.
Electrical loop rated @ 8AMPS, 115 volts. Overall 750 watts.
WHSS-2
ALSS-STD
WHSC-3
WHSS-1
Film Wrappers
BEST
MEDIUM DUTY USE
Equipment Guide
Model #r Order#
# of
Rolls
Hot Plate
Dimensions
Overall Dimensions
Approx.
Ship Wt
Width Length Height
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (lb) (kg)
Table Models
WHSS-1
EXPRESS
SHIP
112985 1
6 x 15 152 x 381
22¼ 565 24 610 5 127 18 8
WHSS-2 112993 2
6 x 15 152 x 381
22¼ 565
28 711 18½ 470 34 15
ALSS-STD 126834
Reinforced
Aluminum
22 559 31½ 800 27 12
Console Models
WHSC-3 112934 3
6 x 15 203 x 381
23 565 22 559 31½ 800 27 12
WHSC-3/KD
624518 3
6 x 15 203 x 381
23 565 22 559 31½ 800 27 12
Freight Class: 92.5
Win-Holt offers a complete line of
Film Wrapping Machines Replacement Parts 100% Pre-Tested!
Our parts are fully compatible with other popular brands and are in stock for
immediate shipment.
To Order Parts see page 124
Film Wrapping Machine Stand
Can be used with table models and
is constructed of
reinforced aluminum.
REPLACEMENT PARTS
PAGE
124
800.444.3595 I 516.921.0538 fax I www.winholt.com
Film Wrapping Machines
Replacement Parts
100% Pre-Tested!
Win-Holt offers a complete line of high quality replacement parts for all
wrapper models. Our parts are fully compatible with other popular brands
and are in stock for immediate shipment.
EXPRESS SHIP
Lighted
Rocker
Switch
Fuse
Fuse
Holder
Electric Wire
Film Axle
Thermostat
Circuit Board
Thermostat
Knob
Cut-off Rod
Teflon
Cover
Heating
Element
Core
Adapter/
Wing Unit
Bearing
Blocks
Hot Plate
with
Heating Element
Model Number
Ordering
Number
Description of Parts Dimensions
WHSS-CBD 113101 Circuit Board 2½" x 2½"
WHSS-COR 113110 Cut-off Rod
7
/16" x 23"
WHSS-TM 113267 Thermostat ½" x ½" x 2¼"
WHSS-TK 113259 Thermostat Knob ¼" I.D.
WHSS-FUS1 113152 Fuse
9
/32" x 1¼"
WHSS-FHD 113144 Fuse Holder ¼" x 1¼"
WHSS-HP6 113161
Hot Plate with
Heating Element
6" x 15"
WHSS-HP8 113187 8" x 15"
WHSS-TC6 113232
Teflon Cover
6" x 15"
WHSS-TC8 113241 8"x15"
WHSS-E 113128 Heating Element Only
9
/32" x 11¼"
WHSS-A 113056 Film Axle ¾" x 22"
WHSS-CAP 113081 Core Adapter / Pin Unit 3" I.D. Roll
WHSS-CAW 113099 Core Adapter / Wing Unit 3" I.D. Roll-Threaded
WHSS-RS 113224 Lighted Rocker Switch 1¼" x ½"
WHSS-BB 113072 Bearing Blocks Bearing Blocks
WHSS-PFG 128961
Film Guide Rod with Plastic
Cover
7/16" x 23"
WHSS-EWC 113136 Electric Wire Per Foot
UPS and the UPS brandmark are trademarks that are used with
permission by the owner, United Parcel Service of America, Inc.
All rights reserved.
Freight Class:70
