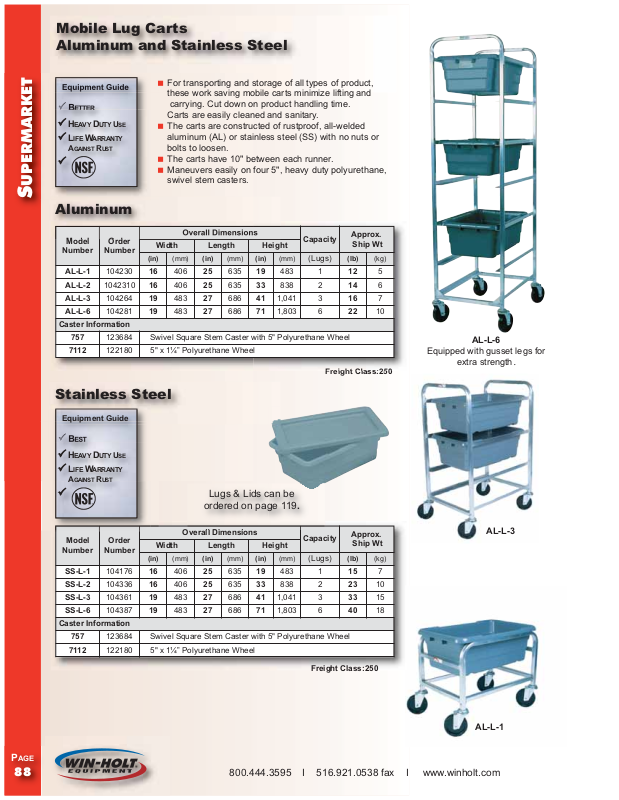

Win-Holt AL-L-1 User Manual
SUPERMARKET
PAGE
88
800.444.3595 I 516.921.0538 fax I www.winholt.com
Freight Class:250
BETTER
HEAVY DUTY USE
LIFE WARRANTY
AGAINST RUST
Equipment Guide
Mobile Lug Carts
Aluminum and Stainless Steel
AL-L-6
Equipped with gusset legs for
extra strength.
AL-L-1
AL-L-3
For transporting and storage of all types of product,
these work saving mobile carts minimize lifting and
carrying. Cut down on product handling time.
Carts are easily cleaned and sanitary.
The carts are constructed of rustproof, all-welded
aluminum (AL) or stainless steel (SS) with no nuts or
bolts to loosen.
The carts have 10" between each runner.
Maneuvers easily on four 5", heavy duty polyurethane,
swivel stem casters.
Model
Number
Order
Number
Overall Dimensions
Capacity
Approx.
Ship Wt
Width Length Height
(in) (mm) (in) (mm) (in) (mm)
(Lugs)
(lb)
(kg)
SS-L-1 104176 16 406 25 635 19 483 1 15 7
SS-L-2 104336 16 406 25 635 33 838 2 23 10
SS-L-3 104361 19 483 27 686 41 1,041 3 33 15
SS-L-6 104387 19 483 27 686 71 1,803 6 40 18
Caster Information
757 123684 Swivel Square Stem Caster with 5" Polyurethane Wheel
7112 122180 5" x 1¼” Polyurethane Wheel
Lugs & Lids can be
ordered on page 119.
Model
Number
Order
Number
Overall Dimensions
Capacity
Approx.
Ship Wt
Width Length Height
(in) (mm) (in) (mm) (in) (mm)
(Lugs)
(lb) (kg)
AL-L-1 104230 16 406 25 635 19 483 1 12 5
AL-L-2 1042310 16 406 25 635 33 838 2 14 6
AL-L-3 104264 19 483 27 686 41 1,041 3 16 7
AL-L-6 104281 19 483 27 686 71 1,803 6 22 10
Caster Information
757 123684 Swivel Square Stem Caster with 5" Polyurethane Wheel
7112 122180 5" x 1¼” Polyurethane Wheel
Aluminum
Stainless Steel
Freight Class:250
BEST
HEAVY DUTY USE
LIFE WARRANTY
AGAINST RUST
Equipment Guide
