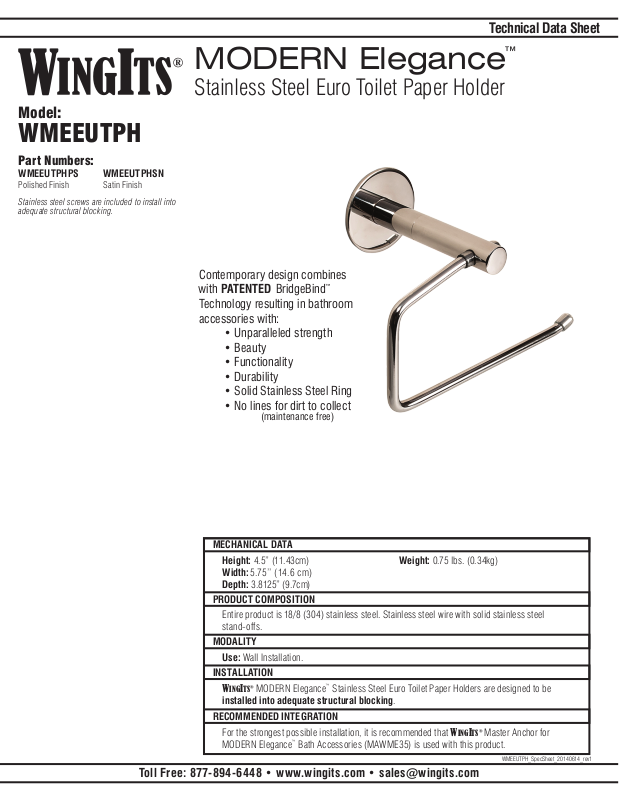

WINGITS WMEEUTPHSNPS User Manual

Technical Data Sheet

Model:

WMEEUTPH

Part Numbers:

WMEEUTPHPS

Polished Finish

Stainless steel screws are included to install into
adequate structural blocking.

WMEEUTPHSN

Satin Finish

MODERN Elegance

Stainless Steel Euro Toilet Paper Holder

Contemporary design combines

with PATENTED BridgeBind

Technology resulting in bathroom
accessories with:

• Unparalleled strength

• Beauty

• Functionality

• Durability

• Solid Stainless Steel Ring

• No lines for dirt to collect

(maintenance free)

™

™

MECHANICAL DATA

Height: 4.5” (11.43cm)
Width: 5.75’’ (14.6 cm)
Depth: 3.8125” (9.7cm)

PRODUCT COMPOSITION

Entire product is 18/8 (304) stainless steel. Stainless steel wire with solid stainless steel
stand-offs.

MODALITY

Use: Wall Installation.

INSTALLATION

®

INGITS

W

installed into adequate structural blocking.

RECOMMENDED INTEGRATION

For the strongest possible installation, it is recommended that W
MODERN Elegance™ Bath Accessories (MAWME35) is used with this product.

MODERN Elegance™ Stainless Steel Euro Toilet Paper Holders are designed to be

Weight: 0

.75 lbs. (0.34kg)

INGITS

Toll Free: 877-894-6448 • www.wingits.com • [e-mail]

®

Master Anchor for

WMEEUTPH_SpecSheet_20140614_rev1

Technical Data Sheet

FRONT

TOP

4.5’’ (11.43 cm)

3.8125" (9.7cm)

BACK

4.5’’ (11.43 cm)

5.75’’ (14.6 cm) 5.75’’ (14.6 cm)

SIDE

4.5’’ (11.43 cm)

5.75’’ (14.6 cm)

Use the Toilet Paper Holder as its

own template. Put pin to wall

to mark drilling location.

INCLUDED HARDWARE OPTIONAL HARDWARE

3M® Waterproof ME Tape x 1 S/S Screw for Blocking x 1 Allen Wrench x 1 Set Screw x 1

3.8125" (9.7cm)

(Sold Separately)

WINGITS® Master Anchor for MODERN Elegance

Bath Accessories (MAWME35) x 1

™

Toll Free: 877-894-6448 • www.wingits.com • [e-mail]

WMEEUTPH_SpecSheet_20140620_rev1
