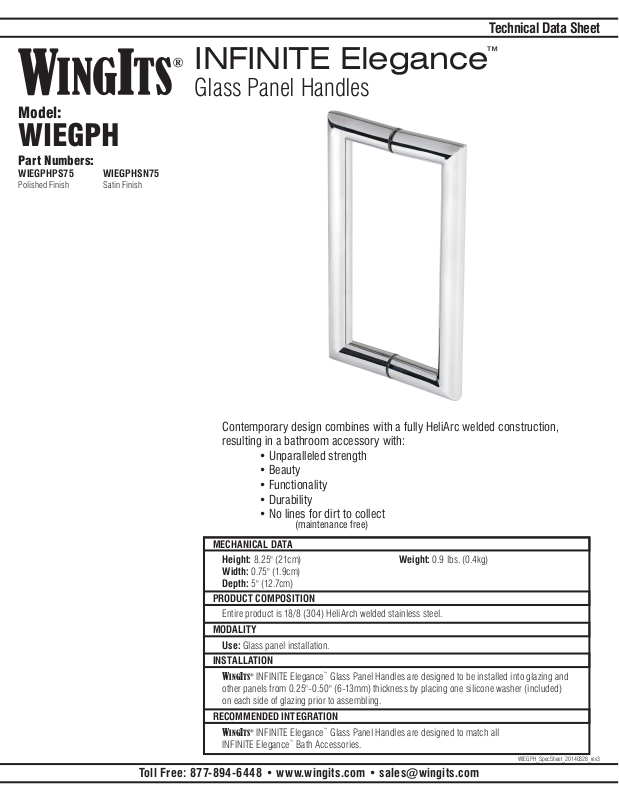

WINGITS WIEGPH User Manual

Technical Data Sheet

Model:

WIEGPH

Part Numbers:

WIEGPHPS75

Polished Finish

WIEGPHSN75

Satin Finish

INFINITE Elegance

™

Glass Panel Handles

Contemporary design combines with a fully HeliArc welded construction,
resulting in a bathroom accessory with:

• Unparalleled strength

• Beauty

• Functionality

• Durability

• No lines for dirt to collect
(maintenance free)

MECHANICAL DATA

Height: 8.25" (21cm)
Width: 0.75" (1.9cm)
Depth: 5" (12.7cm)

PRODUCT COMPOSITION

Entire product is 18/8 (304) HeliArch welded stainless steel.

MODALITY

Use: Glass panel installation.

INSTALLATION

WINGITS® INFINITE Elegance™ Glass Panel Handles are designed to be installed into glazing and

other panels from 0.25"-0.50" (6-13mm) thickness by placing one silicone washer (included)
on each side of glazing prior to assembling.

RECOMMENDED INTEGRATION

WINGITS® INFINITE Elegance™ Glass Panel Handles are designed to match all

INFINITE Elegance™ Bath Accessories.

Toll Free: 877-894-6448 • www.wingits.com • [e-mail]

Weight: 0.9 lbs. (0.4kg)

WIEGPH_SpecSheet_20140328_rev3

0.75" (1.9cm) 2.375" (6cm)

FRONT SIDE

Technical Data Sheet

8.25" (21cm)

7.5" (19.1cm) mount hole centers

Glass Thickness: 0.25" - 0.5" (6-13mm)

INCLUDED HARDWARE

Allen Wrench x 1 Set Screw x 2 Silicone Washer x 4

Toll Free: 877-894-6448 • www.wingits.com • [e-mail]

WIEGPH_SpecSheet_20140328_rev3
