WinFast CK804K8MA User Manual

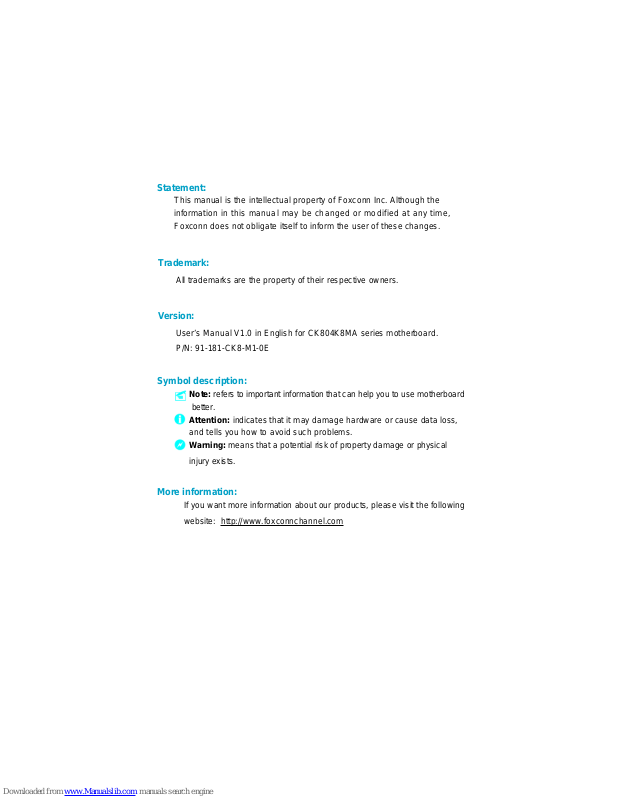

This manual is the intellectual property of Foxconn Inc. Although the
information in this manual may be changed or modified at any time,
Foxconn does not obligate itself to inform the user of these changes.
Statement:
All trademarks are the property of their respective owners.
User’s Manual V1.0 in English for CK804K8MA series motherboard.
P/N: 91-181-CK8-M1-0E
Symbol description:
Note: refers to important information that can help you to use motherboard
better.
Attention: indicates that it may damage hardware or cause data loss,
and tells you how to avoid such problems.
Warning: means that a potential risk of property damage or physical
injury exists.
More information:
If you want more information about our products, please visit the following
website:
http://www.foxconnchannel.com
Version:
Trademark:
Item Checklist:
Thank for your purchasing WinFast CK804K8MA series motherboard. Please
check the package; if there are missing or damaged items, contact your distributor as soon as possible.
CK804K8MA series motherboard (x1)
WinFast Utility CD (x1)
User’s Manual (x1)
IDE Ribbon cable (x1)
FDD Ribbon cable (x1)
I/O Shield (x1)
S-ATA Signal Cable (x2)
S-ATA Power Cable (x1)
Retention Mechanism (x1)
USB 2.0 Cable (x1) (optional)
Declaration of conformity
HON HAI PRECISION INDUSTRY COMP ANY L TD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard
CK804K8MA
is in conformity with
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
EN 55022/A1: 2000 Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
EN 61000-3-2/A14:2000 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current <= 16A per phase)
EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage fluctuations and flicker in low-voltage
supply systems for equipment with rated current <= 16A
EN 55024/A1:2001 Information technology equipment-Immunity characteristics limits
and methods of measurement
Signature : Place / Date : T AIPEI/2004
Printed Name : James Liang Position/ Title : Assistant President
Declaration of conformity
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2004
Main Features .............................................................................................. 2
Motherboard Layout .................................................................................... 4
Installation Instructions
CPU.............................................................................................................. 7
Memory .......................................................................................................11

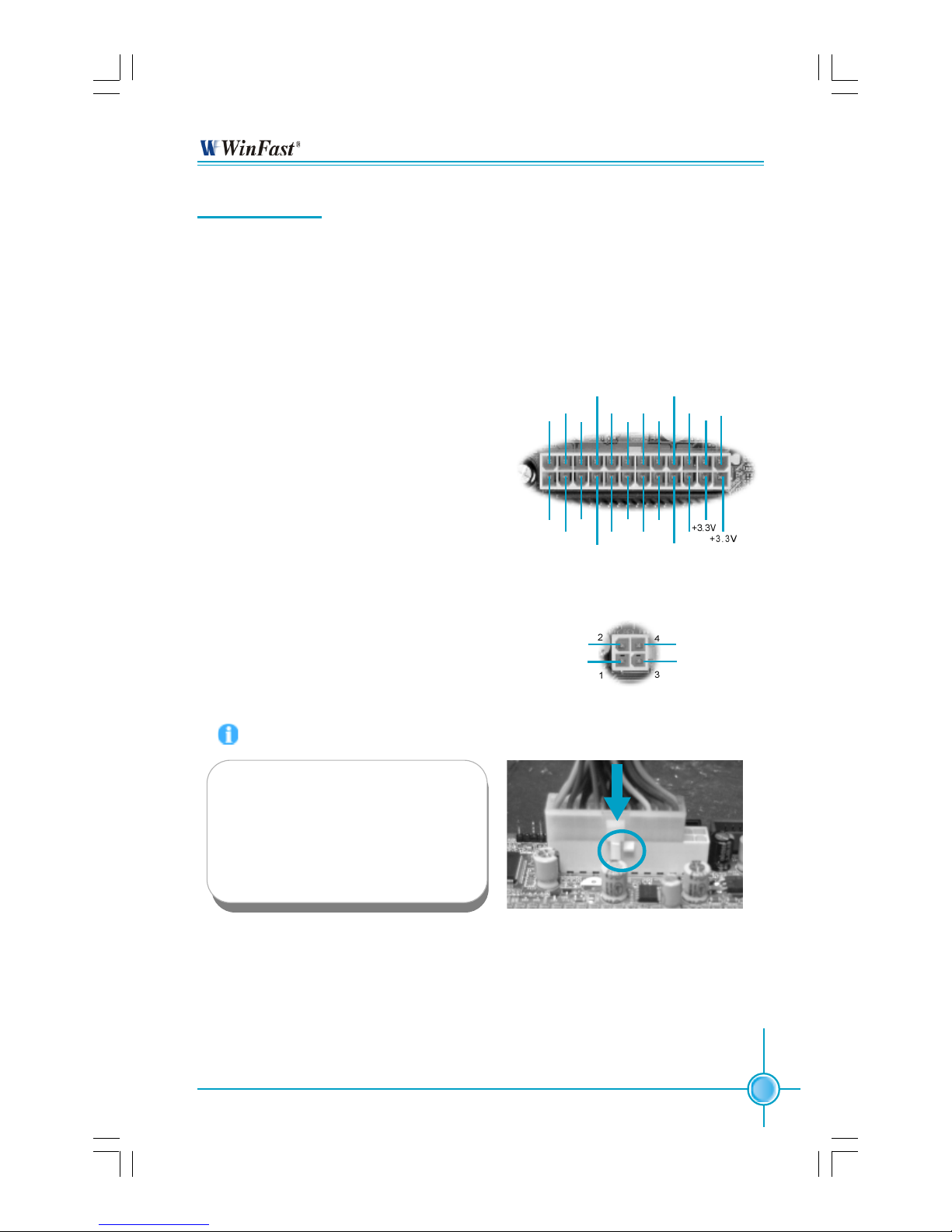

Power Supply ............................................................................................ 13
Rear Panel Connectors .............................................................................. 14
Other Connectors ...................................................................................... 16
Expansion Slots ......................................................................................... 20

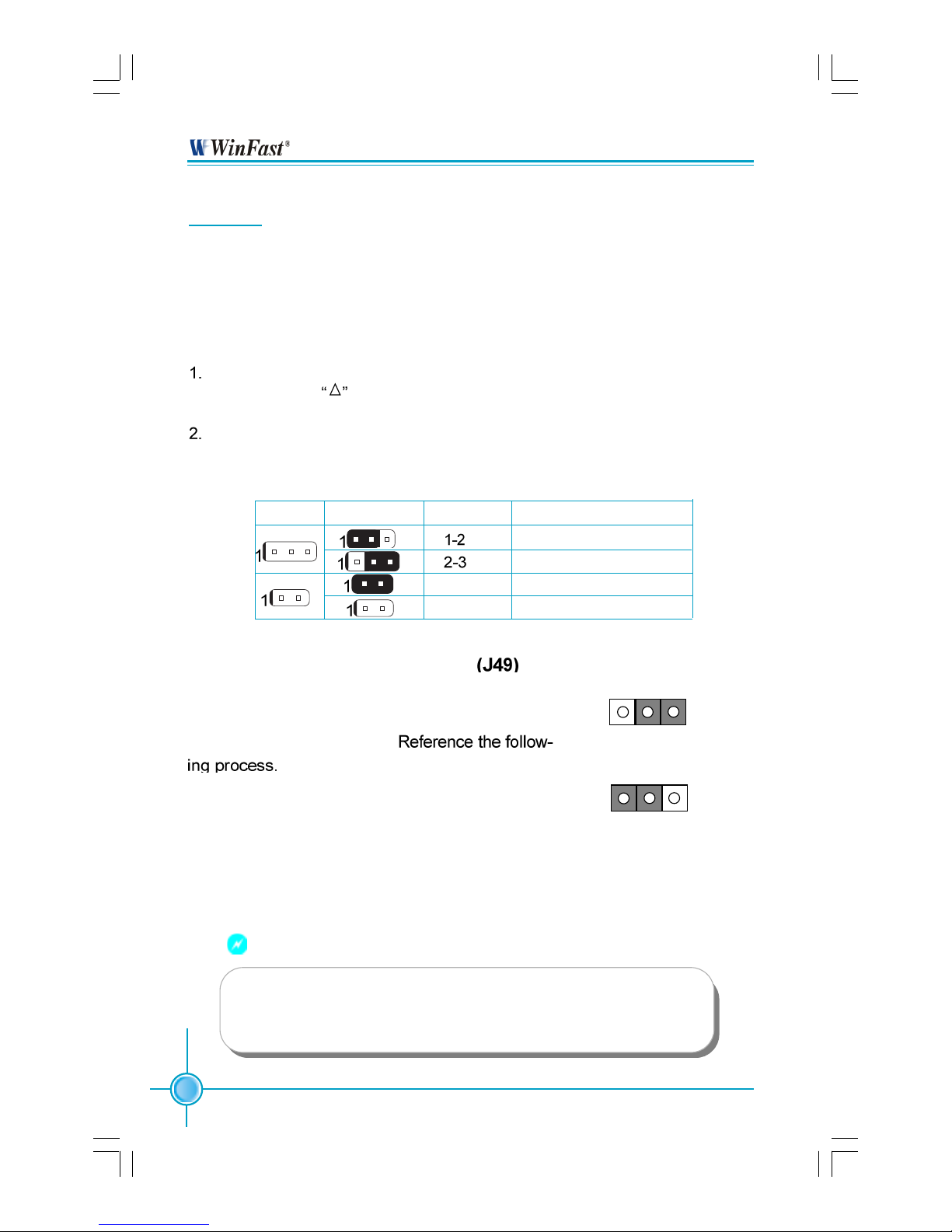

Jumpers..................................................................................................... 22
BIOS Description
Enter BIOS Setup ....................................................................................... 26

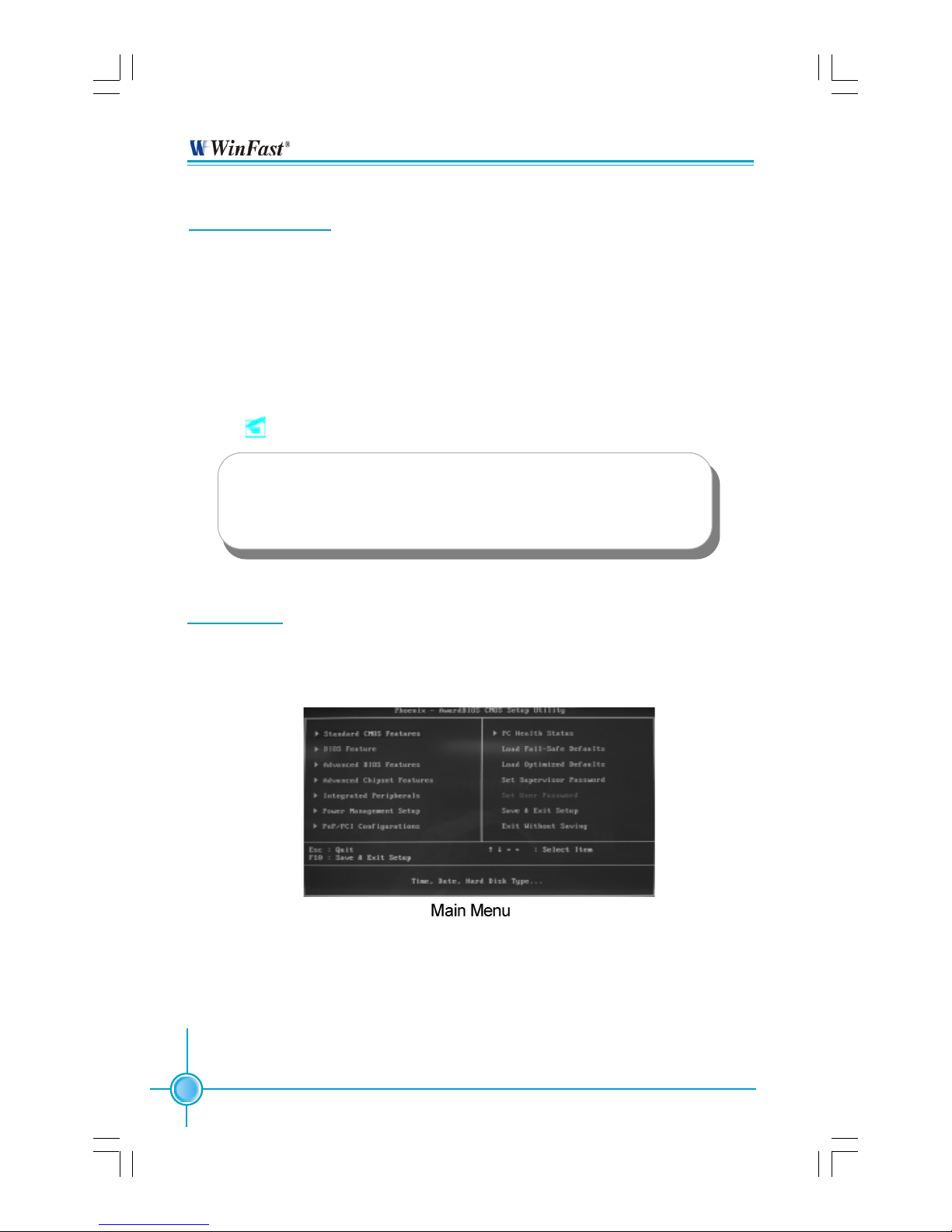

Main menu ................................................................................................. 26

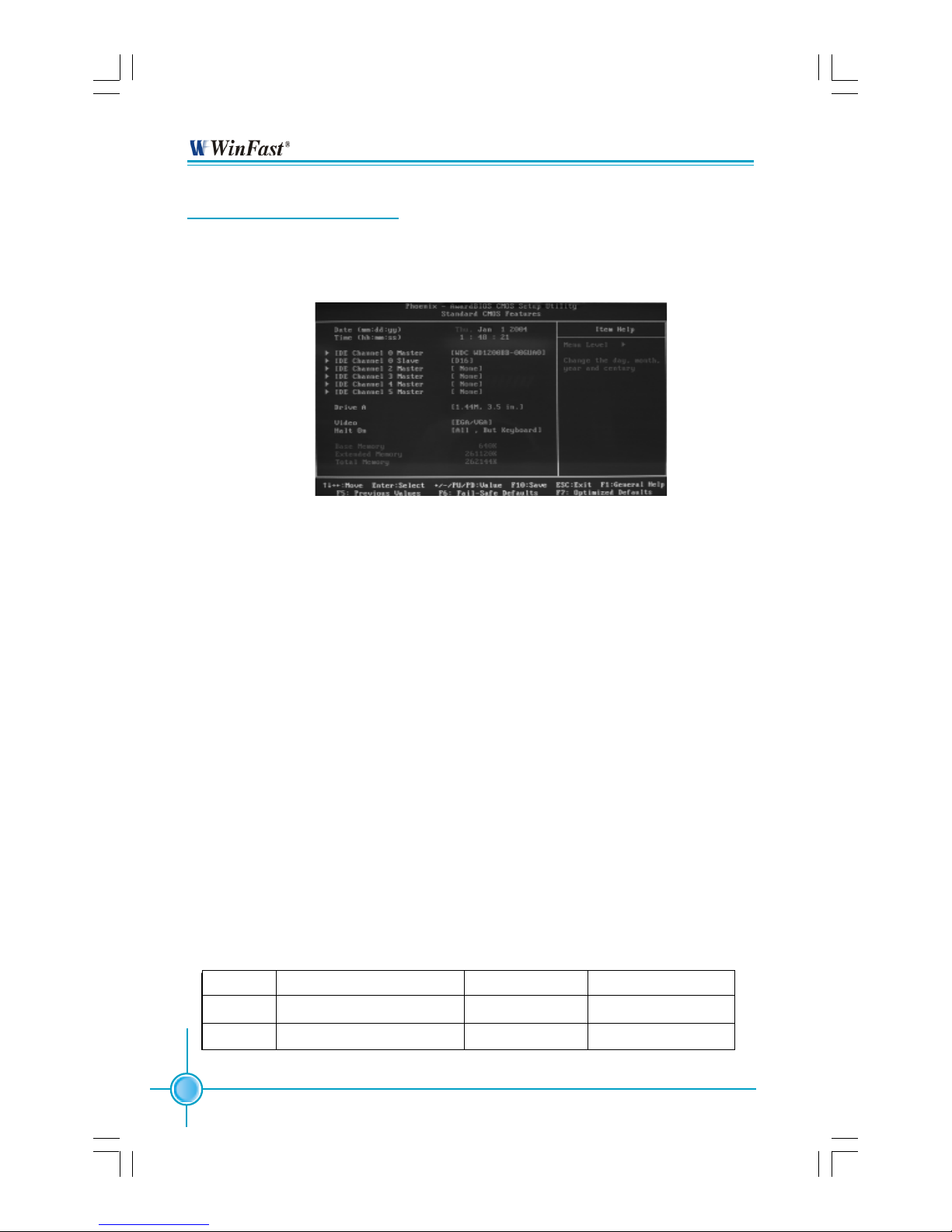

Standard CMOS Features .......................................................................... 28

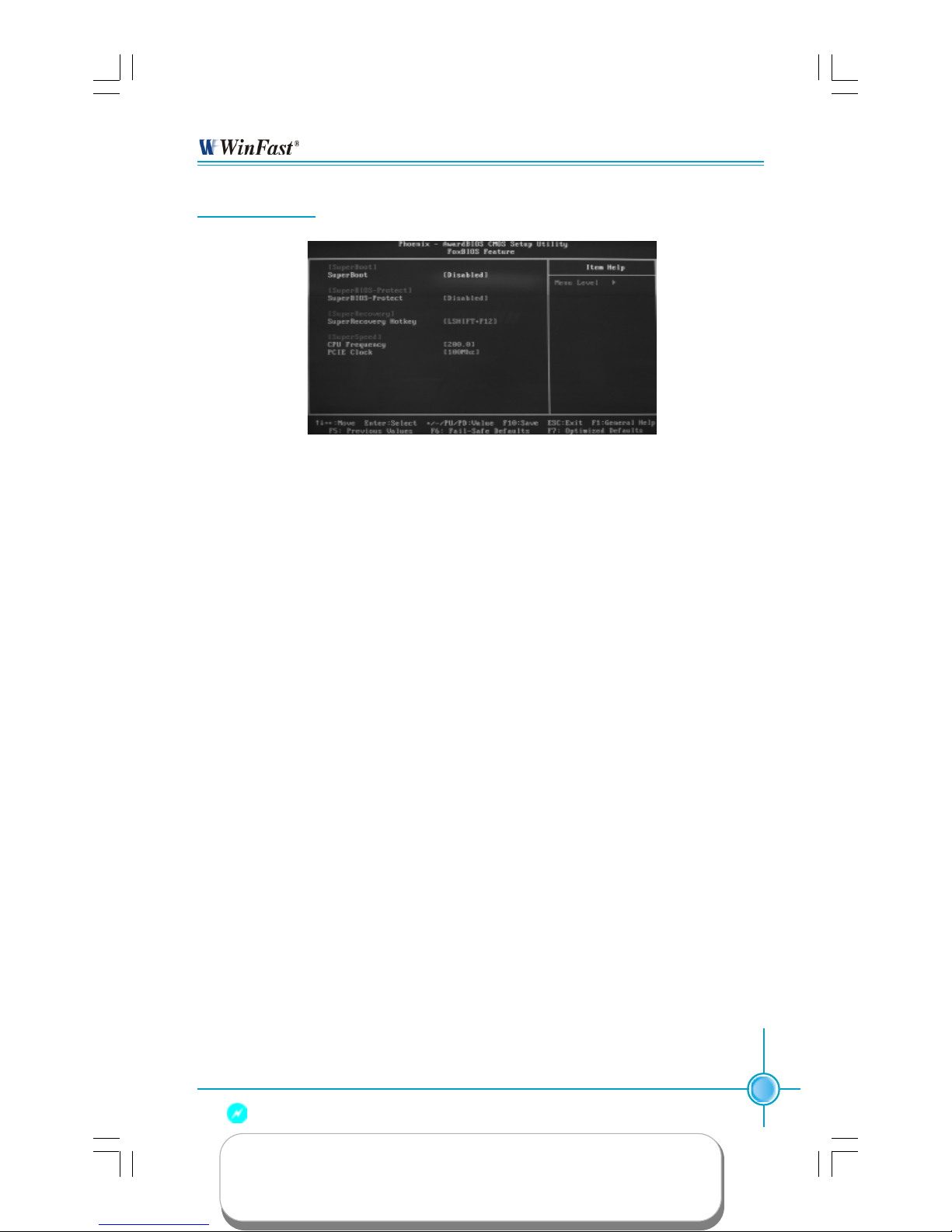

BIOS Feature ............................................................................................. 31

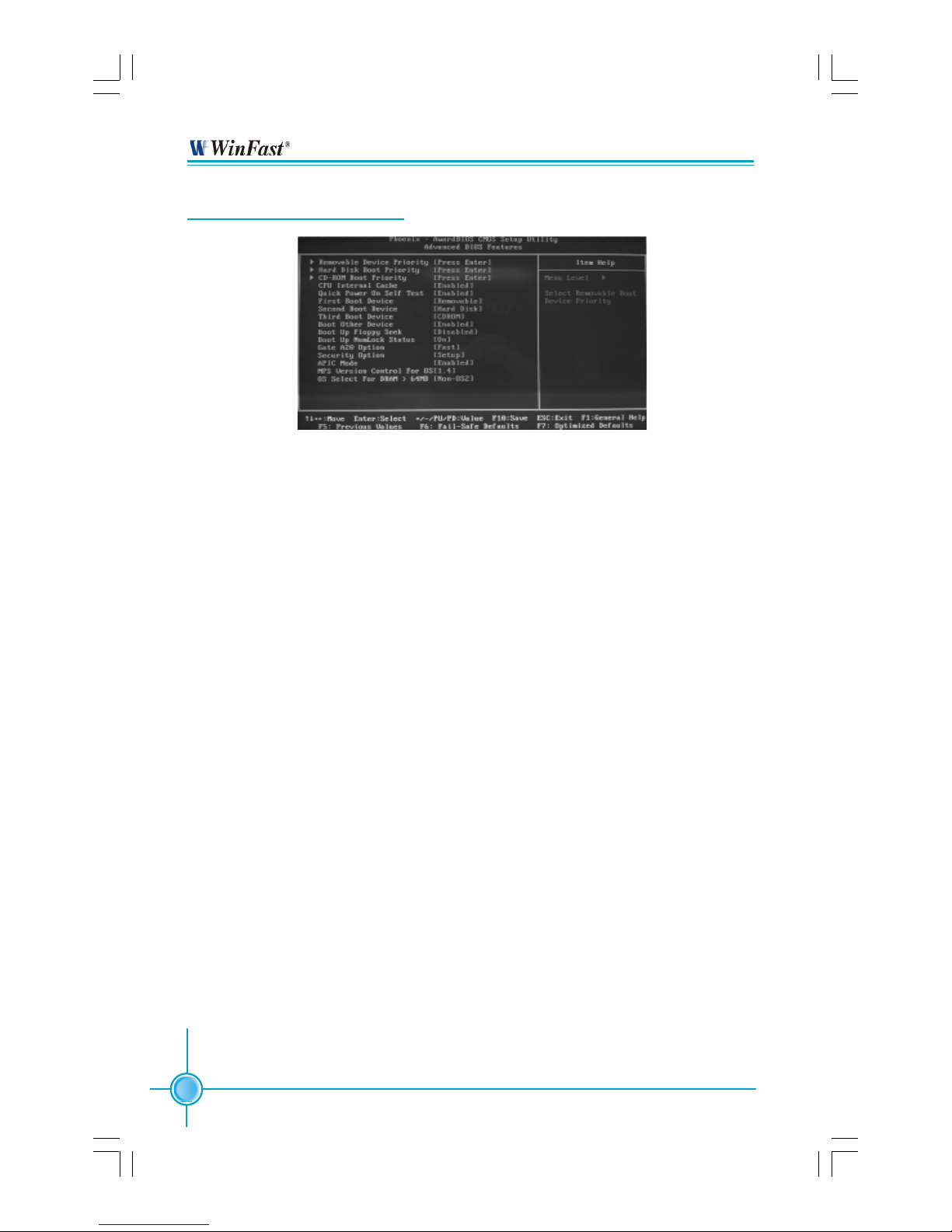

Advanced BIOS Features .......................................................................... 32

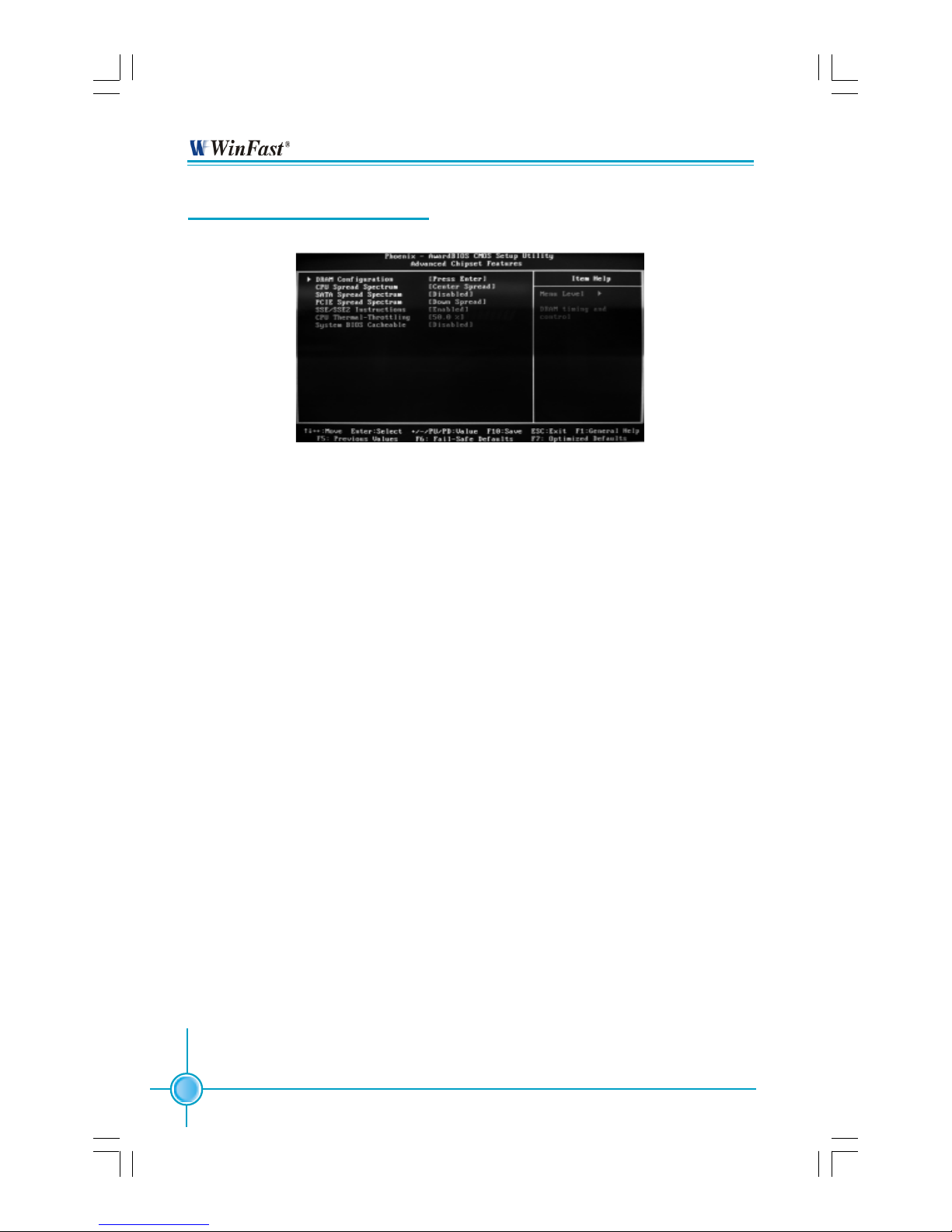

Advanced Chipset Features ...................................................................... 34

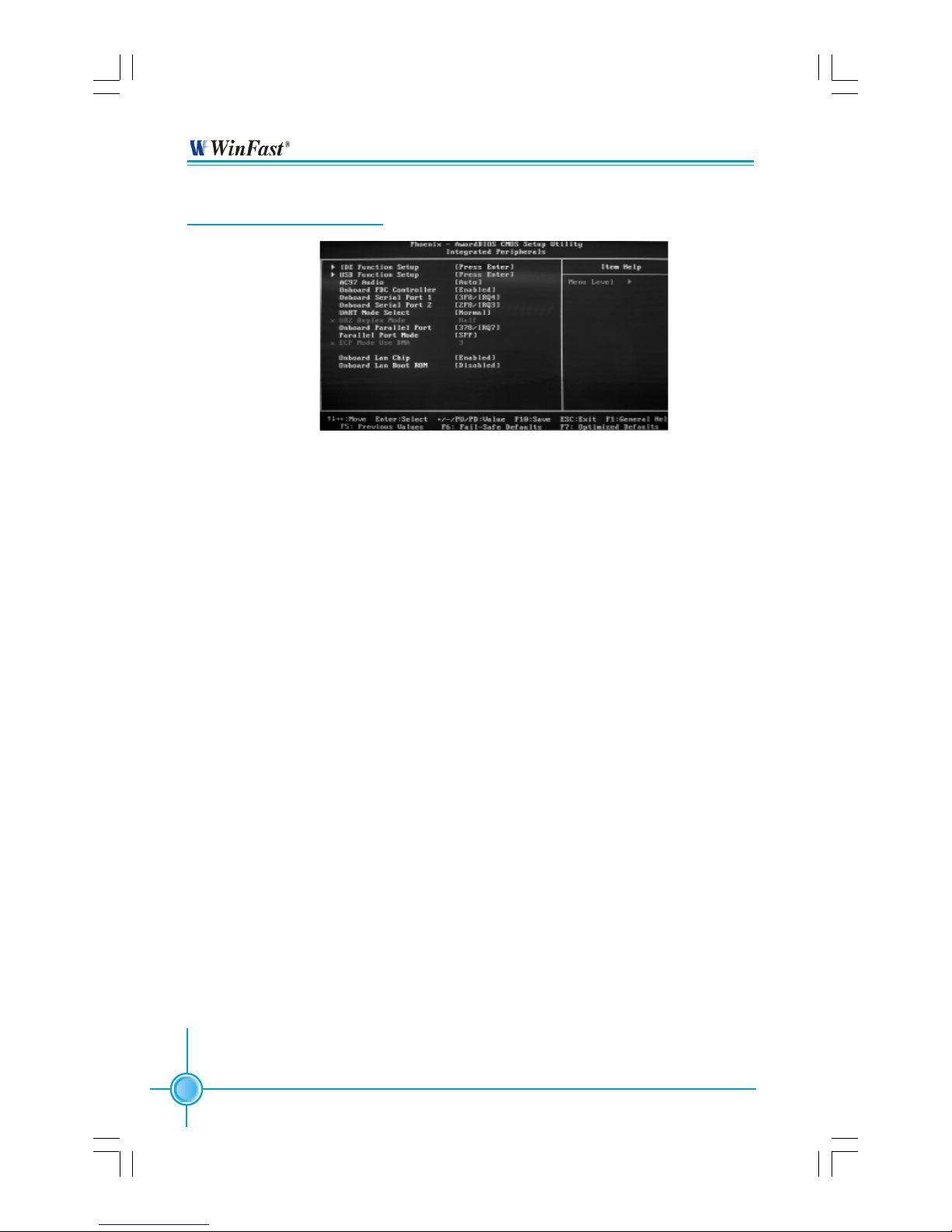

Integrated Peripherals ................................................................................ 36

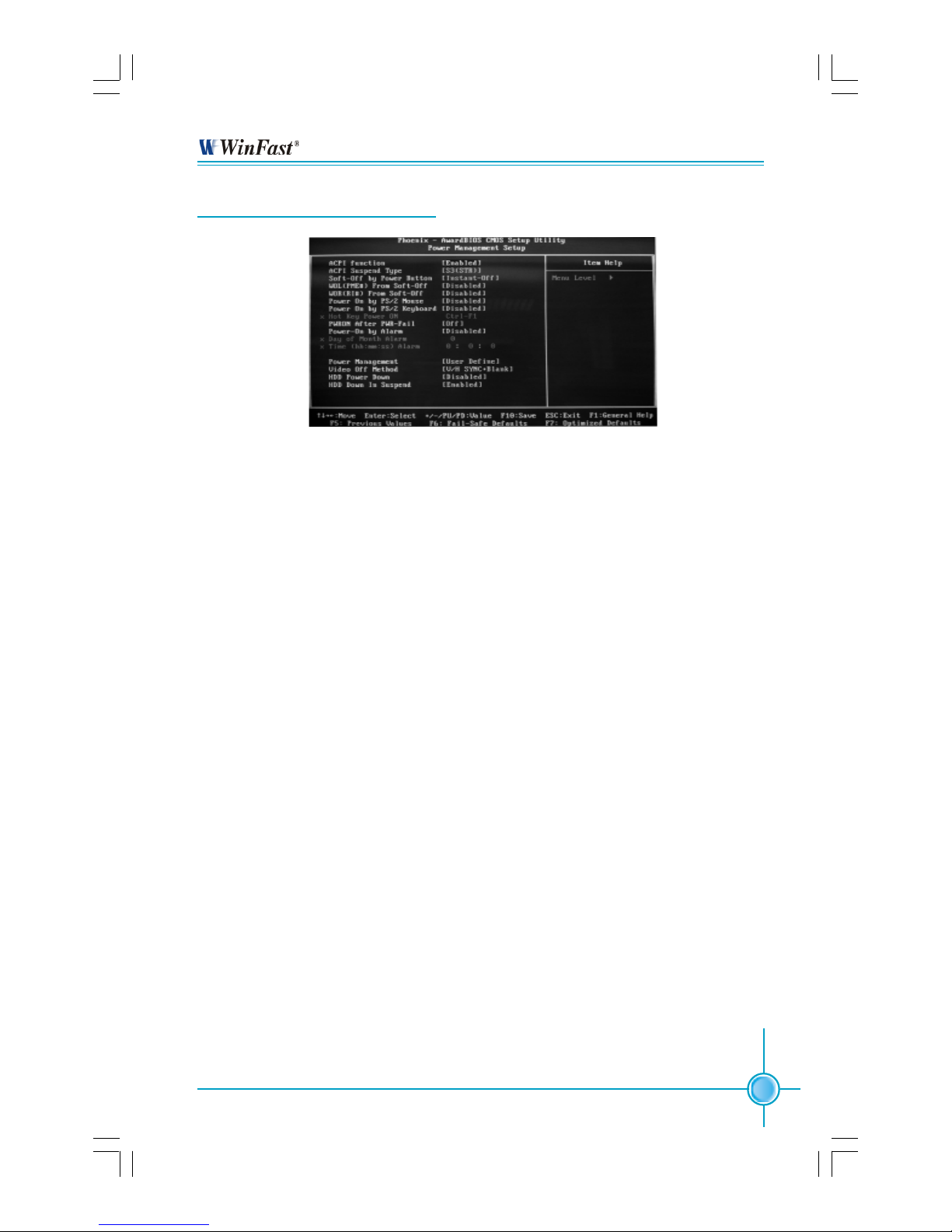

Power Management Setup ......................................................................... 39

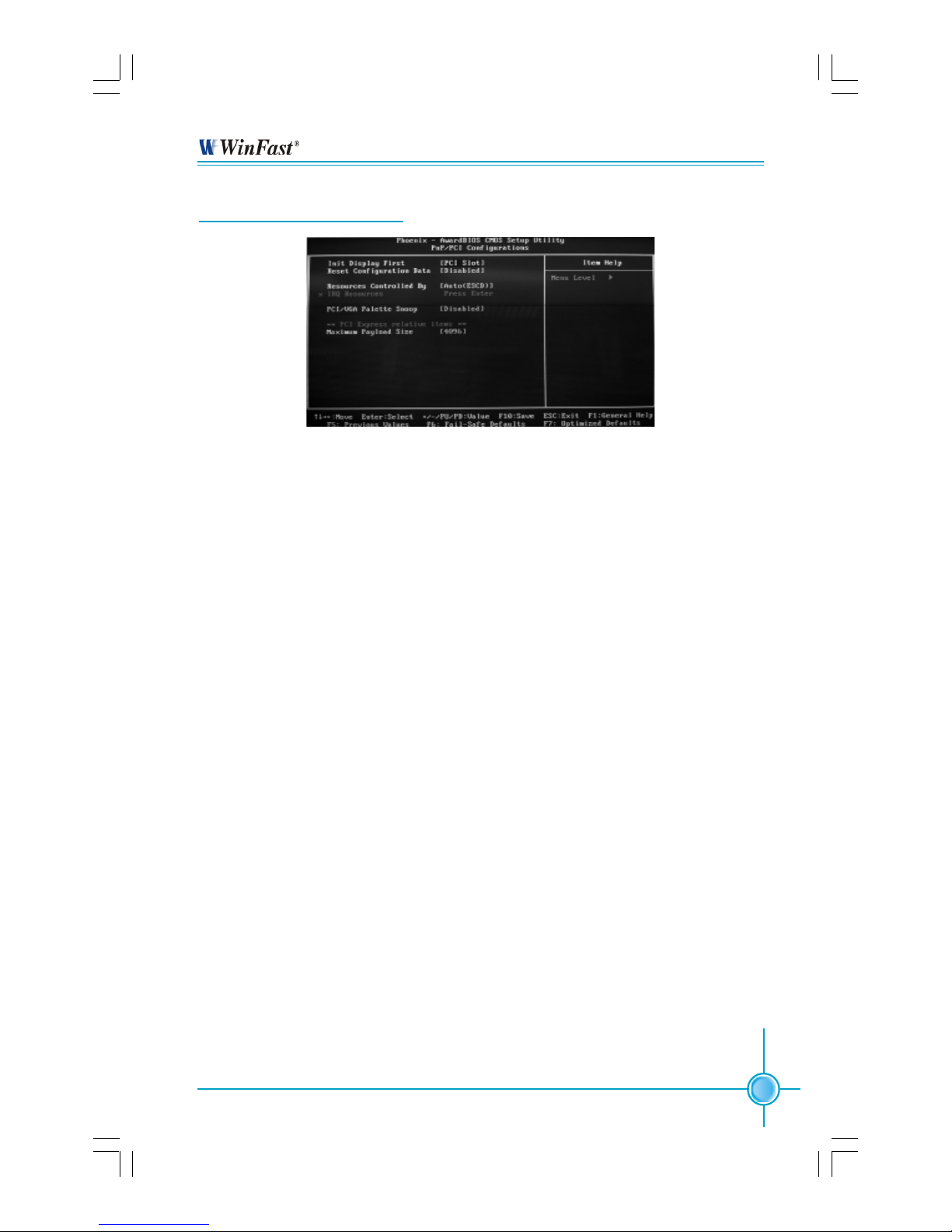

PnP/PCI Configurations............................................................................... 41

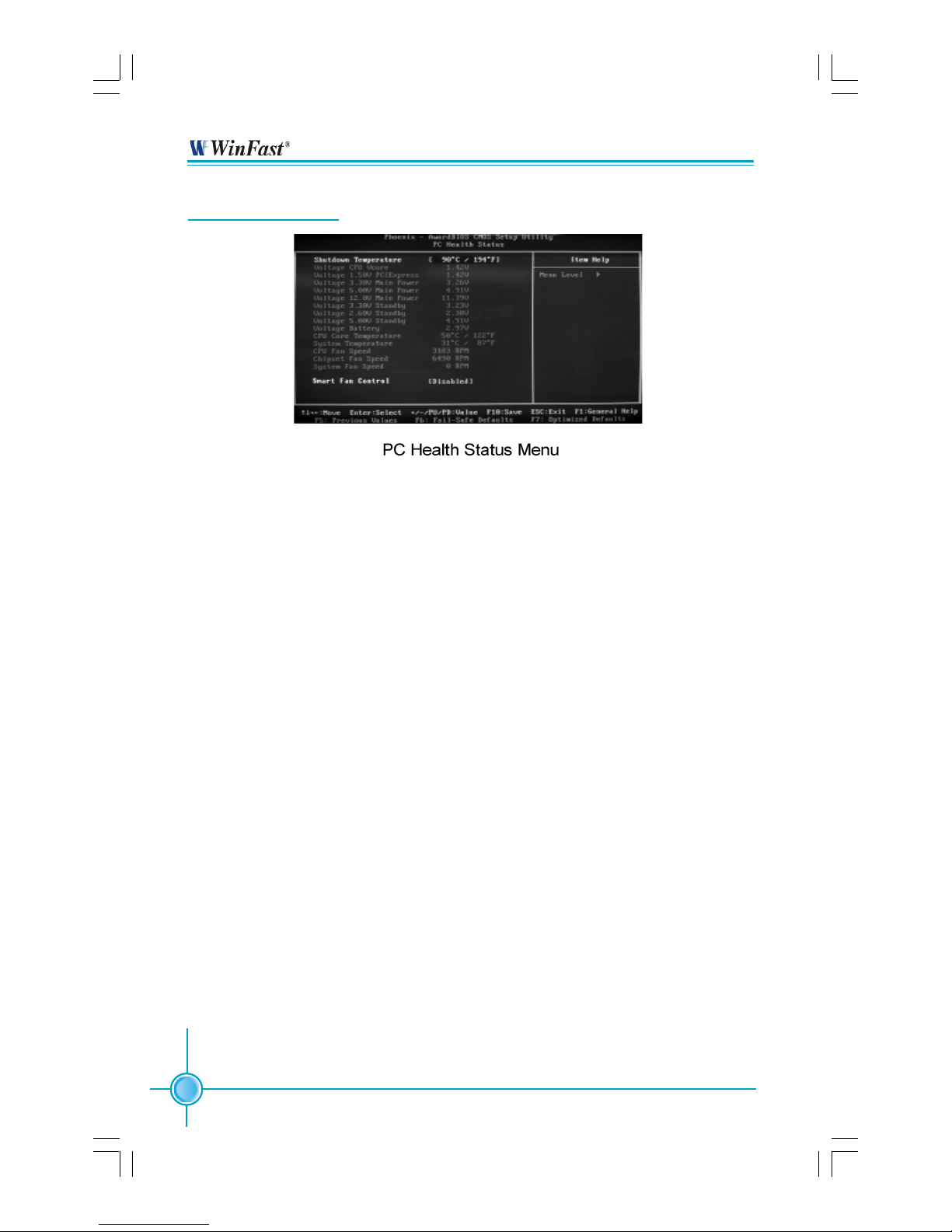

PC Health Status ........................................................................................ 42
Load Fail-Safe Defaults ............................................................................. 43
Load Optimized Defaults ............................................................................ 43
Set Supervisor/User Password ................................................................. 43
Save & Exit Setup ...................................................................................... 44
Exit Without Saving .................................................................................... 44
Table of Contents
Chapter
Chapter
Chapter
Product Introduction

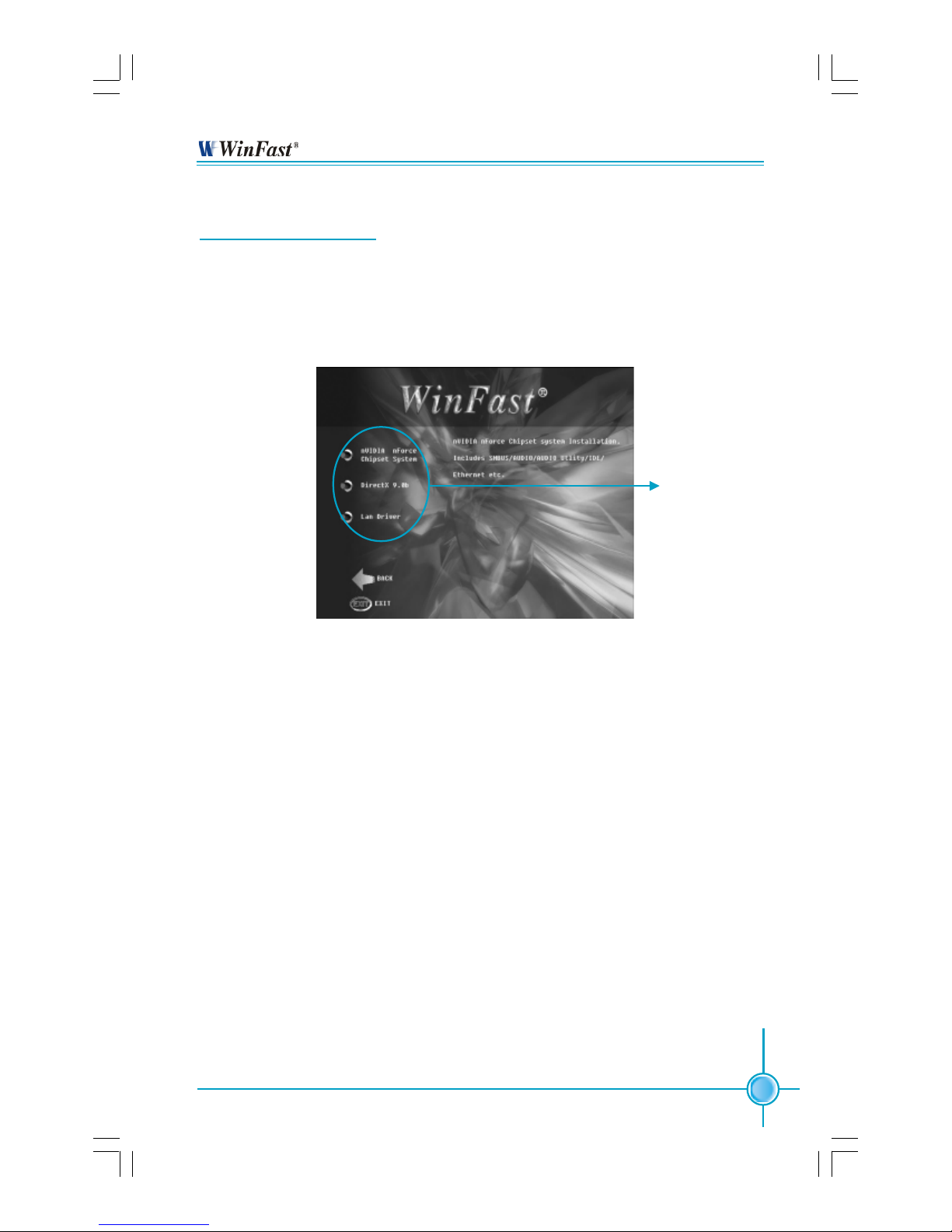

Driver CD Introduction
Utility CD content........................................................................................
Start to install drivers .................................................................................
Table of Contents
Chapter
1. Attach the CPU and heatsink using silica gel to ensure full contact.
2. It is suggested to select high-quality, certified fans in order to avoid
damage to the motherboard and CPU due to high temperature.
3. Never turn on the machine if the CPU fan is not properly installed.
4. Ensure that the DC power supply is turned off before inserting or re
moving expansion cards or other peripherals, especially when you
insert or remove a memory module. Failure to switch off the DC power
supply may result in serious damage to your system or memory
module.
Warning:
We cannot guarantee that your system will operate normally while
overclocked. Normal operation depends on the overclock capacity of
your device.
Warning:
Attention:
Since BIOS programs are upgraded from time to time, the BIOS description in this manual is just for reference. We do not guarantee that
the content of this manual will remain consistent with the actual BIOS
version at any given time in the future.
Attention:
The pictures of objects used in this manual are just for your reference.
Please refer to the physical motherboard.
This manual is suitable for motherboard of CK804K8MA series.
Each motherboard is carefully designed for the PC user who
wants diverse features.
-L with onboard 100M LAN
-K with onboard 1G LAN
-6 with 6-channel audio
-8 with 8-channel audio
-E with 1394
-S with SAT A
-R with RAID
You can find PPID label on the motherboard. It indicates the
functions that the motherboard has.
For example:
On the blue mark of the PPID label, it means the
motherboard supports 6-channel Audio (-6), 1394 port (-E),
onboard 100M LAN (-L), SATA function (-S).
Chapter
Thank you for buying WinFast CK804K8MA series
motherboard. This series of motherboard is one of our new
products, and offers superior performance, reliability and
quality, at a reasonable price. This motherboard adopts the
advanced nForce4 chipset, providing users a computer plat-
form with a high integration-compatibility-performance price
ratio.
This chapter includes the following information:
Main Features
Motherboard Layout
1
1
CK804K8MA-manual-V1.0-111704.p65 2004-11-19, 14:511
Chapter 1 Product Introduction
2
CK804K8MA Series User Manual
Main Features
Size:
mATX form factor of 9.6” x 9.6”
Microprocessor:
Supports AMD Athlon
TM
64, Athlon
TM
64FX family processors
Supports HyperTransport technology
Chipset:
nVIDIA chipset: nForce4
System Memory
Two 184-pin DDR DIMM slots
Supports PC3200/2700/2100 memory
Supports 128/256/512/1024Mb technology up to 2GB
USB 2.0 Port
Supports hot-plug
Eight USB 2.0 ports (four rear panel ports, two onboard USB headers
providing four extra ports)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 protocol up to 480Mbps transmission rate
Onboard Serial ATA
150MBps transfer rate
Supports four S-ATA devices
Onboard LAN (-L/-K) (optional)
Supports10/100/1000 (-K optional) Mbps Ethernet
LAN interface built-in on board
Onboard Audio
AC’ 97 2.3 Specification Compliant
Supports S/PDIF output

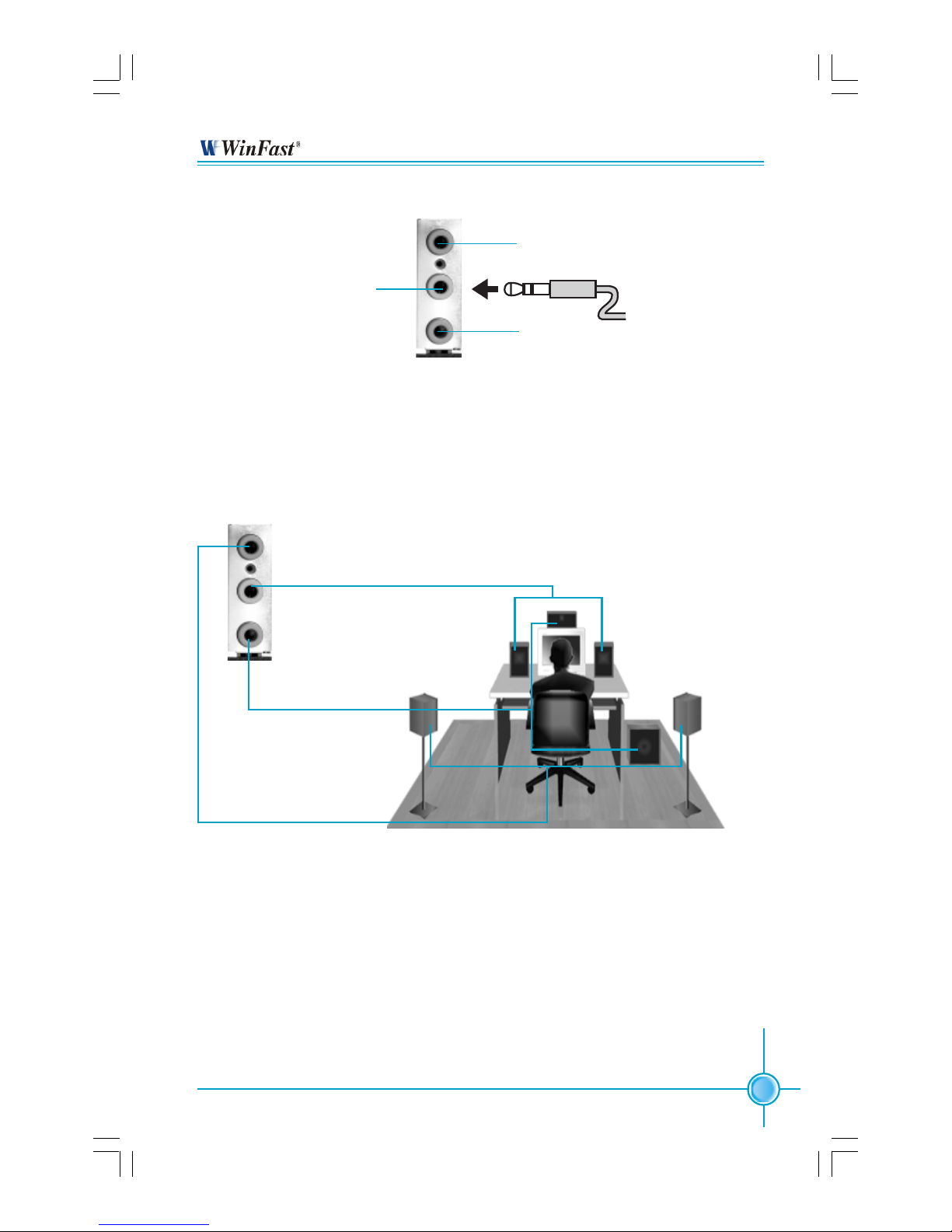

Onboard Line-in jack, Microphone-in jack, Line-out jack
Supports 6-channel audio (setting via software)
CK804K8MA-manual-V1.0-111704.p65 2004-11-19, 14:512
3
Chapter 1 Product Introduction
CK804K8MA Series User Manual
BIOS
Licensed advanced AWARD (Phoenix) BIOS, supports flash ROM, Plug-and-
Play
Supports IDE, CD-ROM, SCSI HDD or USB device boot up
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(suspend to disk-depends on OS), and S5 (soft-off) ACPI state
Expansion Slots
Two PCI slots
One PCI Express x1 slot
One PCI Express x16 Graphics slot
Advanced Features
PCI 2.3 Specification Compliant
Supports PC Health function (capable of monitoring system voltage, CPU/
system temperature, and fan speed)
CK804K8MA-manual-V1.0-111704.p65 2004-11-19, 14:513
Chapter 1 Product Introduction
4
CK804K8MA Series User Manual
Motherboard Layout
Note:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
SPDIF_OUT
Connector
Speaker Connector
PCI Expansion Slots
PCI Express x16 Slot

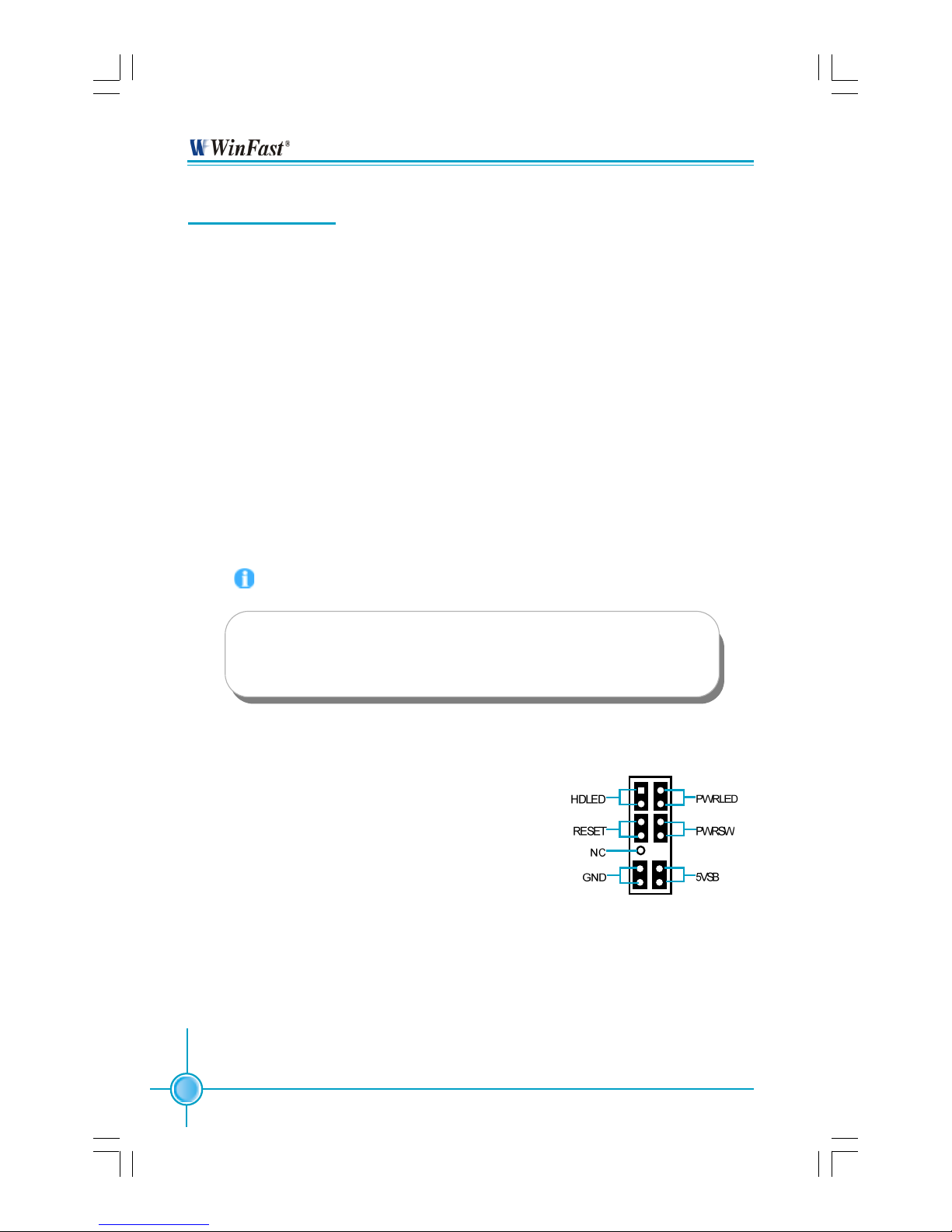

Front Panel Connector
184-pin DIMM Slots

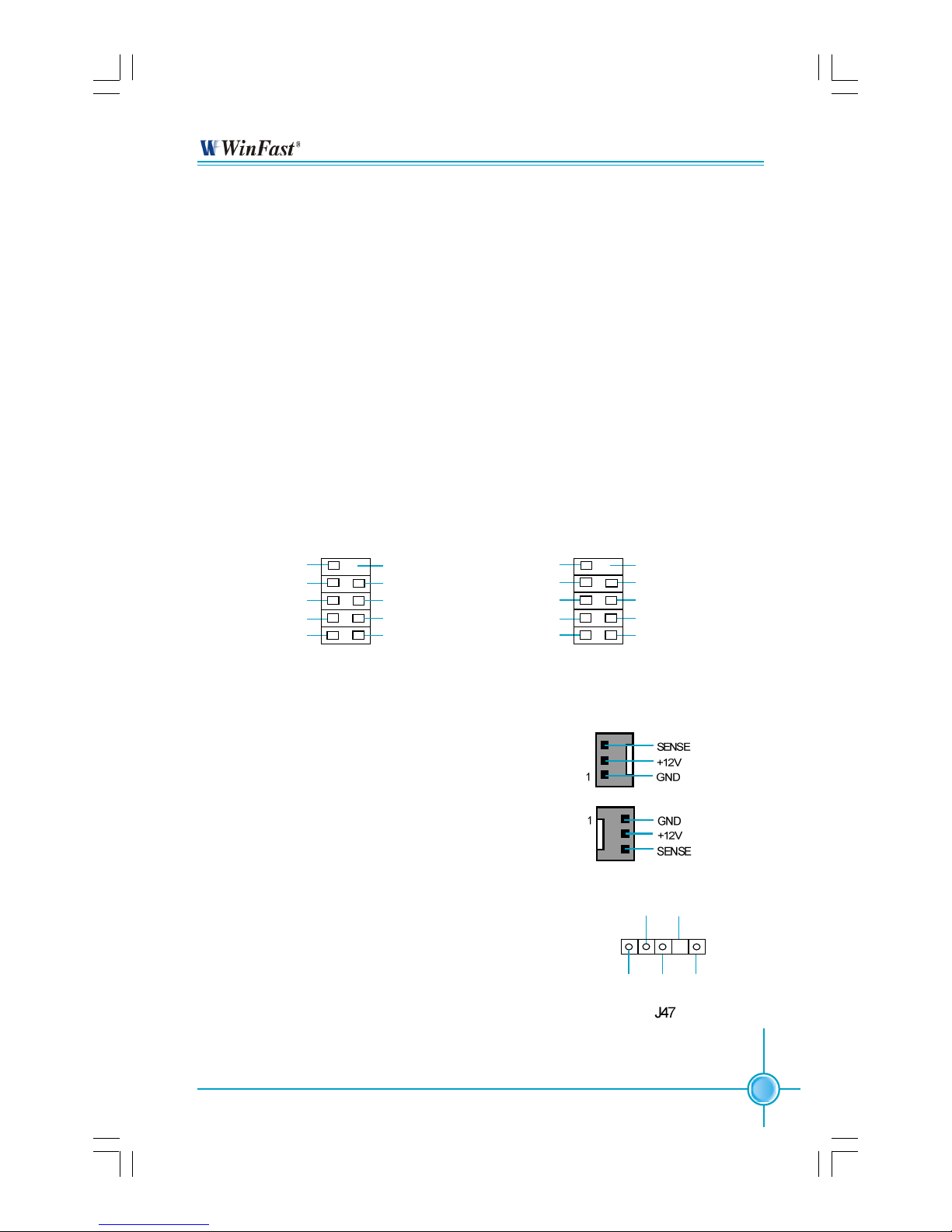

CPU_FAN Connector
Socket 939
USB2.0 Connectors
Front Audio
Connector
ATA 133/100/66/33
IDE Connector
Chipset Fan Connector
4-pin Power Connector
CD_IN Connector
AUX_IN Connector
Chipset:
nVIDIA nForce4
Boot Block Jumper
Clear CMOS Jumper
BIOS WR
Protect Jumper
FDD
Connector
IrDR
Connector
COM2 Connector
24-pin ATX Power
Connector
SATA Connectors
System Fan Connector
PCI Express x1 slot
CK804K8MA-manual-V1.0-111704.p65 2004-11-19, 14:514
5
Chapter 1 Product Introduction
CK804K8MA Series User Manual
This chapter introduces the hardware installation process,
including the installation of the CPU and memory. It also
addresses the connection of your power supply, use of the
rear panel connectors, connection of hard drive and floppy
drive data cables, and setting up various other feature of the
motherboard. Caution should be exercised during the installation process. Please refer to the motherboard layout
prior to any installation and read the contents in this chapter
carefully.
This chapter includes the following information:
CPU
Memory
Power Supply

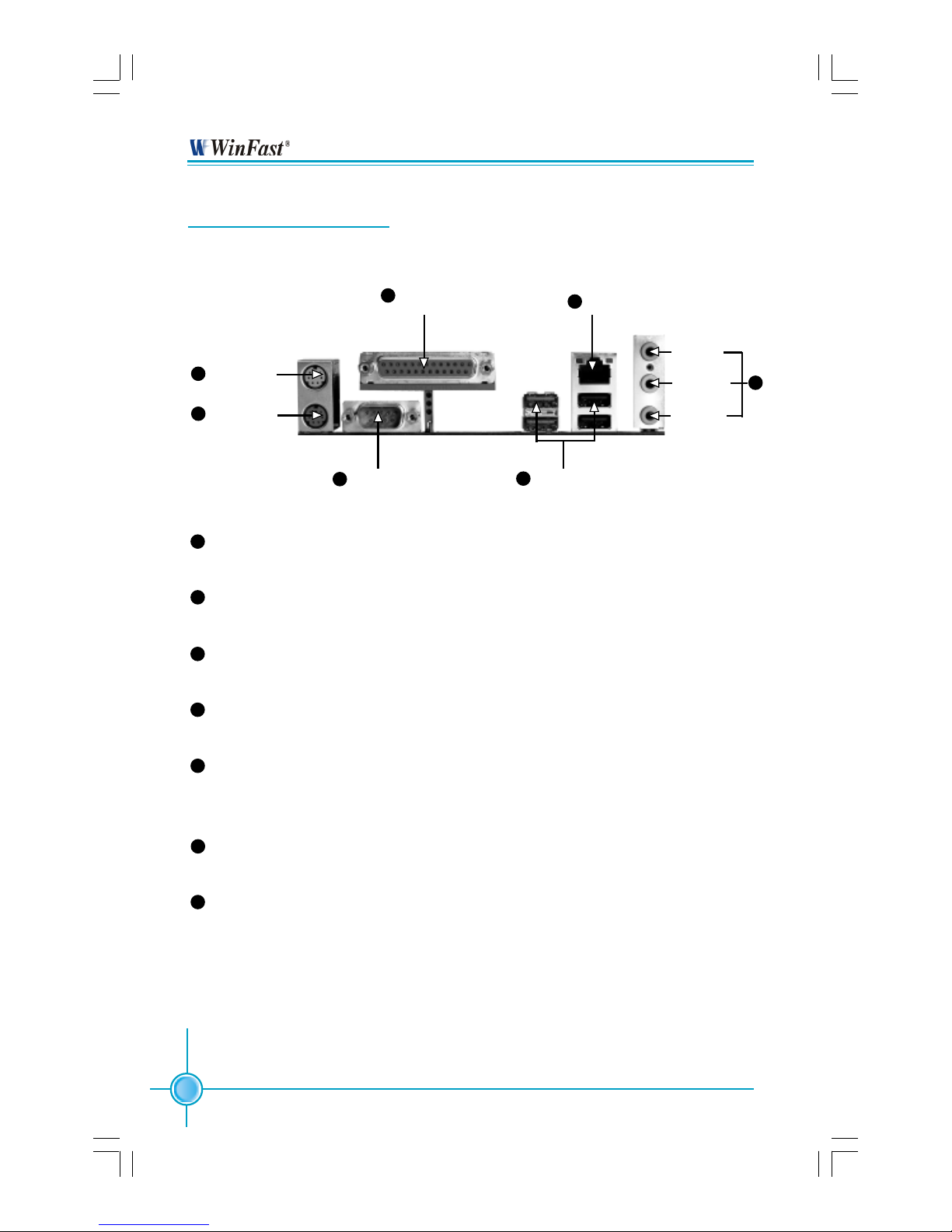

Rear Panel Connectors
Other Connectors
Expansion Slots
Jumpers
Chapter
CK804K8MA-manual-V1.0-111704.p65 2004-11-19, 14:515
6
Chapter 2 Installation Instructions
CK804K8MA Series User Manual
Take note of the following precautions before you install components
or change settings.
1. Use a grounded wrist strap or touch a safely grounded object, such
as an attached power supply, before handling components to avoid
damaging them due to static electricity.
2. Unplug the power cord before opening your chassis or touching any
components.
3. Hold components by their edges to avoid touching any exposed
integrated circuits (ICs).
4. Whenever you uninstall a component, place it on a grounded anti-
static pad or into the anti-static bag that it came in.
CK804K8MA-manual-V1.0-111704.p65 2004-11-19, 14:516
7
Chapter 2 Installation Instructions
CK804K8MA Series User Manual
This motherboard supports Athlon
TM
64, Athlon
TM
64FX family processors with
HyperTransport
TM
Technology.
1. Unlock the socket by pressing the le-
ver sideways, then lift it up to a 90
o
angle.
2. Align the cut edge to the gap in the base
of the socket. Carefully insert the CPU
into the socket until it fits in place.
When the CPU is in place, press it
firmly on the socket while you push
down the socket lever to secure the
CPU. The lever clicks on the side tab
to indicate that it is locked.
Installation of CPU
Follow these steps to install the CPU.
Push down the socket
lever to secure the CPU.
Cut edge
Gap in the base
Attention:
The CPU pins must be properly aligned with the holes in the
socket, otherwise the CPU may be damaged.
CK804K8MA-manual-V1.0-111704.p65 2004-11-19, 14:517
8
Chapter 2 Installation Instructions
CK804K8MA Series User Manual
1.Locate the CPU retention mecha-
nism base (surrounds the CPU
socket).
Installation of CPU Fan
New technology allows processors to run at higher and higher frequencies.
To avoid problems arising from high-speed operation, for example,
overheating, you need to install the proper fan. The following procedure is
provided for reference only, please refer to your CPU fan user guide for the
actual procedure.
2.If required, apply a light coating of
silica gel to the top of the CPU.
NOTE: The CPU heatsink may have
a pre-applied thermal compound. In
that case, the silica gel is not required.
CPU Fan
CPU Heatsink
CPU Retention Mechanism
CPU Retention Bracket
CPU Retention Lock
CK804K8MA-manual-V1.0-111704.p65 2004-11-19, 14:518
9
Chapter 2 Installation Instructions
CK804K8MA Series User Manual
5.Push down the retention bracket lock on the retention mechanism to secure
the heatsink and fan to module base.
6.Connect the fan’s power cable to the appropriate 3-pin terminal on the
motherboard.
4.Align the other end of the reten-
tion bracket to fasten the cooling
set on the top of the retention
mechanism.
3. Place the cooling set onto the re-
tention mechanism. Attach one end
of the retention bracket to retention
mechanism.
CK804K8MA-manual-V1.0-111704.p65 2004-11-19, 14:519
Loading...
