Winext Airnode M200C
User manual
Contents
Chapter1 M200C Introduction ....................................................................................................... 3
1. M200C Introduction .............................................................................................................. 3
2. M200C pin definition and function ....................................................................................... 4
3. M200C parameter ................................................................................................................. 5
Chapter2 M200C working principle ............................................................................................... 6
1. Hardware ............................................................................................................................... 6
2. Software ................................................................................................................................ 6
3. Application ............................................................................................................................ 6
4. Startup process ..................................................................................................................... 7
Chapter3 How to develop product based on M200C .................................................................... 9
1. Build development environment .......................................................................................... 9
2. Get through the links from bottom to top ............................................................................ 9
3. System operation ................................................................................................................ 11
4. Assembly instruction ........................................................................................................... 11
Warnings ..................................................................................................................................... 12
Chapter1 M200C Introduction
1. M200C Introduction
M200C is one IOT module developed by Winext. It is small and powerful. With Winext
cloud platform and APP, we can make home appliance access to internet and we can
control the appliance by APP in smart phones.
Cost effective
MCU is 80MHZ，and ROM is 1MB. It can support AP hotspot and STA client mode.
It supports 802.11.b/g/n，and can match most of the routers in the market.
However, the price is very competitive.
Easy to use
M200C integrate cloud server connection, near-field control, Smartconfig
configuration，RSA handshake authentication, AES data encryption, portl data
passthrough. The clients can use M200C as a normal port, and product
development can be shortened and the product will come online quickly.
Stable
M200Ccan support WIfi connection 24 hours a day. The firmware is stable and can
make sure the data transfer stably.
Safe
M200C uses RSA handshake authentication and AES data encryption. This security
Mechanism protect the data transmission.
2. M200C pin definition and function
Connector type
Connector
Function
Left
TOUT
ADC pin
CHIP_EN
XPD_DCDC/GPIO16
Deep sleep wake pin/GPIO16，3.3V/20mA
GPIO12
1 PWM output/Same as GPIO12(Internal
pull) ,3.3V/20mA
GPIO14
GPIO14 internal pull，3.3V/20mA
GPIO13
GPIO13 internal pull，3.3V/20mA
GPIO15
GPIO15default low level，internal pull，3.3V/20mA
RST
Reset
Right
GPIO0
Low level when burning
GPIO2
Debug print TX（burning Flash）
UART0_RXD
Community port U0RXD（burning flash）
UART0_TXD
Community port U0TXD
GPIO4
GPIO4 internal pull，3.3V/20mA
GPIO5
GPIO5internal pull, 3.3V/20mA
3.3V
3.3V power input pin（suggest 500mA）
GND
ground
Module
Model
M200C
Chip
CortexM4
Wireless standard
IEEE 802.11b/g/n
Frequency range
2.412GHz-2.472GHz
Transmit power
802.11b: +14 +/-2dBm (@11Mbps)
802.11g: +14 +/-2dBm (@54Mbps)
802.11n: +14 +/-2dBm (@HT20, MCS7)
Receiving
sensitivity
802.11b: -93 dBm (@11Mbps ,CCK)
802.11g: -85dBm (@54Mbps, OFDM)
Antenna
Hardware port
Working voltage
GPIO drive
Working current
Size
17.5mm*25.5mm*4mm；
Port
passthroug
h
Speed
110-921600bps
TCP Client
5
Software
parameter
Wireless internet
STA/AP/STA+AP
Security mechanism
WEP/WPA-PSK/WPA2-PSK
Encryption mode
WEP64/WEP128/TKIP/AES
Firmware update
Local port，OTA remote update
Network protocol
IPv4, TCP/UDP/FTP/HTTP
User configuration
SmartConfig configuration
3. M200C parameter
Wireless
parameter
802.11n: -82dBm (@HT20, MCS7)
Outer：I-PEX Connector
Inter：Ceramic antenna，Peak Gain1.5dBi
Hardware
parameter
UART，IIC，PWM，GPIO，ADC
Outer power 3.3V，voltage range 3.0V-3.6V
Max：15ma
Continual mode=>
Average：~70mA,peak: 200mA
Normal mode=>
Average : ~12mA, peak: 200mA
Standby：<200uA，
Chapter2 M200C working principle
1.Hardware
2.Software
3.Application

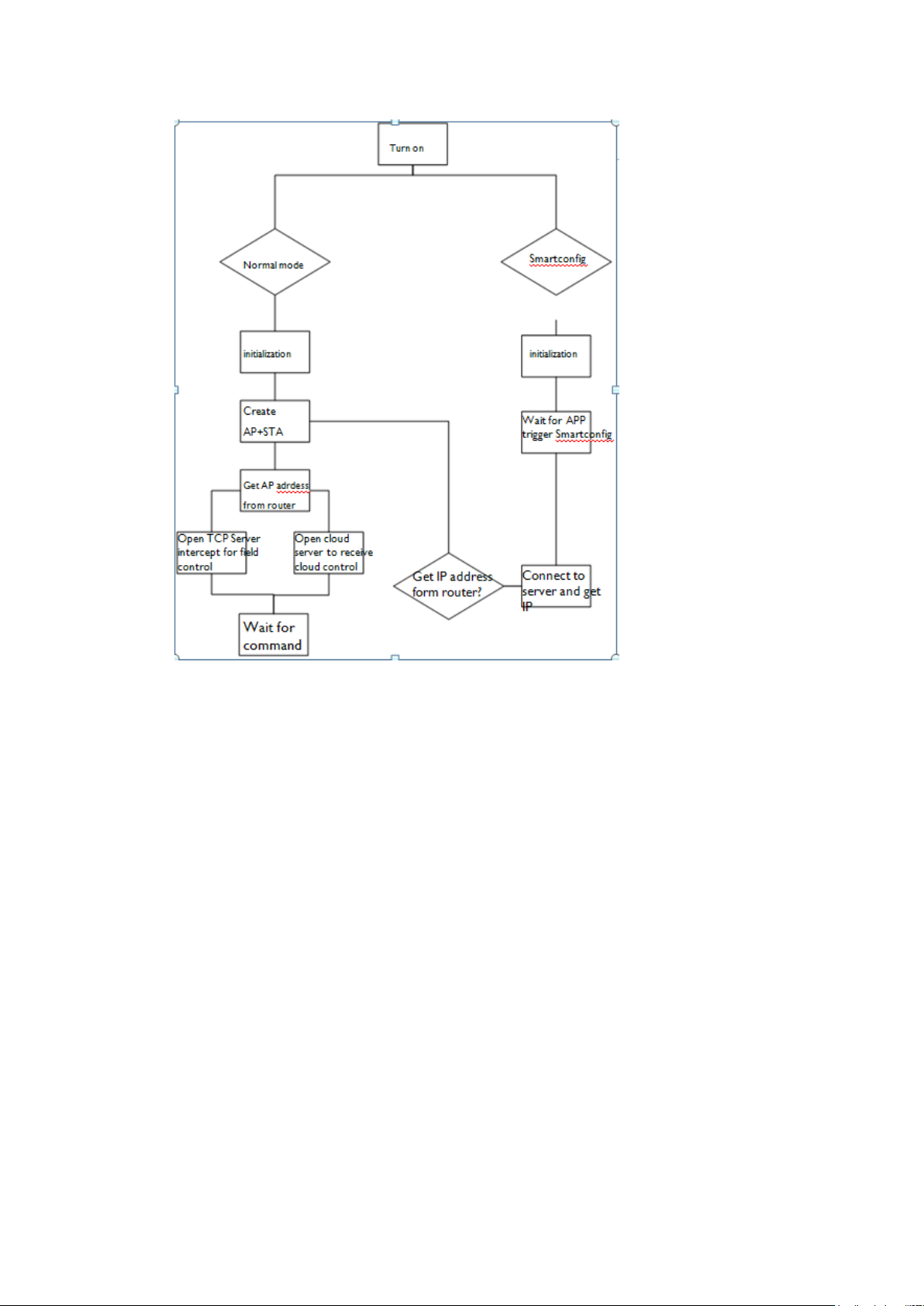

4. Startup process
Chapter3 How to develop product based on
M200C
1.Build development environment
Prepare routers
Prepare smart phones
Prepare power
Prepare M200C
Prepare device which you want to develop with M200C
Use portTXD,RXD,GND to connect M200C and device
Prepare other debugging tools and software
2. Get through the links from bottom to top
Finish port community between M200C and device.
Finish TCP community between M200C and cloud server.
Finish community between cloud server and APP.

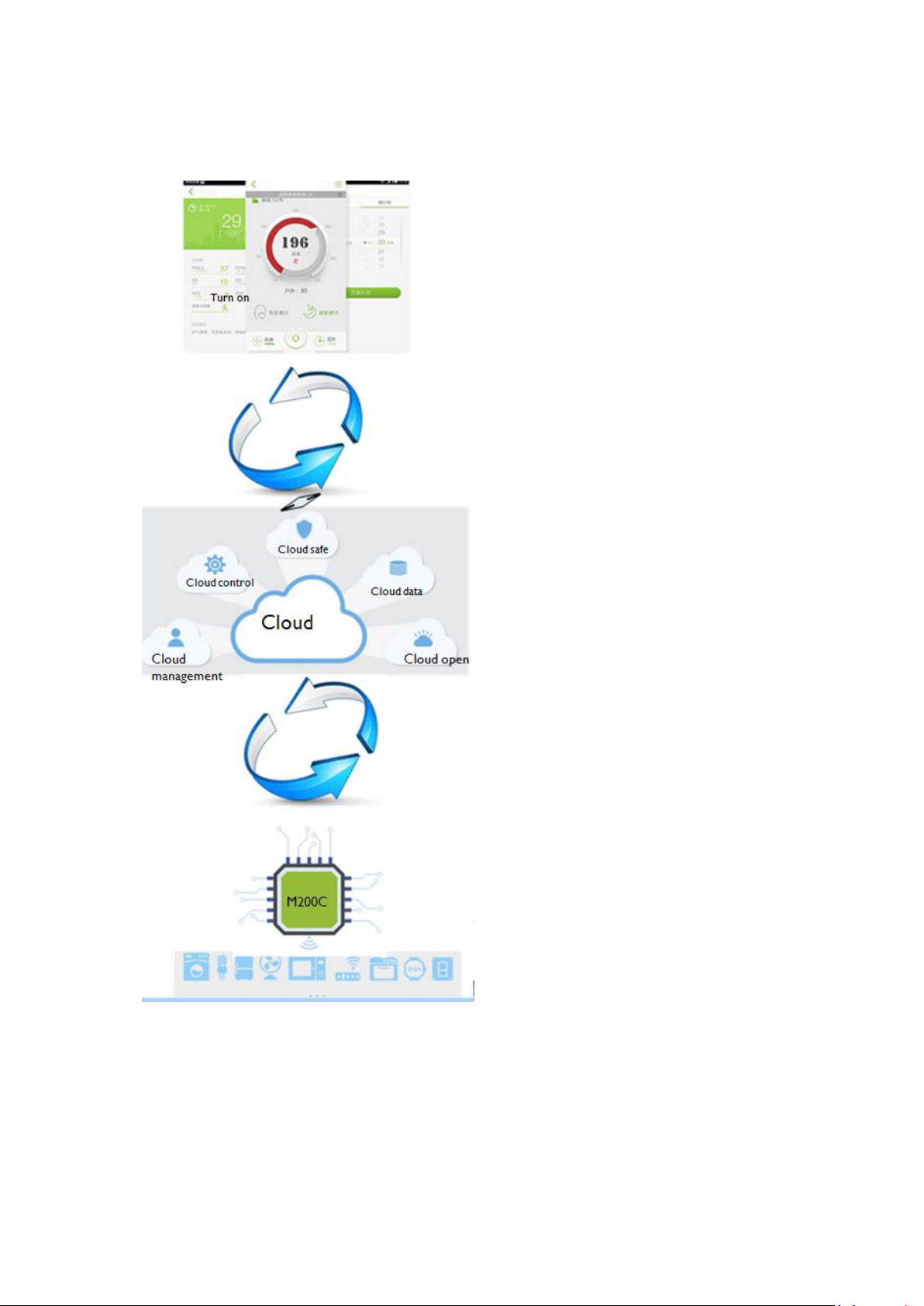

3. System operation
4. Assembly instruction
M200C can be assemblied on the main PCB by the following two ways:
1. Soldering directly on the PCB

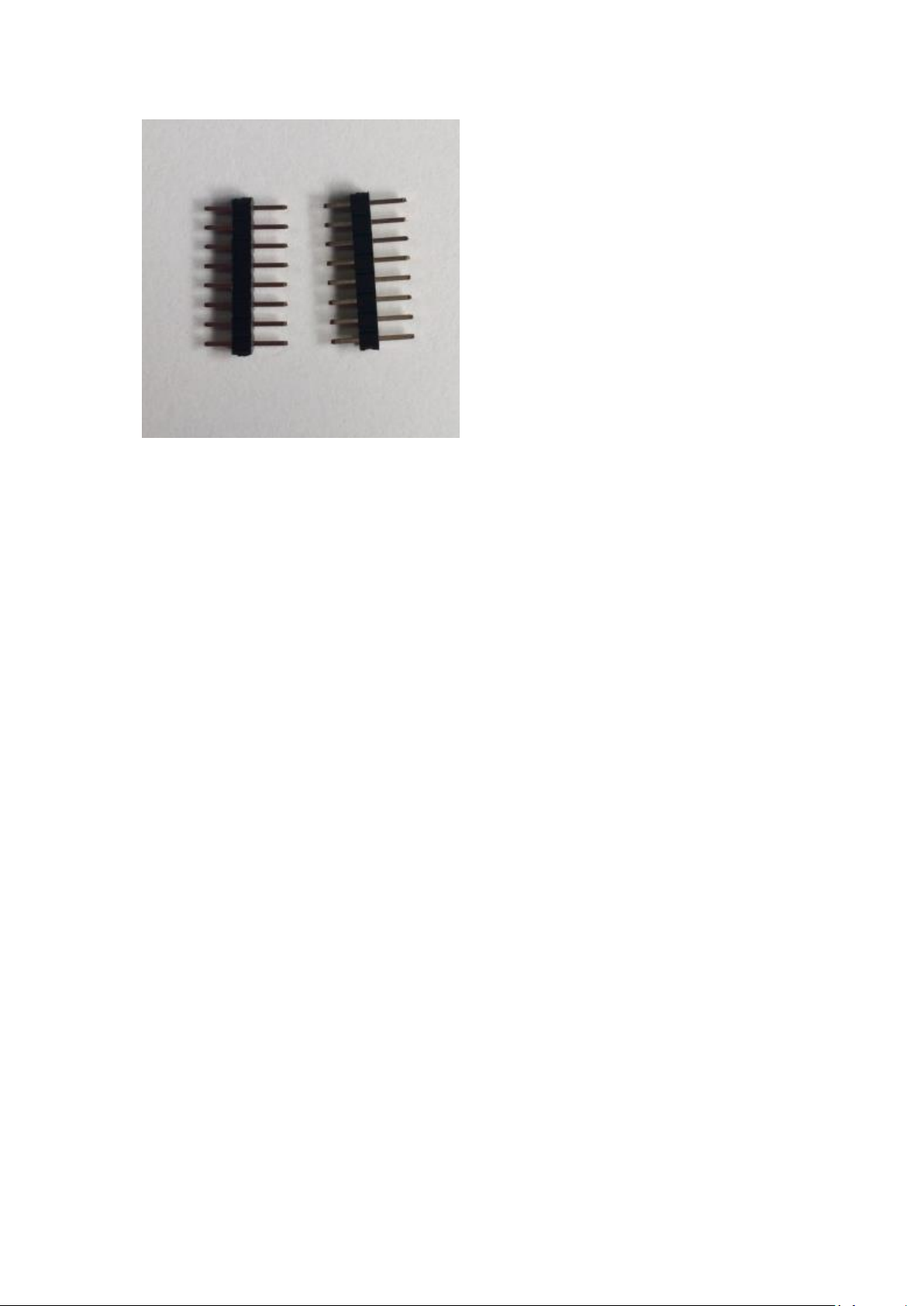

2. Assembly by 2 row pins, just like the following picture.
.
Warnings:
This equipment can be used in member states of the European Union once the corresponding
administrative license is obtained.
Shenzhen Winext Technology Co.Ltd, as manufacturer of the product Airnode M200C, declares that the
said product complies with the essential requirements established in article 3 of the Council of Europe
Directive 1999/5/CE, dated 9th March, 1999.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimun distance 20cm between the radiator&your
body . This transmitter must not be co-located or operating in conjumction with any other antenna or
transmitter.
This module is intended for OEM integrator. The OEM integrator is still respon sible for the FCC
compliance requirement of the end product, which integrates this module
The final end product must be labeled in a visible area with the following” Contains FCC
ID:2AF12000001
