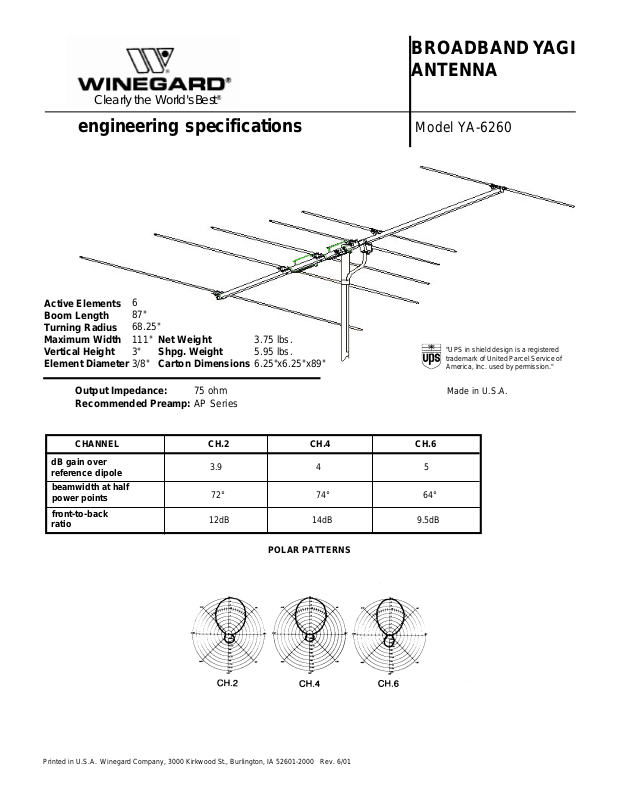

Winegard YA-6260 User Manual

BROADBAND YAGI
ANTENNA

Clearly the World's Best

engineering specifications

Active Elements
Boom Length
Turning Radius
Maximum Width
Vertical Height
Element Diameter

6
87"

68.25"
111"

Net Weight

3"

Shpg. Weight

3/8"

Carton Dimensions

®

Model YA-6260

3.75 lbs.

5.95 lbs.

6.25"x6.25"x89"

"UPS in shield design is a registered
trademark of United Parcel Service of
America, Inc. used by permission."

Output Impedance:
Recommended Preamp:

CHANNEL CH.2 CH.4 CH.6

dB gain over
reference dipole

beamwidth at half
power points

front-to-back
ratio

72° 74° 64°

3.9 4 5

12dB 14dB 9.5dB

75 ohm
AP Series

POLAR PATTERNS

Made in U.S.A.

Printed in U.S.A. Winegard Company, 3000 Kirkwood St., Burlington, IA 52601-2000 Rev. 6/01
