OWNER’S MANUAL
INSTALLATION INSTRUCTIONS
®
WINEGARD
RV DIGITAL SATELLITE SYSTEM
with Digital Elevation Sensor
FOR WINNEBAGO INDUSTRIES
WI-DM04 - Single Coax Installation
WI-DM54 - Dual Coax Installation
U.S. PATENT NO. 5,532,710
Made in U.S.A.
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
Printed in U.S.A. © Winegard Company 2003, 2006 2451071 Rev5 12/12
319/754-0600 • FAX 319/754-0787 • www.winegard.com
OPERATION
TUNING ANTENNA
STEP 1. Step outside your vehicle and, using a compass, determine which direction is North. (Standing in or near vehicle can give you an
incorrect reading.) The more accurately you determine North, the easier it will be to nd the satellite(s).
Directional Handle
Elevating Crank
Directional Dial
Directional Handle
Pointer
250
240
290
300
310
320
330
340
350
70
60
50
POINT NORTH
10
40
30
20
Rotation Clamp
FIGURE 1
Red Screw
Step 2. Using satellite receiver, determine correct elevation for your location. See your receiver manual for details on how to
obtain setup information.
Step 3. Press button on Winegard Digital Display Wall plate. If antenna is in travel position the display will show LL for Low Limit;
HL for High Limit, will appear when dish is in up position.
STEP 1. Your receiver should indicate it is receiving a signal. To tune your
antenna for the best signal strength, slowly move the antenna left, then right
until you have found the position that gives the highest signal strength. It is
important to turn the antenna slowly; since the signal is
digital the receiver takes a few seconds to lock on.
STEP 2. Place rotation clamp in the LOCK position. This prevents the
antenna from moving and losing the signal.
STEP 3. Slowly raise, then lower the antenna until you have peaked
the signal. You are now ready to watch satellite TV!
LOWERING ANTENNA TO TRAVEL POSITION
STEP 1. Set rotation clamp to the ROTATE position.
STEP 2. Rotate antenna until pointer on directional handle aligns with
the red screw on the rotation clamp.
STEP 3. Turn elevating crank (counter clockwise) in direction of
"DOWN" arrow until resistance is met. The number of turns will vary
according to the elevation angle the antenna was set to.
STEP 4. Move rotation clamp to the LOCK position. Antenna is now
locked in travel position.
STEP 5. Snap elevation crank into place.
Step 4. Crank elevation handle to raise antenna. Stop cranking when readout displays correct elevation for your location.
Step 5. Rotate antenna VERY SLOWLY until correct satellite signal is acquired. NOTE: Rotate 3° and then stop. DO NOT
rotate continuously, even if you are rotating slowly. If you notice the elevation angle has changed, it could be due to the following
reasons:
1. RV is not parked level.
2. Antenna system is mounted to a slightly sloped RV roof. (This is not a problem. When you have
rotated the antenna so it is facing in approximatly the right azimuth [compass direction], simply
adjust to correct elevation and continue searching for signal.)
Special Notes: When you have detected the satellite signal, adjust the antenna up/down and left/right for strongest signal
your receiver displays. Due to variations in receivers and installation methods, you may nd the elevation numbers, after peaking
on the strongest signal, no longer match what the receiver recommended. This is normal. The elevation sensor should always get
you close enough to pick up a signal to peak on. If display turns off while you’re searching, just push button for another minute of
operation. After a little practice, most people nd the signal in 30 to 50 seconds.
Trouble Shooting
• If digital display reads EE, check wiring and connection. If these
are done incorrectly, it will affect operation.
• Rotate antenna VERY SLOWLY until correct satellite

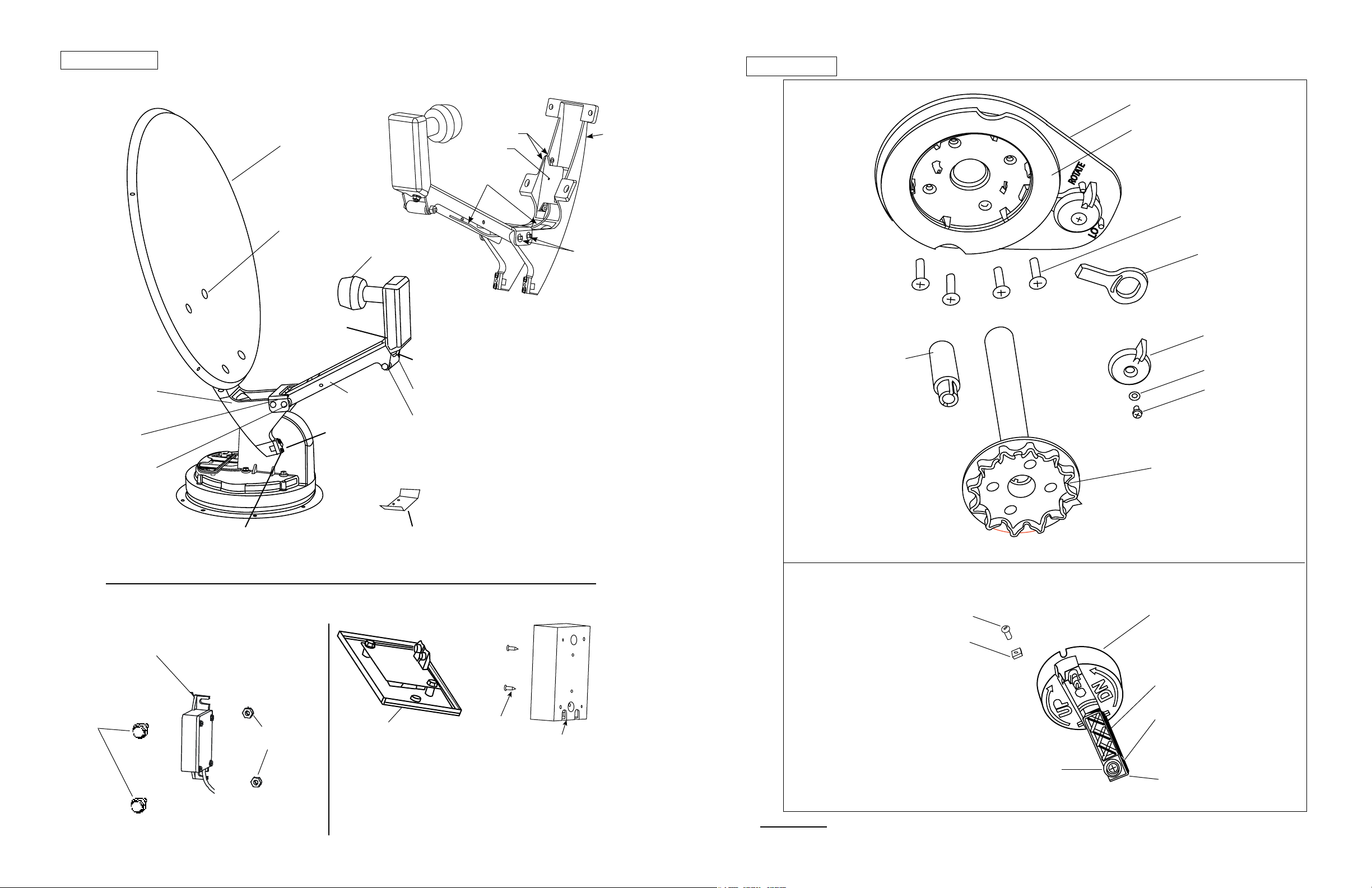

For replacement parts, contact Winegard Company.
Customer Service. Hours are 7:00 a.m. to 5:00 p.m., Monday Thursday, and 7:00 a.m. to 4:00 p.m. Friday, Central Time. Call
toll-free 1-800-288-8094. Credit card only, $5.00 minimum order.
signal is acquired.
CAUTION: NEVER LOWER ANTENNA IN ANY POSITION
EXCEPT TRAVEL POSITION.
To order receivers or programming please call
!
the Winegard receiver hotline: 1-(866) 609-9374.
DO’S 1. Do check parking location for obstructions before raising antenna.
2. Do carefully raise, lower and rotate — if difcult, check for cause.
3. Do rotate slowly when searching for the satellite(s) and check ne tuning
on TV set to make sure it is properly adjusted.
4. lower antenna before moving vehicle.
5. Activate programming by calling programming service for your receiver.
DON’T’S
2. Don’t force elevating crank up or down. Check for cause of trouble.
3. Don’t rotate directional handle hard against stops.
4. Don’t apply paint over top of base plate or anywhere on lift.
5. Don't apply sealing compound on gear housing.
1.
32
THINGS YOU NEED
TROUBLE SHOOTING
1. Be sure you have a clear line of sight. The signal from the satellite(s)
Antenna Reflector at 90
Signal from satellite
240 look angle
FIGURE 2
WILL NOT pass through trees, buildings,mountains etc. Remember
the antenna has a 24
straight up and down, (900) it is looking 240 into the sky. See Fig. 2.
2. Do you have the TV set tuned for the correct channel 3 or 4
(same channel as output of receiver)?
3. Have you entered the correct zip for the area you are currently in?
If the zip code is wrong, the antenna will be looking in the wrong
direction or at the wrong elevation for the satellite signal you want.
4. Check connections at receiver, TV, and antenna.
LNBF
5. Check the TV. Does it receive pictures from off-air TV stations/VCR?
6. Retune system for best picture, using procedure on page 3.
7. Inspect antenna. Make sure that it has not been damaged. If antenna
is even slightly bent, the receiver may not receive any signal.
8. Contact Dealer or Winegard Service Department.
Screwdrivers (Phillips and slot)
1-3/4" hole saw
7/16" wrench
ABS glue
Drill w/1/8" bit
Tape measure
Non-hardening sealant
(Check manufacturer’s specications for
compatibility with your roof material)
0
0
offset, this means that when the antenna is
Winegard's Digital Elevation Sensor has been
INSTALLED and CALIBRATED at the factory.
INSTALLATION & ASSEMBLY
STEP 1. Choose a location on the roof for dish that will allow dish to raise and rotate
without interfering with other roof-mounted equipment. Make sure inside ceiling plate is
easily accessible, and with no obstructions that would interfere with operation.
Figure 3 shows minimum distance (10") antenna should be located from edge
of vehicle roof. It is recommended that you check with your dealer or manufacturer
for provisions that may have been made in the roof for antenna mounting; a
FIGURE 3
reinforced roof area, or pre-wire installation from the factory.

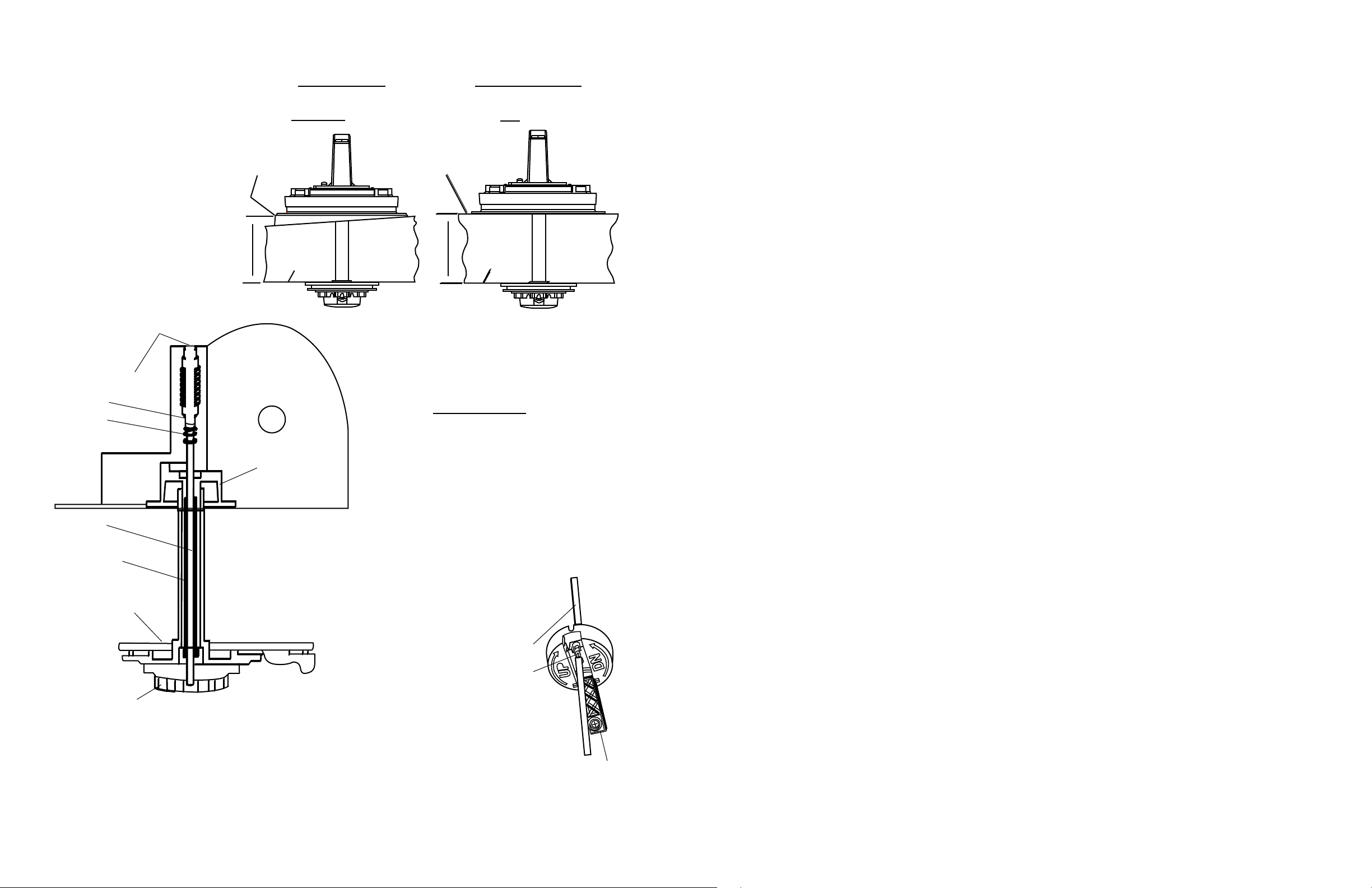

NOTE: The system must be level
for proper operation.
RW-5000 roof wedge with gasket is available.
If inside roof wedge is needed, Winegard’s
RW-1000 can be trimmed to t ceiling plate.
Winegard Model
ANTENNA DOES NOT ROTATE, OR IS HARD TO ROTATE
1. Inspect antenna on roof. Make sure that mount has not been
damaged.
2. Check for caulking between gear housing and baseplate.
3. Be sure cables are not binding, and that they are installed properly.
4. Contact Dealer or Winegard Service Department.
ANTENNA DOES NOT RAISE, OR IS HARD TO RAISE
1. Inspect antenna on roof. Make sure that mount has not been
damaged.
2. Check for caulking on elevating shaft.
4. Contact Dealer or Winegard Service Department.
LCD DISPLAY CODES
HL ..............High Limit
LL ..............Low Limit
Lo ..............Battery Low
Er ...............Communication Error
— — .......... Initializing
NOTE: Initialization may take up to 5 seconds.
Based on 5 minutes a day of usage, standard new alkaline batteries should last 88 days.

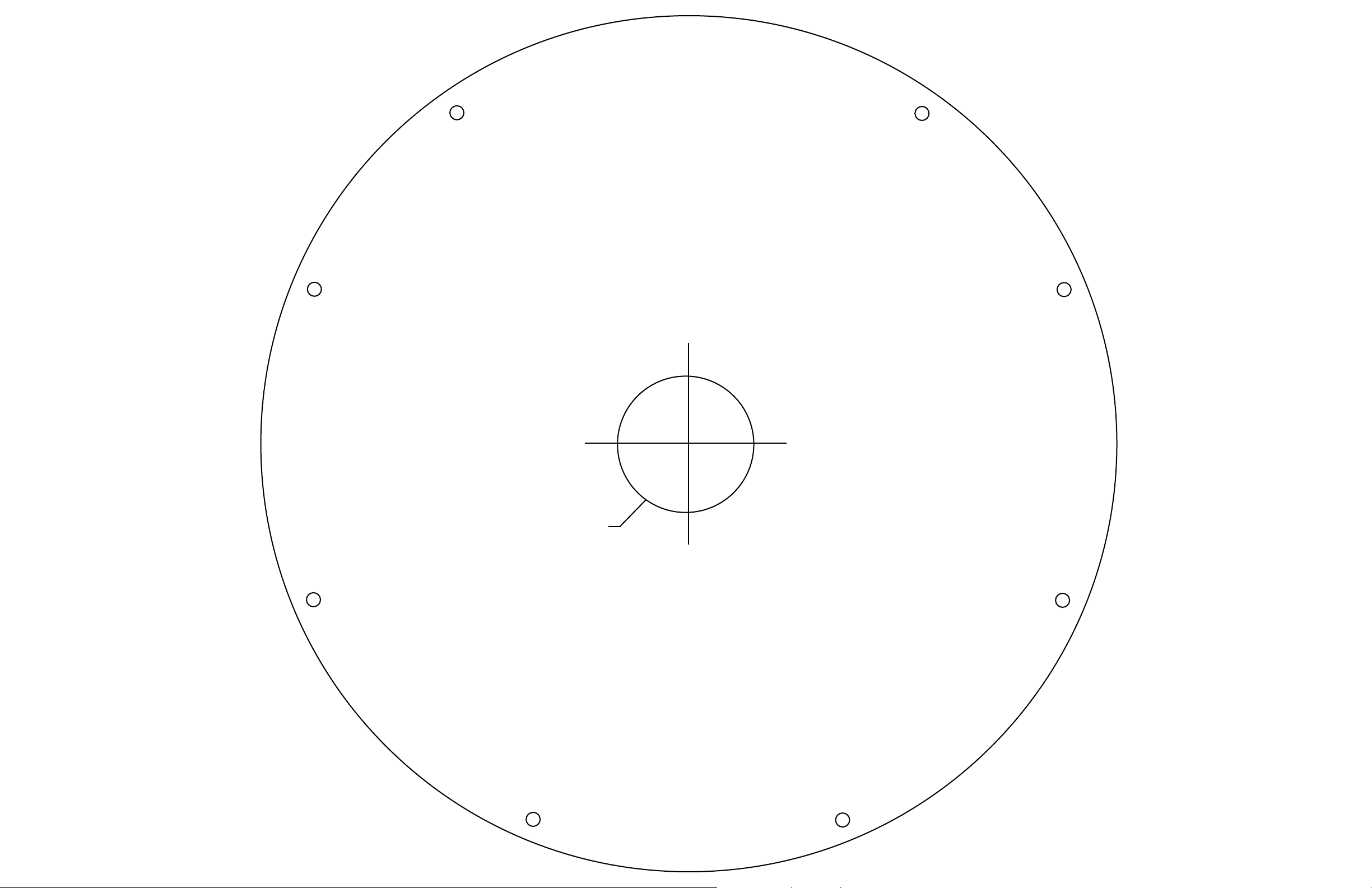

STEP 2. Position template on roof (pg. 8 this manual).
CAUTION: DO NOT drill through wiring.
Carefully drill a 1-3/4"hole through roof and
ceiling of vehicle. Inspect hole to make sure wiring
Center Roof Line
is intact. (Roof template, pgs. 8-9.)
It is highly recomended that the antenna be
mounted on roof center line. Do not mount
antenna closer than 10" from edge of roof.
19.50”
34” DIAMETER
OPERATING
AREA
17” RADIUS
26”
MINIMUM
10”
FRONT OF VEHCILE
RW-5000
Roof Wedge
w/gasket
Vehicle Roof
Antenna Controls
NOT TO SCALE
Interior
Roof Wedge
(optional)
54
STEP 3. Assemble dish to backup using bolts and nuts provided,
Figure 4.
STEP 4. Mount dish on roof in upright position. Rotate clockwise
to stop, Figure 5. Dish will be toward back of vehicle when in stowed
or travel position. The word FRONT is embossed on the base. This
should face front of vehicle. Secure to roof using screws (provided).
The travel bracket should be mounted to roof 6-1/8" from base of
dish, toward back of vehicle. See Figure 6.
NOTE: Apply non-hardening sealing compound to screw
heads, coax access hole and edge of
gasket under mount base.
Install the vent tube on the back of the mount base (This is the
side opposite the word FRONT). The hole for the vent tube
is shown in Figure 6A. CAUTION: DO NOT seal hole
FIGURE 5
in vent tube. Put sealant around the outside of the vent
tube, approximately 1/2" from end. Push the vent tube into
the hole. The sealant will seal the hole as you push in. Leave
approximately 2 to 2-1/2" of the vent tube extending from the
hole. Put a small amount of sealant on the roof under the vent
tube end to hold in place.
Measure coax 24" at
plastic fastener on
left side of feed arm.
(See Step 5.)
FIGURE 6
Base plate
6-1/8"
FRONT
Travel bracket
ANOTHER METHOD OF INSTALLING ROOF CABLE/
ENTRY PLATE: Attach cable to roof using cable clamp. Use sealant
FIGURE 6A
Vent tube
CAUTION: DO NOT GET sealing compound
between Base Plate and Rotating Gear
Housing. DO NOT PAINT top of Base Plate or
around Rotating Gear Housing.
Sealant
1/2"
to seal screw heads.
STEP 5. Facing the front of the dish, note the coax attached
to side of the feed arm. Measure 24" of coax from this point.
Do not cut. Put coax around mount base, Figure 5.
STEP 6. Apply approved sealing compound over mounting
screw heads.
STEP 7. Feed coax through the roof using cover plate (included with
hardware), Figure 7. Weatherproof cable entry by applying sealant
under lip of cable entry plate and where cable enters roof. Attach plate to
roof with screws provided. Apply sealant over screws and around edge
of roof-thru plate, making sure cable entry is sealed. Secure cables as
necessary to prevent whipping. If downlead connection must
be made on top of roof, make sure to weatherproof
connection!
(4) Antenna
Mounting Bolts
FIGURE 4
No cable clamps
on this part of
cable.
#10 x 1" Screws
FIGURE 7
Downlead
connects to
satellite rcvr.
(4) 1/4 - 20 Hex
Nut
Rotate
clockwise
to stop
Cable entry plate
placement is 3"
minimum from
mount base.
Cable clamp
Cable
Cable entry plate
CE-2000
Downlead
FS-8100
male-to-male
F-connector

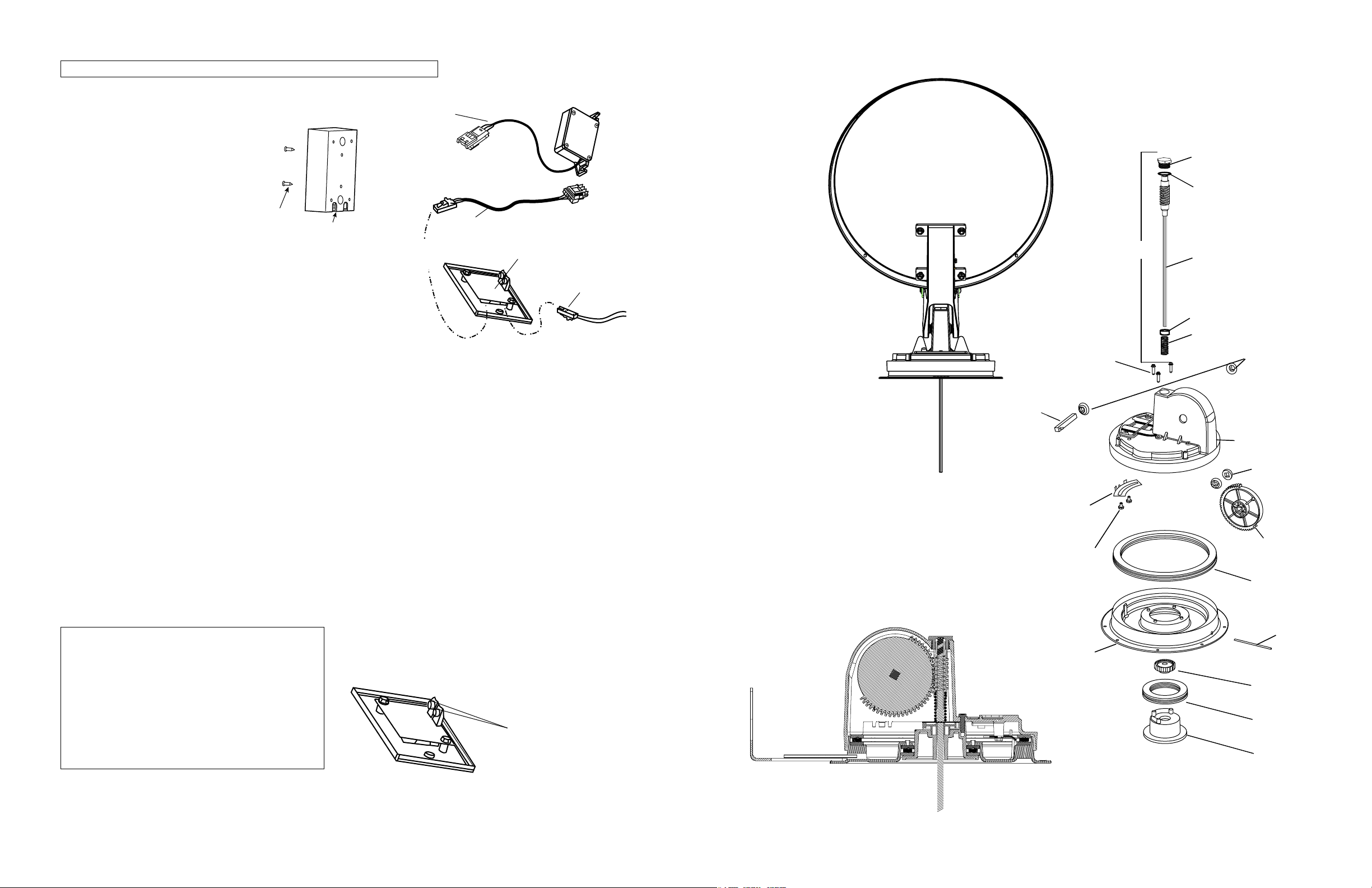

DIGITAL ELEVATION SENSOR ROOF CONNECTIONS
The illustrations below show the different methods of connecting wires at roof level. Method will depend on model. Wire colors
MUST MATCH, ie. red to red, green to green, black to black
This wire harness connects to the digital
elevation sensor on the antenna.
Snap connectors
together
INSIDE RV
NOTE: This terminal is NOT
weatherproof and CANNOT be
left outside on the roof.
FIGURE 8
STEP 8. Place the nut on the threaded rod.
STEP 9. Measure and cut the threaded rod with a hacksaw. Use
the chart, Figure 8, to determine the length.
STEP 10. Remove the nut over the cut end of the threaded rod.
This cleans the threads after cutting.
STEP 11. Thread the cut end of the rod into the hub,

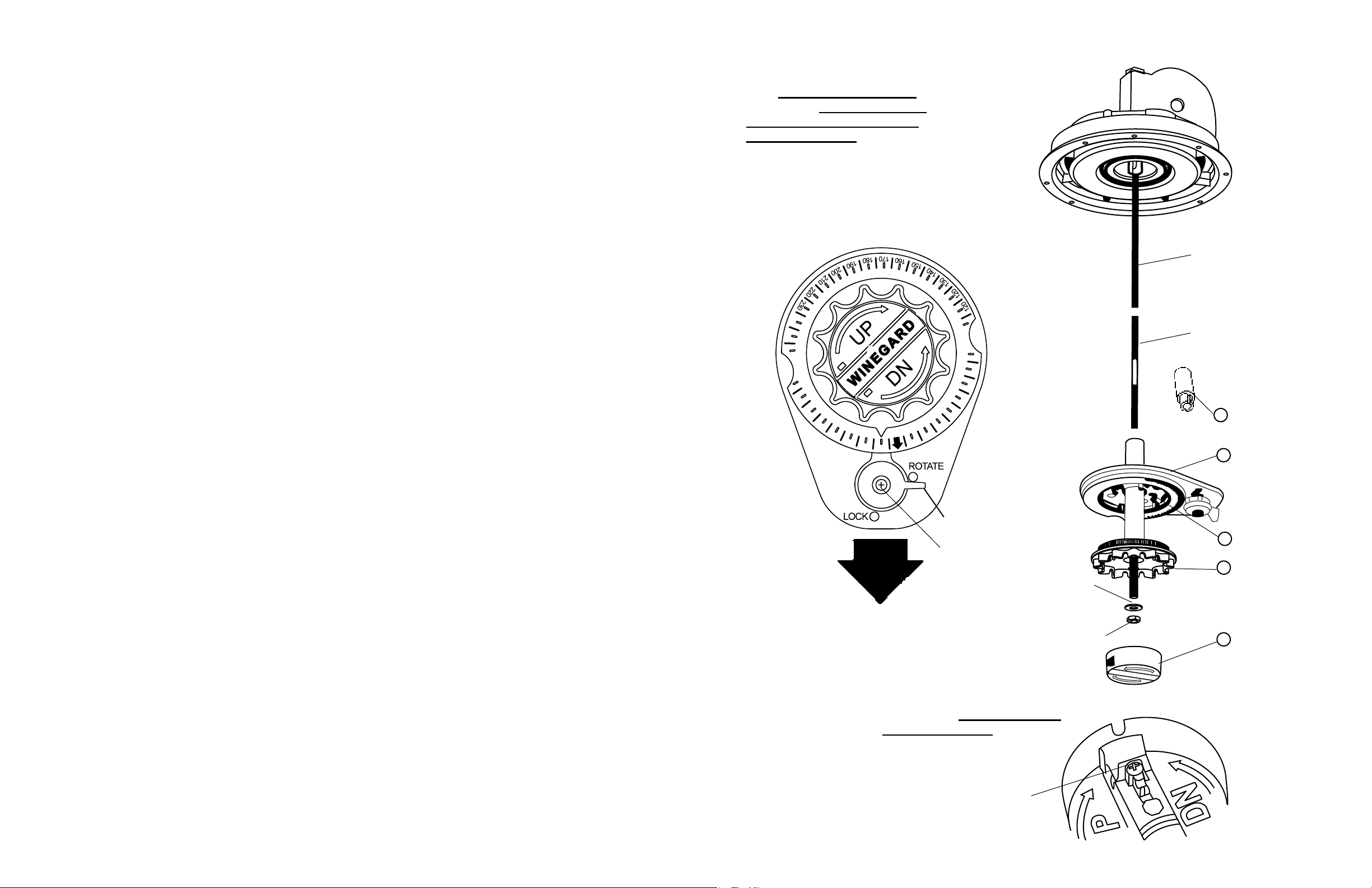

STEP 12. Install the ceiling plate. The rotate/lock lever must point
toward the rear of the vehicle.
Be sure rotate/lock lever is pointing toward back
of vehicle and hole in ceiling aligns with hole in
the ceiling plate.
NOTE: Make sure large and small keyways line up
in the hub and directional handle!
STEP 13. Measure and cut the directional handle; see Figure 9
and chart, Figure 8. NOTE: A tube cutter is recommended
for cutting the directional handle. This gives a square cut;
a hacksaw does not. If using an extension, see Step 17.
Figure 10, page 8, shows what points to measure between,
with and without a roof wedge.
STEP 14. The directional handle and threaded rod
will t roofs up to 5-1/4" thick. If you are using wedges
FIGURE 9
HANDLE
LENGTH
DIRECTIONAL
HANDLE
Supplied with the DM-2000 only.
3M UR Terminal
Slide wires all
the way in.
DO NOT strip
wires, terminal
is self stripping.
NOTE: This terminal is weatherproof and can be left outside on the
roof as LONG AS IT IS SECURED PROPERLY to prevent whipping in
the wind.
Roof Directional Threaded Worm Gear
Thickness Handle Length Rod Length Shaft Length
(Figure 9) (Figure 11)
1-1/2” .................. 2-7/8” ......................2-3/4” ................... 2-7/8”
1-3/4” .................. 3-1/4” ......................3” ......................... 3-1/8”
2” ........................ 3-1/2” ......................3-1/4” ................... 3-1/2”
2-1/4” .................. 3-7/8 .......................3-1/2” ................... 3-7/8”
2-1/2” .................. 4-1/8” ......................3-3/4” ................... 4-1/8”
2-3/4” .................. 4-1/2” ......................4” ......................... 4-1/2”
3” ........................ 4-3/4” ......................4-1/4” ................... 4-3/4”
3-1/4” .................. 5” ............................4-5/8” ................... 4-7/8”
3-1/2” .................. 5-1/4” ......................4-7/8” ................... 5-1/8”
3-3/4” .................. 5-5/8” ......................5-1/4” ................... 5-1/2”
4” ........................ 5-3/4” ......................5-1/2” ................... 5-3/4”
4-1/4” .................. 6-1/8” ......................5-3/4” ................... 6-1/8”
4-1/2" .................. 6-1/2" ......................6" ......................... 6-1/4"
4-3/4” .................. 6-5/8” ......................6-1/8” ................... 6-3/8”
5” ........................ 6-7/8” ......................6-3/8” ................... 6-5/8”
5-1/4” .................. 7-1/8” ......................6-5/8” ................... 7”
5-1/2” .................. 7-3/8” ......................6-7/8” ................... 7-1/4”
5-3/4” .................. 7-5/8” ......................7-1/4” ................... 7-1/2”
6” ........................ 7-7/8” ......................7-1/2” ................... 7-3/4”
6-1/4” .................. 8-1/8” ......................7” ......................... 8”
6-1/2” .................. 8-1/2” ......................7-3/4” ................... 8-1/4”
6-3/4" .................. 8-3/4" .................... 8" ...................... 8-1/2"
7" .................... 9" ...................... 8-1/4" ................... 8-7/8"
7-1/4" .................. 9-3/8" .................... 8-5/8" ................... 9-1/8"
7-1/2" .................. 9-5/8" .................... 8-7/8" ................... 9-3/8"
7-3/4" .................. 9-7/8" .................... 9-1/8" ................... 9-5/8"
8" .................... 10-1/8" .................. 9-3/8" ................... 10 "
8-1/4" .................. 10-3/8" .................. 9-5/8" ................... 10-1/4"
8-1/2" .................. 10-3/4" .................. 9-7/8" ................... 10-3/8"
8-3/4" .................. 11" ..................... 10" .................... 10-5/8"
9" .................... 11-1/4" ................... 10-1/4" ................. 11"
9-1/4" .................. 11-1/2" ................... 10-5/8" ................. 11-1/4"
9-1/2" .................. 11-3/4" ................... 10-7/8" ................. 11-1/2"
9-3/4" .................. 12" .................... 11-1/8" .................. 11-3/4"
10" .................. 12-3/8" .................. 11-3/8" .................. 12"
10-1/4" ................ 12-5/8" .................. 11-5/8" .................. 12-1/4"
10-1/2" ................ 12-7/8" .................. 11-7/8" .................. 12-1/2"
Squeeze pliers until red
plunger is ush with
rest of terminal.
Pliers not supplied
76
to compensate for roof/ceiling slope, be
sure to allow for this extra thickness. You
may add an extension to the directional
handle for thicker roofs. Each extension
will increase the length of the directional
handle by 2-1/4".
WITH ROOF WEDGE
Measure from top
of roof wedge to ceiling.
WITHOUT ROOF WEDGE
Measure from top
of roof to ceiling.
STEP 15. Press the directional handle
onto the hub. Point the arrow on the
directional handle towards the rotate/lock
lever to orient to the splines.
STEP 16. Install the washer and nut on the
FIGURE 10
FIGURE 11
Plastic
Plug
Spacer
Spring
TOP OF
ROOF WEDGE
➤
➤
Hub
CEILING
TOP OF
ROOF
➤
➤
threaded rod. Tighten the nut enough to snug the directional
handle to the hub.
STEP 17. IF YOU ARE USING AN EXTENSION,
adjust the total length of the directional handle and extension
by cutting the directional handle. After adjusting parts
for proper roof thickness, glue the extension to the directional
handle. Use ABS (plastic pipe) glue.
NOTE: For roofs thicker that 5-1/4", a longer aluminum
hex shaft will be needed. Contact Winegard Company for
this part.
CEILING
See template on reverse side.
Worm
Gear
Threaded
Rod
Ceiling Plate
Directional
Handle
CUTTING SHAFT LENGTH, Figure 3F:
Flip down handle on the elevating crank handle. Slide
elevating crank handle up shaft until snug against
directional handle. Mark the elevating shaft at inside bottom
surface of crank handle housing, Figure 12. Cut shaft at
mark, after removing crank handle. Reinstall crank.
STEP 18. Check system
for proper operation.
Elevate dish with crank
handle. A minimum of 14
turns is needed to elevate
dish. Then, move directional
handle with dish elevated.
Directional handle should
turn freely. If possible,
have someone watch to
make sure coax does not
bind or interfere with dish
movement.
FIGURE 12
Elevating shaft
Cut elevating
shaft at inside
surface of
crank handle
housing; shaft
goes through
hex-shaped
opening by
screw.
Crank Handle
8
ALIGN WITH
BASEPLATE
AREA MARKED
“FRONT”
POINT TO FRONT
OF VEHICLE
Roof Template
1-3/4” DIA.
DRILL COMPLETELY
THROUGH CEILING
1/8” DRILL BIT
8 HOLES. DO NOT
DRILL THROUGH CEILING.
See template on reverse side.
CAUTION:
After INITIAL INSTALLATION,
the antenna SHOULD ROTATE
APPROXIMATELY 360°FROM
TRAVEL POSITION.
The pointer on the
DIRECTIONAL HANDLE
should point towards the RED
SCREW on the ROTATION
CLAMP when in TRAVEL
POSITION.
240
250
290
ASSEMBLED VIEW
300
310
320
330
340
350
POINT NORTH
10
FIGURE 13
Elevating Shaft
Threaded Tube
70
60
50
40
30
20
3 Directional
Handle Extension
1 Ceiling Plate
POINTER
MUST POINT
TO RED
SCREW ON
ROTATION
CLAMP
WHEN IN
TRAVEL
POSITION
POINT TO
BACK OF RV
CAUTION:
The antenna MUST BE IN THE
TRAVEL POSITION before
ALIGNING the Directional
Handle and Ceiling Plate.
Tighten screw snugly
Rotation
Clamp
Red Screw
Flat Washer
Nut for
threaded tube
2 (4) #10 Phillips Flat
Head Screws
4 Directional
Handle
5 ELEVATING
CRANK HANDLE
(When installed,
extends 2-1/4"
from ceiling).
Snap Handle
nto base
when not in use.
9
DIGITAL ELEVATION SENSOR INTERIOR WALLPLATE
PARTS LIST
Step 12. See Figure 14. If using the SM-1000 surface mount box,
feed cable through hole in box.
STEP 13: Connect wires coming from sensor on
roof to wall plate display in vehicle. It is important
to properly connect the wires at the roof and the
Cable and plug
from roof sensor unit; plugs
into sensor
readout cable.
Figure 14
wall plate. (Plug will click when inserted properly.)
The system is designed to use a 9 volt battery
OR +12 VDC from vehicle. Do not use both!
IMPROPER WIRING WILL CAUSE
DAMAGE TO THE PRODUCT.
SM-1000 Surface Mount Box
Sensor to readout cable
Readout assembly
STEP 14: Pressing the button when the antenna is in a vertical position should display
24 (±1°). Display will automatically turn off after 1 minute.
STEP 15: Check connectors and cable entry points. Be sure these areas
are properly sealed to prevent water damage.
OPERATION (Also on pages 2-3)
STEP 16: Using satellite receiver, nd correct elevation for your
location. See the receiver manual for details of setup information.
STEP 17: Press button on Winegard digital display wall plate. If
antenna is in travel position, the display will show LL for Low Limit.
STEP 18: Crank elevation handle to raise antenna. Stop when
readout displays correct elevation for your location.(Found on
receiver setup menu.)
#6 x 1/2"
Phillips Screw
Supplied with
SM-1000
continuously even if your are rotating slowly. If the elevation angle
has changed, it could be due to the following —
• Vehicle is not parked level.
• Antenna system mounted on slightly sloped roof. If
this is the reason, after you have rotated the antenna to the
appproximate correct compass direction, adjust to correct
elevation and continue search.
STEP 19: Rotate antenna VERY SLOWLY until correct satellite
signal is acquired. NOTE: Rotate 3° and stop. DO NOT rotate
Special Notes: When you have found the satellite signal, adjust the antenna up/down and right/left for the strongest signal your receiver
displays. Due to variation in receivers and installation methods, you may nd the elevation numbers after peaking on strongest signal no
longer match what the receiver display recommended. This is normal. The elevation sensor should always get you close enough to pick up
a signal to peak on. If display turns off while you’re searching, just push button for another minute of operation. With a little practice, most
users nd the signal in 30 to 50 seconds.
Replacement Parts
DISPLAY CODES
HL .......................High Limit
Figure 6
* CAUTION: DO NOT connect to
+12 VDC if using a 9 volt battery.
LL ........................Low Limit
Lo ........................ Battery Low
Er ........................Communication Error
— — .........................Initializing
Snap battery in place,
NOTE: Initialization may take up to 5 seconds.
making sure battery
terminals are rmly
seated on wall plate
terminals.
BACK VIEW
(2) 1/4-20
Hex Nut
Backup Frame
(2) E-Clip for 1/4" Pin
Cutaway view of mount/gear housing
(2) 1/4" x 3.25 Pin
Pivot Shaft
Part of
RP-30RM kit
Rotate Limit
Plate
P.N. 3720052
Screw
P.N. 2160197
Turret Base
P.N. 3100730
Screw
P.N. 2160196
RP-4400
Plastic Plug
O-Ring
Worm Gear
Spacer
Spring
Cast Aluminum
Gear Housing
Turret
P.N. 3100728
Seal
Part of
RP-30RM kit
Pivot Bearing
Part of
RP-30RM kit
Elevating Gear
Part of
RP-30RM kit
Outer Bearing
P.N. 2590347
Vent Tube
P.N. 2200122
Elevate Shaft
Gear
P.N. 2200465
Inner Bearing
P.N. 2590348
Hub
P.N. 3100736
10 11
PARTS LIST
46 cm Reector,
White
(4) Flat Head Bolts
(White)
Carriage Bolt
(not shown)
Location of elevation sensor on backup,
installed and calibrated at the factory
Mounting
Screws
& Nuts
Sensor
Case
Sensor
Cable
LNBF
LB-1000
Pins and
E-clips
Backup
Frame
PARTS LIST
INTERIOR
HARDWARE KIT
RK-CEIL
Ceiling Base
Directional Dial
(4) #10 Phillip Flat
Head Screws
Azimuth Lock
Azimuth Lock Knob
Backup Frame
Pivot Bracket
Pin, 1/4 x 3.25" long
(Not shown:
E-clip for 1/4" Pin
Sensor parts w/cable,
installed at factory
RM-DM46
Clamp (2)
Feed Arm
Screw #10-24
x 3/4 (4)
Interior wallplate
display and parts
Flange Nut
1/4-20
Roller
Hex Head Bolt
1/4-20 x 2.5"
Nylock Nut
1/4-20
(not shown)
Travel Support
Directional
Handle
Extension
CRANK HANDLE KIT
RK-HAND
#8-32 Square Nut
#8-32 x 3/8"
Phillips Screw
Washer
#10 x 3/8"
Red Phillips Screw
Directional Handle
Crank Handle Base
Crank Handle
(2) #10-32 x 1/2"
Screw
(2) #10-32
Hex Nut
DR-4500
Wallplate
Display Unit
Includes
(2) #6 x 5/8"
white
Phillips screws
(2) #6 x 1/2" Hex
Head Slotted Screw
RM-46DE,
RM-FL4D,
EM-00DE
SM-1000
Surface
Mount Box
#10 x 3/8" Phillips Screw
NOT TO SCALE
Knob
Washer
12 13
SPECIFICATIONS
ANTENNA & MOUNT
Height when raised 30" verticle max.
Height in the travel position 8" max.
Operating radius 17" (34" diameter circle)
Roof space required 26"
LNB Compatible with DIRECTV®, DISH® ,
and Bell TV™ (northern U.S. and Canada)
Weight 12 lbs.
Color Cool gray
Antenna height 20.9"
Antenna width 19.2"
F/D 0.59
Offset angle 24
Frequency range 10.95 - 12.75 GHz
Gain:
11.2 GHz 33.22 dBi
12.1 GHz 33.89 dBi
12.6 GHz 34.23 dBi
Aperture efciency 73%
Cross polarization (on axis) -21 dB
*Beamwidth at -3 dB 3.5
*Beamwidth at -10 dB 7.0o
Ship weight: 20.6 lbs.
o
o
NOTES
DIRECTV® is a registered trademark of DIRECTV, Inc., a unit of Hughes Electronics Corporation.
DISH® is a registered trademark of DISH Network L.L.C.
Bell TV is a trademark of Bell Canada, Inc.
1514
WINEGARD MOBILE PRODUCTS LIMITED WARRANTY
(2 YEARS PARTS; 1 YEAR LABOR)
Winegard Company warrants this product against defects in materials or workmanship for a period of two (2) years from the date of original purchase. During
year one (1) of such warranty, Winegard Company will also pay authorized labor costs to an authorized Winegard dealer to repair or replace defective products.
No warranty claim will be honored unless at the time the claim is made, Customer presents proof of purchase to an authorized Winegard dealer (to locate the near-
est authorized Winegard dealer, contact Winegard Company, 3000 Kirkwood Street, Burlington, Iowa 52601, Telephone 800-288-8094 or visit www.winegard.com).
Customer must provide proof of purchase with a dated sales receipt for the Winegard product to verify the product is under warranty. If the date of purchase cannot
be veried, the warranty period shall be considered to begin thirty (30) days after the date of manufacture.
If a defect in material or workmanship is discovered, Customer may take the product to an authorized Winegard dealer for service. Customer must provide proof
of purchase to verify the product is under warranty. If the product is brought to an authorized Winegard dealer for service prior to expiration of year one (1) of the
warranty period and a defect in material or workmanship is veried by Winegard Technical Services, Winegard Company will cover the Winegard dealer’s labor
charges for warranty service. The Winegard dealer must contact Winegard Technical Services in advance for pre-approval of the service. Approval of the service is
at the sole discretion of Winegard Company.
Alternatively, Customer may ship the product prepaid to Winegard Technical Services (located at 3111 Kirkwood Street, Burlington, Iowa 52601, Telephone
800-788-4417). Customer must return the product along with a brief description of the problem and provide Winegard Technical Services with Customer’s name,
address, and phone number. Customer must also provide proof of purchase to verify the product is under warranty. If the product is returned before the expiration
of the warranty period, Winegard Company will (at its option) either repair or replace the product.
This Limited Warranty does not apply if the product has been damaged, deteriorates, malfunctions or fails from: improper installation, misuse, abuse, neglect,
accident, tampering, modication of the product as originally manufactured by Winegard in any manner whatsoever, removing or defacing any serial number, usage
not in accordance with product instructions or acts of nature such as damage caused by wind, lightning, ice or corrosive environments such as salt spray and
acid rain. This Limited Warranty also does not apply if the product becomes unable to perform its’ intended function in any way as a result of the television signal
provider making any changes in technology or service.
A Return Material Authorization (RMA) is required prior to returning any product to Winegard Company or Winegard Warranty Services under this warranty policy.
Please call our Technical Services Department at 800-788-4417 or send an e-mail to warranty@winegard.com to obtain the RMA number. Please furnish the date
of purchase when requesting an RMA number. Enclose the product in a prepaid package and write the RMA number in large, clear letters on the outside of the
package. To avoid confusion or misunderstanding, a shipment(s) without an RMA number(s) or an unauthorized return(s) will be refused and returned to Customer
freight collect.
WINEGARD COMPANY DOES NOT ASSUME ANY LIABILITIES FOR ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, MADE BY ANY OTHER PERSON.
ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY INCLUDING WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND
MERCHANTABILITY ARE LIMITED TO THE TWO YEAR PERIOD OF THIS WARRANTY.
In states that do not allow limitations on implied warranties, or the exclusion of limitation of incidental or consequential damages, the above limitations or exclusions do not apply.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you.
This warranty gives Customer specic legal rights. Customer may also have other rights that may vary from state to state.
RETURN AUTHORIZATION POLICY
SATELLITE RECEIVER WARRANTY
See manufacturer’s limited warranty policy.
WS-MOBWARREV2
Rev. 1/10
Printed in U.S.A. Winegard Company • 3000 Kirkwood Street • Burlington, Iowa 52601-2000 © Winegard Company, 2003, 2006 2451071 Rev5 12/12
Loading...
