Winegard WF3000 Users Manual

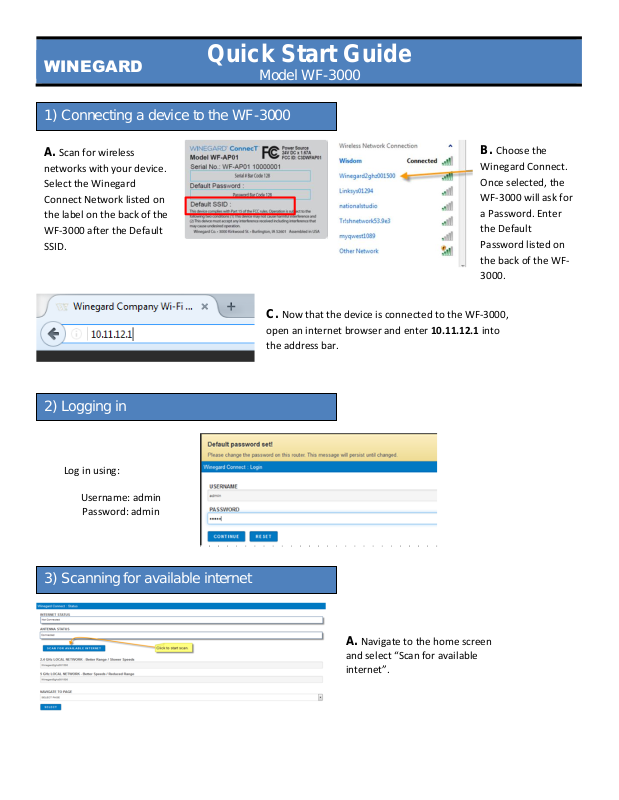

Quick Start Guide

Model WF-3000

1) Connecting a device to the WF-3000

2) Logging in

3) Scanning for available internet

A. Scan for wireless

networks with your device.
Select the Winegard
Connect Network listed on
the label on the back of the
WF-3000 after the Default
SSID.

C. Now that the device is connected to the WF-3000,

open an internet browser and enter 10.11.12.1 into
the address bar.

B. Choose the

Winegard Connect.
Once selected, the
WF-3000 will ask for
a Password. Enter
the Default
Password listed on
the back of the WF-

3000.

Log in using:

Username: admin

Password: admin

A. Navigate to the home screen

and select “Scan for available
internet”.

WINEGARD

B. Available networks will be scanned

and displayed in a list sorted by signal
strength.

C. Select the desired network and click

continue. Enter the network password if
needed. Some networks will display a

“Splash Page” when connecting. Once

the WF-3000 connects, open a new
browser and the network will display the
page pictured left.

D. Once “Internet Status”

shows Connected to the
chosen network, (this could
take as long as two minutes)
the system is ready to
browse.

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
methods:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and devices.
 Connect the equipment into an electrical outlet on a circuit

different from that which the radio receiver is connected.
 Consult the dealer or an experienced radio/TV technician
for help.

FCC Statement

FCC Caution

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this

equipment.
Only channel 1~11 can be operated. Selection of other channels is not
possible.
This device and its antenna(s) must not be co-located or operation in
conjunction with any other antenna or transmitter.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 25cm between the radiator and your body.
This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter except in accordance with
FCC multi-transmitter product procedures.
