Winegard HD9075P, HD-9095P User Manual
90 DAY LIMITED WARRANTY
Winegard Company warrants this Winegard product against any defects in materi-
als or workmanship within 90 (ninety) days from date of purchase. No warranty claim
will be honored unless at the time the claim is made, you present proof of purchase to
an authorized Winegard dealer (if unknown, please contact Winegard Company, 3000
Kirkwood Street, Burlington, IA 52601-2000, Telephone 800-288-8094).
Winegard Company (at its option) will either repair or replace the defective product at
no charge to you. This warranty covers parts, but does not cover any costs incurred in
removal, shipping or reinstallation of the product. This limited warranty does not apply
if the product is damaged, deteriorates, malfunctions or fails from: misuse, improper
installation, abuse, neglect, accident, tampering, modication of the product as originally
manufactured by Winegard, usage not in accordance with product instructions or acts of
nature such as damage caused by wind, lightning, ice or corrosive environments such
as salt spray and acid rain.
The 90 Day Warranty is provided on the condition that the equipment is properly
delivered with all handling and freight charges prepaid to your Winegard dealer for
return to our factory for repair or replacement. Winegard dealers will arrange for the
replacement or repair and return to you without charge the product which failed due to
defective material or workmanship.
WINEGARD COMPANY WILL NOT ASSUME ANY LIABILITIES FOR ANY OTHER
WARRANTIES, EXPRESS OR IMPLIED, MADE BY ANY OTHER PERSON.
ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY
INCLUDING WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND
MERCHANTABILITY ARE LIMITED TO THE 90-DAY PERIOD OF THIS WARRANTY.
The foregoing shall be the sole and exclusive remedy of any person, whether in contract, tort or otherwise, and Winegard shall not be liable for incidental or consequential
damage or commercial loss, or from any other loss or damage except as set forth above.
Some states do not allow limitations on how long an implied warranty lasts, or the
exclusion of limitation of incidental or consequential damages, so the above limitations
or exclusions may not apply to you.
This warranty gives you specic legal rights and you may also have other rights which
vary from state to state.

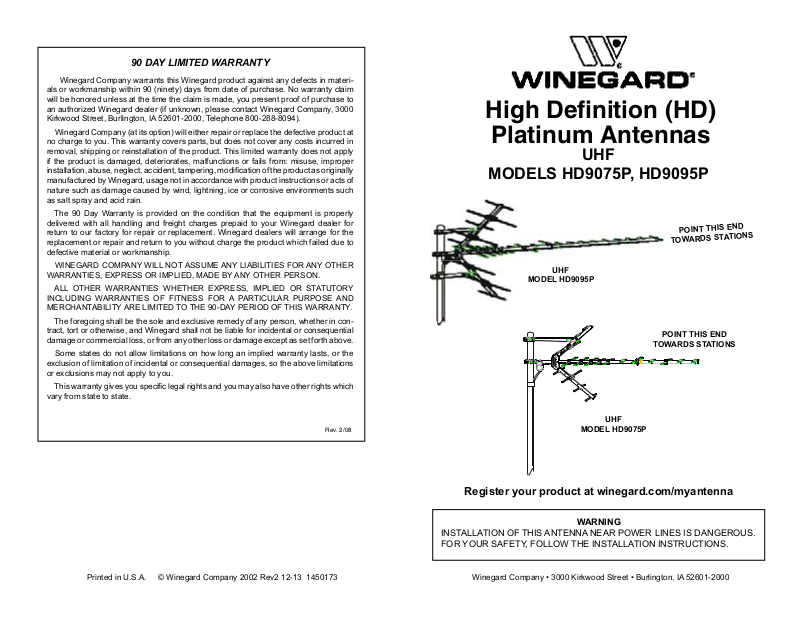

High Denition (HD)
Platinum Antennas
UHF
MODELS HD9075P, HD9095P
POINT THIS END
TOWARDS STATIONS
UHF
MODEL HD9095P
POINT THIS END
TOWARDS STATIONS
Rev. 2/08
Printed in U.S.A. © Winegard Company 2002 Rev2 12-13 1450173
UHF
MODEL HD9075P
Register your product at winegard.com/myantenna
WARNING
INSTALLATION OF THIS ANTENNA NEAR POWER LINES IS DANGEROUS.
FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601-2000
WARNING
INSTALLATION OF THIS ANTENNA NEAR POWER LINES IS
DANGEROUS. FOR YOUR SAFETY, FOLLOW THE INSTALLATION
INSTRUCTIONS.
STEP 1. Unfold the elements on the top and
bottom reector booms. Swing the elements
out until they lock into position. See Fig. 1.
STEP 2. Unfold the reector booms making
sure they lock into place.
STEP 3. Remove the bolt and hex nut from
the boom brace. Attach the boom brace to
the top reector boom (cartridge housing
should be on bottom of antenna) so mast
clamps are on the same side. Replace the
bolt and hex nut. Tighten securely. See Figure 2. (HD9095P has a top & bottom brace.)
Fig. 1
Fig. 2
BOOM BRACE
BOLT
HEX
NUT
STEP 5. To attach the cartridge housing to
the antenna, align the snaps on the cartridge
housing with the snap holes on the cartridge
housing receptacle on the antenna and push
the housing into the receptacle until it snaps
into place. See Figure 4.
STEP 6. Attach the 75 ohm coaxial cable to
the “downlead” connection on the cartridge
housing. Slide weather boot over connectors
and boot collar. See Figure 4.
STEP 7. To mount the antenna on the mast,
loosen the nuts on the mast clamp(s). Slide
antenna booms and braces and clamps over
the mast and tighten securely so they are
parallel. See Figure 5.
STEP 8. The 75 ohm coaxial cable downlead
may be secured to the mast by taping or the
use of plastic wire ties.
HOW TO PROVIDE
LIGHTNING PROTECTION
FOR TV ANTENNA AND SET
Step 1. Mount the lightning arrestor or 75 ohm
grounding block as close as possible to where
the 75 ohm coaxial cable downlead enters the
house. See Fig. 6.
Fig. 4
CARTRIDGE
HOUSING RECEPTACLE
BOOT COLLAR
Fig. 5
MAST CLAMP
2” OD
MAX.
Fig. 6
CARTRIDGE
HOUSING
VHF COUPLING
INPUT
DOWNLEAD
JACK
75 OHM COAXIAL
CABLE (DOWNLEAD)
WEATHER
BOOT
HEX NUT
BOOM BRACE
MAST CLAMP
INSERT
BOOM
U-BOLT
MASTING
2” OD MAX.
.
HD9095P
STEP 4. Remove the bolt and hex nut hold-
ing the element on the tapered end of the
front boom. Slide the two sections together.
The elements should be on top (cartridge
housing on the bottom of the antenna).
Replace the element, bolt and hex nut and
tighten securely. See Figure 3.
Fig. 3
Step 2. The ground wires for both the mast
and the downlead should be copper or aluminum wire, number eight (8) or larger. See
Figure 6.
Step 3. The downlead wire from the antenna to the grounding block and the mast
ground wire should be secured to the house
with stand-off insulators, spaced from four
(4) to six (6) feet apart. See Figure 6.
NOTE: In the case of a “ground up” antenna
installation, it may not be necessary to ground
the mast if the mast extends four or more feet
into the earth. Consult a TV serviceman for
the proper depth in your location.
