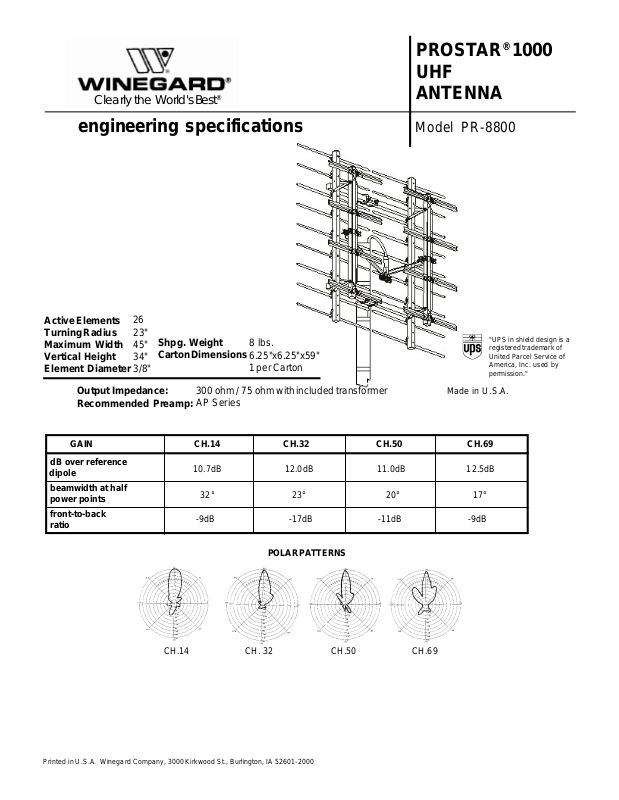

PROSTAR® 1000
UHF

Clearly the World's Best

engineering specifications

Active Elements
Turning Radius
Maximum Width
Vertical Height
Element Diameter

26
23"

Shpg. Weight

45"

Carton Dimensions

34"
3/8"

®

ANTENNA

Model PR-8800

8 lbs.

6.25"x6.25"x59"
1 per Carton

"UPS in shield design is a
registered trademark of
United Parcel Service of
America, Inc. used by
permission."

Output Impedance:
Recommended Preamp:

GAIN CH.14 CH.32 CH.50 CH.69

dB over reference
dipole

beamwidth at half

32° 23° 20° 17°

power points
front-to-back

ratio

10.7dB 12.0dB 11.0dB 12.5dB

-9dB -17dB -11dB -9dB

CH.14 CH. 32 CH.50 CH.69

300 ohm / 75 ohm with included transformer
AP Series

POLAR PATTERNS

Made in U.S.A.

Printed in U.S.A. Winegard Company, 3000 Kirkwood St., Burlington, IA 52601-2000
