Wine enthusiast Dual Zone, 237 0X 67 0Y, 237 0X 66 0Y, Single Zone User Manual
N’Finity Pro L Wine Cellar
(Features and Size May Vary)
User Manual
Model #’s
237 0X 66 0Y (Dual Zone)
237 0X 67 0Y (Single Zone)
X= 2 (Stainless Steel) or 3 (Black)
Y= 3 (Right Hinge) or 4 (Left Hinge)
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING
1
IMPORTANT SAFEGUARDS
When using this appliance, always exercise basic safety precautions,
including the following:
1. Read all of the instructions before using this appliance.
2. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Use this appliance only for its intended purpose as described in this use and care guide.
5. This wine cellar must be properly installed in accordance with the installation
instructions before it is used. See grounding instructions in the installation section.
6. Never unplug your wine cellar by pulling on the power cord. Always grasp the plug
firmly and pull straight out from the outlet.
7. Unplug your wine cellar before cleaning or before making any repairs. Note: If for any
reason this product requires service, we strongly recommend that a certified technician
performs the service.
8. The SUPPLY CORD cannot be replaced. If the cord is damaged the appliance should be
scrapped.
9. This appliance is designed for free standing installation or can be recessed into
cabinetry.
10. If your old wine cellar is not being used, we recommend that you remove the door
and leave the shelves in place. This will reduce possibility of danger to children.
11. Do not operate your wine cellar in the presence of explosive fumes.
12. Do not store foods in wine cellar as interior temperature may not be cool enough to
prevent spoilage or may cause bacteria growth.
SAVE THESE INSTRUCTIONS
2
Model number
Serial number
Date of purchase
DANGER
Risk of child entrapment.
Before you throw away your old wine cellar, take off the doors.
Leave the shelves in place so that children may not easily climb inside.
Thank you for using our Wine Enthusiast
product. This easy-to-use manual
will guide you in getting the best use of
your wine cellar.
Please remember to record the model and
serial number, they are on a label
in back of the wine cellar.
Staple your receipt to your manual.
You will need the receipt to obtain warranty service.
3
Table of Contents
IMPORTANT SAFEGUARDS ................................................................................................. 2
Wine Cellar Features and Use ............................................................................................ 6
Initial Setup ..................................................................................................................... 6
Temperature Adjustment ................................................................................................... 6
Shelving .......................................................................................................................... 6

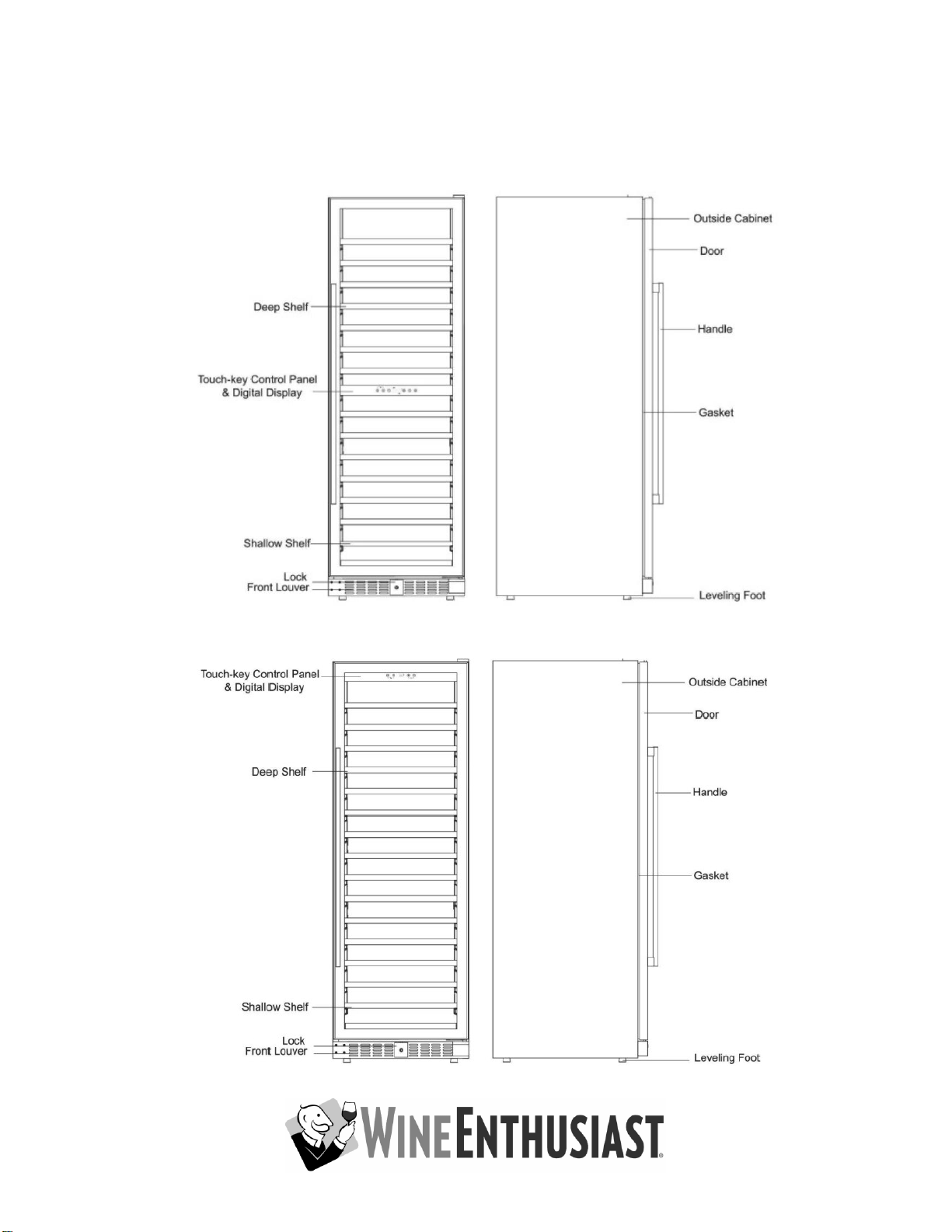

Parts and Features ............................................................................................................ 7

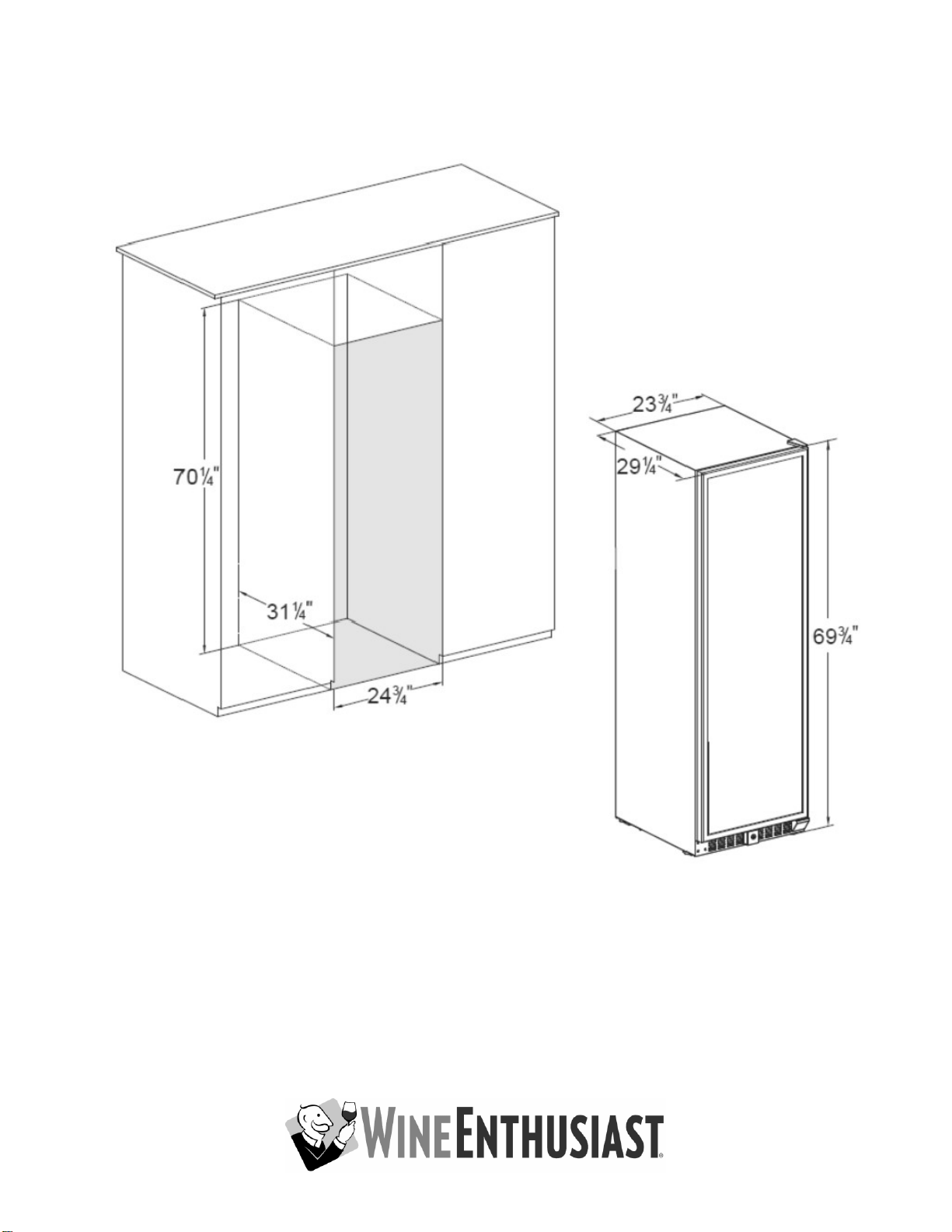

Installation as a Built-In Cellar ............................................................................................ 8
Reversing the Door Swing .................................................................................................. 9
Installing the Handle ....................................................................................................... 11
Operating Your Wine Cellar ............................................................................................. 11
Before You Start ............................................................................................................. 12
Setting the Temperature Control ....................................................................................... 12
Removing the Rolling Shelf ............................................................................................... 12
Temperature Settings for Serving Wine .............................................................................. 14
Interior Light .................................................................................................................. 14
Door Lock ...................................................................................................................... 14
Normal Operating Sounds You May Hear ............................................................................ 14
Technical Data ................................................................................................................... 15
Proper Wine Cellar Care and Cleaning ............................................................................. 16
Troubleshooting ................................................................................................................. 17
Limited Warranty ............................................................................................................ 19
4
Electrical Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with
proper grounding to power the wine cellar.
• Avoid the use of three plug adapters or cutting off the third grounding in order to
accommodate a two plug outlet. This is a dangerous practice since it provides no
effective grounding for the wine cellar and may result in shock hazard.
Install Limitations
• Do not install your wine cellar in any location not properly insulated or heated
e.g. garage etc. Your wine cellar was not designed to operate in temperature
settings below 60° Fahrenheit.
• Select a suitable location for the wine cellar on a hard even surface away from
direct sunlight or heat source e.g. radiators, baseboard heaters, cooking
appliances etc. Any floor unevenness should be corrected with the leveling legs
located on the front and rear bottom corners of the wine cellar.
• This appliance is designed for free standing installation or can be recessed into
cabinetry.
Use of Extension Cords
• Avoid the use of an extension cord because of potential safety hazards under
certain conditions. If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot outlet that will
accept the plug. The marked rating of the extension cord must be equal to or
greater than the electrical rating of the appliance.
5
Wine Cellar Features and Use
Initial Setup
• Before connecting the wine cellar to the power source, let it stand upright for
approximately 24 hours. This will reduce the possibility of a malfunction in the
cooling system from handling during transportation.
• Once you have plugged the unit into an electrical outlet, let the unit run for at
least 30 minutes to acclimate before making any adjustments.
Temperature Adjustment
• When the wine cellar is plugged in for the first time, the LED display will show
the factory preset temperature of 50°F.
• The wine cellar can be set to accommodate your wine storage requirements. To
set the temperature, press the up or down arrow button to increase or decrease
the temperature setting until the desired temperature is attained. It may take
some time to reach the set temperature.
Shelving
(Type and number of shelves will vary per model)
Your cabinet was designed to store a maximum number of bottles securely. We
recommend that you observe the tips below to optimize loading:
• Remove tape from shelves once unit is stable and ready for storage.
• Disperse the bottles evenly to avoid concentrating weight in one place. Bottles
must not touch either the back of the cabinet or the step at the bottom. While
your wine cellar was designed to hold large format bottles, such as Pinot Noir and
Champagne, larger bottles reduce the number of bottles you can fit on a shelf.
• Make sure that the bottles are not all grouped together either at the top or
bottom of the cabinet.
• Only pull out one rolling shelf at a time. Never attempt to pull out more than
one.
• Maximum weight capacity per shelf is 55 lbs.
• Each shelf is designed to comfortably hold one row of 11 to 13 bottles.
6
