CONTENTS

Introduction :From the vine to the wine ................................. Page 3

1. General information ....................................................... Page 4

1.1 Technical properties ................................................... Page 4

1.2 Required space ......................................................... Page 5

1.3 Packet contents ......................................................... Page 6

2. Some advice ................................................................... Page 7

2.1 Conservation of the wine ............................................ Page 7

2.2 Exhaust air space ...................................................... Page 7

2.3 The cellar ................................................................. Page 8

2.3.1. Insulation ............................................................... Page 8

2.3.2. Insulation of walls and ceiling .................................... Page 9

2.3.3. Insulation of the floor ............................................... Page 9

2.3.4. Insulation of other elements ...................................... Page 9

3. Installation of the door .................................................. Page 10

4. Installation of the air conditioner ................................... Page 13

5. Use of the air conditioner ............................................... Page 14

6. Service of the air conditioner ......................................... Page 15

7. The guarantee ................................................................ Page 16

7.1 The legal guarantee .................................................... Page 16

7.2 2-year contractual guarantee ....................................... Page 16

7.3 Conditions applicable to the guarantee .......................... Page 16

7.4 Guarantee exclusions and limits ................................... Page 16

3

From the vine to the

wine

In the past cellars were planned and built so that they could
maintain a temperature not exceeding 14 to 16°C for a whole
season unattended.

Nowadays not many cellars are capable of this.

Yet, a cellar that deserves this name, must be impervious against
important temperature changes, be as humid as necessary and at
the same time, be ventilated, dark and insensitive to vibrations.

That is why we have spent the last fifteen years, surrounded by
specialists and passionate and demanding amateurs, projecting,
developing, testing and producing thousands of air-conditioning
systems for the conservation and ageing of wine.

If you follow our advice and adhere to our recommendations,
your wines will be able to fully develop.

Before installing and using your WINEMASTER® FONDIS cellar air

-conditioning, you must read the following instruction carefully.

If you have any questions, please contact us!

And so... even if several long years may be necessary until the

wine fully develops its richness.... the big and exciting day will

come, when you can uncork your wine.
Carefully take the bottle... do not cut at the top right next to the
neck of the bottle ... seize a beautiful cork-screw... draw the cork
without causing vibration... to examine the «mirror»…

But that is a different story…

FONDIS AFTER-SALES SERVICE

Tél. [phone]/Fax [phone]

E-MAIL : [e-mail]

4

1.General information

1.1. Technical properties

Version : Right opening

Metal, painted white RAL 9010
Polyurethane-insulation 40 mm

* As the cooling capacity reduces due to the ou tside temperature, the ability of
the appliance to maintain a temperature of 12°C can suffer when the outside
temperature rises to roughly 35°C.
Never the less,a permanent temperature of 35°C in the exhaust air space
must be avoided.Such a high temperature must be reached during the sum­mer season only (see §1.1 “Exhaust air space”).

Capacity Up to 15 m

3

Absolute dimensions

(mm)

2020 x 760 x 254,5

Total weight 65 kg

Temperature regulation

Pre-set at 4 °C ; adjust-

able between 4 and 15 °

C

Maximum outside tem-

perature

35 °C *

Cooling capacity 450 W

Absorbed energy 390 W

Power supply 230 – 240 V

Coolant R 404 a

Noise level

- at 1m

- at 3m

42 dB
40 dB

65 kg

5

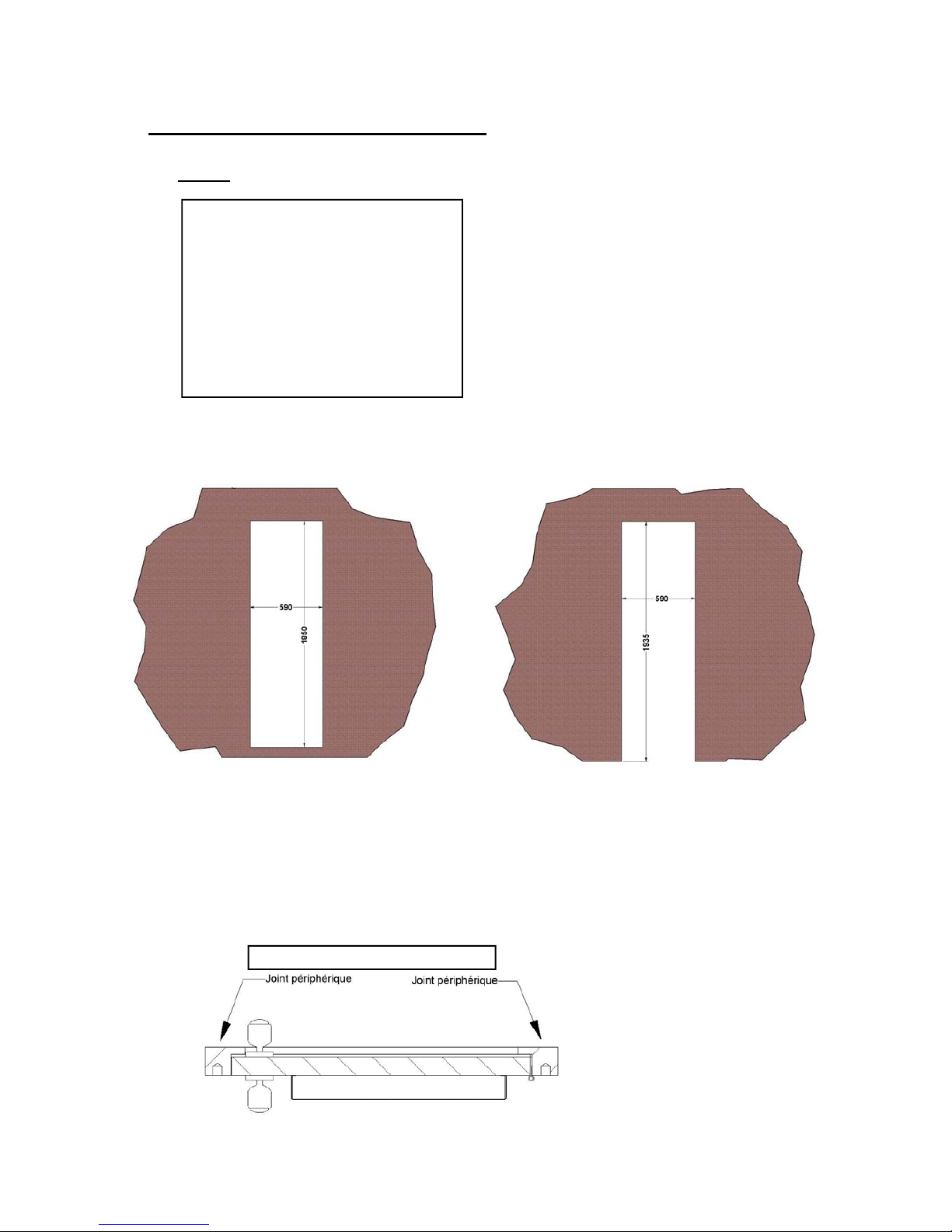

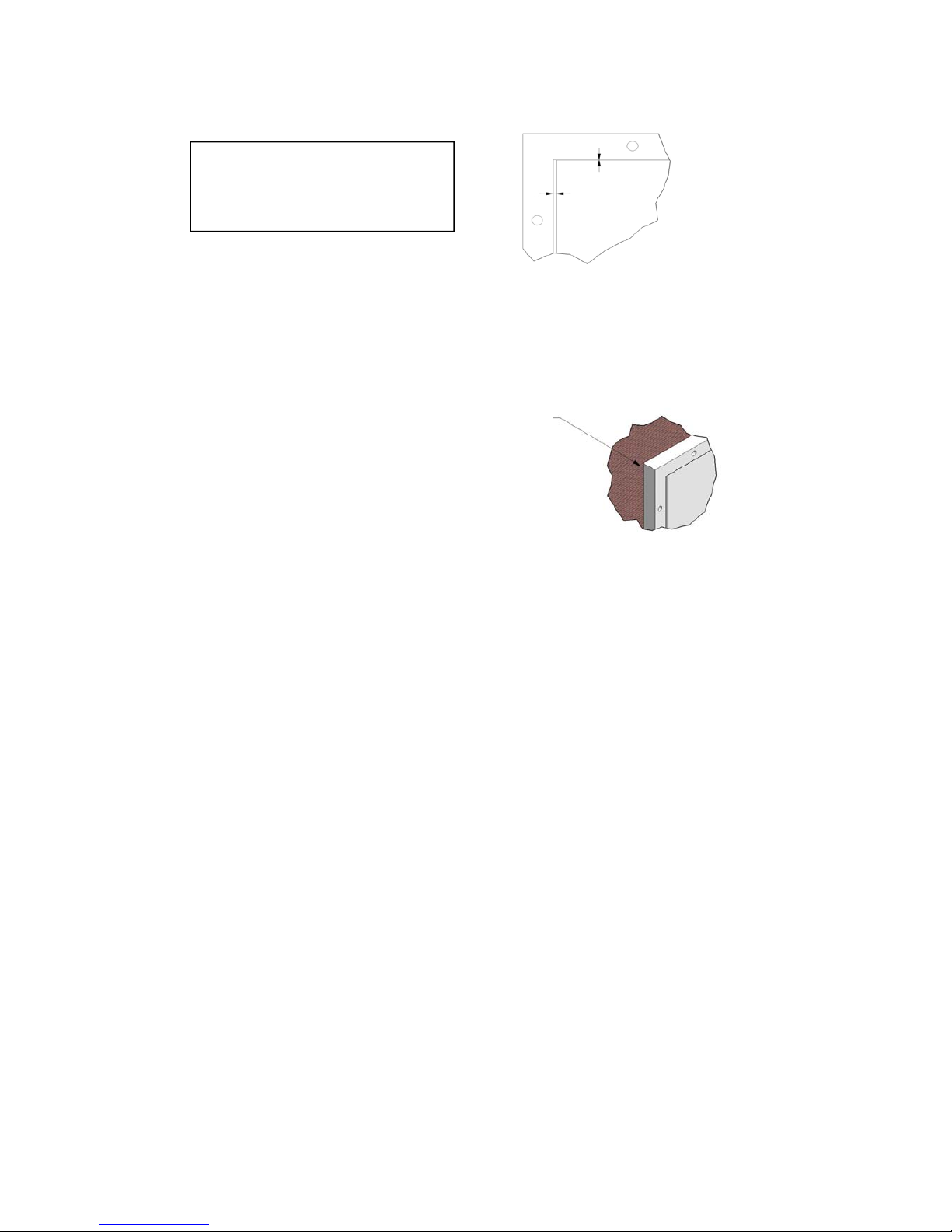

1.2. Required space (mm)

1
8
9
8
*
*

720 *

*

* Dimension extérieure
** Passage

720

624

1
8
9
8
*
*

2
0
0
0
*
*

57

35

6

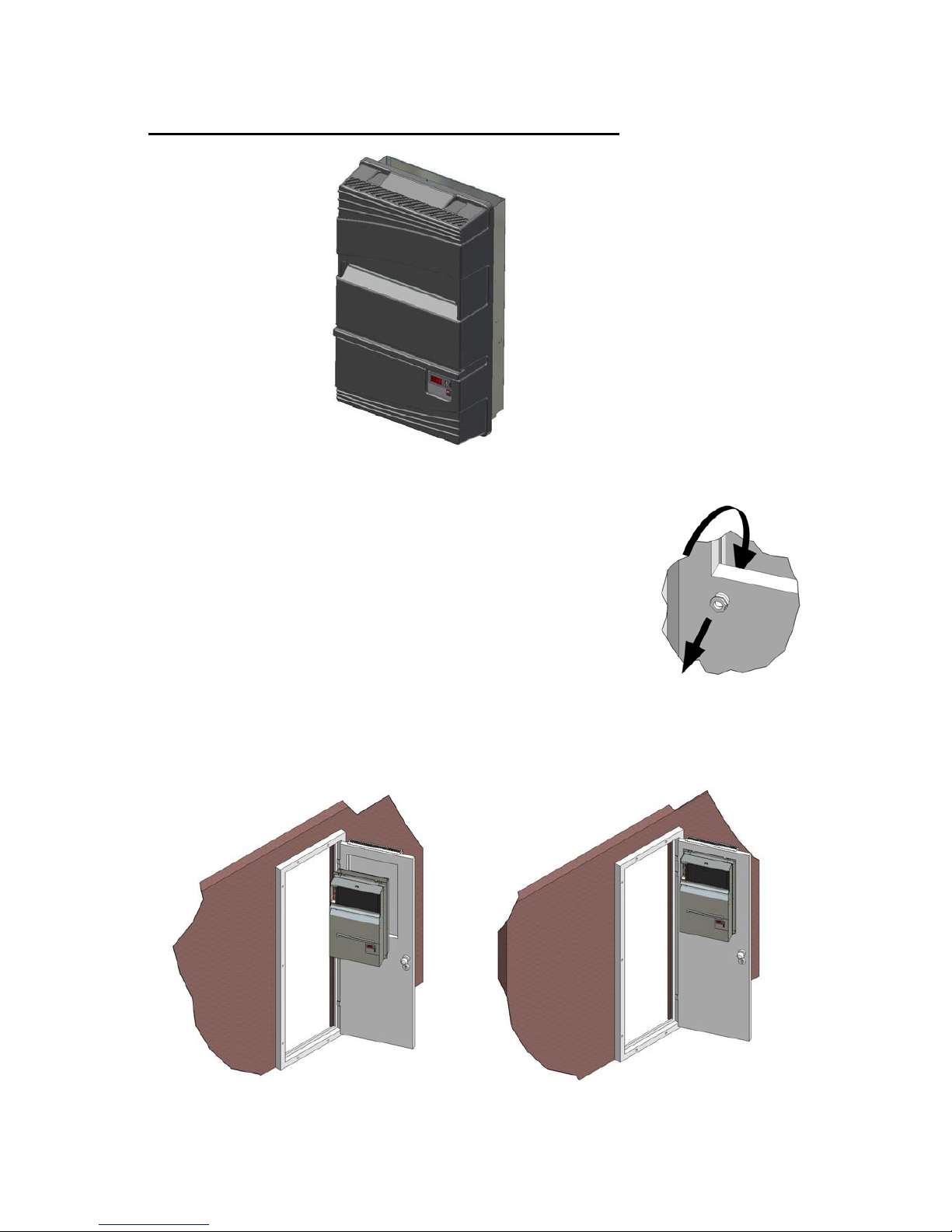

1.3. Packet contents

Packet 1 :

- 1 set door + frame + hood

- 1 set handle

- 1 roll edge seal

- 8 fixing screws + plugs

- 8 white plastic covers

- 1 cartridge of silicone

- 1 cylinder + keys set

Packet 2 :

- 1 air conditioner WINECPN

- 1 plastic hood

- 1 filter

- 8 fixing screws

- 4 rings

Important !!! When you receive your packet, check the

contents carefully.

Packet 1

Packet 2
