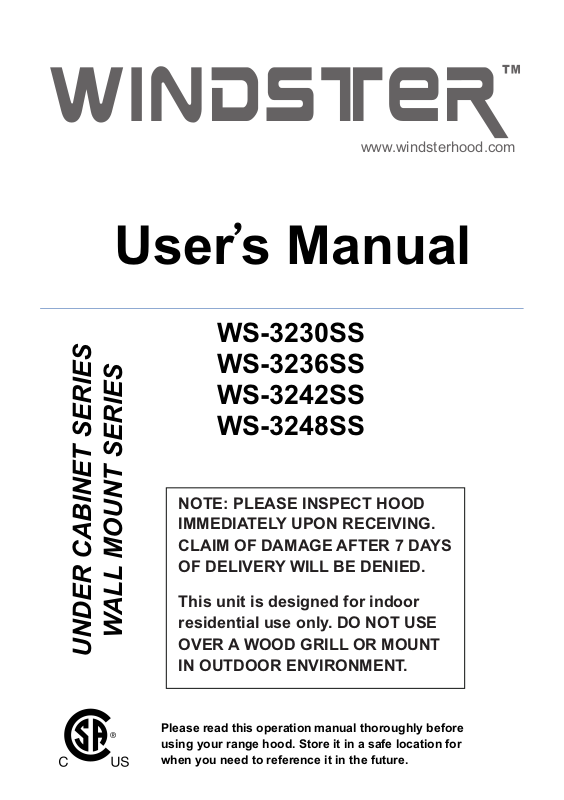

Windster WS3248SS User Manual

www.windsterhood.com

User s Manual

WS-3230SS WS-3236SS WS-3242SS WS-3248SS

NOTE: PLEASE INSPECT HOOD IMMEDIATELY UPON RECEIVING.

CLAIM OF DAMAGE AFTER 7 DAYS OF DELIVERY WILL BE DENIED.

This unit is designed for indoor

WALL MOUNT SERIES

UNDER CABINET SERIES

residential use only. DO NOT USE OVER A WOOD GRILL OR MOUNT IN OUTDOOR ENVIRONMENT.

Please read this operation manual thoroughly before using your range hood. Store it in a safe location for when you need to reference it in the future.

1 TABLE OF CONTENTS

Table of Contents

Safety Information ............................................................... 2 - 3

Content Checklist ..................................................................... 4

Measurements ........................................................................... 5

Preparation ........................................................................... 6 - 7

Installation ................................................................................. 8

Operation & Features .......................................................... 8 - 9

Cleaning & Maintenance ........................................................ 10

Troubleshooting ...................................................................... 11

Parts List / Replacement ........................................................ 12

Warranty / Contact Us ....................................................... 13-14

2 SAFETY INFORMATION

SAFETY INFORMATION

"CAUTION-To reduce risk of fire, properly exhaust air according to local city building code(s). "WARNING-To reduce the risk of fire or electric shock, do not use this fan with any solid- state speed control device.(Variable Speed Controller)

"WARNING-TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s) in

accordance with all applicable codes and standards, including fire-rated construction.

b) Sufficient air is needed for proper combustion and exhausting of gases through

the flue (chimney) of fuel burning equipment to prevent back drafting, Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and

other hidden utilities. d) Ducted fans must always be vented to the outdoors. e) If this unit is to be installed over a tub or shower, it must be marked as

appropriate for the application and be connected to a GFCI(Ground Fault Circuit Interrupter)-protected branch circuit.

f) Never place a switch where it can be reached from a tub or shower.

WARNING-TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

"WARNING-TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING :

A. SMOTHER FLAMES with a close- fitting lid, cookie sheet, or metal tray, then turn off the burner.

BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately EVACUATE AND CALL THE FIRE DEPARTMENT.

B. NEVER PICK UP A FLAMING PAN - You may be burned. C. DO NOT USE WATER including wet dishcloths or towels - a violent

steam explosion may result.

3SAFETY INFORMATION

D. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

2. The fire is small and contained in the area where it started.

3. The fire department is being called.

4. You can fight the fire with your back to an exit.

WARNING-TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer, if you have

questions, contact the manufacturer.

b) Before servicing or cleaning unit, switch power off at service panel and lock

service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION-For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors.

WARNING-TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boil overs caused by

smoking

and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on

fan or filter.

d) Use proper pan size. Always use cookware appropriate for the size of the surface

element.

Based on "Kitchen Firesafety Tips" published by NFPA.

4 CONTENT CHECKLIST

CONTENT CHECKLIST

1. CONTENTS INCLUDED

a. (1) WS32 series(30" , 36" , 42" or 48")hood assembly

b. (1) User’s manual

c. (1) 7" conversion collar

d. (2) Aluminum filters with frame & (2) stainless steel filler (30")

e. (2) Aluminum filters with frame & (2) stainless steel filler (36")

f. (3) Aluminum filters with frame & (2) stainless steel filler (42")

g. (3) Aluminum filters with frame & (2) stainless steel filler (48")

h. (2) Stainless steel oil trays (30" and 36")

I. (3) Stainless steel oil trays (42" and 48")

j. (1) Screw packet

2. TOOLS REQUIRED (NOT INCLUDED)

a. Safety gloves

b. Safety glasses

c. Electric drill w/ starter bit

d. Utility knife

e. Philips screwdriver

f. Spirit level

g. Measuring tape

h. Writing instrument (pen, marker, pencil)

I. Aluminum tape
