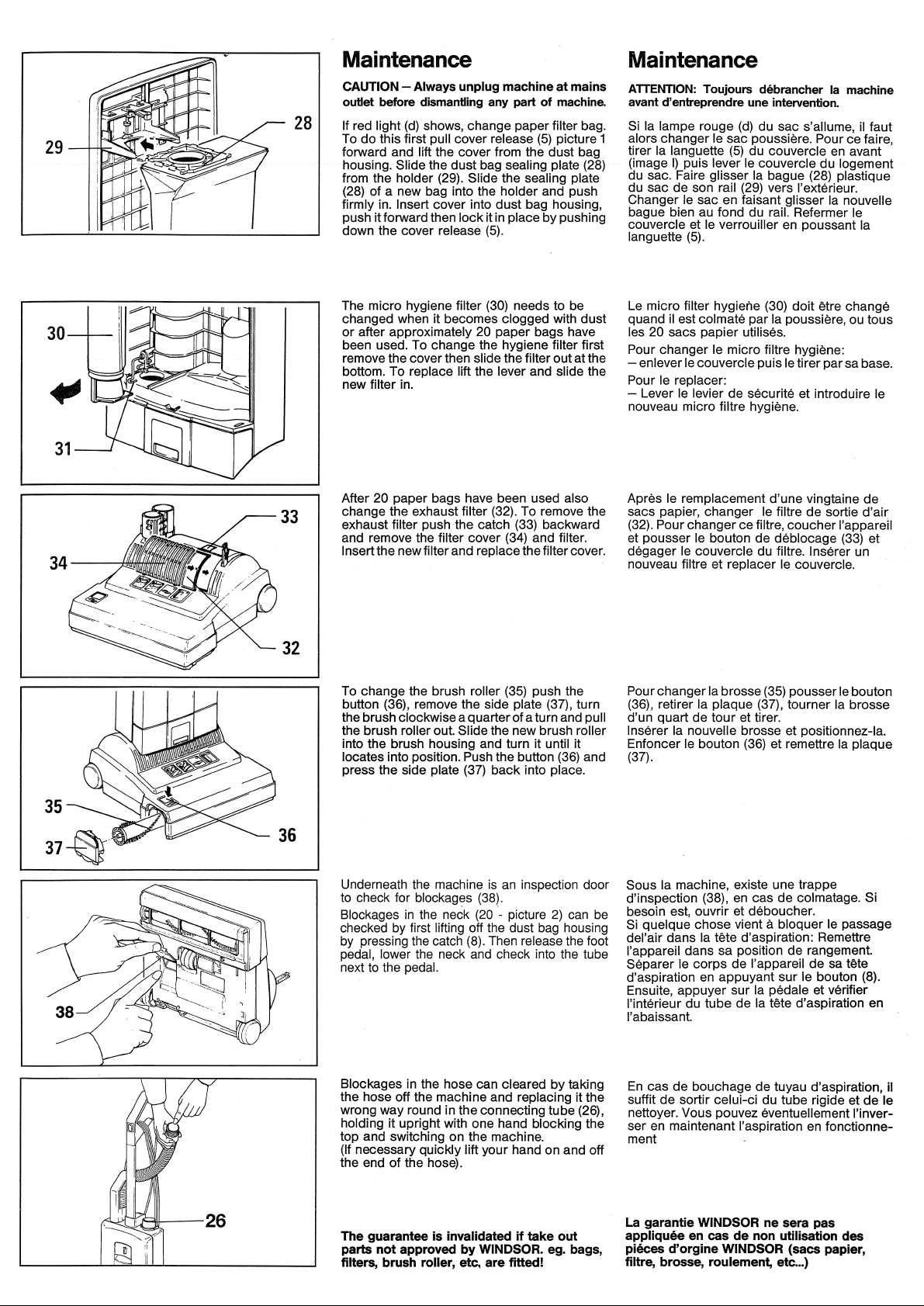

MODEL: SRXP12IA
10120260
230 / 240V
86269840-B 10/2007
PRV NO. 980152

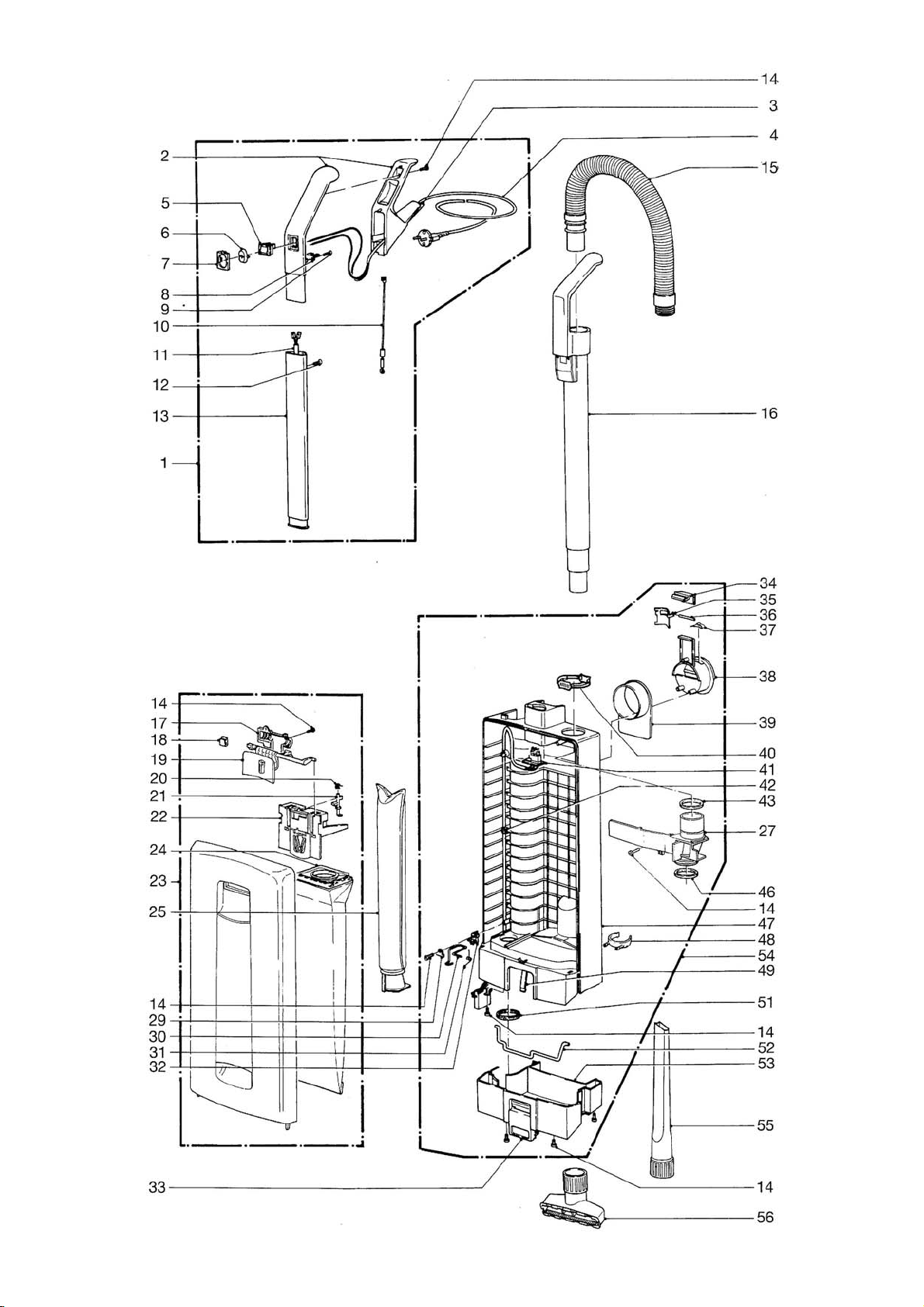

PARTS LIST / SENSOR XP12 / 230/240V
PARTS LIST / SENSOR XP12 / 230/240V
PARTS LIST / SENSOR XP12 / 230/240V
POS
1 86142390 5622WI HANDLE complete SR-IA.
- 86142470 5628bl HANDLE X 2 / X 3
- - 5631WI HANDLE WITH CABLE, CPL.
2 86142380 5363EW HANDLE GRIP, 2-WIRE
3 86141970 5359Hg GROMMET, 10 PCS
4 86139300 5260dg CABLE WITH EU-PLUG
- 86140370 5390dg CABLE WITH AUS-PLUG
- - 5461UK CABLE WITH GB-PLUG (10M)
5 86000880 0532(EW) SWITCH / BLUE
6 86145640 5160bl SWITCH CAP, BLUE
7 86145700 5161hg SWITCH CAP HOLDER GRY
8 86139280 5162 CABLE CLAMP
9 86016900 0103ER SCREW C 3,9x16
10 86137810 5253UL ANTISTATIC WIRE, SENSATION
11 86142370 5298ER HANDLE CABLE, 100V SENSOR
12 86147140 0129(ER) SCREW, M4 x 12
13 86142300 5187 HANDLE TUBE
14 86147030 0102(ER) SCREW M3, 9x13 MM DIN 7981
15 86142650 5040hg HOSE, SENSOR GRY
16 86141550 5045hg EXTENSION TUBE, GRY
17 86140830 5803hg COVER
18 86145340 5319 SPRING, BAG HOLDER
19 86140810 5706bl COVER RELEASE, BLUE
20 86144760 5091 SAFETY CATCH SPRING
21 86144770 5360 SAFETY CATCH, BAG HOLDER
22 86138050 5324 BAG HOLDER
23 86141860 5800WI FRONT COVER CPL.
24 86000500 5300 SENSOR FILTER BAG PACK
25 86005220 5301ER MICRO-HYGIENE FILTER
27 86142910 5380HG INTERNAL COVER
29 86139970 1073 CLAMP
30 86141620 5208 FILTER SAFETY CATCH
31 86145320 5210 SPRING (MICRO FILTER CATCH)
32 86139290 5164 CABLE CLAMP
33 86141090 5082bl DUST BAG HOUSING LOCKING
34 86143140 5098hg LOCK CATCH, GRY
35 86142290 5099 HANDLE LOCK PLATE
36 86143060 0187(ER) LOCK PIN
37 86145350 5146 STOP SPRING (HOOK)
38 86139450 5145hg CARRYING HANDLE
39 86139260 5144hg CABLE HOOK LT GRY
40 86144620 5424ER RETAINING RING, DK, GRY
41 86142890 5299ER INTERNAL CABLE, 100V SENSOR
42 86139320 5266 CABLE CLAMP (FILTER BAG HOUSING
43 86144900 5842 SEAL
46 86144930 5289 SEAL, FILTER TUBE
47 86141230 5280hg DUST BAG HOUSING, 100V SENSOR
48 86140080 1823hg CLIP, DUST BAG HOUSE SR12
49 86145280 5084 SPRING LOCKING ROD
51 86144910 5163 SEAL, FILTER BAG HOUSING NECK
52 86143120 5083 LOCKING ROD, DUST BAG HOLDER
53 86141120 5085hg DUST BAG HOUS.BUMPER BASE
54 86141170 5214WI DUST BAG HOUSING COMPLT 100V SR
55 86140860 1092JE CREVICE NOZZLE
56 86146310 1491JE UPHOLSTERY NOZZLE
PRODUCT
CODE
PRV NO. DESCRIPTION

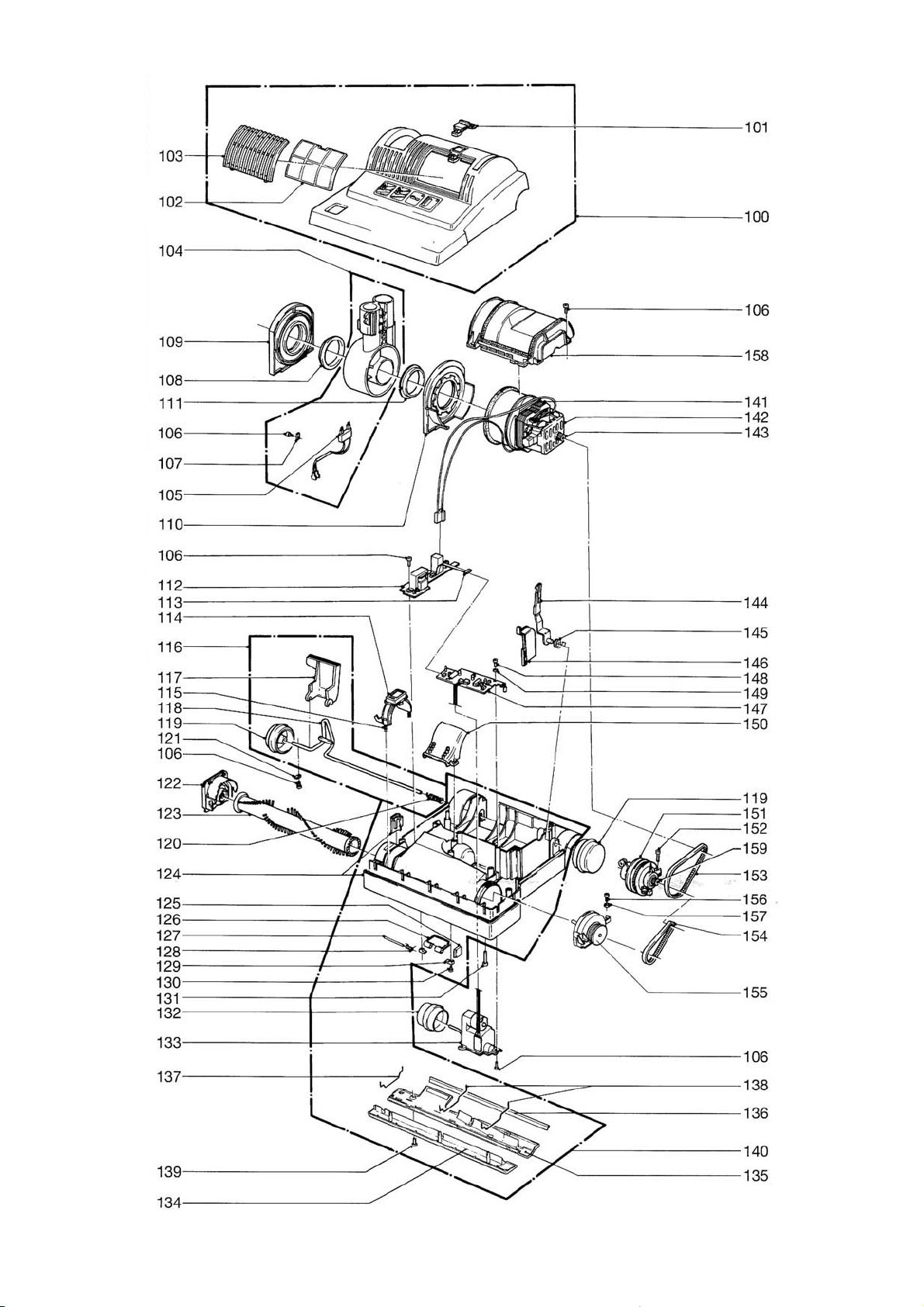

PARTS LIST / SENSOR XP12 / 230/240V PARTS LIST / SENSOR XP12 / 230/240V
PARTS LIST / SENSOR XP12 / 230/240V
POS
100 86144330 5485WI POWER HEAD COVER XP 12
101 86141430 5008BLU EXHAUST FILTER CATCH
102 86141450 5143 EXHAUST FILTER
103 86141410 5007BLU EXHAUST FILTER COVER
104 86146160 5729UL SWIVEL NECK ASSEMBLY
105 86143210 5495UL MALE CONTACT HOLDER
106 86147030 0102 SCREW M3,9x13 MM DIN 7981
107 86139230 2494 CABLE CLAMP
108
109 86146090 5480 SWIVEL NECK SUPPORT RIGHT
110 86146150 5479 SWIVEL NECK SUPPORT LEFT
111 86146130 5717 SWIVEL NECK BEARING
112 86137650 5193ER 12V POWER SUPPLY
113 86144650 5205 RIBBON CABLE
114 86138650 5102BLU BRUSH ROLLER RELEASE
115 86145290 5103 SPRING
116 86137980 5051HG AXLE ASSEMBLY GRY
117 86293260 5059OR FOOT PEDAL, ORANGE
118 86137990 5053 AXLE
119 86146670 5819HG WHEEL, GRY
120 86146570 2010 WHEEL RETURN SPRING
121
122 86138170 5287BLU BEARING BLOCK RIGHT HAND
123 86004950 5010WI BRUSH ROLLER SR 12
124 86138940 5005HG BUMPER SR12 GRY
125 86144730 5155HG RUBBING PLATE GRY
126 86137720 5172OR ACCESS DOOR, ORANGE
127 86138000 5303 ACCESS DOOR AXLE
128 86145330 5304 ACCESS DOOR SPRING
129 86142560 5154HG HINGE GRY
130 86147150 0100 SCREW 2,9x9,5
131 86147170 0176 SCREW AM 4 X 30
132 86143920 5174HG PILE ADJUSTMENT WHEEL GRY
133 86145080 5060ER SERVO MOTOR WITH GEAR BOX
134 86138280 5411HG BOTTOM PLATE
135 86138300 5412HG BOTTOM PLATE SR12
136 86144940 5400-1 SEALING STRIP 12”
137 86146790 5401 WIRE TIE, BOTTOM PLATE, OUTER
138 86146800 5402 WIRE TIE, BOTTOM PLATE, CENTER
139 86144850 0197 SCR, M4X12 MM W/WASHER
140 86139930 5482HG CHASSIS, COMPLETE
141 86139410 05118S CARBON BRUSH SET 230/240V
- - 5470 VACUUM MOTOR 1000W / 230V
- 86143640 5471 MOTOR 1000W / 240V
142 86144710 5100 RUBBER MOUNTING
143 86143620 5462 MOTOR PULLEY 2MR
144 86145470 5129 SUPPORT LEVER
145 86145460 5107 SUPPORT SPRING
146 86143570 5112SW MOTOR PULLEY COVER
147 86140160 5740er COMPUTER CONTROLLER, 115 & 230v
148 86147160 0107 SCREW 2,9x13
149 86147190 0143 WASHER 3,2
150
151 86145060 5464 SENSOR X4 CPL
152 86147050 0104 SCREW M3.9 x 25MM
153 86138240 5463 BELT 2MR-310-6
154 86005000 5110 BELT HTDII, 219 3M
155 86138200 5766HG BEARING BLOCK L.H. CPL.
156 86016900 0103ER SCREW C 3,9x16
157 86146550 0141 WASHER, LOCK
158 86143560 5018UL MOTOR COVER
159 86143580 5117 SENSOR PULLEY
PRODUCT
CODE
86145120 5101 SLEEVE
86140000 2014 CLAMP CONNECTING ROD (AXLE)
86140760 5173SW COVER (SWIVEL NECK)
PRV NO. DESCRIPTION
