Read ALL instructions before using the machine .
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution must
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
WARNING
DANGER: Failure to read and observe all DANGER statements could result in severe bodily injury or
death. Read and observe all DANGER statements found in your Owner’s Manual and on
your machine.
WARNING: Failure to read and observe all WARNING statements could result in injury to you or to
other personnel; property damage could occur as well. Read and observe all WARNING
statements found in your Owner’s Manual and on your machine.
CAUTION: Failure to read and observe all CAUTION statements could result in damage to the
machine or to other property. Read and observe all CAUTION statements found in your
Owner’s Manual and on your machine.
DANGER: Failure to read the Owner’s Manual prior to operating or attempting any service or
maintenance procedure to your machine could result in injury to you or to other personnel;
damage to the machine or to other property could occur as well. You must have training in
the operation of this machine before using it. If you or your operator(s) cannot read
English, have this manual explained fully before attempting to operate this machine.
DANGER: Operating a machine that is not completely or fully assembled could result in injury or
property damage. Do not operate this machine until it is completely assembled. Inspect
the machine carefully before operation. Use only as described in this manual. Use only
the manufacturer’s recommended attachments.
DANGER: Machines can cause an explosion when operated near flammable materials and vapors.
Do not use this machine with or near fuels, grain dust, solvents, thinners, or other
flammable materials.
DANGER: Do not pick up flammable fluids, dust or vapors.
DANGER: Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
DANGER: This machine is not suitable for picking up health endangering dust.
DANGER: Using a machine with a damaged power cord could result in an electrocution. Do not use
the machine if the power cord is damaged. Do not use the electrical cord to move the
machine. Keep cord away from heated surfaces. Do not unplug by pulling on the cord;
grasp the plug, not the cord. Turn off all controls before unplugging. Do not close a door
on cord or pull around sharp edges or corners.
!
!
!
!
!
!
!
!
!
!
1
DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not
properly disconnected from the power source. Disconnect the power supply before
attempting any maintenance or service.
WARNING: Operating a machine without observing all labels, decals, etc., could result in injury or
damage. Read all machine labels before attempting to operate the machine. Make sure
all of the labels are attached or fastened to the machine. Get replacement labels and
decals from the manufacturer’s distributor.
WARNING: Electrical components can “short-out” if exposed to water or moisture. Keep the electrical
components of the machine dry. Always store the machine in a dry area.
WARNING: Use of this machine to move other objects or to climb on could result in injury to the
operator or damage to the machine. Do not use this machine as a step or furniture. Do
not allow to be used as a toy. Close attention is necessary when used by or near children.
WARNING: Moving parts of this machine can cause injury and/or damage. Keep hands, feet, loose
clothing, hair, fingers, and all parts of the body away from openings and moving parts.
WARNING: Electrocution could occur if you handle the plug or appliance with wet hands. Do not
handle plug or appliance with wet hands.
WARNING: The machine employs a removable float for wet pick-up operation to reduce risk of
electric shock. Always install float before any wet pick-up operation.
WARNING: Rotating fan blades inside the cover. Before opening cover, switch off machine. Wait until
the fan/brush stops completely or dust and debris may be ejected.
WARNING: If the machine is not working properly, has been dropped, damaged, left outdoors, or
dropped into water, return it to an Authorized service center.
WARNING: Damage could occur to machine if openings are blocked. Do not put any object into
openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything
that may reduce air flow.
WARNING: Injury could occur to the operator or the machine if used without the dust bag and/or
filters. Do not use the machine without the dust bag and/or filters in place.
WARNING: Injury to the operator and/or damage to the machine could occur when cleaning on stairs,
unless extra caution is used. Use extra caution when cleaning on stairs.
WARNING: To reduce the risk of electrical shock, always use a 3-wire electrical system connected to
the electrical ground. Whenever possible connect the machine to an outlet protected by a
ground fault interrupter (GFCI). See “Grounding Instructions.”
SAVE THESE INSTRUCTIONS
!
!
!
!
!
!
!
!
!
!
!
!
2
!
3
THIS PRODUCT IS FOR COMMERCIAL USE
ONLY.
ELECTRICAL:
The amp, hertz, and voltage are listed on the data
label found on each machine. Using voltages above
or below those indicated on the data label will cause
serious damage to the motors.
EXTENSION CORDS:
If an extension cord is used, the wire size must be at
least one size larger than the power cord on the
machine, and must be limited to 50 feet (15.5m) in
length.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides a
path of least resistance for electric current to reduce
the risk of electric shock. This appliance is equipped
with a cord having an equipment-grounding
conductor and grounding plug. The plug must be
inserted into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
Improper connection of the equipmentgrounding conductor can result in a risk of
electric shock. Check with a qualified electrician
or service person if you are in doubt as to
whether the outlet is properly grounded. Do not
modify the plug provided with the appliance - if it
will not fit the outlet , have a proper outlet
installed by a qualified electrician.
VACUUM AND ACCESSORIES
A Motor Block
B On/Off Switch
C Float: Keeps liquid out of Motor Block
D Polyester Filter: Remove for use with liquids
E Hooks: Secure Motor Block to Tank
F Suction Inlet
G Tank
H 2-pc. Chrome Wand
I 10-ft. x 1-1/2" Flexible Hose
J 2-pc PVC Wand
K Universal Adapter
M 3" Round Brush
N Crevice Tool
O 16" Brush
P 16" Squeegee
ATTENTION: The Polyester Filter must be cleaned after each
use to maintain efficient suction.
IMPORTANT INSTRUCTIONS
• Before use, the equipment must be correctly assembled with
all its components.
• Check that electrical outlet is correct for use with the plug on
the machine.
• Before connecting, check that the specified motor voltage
corresponds to the main voltage available.
• Never use the equipment near inflammable, explosive or toxic
substances: sparks from the motor could cause dangerous
reactions.
• Always unplug the machine from electrical outlet when leaving
machine unattended or before attempting any repair.
• Service and repair should be done by qualified personnel only.
Use only original manufacturer ’s replacement parts.
4
S7TOOLKIT
Complete Standard Tool Kit
includes H, I, J, K, M, N, O and P.
R Fixed Carpet Tool
R
(S73894)
5
This machine is a commercial vacuum designed for wet and
dry pick-up.
Dry soil can be vacuumed directly into the tank. To empty the
tank of dry soil, remove the top and dump into trash
receptacle.
For wet pick-up, remove polyester filter. The machine is
equipped with a float shut-off. As the tank is filled to capacity,
a float rises and seals the vac intake, causing loss of
vacuum. Switch off the vacuum when this happens and bring
the machine to a floor drain.
Use the convenient drain hose at the back of the vacuum to
empty the tank.
With both wet and dry applications be sure to frequently
clean the filter.This is especially true when the vacuum is
being used with strippers and wax.
OPERATION
DAILY MAINTENANCE
Caution: Strippers and some detergents produce foam
which will damage the vac motors.The vac shut-off may
not be sensitive to all foams. Be sure to check that the
tank is not filling with foam. Use a defoaming agent to
avoid pulling foam through vac motor. Should vac motor
become wet, remove source of overflow and immediately
run vac motor open to dry.
At the end of each working day:
1. After each use, rinse tank with fresh water.
Periodically inspect the recovery tank and
decontaminate if necessary, using a Hospital Grade
Virucide or a 1:10 bleach to water solution. Waste
water should be disposed of properly.
2. Remove head assembly and allow tank to dry.
3. Remove filters for cleaning or to allow to dry.
4. Inspect hoses for wear. Frayed or cracked hoses
should be replaced to avoid vacuum loss.
5. Inspect power cord for wear.This cable will lay on wet
surfaces.To prevent electrical shock replace cords with
frayed or cracked insulation immediately.
3
2
1
LN
ELECTRIC DRAWING
1 – terminal block
2 – switch
3 – motor
6
(Every six to twelve months):
1. Check filter for wear, replace dirt saturated filters that
do not respond to normal cleaning.
2. Inspect gasket seals and replace those which have
begun to leak.
3. Examine carbon motor brushes and commutator.
PERIODIC MAINTENANCE
The filter is accessed by lifting the head assembly off the tank.
Polyester filter is easily removed by simply lifting the filter basket out of the tank.
Cartridge filters – Remove the filter retainer by turning the black knob 90 degrees counter-clockwise.
Cartridge filter will then slide off of float assembly.
NOTE:
Be sure to frequently clean the filter.
Allow filter to dry after being used for wet pick-up.
Filters used for wet pick-up including stripper must be thoroughly cleaned before being allowed to dry.
Worn filters can affect vacuum performance. Replace the filter when it becomes worn out and normal cleaning
will not restore vac performance.
SERVICING THE FILTER
MOTOR REPLACEMENT
1. Disconnect power cord from power source.
2. To access the vac motor, remove the screws that attach the main cover to the head assembly and set
the cover to one side.
3. Disconnect the motor ’s 2 red lead wires from the main switch.
4. Disconnect green/yellow wire by removing screw from motor core.
5. Remove the four motor mounting screws.
6. Remove motor plate and set aside.
7. Take out the motor and remove the upper and lower gaskets.
8. Inspect gaskets. If they shown any wear or tear in the material, replace.
9. Install gaskets onto new motor. Make sure gaskets are properly seated.
10. Install the new motor. Make sure foam mufflers are positioned properly.
11. Attach motor plate to motor.
12. Connect green/yellow wire to motor core.
13. Connect motor ’s 2 red lead wires to main switch.
14. Re-assemble vac cover.
15. Test for proper operation.
SERVICING THE VAC MOTOR
Replace both carbon
brushes when either is
less than 3/8" long. (PN S8TOEG845) 120V
(PN S8TOGB839) 230V
7
CARBON BRUSH REPLACEMENT
1. Disconnect power cord from power source.
2. To access the vac motor, remove the
screws that attach the main cover to the
head assembly and set the cover to one
side.
3. Remove the motor cover by removing two
screws. See Figure 1
4. Remove the wire terminal from carbon
brush housing. See Figure 2
5. Remove the carbon brush assembly by
removing the 2 screws that attach it to the
vac motor. See Figure 3
6. Inspect armature commutator. If it is
extremely pitted, grooved or not concentric
then the motor will need to be replaced or
sent to a qualified service center.
7. Slide the yellow brush housing from plastic
holder. See Figure 4
8. Reverse steps 7 through 4 to install new
brush and housing (part number
S8TOEG845 120 V - S8TOGB839 230 V)
9. Repeat steps 4 through 8 for the other
carbon brush.
10. Reverse steps 3 and 2 for re-assembly.
11. Test for proper operation
SERVICING THE VAC MOTOR
Fig. 1
Fig. 2
Fig. 3
Fig. 4

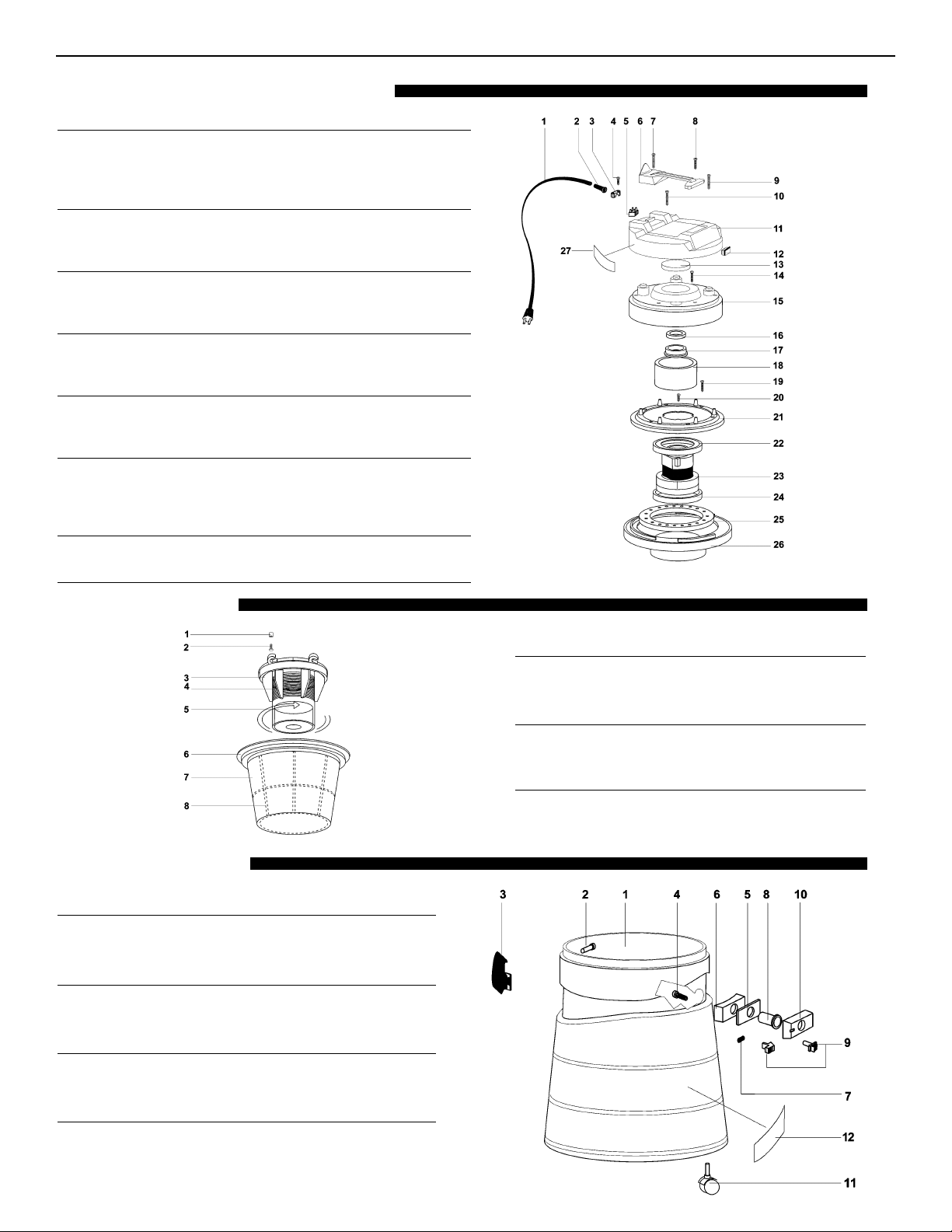

T708/T708IE VACUUM MOTOR ASSEMBLY
No. Part Num. Description Qty.
1.
S81122 Cord, 120 Volt
1
S80117 Cord, 230 Volt
2. S80138 Strain Relief 1
3. S80139 Terminal Clip 1
4. S81006 Screw, 5 x 20 2
5. S80450 Terminal Block 1
6. S83733AUG6 Handle, Gray 1
7. S82627 Screw, 5 x 40 4
8. S81006 Screw, 5 x 20 2
9. S81054 Screw, 5 x 30 2
10. S81054 Screw, 5 x 30 2
11. S83734AUB.LAB Cover 1
12. S80326 Switch, On/Off 1
13. S83937 Filter, Ø95 1
14. S81050 Screw, 5 x 35 6
15. S82738AUG6 Cover, Motor, Gray 1
16. S83969 Gasket 1
17. S80310 Ring 1
18. S83900 Filter 1
19. S82627 Screw, 5 x 40 6
20. S81006 Screw, 5 x 20 4
21. S82591AUG6 Motor Ring, Gray 1
22. S83901 Gasket 1
23.
S81120S Motor, 120 Volt
1
S83891S Motor, 230 Volt
24. S83901 Gasket 1
25. S83866 Disk, Noise Reduction 1
26. S81189GG6 Base, Motor, Gray 1
27. T9008 Label, Windsor Logo 1
T708 FILTER GROUP
No. Part Num. Description Qty.
1. S83706 Bushing 4
2. S83724 Screw, 5 x 25 4
3. S82823 Body, Filter Support 1
4. S83138 Filter/Strainer 1
5. S82676 Float 1
6. S80123 Ring, Filter 1
7. S82860 Filter Bag 1
8. S82859 Support, Filter Bag 1
T708 TANK ASSEMBLY
No. Part Num. Description Qty.
1. S82599 Tank 1
2. S81300 Rivet, 5 x 24.5 4
3. S81847G6 Tank Clamp 2
4. S81050 Screw, M5 x 35 4
5. S82846 Gasket 1
6. S82585AG6BL Retainer, Tank Adapter 1
7. S82608 Spring, Push Button 1
8. S82593 Tank Deflector 1
9. S82594BL Push Button, Two-Piece, Blue 1
10. S82583AG6BL Hose Adapter, Blue 1
11. S80558 Caster 6
12. T9007 Label, Titan 1
8
T716/T720TP VACUUM MOTOR ASSEMBLY
No. Part Num. Description Qty.
1.
S81122 Cord, 120 Volt
1
S80117 Cord, 230 Volt
2. S80138 Strain Relief 1
3. S80139 Bracket 1
4. S81006 Screw, 5 x 20 2
5. S81054 Screw, 5 x 50 4
6. S86097AUG6 Handle, Gray 1
7. S81979 Screw, 5 x 25 2
8. S81054 Screw, 5 x 50 2
9. S81005 Screw, 5 x 14 2
10. S80490 Terminal Block 1
11. S81006 Screw, 5 x 20 2
12. S86070AUB.LAB Cover, Blue 1
13. S81979 Screw, 5 x 25 2
14. S80326 Switch, On/Off 1
16. S83937 Filter 1
17. S81054 Screw, 5 x 50 9
18. S81502 Gasket 1
19. S83383 Cap 2
20. S82957AUG6 Cover, Gray 1
21. S82627 Screw, 5 x 40 9
22. S82627 Screw, 5 x 40 3
23. S82937AUG6 Motor Base, Gray 1
24. S81004 Screw, 3 x 19 1
25. S80450 Terminal Block 1
26. S83969 Gasket 1
27. S81006 Screw, 5 x 20 4
28. S80310 Ring 1
29. S83901 L-Gasket 1
30.
S81120S Motor, 120 Volt
1
S83891S Motor, 230 Volt
31. S83901 L-Gasket 1
32. S81006 Screw, 5 x 20 8
33. S83901 L-Gasket 2
34. S83451 Motor Seal 2
35. S82454 Filter 3
36. S83456 Filter 3
37. S83519 Base Plug 1
38. S83108GG6 Base 1
T716/T720TP FILTER GROUP
No. Part Num. Description Qty.
1. S83706 Bushing 4
2. S83724 Screw, 5x25 4
3. S82823 Body, Filter Support 1
4. S83117 Strainer 1
5. S82676 Float 1
6. S80473 Filter Ring 1
7. S82845 Filter Bag 1
8. S82833 Support, Filter 1
9. S82852 Filter – OPTIONAL 1
10. S82855 Filter Retainer – OPTIONAL 1
9
10
T716 TANK ASSEMBLY
No. Part Num. Description Qty.
1. S82558V Handle 1
2. S82637 Tank – 400 1
3. S82016 Screw, M5x30 4
4. S82584AG6 Retainer, Tank 1
5. S82846 Gasket 1
6. S82593 Deflector, Tank 1
7. S82652AG6 Adapter 1
8. S81300 Rivet, 5 x 24.5 4
9. S81847G6 Clamp 2
10. S81050 Screw, M8 x 15 8
11. S83883 Plastic Washer 8
12. S81072 Support, Handle 2
13. S81860 Support 2
14. S81302 Rivet, M5 x 19 2
15. S82559 Wheel Caster 2
16. S82680 Screw, M8 x 15 8
17. S82556 Support, Axle 2
18. S80904 Wheel 2
19. S82557 Cap, End 2
No. Part Num. Description Qty.
20. S83835 Axle Cap 2
21. S82607 Spacer, Wheel 2
22. S81006 Screw, M5 x 20 8
23. S82555 Axle 1
24. S80834 Nut, Flange, 1-1/4 1
25. S80256 Gasket 1
26. S82763 Elbow 1
27. S83308 Clamp 1
28. S82765 Drain Tube 1
29. S83156 Screw, M5 x 20 1
30. S82788 Clip Tube 1
31. S82812 Tie Rod, Plug 1
32. S82764 Plug, Stopper 1
33. S86250 Handgrip 2
34. S825948L Push Button, Two-Piece, Blue 1
35. T9007 Label, Titan 1
T720TP TANK ASSEMBLY
No. Part Num. Description Qty.
1. S82048 Tank – 400 1
2. S81026 Screw, M5 x 30 4
3. S83883 Plastic Washer 4
4. S83028 Hook, Latch 1
5. S82970 Release Swivel 2
6. S82969 Release Knob 2
7. S81847G6 Clamp 2
8. S81300 Rivet 4
9. S82652AG6 Hose Adapter 1
10. S82593 Deflector, Tank 1
11. S82846 Gasket 1
No. Part Num. Description Qty.
12. S82586AG6 Retainer, Tank Adapter 1
13. S81050 Screw, M5 x 35 4
14. S82594BL Push Button, Two-Piece, Blue 1
15. T9007 Label, Titan 1
T720TP CART
11
No. Part Num. Description Qty.
1. S82185 Base 1
2. S80976 Plastic Pad 2
3. S80478 Nut, M10 2
4. S81012 Washer, M10 2
5. S80479 Wheel, Caster 2
6. S82896 Wheel 2
7. S82922 Washer 2
8. S83607 Plastic Retainer 2
9. S82972 Axle Cap 2
10. S86250 Hand Grip 2
12
TSQ16 FRONT-MOUNTED SQUEEGEE
No. Part Num. Description Qty.
1. BD705205 Hose Assembly 1
2. BD715508 Housing 1
3. BD735608 Bolt, Guide Wheel, 1/4-20 x 1.75"L. 2
4. BD735607 Guide Wheel 2
5. BD735611 Jam Nut, 1/4-20 serrated flanged 2
6. BD735609 Nylock Nut, 1/4-20 2
7. BD735602 Slotted Blade 2
8. BD735601 Solid Blade 2
9. BD715509 Blade Support 2
10. BD735604 Blade End Screw, 10-32 x 1/2"L, SS 4
11. BD735605 Blade End Screw Nut, 10-32, Nylock 4
12. BD735603 Blade Attach’t Screw, 10-32 x 5/8"L SS 18
13. BD735612 Mounting Bolts, 1/4-20 x 3/4"L 6
14. BD735609 Nylock Nut, 1/4-20 6
15. BD705201 Lifting Arm 2
16. BD705203 Latch 1
17. BD705202 Cross Member 1
2.–12. BD705200 Complete squeegee assembly 1
TSQ20 FRONT-MOUNTED SQUEEGEE
No. Part Num. Description Qty.
1. BD705205 Hose Assembly 1
2. BD715508 Housing 1
3. BD735608 Bolt, Guide Wheel, 1/4-20 x 1.75"L. 2
4. BD735607 Guide Wheel 2
5. BD735611 Jam Nut, 1/4-20 serrated flanged 2
6. BD735603 Blade Attach’t Screw, 10-32 x 5/8"L SS 18
7. BD735609 Nylock Nut, 1/4-20 2
8. BD735605 Blade End Screw Nut, 10-32, Nylock 4
9. BD735602 Slotted Blade 2
10. BD735601 Solid Blade 2
11. BD715509 Blade Support 2
12. BD735603 Blade Attach’t Screw, 10-32 x 5/8"L SS 4
13. BD735609 Nylock Nut, 1/4-20 4
14. BD735612 Mounting Bolts, 1/4-20 x 3/4"L 4
15R. BD705225R Lifting Arm Right Side 1
15L. BD705225L Lifting Arm Left Side 1
16. BD735613 Bolt, Lifting Arm Clamp, 5/16-18 x 1"L. 2
17. BD705209 Clamp, Lifting Arm 2
18. BD705210 Cross Member 1
19. BD735614 Nylock Nut, 5/16-18 2
20. BD735612 Bolt, Pedal Mount, 1/4-20 x 3/4"L. 2
21. BD705212 Pedal Mount 2
22. BD705213 Clamp, Pedal Mount 2
23. BD735609 Nylock Nut, 1/4-20 2
24. BD705229 Pedal Assembly 1
5
/
13
ACCESSORIES
TSQ16 Front Mounted Squeegee
TSQ20 Front Mounted Squeegee
S72741 Paper Bag
S82860 Filter Bag, Standard for 708 Model
S82845 Filter Bag, Standard for T716 and T720TP
S82852* Filter Cartridge, Paper, Optional for T716 and T720TP
S76061* Filter Cartridge, Washable Paper, Optional for T716 and T720TP
S82995* Filter Cartridge, HEPA Equivalent, Optional for T716 and T720TP
S82881 Filter Cartridge, HEPA Equivalent, Optional for T708
S82855 Cartridge Filter Retainer, for T716 and T720TP
*also order S82855 Retainer with Filter
LABELS
T9008 Windsor
T9007 Titan Logo
RECOMMENDED
SPARE PARTS
S8TOEG845. . . . Motor Brush, 120 Volt Motor
S8TOGB839. . . . Motor Brush, 230 Volt Motor
S80326. . . . . . . . Switch, On/Off
S82860. . . . . . . . Polyester Filter, T708
S82845. . . . . . . . Polyester Filter, T716 and T720TP
S83117. . . . . . . . Strainer
14
WINDSOR INDUSTRIES
— continued on next page —
Windsor Industries reserves the right to change its warranty policy without notice – Rev5 9/1/05 1
Limited Warranty
Windsor Industries, Inc. warrants new machines against defects in material and workmanship under normal use and service to the
original purchaser. Any statutory implied warranties, including any warranty of merchantability or fitness for a particular purpose, are
expressly limited to the duration of this written warranty. Windsor will not be liable for any other damages, including but not limited
to indirect or special consequential damages arising out of or in connection with the furnishing, performance, use or inability to use
the machine. This remedy shall be the exclusive remedy of the buyer. The warranty period is subject to the conditions stated below.
10 / 3 Warranty: 10 Years Polyethylene (PE) Housings, 3 Years Parts, and Service Labor
Subject to conditions outlined below, Windsor Industries warrants rotationally molded PE housings and parts on all of its machines to
be free from defects in material and workmanship, under normal use and service for ten (10) years to the original owner.
Under this warranty we guarantee the performance of non-polyethylene parts and components to be free from defects for up to three
(3) years or up to 2,500 hours of operation, whichever comes first, to the original end user. Parts replaced or repaired under this
warranty are guaranteed for the remainder of the original warranty period. (See table below)
Service labor charges are covered for up to three (3) years or up to 2,500 hours of operation, whichever comes first, from the date of
purchase through authorized Windsor service provider. No travel coverage is extended for cord-electric models. See table below for
each general product model warranty coverage.
Product PE Housing & Parts Non- PE Parts Service Labor Travel
Rider / Stand up Scrubbers 10 years 3 years or 2000 hours 3 years or 2000 hours 6 Months
Rider Sweepers 10 years 3 years 3 years 6 Months
Walk Behind Scrubbers 10 years 3 years or 2500 hours 3 years or 2500 hours 6 Months
Walk Behind Sweepers 10 years 3 years 3 years 6 Months
Battery Burnishers 10 years 3 years 3 years 6 Months
Extractors / Compass 10 years 3 years 3 years Polishers / Elec. Burnishers / GH 10 years 3 years 3 years Wide Areas Vacuums 10 years 3 years 3 years VacPak Vacuums 10 years 1 year 1 year Tracer/Flex Sweepers/Scrubbers 10 years 3 year 3 months 90 days
Air Movers / Dri-matic / TITAN™
/Rombus
Propane Burnishers / Strippers - 2 year 1 year -
VERSAMATIC® / FLEXAMATIC® Brush motor, Vacuum motor, Belts, Swivel Neck –
SENSOR® Vacuum motor, Belts – 2 years All other parts/Labor – 1 year
Product exceptions and Exclusions:
Extractor brush motors, ALL pump motors, ALL PC boards and electronics, ALL Vacuum motors (other than VERSA MATIC®,
•
SENSOR® and FLEXAMATIC®), ALL pumps, and diaphragms/Tank bags carry a one (1) year parts and service labor
warranty.
The Eagle-Robin® engines have three (3) year manufacturer’s warranty. The Honda® and Kawasaki® engines have two (2) year
•
manufacturer’s warranty. NOTE: The engine warranty is administered through the engine manufacturer and must be repaired at
an authorized service center.
Normal wear items and accessories including, but not limited to, belts, brushes, FLEXAMATIC® foot pedal, capacitors, carbon
brushes, casters, clutches, cords, filters, finishes, gaskets, hoses, light bulbs, rectifiers, switches, squeegees, bearings, pulleys, relays,
actuating cables, wheels, tires, and propane tanks will be warranted for manufacturing defects for 90-days from the purchase date.
The warranty commences on the purchase date by the original end user from an authorized Windsor agent, subject to proof of
purchase. The Machine Registration Card must be completed and returned immediately at the time of purchase. If proof of purchase
North American New Machine Warranty
Effective on all products shipped AFTER March 1, 2005
1 year 1 year 1 year -
All other parts/Labor – 1 year
3 years
T9003 Rev. E – 7/25/06
— continued from previous page —
Windsor Industries reserves the right to change its warranty policy without notice – Rev5 9/1/05 2
Windsor Industries, Inc. • a Castle Rock Industries company • 1351 W. Stanford Ave. • (303) 762-1800 • 800-444-7654 • FAX (303) 865-2775
WINDSOR INDUSTRIES
cannot be identified, the warranty start date is 90 days after the date of sale to an authorized Windsor distributor. Parts replaced or
repaired under warranty are guaranteed for the remainder of the original warranty period.
90 Day Warranty Extension Available
Upon receipt of the Machine Registration Card, Windsor will extend by 90 days, from the date of purchase, all items included under
the one-year provision. This applies only to one-year items and does not include 90-day wear items.
This Warranty Shall Not Apply To:
1. Any product that has been subject to abuse, misuse, neglect or unauthorized alteration (including the use of incompatible or
corrosive chemicals or overloading of capacity).
2. Products that have experienced shipping or freight damage.
3. Repairs necessary to correct any failure due to improper pre-delivery service and inspection by the selling dealer.
4. Excessive time for cleaning units in preparation for repair.
5. Any repairs resulting from poor initial service work or improper diagnosis.
6. Tune-up parts such as plugs, plug wires and condensers.
7. Any design alterations performed by an organization not authorized or specified by Windsor.
8. Battery and charger warranties are handled directly with the manufacturer (Trojan® batteries and Lester ® chargers).
9. High-pressure washing.
10. Electrical components exposed to moisture.
If difficulty develops during the warranty period, contact the authorized Windsor agent from whom the product was purchased.
Windsor Industries, Inc. may elect to require the return of components to validate a claim. Any defective part to be returned must be
shipped freight prepaid to an authorized Windsor Distributor/Service Center or to the Windsor factory.
Use Of Parts Not Approved By Windsor Industries, Inc. Will Void All Warranties
This warranty is valid only for all products Shipped/Sold AFTER March 1, 2005. A product sold before that date shall be covered by
the limited warranty in effect at the date of sale to the original purchaser.
North American New Machine Warranty
Effective on all products shipped AFTER March 1, 2005
Loading...
