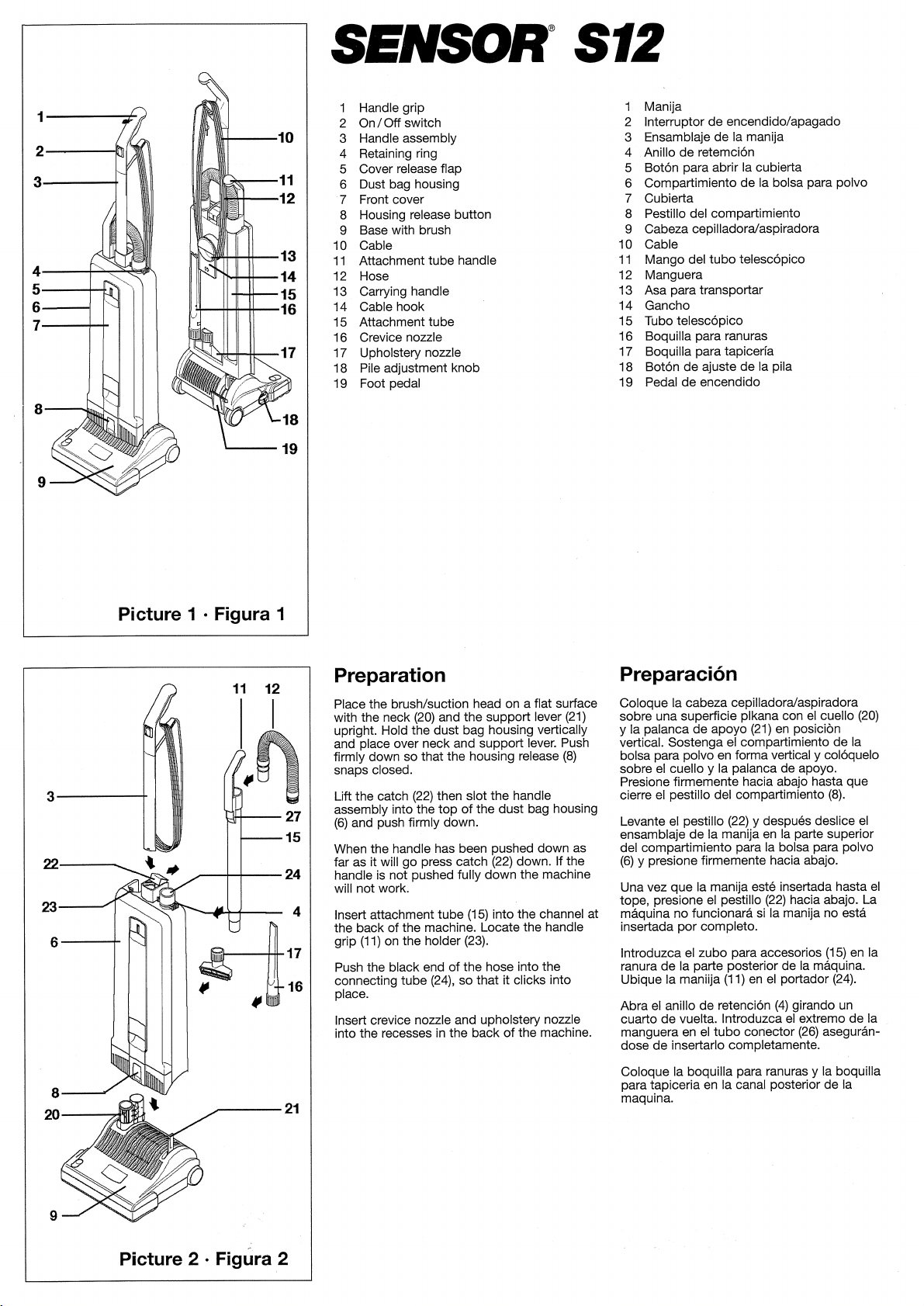

MODEL: SRS12
10120210
120V
86037090-B 10/2007
PRV NO. 980084
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord
having an equipment-grounding conductor and grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service person if you are in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
This appliance is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug
illustrated in sketch A. A temporary adaptor that looks like the adaptor illustrated in sketches B and C may
be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not
available. The temporary adaptor should be used only until a properly grounded outlet (sketch A) can be
installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the adaptor
must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the
adaptor is used, it must be held in place by a metal screw.
Note: In Canada, the use of a temporary adaptor is not permitted by the Canadian Electrical Code.
GROUNDED
OUTLET
GROUNDING
PIN
GROUNDED
OUTLET BOX
METAL SCREW
(A) (B)
ADAPTER
TAB FOR
GROUNDING SCREW
(C)
INSTRUCCIONES PARA LA PUESTA A TIERRA
Este dispositivo tiene que ser puesto debidamente a tierra. Si se produce una avería o rotura, la
conexión a tierra constituye el camino de menor resistencia para la corriente eléctrica, reduciéndose el
riesgo de descargas peligrosas. El aparato cuenta con un cable con conductor de puesta a tierra y un
enchufe con clavija de puesta a tierra. Hay que conectar el enchufe a una toma de corriente adecuada,
instalada y puesta a tierra de acuerdo con las normas y ordenanzas locales.
ADVERTENCIA
Si se conecta de modo inadecuado el conductor de puesta a tierra del aparato pueden producirse
descargas eléctricas peligrosas para el usuario. En caso de dudas, pedir a un electricista
debidamente cualificado o a un técnico del servicio postventa que verifique que la toma de corriente
está bien puesta a tierra. Si el enchufe suministrado con el aparato no se adapta a la toma de corriente
disponible, no hay que modificar el enchufe, sino dirigirse a un electricista para que instale una tome de
corriente adecuada.
El aparato está dimensionado para su conexión a una red de 120 Voltios de tensión nominal, y cuenta
con un enchufe con clavija de puesta a tierra como el que se muestra en la figura A. Si no se dispone
de una toma de corriente con puesta a tierra, puede utilizarse un adaptador temporal como el que se
muestra en las figuras B y C para conectar el aparato a una toma de corriente de 2 polos como la que
aparece en la figura B. Hay que emplear este adaptador solamente durante el tiempo necesario hasta
que el electricista haya instalado una toma de corriente conectada debidamente a tierra (figura A). La
lengüeta, argolla o elemento similar de color verde que sobresale del adaptador tiene que ser
conectada a una toma de tierra permanente, tal como la cubierta metálica de puesta a tierra de la caja
de enchufe. Siempre que se utilice el adaptado hay que mantener esta toma tierra en su posición con
ayuda de un tornillo metálico.
Advertencia: en Canadá, la Canadian Electrical Code prohíbe el uso de adaptadores temporales.
TOMA DE CORRIENTE
CONECTADA A TIERRA
CLAVIJA DE
PUESTA A TIERRA
CAJA DE ENCHUFE
CON TOMA
DE CORRIENTE
CONECTADA A
TIERRA
TORNILLO METALICO
(A) (B)
ADAPTADOR
APENDICE PARA
TORNILLO DE CONEXION
A TIERRA
(C)
NOTES:
PARTS LIST / SENSOR S12 / 120V
PARTS LIST / SENSOR S12 / 120V
POS
1 86142430 5625UL HANDLE COMPLETE.
2 86142340 5296EW HANDLE GRIP, SR GRAY
3 86141970 5359HG GROMMET
4 86135510 23011 CORD SET, 18/3 SJT RIV X 40’ BLU
5 86000880 0532 SWITCH / BLUE
6 86145640 5160BLU SWITCH CAP
7 86145700 5161HG SWITCH CAP HOLDER
8 86139280 5162 CABLE CLAMP
9 86016900 0103 SCREW C 3,9 x 16 MM DIN 7981
10 86137780 0846 ANTISTATIC-WIRE
11 86142310 5256ER HANDLE CABLE 3 WIRE W/CONNECTOR
12 86147140 0129 SCREW, M4 x 12MM
13 86142300 5187 HANDLE TUBE
14 86147030 0102 SCREW M3,9 x 13 DIN 7981
15 86142650 5040HG HOSE, SENSOR GRY
16 86141550 5045HG EXTENSION TUBE GRY
17 86140830 5803HG COVER
18 86145340 5319 SPRING BAG HOLDER
19 86140810 5706BL COVER RELEASE, BLUE
20 86138050 5324 BAG HOLDER
21 86144770 5360 SAFETY CATCH, BAG HOLDER
22 86144760 5091 SAFETY CATCH SPRING
23 86141860 5800WI FRONT COVER COMPLETE
24 86000500 5300 SENSOR FILTER BAG PACK
25 86005220 5301ER MICRO HYGIENE FILTER
26 86142910 5380HG INTERNAL COVER
27 86139290 5164 CABLE CLAMP
28 86141620 5208 FILTER SAFETY CATCH
29 86145320 5210 SPRING (MICRO FILTER CATCH)
30 86139970 1073 CLAMP
31 86142290 5099 HANDLE LOCK PLATE
32 86143140 5098HG LOCK CATCH GRY
33 86143060 0187 LOCK PIN
34 86139450 5145HG CARRYING HANDLE GRY
35 86145350 5146 STOP SPRING (HOOK)
36 86139260 5144HG CABLE HOOK, LT GRY
37 86144620 5424ER RETAINING RING, DK GRY
38 86141250 5281HG DUST BAG HOUSING, 3WIRE GRY
39 86140080 1823HG CLIP, DUST BAG HOUSE-SR12
40 86145280 5084 SPRING LOCKING ROD
41 86142880 5255ER INTERNAL CABLE 3WIRE LOOSE CON
42 86139320 5266 CABLE CLAMP (FILTER BAG HOUSING)
43 86144900 5043 SEAL
44 86144930 5289 SEAL, FILTER TUBE
45 86144910 5163 SEALM, FILTER BAG HOUSING NECK
46 86141120 5085HG DUST BAG HOUSING BUMPER BASE
47 86141090 5082BLU DUST BAG HOUSING LOCKING
48 86143120 5083 LOCKING ROD, DUST BAG HOLDER
49 86141190 5215UL DUST BAG HOUSING, SR’S, 3-WIRE
50 86146310 1491JE UPHOLSTERY NOZZLE
51 86140860 1092JE CREVICE NOZZLE
PRODUCT
CODE
PRV NO. DESCRIPTION
PARTS LIST / SENSOR S12 / 120V PARTS LIST / SENSOR S12 / 120V
PARTS LIST / SENSOR S12 / 120V
POS
100 86144140 2831WI POWER HEAD COVER S 12, CPL.
101 86141400 2846 EXHAUST FILTER
102 86141380 2820BL EXHAUST FILTER COVER
103 86145910 2827UL SWIVEL NECK ASSEMBLY
104 86143180 2886 MALE CONTACT HOLDER
105 86139230 2494 CABLE CLAMP
106 86147030 0102 SCREW M3, 9x13 DIN 7981
107 86139100 2835 BYPASS VALVE
108 86142790 0869 INTERNAL CABLE
109 86145900 2825 SWIVEL NECK BEARING
110 86145890 2824 SWIVEL NECK SUPPORT R.H.
111 86146110 5479 SWIVEL NECK SUPPORT L.H.
112 86146130 5717 SWIVEL NECK BEARING
113 86143800 2890ER PCB POWER SUPPLY
114 86142780 0864 INTERNAL CABLE, RIBBON
115 86138820 5713BL BRUSH ROLLER RELEASE
116 86145290 5103 SPRING
117 86137980 5051HG AXLE ASSEMBLY GRY
118 86137990 5053 AXLE
119 86293260 5059OR FOOT PEDAL, ORANGE
120 86146570 2010 WHEEL RETURN SRPING
121 86146670 5819HG WHEEL, GRAY.
122 86140000 2014 CLAMP CONNECTING ROD AXLE
123 86004950 5010WI BRUSH ROLLER 12”
124 86138170 5287BLU BEARING BLK, RH SR12 BLU/GRY
125 86144700 2869HG RUBBING PLATE
126 86137700 2868OR ACCESS DOOR
127 86138000 5303 ACCESS DOOR AXLE
128 86145330 5304 ACCESS DOOR SPRING
129 86143850 2861 PILE ADJUSTMENT AXLE
130 86143920 5174hg PILE ADJUSTMENT WHEEL GRY
131 86137920 2849 AXLE CLAMP
132 86144860 01010 SCREW M4 x 16, DIN 7985
133 86140620 2860HG COVER
134 86146220 2833 THRUST MEMBER
135 86143860 2862HG PILE ADJUSTMENT KNOB
136 86146230 2834 THRUST MEMBER
137 86140010 2856 CLAMP
138 86145250 2867 SPRING
139 86139730 2821HG CHASIS SSRS 12, CPL
140 86138280 5411HG BOTTOM PLATE,FRT,CLP,GRY, SR12
141 86144520 2829HG REAR BOTTOM PLATE SRS12, CPL
142 86144850 0197 SCR, M4 X 12 MM W/WASHER
143 86146790 5401 WIRE TIE, BOTTOM PLATE, OUTER
144 86146800 5402 WIRE TIE, BOTTOM PLATE, CENTER
145 86138940 5005HG BUMPER GRY (2PC SR12)
146 86139400 05117S CARBON BRUSH SET 100-120V
- 86146210 05135ST THERMO SWITCH VAC
- 86143630 5469 MOTOR 1000 W / 120 V
147 86143620 5462 VACUUM MOTOR PULLEY 2MR
148 86144710 5100 RUBBER MOUNTING
149 86143490 2826BL MOTOR COVER
150 86140610 2839SW COVER FOR AIR CHANNEL
151 86145470 5129 SUPPORT LEVER
152 86145460 5107 SUPPORT SPRING
153 86143570 5112SW MOTOR PULLEY COVER
154 86140150 2881ER COMPUTER CONTROLLER
155 86147160 0107 SCREW 2.9 x 13
156 86147190 0143 WASHER 3.2
157 86145050 5464 SENSOR X4 CPL
158 86143580 5117 MOTOR PULLEY
159 86147050 0104 SCREW M3.9 x 25 MM
160 86138240 5463 BELT 2MR-310-6
161 86005000 5110 BELT HTD-II-6, 219 3M
162 86138200 5766HG
163 86147040 0103 SCREW C 3.9 x 16 DIN 7981
164 86146540 0140 WASHER
165 86147170 0176 SCREW M4 X 30
PRODUCT
CODE
PRV NO. DESCRIPTION
B EARING BLOCK L.H. CPL.
