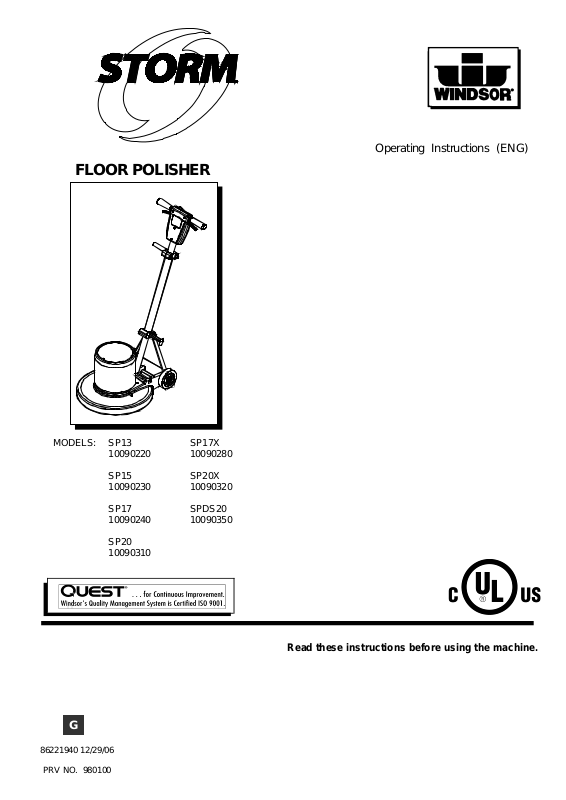

G
FLOOR POLISHER
Operating Instructions (ENG)
MODELS: SP13 SP17X
10090220 10090280
SP15 SP20X
10090230 10090320
SP17 SPDS20
10090240 10090350
SP20
10090310
Read these instructions before using the machine.
86221940 12/29/06
PRV NO. 980100
MACHINE DATA LOG/OVERVIEW
Name: __________________________________________________________________________________________________
Address: _______________________________________________________________________________________________
Phone Number: _________________________________________________________________________________________
MODEL______________________________
DATE OF PURCHASE ________________
SERIAL NUMBER____________________
YOUR DEALER
For the name and address of your dealer contact: Windsor Industries
2
STORM POLISHER 86221940 12/29/06
3
Machine Data Log/Overview.........................2
Table of Contents..........................................3
HOW TO USE THIS MANUAL
How to use this Manual.................................4
SAFETY
Important Safety Instructions........................1-1
Hazard Intensity Level. .................................1-2
Grounding Instructions..................................1-3
OPERATION / MAINTENANCE
Technical Specifications ...............................2-1
Handle Installation ........................................2-2
Operation......................................................2-3
Pad Driver Installation...................................2-4
Maintenance .................................................2-5
Service Schedule..........................................2-5
Machine Troubleshooting..............................2-6
GROUP PARTS LIST
Brush/Pad Driver Group................................3-1
Frame Group.................................................3-3
Motor Group..................................................3-5
Handle Group................................................3-7
Wiring Group.................................................3-9
Wiring Diagram...........................................3-11
Suggested Spare Parts...............................3-11
Warranty ..................................................... 3-12
TABLE OF CONTENTS
STORM POLISHER 86221940 12/29/06
HOW TO USE THIS MANUAL
This manual contains the following sections:
- HOW TO USE THIS MANUAL
- SAFETY
- OPERATIONS
- MAINTENANCE
- PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized Windsor
dealers.
machine model and machine serial number are
important. Refer to the MACHINE DATA box which
is filled out during the installation of your machine.
The MACHINE DATA box is located on the inside
of the front cover of this manual.
The SAFETY section contains important
information regarding hazard or unsafe practices
of the machine. Levels of hazards is identified that
could result in product or personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition.
4
When placing an order for parts, the
MODEL _____________________________________
DATE OF PURCHASE ________________________
SERIAL NUMBER ____________________________
SALES REPRESENTATIVE # ___________________
DEALER NAME ______________________________
OPERATIONS GUIDE NUMBER __________________
PUBLISHED ________________________________
STORM POLISHER 86221940 12/29/06
The PARTS LIST section contains assembled
parts illustrations and corresponding parts list. The
parts lists include a number of columns of
information:
- REF – column refers to the reference
number on the parts illustration.
- PART NO. – column lists the part
number for the part.
- PRV NO. – reference number.
- QTY – column lists the quantity of the
part used in that area of the machine.
- DESCRIPTION – column is a brief
description of the part.
- SERIAL NO. FROM – column
indicates the first machine the part
number is applicable to. When the
machine design has changed, this
column will indicate serial number of
applicable machine. The main
illustration shows the most current
design of the machine. The boxed
illustrations show older designs.
- NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The number on the lower left corner of the
front cover is the part number for this manual.
IMPORTANT SAFETY INSTRUCTIONS
!
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
WARNING:
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’ s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water,
return it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce
airflow.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine
near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories,
shops and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
During operation, attention shall be paid to other persons, especially children.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, unplug the machine.
Do not handle the plug or machine with wet hands.
Do not unplug machine by pulling on cord. To unplug, grasp the plug, not
Do not use with damaged cord or plug. Follow all instructions in this manual concerning grounding the
machine.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord aroun d sharp edges or
corners.
Do not pull/run machine over cord. Keep cord away from heated surfaces.
Connect to a properly grounded outlet. See Grounding Instructions.
the cord.
SAVE THESE INSTRUCTIONS
STORM POLISHER 86221940 12/29/06
1-1
HAZARD INTENSITY LEVEL
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
! WARNING
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
! CAUTION
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or
property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or the equipment. Read this information carefully. Know when these conditions can exist.
Locate all safety devices on the machine. Please take the necessary steps to train the machine
operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts.
1-2
STORM POLISHER 86221940 12/29/06
THIS PRODUCT IS FOR COMMERCIAL
!
USE ONLY.
ELECTRICAL:
In the USA this machine operates on a one 15
amp nominal 120V, 60 hz, A.C. power circuit.
The amp, hertz, and voltage are listed on the
data label found on each machine. Using
voltages above or below those indicated on the
data label will cause serious damage to the
motors.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides
a path of least resistance for electric current to
reduce the risk of electric shock. This appliance
is equipped with a cord having an equipmentgrounding conductor and grounding plug. The
plug must be inserted into an appropriate outlet
that is properly installed and grounded in
accordance with all local codes and ordinances.
This appliance is for use on a nominal 120-volt
circuit, and has a grounded plug that looks like
the plug in “Fig. A”. A temporary adaptor that
looks like the adaptor in “Fig . C” may be used
to connect this plug to a 2-pole receptacle as
shown in “Fig. B”, if a properly grounded outlet
is not available. The temporary adaptor should
be used only until a properly grounded outlet
(Fig. A) can be installed by a qualified
electrician. The green colored rigid ear, lug, or
the like extending from the adaptor must be
connected to a permanent ground such as a
properly grounded outlet box cover. Whenever
the adaptor is used, it must be held in place by a
metal screw.
GROUNDING INSTRUCTIONS
Improper connection of the equipmentgrounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the outlet is properly
grounded. Do not modify the plug provided
with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician.
WARNING:
STORM POLISHER 86221940 12/29/06
1-3
TECHNICAL SPECIFICATIONS
ITEM DIMENSION/CAPACITY
Construction Heavy-duty die cast aluminum deck
with heavy-duty rubber bumper,
tubular steel adjustable handle with
die cast aluminum handle housing
Motor
SP13, SP15, SP17, SP20 1.0 hp
SP17X, SP20X, SPDS20 1.5 hp
Brush/Pad speed
SP13, SP15, SP17, SP20, SP17X, SP20X 175 rpm
SPDS20 175/300 rpm
Electrical system 115 volts, 60 Hz
Cable 50’ (15 m), 14/3, built in cord wrap
Switches Dual levers with safety lock
Wheels Two 5” (12.7 cm) dia., 1.25” (3 cm)
wide, non-marking tread
Handle 1.5” (4 cm) tubular steel,
adjustable, easy to use thumb
activated safety lock
Dimensions (L x W x H)
13” (33 cm) model 21.0” (53 cm) x 14” (36 cm) x 47”
(119 cm)
15” (38 cm) model 22.0” (56 cm) x 16” (41 cm) x 47”
(119 cm)
17” (43 cm) model 23.0” (58 cm) x 18” (46 cm) x 47”
(119 cm)
20” (51 cm) model 24.5” (62 cm) x 21” (53 cm) x 47”
(119 cm)
2-1
STORM POLISHER 86221940 12/29/06
HANDLE INSTALLATION
2
HANDLE
RECEPTACLE
4
5
DECK
ASSEMBLY
This must be installed by qualified personnel. Read all
instructions thoroughly. The machine is shipped with
The machine is shipped with handle unassembled.
Follow these steps for installation:
1. Remove handle and deck assembly from carton.
2. Attach handle assembly to base using hardware kit (8 6219680 PRV NO. 47331) (attached to handle in a
plastic bag) items 1, 2, and 3.
NOTE: The spacers (items 1) are required for the correct operation of the handle. The spacers are positioned
completely inside the pivot holes in the casting, and are held in place by tightening the bolt s and washers
(items 2 and 3) against the spacer.
3. Remove bolt, nut and washers (items 4, 5 and 6) from lower block on handle assembly. Attach links as
shown. Tighten bolt and nut securely, then back off 1/4 to 1/2 turn.
4. Check handle for movement up and down.
5. Plug motor cord into handle cord receptacle.
WHEN INSTALLING THE HANDLE
ASSEMBLY, CHECK ORIENTATION OF
THE CORD ASM AND CORD HOOK.
6
MOTOR
PLUG
1
SEE NOTE
PIVOT
HOLE
3
2
STORM POLISHER 86221940 12/29/06
2-
2-2
OPERATION
CONTROLS
1. Safety Lock – Prevents unintended operation of
the machine.
2. Switch Levers – Turns machine on/off.
3. Adjustment Handle – Allows the handle to be
adjusted to a comfortable operating position.
2-3
22
The handle adjust bar (86215130 - PRV
NO.14344) for the polishers are individually
preset at the factory for optimum locking
efficiency and minimum effort of engaging. It
should not be necessary to adjust the handle
adjust bar unless the relationship of the handle
adjust bar nut (86136360 - PRV NO. 57275) or
fixed clamp bolt (86136700 – PRV NO. 70692)
and their corresponding nuts (86136360 –
PRV NO. 57275) and washer (86010720 –
PRV NO. 87086) have been disturbed. The
handle can be positioned to be locked with the
handle adjust bar pointing either up or down.
In order to change the position the handle and
bolt must be removed and rotated 180
degrees. It is incorrect to make it lock opposite
from the way it was assembled by applying
more force to the nut. From the factory the
locking is in the up position when the machine
handle is locked. The pivot pin (86222560 –
PRV NO. 66334) on the handle adjust bar is
off center, in relationship of the screw to the
axis of the (see drawing). To adjust handle
adjust bar, tighten nut on handle while in the
locked position. The handle is locked when the
screw is to the outside of the machine and the
flat on the opposite side of the handle is flush
to the bracket.
1
LOCK
UNLOCK
3
STORM POLISHER 86221940 12/29/06
1. To adjust handle lock, tighten nut on handle while
in the locked position. Optimum locking force and
ease of locking is accomplished when the locking
lever nut is set to a torque of 30 to 50 inch pounds
in the locked position.
2. Gap between clamp halves at the front should be
to the gap in rear when the handle adjust bar is
adjusted properly and in the locked position (gap
approximately 1/16").
86225710
PRV NO. 87202
86215130
PRV NO. 14344
86223550
PRV N O . 67430
86136700
PRV NO. 70692
HANDLE C
SHOWN HANDLE IS
L
2
IN LOCK POSITIO N
86222560
PRV NO. 66334
PIVOT PIN C
86010720
PRV NO. 87086
L
LOCKING SIDE FLAT
86136360 (2)
PRV N O . 57275
1
! CAUTION
For indoor use only.
To prevent possible damage to the floor when
using the brush option, use water or other
approved cleaning solution while operating.
When using the pad option, always keep the
machine moving when in contact with the floor.
! WARNING
High starting torque. Hold machine firmly with
both hands.
1. Ensure that the pad driver or brush is installed
correctly and in good shape. Install or change
pad if necessary.
2. Plug the machine into a wall outlet as
described in the grounding instructions.
3. Lower the handle by unlocking the adjustment
handle and moving the handle into position.
Relock the handle when it is in a comfortable
position.
! WARNIN G
Insure that handle is locked in position before
starting machine.
4. Push the safety lock forward, unlocking the
switch levers.
5. With the safety lock forward, squeeze one or
both of the switch levers, turning the machine
on. (These levers can be operated
independently of each other). The safety lock
will not re-engage until both levers are
released.
6. To stop the machine, release both of the
switch levers.
NOTE: The machine is equipped with a circuit
breaker to protect the motor in the event an
overload condition occurs. The circuit breaker is
located on the rear of the motor. Push the reset
button to restart the machine. If the breaker trips
again, correct the cause of overloading before
proceeding.
STORM POLISHER 86221940 12/29/06
OPERATION
DAILY MAINTENANCE
1. Inspect power cord for wear. To prevent
electrical shock replace cords with frayed or
cracked insulation immediately.
2. Place machine in the storage position.
3. Check pad condition. Change if soiled o r torn.
PAD DRIVER INSTALLATION
1. Lay machine back, exposing the under side.
2. Place pad driver on the motor lug and rotate
clockwise until engaged. To remove, turn
counter-clockwise.
2-4
MAINTENANCE
SCRUB BRUSHES
NOTE: All original equipment brushes are
equipped with “Perform Alert©”. This feature will
tell the operator when it is time to replace the
scrub brushes. “Perform Alert©” brushes have
pre-trimmed bright yellow tufts to indicate the
length of a worn out brush. When the tufts in the
scrub brush wear to a length equal to the yellow
tufts, the scrub brushes should be replaced.
There are five different types of brushes available
to cover applications from cleaning heavily soiled
floors to polishing. A pad driver is also available to
take advantage of the many cleaning pads on the
market and further add to the flexibility of the
POLISHER.
Please refer to the following to assist in selecting
the proper brush or pad for the work at hand.
UNCOATED FLOORS
Aggressive Grit is a nylon fiber impregnated with
silicone carbide grit. It grinds away stain, soil, and
removes surface material.
Mild Grit is a less aggressive silicone carbide grit
suitable for cleaning medium soil conditions.
Advantages are faster ground speed than nylon
bristles on light solid applications.
Nylon is a general-purpose scrub brush with stiff
bristles. Polypropylene works well for maintaining
concrete, wood and tile floors.
FINISHED FLOORS
Nylon Polish is the softest brush. It will gently
clean finished tile or terrazzo floors without
removing floor finish or floor material. Used for
washing highly polished or burnished floors.
Nylon bristles are used in a variety of applications
on coated or uncoated surfaces.
White Pads (Polishing) are used for dry polishing
to achieve a high-gloss appearance, or surface
washing on highly polished or burnished floors.
Red Pads (Buffing) are used for light-duty
scrubbing. When used with a mild detergent they
will provide surface cleaning without removing the
finish.
2-5
Blue Pads (Scrubbing) are used for heavy-duty
scrubbing and light stripping. The blue pads
remove less finish than brown stripping pads, yet
will remove black marks, stains and dirt.
Brown Pads (Stripping) are used for easy and
complete removal of old floor waxes/finishes.
They will quickly remove ground in dirt, black heel
marks, and spills. When used with the proper
stripper, this pad leaves the floor clean and ready
for finishing.
The scrub brushes should be checked before each
days work for wire, string, wear and damage. The
scrub brushes should be replaced if brush bristles
are missing or if yellow Perform Alert © indicates
minimum brush length.
SERVICE SCHEDULE
MAINTENANCE
Check pad wear to prevent
buildup of chemicals
Check pad driver system for
damage
Check handles, switches,
and knobs for damage
Store with pad off the floor
Check all bearings for noise
Check skirt/bumpers for
damage and replace as
necessary
Check overall performance of
machine
DAILY MONTHLY
*
*
*
*
*
*
*
STORM POLISHER 86221940 12/29/06
TROUBLESHOOTING
6
PROBLEM CAUSE SOLUTION
Machine will not run
Power switch failure. Test switch for continuity and replace if necessary.
Faulty power cord. Replace.
Fuse in motor is blown.
Electrical shock Equipment not grounded. Follow grounding instructions exactly.
Receptacle not grounded. Have an electrician inspect building’s wiring.
Internal wiring problem
Repeated circuit
breaker tripping
Faulty circuit breaker.
Circuit breaker tripped in
building.
Tripped circuit breaker. Reset.
Mechanical problem.
Check and reset.
Replace. CAUTION: To reduce the risk of electrical
shock, unplug the machine before opening fuse
holder. Fuse will only open under extreme
conditions. Investigate cause before replacing.
Ensure that the machine wiring matches the
appropriate wiring diagram. Replace any wires or
components that are short-circuiting.
Higher amp draws indicate a mechanical problem,
find the problem before using the machine.
Test circuit for continuity. Replace circuit breaker if
necessary.
Excessive vibration Pad not centered. Re-center pad.
Damaged pad driver. Replace.
Pad does not turn but
motor is running
Damaged or unevenly
worn pad.
Shear coupling has failed. Replace coupling.
Replace pad. Do not rest machine on pad when not
in use.
STORM POLISHER 86221940 12/29/06
2-
BRUSH/PAD DRIVER GROUP
3
3
1A
1B
1C
1D
2A-W
3-1
STORM POLISHER 86221940 12/29/06
BRUSH/PAD DRIVER GROUP
2
REF PART NO. PRV NO. QTY DESCRIPTION
1A 86284280 02216 - PAD DRIVER, 13" POLISHER
1B 86284330 02396 - PAD DRIVER, 15" POLISHER
1C 86000120 02218 - PAD DRIVER, 17" POLISHER
1D 86284300 02219 - PAD DRIVER, 20" POLISHER
2A 86283720 02232 - BRUSH, 13" NYL.POL. W/CLT.PLT
2B 86283730 02233 - BRUSH, 13" NYL.SCRUB W/CLT.PLT
2C 86283740 02234 - BRUSH, 13" MILD GRIT W/CLT.PLT
2D 86283750 02235 - BRUSH, 13" AGG. GRIT W/CLT.PLT
2E 86283760 02236 - BRUSH, 13" POLYPRO W/CLT. PLT
2F 86230480 02447 - BRUSH, 15” NYL.POL. W/CLT.PLT
2G 86230490 02448 - BRUSH, 15” NYL. SCRUB W/CLT.PLT
2H 86230460 02445 - BRUSH, 15” MILD GRIT W/CLT.PLT
2J 86230450 02444 - BRUSH, 15” AGG.GRIT W/CLT.PLT
2K 86230470 02446 - BRUSH, 15” PLOYPRO W/CLT.PLT
2L 86000140 02242 - BRUSH, 17" NYL. POL. W/CLT.PLT
2M 86283800 02240 - BRUSH, 17" NYL.SCRUB W/CLT.PLT
2N 86000130 02241 - BRUSH, 17" MILD GRIT W/CLT.PLT
2P 86283710 02205 - BRUSH, 17" AGG. MALGRIT W/C.P
2Q 86000110 02206 - BRUSH, 17" POLYPRO W/CLT. PLT
2R 86283790 02239 - BRUSH, 20" NYL.POL.W/CLT.PLT.SFT
2T 86283770 02237 - BRUSH, 20” NYL.SCRUB W/CLT.PLT
2U 86283780 02238 - BRUSH, 20" MILD GRIT W/CLT.PLT
2V 86283690 02202 - BRUSH, 20" AGG. MALGRIT W/C.P.
2W 86283700 02203 - BRUSH, 18" POLYPRO W/CLT. PLT
3 86284350 02220 - PLATE, PAD CLUTCH
SERIAL NO.
FROM
NOTES:
STORM POLISHER 86221940 12/29/06
3-
FRAME GROUP
MOTOR ASM
SEE PG 3-5
17A
17B
17C
17D
19
18A
18B
18C
18D
20
21
15
16
14
22
23
12
13
1
2
3
4
5
6
7
8
9
10
8
11
3-3
STORM POLISHER 86221910 12/29/06
4
REF PART NO. PRV NO. QTY DESCRIPTION
1 86225380
2 86218440
3 86136360
4 86221860
5 86225720
6 86222270
7 86226020
8 86137280 87054
9 86136640 70262
10 86274230 70135
11 86224290 730008
12 86279090 87067
13 86136710 70698
14 86276570 70691
15 86137340 87211
16 86216600 27871
17A 86216320 14341
17B 86216330 14371
17C 86216340 14372
17D 86216350 14373
18A 86288430 29211
18B 86288440 29212
18C 86217600 29213
18D 86217610 29214
19 86214930 03111
86136720 70701
20
86010720 87086
21
86216920 23206
22
86224930 730012
23
78447 1 TUBE ASSY, HANDLE ADJ
38290 1 HANDLE, POLISHER
57275 1 NUT, M10X1.5 HEX NYLOCK PLTD
51328 2 LINK, HANDLE ADJUST
87203 2 WASHE R, 14MMID X 36MMOD
57276 2 NUT, PUSH FLAT RD .51D
89206 2 WHEEL, 5D X 1.25 X 13MMID GRY
2 WASHER, M8 FLAT DIN125A PLT
2 SCR, M8-1.25 HHMS PLTD
2 SCR, M8 X 30 HHMS
2 SPACER, .317ID X .5OD X .44LG
4 WASHER, 5/16 LOCK INT STAR PLT
4 SCR,5/16-18 X 3/4 HHCS GR5 BLK
2 SCR, M6 X 25 HHMS BLK
2 WASHER, M6 FLAT BLK
2 CAP, EXTRUSION
- BUMPER, EXTRUSION 30.5"
- BUMPER, EXTRUSION 37.3"
- BUMPER, EXTRUSION 43.8"
- BUMPER, EXTRUSION 53.4"
- DECK, 13 IN POLISHER, BLUE
DECK, 15 IN POLISHER, BLUE
DECK, 17 IN POLISHER, BLUE
DECK, 20 IN POLISHER, BLUE
AXLE, MAIN POLISHER
1
SCR, M10 X 90 HHMS
1
WASHER, M10 X 30 PLTD
2
CORDSET, 14/3 X 47", SJT, BLK
1
STRAIN RELIEF, 14/3 STRAIGHT
1
FRAME GROUP
SERIAL NO.
FROM
NOTES:
STORM POLISHER 86221940 12/29/06
3-
MOTOR GROUP
2
4
1
3
12
11
4
1
11
6
5
12
SP13, SP15, SP17, SP20
10090220, 10090230, 10090240, 10090310
10
9
SP17X, SP20X
10090280, 10090320
7
8
12
11
3-5
SPDS20
10090350
STORM POLISHER 86221940 12/29/06
MOTOR GROUP
6
REF PART NO. PRV NO. QTY DESCRIPTION
1 86217490 27884 1 COVER, MOTOR
2 86220020 500763 1 LABEL, STORM MAIN
3 86222090 53263 1 MOTOR, 1 HP 115V INDUCTION SPT13/15/17/20
4 86223690 70702 3 SCR, M5 X .8 X 15MM BLK
5 86222100 53264 1 MOTOR, 1.5 HP 115V INDUCTION
6 86220030 500764 1 LABEL, STORM DELUXE MAIN
7 86217500 27892 1 COVER, ASM, MOTOR
8 86223680 70700 8 SCR, M5 X .8 X 10MM PHMS BLK
9 86222070 53253 1
10 86220040 500765 1
11 86223700 70723 6 SCR, M5 X .8 X 15MM SHCSM
12 86223030 62917 1 PLATE, ADAPTER MOTOR
MOTOR COMPONENTS (NOT SHOWN)
PART NO. PRV NO. QTY DESCRIPTION
86216710 140411 1 CIRCUIT BREAKER, 20 AMP
86216700 140401 1 CIRCUIT BREAKER, 30 AMP
86223390 67488 1 RECTIFIER, 50A 600V BRIDGE
86001820 14404 1 BRUSH SET MOTOR (PKG OF 4)
86003660 34378 1 FUSE
86003670 34379 1 FUSE HOLDER
86001020 09135 2 BEARING, MOTOR
86135540 27352 1 COUPLING, MTR/GEAR BOX
86225170 730039 1 SWITCH ASM, DUAL SPEED
86215410 140416 1 BOOT, CIRCUIT BREAKER
86223510 67489 1 RING, MOTOR SHAFT
86214740 05176 1 ARMATURE, MOTOR REPAIR 53253
86002650 270061 1 CAPACITOR, RUN 30UF
86216610 270062 1 CAPACITOR, START 340UF
86216650 72182 1 CENTRIFUGAL WEIGHT ASSEMBLY
86224890 72183 1 STATIONARY END CAP SWITCH
MOTOR, 115V 1.75 HP 175/300
RPM
LABEL, STORM DUAL SPEED
MAIN
SERIAL NO.
FROM
SPDS20
SERIAL NO.
FROM
SP13/15/17/17X/2
SP13/15/17/17X/2
SP13/15/17/17X/2
SP13/15/17/17X/2
SP13/15/17/17X/2
NOTES:
INCLUDES ITEM
4, 1, 12, & 11
(SP17X/20X)
NOTES:
0/20X
SPDS20
SPDS20
SPDS20
SPDS20 (FOR 2
SPEED ONLY)
SPDS20
0/20X
0/20X
0/20X
0/20X
STORM POLISHER 86221940 12/29/06
3-
HANDLE GROUP
1
16
14
13
5
6
17
2
22
18
11
20
12
21
19
9
7
9
15
4
8
10
3
3-7
STORM POLISHER 86221940 12/29/06
8
REF PART NO. PRV NO. QTY DESCRIPTION
1 86215130 14344 1
2 86215380 140393 1
3 86004070 36196 2
4 86219320 41363 1
5 86219330 41366 1
6 86005150 51326 1
7 86005160 51327 2
8 86136350 57274 4
9 86136360 57275 1
10 86219740 500194 1
11 86222560 66334 1
12 86223550 67430 1
13 86136670 70686 2
14 86136680 70687 2
15 86288450 70689 1
16 86136700 70692 1
17 86224740 73990 2
18 86225370 78437 1
19 86010720 87086 2
20 86225710 87202 1
21 86225380 78447 1
22 86216370 14434 2
BAR, HANDLE ADJUST
BLOCK, HANDLE MOUNT
GRIP, POLISHER HANDLE
HOUSING, POLISHER HANDLE
REAR
HOUSING, POLISHER HANDLE
FRONT
LOCK, SAFETY HANDLE
LEVER, SWITCH
NUT, M6 HEX FINISH
NUT, M10X1.5 HEX NYLOCK
PLTD
LABEL, WARNING
PIN, PIVOT, HANDLE
ADJUSTMENT
ROD, HANDLE ADJUST
SCR, M6 X 45 SHCS BLK
SCR, M6 X 50 SHCS BLK
SCR, M4.8 X 10 HHTF TYPE B
SCR, M10 X 75 HHCS PLTD
SPRING, EXT, .5OD X 3.5L
TUBE, GRIP HANDLE
WASHER, M10 X 30 PLTD
WASHER, BEARING (HANDLE
ADJ)
TUBE ASSY, HANDLE ADJ
BUMPER, HANDLE
HANDLE GROUP
SERIAL NO.
FROM
NOTES:
STORM POLISHER 86221940 12/29/06
3-
WIRING GROUP
PRIOR TO SN *
4
5
10
12
8
1
3
6
11
11
6
9
7
3-9
2
STORM POLISHER 86221940 12/29/06
0
REF PART NO. PRV NO. QTY DESCRIPTION
1 86233170 20054 1
2 86234150 23167 1
3 86216920 23206 1
4 86247920 57069 1
5 86136780 70801 2
6 86288450 70689 2
7 86007110 72123 2
8 86224550 73989 1
9 86224750 73993 1
10 86137290 87057 2
11 86137330 87208 2
12 86215140 140674 1
CLAMP, 3/8 NYLON UL/CSA
CORD SET, 14/3 STO X 50' YLW
CORDSET, 14/3 X 52”SJT, BLK
NUT, ORG WIRE (2-5 18G/2-14G)
SCR, M3.5 X 40 PHTF TYPE B
SCR, M4.8 X 10 HHTF TYPE B
SWITCH, 25A SPST 125-250V SNAP
SPACER, SWITCH POLISHER
SPRING, COMP, .48OD X .91L
WASHER, M4 SHAKEPROOF
WASHER, M5 SHAKEPROOF PLTD
BARRIER SHEET
WIRING GROUP
SERIAL NO.
FROM
10020019
10020019
10020019
NOTES:
WAS 70688
WAS QTY 1
STORM POLISHER 86221940 12/29/06
3-1
WIRING DIAGRAM / SPARE PARTS
SUGGESTED SPARE PARTS
PART NO. PRV NO. DESCRIPTION
86225710 87202 WASHER, BEARING (HANDLE ADJ)
86224740 73990 SPRING, EXT .5 OD X 3.5L
86224750 73993 SPRING, COMP .48 OD X .91 L
86007110 72123 SWITCH. 25A SPST 125-250V SNAP
86215130 14344 BAR, HANDLE ADJ
86222560 66334 PIN, PIVOT, HANDLE ADJ
86223550 67430 ROD, HANDLE ADJ
86003660 34378 FUSE
86003670 34379 FUSE HOLDER
86135540 27352 COUPLING, MTR/GEAR BOX PLSHER
86223390 67488 RECTIFIER, 50A 600V BRIDGE SPDS20
86216700 140401 CIRCUIT BREAKER, 30AMP MPX
86216710 140411 CIRCUIT BREAKER, 20AMP MP/MB
SERIAL NO.
FROM
NOTES:
3-11
STORM POLISHER 86221940 12/29/06
Loading...
