PROPANE POWERED HIGH SPEED

BURNISHER/STRIPPER

Operating Instructions

MODELS: L21H13 10023000 LS30H13 10023110 L21K13 10023010 L24H13 10023040 L21K17 10023020 L24K17 10023060 L27H13 10023080 L24ER22 10023030 L27K17 10023090 LS30H13 10023110 L27ER22 10023070

Read these instructions before using the machine

C

86039180 05/23/07

PRV NO. 98996

MACHINE DATA LOG/OVERVIEW

MODEL _______________________________________

DATE OF PURCHASE __________________________

SERIAL NUMBER ______________________________

SALES REPRESENTATIVE # _____________________

DEALER NAME ________________________________

OPERATIONS GUIDE NUMBER ___________________

PUBLISHED __________________________________________

Copyright 2002 Windsor Industries, Printed in USA

YOUR DEALER

Name: __________________________________________________________________________________________________

Address: _______________________________________________________________________________________________

For the name and address of your dealer contact: Windsor Industries

Phone Number: _________________________________________________________________________________________

OVERVIEW

The Lightning is a propane powered, high speed, burnisher/stripper intended for commercial use. The burnisher model buffs most hard floor surfaces with the use of special pads. The stripper model applies stripping solution to the floor to remove any sealant, floor finishing, etc.

2

LIGHTNING 86039180 05/23/07



Machine Data Log/Overview.........................

2

Table of Contents..........................................

3

HOW TO USE THIS MANUAL



How to use this Manual.................................

1-1

SAFETY



Important Safety Instructions ........................

2-1

Hazard Intensity Level. .................................

2-2

OPERATIONS



Machine Operation........................................

3-1

Before Operating the Machine ...................

3-1

Emergency Stopping Procedure. ...............

3-2

Transporting/Storing Machine....................

3-2

Propane Fuel System. ...............................

3-3

Changing oil...............................................

3-3

Adjusting Belt Tension. ..............................

3-3

Refueling/Storing Cylinders. ......................

3-3

MAINTENANCE



Service Schedule. .........................................

4-1

Installing or Removing Pad ...........................

4-2

Installing or Removing Pad Driver ................

4-2

Machine Troubleshooting..............................

4-3

TABLE OF CONTENTS

GROUP PARTS LIST

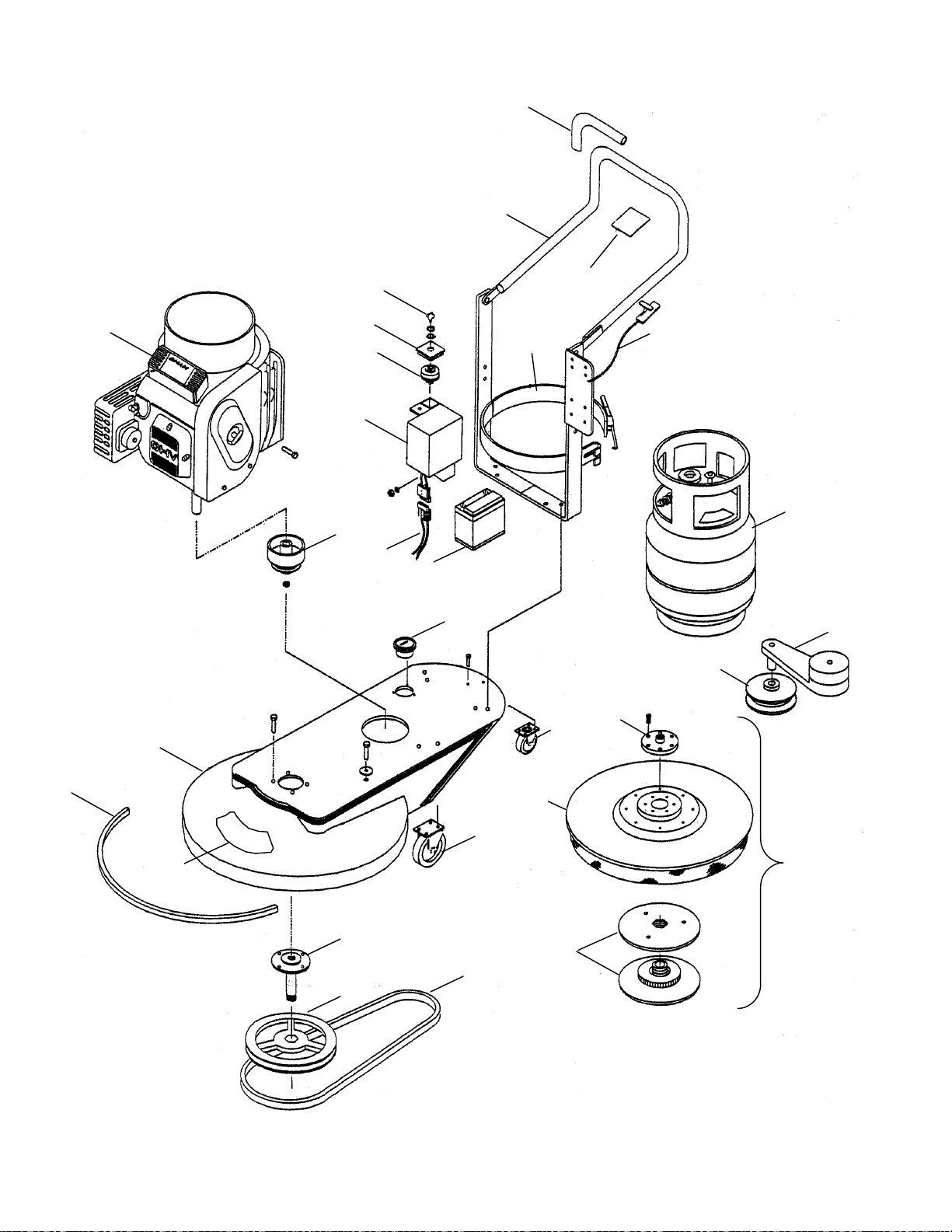

21” Deck Group. ...........................................

5-1

24” Deck Group. ...........................................

5-3

27” Deck Group. ...........................................

5-5

30” Stripper Group........................................

5-7

Kawasaki Fuel Block.....................................

5-9

Kawasaki Wiring. ........................................

5-10

Kawasaki Fuel System. ..............................

5-11

Honda Fuel System. ...................................

5-12

Kill Switch ...................................................

5-13

Clutch and Switch.......................................

5-14

Belt Chart/Notes .........................................

5-15

Warranty. ....................................................

5-16

LIGHTNING 86039180 05/23/07

3

HOW TO USE THIS MANUAL

This manual contains the following sections:

-HOW TO USE THIS MANUAL

-SAFETY

-OPERATIONS

-MAINTENANCE

-PARTS LIST

The HOW TO USE THIS MANUAL section will tell you how to find important information for ordering correct repair parts.

Parts may be ordered from authorized Windsor dealers. When placing an order for parts, the machine model and machine serial number are important. Refer to the MACHINE DATA box which is filled out during the installation of your machine. The MACHINE DATA box is located on the inside of the front cover of this manual.

MODEL _____________________________________

DATE OF PURCHASE ________________________

SERIAL NUMBER ____________________________

SALES REPRESENTATIVE # ___________________

DEALER NAME ______________________________

OPERATIONS GUIDE NUMBER __________________

PUBLISHED ________________________________

Copyright 2002 Windsor Industries, Printed in USA

The model and serial number of your machine is on the bottom back-end of the machine.

The SAFETY section contains important information regarding hazard or unsafe practices of the machine. Levels of hazards is identified that could result in product or personal injury, or severe injury resulting in death.

The OPERATIONS section is to familiarize the operator with the operation and function of the machine.

The MAINTENANCE section contains preventive maintenance to keep the machine and its components in good working condition.

The PARTS LIST section contains assembled parts illustrations and corresponding parts list. The parts lists include a number of columns of information:

-REF – column refers to the reference number on the parts illustration.

-PART NO. – column lists the part number for the part.

-PRV NO. – reference number.

-QTY – column lists the quantity of the part used in that area of the machine.

-DESCRIPTION – column is a brief description of the part.

-SERIAL NO. FROM – column indicates the first machine the part number is applicable to. When the machine design has changed, this column will indicate serial number of applicable machine. The main illustration shows the most current design of the machine. The boxed illustrations show older designs. If column has an asterisk (*), call manufacturer for serial number.

-NOTES – column for information not noted by the other columns.

NOTE: If a service or option kit is installed on your machine, be sure to keep the KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts.

1-1

LIGHTNING 86039180 05/23/07



IMPORTANT SAFETY INSTRUCTIONS

When using a propane powered appliance, basic precaution must always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

! WARNING: To reduce the risk of fire, explosion, or injury:

Use only indoors. Do not use outdoors or expose to rain.

Use only as described in this manual. Use only manufacturer’s recommended components and attachments.

Maintenance and repairs must be done by qualified personnel.

Only trained operators should be allowed to operate propane powered floor machines.

If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to an authorized service center.

Check fuel cylinder for overfill before taking it into the building or placing it in storage. Install fuel cylinder in a well ventilated place.

Be aware of possible leaks of propane gas if odor is present.

If the machine is stored inside a building, remove the fuel cylinder & store properly outside.

Secure fuel cylinders when being transported. If attached to the machine service valves should be

OFF.

Never store fuel cylinders in a vehicle, building, or area where they may exposed to high temperature

Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.

Machine can cause a fire when operating near open flames or sparks.

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices for more than normal housekeeping purposes.

Remove fuel cylinder and disengage the starter before cleaning or servicing.

Before the machine is discarded, the fuel cylinder must be removed and properly disposed of.

During operation, attention shall be paid to other persons, especially children.

Before use all covers and doors shall be put in the positions specified in the instructions.

When leaving unattended, secure against unintentional movement.

When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.

This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other brushes may affect its safety.

SAVE THESE INSTRUCTIONS

LIGHTNING 860389180 05/23/07

2-1



HAZARD INTENSITY LEVEL

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY . The level of hazard intensity is determined by the following definitions:

!

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

!

CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.

FOR SAFETY: To identify actions which must be followed for safe operation or equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating condition. Following is information that signals some potentially dangerous conditions to the operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the machine. Please take the necessary steps to train the machine operating personnel.

FOR SAFETY

DO NOT OPERATE MACHINE:

Unless Trained and Authorized.

Unless Operation Guide is Read and understood.

In Flammable or Explosive areas.

In areas with possible falling objects.

WHEN SERVICING MACHINE:

Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts.

!

Fuel cylinders emit propane gas. Explosion or fire can result. Keep sparks and open flame away. Do not smoke around fuel cylinders.

!

Remove fuel cylinder before working on machine. Only qualified personnel should work on machine. Always wear eye protection and protective clothing when working on machine.

2-2

LIGHTNING 860389180 05/23/07



Your machine is shipped ready for your operation, with exception of fuel cylinder. For hazard and safety issues, the cylinders are sent with no fuel. Prior to operation have your cylinder filled at a reputable propane dealer.

!

The fuel cylinder supplied with this machine is a DOT 4E240 propane cylinder. Cylinders not branded with DOT 4E240 on the top collar should not be used. Never use a cylinder from a barbecue, etc. on this machine.

The capacity of the 4E240 cylinder is 20lbs., 80% of the total water capacity. Never overfill the cylinder.

BEFORE OPERATING THE MACHINE:

1.Check fuel cylinders: Check for overfill before taking them into the building.

To check a cylinder for overfill:

a.Take it to a safe area outside.

b.Open the fixed liquid level gauge. (bleeder valve)

c.Observe the gas from the valve:

1.If White cloud – Overfilled

2.If Clear vapor – Safe

d.If overfilled, allow to vent until vapor is Clear in color.

2.Check Oil level: Check level prior to starting engine and daily before using machine. Use specified oil if necessary to add. DO NOT OVER FILL OIL LEVEL, to do so may cause damage to the engine, thus voiding warranty.

When checking oil refer to the specific engine manufacturers instruction manual, as some engines differ in correct procedure.

Use 10W30 oil.

3.Check Air Filter: Be sure the carburetor air filter is free of dust/oil, etc. NOTE: Dirty filters is the most frequent cause of elevated toxic emissions. Check and clean recoil dust filter if necessary. (see specific engine owners manual)

4.Check Pad & Pad Driver.

5.Adjust handle height: Use a 9/16 wrench to loosen and tighten pivot points. Most find it necessary to adjust the handle to “belt height” for optimum control.

6.Install Fuel Cylinder: Take machine to a well ventilated area. Check cylinder for overfill. (see step 1) Install cylinder on machine with tank strap. Connect the fuel cylinder to the machine using “Rego” connection. Tighten “hand-tight”.

NOTE: Careful not to cross thread the Rego connection. Open the service valve slowly. Be alert for propane leaks. To remove cylinder reverse the procedure.

MACHINE OPERATIONS

STARTING PROCEDURES

Burnisher:

1.Tilt machine back on rear casters so pad is off the floor.

2.Slowly open the service valve on the fuel cylinder. NOTE: opening the service valve too quickly may cause the excess flow valve to stop the flow of propane. If this occurs, close the service valve, wait a few seconds and re-open it SLOWLY!

3.Push the throttle lever to the choke position and engage the starter by using the start button. (NOTE: If equipped with key switch, start by turning the key) Do not engage starter for more than 20 seconds at a time, allow 10-20 seconds between attempts to start the engine.

4.When engine starts, ease the throttle back to running position.

!

DO NOT run engine with throttle in the choke position. Excessive harmful emissions will be produced putting you and others in harms way.

5.Increase throttle to about ¾ and carefully lower the machine pad to the floor while walking forward slowly.

Optional: Electric Clutch

If equipped with and optional clutch, move throttle to slow and engage the clutch by squeezing the “trigger switch” on the operation handle. Move the throttle to ¾ speed, slowly lower pad to the floor while walking forward slowly.

LIGHTNING 86039180 05/23/07

3-1



MACHINE OPERATIONS

STARTING PROCEDURES

Stripper:

!

This machine is only as fast as you allow it to be. It is imperative that you keep the floor wet with stripping solution while stripping and remove the sludge quickly and completely. Rinsing thoroughly before re-coating with sealer or floor finish.

1.Clear all areas of all displays. Remove any dust and stickers from floor.

2.Prepare stripping solution according to instructions on label.

3.Apply solution to the floor using a mop or other method of application. KEEP FLOOR WET WITH SOLUTION.

4.Allow 10 minutes or so for solution to penetrate floor coating.

5.Using a “doodle bug” scrape the edges clear of floor finish.

6.Begin stripping with the machine. (one pass is generally all that is needed).

7.Follow the machine with recovery of sludge and damp mop. NOTE: rinse floor thoroughly.

Keep both models moving. Running the machine in one place for more than a few seconds may damage the floor.

!

Exhaust emissions contain harmful toxic gases. The worst being carbon monoxide. Do not operate the machine in confined areas for prolonged times. Always make certain that adequate ventilation is had.

!

Never engage clutch in the fast run position or with the pad on the floor, this may cause damage to the clutch and the floor.

!

Be careful not to allow the machine to come in contact with loose tiles or other obstruction on the floor. The pad is turning at approximately 2000 RPM. If loose objects are hit by revolving pad they could become dangerous missiles.

EMERGENCY STOPPING PROCEDURE

In case of an emergency, the machine can be brought to an instant stop by:

1.Pull the throttle back to stop position or turn key switch to OFF, if equipped.

2.Close service valve on the fuel cylinder.

3.If the machine is equipped with a “Kill Switch”, activate the switch.

!

The engine may backfire when stopped in this manner.

STOPPING PROCEDURE

1.Close the service valve on the fuel cylinder while the engine is running. This serves to “purge” the fuel system of all flammable gas.

2.Tilt the machine back on it’s rear caster and allow the engine to run until it stops.

3.Turn the key switch OFF if equipped.

Do not leave the machine unattended while the engine is running for long periods of time. If necessary to leave the machine for short periods to move a display etc. move the throttle lever to idle position and tip machine back on the rear caster.

It has been the accepted practice to start buffing from the right side of the aisles. Most smaller machines are offset to the right to allow buffing close on that side.

TRANSPORTING/STORING MACHINE

When transporting the machine from one site to another, secure the machine with the fuel cylinder installed and the service valve OFF. Allow the engine to cool down some before loading the machine for transport.

When storing the machine, remove the propane cylinder and store outside. (see pg. 3-3 for Storage of Fuel Cylinders) Perform all daily maintenance procedures. Store machine in a cool, dry, secure area where it will not be damaged by other traffic. Tilt the machine back on the rear caster with the pad off of the floor.

3-2

LIGHTNING 86039180 05/23/07
