Windsor 10061160, 10061090, CSX24, CSX26SP User Manual

Operating Instructions (ENG)

MODELS:

iScrub

CSX24
10061090

CSX26SP
10061160

86317500-A
11/15/08

Read these instructions before using the machine

MACHINE DATA LOG/OVERVIEW

OVERVIEW

The Chariot Scrubber is a battery powered, stand-on, hard floor scrubber intended for commercial
use. The appliance applies a cleaning solution onto a hard floor, scrubs the floor with brushes or
pads, and then vacuums the soiled water back into the recovery tank.

2

86317500 CHARIOT SCRUBBER 11/15/08

Machine Data Log/Overview................................2

Table Of Contents................................................3

HOW TO USE THIS MANUAL

How To Use This Manual.....................................1-1

SAFETY

Important Safety Instructions ............................2-1

Hazard Intensity Level.......................................2-2

Safety Label Location........................................2-3

OPERATIONS

Technical Specifications.................................... 3-1

How The Machine Works..................................3-3

Components......................................................3-4

Drive Controls....................................................3-5

Scrub Controls...................................................3-9

Scrub Controls-Squeegee.................................3-11

Machine Operation............................................3-13

Pre-Run Machine Inspection........................3-13

Starting Machine ..........................................3-13

Emergency Stop Procedures .......................3-13

Filling Solution Tank.....................................3-14

Normal Scrubbing.........................................3-14

To Begin Scrubbing......................................3-15

Priming Pump...............................................3-15

To Stop Scrubbing........................................3-16

Double Scrub................................................3-16

Emptying And Cleaning Tanks.....................3-17

MAINTENANCE

Service Schedule ..............................................4-1

Batteries............................................................4-2

Squeegee..........................................................4-6

Scrub Brushes...................................................4-9

Scrub Deck-Disk................................................4-10

Circuit Protection...............................................4-13

Solution Strainer & Pump..................................4-14

Vacuum & Float Shut-Off ..................................4-17

Drive Motor & Brake..........................................4-19

Bag Replacement..............................................4-22

Transporting Machine........................................4-23

Machine Troubleshooting..................................4-24

TABLE OF CONTENTS

GROUP PARTS LIST

Bumper..............................................................5-1

Control Panel.....................................................5-3

Control Panel Housing.......................................5-5

Decal..................................................................5-7

Frame-Lower .....................................................5-9

Frame-Upper .....................................................5-11

Pedal Platform...................................................5-13

Rear Cover ........................................................5-17

Scrub Brush/Pad Driver-Disk.............................5-19

Scrub Brush/Pad-Cylindrical..............................5-21

Scrub Deck - Disk..............................................5-23

Scrub Deck – Cylindric

Scrub Deck Mounting-Cylindrical......................5-27

Scrub Deck Lift-Disk..........................................5-29

Scrub Deck Actuator-Cylindrical........................5-31

Scrub Deck Skirts-Disk......................................5-33

Scrub Deck Aqua-Mizer™.................................5-35

Solution-Disk......................................................5-37

Solution-Cylindrical............................................5-39

Squeegee - Disk................................................5-41

Squeegee – Cylindrical......................................5-43

Squeegee Lift-Disk............................................5-45

Squeegee Lift-Cylindrical...................................5-47

Squeegee Swing ...............................................5-49

Steering .............................................................5-51

Tank...................................................................5-53

Vacuum..............................................................5-55

Wheel-Front Drive .............................................5-57

Wheel-Rear........................................................5-59

Wiring-Batteries.................................................5-60

Wiring-Components...........................................5-63

Wiring-Control Panel .........................................5-65

Wiring-Disk ........................................................5-67

Wiring-Cylindrical...............................................5-70

Wiring-Drive Motor.............................................5-73

Wiring-Main Harness.........................................5-75

Wiring-Pedal Platform........................................5-77

Hose Diagram-Disk ...........................................5-79

Hose Diagram-Cylindrical..................................5-80

Suggested Spare Parts .....................................5-81

OPTIONS

Battery Cart – Option.........................................6-1

Seat – Option.....................................................6-5

Warning Light – Option......................................6-7

Serial Numbers..................................................6-9

Warranty

al ...................................5-25

86317500 CHARIOT SCRUBBER 11/15/08

3

HOW TO USE THIS MANUAL

This manual contains the following sections:

- HOW TO USE THIS MANUAL

- SAFETY

- OPERATIONS

- MAINTENANCE

- PARTS LIST

The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.

Parts may be ordered from authorized Windsor
dealers. When placing an order for parts, the
machine model and machine serial number are
important. Refer to the MACHINE DATA box which
is filled out during the installation of your machine.
The MACHINE DATA box is located on the inside of
the front cover of this manual.

The model and serial number of your machine are
located below the battery compartment of the
machine.

The SAFETY section contains important information
regarding hazard or unsafe practices of the
machine. Levels of hazards are identified that could
result in product or personal injury, or severe injury
resulting in death.

The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.

The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:

- Batteries

- Scrub Brushes

- Adjusting Squeegee

- Service Schedule

- Machine Troubleshooting

The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:

- REF – column refers to the reference
number on the parts illustration.

- PART NO. – column lists the part
number for the part.

- PRV NO. - Reference No.

- QTY – column lists the quantity of the

part used in that area of the machine.

- DESCRIPTION – column is a brief
description of the part.

- SERIAL NO. FROM – If this column has
an (*) and a Reference number, see the
SERIAL NUMBERS page in the back of
your manual. If column has two asterisk
(**), call manufacturer for serial number.
The serial number indicates the first
machine the part number is applicable
to. The main illustration shows the most
current design of the machine. When a
boxed illustration is shown, it displays
the older d

- NOTES – column for information not
noted by the other columns.

NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.

NOTE: The number on the lower left corner of the
front cover is the part number for this manual.

esign.

1-1

86317500 CHARIOT SCRUBBER 11/15/08

IMPORTANT SAFETY INSTRUCTIONS

When using an battery powered appliance, basic precaution

must always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

To reduce the risk of fire, electric shock, or injury:

Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.

If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return
it to an authorized service center.

Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near

flammable fluids, dust or vapors.

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.

Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
Make sure all warning and caution labels are legible and properly attached to the machine.

During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
Only chemicals recommended by the manufacturer shall be used.
This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other

brushes may affect its safety.
Do not use on surfaces having a gradient of over 10% (6 degrees).

SAVE THESE INSTRUCTIONS

86317500 CHARIOT SCRUBBER 11/15/08

2-1

HAZARD INTENSITY LEVEL

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:

WARNING - Hazards or unsafe practices which COULD re sult in severe personal injury or death.

CAUTION - Hazards or unsafe practice s which could result in minor personal injury or product or property

damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the
equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on
the machine. Please take the necessary steps to train the machine operating personnel.

FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.

WHEN SERVICING MACHINE:

Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
Windsor approved replacement parts.

Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep
solution tank in raised position when charging. Keep sparks and flames away from the batteries. Do not
smoke around batteries.

Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or near batteries. Avoid skin contact
with the acid contained in the batteries.

Never allow metal to lie across battery tops.

2-2

86317500 CHARIOT SCRUBBER 11/15/08

SAFETY LABEL LOCATION

NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become
illegible, promptly replace them.

86244300

PRV NO. 500955

WARNING LABEL

86252520

PRV NO. 80885

BATTERY
CAUTION

86317500 CHARIOT SCRUBBER 11/15/08

2-3

TECHNICAL SPECIFICATIONS

ITEM DIMENSION/CAPACITY

Nominal power 1800 W
Rated Voltage 36 Volts DC
Rated Amperage 50 amps
Batteries 3 X12 Volt 195-215 AH @ 20 hr. rate

Battery Compartment Dimensions
Scrub Brush Motors - Disk Machine 2 x .3 HP (190 W)

Scrub Brush Motors - Cylindrical Machine 2 x .75 HP (560 W)
Vacuum Motor(s) .63 HP (470 W)
Maximum flow rate of vacuum motor 72 cfm (33.98 liters per second)
Maximum suction of vacuum motor 47.3 inches of water (11.7 kPa)
Propelling Motor .75 HP (560 W)
Mass (GVW) 1245 lbs (565 kg)
Weight empty without batteries 558 lbs (253 kg)

Solution Control
Solution capacity 25 gal (95 L)

Recovery capacity 25 gal (95 L)
Scrub brush diameter - Disk Machine 12 inch (305 mm)
Scrub brush diameter - Cylindrical Machine 4.1 inch (105 mm)
Scrub brush pressure 0-150lbs (0-667N)
Scrub brush speed - Disk Machine 300 rpm
Scrub brush speed - Cylindrical Machine 500 rpm-slow, 800 rpm-medium, 1300rpm-fast
Tires 10 in. (254mm) Solid Scrubber Compound
Foundation Pressure 104 psi (715 Kpa)
Maximum Speed 3.5 miles/hour (5.6 Km/hour)
Theoretical Coverage 24,200 ft²/hr @ 2.5 mph with 2 in. overlap
Frame Construction Powder coated steel

Brake
Minimum aisle u-turn width 56 in. (1425 mm)

Maximum rated climb and descent angle 7.5 degrees

21 in. x 16 in. x 17 in. tall
(533mm x 406mm x 432mm)

1.3 GPM pump, fully variable with automatic shut-off
in neutral

Electrical parking brake, sets automatically whenever
operator steps off platform or engages emergency
stop.

3-1

86317500 CHARIOT SCRUBBER 11/15/08

TECHNICAL SPECIFICATIONS

ITEM MEASURE

Height 50.6 inches (1285 mm)
Length 52.5 inches (1330 mm)
Width without squeegee 26.5 inches (670 mm)
Width of squeegee - Disk Machine 32.7 inches (830 mm)
Width of squeegee - Cylindrical Machine 37 inches (970 mm)
Width of scrub path - Disk Machine 24 inches (610 mm)
Width of scrub path - Cylindrical Machine 26 inches (650 mm)

WIDTH

HEIGHT

SPECIAL NOTES:

The sound pressure level at the operator’s ear was
measured to be 68 dBA (Disk), 76dBA (cylindrical).
This was a nearfield, broad-band measurement taken
in a typical industrial environment on a tile floor. This
appliance contains no possible source of impact noise.
The instantaneous sound pressure level is below
63 Pa.

The weighted root mean square acceleration at the
operator’s arms was measured to be below 2.5m/s
This was a tri-axial, third-octave-band measurement
made during normal operation on a composite tile floor.
The measurement and related calculations were made
in accordance with ANSI S3.34-1986.

2

.

LENGTH

This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.

86317500 CHARIOT SCRUBBER 11/15/08

3-2

HOW THIS MACHINE WORKS

The Chariot® is a battery powered, self-propelled,
hard floor scrubber intended for commercial use.
The appliance applies a cleaning solution onto a
hard floor, scrubs the floor with brushes, and then
vacuums the soiled water back into the recovery
tank.

The machine's primary systems are the solution
system, scrub system, recovery system, and
operator control system.

The function of the solution system is to store
cleaning solution and deliver it to the scrub system.
The solution system consists of the solution tank,
strainer, pump, valve. The solution tank stores
cleaning solution (water and detergent) until it is
delivered to the scrub system. The strainer protects
the pump from debris. The valve automatically
prevents solution flow unless the scrub brushes are
turned on and the machine is being propelled.

The function of the scrub system is to scrub the
floor. The disk scrub system consists of two rotary
type disk scrub brushes, motors, scrub deck skirt
and lift actuator. The brushes scrub the floor as the
motors drive the brushes. The brush drive hubs
allow the scrub brushes to follow irregularities and
changes in the floor without loosing contact with the
floor. The scrub deck skirts control the cleaning
solution on the floor so that the squeegee can pick it
up.

The scrub plus system consists of two cylindrical
type brushes, motors, scrub deck side squeegees,
hopper, lift actuator. The cylindrical scrub head is
designed to eliminate debris that may be caught in
the squeegee while scrubbing. Water is applied to
the first scrubbing brush turning in a clockwise
rotation when viewed from the right side of machine.
The first brush scrubs dirt and debris between the
brushes. The second scrubbing brush, turning in a
counter clockwise rotation, picks up debris and
throws it into a removable hopper. Water is allowed
to drain out the hopper into the squeegee path
where it is recovered from the floor.

The scrub deck side squeegees control the cleaning
solution on the floor so that the squeegee can pick it
up.

The function of the recovery system is to vacuum
the soiled water back into the recovery tank. The
recovery system consists of the squeegee, vacuum
motor, float ball filter, recovery bag. The squeegee
wipes the dirty solution off the floor as the machine
moves forward. The vacuum motor provides suction
to draw the dirty solution off the floor and into the
recovery bag. The float ball filter protects the
vacuum fan from debris and foam. The recovery
bag stores the dirty solution.

The function of the operator control system is to
control the direction and speed of the machine. The
directional control system consists of the direction
control drive reset switch, throttle pedal, emergency
stop/brake switch, steering wheel, propel controller,
and drive wheel. The directional control drive reset
switch signals forward or reverse direction and
makes sure the operator is on platform before
machine will propel. The controller interprets signals
from the throttle pedal to command the drive wheel
to propel or slow the machine. The steering wheel
points the drive wheel in the direction desired by the
operator. The parking brake automatically engages
when the operator steps off the platform. The
emergency stop/brake can be used to hold the
machine on slopes.

3-3

86317500 CHARIOT SCRUBBER 11/15/08

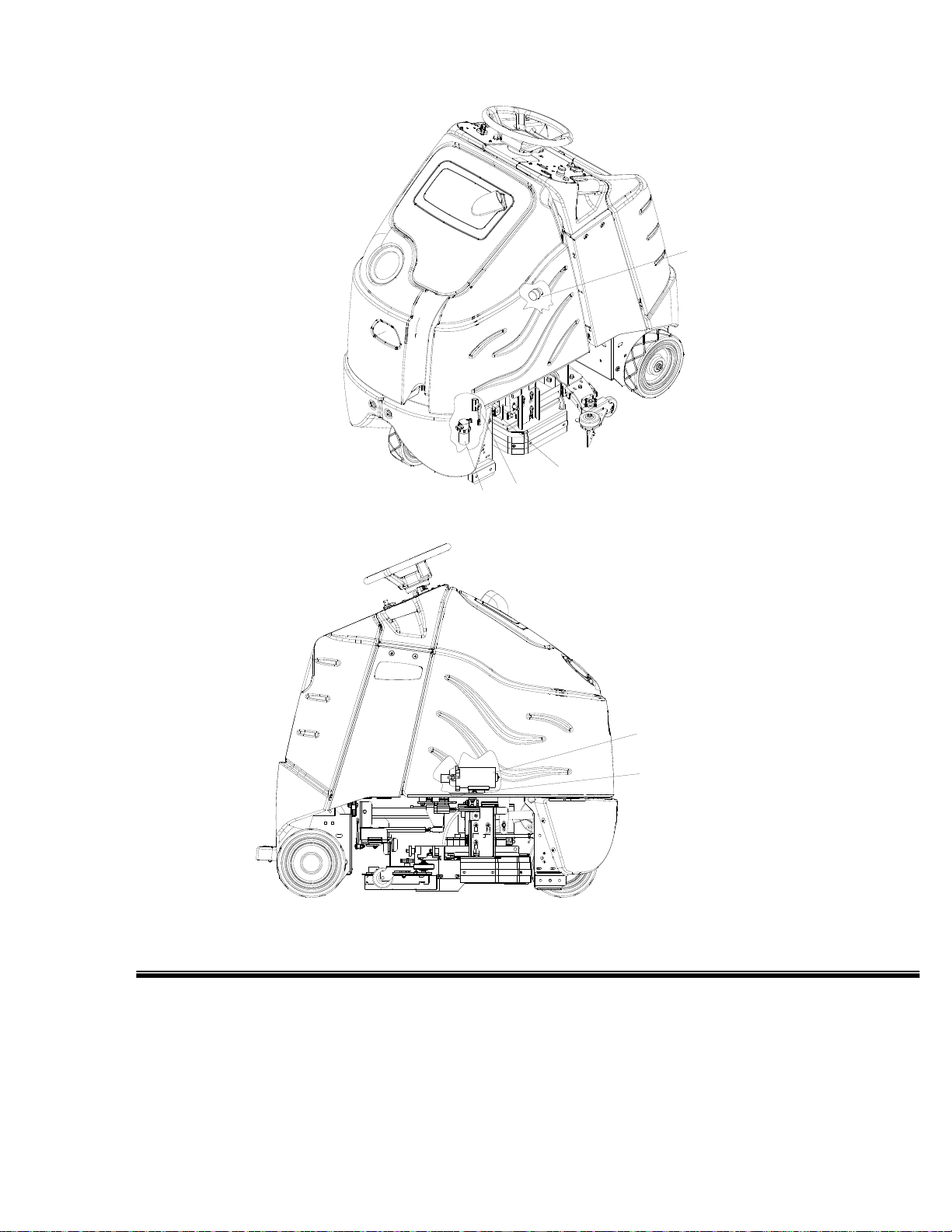

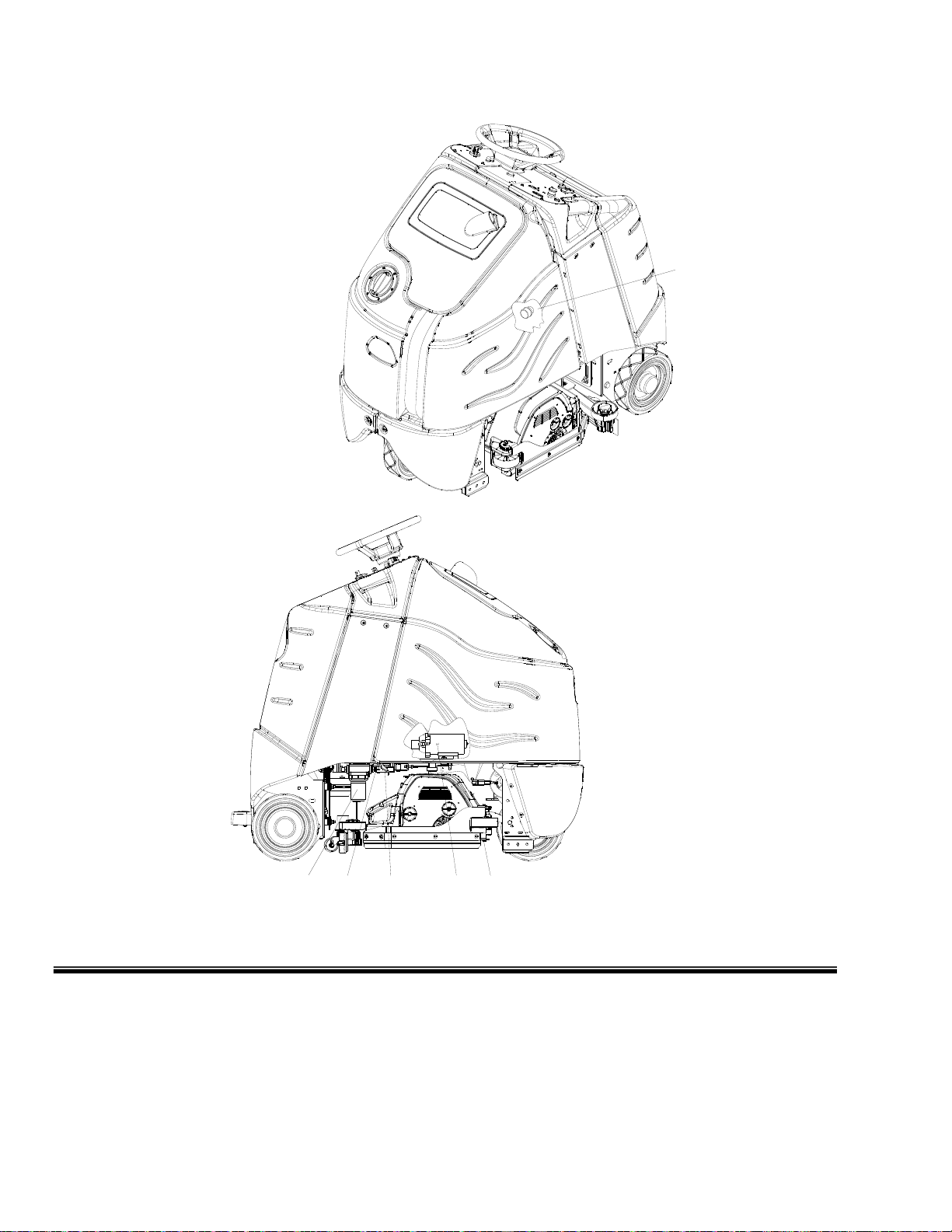

COMPONENTS

7

2

11

8

12

1. Control Panel-Drive

2. Control Panel-Scrub

3. Control Housing

4. Pedal Platform

5. Rear Cover

6. Tank

1

3

5

6

10

4

7. Recovery Dome

8. Recovery Drain Hose

9. Scrub Deck Aqua-Mizer™

10. Scrub Deck Skirts/Side Squeegees

11. Solution Cover

12. Solution Drain Hose

9

86317500 CHARIOT SCUBBER 11/15/08

3-4

DRIVE CONTROLS

5

2

3

8

7

9

1

6

3-5

4

86317500 CHARIOT SCRUBBER 11/15/08

DRIVE CONTROLS

1. Key Switch

2. Emergency Stop/Brake Switch

3. Directional Control / Drive Reset Switch

4. Throttle Pedal

5. Horn Button

1. KEY SWITCH

Controls the power for machine functions.
To turn the machine power on, rotate key clockwise.
To turn the machine off, rotate key counterclockwise.
When the key is turned on the battery symbol will flash while the system runs self-diagnostics and returns

scrub deck and squeegee to their raised positions, if necessary. The controller will not respond to other
commands until this routine is complete.

2. EMERGENCY STOP/BRAKE SWITCH

This safety feature is designed to cut all power to the machine at any time and apply parking brake.
To shut the machine power off, push the Emergency Stop Switch, this will also engage the parking brake and

cause the machine to stop immediately.
To reset the machine, rotate the switch clockwise.

3. DIRECTIONAL CONTROL / DRIVE RESET SWITCH

This safety feature is designed to ensure safe engagement of propel drive. Each time the machine power is
turned on, or each time an operator steps on to the platform, the Drive Reset Switch must be pushed before
machine will propel.

Controls the direction of travel of the vehicle. The lit arrow on the switch indicates direction of travel.
To travel forward, press the top of the switch.
To travel in reverse, press the bottom of the switch.

4. THROTTLE PEDAL

Controls the speed of the vehicle within the speed control setting selected. Pressing the pedal causes the
machine to travel in the direction selected by the Directional Control Switch.

To increase speed, increase pressure on the pedal.
To decrease speed, decrease pressure on the pedal.

6. Steering Wheel

7. Speed Control

8. Battery Discharge Indicator

9. Hour Meter

86317500 CHARIOT SCRUBBER 11/15/08

3-6

DRIVE CONTROLS

5. HORN BUTTON

The horn is activated by pressing the horn button.

6. STEERING WHEEL

The steering wheel turns the front wheel causing the machine to change direction.

7. SPEED CONTROL
Controls the maximum speed of the machine. There are two transport settings, slow and fast.
To change speed, rotate the dial to either slow or fast position. The slow position is to the left

(counterclockwise), fast to the right (top position).
The throttle pedal will always regulate the speed between 0 and maximum.

SLOW

FAST

3-7

86317500 CHARIOT SCRUBBER 11/15/08

DRIVE CONTROLS

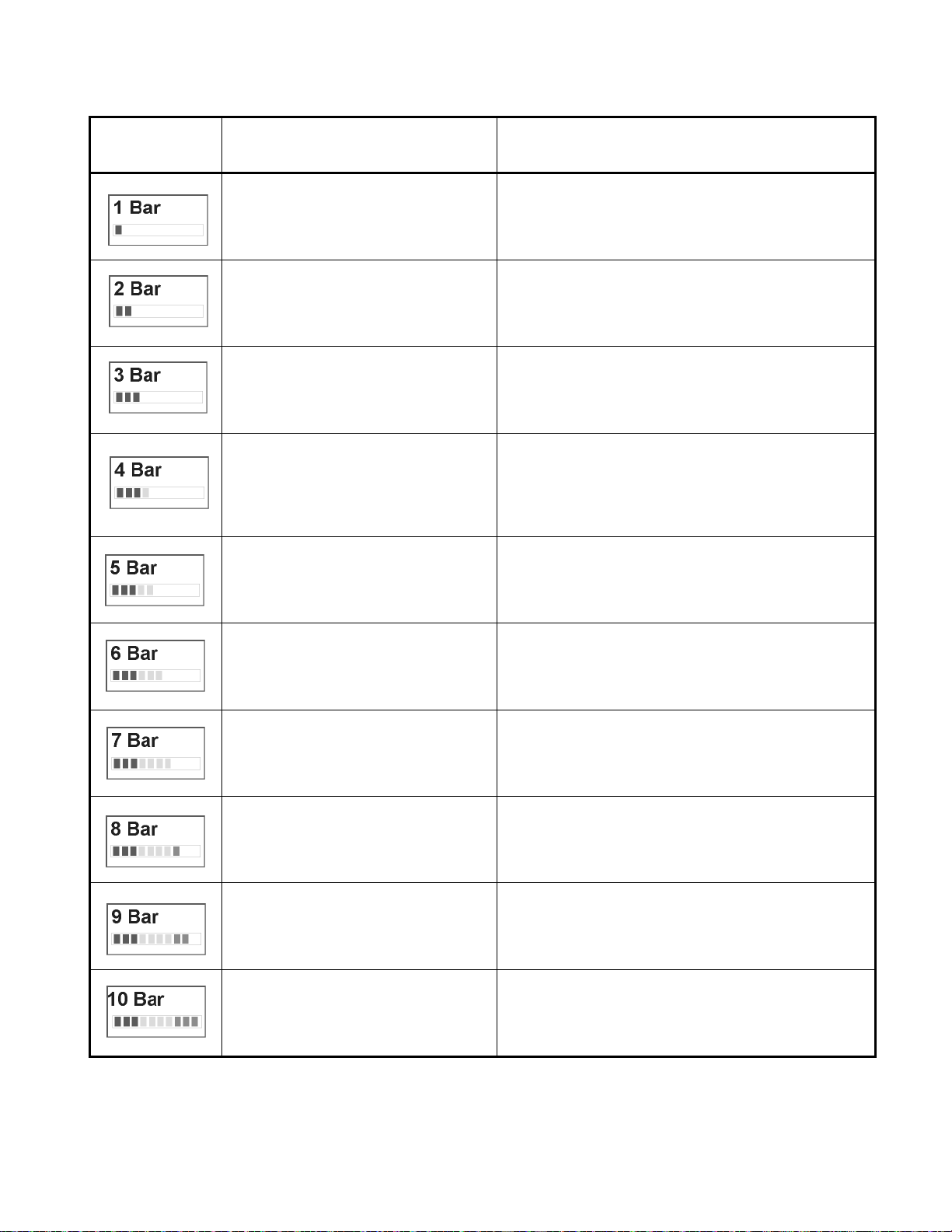

8. BATTERY CHARGE LEVEL INDICATOR

Indicates the charge level of the batteries.
The meter display is divided into 10 vertical bars. Bars illuminated on the far right indicate full charge. Bars

flashing near the left side indicate the batteries should be recharged. Further operation of the machine
could damage the machine or the batteries.

When the machine is left overnight with less than a full charge, the display may initially indicate a full
charge. It will also indicate a full charge if the batteries are disconnected, then reconnected. After a few
minutes of operation the meter will give the correct charge level.

9. HOUR METER

Records the number of hours the machine has been in scrubbing operatio n. This information is useful in
determining when to service the machine.

86317500 CHARIOT SCRUBBER 11/15/08

3-8

SCRUB CONTROLS

A1

1

A2

A3

C

1. FUNCTION MODE SWITCH

The first two positions are for transport only. See drive controls section.

A1 – Daytime cleaning/light cleaning

This mode is used for light cleaning. In this mode the machine will propel at a maximum of medium
speed. The scrub deck will automatically lower to a lower down pressure setting. The water will flow at a
low rate. Water will automatically shut off in neutral and restart when pressure resumes. The squeegee
will automatically lower and vacuum will continue on at a low flow. (Squeegee will continue to lower and
the vacuum will continue to run in neutral. The squeegee will raise in reverse.)

A2 – Medium scrub level cleaning

This mode is used for medium level cleaning. In this mode the machine will propel at a maximum of
medium speed. The scrub deck will lower to a medium down pressure. The water will flow at a medium
rate. The vacuum will flow at a medium rate.

B

3-9

86317500 CHARIOT SCRUBBER 11/15/08

SCRUB CONTROLS

A3 – Heavy scrub level cleaning

This mode is used for heavy level cleaning. In this mode the machine will propel at a maximum of slow
speed. The scrub deck will lower to a heavy down pressure. The water will flow at a high rate. The
vacuum will flow at a high rate.

B – Vacuum only mode

This mode is used for picking up solution only. The brushes and water will both be up and off. In this
mode the machine will propel at a maximum of medium speed. The squeegee will automatically lower
and the vacuum will come on. The vacuum will flow at a high rate. The squeegee will raise during
reverse propelling. The squeegee and vacuum will remain down and on in neutral propel.

C – Double Scrub cleaning

This mode is used for putting down solution and scrubbing without picking it back up. In this mode the
machine will propel at a maximum speed of slow. The scrub deck will automatically lower to a heavy
scrub level. The solution will flow at a high rate. The brushes and water will shut off and raise when
the machine is in neutral. They will resume when propelling is resumed.

86317500 CHARIOT SCRUBBER 11/15/08

3-10

SCRUB CONTROLS-SQUEEGEE

1

1. Squeegee Deflection Adjustment Knobs

2. Squeegee Pitch Adjustment Rod

2

3-11

86317500 CHARIOT SCRUBBER 11/15/08

1. SQUEEGEE DEFLECTION ADJUSTMENT

KNOBS (DISK SCRUBBER)

Adjusts the deflection along the entire length of
the squeegee.

To increase squeegee blade deflection, turn the
two knobs at the ends of the squeegee
counterclockwise.

To decrease squeegee deflection, turn the two
knobs at the ends of the squeegee clockwise.

2. SQUEEGEE PITCH ADJUSTMENT ROD

(DISK SCRUBBER)

Adjusts the deflection at the ends of the
squeegee.

To increase squeegee blade deflection at the
ends, turn rod counterclockwise.

To decrease squeegee blade deflection at the
ends, turn rod clockwise.

SCRUB CONTROLS-SQUEEGEE

3. SQUEEGEE DEFLECTION ADJUSTMENT
(CYLINDRICAL SCRUBBER)

Adjusts the deflection along the entire length of
the squeegee.

To increase squeegee blade deflection, loosen
the bolt at the wheel axle and raise in the slots.

To decrease squeegee deflection, lower the
wheel axle in the slots.

4. SQUEEGEE PTICH ADJUSTMENT
(CYLINDRICAL SCRUB)

No adjustments are necessary for this squeegee
style.

86317500 CHARIOT SCRUBBER 11/15/08

3-12

MACHINE OPERATION

3

-13

PRE-RUN MACHINE INSPECTION
Do a pre-run inspection to find possible problems

that could cause poor performance or lost time from
breakdown. Follow the same procedure each time to
avoid missing steps.

NOTE: See maintenance section for pre-run
machine inspection checklist items.

STARTING MACHINE

NOTE: Perform pre-run machine check before
operating machine.

FOR SAFETY: Before starting machine, make
sure that all safety devices are in place and
operating properly.

1. The operator should be on the pedal platform.

The throttle pedal must be in the neutral
position.

2. Turn the machine power on by turning key
switch clockwise to the “ON” position.

3. Check the position of the Directional Control
Switch to make sure the machine will travel in
the direction intended.

4. Press the Drive Reset Directional Control Switch
to reset and set the intended direction for travel.

5. Press lightly on the throttle pedal with right foot.

EMERGENCY STOP PROCEDURES

1. Push in emergency stop button. This will also

engage the parking brake and cause the
machine to stop immediately.

86317500 CHARIOT SCRUBBER 11/15/08

FILLING SOLUTION TANK
FOR SAFETY: Before leaving or servicing

machine; stop on level surface, turn off machine
and remove key.

1. Turn the machine power off.

2. Remove solution cover.

3. Fill the solution tank with clean water, leaving

enough room for the required amount of
cleaning solution. The solution tank capacity
filled to fill inlet is 25 gallons (95 liters). The
water must not be hotter than 140° F (60°C) to
prevent damage to the tank.

4. Measure the chemical into the solution tank.
The solution cover is also a 2 oz. (60 ml)
measuring cup. Liquid chemicals should be
added to the solution tank after filling with water.
Dry chemicals should be thoroughly mixed
before being added into solution tank.
Commercially available, high alkaline floor
cleaners, are suitable for use in the solution
system.

NOTE: Read the chemical manufacturers
recommended proportion instructions.

5. Replace solution tank cover.

Flammable materials

can cause an
explosion or fire. Do not use flammable
materials in the tanks.

MACHINE OPERATION

NORMAL SCRUBBING

Plan the scrubbing pattern in advance. The longest
track is around the perimeter of the area to be
cleaned. For efficient operation, the runs should be
the longest possible without turning, stopping, or
raising or lowering scrub deck/squeegee.

In order to achieve the best possible results, the
area which is to be cleaned should be swept before
scrubbing. Large debris, strings and wire must be
removed to prevent being caught in brushes or
squeegee.

If the machine is allowed to stand in neutral with the
scrub deck down for more than 2 seconds, the
solutions flow stops and brush motors stop. If either
forward or reverse travel is selected, the solution
flow will continue in the same setting and the scrub
brush motors will continue in their same setting once
movement of machine begins. Overlap the brush
path and avoid transporting over previously cleaned
areas.

86317500 CHARIOT SCRUBBER 11/15/08

3-14

MACHINE OPERATION

TO BEGIN SCRUBBING
When operating the machine around people, pay

close attention for unexpected movement. Use
extra caution around children.

Flammable liquids and/or reactive metals can
cause explosions or fire! Do not pick up.

1. Stand on the operator platform. Throttle pedal

must be in neutral position.

2. Turn machine power on.

3. Press the Drive Reset / Directional Control

Switch, selecting the desired travel direction.

4. Position the function control knob to the desired
operation. The brush motors will start, the scrub
deck will lower, the solution will begin to flow,
the squeegee will lower to the floor and the
vacuum motors will start.

5. Drive machine forward to begin scrubbing.

NOTE: Shut machine off immediately if water or
foam is expelled from the machine.

NOTE: Solution flow is automatically shut off when
brush motors stop. When brush motors are
activated, flow automatically resumes.

PRIMING PUMP

If the solution system has gone dry or has been
unused for a period of time, it may be necessary to
follow the pump priming procedure.

1. Fill solution tank.

2. Loosen, but do not completely remove the

strainer bowl. Solution should flow out of the
strainer. If it does not, check the strainer screen
inside the solution tank. Insure it is clear of
debris. Tighten the strainer bowl.

3. Disconnect the squeegee hose from the
recovery dome.

4. Begin normal scrubbing. Solution flow should
begin within 2 minutes.

5. Connect squeegee hose to recovery dome.

3-15

86317500 CHARIOT SCRUBBER 11/15/08

MACHINE OPERATION

TO STOP SCRUBBING

1. Rotate the function knob to either transport

position. The brush motors will stop and the
scrub deck will rise to the park position. After 10
seconds the squeegee will raise, and 10
seconds later the vacuum motor will turn off.
This delay is to clear the vacuum hose of
recovered solution.

2. Allow the throttle pedal to return to neutral.

3. Turn machine power off.
FOR SAFETY: Before leaving or servicing

machine: stop on level surface, turn off machine
and remove key.

DOUBLE SCRUB

For floors which are heavily soiled or have thick
accumulations of floor finish, may not clean
sufficiently with one pass. In these cases it will be
necessary to double scrub.
Rotate the knob to the double scrub position labeled
“C”, make the first pass over the surface being
cleaned with the squeegee up, vacuum off and the
solution on. For best results also remove the Aqua­mizer™, this will allow the solution to stay in contact
with the soil while loosening the surface
accumulation with the brushes. Allow time for the
first application to stay in contact with the floor.
Length of time between the first and second pass
depends on amount of accumulation and the type of
chemical being used. A second scrubbing with the
function knob in one of the normal scrubbing modes
will lower the squeegee and will keep the solution on
and brushes down to further loosen soil. The
additional application of solution will further assist
the difficult cleaning job.

FOR SAFETY: When using machine, go slow on
inclines and slippery services.

86317500 CHARIOT SCRUBBER 11/15/08

3-16

MACHINE OPERATION

RECOVERY
TANK DOME

RECOVERY
DRAIN HOSE

SOLUTION
DRAIN HOSE

EMPTYING AND CLEANING TANKS

1. Park the machine next to a floor drain. Drain

hoses are at the front of the machine.

2. Turn the machine power off.

RECOVERY TANK

1. Remove the recovery tank dome. Pull the large

drain hose from the mounting pocket. Unscrew
cap, then lower hose in direction of the drain. Do
not stand in front of end of hose. Recovered
solution will come out with force.

2. Flush the recovery bag out with clean water. Do
not use water hotter than 140°F (60°C) to clean
tank. Damage may occur.

3. Clean debris from dome basket.

4. Clean off the float shut-off system and inspect

for free movement of float. The float shut-off
system is located in the rear of the recovery
tank.

5. Replace the drain cap and secure drain hose
under tank.

6. If machine is to be stored, leave the recovery
tank dome off, or propped open.

SOLUTION TANK

1. Remove the recovery tank dome.

2. Pull the solution drain hose from its mounting

pocket. Unscrew the cap, then lower hose in
direction of drain.

3. Remove the solution tank lid.

4. Flush the solution tank out with clean water and

run several gallons of clean water through
systems. Do not use water hotter than 140°F
(60°C) to clean tank. Damage may occur.

NOTE: Never allow solution to remain in tank.
Damage to tank, seals and valves could occur.

3-17

86317500 CHARIOT SCRUBBER 11/15/08

NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

3-18

MAINTENANCE

SERVICE SCHEDULE

MAINTENANCE

Check water level of batteries after charging;
add distilled water if necessary. (Wet cell only)
Check that dome and cover seal tightly.
Visually check for damaged or worn tires.
Check brushes or pads for proper installation.
Check vacuum hose connections.
Check that squeegee is securely attached and
properly adjusted.
Check for securely attached drain hoses, plug
and cap.
Check pedal, brake and steering for proper
operation.

Clean out recovery tank and dome basket.
Clean and inspect float shutoff.
Clean out solution tank and filter, check flow.
Clean and inspect solution filter strainer.
Run vacuum motors to dry.
Clean brushes or pads and check wear.
Clean squeegee blades and check wear.
Clean outside of tanks, check for damage.
Store with dome off tank or propped open.
Charge batteries if needed.

Clean off top of batteries.
Check battery cells with hydrometer. (Wet cell
only)
Inspect scrub deck skirts and Aqua-Mizers.
Clean solution strainer inside tank.
Check battery connections are tight.

Clean battery cases and battery compartment.
Check parking brake.
Clean cables and pulleys for squeegee lift.
Clean pivot points on squeegee and scrub

deck.
Check all motors for carbon brush wear.
Check motor commutators.
Check steering chain tensioner.

NOTE: Traction drive, wheels and batteries should be serviced based on traction drive hour meter
(Deluxe). The scrub brush hour meter should be used for all other service schedule items.

AFTER EACH
BEFORE EACH
WORK PERIOD

*
*
*
*
*

*
*
*

*
*
*
*
*
*
*
*
*
*

*
*

*
*
*

*
*
*

*
*
*
*

WORK

PERIOD

50

HRS

100

HRS

200

HRS

4-1

86317500 CHARIOT SCRUBBER 11/15/08

2

1

1. Rear Cover Retainer Knob

2. Rear Cover

3. Battery Connector-Machine

MAINTENANCE-BATTERIES

3

4

6

5

4. Batteries

5. Battery Tray

6. Battery Tray Latch

86317500 CHARIOT SCRUBBER 11/15/08

4-2

MAINTENANCE-BATTERIES

BATTERIES (WET CELL ONLY)

The batteries provide the power to operate the
machine. The batteries require regular maintenance
to keep them operating at peak efficiency.

The machine batteries will hold their charge for long
periods of time, but they can only be charged a
certain number of times. To get the greatest life
from the batteries, charge them when their charge
level reaches 25% of a full charge. Use a
hydrometer to check the charge level.

Do not allow the batteries to remain in a discharged
condition for any length of time. Never expose a
discharged battery to temperatures below freezing.
Discharged batteries will freeze causing cracked
cases. Do not operate the machine if the batteries
are in poor condition or if they have a charge level
below 25% (specific gravity below 1.155).

Keep all metallic objects off the top of the batteries,
as they may cause a short circuit. Replace worn or
damaged cables and terminals.

Check the electrolyte level in each battery cell
before and after charging the batteries. Never add
acid to the batteries, use distilled water. Do not
allow water level to fall below the battery plates.
Portions of plates exposed to air will be destroyed.
Do not overfill. Keep plugs firmly in place at all
times.

4-3

86317500 CHARIOT SCRUBBER 11/15/08

When servicing machine,
avoid contact with battery
acid.

Batteries emit hydrogen

gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.

Wear eye protection and
protective clothing when
working with batteries.

Charge batteries in a well
ventilated area.

BATTERY MAINTENANCE

1. When cleaning the batteries, use a solution of

baking soda and water. Do not allow the
cleaning fluid to enter the battery cells,
electrolyte will be neutralized.

2. Maintain the proper electrolyte level in each

battery cell. If a cell should accidentally
overflow, clean immediately.

3. Wipe off the top of the batteries at least once a

week.

4. Test battery condition with a hydrometer at least

once a week.

5. Ensure that all connections are tight and all

corrosion removed.

6. Every 4 to 6 months, remove that batteries from

the machine and clean the battery cases and
battery compartment.

MAINTENANCE-BATTERIES

CHECKING BATTERY SPECIFIC GRAVITY

Use a hydrometer to check the battery specific
gravity.

CHECKING GRAVITY
A. Hydrometer
B. Battery

NOTE: Do not take readings immediately after
adding distilled water, if the water and acid are not
thoroughly mixed, the reading may not be accurate.

Check the hydrometer readings against this chart.

SPECIFIC GRAVITY

°

@ 80

1.265 100% CHARGED

1.225 75% CHARGED

1.190 50% CHARGED

1.155 25% CHARGED

1.120 DISCHARGED

NOTE: If the readings are taken when the battery
electrolyte is any temperature other than 80°F
(27°C), the reading must be temperature corrected.

To find the corrected specific gravity reading when
the temperature of the battery electrolyte is other
than 80°F (27°): Add (+) to the specific gravity
reading 0.004 (4 points), for each 10°F (6°C) above
80° (27°C).
Subtract (-) from the specific reading 0.004 (4
points), for each 10°F (6°C) below 80°F (27°C).

Battery Check

F (27°C) BATTERY CONDITION

CHARGING BATTERIES

When servicing machine,
avoid contact with battery
acid.

Batteries emit hydrogen

gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.

Wear eye protection and
protective clothing when

working with batteries.

Charge batteries in a well
ventilated area.

Use a 36 volt, 20 amp maximum output DC charger
which will automatically shut off when the batteries
are fully charged.

1. Stop the machine in a clean, well ventilated area
next to the charger.

2. Turn “OFF” machine.

FOR SAFETY: Before leaving or servicing
machine; stop on level surface, turn off machine
and remove key.

3. Remove rear cover, unplug batteries from

machine, unlatch battery tray and pull out to
expose batteries.

Batteries emit hydrogen

gas. Explosion or fire
can result. Keep sparks and open flame away.
Keep covers open when charging.

4. Check the electrolyte level in each battery cell.

Before charging, add just enough distilled water
to cover the plates. After charging is complete,
add just enough distilled water to bring up the
level to the indicator ring. If the water level is
too high before charging, normal expansion rate
of the electrolyte may cause an overflow
resulting in a loss of battery acid balance and
damage the machine.

86317500 CHARIOT SCRUBBER 11/15/08

4-4

MAINTENANCE-BATTERIES

5. Replace the battery caps, and leave them in
place while charging.

6. Unplug the battery connector from the machine.

FOR SAFETY: When charging, connect the
charger to the batteries before connecting the
charger to the AC wall outlet. Never connect the
charger to the AC wall outlet first. Hazardous
sparks may result.

7. Plug the charger connector into the battery

connector. Connect the charger AC plug to a
wall outlet. The charger gauge should indicate
that the batteries are charging.

8. When the batteries are fully charg ed, disconnect
the charger from the AC wall outlet, then
disconnect the charger from the batteries.

9. Connect the batteries to the machine connector.

10. Check the electrolyte level. It should be up to

the indicator ring. If necessary, add distilled
water.

11. Install the rear cover.

CHANGING BATTERIES

Stop the machine in a clean area next to the
charger. Turn off machine.

FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn off machine
and remove key.

1. Remove the rear cover.

2. Disconnect battery pack from machine.

3. Unlatch battery tray from machine and pull out

to expose batteries.

4. Use the proper size open end wrench to
disconnect main ground wire first and secure
cable terminal away from batteries.

5. Disconnect main positive lead and secure cable
terminals away from batteries.

6. Loosen both terminals on each jumper cable
and remove one at a time.

7. Prepare a suitable site to place the batteries.

Attach suitable battery lifting
device and lift batteries from

the machine. Batteries are a
potential environmental hazard. Consult your battery
supplier for safe disposal methods.

RED

+

--

BLK

RED

++

BLK

REAR OF MACHINE

RED

BLK

-

4-5

86317500 CHARIOT SCRUBBER 11/15/08

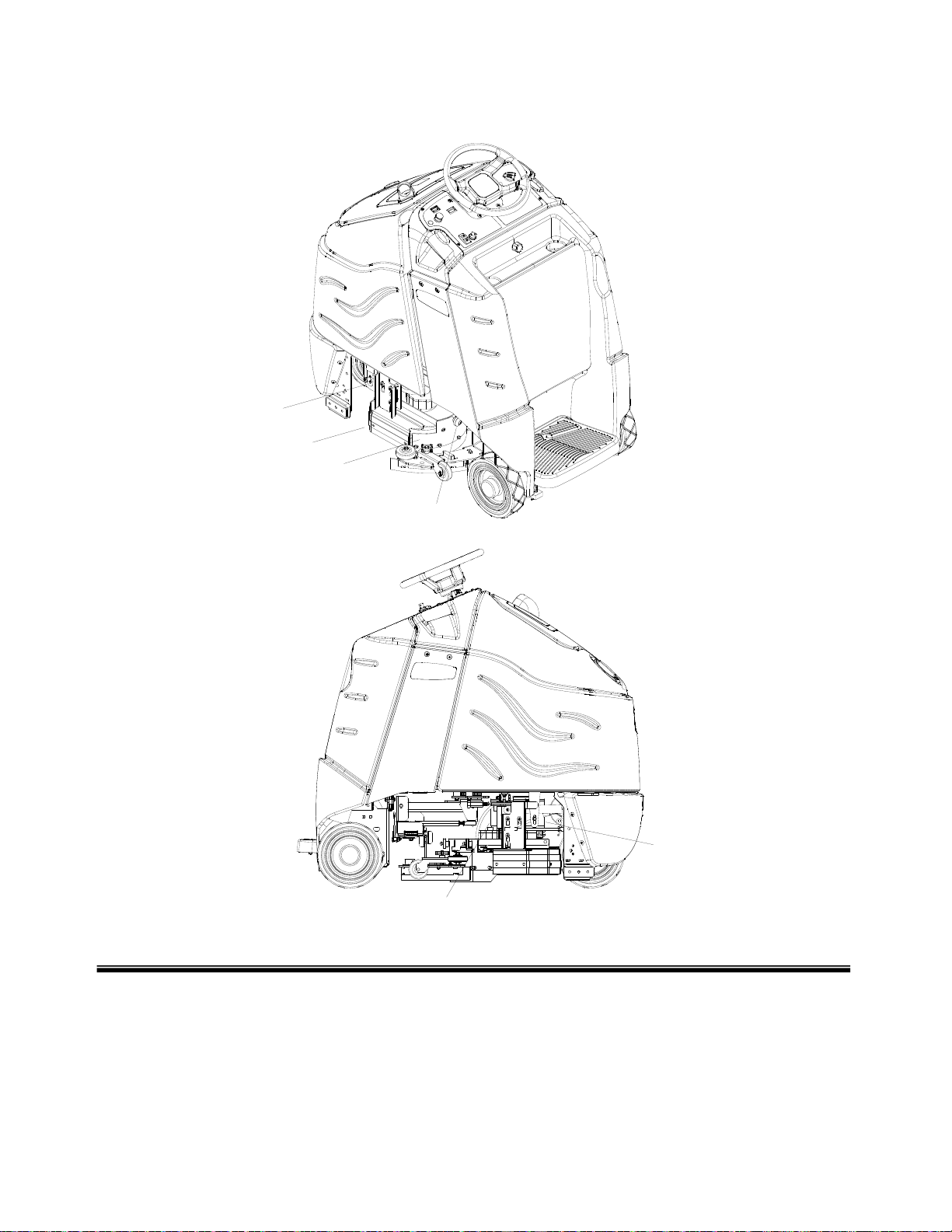

1

5

2

1. Squeegee

2. Squeegee Deflection Adjustment Knobs

3. Squeegee Level Indicator

MAINTENANCE-SQUEEGEE

6

4

3

4. Squeegee Pitch Adjustment Rod

5. Squeegee Pitch Adjustment Lock Nut

6. Squeegee Retainer Knob

86317500 CHARIOT SCRUBBER 11/15/08

4-6

MAINTENANCE-SQUEEGEE

SQUEEGEE BLADES

The front squeegee blade allows solution to pass
through channels in the blade into the squeegee
assembly while maintaining vacuum to provide lift.
The front blade has four wear surfaces and can be
rotated for extended life. The front blade should not
require regular replacement under normal use.

The rear blade wipes the floor to a near dry
condition. It is important the rear blade be in good
condition to properly do its job. As with the front,
each squeegee blade assembly has four wear
surfaces for extended service.

Check both the front and rear squeegee blades for
damage, wear, and adjustment each day in the pre­run check. Change the front blade if it is torn or has
an uneven edge. Change the rear blade if it is less
than 1/2 the original thickness.

ADJUSTING SQUEEGEE

Adjusting the squeegee is a two-part process. First,
the squeegee assembly must have correct pitch in
order for the squeegee blade to have the same
deflection at each tip as well as the center. The rod
on the squeegee linkage controls the pitch
adjustment. The second adjustment is the
deflection. Knobs on each end of the squeegee
control this.

4-7

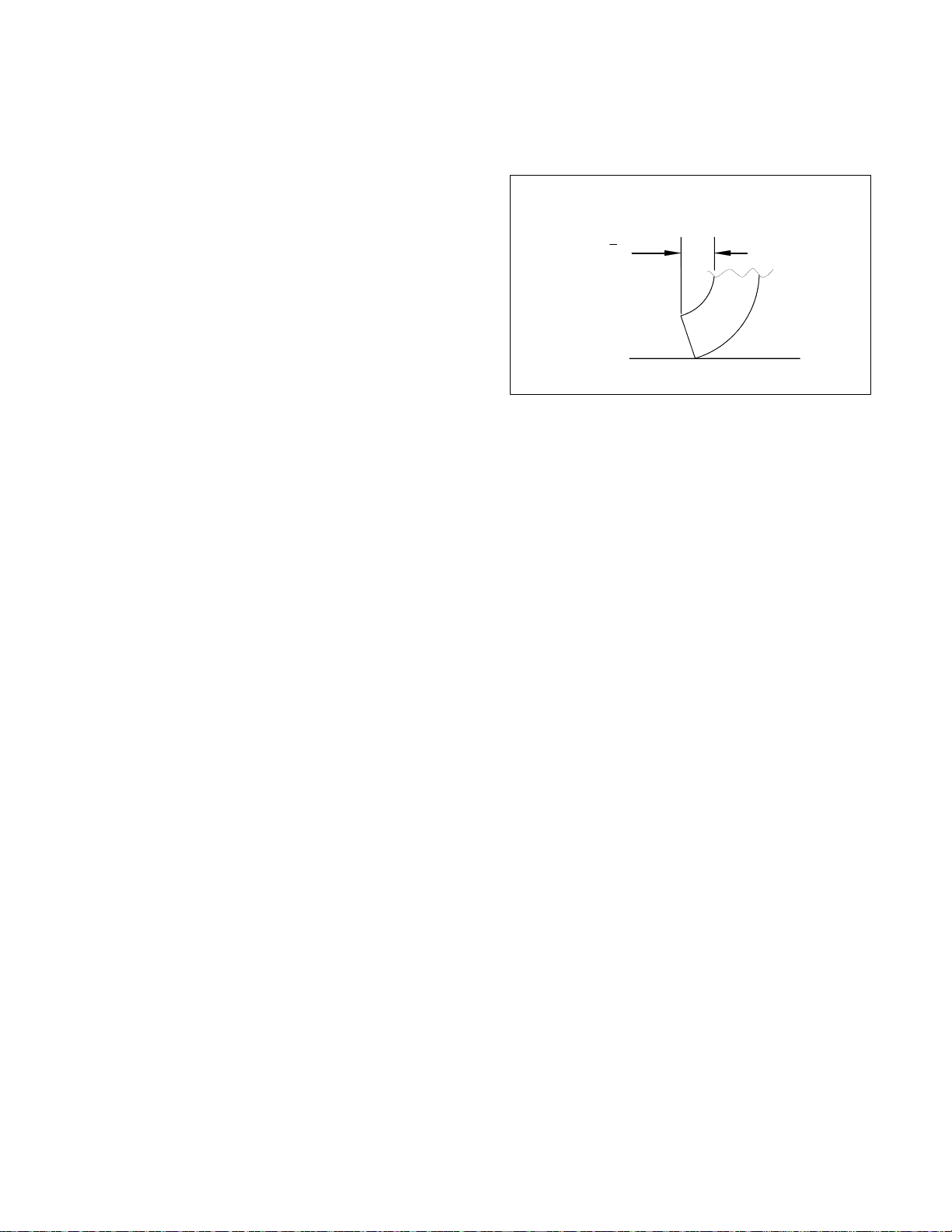

SQUEEGEE DEFLECTION

3

"

8

(9.5mm)

CORRECT

NOT ENOUGH

TOO MUCH

SIDE VIEW OF SQUEEGEE BLADE

86317500 CHARIOT SCRUBBER 11/15/08

TO REMOVE SQUEEGEE ASSEMBLY

1. With the squeegee in the up position, turn key

switch “OFF”.

2. Disconnect vacuum hose from squeegee and

loosen knob on left side of squeegee lifting
carrier.

3. Pull squeegee assembly from the lifting carrier.

4. Inspect or repair as necessary and reinstall.
TO REPLACE OR ROTATE REAR SQUEEGEE

BLADES

1. With the squeegee in the up position, turn key

switch “OFF”.

FOR SAFETY: Before leaving or servicing
machine; stop on level surface, turn off machine
and remove key.

2. Remove the squeegee assembly from the

machine. Unlatch and remove blade retainer
strap and remove squeegee blade.

3. Rotate the squeegee to new edge position or

replace as required. Each blade has four new
edge positions.

4. Install blade on locating pins of squeegee

assembly.

5. Install squeegee retainer strap.

6. Fasten and lock latch, adjust latch only tight

enough to take up slack in retaining strap.

TO REPLACE OR ROTATE FRONT SQUEEGEE
BLADE

1. With the squeegee in the up position, turn key

switch “OFF”.

2. Remove the squeegee from the machine.

Loosen thumbscrews and remove the retainer
strap and squeegee blade.

3. Rotate the squeegee to new edge position or

replace as required. Each blade has four new
edge positions. When installing the front blade,
tighten the center thumbscrew first. Insure that
the retainer strap is pressed against the blade
before tightening the outer screws.

MAINTENANCE-SQUEEGEE

TO ADJUST SQUEEGEE PITCH

1. Choose a smooth, level surface. Turn “ON” the

key switch. Lower the squeegee and drive
forward at least 2 feet (60cm.).

2. With the squeegee down, stop the machine. Do
not allow machine to roll back.

FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn off machine
and remove key.

3. Determine the differences, if any, in deflection of

the squeegee blade between each end and the
middle. Proper adjustment is obtained when
deflection is equal all the way across the
squeegee blade. The bubble level should also
indicate when the squeegee is adjusted
properly. When the air bubble is in the center of
the vial, the deflection should be even across
the squeegee blade.

4. To decrease the deflection of the squeegee
blade at the ends, loosen wing nut and rotate
the rod clockwise. To increase the deflection at
the ends of the squeegee assembly, rotate the
rod counterclockwise knob.

5. Check the deflection of the squeegee blades
again. Repeat steps 1 through 4 until the
deflection is equal across the entire rear
squeegee blade. Tighten wing nut.

TO ADJUST AMOUNT OF REAR SQUEEGEE
DEFLECTION

SQUEEGEE DEFLECTION

3

"

8

(9.5mm)

CORRECT

SIDE VIEW OF SQUEEGEE BLADE

1. Choose a smooth, level surface. Lower the
squeegee and drive forward at least 2 feet
(60cm).

2. With the squeegee down, stop the machine. Do
not allow machine to roll back.

FOR SAFETY: Before leaving or servicing
machine; stop on level surface, turn off machine
and remove key.

3. Observe the amount of squeegee deflection. It

should deflect 3/8 in. (9.5mm) across the entire
width of the squeegee.

4. To increase the squeegee deflection, turn the 2
knobs at the squeegee ends counter-clockwise.
To decrease the deflection, turn the knobs
clockwise.

NOTE: The deflection should be consistent along
the length of the squeegee. If the deflection varies
from end to end the knobs can be adjusted
independently to correct the variation.

5. Turn on the key switch. Raise, then lower
squeegee assembly. Drive forward at least
2 feet (60cm).

6. Repeat steps 2 through 4 until deflection of
3/8 in. (9.5mm) is reached.

86317500 CHARIOT SCRUBBER 11/15/08

4-8

MAINTENANCE-SCRUB BRUSHES

SCRUB BRUSHES

There are four different types of brushes available to
cover applications from cleaning heavily soiled floors
to polishing. A pad driver is also available to take
advantage of the many cleaning pads on the market.
Please refer to the following to assist in selecting the
proper brush or pad for the work at hand.

UNCOATED FLOORS

Aggressive Grit is a nylon fiber impregnated with

silicone carbide grit. It grinds away stain, soil, and
removes surface material.

Mild Grit is a less aggressive silicone carbide grit
suitable for cleaning medium soil conditions.
Advantages are faster ground speed than nylon
bristles on light solid applications.

Polypropylene is a general-purpose scrub brush
with stiff bristles. Polypropylene works well for
maintaining concrete, wood and tile floors.

FINISHED FLOORS

Nylon bristles are used in a variety of applications

on coated or uncoated surfaces.
White Pads (Polishing) are used for dry polishing to

achieve a high-gloss appearance, or surface
washing on highly polished or burnished floors.

Red Pads (Buffing) are used for light-duty
scrubbing. When used with a mild detergent they
will provide surface cleaning without removing the
finish.

Blue Pads (Scrubbing) are used for heavy-duty
scrubbing and light stripping. The blue pads remove
less finish than brown stripping pads, yet will remove
black marks, stains and dirt.

Black Pads (Stripping) are used for easy and
complete removal of old floor waxes/finishes. They
will quickly remove ground in dirt, black heel marks,
and spills. When used with the proper stripper, this
pad leaves the floor clean and ready for finishing.

The scrub brushes should be checked before each
days work for wire, string, wear and damage.

4-9

86317500 CHARIOT SCRUBBER 11/15/08

MAINTENANCE-SCRUB DECK

4

3

1. Scrub deck Aqua-Mizer™

2. Aqua-Mizer™ retainer knob

3. Scrub deck skirt

1

2

6

5

4. Scrub deck skirt stop

5. Scrub brush motor

6. Scrub deck lift actuator

86317500 CHARIOT SCRUBBER 11/15/08

4-10

MAINTENANCE-SCRUB DECK

Do not use a pressure
washer to clean around

the brush motors. Use tap pressure only.

TO REPLACE SCRUB BRUSH MOTORS

1. With the scrub deck in the raised position,

disconnect brush motor wiring connector from
harness.

2. Remove skirts from scrub deck to access and
remove scrub brushes or pad drivers.

3. Remove Aqua-Mizers™ from scrub deck.

4. Remove retaining bolt, lock washer, flat washer

and star drive from brush motor shaft.

5. Remove 4 brush motor mounting bolts located
under scrub deck.

6. Lower scrub deck.

7. Remove brush motor.

8. Reverse steps to install.

BRUSH MOTOR CARBON BRUSH
REPLACEMENT

1. Scribe alignment mark on motor barrel to motor

cap. Remove two bolts.

2. Remove end cap from motor.

NOTE: Motors contain two wave washers in
cap. Do not lose these.

3. Release brush from spring tension. Remove
screw connecting brush wire lead to brush
holder. Clean brush holder to insure free
movement.

4. Retract spring and install new brush. Install
connector screw and lead.

5. When all new brushes are installed. Place all in
retracted position, held into brush holder by
spring tension.

6. Carefully place end cap onto bearing on motor
shaft.
NOTE: Use care to assure wave washer
alignment.

7. With end cap in partially installed position,
release all brushes to contact position with
motor commutator.

NOTE: Failure to insure all brushes are released
will result in motor failure.

8. Reset end cap and realign with scribe marks on
motor barrel. Reinstall the two attach bolts from
cap into base.

9. Maintain alignment between motor barrel base
and cap.

4-11

86317500 CHARIOT SCRUBBER 11/15/08

ACTUATOR SCRUB DECK
REMOVAL/REPLACEMENT

FOR SAFETY: Before leaving or servicing
machine, stop on a level surface. Turn off
machine.

1. Remove the two screws that secure actuator
spring plate and pull actuator barrel from stud on
actuator spring bracket.

2. Remove clevis pin from upper bracket of
actuator.

3. Disconnect actuator from wiring harness.

4. Reverse steps to install.

86317500 CHARIOT SCRUBBER 11/15/08

MAINTENANCE-SCRUB DECK

SCRUB DECK ACTUATOR ADJUSTMENT

The actuator will need to be adjusted when
replaced.

To adjust the actuator:

1. While holding actuator barrel to prevent it from

spinning, apply power to the actuator such that it
is fully extended. Positive power to white wire,
and negative/ground to black. Limit switch
within actuator will stop it.

2. Turn barrel out one or more full turns to assure
that when it is retracted it will not bind against
itself.

3. While holding actuator barrel to prevent it from
spinning, apply power to the actuator such that it
is fully retracted. Positive power to black wire,
and negative/ground to white wire. Limit switch
within actuator will stop it.

4. With actuator fully retracted, turn barrel in until it
touches the base of the threaded shaft.

5. At the bottomed out position, turn the barrel out
1 full turn, then enough more to allow

connection to lift linkage.

6. Connect actuator to lift linkage.

7. Check travel of actuator during operation.

4-12

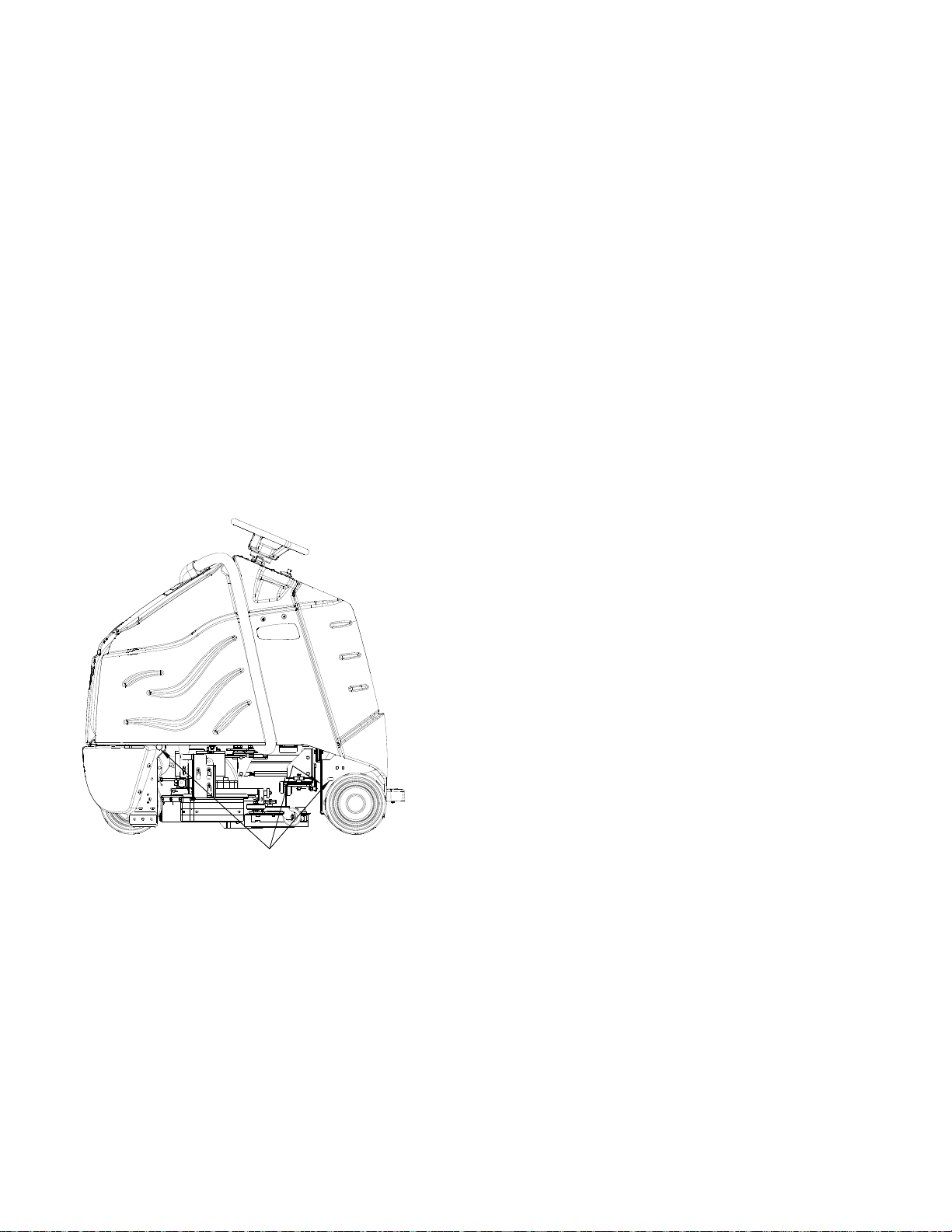

MAINTENANCE-CIRCUIT PROTECTION

1

1. CIRCUIT BREAKERS

Circuit breakers interrupt the flow of power in the
event of an electrical overload. When a circuit
breaker is tripped, reset it by pressing the
exposed button. If a circuit breaker continues to
trip, the cause of the electrical overload should
be found and corrected.

18 Amp. Protects the left scrub

brush motor.
18 Amp. Protects the right scrub

brush motor.

4-13

86317500 CHARIOT SCRUBBER 11/15/08

1. Solution Strainer-Coarse

2. Solution Strainer-Fine

3. Pump

MAINTENANCE-SOLUTION STRAINER & PUMP-DISK

5

6

2

3

4

4. Pump Mounting Plate

5. Solenoid Valve

6. Shut-off Valve

86317500 CHARIOT SCRUBBER 11/15/08

1

4-14

MAINTENANCE-SOLUTION STRAINER & PUMP-CYLINDRICAL

1. Solution Strainer-Coarse

2. Solution Strainer-Fine

3. Pump

2

4

6

1

3

5

4. Solenoid Valve

5. Jets

6. Shut-off Valve

4-15

86317500 CHARIOT SCRUBBER 11/15/08

MAINTENANCE-SOLUTION STRAINER & PUMP

SOLUTION STRAINER-COARSE

1.

Located in bottom of tank. The coarse strainer
protects the finer strainer from large debris. If
the fine strainer is clean and the pump and
solenoid valve are not working, then check the
coarse strainer for debris. Drain the solution
tank and clean the coarse strainer. To remove
the strainer, rotate the strainer counterclockwise.
Cleanout the debris from wire mesh and re­assemble.

2. SOLUTION STRAINER (FINE) AND

SHUT-OFF VALVE

The fine strainer is located in front left corner of
machine on disk models and in right rear corner
of cylindrical models. The fine strainer protects
the pump and solenoid valve from debris. If
there is little or no solution flow to the ground,
first check to make sue the shut-off valve is
open. Next, check the strainer for debris. To
remove the strainer, first turn the shut-off valve
to the off position. Then, turn the bottom part of
the strainer counterclockwise until the bottom is
separated. Clean out the debris from the wire
mesh and re-assemble. Make sure the O-ring
gasket is in place when re-assembled. To
resume flow, turn the shut-off valve to the open
position.

3.

PUMP

The pump is located under the tank on the right
side of machine. The pump delivers solution
from the tank to the scrub deck.

To repair or replace pump:

1. Remove scrub deck skirts, Aqua-Mizer, and

squeegee from machine.

2. Lower scrub deck to gain access to pump

mounting plate.

3. Remove screw that secures pump mounting

plate to frame.

4. The pump is located under the tank on the

right side of machine. The pump delivers
solution from the tank to the scrub deck. Pull
pump mounting plate forward and down to
expose pump.

5. Reverse steps to install.

4.

PUMP MOUNTING PLATE

See graphic representation on previous page.

5.

SOLENOID VALVE

The solenoid valve is mounted on the front of
the scrub deck, on left side.

The solenoid valve shuts off solution flow to
scrub deck whenever scrubbing stops. To repair
or replace solenoid valve, cut cable ties that
secure it to deck.

86317500 CHARIOT SCRUBBER 11/15/08

4-16

MAINTENANCE-VACUUM & FLOAT SHUT-OFF

1

1. Recovery tank float shut-off

2. Vacuum motor

2

4-17

86317500 CHARIOT SCRUBBER 11/15/08

MAINTENANCE-VACUUM & FLOAT SHUT-OFF

V

RECOVERY TANK FLOAT SHUT-OFF

When water is no longer being vacuumed from

the floor and the vacuum fan is operating, the
ball float has engaged. The vacuum motor will
not vacuum water with recovery tank full. The
recovery tank must be drained.

1. The float shut-off screen can be cleaned in or
out of the machine.

2. To clean the float shut-off while it is inside the
machine wipe material off screen then rinse.
Check that the ball is also clean and moves
freely.

3. To remove the float shut-off, grasp the screen
with one hand and the connected tube with the
other. Tilt and pull the float screen assembly to
pull it off the barb on the tube.

4. To install, place one hand on the tube, and then
tilt and push the float screen assembly over the
barb on the tube.

FOR SAFETY: before leaving or servicing
machine, stop on a level surface, turn off
machine and disconnect power.

TO REPAIR OR REPLACE VACUUM MOTOR

1. Remove rear cover from machine.

2. Remove two screws from top of control

panel and four screws from sides of control
housing.

3. Slide control housing back from tank to
expose vacuum motor.

4. Disconnect electrical connector from the
vacuum motor. Remove the muffler hose
from the vacuum motor outlet.

5. Remove three nuts that secure vacuum
motor.

6. Reverse steps to install. Make sure that
gasket is on vacuum so that vacuum seals
against tank

acuum Motor Carbon Brushes

End Cap

Carbon
Brushes

If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.

Important:

These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will dama ge
motor if brushes are allowed to wear away completely.

3

[9.5mm]

Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less than 3/8" (9.5mm)
long.

8

86317500 CHARIOT SCRUBBER 11/15/08

4-18

MAINTENANCE-DRIVE MOTOR & BRAKE

1. Drive motor

2. Parking brake

1

2

4-19

86317500 CHARIOT SCRUBBER 11/15/08

ELECTRIC PARKING BRAKE ENGAGEMENT

FOR SAFETY: Before leaving or servicing
machine, stop on a level surface, turn off
machine and remove key.

Electric Brake Engagement

This machine is equipped with an electric parking
brake.

The brake automatically engages and keeps the
machine from moving whenever the operator steps
off the platform or when emergency stop is engaged.

The brake has a mechanical over-ride that can be
engaged so machine can be pushed or towed
(slowly).

When the mechanical over-ride is engaged the
machine cannot be driven.

To engage brake:

MAINTENANCE-DRIVE MOTOR & BRAKE

To disengage brake:

1. Mechanical over-ride disengaged

Machine can be driven.

2. Push lever firmly in direction of arrow.

1. Mechanical over-ride engaged.

Machine can be pushed or towed (slowly).

2. Push lever firmly in direction of arrow

Note: There is an intermediate stop. Make sure
lever is fully in the down position.

86317500 CHARIOT SCRUBBER 11/15/08

4-20

MAINTENANCE-DRIVE MOTOR & BRAKE

DRIVE MOTOR CARBON BRUSH REPLACEMENT

Do not use a pressure
washer to clean around

the motors. Use tap pressure only.

FOR SAFETY: Before leaving or servicing
machine, stop on a level surface, turn off
machine and remove key.

1. Disconnect batteries from machine.

2. Disconnect the electrical connection to the

traction motor.

BRAKE REMOVAL

(Must be done to access carbon brushes)

3. Remove 4 mounting screws and remove brake.

4. Drive roll pin out of the hex hub enough to allow

hex hub to slide off shaft. It is recommended
that the roll pin be left partially in the hex hub.

5. Remove brush cap.

5. Install new brush and reinstall connecting screw

6. When all new brushes are installed. Place all in

7. Carefully replace brush cap.

and lead.

retracted position, held into brush holder by
spring tension.

Reinstalling:

10. When replacing the hex hub, use a small pin or

screw to help align the holes.

11. Drive the pin into the hub and make sure it is
flush to the hex surface. The brake will not fit on
the hub if the roll pin is protruding from the hub.

12. Replace the hub and use Lock-Tite on the
screws.

ROLL PIN

ROLL PIN

HEX HUB

HEX HUB

SMALL PIN OR SCREW

SMALL PIN OR SCREW

6. Release brush from spring tension. Remove
screw connecting brush wire lead to brush
holder. Clean brush holder to insure free
movement.

4-21

86317500 CHARIOT SCRUBBER 11/15/08

MAINTENANCE-BAG REPLACEMENT

REMOVING OR REPLACING BAG

1. Disconnect batteries and make sure parking brake

is not overridden.

2. Remove Dome and set aside.

3. Drain all solution from both sides of the bag and

rinse well.

4. Remove float cage, loosen screw on elbow and

remove elbow. (You can remove the bag by only
removing the float cage and sliding the bag
opening over the elbows.)

5. Remove threaded mandrel from the bottom of the

bag. Turn counterclockwise, remove by grabbing
the attached handle. The mandrel washer should
come off with the mandrel.

6. Lift the bag assembly out of the tank. The dome

gasket, plastic collar, and metal frame can all be
removed as one assembly. The bag can be
cleaned as an assembly or further disassembled.

7. To replace with a new bag remove the four screws

that go through the collar and into the frame.
Feed the frame through the loops at the top of the
bag.

8. Re-assemble frame, collar and bag if they
were disassembled.

9. Place bag assembly into tank.

10. Align bag drain hole with fitting in bottom of

tank and thread in mandrel with washer
attached. Turn clockwise to tighten. Tighten
only by hand, do use a tool. Ensure mandrel is
tight, the bag should be unable to move or
spin around the mandrel.

11. Seat the collar, gasket, frame assembly to the
tank rim opening. At the same time slide the
vacuum collar opening over the float cage
elbow assembly.

12. Replace the rest of the elbow and float cage
assembly with its mounting screw, if it was
removed.

13. Install dome and connect squeegee hose.

86317500 CHARIOT SCRUBBER 11/15/08

4-22

MAINTENANCE-BAG TRANSPORTING

PUSHING MACHINE

The machine may be pushed for short distances at
speeds not to exceed 5 mph. Be careful to avoid
damaging machine. The machine may be pushed by
hand from the rear.

NOTE: To avoid damage caused by regenerative
voltage, disconnect traction motor before towing or
pushing machine.

MACHINE TIE-DOWNS

There are two tie points located at front and each side
of foot box frame and two at the front side of frame.
Tie-down devices must be of the proper type and
strength. The combined strength of all tie-downs must
be strong enough to lift two times the weight of the
machine. Tie-downs must be positioned to prevent
the machine from moving forward, backward, or either
side to side. Use all four corners of the machine with
the tie-downs running out opposite directions. Tie­downs must be attached to the transporting vehicle
securely.

PREPARATION FOR LOADING /UNLOADING
TRAILER

Before loading or unloading machine from trailer,
remove squeegee, scrub deck, side skirts or side
squeegees, Aqua-Mizers and scrub brushes
(pads) to eliminate interference with tie-downs.
Scrub head must be in the up position before
loading.

NOTE: When transporting the machine on a trailer
or in a truck, in addition to using tie-downs, be
sure to set the parking brake, and block the tires to
prevent the machine from rolling.

4-23

TIE DOWN POINTS

86317500 CHARIOT SCRUBBER 11/15/08

MAINTENANCE-TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

No power to machine

Battery disconnected Check all battery cable connections
Emergency shut-off activated Reset
Battery cables corroded Clean connections

Faulty key switch Replace switch

Little or no propel

Machine does not
change speeds

Forward speed only
Reverse speed only

Poor or no water pickup

Low battery charge Charge batteries
Machine turned on with pedal not in neutral

position
Tripped circuit breaker Reset circuit breaker
Wheels spin Decrease brush pressure
Controller overheated Allow cool down period

Loose motor connection Check wires and connections from controller
Faulty throttle circuit or potentiometer Check wires and connections from and
Faulty drive reset circuit or switch Check wires, connections and switch

Faulty platform circuit or switch Check wires, connections and switch
Brake over-ride engaged Disengage brake over-ride
Faulty brake circuit or over-ride switch Check wires, connections and switch
Faulty speed control circuit or switch Check wires & connections

Faulty forward/reverse circuit Check wires & connections
Squeegee out of adjustment Adjust squeegee

Debris caught on squeegee Remove debris
Worn squeegee blades Rotate or replace squeegee blades
Vacuum hose clogged Clear obstruction from hose
Vacuum hose disconnected from squeegee

or recovery tank dome
Recovery tank float system dirty Clean float system

Recovery tank not sealed Place recovery tank dome on tank. Replace
Float-ball shut-off engaged Tank full Empty recovery tank

Foam filling recovery tank Empty recovery tank. Use less or different

Allow pedal to return to neutral.
Restart

to motor
potentiometer resistance

Reconnect vacuum hose

damaged gaskets

detergent. Use defoamer.

86317500 CHARIOT SCRUBBER 11/15/08

4-24

MACHINE TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

Faulty vacuum circuit or switch Check wires & connections Vacuum motor does not run, or runs

slowly

Worn vacuum motor brushes Replace brushes, check commutator
Faulty circuit or actuator Check wires, connectors and actuator Squeegee will not go up/down

Faulty cables or pulleys Repair/replace cables or pulleys

Poor scrubbing performance

Little or no solution flow to the floor

Brush motors do not run, or run
slowly

Scrub deck goes down, then raises No brushes or pad drivers on

Debris caught in scrub brushes Remove debris
Worn brushes or pads Replace brushes or pads
Improper detergent, brush or pad

used
Low scrub brush down pressure Increase brush pressure

Low battery charge Charge batteries
Solution tank empty Fill solution tank

Solution strainer plugged Clean solution strainer
Solution system plumbing obstructed Clear obstruction from plumbing
Pump obstructed Clean or replace pump
Solution solenoid valve obstructed or

stuck
Solution shut-off valve is closed Open shut-off valve

Faulty pump circuit or pump Check wiring, connections, and pump.
Faulty solenoid Check solenoid valve

Circuit breaker(s) tripped Reset circuit beaker(s)
Low battery charge Charge battery
Fault brush circuit or motor Check wires, connections and motor
Worn brush motor brushes Replace brushes, check commutator
Faulty actuator circuit or actuator Check wires, connections and

machine

Contact equipment or application
specialists

Clean or replace valve

actuator
Install brushes or pad drivers

4-25

86307500 CHARIOT SCRUBBER 11/15/08

ERROR

CODE

DELUXE

MACHINE TROUBLESHOOTING- CONTROLLER FAULT CODES

PROBLEM SOLUTION

LOW BATTERY VOLTAGE

TRACTION MOTOR DISCONNECTED

BRUSH MOTOR DISCONNECTED

AUX FAULT

VACUUM MOTOR DISCONNECTED

CONTROL SYSTEM INHIBITED

THROTTLE TRIP ERROR

CONTROL SYSTEM TRIP

SOLENOID BRAKE

HIGH BATTERY VOLTAGE

THE BATTERY NEEDS CHARGING OR THERE I S A BAD

CONNECTION TO THE BATTERY

THE TRACTION MOTOR HA S A BAD CONNECTION,

CHECK CONNECTIONS TO MOTOR

THE BRUSH MOTOR HAS A BAD CONNECTION, CHECK

CONNECTIONS TO MOTOR

CHECK AUX OUTPUT DEVICES, CHECK ALL

ASSOCIATED WIRING TO AUX DEVICES

THE VACUUM MOTOR HAS A BAD CONNECTION,

CHECK CONNECTIONS TO MOTOR

THE TRIO IS BEING INHIBITED FROM DRIVING, IE, ON-

BOARD CHARGER IS IN USE

THE THROTTLE IS DEFLECTED OR ASSOCIATED WIRING

HAS A BREAK OR SHORT CIRCUIT

THE CONTROL SYSTEM IS IN ERROR, CHECK ALL

CONNECTIONS TO CONTROLLER

THE SOLENOID HAS A BAD CONNECTION , CHECK

CONNECTION TO BRAKE

EXCESSIVE BATTERY VOLTAGE, CHECK FOR POOR

BATTERY CONDITION

86317500 CHARIOT SCRUBBER 11/15/08

4-26

NOTES:

4-27

86317500 CHARIOT SCRUBBER 11/15/08

PARTS

86317500 CHARIOT SCRUBBER 11/15/08

BUMPER

1

7

5

6

4

8

9

2

1

3

4

10

5-1

86317500 CHARIOT SCRUBBER 11/15/08

BUMPER

REF

1 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
2 86197040 57264 4 NUT, 5/16-18 HEX ACORN
3 86276070 70593 2 SCR, 5/16-18 X 3/4 CARRIAGE SS
4 86276890 70752 6 SCR, 5/16-18X3/4 PTHMS SS
5 86010670 87029 4 WASHER, 5/16 X 3/4 SS
6 86279130 87083 4 WASHER, 5/16 SPLIT LOCK PLTD
7 86070730 140729 2 BRKT, BUMPER MOUNT, SIDE
8 86315790 - 1 BRKT, BUMPER MTG
9 86314170 - 1 BUMPER, LEFT

10 86314180 - 1 BUMPER, RIGHT

PART

NO.

PRV

NO.

QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 11/15/08

5-2

CONTROL PANEL

24

13

23

19A
19B

7

15
14

4

SUPPLED WITH
CONTROLLER

29

21

26

1

10

11
27

22

20

10

18

25

17

3

SUPPLED WITH

5

HARNESS

28

30

6

8

16

12

2

5-3

9

86317500 CHARIOT SCRUBBER 11/15/08

CONTROL PANEL

REF PART NO.

1 86315470 1 METER, HOUR ICD
2 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS
3 86271840 57285 3 NUT, 5/16-18 HEX NYLOCK THN SS
4 86271910 57295 1 NUT, 5/16-18 FLEXLOCK
5 86313900 - 2 RELAY, 5A, 24V, 4PDT
6 86273820 70019 2 SCR, 1/4-20 X 1.25 HHCS SS
7 86275760 70540 1 SCR, 5/16-18 X 1.00 HHCS GR8
8 86277480 70850 3 SCR, 5/16-18X1/2 PTHMS SS

9 86007190 72161 1 SWITCH, KEY DPST
10 86255900 73538 14 STANDOFF, 6-32 X 5/8 HEX NYL
11 86255910 73659 1 STANDOFF, 1/4-20 X 1.0 HEX INS

12 86008760 80682 1
13 86008900 80845 2 BOOT, SEAL PUSH BUTTON 7/16

14 86010670 87029 1 WASHER, 5/16 X 3/4 SS
15 86068850 140219 1 BRKT, CABLE ATTACH
16 86070720 140728 1 BRKT, BATT CONN BASIC
17 86295200 - 1 ASM, BUTTON, BLACK, W/BEZEL
18 86012670 - 1 METER, 36V BATTERY

19A 86315400 - 1
19B 86318040 - 1 CONTROLLER, GEAR DRIVE CYL CYLINDRICAL

20 86292590 - 1 SWITCH, E-STOP AKW CHARIOT
21 86313820 - 1 SWITCH, ROTARY, 7 POSN
22 86273830 70020 1 SCR, 1/4-20 X 1/2 HHCS SS NP

23 86313950 - 1
24 86314150 - 1 KNOB, SELECTOR

25 86315640 - 1 PANEL, CONTROL
26 86316160 - 2 BREAKER, 18A, 250VAC, 32VDC
27 86010780 87162 1 WASHER, 1/4 SPLIT LOCK PLTD
28 86292780 - 1 SWITCH, MICRO
29 86270990 57090 2 NUT, 10-32 HEX NYLOCK SS

PRV

NO.

QTY DESCRIPTION

CONNECTOR, BATTERY GRY,
175AMP

CONTROLLER, 2-STAGE, GEAR
DRIVE

SWITCH, SPDT 3 POSN MOM,
ARROW

SERIAL NO.

FROM

NOTES

DISK

86317500 CHARIOT SCRUBBER 11/15/08

5-4

CONTROL PANEL HOUSING

1

11

7

2

3

5

3

6

4

10

9

8

5-5

86317500 CHARIOT SCRUBBER 11/15/08

CONTROL PANEL HOUSING

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1 86005810 57245 4 NUT, 1/4-20 HEX NYLOCK SS

2 86290540 - 6 SCR, 10-32 X 1/2 TORX SS BLK NP

3 86277480 70850 6 SCR, 5/16-18 X1/2 PTHMS SS

4 86317890 - 1 BRKT, LEFT CONSOLE MOUNT

5 86237900 35278 3 GASKET, .125 X .25W X 23L

6 86031730 270084 1 CONSOLE

7 86317900 - 1 BRKT, RIGHT CONSOLE MOUNT

8 86279750 87252 4

9 86089650 78524 4 TUBE, 5/8 OD X .357 ID X 1.57
10 86277420 70841 4 SCR, 5/16-18 X 2.5 PTHMS SS
11 86010630 87013 4 WASHER, 1/4 ID X 5/8 OD SS

WASHER, RET, PUSHNUT, 5/16
BOLT

FROM

NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-6

DECAL

3

2

5

4

1

6

5-7

86317500 CHARIOT SCRUBBER 11/15/08

DECAL

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1A 86318570 - 1 LABEL, CHAR, ISCURB 24, LEFT
1B 86318590 - 1 LABEL, CHAR, ISCRUB 26C, LEFT
2A 86318580 - 1 LABEL, CHAR, ISCRUB 24, RIGHT

LABEL, CHAR, ISCRUB 26C,

2B 86318600 - 1

3 86317040 - 1 LABEL, PANEL, RIGHT

4 86017030 - 1 LABEL, PANEL, LEFT

5 86243990 500780 1 LABEL, COVER PANEL

6 86004970 50990 1 LABEL, WINDSOR LOGO DOMED

RIGHT

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-8

FRAME-LOWER

15

12

18

5

20

10

2

2

16A

16B

11

3

10

2

2

7

17

11

3

21

5

19

8

22

2

13

5

2

6

2

12

15

14

9

4

1

5-9

86317500 CHARIOT SCRUBBER 11/15/08

FRAME - LOWER

REF PART NO. PRV NO. QTY DESCRIPTION

1 86091420 05251 1

2 86270830 57023 24

3 86197040 57264 4

4 86271870 57290 4 NUT, 1/4-20 HEX NYLOCK THIN SS

5 86276070 70593 20

6 86276950 70772 4

7 86088750 75457 1

8 86088760 75458 1

9 86010630 87013 4
10 86010670 87029 6
11 86279130 87083 4
12 86064300 140790 2
13 86071120 140811 1
14 86079290 620097 2
15 86079320 620101 2

16A 86303720 - 1
16B 86071130 140812 1

17 86314900 - 1
18 86314960 - 1
19 86314970 - 1
20 86314980 - 1
21 86314990 - 1
22 86315210 - 1

AXLE, REAR, WELDMENT
NUT, 5/16-18 HEX NYLOCK SS
NUT, 5/16-18 HEX ACORN

SCR, 5/16-18 X 3/4 CARRIAGE SS
SCR, 1/4-20 X 3/4 CARRIAGE SS
TRAY, SLIDE, RIGHT
TRAY, SLIDE, LEFT
WASHER, 1/4 X 5/8 FLAT SS
WASHER, 5/16 X 3/4 SS
WASHER, 5/16 SPLIT
PAD, TIPPING BAR
BRKT, BRACE, RIGHT REAR
PLATE, REAR COVER ADJ.
PLATE, PAD RETAINER
BRKT, BRACE, LT. REAR SOL.
BRKT BRACE, LT REAR
FRAME, MAIN
BRKT, LINKAGE, LEFT
BRKT, LINKAGE, RIGHT
BRKT, BRACE, LEFT FRONT
BRKT, BRACE, RIGHT FRONT
BRKT, STRAINER

SERIAL NO.

FROM

NOTES

DISK

CYLINDRICAL

86317500 CHARIOT SCRUBBER 11/15/08

5-10

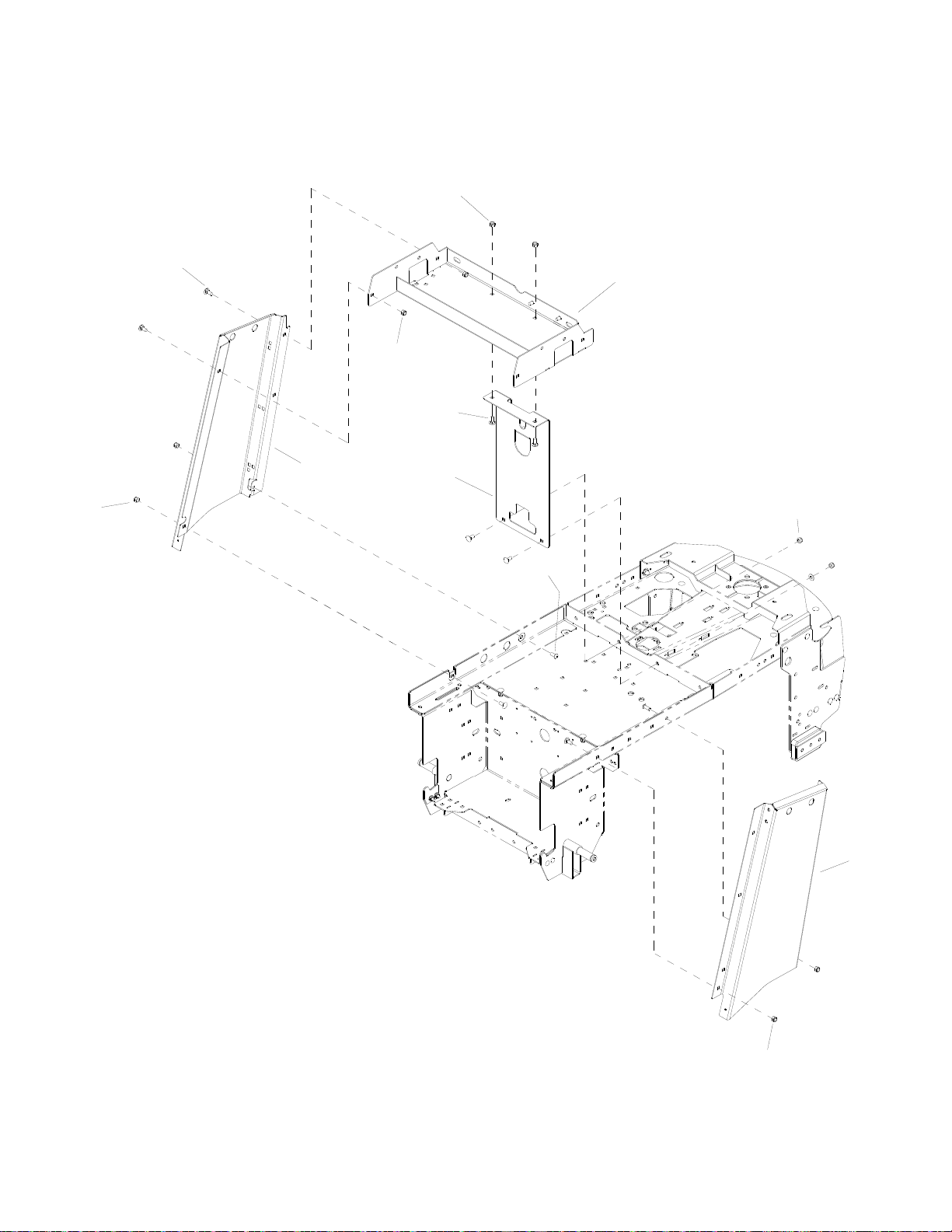

FRAME-UPPER

2

3

4

2

3

5

2

6

2

7

5-11

1

2

86317500 CHARIOT SCRUBBER 11/15/08

FRAME-UPPER

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1 86074160 270101 1 BRKT, SIDE CHANNEL R
2 86270830 57023 10 NUT, 5-16-18 HEX NYLOCK SS
3 86276070 70593 12 SCR, 5-16-18 X 3/4 CARRIAGE SS
4 86314760 - 1 TRAY, CABLE
5 86073500 270090 1 BRKT, SIDE CHANNEL L
6 86314770 - 2 BRKT, STEERING SUPPORT
7 86277460 70847 1 SCR, 5/16-18 X 5/8 BSHCS SS

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-12

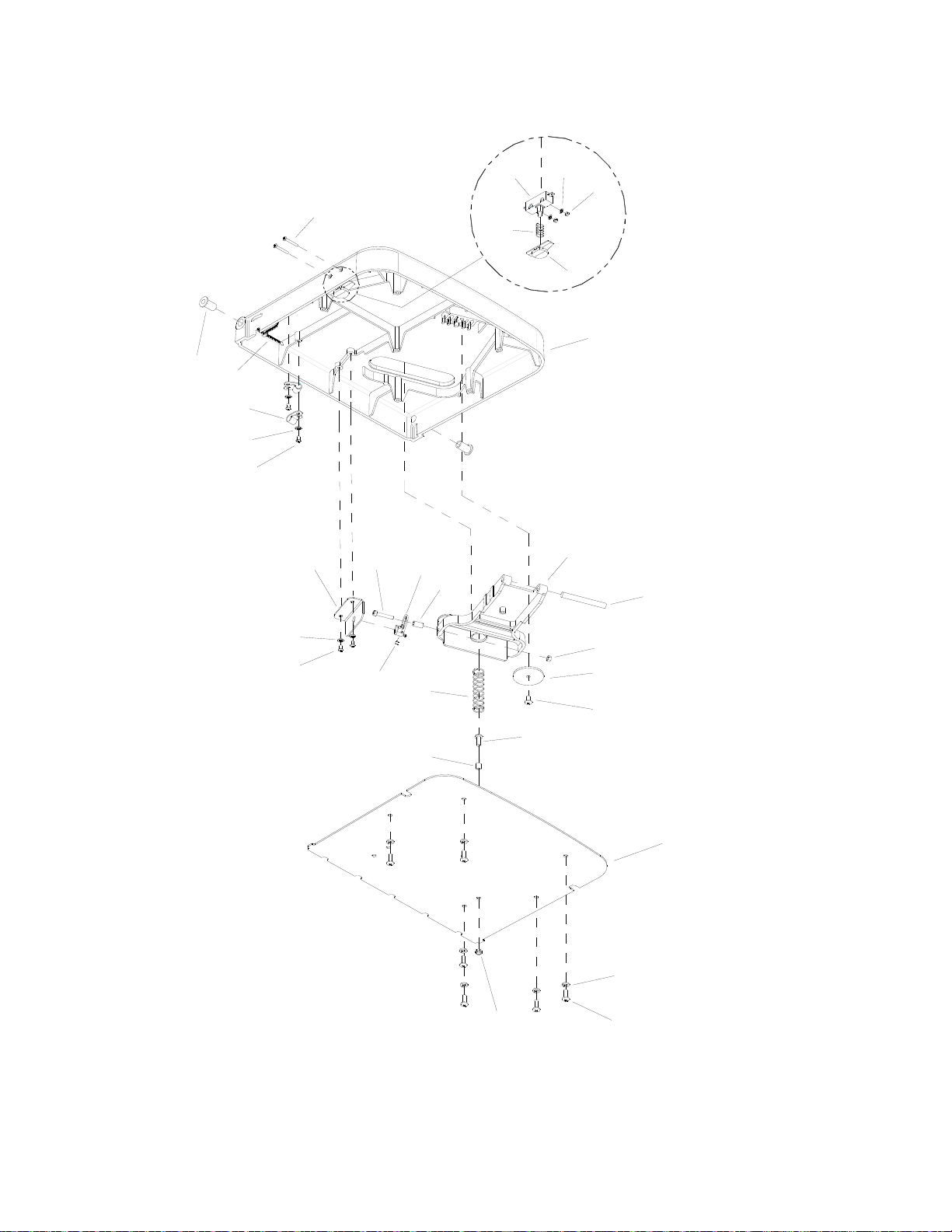

PEDAL PLATFORM

25

2

22

1

15

18

16

19

6

14

4

24

21

8

9

17

3

10

22
15

12

28

23

5
26

13

11

27

20

7

11

5-13

86317500 CHARIOT SCRUBBER 11/15/08

PEDAL PLATFORM

SERIAL

REF PART NO. PRV NO. QTY DESCRIPTION

1 86233170 20054 2 CLAMP, 3/8 NYLON UL/CSA
2 86264920 27049 1 CABLE TIE, .19 X 7 UL/CSA
3 86222510 34430 1 PEDAL, THROTTLE
4 86221850 34433 1 LINK, THROTTLE
5 86136310 57086 1 NUT, M5 HEX
6 86312820 - 1 BRACKET, POT, SPEED
7 86288720 57277 1 NUT, M6 NYLOCK PLATED
8 86272040 57503 2 NUT, M3.5 X 2.8 HEX

9 86223260 66085 1 PLUNGER, PLATFORM SWITCH
10 86223580 67502 1 ROD, PIVOT, 8.5MM X 77
11 86274340 70179 7 SCR, M6 X 16 PH
12 86278060 70759 2 SET SCR, M4 X 4MM NP
13 86277360 70833 1 SCR, M6 X 10 PH
14 86277370 70834 1 SCR, M5 X 30 SHCS
15 86277380 70835 4 SCR, M4.8 X 16 PHTF
16 86277390 70836 2 SCR, M3.5 X 38 PH
17 86312770 - 1 PLATFORM
18 86007110 72123 1 SWITCH, 25A SPST 125-250V SNAP
19 86224750 73993 1 SPRING, COMP, .48OD X .91L
20 86279140 87085 6 WASHER,M6 SPLIT LOCK DIN127B
21 86279720 87248 2 WASHER, M4 INT STAR
22 86279730 87249 4 WASHER, M5 INT STAR
23 86224360 730325 1 SPACER 12.7MMOD X 2.78W X 6L
24 86224350 730305 1 SPACER, 8MM X 16LG
25 86216380 140713 2 BUSHING, 8MM X 10 LG CLY
26 86222780 620047 1 PLATE, PIVOT
27 86222810 620050 1 PLATE, COVER
28 86254970 730304 1 SPRING, COMP 18MM OD X 83 X 2

NOTE: Complete platform assembly is available, Part No. 86313640

NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 11/15/08

5-14

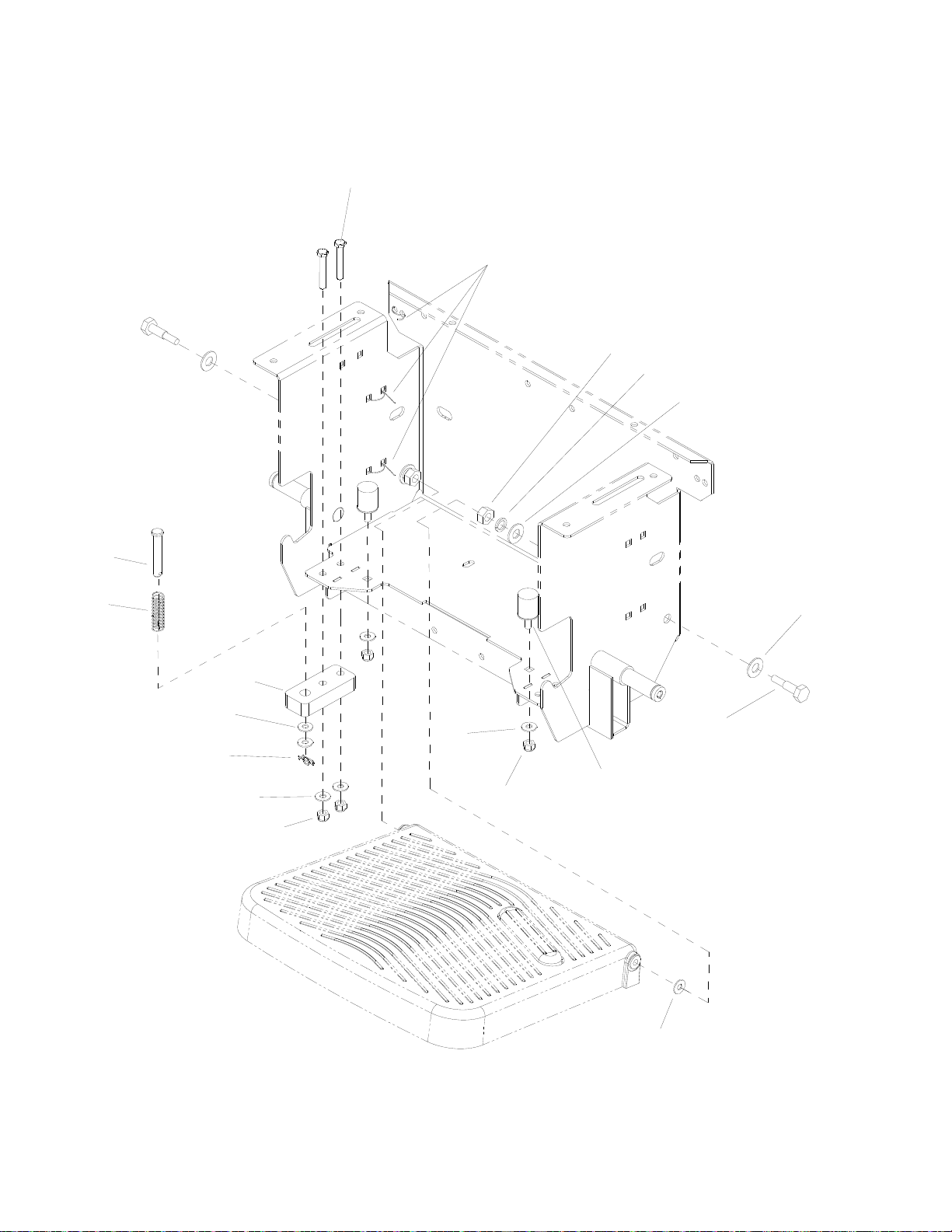

PEDAL PLATFORM

2

3

13

15

6

11

14

10

6

12

7

1

4

5

8

8

9

5-15

5

86317500 CHARIOT SCRUBBER 11/15/08

PEDAL PLATFORM

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1 86008680 80607 1 COTTER, 1/2” RING

2 86274690 70258 2 SCR, 5/16-18 X 1.5 HHCS GR5PLT

3 86264920 27049 3 CABLE TIE, 7” UL/CSA

4 86231070 730328 2 BUMPER, 1 X 1.375 RUBBER

5 86010670 87029 5 WASHER, 5/16 FLAT SS

6 86259430 87485 4 M12 FLAT WASHER

7 86010770 87143 2 WASHER, 7/16ID X1D.08 FLT SS

8 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS

9 86256470 70852 2 STUB AXLE, M12-1.75 X 45MM
10 86278850 80613 2 WASHER, .506 ID X .94D X .064 NYL
11 86248920 66487 1 PIN, CLEVIS 1/2 X 2.25
12 86064480 629993 1 PLATE, SWITCH BASE
13 86271190 57142 2 NUT, M12 X 1.75 HEX DIN934 PLT
14 86007780 73576 1 SPRING, COMP .60D X2.0L X .045W
15 86259440 87486 2 WASHER, M12 SPRING LOCK

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-16

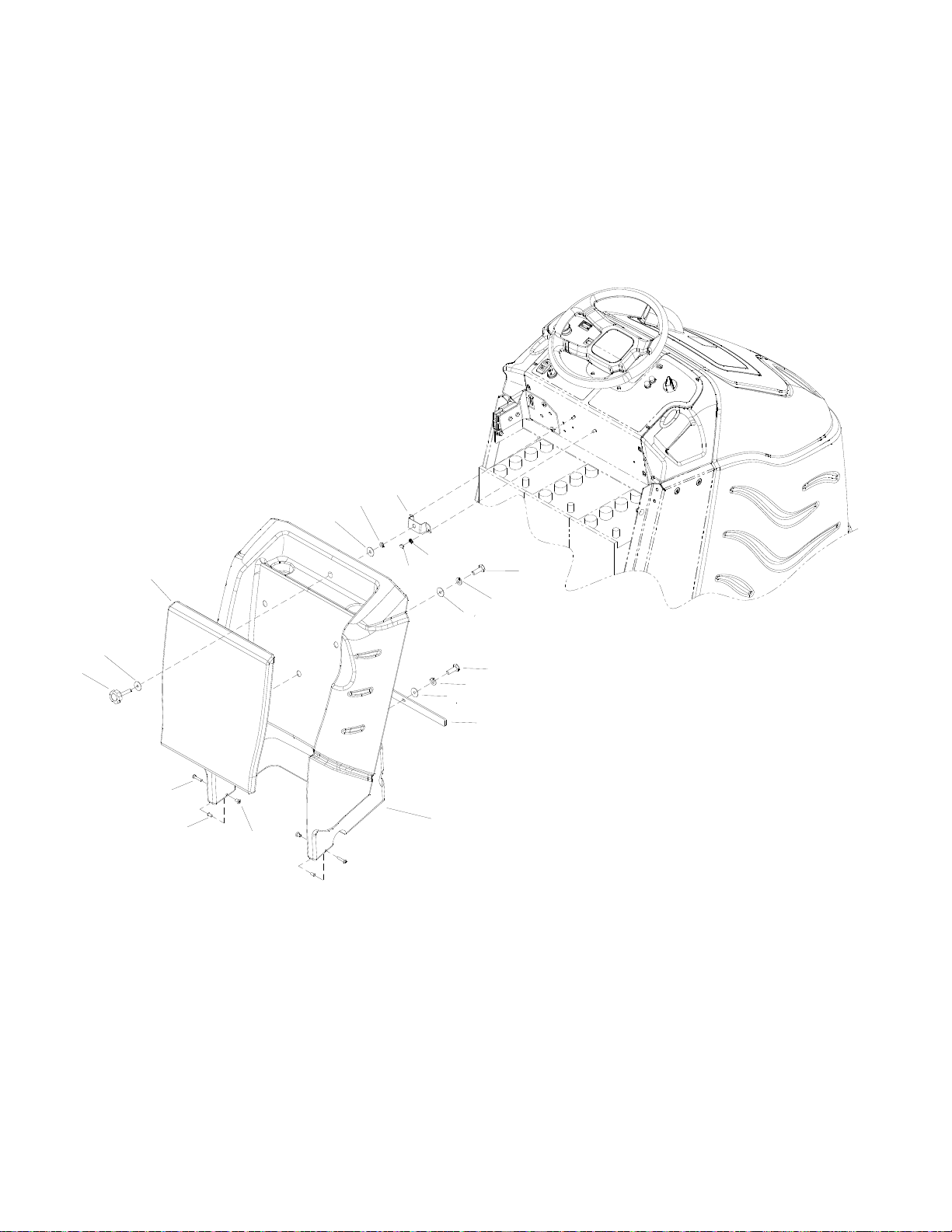

REAR COVER

12

11

9

10

9

8

7

6

5

13

14

3

2

3

4

1

2

15

16

5-17

86317500 CHARIOT SCRUBBER 11/15/08

REAR COVER

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1 86276780 70728 3 SCR, 5/16-18 X 3/4 HHCS SS
2 86279130 87083 5 WASHER, 5/16 SPLIT LOCK PLTD
3 86010670 87029 5 WASHER, 5/16 FLAT SS
4 86031780 270082 1 COVER, REAR, DELUXE
5 86005860 57273 2 NUT, 1/4-20 X 12MM HEX BARREL
6 86228980 09152 2 BEARING FLANGED .377ID X .505OD
7 86275870 70556 2 SCR, 1/4-20 X 1.5” PPHMS SS
8 86242140 72193 1 KNOB, 3/8-16 X 1.5

9 86010770 87143 2 WASHER, 7/16ID X 1D X .08FLT SS
10 86248380 66433 1 PAD, FLAT LEANING
11 86005630 57022 1 NUT, 3/8-16 HEX NYLOCK THIN SS
12 86071030 140786 1 BRKT, ASSEMBLY, REAR COVER
13 86010780 87162 2 WASHER, 1/4 SPLIT LOCK
14 86271940 57299 2 NUT, 1/4-20 ACORN SS
15 86006560 70083 2 SCR, 5/16-18 X 1 HHCS SS
16 86066940 140891 1 BAR, COVER

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-18

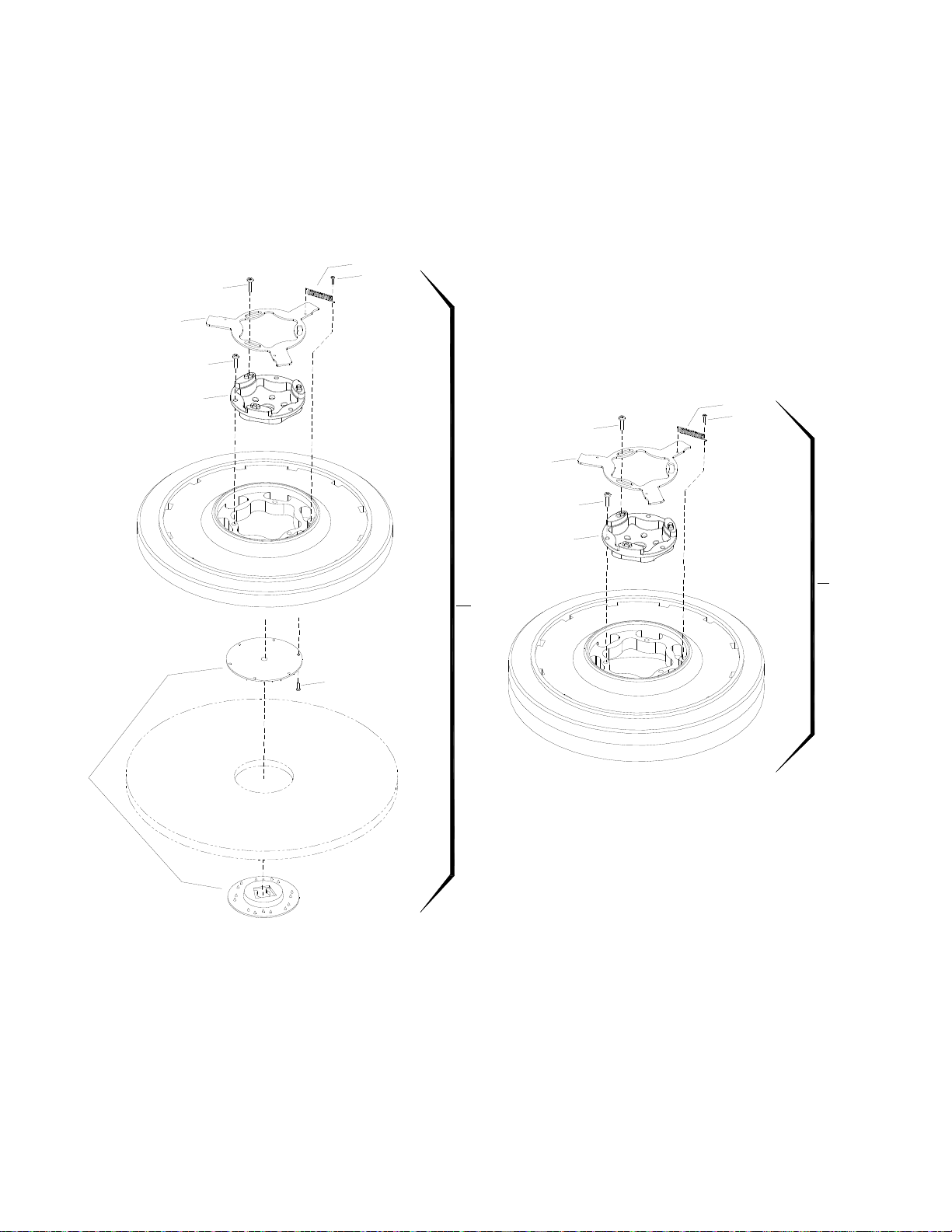

SCRUB BRUSH/PAD DRIVER-DISK

7

6

9

4

5

8

6

9

4

8

1

5

3

7

5

2A
2B
2C
2D

5-19

86317500 CHARIOT SCRUBBER 11/15/08

SCRUB BRUSH/PAD DRIVER-DISK

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1 86000170 02400 2 PAD DRIVER, 12” SD
2A 86000180 02401 2 BRUSH, 12” POLYPROPYLENE SD
2B 86000190 02402 2 BRUSH, 12” NYLON SD

2C 86000200 02404 2 BRUSH, 12” MILD GRIT SD
2D 86283820 02405 2 BRUSH, 12” SUPER AGG SD

3 86005070 51284 1 LOCK, PAD CENTER SNAP, TWO STEP

4 86276590 70695 3 SCR, #12 X 1 PPHSMS SS

5 86276580 70694 1 SCR, 8-32 X 3/4 PTHMS

6 86276600 70696 3 SCR, #10 X 3/4 PTHSMS SS

7 86007910 73817 1 SPRING, EXT .31 D X 2.0 L X .03 W SS

8 86007280 730011 1 SOCKET, DRIVE BRUSH

9 86005940 62852 1 PLATE, BRUSH RELEASE

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-20

SCRUB BRUSH/PAD-CYLINDRICAL

5-21

86317500 CHARIOT SCRUBBER 11/15/08

SCRUB BRUSH/PAD-CYLINDRICAL

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1 41150040 - 1 WASHER CLOSURE

2 74010050 - 1 BALL BEARING 6302-2RS-DIN6

3 51128230 - 1 BRUSH TORX

4 50052670 - 1 RONDE

5 73430370 - 1 LOCKING RING 50X2-FST-RF DIN 471
6A 63693890 - - 105MM WHITE PAD
6B 63694540 - - PAD YELLOW 105 20 PCS

6C 63694550 - - PAD GREEN 20PS
6D 63694560 - - PAD RED 105 20 PCS

7A 69069350 - - ROLLER BRUSH RED-BR 65
7B 69069810 - - ROLLER BRUSH WHITE-BR 65

7C 69069820 - - ROLLER BRUSH ORANGE-BR 65
7D 69069830 - - ROLLER BRUSH GREEN-BR 65

7E 69069840 - - ROLLER BRUSH BLACK-BR 65

8 47624320 - - ROLL PAD BR 65

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-22

SCRUB DECK – DISK

19

20

19

1

20

18

17

8

FROM
PUMP

16

15

2

3

8

8

4

5

6

5-23

14

9

10

11
12

13

86317500 CHARIOT SCRUBBER 11/15/08

7

REF PART NO. PRV NO. QTY DESCRIPTION

1 86281100 39274 1 HOSE, 1/2ID WIRE BOUND X 8”
2 86003580 34327 1 FITTING, 1/2”X3/8”X3/8” RED
3 86005490 53808 2 MOTOR ASM, 36VDC300RPM GEAR

- 86216200 14739 - BRUSH SET MOTOR 53808
4 86004810 48040 2 KEY, 1/4 SQ X 1.00
5 86093990 730330 1 SCRUBDECK, 24IN
6 86010790 87163 8 WASHER, 3/8 SPLIT LOCK PLTD
7 86276970 70774 8 SCR, 3/8-16 X 3/4 HHCS SS
8 86264920 27049 6 CABLE TIE, 7” UL/CSA

9 86010600 84199 1

- 86003460 29260 - DIAPHRAGM, SRVC PART SLND

- 86136820 47395 - SERVICE SLND SPRG KIT
10 86003420 29220 2 DRIVER, BRUSH SD
11 86279630 87212 2 WASHER, .344IDX1.130DX.09T PLT
12 86279130 87083 2 WASHER, 5/16 SPLIT LOCK PLTD
13 86007020 70673 2 SCR, 5/16-18 X 1.25 HHCS SS NP
14 86279530 87173 2 WASHER, .765IDX1.310DX.09T SS
15 86271830 57283 2 NUT, 3/8 NPT PLASTIC
16 86233150 20042 1 CLAMP, 3/8 HOSE (D-SLOT)
17 86001550 40043 2 HOSEBARB, 3/8MPT X 3/8 90D
18 86281310 39326 2 HOSE, 3/8ID WIREBOUND X 8”
19 86002830 27196 2 CABLE TIE, .375 X 24.7
20 86264940 27051 2 CABLE TIE, 11.38” UL/CSA

VALVE, SOLENOID, 36VDC, 1/2
BARB

SCRUB DECK-DISK

SERIAL

NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-24

SCRUB DECK-CYLINDRICAL

5-25

86217500 CHARIOT SCRUBBER 11/15/08

SCRUB DECK-CYLINDRICAL

REF

1 50448660 - 2 RETAINER PLATE TRANSMISSION
2 73060310 - 10 SCREW M 6X16-A2-70 DIN 7984
3 73120260 - 10 WASHER 6-A2 ISO 7090
4 73130030 - 10 SPRING WASHER B 6FST-A3E DIN 127
5 50448580 - 2 HOLDER-UP
6 50560100 - 2 ROCKER BR-VS
7 51005530 - 2 DRIVESHAFT BR 65/90
8 73180020 - 2 PARALLEL KEY 5X5X16-C45R DIN 6885-1
9 73430150 - 2 LOCKING RING 15X1-FST-RF DIN 471

10 51163400 - 2 BOLT HOLDER-UP
11 73056370 - 2
12 51163540 - 2 BRUSH TRANSMISSION BR

13 56254830 - 2 BELT PULLEY 57MM
14 63431490 - 2 QUICK-FASTENER
15 63484420 - 2 RIBBED V-BELT
16 63631580 - 2 JOINT RING NILOSRING
17 50332060 - 4 LOCKING PART

18 74011150 - 4
19 73432310 - 2 LOCKING RING 32X1,2-ST-PH DIN 472

20 73030470 - 5 SCREW M6X16-ST-R3R (IN6RD)
21 50333940 - 2 LOCKING PART
22 50332410 - 1 COVERING CAP LEFT
23 73030370 - 28 SCREW M5X10-ST-P2R (IN6RD)
24 50332420 - 1 COVERING CAP RIGHT
25 50334030 - 1 COVER PLATE
26 55150960 - 2 ROLLER
27 53830970 - 1 DECAL
28 50615800 - 1 BRUSH HOUSING BR 65
29 50707530 - 1 TANK REFUSE 65
30 51902610 - 1 STRIP WATER DISTRIBUTOR
31 46239200 - 2 MOTOR COMPLETE 24V/600W
32 66102160 - 1 CARBON BRUSHES
33 66130250 - 2 BLOWER WHEEL
34 53948230 - 2 SPLASH GUARD
35 50448670 - 2 RETAINER STRIP SPLASH GUARD
36 50094010 - 1 BRACKET RIGHT SCRAPER LIP
37 5009420 - 1 BRACKET LEFT SCRAPER LIP
38 51163390 - 2 THREADED BOLT
39 50332400 - 2 HAND WHEEL
40 63304070 - 2 SPRING CLIP
41 63908920 - 1 SPIRAL HOSE
42 66463290 - 2 RED PLUG
43 66463300 - 2 BLUE PLUG
44 73031070 - 3 SCREW 5X16-10.9-P2R (K-IN6RD)
45 66469790 - 4 SWITCH CONTACT
46 63884820 - 1 HOSE COUPLING
47 63211960 - 1 STAR GRIP M5X10

- 27630040 - - BRUSH HEAD R 65 CM W/SIDE

PART

NO.

PRV

NO.

QTY DESCRIPTION

COUNTERSUNK SCREW M8X16-A2-70
ISO 10642

BALL BEARING 6002-2RS-WAELZLAGST
DIN 62

SERIAL

NO.

FROM

NOTES:

DECK,COMPLETE

86217500 CHARIOT SCRUBBER 11/15/08

5-26

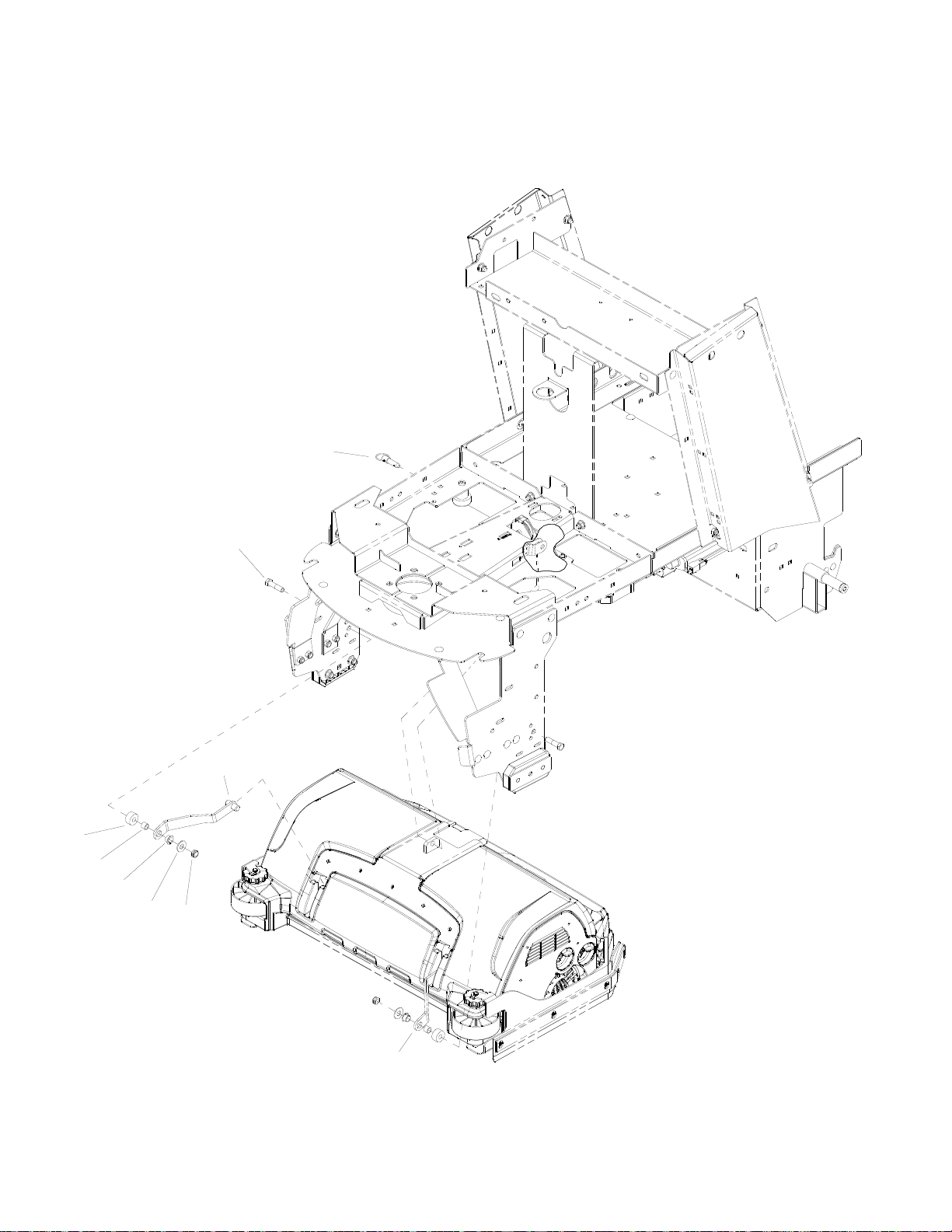

SCRUB DECK MOUNTING-CYLINDRICAL

1

2

8

3

4

5

6

7

5-27

9

86217500 CHARIOT SCRUBBER 11/15/08

SCRUB DECK MOUNTING-CYLINDRICAL

REF PART NO. PRV NO. QTY DESCRIPTION

1
2
3
4
5
6
7
8
9

86315230 ­86274660 70255
86224370 730335
86008460 80102
86009050 81324
86010770 87143
86005630 57022
86314850 ­86314840 -

1 PIN, BALL LOCK
2 SCR, 3/8-16 X 1.5 HHCS GR5 PLT
2 SPACER, 1 OD X .391 ID X .500
2 SPACER, .500OD X .391ID X .400
2 BEARING, 1/2 ID X 11/32L NYLON
2 WASHER, #6 LOCK
2 NUT, 3/8-16 HEX NYLOCK THIN SS
1 ARM ASSY, DECK, RIGHT
1 ARM ASSY, DECK, LEFT

SERIAL NO.

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-28

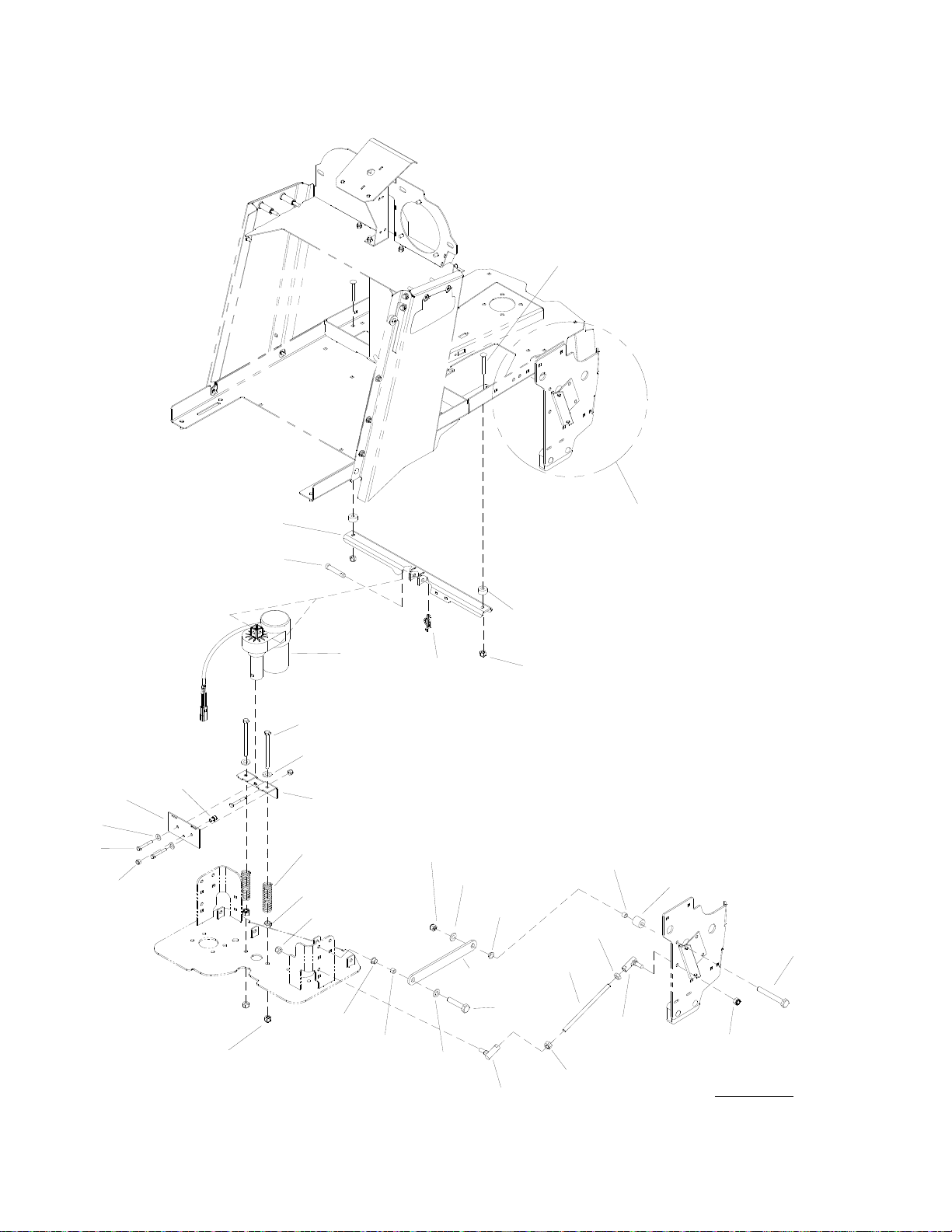

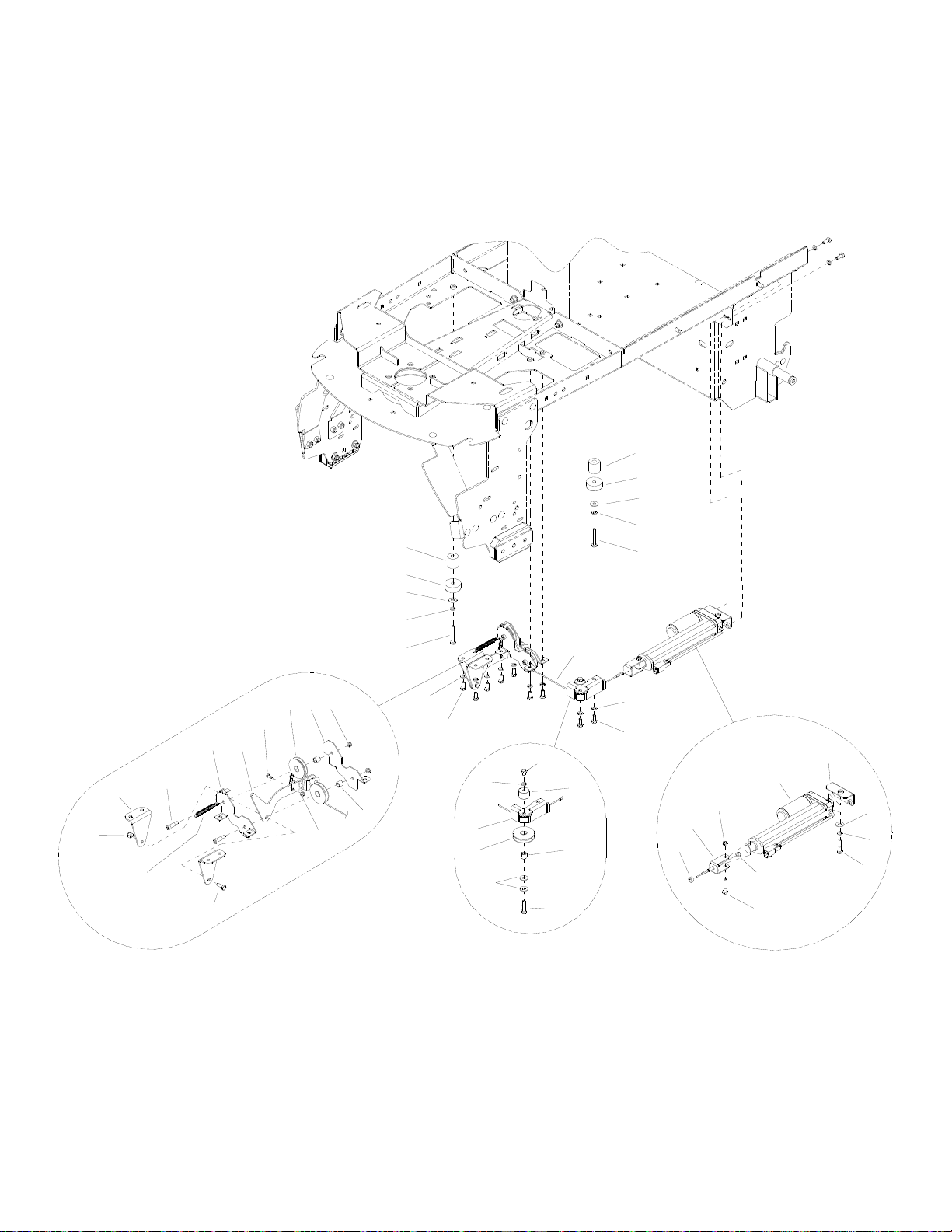

SCRUB DECK LIFT-DISK

10

6

13

11

14

15

16

7

5

4

3

29

17

18

19

20

19

9

16

26

12

21

SEE DETAIL 'A'

22

23

28

24

27

5-29

19

21

1

22

16

8

25

86317500 CHARIOT SCRUBBER 11/15/08

2

20

DETAIL 'A'

SCRUB DECK LIFT-DISK

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1 86276920 70755 2 SCR, 3/8-16 X 1 HHCS SS NP
2 86008810 80697 2 BALL JOINT ASY, 3/8-24 RH
3 86273850 70022 2 SCR, 1/4-20 X 2 HHCS
4 86010780 87162 2 WASHER, 1/4 SPILT LOCK PLTD

86079030 620058 1

5
6 86091760 140741 1 BRKT, ACTUATOR MTG, SCRUBBER
7 86274110 70094 2 SCR, 1/4-20 X 1/2 SHCS
8 86005830 57263 2 NUT, 3/8-24 UNF LH

9 86008660 80605 1 COTTER, 5/16” RING
10 86277030 70780 2 SCR, 5/16-18 X 1.25 CARRIAGE SS
11 86224370 730335 2 SPACER, 1 OD X .391 ID X .500
12 86270830 57023 2 NUT, 5/16-18 HEX NYLOCK SS
13 86272460 66268 1 PIN, CLEVIS 5/16 X 3.00 PLTD
14 86011950 - 1 ACTUATOR, 36VDC 3.5 STRK
15 86275510 70494 2 SCR, 3/8-16 X 4.5” HHCS GR5
16 86010770 87143 6 WASHER, 7/16ID X IDX.08 FLT SS
17 86070810 140739 1
18 86255450 81376 2 SPRING COMP .96D X 4.0L X .135W
19 86005630 57022 8 NUT, 3/8-16 HEX NYLOCK THIN SS
20 86271530 57216 4 NUT, 3/8-24 HEX NYLOCK
21 86009050 81324 4 BEARING, 1/2 ID X 11/32L NYLON
22 86008460 80102 4 SPACER, .500OD X .391ID C .400
23 86224380 730336 2 SPACER, 1 OD X 0.391 ID X 1.063
24 86274010 70070 2 SCR, 3/8-16 X 2 HHCS
25 86001320 140353 2 BALL JOINT ASSY, 3/8-24 LH
26 86077330 31373 2 LINKAGE, .25 X 1.25 X 9.25
27 86223540 66483 2 ROD, SCRUB LIFT
28 86005800 57217 2 NUT, 3/8-24 HEX JAM
29 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS

PLATE, ACTUATOR SPR, SCRUBDECK

BRKT, ACTUATOR SPGS, SCRUBDECK

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-30

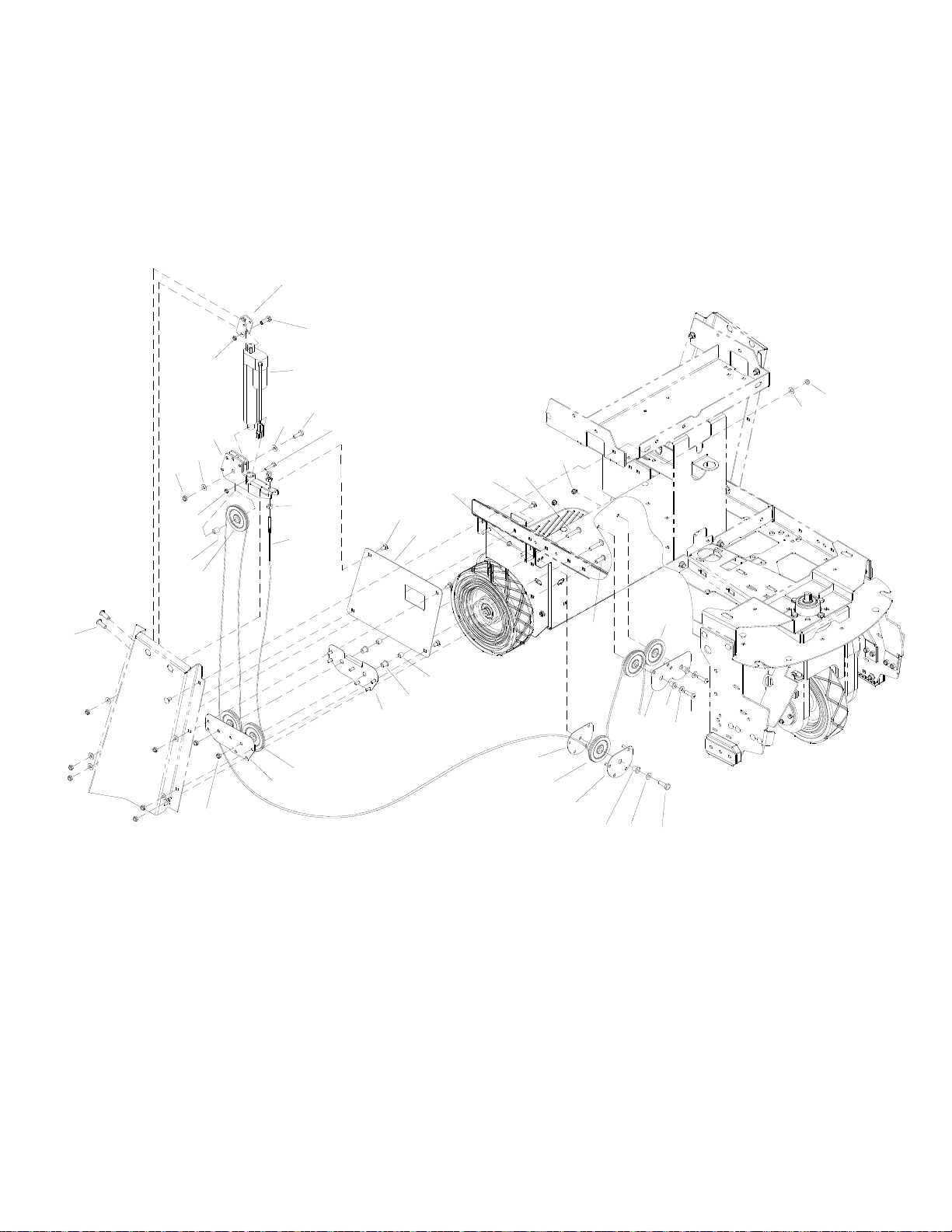

SCRUB DECK ACTUATOR-CYLINDRICAL

16
19

18

27

12

11

21

10

25

13

20

17

16
19

18
17
23

28

2

9

1

28

17

26

17

7

2

18

14

22

4

1

21

17

26

23

5

3

28

6

8

27

15

18

17

24

5-31

86317500 CHARIOT SCRUBBER 11/15/08

SCRUB DECK ACTUATOR-CYLINDRICAL

REF PART NO.

1 86317340 - 3
2 86317330 - 3
3 86316550 - 1
4 86315290 - 1
5 86315260 - 1
6 86315250 - 1
7 86315240 - 1
8 86270770 57006 1

9 86315150 - 1
10 86315140 - 1
11 86315120 - 1
12 86315110 - 2
13 86315090 - 1
14 86314810 - 1
15 86273740 70010 1
16 86224380 730336 2
17 86010780 87162 16
18 86010670 87029 6
19 86231090 80809 2
20 86006980 70591 1
21 86136850 70241 3
22 86274460 70205 1
23 86273920 70049 2
24 86273820 70019 1
25 86273780 70015 1
26 86273750 70011 12
27 86005810 57245 2
28 86270990 57090 4

PRV

NO.

QTY

SERIAL NO.

DESCRIPTION
SPACER, .498 X.313 X.500
PULLEY, 2 IN.
ACTUATOR, 36VDC, 4.5" STROKE
SPACER
BRKT ASSY, ACTUATOR
YOKE, CABLE
GUARD, PULLEY
NUT, 1/4-20 HEX
PLATE, PULLEY, REAR
PLATE, PULLEY, FRONT
SPRING, EXTENSION
BRKT, DECK PIVOT
BELLCRANK ASSY, DECK
CABLE ASSY, DECK LIFT
SCR, 1/4-20 X 1-5 HHCS SS
SPACER, 1 OD X .391 ID X 1.063
WASHER, 1/4 SPLIT
WASHER, 5/16 X 3/4 SS
BUMPER, RUBBER 5/16" ID X 1.50
SCR, 10-32 X 1/2 HHCS SS
SHOULDER BOLT, 5/16 OD X 5/8 L
SCR, 1/4-20 X 3/8 HHCS
SCR, 1/4-20 X 1.75 PPHMS SS
SCR, 1/4-20 X 1.25 HHCS SS
SCR, 1/4-20 X 3/4 HHCS SS
SCR, 1/4-20 X 5/8 HHCS SS
NUT, 1/4-20 HEX NYLOCK SS
NUT, 10-32 HEX NYLOCK SS

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-32

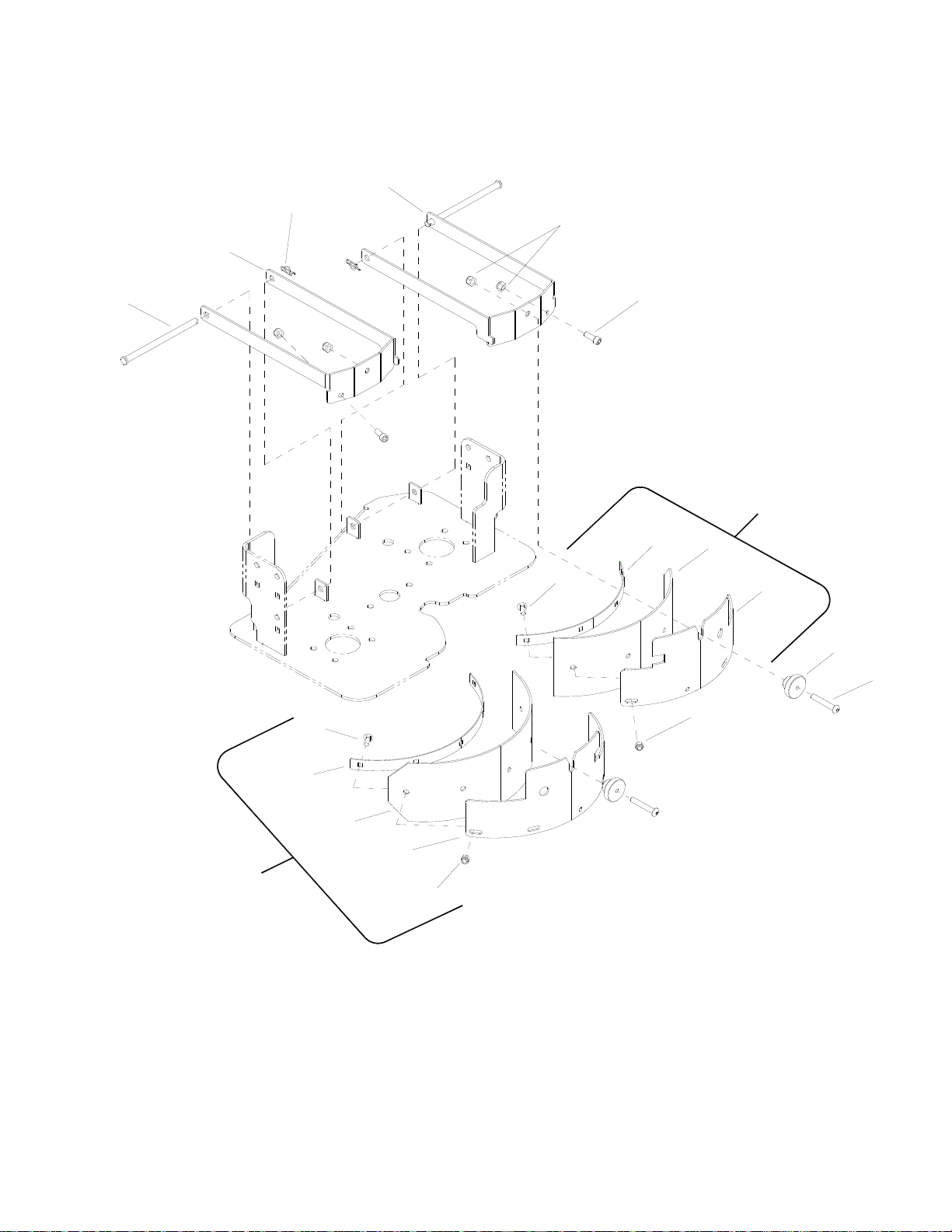

SCRUB DECK SKIRTS-DISK

24

1

2

3

6

4

5

20

5

7

19

18

22

17

16

21

8

9

10

11

12

15

5

23

7

5-33

14

13

86317500 CHARIOT SCRUBBER 11/15/08

SCRUB DECK SKIRTS-DISK

REF PART NO. PRV NO. QTY DESCRIPTION

1 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
2 86070960 140773 2 BRKT, SKIRT STOP, SCRUBDECK
3 86276070 70593 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
4 86228900 09138 2 BEARING FLANGED, .252IDX.503OD
5 86005810 57245 6 NUT, 1/4-20 HEX NYLOCK SS
6 86276330 70634 2 SCR, 1/4-20 X 1.25 CARRIAGE BZ
7 86276950 70772 8 SCR, 1/4-20 X 3/4 CARRIAGE SS
8 86277410 70840 6 SCR, 5/16-18 X 5/8 CARRIAGE SS

9 86271950 57300 6 NUT, 5/16-18 X 1 COUPLING SS
10 86079130 620068 4 PLATE, SKIRT, SPACER
11 86007650 730329 4 SPACER, .438D X .317ID X .25L
12 86007070 70849 6 SCR, 5/16-18 X 1.00 PTMS SS
13 86066460 140769 1 BAND, SKIRT, LEFT
14 86001560 140754 1 BLADE, SKIRT, SCRBDCK, 24IN LFT
15 86091770 140765 1 BRKT, SKIRT SCRUBDECK, LEFT
16 86001700 140780 1 BLADE, SKIRT, SCRUBDECK, FRONT
17 86066480 140781 1 BAND, SKIRT, SCRUBECK, FRONT
18 86091780 140766 1 BRKT, SKIRT, SCRUBDECK, RIGHT
19 86001570 140755 1 BLADE, SKIRT, SCRBDCK, 24IN RGT
20 86066470 140770 1 BAND, SKIRT, RIGHT
21 86277500 70853 3 SCR, 1/4-20 X 5/8 CARR SS
22 86271870 57290 3 NUT, 1/4-20 HEX NYLOCK THIN SS
23 86026470 47459 - KIT, SKIRT LEFT
24 86026460 47458 - KIT, SKIRT RIGHT

SERIAL NO.

FROM NOTES:

SERVICE ONLY
SERVICE ONLY

86317500 CHARIOT SCRUBBER 11/15/08

5-34

SCRUB DECK AQUA-MIZER™

16

15

14

1

13

2

17

4

3

3

5A
5B

6

7

8

9

5-35

18

12

11A
11B

86317500 CHARIOT SCRUBBER 11/15/08

10

9

SCRUB DECK AQUA-MIZER™

REF PART NO. PRV NO. QTY DESCRIPTION

1 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
2 86277050 70782 2 SCR, 5/16-18 X 3/4 SHCS
3 86276950 70772 9 SCR, 1/4-20 X 3/4 CARRIAGE SS

4 86066430 140747 1 BAND, RIGHT AQUAMIZER
5A 86001540 140753 1 BLADE, AQUAMIZER, 12IN RGT
5B 86283550 140939 1 BLADE, AQMZR 12 RT URETHANE

6 86071000 140779 1 BRKT, AQUAMIZER BLADE, RGT

7 86219690 48080 2 KNOB, 1.5 OD X 5/16-18

8 86277230 70815 2 SCR, 5/16-18 X 2.25 BSHCS SS

9 86005810 57245 9 NUT, 1/4-20 HEX NYLOCK SS
10 86070990 140778 1 BRKT, AQUAMIZER BLADE, LEFT

11A 86001520 140752 1 BLADE, AQUAMIZER, 12IN LEFT
11B 86283560 140940 1 BLADE, AQMZR 12 LT URETHATNE

12 86066420 140746 1 BAND, LEFT AQUAMIZER
13 86272540 66465 2 PIN, CLEVIS, 3/8 X 6.12, PLTD
14 86091800 140776 1 BRKT, AQUAMIZER MTG, LEFT
15 86008670 80606 2 COTTER, 3/8” RING
16 86091790 140774 1 BAND, LEFT AQUAMIZER
17 86024990 47456 - AQUAMIZER RIGHT ASM. CHARIOT
18 86025000 47457 - AQUAMIZER LEFT ASM. CHARIOT

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-36

SOLUTION-DISK

26

27

28

28

5

25

5

6

7

TO
SOLENOID

23

24

22

21

5

13
14
15

20

12

8

9

5

10

20

17

11

TO

TANK

18

16
4

34

19

1

29

2

33

5

30

3

32

31

5-37

86317500 CHARIOT SCRUBBER 11/15/08

SOLUTION-DISK

PART

REF

1 86248010 57312 1 NUT, 8/32 ACORN CAP, PLATED
2 86226950 40109 1 1” HOSE BARB X 3/4” GHT NYLON
3 86073960 22104 1 CAP, 3/4” GHT W/.17 HOLE
4 86235450 31068 1 ELBOW, 3/8 FPT PVC SCH 80
5 86233150 20042 5 CLAMP, 3/8 HOSE (D-SLOT)
6 86270990 57090 4 NUT, 10-32 HEX NYLOCK SS
7 86281940 39540 1 HOSE, 1/2ID WIRE BOUND X 40”
8 86198050 81923 1 TEE, 3/4 FPT

9 86240390 40075 1 HOSEBARB, 3/4 MPT X 1/2 90D
10 86282190 39616 1 HOSE, 1/2ID WIRE BOUND X 13”
11 86247760 80960 1 NIPPLE, 3/4 CLOSE PVCE
12 86240600 41526 1 HOSEBARB, 3/4 MPTX1, HOSE 90DEG
13 86197540 40013 1 HOSEBARB, 3/8 MPT X 1/2 DL
14 86225680 84201 1 VALVE, 3/8” FPT BALL
15 86197420 31026 1 ELBOW, 3/8 NPT STREET
16 86001590 40049 1 HOSEBARB, 3/8 MPT X 1/2 NYLON
17 86007940 73836 1 STRAINER, DEEP, 100 MESH

- 86005870 59021 - O-RING, FILTER SEAL RON-VIK

- 86136800 73839 - SCREEN, 100 MESH STRAINER DEEP
18 86281950 39541 1 HOSE, 1/2ID WIRE BOUND X 32”
19 86315510 - 1 HOSE, 1 X 40 DRAIN
20 86264920 27049 3 CABLE, TIE. 7” UL/CSA
21 86274410 70195 4 SCR, 10-32 X 1.25 PPHMS SS
22 86070690 140724 1 BRKT, SOLUTION PUMP
23 86010650 87018 4 WASHER, #10 X 9/16 OD
24 86006100 65176 1 PUMP ASM, 36V
25 86271820 57270 1 NUT, 5/16-18 CAPTIVE “J” PLTD
26 86279130 87083 1 WASHER, 5/16 SPLIT LOCK PLTD
27 86276780 70728 1 SCR, 5/16-18 X 3/4 HHCS SS
28 86197940 40027 2 HOSEBARB, 3/8MPTX1/2 90D DL
29 86246090 51461 1 LANYARD, .093 X 6”, LOOP - .26 EYE
30 86254320 730400 1 SPACER, .17 ID X .25 OD X 3/16 LG
31 86259450 87507 1 WASHER, 1.0 D X .1 THK, SEAL
32 86252730 70887 1 SCR, 8-32 X 1/2 BHCS SST
33 86233110 20018 1 CLAMP, 1.0” WORM GEAR
34 86233300 20101 1 CLAMP, 1.25” WORM GEAR SS

NO.

PRV

NO. QTY DESCRIPTION

SERIAL NO.

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-38

SOLUTION-CYLINDRICAL

6

24

23

21

5

TO
SOLENOID

22

9

5

7

12

8

11

10

TO
TANK

29

33

19

13

26

4

30

27

32

31

28

28

5

25

1

16

34

5

36

35

38

37

18

5

2

17

3

20

14

15

5-39

86317500 CHARIOT SCRUBBER 11/15/08

SOLUTION-CYLINDRICAL

REF PART NO. PRV NO. QTY

1 86270830 57023 2 NUT, 5/16-18 HEX NYLOCK SS
2 86001530 40039 1 HOSE BARB, 1/2 MPT X 1/2 HOSE 90
3 86188210 11-800354 1 NIP, 1/2 X 3/8 HEX BR
4 86248010 57312 1 NUT, 8/32 ACORN CAP, PLATED
5 86233150 20042 5 CLAMP, 3/8 HOSE (D-SLOT)
6 86270990 57090 4 NUT, 10-32 HEX NYLOCK SS
7 86282320 39710 1 HOSE, 1/2ID WIRE BOUND X 49”
8 86198050 81923 1 TEE, 3/4 FPT

9 86240390 40075 1 HOSEBARB, 3/4 MPT X 1/2 90D
10 86280910 39174 1 HOSE, 1/2ID WIRE BOUND X 23”
11 86247760 80960 1 NIPPLE, 3/4 CLOSE PVCE

12 86240600 41526 1
13 86233110 20018 1 CLAMP, 1.00” WORM GEAR

14 86225680 84201 1 VALVE, 3/8” FPT BALL
15 86197420 31026 1 ELBOW, 3/8” NPT STREET
16 86197540 40013 1 HOSEBARB, 3/8 MPT X 1/2 DL
17 86256120 730368 1 STRAINER, 1/2 FPT 100 MESH

- 86005870 59021 - O-RING, FILTER SEAL RON-VIK

- 86136800 73839 - SCREEN, 80 MESH STRAINER DEEP
18 86282370 39735 1 HOSE, 1/2ID WIRE BOUND X 40”
19 86315510 - 1 HOSE, DRAIN 1.0 X 110 CONV
20 86264920 27049 2 CABLE, TIE. 7” UL/CSA
21 86274410 70195 4 SCR, 10-32 X 1.25 PPHMS SS
22 86070690 140724 1 BRKT, SOLUTION PUMP
23 86010650 87018 4 WASHER, #10 X 9/16 OD
24 86006100 65176 1 PUMP ASM, 36V
25 86271820 57270 1 NUT, 5/16-18 CAPTIVE “J” PLTD
26 86226950 40109 1 1” HOSEBARB X 3/4” GHT NYLON
27 86073960 22104 1 CAP, 3/4” GHT W/.17 HOLE
28 86197940 40027 2 HOSEBARB, 3/8MPTX1/2 90D DL
29 86246090 51461 1 LANYARD, .093 X 6”, LOOP - .26 EYE
30 86254320 730400 1 SPACER, .17 ID X .25 OD X 3/16 LG
31 86259450 87507 1 WASHER, 1.0 D X .1 THK, SEAL
32 86252730 70887 1 SCR, 8-32 X 1/2 BHCS SST
33 86233300 20101 1 CLAMP, 1.25” WORM GEAR SS
34 86010600 84141 1 VALVE 24VDC SOL. 1/2 HOSEBARB
35 86174400 70194 2 SCR, 1/4-20 X 5/8 BHCS
36 86010780 87162 2 WASHER, 1/4 SPLIT LOCK PLTD
37 86276780 70728 1 SCR, 5/16-18 C 3/4 HHCS SS
38 86279130 87083 1 WASHER, 5/16 SPLIT LOCK PLTD

HOSEBARB, 3/4 MPTX1, HOSE
90DEG

DESCRIPTION

SERIAL

NO.

NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-40

SQUEEGEE-DISK

39

38

37

9

36

40

8

11

6

33

35
5

34

5

15

1

2

3

4

5

6

7

8

9

7

10

11

12

32
30

31

29

28

25

24

13

14

15

16

17

18

19A
19B

20

21

22

23

26

27A
27B

5-41

86317500 CHARIOT SCRUBBER 11/15/08

SQUEEGEE-DISK

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1 86004890 48095 2 KNOB, ALUM 3/8-16 NYLOCK NUT SS
2 86070920 140759 2 BRKT, SQG WHEEL
3 86006270 66276 2 PIN, CLEVIS 5/16 X 1.63 PLTD
4 86007780 73576 2 SPRING, COMP .60D X 2.0L X .045 W
5 86005630 57022 2 NUT, 3/8-16 HEX NYLOCK THIN SS
6 86270830 57023 3 NUT, 5/16-18 HEX NYLOCK SS
7 86010670 87029 4 WASHER, 5/16 FLAT SS
8 86001350 140390 2 BUSHING, SPANNER .435 X 1.10

9 86011020 89202 4 WHEEL, 3” DIA CUSHION RUBBER
10 86005650 57031 2 NUT, 5/16-18 HEX
11 86276950 70772 4 SCR, 1/4-20 X 3/4 CARRIAGE SS
12 86083290 66463 2 PLATE, SQG WHEEL NMT BUMPER
13 86276710 70717 2 SCR, 5/16-18 X 2.0 CARRIAGE SS
14 86083250 66459 1 PLATE, SQG TOP 33”
15 86271870 57290 4 NUT, 1/4-20 HEX NYLOCK THIN SS
16 86007040 70680 5 SCR, 5/16-18 X 1 THUMB SS TYPE P
17 86271820 57270 5 NUT, 5/16-18 CAPTIVE “J” PLTD
18 86087830 140760 1 STRAP, SQUEEGEE

19A 86001630 140764 1 BLADE, SQU, FRONT 36.7
19B 86283540 140938 1 BLADE, SQU, FRONT 36.7 URETHANE

20 86083270 66461 1 PLATE, SQG VERICAL FILLER (F)
21 86083260 66460 1 PLATE, SQG BOTTOM 33”
22 86277000 70777 4 SCR, 1/4-20 X 1.5 CARRIAGE SS
23 86276990 70776 2 SCR, 3/8-16 X 3.5 CARRIAGE SS
24 86277450 70846 2 SCR, 3/8-16 X 2 LG CARRIAGE SS
25 86008390 78493 1 TUBE ASM, SQUEEGEE VAC
26 86083280 66462 1 PLATE, SQG VERTICAL FILLER

27A 86001580 140763 1 BLADE, SQU, REAR 40.6 LINATEX
27B 86283510 140935 1 BLADE, SQU, REAR 40.6 URETHANE

28 86066440 140761 1 BAND, REAR SQUEEGEE
29 86006400 67380 4 RIVET, 5/32 OF X 1/8 GRIP
30 86009170 81488 1 LATCH, SQUEEGEE STRAP
31 86009180 81489 1 STRIKER, SQUEEGEE STRAP REAR
32 86066450 140762 1 BAND, SQG REAR RH
33 86009910 82576 1 VIAL, LEVEL
34 86274130 70098 2 SCR, 8-32 X 3/8 PHTC ‘F’ PLATD
35 86071070 140795 1 BRKT, SQG QUICK CONNECT LOCK
36 86071060 140794 1 BRKT, SQG QUICK CONNECT MTG
37 86009200 81535 1 KNOB, 3/8-16 4 PRONG ALUM
38 86277440 70845 1 SCR, 3/8-15 X 2.5 LG BSHCS SS
39 86008660 80605 2 COTTER, 5/16 RING
40 86277460 70847 1 SCR, 5/16-18 X 5/8 BSHCS SS

NOTE: Complete Squeegee Assembly available, Part No. 47455

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-42

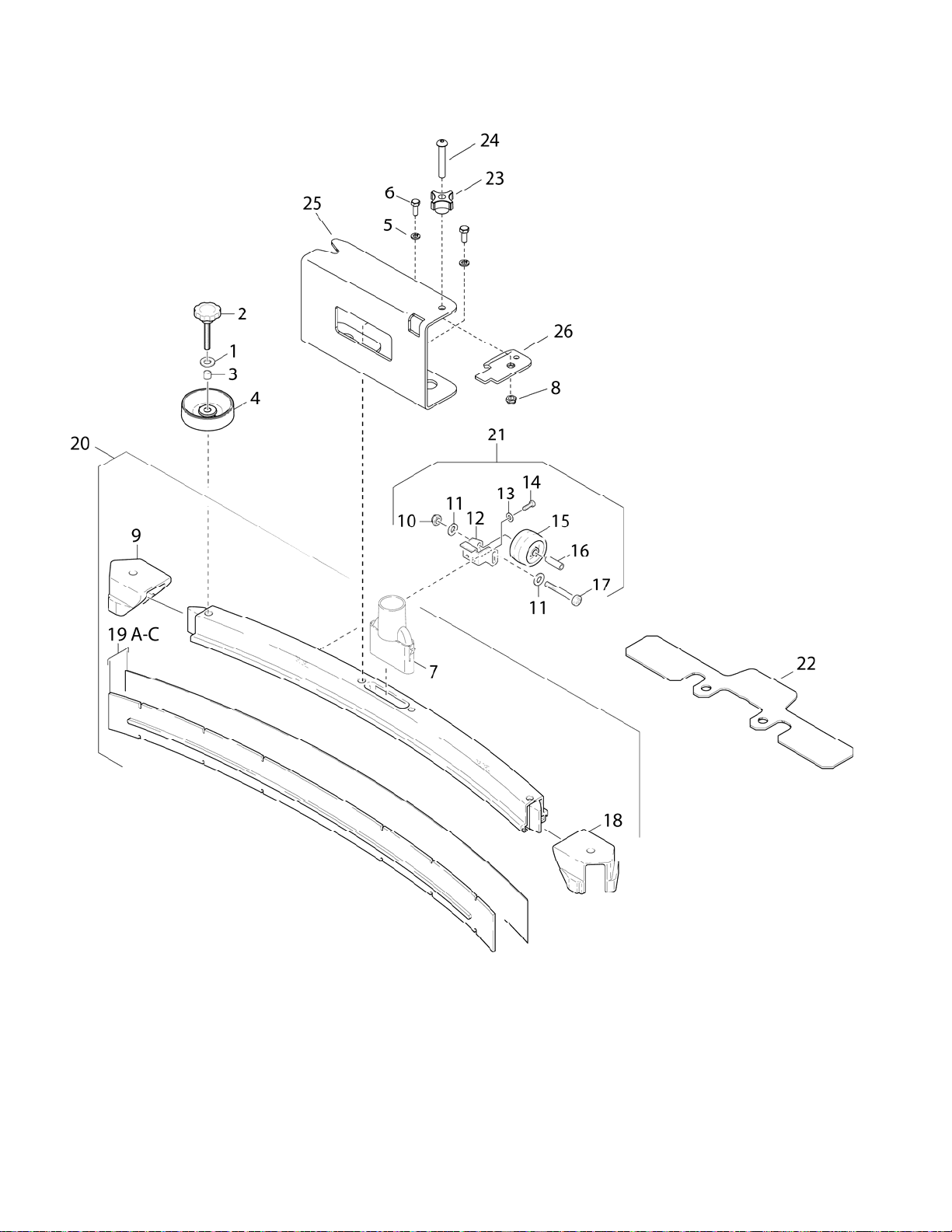

SQUEEGEE-CYLINDRICAL

5-43

86317500 CHARIOT SCRUBBER 11/15/08

REF PART NO. PRV NO. QTY DESCRIPTION

1 73120040 - 2
2 63212110 - 2
3 50942310 - 2
4 55152670 - 2
5 86137310 87098 2
6 86274860 70311 2
7 50319890 - 1
8 86005630 57022 1

9 50319910 - 1
10 73114220 - 2
11 73120260 - 4
12 50443040 - 2
13 73120580 - 4
14 73030370 - 4
15 64354010 - 2
16 51052450 - 2

17 73045500 - 2
18 50319900 - 1

19A 62732070 - 1
19B 62732130 - 1
19C 62732290 - 1

20 47770590 - 1
21 26395610 - 1

51283390 -

22

86009200 81535

23

86277440 70845

24

86314870 -

25

86071070 140795

26

WASHER 8-00HV-A3E ISO 7090
STAR GRIP VA
SLEEVE SUCTION BAR IN VA
DEFECTOR ROLL SUCTION BAR
WASHER, M8 SPLIT LOCK
SCR, M8X20 HHMS
SUCTION NIPPLE
NUT, 3/8-16 HEX NYLOCK THIN SS
END PIECE RIGHT
HEXAGON NUT M6-14305 ISO 10511
WASHER 6-A2 ISO 7090
HOLDER ROLLER
WASHER, 5-A2 ISO 7090
SCREW M5X10-ST-P2R (IN6RD)
WHEEL D54
AXLE

HEXAGONAL HEAD SCREW M 6X45­A4-70 ISO 4

END PIECE LEFT
SQUEEGEE BLADE SET OIL
RESISTAND (890MM)
SQUEEGEE BLADE SET STANDARD
(890MM)
SQUEEGEE BLADE SET ANTI
STRIPE OIL RESISTAND (890MM)

SQUEEGEE BAR CURVED

ADD-ON KIT SUPPORT WHEELS
1 ADDITON WEIGHT
1 KNOB, 3/8-16 4 PRONG ALUM
1 SCR, 3/8-16 X 2.50 LG BSHCS SSS
1 BRKT, SQUEEGEE MTG
1 BRKT, SQG QUICK CONNECT LOCK

SQUEEGEE-CYLINDRICAL

SERIAL NO.

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-44

SQUEEGEE LIFT-DISK

1

2

27

25

26

15

13

16

15

10

3

20

5

13

23

2

10

12

11

10

6

7

16

21

8

9

13

18

17

20

16

13

19

14

22

17

24

16

4

17

10

13

5-45

86317500 CHARIOT SCRUBBER 11/15/08

SQUEEGEE LIFT-DISK

SERIAL NO.

REF PART NO. PRV NO. QTY DESCRIPTION

1 86068190 140793 1 BRACKET, ACTUATOR MOUNT
2 86273820 70019 1 SCR, 1/4-20 X 1.25 HHCS
3 86000870 05254 1 ACTUATOR, 36VDC, 4.5” STROKE
4 86083490 66831 1 PLATE, PULLEY MOUNT, CORNER
5 86068230 140840 1 BRACKET, SQG LIFT PULLEY MOUNT
6 86270870 57029 3 NUT, 1/4-28 HEX SS
7 86002780 270098 1 CABLE, SQUEEGEE LIFT DELUXE
8 86277410 70840 4 SCR, 5/16-18 X 5/8 CARRIAGE SS

9 86075430 270700 1 COVER, SQUEEGEE LIFT
10 86270830 57023 9 NUT, 5/16-18 HEX NYLOCK SS
11 86276070 70593 3 SCR, 5/16-18 X 3/4 CARRIAGE SS
12 86277400 70839 2 SCR, 5/16-8 X 1.75 BSHCS SS
13 86010670 87029 10 WASHER, 5/16 FLAT SS
14 86277460 70847 1 SCR, 5/16-18 X 5/8 BSHCS SS
15 86271870 57290 2 NUT, 1/4-20 HEX NYLOCK THIN SS
16 86223370 66464 6 PULLEY, PLASTIC 3.0 DIA
17 86231150 09151 5 BUSHING, FLANGE, .314ID X .502OD
18 86083440 66824 1 PLATE, PULLEY MOUNTING, CENTER
19 86276760 70724 2 SCR, 5/16-18 X 1.25 BSHCS SS
20 86274720 70264 2 SCR, 5/16-18 X 1.50 HHCS SS

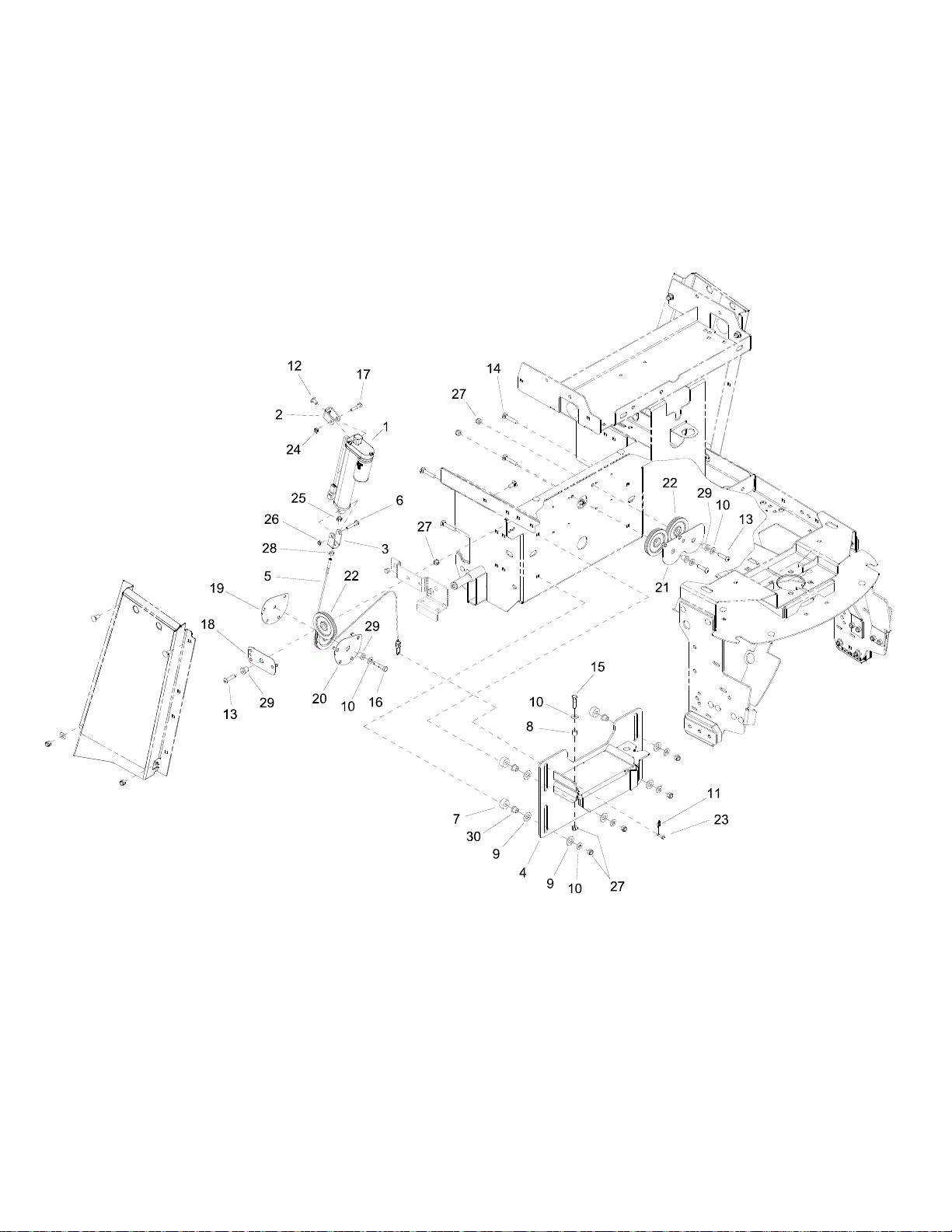

21 86071300 140843 1 BRACKET, PULLEY RETAINER, DOUBLE
22 86224290 730008 2 SPACER, .317ID X .5OD X .44 LG
23 86071310 140844 1 BRKT, PULLEY RETAINER, DOUBLE
24 86083500 66832 1 PLATE, PULLEY RETAINER, CORNER
25 86271840 57285 1 NUT, 5/16-18 HEX NYLOCK THIN SS
26 86228880 09132 1 BEARING, .314 ID X .503 OD X 1
27 86277480 70850 2 SCR, 5/16-18 X 1/2 PTHMS SS

FROM NOTES:

86317500 CHARIOT SCRUBBER 11/15/08

5-46

SQUEEGEE LIFT-CYLINDRICAL

5-47

86317500 CHARIOT SCRUBBER 11/15/08
