Windsor CS20, CSC20, CSC22SP, CSX20, CSXC20 Operator Instructions Manual

Operating instructions (ENG)

MODELS:

CS20
10061250

CSC20
10061330

CSX20
10061370

CSXC20
10061380

CS22SP
10061300

CSC22SP
10061340

From Serial Number (1*)

See Serial number page or

call manufacturer.

Read these instructions before using the machine.

86359770-N
03/18/13

Machine Data Label

Overview

The Chariot Scrubber is a battery powered, stand-on, hard floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor, scrubs the floor with brush or pad, and then vacuums the
soiled water back into the recovery tank.

Warranty Registration

Thank you for purchasing a Windsor product. Warranty registration is quick and easy.

Your registration will allow us to serve you better over the lifetime of the product.

www.windsorind.com/WarrantyRegistration.aspx

2 86359770 - CS20 SCRUBBER

To register your product go to :

For customer assistance:

1-800-444-7654

Table of Contents

Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3

How To Use This Manual . . . . . . . . . . . . . . . . . . . . . 4

Safety

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5

HAZARD INTENSITY LEVEL . . . . . . . . . . . . . . . . . .7

SAFETY LABEL LOCATIONS . . . . . . . . . . . . . . . . .9

Operations

Technical Specifications . . . . . . . . . . . . . . . . . . . . . 10

How This Machine Works . . . . . . . . . . . . . . . . . . . . 12

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Drive Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Scrub Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Scrub Controls-Squeegee. . . . . . . . . . . . . . . . . . . .20

Pre-Run Machine Inspection. . . . . . . . . . . . . . . . . .22

Starting Machine . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Emergency Stop Procedure . . . . . . . . . . . . . . . . . .22

Filling Solution Tank . . . . . . . . . . . . . . . . . . . . . . . .22

Filling Solution Tank (Deluxe) . . . . . . . . . . . . . . . . . 22

Normal Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . . .23

To Begin Scrubbing . . . . . . . . . . . . . . . . . . . . . . . .23

To Stop Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . .24

Double Scrub . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Emptying and Cleaning Tanks . . . . . . . . . . . . . . . .25

Maintenance

Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Changing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 32

Battery Charger Programming . . . . . . . . . . . . . . . .33

To Remove Squeegee Assembly . . . . . . . . . . . . . . 35

Squeegee Blades-Cylindrical . . . . . . . . . . . . . . . . .35

Scrub Deck-Disk . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Scrub Deck-Cylindrical . . . . . . . . . . . . . . . . . . . . . . 36

Scrub Brush-Disk . . . . . . . . . . . . . . . . . . . . . . . . . .37

Replacing or Installing Scrub Brushes (Disk) . . . . .38

Replacing or Installing Scrub Brushes (Cylindrical) 39

To Replace Scrub Brush Motor - Disk . . . . . . . . . . 40

Scrub Deck Actuator Removal / Replacement . . . .42

Circuit Protection. . . . . . . . . . . . . . . . . . . . . . . . . . .43

Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Tank Assembly Removal . . . . . . . . . . . . . . . . . . . .46

Drive Unit Removal . . . . . . . . . . . . . . . . . . . . . . . . .47

Vacuum & Float Shutoff . . . . . . . . . . . . . . . . . . . . .48

Vacuum Motor Carbon Brush Replacement . . . . . . 49

Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Drive Chain Tension . . . . . . . . . . . . . . . . . . . . . . . . 50

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Inclines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Machine Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . .52

Machine Tie-Downs (Deluxe) . . . . . . . . . . . . . . . . . 53

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Battery Discharge Indicator Troubleshooting . . . . . 56

PARTS

Bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Bumper - Deluxe & Cylindrical . . . . . . . . . . . . . . . 60

Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Decals - Disk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Decals - Deluxe & Cylindrical . . . . . . . . . . . . . . . . 70

Drive - Lower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Drive - Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Drive Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Frame & Rear Wheels . . . . . . . . . . . . . . . . . . . . . 78

On Board Battery Charger - Disk . . . . . . . . . . . . . 80

On Board Battery Charger - Deluxe & Cylindrical. 82

Pedal Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Pedal Platform Mounting. . . . . . . . . . . . . . . . . . . . 86

Recovery Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Scrub Brush - Pad Driver . . . . . . . . . . . . . . . . . . . 90

Scrub Brush Deck - Disk. . . . . . . . . . . . . . . . . . . . 92

Scrub Brush Deck Mounting - Disk . . . . . . . . . . . . 94

Scrub Deck Drive Assembly - Cylindrical . . . . . . . 96

Scrub Deck - Cylindrical . . . . . . . . . . . . . . . . . . . . 98

Scrub Deck Linkage - Cylindrical . . . . . . . . . . . . 100

Scrub Brush Deck Mounting - Cylindrical . . . . . . 102

Scrub Deck Lift . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Solution Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Solution Tank - Deluxe . . . . . . . . . . . . . . . . . . . . 108

Squeegee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Squeegee - Cylindrical . . . . . . . . . . . . . . . . . . . . 112

Squeegee Linkage - Cylindrical . . . . . . . . . . . . . 114

Steering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Vacuum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Wiring - Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Wiring Diagram 1 . . . . . . . . . . . . . . . . . . . . . . . . 122

Wiring Diagram 2 . . . . . . . . . . . . . . . . . . . . . . . . 124

Wiring Diagram 3 . . . . . . . . . . . . . . . . . . . . . . . . 126

Wiring Diagram 4 . . . . . . . . . . . . . . . . . . . . . . . . 128

Wiring Diagram 5 . . . . . . . . . . . . . . . . . . . . . . . . 130

Wiring Diagram 6 . . . . . . . . . . . . . . . . . . . . . . . . 132

Wiring Diagram 7 . . . . . . . . . . . . . . . . . . . . . . . . 134

Wiring Diagram 8 . . . . . . . . . . . . . . . . . . . . . . . . 136

Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . 138

Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 139

86359770 - CS20 SCRUBBER

3

Parts

PARTS

57

Bumper

1

2

5

6

3

4

3

7

58

86359770 - CS20 SCRUBBER

Bumper

REF PART NO. QTY DESCRIPTION

1 86318180 1 BUMPER, TRIM, GRAY
2 86276980 2 SCREW 5/16-18 X 2 HHCS SS
3 86010670 6 WASHER 5/16 FLAT SS
4 86276070 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
5 86270830 4 NUT 5/16-18 HEX NYLOCK SS
6 86323950 2 PAD, TIP
7 86327510 4 SCR, KA50X16, PT OHS, WN1412, A2 SS

SERIAL NO.

FROM

NOTES

5986359770 - CS20 SCRUBBER

Bumper - Deluxe & Cylindrical

1

2

5

6

3

4

3

5

3

4

7

8

60

86359770 - CS20 SCRUBBER

Bumper - Deluxe & Cylindrical

REF PART NO. QTY DESCRIPTION

1 86342940 1 BUMPER, TRIM, CSX20
2 86276980 2 SCREW 5/16-18 X 2 HHCS SS
3 86010670 10 WASHER 5/16 FLAT SS
4 86276070 8 SCR, 5/16-18 X 3/4 CARRIAGE SS
5 86270830 8 NUT 5/16-18 HEX NYLOCK SS
6 86323950 2 PAD, TIP
7 86327510 4 SCR, KA50X16, PT OHS, WN1412, A2 SS
8 86333910 1 BRACKET, TIE DOWN

SERIAL NO.

FROM

NOTES

6186359770 - CS20 SCRUBBER

Console

19

12

1

2

3-A

4

5

6

7

9

8

10

11

12

13

14

15

16

17

18

20

21

22

23

3-B

24

62

86359770 - CS20 SCRUBBER

Console

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1 86276330 1 SCR, 1/4-20 X 1.25 CARRIAGE BZ

2 86279520 2 WASHER, 1/4 ID FLAT BLK
3A 86317960 1 CONSOLE, CS20 DISK
3B 86342490 1 CONSOLE, CSX20 DELUXE & CYLINDRICAL

4 86276780 6 SCR, 5/16-18 X 3/4 HHCS SS

5 86010670 6 WASHER, 5/16 FLAT SS

6 86006530 2 SCREW 1/4-20 X 1 PPHMS SS

7 86010630 2 WASHER 1/4 ID X 5/8 OD SS

8 86317980 1 DOME

9 86327600 1 GASKET, DOME
10 86326340 1 PIN, CLEVIS 5/16 X 4.0, PLTD

11 86228990 2 BEARING,FLNGD,.314ID X.502OD
12 86264940 6 CABLE TIE, 11.38" UL/CSA
13 86326320 1 BRACKET, HINGE UPPER
14 86327680 1 SWITCH, INTERLOCK
15 86270860 1 NUT, 10-24 U-TYPE SPEED
16 86277110 1 SCR, 10-24 X 3/4 PPHMS SS
17 86328860 1 NUT, 5/16 PUSH-LOCK, PLTD
18 86326330 1 BRACKET, HINGE LOWER
19 86239720 1 SP HORN, 108DB MINATURE W/RING
20 86006800 2 SCREW 10-32 X 1/2 PHTR PLT
21 86332390 1 PLATE, COVER
22 86332770 2 GASKET, HINGE BRACKET
23 86332760 1 GASKET, STEERING SHAFT
24 86302620 1 FOAM, 1 X 1 X 18 DELUXE ONLY

6386359770 - CS20 SCRUBBER

Control Panel

15

16

18

A

TORQUE 4-5 FT-LBS

A

A

18

16

15

2

3

22

21

4

5

6

7

9

10

11

12

14

13

17

8

20

19

1

64

86359770 - CS20 SCRUBBER

Control Panel

REF PART NO. QTY DESCRIPTION

1 86357790 1 PANEL, CONTROL, CS20 RE
2 86337210 5 SPACER, .14ID X .25OD X .38, NYL
3 86336110 1 RELAY, SPST-NO
4 86336100 3 CLIP, RELAY
5 86347250 1 PCB, RELAY OMRON II
6 86362190 1 CONTROLLER, CS20 RE
7 86326390 2 CONN, 8MM PITCH, 10 POSN
8 86005710 2 NUT, 1/4-20 HEX W/STAR
9 86313900 3 RELAY, 5A, 24V, 4PDT

10 86275260 4 SCR, 4-40 X 1/2 PPHMS

11 86275550 2 SCREW 6-32X1.25
12 86255910 1 STANDOFF, 1/4-20 X 1.0 HEX INS
13 86255900 2 STANDOFF, 6-32 X 5/8 HEX NYL
14 86354860 4 STANDOFF, 6-32 X 1.25 HEX, NYLON
15 86251360 2 RELAY, 36VDC, 100A
16 86010630 4 WASHER, 1/4 X 5/8 FLAT SS
17 86006850 1 SCR, 1/4-20 X 1.25 SSSCU
18 86005810 4 NUT, 1/4-20 HEX NYLOCK SS
19 86279020 1 WASHER #6 LOCK EXT STAR SS
20 86279450 3 WASHER, #6 FLAT SAE PLTD
21 86274570 4 SCREW 4-40 X 1/4 PPHMS
22 86354440 1 PCB, iSCRUB, PIC

SERIAL NO.

FROM

NOTES

6586359770 - CS20 SCRUBBER

Control Panel

17

9

15

14

13

12

11

10

9

8

6

5

4

2

1

16

3B

12

18

20

19

21

3A

22

7

66

86359770 - CS20 SCRUBBER

Control Panel

REF PART NO. QTY DESCRIPTION

1 86001260 1 BOOT, CB 3/8-32 UNS

2 86332510 2 BOOT, SEAL PUSH BUTTON 11MM
3A 86328180 1 BREAKER, 12A, 250VAC, 32VDC DISK
3B 86349290 1 BREAKER, 25A, 250VAC, 32VDC CYLINDRICAL

4 86354870 1 SWITCH, ROTARY

5 86316160 1 BREAKER, 18A, 250VAC, 32VDC

6 86315470 1 METER, HOUR, LCD

7 53217380 1 KNOB, SELECTION

8 86313950 1 SWITCH, SPDT 3 POSN MOM, ARROW

9 86295200 1 ASM, BUTTON, BLACK, W/BEZEL
10 86292780 1 SWITCH,MICRO

11 86292590 1 SWITCH, E-STOP AKW CHARIOT
12 86255900 4 STANDOFF, 6-32 X 5/8 HEX NYL
13 86348960 1 LED, BATTERY INDICATOR
14 86353680 1 BREAKER, 1.5A CARLING MAGNETIC
15 86007170 1 SWITCH, KEY 2 POSITION
16 86329570 4 SCR, 10-32 X 1.0 TORX SS BLK PLTD
17 86327830 1 GASKET, .188 X.31 X 41.0
18 86354560 1 BEZEL, ROTARY SWITCH
19 86358440 2 O-RING, 4MM ID, 1.5MM THK, BUNA-N
20 86358430 2 SCR, M4X12 FHMS, ISO7046 SS NP
21 86354810 1 GASKET, ROTARY SWITCH
22 63130140 1 SPRING ELEMENT

SERIAL NO.

FROM

NOTES

86348960 IS INCLUDED WITH CONTROL PANEL HARNESS.

6786359770 - CS20 SCRUBBER

Decals - Disk

6

1

2

3

4

5

68

86359770 - CS20 SCRUBBER

Decals - Disk

REF PART NO. QTY DESCRIPTION

1 86328490 1 LABEL, RIGHT, iSCRUB 20
2 86328500 1 LABEL, LEFT, iSCRUB 20
3 86004970 1 LABEL WINDSOR LOGO DOMED
4 86328550 1 LABEL, SOLUTION LEVEL
5 86358050 1 LABEL, CONTROL PANEL, CS20
6 86335710 1 LABEL, BATTERY WIRING

SERIAL NO.

FROM

NOTES

6986359770 - CS20 SCRUBBER

Decals - Deluxe & Cylindrical

3B

3B

2

1

3A

3A

4

70

86359770 - CS20 SCRUBBER

Decals - Deluxe & Cylindrical

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1 86342020 1 LABEL, WINDSOR DOMED LOGO

2 86358050 1 LABEL, CONTROL PANEL, CS20
3A 86342000 2 LABEL, SIDE ISCRUB DLX DISK
3B 86346630 2 LABEL, ISCRUB 22X SP CYLINDRICAL

4 86335710 1 LABEL, BATTERY WIRING

7186359770 - CS20 SCRUBBER

Drive - Lower

E

E

TORQUE 100 IN-OZ

1

2

3

6

9

13

22

10

17

20

29

28

27

24

25

5

4

8

14

15

30

11

23

21

A TORQUE 15/18 FT-LBS
B

TORQUE 10 FT-LBS

C

TORQUE 15 FT-LBS

A

B

B

D

A

26

19

12

C

16

18

D

TORQUE 5 FT-LBS

*

AFTER * B

7

6

10

17

5

12

19

17

30

72

86359770 - CS20 SCRUBBER

Drive - Lower

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1 86326710 1 KEY, 5 X 5 X 16

2 86321670 2 WASHER, WHEEL SPACER

3 86319810 1 AXLE, DRIVE WHEEL

4 86319670 6 SLEEVE, BEARING

5 86364010 1 MOTOR, TRACTION (*5)

- 86331990 - BRUSH SET,SMALL RIDER DRIVE MTR

- 98408960 - BRAKE REPLACEMENT SMALL STAND ON
6 86319650 2 SPROCKET, DRIVE, 14T
7 86319640 1 CHAIN, ISO O8B, 12.7MM PITCH
8 86319620 1 FRAME, LOWER DRIVE
9 86316890 1 WHEEL, PU 200MM X 50MM

10 86279630 3 WASHER, .344IDX1.130ODX.09T PLT

11 86362150 2 SCREW, M6 X 30MM, HEX FLANGE, PLTD
12 86010670 4 WASHER, 5/16 X 3/4 SS
13 86008610 4 FLANGE, BEARING PRESSED STEEL
14 86272550 3 PIN, CLEVIS, 5/16 X 1.00 PLTD
15 86276070 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
16 86362130 1 SCREW, 5/16 X 1.50, SHCS, SS, FT
17 86136640 3 SCR, M8 X 20 HHMS
18 86348490 1 NUT, WELD 5/16-18 X .38, TAB BASE, STL
19 86270830 4 NUT, 5/16-18 HEX NYLOCK SS
20 86219640 1 KEY, 1/4 SQ. X 1.5
21 86332380 3 ROLLER, 1.1 OD
22 86001030 2 BEARING, BALL 3/4 BORE SPHERED
23 86008660 3 COTTER 5/16" RING
24 86333870 1 LEVER DRIVE ENGAGEMENT DELUXE ONLY
25 86271240 1 NUT, CAP 1/4 DIA RETAINING PLT DELUXE ONLY
26 86232780 - CHAIN MASTER LINK 12.7MM
27 86002830 1 CABLE TIE .375 X 24.7
28 86264920 2 CABLE TIE, 7" UL/CSA
29 86362040 2 TAPE CLOSED CELL 1/8 X 3/4 X 2 1/2 PSA
30 86362140 3 SCREW, M6 X 12MM, HEX FLANGE, PLTD

FOR INSTALLATION OF 8.636-401.0 WITH BRAKE HARNESS AND LOWER HARNESS,

ORDER KIT 8.636-900.0

* SEE SERIAL NUMBER PAGE.

7386359770 - CS20 SCRUBBER

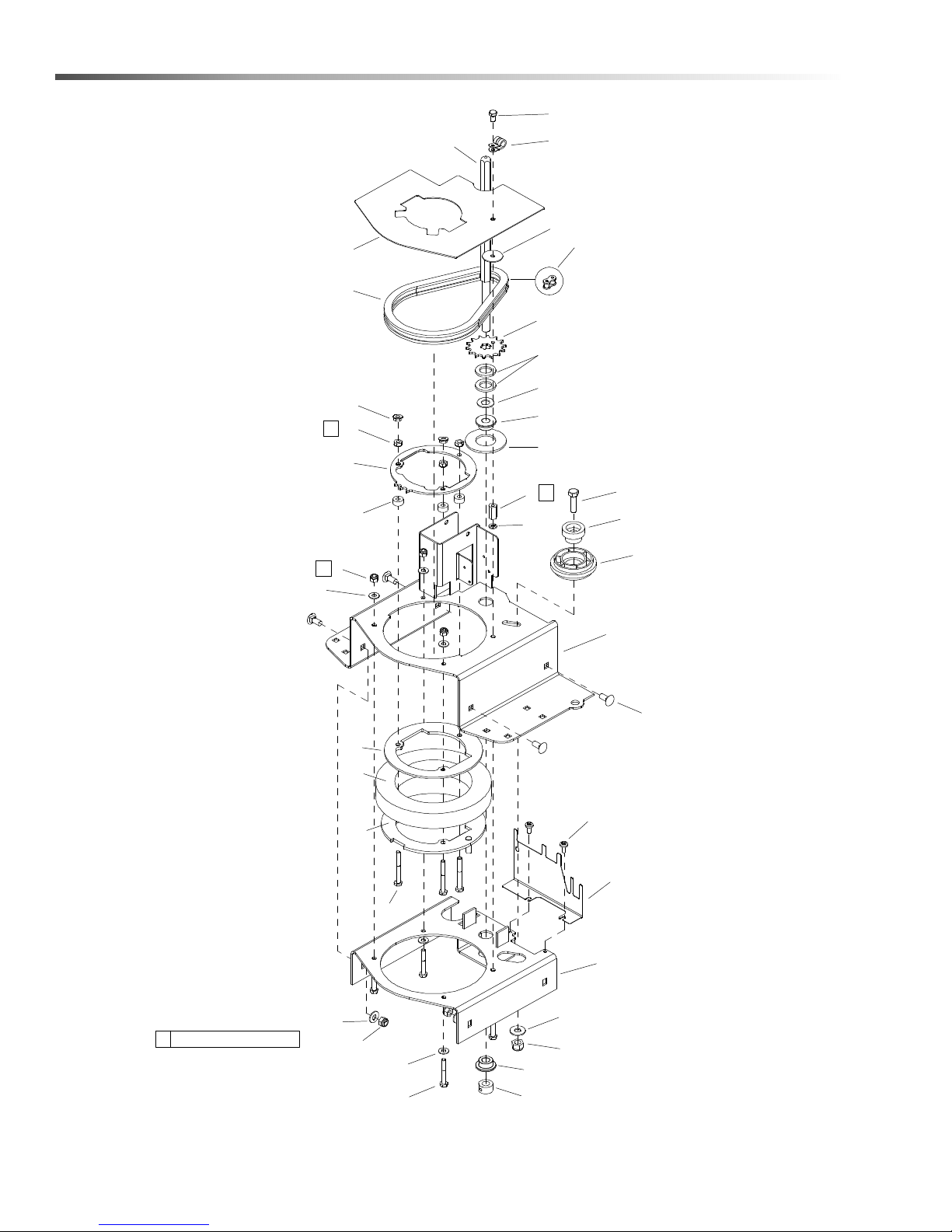

Drive - Chain

1

2

5

6

7

8

12

13

14

15

16

18

19

20

22

23

24

25

28

29

30

31

33

4

25

A

TORQUE 78 IN/LBS

A

A

34

3

9

10

11

17

26

27

32

A

4

21

36

35

37

38

74

86359770 - CS20 SCRUBBER

Drive - Chain

REF PART NO. QTY DESCRIPTION

1 86330720 1 CHAIN TENSIONER
2 86329350 1 NUT, 1/4-20 X 7/8 HEX COUPLING SS
3 86329340 1 PLATE, CHAIN GUARD
4 86328050 2 WASHER, SHOULDER.48ID X 1.25OD
5 86005810 3 NUT, 1/4-20 HEX NYLOCK SS
6 86327110 1 BRACKET, CONNECTORS
7 86273100 3 SCR, 1/4-20X2-1/4 HXHD CAP
8 86322060 1 COLLAR, 12MM ID

9 86322050 1 SPROCKET, STEERING, 14T
10 86322040 1 PLATE, CHAIN RING
11 86322030 3 SPACER
12 86270830 7 NUT, 5/16-18 HEX NYLOCK SS
13 86319740 1 PLATE, UPPER CLAMP
14 86319680 1 PLATE, LOWER CLAMP
15 86319610 1 BRACKET, BEARING CLAMP
16 86319600 1 BRACKET, DRIVE MOUNT
17 86319590 1 SHAFT, STEERING SPROCKET
18 86319560 1 CHAIN, ISO O8B, 12.7MM PITCH
19 86014440 1 BEARING, DRIVE
20 86224270 1 SLEEVE, CHAIN TENSIONER
21 86259430 1 WASHER, 12.5 ID X 26 OD X 2T FLAT
22 86279510 1 WASHER, 3/8 X 1 FLAT NP
23 86010780 1 WASHER, 1/4 SPLIT
24 86010670 4 WASHER, 5/16 X 3/4 SS
25 86010630 7 WASHER, 1/4 X 5/8 FLAT SS
26 86363870 1 CLAMP, 5/8” OD CUSHIONED
27 86005710 3 NUT, 1/4-20 HEX W/STAR
28 86271930 1 NUT, 3/8-16 HEX NYLOCK SS
29 86276070 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
30 86275190 1 SCR, 3/8-16 X 1.25 HHCS SS
31 86006800 2 SCR, 10-32 X 1/2 PHTR PLT
32 86274760 1 SCR, 1/4-20 X 1/2 HHCS
33 86274150 4 SCR, 1/4-20 X 1.75 HHCS
34 86232780 - CHAIN MASTERLINK 12.7MM
35 86368600 1 WASHER, 2.5OD X 1.25ID X .125THK, DELRIN
36 86279420 2 WASHER .75IDX1.25ODX.125THK NY
37 86278940 1 WASHER 1/4 ID X 1-1/4 OD PLT
38 86271370 2 NUT, 1/4-20 SERFLG STL ZNPLT

SERIAL NO.

FROM

NOTES

7586359770 - CS20 SCRUBBER

Drive Mounting

1

2

3

4

5

6

7

4

7

76

86359770 - CS20 SCRUBBER

Drive Mounting

REF PART NO. QTY DESCRIPTION

1 86326080 1 BRACKET, LINKAGE MOUNT, RIGHT

2 86319730 1 BRACKET, LINKAGE MOUNT, LEFT

3 86331630 1 BRACKET, ROLLER GUIDE

4 86010670 12 WASHER, 5/16 X 3/4 SS

5 86276690 8 SCR, 5/16-18 X 1.75 CARR SS

6 86276070 2 SCR, 5/16-18 X 3/4 CARRIAGE SS

7 86270830 12 NUT, 5/16-18 HEX NYLOCK SS

SERIAL NO.

FROM

NOTES

7786359770 - CS20 SCRUBBER

Frame & Rear Wheels

1

2

3

4

5

6

7

8

9

78

86359770 - CS20 SCRUBBER

Frame & Rear Wheels

REF PART NO. QTY DESCRIPTION

1 86326260 1 BRACKET, FRAME LEFT

2 86326250 1 BRACKET, FRAME RIGHT

3 86340610 1 ASM FRAME, CS20 INCLUDES ITEM 8 & 9

4 86326220 2 SPACER, FLG .887ID x 1.055D x .345LG

5 86318030 1 AXLE, 20mm x 562 mm

6 86369160 2 WHEEL, 6.00 X 1.58, GRY W/BEARINGS (*4)

7 86223470 2 RING, 20MM EXTERNAL SNAP

8 86279510 2 WASHER 3/8 FLAT

9 86340950 2 SCR, 3/8 X 1.5, LAG, PLTD

* SEE SERIAL NUMBER PAGE

SERIALNO.

FROM

NOTES

7986359770 - CS20 SCRUBBER

On Board Battery Charger - Disk

1

2

15

3

4

5

6

7

9

10

11

13

6

8

14

7

6

10

12

8

80

86359770 - CS20 SCRUBBER

On Board Battery Charger - Disk

REF PART NO. QTY DESCRIPTION

1 86370690 1 KIT, CHARGER, SPE 36V 15A

2 86332690 1 BRKT, CHARGER METER

3 86332370 1 BRACKET, CORD WRAP

4 86327690 1 BRACKET, CHARGER

5 86259400 2 WASHER, THRUST .51 ID X 1 ODBRO

6 86010670 7 WASHER, 5/16 X 3/4 SS

7 86276070 5 SCR, 5/16-18 X 3/4 CARRIAGE SS

8 86006770 7 SCR, 10-32 X 1/4 PHTR PLTD

9 86006750 2 SCR, 5/16-18 X 1.00 HHCS GR5

10 86270830 5 NUT, 5/16-18 HEX NYLOCK SS

11 86234390 1 CORD ASM, 16/3 SJTWX2M IEC

12 86198450 2 CLAMP, 5/16 DIA NYLON
13 86228990 2 BEARING FLG .314IDX.5002OD
14 86333070 1 METER, SPE BATTERY CHARGE
15 86198470 5 CLAMP, 9/16 DIA NYLON

SERIAL NO.

FROM

NOTES

8186359770 - CS20 SCRUBBER

On Board Battery Charger - Deluxe & Cylindrical

8

14

7

6

10

1

2

15

4

5

6

9

10

11

13

6

3

7

12

8

18

17

16

82

86359770 - CS20 SCRUBBER

On Board Battery Charger - Deluxe & Cylindrical

REF PART NO. QTY DESCRIPTION

1 86370690 1 KIT, CHARGER, SPE 36V 15A

2 86332690 1 BRKT, CHARGER METER

3 86348390 1 BRACKET, CORD STORAGE DELUXE

4 86327690 1 BRACKET, CHARGER

5 86259400 2 WASHER, THRUST .51 ID X 1 ODBRO

6 86010670 7 WASHER, 5/16 X 3/4 SS

7 86276070 5 SCR, 5/16-18 X 3/4 CARRIAGE SS

8 86006770 7 SCR, 10-32 X 1/4 PHTR PLTD

9 86006750 2 SCR, 5/16-18 X 1.00 HHCS GR5

10 86270830 5 NUT, 5/16-18 HEX NYLOCK SS

11 86345510 1 CORD, ONBOARD CHARGER, 16/3C SJTO

12 86198450 2 CLAMP, 5/16 DIA NYLON
13 86228990 2 BEARING FLG .314IDX.5002OD
14 86333070 1 METER, SPE BATTERY CHARGE
15 86198470 5 CLAMP, 9/16 DIA NYLON
16 86333940 - BRACKET, CHARGER CORD
17 86006590 1 SCREW 10-32 X 1/2 PPHMS SS NP
18 86264940 1 CABLE TIE, 11.38" UL/CSA

SERIAL NO.

FROM

NOTES

8386359770 - CS20 SCRUBBER

Pedal Platform

3

4

5

6

7

8

9

10

11

1

2

2

2

2

84

86359770 - CS20 SCRUBBER

Pedal Platform

REF PART NO. QTY DESCRIPTION

1 86007110 1 SWITCH, 25A SPST 125-250V SNAP

2 86172980 9 SCR, KA50X10, PT OHS, WN1412, PLTD

3 86264930 1 CABLE TIE, 3.5" UL/CS

4 86326150 1 BRKT, LINEAR POT

5 86326140 1 PIN, DOWEL .25 X 2.75, STEEL

6 86318010 1 PEDAL, HEEL

7 86318000 1 PEDAL, ACCELERATOR

8 86317990 1 PLATFORM, OPERATOR

9 86311560 1 POTENTIOMETER ASM, LINEAR

10 86254970 3 SPRING, COMP 18MM OD X 83 X 2

11 86173330 8 WASHER, M5, FLAT, ISO7093, SS

SERIAL NO.

FROM

NOTES

8586359770 - CS20 SCRUBBER

Pedal Platform Mounting

86

86359770 - CS20 SCRUBBER

Pedal Platform Mounting

REF PART NO. QTY DESCRIPTION

1 86327510 9 SCR, KA50 X 16, WN1412 A2 SS

2 86198440 9 CLAMP, 1/4 PLASTIC CABLE

3 86327910 4 SCR, KA50X25, PT OHS, WN1412, PLTD

4 86173330 4 WASHER, M5, FLAT, ISO7093, SS

SERIAL NO.

FROM

NOTES

8786359770 - CS20 SCRUBBER

Recovery Tank

A

TORQUE 15/17 IN/LBS

A

A

1

2

3

4

5

6

7

8

9

10

11

12

13

16

17

18

19

14

15

7

15

7

17

15

20

21

23

22

24

25

88

86359770 - CS20 SCRUBBER

Recovery Tank

REF PART NO. QTY DESCRIPTION

1 86329510 2 PLATE, INTAKE RETAINER

2 86328020 1 HOSE ASM, 1.25 ID X 14.0, 4:1

3 86327910 3 SCR, KA50X25, PT OHS, WN1412, PLTD

4 86327850 1 GASKET, REC TANK 68”

5 86327840 1 GASKET, VAC MOUNT 27”

6 86327590 1 LANYARD, 15.0 W/LOOP & EYE

7 86327510 11 SCR, KA50X16, PT OHS, WN1412, A2 SS

8 86326270 2 CLAMP, 1.5 DIA

9 86326200 1 GASKET, VACUUM INTAKE

10 86318220 1 FRAME, VACUUM MOTOR

11 86318210 1 INTAKE, VACUUM

12 86344710 1 PANEL, BACK
13 86317920 1 TANK, RECOVERY
14 86302360 1 DRAIN HOSE, CMPS
15 86173330 10 WASHER, M5, FLAT, ISO7093, SS
16 86173140 2 SCR,KA40X16,PT OVAL,WN1412,PL
17 86002400 2 CLAMP, 2.00 WORM GEAR X .312
18 86356060 1 FLOAT ASM, DUAL BALL SCREEN
19 86161800 1 LATCH, CONCEALED KEEPER
20 86312920 1 GASKET, VAC MOTOR
21 86335700 1 BRACKET, DRAIN HOSE
22 86007070 1 SCREW 5/16-18 X 1.00 PTHMS SS
23 86007650 1 SPACER, .438D X .317ID X .25L
24 86010670 1 WASHER 5/16 FLAT SS
25 86270830 1 NUT 5/16-18 HEX NYLOCK SS

SERIAL NO.

FROM

NOTES

8986359770 - CS20 SCRUBBER

Scrub Brush - Pad Driver

10A - 10F

2C

2A
2B

7

5

8

4

9

6

1

5

3

8

4

9

6

5

7

90

86359770 - CS20 SCRUBBER

Scrub Brush - Pad Driver

REF PART NO. QTY DESCRIPTION

1 86000410 1 PAD DRIVER, 20" SD
2A 86000420 1 BRUSH, 20" POLYPROPYLENE SD
2B 86000430 1 BRUSH, 20" NYLON SD

2C 86283870 1 BRUSH, 20" NYLON POLISH SD

3 86005070 1 LOCK, PAD CENTER SNAP, TWO STEP

4 86276590 3 SCR, #12 X 1 PPHSMS SS

5 86276580 1 SCR, 8-32 X 3/4 PTHMS

6 86276600 3 SCR, #10 X 3/4 PTHSMS SS

7 86007910 1 SPRING, EXT .31 D X 2.0 L X .03 W SS

8 86007280 1 SOCKET, DRIVE BRUSH

9 86005940 1 PLATE, BRUSH RELEASE

10A 47623930 2 ROLLER BRUSH COMPLETE RED
10B 47624090 2 ROLLER BRUSH COMPLETE WHITE
10C 47624100 2 ROLLER BRUSH COMPLETE ORANGE
10D 47624110 2 ROLLER BRUSH COMPLETE GREEN
10E 47624120 2 ROLLER BRUSH COMPLETE BLACK

41140100 2 MICROFIBRE ROLL COMPLETE BR 55/40

10F

47624150 2 ROLL PAD BR55

SERIAL NO.

FROM

NOTES:

9186359770 - CS20 SCRUBBER

Scrub Brush Deck - Disk

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

34

25

24

27

28

29

30

31

32 33

27

17

9

9

34

9

25

24

9

26

6

35

36

37

38

39

40

41

42
43

A

TORQUE 18 FT-LBS

A

B TORQUE 20 FT-LBS

B

92

86359770 - CS20 SCRUBBER

Scrub Brush Deck - Disk

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1 86331340 1 BREATHER VENT, 10-32 THREAD

2 86331970 1 MOTOR, 36VDC 180RPM RT-ANG INCLUDES 86331340

- 86331980 - BRUSH SET, 8.633-197.0 SCRUB MTR
3 86325200 1 BUSHNG, 30MM, BRNZ
4 86326430 1 SUPPORT ASSY, MOTOR, BRUSH DECK
5 86326560 1 WASHER, NYLON, 2.28ODX1.28IDX.12 THK
6 86271870 3 NUT, 1/4-20 HEX NYLCK THIN SS
7 86222300 1 NUT, 5/16-18 JAM SS C
8 86320370 1 LINKAGE ARM ASSY, PIVOT SQUG
9 86010670 10 WASHER 5/16 FLAT SS

10 86328620 1 SCR, 5/16-18 X 1/2 LG, HHCS, BLK NYLON

11 86279070 2 WASHER, M6 FLAT
12 86273850 1 SCR, 1/4-20 X 2 HHCS SS
13 86319800 1 SHROUD, 20" SCRUB DECK
14 86329560 3 SCR, M8X1.25X25MM LG, BSHCS, SS
15 86326550 1 SUPPORT PLATE, SHROUD
16 86326540 1 BRIDGE BRKT, DECK LIFT
17 86228990 4 BEARING,FLNGD,.314ID X.502OD
18 86277130 4 SCREW 5/16-18X1.00 CARRIAGE SS
19 86326600 1 BRKT, DECK LIFT, UPPER RIGHT
20 86326610 1 BRKT, DECK LIFT, LOWER RIGHT
21 86276070 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
22 86326580 1 BRKT, DECK LIFT, UPPER LEFT
23 86326590 1 BRKT, DECK LIFT, LOWER LEFT
24 86270830 4 NUT 5/16-18 HEX NYLOCK SS
25 86259410 4 WASHER THRUST.51 ID X1ODX.063
26 86290040 2 SCR, 5/16-18 X 3/4 BSHCS SS
27 86330990 5 WASHER, 5/16 INT STAR, SS
28 86337200 1 WASHER, 19MM X 34MM X 3MM FLAT SS
29 86003420 1 DRIVER, BRUSH SD
30 86004810 1 KEY, 1/4 SQ X 1.00
31 86279630 1 WASHER, .344IDX1.13ODX.09T PLT
32 86279130 1 WASHER 5/16 SPLIT LOCK PLTD
33 86330970 1 SCR, M8X1.25X25MM LG, HHCS, SS
34 86271840 4 NUT 5/16-18 HEX NYLOCK THIN SS
35 86327700 2 SHOULDER BOLT, 5/16 X 5/8 LG SS
36 86010630 2 WASHER 1/4 ID X 5/8 OD SS
37 86320430 1 20" BRUSH SKIRT
38 86328220 1 FLEXIBLE STRIP BRUSH, 20" SKIRT
39 86319820 1 PIVOT, SQUEEGEE LINKAGE
40 86338440 1 SPACER, .41 ID X .73 OD X .105T
41 86006870 1 SCREW #10B X 1/2 PHMS BLK
42 86335450 1 WASHER, #10 X .75 ODX.040. NYL, BLK
43 86324480 1 ACCESS COVER, BRUSH RELEASE

9386359770 - CS20 SCRUBBER

Scrub Brush Deck Mounting - Disk

1

2

3

4

5

6

94

86359770 - CS20 SCRUBBER

Scrub Brush Deck Mounting - Disk

REF PART NO. QTY DESCRIPTION

1 86277030 4 SCR, 5/16-18X1.25 CARRIAGE S
2 86270830 4 NUT 5/16-18 HEX NYLOCK SS
3 86010670 4 WASHER 5/16 FLAT SS
4 86259410 4 WASHER THRUST.51 ID X1ODX.063
5 86228990 4 BEARING,FLNGD,.314ID X.502OD
6 86277130 2 SCR, 5/16-18 X 1.00 CARRIAGE SS

SERIAL NO.

FROM

NOTES

9586359770 - CS20 SCRUBBER

Scrub Deck Drive Assembly - Cylindrical

1

2

3

4

6

7

10

11

12

13

14

5

8

9

5

5

4

96

86359770 - CS20 SCRUBBER

Scrub Deck Drive Assembly - Cylindrical

REF PART NO. QTY DESCRIPTION

1 73031040 6 SCREW 5X16 -A2-70 (IN6RD)
2 50353850 1 COVER GEAR
3 63484670 2 TOOTHED BELT HTD-384-3M-20 CXPIII
4 40353810 2 SHAFT GEAR RIGHT
5 56255070 2 BELT PULLEY 56Z
6 50353840 1 CARRIER MOTOR WORKED R
7 73060890 1 SCREW M6X12 -8.8-R2R (IN6RD)
8 73122760 2 WASHER 6 -200HV-A2E ISO7093-1
9 73060870 2 SCREW M6X10 -8.8-R3R (IN6RD)

10 50353910 1

SHEET METAL COMPONENT COVERING
CAP INVER

11 41002260 2 DRIVESHAFT COMPLETE
12 51106860 2 SPACER SLEEVE
13 73432310 2 LOCKING RING 32X1,2 -ST-PH DIN 472
14 50560100 1 ROCKER BR-VS

SERIAL NO.

FROM

NOTES

9786359770 - CS20 SCRUBBER

Scrub Deck - Cylindrical

98

86359770 - CS20 SCRUBBER

Scrub Deck - Cylindrical

REF PART NO. QTY DESCRIPTION

1 73430030 2 LOCKING RING 12X1-RF-ST DIN 471
2 50353570 2 SIDE PLATE RUBBER LIP
3 50354280 2 RUBBER LIP
4 50354270 2 SCREEN SUCTION LIPS
5 73430470 1 LOCK WASHER 10-FST-A2E DIN 6799
6 73061810 18 SCREW M 5X 12-A2-70 (IN6RD)
7 40354040 2 SET SIDE STRIP
8 50354310 1 BRACKET SCRAPER LIP LEFT
9 50355580 1 STRIP WATER DISTRIBUTOR

10 50353930 1 BRUSHES RETAINER

11 50353890 1 HOUSING BOTTOM PART R 55
12 50354000 1 SWEEP TANK COUNTER ROTATION R 55
13 51163370 1 SLEEVE BLOWER WHEEL
14 50334260 1 MOULDED PART COVERING CAP
15 50332400 2 HAND WHEEL
16 50354580 1 BRUSHES LOCKING PART
17 50354050 1 HOUSING TOP PART LOCKING PART
18 73031130 8 SCREW 6X25 -10.9-A2R (IN6RD)
19 50354320 1 BOLT DEFLECTOR ROLL RIGHT KILLER
20 50354380 1 DEFLECTOR ROLL
21 51156810 1 WASHER
22 73120660 1 WASHER 10 -A2 ISO 7090
23 50354290 1 LOCKING BAR SIDE PLATE
24 50354300 1 BRACKET SCRAPER LIP RIGHT
25 63304500 1 PRESSURE SPRING
26 40353780 1 MOTOR WITH PLUG

SERIAL NO.

FROM

NOTES

9986359770 - CS20 SCRUBBER

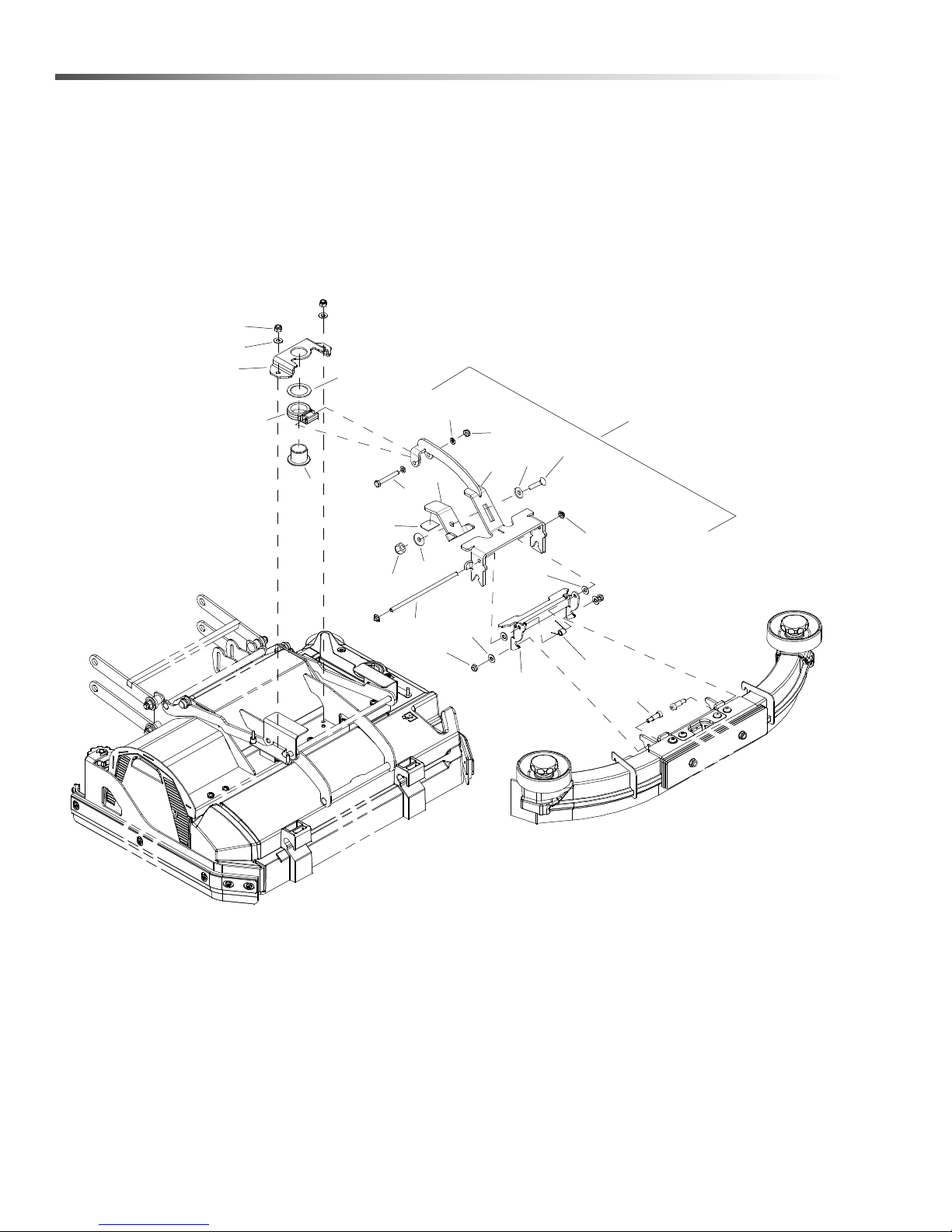

Scrub Deck Linkage - Cylindrical

1

2

3

4

5

6

8

9

10

11

7

1

2

3

5

6

12

13

14

15

15

100

86359770 - CS20 SCRUBBER

Scrub Deck Linkage - Cylindrical

REF PART NO. QTY DESCRIPTION

1 86270830 4 NUT 5/16-18 HEX NYLOCK SS
2 86010670 4 WASHER 5/16 FLAT SS
3 86259410 4 WASHER THRUST.51 ID X1ODX.063
4 86347930 2 BRACKET, LINKAGE, BOTTOM
5 86348210 4 SPACER, .381D X .63OD X .50, AL
6 86228990 4 BEARING,FLNGD,.314ID X.502OD
7 86346430 1 COVER, CYL DECK, 22 IN
8 73031130 13 SCREW 6X25 -10.9-A2R (IN6RD)
9 86346320 1 FRAME, LIFT ARM

10 86277470 4 SCR, 5/16-18 X 1.5 CARRIAGE SS

11 86347680 1 BRACKET, LINKAGE, TOP
12 86347910 2 FLNG BRNG, .375 X .44, NYL
13 86010680 2 WASHER 3/8 ID X 3/4 OD NYLON
14 86278330 2 SHOULDER BOLT, 3/8OD X 3/8L SS
15 86264920 4 CABLE TIE, 7" UL/CSA

SERIAL NO.

FROM

NOTES

10186359770 - CS20 SCRUBBER

Scrub Brush Deck Mounting - Cylindrical

1

2

3

4

8

7

6

5

9

10

11

102

86359770 - CS20 SCRUBBER

Scrub Brush Deck Mounting - Cylindrical

REF PART NO. QTY DESCRIPTION

1 86327510 2 SCR, KA50 X 16, WN1412 A2 SS
2 88646520 2 BRACKET, LIFT FRAME
3 86226760 2 SPACER, 3.8 ODX.257IDX.38L NYL
4 86327910 2 SCR, KA50X25, PT OHS, WN1412, PLTD
5 86277030 4 SCR, 5/16-18X1.25 CARRIAGE S
6 86270830 4 NUT 5/16-18 HEX NYLOCK SS
7 86010670 4 WASHER 5/16 FLAT SS
8 86259410 4 WASHER THRUST.51 ID X1ODX.063
9 86228990 4 BEARING,FLNGD,.314ID X.502OD

10 86010680 2 WASHER 3/8 ID X 3/4 OD NYLON

11 86010770 2 WASHER 7/16ID X1DX.08 FLT SS

SERIAL NO.

FROM

NOTES

10386359770 - CS20 SCRUBBER

Scrub Deck Lift

1

3

5

5

4

4

2

3

104

86359770 - CS20 SCRUBBER

Scrub Deck Lift

REF PART NO. QTY DESCRIPTION

1 86320880 1 ACT, 36VDC, 3.0" STK, 8.74 LNG
2 86342240 1 SPACER, .81 X 1.06 X .125
3 86328040 2 PIN, CLEVIS, 1/4 X 2.0 L
4 86354750 2 WASHER, 1.00X.264X.070THK, NYL, BLK
5 86008650 2 COTTER 1/4" RING

SERIAL NO.

FROM

NOTES

10586359770 - CS20 SCRUBBER

Solution Tank

-A-

-A-

1

2

6

7

8

9

10

11

12

13

14

15

17

14

18

19

20

4

21

5

22
16

3

106

86359770 - CS20 SCRUBBER

Solution Tank

REF PART NO. QTY DESCRIPTION

1 86326310 1 FITTING, ELBOW 3/4 BSP, O-RING
2 86326620 1 HOSE, 3/4ID X .12W X 20"LG, CLR
3 86353910 2 PIN, CLEVIS 1/4 X 1.13 SS
4 86233150 1 SP CLAMP, 3/8 HOSE (D-SLOT)
5 86353710 2 PLUG, SOLUTION FILL
6 86326280 1 BRACKET, TANK BRACE
7 86321270 1 HOSE, 3/8ID WIREBOUND X 18"
8 86355660 1 TANK, SOLUTION, CS20
9 86279630 5 WASHER, .344IDX1.130ODX.09T PLT

10 86010670 2 WASHER, 5/16 X 3/4 SS

11 86362610 1 VALVE, 36VDC SOLENOID (*2)
12 86346040 1 VALVE, BALL 3/8MPT X 3/8BARB, 90DEG
13 86007970 1 STRAINER, 3/8 IN. NPT 60 MESH
14 86275180 4 SCR, 5/16-18 X 1/2 HHCS GR5
15 86006760 3 SCR, 5/16-18 X 3/4 HHCS GR5
16 86353880 2 RING, SPLIT, ID .802" SS
17 86233110 1 CLAMP, 1.00 WORM GEAR
18 86010630 8 WASHER 1/4 ID X 5/8 OD SS
19 86264930 2 CABLE TIE, 3.5" UL/CSA
20 86328020 1 HOSE ASM, 1.25 ID X 14.0, 4:1
21 86353900 2 SCR POST, 1/4 X 1 BLK PLSTC
22 86246090 2 LANYARD,.093X6", 1~LOOP-.26EYE

SERIAL NO.

FROM

NOTES

*SEE SERIAL NUMBER PAGE

10786359770 - CS20 SCRUBBER

Solution Tank - Deluxe

24

25

3

18

19

7B

12

11

DISK DELUXE

CYLINDRICAL

26

26

1

2

6

10

14

17

-A-

9

11

15

14

-A­7A

8

12

13

5

20

21

22

23

108

86359770 - CS20 SCRUBBER

Solution Tank - Deluxe

REF PART NO. QTY DESCRIPTION

1 86326310 1 FITTING, ELBOW 3/4 BSP, O-RING
2 86326620 1 HOSE, 3/4ID X .12W X 20"LG, CLR
3 86327510 1 SCR, KA50 X 16, WN1412 A2 SS
4 86330940 1 NIPPLE, HEX 3/8NPT X 1.25LG, PE BLACK
5 50507320 1 COVER METERING FRESH WATER

6 86326280 1 BRACKET, TANK BRACE
7A 86321270 1 HOSE, 3/8ID WIREBOUND X 18"
7B 86280820 1 HOSE, 3/8ID NYLOBRD X 10"

8 86342820 1 TANK, SOLUTION, CSX20

9 86279630 5 WASHER, .344IDX1.130ODX.09T PLT
10 86010670 2 WASHER, 5/16 X 3/4 SS

11 86362610 1 VALVE, 36VDC SOLENOID (*2)
12 86346040 1 VALVE, BALL 3/8MPT X 3/8BARB, 90DEG
13 86007970 1 STRAINER, 3/8 IN. NPT 60 MESH
14 86275180 4 SCR, 5/16-18 X 1/2 HHCS GR5
15 86006760 3 SCR, 5/16-18 X 3/4 HHCS GR5
16 86001550 1 HOSEBARB, 3/8MPT X 3/8HOSE 90
17 86233110 1 CLAMP, 1.00 WORM GEAR
18 86328020 1 HOSE ASM, 1.25 ID X 14.0, 4:1
19 86339990 1 SCR, 8-32 X 1.0, FHMS, PHLPS, SS, BLK
20 86314160 1 COVER, FILLPORT 4"
21 86275800 5 Screw 8 X 3/4 PFHT/S BLK ZINC
22 86317620 1 FLANGE, WITH O-RING
23 86317610 1 GASKET, 5.5 ODX4.5 IDX.06W/PSA
24 86232790 1 CHAIN,ASM, #10SS BD X 10"
25 86272020 1 NUT, 8-32 HEX THIN NYLOCK SS
26 86233150 1 SP CLAMP, 3/8 HOSE (D-SLOT)

SERIAL NO.

FROM

NOTES

* SEE SERIAL NUMBER PAGE

10986359770 - CS20 SCRUBBER

Squeegee - Disk

1

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

20

21

22

23

26

27

28

29

30

32

33

34

19

34

3

35

ATTACHES
TO FRAME

36

2

31

24

25

24

30

110

86359770 - CS20 SCRUBBER

Squeegee - Disk

REF PART NO. QTY DESCRIPTION

1 86332060 4 RIV-NUT, HEX, 5/16-18X.562, CLEAR CAD
2 86327860 1 SQUEEGEE BLADE RETAINER ASSY
3 86327790 6 PLATE, WEIGHT, SQUEEGEE
4 86326520 2 SCR, 5/16-18 X 2.25 HHCS SS
5 86326510 1 PIVOT SHAFT, LATCH
6 86326490 4 SCR, 5/16-18 X 3.0 CARRIAGE SS
7 86326480 4 SCR, 1/4-20 X 2.25 CARRIAGE SS
8 86326470 1 BRACE, SQUEEGEE COVER
9 86326460 1 CASTER, 1-5/8, 3/8-24 SHT STUD

10 86326450 1 RECEIVER, LATCH PLATE, SQUEEGEE

11 86326440 2 LIFT BRKT, BUMPER, SQUEEGEE
12 86326420 1 SPRING, RUBBER
13 86326400 1 RECEIVER, LATCH, SQUEEGEE
14 86326070 1 BLADE, SQUEEGEE, REAR, DURO 40
15 86326060 1 BLADE, SQUEEGEE, FRONT, DURO 40

- 86342050 BLADE, SQUGE, FRONT, URTHN 38A OPTION

- 86342060 BLADE, SQUGE, REAR, URTHN 38A OPTION
16 86323910 1 VACUUM TUBE, SQUEEGEE
17 86320730 1 COVER, SQUEEGEE-RH
18 86320720 1 COVER, SQUEEGEE-LH
19 86292500 4 WASHER, .324ID X .567OD X .057, SS
20 86001350 2 BUSHING, SPANNER .435 X 1.10
21 86011020 2 WHEEL, 3" DIA. CUSHION RUBBER
22 86010880 2 WHEEL, 1.5 OD X .31 ID X .75 W GRY
23 86010650 2 WASHER, #10 X 9/16 FLAT
24 86010630 4 WASHER, 1/4 X 5/8 FLAT SS
25 86278910 1 WASHER, 3/8 X 7/8 FLAT SS
26 86008660 2 COTTER, 5/16 RING
27 86275470 1 SCR, 10-32 X 5/8 PPHMS SS
28 86006270 2 PIN, CLEVIS 5/16 X 1.63 PLTD
29 86271840 2 NUT, 5/16-18 HEX NYLOCK THN SS
30 86005810 4 NUT, 1/4-20 HEX NYLOCK SS
31 86005800 1 NUT, 3/8-24 HEX JAM, PLTD
32 86271240 2 NUT, CAP, PUSH, .25"
33 86270990 1 NUT, 10-32 HEX NYLOCK SS
34 86219690 4 KNOB, 1.5 OD X 5/16-18
35 86332400 2 LIFT BRKT, DOUBLE SCRUB
36 86332460 2 LANYARD ASSY, COILED CABLE

- 86338160 - SQUEEGEE ASM, KIT GUM RUBBER COMPLETE

SERIAL NO.

FROM

NOTES

11186359770 - CS20 SCRUBBER

Squeegee - Cylindrical

1

2

22

4

5

6

7

8

9

10

21

12

20

12

13

14

19

15

16

17A

3

9

9

10

23

13

18

25

17B

26A
26B

112

86359770 - CS20 SCRUBBER

Squeegee - Cylindrical

REF PART NO. QTY DESCRIPTION

1 86348190 2 NUT, 5/16 PUSH, HAT STYLE, PLTD
2 86348080 1 BRACKET, CASTER, CYL SQG
3 86348070 1 BRACKET, LATCH, CYL SQG
4 86348060 3 PLATE, WEIGHT, CYL SQG
5 86348050 1 BRACKET, WEIGHT MOUNT
6 86348040 1 AXLE, CASTER, CYL SQG
7 86010880 2 WHEEL 1.5OD X .31ID X.75W GRY
8 86348020 2 BRACKET, DOUBLE SCRUB, CYL SQG
9 86330990 6 WASHER, 5/16 INT STAR, SS

10 86329560 4 SCR, M8x1.25x25MM LG, BSHCS, SS

11 86277130 2 SCR, 5/16-18X1.00 CARRIAGE SS
12 86271840 2 NUT, 5/16-18 HEX NYLOCK THN SS
13 86173330 2 WASHER, M5, FLAT, ISO7093, SS
14 86172950 4 SCR, M5X12, SHCS, ISO4762, SS
15 55152670 2 WHEEL, BUMPER
16 63212390 2 STAR GRIP VA Ø50X43

17A 86368590 1 BLADE, SQUEEGEE REAR 34” LINATEX
17B 86368570 1 BLADE, SQUEEGEE REAR 34” GUM

18 86024750 2 NUT, M5 HEX NYLOCK, SS
19 50942310 2 SLEEVE SUCTION BAR IN VA
20 50319910 1 END PIECE RIGHT
21 50319900 1 END PIECE LEFT
22 40353100 1 SUCTION BAR PRE-ASSEMBLED CURVED
23 86346020 1 VACUUM TUBE, SQUEEGEE
24 86372270 1 SQUEEGEE ASM. 22SP LINATEX COMPLETE
25 86349630 2 SCR, SET, M5 X 25MM, ISO4029, CP, SS

26A 86368580 1 BLADE, SQUEEGEE FRONT 30” LINATEX
26B 86368560 1 BLADE, SQUEEGEE FRONT 30” GUM

SERIAL NO.

FROM

NOTES

11386359770 - CS20 SCRUBBER

Squeegee Linkage - Cylindrical

1

2

3

4

5

6

7

8

9

10

11

12

13

14

16

15

17

18

19

21

20

22

23

24

25

114

86359770 - CS20 SCRUBBER

Squeegee Linkage - Cylindrical

REF PART NO. QTY DESCRIPTION

1 86347830 1 SPRING, TORSION .048, 180 DEGREE
2 86346500 1 SHAFT, LATCH, SQUEEGEE
3 86346480 1 BRACKET, LATCH, SQUEEGEE
4 86346440 1 BRACKET, SWIVEL MOUNT
5 86325200 1 BUSHING, 30mm, BRNZ
6 86319820 1 PIVOT, SQUEEGEE LINKAGE
7 86279070 2 WASHER, M6 FLAT
8 86273850 1 SCR, 1/4-20 X 2.00 HHCS SS
9 86271870 1 NUT, 1/4-20 HEX NYLOCK THIN SS

10 86271240 2 NUT, CAP, PUSH, .25"

11 86010630 2 WASHER, 1/4 X 5/8 FLAT SS
12 86005810 2 NUT, 1/4-20 HEX NYLOCK SS
13 86367530 1 BRKT, ADJ. SQUEEGEE MOUNT (*3)
14 86327700 2 5/16 X 5/8 LG SHOULDER BOLT, SS
15 86010630 2 WASHER 1/4 ID X 5/8 OD SS
16 86271870 2 NUT, 1/4-20 HEX NYLCK THIN SS
17 86348670 1 WASHER, 1.26ID X 1.70OD X .065 THK
18 86367600 1 PAD, WEAR, ADJ SQUEEGEE LIFT (*3)
19 86351350 2 WASHER, .260 X .625 X .031, NYL, BLK
20 86277130 1 SP SCREW 5/16-18X1.00 CARRIAGE SS (*3)
21 86010770 1 WASHER 7/16ID X1DX.08 FLT SS (*3)
22 86279630 1 WASHER, .344IDX1.13ODX.09T PLT (*3)
23 86270830 1 NUT 5/16-18 HEX NYLOCK SS (*3)
24 86367520 1 BRKT, DECK ADJUSTMENT (*3)
25 86372740 - SQUEEGEE LINKAGE ASSEMBLY

SERIAL NO

FROM

NOTES

*SEE SERIAL NUMBER PAGE.

11586359770 - CS20 SCRUBBER

Steering

1B

2

6B

7

4

5B

1A

2

3

4

5A

6A

116

86359770 - CS20 SCRUBBER

Steering

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1A 86259610 1 WHEEL STEERING 40 SPLINE HUB
1B 64357990 1 STEERING WHEEL DELUXE & CYLINDRICAL

2 86271610 1 NUT 5/8-18 HEX NYLOCK THN
3 86279420 1 WASHER,.75IDX1.25ODX.125THK NY

4 86228790 2 BEARING FLANGE .88ODX.75IDX.75
5A 86339320 1 SHAFT, STEERING KIT CS20
5B 86339330 SHAFT, STEERING ASM DELUXE & CYLINDRICAL
6A 86234810 1 COVER, STEERING WHEEL
6B 66403520 1 CAP STEERING WHEEL WINDSOR DELUXE & CYLINDRICAL

7 86333950 1 BEARING, .75ID X 1.0OD X .63 DELUXE & CYLINDRICAL

11786359770 - CS20 SCRUBBER

Vacuum

6

7

8

See maintenance section for motor
mounting details.

1

2

3

4

5

118

86359770 - CS20 SCRUBBER

Vacuum

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1 86273920 3 SCREW, 1/4-20 X 1.75 PPHMS SS

2 86010630 3 WASHER 1/4 ID X 5/8 OD SS

3 86264930 1 CABLE TIE, 3.5" UL/CSA

4 86327500 3 MOUNT, VIBRATION

5 86012210 1 VAC MOTOR, 36VDC 2ST TD

- 86135310 1 BRUSH SET, 24/36V VAC, WINDSOR
6 86217750 1 ELBOW, VAC MUFFLER 90 DEG DELUXE ONLY
7 86264940 1 CABLE TIE, 11.38" UL/CSA DELUXE ONLY
8 86222220 1 MUFFLER, VACUUM FOAM 172 DELUXE ONLY

11986359770 - CS20 SCRUBBER

Wiring - Battery

1A

2A

3

4

5

MAIN WIRING HARNESS

6

1B

2B

120

86359770 - CS20 SCRUBBER

Wiring - Battery

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1A 86329720 2 BATT, CBL, ASM, JUMPER
1B 86334280 2 CBL, 6GA 5/16" RING 15" NOT SHOWN
2A 86329710 1 BATT,CBL,ASM,W/ANDERSON
2B 86334270 1 CBL, BATT RING W/ANDERSON NOT SHOWN

3 86228400 3 BATTERY, 12V, 130AH

- 86328630 3 BATTERY, 12V 114A/H AGM NOT SHOWN
4 86270920 2 SP NUT, 6-32 HEX NYLOCK SS
5 86279450 2 WASHER, #6 FLAT SAE PLTD
6 86274710 2 SCR, 6-32 X 1.0 PPHMS
7 86271910 6 NUT, 5/16-18 FLEXLOCK NOT SHOWN
8 86006560 6 SCREW 5/16-18 X 1 HHCS SS NP NOT SHOWN

12186359770 - CS20 SCRUBBER

Wiring Diagram 1

9A or
9B

122

86359770 - CS20 SCRUBBER

Wiring Diagram 1

REF PART NO. QTY DESCRIPTION

1 86326170 1 HARNESS, OPERATOR PLATFORM
2 86344450 1 HARNESS, MAIN ACTUATOR
3 86333110 1 HARNESS, CS20 MAIN POT AND BRAKE
4 86333120 HARNESS, CS20 MAINCHARGER
5 86333130 1 HARNESS, CS20 MAIN TRACTION
6 86333140 1 HARNESS, CS20 MAIN VACUUM
7 86333150 1 HARNESS, CS20 MAIN BRUSH
8 86333160 1 HARNESS, CS20 MAIN POWER

9A 86333180 1 JUMPER, CHARGER INHIBIT
9B 86332680 1 HARNESS, CHARGER JUMPER
10 86333170 1 HARNESS, CS20 MAIN HORN

11 86346660 1 HARNESS, ROLLER BRUSH CYLINDRICAL ONLY
12 86362990 1 HARNESS, LOWER BRAKE
13 86365410 1 HARNESS, LOWER TRACTION

SERIAL NO.

FROM

NOTES

OPTIONAL ON-

BOARD CHARGER

12386359770 - CS20 SCRUBBER

Wiring Diagram 2

40

61

28

62

1415

6

415356

55

53

58

45 46 52

45

46

60

43

43

57

57 58

+-

68

68B

68A

5

64

63

S8

ROTARY

13

X12

1

63 3064

29 32 34 65 33

34

47-50

WY G B

A3

J1

J2

31

11-SW

3-RT
4-SW
5-RT
6-SW

12-RT

14-SW
15-RT
16-BL
17-GN
18-OR
19-BN
20-WS

OPEN

CHR/INT SW
OPEN
ACTUATOR
ACTUATOR
HORN
HORN
OPEN
OPEN
OPEN
OPEN

CHR/INT SW

OPEN

BRAKE SOL

BRAKE SOL

PLATFORM

PLATFORM

POT

POT-WIPER

POT

CONNECTOR X3 TO MAIN HARNESS

X11

X3

S5-X6

X7

X8

24/SW26/SW

BATT(-)X10 X13

25/RT 23/WS

X10 X13

BATT(+)

2

2

21/RT 22/SW

X9 X9

47-WS
48-GE
49-GN
50-BN

29-SW
32-GR
34-OR

ROTARY INPUT
ROTARY INPUT
ROTARY INPUT
ROTARY INPUT
OPEN
OPEN
OPEN
K5 COIL GND
SLOW/FAST INH
INHIBIT 1
INHIBIT 265-VI
CONTROL LOW33-SW

64-SW
63-RT

3-WS
4-SW

OPEN
OPEN
BATTERY GND
BATTERY POS
OPEN
OPEN
ACTUATOR
ACTUATOR
OPEN
OPEN
OPEN
H-BRIDGE INPUT30-RT

J2 J1

113

12 24

12

24

12

59

13

A2

27

27/RT

28/SW

3

2

1

56

A1

S1

S0

F1 F2 F3

H4

P1

30

30

87

87

S4

85

8586

86

X3

X1

X5

X4

K1 K2K5 K6

12

14 13

9

7568

3124

11 10

1

1

X2

K4

K3

GND

S3

4

8

5

6

9

1

2

3

11 12 13 14 15 16 17 18 19 201 234 567 8 910

1234567

891011121314

1

2

41

29 30 4221 3922 2335 2417 38

59441651192526LD445431

3 4 6 1112 1415 1819 20

16 17

65 33 39 40 41 18

38202832373436

26
25
24
23
22
21

11
35

36

52

12

61

37

51

124

86359770 - CS20 SCRUBBER

Wiring Diagram 2

REF PART NO. QTY DESCRIPTION

1 86357900 1 HARNESS, PANEL CS20
2 86352310 1 HARNESS, I-DRIVE GND
3 86354380 1 HARNESS, ROTARY SWITCH

REF DESCRIPTION

A1 DRIVE CONTROL
A2 RELAY BOARD
A3 PROCESSOR
F1 CIRCUIT BREAKER-BRUSH
F2 CIRCUIT BREAKER-VACUUM MOTOR
F3 CIRCUIT BREAKER-DRIVE CONTROL

G1-G3 BATTERY 12V/70Ah

H1 SIGNAL LAMPS REVERSE DIRECTION
H2 SIGNAL LAMPS DIRECTION FORWARD
H3 HORN
H4 LED-BATT.

K1 RELAYS-REVERSE DIRECTION
K2 RELAYS DIRECTION FORWARD
K3 RELAYS BRUSH MOTOR
K4 RELAYS VACUUM MOTOR
K5 REALYS ACTUATOR

K6 RELAYS MAIN
M1 BRUSH MOTOR
M2 VACUUM MOTOR
M3 TRACTION MOTOR
M4 LINEAR ACTUATOR MOTOR BRUSH / SQUEEGEE

S0 EMERGENCY SWITCH

S1 KEYSWITCH

S2 MICROSWITCH-PLATFORM

S3 BUTTOM REVERSE FORWARD

S4 HORN BUTTON

S5 MICROSWITCH-COVER

S8 PROGRAM SWITCH

S11 CHARGER

S-UP / S-DOWN MICROSWITCH

P1 HOURS METER

V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE

V-UP & V-DOWN DIODE-MOTOR M4

X1-X2-X3-X4-X5-X12 TERMINAL BLOCK

** X6-X7-X8-X11 DEUTSCH CONNECTOR

* X9-X10-X13 PACKARD CONNECTOR

X14 FASTON TERMINALS
X15 RING TERMINAL

Y1 BRAKE

Y2 ELECTOVALVE WATER

SERIAL NO.

FROM

NOTES

12586359770 - CS20 SCRUBBER

Wiring Diagram 3

pink

violet

green

gray

orange

yellow

blue

brown

white

black

red

WIRE COLOR

rs

vi

gn

gr

or

ge

bl

bn

ws

sw

rt

126

86359770 - CS20 SCRUBBER

REF DESCRIPTION

A1 DRIVE CONTROL

A2 RELAY BOARD

A3 PROCESSOR

F1 CIRCUIT BREAKER-BRUSH

F2 CIRCUIT BREAKER-VACUUM MOTOR

F3 CIRCUIT BREAKER-DRIVE CONTROL

G1-G3 BATTERY 12V/70Ah

H1 SIGNAL LAMPS REVERSE DIRECTION
H2 SIGNAL LAMPS DIRECTION FORWARD
H3 HORN
H4 LED-BATT.

K1 RELAYS-REVERSE DIRECTION

K2 RELAYS DIRECTION FORWARD

K3 RELAYS BRUSH MOTOR

K4 RELAYS VACUUM MOTOR

K5 REALYS ACTUATOR

K6 RELAYS MAIN
M1 BRUSH MOTOR
M2 VACUUM MOTOR
M3 TRACTION MOTOR
M4 LINEAR ACTUATOR MOTOR BRUSH / SQUEEGEE

S0 EMERGENCY SWITCH

S1 KEYSWITCH

S2 MICROSWITCH-PLATFORM

S3 BUTTOM REVERSE FORWARD

S4 HORN BUTTON

S5 MICROSWITCH-COVER

S8 PROGRAM SWITCH

S11 CHARGER

S-UP / S-DOWN MICROSWITCH

P1 HOURS METER

V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE

V-UP & V-DOWN DIODE-MOTOR M4

X1-X2-X3-X4-X5-X12 TERMINAL BLOCK

** X6-X7-X8-X11 DEUTSCH CONNECTOR

* X9-X10-X13 PACKARD CONNECTOR

X14 FASTON TERMINALS
X15 RING TERMINAL

Y1 BRAKE

Y2 ELECTOVALVE WATER

Wiring Diagram 3

12786359770 - CS20 SCRUBBER

Wiring Diagram 4

128

86359770 - CS20 SCRUBBER

REF DESCRIPTION

A1 DRIVE CONTROL

A2 RELAY BOARD

A3 PROCESSOR

F1 CIRCUIT BREAKER-BRUSH

F2 CIRCUIT BREAKER-VACUUM MOTOR

F3 CIRCUIT BREAKER-DRIVE CONTROL

G1-G3 BATTERY 12V/70Ah

H1 SIGNAL LAMPS REVERSE DIRECTION
H2 SIGNAL LAMPS DIRECTION FORWARD
H3 HORN
H4 LED-BATT.

K1 RELAYS-REVERSE DIRECTION

K2 RELAYS DIRECTION FORWARD

K3 RELAYS BRUSH MOTOR

K4 RELAYS VACUUM MOTOR

K5 REALYS ACTUATOR

K6 RELAYS MAIN
M1 BRUSH MOTOR
M2 VACUUM MOTOR
M3 TRACTION MOTOR
M4 LINEAR ACTUATOR MOTOR BRUSH / SQUEEGEE

S0 EMERGENCY SWITCH

S1 KEYSWITCH

S2 MICROSWITCH-PLATFORM

S3 BUTTOM REVERSE FORWARD

S4 HORN BUTTON

S5 MICROSWITCH-COVER

S8 PROGRAM SWITCH

S11 CHARGER

S-UP / S-DOWN MICROSWITCH

P1 HOURS METER

V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE

V-UP & V-DOWN DIODE-MOTOR M4

X1-X2-X3-X4-X5-X12 TERMINAL BLOCK

** X6-X7-X8-X11 DEUTSCH CONNECTOR

* X9-X10-X13 PACKARD CONNECTOR

X14 FASTON TERMINALS
X15 RING TERMINAL

Y1 BRAKE

Y2 ELECTOVALVE WATER

Wiring Diagram 4

12986359770 - CS20 SCRUBBER

Wiring Diagram 5

THROTTLE LOW

REFERENZ

THROTTLE HIGH

REFERENZ

i-DRIVE

i 36-70

36VDC/ 70A

130

86359770 - CS20 SCRUBBER

REF DESCRIPTION

A1 DRIVE CONTROL

A2 RELAY BOARD

A3 PROCESSOR

F1 CIRCUIT BREAKER-BRUSH

F2 CIRCUIT BREAKER-VACUUM MOTOR

F3 CIRCUIT BREAKER-DRIVE CONTROL

G1-G3 BATTERY 12V/70Ah

H1 SIGNAL LAMPS REVERSE DIRECTION
H2 SIGNAL LAMPS DIRECTION FORWARD
H3 HORN
H4 LED-BATT.

K1 RELAYS-REVERSE DIRECTION

K2 RELAYS DIRECTION FORWARD

K3 RELAYS BRUSH MOTOR

K4 RELAYS VACUUM MOTOR

K5 REALYS ACTUATOR

K6 RELAYS MAIN
M1 BRUSH MOTOR
M2 VACUUM MOTOR
M3 TRACTION MOTOR
M4 LINEAR ACTUATOR MOTOR BRUSH / SQUEEGEE

S0 EMERGENCY SWITCH

S1 KEYSWITCH

S2 MICROSWITCH-PLATFORM

S3 BUTTOM REVERSE FORWARD

S4 HORN BUTTON

S5 MICROSWITCH-COVER

S8 PROGRAM SWITCH

S11 CHARGER

S-UP / S-DOWN MICROSWITCH

P1 HOURS METER

V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE

V-UP & V-DOWN DIODE-MOTOR M4

X1-X2-X3-X4-X5-X12 TERMINAL BLOCK

** X6-X7-X8-X11 DEUTSCH CONNECTOR

* X9-X10-X13 PACKARD CONNECTOR

X14 FASTON TERMINALS
X15 RING TERMINAL

Y1 BRAKE

Y2 ELECTOVALVE WATER

Wiring Diagram 5

13186359770 - CS20 SCRUBBER

Wiring Diagram 6

i-DRIVE

i 36-70

36VDC/ 70A

132

86359770 - CS20 SCRUBBER

REF DESCRIPTION

A1 DRIVE CONTROL

A2 RELAY BOARD

A3 PROCESSOR

F1 CIRCUIT BREAKER-BRUSH

F2 CIRCUIT BREAKER-VACUUM MOTOR

F3 CIRCUIT BREAKER-DRIVE CONTROL

G1-G3 BATTERY 12V/70Ah

H1 SIGNAL LAMPS REVERSE DIRECTION
H2 SIGNAL LAMPS DIRECTION FORWARD
H3 HORN
H4 LED-BATT.

K1 RELAYS-REVERSE DIRECTION

K2 RELAYS DIRECTION FORWARD

K3 RELAYS BRUSH MOTOR

K4 RELAYS VACUUM MOTOR

K5 REALYS ACTUATOR

K6 RELAYS MAIN
M1 BRUSH MOTOR
M2 VACUUM MOTOR
M3 TRACTION MOTOR
M4 LINEAR ACTUATOR MOTOR BRUSH / SQUEEGEE

S0 EMERGENCY SWITCH

S1 KEYSWITCH

S2 MICROSWITCH-PLATFORM

S3 BUTTOM REVERSE FORWARD

S4 HORN BUTTON

S5 MICROSWITCH-COVER

S8 PROGRAM SWITCH

S11 CHARGER

S-UP / S-DOWN MICROSWITCH

P1 HOURS METER

V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE

V-UP & V-DOWN DIODE-MOTOR M4

X1-X2-X3-X4-X5-X12 TERMINAL BLOCK

** X6-X7-X8-X11 DEUTSCH CONNECTOR

* X9-X10-X13 PACKARD CONNECTOR

X14 FASTON TERMINALS
X15 RING TERMINAL

Y1 BRAKE

Y2 ELECTOVALVE WATER

Wiring Diagram 6

13386359770 - CS20 SCRUBBER

Wiring Diagram 7

134

86359770 - CS20 SCRUBBER

REF DESCRIPTION

A1 DRIVE CONTROL

A2 RELAY BOARD

A3 PROCESSOR

F1 CIRCUIT BREAKER-BRUSH

F2 CIRCUIT BREAKER-VACUUM MOTOR

F3 CIRCUIT BREAKER-DRIVE CONTROL

G1-G3 BATTERY 12V/70Ah

H1 SIGNAL LAMPS REVERSE DIRECTION
H2 SIGNAL LAMPS DIRECTION FORWARD
H3 HORN
H4 LED-BATT.

K1 RELAYS-REVERSE DIRECTION

K2 RELAYS DIRECTION FORWARD

K3 RELAYS BRUSH MOTOR

K4 RELAYS VACUUM MOTOR

K5 REALYS ACTUATOR

K6 RELAYS MAIN
M1 BRUSH MOTOR
M2 VACUUM MOTOR
M3 TRACTION MOTOR
M4 LINEAR ACTUATOR MOTOR BRUSH / SQUEEGEE

S0 EMERGENCY SWITCH

S1 KEYSWITCH

S2 MICROSWITCH-PLATFORM

S3 BUTTOM REVERSE FORWARD

S4 HORN BUTTON

S5 MICROSWITCH-COVER

S8 PROGRAM SWITCH

S11 CHARGER

S-UP / S-DOWN MICROSWITCH

P1 HOURS METER

V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE

V-UP & V-DOWN DIODE-MOTOR M4

X1-X2-X3-X4-X5-X12 TERMINAL BLOCK

** X6-X7-X8-X11 DEUTSCH CONNECTOR

* X9-X10-X13 PACKARD CONNECTOR

X14 FASTON TERMINALS
X15 RING TERMINAL

Y1 BRAKE

Y2 ELECTOVALVE WATER

Wiring Diagram 7

13586359770 - CS20 SCRUBBER

Wiring Diagram 8

S3

H1/H2

i-DRIVE

i 36-70

36VDC/ 70A

i-DRIVE

i 36-70

36VDC/ 70A

136

86359770 - CS20 SCRUBBER

REF DESCRIPTION

A1 DRIVE CONTROL

A2 RELAY BOARD

A3 PROCESSOR

F1 CIRCUIT BREAKER-BRUSH

F2 CIRCUIT BREAKER-VACUUM MOTOR

F3 CIRCUIT BREAKER-DRIVE CONTROL

G1-G3 BATTERY 12V/70Ah

H1 SIGNAL LAMPS REVERSE DIRECTION
H2 SIGNAL LAMPS DIRECTION FORWARD
H3 HORN
H4 LED-BATT.

K1 RELAYS-REVERSE DIRECTION

K2 RELAYS DIRECTION FORWARD

K3 RELAYS BRUSH MOTOR

K4 RELAYS VACUUM MOTOR

K5 REALYS ACTUATOR

K6 RELAYS MAIN
M1 BRUSH MOTOR
M2 VACUUM MOTOR
M3 TRACTION MOTOR
M4 LINEAR ACTUATOR MOTOR BRUSH / SQUEEGEE

S0 EMERGENCY SWITCH

S1 KEYSWITCH

S2 MICROSWITCH-PLATFORM

S3 BUTTOM REVERSE FORWARD

S4 HORN BUTTON

S5 MICROSWITCH-COVER

S8 PROGRAM SWITCH

S11 CHARGER

S-UP / S-DOWN MICROSWITCH

P1 HOURS METER

V1-V2-V3-V4-V5-V6-V7-V8-V9 DIODE

V-UP & V-DOWN DIODE-MOTOR M4

X1-X2-X3-X4-X5-X12 TERMINAL BLOCK

** X6-X7-X8-X11 DEUTSCH CONNECTOR

* X9-X10-X13 PACKARD CONNECTOR

X14 FASTON TERMINALS
X15 RING TERMINAL

Y1 BRAKE

Y2 ELECTOVALVE WATER

Wiring Diagram 8

13786359770 - CS20 SCRUBBER

Suggested Spare Parts

PART NO. DESCRIPTION

86353680 BREAKER, 1.5A CARLING MAGNETIC
86328180 BREAKER, 12A, 250VAC, 32VDC
86316160 BREAKER, 18A, 250VAC, 32VDC
86002010 BOOT, 3/8 CIRCUIT BREAKER
86332510 BOOT, SEAL PUSH BUTTON 11MM
86313950 SWITCH, SPDT 3 POSN MOM, ARROW
86007170 SWITCH, KEY 2 POSITION
86302360 DRAIN HOSE
86199840 FLOAT SCREEN CAGE ASSY (SLIP)
86331980 BRUSH SET, 8.633-197.0 SCRUB MTR
86135310 BRUSH SET, 24/36V VAC, WINDSOR
86007970 STRAINER, 3/8 IN. NPT 60 MESH
86312920 GASKET, VAC MOTOR
86326200 GASKET, VACUUM INTAKE
86327850 GASKET, REC TANK 68”
86327840 GASKET, VAC MOUNT 27”
86327830 GASKET,.188X.31X41.0
86317980 GASKET, DOME
86326070 BLADE, SQUEEGEE, REAR, DURO 40
86326060 BLADE, SQUEEGEE, FRONT, DURO 40
86219690 KNOB, 1.5 OD X 5/16-18
86348190 NUT, 5/16 PUSH, HAT STYLE, PLTD CYLINDRICAL ONLY
86010880 WHEEL 1.5OD X .31ID X.75W GRY CYLINDRICAL ONLY
55152670 DEFLECTOR ROLL SUCTION BAR CYLINDRICAL ONLY
63212390 STAR GRIP VA Ø50x43 CYLINDRICAL ONLY
50319910 END PIECE RIGHT CYLINDRICAL ONLY
50319900 END PIECE LEFT CYLINDRICAL ONLY
63484670 TOOTHED BELT HTD-384-3M-20 CXPIII CYLINDRICAL ONLY
41002260 DRIVESHAFT COMPLETE CYLINDRICAL ONLY
51106860 SPACER SLEEVE CYLINDRICAL ONLY
50560100 ROCKER BR-VS CYLINDRICAL ONLY
56255070 BELT PULLEY 56Z CYLINDRICAL ONLY
40353810 SHAFT GEAR RIGHT CYLINDRICAL ONLY
86368590 BLADE, SQUEEGEE REAR 34” LINATEX CYLINDRICAL ONLY
86368580 BLADE, SQUEEGEE FRONT 30” LINATEX CYLINDRICAL ONLY
86368570 BLADE, SQUEEGEE REAR 34” GUM CYLINDRICAL ONLY
86368560 BLADE, SQUEEGEE FRONT 30” GUM CYLINDRICAL ONLY

SERIAL NO.

FROM

NOTES

138

86359770 - CS20 SCRUBBER

Serial Numbers

REF.

NO.

10061250002172, 10061300000029, 10061330002350, 10061340000041, 10061370000354,

1

10061380000387
10061250002240,10061300000046, 10061330002430, 10061340000050, 10061370000378,

2

10061380000447

3 10061300000037, 10061320000183, 10061340000046, 10061360000046

10061250002391, 10061300000073, 10061330002581, 10061340000507, 10061370000477,

4

10061380000504
10061250002491, 10061330002672, 10061370000568, 10061380000553, 10061300000087,

5

10061340000078

MODEL: SERIAL #

86359770 - CS20 SCRUBBER

139
