iCapsol
MODELS : CI24
10060170
CIE24
10060190
Operating Instructions (ENG)
Read these instructions before using the machine.
86037770-BT
08/20/12
MACHINE DATA LOG/OVERVIEW
MODEL _______________________________________
DATE OF PURCHASE __________________________
SERIAL NUMBER ______________________________
SALES REPRESENTATIVE # _____________________
YOUR DEALER
Name: __________________________________________________________________________________________________
Address: _______________________________________________________________________________________________
Phone Number: _________________________________________________________________________________________
OVERVIEW
The Chariot iCapsol is a battery powered, stand-on, carpet maintainer intended for
commercial use. The Chariot iCapsol Carpet Maintainer is designed to maintain your carpet
using the iCapsol Encapsulating Interim Carpet Cleaning Process. The machine has two
counter rotating brushes that help scrub chemical into the carpet. The chemical, Red Carpet
iCapsol Encapsulating Interim Cleaning Chemical, encapsulates the dirt, allowing both to be
vacuumed up once the chemical has dried. The brushes also help to raise the pile of the
carpet, giving it a lush groomed appearance.
2
86037770 CHARIOT INTERIM 02/27/07
Machine Data Log/Overview................................2
Table Of Contents................................................3
HOW TO USE THIS MANUAL
How To Use This Manual.....................................1-1
SAFETY
Important Safety Instructions ............................2-1
Hazard Intensity Level....................................... 2-2
Safety Label Location........................................2-3
OPERATIONS
Technical Specifications.................................... 3-1
How The Machine Works.................................. 3-3
Components...................................................... 3-4
Drive Controls ................................................... 3-5
Scrub Controls .................................................. 3-9
Machine Operation............................................ 3-11
Pre-Run Machine Inspection........................ 3-11
Starting Machine ..........................................3-11
Emergency Stop Procedures....................... 3-11
Filling Solution Tank..................................... 3-12
Normal Scrubbing.........................................3-12
To Begin Scrubbing...................................... 3-13
Priming Pump...............................................3-13
To Stop Scrubbing........................................3-14
Double Scrub................................................3-14
Emptying and Cleaning Tanks..................... 3-14
MAINTENANCE
Service Schedule.............................................. 4-1
Batteries............................................................4-2
Scrub Deck........................................................ 4-6
Scrub Brushes................................................... 4-9
Circuit Protection............................................... 4-11
Solution Strainer & Pump..................................4-12
Drive Motor & Brake.......................................... 4-14
Transporting Machine .......................................4-17
Machine Troubleshooting.................................. 4-18
TABLE OF CONTENTS
PARTS LIST
Bumper..............................................................5-1
Control Panel.....................................................5-3
Control Panel Housing ......................................5-5
Decal .................................................................5-7
Frame-Lower.....................................................5-9
Frame-Upper.....................................................5-11
Pedal Platform(From SN).............................5-13A-B
Pedal Platform(To SN).................................5-14A-B
Rear Cover........................................................5-17
Scrub Deck........................................................5-19
Scrub Deck Lift Actuator....................................5-21
Scrub Deck Lift Linkage ....................................5-23
Solution..............................................................5-25
Steering.............................................................5-27
Tank...................................................................5-29

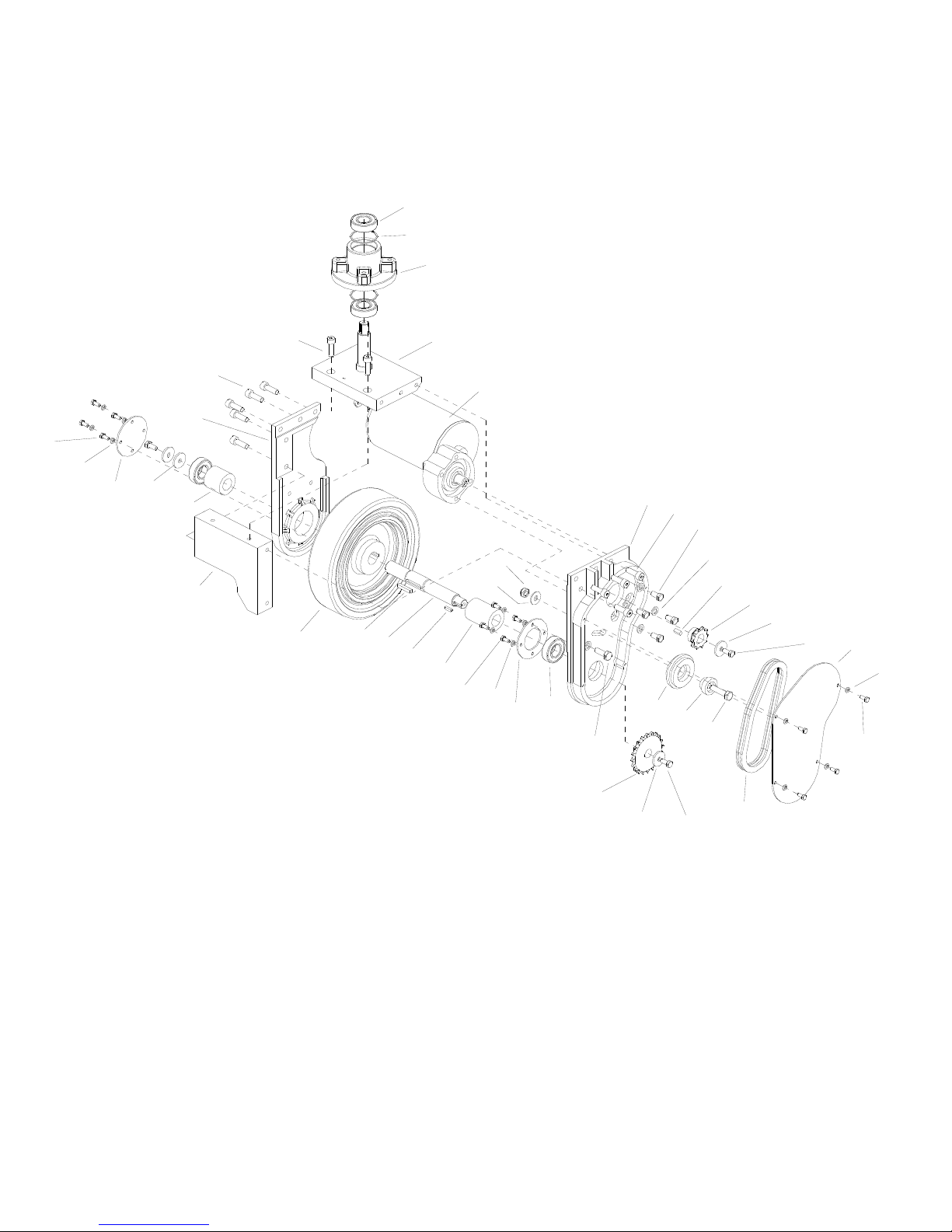

Wheel-Front Drive, Chain..................................5-31
Wheel-Front Brake............................................5-33
Wheel-Rear....................................................... 5-35

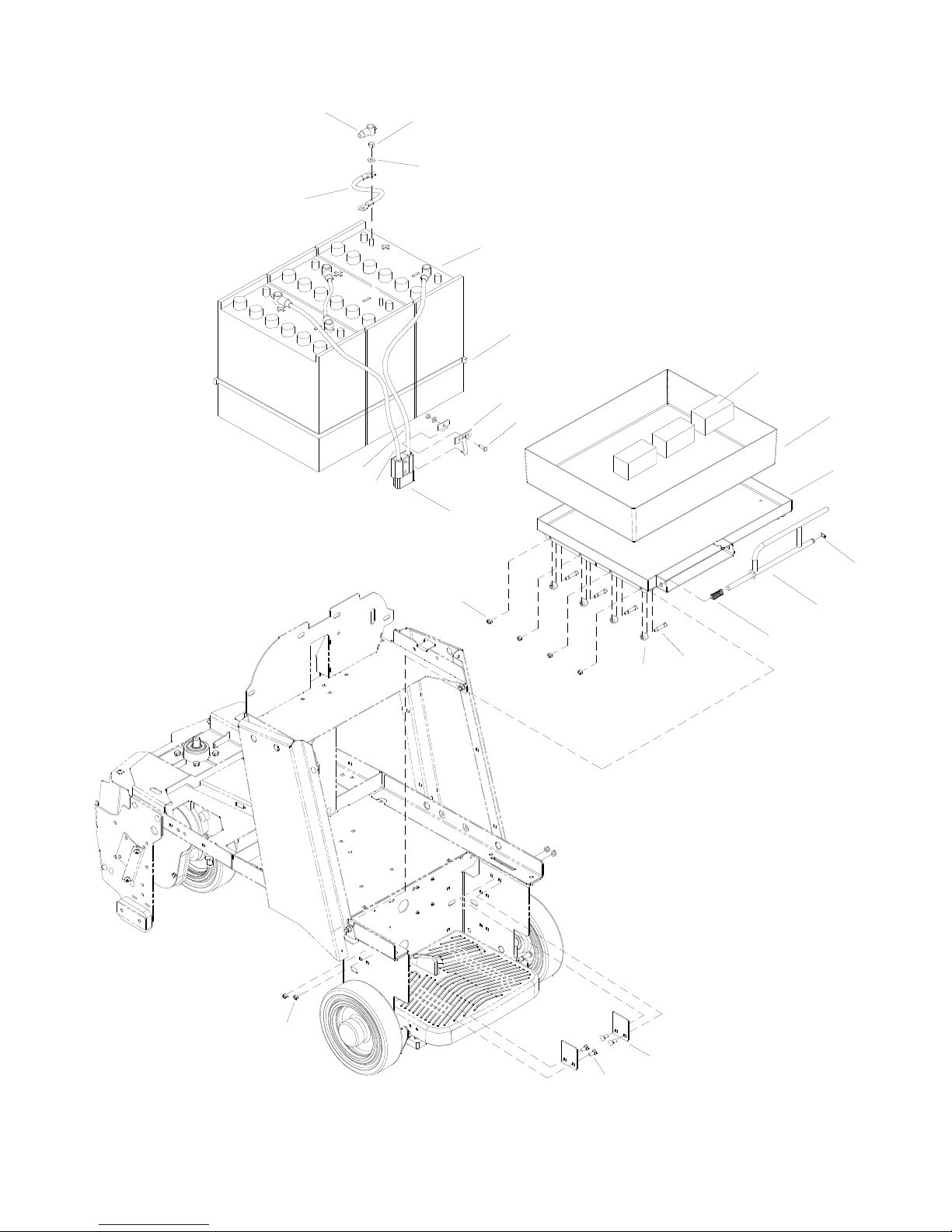

Wiring-Batteries.................................................5-37
Wiring-Components...........................................5-39
Wiring-Control Panel.........................................5-41
Wiring-Drive Motor ............................................5-43

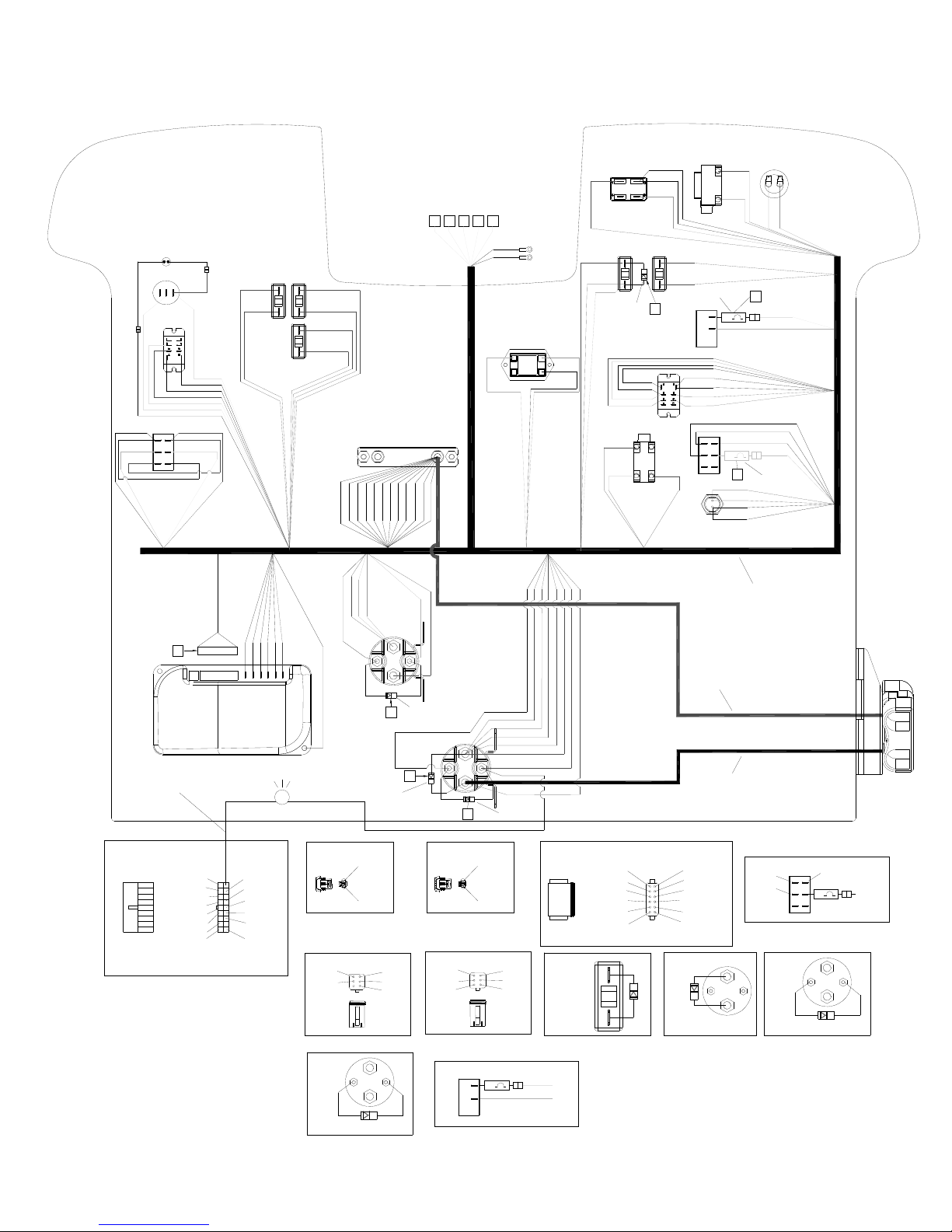

Wiring-Main Harness.........................................5-45
Wiring-Pedal Platform (From SN) ................5-47A-B
Wiring-Pedal Platform (To SN).....................5-48A-B
Wiring Diagram..................................................5-49
Hose Diagram ...................................................5-50
Suggested Spare Parts.....................................5-51

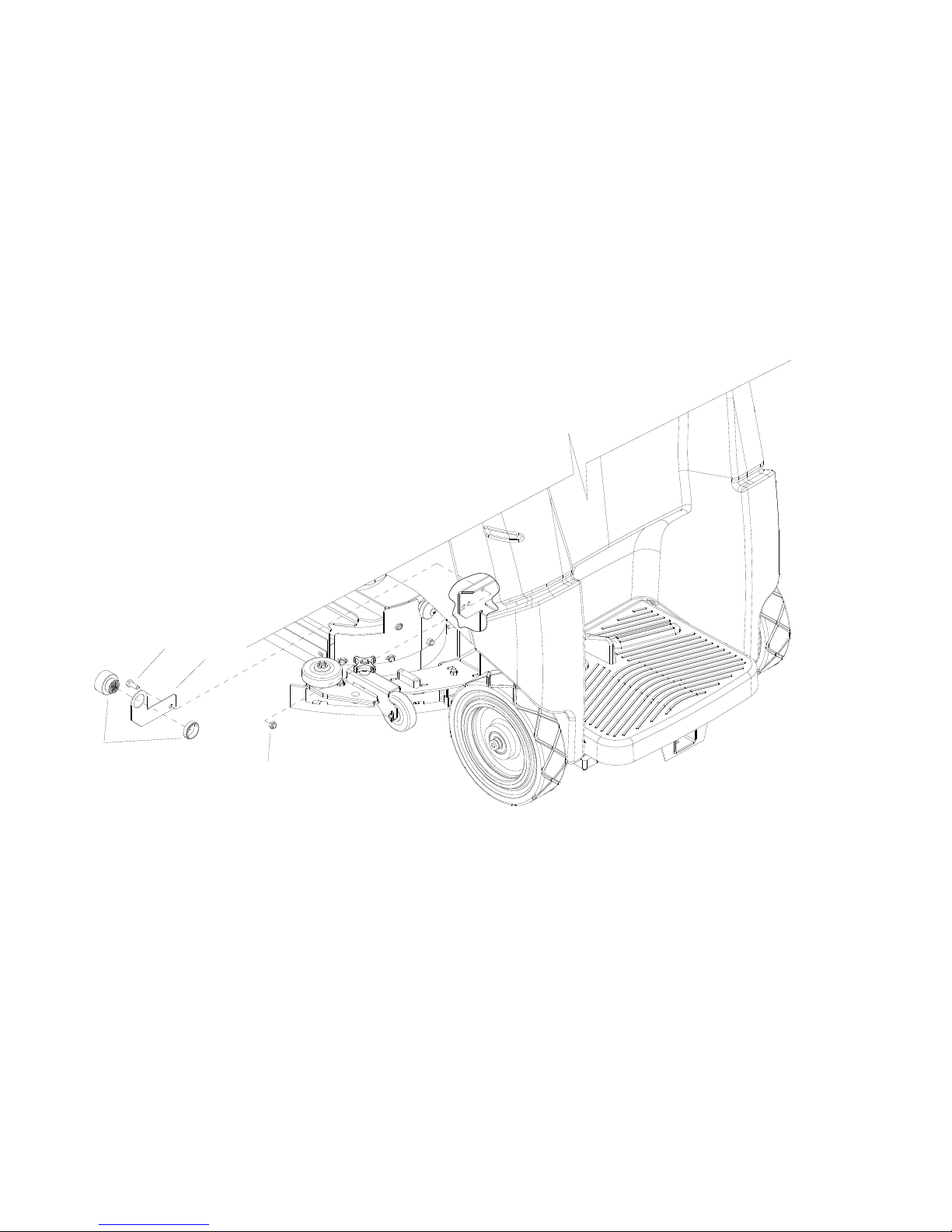

Back-Up Alarm – Option....................................5-53

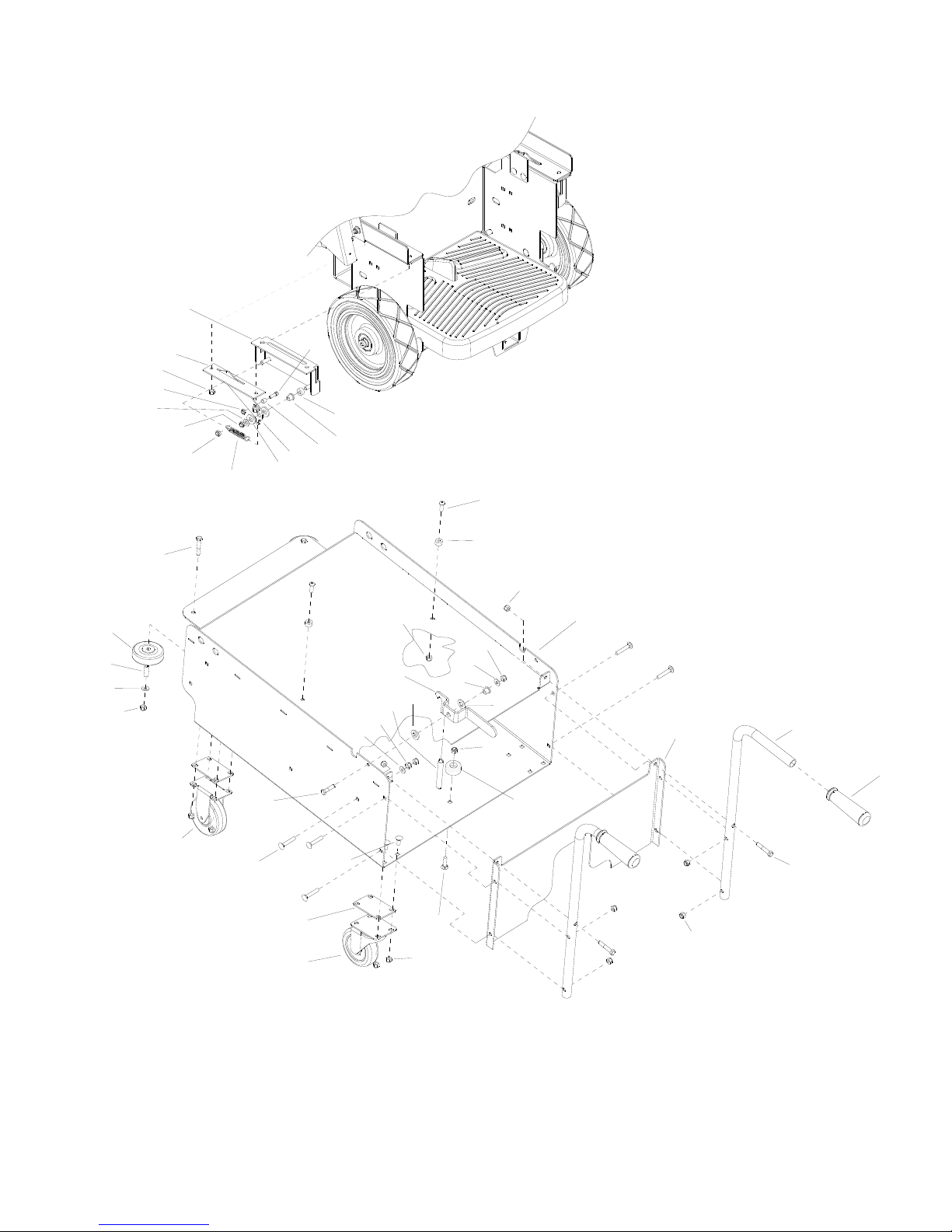

Battery Cart – Option.........................................5-55

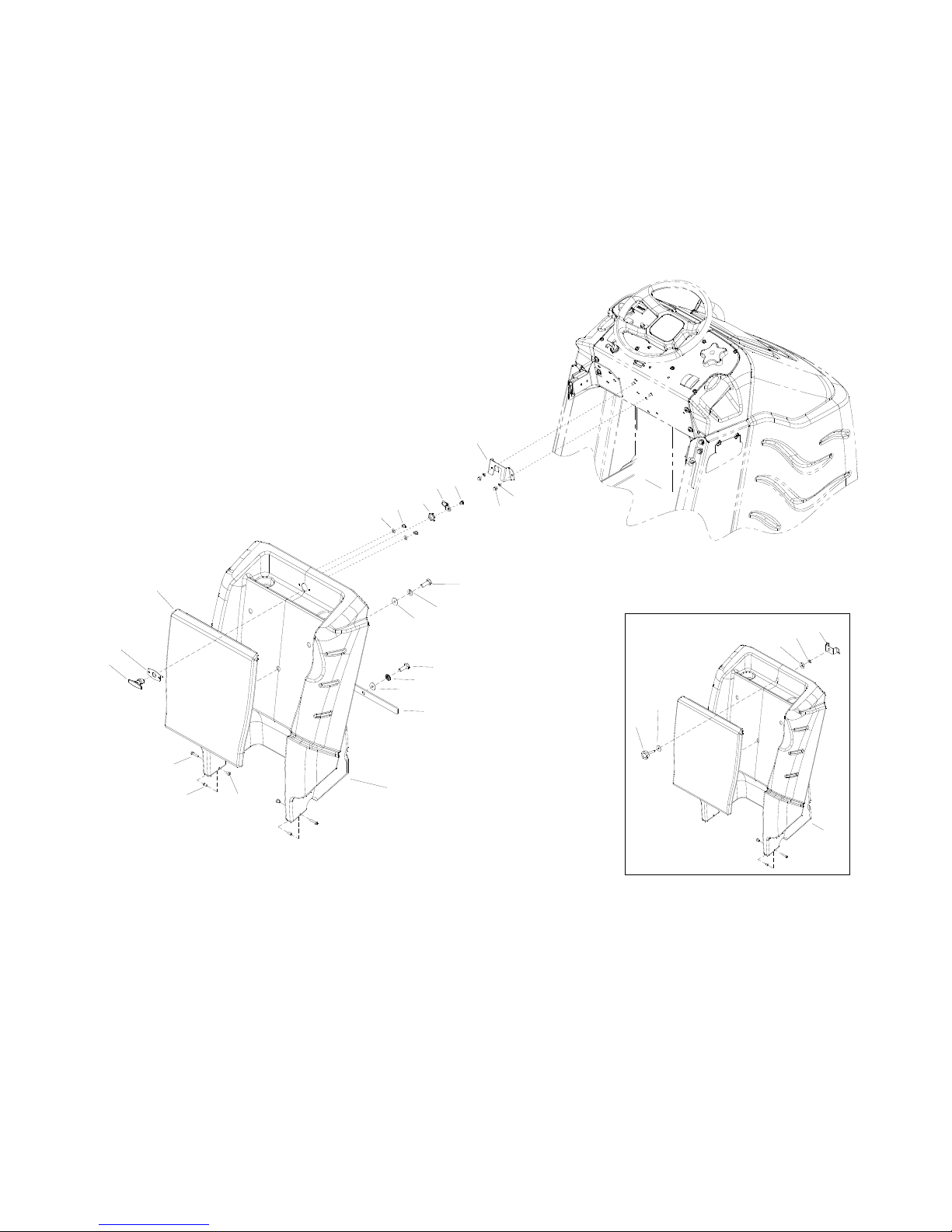

Seat – Option ....................................................5-59
Warning Light – Option......................................5-61
EC Declaration.................................................. 5-63
Serial Number ...................................................5-64
Warranty
86037770 CHARIOT INTERIM 11/18/09
3
PARTS
86037770 CHARIOT INTERIM 02/27/07
BUMPER
1
2
6
10
7
9
8
7
10
11
6
5
3
1
4
5-1
86037770 CHARIOT INTERIM 02/27/07
BUMPER
REF PART NO. PRV NO. QTY DESCRIPTION
1 86276890 70752 6 SCR, 5/16-18X 3/4 PTHMS SS
2 86007070 70849 2 SCR, 5/16-18X 1.00 PTHMS SS
3 86063230 140813 1 BUMPER, LEFT
4 86063240 140814 1 BUMPER, RIGHT
5 86071020 140783 1 BRKT, FRONT BUMPER
6 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
7 86010670 87029 4 WASHER, 5/16 FLAT SS
8 86070730 140729 2 BRKT, BUMPER MOUNT, SIDE
9 86197040 57264 4 NUT, 5/16-18 HEX ACORN PLTD
10 86279130 87083 4 WASHER, 5/16 SPLIT LOCK PLTD
11 86251750 67602 2 RISER, BUMPER
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-2
CONTROL PANEL
8
7
36
2
9
10
33
31
32
34
30
29
19
19
28
22
1
37
27
26
22
3
23
24
5
6
21
20
38
19
19
18
17
4
36
11
16
35
15
13
12
14
5-3
86037770 CHARIOT INTERIM 08/14/07
25
CONTROL PANEL
REF PART NO. PRV NO. QTY DESCRIPTION
1 86026010 82522 1 LIGHT, INDICATOR
2 86257150 72197 1 SWITCH, SPDT P-BUTTON
3 86002010 14942 3 BOOT, 3/8 CIRCUIT BREAKER
4 86007140 72130 1 SWITCH, SPST 2-POSITION ROCKER
5 86008900 80845 2 BOOT, SEAL-PUSH BUTTON 7/16-28
6 86223740 70872 4 SCR, 1/4-20 X .59 PPHMS SS C
7 86005560 54199 1 METER, 36V LED BATTERY
8 86007180 72160 1 SWITCH, EMERGENCY STOP
9 86257280 81371 1 SWITCH, PUSH BUTTON
10 86007190 72161 1 SWITCH KEY DPST
11 86257140 72196 1 SWITCH ASM, SEALED PB RND GRN
12 86277480 70850 3 SCR, 5/16-18 X 1/2 PTHMS SS
13 86008760 80682 1 CONN, 175 DCA GRY W/ O TERMS
14 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS
15 86070720 140728 1 BRKT, BATT CONN, BASIC
16 86078240 66840 1 PANEL, CONTROL
17 86271840 57285 3 NUT, 5/16-18 HEX NYLOCK THIN SS
18 86251410 67506 1 RELAY, 15A 36V MINI
19 86255900 73538 8 STANDOFF, 6-32 X 5/8 HEX NYL
20 86005530 54154 1 METER, 12-48 VDC LED HOUR
21 86001910 14606 1 BREAKER, 30AMP
22 86002000 14717 2 BREAKER, 3AMP
23 86279300 87134 2 WASHER, #6 LOCK
24 86273990 70067 2 SCR, 6-32 X 3/8 PPHMS SS
25 86229770 140805 1 BLOCK, SHUNT MOUNT
26 86027710 270128 1 CONTROLLER, CHARIOT INTERIM
27 86270990 57090 2 NUT, 10-32 HEX NYLOCK SS
28 86251450 830962 1 RELAY, 15A 24V MINI
29 86279130 87083 4 WASHER, 5/16 SPLIT LOCK PLTD
30 86010760 87142 4 WASHER, .344X.69X.066 FLAT PLT
31 86005810 57245 4 NUT, 1/4-20 HEX NYLOCK SS
32 86005700 57104 4 NUT, 10-32 W/STAR WASHER PLTD
33 86271120 57125 4 NUT, 5/16-18 BRASS
34 86006370 67315 2 RELAY, 36VDC 100AMP HVY DUTY
35 86273820 70019 2 SCR, 1/4-20 X 1.25 HHCS
36 86007130 72128 2 SWITCH, DPDT 2-POSITION ROCKE R
37 86001730 140804 2 BREAKER, 18A 250VAC, 50VDC
38 86273980 70066 2 SCR, 10-32 X 3/4 PPHMS SS
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 08/14/07
5-4
CONTROL PANEL HOUSING
1
11
10
9
8
2
3
3
6
7
5
4
5-5
86037770 CHARIOT INTERIM 02/27/07
CONTROL PANEL HOUSING
REF PART NO. PRV NO. QTY DESCRIPTION
1 86005810 57245 4 NUT, 1/4-20 HEX NYLOCK SS
2 86276820 70740 6 SCR, 10-32 X 1/2 PTHMS BLK NP
3 86277480 70850 6 SCR, 5/16-18 X1/2 PTHMS SS
4 86070710 140726 1 BRKT, LEFT CONSOLE MOUNT
5 86237900 35278 3 GASKET, .125 X .25W X 23L
6 86062220 270117 1 CONSOLE
7 86070700 140725 1 BRKT, RIGHT CONSOLE MOUNT
8 86279750 87252 4 WASHER, RET, PUSHNUT, 5/16 BOLT
9 86089650 78524 4 TUBE, 5/8 OD X .357 ID X 1.57
10 86277420 70841 4 SCR, 5/16-18 X 2.5 PTHMS SS
11 86010630 87013 4 WASHER, 1/4 ID X 5/8 OD SS
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-6
DECAL
4
6
8
1
7
5
3
2
5-7
86037770 CHARIOT INTERIM 01/06/09
10
DECAL
REF PART NO. PRV NO. QTY DESCRIPTION
1 86004970 50990 1 LABEL, WINDSOR LOGO DOMED
2 86244790 501227 1 DECAL, CHARIOT, ICAPSOL LT WAS 500885
3 86245970 51456 1 LABEL, PANEL LEFT
4 86245960 51455 1 LABEL, PANEL, INTERIM, RIGHT
5 86244190 500882 1 LABEL, PANEL BASIC LEFT
6 86244330 501046 1 LABEL, 3-WAY VALVE
7 86243990 500780 1 LABEL, COVER PANEL
8 86244780 501226 1 DECAL, CHARIOT, ICAPSOL RT WAS 500884
9 OPEN
10 86298970 - 1 LABEL, CLEAN BRUSHES AND DECK
NOTE: See “SAFETY LABEL LOCATION” page for safety label information.
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 01/06/09
5-8
FRAME-LOWER
1
3
2
4
5
4
17
7
6
21
18
16
8
15
8
19
20
8
8
9
10
8
11
4
8
14
13
4
4
12
5-9
86037770 CHARIOT INTERIM 02/27/07
FRAME-LOWER
REF PART NO. PRV NO. QTY DESCRIPTION
1 86070750 140731 1 BRKT, LINKAGE, LEFT
2 86071130 140812 1 BRKT, TIP BRACE, LEFT, REAR
3 86070760 140733 1 BRKT, BRACE, LEFT FRONT
4 86276070 70593 16 SCR, 5/16-18 X 3/4 CARRIAGE SS
5 86092500 34428 1 FRAME, MAIN
6 86197040 57264 4 NUT, 5/16-18 HEX ACORN PLTD
7 86279130 87083 4 WASHER, 5/16 SPLIT LICK PLTD
8 86270830 57023 20 NUT, 5/16-18 HEX NYLOCK SS
9 86071120 140811 1 BRKT, TIP BRACE, RIGHT, REAR
10 86071430 140863 1 BRKT, BRACE, RGT FRONT
11 86070740 140730 1 BRKT, LINKAGE, RIGHT
12 86079320 620101 2 PLATE, PAD RETAINER
13 86064300 140790 2 PAD, TIPPING BAR
14 86010670 87029 4 WASHER, 5/16 FLAT SS
15 86091420 05251 1 AXLE, REAR WELDMENT
16 86088760 75458 1 TRAY, SLIDE, LEFT
17 86088750 75457 1 TRAY, SLIDE, RIGHT
18 86079290 620097 2 PLATE, REAR COVER ADJ.
19 86010630 87013 4 WASHER, 1/4 ID X 5/8 OD SS
20 86271870 57290 4 NUT, 1/4-20 HEX NYLOCK THIN SS
21 86276950 70772 4 SCR, 1/4-20 X 3/4 CARRIAGE SS
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-10

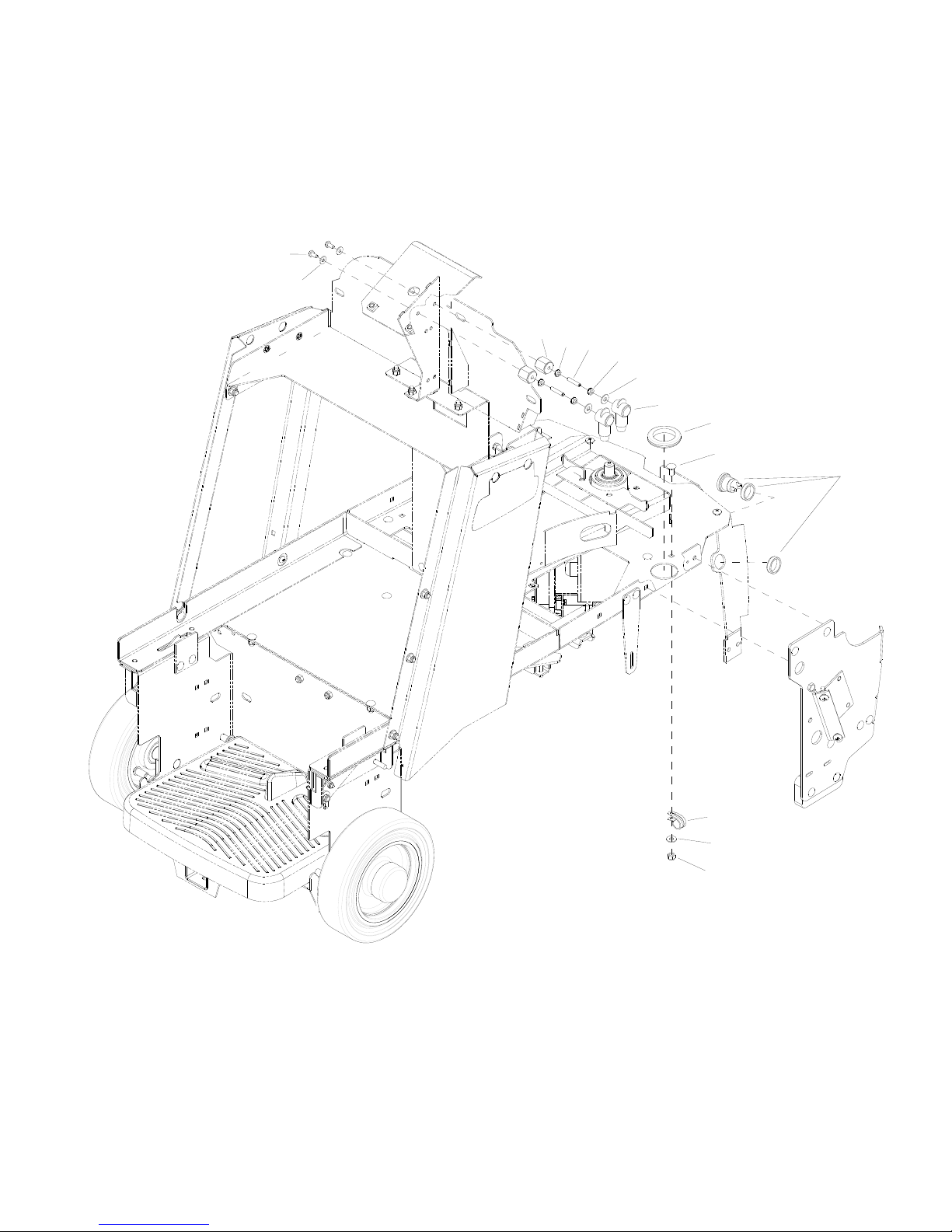

FRAME-UPPER
4
7
1
2
3
2
3
2
5
4
2
4
3
2
3
4
8
4
6
3
2
5-11
86037770 CHARIOT INTERIM 02/27/07
FRAME-UPPER
REF PART NO. PRV NO. QTY DESCRIPTION
1 86071360 140855 1 BRKT, HORIZ ELECT, BURNISHER
2 86270830 57023 12 NUT, 5/16-18 HEX NYLOCK SS
3 86010670 87029 10 WASHER, 5/16 FLAT SS
4 86276070 70593 10 SCR, 5/16 X 3/4 CARRIAGE SS
5 86083080 66437 1 PLATE, VERT BEARING SUPPORT
6 86074160 270101 1 CHANNEL, RIGHT DEL UXE
7 86073500 270090 1 BRKT, SIDE CHANNEL L
8 86277460 70847 2 SCR, 5/16-18 X 5/8 BSHCS SS
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-12
PEDAL PLATFORM-From Serial Number (10*)
18
16
19
25
2
1
22
15
21
8
9
17
30
29
22
15
6
14
4
24
10
5
3
12
28
26
13
11
23
27
5-13A
86037770 CHARIOT INTERIM 03/31/10
20
7
11
PEDAL PLATFORM-From Serial Number (10*)
SERIAL
REF PART NO. PRV NO. QTY DESCRIPTION
1 86233170 20054 2 CLAMP, 3/8 NYLON UL/CSA
2 86264920 27049 1 CABLE TIE, .19 X 7 UL/CSA
3 86222510 34430 1 PEDAL, THROTTLE
4 86221850 34433 1 LINK, THROTTLE
5 86136310 57086 1 NUT, M5 HEX
6 86312820 - 1 BRACKET, POT, SPEED
7 86288720 57277 1 NUT, M6 NYLOCK PLATED
8 86272040 57503 2 NUT, M3.5 X 2.8 HEX
9 86223260 66085 1 PLUNGER, PLATFORM SWITCH
10 86223580 67502 1 ROD, PIVOT, 8.5MM X 77
11 86274340 70179 7 SCR, M6 X 16 PH
12 86278060 70759 2 SET SCR, M4 X 4MM NP
13 86277360 70833 1 SCR, M6 X 10 PH
14 86277370 70834 1 SCR, M5 X 30 SHCS
15 86277380 70835 4 SCR, M4.8 X 16 PHTF
16 86277390 70836 2 SCR, M3.5 X 38 PH
17 86312770 - 1 PLATFORM
18 86007110 72123 1 SWITCH, 25A SPST 125-250V SNAP
19 86224750 73993 1 SPRING, COMP, .48OD X .91L
20 86279140 87085 6 WASHER,M6 SPLIT LOCK DIN127B
21 86279720 87248 2 WASHER, M4 INT STAR
22 86279730 87249 4 WASHER, M5 INT STAR
23 86224360 730325 1 SPACER 12.7MMOD X 2.78W X 6L
24 86224350 730305 1 SPACER, 8MM X 16LG
25 86333280 - 2 BUSHING, 8MM X 10 LG SS
26 86222780 620047 1 PLATE, PIVOT
27 86222810 620050 1 PLATE, COVER
28 86254970 730304 1 SPRING, COMP 18MM OD X 83 X 2
29 86137300 87084 2 WASHER, M5 SPLIT LOCK PLTD
30 86250280 66135 1 POTENTIOMETER 5K OHMS
NOTE: Complete platform assembly is available, Part No. 86028310.
**CALL MANUFACTURER FOR SERIAL NUMBER
*SEE SERIAL NUMBER PAGE.
NO.
FROM
NOTES
86037770 CHARIOT INTERIM 03/31/10
5-13B
PEDAL PLATFORM-To Serial Number (10*)
9
30
28
10
11
12
31
4
1
2
3
5
6
22
23
26
20
17
8
27
32
24
25
9
10
11
12
29
14
17
13
18
7
15
16
19
5-14A
86037770 CHARIOT INTERIM 11/18/09
21
20
17
PEDAL PLATFORM-To Serial Number (10*)
REF PART NO. PRV NO. QTY DESCRIPTION
1 86217650 34432 1 DIVIDER
2 86222700 34429 1 PLATFORM
3 86216380 140713 2 BUSHING, 8MM X 10LG CLY
4 86007110 72123 2 SWITCH, 25A SPST 125-250V SNAP
5 86279720 87248 4 WASHER, M4 INT STAR
6 86272040 57503 4 NUT, M3.5 X 2.8 HEX
7 86223580 67502 2 ROD, PIVOT, 8.5MM X 77
8 86222520 34431 1 PEDAL, BRAKE
9 86277390 70836 4 SCR, M3.5 X 38 PHMS
10 86233170 20054 3 CLAMP, 3/8 NYLON UL/CSA
11 86279730 87249 4 WASHER, M5 INT STAR
12 86277380 70835 4 SCR, M4.8 X 16 PHTF
13 86222510 34430 1 PEDAL, THROTTLE
14 86254970 730304 2 SPRING, COMP 18MM OD X 83 X 2
15 86222780 620047 2 PLATE, PIVOT
16 86277360 70833 2 SCR, M6 X 10 PH
17 86274340 70179 11 SCR, M6 X 16 PH
18 86224360 730325 2 SPACER 12.7MM ID X 2.78W X 6L
19 86222810 620050 1 PLATE, COVER
20 86279140 87085 9 WASHER, M6 SPLIT LOCK DIN127B
21 86288720 57277 2 NUT, M6 NYLOCK PLATED
22 86250280 66135 1 POTENTIOMETER, 5K OHMS
23 86222790 620048 1 PLATE, THROTTLE
24 86278060 70759 2 SET SCR, M4 X 4MM NP
25 86224350 730305 1 SPACER, 8MM 16L
26 86277370 70834 1 SCR, M5 X 30 SHCS
27 86221850 34433 1 LINK, THROTTLE
28 86218810 23717 1 HARNESS, TWISTER PEDAL
29 86136310 57086 1 NUT, M5 HEX
30 86264920 27049 1 CABLE TIE, 7” UL/CSA
31 86224750 73993 1 SPRING, COMP, .480D X .91 *(1)
32 86223260 66085 1 PLUNGER, PLATFORM SWITCH *(1)
* SEE SERIAL NUMBER PAGE
**CALL MANUFACTURER FOR SERIAL NUMBER
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 11/18/09
5-14B
PEDAL PLATFORM
18
14
2
3
17
16
6
6
15
1
11
14
13
10
11
12
20
19
12
9
7
4
5
8
8
5
5-15
86037770 CHARIOT INTERIM 11/18/09
PEDAL PLATFORM
REF PART NO. PRV NO. QTY DESCRIPTION
1 86277430 70843 1 SCR, 1/4-20 X 3.00 SHCS
2 86274690 70258 2 SCR, 5/16-18 X 1.5 HHCS GR5PLT
3 86264920 27049 3 CABLE TIE, 7” UL/CSA
4 86231070 730328 2 BUMPER, 1 X 1.375 RUBBER
5 86010670 87029 5 WASHER, 5/16 FLAT SS
6 86259430 87485 4 M12 FLAT WASHER
7 86010770 87143 2 WASHER, 7/16ID X1D.08 FLT SS
8 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
9 86256470 70852 2 STUB AXLE, M12-1.75 X 45MM
10 86005810 57245 1 NUT, 1/4-20 HEX NYLOCK SS
11 86010810 87191 2 WASHER, 1/4” IDX1.0OD FLAT SS
12 86064480 629993 1 PLATE, SWITCH BASE
13 86286580 47479 1 SPACER, ACTUATOR SWITCH Was 730334
14 86007780 73576 1 SPRING, COMP .60D X2.0L X .045W
15 86279760 87256 2 WASHER, 1/4 LOCK HICOLLAR PLT
16 86259440 87486 2 WASHER, M12 SPRING LOCK
17 86271190 57142 2 NUT, M12 X 1.75 HEX DIN934 PLT
18 86248920 66487 1 PIN, CLEVIS 1/2 X 2.25 *(1)
19 86278850 80613 2 WASHER, .506 ID X .94D X .064 NYL *(1)
20 86008680 80607 1 COTTER, 1/2” RING *(1)
* SEE SERIAL NUMBER PAGE
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-16
REAR COVER
20
22
18
23
18
21
14
13
18
19
10
1
2
3
15
2
3
16
7
6
5
17
9
8
12
11
9
4
5-17
86037770 CHARIOT INTERIM 04/16/09
REAR COVER
REF PART NO. PRV NO. QTY DESCRIPTION
1 86276780 70728 3 SCR, 5/16-18 X 3/4 HHCS SS
2 86279130 87083 5 WASHER, 5/16 SPLIT LOCK PLTD
3 86010670 87029 5 WASHER, 5/16 FLAT SS
4 86031780 270082 1 COVER, REAR, DELUXE
5 86005860 57273 2 NUT, 1/4-20 X 12MM HEX BARREL
6 86228980 09152 2 BEARING FLANGED .377ID X .505OD
7 86275870 70556 2 SCR, 1/4-20 X 1.5” PPHMS SS WAS 70697
8 86242140 72193 1 KNOB, 3/8-16 X 1.5
9 86010770 87143 2 WASHER, 7/16ID X 1D X .08FLT SS
10 86248380 66433 1 PAD, FLAT LEANING
11 86005630 57022 1 NUT, 3/8-16 HEX NYLOCK THIN SS
12 86071030 140786 1 BRKT, ASSEMBLY, REAR COVER
13 86010780 87162 2 WASHER, 1/4 SPLIT LOCK
14 86271940 57299 2 NUT, 1/4-20 ACORN SS
15 86006560 70083 2 SCR, 5/16-18 X 1 HHCS SS
16 86066940 140891 1 BAR, COVER
17 86324320 - 1 REAR COVER, DELUXE *(9)
18 86324640 - 1 HANDLE, CAM LATCH *(9)
19 86324760 - 1 PLATE, COVER LATCH *(9)
20 86010630 87013 2 WASHER, 1/4 ID X 5/8 OD SS *(9)
21 86324340 - 1 BRKT, REAR COVER *(9)
22 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS *(9)
23 86324650 - 1 PAWL, HANDLE *(9)
*See Serial Number Page
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 04/16/09
5-18

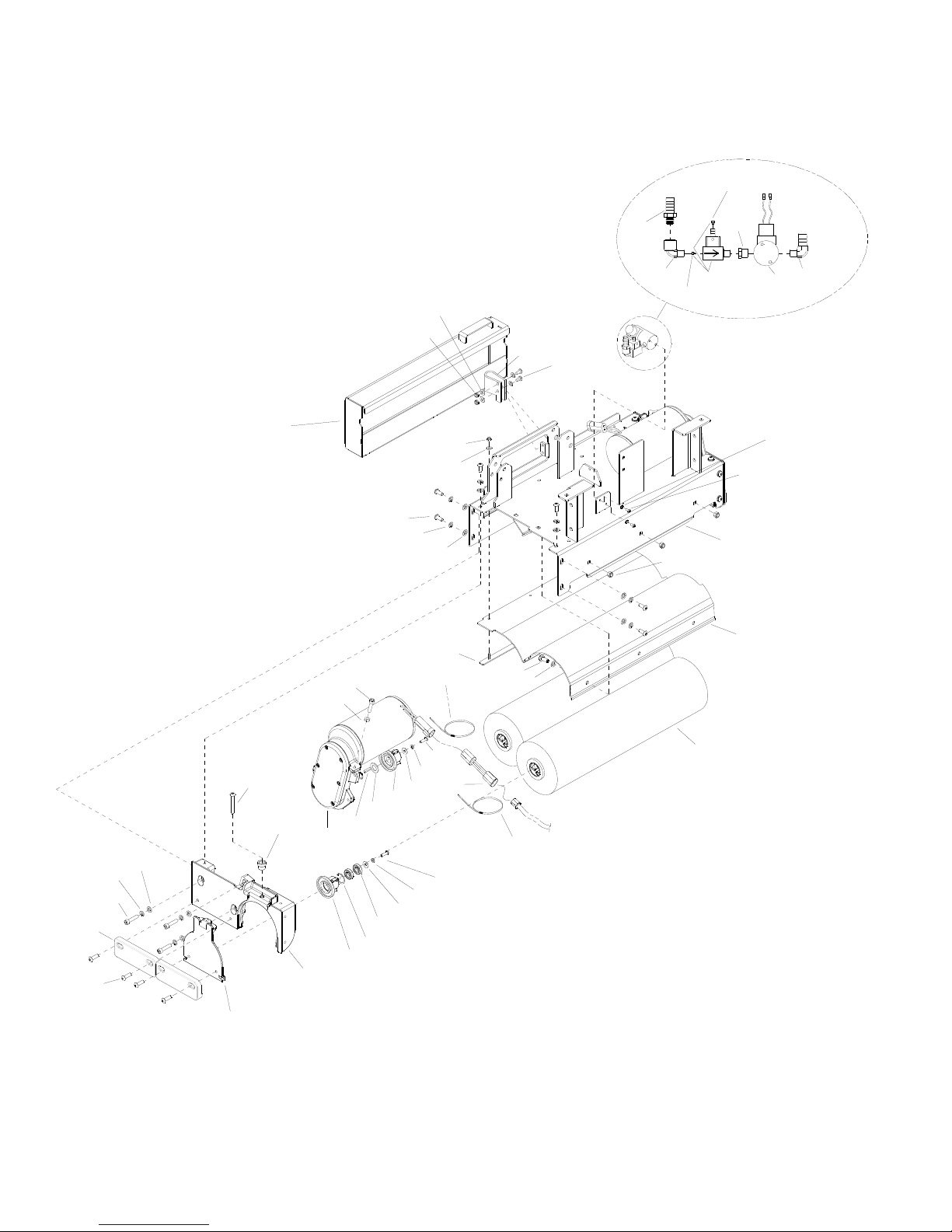

SCRUB DECK
27
21
34
35
18
17
22
23
16
48
19
15
20
14
24
16
25
26
32
28
31
33
3
4
5
6
30
2
29
10
5-19
44
41
45
42
42
43
43
44
1
FROM
MAIN
48
HARNESS
11
46
12
36
17
35
9
38
37
47
13
40
39
7
86037770 CHARIOT INTERIM 09/13/08
SCRUB DECK
REF PART NO PRV NO. QTY DESCRIPTION
1 86260400 880212 1 WIRE ASM, REV POLARITY JUMPER
2 86010640 87016 2 WASHER, #10 LOCK EXT STAR
3 86274290 70162 2 SCR, 10-32 X 3/8 PPHMS SS
4 86092530 34446 1 FRAME, INTERIM DECK 24 IN
5 86270830 57023 3 NUT, 5/16-18 HEX NYLOCK SS
6 86064010 29270 1 DEFLECTOR, MACHINED
7 86230500 02498 2 BRUSH, 24” CYL, C-NYLON
8 - OPEN - -
9 86277530 70861 8 SCR, MX X 1.25 X 20 LG BSHCS SS
10 86078060 149997 4 PAD, SKID BAR, LARGE
11 86277150 70797 2 SCR, 5/16-18 X 2 BSHCS SS
12 86242120 48090 2 KNOB, 1.0 OD X 5/16-18
13 86222110 53267 1 MOTOR, SP BRUSH DRIVE, 36V, 3/4 HP
- 86001360 140394 - BRUSH SET
- 86218170 35369 - GASKET, GEARBOX
14 86276780 70728 3 SCR, 5/16-18 X 3/4 HHCS SS
15 86086100 66859 1 RETAINER, DEFLECTOR
16 86010670 87029 12 WASHER, 5/16 FLAT SS
17 86137310 87098 18 WASHER, M8 SPLIT LOCK
18 86277530 70861 12 SCR, M8 X 1.25 X 20 LG BSHCS SS
19 86010650 87018 4 WASHER, #10 X 9/16 OD
20 86270990 57090 4 NUT, 10-32 HEX NYLOCK SS
21 86076790 41439 1 HOPPER, INT SCRUB DECK 14
22 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS
23 86010630 87013 4 WASHER, 1/4-20 ID X 5/8 OD SS
24 86255950 73869 1 STOP, MOUNT
25 86006530 70057 2 SCR, 1/4-20 X 1 PPHMS SS
26 86197570 40028 1 HOSEBARB, 1/4 MPT X 1/2 DL
27 86246990 54205 1 METERING TIP, PINK
28 86175890 11-800039 1 BUSH, 1/4 X 1/8 BR
29 86197630 40042 1 HOSEBARB, 1/4 MPT X 1/2 H 90 D
30 86028890 84098 1 VALVE, 115V CMD SOLENOID SVC
31 86241240 42091 1 INJECTOR, 200.3CT
32 86235430 31020 1 ELBOW, STREET, 1/4 FPT X 1/8 MPT
33 86259460 89277 1 WATER NOZZLE & ORING ASM
34 86222330 57504 2 NUT, M8 X 1.25 HEX JAM SS
35 86277880 70855 8 SCREW, M8-1.25 X 35 LG SHCS SS
36 86279790 87489 6 WASHER, M8 (THI CK) FLAT SS
37 86219290 34418 2 HOUSING, SCRUB PLUS DRIVE
38 86217710 29268 2 DOOR, CYLINDRICAL BRUSH
39 86219450 41488 2 HUB, BRUSH IDLER
40 86223520 67598 2 RING, 28MM INT SNAP PHOSPHATE
41 86228960 09149 4 BEARING, 15 X 28 X 7W SS BALL
42 86279770 87487 4 WASHER, M6 LARGE OD FLAT SS
43 86279140 87085 4 WASHER, M6 SPLIT LOCK DIN127B
44 86277870 70854 4 SCREW, M6-1.0 X 20 LG BHSCS SS
45 86219440 41487 2 HUB, BRUSH DRIVE
46 86279780 87488 2 WASHER, M16 SMALL OD FLAT SS
47 86004820 48041 2 KEY, 3/16 SQ X 7/8 CRS
48 86264940 27051 3 CABLE TIE, 11.38” UL/CSA
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT 09/13/08
5-20
SCRUB DECK LIFT ACTUATOR
30
27
26
31
25
9
24
22
23
22
2
3
1
28
29
4
5
6
7
5
9
8
10
11
12
5-21
32
35
33
34
2
2
41
39
36
37
12
38
9
10
21
40
13
19
18
14
15
16
17
5
7
20
86037770 CHARIOT INTERIM 02/27/07
SCRUB DECK LIFT ACTUATOR
REF PART NO. PRV NO. QTY DESCRIPTION
1 86006910 70443 2 SCR, 1/4-20 X 5/8 SHCS
2 86248980 81438 3 PIN, CLEVIS 3/8 X 1.75 PLTD
3 86011950 - 1 ACTUATOR, 36 VDC, 3.5 I N STRK *(2) WAS 05250
4 86066920 140852 1 BAR, COMP. SPRING RETAINER, IS
5 86005810 57245 5 NUT, 1/4-20 HEX NYLOCK SS
6 86231360 14744 2 BUSH, BRZ FLG .25 X .38 X .25
7 86010630 87013 4 WASHER, 1/4 ID X 5/8 OD SS
8 86277130 70795 1 SCR, 5/16-18 X 1.00 CARRIAGE SS
9 86010670 87029 6 WASHER, 5/16 FLAT SS
10 86270830 57023 3 NUT, 5/16-18 HEX NYLOCK SS
11 86069440 140442 1 BRKT, LATCH
12 86008670 80606 4 COTTER, 3/8” RING
13 86271280 57163 2 NUT, 4-40 W/STAR WASHER
14 86007160 72157 1 SWITCH, 10A ROLLER MI NI
15 86087520 73456 2 SPACER, L2020B PLUNGER SWITCH
16 86072460 14387 1 BRKT, MICROSWITCH MOUNT
17 86276010 70580 2 SCR, 4-40 X 1.0 PPHMS
18 86270270 27721 2 CLIP, RETAINING 7/16
19 86007780 73576 1 SPRING, COMP. .60 D X 2.0 L X .045 W
20 86250230 66266 1 PLUNGER, MICROSWITCH
21 86277500 70853 2 SCR, 1/4-20 X 5/8 CARR SS
22 86259420 87232 4 WASHER, THRUST .511 ID X 1 OD BRO
23 86091840 140850 1 BRKT, ACTUATOR SLIDER
24 86228840 09124 2 BEARING, FLANGED .314 ID X .502 OD
25 86276760 70724 2 SCR, 5/16-18 X 1.25 BSHCS SS
26 86066910 140851 2 BAR, COMP. SPRING RETAINER, OS
27 86273920 70019 1 SCR, 1/4-20 X 1.25 HHCS
28 86090330 87258 2 WASHER, .804 ID X 1.25 OD X .179
29 86278400 730351 1 SPRING, COMP., 1.10 OD X 2.25 L X .148
30 86232680 270114 1 CHAIN, #41, 1/2” PITCH X 34 P
31 86009400 81873 1 CHAIN, #41 1/2” P MASTER LINK
32 86272520 66392 1 PIN, CLEVIS 3/8 X 2.75 PLTD
33 86276400 70642 1 SCR, 1/2-20 X 1 HHCS GR8 PLTD
34 86010680 87030 4 WASHER, 3/8 ID X 3/4 OD NYLON
35 86229000 09154 2 BEARING FLG, .377 ID X .502 OD X .500
36 86255650 81627 2 SPROCKET, #41 1/2” P 9T
37 86222270 57276 2 NUT, PUSH FLAT RD .51 ID
38 86005630 57022 1 NUT, 3/8-16 HEX NYLOCK THIN SS
39 86228910 09139 2 BEARING, FLANGED 3-.377 ID X .502 OD
40 86239160 41527 1 HARNESS, DECK SWITCH
41 86290090 - 1 GUARD, CHAIN *(3)
*SEE SERIAL NUMBER PAGE
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 09/14/07
5-22

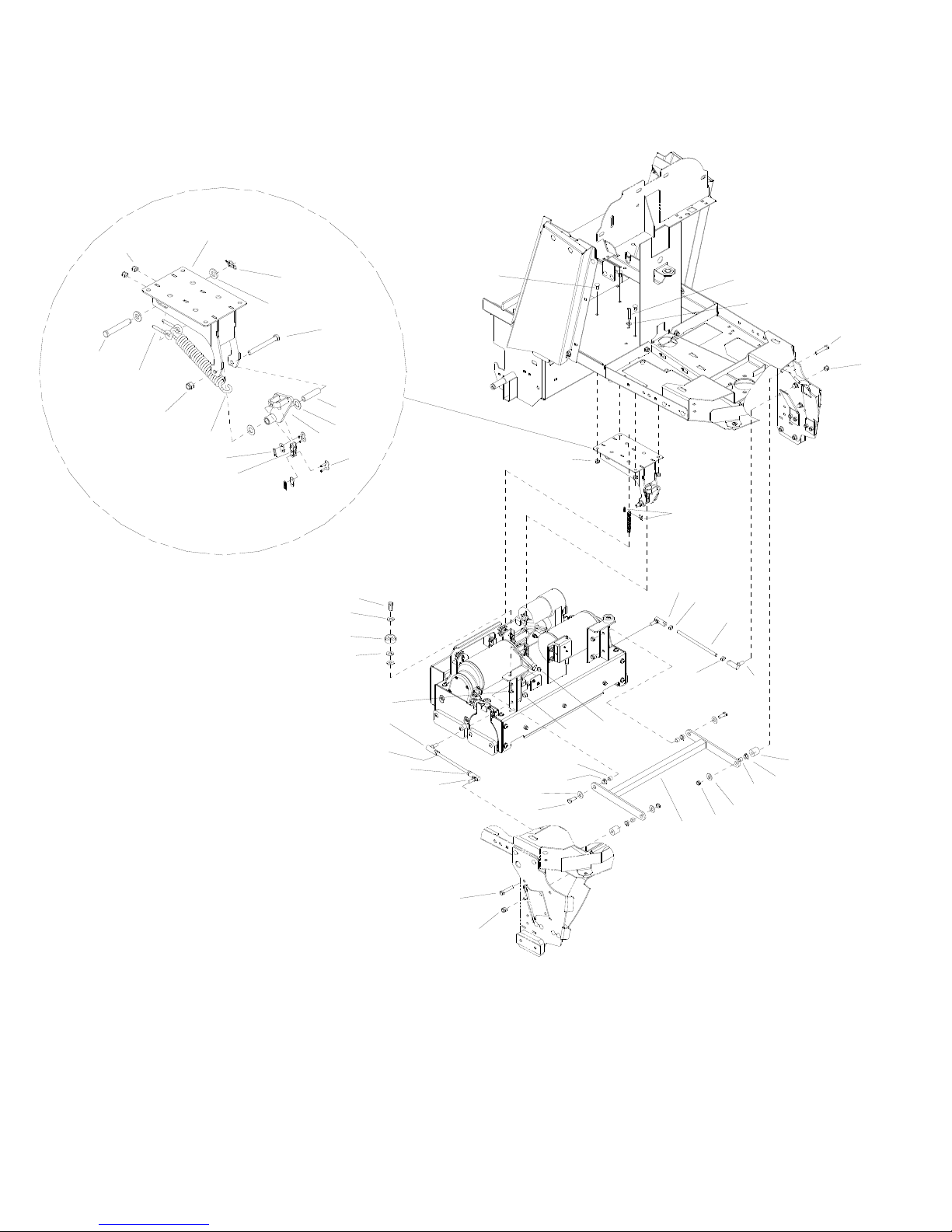

SCRUB DECK LIFT LINKAGE
30
29
31
13
27
32
33
34
25
26
24
35
18
20
3
23
22
28
33
11
12
21
1
6
7
12
9
13
5
19
16
15
3
17
9
8
11
13
10
2
3
4
5
8
14
15
16
3
5-23
86037770 CHARIOT INTERIM 02/27/07
4
5
SCRUB DECK LIFT LINKAGE
REF PART NO. PRV NO. QTY DESCRIPTION
1 86276070 70593 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
2 86272380 66217 1 PIN CLEVIS 3/8 X .75 PLTD
3 86010770 87143 9 WASHER, 7/16 ID X 1D X .08 FLT SS
4 86274010 70070 2 SCR, 3/8-16 X 2 HHCS
5 86271530 57216 4 NUT, 3/8-24 HEX NYLOCK
6 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
7 86009400 81873 1 CHAIN, #41 1/2” P MASTER LINK
8 86001320 140353 2 BALL JOINT ASSY, 3/8-24 LH
9 86005830 57263 2 NUT, 3/8-24 UNF LH
10 86223540 66483 2 ROD, SCRUB LIFT
11 86005800 57217 2 WASHER, 9/16 ID BENT
12 86008810 80697 2 BALL JOINT ASY, 3/8-24 RH
13 86005630 57022 5 NUT, 3/8-16 HEX NYLOCK THIN SS
14 86224380 730336 2 SPACER, 1 OD X .391 ID X 1.063
15 86009050 81324 4 BEARING, 1/2 ID X 11/32L NYLON
16 86008460 80102 4 SPACER, .500OD X .391ID X .400
17 86092820 140678 1 H-FRAME WELDMENT
18 86010670 87029 2 WASHER, 5/16 FLAT SS
19 86276920 70755 2 SCR, 3/8-16 X 1 HHCS SS NP
20 86231090 80809 2 BUMPER, RUBBER 5/16” ID X 1.50
21 86271840 57285 2 NUT, 5/16-18 HEX NYLOCK THIN SS
22 86009100 81396 2 WASHER, FIBERGLIDE 1/2” ID X 1” OD
23 86257830 66879 1 TUBE, .50 OD X .377 ID X 1.656 *(4) WAS 66854
24 86275840 70550 1 SCR, 3/8-16X2.5 HHCS GR5 PLT
25 86279260 87119 2 WASHER, .53ID X 1.OD X .060 PLTD
26 86008680 80607 1 COTTER, 1/2’ RING
27 86093550 66890 1 PIVOT ASSY, DECK LIFT *(4) WAS 66844
28 86006560 70083 2 SCR, 5/16-18 X 1 HHCS SS
29 86271870 57290 2 NUT, 1/4-20 HEX NYLOCK THIN SS
30 86272320 66151 1 PIN, CLEVIS 1/2 X 2.75 LG *(4) WAS 66486
31 86270310 70760 2 EYEBOLT, 1/4-20 X 1.5 PLTD
32 86254980 730312 1 SPRING, EXT 1.31D X 8.00L X .225W
33 86002850 27343 1 CHAIN, #40, 1/2”P MASTER LINK
34 86232820 27981 1 CHAIN, #40, 1/2 PITCH X 4 ROLLER
35 86093570 68022 1 PIVOT ARM, WELDMENT *(4) WAS 66846
*SEE SERIAL NUMBER PAGE
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-24

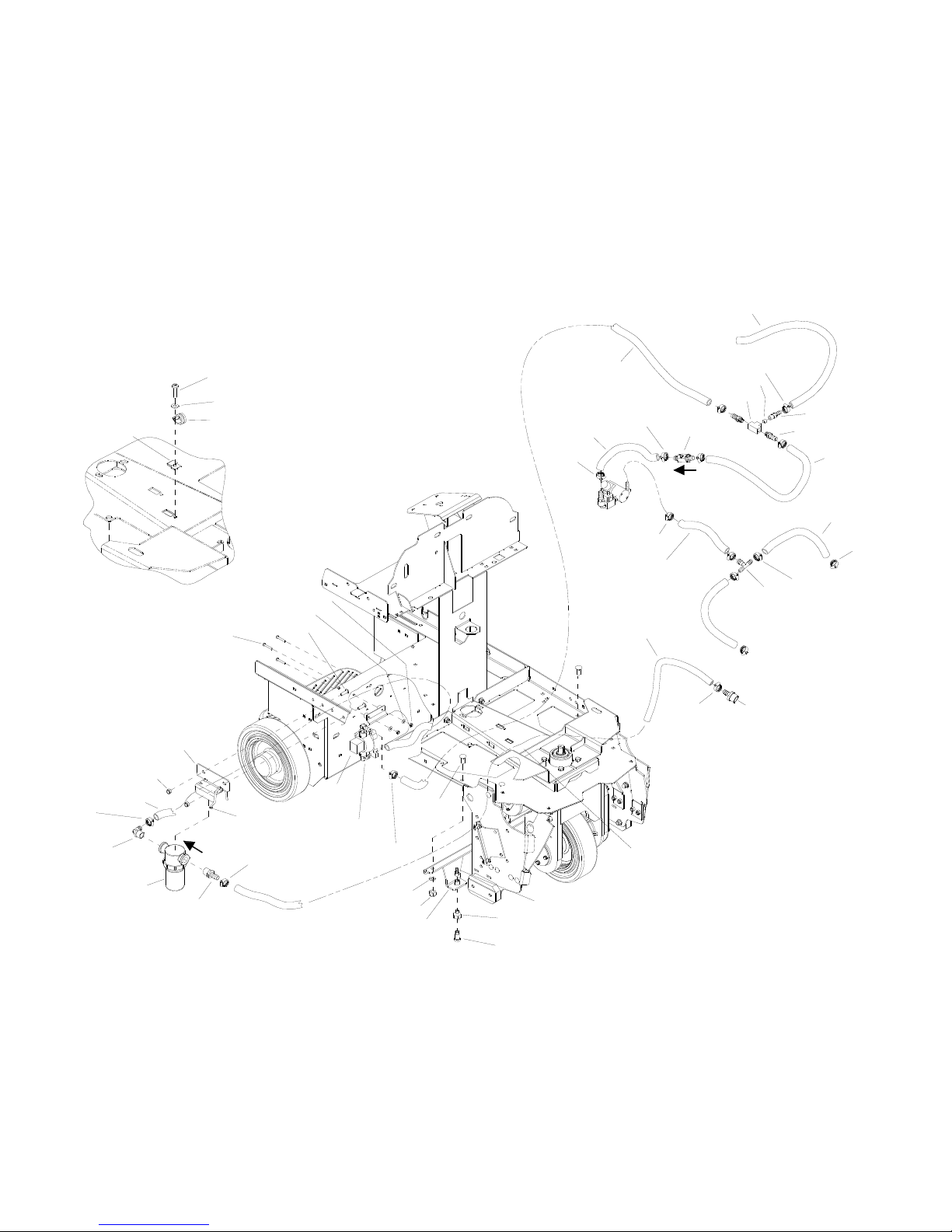

SOLUTION
32
13
33
30
2
TO TANK
1
10
3
3
11
3
4
5
6
7
1
DETAIL 'A'
1
3
26
25
18
27
24
28
23
(SOLENOID
ASM.)
31
30
29
22
20
21
3
3
19
18
17
14
15
16
3
10
12
3
SEE DETAIL "A"
9
TO SPRAY JETS
TO TANK ASM.
8
3
3
5-25
86037770 CHARIOT INTERIM 02/27/07
SOLUTION
REF PART NO. PRV NO. QTY DESCRIPTION
1 86280910 39174 3 HOSE, 1/2 ID WIREBOUND X 23”
2 86282310 39699 1 HOSE, 3/8 ID WIREBOUND X 35”
3 86233150 20042 17 CLAMP, 3/8 HOSE (D-SLOT)
4 86248130 59041 1 ORIFICE, 1/8 MPT PLUG W/.040
5 86201660 030-54 1 TEE 1/4 FEMALE
6 86240620 44105 1 HOSEBARB, 1/4 MPT X 3/8 INT THD
7 86197570 40028 2 HOSEBARB, 1/4 MPT X 1/2 DL
8 86281310 39326 2 HOSE, 3/8 ID WIREBOUND X 8.8”
9 86003580 34327 1 FITTING, 1/2” X 3/8” X 3/8” RED. T
10 86281100 39274 2 HOSE, 1/2 ID WIREBOUND X 7”
11 86258940 84188 1 VALVE, CHECK 1/2 HOSEBARB
12 86282320 39710 1 HOSE, 1/2 ID WIREBOUND X 49”
13 86274070 70086 1 SCR, 10-24 X 1/2 PPHMS SS
14 86181340 12-800208 2 FTTG, BRB 1/8 P X 3/8 H BR
15 86004570 44067 2 JET BODY, MINI PROMAX BODY * * WAS 44102
16 86014000 - 2 JET, MINI PROMAX 8001 * * WAS 44101
17 86070570 140677 1 BRKT, JET MOUNT
18 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
19 86010670 87029 2 WASHER, 5/16 FLAT SS
20 86276070 70593 2 SCR, 5/16-18 X 3/4 CARRIAGE SS
21 86197940 40027 2 HOSEBARB, 3/8 MPT X 1/2 90 D DL
22 86006100 65176 1 PUMP ASM, 36V ACCESSORY
23 86264920 27049 2 CABLE TIE, 7” UL/CSA
24 86197910 40022 1 HOSEBARB, 1/2 MPT X 1/2 POLY DL
25 86256120 730368 1 STRAINER, 1/2 FPT 100 MESH
- 86252980 730369 - SCREEN, 100 MESH
26 86001530 40039 1 HOSEBARB, 1/2 MPT X 1/2 HOSE 90 D
27 86068450 66860 1 BRACKET, STRAINER
28 86274410 70195 4 SCR, 10-32 X 1.25 PPHMS SS
29 86277460 70847 2 SCR, 5/16-18 X 5/8 BSHCS SS
30 86010650 87018 5 WASHER, #10 X 9/16 OD
31 86270990 57090 4 NUT, 10-32 HEX NYLOCK SS
32 86270860 57028 1 NUT, 10-24 U-TYPE SPEED
33 86233390 80887 1 CLAMP, 7/8 DIA “P” CUSHIONED
* * CALL MANUFACTURER FOR SERIAL NUMBER
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-26
STEERING
6
8
28
9
10
1
2
3
4
5
7
22
24
21
23
18
26
25
27
29
17
20
19
15
11
12
13
14
14
19
16
5-27
86037770 CHARIOT INTERIM 02/27/07
7
STEERING
REF PART NO. PRV NO. QTY DESCRIPTION
1 86271610 57228 1 NUT, 5/8-16 HEX NYLOCK THN
2 86234810 27945 1 COVER, STEERING WHEEL
3 86259610 730117 1 WHEEL, STEERING 40 SPLINE HUB
4 86224050 730318 1 SHAFT, UPPER STEERING
5 86228790 09111 1 BEARING, FLANGE .88ODX.75IDX.75
6 86091740 140720 1 BRKT, UPPER STEERING
7 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
8 86005610 57016 1 NUT, 7/8 DIA PUSHLOCK
9 86219600 45012 1 JOINT, UNIVERSAL FEMALE
10 86272900 67416 1 RING, 3/4” KLIP
11 86224060 730319 1 SHAFT, LOWER STEERING
12 86219650 48110 1 KEY, 5MM SQ X 39MM L
13 86228670 09072 1 BEARING, 3/4” BORE FLANGED
14 86276070 70593 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
15 86224800 730315 1 SPROCKET, STEERING SHAFT
16 86010670 87029 2 WASHER, 5/16 FLAT SS
17 86135970 48045 1 KEY, 3/16 SQ X 5/8 LONG
18 86275190 70377 1 SCR, 3/8-16 X 1.25 HHCS SS
19 86008610 80595 2 FLANGE, BEARING PRESS STEEL
20 86001030 09148 1 BEARING, BALL 3/4 BORE SPHERED
21 86224320 730221 1 SPACER, .63 OD X .385ID X .64L
22 86224810 730316 1
23 86005630 57022 1 NUT, 3/8-16 HEX NYLOCK THIN SS
24 86002750 270088 1 CHAIN, ISO 08B, 12.7MM PITCH
25 86278940 87008 2 WASHER, 1/4 ID X 1-1/4OD
26 86010780 87162 1 WASHER, 1/4 SPLIT LOCK PLTD
27 86274330 70175 1 SCR, M6 X 20HHMS PLTD
28 86279130 87083 2 WASHER, 5/16 SPLIT LOCK
29 8625320 70806 1 SET SCR, M6 X 25 NP
- 82327800 279001 - CHAIN, MASTERLINK 12.7MM
SPROCKET, DRIVE WHEEL
STEERING
SERIAL NO.
FROM
SERVICE
SERVICE
NOTES:
ONLY
ONLY
86037770 CHARIOT INTERIM 02/27/07
5-28
TANK
1
2
TO STRAINER
29
31
30
15
28
30
27
26
25
21
22
24
23
17
12
13
17
15
18
19
14
15
14
16
15
20
32A
32B
3
4
10
9
11
5
6
7
4
8
22
21
5-29
86037770 CHARIOT INTERIM 12/16/08
REF PART NO PRV NO. QTY DESCRIPTION
1 86282230 39622 1 HOSE, 1/4 ID NYLOBRD X 29”
2 86232140 270704 1
3 86236590 34448 1 FOOT FILTER
4 86275800 70546 14 SCR, 8 X 3/4 PFHT/S BLK ZINC
5 86006860 70403 2 SCR, #10 X 1/2 PPHST TYPE B SS
6 86073470 149998 1 BRKT, FULL LINE, INDICATOR
7 86002620 260-64A 1 ACCESS COVER CLEAR 6” W/RIM
8 86004000 35255 1 GASKET, TANK LID
9 86277560 70866 1 SCR, #6 X 1/2 SHT MTL SS
10 86246080 51368 1 LANYARD, 18.0 W/LOOP & EYE
11 86088620 75468 1 TANK, INTERIM, MACHINED
12 86233150 20042 1 CLAMP, 3/8 HOSE (D-SLOT)
13 86240490 40094 1 HOSEBARB, 1/4 MPT X 3/8 NYLON
14 86240570 40106 2 HOSEBARB, 1/4 MPT X 1/4 NYLON
15 86233090 20016 6 CLAMP, 1/4 ID HOSE
16 86062180 75466 1 BOTTLE HOLDER, TRIMMED
17 86282220 39621 2 HOSE, 1/4 ID NYLOBRD X 19”
18 86195000
19 86240610 44104 3 HOSEBARB, 1/8 MPT X 1/4 H 90 D
20 86078250 66855 1 PANEL, ON-OFF
21 86006760 70305 6 SCR, 5/16-18 X 3/4 HHCS GR5 PLTD
22 86279630 87212 6 WASHER, .344IDX1.13ODX.09T PLT
23 86257570 51407 1 TETHER, DRAIN HOSE, 1.5
24 86004260 39472 1 HOSE, 1.5 X 24.0 DRAIN
25 86247760 80960 1 NIPPLE, 3/4 CLOSE PVCE
26 86198050 81923 1 TEE, 3/4 FPT
27 86240400 40077 1 HOSEBARB, 3/4 MPT X 1/2 HOSE
28 86236760 34449 1 FTG, REDUCER 1” X 3/4”
29 86240580 40107 1 HOSEBARB, 1” FPT X 1 1/2 HOSE 90 D
30 86002390 20063 2 CLAMP, 1.75” WORM GEAR X .312
31 86328980 - 1 DRAIN CAP ASSEMBLY
32A 86952260 W450-4 1
32B 86952270 W455-4 -
33 86293460 - 1 GASKET, FOAM 42” X 1/2" X 1/8”
* * CALL MANUFACTURER FOR SERIAL NUMBER
15-
808022
CAP, CHEM, FEED 90 DEG W/DIP
TUBE
1 VALVE, 3-WAY BALL 1/8 FP
IRENEW ENCAPSULATING INTERIM
CARPET CLEANING
IRENEW ENCAPSULATING INTERIM
CLEANING WITH CARPET
PROTECTION
SERIAL NO.
FROM
SERVICE
* *
TANK
NOTES:
ONLY
86037770 CHARIOT INTERIM 11/03/09
5-30
WHEEL-FRONT DRIVE-CHAIN
1
2
3
18
17
33
35
32
31
20
9
9
4
5
8
9
10
6
7
11
12
13
14
30
29
28
27
26
18
17
25
1
22
23
24
36
15
16
17
18
5-31
86037770 CHARIOT INTERIM 08/19/09
21
14
15
19
WHEEL-FRONT DRIVE-CHAIN
REF PART NO. PRV NO. QTY DESCRIPTION
1 86223980 09134 4 SEALED BALL BRNG, 25MM X 52MM
2 86223480 67450 2 RING, 52MM INTERNAL SNAP
3 86219420 41510 1 STEERING, HUB
4 86224040 730306 1 SHAFT, ASM, DRIVE PIVOT
5 86005510 53810 1 MOTOR, 36V 180RPM GEAR
- 86216210 53820 - BRUSH SET MOTOR 53810
- 86227440 05261 - ARMATURE 53810 MOTOR
6 86136360 57275 1 NUT, M10X1.5 HEX NYLOCK PLTD
7 86010720 87086 1 WASHER, M10 X 30 PLTD
8 86222730 620038 1 PLATE, DRIVE WHEEL YOKE
9 86318830 - 11 SCR, M10 X 30 SHCS
10 86275640 70515 4 SCR, 3/8-24 X 3/4 HHCS GR5 PLTD
11 86279700 87244 5 WASHER, M10 X 18 FLAT
12 86219620 48106 1 KEY, 1/4 SQ. X .63
13 86007620 730310 1 SPROCKET, MOTOR SHAFT
14 86279710 87245 3 WASHER, M8 X 32 FLAT
15 86136640 70262 2 SCR, M8-1.25 X 20HHMS PLTD
16 86222710 620036 1 PLATE, CHAIN COVER
17 86276960 87243 12 WASHER, M6 SPLIT LOCK
18 86277340 70830 12 SCR, M6 X 15 HHCS
19 86002730 270085 1 CHAIN, ISO 08B 12.7MM PITCH/LINK
- 86232770 279000 - CHAIN, OFF-SET LINK 12.7MM SERVICE ONLY
- 86232780 279001 - CHAIN, MASTERLINK 12.7MM SERVICE ONLY
20 86222760 620041 1 PLATE, DRIVE YOKE RH
21 86007630 730311 1 SPROCKET, DRIVE WHEEL
22 86002710 270076 1 CHAIN TENSIONER
23 86224270 730293 1 SLEEVE, CHAIN TENSIONER
24 86277330 70829 1 SCR, M10 X 45 HHCS
25 86222720 620037 1 PLATE, BEARING RETAINER
26 86224330 730294 1 SPACER, 25.5ID X 45OD X 65L
27 86219630 48107 1 KEY, 3/16 SQ X .67
28 86000850 05231 1 AXLE, TWISTER
29 86219640 48108 1 KEY, 1/4 SQ X 1.5
30 86259940 89275 1 WHEEL, 10X26 W/KEYWY GRY, NT
31 86222750 620040 1 PLATE, DRIVE YOKE FRONT
32 86224340 730295 1 SPACER, 25.5ID X 45OD X 43L
33 86222770 620042 1 PLATE, BEARING COVER
34 86217720 29269 - DRIVE ASM, MOTOR COMPLETE
35 86311040 - 1 SPACER, CHAIN DRIVE AXLE
36 86277320 70828 1 SCR, M10 X 30 HHCS
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 08/19/09
5-32
WHEEL-FRONT BRAKE
14
1
2
3
15
13
12
16
9
5-33
86037770 CHARIOT INTERIM 08/01/09
11
10
4
7
8
6
5
WHEEL-FRONT BRAKE
REF PART NO. PRV NO. QTY DESCRIPTION
1 86010790 87163 4 WASHER, 3/8 SPLIT LOCK PLTD
2 86275190 70377 4 SCR, 3/8-16 X 1.25 HHCS SS
3 86006170 66031 1 PIN, ROLL 1/8” X 3/4”L SS
4 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS
5 86318830 - 1 SCR, M10 X 30 SHCS
6 86233410 81270 1 CLAMP, 3/4 DIA CUSHION .406DIA
7 86005710 57105 4 NUT, 1/4-20 HEX W/STAR WASHER
8 86273740 70010 2 SCR, 1/4-20 X 1.50 HHCS
9 86008920 80889 2 BOOT, RUBBER TERM. ISOLATOR
10 86257490 76155 2 TERMINAL MOUNT
11 86006840 70390 2 SCR, 1/4-20 X 1 FHCS PLTD
12 86010630 87013 2 WASHER, 1/4 ID X 5/8 OD SS
13 86273340 00-000289 4 SCR, 8-32 X 3/8 SHCS SS
14 86001740 140816 1 BRAKE, 36VDC W/CONNECTOR
15 86264930 27050 1 CABLE TIE, 3.5” UL/CSA
16 86320870 - 1 SWITCH, 36V BRAKE
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 08/19/09
5-34
WHEEL-REAR
1
2
3
5-35
86037770 CHARIOT INTERIM 02/27/07
WHEEL-REAR
REF PART NO. PRV NO. QTY DESCRIPTION
1 86259950 89276 2 WHEEL, 10X2.5X.787ID BEARINGS
2 86008710 80623 2 RING, ¾” EXT SNAP H-D
3 86232130 17309 2 CAP, 2.75 ID X 1.0 L BLK VINYL
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-36
WIRING-BATTERIES
2
3
4
1
20A
20B
5
9
23
24
7
10
11
6
8
22
12
13
14
15
16
19
5-37
86037770 CHARIOT INTERIM 02/27/07
17
18
WIRING-BATTERIES
REF PART NO. PRV NO. QTY DESCRIPTION
1A 86260200 80872 2 WIRE, 4X14.5BK 5/16RINGX5/16RING
1B 86002510 23125 2 WIRE, 4X15 BCLAMPXBCLAMP
2 86008920 80889 6 BOOT, RUBBER TERM. ISOLATOR
3 86271910 57295 6 NUT, 5/16-18 FLEXLOCK
4 86010670 87029 6 WASHER, 5/16 FLAT SS
5 86264960 27915 2 CABLE TIE, .375 X 43”
6A 86260610 880836 1 WIRE, 4X25RD CTERM X 3/8 RING *(6)
6B 86002570 23190 1 WIRE, 4X27 RD BCLAMP X CTERM
7A 86260230 80876 1 WIRE, 4X30 BK CTERM X 3/8RING
7B 86002580 23191 1 WIRE, 4X27 BK BCLAMP X CTERM
8 86008760 80682 1 CONN, 175 DCA GRY W/O TERMS
9 86229700 08071 3 BLOCK, 3.0 X 1.5 X 1.5
10 86008300 78242 1 TRAY, BATTERY LINER
11 86008410 78568 1 TRAY, BATTERY
12 86272810 67132 1 RING, 1/2 EXT. SNAP H-D
13 86092910 51396 1 LATCH ROD, BATTERY TRAY
14 86254990 730313 1 SPRING, COMP, 63ODX3.5LX.074W
15 86278150 70117 8 SHOULDER BOLT, 5/16 OD X 1.0 L
16 86259910 89265 8 WHEEL, BATTERY TRAY
17 86088790 78571 2 TRAY, STANDARD STOP
18 86276070 70593 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
19 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
20A 86228410 10023 3 BATTERY, 12V, 205AH
20B 86283410 10030 3 BATTERY, 12V, 225AH
21 86284090 02456 1 CHARGER, 36V, 20A, 115V, C175 NOT SHOWN
22 86005810 57245 8 NUT, 1/4-20 HEX NYLOCK SS
23 86233360 28038 1 CLAMP, CABLE KIT SY945 *(7)
24 86274310 70170 1 SCREW, 10-24 X ¾ PPHMS
*SEE SERIAL NUMBER PAGE
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 10/20/08
5-38
WIRING-COMPONENTS
2
1
3
4
6
4
5
7
8
9
10
5-39
86037770 CHARIOT INTERIM 02/03/09
11
13
12
WIRING-COMPONENTS
REF PART NO. PRV NO. QTY DESCRIPTION
1 86010780 87162 2 WASHER, 1/4 SPLIT LOCK PLTD
2 86273830 70020 2 SCR, 1/4-20 X 1/2 HHCS SS NP
3 86255910 73659 2 STANDOFF, 1/4-20 X 1.0 HEX INS
4 86005710 57105 4 NUT, 1/4-20 HEX W/STAR WASHER
5 86010630 87013 2 WASHER, 1/4 ID X 5/8 OD SS
6 86006850 70393 2 SET SCR, 1/4-20 1.25L
7 86008920 80889 2 BOOT, RUBBER TERM. ISOLATOR
8 86238500 81427 2 GROMMET, 1.703IDX2.5ODX.125GRV
9 86276070 70593 1 SCR, 5/16-18 X 3/4 CARRIAGE
10 86239720 41520 1 HORN, 108DB MINIATURE PIEZO
11 86233410 81270 1 CLAMP, 3/4 DIA CUSHION .406DIA
12 86270830 57023 1 NUT, 5/16-18 HEX NYLOCK SS
13 86010670 87029 1 WASHER, 5/16 FLAT SS
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-40
WIRING-CONTROL PANEL
34 BLK
35 BLK
26 LT BLU
33 RED
52 RED
39 YLW
12 BLK
11 WHT/BLK
25 WHT/RED
38 YLW
38 YLW
53 BLK
32 RED
33 RED
27 WHT/YLW
35 BLK
A
16 RED
14 RED
2 BLK
11 WHT/BLK
55 RED
57 BLK
56 BLK
42 GRN
B CDEF
2 BLK
1 WHT
17 RED
18A
18A
15 RED
24 WHT/RED
3A
25 WHT/RED
64 LT BLU
54 BLK
34 BLK
63 BLK
56 BLK
77 BLK
53 BLK
23 BLK
18 BLK
69 BLK
62 BLK
75 BLK
70 BLK
67 RED 49 RED
68 RED
3 LT BLU
65 ORG
63 BLK
30A
51 RED
45 RED
4
60 WHT
59 WHT
30 ORG
58 RED
G
46 RED
3A
48 RED
57 BLK
78 BLK
8 BRN
9 BRN
6
50 RED
44 RED
33
81BLK
73 BLK
41 BLU
33
58 RED
4 RED
59WHT
60 WHT
21 ORG
22 ORG
L
36 YLW
61 BLU
40 GRY
K
6
1
65 ORG
64 LT BLU
13 RED
29 WHT/BLK
31 LT BLU
69 BLK
68 RED
12 BLK
1 WHT
BRUSH
RELAY
66 RED
3
DIAGRAM A
7
80 WHT/GRN
40 GRY
72RED
42 DK GRN
28 WHT/ORG
10 GRN
41 DK BLU
81 BLK
STATUS LED
36 YLW
31 LT BLU
43 RED
7 BRN
79 ORG
61 BLU
I
70 BLK
4
54 BLK
H
17 RED
19 BLK
43
6
1
MAIN
RELAY
29204
5
10 GRN
9 BRN
5 ORG
DIAGRAM F
77 BLK
72 RED 73 BLK
76 RED
DIAGRAM L
WHTBLK
DIAGRAM B DIAGRAM C
DIAGRAM E
3 BLU
4 RED
DIAGRAM J
24 WHT/ RED
55 RED
67 RED
67 RED
32 RED
47 RED
MAIN
RELAY
39 YLW
29 WHT/BLK
7 BRN
78 BLK
27 WHT/YLW
22 ORG
29273
MAIN
RELAY
2
DIAGRAM K
73 BLK
81BLK
33
67619
BRUSH
RELAY
29204
41 BLU
40 GRY
48 RED
J
4
74 RED
75 BLK
36 YLW
61 BLU
DIAGRAM D
DIAGRAM G
62 BLK
28 WHT/ORG
8 BRN
30 WHT
26 LT BLU
23 BLK
6
7
12
1
DIAGRAM H DIAGRAM I
16 RED
20 BLK
34
6
1
33
67619
5-41
86037770 CHARIOT INTERIM 05/27/08
WIRING-CONTROL PANEL
REF PART NO. PRVNO. QTY DESCRIPTION
1 86239210 41541 1 HARNESS, CONTROL PANEL, INTERIM
2 86260540 880426 1 WIRE, 4 X 13 RD C. TERM X 5/16 RING
3 86010860 880353 1 WIRE, 4 X 20 BK C TERM X 5/16 RING
4 86261210 29204 3 DIODE ASM, 76008 X 76008
5 86261250 29273 1 DIODE ASM, FAST RECOVERY
6 86251490 67619 1 RESISTOR ASM, 1/2 WATT 33 OHM *(8)
7 86311210 - 1 LIGHT ASM, INDICATOR, CODE
*SEE SERIAL NUMBER PAGE
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 05/27/08
5-42

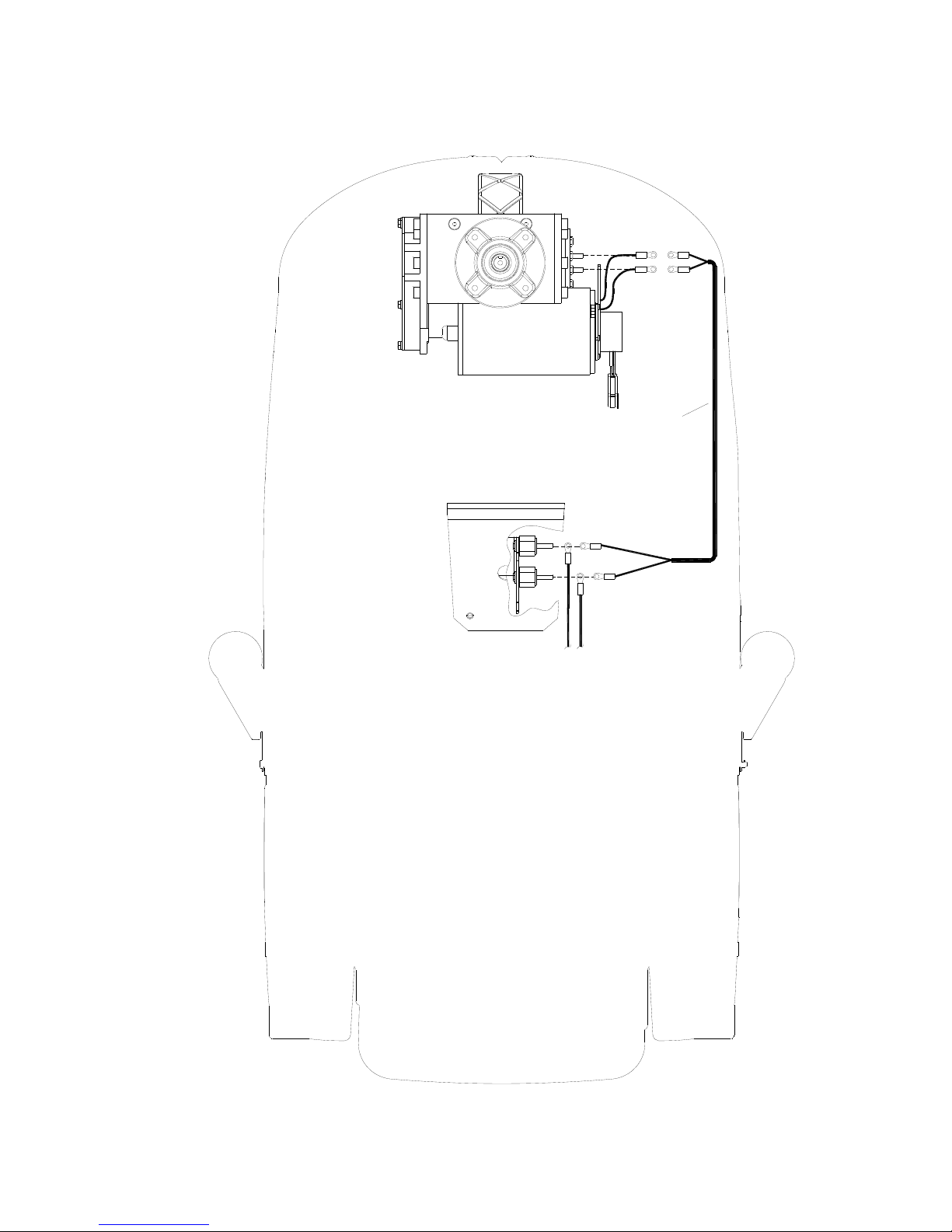

WIRING-DRIVE MOTOR
RED
BLK
1 WHT
2 BLK
1
WHT
CONTROL PANEL
BLK
HARNESS
1 WHT
2 BLK
2 BLK
5-43
86037770 CHARIOT INTERIM 02/27/07
WIRING-DRIVE MOTOR
REF PART NO. PRV NO. QTY DESCRIPTION
1 86239120 41522 1 HARNESS, CHARIOT PROPEL
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-44

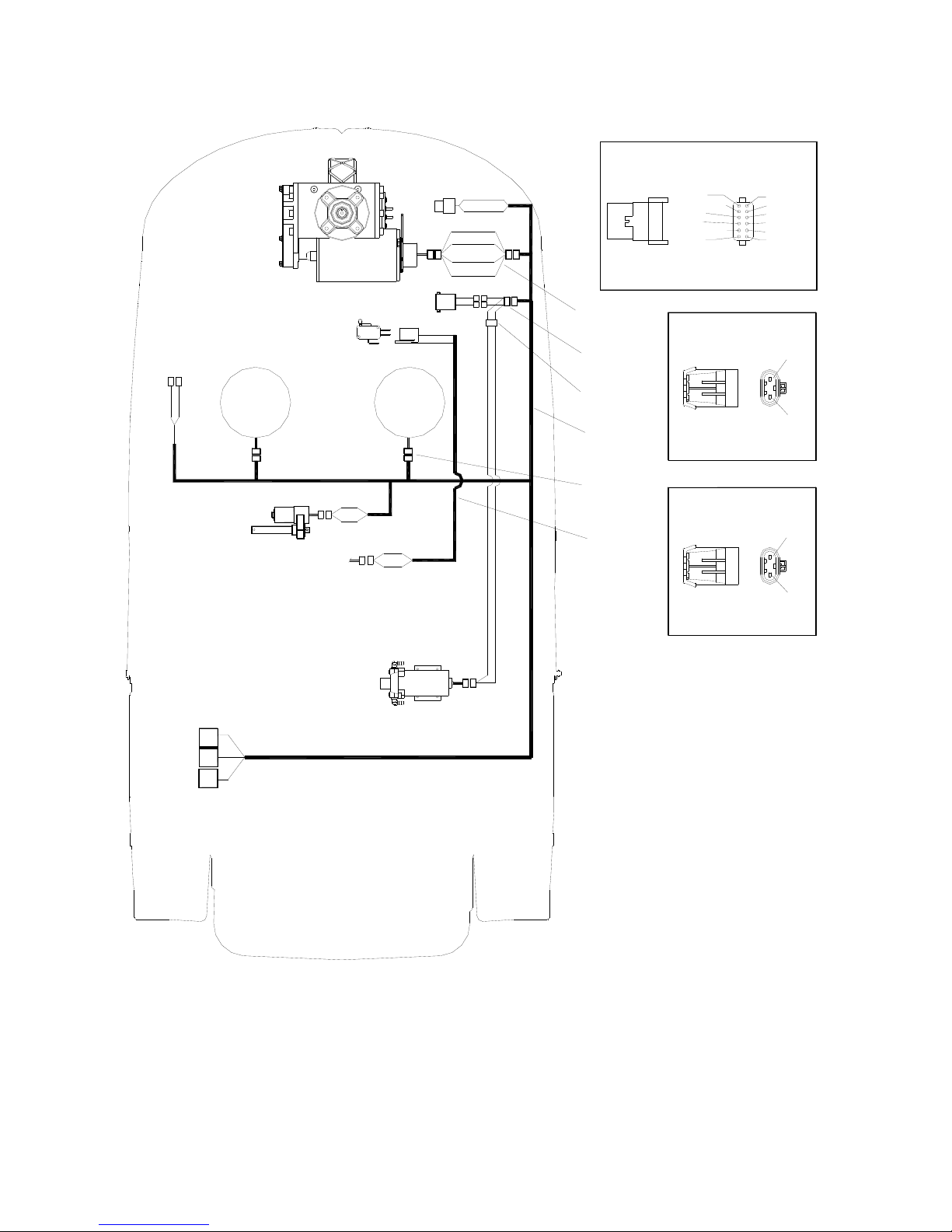

WIRING-MAIN HARNESS
DRIVE
MOTOR
BRAKE
HORN
13 ORG
14 BLK
19 WHT
20 BLK
6 BRN
6 BRN
DIAGRAM A
12 ORG
17 WHT/YLW
20 BLK
6 BRN
22 WHT/BLK
16 BLK
13 BLK
18 LG BLU
19 WHT
6 BRN
21 WHT/ORG
15 YLW
NOT USED
11 RED
CONTROL
HARNESS
BASIC
SWITCH
BRUSH MOTOR
(BASIC ONLY)
LEFT
BRUSH
10 BLK
MOTOR
60 WHT/BLU
59 WHT/ORG
RIGHT
BRUSH
MOTOR
15 YLW
16 BLK
4
5
1
DIAGRAM B
12 RED
9 BLK
2
17 LT BLU
6
SCRUB LIFT
ACTUATOR
A
B
C
18 WHT/YLW
CONTROL
HARNESS
59 WHT/ORG
60 WHT/BLK
3
PUMP
DIAGRAM C
11 RED
10 BLK
5-45
86037770 CHARIOT INTERIM 02/27/07
WIRING-MAIN HARNESS
REF PART NO. PRV NO. QTY DESCRIPTION
1 86239170 41528 1 HARNESS, BRAKE
2 86239130 41523 1 HARNESS, MAIN
3 86239160 41527 1 HARNESS, DECK SWITCH
4 86239200 41539 1 HARNESS, PUMP AND SOLENOID
5 86235820 34376 1 FERRITE, .72 X .70 X 1.28
6 86260400 880212 1 WIRE ASM, REV POLARITY JUMPER
SERIAL NO.
FROM
NOTES:
5-65
86037770 CHARIOT INTERIM 02/27/07
5-46
WIRING-PEDAL PLATFORM-From Serial Number (10*)
B
A
1
DIAGRAM A
ORG
BRN
RED
GRN
LT BLU
8 BLU
9 RED
DIAGRAM B
GRN
BRN
ORG
5-65 5-47A
86037770 CHARIOT INTERIM 11/18/09
WIRING-PEDAL PLATFORM-From Serial Number (10*)
REF PART NO. PRV NO. QTY DESCRIPTION
1 86315100 - 1 HARNESS, PEDALS
* See Serial Number page.
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 111/18/09
5-47B
WIRING-PEDAL PLATFORM-To Serial Number (10*)
B
A
1
DIAGRAM A
BRN
BLU
BRN
DIAGRAM B
ORG
BRN
GRN
2
3
1
4
5
LT BLU
RED
5 GRN
7 BRN
6 ORG
RED
5-48A
86037770 CHARIOT INTERIM 11/18/09
WIRING-PEDAL PLATFORM-To Serial Number (10*)
REF PART NO. PRV NO. QTY DESCRIPTION
1 86218810 23717 1 HARNESS, TWISTER PEDAL
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 11/18/09
5-48B
WIRING DIAGRAM
DECK
DECK LIFT
70/BLK
ACTUATOR
18/BLK
70/BLK
34/BLK
69/BLK
31/LT-BLU
86261210
PRV NO. 29204
53/BLK
54/BLK
SWITCH
46/BLK
1
53/BLK
25/WHT-RED
12/BLK
9
LBRUSH
24/WHT-RED
72/RED
36/YLW
80/WHT-GRN
40/GRY
BLK
TRACTION
9/BLK
12/RED
2 PIN DEUTSCH
20/BLK
16/RED
42/GRN
10/GRN
28/WHT-ORG
43/RED
31/LT BLU
5/ORG
79/ORG
7/BRN
41/DK-BLU
2/BLK
1/WHT
17/RED
38/YLW 15/RED
1/WHT
11/WHT-BLK
M1 M2 B- B+
1
81/BLK
61/DK-BLU
33K
86310910
CURTIS 1228 MOTOR CONTROLLER
BRUSH
38/YLW
BRUSH
16/RED
18A
18A
14/RED
PUMP
3A
2/BLK
68/RED
12 /BLK
69/BLK
RBRUSH
86260490
PRV NO. 880212
NOT USED
10/BLK
11/RED
10/BLK
11/RED
2 PIN DEUTSCH
19/BLK
17/RED
PUMP RUN
LIGHT
52/RED
PUMP
39/YLW
SWITCH
25/WHT-RED
DECK
34/BLK
33/RED
32/RED
35/BLK
ACTUATOR
35/BLK
11/WHT-BLK
PUMP
RELAY
32/RED
2
27/WHT-YLW
26/LT-BLU
2 PIN DEUTSCH
23/BLK
63/BLK
75/BLK
56/BLK
13/RED
24/WHT-RED
54/BLK
SOLENOID
86239200
PRV NO. 41539
77/BLK
64/LT BLU
65/ORG
67/RED
32/RED
68/RED
1
SOLUTION
18/LT-BLU
26/LT-BLU
BRUSH
RELAY
67/RED
55/RED
PUMP
/WHT-BLK
17/WHT-YLW
12 PIN DEUTSCH
29/WHT-BLK
27/WHT-YLW
3/LT-BLUE
67/RED
66/RED
MAIN
RELAY
BEAD
FERRITE
/WHT-ORG
28/WHT-ORG
PRV NO. 29204
86261210
2
3
64/LT-BLU
16/BLK
15/YLW
46/BLK
39/YLW
63/BLK
48/RED
4 PIN
DEUTSCH
4 PIN
DEUTSCH
6/BRN
20/BLK
19/WHT
7/BRN
79/BLK
30/WHT
49/RED
48/RED
65/ORG
86003410
PRV NO. 29215
86261210
PRV NO. 29204
47/RED
OPERATOR PLATFORM
PLATFORM
DK-BLU
SWITCH
RED
OPERATION
PRESENT
SWITCH
6 PIN
4/RED
49/RED
56/BLK
40/GRY
BRN
ORG
BRN
GRN
THROTTLE
POT
9/BRN
5/ORG
10/GRN
HEADLIGHT
SWITCH
71/RED
74/RED
50/RED
220K
50/RED
21/ORG
22/ORG
E-STOP
HORN
SWITCH
44/RED
21/ORG
33
E
S
H
R
A
F
L
T
U
N
I
37/BLK
25/BLK
39/RED
26/RED
37/RED
38/BLK
6 PIN
DEUTSCH
13/ORG
14/BLK
6/BRN
73/BLK
77/BLK
75/BLK
76/RED
74/RED
72/RED
8/BRN
23/BLK
22/ORG
55/RED
BATTERY
METER
36/YLW
RUN/RESET
RELAY
51/RED
FORWARD/REV
57/BLK
73/BLK
8/BRN
9/BRN
81/BLK
KEY
SWITCH
46/RED
45/RED
44/RED
30/WHT
78/BLK
60/WHT
58/RED
59/WHT
76/RED
51/RED
71/RED
43/RED
SPEED
SWITCH
SWITCH
59/WHT
RESET
SWITCH
DEUTSCH
3/LT-BLUE
57/BLK
42/GRN
61/DK-BLU
41/DK-BLU
86251490
PRV NO. 67619
60/WHT
4/RED
58/RED
BLK WHT
5-49
86037770 CHARIOT INTERIM 06/09/08
STATUS LED
86260540
PRV NO. 880426
36V
86260540
PRV NO. 880353
INDICATES OPTIONAL
EQUIPMENT
DRAIN HOSE
HOSE DIAGRAM
TANK
CLEANING CHEMICAL
SELECTOR VALVE
RESTRICTOR
SCRUB DECK
SPRAY N O ZZLES
SOLENOID
VALVE
CHECK VALVE
INJEC T OR
PUMP
86037770 CHARIOT INTERIM 02/27/07
100 MESH
STAINER
5-50
SUGGESTED SPARE PARTS
PART NO. PRV NO. DESCRIPTION
86001910 14606 BREAKER, 30A 50VDC CIRCUIT
86002000 14717 BREAKER, 3 AMP
86251410 67506 RELAY, 15A 36V MINI
86007140 72130 SWITCH, SPST 2-POSITION ROCKER
86007190 72161 SWITCH KEY DPST
86007240 72190 SWITCH, SEALED PB ROUND
86001740 140816 BRAKE, 36 VDC W/CONNECTOR
86002730 270085 CHAIN, ISO 08B 12.7 MM PITCH
86001730 140804 BREAKER, 18A 250VDC, 50VDC
86007130 72128 SWITCH, DPDT 2-POSITION ROCKER
86006370 67315 RELAY, 36VDC 100AMP HVY DUTY
86028890 84098 VALVE, 115V CMD SOLENOID SVC
86252980 730369 SCREEN, 100 MESH
86241720 44101 JET, QUICK VEE STD 8001
86246990 54205 METERING TIP, PINK
SERIAL NO.
FROM
NOTES:
5-51
86037770 CHARIOT INTERIM 02/27/07
OPTIONS
86037770 CHARIOT INTERIM 02/27/07
5-52
BACK-UP ALARM - OPTION
3
1
2
4
5-53
86037770 CHARIOT INTERIM 02/27/07
BACK-UP ALARM - OPTION
REF PART NO. PRV NO. QTY DESCRIPTION
1 86071140 140817 1 BRKT, BACK UP ALARM
2 86231500 80882 1 BUZZER, PIEZO 6-28VCD
3 86276780 70728 1 SCR, 5/16-18 X 3/4 HHCS SS
4 86271840 57285 1 NUT, 5/16-18 HEX NYLOCK THN SS
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-54
BATTERY CART - OPTION
27
23
22
28
3
30
5
24
3
9
15
5
3
26
2
6
25
29
8
1
2
3
3
3
10
8
9
3
5
5
6
7
3
4
12
13
14
20
21
16
18
17
5-55
86037770 CHARIOT INTERIM 09/17/09
19
11
15
31
3
3
BATTERY CART - OPTION
SERIAL NO.
REF PART NO. PRV NO. QTY DESCRIPTION
1 86006930 70514 2 SCR, 5/16-18 X 1.00 BSHCS SS
2 86254290 730338 4 SPACER, 10D X .343ID, .5 LG
3 86270830 57023 33 NUT, 5/16-18 HEX NYLOCK SS
4 86077010 41517 1 HOUSING, BATTERY CART
5 86010670 87029 7 WASHER, 5/16 FLAT SS
6 86228840 09124 3 BEARING, FLANGED .314D X .502OD
7 86259410 87206 1 WASHER, THRUST, .51 ID X 1 OD X .063
8 86259400 730331 4 WASHER, THRUST .51 ID X 1 OD
9 86254890 730018 3 SPRING, EXT, .50D X 4.0L
10 86068490 140019 1 BRKT, TRAY CATCH
11 86231090 80809 1 BUMPER, RUBBER 5/16" ID X 1.50
12 86083120 66442 1 PLATE, BATTERY CART BACK
13 86076600 38318 2 HANDLE, BATTERY CART
14 86004070 36196 2 GRIP, POLISHER HANDLE
15 86276790 70732 4 SCR, 5/16-18 X 1.75 HHCS SS
16 86276690 70715 7 SCR, 5/16-18 X 1.75 CARR SS
17 86199430 040-03 2 CASTER SWIVEL 4” 250# CPCTY
18 86078890 620020 8 PLATE, CASTER SPACER
19 86277130 70795 16 SCR, 5/16-18 X 1.00 CARRIAGE SS
20 86007020 70673 1 SP SCR, 5/16-18 X 1.25 HHCS SS NP
21 86232590 18032 2 CASTER, 4” HARD RUBBER RIGID
22 86001350 140390 2 BUSHING, SPANNER .435 X 1.10
23 86011020 89202 2 WHEEL, 3” DIA CUSHION RUBBER
24 86271840 57285 2 NUT, 5/16-18 HEX NYLOCK THIN SS
25 86008130 73958 2 SPACER, 3/8OD X .62W X .312L, AL
26 86274730 70265 2 SCR, 1/4-20 X 3/4 SHCS PLTD
27 86070790 140737 2 BRKT, BATTERY LOCK MOUNT
28 86087340 730339 2 SPACER, LATCH GUIDE
29 86070800 140738 2 BRKT, BATTERY TRAY LOCK
30 86271870 57290 2 NUT, 1/4-20 HEX NYLOCK THIN SS
31 86276070 70593 1 SCR, 5/16-18 X 3/4 CARRIAGE SS
FROM NOTES:
86037770 CHARIOT INTERIM 09/17/09
5-56
BATTERY CART - OPTION
1
2
4
3
5
11
7
7
5
6
10
3
17
3
6
10
8
9
12
5-57
86037770 CHARIOT INTERIM 02/27/07
13
14
15
6
10
3
3
10
16
BATTERY CART - OPTION
REF PART NO. PART NO. QTY DESCRIPTION
1 86078330 66478 1 PEDAL, BATTERY CART
2 86276070 70593 2 SCR, 5/16-18 X 3/4 CARRIAGE SS
3 86270830 57023 12 NUT, 5/16-18 HEX NYLOCK SS
4 86087800 730307 2 STIFFENER, PEDAL, BATTERY CART
5 86228840 09124 4 BEARING, FLANGED .314ID X .502OD
6 86259410 87206 6 WASHER, THRUST .51 ID X 1 OD X .063
7 86006560 70083 4 SCR, 5/16-18 X 1 HHCS SS
8 86077140 51404 2 LATCH, BATTERY CART
9 86226830 73268 2 SPRING, EXT .68D X 3.00L X .098W
10 86010670 87029 10 WASHER, 5/16 FLAT SS
11 86244280 500934 1 LABEL, BATTERY CAR OPERATION
12 86276060 70590 4 SCR, 5/16-18 X 2.5 CARR GR5
13 86254280 730331 12 SPACER, 1.00 ODX .32ID X .375
14 86231150 09151 4 BUSHING FLANGE, .314 X .502 OD
15 86259400 87205 8 WASHER, THRUST .51 ID X 1 OD
16 86276690 70715 16 SCR, 5/16-18 X 1.75 CARR SS
17 86077530 51403 2 LINKAGE, LATCH, BATT CART
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-58
SEAT - OPTION
2
16
14
1
3
4
5
6
8
7
17
18
19
9
13
12
11
10
15
5-59
23
24
20
22
21
86037770 CHARIOT INTERIM 02/27/07
SEAT - OPTION
REF PART NO. PRV NO. QTY DESCRIPTION
1 86248390 730324 1 PAD, REAR REST
2 86082640 629995 1 PLATE, SEAT COVER
3 86276890 70752 4 SCR, 5/16-18 X 3/4 PTHMS SS
4 86279460 87164 2 WASHER, 1/2 SPLIT LOCK
5 86270710 01-000277 1 NUT, WING 3/8-16
6 86271930 57297 1 NUT, 3/8-16 HEX NYLOCK SS
7 86278910 87003 3 NUT, 3/8-16 HEX NYLOCK SS
8 86070830 140742 1 BRKT, LEFT REAR SEAT
9 86070840 140743 1 BRKT, RIGHT REAR SEAT
10 86277710 730347 1 SCR, 3/8-16 X 2.75 HHCS SS
11 86008650 80604 1 COTTER, 1/4” RING
12 86246320 51142 1 LEVER, HANDLE LOCK
13 86272300 66133 1 PIN, CLEVIS 3/16 X .88 PLTD
14 86251860 66481 1 ROD, ARM HANDLE LOCK 4” LG
15 86279620 87200 2 WASHER, .41D X 1.3OD NYLON
16 86276070 70593 2 SCR, 5/16-18 X 3/4 CARRIAGE SS
17 86277510 70857 1 SCR, 3/8-16 X 5.0 HHCS SS FT
18 86009200 81535 1 KNOB, 3/8-16 4 PRONG ALUM
19 86254300 730350 1 SPACER, SEAT LOCK
20 86094000 05246 1 SEAT MOUNT POST
21 86276710 70717 2 SCR, 5/16-18 X 2.0 CARRIAGE SS
22 86093790 05247 1 RECEIVER ASSY, SEAT MOUNT
23 86010670 87029 4 WASHER, 5/16 FLAT SS
24 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-60
WARNING LIGHTS - OPTION
6
FRONT
5
1
2
3
3
4
7
3
6
5-61
86037770 CHARIOT INTERIM 02/27/07
1
2
REAR
WARNING LIGHTS - OPTION
REF PART NO. PRV NO. QTY DESCRIPTION
1 86270990 57090 4 NUT, 10-32 HEX NYLOCK SS
2 86010650 87018 4 WASHER, #10 X 6/16 OD
3 86276820 70740 4 SCR, 10-32 X 1/2 PTHMS BLK
4 86071490 140871 1 BRKT, UPPER WARNING LIGHT
5 86270990 57090 2 NUT, 10-32 HEX NYLOCK SS
6 86246200 51454 2 LED AMBER LIGHT, 12V
7 86071500 140872 1 BRKT, LOWER WARNING LIGHT
SERIAL NO.
FROM
NOTES:
86037770 CHARIOT INTERIM 02/27/07
5-62
5-63
5-97
86037770 CHARIOT INTERIM 02/27/07
REF.
NO.
MODEL: SERIAL #
1
CI24, CIE24: 1000157501
2
CI24, CIE24: 1000168941
3
CI24, CIE24: 1000170494
4
CI24, CIE24: 1000157212
5
CI24, CIE24: 10060210000104
6
CI24, CIE24: 1000160355
7
CI24, CIE24: 1000154660
8
CI24, CIE24: 1000158030
9
CI24: 10060170000036, CIE24: 10060190000007
10
CI24: 10060170000036, CIE24: 10060190000007
SERIAL NUMBERS
86037770 CHARIOT INTERIM 04/20/08
5-64
NOTES:
5-65
86037880 CHARIOT EXTRACTOR 05/27/07
Loading...
