Windsor Chariot iScrub CSXE24, 10061090, Chariot iScrub CSX24X, 10061100, 10061120 Operator Instructions Manual

...

Download

iScrub

Operating instructions (ENG)

MODELS:

CSX24 10061090

CSX24X 10061100

CSXE24 10061120

CS26SP 10061160

CS26SPX 10061170

86317500-AT 08/2012

Read these instructions before using the machine.

IPX4

Machine Data Log/Overview

OVERVIEW

The Chariot Scrubber is a battery powered, stand-on, hard floor scrubber intended for commercial use. The appliance applies a cleaning solution onto a hard floor, scrubs the floor with brushes or pads, and then vacuums the soiled water back into the recovery tank.

Warranty Registration

Thank you for purchasing a Windsor product. Warranty registration is quick and easy.

Your registration will allow us to serve you better over the lifetime of the product.

To register your product go to :

www.windsorind.com/WarrantyRegistration.aspx

2 86317500 CHARIOT SCRUBBER

For customer assistance:

1-800-444-7654

Table of Contents

Machine Data Log/Overview. . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3

How to Use This Manual . . . . . . . . . . . . . . . . . . . . . .4

Safety

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5

HAZARD INTENSITY LEVEL. . . . . . . . . . . . . . . . . .6

Safety Label Locations . . . . . . . . . . . . . . . . . . . . . . .7

Technical Specifications . . . . . . . . . . . . . . . . . . . . . .8

Operations

How This Machine Works. . . . . . . . . . . . . . . . . . . .10

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Drive Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Scrub Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Scrub Controls-Squeegee. . . . . . . . . . . . . . . . . . . .18

Pre-Run Machine Inspection. . . . . . . . . . . . . . . . . .20

Starting Machine. . . . . . . . . . . . . . . . . . . . . . . . . . .20

Emergency Stop Procedures . . . . . . . . . . . . . . . . .20

Filling Solution Tank . . . . . . . . . . . . . . . . . . . . . . . .21

Normal Scrubbing. . . . . . . . . . . . . . . . . . . . . . . . . .21

To Begin Scrubbing . . . . . . . . . . . . . . . . . . . . . . . .22

Priming Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

To Stop Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . .23

Double Scrub . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Emptying and Cleaning Tanks . . . . . . . . . . . . . . . .24

Maintenance

Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .26

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Squeegee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Squeegee Blades . . . . . . . . . . . . . . . . . . . . . . . . . .32

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Scrub Brushes . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Finished Floors . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Replacing or Installing Scrub Brushes (Disk) . . . . .34

Replacing or Installing Scrub Brushes (Cylindrical) 34

Scrub Deck-Disk. . . . . . . . . . . . . . . . . . . . . . . . . . .35

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Scrub Deck-Cylindrical . . . . . . . . . . . . . . . . . . . . . .36

To Replace Scrub Brush Motors. . . . . . . . . . . . . . .37

Brush Motor Carbon Brush Replacement. . . . . . . .37

Actuator Scrub Deck Removal / Replacement . . . .38

Scrub Deck Actuator Adjustment . . . . . . . . . . . . . .38

Notes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Circuit Protection. . . . . . . . . . . . . . . . . . . . . . . . . . .40

Solution Strainer & Pump-Disk . . . . . . . . . . . . . . . .41

Solution Strainer & Pump-Cylindrical . . . . . . . . . . .42

Vacuum & Float Shutoff . . . . . . . . . . . . . . . . . . . . .44

Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Electric Parking Brake Engagement . . . . . . . . . . . .47

Drive Motor Carbon Brush Replacement . . . . . . . .48

Removing or Replacing Bag . . . . . . . . . . . . . . . . . .49

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Parts

Bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Control Panel Housing . . . . . . . . . . . . . . . . . . . . . 60

Decal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Frame-Lower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Frame-Upper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Pedal Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Scrub Brush/Pad Driver-Disk . . . . . . . . . . . . . . . . 74

Scrub Brush/Pad Cylindrical . . . . . . . . . . . . . . . . . 76

Scrub Deck - Disk . . . . . . . . . . . . . . . . . . . . . . . . . 78

Scrub Deck-Cylindrical . . . . . . . . . . . . . . . . . . . . . 80

Scrub Deck Mounting-Cylindrical . . . . . . . . . . . . . 82

Scrub Deck Lift-Disk . . . . . . . . . . . . . . . . . . . . . . . 84

Scrub Deck Actuator-Cylindrical . . . . . . . . . . . . . . 86

Scrub Deck Skirts-Disk . . . . . . . . . . . . . . . . . . . . . 88

Scrub Deck Aqua-Mizer™ . . . . . . . . . . . . . . . . . . 90

Solution-Disk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Solution-Cylindrical . . . . . . . . . . . . . . . . . . . . . . . . 94

Squeegee-Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Squeegee Lift-Disk . . . . . . . . . . . . . . . . . . . . . . . . 98

Squeegee-Cylindrical . . . . . . . . . . . . . . . . . . . . . 100

Squeegee Lift Assembly -Cylindrical - From Serial

Number *(4) . . . . . . . . . . . . . . . . . . . . . . . . . 102

Squeegee Lift-Cylindrical . . . . . . . . . . . . . . . . . . 104

Squeegee Swing. . . . . . . . . . . . . . . . . . . . . . . . . 106

Steering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Vacuum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Wheel-Front Drive. . . . . . . . . . . . . . . . . . . . . . . . 114

Wheel-Rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Wiring-Components . . . . . . . . . . . . . . . . . . . . . . 118

Wiring-Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 120

Wiring-Control Panel. . . . . . . . . . . . . . . . . . . . . . 122

Wiring-Drive Motor . . . . . . . . . . . . . . . . . . . . . . . 124

Wiring-Main Harness . . . . . . . . . . . . . . . . . . . . . 126

Wiring-Pedal Platform. . . . . . . . . . . . . . . . . . . . . 128

Wiring-Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Wiring-Cylindrical . . . . . . . . . . . . . . . . . . . . . . . . 133

Hose Diagram-Disk. . . . . . . . . . . . . . . . . . . . . . . 136

Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . 138

OPTIONS

Battery Cart-Option. . . . . . . . . . . . . . . . . . . . . . . 140

Seat-Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Warning Lights-Option . . . . . . . . . . . . . . . . . . . . 146

Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 148

86317500 CHARIOT SCRUBBER 3

Parts

86317500 CHARIOT SCRUBBER

Bumper

56 86317500 CHARIOT SCRUBBER

Bumper

REF PART NO. PRV NO. QTY DESCRIPTION

1 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS 2 86197040 57264 4 NUT, 5/16-18 HEX ACORN 3 86276070 70593 2 SCR, 5/16-18 X 3/4 CARRIAGE SS 4 86276890 70752 6 SCR, 5/16-18X3/4 PTHMS SS 5 86010670 87029 4 WASHER, 5/16 X 3/4 SS 6 86279130 87083 4 WASHER, 5/16 SPLIT LOCK PLTD 7 86070730 140729 2 BRKT, BUMPER MOUNT, SIDE 8 86315790 - 1 BRKT, BUMPER MTG 9 86331120 - 1 BUMPER, LEFT, GREY

10 86331110 - 1 BUMPER, RIGHT, GREY

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 57

Control Panel

19B

11 27

26B

CONTROLLER

SUPPLIED WITH

26A

19A

HARNESS

SUPPLIED WITH

58 86317500 CHARIOT SCRUBBER

Control Panel

REF PART NO. PRV NO. QTY DESCRIPTION

1 86315470 1 METER, HOUR ICD 2 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS 3 86271840 57285 3 NUT, 5/16-18 HEX NYLOCK THN SS 4 86271910 57295 1 NUT, 5/16-18 FLEXLOCK 5 86313900 - 2 RELAY, 5A, 24V, 4PDT 6 86273820 70019 2 SCR, 1/4-20 X 1.25 HHCS SS 7 86275760 70540 1 SCR, 5/16-18 X 1.00 HHCS GR8 8 86277480 70850 3 SCR, 5/16-18X1/2 PTHMS SS 9 86007190 72161 1 SWITCH, KEY DPST

10 86255900 73538 14 STANDOFF, 6-32 X 5/8 HEX NYL

11 86255910 73659 1 STANDOFF, 1/4-20 X 1.0 HEX INS 12 86008760 80682 1 CONNECTOR, BATTERY GRY, 175AMP 13 86332510 - 2 BOOT, SEAL PUSH BUTTON 11MM 14 86010670 87029 1 WASHER, 5/16 X 3/4 SS 15 86068850 140219 1 BRKT, CABLE ATTACH 16 86070720 140728 1 BRKT, BATT CONN BASIC 17 86295200 - 1 ASM, BUTTON, BLACK, W/BEZEL 18 86012670 - 1 METER, 36V BATTERY

19A 86315400 - 1 CONTROLLER, 2-STAGE, GEAR DRIVE DISK 19B 86318040 - 1 CONTROLLER, GEAR DRIVE CYL CYLINDRICAL

20 86292590 - 1 SWITCH, E-STOP AKW CHARIOT 21 86313820 - 1 SWITCH, ROTARY, 7 POSN 22 86273830 70020 1 SCR, 1/4-20 X 1/2 HHCS SS NP 23 86313950 - 1 SWITCH, SPDT 3 POSN MOM, ARROW 24 86314150 - 1 KNOB, SELECTOR 25 86315640 - 1 PANEL, CONTROL

26A 86316160 - 2 BREAKER, 18A, 250VAC, 32 VDC DISK 26B 86322490 - 2 BREAKER, 30A 250 VAC, 32 VDC CYLINDRICAL

27 86010780 87162 1 WASHER, 1/4 SPLIT LOCK PLTD 28 86292780 - 1 SWITCH, MICRO 29 86270990 57090 2 NUT, 10-32 HEX NYLOCK SS

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 59

Control Panel Housing

60 86317500 CHARIOT SCRUBBER

Control Panel Housing

REF PART NO. PRV NO. QTY DESCRIPTION

1 86005810 57245 4 NUT, 1/4-20 HEX NYLOCK SS 2 86290540 - 6 SCR, 10-32 X 1/2 TORX SS BLK NP 3 86277480 70850 6 SCR, 5/16-18 X1/2 PTHMS SS 4 86317890 - 1 BRKT, LEFT CONSOLE MOUNT 5 86237900 35278 3 GASKET, .125 X .25W X 23L 6 86031730 270084 1 CONSOLE 7 86317900 - 1 BRKT, RIGHT CONSOLE MOUNT 8 86279750 87252 4 WASHER, RET, PUSHNUT, 5/16 BOLT

9 86089650 78524 4 TUBE, 5/8 OD X .357 ID X 1.57 10 86277420 70841 4 SCR, 5/16-18 X 2.5 PTHMS SS 11 860106 30 87013 4 WASHER, 1/4 ID X 5/8 OD SS

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 61

Decal

62 86317500 CHARIOT SCRUBBER

Decal

REF PART NO. PRV NO. QTY DESCRIPTION

1A 86318570 - 1 LABEL, CHAR, ISCURB 24, LEFT 1B 86318590 - 1 LABEL, CHAR, ISCRUB 26C, LEFT 2A 86318580 - 1 LABEL, CHAR, ISCRUB 24, RIGHT 2B 86318600 - 1 LABEL, CHAR, ISCRUB 26C, RIGHT

3 86317040 - 1 LABEL, PANEL, RIGHT 4 86317030 - 1 LABEL, PANEL, LEFT 5 86243990 500780 1 LABEL, COVER PANEL 6 86004970 50990 1 LABEL, WINDSOR LOGO DOMED

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 63

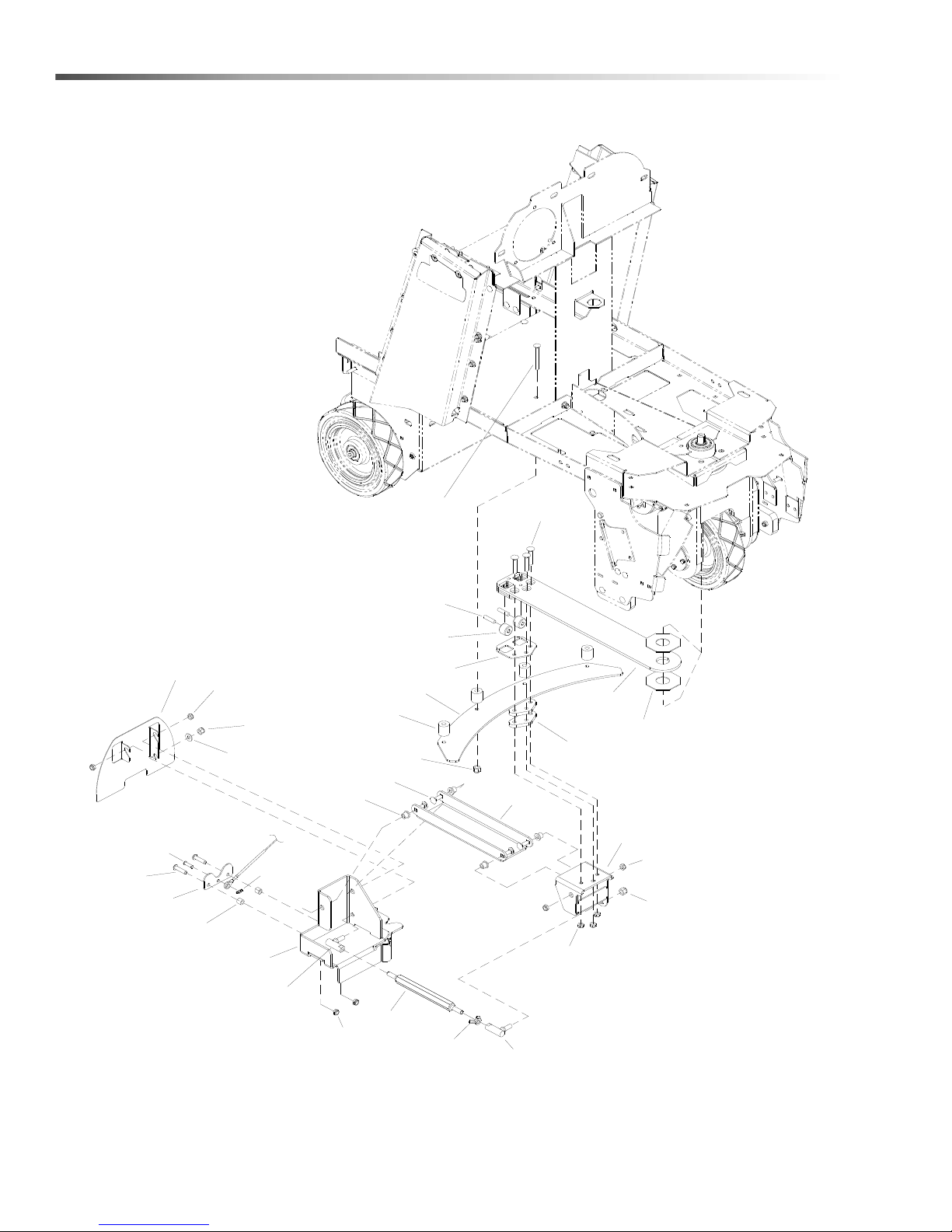

Frame-Lower

16B

16A

64 86317500 CHARIOT SCRUBBER

Frame-Lower

REF PART NO. PRV NO. QTY DESCRIPTION

1 86091420 05251 1 AXLE, REAR, WELDMENT 2 86270830 57023 24 NUT, 5/16-18 HEX NYLOCK SS 3 86197040 57264 4 NUT, 5/16-18 HEX ACORN 4 86271870 57290 4 NUT, 1/4-20 HEX NYLOCK THIN SS 5 86276070 70593 20 SCR, 5/16-18 X 3/4 CARRIAGE SS 6 86276950 70772 4 SCR, 1/4-20 X 3/4 CARRIAGE SS 7 86088750 75457 1 TRAY, SLIDE, RIGHT 8 86088760 75458 1 TRAY, SLIDE, LEFT 9 86010630 87013 4 WASHER, 1/4 X 5/8 FLAT SS

10 86010670 87029 6 WASHER, 5/16 X 3/4 SS 11 86279130 87083 4 WASHER, 5/16 SPLIT 12 86064300 140790 2 PAD, TIPPING BAR 13 86071120 140811 1 BRKT, BRACE, RIGHT REAR 14 86079290 620097 2 PLATE, REAR COVER ADJ.

15 86079320 620101 2 PLATE, PAD RETAINER 16A 86303720 - 1 BRKT, BRACE, LT. REAR SOL. DISK 16B 86071130 140812 1 BRKT BRACE, LT REAR CYLINDRICAL

17 86314900 - 1 FRAME, MAIN

18 86314960 - 1 BRKT, LINKAGE, LEFT

19 86314970 - 1 BRKT, LINKAGE, RIGHT

20 86314980 - 1 BRKT, BRACE, LEFT FRONT

21 86314990 - 1 BRKT, BRACE, RIGHT FRONT

22 86315210 - 1 BRKT, STRAINER

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 65

Frame-Upper

66 86317500 CHARIOT SCRUBBER

Frame-Upper

REF PART NO. PRV NO. QTY DESCRIPTION

1 86074160 270101 1 BRKT, SIDE CHANNEL R 2 86270830 57023 10 NUT, 5-16-18 HEX NYLOCK SS 3 86276070 70593 12 SCR, 5-16-18 X 3/4 CARRIAGE SS 4 86314760 - 1 TRAY, CABLE 5 86073500 270090 1 BRKT, SIDE CHANNEL L 6 86314770 - 2 BRKT, STEERING SUPPORT 7 86277460 70847 1 SCR, 5/16-18 X 5/8 BSHCS SS

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 67

Pedal Platform

68 86317500 CHARIOT SCRUBBER

Pedal Platform

REF PART NO. P RV NO. Q TY DESCRIPTION

1 86233170 20054 2 CLAMP, 3/8 NYLON UL/CSA 2 86264920 27049 1 CABLE TIE, .19 X 7 UL/CSA 3 86222510 34430 1 PEDAL, THROTTLE 4 86221850 34433 1 LINK, THROTTLE 5 86136310 57086 1 NUT, M5 HEX 6 86312820 - 1 BRACKET, POT, SPEED 7 86288720 57277 1 NUT, M6 NYLOCK PLATED 8 86272040 57503 2 NUT, M3.5 X 2.8 HEX

9 86223260 66085 1 PLUNGER, PLATFORM SWITCH 10 86223580 67502 1 ROD, PIVOT, 8.5MM X 77 11 86274340 70179 7 SCR, M6 X 16 PH 12 86278060 70759 2 SET SCR, M4 X 4MM NP 13 86277360 70833 1 SCR, M6 X 10 PH 14 86277370 70834 1 SCR, M5 X 30 SHCS 15 86277380 70835 4 SCR, M4.8 X 16 PHTF 16 86277390 70836 2 SCR, M3.5 X 38 PH 17 86312770 - 1 PLATFORM 18 86007110 72123 1 SWITCH, 25A SPST 125-250V SNAP 19 86224750 73993 1 SPRING, COMP, .48OD X .91L 20 86279140 87085 6 WASHER,M6 SPLIT LOCK DIN127B 21 86279720 87248 2 WASHER, M4 INT STAR 22 86279730 87249 4 WASHER, M5 INT STAR 23 86224360 730325 1 SPACER 12.7MMOD X 2.78W X 6L 24 86224350 730305 1 SPACER, 8MM X 16LG 25 86216380 140713 2 BUSHING, 8MM X 10 LG CLY 26 86222780 620047 1 PLATE, PIVOT 27 86222810 620050 1 PLATE, COVER 28 86254970 730304 1 SPRING, COMP 18MM OD X 83 X 2 29 86137300 87084 2 WASHER, M5 SPLIT LOCK PLTD 30 86250280 68135 1 POTENTIOMETER, 5K OHMS

SERIAL NO.

FROM

NOTES

NOTE: Complete plaform assembly is available as part no. 86313640.

86317500 CHARIOT SCRUBBER 69

Pedal Platform

70 86317500 CHARIOT SCRUBBER

Pedal Platform

REF PART NO. PRV NO. QTY DESCRIPTION

1 86008680 80607 1 C O T TE R, 1/2 " RING 2 86274690 70258 2 SCR, 5/16-18 X 1.5 HHCS GR5PLT 3 86264920 27049 3 CAB LE TI E, 7" UL/ C SA 4 86231070 730328 2 BUMPER, 1 X 1.375 RUBBER 5 86010670 87029 3 WASHER, 5/16 FLAT SS 6 86259430 87485 4 M12 FLAT WASHER 7 86010770 87143 2 WASHER, 7/16ID X1D.08 FLT SS 8 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS

9 86256470 70852 2 STUB AXLE, M12-1.75 X 45MM 10 86278850 80613 2 WASHER, .506 ID X .94D X .064 NYL 11 86248920 66487 1 PIN, CLEVIS 1/2 X 2.25 12 86064480 629993 1 PLATE, SWITCH BASE 13 86271190 57142 2 NUT, M12 X 1.75 HEX DIN934 PLT 14 86007780 73576 1 SPRING, COMP .60D X2.0L X .045W 15 86259440 87486 2 WASHER, M12 SPRING LOCK

SERIAL NO.

FROM

NOTE

86317500 CHARIOT SCRUBBER 71

Rear Cover

72 86317500 CHARIOT SCRUBBER

Rear Cover

REF PART NO. PRV NO. QTY DESCRIPTION

1 86276780 70728 3 SCR, 5/16-18 X 3/4 HHCS SS 2 86279130 87083 5 WASHER, 5/16 SPLIT LOCK PLTD 3 86010670 87029 5 WASHER, 5/16 FLAT SS 4 86031780 - 1 COVER, REAR DELUXE 5 86005860 57273 2 NUT, 1/4-20 X 12MM HEX BARREL 6 86228980 09152 2 BEARING FLANGED .377ID X .505OD 7 86275870 70556 2 SCR, 1/4-20 X 1.5" PPHMS SS 8 86242140 72193 1 KNOB, 3/8 -16 X 1.5 9 86010770 87143 2 WASHER, 7/16ID X 1D X .08FLT SS

10 86248380 66433 1 PAD, FLAT LEANING 11 86005630 57022 1 NUT, 3/8-16 HEX NYLOCK THIN SS 12 860710300 140786 1 BRKT, ASSEMBLY, REAR COVER 13 86010780 87162 2 WASHER, 1/4 SPLIT LOCK 14 86271940 57299 2 NUT, 1/4-20 ACORN SS 15 86006560 70083 2 SCR, 5/16-18 X 1 HHCS SS 16 86066940 140891 1 BAR, COVER 17 86324320 - 1 REAR, COVER DELUXE, *(3) 18 86324640 - 1 HANDLE, CAM LATCH *(3) 19 86324760 - 1 PLATE, COVER LATCH *(3) 20 86010630 87013 2 WASHER, 1/4 ID X 5/8 OD SS *(3) 21 86324340 - 1 BRKT, REAR COVER *(3) 22 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS *(3) 23 86324650 - 1 PAWL, HANDLE *(3)

SERIAL NO.

FROM

NOTES:

*See Serial Number Page

86317500 CHARIOT SCRUBBER 73

Scrub Brush/Pad Driver-Disk

2A 2C

74 86317500 CHARIOT SCRUBBER

Scrub Brush/Pad Driver-Disk

REF PART NO. PRV NO. QTY DESCRIPTION

1 86000170 02400 2 PAD DRIVER, 12" SD

2A 86000180 02401 2 BRUSH, 12" POLYPROPYLENE SD 2B 86000190 02402 2 BRUSH, 12" NYLON SD 2C 86000200 02404 2 BRUSH, 12" MILD GRIT SD 2D 86283820 02405 2 BRUSH, 12" SUPER AGG SD

3 86005070 51284 1 LOCK, PAD CENTER SNAP, TWO STEP 4 86276590 70695 3 SCR, #12 X 1 PPHSMS SS 5 86276580 70694 1 SCR, 8-32 X 3/4 PTHMS 6 86276600 70696 3 SCR, #10 X 3/4 PTHSMS SS 7 86007910 73817 1 SPRING, EXT .31 D X 2.0 L X .03 W SS 8 86007280 730011 1 SOCKET, DRIVE BRUSH 9 86005940 62852 1 PLATE, BRUSH RELEASE

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 75

Scrub Brush/Pad Cylindrical

1 A-E

76 86317500 CHARIOT SCRUBBER

Scrub Brush/Pad Cylindrical

REF PART NO. PRV NO. QTY DESCRIPTION

1A 69069350 - - ROLLER BRUSH RED-BR 65 1B 69069810 - - ROLLER BRUSH WHITE-BR 65 1C 69069820 - - ROLLER BRUSH ORANGE-BR 65 1D 69069830 - - ROLLER BRUSH GREEN-BR 65 1E 69069840 - - ROLLER BRUSH BLACK-BR 65

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 77

Scrub Deck - Disk

FROM PUMP

78 86317500 CHARIOT SCRUBBER

Scrub Deck - Disk

REF PART NO. PRV NO. QTY DESCRIPTION

1 86281100 39274 1 HOSE, 1/2ID WIRE BOUND X 8 2 86003580 34327 1 FITTING, 1/2"X3/8"X3/8" RED 3 86005490 53808 2 MOTOR ASM, 36VDC300RPM GEAR

- 86216200 14739 - BRUSH SET MOTOR 53808 4 86004810 48040 2 KEY, 1/4 SQ X 1.00 5 86093990 730330 1 SCRUBDECK, 24IN 6 86010790 87163 8 WASHER, 3/8 SPLIT LOCK PLTD 7 86276970 70774 8 SC R, 3/8-16 X 3/4 HHCS SS 8 86264920 27049 6 CABLE TIE, 7" UL/CSA 9 86010600 84199 1 VALVE, SOLENOID, 36VDC, 1/2 BARB

- 86003460 29260 - DIAPHRAGM, SRVC PART SLND

- 86136820 47395 - SERVICE SLND SPRG KIT

10 86003420 29220 2 DRIVER, BRUSH SD 11 86279630 87212 2 WASHER, .344IDX1.130DX.09T PLT 12 86279130 87083 2 WASHER, 5/16 SPLIT LOCK PLTD 13 86007020 70673 2 SCR, 5/16-18 X 1.25 HHCS SS NP 14 86279530 87173 2 WASHER, .765IDX1.310DX.09T SS 15 86271830 57283 2 NUT, 3/8 NPT PLASTIC 16 86233150 20042 1 CLAMP, 3/8 HOSE (D-SLOT) 17 86001550 40043 2 HOSEBARB, 3/8MPT X 3/8 90D 18 86281310 39326 2 HOSE, 3/8ID WIREBOUND X 8 19 86002830 27196 2 CABLE TIE, .375 X 24.7 20 86264940 27051 2 CABLE TIE, 11.38" UL/CSA

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 79

Scrub Deck-Cylindrical

80 86317500 CHARIOT SCRUBBER

Scrub Deck-Cylindrical

REF PART NO. QTY DESCRIPTION

1 50448660 2 RETAINER PLATE TRANSMISSION 2 73060310 10 SCREW M 6X16-A2-70 DIN 7984 3 73120260 10 WASHER 6-A2 ISO 7090 4 73130030 10 SPRING WASHER B 6FST-A3E DIN 127 5 50448580 2 HOLDER-UP 6 50560100 2 ROCKER BR-VS 7 51005530 2 DRIVESHAFT BR 65/90 8 73180020 2 PARALLEL KEY 5X5X16-C45R DIN 6885-1

9 73430150 2 LOCKING RING 15X1-FST-RF DIN 471 10 51163400 2 BOLT HOLDER-UP 11 73056370 2 COUNTERSUNK SCREW M8X16-A2-70 ISO 10642 12 51163540 2 BRUSH TRANSMISSION BR 13 56254830 2 BELT PULLEY 57MM 14 63431490 2 QUICK-FASTENER 15 63484420 2 RIBBED V-BELT 16 63631580 2 JOINT RING NILOSRING 17 50332060 4 LOCKING PART 18 74011150 4 BALL BEARING 6002-2RS-WAELZLAGST DIN 62 19 73432310 2 LOCKING RING 32X1,2-ST-PH DIN 472 20 73030470 5 SCREW M6X16-ST-R3R (IN6RD) 21 50333940 2 LOCKING PART 22 50332410 1 COVERING CAP LEFT 23 73030370 28 SCREW M5X10-ST-P2R (IN6RD) 24 50332420 1 COVERING CAP RIGHT 25 50334030 1 COVER PLATE 26 55150960 2 ROLLER 27 53830970 1 DECAL 28 50615800 1 BRUSH HOUSING BR 65 29 50707530 1 TANK REFUSE 65 30 51902610 1 STRIP WATER DISTRIBUTOR 31 46239200 2 MOTOR COMPLETE 24V/600W 32 66102160 1 CARBON BRUSHES 33 66130250 2 BLOWER WHEEL 34 53948230 2 SPLASH GUARD 35 50448670 2 RETAINER STRIP SPLASH GUARD 36 50094010 1 BRACKET RIGHT SCRAPER LIP 37 50094020 1 BRACKET LEFT SCRAPER LIP 38 51163390 2 THREADED BOLT 39 50332400 2 HAND WHEEL 40 63304070 2 SPRING CLIP 41 63908920 1 SPIRAL HOSE 42 66463290 2 RED PLUG 43 66463300 2 BLUE PLUG 44 73031070 3 SCREW 5X16-10.9-P2R (K-IN6RD) 45 66469790 4 SWITCH CONTACT 46 63884820 1 HOSE COUPLING 47 63211960 1 STAR GRIP M5X10

- 27630040 - BRUSH HEAD R 65 CM W/SIDE

SERIAL NO.

FROM

NOTES:

DECK,

COMPLETE

86317500 CHARIOT SCRUBBER 81

Scrub Deck Mounting-Cylindrical

82 86317500 CHARIOT SCRUBBER

Scrub Deck Mounting-Cylindrical

REF PART NO. PRV NO. QTY DESCRIPTION

1 86272640 - 1 PIN, CLEVIS 3/8 X 1.13 PLTD 2 86276780 70728 4 SCR, 5/16-18 X 3/4 HHCS SS 3 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS 4 73110060 - 2 HEXAGON NUT M10-8-A3E ISO 4032 5 73100410 - 2 KNURLED NUT M10-CU3 DIN 467 6 86274660 70255 2 SCR, 3/8-16 X 1.5 HHCS GR5 PLT 7 86320580 - 2 BRKT, DECK LINKAGE 8 86005770 57119 2 NUT, 3/8-16 HEX NYLOCK

9 86005730 57111 2 NUT 3/8-16 HEX 10 64014190 - 2 EYE SCREW LB M10X60 DIN 444 11 44812510 - 2 EYE ROD 12 OPEN - - 13 86008670 80606 1 COTTER 3/8" RING

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 83

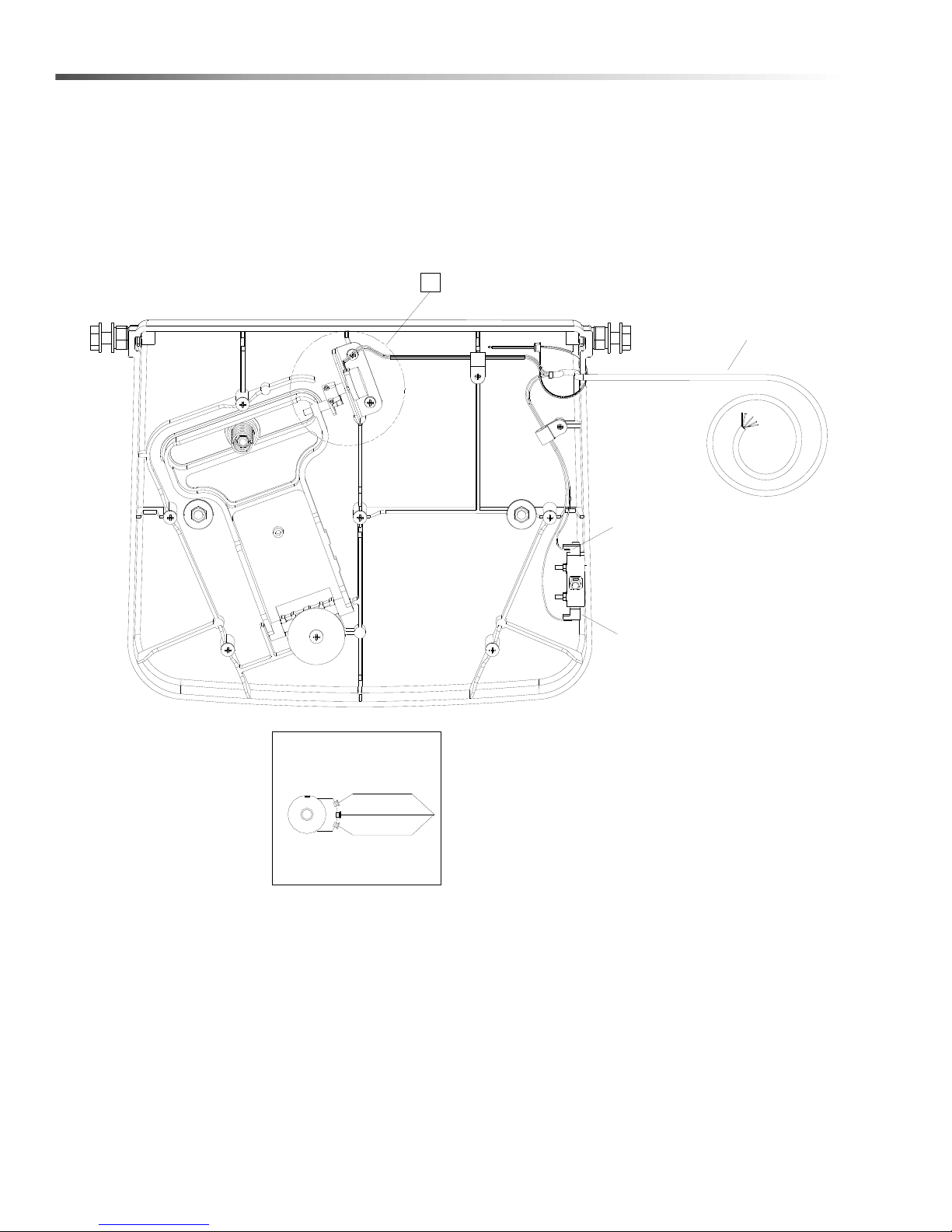

Scrub Deck Lift-Disk

DETAIL 'A'

SEE DETAIL 'A'

84 86317500 CHARIOT SCRUBBER

Scrub Deck Lift-Disk

REF PART NO. PRV NO. QTY DESCRIPTION

1 86276920 70755 2 SCR, 3/8-16 X 1 HHCS SS NP 2 86008 8 10 80697 2 BALL JOINT ASY, 3/8-24 RH 3 86273850 70022 2 SCR, 1/4-20 X 2 HHCS 4 86010780 87162 2 WASHER, 1/4 SPILT LOCK PLTD 5 86079030 620058 1 PLATE, ACTUATOR SPR, SCRUBDECK 6 86091760 140741 1 BRKT, ACTUATOR MTG, SCRUBBER 7 86274110 70094 2 SCR, 1/4-20 X 1/2 SHCS 8 86005830 57263 2 NUT, 3/8-24 UNF LH 9 86008660 80605 1 COTTER, 5/16" RING

10 86277030 70780 2 SCR, 5/16-18 X 1.25 CARRIAGE SS

11 86224370 730335 2 SPACER, 1 OD X .391 ID X .500 12 86270830 57023 2 NUT, 5/16-18 HEX NYLOCK SS 13 86272460 66268 1 PIN, CLEVIS 5/16 X 3.00 PLTD 14 86011950 - 1 ACTUATOR, 36VDC 3.5 STRK 15 86275510 70494 2 SCR, 3/8-16 X 4.5" HHCS GR5 16 86010770 87143 6 WASHER, 7/16ID X IDX.08 FLT SS 17 86070810 140739 1 BRKT, ACTUATOR SPGS, SCRUBDECK 18 86255450 81376 2 SPRING COMP .96D X 4.0L X .135W 19 86005630 57022 8 NUT, 3/8-16 HEX NYLOCK THIN SS 20 86271530 57216 4 NUT, 3/8-24 HEX NYLOCK 21 86009050 81324 4 BEARING, 1/2 ID X 11/32L NYLON 22 86008460 80102 4 SPACER, .500OD X .391ID C .400 23 86224380 730336 2 SPACER, 1 OD X 0.391 ID X 1.063 24 86274010 70070 2 SCR, 3/8-16 X 2 HHCS 25 86001320 140353 2 BALL JOINT ASSY, 3/8-24 LH 26 86077330 31373 2 LINKAGE, .25 X 1.25 X 9.25 27 86223540 66483 2 ROD, SCRUB LIFT 28 86005800 57217 2 NUT, 3/8-24 HEX JAM 29 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 85

Scrub Deck Actuator-Cylindrical

86 86317500 CHARIOT SCRUBBER

Scrub Deck Actuator-Cylindrical

REF PART NO. PRV NO. QTY DESCRIPTION

1 86317340 - 3 SPACER, .498 X.313 X.500 2 86317330 - 3 PULLEY, 2 IN. 3 86320800 - 1 ACTUATOR, 36VDC, 3" STROKE 4 86320690 - 1 PLATE ASSY, RETAINER, CABLE 5 86315260 - 1 BRKT ASSY, ACTUATOR 6 86315250 - 1 YOKE, CABLE 7 86320680 - 2 SPACER, .31ID X .75OD X .56LG 8 86270770 57006 1 NUT, 1/4-20 HEX

9 86315150 - 1 PLATE, PULLEY, REAR 10 86315140 - 1 PLATE, PULLEY, FRONT 11 86315120 - 1 SPRING, EXTENSION 12 86315110 - 2 BRKT, DECK PIVOT 13 86315090 - 1 BELLCRANK ASSY, DECK 14 86314810 - 1 CABLE ASSY, DECK LIFT 15 86270990 57090 2 NUT, 10-32 HEX NYLOCK SS 16 86224380 730336 1 SPACER, 1 OD X .391 ID X 1.063 17 86010780 87162 15 WASHER, 1/4 SPLIT 18 86010670 87029 2 WASHER, 5/16 X 3/4 SS 19 86231090 80809 2 BUMPER, RUBBER 5/16" ID X 1.50 20 86006980 70591 1 SCR, 10-32 X 1/2 HHCS SS 21 86136850 70241 3 SHOULDER BOLT, 5/16 OD X 5/8 L 22 86320610 - 1 PLATE ASSY, PULLEY MOUNT 23 86273920 70049 1 SCR, 1/4-20 X 1.75 PPHMS SS 24 86273820 70019 4 SCR, 1/4-20 X 1.25 HHCS SS 25 86273780 70015 2 SCR, 1/4-20 X 3/4 HHCS SS 26 86273750 70011 10 SCR, 1/4-20 X 5/8 HHCS SS 27 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS 28 86008650 80604 1 COTTER 1/4” RING *(4) 29 86334890 - 1 BRACKET, LIFT *(4) 30 86272470 66270 1 PIN, CLEVIS 3/16 X .75 PLTD *(4) 31 86271870 - 1 NUT, 1/4-20 HEX NYLCK THIN SS

SERIAL NO.

FROM

NOTES:

* See serial number page. **See Manufacturer for Serial Number.

86317500 CHARIOT SCRUBBER 87

Scrub Deck Skirts-Dis k

88 86317500 CHARIOT SCRUBBER

Scrub Deck Skirts-Disk

REF PART NO. PRV NO. QTY DESCRIPTION

1 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS

2 86070960 140773 2 BRKT, SKIRT STOP, SCRUBDECK

3 86276070 70593 4 SCR, 5/16-18 X 3/4 CARRIAGE SS

4 86228900 09138 2 BEARING FLANGED, .252IDX.503OD

5 86005810 57245 6 NUT, 1/4-20 HEX NYLOCK SS

6 86276330 70634 2 SCR, 1/4-20 X 1.25 CARRIAGE BZ

7 86276950 70772 8 SCR, 1/4-20 X 3/4 CARRIAGE SS

8 86277410 70840 6 SCR, 5/16-18 X 5/8 CARRIAGE SS

9 86271950 57300 6 NUT, 5/16-18 X 1 COUPLING SS 10 86079130 620068 4 PLATE, SKIRT, SPACER 11 86007650 730329 4 SPACER, .438D X .317ID X .25L 12 86007070 70849 6 SCR, 5/16-18 X 1.00 PTMS SS 13 86066460 140769 1 BAND, SKIRT, LEFT 14 86001560 140754 1 BLADE, SKIRT, SCRBDCK, 24IN LFT 15 86091770 140765 1 BRKT, SKIRT SCRUBDECK, LEFT 16 86001700 140780 1 BLADE, SKIRT , SCRUBDECK, FRONT 17 86066480 140781 1 BAND, SKIRT, SCRUBECK, FRONT 18 86091780 140766 1 BRKT, SKIRT, SCRUBDECK, RIGHT 19 86001570 140755 1 BLADE, SKIRT, SCRBDCK, 24IN RGT 20 86066470 140770 1 BAND, SKIRT, RIGHT 21 86277500 70853 3 SCR, 1/4-20 X 5/8 CARR SS 22 86271870 57290 3 NUT, 1/4-20 HEX NYLOCK THIN SS

23 86026470 47459 - KIT, SKIRT LEFT

24 86026460 47458 - KIT, SKIRT RIGHT

SERIAL NO.

FROM

NOTES

SERVICE ONLY

86317500 CHARIOT SCRUBBER 89

Scrub Deck Aqua-Mizer™

90 86317500 CHARIOT SCRUBBER

Scrub Deck Aqua-Mizer™

REF PART NO. PRV NO. QTY DESCRIPTION

1 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS

2 86277050 70782 2 SCR, 5/16-18 X 3/4 SHCS

3 86276950 70772 9 SCR, 1/4-20 X 3/4 CARRIAGE SS

4 86066430 140747 1 BAND, RIGHT AQUAMIZER

5A 86001540 140753 1 BLADE, AQUAMIZER, 12IN RGT 5B 86283550 140939 1 BLADE, AQMZR 12 RT URETHANE

6 86071000 140779 1 BRKT, AQUAMIZER BLADE, RGT

7 86219690 48080 2 K NO B, 1. 5 OD X 5/16-1 8

8 86277230 70815 2 SCR, 5/16-18 X 2.25 BSHCS SS

9 86005810 57245 9 NUT, 1/4-20 HEX NYLOCK SS 10 86070990 140778 1 BRKT, AQUAM IZER BLADE, LEFT

11A 86001520 140752 1 BLADE, AQUAMIZER, 12IN LEFT 11B 86283560 140940 1 BLADE, AQMZR 12 LT URETHATNE

12 86066420 140746 1 BAND, LEFT AQUAMIZER 13 86272540 66465 2 PIN, CLEVIS, 3/8 X 6.12, PLTD 14 86091800 140776 1 BRKT, AQUAMIZER MTG, LEFT 15 86008670 80606 2 COTTER, 3/8" RING 16 86091790 140774 1 BAND, LEFT AQUAMIZER 17 86024990 47456 - AQUAMIZER RIGHT ASM. CHARIOT 18 86025000 47457 - AQUAMIZER LEFT ASM. CHARIOT

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 91

Solution-Disk

33 34

SOLENOID

TANK

13 14

92 86317500 CHARIOT SCRUBBER

Solution-Disk

REF PART NO. PRV NO. QTY DESCRIPTION

1 86248010 57312 1 NUT, 8/32 ACORN CAP, PLATED

2 86226950 40109 1 1" HOSE BARB X 3/4" GHT NYLON

3 86073960 22104 1 C AP, 3/4" GHT W/.17 HOLE

4 86235450 31068 1 ELBOW, 3/8 FPT PVC SCH 80

5 86233150 20042 5 CLAMP, 3/8 HOSE (D-SLOT)

6 86270990 5 70 90 4 NUT, 10-32 HEX NYLOCK SS

7 86233300 20101 1 CLAMP, 1.25" WORM GEAR SS

8 86198050 81923 1 TEE, 3/4 FPT

9 86240390 40075 1 HOSEBARB, 3/4 MPT X 1/2 90D 10 86233110 20018 1 CLAMP, 1.0" WORM GEAR 11 86247760 80960 1 NIPPLE, 3/4 CLOSE PVCE

12 86240600 41526 1 13 86197540 40013 1 HOSEBARB, 3/8 MPT X 1/2 DL

14 86225680 84201 1 VALVE, 3/8" FPT BALL 15 86197420 31026 1 ELBOW, 3/8 NPT STREET 16 86001590 40049 1 HOSEBARB, 3/8 MPT X 1/2 NYLON 17 86007940 73836 1 STRAINER, DEEP, 100 MESH

- 86005870 59021 - O-RING, FILTER SEAL RON-VIK

- 86136800 73839 -

18 86252730 70887 1 SCR, 8-32 X 1/2 BHCS SST 19 86315510 - 1 HOSE, 1 X 40 DRAIN 20 86264920 27049 3 CABLE, TIE. 7" UL/CSA 21 86274410 70195 4 SCR, 10-32 X 1.25 PPHMS SS 22 86070690 140724 1 BRKT, SOLUTION PUMP 23 86010650 87018 6 WASHER, #10 X 9/16 OD 24 86006100 65176 1 PUMP ASM, 36V 25 86271820 57270 1 NUT, 5/16-18 CAPTIVE "J" PLTD 26 86279130 87083 1 WASHER, 5/16 SPLIT LOCK PLTD 27 86276780 70728 1 SCR, 5/16-18 X 3/4 HHCS SS 28 86197940 40027 2 HOSEBARB, 3/8MPTX1/2 90D DL 29 86246090 51461 1 LANYARD, .093 X 6", LOOP - .26 EYE 30 86254320 730400 1 SPACER, .17 ID X .25 OD X 3/16 LG 31 86259450 87507 1 WASHER, 1.0 D X .1 THK, SEAL 32 86274070 70086 2 SCR,10-24X1/2PPHMS 33 86233390 80887 2 CLAMP, 7/8 DIA ‘P" CUSHIONED 34 86270860 57028 2 NUT, 10-24 U-TYPE SPEED

HOSEBARB, 3/4 MPTX1, HOSE 90DEG

SCREEN, 100 MESH STRAINER DEEP

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 93

Solution-Cylindrical

TANK

SOLENOID

94 86317500 CHARIOT SCRUBBER

Solution-Cylindrical

REF PART NO. PRV NO. QTY DESCRIPTION

1 86270830 57023 2 NUT, 5/16-18 HEX NYLOCK SS

2 86001530 40039 1 HOSE BARB, 1/2 MPT X 1/2 HOSE 90

3 86188210 11-800354 1 NIP, 1/2 X 3/8 HEX BR

4 86248010 57312 1 NUT, 8/32 ACORN CAP, PLATED

5 86233150 20042 5 CLAMP, 3/8 HOSE (D-SLOT)

6 86270990 5 70 90 4 NUT, 10-32 HEX NYLOCK SS

7 86279130 87083 1 WASHER, 5/16 SPLIT LOCK PLTD

8 86198050 81923 1 TEE, 3/4 FPT

9 86240390 40075 1 HOSEBARB, 3/4 MPT X 1/2 90D 10 86276780 70728 1 SCR, 5/16-18 C 3/4 HHCS SS 11 86247760 80960 1 NIPPLE, 3/4 CLOSE PVCE

12 86240600 41526 1 13 86233110 20018 1 CLAMP, 1.00" WORM GEAR

14 86225680 84201 1 VALVE, 3/8" FPT BALL 15 86197420 31026 1 ELBOW, 3/8" NPT STREET 16 86197540 40013 1 HOSEBARB, 3/8 MPT X 1/2 DL 17 86256120 730368 1 STRAINER, 1/2 FPT 100 MESH

- 86005870 59021 - O-RING, FILTER SEAL RON-VIK

- 86136800 73839 - SCREEN, 80 MESH STRAINER DEEP 18 86010780 87162 2 WASHER, 1/4 SPLIT LOCK PLTD 19 86315510 - 1 HOSE, DRAIN 1.0 X 110 CONV 20 86264920 27049 2 CABLE, TIE. 7" UL/CSA 21 86274410 70195 4 SCR, 10-32 X 1.25 PPHMS SS 22 86070690 140724 1 BRKT, SOLUTION PUMP 23 86010650 87018 4 WASHER, #10 X 9/16 OD 24 86006100 65176 1 PUMP ASM, 36V 25 86271820 57270 1 NUT, 5/16-18 CAPTIVE "J" PLTD 26 86226950 40109 1 1" HOSEBARB X 3/4" GHT NYLON 27 86073960 22104 1 CAP, 3/4" GHT W/.17 HOLE 28 86197940 40027 2 HOSEBARB, 3/8MPTX1/2 90D DL 29 86246090 51461 1 LANYARD, .093 X 6", LOOP - .26 EYE 30 86254320 730400 1 SPACER, .17 ID X .25 OD X 3/16 LG 31 86259450 87507 1 WASHER, 1.0 D X .1 THK, SEAL 32 86252730 70887 1 SCR, 8-32 X 1/2 BHCS SST 33 86233300 20101 1 CLAMP, 1.25" WORM GEAR SS 34 86010600 84199 1 VALVE SOLENOID, 36VDC, 1/2 BARB 35 86174400 70194 2 SCR, 1/4-20 X 5/8 BHCS 36 86276070 70593 1 SCR, 5/16-18 X 3/4 CARRIAGE SS 37 86233410 81270 1 CLAMP, 3/4 DIA CUSHION .406DIA 38 86270830 57023 1 NUT 5/16-18 HEX NYLOCK SS

HOSEBARB, 3/4 MPTX1, HOSE 90DEG

SERIAL NO.

FROM

NOTES:

86317500 CHARIOT SCRUBBER 95

Squeegee-Disk

27B

19B

27A

19A

27B

19B

27A

19A

96 86317500 CHARIOT SCRUBBER

Squeegee-Disk

REF PART NO. PRV NO. QTY DESCRIPTION

1 86004890 48095 2 KNOB, ALUM 3/8-16 NYLOCK NUT SS 2 86070920 140759 2 BRKT, SQG WHEEL 3 86006270 66276 2 PIN, CLEVIS 5/16 X 1.63 PLTD 4 86007780 73576 2 SPRING, COMP .60D X 2.0L X .045 W 5 86005630 57022 2 NUT, 3/8-16 HEX NYLOCK THIN SS 6 86270830 57023 3 NUT, 5/16-18 HEX NYLOCK SS 7 86010670 87029 4 WASHER, 5/16 FLAT SS 8 86001350 140390 2 BUSHING, SPANNER .435 X 1.10

9 86011020 89202 4 WHEEL, 3" DIA CUSHION RUBBER 10 86005650 57031 2 NUT, 5/16-18 HEX 11 86276950 70772 4 SCR, 1/4-20 X 3/4 CARRIAGE SS 12 86083290 66463 2 PLATE, SQG WHEEL NMT BUMPER 13 86276710 70717 2 SCR, 5/16-18 X 2.0 CARRIAGE SS 14 86083250 66459 1 PLATE, SQG TOP 33” 15 86271870 57290 4 NUT, 1/4-20 HEX NYLOCK THIN SS 16 86007040 70680 5 SCR, 5/16-18 X 1 THUMB SS TYPE P 17 86271820 57270 5 NUT, 5/16-18 CAPTIVE "J" PLTD 18 86087830 140760 1 STRAP, SQUEEGEE

19A 86001630 140764 1 BLADE, SQU, FRONT 36.7 19B 86283540 140938 1

20 86083270 66461 1 PLATE, SQG VERICAL FILLER (F) 21 86083260 66460 1 PLATE, SQG BOTTOM 33” 22 86277000 70777 4 SCR, 1/4-20 X 1.5 CARRIAGE SS 23 86276990 70776 2 SCR, 3/8-16 X 3.5 CARRIAGE SS 24 86277450 70846 2 SCR, 3/8-16 X 2 LG CARRIAGE SS 25 86008390 78493 1 TUBE ASM, SQUEEGEE VAC 26 86083280 66462 1 PLATE, SQG VERTICAL FILLER

27A 86001580 140763 1 BLADE, SQU, REAR 40.6 LINATEX 27B 86283510 140935 1 BLADE, SQU, REAR 40.6 URETHANE

28 86066440 140761 1 BAND, REAR SQUEEGEE 29 86006400 67380 4 RIVET, 5/32 OF X 1/8 GRIP 30 86009170 81488 1 LATCH, SQUEEGEE STRAP 31 86009180 81489 1 STRIKER, SQUEEGEE STRAP REAR 32 86066450 140762 1 BAND, SQG REAR RH 33 86009910 82576 1 VIAL, LEVEL 34 86274130 70098 2 SCR, 8-32 X 3/8 PHTC 'F' PLATD 35 86071070 140795 1 BRKT, SQG QUICK CONNECT LOCK 36 86071060 140794 1 BRKT, SQG QUICK CONNECT MTG 37 86009200 81535 1 KNOB, 3/8-16 4 PRONG ALUM 38 86277440 70845 1 SCR, 3/8-15 X 2.5 LG BSHCS SS 39 86008660 80605 2 COTTER, 5/16 RING 40 86277460 70847 1 SCR, 5/16-18 X 5/8 BSHCS SS

- 86025170 47455 - DISK SQUEGEE ASM COMPLETE

BLADE, SQU, FRONT 36.7 URETHANE

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 97

Squeegee Lift-Disk

98 86317500 CHARIOT SCRUBBER

Squeegee Lift-Disk

REF PART NO. PRV NO. QTY DESCRIPTION

1 86068190 140793 1 BRACKET, ACTUATOR MOUNT *(2) WAS 86315270

2 86273820 70019 1 SCR, 1/4-20 X 1.25 HHCS

3 86316550 - 1 ACTUATOR, 36VDC, 4.5:” STROKE

4 86083490 66831 1 PLATE, PULLEY MOUNT, CORNER

5 86068230 140840 1

6 86270870 57029 3 NUT, 1/4-28 HEX SS

7 86002780 270098 1 CABLE, SQUEEGEE LIFT DELUXE

8 86277410 70840 4 SCR, 5/16-18 X 5/8 CARRIAGE SS

9 86075430 270700 1 COVER, SQUEEGEE LIFT 10 86270830 57023 9 NUT, 5/16-18 HEX NYLOCK SS 11 86276070 70593 3 SCR, 5/16-18 X 3/4 CARRIAGE SS 12 86277400 70839 2 SCR, 5/16-8 X 1.75 BSHCS SS 13 86010670 87029 10 WASHER, 5/16 FLAT SS 14 86277460 70847 1 SCR, 5/16-18 X 5/8 BSHCS SS 15 86271870 57290 2 NUT, 1/4-20 HEX NYLOCK THIN SS 16 86223370 66464 6 PULLEY, PLASTIC 3.0 DIA 17 86231150 09151 5 BUSHING, FLANGE, .314ID X .502OD

18 86083440 66824 1 19 86276760 70724 2 SCR, 5/16-18 X 1.25 BSHCS SS

20 86274720 70264 2 SCR, 5/16-18 X 1.50 HHCS SS 21 86071300 140843 1 22 86224290 730008 2 SPACER, .317ID X .5OD X .44 LG

23 86071310 140844 1 BRKT, PULLEY RETAINER, DOUBLE 24 86083500 66832 1 PLATE, PULLEY RETAINER, CORNER 25 86271840 57285 1 NUT, 5/16-18 HEX NYLOCK THIN SS 26 86228880 09132 1 BEARING, .314 ID X .503 OD X 1 27 86277480 70850 2 SCR, 5/16-18 X 1/2 PTHMS SS

BRACKET, SQG LIFT PULLEY MOUNT

PLATE, PULLEY MOUNTING, CENTER

BRACKET, PULLEY RETAINER, DOUBLE

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 99

Squeegee-Cylindrical

11 12 13

3 4 5 6

8 9 10

2B 2C

PRIOR TO S/N (*4)

3 4

2A 2B 2C

PRIOR TO S/N (*4)

100 86317500 CHARIOT SCRUBBER

Squeegee-Cylindrical

REF PART NO.

1 28852940 - 1

2A 62732070 - 1 2B 62732130 - 1 RUBBER LIP SET STANDARD 2C 62732290 - 1

3 73061420 - 2

4 73120170 - 2 WASHER 8-A2 ISO 7089

5 51005590 - 1 SUCTION BAR SUPPORT PLATE

6 50336010 - 1 SUCTION NIPPLE

7 47774010 - 1 SUCTION BAR STRAIGHT 850MM (*4) Complete

8 63212390 - 2 STAR GRIP VA Ø50X43

9 50942310 - 2 SLEEVE SUCTION BAR IN VA 10 55153460 - 2 DEFLECTOR ROLL SUCTION BAR D120 11 53052960 - 2 WING SCREW M8X40 VA (*4) 12 51128100 - 2 SLEEVE VA (*4) 13 50072170 - 1 PLATE (*4) 14 73114310 - 2 HEXAGON NUT M 5-1.4305 ISO 10511 15 63212400 - 2 STAR GRIP WITH INSCRIPTION VA Ø50x43 16 40353390 - 2 ROLLER SUCTION BAR 17 51005600 - 2 ADDITIONAL WEIGHT SUCTION BAR 300 G 18 73061850 - 2 SCREW M5x 35-A2-70 (IN6RD) 19 73433030 - 2 LOCKING RING 8-A2 DIN 6799 20 64354010 - 2 WHEEL D54 21 53325040 - 2 PRESSURE SPRING 22 53040980 - 2 BOLT 23 51283390 - 1 ADDITIONAL WEIGHT SUCTION BAR 24 47770590 - 1 SUCTION BAR CURVED BR-BD 550 25 86314870 - 1 BRKT, SQUEEGEE MTG 26 86137310 87098 2 WASHER, M8 SPLIT LOCK 27 86274860 70311 2 SCR, M8X20 HHMS 28 86277440 70845 1 SCR, 3/8-16 X 2.50 LG BSHCS SSS 29 86009200 81535 1 KNOB, 3/8-16 4 PRONG ALUM 30 86071070 140795 1 BRKT, SQG QUICK CONNECT LOCK 31 86005630 57022 1 NUT, 3/8-16 HEX NYLOCK THIN SS 32 50319890 - 1 SUCTION NIPPLE 33 50319900 - 1 END PIECE LEFT 34 50319910 - 1 END PIECE RIGHT

PRV

NO.

END PIECE LEFT / RIGHT SP ARE PARTS SET

RUBBER LIP SET OIL RESISTANT BRBD530,55

RUBBER LIP SET ANTI STRIPE OIL RESISTANT

CYLINDER HEAD SCREW M 8X25-A4-70 ISO 47

DESCRIPTION

SERIAL NO.

FROM

NOTES

**Call Manufacturer for Serial Number *See Serial Number Page

86317500 CHARIOT SCRUBBER 101

Squeegee Lift Assembly -Cylindrical - From Serial Number *(4)

102 86317500 CHARIOT SCRUBBER

Squeegee Lift Assembly -Cylindrical - From Serial Number *(4)

REF PART NO. PRV NO. QTY DESCRIPTION

1 86334910 - 2 SPRING, COMP, .480OD X 2.75L

2 86334760 - 1 SHAFT, SPRING

3 86333860 - 2 BRACKET, SPRING

4 86333590 - 1 BRACKET, MOUNT

5 86333580 - 1 BRACKET, LINK, PIVOT

6 86333570 - 1 BRACKET, LINK, LEFT

7 86333560 - 1 BRACKET, LINK, RIGHT

8 86333530 - 1 BRACKET, SQUEEGEE MOUNT

9 86259420 87232 4 WASHER, THRUST.51 ID X 1 ODBRO 10 86259400 87205 4 WASHER, THRUST .51 ID X 1 ODBRO 11 860106 70 87029 9 WASHER, 5/16 X 3/4 SS 12 86010630 87013 5 WASHER, 1/4 X 5/8 FLAT SS 13 86278910 87003 2 WASHER, 3/8 X 7/8 FLAT SS 14 86005670 80606 2 COTTER, 3/8 RING 15 86277130 70795 6 SCR, 5/16-18X1.00 CARRIAGE SS 16 86276960 70773 1 SCR, 1/4-20 X 1.00 CARRIAGE SS 17 86276950 70772 4 SCR, 1/4-20 X 3/4 CARRIAGE SS 18 86005810 57245 5 NUT, 1/4-20 HEX NYLOCK SS 19 86270830 57023 6 NUT, 5/16-18 HEX NYLOCK SS 20 86228990 09153 6 BEARING FLG .314IDX.502OD

* See serial number page.

SERIAL NO.

FROM

NOTES

**See Manufacturer for Serial Number.

86317500 CHARIOT SCRUBBER 103

Squeegee Lift-Cylindrical

104 86317500 CHARIOT SCRUBBER

Squeegee Lift-Cylindrical

REF PART NO. PRV NO. QTY DESCRIPTION

1 86320800 - 1 ACTUATOR, 36VDC, 3.0", LONG

2 86315270 - 1 BRKT ASSY, ACTUATOR MOUNT

3 86315250 - 1 YOKE, CABLE

4 86315000 - 1 SQUEEGEE MOUNT ASSY

5 86314820 - 1 CABLE ASSY, SQUEEGEE

6 86273740 70010 1 SCR, 1/4-20 X 1.5 HHCS SS

7 86224370 730335 4 SPACER, 1 OD X .391 ID X .500

8 86224290 730008 1 SPACER, .317ID X .5OD X .44LG

9 86259420 87232 8 WASHER, THRUST.51 ID X 1 ODBRO 10 86010670 87029 8 WASHER, 5/16 X 3/4 SS 11 86008650 80604 1 COTTER, 1/4 RING 12 86277480 70850 1 SCR, 5/16-18X1/2 PTHMS SS 13 86276760 70724 3 SCR, 5/16-18 X 1.25 BSHCS SS 14 86276690 70715 4 SCR, 5/16-18 X 1.75 CARR SS 15 86007020 70673 1 SCR, 5/16-18 X 1.25 HHCS SS 16 86274720 70264 1 SCR, 5/16-18 X 1.50 HHCS SS 17 86273820 70019 1 SCR, 1/4-20 X 1.25 HHCS SS 18 86073600 66833 1 BRKT, PULLEY RETAINER, SINGLE 19 86083500 66832 1 PLATE, PULLEY RETAINER, CORNER 20 86083490 66831 1 PLATE, PULLEY MOUNT, CORNER 21 86083440 66824 1 PLATE, PULLEY MOUNTING, CENTER 22 86223370 66464 4 PULLEY,PLASTIC 3.0 DIA 23 86272470 66270 1 PIN, CLEVIS 3/16 X .75 PLTD 24 86271870 57290 2 NUT, 1/4-20 HEX NYLOCK THIN SS 25 86005810 57245 1 NUT, 1/4-20 HEX NYLOCK SS 26 86270830 57023 9 NUT, 5/16-18 HEX NYLOCK SS 27 86270770 57006 1 NUT, 1/4-20 HEX 28 86231150 09151 4 BEARING FL ANGED .314IDX.502OD 29 86228840 09124 4 BEARING, FLANGED .313IDX.502OD 30 86334490 - 1 ASM, LIFT, SQUEEGEE *(4)

SERIAL NO.

FROM

NOTES

*See serial number page. **See Manufacturer for Serial Number.

86317500 CHARIOT SCRUBBER 105

Squeegee Swing

106 86317500 CHARIOT SCRUBBER

Squeegee Swing

REF PART NO. PRV NO. QTY DESCRIPTION

1 86276690 70715 7 SCR, 5/16-18 X 1.75 CARR SS

2 86091530 140787 1 BRACKET, SQUEEGEE SIDE PIVOT

3 86090300 87247 2 WASHER, 1.25 ID X .075 OCTAGON

4 86083370 66475 2 PLATE, SQG SWING SPACER

5 86091540 140800 1 BRACKET, H PIVOT MOUNT

6 86270830 57023 13 NUT, 5/16-18 HEX NYLOCK SS

7 86271530 57216 2 NUT, 3/8-24 HEX NYLOCK

8 86008810 80697 1 BALL JOINT ASY, 3/8-24 RH

9 86271980 57303 1 NUT, 3/8-24 WING SS 10 86223590 67510 1 ROD, CAMBER ADJUST 11 86001320 140353 1 BALL JOINT ASSY, 3/8-24 LH 12 86091810 140798 1 BRKT, SQG QUICK CONNECT 13 86224290 730008 2 SPACER, .317ID X .500 X .44LG 14 86083400 66479 1 PLATE, CABLE RETAINING 15 86276760 70724 2 SCR, 5/16-18 X 1.25 BSHCS SS 16 86272630 80771 1 PIN, CLEVIS 1/4 X .88 PLTD 17 86008650 80604 1 COTTER, 1/4 RING

18 86228840 09124 4 19 86277030 70780 4 SCR, 5/16-18 X 1.25 CARRIAGE SS

20 86224380 730336 4 SPACER, 1 OD X .343 ID X 1.063 21 86083150 66446 2 PLATE, SQUEEGEE SWING 22 86083310 66468 1 PLATE, WHEEL RETAINER 23 86226030 89268 2 WHEEL, 1.000 OD X .323 ID X .750 SS 24 86222580 66466 2 PIN, .312 DIA X 1.250 LG SS 25 86070820 140740 1 BRKT, SQUEEGEE SWING HORIZ 26 86278910 - 1 WASHER, 3/8ID X 7/8OD SS *(1) 27 86326670 - 1 PLATE, CABLE GUARD *(1)

BEARING, FLANGED .314 ID X .502 0D

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 107

Steering

108 86317500 CHARIOT SCRUBBER

Steering

REF PART NO. PRV NO. QTY DESCRIPTION

1 86271610 57228 1 NUT, 5/8-16 HEX NYLOCK THN

2 86234810 27945 1 COVER, STEERING WHEEL

3 86259610 730117 1 WHEEL, STEERING 40 SPLINE HUB

4 86224050 730318 1 SHAFT, UPPER STEERING

5 86228790 09111 1 BEARING, FLANGE .88ODX.75IDX.75

6 86314830 - 2 BRKT, UPPER STEERING SUPPORT

7 86005610 57016 1 NUT, 7/8 DIA PUSHLOCK

8 86317090 - 1 RING, EXT PUSH ON RTNR, 3/4

9 86219600 45012 1 JOINT, UNIVERSAL FEMALE 10 86272900 67416 1 RING, 3/4" KLIP 11 86224060 730319 1 SHAFT, LOWER STEERING 12 86219650 48110 1 KEY, 5MM SQ X 39MM L 13 86228670 09072 1 BEARING, 3/4" BORE FLANGED 14 86276070 70593 2 SCR, 5/16-18 X 3/4 CARRIAGE SS 15 86224800 730315 1 SPROCKET, STEERING SHAFT 16 86010670 87029 2 WASHER, 5/16 FLAT SS 17 86135970 48045 1 KEY, 3/16 SQ X 5/8 LONG 18 86275190 70377 1 SCR, 3/8-16 X 1.25 HHCS SS 19 86008610 80595 2 FLANGE, BEARING PRESS STEEL 20 86001030 09148 1 BEARING, BALL 3/4 BORE SPHERED 21 86224320 730221 1 SPACER, .63 OD X .385ID X .64L

22 86224810 730316 1 23 86005630 57022 1 NUT, 3/8-16 HEX NYLOCK THIN SS

24 86002750 270088 1 CHAIN, ISO 08B, 12.7MM PITCH 25 86278940 87008 2 WASHER, 1/4 ID X 1-1/4OD 26 86010780 87162 1 WASHER, 1/4 SPLIT LOCK PLTD 27 86274330 70175 1 SCR, M6 X 20HHMS PLTD 28 86279130 87083 2 WASHER, 5/16 SPLIT LOCK 29 86253200 70806 1 SET SCR, M6 X 25 NP 30 86270830 57023 2 NUT, 5/16-18 HEX NYLOCK SS 31 86321430 - 1 TRIM, SEAL, 5/8" BULB X 6.8"

- 86232780 279001 - CHAIN, MASTERLINK 12.7MM

SPROCKET, DRIVE WHEEL STEERING

SERIAL NO.

FROM

NOTES:

INCLUDES

27945

86317500 CHARIOT SCRUBBER 109

Tank

110 86317500 CHARIOT SCRUBBER

Tank

REF PART NO. PRV NO. QTY DESCRIPTION

1 86313100 - 1 DOME, TANK, 20 X 21

2 86310190 - 1 BASKET, STRAINER, DOME

3 86327510 - 6 SCR, KA50 X 16, WN1412 A2 SS

4 86290540 - 4 SCR, 10-32 X 1/2 TORX SS BLK NP

5 86315530 - 1 COLLAR, BAG

6 86025200 31377 1 ELBOW ASM, FLOAT

7 86199840 090-12A 1 FLOAT SCREEN CAGE ASSY (SLIP)

8 86294250 - 4 WASHER, .19ID X .5 X .09 THK BLK

9 86317770 - 1 GASKET, DOME 10 86315550 - 1 FRAME, BAG 11 86314160 - 1 FILL PORT LID 12 86275800 70546 6 SCREW 8 X3/4 PFHT/S BLK ZINC 13 86317620 - 1 RIM FILL PORT 4"BLACK W/O-RING 14 86312050 - 1 TANK, BLUE TRIM 15 86279630 87212 4 WASHER, .344IDX1.13ODX.09T PLT 16 86276490 70670 4 SCR, 5/16-18 X 5/8 HHCS GR5 17 86328980 - 1 CAP, DRAIN HOSE 18 86315500 - 1 HOSE, 2 X 30 DRAIN 19 86314080 - 1 NUT, DRAIN FITTING 20 86317360 - 1 GASKET, TANK DRAIN 21 86314070 - 1 FITTING, DRAIN 22 86317370 - 1 GASKET ASSY, DRAIN PLUG 23 86256100 730333 1 STRAINER, 3/4-MPT, 12 MESH 24 86314050 - 1 PLUG, DRAIN 25 86246080 51368 1 LANYARD, 18.0 W/LOOP & EYE 26 86312800 - 1 BAG RECOVERY 27 86317610 - 1 GASKET, 5.5 OD X4.5ID X.06W/PSA 28 86002390 20063 1 CLAMP, 1.75” WORM GEAR X .312” 29 86002380 20046 1 CLAMP, 2.25 WORM GEAR 30 86033570 78934 1 TUBE ASM 31 86003010 27759 1 CUFF, HOSE 1.5" BLK A 2161 32 86264950 27746 2 CABLE TIE, .19W X 11.5 L BLK

33A 86305960 - 1 HOSE ASM, 1.5 BLK PVC VAC X 67 DISK 33B 86318090 - 1 HOSE ASM, W/90 DEGREE METRIC CYLINDRICAL

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 111

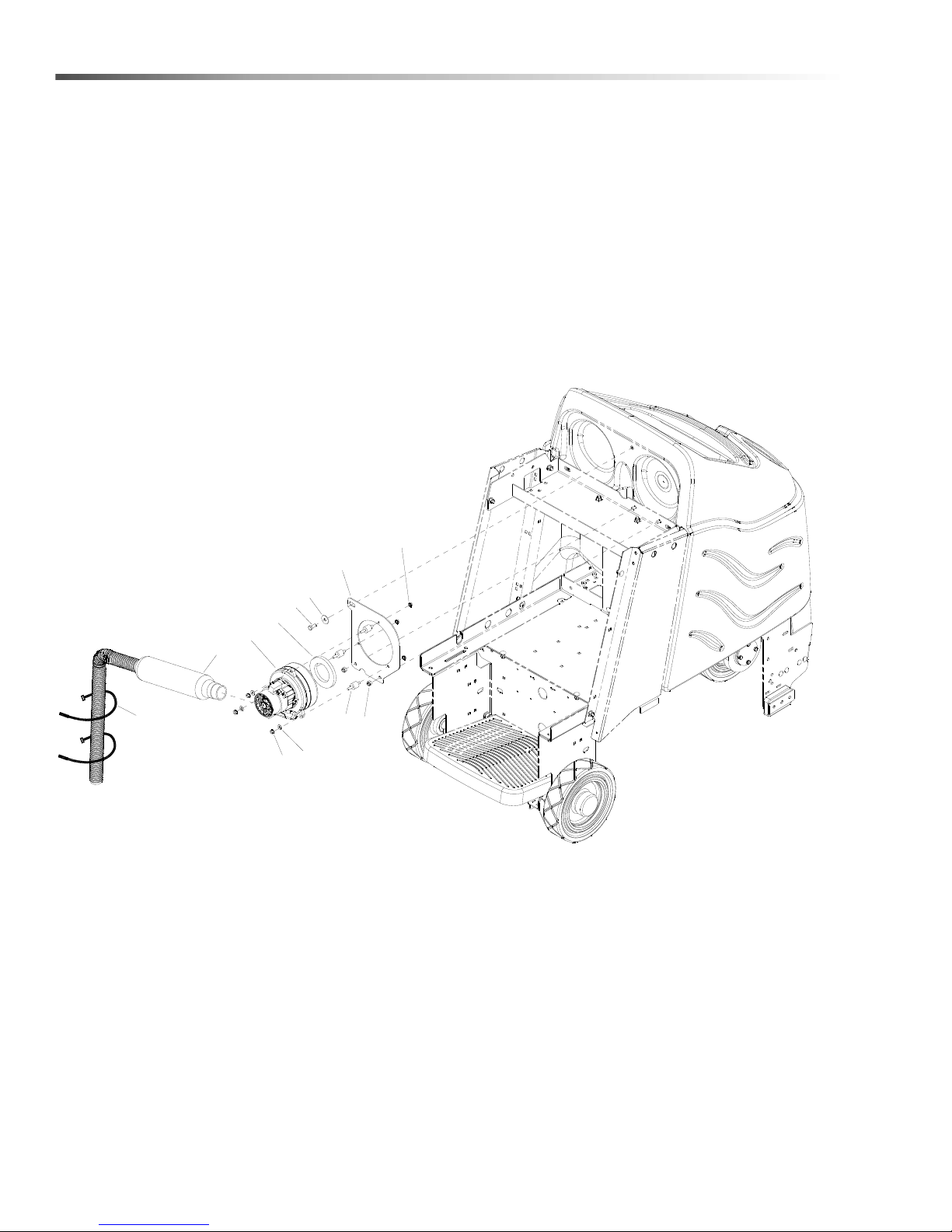

Vacuum

112 86317500 CHARIOT SCRUBBER

Vacuum

REF PART NO. PRV NO. QTY DESCRIPTION

1 86314790 - 3 ISOLATOR, RUBBER, 1/4-20 UNC M

2 86314780 - 1 PLATE, VAC MOTOR

3 86012210 - 1 VAC MOTOR, 36VDC 2ST TD

4 86279630 8 72 12 1 WASHER, .344IDX1.130ODX.09T PLT

5 86010630 8 70 13 3 WASHER, 1/4 X 5/8 FLAT SS

6 86276490 70670 1 SCR, 5/16-18 X 5/8 HHCS GR5

7 86005710 57105 6 NUT, 1/4-20 HEX W/STAR

8 86270830 57023 2 NUT, 5/16-18 HEX NYLOCK SS

9 86237440 35168 1 GASKET, 4.06 X 2.50 X .38 10 86318080 - 1 MUFFLER ASSY, 1.5 HOSE 11 86264950 27746 2 CABLE TIE, .19W X 11.5L BLK

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 113

Wheel-Front Drive

17A

17B

GEAR REPLACEMENT KIT

114 86317500 CHARIOT SCRUBBER

Wheel-Front Drive

REF PART NO. PRV NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1 86275190 70377 4 SCR, 3/8-16 X 1.25 HHCS SS

2 86010790 871 63 4 WASHER, 3/8 SPLIT LOCK PLTD

3 86002830 27196 1 CABLE TIE, .375 X 24.7

4 86006170 66031 1 PIN, ROLL 1/8" X 3/4"L

5 86224440 730387 1 SPACER, 25.51 ID X 45 OD X 39.1 L

6 86224020 730233 1 SHAFT ASM, DRIVE PIVOT

7 86001740 140816 1 BRAKE, 36VDC W/CONNECTOR

8 86273340 00-000289 4 SCR, CAP 8-32 X 3/8 SHCS SS

9 86006840 70390 2 SCR, 1/4-20 X 1 FHCS PLTD 10 86257490 76155 2 TERMINAL MOUNT 11 8601 06 30 87013 2 WASHER, 1/4 ID X 5/8 OD SS 12 86005710 57105 4 NUT, 1/4-20 HEX W/STAR WASHER 13 86273740 70010 2 SCR, 1/4-20 X 1.5 HHCS 14 86008920 80889 2 BOOT, RUBBER TERM. ISOLATOR 15 86233410 81270 1 CLAMP, 3/4 IDA CUSHION .406 DIA 16 86005810 57245 2 NUT, 1/4-20 HEX NYLOCK SS

17A 86333890 - 1

WHEEL, 10 X 2, COMPOSITE, W/ KEYWAY

17B 86259920 89273 1 WHEEL, 10 X 2. 5 W/KEYWAY, GRY OPTIONAL

18 86317190 - 1 GEAR BOX DRIVE UNIT HELICAL 19 86223980 09134 3 SEALED BALL BRNG, 25MM X 52MM 20 86219420 41510 1 HUB STEERING 21 86223480 67450 2 RING, 52MM INTERNAL SNAP 22 86136640 70262 1 SCR, M8-1.25 X 20 HHMS PLTD 23 86318830 - 10 SCR, M10 X 30 SHCS 24 86277340 70830 4 SCR, M6 X 15 HHCS BLK 25 86279690 87243 4 WASHER, M6 SPLIT LOCK BLK 26 86279710 87245 1 WASHER, M8 (2THK X 26 OD) 27 86225810 87506 1 WASHER, ANTI-ROTATION 28 86222720 620037 1 PLATE, BEARING RETAINER 29 86222760 620041 1 PLATE, DRIVE YOKE RH 30 86222770 620042 1 PLATE, BEARING COVER 31 86320870 - 1 SWITCH, BRAKE 36V 32 86214990 03126 1 DRIVE, AXLE 33 98411260 - 1 KIT, DRIVE GEAR

- 86317200 - 1 DRIVE MOTOR ASSEMBLY HELICAL COMPLETE

- 86216210 53820 -

BRUSH SET MOTOR, 53810 86005510

86317500 CHARIOT SCRUBBER 115

Wheel-Rear

1A 1B

116 86317500 CHARIOT SCRUBBER

Wheel-Rear

REF PART NO. PRV NO. QTY DESCRIPTION

1A 86335520 - 2 1B 86259930 89274 - WHEEL, 10X2.5, W/BEARINGS, GRY OPTIONAL

2 86008710 80623 2 RING, ¾" EXT SNAP H-D

3 86232130 17309 2 CAP, 2.75 ID X 1.0 L BLK VINYL

4 86011110 89261 2 WHEEL, 10X2.5X.787ID BEARINGS

*SEE SERIAL NUMBER PAGE **CALL MANUFACTURER FOR SERIAL NUMBER

WHEEL, 10 X 2, PLSTC HUB, W/ BEARINGS

SERIAL NO.

FROM

*(5)

NOTES

86317500 CHARIOT SCRUBBER 117

Wiring-Components

118 86317500 CHARIOT SCRUBBER

Wiring-Components

REF PART NO. PRV NO. QTY DESCRIPTION

1 86008920 80889 2 BOOT, RUBBER TERM. ISOLATOR

2 86270830 57023 2 NUT, 5/16-18 HEX NYLOCK SS

3 86229770 140805 1 BLOCK, SHUNT MOUNT

4 86273980 70066 2 SCR, 10-32 X 3/4 PPHMS

5 86238500 81427 1

6 86239720 41520 1 HORN, 108 DB MINATURE W/RING

GROMMET, 1.703 ID X 2.5 OD X .125 GRV

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 119

Wiring-Batteries

20C

20A 20B

120 86317500 CHARIOT SCRUBBER

Wiring-Batteries

REF PART NO. PRV NO. QTY DESCRIPTION

1A 86260200 80872 2 WIRE, 4X14.5BK 3/8RINGX3/8RING 1B 86002510 23125 2 CABLE ASM, BAT. JUMPER X 15 EURO

2 86008920 80889 6 BOOT, RUBBER TERM. ISOLATOR

3 86271910 57295 6 NUT, 5/16-18 FLEXLOCK

4 86010670 87029 6 WASHER, 5/16 FLAT SS

5 86264960 27915 2 CABLE TIE, .375 X 43

6A 86260610 880836 1 WIRE, 4X25RD CTERM X 3/8RING 6B 86002570 23190 1 WIRE, 4X27 RD BCLAMP X CTERM EURO 7A 86260230 80876 1 WIRE, 4X30 BK CTERM X 3/8RING 7B 86002580 23191 1 WIRE, 4X27 BK BCLAMP X CTERM EURO

8 86008760 80682 1 CONN, 175 DCA GRY W/O TERMS

9 86229700 08071 3 BLOCK, 3.0 X 1.5 X 1.5 10 86008300 78242 1 TRAY, BATTERY LINER 11 86008410 78568 1 TRAY, BATTERY 12 86272810 67132 1 RING, 1/2 EXT. SNAP H-D 13 86092910 51396 1 LATCH ROD, BATTERY TRAY 14 86254990 730313 1 SPRING, COMP, 63ODX3.5LX.047W 15 86278150 70117 8 SHOULDER BOLT, 5/16 OD X 1.0 L 16 86259910 89265 8 WHEEL, BATTERY TRAY 17 86088790 78571 2 TRAY, STANDARD STOP 18 86276070 70593 4 SCR, 5/16-18 X 3/4 CARRIAGE SS 19 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS

20A 86228410 10023 3 BATTERY, 12V, 205AH 20B 86283410 10030 3 BATTERY, 12V, 225AH 20C 86228430 10032 3 BATTERY, 12V, AGM 198AH 21A 86284090 02456 1 CHARGER, 36V, 20A, 115V, C175  21B 86000150 02264 1 CHARGER, 36VDC/21A AGM 

22 86005810 57245 8 NUT, 1/4-20 HEX NYLOCK SS 23 86233360 28038 1 CLAMP, CABLE KIT SY945 24 86273980 70066 1 SCREW, 10-32 X 3/4 PPHMS SS 25 86010650 87018 1 WASHER, #10 X 9/16 OD 26 86270890 57034 1 NUT, ACORN 10-32

SERIAL NO.

FROM

NOTES

 NOT SHOWN-FOR WET CELL BATTERIES AND AGM BATTERIES

86317500 CHARIOT SCRUBBER 121

Wiring-Control Panel

LINE

LOAD

TERMINAL BLOCK 2

TERMINAL BLOCK 1

PLATFORM HARNESS

36 BLU

65-WHT 67-GRN

63-BRN

37-WHT

61-WHT

32-GRY

19-PUR

66-YEL

31-BLK

38-YEL

62-WHT

72-BRN

73-BLU

64-BLU

PIN 6 K1-PIN 6 K2 PIN 8 K1-PIN 4 K2 PIN 9 K1-PIN 1 K2 PIN 4 K1-PIN 8 K2 PIN 10 K1-PIN 10 K2 PIN 12 K1-PIN 12 K2 PIN 13 K1-PIN 13 K2 PIN 14 K1-PIN 9 K2 PIN 11 K2-PIN 14 K2

1 2 3

5 6 7 8

9 10 11 12

13 14

1 2 3

5 6 7 8

9 10 11 12

13 14

RELAY JUMPERS

15-YEL 16-BLK 21-WHT/ORG 22-WHT/BLK 17-WHT/YEL 18-BLU 19-WHT 20-BLK

14-BLK

13-ORG

BLU RED GRN ORG BRN

6-BRN

6B-BRN

OPEN

FROM MAIN HARNESS

67-GRN 73-BLU 60-WHT - K1 72-BRN 33-PNK - C 39A-GRN - C 58-BRN - K1 59-BLU - K1 34-VIO - C 39C-ORG - C

S1 - PIN 9 K1 / 51-WHT S2 - OPEN S3 - S4 / 56-BLK S4 - PIN 5 K1 / 50-BLU S5 - PIN 7 K2 / 55-VIO S6 - PIN 14 K2 / 53-GRN S8 - PIN 4 K2 / 54-ORG S9 - PIN 4 K1 / 52-YEL

PIN 1 - 22-BRN PIN 2 - 23-BLU PIN 3 - 24-WHT PIN 4 - 25-YEL PIN 5 - 26-GRN PIN 6 - 27-ORG PIN 7 - 28-VIO PIN C - 29-PNK

R-BRUSH

L-BRUSH

13-BRN 14-BLU 15-WHT 16-YEL 17-GRN 18-ORG 3- BLU 4- BLU

69-RED

70,71-BLK

30-GRY

13-BRN 14-BLU 15-WHT 16-YEL 17-GRN 18-ORG 3- BLU 4- BLU

62-WHT

59-BLU

60-WHT

SWITCH SW1

PIN 1

PIN 1 - 19-VIO PIN 2 - 20-PNK PIN 3 - 16-TEL PIN 4 - 18-ORN PIN 8 - 13-BRN PIN 9 - 14-BLU PIN 10 - 15-WHT PIN 11 - 17-GRN

PIN 1 - 22-BRN PIN 2 - 23-BLU PIN 3 - 24-WHT PIN 5 - 25-YEL PIN 6 - 30-GRY PIN 7 - 31-BLK PIN 8 - 32-GRY PIN 9 - 33-PNK PIN 10 - 34-VIO PIN 11 - 26-GRN PIN 12 - 27-ORG PIN 13 - 35-BRN PIN 14 - 39B-ORG PIN 15 - 28-VIO PIN 16 - 29-PNK PIN 17 - 36-BLU PIN 18 - 37-WHT PIN 19 - 38-YEL PIN 20 - 39-GRN

CONNECTOR - E

CONNECTOR - F

FROM E

MOLEX

TB1

VACUUM

BRUSH R

BRUSH L

AUX3 AUX3 AUX2 AUX2 AUX1 AUX1 BRAKE BRAKE

HORN HORN PF PF POT POT WIPE B-SW B-SW CHRG

14 8

PANEL HARNESS

SW1

PROPEL

122 86317500 CHARIOT SCRUBBER

Wiring-Control Panel

REF PART NO. PRV NO. QTY DESCRIPTION

1 86313700 - 1 HARNESS, PANEL 2 STAGE 2 86010860 880353 1 WIRE, 4X20 BK CTERM C5/16RING 3 86010850 880352 1 WIRE, 4X2ORD CTERM C3/8RING

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 123

Wiring-Drive Motor

124 86317500 CHARIOT SCRUBBER

Wiring-Drive Motor

REF PART NO. PRV NO. QTY DESCRIPTION

1 86239120 41522 1 HARNESS, CHARIOT PROPEL

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 125

Wiring-Main Harness

FROM MAIN HARNESS

67-GRN 73-BLU 60-WHT - K1 72-BRN 33-PNK - C 39A-GRN - C 58-BRN - K1 59-BLU - K1 34-VIO - C 39C-ORG - C

13-BRN 14-BLU 15-WHT 16-YEL 17-GRN 18-ORG 3- BLU 4- BLU

PANEL HARNESS

OPTIONAL

WARNING LIGHTS

DIAGRAM A

TERMINAL BLOCK 2

TERMINAL BLOCK 1

PLATFORM HARNESS

15-YEL 16-BLK 21-WHT/ORG 22-WHT/BLK 17-WHT/YEL 18-BLU 19-WHT 20-BLK

14-BLK

13-ORG

BLU RED GRN ORG BRN

6-BRN

6B-BRN

OPEN

10 BLK

11 RED

PUMP

BRAKE

A B C

HORN

13 ORG

14 BLK 19 WHT 20 BLK

6 BRN 6 BRN

15 YLW

16 BLK

11 RED

10 BLK

17 LT BLU

18 WHT/YLW

21 WHT/ORG

22 WHT/BLK

12 RED

9 BLK

10 BLK

11 RED

DRIVE

MOTOR

ACTUATOR

SCRUB LIFT

SOLENOID

VALVE

DIAGRAM B

DIAGRAM C

DIAGRAM D

BRUSH

RIGHT

MOTOR

BRUSH

LEFT

SQUEEGEE LIFT

ACTUATOR

VAC

126 86317500 CHARIOT SCRUBBER

Wiring-Main Harness

REF PART NO. PRV NO. QTY DESCRIPTION

1 86313710 - 1 HARNESS, MAIN 2 86318640 - 1 HARNESS, PUMP JUMPER CYL. ONLY 3 86318650 - 2 HARNESS, BRUSH MOTOR CYL. ONLY 4 86318660 - 1 HARNESS BRUSH ACTUATOR CYL. ONLY

5 86319780 - 1

HARNESS, WARNING LIGHTS OPTION

SERIAL NO.

FROM

NOTES

OPTION

86317500 CHARIOT SCRUBBER 127

Wiring-Pedal Platform

5 GRN

7 BRN

6 ORG

DIAGRAM A

8 BLU

9 RED

128 86317500 CHARIOT SCRUBBER

Wiring-Pedal Platform

REF PART NO. PRV NO. QTY DESCRIPTION

1 86315100 - 1 HARNESS, PEDAL

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 129

Wiring-Disk

50/BLU

FWR REV

+Ubatt

-GND

-PLATFORM

-FWR

-REV

-K2.

-K1

-K2

-KSI

-FWRSW

-REV(K2)

-K1.

-LED1

-LED2

-K2

-K1

-K2

-K1

-ESTOP

19/VIO

63/BRN

72/BRN

60/WHT

46/BRN

47/BRN

42/BRN

51/WHT

48/BRN

53/GRN

55/VIO

61/WHT

45/BRN

43/BRN

41/BRN

52/YEL 54/ORG

-FLASHER POWER -FLASHER GND

-FLASHER UNIT

-FRONT FLASHER

-REAR FLASHER

OPTIONAL

-FLASHER

OPTIONAL

-TO AUX4

AUXsupplyPIN1

KSI-18

130 86317500 CHARIOT SCRUBBER

Wiring-Disk

28/VIO39B/ORG38/YEL31/BLK29/PNK35/BRN32/GRY37/WHT

59/BLU

33/PNK

34/VIO

39/GRN

-10K

-HM

-BRAKE/SW

ROTARY

-X11

-F1.6A

-X17

-HORN/SW

-X14

-K1

-X13

-HORN

-ESTOP

-KEY

-R1/5KPOT

-K2-K1

-X6-X12-X5-X3-X2-X1-X15-X19-X7-X16-X8-X18-X9-X10-X20

CONNECTOR C

LOW MID HIGHHIGHLOW

CHARGERHOURSTHROTTLE KEY REVE-STOP

& HORN

REVERSE ALARM

VAC

XPORT SINGLE

DOUBLE

LED

B+

INHIBIT

OPTIONAL

6B/BRN

6/BRN

40/BRN

44/BRN

65/WHT

67/GRN

70,71/BLK

30/GRY

73/BLU

66/YEL

62/WHT

61/WHT58/BRN

36/BLU30 /GRY27/ORG26/GRN25/YEL24/WHT23/BLU22/BRN

86317500 CHARIOT SCRUBBER 131

Wiring-Disk

-SQUEGEE

TRACTION/SOLENOID

-WATER

-U4

+Ubatt

CONNECTOR B

-X14-X12

-18A

-BRUSHR

-BRUSHL

-BRAKE

-TRACTION

-VACUUM

B+

B-

24V FOR RELAYS

-SOLUTION

-DECK

-X2-X1-X9-X8-X3-X10-X4-X11

AUX4AUX3AUX2AUX1

132 86317500 CHARIOT SCRUBBER

Wiring-Cylindrical

KSI-18

AUXsupplyPIN1

-TO AUX4

OPTIONAL

-FLASHER

OPTIONAL

-REAR FLASHER

-FRONT FLASHER

-FLASHER UNIT

-FLASHER GND-FLASHER POWER

-ESTOP

-K1-K2 -K1-K2

-LED2-LED1

-K1.

-REV(K2)

-FWRSW

-KSI

-K2

-K1

-K2.

-REV

-FWR

-PLATFORM

-GND

+Ubatt

REVFWR

86317500 CHARIOT SCRUBBER 133

Wiring-Cylindrical

-10K

-HM

-BRAKE/SW

ROTARY

-X11

-F1.6A

-X17

-HORN/SW

-X14

-K1

-X13

-HORN

-ESTOP

-KEY

-R1/5KPOT

-K2-K1

-X6-X12-X5-X3-X2-X1-X15-X19-X7-X16-X8-X18-X9-X10-X20

CONNECTOR C

LOW MID HIGHHIGHLOW

CHARGERHOURSTHROTTLE KEY REVE-STOP

& HORN

REVERSE ALARM

VAC

XPORT SINGLE

DOUBLE

38/YEL

67/GRN

LED

B+

INHIBIT

OPTIONAL

134 86317500 CHARIOT SCRUBBER

Wiring-Cylindrical

CONNECTOR B

-U4

+Ubatt

-GND

-SQUEGEE

-WATER

-X14-X12

-18A

-BRUSHR

-BRUSHL

-BRAKE

-TRACTION

-VACUUM

B+

B-

24V FOR RELAYS

-SOLUTION

-DECK

-X2-X1-X9-X8-X3-X10-X4-X11

AUX4AUX3AUX2AUX1

86317500 CHARIOT SCRUBBER 135

Hose Diagram-Dis k

SHUT-OFF

VALVE

PRV 39326

PRV 39274

86281950 (32")

PRV 39616

TANK

86282190 (13")

PRV 39541

SCRUB DECK

86281100 (8")

86281310 (8")

86281310 (8") PRV 39326

SOLENOID

PUMP

VALVE

DRAIN HOSE

STRAINER (FINE)

STRAINER (COARSE)

86281950 (32")

PRV 39541

136

86317500 CHARIOT SCRUBBER

SHUT-OFF

PRV 39541

86281950 (32")

86280910 (23")

TANK

VALVE

DRAIN HOSE

STRAINER (FINE)

STARINER (COARSE)

86281950 (32")

PUMP

63908920

QUICK DISCONNECT

SOLENOID VALVE

86281100 (7")

PRV 39274

PRV 39541

Hose Diagram-Cylindrical

13786317500 CHARIOT SCRUBBER

Suggested Spare Parts

PART NO. PRV NO. DESCRIPTION

86316160 - BREAKER, 18A, 250VAC, 32VDC 86332510 - BOOT, SEAL PUSH BUTTON 11MM 86004440 39717 CAP DRAIN HOSE 86199840 090-12A FLOAT, SHUT OFF 86317770 - GASKET, DOME EDGE 86305960 - HOSE ASM., 1.5" BLK PVC VAC X 67 86004860 48073 KEY, SWITCH 86004890 48095 KNOB, ALUM 3/8-16 NYLOCK NUT SS 86314050 - RECOVERY DRAIN PLUG 1-3/4 86313900 - RELAY, 15A 36V MINI 86007170 72159 SWITCH, 2 POSITION KEY 86007190 72161 SWITCH, DPST KEY 86313820 - SWITCH, SEALED PB ROUND 86009200 81535 KNOB, 3/8-16 4 PRONG ALUM 86312800 - BAG, INNER TANK 86001520 140752 BLADE, AQUAMIZER, 12IN LEFT 86001540 140753 BLADE, AQUAMIZER, 12IN RIGHT 86001560 140754 BLADE, SKIRT, SCRUB DECK, 24 IN LEFT 86001570 140755 BLADE, SKIRT, SCRUB DECK, 24 IN RIGHT 86001580 140763 BLADE, SQG REAR 40.6IN LINATEX 86001630 140764 BLADE, SQG FRONT 36.7IN RED GUM 86001700 140780 BLADE, SKIRT, SCRUB DECK, FRONT 86001740 140816 BRAKE, 36 VDC W/CONNECTOR 86231560 270097 CABLE, SQUEEGEE LIFT BASIC 86002780 270098 CABLE, SQUEEGEE LIFT DELUXE 86007940 73836 STRAINER, DEEP, 100 MESH 86256120 730368 STRAINER, 1/2 FPT 100 MESH 86292590 - SWTICH, E-STOP 86314150 - KNOB, SELECTOR 86295200 - ASM, BUTTON, BLACK, W/BEZEL 86064300 - PAD, TIPPING BAR 86242140 - KNOB, 3/8-16 X 1.5 86071030 - BRKT ASSEMBLY, REAR COVER 86010600 - VALVE, SOLENOID, 36VDC, 1/2 BARB 86237440 - GASKET, 4.06 X 2.50 X .38

SERIAL NO.

FROM

NOTES

138

86317500 CHARIOT SCRUBBER

OPTIONS

13986317500 CHARIOT SCRUBBER

Battery Cart-Option

18 17

140 86317500 CHARIOT SCRUBBER

Batter y C art-Option

REF PART NO. PRV NO. QTY DESCRIPTION

1 86006930 70514 2 SCR, 5/16-18 X 1.00 BSHCS SS 2 86254290 730338 4 SPACER, 10D X .343ID, .5 LG 3 86270830 57023 33 NUT, 5/16-18 HEX NYLOCK SS 4 86077010 41517 1 HOUSING, BATTERY CART 5 86010670 87029 7 WASHER, 5/16 FLAT SS 6 86228840 09124 3 BEARING, FLANGED .314D X .502OD

7 86259410 87206 1 8 86259400 87205 4 WASHER, THRUST .51 ID X 1 OD

9 86254890 730018 3 SPRING, EXT, .50D X 4.0L 10 86068490 140019 1 BRKT, TRAY CATCH 11 86231090 80809 1 BUMPER, RUBBER 5/16" ID X 1.50 12 86083120 66442 1 PLATE, BATTERY CART BACK 13 86076600 38318 2 HANDLE, BATTERY CART 14 86004070 36196 2 G RIP, POLISHER HANDLE 15 86276790 70732 4 SCR, 5/16-18 X 1.75 HHCS SS 16 86276690 70715 7 SCR, 5/16-18 X 1.75 CARR SS 17 86199430 040-03 2 CASTER SWIVEL 4" 250# CPCTY 18 86078890 620020 8 PLATE, CASTER SPACER 19 86277130 70795 16 SCR, 5/16-18 X 1.00 CARRIAGE SS 20 86136730 70763 1 SCR, M6-1 X 40MM PLTD 21 86232590 18032 2 CASTER, 4" HARD RUBBER RIGID 22 86001350 140390 2 BUSHING, SPANNER .435 X 1.10 23 86011020 89202 2 WHEEL, 3" DIA CUSHION RUBBER 24 86271840 57285 2 NUT, 5/16-18 HEX NYLOCK THIN SS 25 86008130 73958 2 SPACER, 3/8OD X .62W X .312L, AL 26 86274730 70265 2 SCR, 1/4-20 X 3/4 SHCS PLTD 27 86070790 140737 2 BRKT, BATTERY LOCK MOUNT 28 86087340 730339 2 SPACER, LATCH GUIDE 29 86070800 140738 2 BRKT, BATTERY TRAY LOCK 30 86271870 57290 2 NUT, 1/4-20 HEX NYLOCK THIN SS 31 86276070 70593 1 SCR, 5/16-18 X 3/4 CARRIAGE SS

WASHER, THRUST, .51 ID X 1 OD X .063

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 141

Battery Cart-Option

142 86317500 CHARIOT SCRUBBER

Batter y C art-Option

REF PART NO. PRV NO. QTY DESCRIPTION

1 86078330 66478 1 PEDAL, BATTERY CART 2 86276070 70593 2 SCR, 5/16-18 X 3/4 CARRIAGE SS 3 86270830 57023 12 NUT, 5/16-18 HEX NYLOCK SS 4 86087800 730307 2 STIFFENER, PEDAL, BATTERY CART 5 86228840 09124 4 BEARING, FLANGED .314ID X .502OD

6 86259410 87206 6 7 86006560 70083 4 SCR, 5/16-18 X 1 HHCS SS

8 86077140 51404 2 LATCH, BATTERY CART 9 86226830 73268 2 SPRING, EXT .68D X 3.00L X .098W

10 86010670 87029 10 WASHER, 5/16 FLAT SS 11 86244280 500934 1 LABEL, BATTERY CART OPERATION 12 86276060 70590 4 SCR, 5/16-18 X 2.5 CARR GR5 13 86254280 730331 12 SPACER, 1.00 ODX .32ID X .375 14 86231150 09151 4 BUSHING FLANGE, .314 X .502 OD 15 86259400 87205 8 WASHER, THRUST .51 ID X 1 OD 16 86276690 70715 16 SCR, 5/16-18 X 1.75 CARR SS 17 86077530 51403 2 LINKAGE, LATCH, BATT CART

WASHER, THRUST .51 ID X 1 OD X .063

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 143

Seat-Option

144 86317500 CHARIOT SCRUBBER

Seat-Option

REF PART NO. PRV NO. QTY DESCRIPTION

1 86248390 730324 1 PAD, REAR REST

2 86082640 629995 1 PLATE, SEAT COVER

3 86276890 70752 4 S CR, 5/16-18 X 3/4 PTHMS SS

4 86279460 87164 2 WASHER, 1/2 SPLIT LOCK

5 86270710 01-000277 1 NUT, WING 3/8-16

6 86271930 57297 1 NUT, 3/8-16 HEX NYLOCK SS

7 86278910 87003 3 WASHR, 3/8 ID X 7/8 OD SS

8 86070830 140742 1 BRKT, LEFT REAR SEAT

9 86070840 140743 1 BRKT, RIGHT REAR SEAT 10 86277710 730347 1 SCR, 3/8-16 X 2.75 HHCS SS 11 8600 86 50 80604 1 COTTER, 1/4" RING 12 86246320 51142 1 LEVER, HANDLE LOCK 13 86272300 66133 1 PIN, CLEVIS 3/16 X .88 PLTD 14 86251860 66481 1 ROD, ARM HANDLE LOCK 4" LG 15 86279620 87200 2 WASHER, .4ID X 1.3OD NYLON 16 86276070 70593 2 SCR, 5/16-18 X 3/4 CARRIAGE SS 17 86277510 70857 1 SCR, 3/8-16 X 5.0 HHCS SS FT 18 86009200 81535 1 KNOB, 3/8-16 4 PRONG ALUM 19 86254300 730350 1 SPACER, SEAT LOCK 20 86094000 05246 1 SEAT MOUNT POST 21 86276710 70717 2 SCR, 5/16-18 X 2.0 CARRIAGE SS 22 86093790 05247 1 RECEIVER ASSY, SEAT MOUNT 23 86010670 87029 4 WASHER, 5/16 FLAT SS 24 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS

SERIAL

NO.FROM

NOTES:

86317500 CHARIOT SCRUBBER 145

Warning Lights-Option

REAR

FRONT

146 86317500 CHARIOT SCRUBBER

Warning Lights-Option

REF PART NO. PRV NO. QTY DESCRIPTION

1 86270990 57090 4 NUT, 10-32 HEX NYLOCK SS 2 86010650 87018 4 WASHER, #10 X 6/16 OD 3 86276820 70740 4 SCR, 10-32 X 1/2 PTHMS BLK 4 86071490 140871 1 BRKT, UPPER WARNING LIGHT 5 86270990 57090 2 NUT, 10-32 HEX NYLOCK SS 6 86246200 51454 2 LED AMBER LIGHT, 12V 7 86071500 140872 1 BRKT, LOWER WARNING LIGHT

SERIAL NO.

FROM

NOTES

86317500 CHARIOT SCRUBBER 147

Serial Numbers

REF. NO MODEL: SERIAL #

1 1.006-109.0:10061090000151, 1.006-110.0: 10061100000006 2 1.006-109.0:10061090000159, 1.006-110.0: 10061100000006

3 4 1.006-116.0: 10061160000049, 1.006-117.0: 10061170000006 5

1.006-109.0:10061090000191, 1.006-110.0: 10061100000008, 1.00 6 - 11 2 . 0: 1 0 0 6 11 2 0 0 0 0 0 1

1.006-11 6.0:10061160000019, 1.006-117.0:10061170000003

1.006-109.0: 10061090000555, 1.006-110.0: 10061100000033, 1.006-112.0: 10061120000044,

1.006-116.0: 10061160000072, 1.006-117.0: 10061170000007

148 86317500 CHARIOT SCRUBBER

Windsor Chariot iScrub CSXE24, 10061090, Chariot iScrub CSX24X, 10061100, 10061120 Operator Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
