Windsor Chariot iScrub CS26SPX, Chariot iScrub CSX24X, Chariot iScrub, 10061090, 10061100 Operating Instructions Manual
...
iScrub
Operating instructions (ENG)
MODELS:
CSX24
10061090
CSX24X
10061100
CSXE24
10061120
CS26SP
10061160
CS26SPX
10061170
86317500-AT
08/2012
Read these instructions before using the machine.
IPX4
Machine Data Log/Overview
OVERVIEW
The Chariot Scrubber is a battery powered, stand-on, hard floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor, scrubs the floor with brushes or pads, and then vacuums the
soiled water back into the recovery tank.
Warranty Registration
Thank you for purchasing a Windsor product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
www.windsorind.com/WarrantyRegistration.aspx
2 86317500 CHARIOT SCRUBBER
For customer assistance:
1-800-444-7654
Table of Contents
Machine Data Log/Overview. . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How to Use This Manual . . . . . . . . . . . . . . . . . . . . . .4
Safety
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5
HAZARD INTENSITY LEVEL. . . . . . . . . . . . . . . . . .6
Safety Label Locations . . . . . . . . . . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . . . . . . . . . . . . . . . .8
Operations
How This Machine Works. . . . . . . . . . . . . . . . . . . .10
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Drive Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Scrub Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Scrub Controls-Squeegee. . . . . . . . . . . . . . . . . . . .18
Pre-Run Machine Inspection. . . . . . . . . . . . . . . . . .20
Starting Machine. . . . . . . . . . . . . . . . . . . . . . . . . . .20
Emergency Stop Procedures . . . . . . . . . . . . . . . . .20
Filling Solution Tank . . . . . . . . . . . . . . . . . . . . . . . .21
Normal Scrubbing. . . . . . . . . . . . . . . . . . . . . . . . . .21
To Begin Scrubbing . . . . . . . . . . . . . . . . . . . . . . . .22
Priming Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
To Stop Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . .23
Double Scrub . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Emptying and Cleaning Tanks . . . . . . . . . . . . . . . .24
Maintenance
Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .26
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Squeegee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Squeegee Blades . . . . . . . . . . . . . . . . . . . . . . . . . .32
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Scrub Brushes . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Finished Floors . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Replacing or Installing Scrub Brushes (Disk) . . . . .34
Replacing or Installing Scrub Brushes (Cylindrical) 34
Scrub Deck-Disk. . . . . . . . . . . . . . . . . . . . . . . . . . .35
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Scrub Deck-Cylindrical . . . . . . . . . . . . . . . . . . . . . .36
To Replace Scrub Brush Motors. . . . . . . . . . . . . . .37
Brush Motor Carbon Brush Replacement. . . . . . . .37
Actuator Scrub Deck Removal / Replacement . . . .38
Scrub Deck Actuator Adjustment . . . . . . . . . . . . . .38
Notes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Circuit Protection. . . . . . . . . . . . . . . . . . . . . . . . . . .40
Solution Strainer & Pump-Disk . . . . . . . . . . . . . . . .41
Solution Strainer & Pump-Cylindrical . . . . . . . . . . .42
Vacuum & Float Shutoff . . . . . . . . . . . . . . . . . . . . .44
Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Electric Parking Brake Engagement . . . . . . . . . . . .47
Drive Motor Carbon Brush Replacement . . . . . . . .48
Removing or Replacing Bag . . . . . . . . . . . . . . . . . .49
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Parts
Bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Control Panel Housing . . . . . . . . . . . . . . . . . . . . . 60
Decal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Frame-Lower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Frame-Upper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Pedal Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Scrub Brush/Pad Driver-Disk . . . . . . . . . . . . . . . . 74
Scrub Brush/Pad Cylindrical . . . . . . . . . . . . . . . . . 76
Scrub Deck - Disk . . . . . . . . . . . . . . . . . . . . . . . . . 78
Scrub Deck-Cylindrical . . . . . . . . . . . . . . . . . . . . . 80
Scrub Deck Mounting-Cylindrical . . . . . . . . . . . . . 82
Scrub Deck Lift-Disk . . . . . . . . . . . . . . . . . . . . . . . 84
Scrub Deck Actuator-Cylindrical . . . . . . . . . . . . . . 86
Scrub Deck Skirts-Disk . . . . . . . . . . . . . . . . . . . . . 88
Scrub Deck Aqua-Mizer™ . . . . . . . . . . . . . . . . . . 90
Solution-Disk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Solution-Cylindrical . . . . . . . . . . . . . . . . . . . . . . . . 94
Squeegee-Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Squeegee Lift-Disk . . . . . . . . . . . . . . . . . . . . . . . . 98
Squeegee-Cylindrical . . . . . . . . . . . . . . . . . . . . . 100
Squeegee Lift Assembly -Cylindrical - From Serial
Number *(4) . . . . . . . . . . . . . . . . . . . . . . . . . 102
Squeegee Lift-Cylindrical . . . . . . . . . . . . . . . . . . 104
Squeegee Swing. . . . . . . . . . . . . . . . . . . . . . . . . 106
Steering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Vacuum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Wheel-Front Drive. . . . . . . . . . . . . . . . . . . . . . . . 114
Wheel-Rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Wiring-Components . . . . . . . . . . . . . . . . . . . . . . 118
Wiring-Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 120
Wiring-Control Panel. . . . . . . . . . . . . . . . . . . . . . 122
Wiring-Drive Motor . . . . . . . . . . . . . . . . . . . . . . . 124
Wiring-Main Harness . . . . . . . . . . . . . . . . . . . . . 126
Wiring-Pedal Platform. . . . . . . . . . . . . . . . . . . . . 128
Wiring-Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Wiring-Cylindrical . . . . . . . . . . . . . . . . . . . . . . . . 133
Hose Diagram-Disk. . . . . . . . . . . . . . . . . . . . . . . 136
Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . 138
OPTIONS
Battery Cart-Option. . . . . . . . . . . . . . . . . . . . . . . 140
Seat-Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Warning Lights-Option . . . . . . . . . . . . . . . . . . . . 146
Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 148
86317500 CHARIOT SCRUBBER 3
How to Use This Manual
This manual contains the following sections:
• HOW TO USE THIS MANUAL
• SAFETY
•OPERATIONS
• MAINTENANCE
• PARTS LIST
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized Windsor
dealers. When placing an order for parts, the machine
model and machine serial number are important. Refer
to the MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.
The model and serial number of your machine are
located below the battery compartment of the machine.
The SAFETY section contains important information
regarding hazard or unsafe practices of the machine.
Levels of hazards are identified that could
result in product or personal injury, or severe injury
resulting in death.
The OPERAT IONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive maintenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Batteries
• Scrub Brushes
• Adjusting Squeegee
• Service Schedule
• Machine Troubleshooting
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts lists
include a number of columns of information:
REF - column refers to the reference numbe r on
the parts illustration.
PART NO. - column lists the part number for the
part.
PRV NO. - Reference No.
QTY - column lists the quantity of the part used in
that area of the machine.
DESCRIPTION - column is a brief description of
the part.
SERIAL NO. FROM - If this column has an (*) and
a Reference number, see the SERIAL NUMBERS
page in the back of your manual. If column has two
asterisk (**), call manufacturer for serial number.
The serial number indicates the first machine the
part number is applicable to. The main illustration
shows the most current design of the machine.
When a boxed illustration is shown, it displays the
older design.
NOTES - column for information not noted by the
other columns.
4 86317500 CHARIOT SCRUBBER
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The number on the lower left corner of the
front cover is the part number for this manual.
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using an battery powered appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer's recommended components and attachments.
If the machine is not working properly , has bee n dropped, damaged, lef t out doors, or dr opped into water, retur n it
to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
Make sure all warning and caution labels are legible and properly attach ed to the machine.
During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
Only chemicals recommended by the manufacturer shall be used.
This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other
brushes may affect its safety.
Do not use on surfaces having a gradient of over 10% (6 degrees).
SAVE THESE INSTRUCTIONS
86317500 CHARIOT SCRUBBER 5
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
Windsor approved replacement parts.
Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep battery
compartment open during charging. Keep sparks and flames away from the batteries. Do not smoke
around batteries.
Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or near batteries. Avoid skin contact
with the acid contained in the batteries.
Never allow metal to lie across battery tops.
6 86317500 CHARIOT SCRUBBER
Safety
86244310
PRV NO. 500956
PRV NO. 500955
PRV NO. 80885
86244300
86252520
WARNING LABEL
CAUTION
BATTERY
Safety Label Locations
These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible,
promptly replace them.
86317500 CHARIOT SCRUBBER 7
Operations
Technical Specifications
ITEM DIMENSION/CAPACITY
Nominal power 1800 W
Rated Voltage 36 Volts DC
Rated Amperage 50 amps
Batteries 3 X12 Volt 195-215 AH @ 20 hr. rate
Battery Compartment Dimensions 21 in. x 16 in. x 17 in. tall (533mm x 406mm x 432mm)
Scrub Brush Motors - Disk Machine 2 x .3 HP (190 W)
Scrub Brush Motors - Cylindrical Machine 2 x .75 HP (560 W)
Vacuum Motor(s) .63 HP (470 W)
Maximum flow rate of vacuum motor 72 cfm (33.98 liters per second)
Maximum suction of vacuum motor 47.3 inches of water (11.7 kPa)
Propelling Motor .75 HP (560 W)
Mass (GVW) 1245 lbs (565 kg)
Weight empty without batteries 558 lbs (253 kg)
Solution Control 1.3 GPM pump, fully variable with automatic shut-off in neutral
Solution capacity 25 gal (95 L)
Recovery capacity 25 gal (95 L)
Scrub brush diameter - Disk Machine 12 inch (305 mm)
Scrub brush diameter - Cylindrical Machine 4.1 inch (105 mm)
Scrub brush pressure 0-150lbs (0-667N)
Scrub brush speed - Disk Machine 300 rpm
Scrub brush speed - Cylindrical Machine 500 rpm-slow, 800 rpm-medium, 1300 rpm-fast
Tires 10 in. (254mm) Solid Scrubber Compound
Foundation Pressure 104 psi (715 Kpa)
Maximum Speed 3.5 miles/hour (5.6 Km/hour)
Frame Construction Powder coated steel
Brake
Minimum aisle u-turn width 56 in. (1425 mm)
Maximum rated climb and descent angle 10%
Electrical parking brake,sets automatically whenever operator
steps off platform or engages emergency stop.
8 86317500 CHARIOT SCRUBBER
ITEM MEASURE
WIDTH
LENGTH
HEIGHT
Height 50.6 inches (1285 mm)
Length 52.5 inches (1330 mm)
Width without squeegee 26.5 inches (670 mm)
Width of squeegee - Disk Machine 32.7 inches (830 mm)
Width of squeegee - Cylindrical Machine 37 inches (970 mm)
Width of scrub path - Disk Machine 24 inches (610 mm)
Width of scrub path - Cylindrical Machine 26 inches (650 mm)
Operations
SPECIAL NOTES:
The sound pressure level at the operator's ear was
measured to be 68 dBA (Disk), 76dBA (cylindrical).
This was a nearfield, broad-band measurement taken
in a typical industrial environment on a tile floor. This
appliance contains no possible source of imp act noise.
The instantaneous sound pressure level is below 63
Pa.
The weighted root mean square acceleration at the
operator's arms was measured to be below 3 .6m/s² and
at the operators feet/pedal was measured to be
0.7m/s². The measurement and related calculations
were made in accordance with ISO 5349, references
Standard EN 60335-2-72.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance b y a person
responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
86317500 CHARIOT SCRUBBER 9
Operations
How This Machine Works
The Chariot® is a battery powered, self-propelled, hard
floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor,
scrubs the floor with brushes, and then vacuums the
soiled water back into the recovery tank.
The machine's primary systems are the solution
system, scrub system, recovery system, and operator
control system.
The function of the solution system is to store cleaning
solution and deliver it to the scrub system. The solution
system consists of the solution tank, strainer, pump,
valve. The solution tank stores cleaning solution (water
and detergent) until it is delivered to the scrub system.
The strainer protects the pump from debris. The valve
automatically prevents solution flow unless the scrub
brushes are turned on and the machine is being
propelled.
The function of the scrub system is to scrub the floor.
The disk scrub system consists of two rotary type disk
scrub brushes, motors, scrub deck skirt and lift
actuator. The brushes scrub the floor as the motors
drive the brushes. The brush drive hubs allow the
scrub brushes to follow irregularities and changes in
the floor without loosing contact with the floor. The
scrub deck skirts control the cleaning solution on the
floor so that the squeegee can pick it up.
The scrub deck side squeegees control the cleaning
solution on the floor so that the squeegee can pick it up.
The function of the recovery system is to vacuum the
soiled water back into the recovery tank. The recovery
system consists of the squeegee, vacuum motor, float
ball filter, recovery bag. The squeegee wipes the dirty
solution off the floor as the machine moves for ward.
The vacuum motor provides suction to draw the dirty
solution off the floor and into the recovery bag. The
float ball filter protects the vacuum fan from debris and
foam. The recovery bag stores the dirty solution.
The function of the operator control system is to control
the direction and speed of the machine. The directional
control system consists of the direction control drive
reset switch, throttle pedal, emergency stop/brake
switch, steering wheel, propel controller, and drive
wheel. The directional control drive reset switch signals
forward or reverse direction and make s sure the
operator is on platform before machine will propel. The
controller interprets signals from the throttle pedal to
command the drive wheel to propel or slow the
machine. The steering wheel points the drive wheel in
the direction desired by the operator . The parking brake
automatically engages when the operator steps off the
platform. The emergency stop/brake can be used to
hold the machine on slopes.
The scrub plus system consists of two cylindrical type
brushes, motors, scrub deck side squeegees, hopper,
lift actuator. The cylindrical scrub head is designed to
eliminate debris that may be caught in the squeegee
while scrubbing. Water is applied to the first scrubbing
brush turning in a clockwise rotation when viewed from
the right side of machine. The first brush scrubs dirt
and debris between the brushes. The second
scrubbing brush, turning in a counter clockwise
rotation, picks up debris and throws it into a removable
hopper. Water is allowed to drain out the hopper into
the squeegee path where it is recovered from the floor .
10 86317500 CHARIOT SCRUBBER
Operations
1
2
3
4
5
6
7
8
9
10
12
11
Components
1. Control Panel-Drive
2. Control Panel-Scrub
3. Control Housing
4. Pedal Platform
5. Rear Cover
6. Tank
7. Recovery Dome
8. Recovery Drain Hose
9. Scrub Deck Aqua-Mizer™
10. Scrub Deck Skirts/Side Squeegees
11. Solution Cover
12. Solution Drain Hose
86317500 CHARIOT SCRUBBER 11
Operations
1
2
3
4
5
6
8
9
7
Drive Controls
12 86317500 CHARIOT SCRUBBER
Operations
1. KEY SWITCH
Controls the power for machine functions.
To turn the machine power on, rotate key clockwise.
To turn the machine off, rotate key counterclockwise.
When the key is turned on the battery symbol will flash while the system runs self-diagnostics and returns scrub
deck and squeegee to their raised positions, if necessary. The controller will not respond to other commands until
this routine is complete.
2. EMERGENCY STOP/BRAKE SWITCH
This safety feature is designed to cut all power to the machine at any time and apply parking brake.
To shut the machine power off, push the Emergency Stop Switch, this will also engage the parking brake and cause
the machine to stop immediately.
To reset the machine, rotate the switch clockwise.
3. DIRECTIONAL CONTROL / DRIVE RESET SWITCH
This safety feature is designed to ensure safe engagement of propel drive. Each time the machine power is turn ed
on, or each time an operator steps on to the platform, the Drive Reset Switch must be pushed before machine will
propel.
Controls the direction of travel of the vehicle. The lit arrow on the switch indicates direction of travel.
To travel forward, press the top of the switch.
To travel in reverse, press the bottom of the switch.
1. Key Switch
2. Emergency Stop/Brake Switch
3. Directional Control / Drive Reset Switch
4. Throttle Pedal
5. Horn Button
6. Steering Wheel
7. Speed Control
8. Battery Discharge Indicator
9. Hour Meter
86317500 CHARIOT SCRUBBER 13
Operations
SLOW
FAST
4. THROTTLE PEDAL
Controls the speed of the vehicle within the speed control setting selected. Pressing the pedal causes the machine
to travel in the direction selected by the Directional Control Switch.
To increase speed, increase pressure on the pedal.
To decrease speed, decrease pressure on the pedal.
5. HORN BUTTON
The horn is activated by pressing the horn button.
6. STEERING WHEEL
The steering wheel turns the front wheel causing the machine to change direction.
7. SPEED CONTROL
Controls the maximum speed of the machine. There are two transport settings, slow and fast.
To change speed, rotate the dial to either slow or fast position. The slow position is to the left (counterclockwise),
fast to the right (top position).
The throttle pedal will always regulate the speed between 0 and maximum
14 86317500 CHARIOT SCRUBBER
Operations

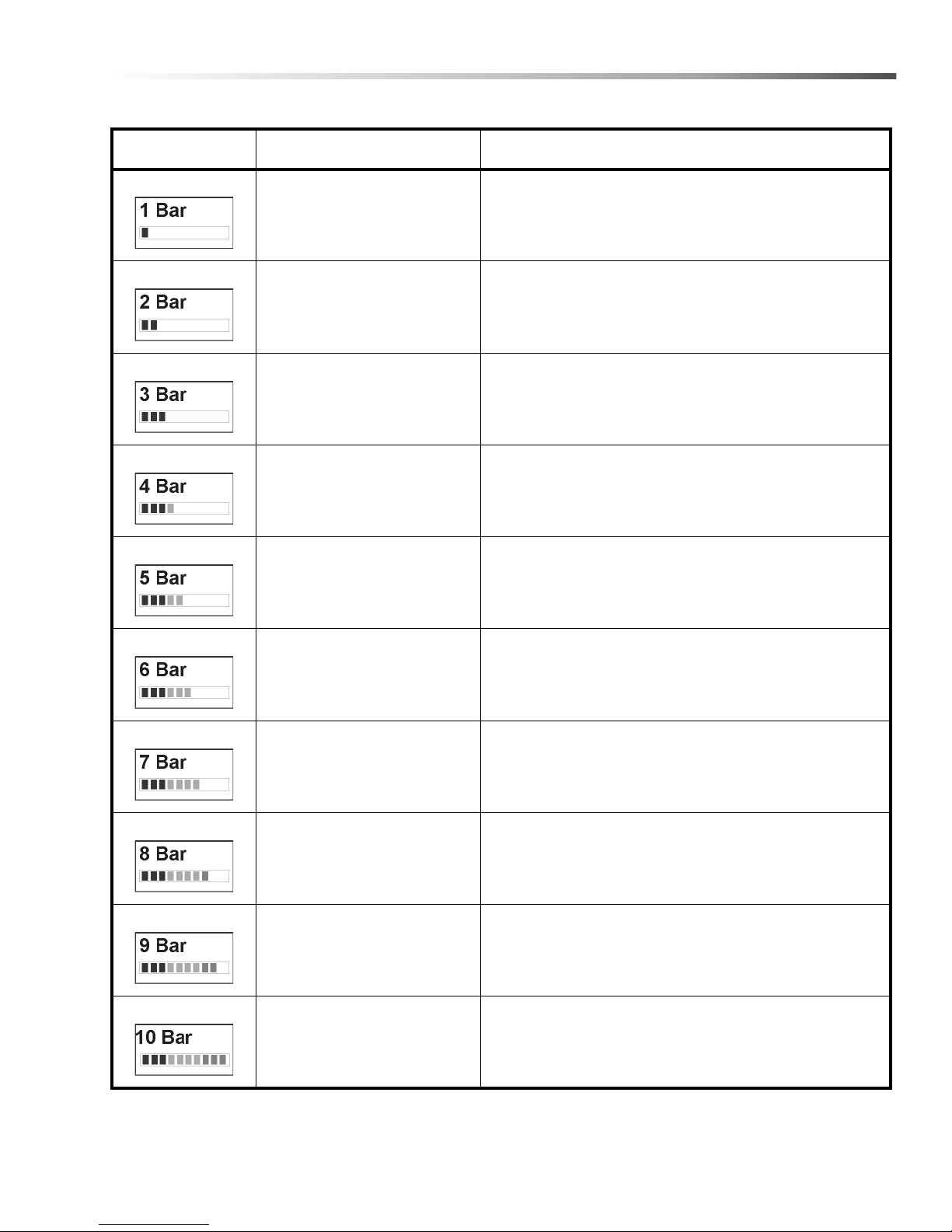

8. BATTERY CHARGE LEVEL INDICATOR
Indicates the charge level of the batteries.
The meter display is divided into 10 vertical bars. Bars illuminated on the far right indicate full charge. Bars flashing
near the left side indicate the batteries should be recharged. Further operation of the machine could damage the
machine or the batteries.
When the machine is left overnight with less than a full charge, the display may initially indicate a full charge. It will
also indicate a full charge if the batteries are disconnected, then reconnected . After a few minutes of opera tion the
meter will give the correct charge level.
9. HOUR METER
Records the number of hours the machine has been in scrubbing operation. This information is useful in determining when to service the machine.
86317500 CHARIOT SCRUBBER 15
Operations
A1
A2
A3
B
C
1
Scrub Controls
1. FUNCTION MODE SWITCH
The first two positions are for transport only. See drive controls section.
A1 - Daytime cleaning/light cleaning
This mode is used for light cleaning. In this mode the machine will propel at a maximum of medium speed. The
scrub deck will automatically lower to a lower down pressure setting. The water will flow at a low rate. Water will
automatically shut off in neutral and restart when pressure resumes. The squeegee will automatically lower and
vacuum will continue on at a low flow. (Squeegee will continue to lower and the vacuum will continue to run in
neutral. The squeegee will raise in reverse.)
A2 - Medium scrub level cleaning
This mode is used for medium level cleaning. In this mode the machine will propel at a maximum of medium. The
scrub deck will lower at a medium down pressure. The water will flow at a medium rate. The vacuum will flow at a
a medium.
16 86317500 CHARIOT SCRUBBER
Operations
A3 - Heavy scrub level cleaning
This mode is used for heavy level cleaning. In this mode the machine will propel at a maximum of slow speed. The
scrub deck will lower to a heavy down pressure. The water will flow at a high rate. The vacuum will flow at a high
rate.
B - Vacuum only mode
This mode is used for picking up solution only. The brushes and water will both be up and off. In this mode the
machine will propel at a maximum of medium speed. The squeegee will automatically lower and the vacuum will
come on. The vacuum will flow at a high rate. The squeegee will raise during reverse propelling. The squeegee
and vacuum will remain down and on in neutral propel.
C - Double Scrub cleaning
This mode is used for putting down solution and scrubbing without picking it back up. In this mode the machine will
propel at a maximum speed of slow. The scrub deck will automatically lower to a heavy scrub level. The solution
will flow at a high rate. The brushes and water will shut off and raise when the machine is in neutral. They will
resume when propelling is resumed.
1. FUNCTION MODE SWITCH (CYLINDRICAL)
The first two positions are for transport only. See drive controls section.
A1-Daytime cleaning/light cleaning
This mode is used for light cleaning. In this mode the machine will propel at a maximum of medium speed. The
scrub deck will automatically lower and spin brushes at low speed. The water will flow at a low rate. Water will
automatically shut off in neutral and restart when propel resumes. The squeegee will automatically lower and
vacuum will continue on at a low flow. (Squeegee will continue to lower and the vacuum will continue to run in
neutral. The squeegee will raise in reverse.)
A2-Medium scrub level cleaning
This mode is used for medium level cleaning. In this mode the machine will propel at a maximum of medium speed.
The scrub deck will lower and spin brushes at medium speed. The water will flow at a medium rate. The vacuum
will flow at a medium rate.
A3-Heavy scrub level cleaning
This mode is used for heavy level cleaning. In this mode the machine will propel at a maximum of slow speed. The
scrub deck will lower and brushes spin at high speed. The water will flow at a high rate. The vacuum will flow at a
high rate.
B-Vacuum only mode
This mode is used for picking up solution only. The brushes and water will both be up and off. In this mode the
machine will propel at a maximum of medium speed. The squeegee will automatically lower and the vacuum will
come on. The vacuum will flow at a high rate. The squeegee will raise during reverse propelling. The squeegee
and vacuum will remain down and on in neutral propel.
C-Double Scrub cleaning
This mode is used for putting down solution and scrubbing without picking it back up. In this mode the machine will
propel at a maximum speed of slow. The scrub deck will automatically lower and spin brushes at high speed. The
solution will flow at a high rate. The brushes and water will shut off and raise when the machine is in neutral. They
will resume when propelling is resumed.
86317500 CHARIOT SCRUBBER 17
Operations
1
2

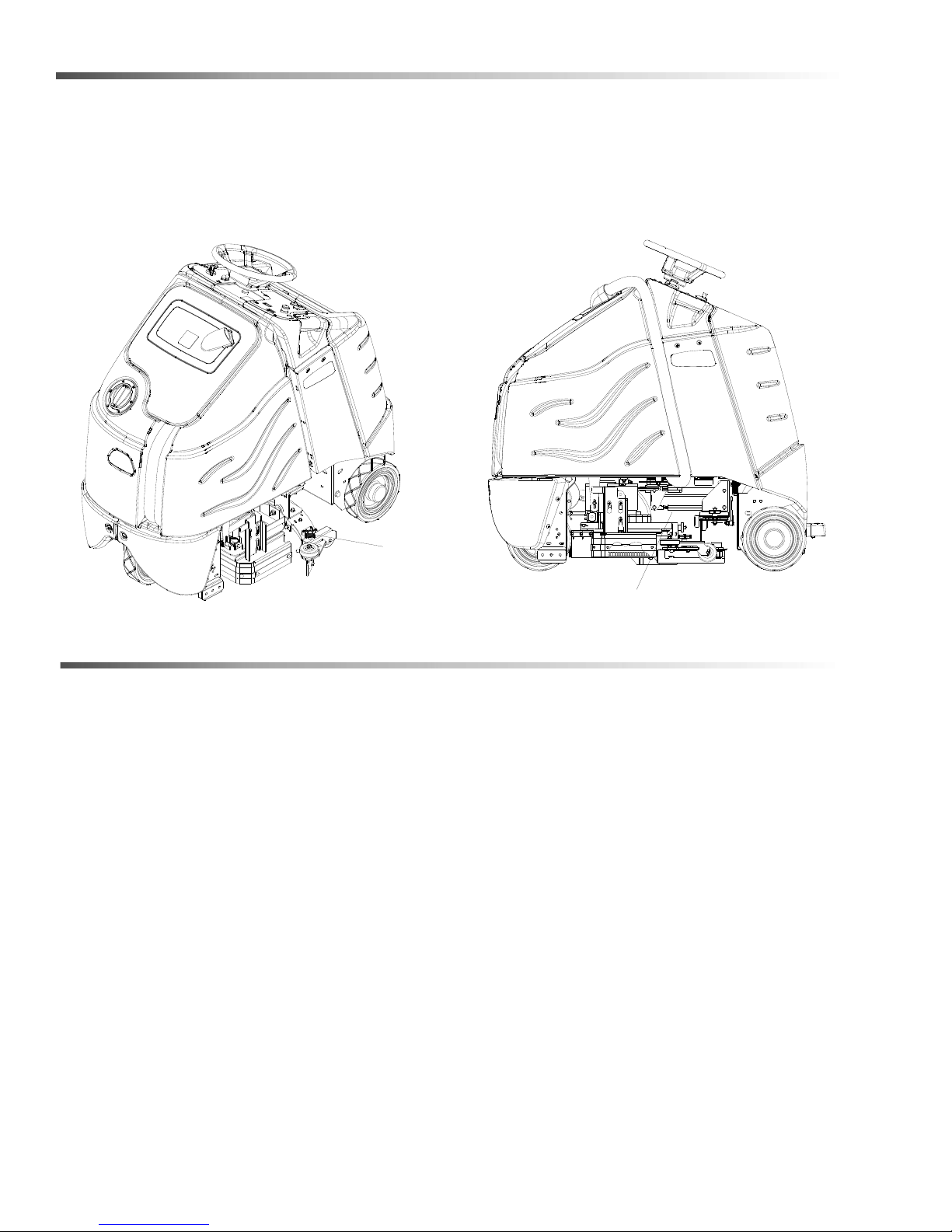

Scrub Controls-Squeegee
1.Squeegee Deflection Adjustment Knobs
2.Squeegee Pitch Adjustment Rod
18 86317500 CHARIOT SCRUBBER
Operations
Squeegee Deflection Adjustment Knobs (Disk Scrubber)
Adjusts the deflection along the entire length of the squeegee.
To increase squeegee blade deflection, turn the two knobs at the ends of the squeegee counterclockwise.
To decrease squeegee deflection, turn the two knobs at the ends of the squeegee clockwise.
Squeegee Pitch Adjustment Rod (Disk Scrubber)
Adjusts the deflection at the ends of the squeegee.
To increase squeegee blade deflection at the ends, turn rod counterclockwise.
To decrease squeegee blade deflection at the ends, turn rod clockwise.
Squeegee Deflection Adjustment (Cylindrical Scrubber)
Adjusts the deflection along the entire length of the squeegee.
To increase squeegee blade deflection, loosen the bolt at the wheel axle and raise in the slots.
To decrease squeegee deflection, lower the wheel axle in the slots.
Squeegee Pitch Adjustment (Cylindrical Scrubber)
No adjustments are necessary for this squeegee style.
86317500 CHARIOT SCRUBBER 19
Operations
Machine Operation
Pre-Run Machine Inspection
Do a pre-run inspection to find possible problems that
could cause poor performance or lost time from breakdown. Follow the same procedure each time to avoid
missing steps.
NOTE: See maintenance section for pre -run machine
inspection checklist items.
Starting Machine
NOTE: Perform pre-run machine check before
operating machine.
FOR SAFETY: Before starting machine, make sure
that all safety devices are in place and operating
properly.
1. The operator should be on the pedal plat form. The
throttle pedal must be in the neutral position.
2. Turn the machine power on by turning key switch
clockwise to the "ON" position.
3. Check the position of the Directional Control
Switch to make sure the machine will travel in the
direction intended.
Emergency Stop Procedures
1. Push in emergency stop button. This will also
engage the parking brake and cause the machine
to stop immediately.
4. Press the Drive Reset Directional Control Switch to
reset and set the intended direction for travel.
5. Press lightly on the throttle pedal with right foot
20 86317500 CHARIOT SCRUBBER
Operations
Filling Solution Tank
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, turn off machine
and remove key.
1. Turn the machine power off.
2. Remove solution cover.
3. Fill the solution tank with clean water, leaving
enough room for the required amount of cleaning
solution. The solution tank capacity filled to fill inlet
is 25 gallons (95 liters). The water must not be hotter than 140° F (60°C) to prevent damage to the
tank.
4. Measure the chemical into the solution tank. The
solution cover is also a 2 oz. (60 ml) measuring
cup. Liquid chemicals should be added to the solution tank after filling with water. Dry chemicals
should be thoroughly mixed before being added
into solution tank. Commercially available, high
alkaline floor cleaners, are suitable for use in the
solution system.
NOTE: Read the chemical manufacturers
recommended proportion instructions.
Normal Scrubbing
Plan the scrubbing pattern in advance. The longest
track is around the perimeter of the area to be cleaned.
For efficient operation, the runs should be the longest
possible without turning, stopping, or raising or
lowering scrub deck/squeegee.
In order to achieve the best possible results, the area
which is to be cleaned should be swept before scrubbing. Large debris, strings and wire must be removed
to prevent being caught in brushes or squeegee.
If the machine is allowed to stand in neutral with the
scrub deck down for more than 2 seconds, the
solutions flow stops and brush motors stop. If either
forward or reverse travel is selected, the solution flow
will continue in the same setting and the scrub brush
motors will continue in their same setting once
movement of machine begins. Overlap the brush path
and avoid transporting over previously cleaned areas.
5. Replace solution tank cover.
Flammable materials can cause an explosion or
fire. Do not use flammable materials in the tanks
86317500 CHARIOT SCRUBBER 21
Operations
To Begin Scrubbing
When operating the machine around people, pay
close attention for unexpected movement. Use
extra caution around children.
Flammable liquids and/or reactive metals can
cause explosions or fire! Do not pick up.
1. Stand on the operator platform. Throttle pedal
must be in neutral position.
2. Turn machine power on.
3. Press the Drive Reset / Directional Control Switch,
selecting the desired travel direction.
4. Position the function control knob to the desired
operation. The brush motors will start, the scrub
deck will lower, the solution will begin to flow, the
squeegee will lower to the floor and the vacuum
motors will start.
5. Drive machine forward to begin scrubbing.
NOTE: Shut machine off immediately if water or foam
is expelled from the machine.
NOTE: Solution flow is automatically shut off when
brush motors stop. When brush motors are
activated, flow automatically resumes.
Priming Pump
If the solution system has gone dry or has been unused
for a period of time, it may be necessary to follow the
pump priming procedure.
1. Fill solution tank.
2. Loosen, but do not completely remove the strainer
bowl. Solution should flow out of the strainer. If it
does not, check the strainer screen inside the solution tank. Insure it is clear of debris. Ti ghten the
strainer bowl.
3. Disconnect the squeegee hose from the recovery
dome.
4. Begin normal scrubbing. Solution flow should
begin within 2 minutes.
5. Connect squeegee hose to recovery dome.
22 86317500 CHARIOT SCRUBBER
Operations
To Stop Scrubbing
1. Rotate the function knob to either transport position. The brush motors will stop and the scrub deck
will rise to the park position. After 10 seconds the
squeegee will raise, and 10 seconds later the vacuum motor will turn off. This delay is to clear the
vacuum hose of recovered solution.
2. Allow the throttle pedal to return to neutral.
3. Turn machine power off.
FOR SAFETY: Before leaving or servicing
machine: stop on level surface, turn off machine
and remove key.
Double Scrub
For floors which are heavily soiled or have thick accumulations of floor finish, may not clean sufficiently with
one pass. In these cases it will be necessary to double
scrub.
Rotate the knob to the double scrub position.
Make the first pass over the surface being cleaned with
the squeegee up, vacuum off and the solution on. For
best results also remove the Aqua-mizer™, this will
allow the solution to stay in contact with the soil while
loosening the surface accumulation with the brushes.
Allow time for the first application to stay in contact with
the floor. Length of time between the first and second
pass depends on amount of accumulation and the type
of chemical being used. A second scrubbing with the
function knob in one of the normal scrubbing modes will
lower the squeegee and will keep the solution on and
brushes down to further loosen soil. The additional
application of solution will further assist the difficult
cleaning job.
FOR SAFETY: When using machine, go slow on
inclines and slippery services
86317500 CHARIOT SCRUBBER 23
Operations
TANK DOME
RECOVERY
DRAIN HOSE
SOLUTION
DRAIN HOSE
RECOVERY
Emptying and Cleaning Tanks
1. Park the machine next to a floor drain. Drain hoses
are at the front of the machine.
SOLUTION TANK
1. Remove the recovery tank dome.
2. Pull the solution drain hose from its mounting
pocket. Unscrew the cap, then lower hose in direction of drain.
3. Remove the solution tank lid.
4. Flush the solution tank out with clean water and
run several gallons of clean water through systems. Do not use water hotter than 140°F (60°C) to
clean tank. Damage may occur.
NOTE: Never allow solution to remain in tank.
Damage to tank, seals and valves could occur.
2. Turn the machine power off.
RECOVERY TANK
1. Remove the recovery tank dome. Pull the large
2. Flush the recovery bag out with clean water . Do not
3. Clean debris from dome basket.
4. Clean off the float shut-off system and inspect for
5. Replace the drain cap and secure drain h ose under
6. If machine is to be stored, leave the recovery tank
drain hose from the mounting pocket. Unscrew
cap, then lower hose in direction of the drain. Do
not stand in front of end of hose. Recovered solution will come out with force.
use water hotter than 140°F (60°C) to clean tank.
Damage may occur.
free movement of float. The float shut-off system is
located in the rear of the recovery tank.
tank.Replace the drain cap and secure drain hose
to front of tank.
dome off, or propped open.
24 86317500 CHARIOT SCRUBBER
Notes:
86317500 CHARIOT SCRUBBER 25
Maintenance
Service Schedule
MAINTENANCE
Check water level of batteries after charging; add
distilled water if necessary. (Wet cell only)
Check that dome and cover seal tightly. *
Visually check for damaged or worn tires. *
Check brushes or pads for proper installation. *
Check vacuum hose connections. *
Check that squeegee is securely attached and properly
adjusted.
Check for securely attached drain hoses, plug a nd cap. *
Check pedal, brake and steering for prop er opera tio n. *
Clean out recovery tank and dome basket. *
Clean and inspect float shutoff. *
Clean out solution tank and filter, check flow. *
Clean and inspect solution filter strainer. *
Run vacuum motors to dry. *
Clean brushes or pads and check wear. *
Clean squeegee blades and check wear. *
Clean outside of tanks, check for damage. *
Store with dome off tank or propped open. *
Charge batteries if needed. *
Clean off top of batteries. *
Check battery cells with hydrometer. (Wet cell only) *
Inspect scrub deck skirts and Aqua-Mizers. *
Clean solution strainer inside tank. *
Check battery connections are tight. *
Clean battery cases and battery compartment. *
Check parking brake. *
Clean cables and pulleys for squeegee lift. *
Clean pivot points on squeegee and scrub deck. *
Check all motors for carbon brush wear. *
Check motor commutators. *
Check steering chain tensioner. *
BEFORE EACH
WORK PERIOD
*
*
AFTER EACH
WORK PERIOD
50
HRS
100
HRS
200
HRS
Traction drive, wheels and batteries should be serviced based on traction drive hour meter (Deluxe). The scrub
brush hour meter should be used for all other service schedule items.
26 86317500 CHARIOT SCRUBBER
Maintenance
1
2
3
4
5
6

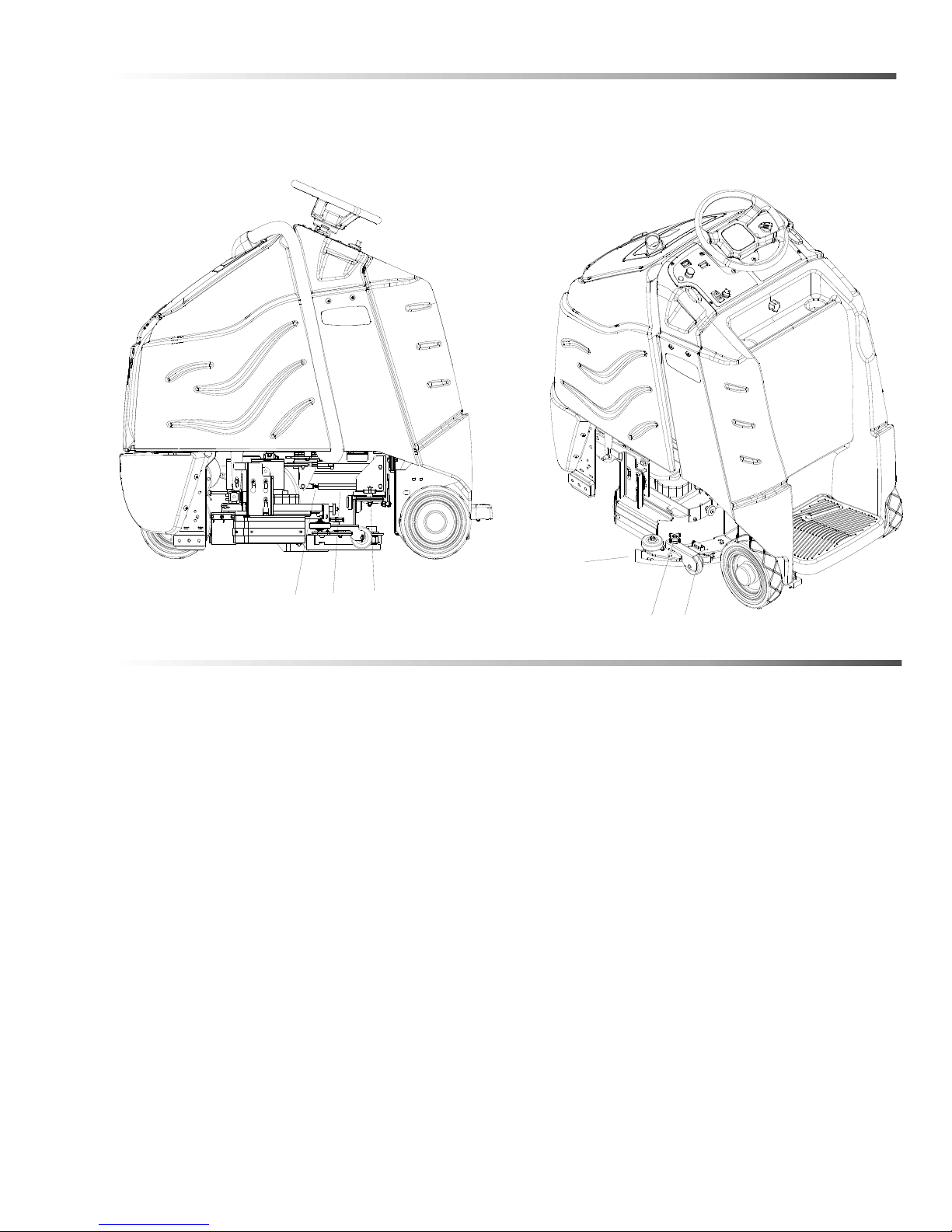

Batteries
1. Rear Cover Retainer Knob
2. Rear Cover
3. Battery Connector-Machine
4. Batteries
5. Battery Tray
6. Battery Tray Liner
86317500 CHARIOT SCRUBBER 27
Maintenance
BATTERIES (WET CELL ONLY)
The batteries provide the power to operate the
machine. The batteries require regular maintenance to
keep them operating at peak efficiency.
The machine batteries will hold their charge for long
periods of time, but they can only be charged a certain
number of times. To get the greatest life from the
batteries, charge them when their charge level reaches
25% of a full charge. Use a hydrometer to check the
charge level.
Do not allow the batteries to remain in a discharged
condition for any length of time. Never expose a
discharged battery to temperatures below freezing.
Discharged batteries will freeze causing cracked
cases. Do not operate the machine if the batteries are
in poor condition or if they have a charge level below
25% (specific gravity below 1.155).
Keep all metallic objects off the top of the batteries, as
they may cause a short circuit. Replace worn or
damaged cables and terminals.
Check the electrolyte level in each battery cell before
and after charging the batteries. Never add acid to the
batteries, use distilled water. Do not allow water level
to fall below the battery plates. Portions of plates
exposed to air will be destroyed. Do not overfill. Keep
plugs firmly in place at all times.
When servicing machine, avoid contact with
battery acid.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Wear eye protection and protective clothing when
working with batteries.
Charge batteries in a well ventilated area.
BATTERY MAINTENANCE
1. When cleaning the batteries, use a solution of
baking soda and water. Do not allow the cleaning
fluid to enter the battery cells, electrolyte will be
neutralized.
2. Maintain the proper electrolyte level in each battery
cell. If a cell should accidentally overflow, clean
immediately.
3. Wipe off the top of the batteries at least once a
week.
4. Test battery condition with a hydrometer at least
once a week.
5. Ensure that all connections are tight and all
corrosion removed.
6. Every 4 to 6 months, remove that batteries from
the machine and clean the battery cases and
battery compartment.
28 86317500 CHARIOT SCRUBBER
Maintenance
CHECKING BATTERY SPECIFIC GRAVITY
Use a hydrometer to check the battery specific gravity.
CHECKING GRAVITY
a. Hydrometer Battery
b. Battery
NOTE: Do not take readings immediately after adding
distilled water, if the water and acid are not thoroughly
mixed, the reading may not be accurate.
Check the hydrometer readings against this chart.
SPECIFIC GRA VITY
@ 80
°
F (27°C) BATTERY CONDITION
1.265 100% CHARGED
1.225 75% CHARGED
1.190 50% CHARGED
1.155 25% CHARGED
1.120 DISCHARGED
NOTE: If the readings are taken when the batt er y
electrolyte is any temperature other than 80°F (27°C),
the reading must be temperature co rr ect ed .
To find the corrected specific gravity reading when the
temperature of the battery electrolyte is other than 80 °F
(27°C): Add (+) to the specific gravity reading 0.004 (4
points), for each 10°F (6°C) above 80° (27°C). Subtract
(-) from the specific reading 0.004 (4 points), for each
10°F (6°C) below 80°F (27°C).
CHARGING BATTERIES
When servicing machine, avoid contact with
battery acid.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Wear eye protection and protective clothing when
working with batteries.
Charge batteries in a well ventilated area.
Use a 36 volt, 20 amp maximum output DC charger
which will automatically shut off when the batteries are
fully charged.
1. Stop the machine in a clean, well ventilated area
next to the charger.
2. Turn “OFF” machine.
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, turn off machine
and remove key.
3. Remove rear cover, unplug batteries from
machine, unlatch battery tray and pull out to
expose batteries.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
4. Check the electrolyte level in each battery cell.
Before charging, add just enough distilled water to
cover the plates. After charging is complete, add
just enough distilled water to bring up the level to
the indicator ring. If the water level is too high
before charging, normal expansion rate o f the electrolyte may cause an overflow resulting in a loss of
battery acid balance and damage the machine.
86317500 CHARIOT SCRUBBER 29
Maintenance
+
--
++
-
RED
BLK
RED
BLK
RED
BLK
REAR OF MACHINE
5. Replace the battery caps, and leave them in place
while charging.
6. Unplug the battery connector from the machine.
FOR SAFETY: Whe n charging, connect the charger
to the batteries before connecting the charger to
the AC wall outlet. Never connect the charger to
the AC wall outlet first. Hazardous sparks may
result.
7. Plug the charger connector into the battery
connector. Connect the charger AC plug to a wall
outlet. The charger gauge should indicate that the
batteries are charging.
8. When the batteries are fully charged, disconnect
the charger from the AC wall outlet, then disconnect the charger from the batteries.
9. Connect the batteries to the machine connector.
10. Check the electrolyte level. It should be up to the
indicator ring. If necessary, add distilled water.
11. Install the rear cover.
CHANGING BATTERIES
Stop the machine in a clean area next to the charger.
Turn off machine.
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn off machine
and remove key.
1. Remove the rear cover.
2. Disconnect battery pack from machine.
3. Unlatch battery tray from machine and pull out to
expose batteries.
4. Use the proper size open end wrench to disconnect main ground wire first and secure cable
terminal away from batteries.
5. Disconnect main positive lead and secure cable
terminals away from batteries.
6. Loosen both terminals on each jumper cable and
remove one at a time.
7. Prepare a suitable site to pla ce the batteries.
Attach suitable battery lifting device and lift
batteries from the machine.Batteries are a potential
environmental hazard. Consult your battery
supplier for safe disposal methods.
30 86317500 CHARIOT SCRUBBER
Maintenance
1
2
3
4
5
6
Squeegee
1. Squeegee
2. Squeegee Deflection Adjustment Knobs
3. Squeegee Level Indicator
4. Squeegee Pitch Adjustment Rod
5. Squeegee Pitch Adjustment Lock Nut
6. Squeegee Retainer Knob
86317500 CHARIOT SCRUBBER 31
Maintenance
3
8
"
(9.5mm)
SIDE VIEW OF SQUEEGEE BLADE
SQUEEGEE DEFLECTION
TOO MUCH
CORRECT
NOT ENOUGH
Squeegee Blades
The front squeegee blade allows solution to pass
through channels in the blade into the squeegee
assembly while maintaining vacuum to provide lift. The
front blade has four wear surfaces and can be rotated
for extended life. The front blade should not require
regular replacement under normal use.
The rear blade wipes the floor to a near dry condition. It
is important the rear blade be in good condition to
properly do its job. As with the front, each squeegee
blade assembly has four wear surfaces for extended
service.
Check both the front and rear squeegee blades for
damage, wear , and adjustment ea ch day in th e pre-r un
check. Change the front blade if it is torn or has an
uneven edge. Change the rear blade if it is le ss th an 1/
2 the original thickness.
Adjusting Squeegee
Adjusting the squeegee is a two-part process. First, th e
squeegee assembly must have correct pitch in order for
the squeegee blade to have the same deflection at
each tip as well as the center. The rod on the
squeegee linkage controls the pitch adjustment. The
second adjustment is the deflection. Knobs on each
end of the squeegee control this.
To Remove Squeegee Assembly
1. With the squeegee in the up position, turn key
switch "OFF".
2. Disconnect vacuum hose from squeegee and
loosen knob on left side of squeegee lifting carrier.
3. Pull squeegee assembly from the lifting carrier.
4. Inspect or repair as necessary and reinstall.
To Replace or Rotate Squeegee Blades
1. With the squeegee in the up position, turn key
switch "OFF".
FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and re move
key.
2. Remove the squeegee assembly from the
machine. Unlatch and remove blade retainer strap
and remove squeegee blade.
3. Rotate the squeegee to new edge position or
replace as required. Each blade has four new
edge positions.
4. Install blade on locating pins of squeegee
assembly.
5. Install squeegee retainer strap.
6. Fasten and lock latch, adjust latch only tight
enough to take up slack in retaining strap.
To Replace or Rotate Front Squeegee
Blades
1. With the squeegee in the up position, turn key
switch "OFF".
2. Remove the squeegee from the machine. Loosen
thumbscrews and remove the retainer strap and
squeegee blade.
3. Rotate the squeegee to new edge position or
replace as required. Each blade has four new
edge positions. When installing the front blade,
tighten the center thumbscrew first. In sure that th e
retainer strap is pressed against the blade before
tightening the outer screws.
32 86317500 CHARIOT SCRUBBER
Maintenance
SIDE VIEW OF SQUEEGEE BLADE
SQUEEGEE DEFLECTION
CORRECT
3
8
"
(9.5mm)
To Adjust Squeegee Pitch
1. Choose a smooth, level surface. Turn "ON" the
key switch. Lower the squeegee and drive forward
at least 2 feet (60cm.).
2. With the squeegee down, stop the machine. Do
not allow machine to roll back.
3. FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn off machine
and remove key.
4. Determine the differences, if any, in deflection of
the squeegee blade between each end and the
middle. Proper adjustment is obtained when
deflection is equal all the way across the squeegee
blade. The bubble level should also indicate when
the squeegee is adjusted properly. When the air
bubble is in the center of the vial, the deflection
should be even across the squeegee blade.
5. To decrease the deflection of the squeegee blade
at the ends, loosen wing nut and rotate the rod
clockwise. To increase the deflection at the ends
of the squeegee assembly, rotate the rod counterclockwise knob.
6. Check the deflection of the squeegee blades
again. Repeat steps 1 through 4 until the deflection is equal across the entire rear squeegee blade.
Tighten wing nut.
To Adjust Amount of Rear Squeegee
Deflection
1. Choose a smooth, level surface. Lower the
squeegee and drive forward at least 2 feet (60cm).
2. With the squeegee down, stop the machine. Do
not allow machine to roll back.
FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.
3. Observe the amount of squeegee deflection. It
should deflect 3/8 in. (9.5mm) across the entire
width of the squeegee.
4. To increase the squeegee deflection, turn the 2
knobs at the squeegee ends counter-clockwise. To
decrease the deflection, turn the knobs clockwise.
NOTE: The deflection should be consistent along the
length of the squeegee. If the deflection varies from
end to end the knobs can be adjusted independently
to correct the variation.
5. Turn on the key switch. Raise, then lower
squeegee assembly. Drive forward at least 2 feet
(60cm).
6. Repeat steps 2 through 4 until deflection of3/8 in.
(9.5mm) is reached.
86317500 CHARIOT SCRUBBER 33
Maintenance
Scrub Brushes
There are four different types of brushes available to
cover applications from cleaning heavily soiled floors to
polishing. A pad driver is also available to take
advantage of the many cleaning pads on the market.
Please refer to the following to assist in selecting the
proper brush or pad for the work at hand.
Uncoated Floors
Aggressive Grit is a nylon fiber impregnated with
silicone carbide grit. It grinds away stain, soil, and
removes surface material.
Mild Grit is a less aggressive silicone carbide grit
suitable for cleaning medium soil conditions. Advantages are faster ground speed than nylon bristles on
light solid applications.
Polypropylene is a general-purpose scrub brush with
stiff bristles. Polypropylene works well for maintaining
concrete, wood and tile floors.
Finished Floors
Nylon bristles are used in a variety of applications on
coated or uncoated surfaces.
White Pads (Polishing) are used for dry polishing to
achieve a high-gloss appearance, or surface washing
on highly polished or burnished floors.
Red Pads (Buffing) are used for light-duty scrubbing.
When used with a mild detergent they will provide
surface cleaning without removing the finsh.
Blue Pads (Scrubbing) are used for heavy-duty
scrubbing and light stripping. The blue pads remove
less finish than brown stripping pads, yet will remove
black marks, stains and dirt.
Black Pads (Strippin g) are used for easy and complete
removal of old floor waxes/finishes. They will quickly
remove ground in dirt, black heel marks, and spills.
When used with the proper stripper, this pad leaves the
floor clean and ready for finishing.
The scrub brushes should be checked before each
days work for wire, string, wear and damage.
Replacing or Installing Scrub Brushes
(Disk)
1. Turn machine function dial to transport mode,
allowing deck to return to “up” position. Turn the
machine power off.
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn OFF machine and
remove key.
2. Remove scrub deck skirts on lef t and right sides by
lifting directly up and pulling out.
3. Locate release lever on top of brush or pad driver.
Rotate release lever counterclockwise and the
brush/pad driver will release and drop down.
4. To reinstall, center the brush/pad driver under the
brush drive hub. Raise it until it contacts brush
driver assembly. Turn clockwise until release lever
plate locks into position.
5. Replace scrub deck skirts on both sides.
NOTE: Check that release lever/plate is completely
closed and pad/brush is securely attached. Damage
to driver or brush could occur if not securely attached.
Replacing or Installing Scrub Brushes
(Cylindrical)
1. Turn machine function dial to transport mode,
allowing deck to return to “up” position. Turn the
machine power off.
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn OFF machine and
remove key.
2. On right and left sides of deck, turn both brush and
skirt releases 1/4 turn counter-clockwise.
3. Swing deck skirts out. Remove brush end caps.
Slide brushes out the sides of deck.
4. To reinstall, slide brushes into deck. Replace brush
end caps. Lift end cap up and turn brush release
1/4 turn clockwise, locking brush in place. Swing
deck skirt back to deck. Turn skirt release 1/4 turn
clockwise, locking skirt into place.
34 86317500 CHARIOT SCRUBBER
NOTE: Check that brush end cap is proper ly secured
into deck housing. Check that brush is suspended off
ground while deck is in “up” position.
Maintenance
1
2
3
4
6
5
Scrub Deck-Disk
1. Scrub deck Aqua-Mizer™
2. Aqua-Mizer™ retainer knob
3. Scrub deck skirt
86317500 CHARIOT SCRUBBER 35
4. Scrub deck skirt stop
5. Scrub brush motor
6. Scrub deck lift actuator
Maintenance
1
2
3
4
Scrub Deck-Cylindrical
1. Skirt Release
2. Brush Deck
3. Skirt
4. Brush End Cap
36 86317500 CHARIOT SCRUBBER
Do not use a pressure washer to clean around the
brush motors. Use tap pressure only.
To Replace Scrub Brush Motors
With the scrub deck in the raised position, disconnect
brush motor wiring connector from harness.
Remove skirts from scrub deck to access and remove
scrub brushes or pad drivers.
1. Remove Aqua-Mizers™ from scrub deck.
2. Remove retaining bolt, lock washer, flat washer
and star drive from brush motor shaft.
3. Remove 4 brush motor mounting bolts located
under scrub deck.
4. Lower scrub deck.
5. Remove brush motor.
6. Reverse steps to install.
Maintenance
Brush Motor Carbon Brush Replacement
1. Scribe alignment mark on motor barrel to motor
cap. Remove two bolts.
2. Remove end cap from motor.
NOTE: Motors contain two wave washers in cap. Do
not lose these.
3. Release brush from spring tension. Remove screw
connecting brush wire lead to brush holder. Clean
brush holder to insure free movement.
4. Retract spring and install new brush. Install
connector screw and lead.
5. When all new brushes are installed. Place all in
retracted position, held into brush holder by spring
tension.
6. Carefully place end cap onto bearing on motor
shaft.
NOTE: Use care to assure wave washer alignment.
7. With end cap in partially installed position, release
all brushes to contact position with motor commutator.
NOTE: Failure to insure all brushes are released will
result in motor failure.
8. Reset end cap and realign with scribe marks on
motor barrel. Reinstall the two attach bolts from
cap into base.
9. Maintain alignment between motor barrel base an d
cap.
86317500 CHARIOT SCRUBBER 37
Maintenance
Actuator Scrub Deck Removal /
Replacement
FOR SAFETY: Before leaving or servicing machine,
stop on a level surface. Turn off machine.
1. Remove the two screws that secure actuator
spring plate and pull actuator barrel from stud on
actuator spring bracket.
2. Remove clevis pin from upper bracket of actuator.
3. Disconnect actuator from wiring harness.
4. Reverse steps to install.
Scrub Deck Actuator Adjustment
The actuator will need to be adjusted when replaced.
To adjust the actuator:
1. While holding actuator barrel to prevent it from
spinning, apply power to the actuator such that it is
fully extended. Positive power to white wire, and
negative/ground to black. Limit switch within
actuator will stop it.
2. Turn barrel ou t one or more full turns to assu re that
when it is retracted it will not bind against itself.
3. While holding actuator barrel to prevent it from
spinning, apply power to the actuator such that it is
fully retracted. Positive power to black wire, and
negative/ground to white wire. Limit switch within
actuator will stop it.
4. With actuator fully retracted, turn barrel in until it
touches the base of the threaded shaft.
5. At the bottomed out position, turn the barrel outfull
turn, then enough more to allow connection to lift
linkage.
6. Connect actuator to lift linkage.
7. Check travel of actuator during operation.
38 86317500 CHARIOT SCRUBBER
Notes:
86317500 CHARIOT SCRUBBER 39
Maintenance
1
Circuit Protection
Circuit Breakers
1. Circuit breakers interrupt the flow of power in the event of an electrical overload. When a circuit breaker is
tripped, reset it by pressing the exposed button. If a circuit breaker continues to trip, the cause of the electrical
overload should be found and corrected.
18 Amp. (Disk) Protects the left scrub brush motor.
30 Amp. (Cylindrical) Protects the front scrub brush motor.
18 Amp. (Disk) Protects the right scrub brush motor.
30 Amp. (Cylindrical) Protects the rear scrub brush motor.
40 86317500 CHARIOT SCRUBBER
Maintenance
2
3
5
6
1
4

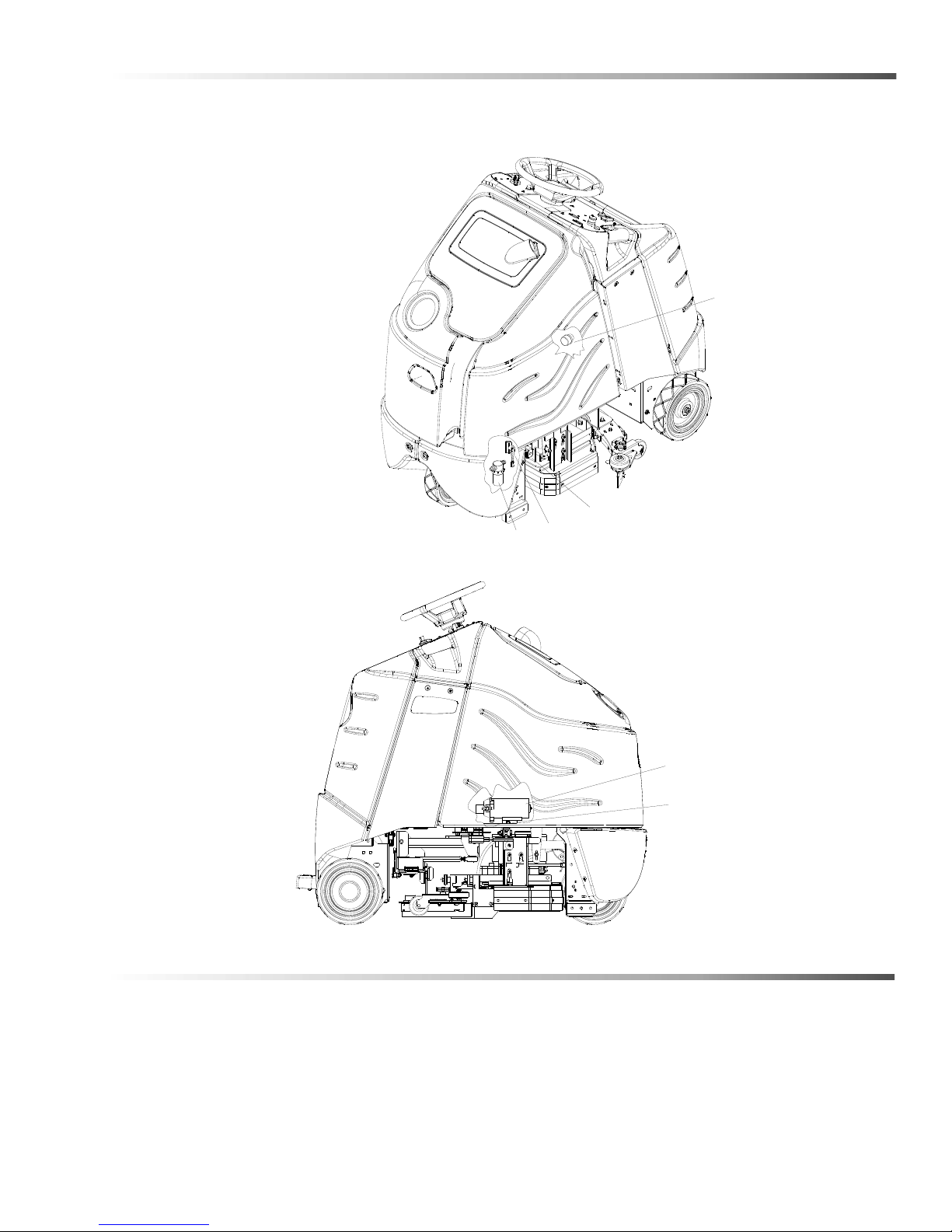

Solution Strainer & Pump-Disk
1. Solution Strainer-Coarse
2. Pump Mounting Plate
3. Pump
4. Solenoid Valve
5. Solution Strainer Fine
6. Shut-off Valve
86317500 CHARIOT SCRUBBER 41
Maintenance
1
2
3
4
5
6
Solution Strainer & Pump-Cylindrical
1. Solution St rainer-Coarse
2. Solution Strainer-Fine
3. Pump
4. Solenoid Valve
5. Spray or Drip Bar
6. Shut-off Valve
42 86317500 CHARIOT SCRUBBER
Maintenance
1. SOLUTION STRAINER-COARSE
Located in bottom of tank. The coarse strainer protects
the finer strainer from large debris. If the fine strainer is
clean and the pump and solenoid valve are not
working, then check the coarse strainer for debris.
Drain the solution tank and clean the coarse strainer.
To remove the strainer, rotate the strainer counterclockwise. Cleanout the debris from wire mesh and reassemble.
2. SOLUTION STRAINER (FINE) AND SHUT-OFF
VALVE
The fine strainer is located in front left corner of
machine on disk models and in right rear corner of
cylindrical models. The fine strainer protects the pump
and solenoid valve from debris. If there is little or no
solution flow to the ground, first check to make sue the
shut-off valve is open. Next, check the strainer for
debris. To remove the strainer, first turn the shut-off
valve to the off position. Then, turn the bottom part of
the strainer counterclockwise until the bottom is separated. Clean out the debris from the wire mesh and reassemble. Make sure the O-ring gasket is in place
when re-assembled. To resume flow, turn the shut-off
valve to the open position.
4. PUMP MOUNTING PLATE
See graphic representation on previous page .
5. SOLENOID VALVE
The solenoid valve is mounted on the front o f the scrub
deck, on left side.
The solenoid valve shuts off solutio n flow to scrub deck
whenever scrubbing stops. To repair or replace
solenoid valve, cut cable ties that secure it to deck.
3. PUMP
The pump is located under the tank on the right side of
machine. The pump delivers solution from the tank to
the scrub deck.
To repair or replace pump:
1. Remove scrub deck skirts, Aqua-Mizer, and
squeegee from machine.
2. Lower scrub deck to gain access to pump
mounting plate.
3. Remove screw that secures pump mounting plate
to frame.
4. The pump is located under the tank on the right
side of machine. The pump delivers solution from
the tank to the scrub deck. Pull pump mounting
plate forward and down to expose pump.
5. Reverse steps to install.
86317500 CHARIOT SCRUBBER 43
Maintenance
1
2

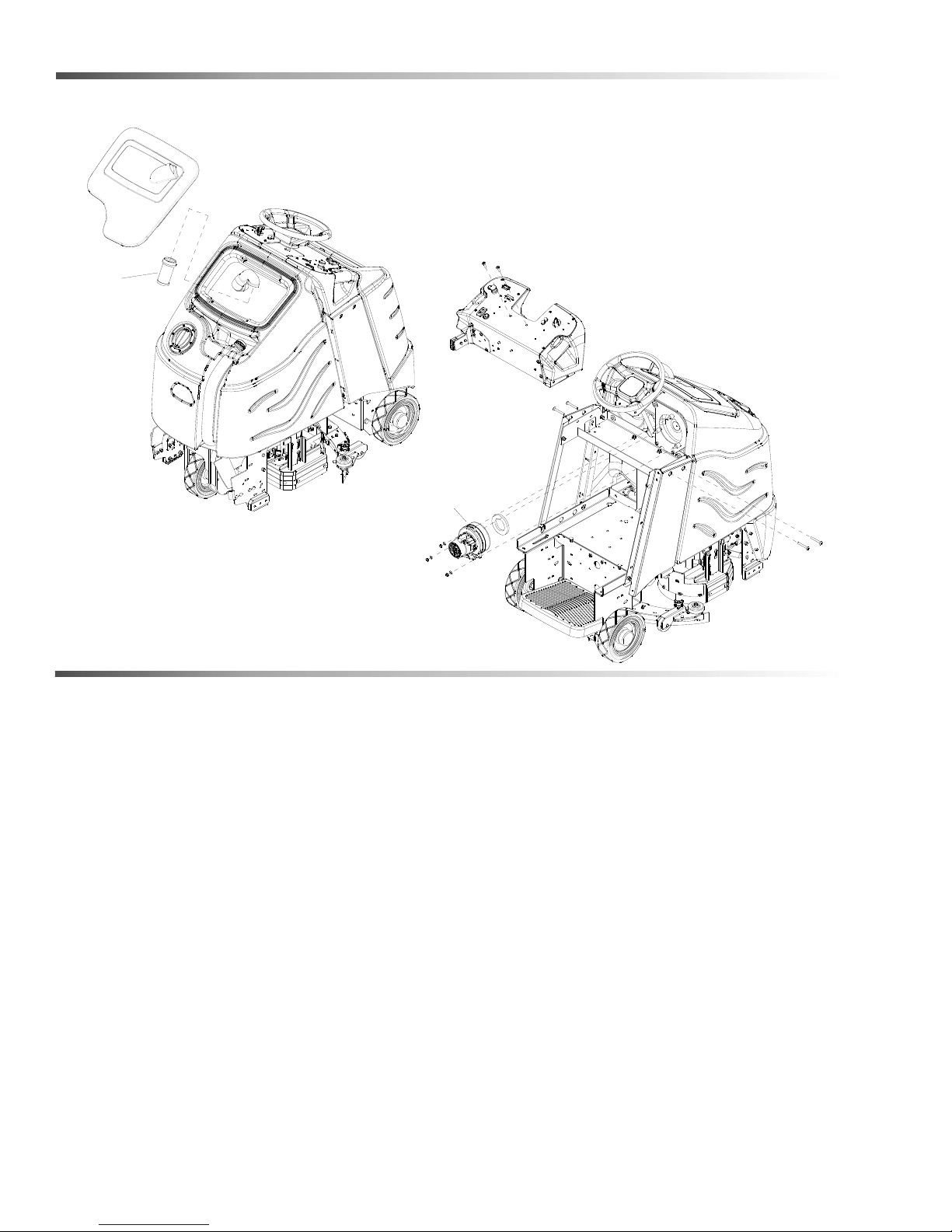

Vacuum & Float Shutoff
1. Recovery Tank Float Shut-off
2. Vacuum Motor
44 86317500 CHARIOT SCRUBBER
Maintenance
3
8
[9.5mm]
Vacuum Motor Carbon Brushes
Carbon
Brushes
End Cap
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
Inportant:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.
Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less tan 3/8" (9.5mm)
long.
Recovery tank Float Shut-off
When water is no longer being vacuumed from the floor
and the vacuum fan is operating, the ball float has
engaged. The vacuum motor will not vacuum water
with recovery tank full. The recovery tank must be
drained.
1. The float shut-off screen can be cleaned in or out
of the machine.
2. To clean the float shut-off while it is inside the
machine wipe material off screen then rinse. Check
that the ball is also clean and moves freely.
3. To rem o ve th e floa t sh ut -o ff, grasp the scree n with
one hand and the connected tube with the other.
Tilt and pull the float screen assembly to pull it off
the barb on the tube.
4. To install, place one hand on the tube, and then tilt
and push the float screen assembly over the barb
on the tube.
FOR SAFETY: before leaving or servicin g machine,
stop on a level surface, turn off machine and
disconnect power.
To Repair or Replace Vacuum Motor
1. Remove rear cover from machine.
2. Remove two screws from top of control panel and
four screws from sides of control housing.
3. Slide control housing back from tank to expose
vacuum motor.
4. Disconnect electrical connector from the vacuum
motor. Remove the muffler hose from the vacuum
motor outlet.
5. Remove three nuts that secure vacuum motor.
6. Reverse steps to install. Make sure that gasket is
on vacuum so that vacuum seals against tank.
86317500 CHARIOT SCRUBBER 45
Maintenance
1
2
Drive Motor
1. Drive Motor
2. Parking Brake
46 86317500 CHARIOT SCRUBBER
Maintenance
Electric Parking Brake Engagement
FOR SAFETY: Before leaving or servicing machine,
stop on a level surface, turn off machine and
remove key.
Electric Brake Engagement
This machine is equipped with an electric parking
brake.
The brake automatically engages and keeps the
machine from moving whenever the operator steps off
the platform or when emergency stop is engaged.
The brake has a mechanical over-ride that can be
engaged so machine can be pushed or towed (slowly).
When the mechanical over-ride is engaged the
machine cannot be driven.
To engage brake:
To disengage brake:
1. Mechanical over-ride disengaged. Machine can b e
driven.
2. Push lever firmly in direction of arrow.
1. Mechanical over-ride engaged.Machine can be
pushed or towed (slowly).
2. Push lever firmly in direction of arrow
NOTE: There is an intermediate stop. Make sure
lever is fully in the down position,
86317500 CHARIOT SCRUBBER 47
Maintenance
HEX HUB
SMALL PIN OR SCREW
ROLL PIN
Drive Motor Carbon Brush Replacement
Do not use a pressure washer to clean around the
motors. Use tap pressure only.
FOR SAFETY: Before leaving or servicing machine,
stop on a level surface, turn off machine and
remove key.
1. Disconnect batteries from machine.
2. Disconnect the electrical connection to the traction
motor.
Brake Removal
(Must be done to access carbon brushes)
3. Remove 4 mounting screws and remove brake.
4. Drive roll pin out of the hex hub enough to allow
hex hub to slide off shaft. It is recommended that
the roll pin be left partially in the hex hub.
5. Remove brush cap.
7. Install new brush and reinstall connecting screw
and lead.
8. When all new brushes are installed. Place all in
retracted position, held into brush holder by spring
tension.
9. Carefully replace brush cap.
Reinstalling:
10. When replacing the hex hub, use a small pin or
screw to help align the holes.
11. Drive the pin into the hub and make sure it is flush
to the hex surface. The brake will not fit on the hub
if the roll pin is protruding from the hub.
12. Replace the hub and use Lock-Tite on the screws.
6. Release brush from spring tension. Remove screw
connecting brush wire lead to brush holde r. Clean
brush holder to insure free movement.
48 86317500 CHARIOT SCRUBBER
Maintenance
Removing or Replacing Bag
1. Disconnect batteries and make sure parking brake
is not overridden.
2. Remove Dome and set aside.
3. Drain all solution from both sides of the bag and
rinse well.
4. Remove float cage, loosen screw on elbow and
remove elbow. (You can remove the bag by only
removing the float cage and sliding the bag
opening over the elbows.)
5. Remove threaded mandrel from the bottom of the
bag. Turn counterclockwise, remove by grabbing
the attached handle. The mandrel washer should
come off with the mandrel.
6. Lift the bag assembly out of the tank. The dome
gasket, plastic collar, and metal frame can all be
removed as one assembly. The bag can be
cleaned as an assembly or further disassembled.
7. To replace with a new bag remove the four screws
that go through the collar and into the frame. Feed
the frame through the loops at the top of the bag.
8. Re-assemble frame, collar and bag if they were
disassembled.
9. Place bag assembly into tank.
10. Align bag drain hole with fitting in bottom of tank
and thread in mandrel with washer attached. Turn
clockwise to tighten. Tighten only by hand, do use
a tool. Ensure mandrel is tight, the bag should be
unable to move or spin around the mandrel.
1 1. Seat the collar, gasket, frame assembly to the tan k
rim opening. At the same time slide the vacuum
collar opening over the float cage elbow assembly.
12. Replace the rest of the elbow and float cage
assembly with its mounting screw, if it was
removed.
13. Install dome and connect squeegee hose.
86317500 CHARIOT SCRUBBER 49
Maintenance
TIE DOWN POINTS
Transporting
Pushing Machine
The machine may be pushed for short distances at
speeds not to exceed 5 mph. Be careful to avoid
damaging machine. The machine may be pushed by
hand from the rear.
NOTE: To avoid damage caused by regenerative
voltage, disconnect traction motor before towing or
pushing machine.
Machine Tie-Downs
There are two tie points located at front and each side
of foot box frame and two at the front side of frame.
Tie-down devices must be of the proper type and
strength. The combined strength of all tie-downs must
be strong enough to lift two times the weight of the
machine. Tie-downs must be positioned to preven t the
machine from moving forward, backward, or either side
to side. Use all four corners of the machine with the tiedowns running out opposite directions. Ti e-downs must
be attached to the transporting vehicle securely.
Preparation for Loading/Unloading Trailer
Before loading or unloading machine from trailer,
remove squeegee, scrub deck, side skirts or side
squeegees, Aqua-Mizers and scrub brushes (pads) to
eliminate interference with tie-downs.
Scrub head must be in the up position before loading.
When transporting the machine on a trailer or in a truck,
in addition to using tie-downs, be sure to set the parking
brake, and block the tires to prevent the machine from
rolling
50 86317500 CHARIOT SCRUBBER
Maintenance
Troubleshooting
PROBLEM CAUSE SOLUTION
No power to machine Battery disconnected Check all battery cable connections
Emergency shut-off activated Reset
Battery cables corroded Clean connections
Faulty key switch Replace switch
Little or no propel Low battery charge Charge batteries
Machine turned on with pedal not in neutral
position
Tripped circuit breaker Reset circuit breaker
Wheels spin Decrease brush pressure
Controller overheated Allow cool down period
Loose motor connection
Faulty throttle circuit or potentiometer
Faulty drive reset circuit or switch Check wires, connections and switch
Faulty platform circuit or switch Check wires, connections and switch
Brake over-ride engaged Disengage brake over-ride
Faulty brake circuit or over-ride switch Check wires, connections and switch
Machine does not
change speeds
Forward speed only
Reverse speed only
Poor or no water pickup Squeegee out of adjustment Adjust squeegee
Faulty speed control circuit or switch Check wires & connections
Faulty forward/reverse circuit Check wires & connections
Debris caught on squeegee Remove debris
Worn squeegee blades Rotate or replace squeegee blades
Vacuum hose clogged Clear obstruction from hose
Vacuum hose disconnected from squeegee
or recovery tank dome
Recovery tank float system dirty Clean float system
Recovery tank not sealed
Float-ball shut-off engaged Tank full Empty recovery tank
Foam filling recovery tank
Allow pedal to return to neutral. Restart.
Check wires and connections from
controller to motor
Check wires and connections from and
potentiometer resistance
Reconnect vacuum hose
Place recovery tank dome on tank.
Replace damaged gaskets
Empty recovery tank. Use less or dif ferent
detergent. Use defoamer.
86317500 CHARIOT SCRUBBER 51
Maintenance
PROBLEM CAUSE SOLUTION
Vacuum motor does not run, or
runs slowly
Squeegee will not go up/down Faulty circuit or actuator Check wires, connectors and actuator
Poor scrubbing performance Debris caught in scrub brushes Remove debris
Little or no solution flow to the
floor
Brush motors do not run, or run
slowly
Faulty vacuum circuit or switch Check wires & connections
Worn vacuum motor brushes Replace brushes, check commutator
Faulty cables or pulleys Repair/replace cables or pulleys
Worn brushes or pads Replace brushes or pads
Improper detergent, brush or pad used
Low scrub brush down pressure Increase brush pressure
Low battery charge Charge batteries
Solution tank empty Fill solution tank
Solution strainer plugged Clean solution strainer
Solution system plumbing obstructed Clear obstruction from plumbiing
Pump obstructed Clean or replace pump
Solution solenoid valve obstructed or
stuck
Solution shut-off valve is closed Open shut-off valve
Faulty pump circuit or pump Check wiring, connections, and pump.
Faulty solenoid Check solenoid valve
Circuit breaker(s) tripped Reset circuit beaker(s)
Low battery charge Charge battery
Faulty brush circuit or motor Check wires, connections and motor
Worn brush motor brushes
Contact equipment or application
specialists
Solution solenoid valve obstructed or
stuck
Replace brushes, check commutator
Scrub deck goes down, then
raises
Faulty actuator circuit or actuator Faulty actuator circuit or actuator
Install brushes or pad drivers
No brushes or pad drivers on machine
52 86317500 CHARIOT SCRUBBER
Controller Fault Codes
Maintenance
ERROR CODE
DELUXE
PROBLEM SOLUTION
LOW BATTERY VOLTAGE
TRACTION MOTOR
DISCONNECTED
BRUSH MOTOR
DISCONNECTED
AUX FAULT
VACUUM MOTOR
DISCONNECTED
THE BA TTERY NEEDS CHARGING OR THERE IS A BAD
CONNECTION TO THE BATTERY
THE TRACTION MOTOR HAS A BAD CONNECTION,
CHECK CONNECTIONS TO MOTOR
THE BRUSH MOTOR HAS A BAD CONNECTION,
CHECK CONNECTIONS TO MOTOR
CHECK AUX OUTPUT DEVICES, CHECK ALL
ASSOCIATED WIRING TO AUX DEVICES
THE VACUUM MOTOR HAS A BAD CONNECTION,
CHECK CONNECT
CONTROL SYSTEM
INHIBITED
THROTTLE TRIP ERROR
CONTROL SYSTEM TRIP
SOLENOID BRAKE
HIGH BATTERY VOLTA GE
THE TRIO IS BEING INHIBITED FROM DRIVING, IE, ON-
BOARD CHARGER IS IN USE
THE THROTTLE IS DEFLECTED OR ASSOCIATED
WIRING HAS A BREAK OR SHORT CIRCUIT
THE CONTROL SYSTEM IS IN ERROR, CHECK ALL
CONNECTIONS TO CONTROLLER
THE SOLENOID HAS A BAD CONNECTION , CHECK
CONNECTION TO BRAKE
EXCESSIVE BATTERY VOLTAGE, CHECK FOR POOR
BATTERY CONDITION
86317500 CHARIOT SCRUBBER 53
Notes:
54 86317500 CHARIOT SCRUBBER
Loading...
