iScrub 20

Operating instructions (ENG)

MODELS:

CS20
10061250

CSC20
10061330

CSX20
10061370

CSXC20
10061380

CS22SP
10061300

CSC22SP
10061340

Prior to Serial Number (14*)

See Serial number page or call

manufacturer.

Read these instructions before using the machine.

86333220-CF
04/24/15

Machine Data Log/Overview

OVERVIEW

The Chariot Scrubber is a battery powered, stand-on, hard floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor, scrubs the floor with brush or pad, and then vacuums the
soiled water back into the recovery tank.

Warranty Registration

Thank you for purchasing a Windsor product. Warranty registration is quick and easy.

Your registration will allow us to serve you better over the lifetime of the product.

To register your product go to :

www.windsorind.com/WarrantyRegistration.aspx

2 86333220 CS20

For customer assistance:

1-800-444-7654

Table of Contents

Machine Data Log/Overview. . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3

How to Use This Manual . . . . . . . . . . . . . . . . . . . . . .4

Safety

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5

HAZARD INTENSITY LEVEL . . . . . . . . . . . . . . . . . .7

SAFETY LABEL LOCATIONS . . . . . . . . . . . . . . . . .9

Operations

Technical Specifications . . . . . . . . . . . . . . . . . . . . .10

How This Machine Works. . . . . . . . . . . . . . . . . . . .12

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Drive Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Scrub Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Scrub Controls-Squeegee. . . . . . . . . . . . . . . . . . . .20

Pre-Run Machine Inspection. . . . . . . . . . . . . . . . . .22

Starting Machine. . . . . . . . . . . . . . . . . . . . . . . . . . .22

Emergency Stop Procedure . . . . . . . . . . . . . . . . . .22

Filling Solution Tank . . . . . . . . . . . . . . . . . . . . . . . .22

Filling Solution Tank (Deluxe). . . . . . . . . . . . . . . . .22

Normal Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . . .23

To Begin Scrubbing . . . . . . . . . . . . . . . . . . . . . . . .23

To Stop Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . .24

Double Scrub . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Emptying and Cleaning Tanks . . . . . . . . . . . . . . . .25

Maintenance

Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .26

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Battery Charger Programming . . . . . . . . . . . . . . . .33

To Remove Squeegee Assembly . . . . . . . . . . . . . .35

Squeegee Blades-Cylindrical . . . . . . . . . . . . . . . . .35

Scrub Deck-Disk . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Scrub Deck-Cylindrical . . . . . . . . . . . . . . . . . . . . . .36

Scrub Brush-Disk . . . . . . . . . . . . . . . . . . . . . . . . . .37

Replacing or Installing Scrub Brushes (Disk) . . . . .38

Replacing or Installing Scrub Brushes (Cylindrical) 39

To Replace Scrub Brush Motor - Disk . . . . . . . . . .40

Scrub Deck Actuator Removal / Replacement . . . .42

Circuit Protection. . . . . . . . . . . . . . . . . . . . . . . . . . .43

Solution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Tank Assembly Removal . . . . . . . . . . . . . . . . . . . .46

Drive Unit Removal. . . . . . . . . . . . . . . . . . . . . . . . .47

Vacuum & Float Shutoff . . . . . . . . . . . . . . . . . . . . .48

Vacuum Motor Carbon Brush Replacement . . . . . .49

Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Drive Motor Carbon Brush Replacement . . . . . . . .50

Drive Chain Tension . . . . . . . . . . . . . . . . . . . . . . . .50

Inclines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Machine Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . .52

Machine Tie-Downs (Deluxe) . . . . . . . . . . . . . . . . .53

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Battery Discharge Indicator Troubleshooting . . . . .56

Parts

Bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Bumper-Deluxe & Cylindrical . . . . . . . . . . . . . . . . 60

Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Control Panel 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Control Panel 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Decals - Disk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Decals-Deluxe & Cylindrical . . . . . . . . . . . . . . . . . 70

Drive-Lower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Drive-Chain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Drive Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Frame & Rear Wheels . . . . . . . . . . . . . . . . . . . . . 78

On Board Battery Charger-Disk . . . . . . . . . . . . . . 80

On Board Battery Charger-Deluxe & Cylindrical. . 82

Pedal Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Pedal Platform Mounting. . . . . . . . . . . . . . . . . . . . 86

Recovery Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Scrub Brush/Pad Driver . . . . . . . . . . . . . . . . . . . . 90

Scrub Brush Deck-Disk. . . . . . . . . . . . . . . . . . . . . 92

Scrub Brush Deck Mounting-Disk. . . . . . . . . . . . . 94

Scrub Deck Drive Assembly-Cylindrical . . . . . . . . 96

Scrub Deck-Cylindrical . . . . . . . . . . . . . . . . . . . . . 98

Scrub Deck Linkage-Cylindrical . . . . . . . . . . . . . 100

Scrub Brush Deck Mounting-Cylindrical . . . . . . . 102

Scrub Deck Lift . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Solution Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Solution Tank-Deluxe . . . . . . . . . . . . . . . . . . . . . 108

Squeegee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Squeegee-Cylindrical . . . . . . . . . . . . . . . . . . . . . 112

Squeegee Linkage-Cylindrical . . . . . . . . . . . . . . 114

Steering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Vacuum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Wiring-Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Wiring-Diagram -From Serial No. *(5). . . . . . . . . 122

Wiring-Diagram -From Serial No. *(5). . . . . . . . . 132

Wiring-Diagram -From Serial No. *(5). . . . . . . . . 134

Wiring-Diagram -From Serial No. *(5). . . . . . . . . 136

Wiring-Control Panel -Prior to Serial No. *(5) . . . 138
Wiring-Main Harness -Prior to Serial No. *(5) . . . 140

Wiring-Diagram -Prior to Serial No. *(5) . . . . . . . 142

Wiring-Diagram -Prior to Serial No. *(5) . . . . . . . 144

Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . 145

Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 146

86333220 CS20 3

How to Use This Manual

This manual contains the following sections:

• HOW TO USE THIS MANUAL

• SAFETY

• OPERATIONS

• MAINTENANCE

• PARTS LIST

The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.

Parts may be ordered from authorized Windsor
dealers. When placing an order for parts, the machine
model and machine serial number are important. Refer
to the MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.

The model and serial number of your machine are
located below the battery compartment of the machine.

The SAFETY section contains important information
regarding hazard or unsafe practices of the machine.
Levels of hazards are identified that could

result in product or personal injury, or severe injury
resulting in death.

The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.

The MAINTENANCE section contains preventive main­tenance to keep the machine and its components in
good working condition. They are listed in this general
order:

• Batteries

• Scrub Brush

• Squeegee

• Service Schedule

• Machine Troubleshooting

The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts lists
include a number of columns of information:

REF - column refers to the reference number on
the parts illustration.
PART NO. - column lists the part number for the
part.
PRV NO. - Reference No.
QTY - column lists the quantity of the part used in
that area of the machine.
DESCRIPTION - column is a brief description of
the part.
SERIAL NO. FROM - If this column has an (*) and
a Reference number, see the SERIAL NUMBERS
page in the back of your manual. If column has two
asterisk (**), call manufacturer for serial number.
The serial number indicates the first machine the
part number is applicable to. The main illustration
shows the most current design of the machine.
When a boxed illustration is shown, it displays the
older design.
NOTES - column for information not noted by the
other columns.

4

NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.

The number on the lower left corner of the front cover is
the part number for this manual.

86333220 CS20

Safety

IMPORTANT SAFETY INSTRUCTIONS

When using an battery powered appliance, basic precaution

must always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

To reduce the risk of fire, electric shock, or injury:

Use only indoors. Do not use outdoors or expose to rain.

Use only as described in this manual. Use only manufacturer's recommended components and attachments.

If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to
an authorized service center.

Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.

This machine is not suitable for picking up hazardous dust.

Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices
for more than normal housekeeping purposes.

Maintenance and repairs must be done by qualified personnel.

If foam or liquid comes out of machine, switch off immediately.

Disconnect battery before cleaning or servicing.

Before the machine is discarded, the batteries must be removed and properly disposed of.

Make sure all warning and caution labels are legible and properly attached to the machine.

During operation, attention shall be paid to other persons, especially children.

Before use all covers and doors shall be put in the positions specified in the instructions.

When leaving unattended, secure against unintentional movement.

The machine shall only be operated by instructed and authorized persons.

When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.

Only chemicals recommended by the manufacturer shall be used.

This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other
brushes may affect its safety.

Do not use on surfaces having a gradient of over 10% (6 degrees).

SAVE THESE INSTRUCTIONS

86333220 CS20

5

Safety

MESURES DE SÉCURITÉ IMPORTANTES

Lors de l'utilisation d'un appareil à batteries, il est nécessaire de respecter systématiquement des mesures de
sécurité de base, comme suit :

PRENEZ NOTE DE TOUTES CES MESURES AVANT D'UTILISER CETTE

MACHINE.

Pour réduire les risques d'incendie, de chocs électriques, ou de blessures :

N'utiliser cette machine qu'en intérieur. Ne jamais l'utiliser à l'extérieur ou dans la pluie.

N'utiliser cette machine que comme décrit dans le présent manuel. N'utiliser que les composants et les accessoires
conseillés par le fabricant.

Lorsque la machine ne fonctionnant pas correctement, a fait l'objet d'une chute ou d'une détérioration, a été laissée
à l'extérieur, est tombée dans l'eau, la retourner au centre de service agréé.

Ne pas opérer la machine lorsque les conduits de ventilation sont bloquées. Débarrasser les débris des conduits,
car ils peuvent réduire l'écoulement d'air.

Cette machine n'est pas adaptée au ramassage de poussières dangereuses

Cette machine peut provoquer un incendie lorsqu'elle est utilisée près de vapeurs ou de matériaux inflammables.
Ne pas l'utiliser près de liquides, de poussières ou de vapeurs inflammables.

Cette machine est destinée à un usage commercial. Elle est recommandée davantage pour les domaines hôtelier,
scolaire, hospitalier, industriel ou pour les bureaux, les chaînes de magasin, que pour un usage domestique
normal.

L'entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.

Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement.

Déconnecter les batteries avant de nettoyer la machine ou de la soumettre à un entretien.

Avant de se débarrasser de la machine, il est nécessaire de retirer les batteries et de les jeter correctement.

S'assurer que toutes les plaques d'avertissement ou de précaution sont lisibles et fixées correctement sur la
machine.

Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.

Avant l'utilisation de la machine, veiller à positionner tous les couvercles et portes comme indiqué dans les instruc­tions.

Lorsque la machine est laissée sans surveillance, s'assurer qu'elle ne se déplace pas de manière accidentelle.

Cette machine ne doit être manoeuvrée que par un personnel expérimenté et qualifié.

Lorsque la machine est laissée sans surveillance, la mettre hors tension ou verrouiller l'interrupteur principal afin
d'empêcher un emploi non autorisé.

Seuls les produits chimiques recommandés par le fabricant doivent être utilisés.

Cette machine a été conçue pour être utilisée avec des brosses spécifiées par le fabricant.

L'utilisation d'autres brosses peut affecter sa sûreté.

N'employez pas sur des surfaces ayant un gradient de plus de 10% (6 degrés).

CONSERVER CES INSTRUCTIONS

6

86333220 CS20

Safety

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.

FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equip­ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.

FOR SAFETY:

DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.

WHEN SERVICING MACHINE:

Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
Windsor approved replacement parts.

Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep solution
tank in raised position when charging. Keep sparks and flames away from the batteries. Do not smoke
around batteries.

Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or near batteries. Avoid skin contact
with the acid contained in the batteries.

Never allow metal to lie across battery tops.

86333220 CS20

7

Safety

Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :

DEGRÉS DE RISQUES EN CAS DE DANGER

Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR
VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante:

AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou
entraîner la mort.

ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une détério­ration du produit ou des biens immobiliers.

POUR VOTRE SÉCURITÉ: ce signe permet d'identifier les mesures de précaution à prendre pour assurer un bon
fonctionnement du matériel.

Rendre compte immédiatement d'une défaillance ou d'une détérioration de la machine. Ne pas utiliser la machine
si celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains
dangers potentiels pour l'opérateur de la machine. L'opérateur doit être absolument au courant de ces dangers
potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures néces­saires pour former le personnel opérateur.

POUR VOTRE SÉCURITÉ:

NE PAS MANOEUVRER LA MACHINE:

Lorsqu'on n'est pas expérimenté ou qualifié.

Lorsque le guide d'utilisation n'est pas été lu ou compris.

Dans des zones inflammables ou explosives.

Dans des zones où des objets peuvent tomber.

LORS DE L'ENTRETIEN DE LA MACHINE:

Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées Windsor homologuées.

Les batteries émettent le gaz d'hydrogène. L'explosion ou le feu peut résulter. Étincelles de subsistance et
flamme nue loin. Compartiment de batterie de subsistance ouvert en chargeant. Étincelles et flammes de
subsistance loin des batteries. Ne fumez pas autour des batteries.

Déconnecter les batteries avant de travailler sur la machine. La machine ne doit être confiée qu'à un
personnel qualifié. Porter systématiquement des lunettes et des vêtements de protection lors d'une inter­vention sur les batteries ou aux alentours. Éviter tout contact de la peau avec l'acide contenu dans les
batteries.

Ne jamais placer d'objets métalliques sur le dessus des batteries.

8 86333220 CS20

Safety

CAUTION

BATTERY

CAUTION LABEL

86335010 (2X)

CAUTION

CAUTION LABEL

86244310

PRV NO. 500956

WARNING LABEL

86244300

86252520

PRV NO. 80885

PRV NO. 500955

SAFETY LABEL LOCATIONS

These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible,
promptly replace them.

EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ
REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment,

les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement
rapide.

86333220 CS20 9

Operations

Technical Specifications

ITEM DIMENSION/CAPACITY

Nominal Power-Disk 1080 W
Nominal Power-Cylindrical 1512 W
Rated Voltage 36 Volts DC
Rated Amperage -Disk 30 amps
Rated Amperage -Cylindrical 42 amps
Batteries 3 X12 Volt 130 AH @ 20 hr. rate
Battery Compartment Dimensions 20-1/2 in. x 13 in. x 10 in. tall (330mm x 521mm x 254mm)
Scrub Brush Motor - Disk Machine 1 x .28 HP (209 W)
Scrub Brush Motor - Cylindrical Machine 1 x .8 HP (600 W)
Vacuum Motor .63 HP (470 W)
Maximum flow rate of vacuum motor 72 cfm (33.98 liters per second)
Maximum suction of vacuum motor 47.3 inches of water (11.7 kPa)
Propelling Motor .21 HP (157 W)
Mass (GVW) 726 lbs (330 kg)
Weight empty without batteries - Disk 209 lbs (96 kg)
Weight empty without batteries - Cylindrical 255 lbs (116 kg)
Solution Control Gravity, 1/3 GPM average
Solution capacity 10 gal (38 L)
Recovery capacity 10 gal (38 L)
Scrub brush diameter - Disk 20 inch (508 mm)
Scrub brush length - Cylindrical 22 inch (559 mm)
Scrub brush pressure - Disk 50 lbs (222N)
Scrub brush pressure - Cylindrical 46 lbs (21 kg)
Scrub brush speed - Disk 180 rpm
Scrub brush speed - Cylindrical 1500 rpm
Tires 8 in. (203mm) drive, 6 in. (156mm) rear, polyurethane
Maximum Speed 2.7 mph (4.3 Km/hour)
Brake Electrical parking brake,sets automatically whenever operator stops.
Minimum aisle u-turn width 51in. (1295 mm)
Maximum rated climb and descent angle 10% (6 degrees)
Vibration, hands - Disk 1.6 m/s²
Vibration, feet - Disk 0.54 m/s²
Uncertainty - Disk 0.5 m/s²
Sound pressure level - Disk 68.0 dBA
Sound power level - Disk 81.1 dBA
Uncertainty - Disk 3.0 dBA
Vibration, hands - Cylindrical 1.5 m/s²
Vibration, feet - Cylindrical 0.9 m/s²
Uncertainty - Cylindrical 0.5 m/s²
Sound pressure level - Cylindrical 71.5 dBA
Sound pressure level - Cylindrical 84.7 dBA
Uncertainty - Cylindrical 3.0 dBA

10 86333220 CS20

ITEM MEASURE

WIDTH LENGTH

HEIGHT

Height 51.8 in (1316mm)
Length 44.0 in (1118mm)
Width without squeegee - Disk 23.4 in (594mm)
Width without squeegee - Cylindrical 25.4 in (645mm)
Width of squeegee - Disk 27.2 in (691mm)
Width of squeegee - Cylindrical 29.3 in (744mm)
Width of scrub path - Disk 20 in (508mm)
Width of scrub path - Cylindrical 22 in (559mm)

Operations

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.

Cet appareil n'est pas prévu à l'usage des personnes (enfants y compris) avec des possibilités physiques, sensori­elles ou mentales réduites, ou le manque d'expérience et de connaissance, à moins qu'ils aient été donnés la
surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des
enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil.

86333220 CS20 11

Operations

How This Machine Works

The Chariot® is a battery powered, self-propelled, hard
floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor,
scrubs the floor with a brush, and then vacuums the
soiled water back into the recovery tank.

The machine's primary systems are the solution
system, scrub system, recovery system, and operator
control system.

The function of the solution system is to store cleaning
solution and deliver it to the scrub system. The solution
system consists of the solution tank, strainer, metering
valve and solenoid valve. The solution tank stores
cleaning solution (water and detergent) until it is
delivered to the scrub system. The strainer protects the
valves from debris. The solenoid valve automatically
prevents solution flow unless the scrub brush is turned
on and the machine is being propelled.

The function of the scrub system is to scrub the floor.

The disk scrub system consists of one rotary type disk
scrub brush, motor, scrub deck skirt and lift actuator.
The brush scrubs the floor as the motor drives the
brush. The brush drive hub allows the scrub brush to
follow irregularities and changes in the floor without
loosing contact with the floor. The scrub deck skirt
controls the cleaning solution on the floor so that the
squeegee can pick it up.

The function of the recovery system is to vacuum the
soiled water back into the recovery tank. The recovery
system consists of the squeegee, vacuum motor, float
ball, recovery tank. The squeegee wipes the dirty
solution off the floor as the machine moves forward.
The vacuum motor provides suction to draw the dirty
solution off the floor and into the recovery tank. The
float ball filter protects the vacuum fan from debris and
foam. The recovery tank stores the dirty solution.

The function of the operator control system is to control
the direction and speed of the machine. The directional
control system consists of the direction control drive
reset switch, throttle pedal, emergency stop/brake
switch, steering wheel, propel controller, and drive
wheel. The directional control drive reset switch signals
forward or reverse direction and makes sure the
operator is on the platform before machine will propel.
The controller interprets signals from the throttle pedal
to command the drive wheel to propel or slow the
machine. The steering wheel points the drive wheel in
the direction desired by the operator. The parking brake
automatically engages when the operator stop the
machine. The emergency stop/brake can be used to
hold the machine on slopes.

The cylindrical scrub system consists of two cylindrical
brushes, motor, side squeegees, and lift actuator. The
two counter rotating brushes scrub the floor, driven by a
single motor. The brush deck “floats” with constant
brush pressure. The side squeegees keep the cleaning
solution within the brush deck width, allowing the main
squeegee to pick the solution up.

12 86333220 CS20

Operations

Cylindrical

Deluxe Disk & Cylindrical

12

1

2

3

4

5

6

7

8

9

11

10

9

10

12

Components

1. Drive Control

2. Scrub Controls

3. Control Console

4. Pedal Platform

5. Solution Tank

6. Recovery Tank

7. Recovery Sight Dome

8. Recovery Drain Hose

9. Scrub Deck Skirt

10. Solution Cover

11. Solution Drain Hose/Solution Level Indicator

12. Squeegee

86333220 CS20 13

Operations

1

2

3

4

5

6

7

89

10

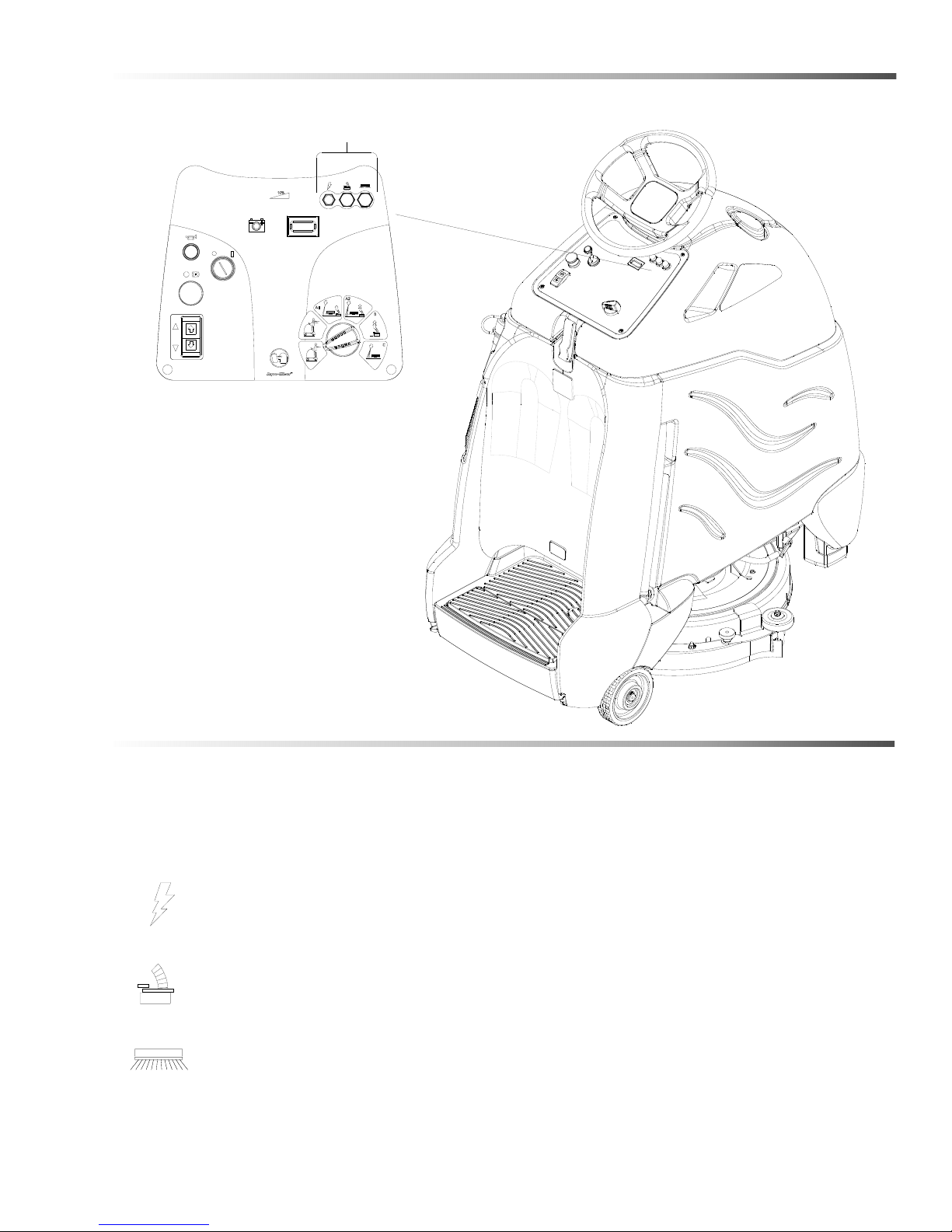

Drive Controls

14 86333220 CS20

Operations

1. KEY SWITCH

Controls the power for machine functions.
To turn the machine power on, rotate key clockwise.
To turn the machine off, rotate key counterclockwise.
When the key is turned on the battery symbol will flash once and stay on continuously.

2. EMERGENCY STOP/BRAKE SWITCH

This safety feature is designed to cut all power to the machine at any time and apply parking brake.
To shut the machine power off, push the Emergency Stop Switch, this will also engage the parking brake and
cause the machine to stop immediately.
To reset the machine, rotate the switch clockwise.

3. DIRECTIONAL CONTROL / DRIVE RESET SWITCH

This safety feature is designed to ensure safe engagement of propel drive. Each time the machine power is
turned on, or each time an operator steps on to the platform, the Drive Reset Switch must be pushed before
machine will propel.
The switch controls the direction of travel of the vehicle. The lighted arrow on the switch indicates direction of
travel.
To travel forward, press the top of the switch.
To travel in reverse, press the bottom of the switch.

1. Key Switch

2. Emergency Stop/Brake Switch

3. Directional Control / Drive Reset Switch

4. Throttle Pedal

5. Horn Button

6. Steering Wheel

7. Speed Control

8. Battery Discharge Indicator

9. Hour Meter

10. Operator Presence Switch

86333220 CS20 15

Operations

SLOW

FAST

4. THROTTLE PEDAL

Controls the speed of the vehicle within the speed control setting selected. Pressing the pedal causes the
machine to travel in the direction selected by the Directional Control Switch.
To increase speed, increase pressure on the pedal.
To decrease speed, decrease pressure on the pedal.

5. HORN BUTTON

The horn is activated by pressing the horn button.

6. STEERING WHEEL

The steering wheel turns the front wheel causing the machine to change direction.

7. SPEED CONTROL

Controls the maximum speed of the machine. There are two settings, slow and fast.
To change speed, rotate the dial to either slow or fast position. The slow position is to the left (counterclock­wise), fast to the right (top position).
The throttle pedal will always regulate the speed between 0 and maximum

16 86333220 CS20

Operations

8. BATTERY DISCHARGE INDICATOR

Indicates the charge level of the batteries.
The indicator will be illuminated if the batteries have a sufficient charge. A slow, continuous flash indicates the
batteries require charging.

The Battery Lockout function will activate when the batteries are low.
Once active, the LED status indicator will begin to flash slowly and the controller will inhibit the scrub motor and
water solenoid. The vacuum and drive remain functional. The “vacuum only” selection (position ‘B’) can be
used to vacuum up any remaining water. Return the unit to the charging station and charge the batteries.

NOTE: Continuing usage may damage the batteries.

When the machine is left overnight with less than a full charge, the display may initially indicate a full charge. It
will also indicate a full charge if the batteries are disconnected, then reconnected. After a few minutes of
operation the indicator will give the correct charge level.

9. HOUR METER

Records the number of hours the machine has been in scrubbing operation. This information is useful in deter­mining when to service the machine.

86333220 CS20 17

Operations

1

Scrub Controls

1. FUNCTION MODE SWITCH

The first two positions are for transport only. See drive controls section.

A1 - Light cleaning

This mode is used for light cleaning. In this mode the machine will propel at fast speed. The ‘floating’ scrub
deck and squeegee is in the down position. The water will flow. Water will automatically shut off in neutral and
restarts when scrubbing is resumed. The vacuum will draw the water into the recovery tank.

A2 - Deep cleaning

This mode is used for deep cleaning. In this mode the machine will propel at a low speed. The ‘floating’ scrub
deck and squeegee is in the down position. The water will flow. Water will automatically shut off in neutral and
restarts when scrubbing is resumed. The vacuum will draw the water into the recovery tank.

18 86333220 CS20

Operations

B - Vacuum only mode

This mode is used for picking up solution only. The brush and water will both be up and off. In this mode the
machine will propel at fast speed. The squeegee is lowered and the vacuum will come on.

C - Double Scrub cleaning

This mode is used for putting down solution and scrubbing without picking it back up. The squeegee is set
manually by connecting the two double scrub support cables. In this mode the machine will propel at a slow
speed. The scrub deck will lower. The solution will flow. The brush and water will shut off when the machine is
in neutral. They will resume when propelling is resumed.

86333220 CS20 19

Operations

1

2

3

5

4

DISK

Scrub Controls-Squeegee

1. Squeegee Latch

2. Squeegee Hose and Tube

3. Squeegee Wheels (3)

4. Double Scrub Support Cable

5. Double Scrub Cable Hook

20 86333220 CS20

Operations

4

CYLINDRICAL

1

3

2

5

1. Squeegee Latch

The squeegee latch holds the squeegee in place.

2. Squeegee Hose and Tube

The squeegee hose and tube carry the recovered solution to the recovery tank.

3. Squeegee Wheels

The three squeegee wheels support the squeegee at the correct height and angle so that no adjustment is
required.

4. Double Scrub Support Cable

The double scrub support cables retain the deck in the double scrub position.

5. Double Scrub Cable Hook

The double scrub cable hook is the connection point for the double scrub support cable.
Since the squeegee is raised and lowered by the scrub deck, the double scrub position is set manually.

86333220 CS20 21

Operations

FILL PORT
WITH SCREW CAP

Machine Operation

Pre-Run Machine Inspection

Do a pre-run inspection to find possible problems that
could cause poor performance or lost time from break­down. Follow the same procedure each time to avoid
missing steps.

NOTE: See maintenance section for pre-run machine
inspection checklist items.

Starting Machine

NOTE: Perform pre-run machine check before

operating machine.

FOR SAFETY: Before starting machine, make sure
that all safety devices are in place and operating
properly.

1. The operator should be on the pedal platform. The

throttle pedal must be in the neutral position.

2. Turn the machine power on by turning key switch

clockwise to the “ON” position.

3. Press the Drive Reset Directional Control Switch to

reset and set the intended direction for travel.

4. Press lightly on the throttle pedal with right foot

4. .Measure the chemical into the solution tank. Liq­uid chemicals should be added to the solution tank
after filling with water. Dry chemicals should be
thoroughly mixed before being added into solution
tank. Commercially available, high alkaline floor
cleaners, are suitable for use in the solution sys­tem.

NOTE: Read the chemical manufacturers
recommended proportion instructions.

5. Close console and latch rear cover.

Flammable materials can cause an explosion or
fire. Do not use flammable materials in the tanks.

Les matières inflammables peuvent provoquer une
explosion ou un incendie. Ne pas utiliser de
matériaux inflammables dans les réservoirs.

Filling Solution Tank (Deluxe)

FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.

Emergency Stop Procedure

Push in emergency stop button. This will also engage
the parking brake and cause the machine to stop imme­diately.

Filling Solution Tank

FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.

1. Turn the machine power off.

2. Tilt co

3. nsole forward. Push left or right fill port cover
down.Fill the solution tank with clean water, leaving
enough room for the required amount of cleaning
solution. The solution tank capacity filled to fill inlet
is 10 gallons (38 liters). The water must not be hot­ter than 140° F (60°C) to prevent damage to the
tank

1. Turn the machine power off.

2. Using fill port, fill the solution tank with clean water,
leaving enough room for the required amount of
cleaning solution. The solution tank capacity filled
to fill inlet is 10 gallons (38 liters). The water must
not be hotter than 140° F (60°C) to prevent
damage to the tank.

22 86333220 CS20

Operations

3. Measure the chemical into the solution tank. Liquid
chemicals should be added to the solution tank
after filling with water. Dry chemicals should be
thoroughly mixed before being added into solution
tank. Commercially available, high alkaline floor
cleaners, are suitable for use in the solution sys­tem.

Normal Scrubbing

Plan the scrubbing pattern in advance. The longest
track is around the perimeter of the area to be cleaned.
For efficient operation, the runs should be the longest
possible without turning, stopping, or raising or
lowering scrub deck/squeegee.

In order to achieve the best possible results, the area
which is to be cleaned should be swept before scrub­bing. Large debris, strings and wire must be removed to
prevent being caught in brushes or squeegee.

If the machine is allowed to stand in neutral with the
scrub deck down, the solutions flow stops and brush
motor stops. If either forward or reverse travel is
selected, the solution flow will continue in the same
setting and the scrub brush motor will continue once
movement of machine begins. Overlap the brush path
and avoid transporting over previously cleaned areas.

To Begin Scrubbing

When operating the machine around people, pay
close attention for unexpected movement. Use
extra caution around children.

Lorsque vous utilisez la machine en présence de
gens, portez une attention particulière aux mouve­ments inattendus. Soyez plus prudent, surtout en
présence d’enfants.

Flammable liquids and/or reactive metals can
cause explosions or fire! Do not pick up.

Les liquides inflammables et / ou les métaux
réactifs peuvent provoquer des explosions ou un
incendie ! Ne les ramassez pas.

1. Stand on the operator platform. Throttle pedal must
be in neutral position.

2. Turn machine power on.

3. Press the Drive Reset / Directional Control Switch,
selecting the desired travel direction.

4. Position the function control knob to the desired
operation. The scrub deck and squeegee will
lower, and the vacuum will turn on.

5. Drive machine forward to begin scrubbing.The
scrub brush motor will run and solution will flow
when the throttle is depressed.

NOTE: Shut machine off immediately if water or foam
is expelled from the machine. Solution flow is
automatically shut off when brush motor stops. When
brush motor is activated, flow automatically resumes.

86333220 CS20 23

Operations

CABLE

DOUBLE SCRUB HOOK

DOUBLE SCRUB

DOUBLE SCRUB
CABLE

DOUBLE SCRUB
HOOK

To Stop Scrubbing

1. Rotate the function knob to either transport posi­tion. The brush motor and vacuum will stop and the
scrub deck will rise to the park position.

2. Allow the throttle pedal to return to neutral.

3. Turn machine power off.

NOTE: FOR SAFETY: Before leaving or servicing
machine: stop on level surface, turn off machine
and remove key.

Double Scrub

Floors which are heavily soiled or have thick accumula­tions of floor finish may not clean sufficiently with one
pass. In these cases it will be necessary to double
scrub.

Connect the Double Scrub Cables to the squeegee.

Rotate the knob to the double scrub position.

To support the squeegee off the floor for double scrub,
pull the support cables down, one side at a time, and
connect to the hook on the squeegee while lifting and
tilting the squeegee upward.

Cylindrical Machine

NOTE: The deck and squeegee must be in the up
position to hook the cables.

To collect the solution and complete the Double Scrub
operation, release both squeegee cable and turn the
function knob to one of the normal scrubbing modes.

Disk Machine

24 86333220 CS20

Operations

RECOVERY
DRAIN HOSE

DRAIN HOSE

SOLUTION

STORAGE POSITION

Emptying and Cleaning Tanks

1. Park the machine next to a floor drain. Drain hoses
are at the rear of the machine.

2. Turn the machine power off.

Recovery Tank

1. Pull the recovery drain hose from the mounting
pocket. Lift cap, pinch hose then lower hose in
direction of the drain. Do not stand in front of end of
hose. Recovered solution will come out with force.

2. To flush the recovery tank, lift the control console to
access the recovery tank. Do not use water hotter
than 140°F (60°C) to clean tank. Damage may
occur.

3. Clean debris from sight dome and cover surface.

4. Clean off the float shut-off screen and inspect for
free movement of float.

5. Replace the drain cap and secure drain hose.

6. If machine is to be stored, tilt the recovery tank
back and prop the console up, partially opening
each.

Solution Tank

1. Pull the solution drain hose from its mounting
pocket. Lower hose in direction of drain.

2. Open the control console.

3. Flush the solution tank out with clean water and
run several gallons of clean water through sys­tems. Do not use water hotter than 140°F (60°C) to
clean tank. Damage may occur.

NOTE: Never allow solution to remain in tank.
Damage to tank, seals and valves could occur.

86333220 CS20 25

Maintenance

Service Schedule

MAINTENANCE

Check water level of batteries after charging; add
distilled water if necessary. (Wet cell only)

Visually check for damaged or worn tires. *
Check brush or pad for proper installation. *
Check vacuum hose connections. *
Check that squeegee is securely attached. *
Check for securely attached drain hoses, plug and cap. *
Check pedal, brake and steering for proper operation. *
Clean out recovery tank. *
Clean and inspect float shutoff. *
Clean out solution tank. *
Clean and inspect solution filter strainer. *
Run vacuum motor to dry. *
Clean brush or pad and check wear. *
Clean squeegee blades and check wear. *
Clean outside of tanks, check for damage. *
Store with console cover propped open. *
Charge batteries if needed. *
Clean off top of batteries. *
Check battery cells with hydrometer. (Wet cell only) *
Inspect scrub deck skirt. *
Clean solution strainer inside tank. *
Check battery connections are tight. *
Clean battery cases and battery compartment. *
Check parking brake. *
Clean pivot points on squeegee and scrub deck. *
Check all motors for carbon brush wear. *
Check motor commutators. *
Check steering chain tension. *
Check drive chain tension. *

BEFORE EACH
WORK PERIOD

*

AFTER EACH

WORK PERIOD

50

HRS

100

HRS

200

HRS

26 86333220 CS20

Maintenance

1

3

4

5

2

Batteries

1. Cover Retainer Latch

2. Rear Cover

3. Battery Connector-Machine

4. Batteries

5. Battery Tray

86333220 CS20 27

Maintenance

Batteries (Wet Cell)

The batteries provide the power to operate the
machine. The batteries require regular maintenance to
keep them operating at peak efficiency.

The machine batteries will hold their charge for long
periods of time, but they can only be charged a certain
number of times. To get the greatest life from the
batteries, charge them when their charge level reaches
25% of a full charge. Use a hydrometer to check the
charge level.

Do not allow the batteries to remain in a discharged
condition for any length of time. Never expose a
discharged battery to temperatures below freezing.
Discharged batteries will freeze causing cracked
cases. Do not operate the machine if the batteries are
in poor condition or if they have a charge level below
25% (specific gravity below 1.155).

Keep all metallic objects off the top of the batteries, as
they may cause a short circuit. Replace worn or
damaged cables and terminals.

Check the electrolyte level in each battery cell before
and after charging the batteries. Never add acid to the
batteries, use distilled water. Do not allow water level to
fall below the battery plates. Portions of plates exposed
to air will be destroyed. Do not overfill. Keep plugs
firmly in place at all times.

Not all batteries require maintenance. AGM
batteries are maintenance free. Do not attempt to
remove sealed caps from AGM batteries. Warranty
is void if caps are removed from AGM battery.

L’entretien n’est pas nécessaire pour toutes les
batteries. Les batteries AGM ne nécessitent pas
d’entretien. N'essayez pas d'enlever les bouchons
scellés des batteries AGM. La garantie est annulée
si les bouchons sont retirés des batteries AGM.

28

86333220 CS20

When servicing machine, avoid contact with
battery acid.

Lors de l'entretien de la machine, évitez tout
contact avec l'acide de batterie.

Maintenance

Battery Maintenance

1. When cleaning the batteries, use a solution of

baking soda and water. Do not allow the cleaning
fluid to enter the battery cells, electrolyte will be
neutralized.

2. Maintain the proper electrolyte level in each battery
cell. If a cell should accidentally overflow, clean
immediately.

3. Wipe off the top of the batteries at least once a
week.

Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.

Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge­ment.

Wear eye protection and protective clothing when
working with batteries.

Portez des lunettes de protection et des vêtements
de protection lorsque vous travaillez avec des
batteries.

4. Test battery condition with a hydrometer at least
once a week.

5. Ensure that all connections are tight and all
corrosion removed.

6. Every 4 to 6 months, remove the batteries from the
machine and clean the battery cases and battery
compartm

Charge batteries in a well ventilated area.

Chargez les batteries dans un endroit bien ventilé

86333220 CS20

29

Maintenance

Checking Battery Specific Gravity

Use a hydrometer to check the battery specific gravity.

CHECKING GRAVITY

a. Hydrometer Battery
b. Battery

NOTE: Do not take readings immediately after adding
distilled water, if the water and acid are not thoroughly
mixed, the reading may not be accurate.

Check the hydrometer readings against this chart.

SPECIFIC GRAVITY

°

F (27°C) BATTERY CONDITION

@ 80

1.265 100% CHARGED

1.225 75% CHARGED

1.190 50% CHARGED

1.155 25% CHARGED

1.120 DISCHARGED

NOTE: If the readings are taken when the battery
electrolyte is any temperature other than 80°F (27°C),
the reading must be temperature corrected.

To find the corrected specific gravity reading when the
temperature of the battery electrolyte is other than 80°F
(27°C): Add (+) to the specific gravity reading 0.004 (4
points), for each 10°F (6°C) above 80° (27°C). Subtract
(-) from the specific reading 0.004 (4 points), for each
10°F (6°C) below 80°F (27°C).

30

86333220 CS20

Maintenance

Charging Batteries

When servicing machine, avoid contact with
battery acid.

Lors de l'entretien de la machine, évitez tout
contact avec l'acide de batterie.

Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.

Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge­ment.

Use a 36 volt, 20 amp maximum output DC charger
which will automatically shut off when the batteries are
fully charged.

1. Stop the machine in a clean, well ventilated area
next to the charger.

2. Turn “OFF” machine.

FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.

3. Open rear cover, unplug batteries from machine.

Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.

Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge­ment.

Wear eye protection and protective clothing when
working with batteries.

Portez des lunettes de protection et des vêtements
de protection lorsque vous travaillez avec des
batteries.

Charge batteries in a well ventilated area.

Chargez les batteries dans un endroit bien ventilé

4. Check the electrolyte level in each battery cell.
Before charging, add just enough distilled water to
cover the plates. After charging is complete, add
just enough distilled water to bring up the level to
the indicator ring. If the water level is too high
before charging, normal expansion rate of the elec­trolyte may cause an overflow resulting in a loss of
battery acid balance and damage the machine.

86333220 CS20

31

Maintenance

RED

BLACK

RED

BLACK

RED

BLACK

REAR OF MACHINE

5. Replace the battery caps, and leave them in place
while charging.

6. Unplug the battery connector from the machine.

FOR SAFETY: When charging, connect the charger
to the batteries before connecting the charger to
the AC wall outlet. Never connect the charger to the
AC wall outlet first. Hazardous sparks may result.

7. Plug the charger connector into the battery
connector. Connect the charger AC plug to a wall
outlet. The charger gauge should indicate that the
batteries are charging.

8. When the batteries are fully charged, disconnect
the charger from the AC wall outlet, then discon­nect the charger from the batteries.

9. Connect the batteries to the machine connector.

10. Check the electrolyte level. It should be up to the
indicator ring. If necessary, add distilled water.

11. Install the rear cover.Changing Batteries

Stop the machine in a clean area next to the charger.
Turn off machine.

6. Disconnect main positive lead and secure cable
terminals away from batteries.

7. Loosen both terminals on each jumper cable and
remove one at a time.

8. Prepare a suitable site to place the batteries.

Attach suitable battery lifting device and lift
batteries from the machine. Batteries are a
potential environmental hazard. Consult your
battery suppler for safe disposal methods.

Fixez le dispositif de levage de batterie approprié et
levez les batteries de la machine. Les batteries
constituent un danger potentiel pour l'envi­ronnement. Consultez le fournisseur de votre
batterie pour connaître les méthodes d'élimination
sûres.

FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn off machine and
remove key.

1. Open the console cover.

2. Tilt the rear cover/recovery tank back. The rear
cover/recovery tank can also be removed for better
access.

3. If equipped with optional on board charger, tilt
charger mount to rear of machine.

4. Disconnect battery pack from machine.

5. Use the proper size open end wrench to discon­nect main ground wire first and secure cable
terminal away from batteries.

32 86333220 CS20

Maintenance

Battery Charger Programming

NOTE: For machines equipped with optional on-

board charger. When replacing batteries, charger
programming changes may be required. If replacing
batteries with same type, (e.g. maintenance free
batteries with maintenance free) no programming is
required. When batteries with different type
(e.g.maintenance free with wet cell), programming
changes are required. Failure to make programming
changes may lead to reduced battery life.

Switching From Wet Cell to Maintenance
Free Batteries

Program charger from normal mode (red LED flashes)
to alternate mode (Red and green LED’s flash):

1. Disconnect battery charger from outlet.

2. Connect (+) wire from EZlamp to (+) charger
battery cable.

Switching From Maintenance Free to Wet
Cell Batteries

Program charger from alternate mode (All LED’s flash)
to normal mode (red LED flashes):

1. Disconnect battery charger from outlet.

1. Connect (+) wire from EZlamp to (+) charger
battery cable.

2. Connect AC cord to outlet. Red LED should be on.

NOTE: If Red LED light does not flash, repeat steps 1
and 2.

3. Wait 5 seconds, disconnect wires and unplug
charger.

4. Programming is complete.

NOTE: Battery Charger must be approved to
60335-2-29 standard.

3. Connect AC cord to outlet. All LED’s should be on.

NOTE: If Red and green LED’s do not flash, repeat
steps 1 and 2.

4. Wait 5 seconds, disconnect wires and unplug
charger.

5. Programming is complete.

86333220 CS20 33

Maintenance

1

2

CYLINDRICAL

1

2

DISK

1. Squeegee Retainer Latch

2. Squeegee

Squeegee Blades - Disk

The front squeegee blade allows solution to pass
through channels in the blade into the squeegee
assembly while maintaining vacuum to provide lift. The
front blade has four wear surfaces and can be rotated
for extended life. The front blade should not require
regular replacement under normal use.

34 86333220 CS20

The rear blade wipes the floor to a near dry condition. It
is important the rear blade be in good condition to
properly do its job. As with the front, each squeegee
blade assembly has four wear surfaces for extended
service.

Check both the front and rear squeegee blades for
damage and wear each day in the pre-run check.
Change the front blade if it is torn or has an uneven
edge. Change the rear blade if it is less than half the
original thickness.

Maintenance

To Remove Squeegee Assembly

1. With the squeegee in the up position, turn key
switch “OFF”.

2. Disconnect vacuum hose from squeegee and
squeeze the squeegee retaining latch.

3. Pull squeegee assembly from the squeegee arm.

4. Inspect or repair as necessary and reinstall.

To Replace or Rotate Squeegee Blades

1. With the squeegee in the up position, turn key
switch “OFF”.

FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.

2. Remove the squeegee assembly from the
machine.

3. Unscrew each of the four (4) knobs until they are
nearly removed from the squeegee assembly.
Grasp the squeegee assembly and push on the
knobs to remove the blade retainer.

Remove the knobs and pull the blade retainer out.
Rotate the squeegee blade to new edge position or
replace as required. Each blade has four (4) new
edge positions.

Squeegee Blades-Cylindrical

The front squeegee blade allows solution to pass
through channels in the blade into the squeegee
assembly while maintaining vacuum to provide lift. The
front blade has two (2) wear surfaces and can be
rotated for extended life. The front blade should not
require regular replacement under normal use.

The rear blade wipes the floor to a near dry condition. It
is important the rear blade be in good condition to
properly do its job. As with the front, each squeegee
blade assembly has two (2) wear surfaces for extended
service.

Check both the front and rear squeegee blades for
damage and wear each day in the pre-run check.
Change the front blade if it is torn or has an uneven
edge. Change the rear blade if it is less than half the
original thickness.

To Remove Squeegee Assembly

1. With the squeegee in the up position, turn key
switch “OFF”.

2. Disconnect vacuum hose from squeegee and
squeeze the squeegee retaining latch..

3. Pull squeegee assembly from the squeegee arm.

4. Inspect or repair as necessary and reinstall.

4. Pull the blades off the retainer.

To reinstall the blades, hook the blades over the
pins on the retainer plate.

5. Lower the retainer with blades back in position in
the squeegee assembly and install the knobs.

To Replace or Rotate Squeegee Blades

1. With the squeegee in the up position, turn key
switch “OFF”.

FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.

2. Remove the squeegee assembly from the
machine.

3. Unscrew two yellow thumb screws. Remove
bumper wheels and plastic end caps.

4. Slide squeegee blade(s) out the end of the
squeegee.

5. Reverse procedure to install new blades.

86333220 CS20 35

Maintenance

2

3

1

3

DISK

CYLINDRICAL

2

1

Scrub Deck-Disk

1. Scrub Deck Side

2. Scrub Brush Motor

3. Scrub Deck Lift Actuator

Scrub Deck-Cylindrical

1. Scrub Deck Side Squeegee

2. Scrub Brush Motor

3. Scrub Deck Lift Actuator

36 86333220 CS20

Scrub Brush-Disk

There are different types of brushes available to cover
applications from cleaning heavily soiled floors to
polishing. A pad driver is also available to take
advantage of the many cleaning pads on the market.
Please refer to the following to assist in selecting the
proper brush or pad for the work at hand.

Finished Floors

Polypropylene is a general-purpose scrub brush with

stiff bristles. Polypropylene works well for maintaining
routed tile floors.

Nylon bristles are used in a variety of applications on

coated or uncoated surfaces.

White Pads (Polishing) are used for dry polishing to

achieve a high-gloss appearance, or surface washing
on highly polished or burnished floors.

Red Pads (Buffing) are used for light-duty scrubbing.

When used with a mild detergent they will provide
surface cleaning without removing the finish.

Maintenance

Blue Pads (scrubbing) are used for heavy scrubbing

and light top scrubbing. The blue pads remove black
marks, stains and dirt. The blue pad may also remove
some floor finish.

Black pads (top scrubbing) are used to remove ground

in soil and the top layers of floor finish to prepare for
recoating.

The scrub brushes should be checked before each
days work for wire, string, wear and damage.

Scrub Brush-Cylindrical

There are different types of brushes available to cover
applications from cleaning heavily soiled floors to
polishing.

White (Soft)

Orange (Hi/Lo)

Red (Medium)

Green (Hard)

86333220 CS20 37

Maintenance

Replacing or Installing Scrub Brushes
(Disk)

FOR SAFETY: Before leaving or servicing the machine;
stop on level surface, turn OFF machine and remove
key.

1. Turn machine power off.

2. Open access cover on deck shroud.

3. Locate release lever, press release lever towards
front of machine to release brush pad. The pad will
drop down when released. Lift deck shroud up and
slide brush/pad assembly out.

4. Remove brush/pad from holder and replace with
new brush/pad.

5. To reinstall, lift deck shroud upward as shown.

Center the brush/pad driver under the brush drive
hub.
Raise brush/pad until it contacts brush driver
assembly. Turn clockwise until release lever plate
locks into position.

6. Check that release lever/plate is completely closed
and pad/brush is securely attached.

NOTE: Damage to driver or brush could occur if not
securely attached.

38

86333220 CS20

Maintenance

Squeegee Latch

Replacing or Installing Scrub Brushes
(Cylindrical)

FOR SAFETY: Before leaving or servicing the machine;
stop on level surface, turn OFF machine and remove
key.

1. Turn machine power off.

2. From right side of machine, lift squeegee latch and
swing side squeegee outward to access brushes.

4. Slide new brushes into receptacle at far side of
deck, lift upward and snap into position. Ensure
brushes are secure.

5. Close side squeegee and latch securely.

3. Press brush release. Brushes will drop downward.
Remove old brushes.

86333220 CS20

39

Maintenance

Do not use a pressure washer to clean around the brush motors. Use tap pressure only.

N’utilisez pas de nettoyeur haute pression pour nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.

To Replace Scrub Brush Motor - Disk

With the scrub deck in the lowered position, disconnect brush motor wiring connector from harness.

1. Disconnect the two(2) connectors from solenoid valve.

2. Remove squeegee.

3. Remove front bumper.

4. Remove four (4) front bolts connecting deck lifting arms to front of machine.

5. Lift deck and side deck lift brackets off actuator lifting pin.

6. Slide deck out from under machine on right side, orientation is determined from operators view.

7. Remove brush/pad.

8. Remove driver.

9. Remove three (3) screws securing brush motor to deck.

10. Remove brush motor.

11. Reverse steps to install

40 86333220 CS20

Maintenance

Do not use a pressure washer to clean around the brush motors. Use tap pressure only.

N’utilisez pas de nettoyeur haute pression pour nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.

To Replace Scrub Brush Motor-Cylindrical

1. Lower scrub deck using selector knob. Turn off key in down position.

2. Disconnect the two connectors from solenoid valve.

3. Remove squeegee assembly.

4. Remove front bumper, 2 bolts.

5. Remove four front bolts connecting deck lifting arms to front of machine.

6. Remove actuator lifting pin and washers.

7. Remove solenoid valve and cover, 2 screws.

8. Disconnect motor plug from harness.

9. Slide deck out from under machine on right side, orientation is determined from operators view.

10. Remove metal cover over motor by removing 10 screws mounting to deck.

11. Remove screws mounting motor to drive housing and remove motor.

12. Reverse steps to install.

86333220 CS20 41

Maintenance

Scrub Deck Actuator Removal / Replacement

FOR SAFETY: Before leaving or servicing machine, stop on a level surface. Turn off machine.

1. Support deck under pad driver so that actuator pins can be removed.

2. Remove bumper screws (2).

3. Remove front battery.

4. Pull steering shaft.

5. Disconnect actuator from wiring harness.

6. From the underside of the machine, remove lower lifting pin from actuator.

7. Remove clevis pin from actuator upper bracket.

8. Lift actuator upward and free from machine.

9. Reverse steps to install.

42 86333220 CS20

Maintenance

CIRCUIT BREAKERS

Circuit Protection

Circuit Breakers

Circuit breakers interrupt the flow of power in the event of an electrical overload. When a circuit breaker is tripped,
reset it by pressing the exposed button. If a circuit breaker continues to trip, the cause of the electrical overload

should be found and corrected.

1.5 Amp protects the brush deck lift actuator, horn & controller.

18 Amp protects the vacuum motor.

12 Amp protects the brush motor - Disk.

25 Amp protects the brush motor - Cylindrical.

86333220 CS20 43

Maintenance

1

3

2

CYLINDRICAL

3

Solution

1. Solution Strainer-Coarse

2. Shut-off Valve

3. Solenoid Valve

44 86333220 CS20

Maintenance

1. SOLUTION STRAINER

Located in bottom of tank. The strainer protects the ball valve and solenoid valve from debris. If the ball valve
and solenoid valve are not working, then check the strainer for debris.
Drain the solution tank.
Reach down to the strainer and remove debris. If the strainer can not be cleaned in place remove strainer.
To remove the strainer, rotate the strainer counterclockwise.
Clean out the debris from wire mesh and re-assemble

2. SHUT-OFF FLOW VALVE

Prior to Serial Number *(6):

Located below the solution tank on the right side. If no flow, check lever position.
Horizontal is half flow.
Down is maximum flow.
Up is no Flow.
If clogged, in the maximum position, unscrew fittings, inspect and clean if needed.

From Serial Number *(6):

Located below the solution tank on the right side. If no flow, check lever position.
Horizontal is no flow.
Up is maximum flow.
If clogged, in the maximum position, unscrew fittings, inspect and clean if needed.

3. SOLENOID VALVE

The solenoid valve shuts off solution flow to scrub deck whenever scrubbing stops.
The solenoid valve is mounted on the front of the scrub deck, on left side.
Shut off manual water supply valve on right side of machine.
Disconnect the two (2) spade connections.
The solenoid valve snaps into place, rock the solenoid valve back and forth while lifting to free it.
Remove valve from supply hose.

*See Serial Number Page.

86333220 CS20 45

Maintenance

Tank Assembly Removal

In order to access the frame or drive components, the
entire tank/console cover assembly can be removed as
a single unit.

Tank R em o v al :

1. Open the console cover.

2. Tilt the recovery tank back until it stops on the
lanyard.

3. Remove the recovery tank vacuum hose from its
connection at the rear cross member.

4. Tilt the recover tank slightly forward and disconnect
the lanyard. Lean the recovery tank back until it
contacts the floor. Lift the tank and back panel from
the hinge pin and set aside.

5. Disconnect the squeegee vacuum hose from the
connection at the rear cross member.

6. Grasp the lower end of the flexible steering shaft
and pull it straight up until it is disengaged with the
hex steering shaft. Place the loose end into one of
the fill ports.

7. Remove the cover and gasket at the steering shaft
area.

8. Disconnect four electrical plugs from the limit
switches located between the steering shaft and
the actuator. Do not pull on the wires to disconnect
the plugs.

9. Disconnect the five electrical plugs located just
forward of the battery tray. To disconnect, lift the
plugs off of their mounting plate, locate and
depress the lock tab and pull the connectors apart.
Replace the lower half of the connectors on to the
support plate after the tank assembly has been
removed.

10. Remove the battery cable connection from the rear
cross member.

11. Close the console cover.

12. Locate the solution solenoid valve on the left side
of the scrub deck. Remove two electrical wires
from the valve. The wires are interchangeable. Lift
the valve out of its mount pocket and move the
valve and connected hose over to the right side of
the machine. It is not necessary to remove the
valve or hose from the solution tank.

13. Remove the bumper. One mounting bolt per side is
located just above the tip pads on the inside.

14. Remove 5 bolts holding the tank in place.

15. The tank assembly can now be lifted off the
chassis and set aside.

16. Support the tank assembly so that the weight of it
is not resting on the solution valve plumbing.

17. The lower half of the electrical connectors can now
be easily placed on to their support plate.

18. Reverse the process for reassembly. Refer to the
electrical diagrams for connection of the four limit
switches. Use care not to bend the switch tabs.

46 86333220 CS20

Drive Unit Removal

1. Remove tank assembly.

2. Pull the brake and drive electrical connectors off of
their support plate.

3. Remove the P-clamp holding the cable.

4. Lift the chain cover plate off of the motor.

5. Support the chassis on the tip pads so that the
front wheel is 10 inches off the floor.

6. Locate and remove two mounting nuts and remove
the drive unit from below.

7. To reinstall, reverse the process.

8. Note the small tab at the front of the drive unit
frame should line-up with the notch in the mating
plate.

Maintenance

86333220 CS20 47

Maintenance

1

2

Vacuum & Float Shutoff

1. Recovery Tank Float Shut-off

2. Vacuum Motor

48 86333220 CS20

Maintenance

MOUNT .80" FROM SEALING SURFACE OF
CONSOLE TO THE TOP OF THE MOUNTING
TABS (3).

VACUUM

CONSOLE SEALING

.80"

MOUNTING TAB

SURFACE

3
8

[9.5mm]

Vacuum Motor Carbon Brushes

Carbon
Brushes

End Cap

If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.

Inportant:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.

Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less tan 3/8" (9.5mm)
long.

Recovery Tank Float Shut-off

When water is no longer being vacuumed from the floor
and the vacuum fan is operating, the ball float has
engaged. The vacuum motor will not vacuum water
with recovery tank full. The recovery tank must be
drained.

1. The float shut-off screen can be cleaned in or out
of the machine.

2. To clean the float shut-off while it is inside the
machine wipe material off screen then rinse. Check
that the ball is also clean and moves freely.

3. To remove the float shut-off, grasp the screen with
one hand and the connected tube with the other.
Tilt and pull the float screen assembly to pull it off
the barb on the tube.

4. To install, place one hand on the tube, and then tilt
and push the float screen assembly over the barb
on the tube.

Vacuum Motor Carbon Brush Replacement

FOR SAFETY: before leaving or servicing machine,
stop on a level surface, turn off machine and
disconnect power.

To Repair or Replace Vacuum Motor

1. Remove four (4) screws from top of control panel.

2. Tip control panel back from console to expose
vacuum motor wires.

3. Disconnect electrical connector from the vacuum
motor.

4. Replace control panel, attach with one (1) screw to
secure in place.

5. Open console.

6. Remove three (3) screws that secure vacuum
motor.

7. Reverse steps to install.

NOTE: If vacuum motor is not mounted as shown,
vacuum may not seal properly, resulting in poor
performance.

86333220 CS20 49

Maintenance

Drive Motor
Drive Motor Carbon Brush Replacement

Do not use a pressure washer to clean around the
motors. Use tap pressure only.

N’utilisez pas de nettoyeur haute pression pour
nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.

FOR SAFETY: Before leaving or servicing machine,
stop on a level surface, turn off machine and remove
motor carbon brushes.

1. Open the console cover.

2. Tilt the recovery tank back until it stops on the
lanyard.

3. Grasp the lower end of the flexible steering shaft
and pull it straight up until it is disengaged with the
hex steering shaft. Place the loose end into one of
the fill ports.

Drive Chain Tension

The drive chain should deflect about 1/4 inch on either
side of the loop when the opposite side is tight.

To adjust chain tension:

1. Remove bumper.

2. Loosen five (5) screws that hold the drive gear
motor and slide the gear motor up until the chain
tension is correct. Tighten the five (5) mounting
screws.

3. Models equipped with jack screw on front side of
drive should not use jack screw to apply tension.
Use only as a stop once chain is properly
tensioned.

4. Reinstall the bumper.

Transporting Machine

This machine is equipped with a drive gear engage­ment/disengagement lever.

The brake automatically engages and keeps the
machine from moving whenever the operator stop s the
machine.

4. Remove the cover and gasket at the steering shaft
area.

5. Grasp the drive wheel by reaching under the front
bumper and turn it to near the left steering stop.

6. The drive motor carbon brushes are located under
screw caps. The caps are accessible by gently
moving the harness aside.

7. Rotate the drive wheel to near the right hand stop
to access the right side carbon brush.

8. Replace the gasket and cover, set the drive wheel
straight ahead, set the steering wheel straight
ahead, and gently align the steering shaft coupling
and slide onto the lower shaft.

9. Slowly close the cover and make sure the shaft
slides without binding.

The drive gear can be disengaged so the machine can
be pushed or towed (slowly).

When the drive gear is disengaged the m achine cannot
be driven.

NOTE: Front bumper removed for clarity and to show
access to lever.

Lever access

Turn wheel to lef t and reach up under bumper and steel
bracket.

50 86333220 CS20

Maintenance

Drive gear engaged

Machine can be driven.

Rotate lever firmly in direction of arrow.

Drive gear disengaged

Machine can be pushed or towed (slowly).

When disengaged the machine rolls easily. Disengage
on a level surface.

Inclines

When navigating an incline the machine may come to a
stop. Turn the machine off. Wait 5 minutes and start the
machine and proceed up the incline.

Overheating may occur if you do not wait the full 5
minutes.

Une surchauffe peut se produire si vous n'attendez
pas les 5 minutes complètes.

Rotate lever firmly in direction of arrow.

86333220 CS20 51

Maintenance

CONNECT

AT

FRAME

VIEW FROM

BOTTOM

Recommended Tie-Down Points

Preparation for Loading/Unloading Trailer

Before loading or unloading machine from trailer, remove squeegee and scrub brush (pad) to eliminate interference
with ramp.

Scrub head must be in the up position before loading.

When transporting the machine on a trailer or in a truck, in addition to using tie-downs, be sure to block the tires to
prevent the machine from rolling.

Machine Tie-Downs

There are two tie points located in front of the rear wheels on the frame, and a Tie-down wrap point on the recovery
tank. Tie-down devices must be of the proper type and strength. The combined strength of all tie-downs must be
strong enough to lift two times the weight of the machine. Tie-downs must be positioned to prevent the machine
from moving forward, backward, or either side to side. Use all four corners of the machine with the tie-downs
running out opposite directions. Tie-downs must be attached to the transporting vehicle securely.

52 86333220 CS20

Maintenance

CONNECT

AT

FRAME

VIEW FROM

BOTTOM

CONNECT

AT

BUMPER

Recommended Tie-Down Points

Machine Tie-Downs (Deluxe)

There are two tie points located in front of the rear wheels on the frame, one on the front bumper tie-down bar, and
a Tie-down wrap point on the recovery tank. Tie-down devices must be of the proper type and strength. The
combined strength of all tie-downs must be strong enough to lift two times the weight of the machine. Tie-downs
must be positioned to prevent the machine from moving forward, backward, or either side to side. Use all four
corners of the machine with the tie-downs running out opposite directions. Tie-downs must be attached to the trans­porting vehicle securely.

86333220 CS20 53

Maintenance

Troubleshooting

PROBLEM CAUSE SOLUTION

No machine function Console lid is open Close console lid
No power to machine Battery disconnected Check all battery cable connections

Emergency shut-off activated Reset
Battery cables corroded Clean connections
Faulty key switch Replace switch
Batteries not plugged in Plug batteries in
On Board charger plugged in Un-plug and stow cord

Little or no propel Low battery charge Charge batteries

Tripped circuit breaker Reset controller circuit breaker

Controller protecting motor from overload

Machine is stalled against an obstacle
(threshold, curb, etc.)

Controller overheated Allow cool down period

Loose motor connection

Faulty throttle circuit or potentiometer

Drive Lever disengaged Engage drive

Machine does not
change speeds

Forward speed only

Reverse speed only
Poor or no water pickup Debris caught on squeegee Remove debris

Battery indicator light
flashing

Faulty speed control circuit or switch Check wires & connections

Faulty forward/reverse circuit Check wires & connections

Worn squeegee blades Rotate or replace squeegee blades
Vacuum hose clogged Clear obstruction from hose
Vacuum hose disconnected from squeegee

or recovery tank
Recovery tank float system dirty Clean float system

Recovery tank not sealed

Vacuum circuit breaker tripped Reset circuit breaker
Float-ball shut-off engaged tank full Empty recovery tank

Foam filling recovery tank

Battery needs charged Charge Battery

Controller is indicating a fault code See fault code table

Controller limits motor amperage. Allow
unit to cool down for several minutes.

Remove obstacle or push machine away
from obstacle

Check wires and connections from
controller to motor

Check wires and connections from and
potentiometer resistance

Reconnect vacuum hose

Latch console cover

Check or replace damaged gasket

Empty recovery tank. Use less or different
detergent. Use defoamer

54 86333220 CS20

PROBLEM CAUSE SOLUTION

Vacuum motor does not run, or
runs slowly

Faulty vacuum circuit or switch Check wires & connections

Worn vacuum motor brushes Replace brushes, check commutator
Vacuum circuit breaker tripped Reset circuit breaker

Poor scrubbing performance Debris caught in scrub brush Remove debris

Worn brush or pad Replace brushes or pads

Improper detergent, brush or pad used

Contact equipment or application
specialists

Low battery charge Charge batteries

Little or no solution flow to the
floor

Solution tank empty Fill solution tank

Solution strainer plugged Clean solution strainer
Solution system plumbing obstructed Clear obstruction from plumbing
Solution solenoid valve obstructed or

stuck

Solution solenoid valve obstructed or

stuck
Solution metering valve is closed Open metering valve
Faulty solenoid Check solenoid valve
Faulty limit switches or connection Check limit switches and connections

Brush motor does not run, or
runs slowly

Circuit breaker tripped Reset circuit beaker

Low battery charge Charge battery
Faulty brush circuit or motor Check wires, connections and motor

Replace brushes, check commutator
Worn brush motor brushes

Maintenance

Faulty limit switches or connection Check limit switches and connections

Squeegee won’t go down Squeegee in double scrub mode

Release squeegee from double scrub

mode

Deck won’t go down Actuator circuit breaker tripped Reset actuator circuit breaker

86333220 CS20 55

Maintenance

Battery Discharge Indicator Troubleshooting

The battery indicator flashes when a problem occurs. The table below list solutions for the indicated problems.

Number of

flashes

The battery needs charging, there is a bad connection to
the battery or dependent on the programming, may

1

2

3

4

5 Not used. -

6

7

8

9

10

- Blinks once every 5 seconds Sleep mode, cycle key switch

indicate that the battery lockout function is active and the
controller is in a restricted mode of operation. Check the
connections to the battery.

There is a bad connection to the drive motor. Check all connections between the

The drive motor has a short circuit to a battery connection. Contact your service agent.

The battery charge level has fallen below the battery
Lockout Level and the controller is inhibiting scrub motor
function.

The controller is being inhibited from driving, this may be
because the battery charger is connected (on board
charger only).

A throttle fault is indicated. Make sure that the throttle is in the

A controller fault is indicated. Make sure that all connections are

The parking brake has a bad connection. Check the parking brake and motor

An excessive voltage has been applied to the controller.
This is usually caused by a poor battery connection.

Problem Solution

If the connections are good, try
charging the battery.

motor and the controller.

Charge the battery.

Disconnect battery charger.

rest position before switching on the
machine.

secure.

connections. Make sure the
controller connections are secure.

Check the battery connections.

56 86333220 CS20

Parts

86333220 CS20

Bumper

1

2

5

6

3

4

3

7

58 86333220 CS20

Bumper

REF PART NO. QTY DESCRIPTION

1 86318180 1 BUMPER, TRIM, GRAY
2 86276980 2 SCREW 5/16-18 X 2 HHCS SS
3 86010670 6 WASHER 5/16 FLAT SS
4 86276070 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
5 86270830 4 NUT 5/16-18 HEX NYLOCK SS
6 86323950 2 PAD, TIP

7 86327510 4

SCR, KA50X16, PT OHS, WN1412, A2
SS

SERIAL NO.

FROM

NOTES

86333220 CS20 59

Bumper-Deluxe & Cylindrical

1

2

5

6

3

4

3

7

5

3

4

8

60 86333220 CS20

Bumper-Deluxe & Cylindrical

REF PART NO. QTY DESCRIPTION

1 86342940 1 BUMPER, TRIM, CSX20
2 86276980 2 SCREW 5/16-18 X 2 HHCS SS
3 86010670 10 WASHER 5/16 FLAT SS
4 86276070 8 SCR, 5/16-18 X 3/4 CARRIAGE SS
5 86270830 8 NUT 5/16-18 HEX NYLOCK SS
6 86323950 2 PAD, TIP

7 86327510 4
8 86333910 1 BRACKET, TIE DOWN

SCR, KA50X16, PT OHS, WN1412, A2
SS

SERIAL NO.

FROM

NOTES

86333220 CS20 61

Console

1

2

3-A

4

5

6

7

9

8

10

11

12

13

14

15

16

17

18

19

12

20

21

22

23

3-B

24

25

62 86333220 CS20

Console

REF PART NO. QTY DESCRIPTION

1 86276330 1 SCR, 1/4-20 X 1.25 CARRIAGE BZ

2 86279520 2 WASHER, 1/4 ID FLAT BLK
3A 86317960 1 CONSOLE, CS20 DISK
3B 86342490 1 CONSOLE, CSX20 DELUXE & CYLINDRICAL

4 86276780 6 SCR, 5/16-18 X 3/4 HHCS SS

5 86010670 6 WASHER, 5/16 FLAT SS

6 86006530 2 SCREW 1/4-20 X 1 PPHMS SS

7 86010630 2 WASHER 1/4 ID X 5/8 OD SS

8 86317980 1 DOME

9 86327600 1 GASKET, DOME

10 86326340 1 PIN, CLEVIS 5/16 X 4.0, PLTD

11 86228990 2 BEARING,FLNGD,.314ID X.502OD
12 86264940 6 CABLE TIE, 11.38" UL/CSA
13 86326320 1 BRACKET, HINGE UPPER
14 86327680 1 SWITCH, INTERLOCK
15 86270860 1 NUT, 10-24 U-TYPE SPEED
16 86277110 1 SCR, 10-24 X 3/4 PPHMS SS
17 86328860 1 NUT, 5/16 PUSH-LOCK, PLTD
18 86326330 1 BRACKET, HINGE LOWER
19 86239720 1 SP HORN, 108DB MINATURE W/RING
20 86006800 2 SCREW 10-32 X 1/2 PHTR PLT
21 86332390 1 PLATE, COVER
22 86332770 2 GASKET, HINGE BRACKET
23 86332760 1 GASKET, STEERING SHAFT
24 86302620 1 FOAM, 1 X 1 X 20 DELUXE ONLY
25 86402180 1 GASKET, .125 X .375 X .65

SERIAL NO.

FROM

NOTES

86333220 CS20 63

Control Panel 1

1

15

16

18

A

TORQUE 45-55 IN-LBS

A

A

18

16

15

20

19

2

3

4

5

6

7

9

10

11

12

14

13

17

8

64 86333220 CS20

Control Panel 1

REF PART NO. QTY DESCRIPTION

1 86339950 1 PANEL, CONTROL
2 86337210 5 SPACER, .14ID X .25OD X .38, NYL
3 86336110 1 RELAY, SPST-NO
4 86336100 3 CLIP, RELAY
5 86336090 1 CIRCUIT BOARD, 4 RELAY
6 86353610 1 CONTROLLER, CS20 (9*)
7 86326390 2 CONN, 8MM PITCH, 10 POSN
8 86005710 2 NUT, 1/4-20 HEX W/STAR
9 86313900 3 RELAY, 5A, 24V, 4PDT

10 86275260 4 SCR, 4-40 X 1/2 PPHMS

11 86274710 2 SCR, 6-32 X 1.0 PPHMS
12 86255910 1 STANDOFF, 1/4-20 X 1.0 HEX INS
13 86255900 2 STANDOFF, 6-32 X 5/8 HEX NYL
14 86255890 4 STANDOFF, 1.0 L. 6-32
15 86251360 2 RELAY, 36VDC, 100A
16 86010630 4 WASHER, 1/4 X 5/8 FLAT SS
17 86006850 1 SCR, 1/4-20 X 1.25 SSSCU
18 86005810 4 NUT, 1/4-20 HEX NYLOCK SS
19 86279020 1 WASHER #6 LOCK EXT STAR SS
20 86279450 3 WASHER, #6 FLAT SAE PLTD

SERIAL NO.

FROM

NOTES

86333220 CS20 65

Control Panel 2

17

9

16

3B

15

14

13

12

11

10

9

8

7

6

5

4

2

1

3A

66 86333220 CS20

Control Panel 2

REF PART NO. QTY DESCRIPTION

1 86001260 1 BOOT, CB 3/8-32 UNS (7*)

2 86332510 2 BOOT, SEAL PUSH BUTTON 11MM
3A 86328180 1 BREAKER, 12A, 250VAC, 32VDC DISK
3B 86349290 1 BREAKER, 25A, 250VAC, 32VDC CYLINDRICAL

4 86326350 1 KIT, CS20 ROTARY SWITCH ***

5 86316160 1 BREAKER, 18A, 250VAC, 32VDC

6 86315470 1 METER, HOUR, LCD

7 86314150 1 KNOB, SELECTOR

8 86313950 1

9 86295200 1 ASM, BUTTON, BLACK, W/BEZEL

10 86292780 1 SWITCH,MICRO

11 86292590 1 SWITCH, E-STOP AKW CHARIOT
12 86255900 2 STANDOFF, 6-32 X 5/8 HEX NYL
13 86348960 1 LED, BATTERY INDICATOR ***
14 86353680 1 BREAKER, 1.5A CARLING MAGNETIC (7*)
15 86007170 1 SWITCH, KEY 2 POSITION
16 86329570 4 SCR, 10-32 X 1.0 TORX SS BLK PLTD
17 86327830 1 GASKET, .188 X.31 X 41.0

SWITCH, SPDT 3 POSN MOM,
ARROW

SERIAL NO.

FROM

NOTES

***86348960 AND ROTARY SWITCH ARE INCLUDED WITH CONTROL PANEL HARNESS, 86326350 IS FOR
REPLACEMENT OF THE ROTARY SWITCH WITHOUT HARNESS.

86333220 CS20 67

Decals - Disk

6

5

1

2

3

4

68 86333220 CS20

Decals - Disk

REF PART NO. QTY DESCRIPTION

1 86328490 1 LABEL, RIGHT, iSCRUB 20
2 86328500 1 LABEL, LEFT, iSCRUB 20
3 86004970 1 LABEL WINDSOR LOGO DOMED
4 86328550 1 LABEL, SOLUTION LEVEL
5 86326360 1 LABEL, CONTROL PANEL
6 86335710 1 LABEL, BATTERY WIRING

SERIAL NO.

FROM

NOTES

86333220 CS20 69

Decals-Deluxe & Cylindrical

2

1

3A

3A

4

3B

3B

70 86333220 CS20

Decals-Deluxe & Cylindrical

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1 86342020 1 LABEL, WINDOSR DOMED LOGO

2 86326360 1 LABEL, CONTROL PANEL
3A 86342000 2 LABEL, SIDE ISCRUB DLX DISK
3B 86346630 2 LABEL, ISCRUB 22X SP CYLINDRICAL

4 86335710 1 LABEL, BATTERY WIRING

86333220 CS20 71

Drive-Lower

11

16

B

B

C

32

31

D

TORQUE 60 IN/LBS

*

AFTER *

B

4

8

14

15

30

33

23

21

1

2

3

6

9

13

22

10

17

20

19

12

7

6

10

17

5

12

19

17

30

A

TORQUE 15/18 FT/LBS
B TORQUE 120 IN/LBS
C

TORQUE 15 FT/LBS

A

B

B

D

A

26

24

25

5

27

29

28

11

16

18

72 86333220 CS20

Drive-Lower

REF PART NO. QTY DESCRIPTION

1 86326710 1 KEY, 5 X 5 X 16
2 86321670 2 WASHER, WHEEL SPACER
3 86319810 1 AXLE, DRIVE WHEEL
4 86319670 6 SLEEVE, BEARING
5 86363090 1 MOTOR, DRIVE WHEEL (12*)

- 86331990 - BRUSH SET, 8.631-966.0 DRIVE MTR

- 98408960 - BRAKE REPLACEMENT SMALL STAND ON
6 86319650 2 SPROCKET, DRIVE, 14T
7 86319640 1 CHAIN, ISO O8B, 12.7MM PITCH
8 86319620 1 FRAME, LOWER DRIVE
9 86316890 1 WHEEL, PU 200MM X 50MM

10 86279630 3 WASHER, .344IDX1.130ODX.09T PLT

11 86358800 5 WASHER, M6 CONICAL
12 86010670 4 WASHER, 5/16 X 3/4 SS
13 86008610 4 FLANGE, BEARING PRESSED STEEL
14 86272550 3 PIN, CLEVIS, 5/16 X 1.00 PLTD
15 86276070 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
16 86358820 3 SCREW, M6-1.0 X 16 HCS 10.9Z
17 86136640 3 SCR, M8 X 20 HHMS
18 86358810 2 SCREW, M6 - 1.0 X 30 HCS 10.9Z
19 86270830 4 NUT, 5/16-18 HEX NYLOCK SS
20 86219640 1 KEY, 1/4 SQ. X 1.5
21 86332380 3 ROLLER, 1.1 OD
22 86001030 2 BEARING, BALL 3/4 BORE SPHERED
23 86008660 3 COTTER 5/16" RING
24 86333870 1 LEVER DRIVE ENGAGEMENT DELUXE ONLY
25 86271240 1 NUT, CAP 1/4 DIA RETAINING PLT DELUXE ONLY
26 86232780 - CHAIN MASTER LINK 12.7MM
27 86002830 1 CABLE TIE .375 X 24.7
28 86264920 2 CABLE TIE, 7" UL/CSA (11*)
29 86362040 2 TAPE CLOSED CELL 1/8 X 3/4 X 2 1/2 PSA (11*)
30 86362140 3 SCREW, M6 X 12MM, HEX FLANGE, PLTD (13*)
31 86348490 1 NUT, WELD 5/16-18 X .38, TAB BASE, STL (13*)
32 86362130 1 SCREW, 5/16 X 1.50, SHCS, SS, FT (13*)
33 86362150 2 SCREW, M6 X 30MM, HEX FLANGE, PLTD (13*)

SERIAL NO.

FROM

NOTES

86333220 CS20 73

Drive-Chain

1

2

5

6

7

8

12

13

14

15

16

18

19

20

22

23

24

25

28

29

30

31

33

4

25

A

TORQUE 78 IN/LBS

A

A

34

3

9

10

11

17

26

27

32

A

4

21

36

35

37

38

74 86333220 CS20

Drive-Chain

REF PART NO. QTY DESCRIPTION

1 86330720 1 CHAIN TENSIONER
2 86329350 1 NUT, 1/4-20 X 7/8 HEX COUPLING SS
3 86329340 1 PLATE, CHAIN GUARD
4 86328050 2 WASHER, SHOULDER.48ID X 1.25OD
5 86005810 3 NUT, 1/4-20 HEX NYLOCK SS
6 86327110 1 BRACKET, CONNECTORS
7 86273100 3 SCR, 1/4-20X2-1/4 HXHD CAP
8 86322060 1 COLLAR, 12MM ID
9 86322050 1 SPROCKET, STEERING, 14T

10 86322040 1 PLATE, CHAIN RING

11 86322030 3 SPACER
12 86270830 7 NUT, 5/16-18 HEX NYLOCK SS
13 86319740 1 PLATE, UPPER CLAMP
14 86319680 1 PLATE, LOWER CLAMP
15 86319610 1 BRACKET, BEARING CLAMP
16 86319600 1 BRACKET, DRIVE MOUNT
17 86319590 1 SHAFT, STEERING SPROCKET
18 86319560 1 CHAIN, ISO O8B, 12.7MM PITCH
19 86014440 1 BEARING, DRIVE
20 86224270 1 SLEEVE, CHAIN TENSIONER
21 86259430 1 WASHER, 12.5 ID X 26 OD X 2T FLAT
22 86279510 1 WASHER, 3/8 X 1 FLAT NP
23 86010780 1 WASHER, 1/4 SPLIT
24 86010670 4 WASHER, 5/16 X 3/4 SS
25 86010630 7 WASHER, 1/4 X 5/8 FLAT SS
26 86363870 1 CLAMP, 5/8” OD CUSHIONED
27 86005710 3 NUT, 1/4-20 HEX W/STAR
28 86271930 1 NUT, 3/8-16 HEX NYLOCK SS
29 86276070 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
30 86275190 1 SCR, 3/8-16 X 1.25 HHCS SS
31 86006800 2 SCR, 10-32 X 1/2 PHTR PLT
32 86274760 1 SCR, 1/4-20 X 1/2 HHCS
33 86274150 4 SCR, 1/4-20 X 1.75 HHCS
34 86232780 - CHAIN MASTERLINK 12.7MM
35 86368600 1 WASHER, 2.50ODx1.25IDx.125THK, DELRIN
36 86279420 2 WASHER .75IDX1.25ODX.125THK NY
37 86278940 1 WASHER 1/4 ID X 1-1/4 OD PLT (11*)
38 86271370 2 NUT, 1/4-20 SERFLG STL ZNPLT

SERIAL NO.

FROM

NOTES

86333220 CS20 75

Drive Mounting

1

2

3

4

5

6

7

4

7

76 86333220 CS20

Drive Mounting

REF PART NO. QTY DESCRIPTION

1 86344620 1 BRACKET, LINKAGE MOUNT
2 86319730 1 BRACKET, LINKAGE MOUNT, LEFT
3 86331630 1 BRACKET, ROLLER GUIDE
4 86010670 12 WASHER, 5/16 X 3/4 SS
5 86276690 8 SCR, 5/16-18 X 1.75 CARR SS
6 86276070 2 SCR, 5/16-18 X 3/4 CARRIAGE SS
7 86270830 12 NUT, 5/16-18 HEX NYLOCK SS

SERIAL NO.

FROM

NOTES

86333220 CS20 77

Frame & Rear Wheels

1

2

3

4

5

6

7

8

9

78 86333220 CS20

Frame & Rear Wheels

REF PART NO. QTY DESCRIPTION

1 86326260 1 BRACKET, FRAME LEFT
2 86326250 1 BRACKET, FRAME RIGHT
3 86340610 1 ASM FRAME, CS20 INCLUDES ITEM 8 & 9
4 86326220 2 SPACER, FLG .887ID X 1.055D X .345LG
5 86318030 1 AXLE, 20MM X 562 MM
6 86369160 2 WHEEL, 6.00 X 1.58, GRY W/BEARINGS (15*)
7 86223470 2 RING, 20MM EXTERNAL SNAP
8 86279510 2 WASHER 3/8 FLAT
9 86340950 2 SCR, 3/8 X 1.5, LAG, PLTD

* SEE SERIAL NUMBER PAGE

SERIALNO.

FROM

NOTES

86333220 CS20 79

On Board Battery Charger-Disk

6

8

1

2

15

3

4

5

6

7

9

10

11

13

14

7

6

10

12

8

80 86333220 CS20

On Board Battery Charger-Disk

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

1 86370690 1 KIT, CHARGER
2 86332690 1 BRKT, CHARGER METER
3 86332370 1 BRACKET, CORD WRAP
4 86327690 1 BRACKET, CHARGER
5 86259400 2 WASHER, THRUST .51 ID X 1 ODBRO
6 86010670 7 WASHER, 5/16 X 3/4 SS
7 86276070 5 SCR, 5/16-18 X 3/4 CARRIAGE SS
8 86359740 7 SCR, 10-32 X 5/16 HWHTR
9 86006750 2 SCR, 5/16-18 X 1.00 HHCS GR5

10 86270830 5 NUT, 5/16-18 HEX NYLOCK SS

11 86234390 1 CORD ASM, 16/3 SJTWX2M IEC
12 86198450 2 CLAMP, 5/16 DIA NYLON
13 86228990 2 BEARING FLG .314IDX.5002OD
14 86333070 1 METER, SPE BATTERY CHARGE
15 86198470 5 CLAMP, 9/16 DIA NYLON

FOR REPLACEMENT, ORDER KIT # 86375240, KIT, DELTA Q CONVERSION

NOTES

86333220 CS20 81

On Board Battery Charger-Deluxe & Cylindrical

3

7

14

7

6

10

8

12

8

1

2

15

4

5

6

9

10

11

13

6

17

16

18

82 86333220 CS20

On Board Battery Charger-Deluxe & Cylindrical

REF PART NO. QTY DESCRIPTION

1 86370690 1 KIT, CHARGER
2 86332690 1 BRKT, CHARGER METER
3 86348390 1 BRACKET, CORD STORAGE DELUXE
4 86327690 1 BRACKET, CHARGER
5 86259400 2 WASHER, THRUST .51 ID X 1 ODBRO
6 86010670 7 WASHER, 5/16 X 3/4 SS
7 86276070 5 SCR, 5/16-18 X 3/4 CARRIAGE SS
8 86359740 7 SCR, 10-32 X 5/16 HWHTR
9 86006750 2 SCR, 5/16-18 X 1.00 HHCS GR5

10 86270830 5 NUT, 5/16-18 HEX NYLOCK SS

11 86345510 1

CORD, ONBOARD CHARGER, 16/3C

SJTO
12 86198450 2 CLAMP, 5/16 DIA NYLON
13 86228990 2 BEARING FLG .314IDX.5002OD
14 86333070 1 METER, SPE BATTERY CHARGE
15 86198470 5 CLAMP, 9/16 DIA NYLON
16 86333940 - BRACKET, CHARGER CORD
17 86006590 1 SCREW 10-32 X 1/2 PPHMS SS NP
18 86264940 1 CABLE TIE, 11.38" UL/CSA

SERIAL NO.

FROM

NOTES

FOR REPLACEMENT, ORDER KIT # 86375590, KIT, DELTA Q CONVERSION DLX

86333220 CS20 83

Pedal Platform

3

4

5

6

7

8

9

10

11

1

2

2

2

2

84 86333220 CS20

Pedal Platform

REF PART NO. QTY DESCRIPTION

1 86007110 1 SWITCH, 25A SPST 125-250V SNAP

2 86172980 9

SCR, KA50X10, PT OHS, WN1412,

PLTD

3 86264930 1 CABLE TIE, 3.5" UL/CS
4 86326150 1 BRKT, LINEAR POT
5 86326140 1 PIN, DOWEL .25 X 2.75, STEEL
6 86318010 1 PEDAL, HEEL
7 86318000 1 PEDAL, ACCELERATOR
8 86317990 1 PLATFORM, OPERATOR
9 86311560 1 POTENTIOMETER ASM, LINEAR

10 86254970 3 SPRING, COMP 18MM OD X 83 X 2

11 86173330 8 WASHER, M5, FLAT, ISO7093, SS

SERIAL NO.

FROM

NOTES

86333220 CS20 85

Pedal Platform Mounting

86 86333220 CS20

Pedal Platform Mounting

REF PART NO. QTY DESCRIPTION

1 86327510 9 SCR, KA50 X 16, WN1412 A2 SS
2 86198440 9 CLAMP, 1/4 PLASTIC CABLE

3 86327910 4

SCR, KA50X25, PT OHS, WN1412,

PLTD

4 86173330 4 WASHER, M5, FLAT, ISO7093, SS

SERIAL NO.

FROM

NOTES

86333220 CS20 87

Recovery Tank

23

22

24

25

A

TORQUE 15/17 IN/LBS

A

A

1

2

3

4

5

6

7

8

9

10

11

12

13

16

17

18

19

14

15

7

15

7

17

15

20

21

88 86333220 CS20

Recovery Tank

REF PART NO. QTY DESCRIPTION

1 86329510 2 PLATE, INTAKE RETAINER
2 86328020 1 HOSE ASM, 1.25 ID X 14.0, 4:1

3 86327910 3
4 86327850 1 GASKET, REC TANK 68”

5 86327840 1 GASKET, VAC MOUNT 27”
6 86327590 1 LANYARD, 15.0 W/LOOP & EYE

7 86327510 11
8 86326270 2 CLAMP, 1.5 DIA

9 86326200 1 GASKET, VACUUM INTAKE

10 86318220 1 FRAME, VACUUM MOTOR

11 86318210 1 INTAKE, VACUUM
12 86344710 1 PANEL, BACK
13 86317920 1 TANK, RECOVERY
14 86302360 1 DRAIN HOSE, CMPS
15 86173330 10 WASHER, M5, FLAT, ISO7093, SS
16 86173140 2 SCR,KA40X16,PT OVAL,WN1412,PL
17 86002400 2 CLAMP, 2.00 WORM GEAR X .312
18 86356060 1 FLOAT ASM, DUAL BALL SCREEN *(11)
19 86161800 1 LATCH, CONCEALED KEEPER
20 86312920 1 GASKET, VAC MOTOR
21 86335700 1 BRACKET, DRAIN HOSE *(3)
22 86007070 1 SCREW 5/16-18 X 1.00 PTHMS SS *(6)
23 86007650 1 SPACER, .438D X .317ID X .25L *(6)
24 86010670 1 WASHER 5/16 FLAT SS *(6)
25 86270830 1 NUT 5/16-18 HEX NYLOCK SS *(6)

SCR, KA50X25, PT OHS, WN1412,
PLTD

SCR, KA50X16, PT OHS, WN1412,
A2 SS

SERIAL NO.

FROM

NOTES

* SEE SERIAL NUMBER PAGE.

86333220 CS20 89

Scrub Brush/Pad Driver

8

4

9

6

5

7

5

3

2C

2A
2B

7

5

8

4

9

6

1

10A - 10F

90 86333220 CS20

Scrub Brush/Pad Driver

REF PART NO. QTY DESCRIPTION

1 86000410 1 PAD DRIVER, 20" SD

2A 86000420 1 BRUSH, 20" POLYPROPYLENE SD
2B 86000430 1 BRUSH, 20" NYLON SD
2C 86283870 1 BRUSH, 20" NYLON POLISH SD

3 86005070 1 LOCK, PAD CENTER SNAP, TWO STEP
4 86276590 3 SCR, #12 X 1 PPHSMS SS
5 86276580 1 SCR, 8-32 X 3/4 PTHMS
6 86276600 3 SCR, #10 X 3/4 PTHSMS SS
7 86007910 1 SPRING, EXT .31 D X 2.0 L X .03 W SS
8 86007280 1 SOCKET, DRIVE BRUSH
9 86005940 1 PLATE, BRUSH RELEASE

10A 47623930 2 ROLLER BRUSH COMPLETE RED

10B 47624090 2 ROLLER BRUSH COMPLETE WHITE
10C 47624100 2 ROLLER BRUSH COMPLETE ORANGE
10D 47624110 2 ROLLER BRUSH COMPLETE GREEN

10E 47624120 2 ROLLER BRUSH COMPLETE BLACK

41140100 2 MICROFIBRE ROLL COMPLETE BR 55/40

10F

47624150 2 ROLL PAD BR55

SERIAL NO.

FROM

NOTES:

86333220 CS20 91

Scrub Brush Deck-Disk

6

35

36

37

38

39

40

41

42
43

A

TORQUE 18 FT/LBS

A

B

TORQUE 20 FT/LBS

B

33

27

17

9

9

34

9

25

24

9

26

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

34

25

24

27

28

29

30

31

32

92 86333220 CS20

Scrub Brush Deck-Disk

REF PART NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES

1 86331340 1 BREATHER VENT, 10-32 THREAD
2 86331970 1 MOTOR, 36VDC 180RPM RT-ANG INCLUDES 86331340

- 86331980 - BRUSH SET, 8.633-197.0 SCRUB MTR
3 86325200 1 BUSHNG, 30MM, BRNZ
4 86326430 1 SUPPORT ASSY, MOTOR, BRUSH DECK
5 86326560 1 WASHER, NYLON, 2.28ODX1.28IDX.12 THK
6 86271870 3 NUT, 1/4-20 HEX NYLCK THIN SS
7 86222300 1 NUT, 5/16-18 JAM SS C
8 86320370 1 LINKAGE ARM ASSY, PIVOT SQUG
9 86010670 10 WASHER 5/16 FLAT SS

10 86328620 1 SCR, 5/16-18 X 1/2 LG, HHCS, BLK NYLON

11 86279070 2 WASHER, M6 FLAT
12 86273850 1 SCR, 1/4-20 X 2 HHCS SS
13 86319800 1 SHROUD, 20" SCRUB DECK
14 86329560 3 SCR, M8X1.25X25MM LG, BSHCS, SS
15 86326550 1 SUPPORT PLATE, SHROUD
16 86326540 1 BRIDGE BRKT, DECK LIFT
17 86228990 4 BEARING,FLNGD,.314ID X.502OD
18 86277130 4 SCREW 5/16-18X1.00 CARRIAGE SS
19 86326600 1 BRKT, DECK LIFT, UPPER RIGHT
20 86326610 1 BRKT, DECK LIFT, LOWER RIGHT
21 86276070 4 SCR, 5/16-18 X 3/4 CARRIAGE SS
22 86326580 1 BRKT, DECK LIFT, UPPER LEFT
23 86326590 1 BRKT, DECK LIFT, LOWER LEFT
24 86270830 4 NUT 5/16-18 HEX NYLOCK SS
25 86259410 4 WASHER THRUST.51 ID X1ODX.063
26 86290040 2 SCR, 5/16-18 X 3/4 BSHCS SS
27 86330990 5 WASHER, 5/16 INT STAR, SS
28 86337200 1 WASHER, 19MM X 34MM X 3MM FLAT SS *(1)
29 86003420 1 DRIVER, BRUSH SD
30 86004810 1 KEY, 1/4 SQ X 1.00
31 86279630 1 WASHER, .344IDX1.13ODX.09T PLT
32 86279130 1 WASHER 5/16 SPLIT LOCK PLTD
33 86330970 1 SCR, M8X1.25X25MM LG, HHCS, SS
34 86271840 4 NUT 5/16-18 HEX NYLOCK THIN SS
35 86327700 2 SHOULDER BOLT, 5/16 X 5/8 LG SS
36 86010630 2 WASHER 1/4 ID X 5/8 OD SS
37 86320430 1 20" BRUSH SKIRT
38 86328220 1 FLEXIBLE STRIP BRUSH, 20" SKIRT
39 86319820 1 PIVOT, SQUEEGEE LINKAGE
40 86338440 1 SPACER, .41 ID X .73 OD X .105T *(1)
41 86006870 1 SCREW #10B X 1/2 PHMS BLK
42 86335450 1 WASHER, #10 X .75 ODX.040. NYL, BLK
43 86324480 1 ACCESS COVER, BRUSH RELEASE

* SEE SERIAL NUMBER PAGE

** CALL MANUFACTURER FOR SERIAL NUMBER

86333220 CS20 93

Scrub Brush Deck Mounting-Disk

1

2

3

4

5

6

94 86333220 CS20

Scrub Brush Deck Mounting-Disk

REF PART NO. QTY DESCRIPTION

1 86277030 4 SCR, 5/16-18X1.25 CARRIAGE S
2 86270830 4 NUT 5/16-18 HEX NYLOCK SS
3 86010670 4 WASHER 5/16 FLAT SS
4 86259410 4 WASHER THRUST.51 ID X1ODX.063
5 86228990 4 BEARING,FLNGD,.314ID X.502OD
6 86277130 2 SCR, 5/16-18 X 1.00 CARRIAGE SS

SERIAL NO.

FROM

NOTES

86333220 CS20 95

Scrub Deck Drive Assembly-Cylindrical

1

2

3

4

6

7

10

11

12

13

14

15

16

17

1

5

5

4

96 86333220 CS20

Scrub Deck Drive Assembly-Cylindrical

REF PART NO. QTY DESCRIPTION

1 73031040 6 SCREW 5X16 -A2-70 (IN6RD)
2 50353850 1 COVER GEAR
3 63484670 2 TOOTHED BELT HTD-384-3M-20 CXPIII
4 40353810 2 SHAFT GEAR RIGHT
5 OPEN - ­6 50353840 1 CARRIER MOTOR WORKED R
7 73060890 1 SCREW M6X12 -8.8-R2R (IN6RD)
8 OPEN - ­9 OPEN - -

10 50353910 1

SHEET METAL COMPONENT COVERING
CAP INVER

11 41002260 2 DRIVESHAFT COMPLETE
12 51106860 2 SPACER SLEEVE
13 73432310 2 LOCKING RING 32X1,2 -ST-PH DIN 472
14 50560100 1 ROCKER BR-VS
15 56255070 2 BELT PULLEY 56Z
16 73122760 2 WASHER 6 -200HV-A2E ISO7093-1
17 73060870 2 SCREW M6X10 -8.8-R3R (IN6RD)

SERIAL NO.

FROM

NOTES

86333220 CS20 97

Scrub Deck-Cylindrical

98 86333220 CS20

Scrub Deck-Cylindrical

REF PART NO. QTY DESCRIPTION

1 73430030 2 LOCKING RING 12X1-RF-ST DIN 471
2 50353570 2 SIDE PLATE RUBBER LIP
3 50354280 2 RUBBER LIP
4 50354270 2 SCREEN SUCTION LIPS
5 73430470 1 LOCK WASHER 10-FST-A2E DIN 6799
6 73061810 18 SCREW M 5X 12-A2-70 (IN6RD)
7 40354040 2 SET SIDE STRIP
8 50354310 1 BRACKET SCRAPER LIP LEFT
9 50355580 1 STRIP WATER DISTRIBUTOR

10 50353930 1 BRUSHES RETAINER

11 50353890 1 HOUSING BOTTOM PART R 55
12 50354000 1 SWEEP TANK COUNTER ROTATION R 55
13 51163370 1 SLEEVE BLOWER WHEEL
14 50334260 1 MOULDED PART COVERING CAP
15 50332400 2 HAND WHEEL
16 50354580 1 BRUSHES LOCKING PART
17 50354050 1 HOUSING TOP PART LOCKING PART
18 73031130 8 SCREW 6X25 -10.9-A2R (IN6RD)
19 50354320 1 BOLT DEFLECTOR ROLL RIGHT KILLER
20 50354380 1 DEFLECTOR ROLL
21 51156810 1 WASHER
22 73120660 1 WASHER 10 -A2 ISO 7090
23 50354290 1 LOCKING BAR SIDE PLATE
24 50354300 1 BRACKET SCRAPER LIP RIGHT
25 63304500 1 PRESSURE SPRING
26 40353780 1 MOTOR WITH PLUG

SERIAL NO.

FROM

NOTES

86333220 CS20 99

Scrub Deck Linkage-Cylindrical

1

2

3

4

5

6

8

9

10

11

7

1

2

3

5

6

12

13

14

15

15

100 86333220 CS20
