Windsor SCX264, SCXC264, BSCSCX264, SCX324, SCXC324 Operating Instructions Manual
...
Saber Cutter - 24V - Deluxe
IPX4
Walk Behind Scrubber
Operating Instructions (ENG)
MODELS:
SCX264
10052380
SCXC264
10052430
BSCSCX264
10052860
SCX324
10052390
SCXC324
10052440
SCNX324
10052820
From Serial Number (Ref No1*)
*See Serial Number Page in
Spare Parts List or
call manufacturer.
86400260-A 06/29/15
Warranty Registration
Thank you for purchasing a Kärcher North America product. Warranty registration is quick
and easy. Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
http://warranty.karcherna.com/
For customer assistance:
1-800-444-7654
Machine Data Label
Overview
The Saber Cutter is a battery powered, self-propelled, hard floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor, scru bs the floor with brushes or pads, and then vacuums the
soiled water back into the recovery tank.
2 86400260 Manual Operators - Cutter 24V Deluxe
Machine Data Label. . . . . . . . . . . . . . . . . . . . . . . . . .2
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Safety
Important Safety Instructions . . . . . . . . . . . . . . . . . .5
Hazard Intensity Level . . . . . . . . . . . . . . . . . . . . . . .7
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operations
Technical Specifications . . . . . . . . . . . . . . . . . . . . .10
How The Machine Works . . . . . . . . . . . . . . . . . . . .12
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . .18
Pre-run Machine Inspection . . . . . . . . . . . . . . . . . .18
Starting Machine. . . . . . . . . . . . . . . . . . . . . . . . . . .18
Emergency Stop Procedures . . . . . . . . . . . . . . . . .18
Filling Solution Tank . . . . . . . . . . . . . . . . . . . . . . . .18
Normal Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . .19
Double Scrub . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Emptying And Cleaning Tanks . . . . . . . . . . . . . . . .20
Solution Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Table of Contents
Maintenance
Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .21
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Checking Gravity. . . . . . . . . . . . . . . . . . . . . . . . . . .24
To Charge The Batteries. . . . . . . . . . . . . . . . . . . . .24
Changing Batteries . . . . . . . . . . . . . . . . . . . . . . . . .25
Squeegee Blades . . . . . . . . . . . . . . . . . . . . . . . . . .26
Adjusting Squeegee . . . . . . . . . . . . . . . . . . . . . . . .26
To Remove Squeegee Assembly . . . . . . . . . . . . . .26
To Adjust Squeegee Pitch . . . . . . . . . . . . . . . . . . .27
To Adjust Amount Of Rear Squeegee Deflection . .27
To Replace Aqua-mizer™ Squeegee Blades. . . . .27
Scrub Brushes . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Finished Floors . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Recovery Tank Float Shut-off. . . . . . . . . . . . . . . . .28
Solution Strainer . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Changing Brush Motors . . . . . . . . . . . . . . . . . . . . .29
Traction Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Brush Shrouds & Brush Skirts . . . . . . . . . . . . . . . .30
Vacuum Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Actuator Scrub Deck Removal & Replacement . . .32
Greasing Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Machine Troubleshooting . . . . . . . . . . . . . . . . . . . .34
Suggested Spare Parts - 26” Scrub Head . . . . . . .36
Suggested Spare Parts - 32” Scrub Head . . . . . . .37
86400260 Manual Operators - Cutter 24V Deluxe
3
How To Use This Manual
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
• Suggested Spare Parts
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERAT IONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive maintenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Batteries
• Scrub Brushes
• Adjusting Squeegee
• Scrub Deck Skirt
• Squeegee Blade/Brush Head Options
• Service Schedule
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
The model and serial number of your machine is
located on the back of the machine.
NOTE: The manual part number is located on the
lower right corner of the front cover.
4
86400260 Manual Operators - Cutter 24V Deluxe
Safety
Important Safety Instructions
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
T o reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return
it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
Make sure all warning and caution labels are legible and properly attach ed to the machine.
During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
Only chemicals recommended by the manufacturer shall be used.
This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other
brushes may affect its safety.
Do not use on surfaces having a gradient exceeding 2% unless the optional parking brake is installed on the
machine.
READ AND SAVE THESE INSTRUCTIONS
86400260 Manual Operators - Cutter 24V Deluxe
5
Safety
MESURES DE SÉCURITÉ IMPORTANTES
Lors de l’utilisation d’un appareil à batteries, il est nécessaire de respecter
systématiquement des mesures de sécurité de base, comme suit :
PRENEZ NOTE DE TOUTES CES MESURES AVANT D’UTILISER CETTE MACHINE.
Pour réduire les risques d’incendie, de chocs électriques, ou de
blessures :
N’utiliser cette machine qu’en intérieur. Ne jamais l’utiliser à l’extérieur ou dans la pluie.
N’utiliser cette machine que comme décrit dans le présent manuel. N’utiliser que les composants et les acces-
soires conseillés par le fabricant.
Lorsque la machine ne fonctionnant pas correctement, a fait l’objet d’une chute ou d’une détérioration, a été
laissée à l’extérieur, est tombée dans l’eau, la retourner au centre de service agréé.
Ne pas opérer la machine lorsqu e les co ndu its de ventilation sont bloquées. Débarrasser les débris des con duits,
car ils peuvent réduire l’écoulement d’air.
Cette machine n’est pas adaptée au ramassage de poussières dangereuses
Cette machine peut provoquer un incendie lorsqu’elle est utilisée près de vapeurs ou de matériaux inflamma-
bles. Ne pas l’utiliser près de liquides, de poussières ou de vapeurs inflammables.
Cette machine est destinée à un usage commercial. Elle est r ecommandée davantage pour les domaines hôtelier,
scolaire, hospitalier, industriel ou pour les bureaux, les chaînes de magasin, que pour un usage domestique
normal.
L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement.
Déconnecter les batteries avant de nettoyer la machine ou de la soumettre à un entretien.
Avant de se débarrasser de la machine, il est nécessaire de retirer les batteries et de les jeter correctement.
S’assurer que toutes les plaques d’avert isse m en t ou de pr éc au tio n sont lisibles et fixées correctement sur la
machine.
Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.
Avant l’utilisation de la machine, veiller à positionner tous les couvercles et portes comme indiqué dans les
instructions.
Lorsque la machine est laissée sans surveillance, s’ assure r qu’elle ne se déplace p as de man ière acciden telle.
Cette machine ne doit être manoeuvrée que par un personnel expérimenté et qualifié.
Lorsque la machine est laissée sans surve illance, la mettre hors tension ou verrouiller l’interrupteur principal
afin d’empêcher un emploi non autoris é.
Seuls les produits chimiques recommandés par le fabricant doivent être utilisés.
Cette machine a été conçue pour être utilisée avec des brosses spécifiées par le fabricant.
L’utilisation d’autres brosses peut affecter sa sûreté.
N'employez pas sur des surfaces ayant un gradient de plus de 2%.
CONSERVER CES INSTRUCTIONS
6
86400260 Manual Operators - Cutter 24V Deluxe
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
Hazard Intensity Level
There are three levels of hazard intensity i dentified by signal wor ds -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in min or personal in jury or pr oduct or pr operty damag e.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
manufacturer approved replacement parts.
Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep top
cover in raised position when charging. Keep sparks and flames away from the batteries. Do not smoke
around batteries.
Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or ne ar bat teries. Avo id skin conta ct
with the acid contained in the batteries.
Never allow metal to lie across battery tops.
86400260 Manual Operators - Cutter 24V Deluxe
7
Safety
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
Degrés De Risques En Cas De Danger
Ilexiste trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et ATTENTION eet
POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante:
Avertissement - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou entraîner
la mort.
ATTENTION - Dangers ou méthodes danger euses q ui pou rraien t pr ovoqu er des blessur es légèr es o u une détér ioration du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ: ce signe permet d’identifier les mesures de précaution à prendre pour assurer un bon
fonctionnement du matériel.
Rendre compte immédiatement d’une défaillance ou d’une détérioration de la machine. Ne pas utiliser la machine
si celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains
dangers potentiels pour l’opérateur de la machine. L’opérateur doit être absolument au courant de ces dangers
potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures nécessaires pour former le personnel opérateur.
POUR VOTRE SÉCURITÉ:
NE PAS MANOEUVRER LA MACHINE:
Lorsqu’on n’est pas expérimenté ou qualifié.
Lorsque le guide d’utilisation n’est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L’ENTRETIEN DE LA MACHINE:
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées homologuées.
Les batteries émettent le gaz d'hydrogène. L'explosion ou le feu peut ré sulter. Étincelles de subsistance et flamme
nue loin. Compartiment de batterie de subsistance ouvert en chargeant. Étincelles et flammes de subsistance loin
des batteries. Ne fumez pas autour des batteries.
Déconnecter les batteries avant de travailler sur la machine. La machine ne doit être confiée qu’à un personnel
qualifié. Porter systématiquement des lunettes et des vêtements de protection lors d’une intervention sur les
batteries ou aux alentours. Éviter tout contact de la peau avec l’acide contenu dans les batteries.
Ne jamais placer d’objets métalliques sur le dessus des batteries.
8
86400260 Manual Operators - Cutter 24V Deluxe
Safety

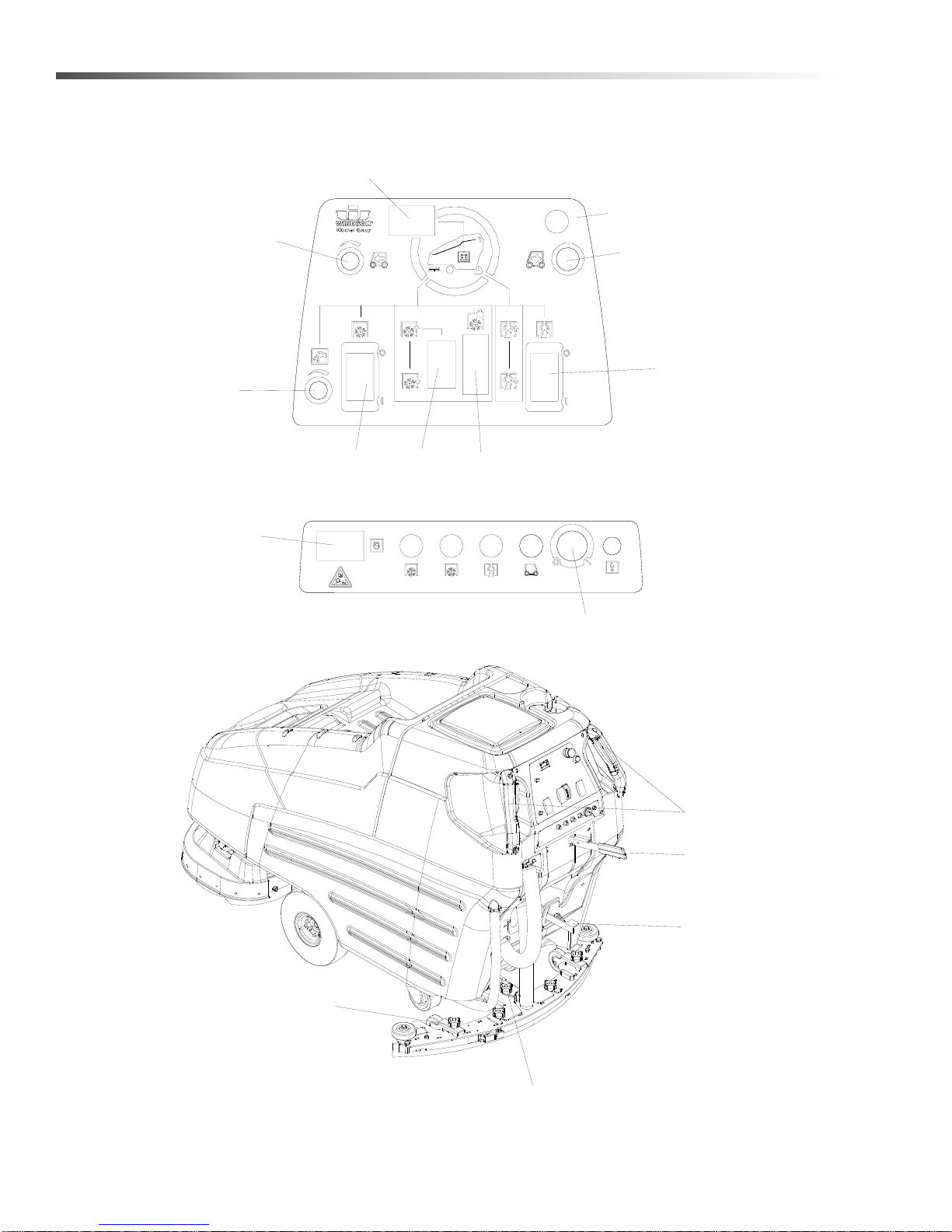

Safety Labels
NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become
illegible, promptly replace them.
Emplacement De L'étiquette De Sécurité
REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment,
les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapide.
86400260 Manual Operators - Cutter 24V Deluxe
9
Operations
Technical Specifications
ITEM DIMENSION/CAPACITY
Nominal power 1450 W
Rated Voltage 24VDC
Rated Amperage 60 Amps
Batteries 4 X 6 Volt 250-305-335AH @ 20 hr rate
Scrub Brush Motors 2 X .75 hp (0.56 kW)
Vacuum Motor .75 hp (0.56 Kw)
Propelling Motor .3 hp (0.22 Kw)
Mass (GVW) 915 lbs. (415 kg) with 335 AH
Weight empty without batteries 346 lbs. (157 kg)
Solution Control
Solution tank capacity 23 gal. (87 l)
Recovery tank capacity 25 gal. (95 l)
Scrub brush diameter for 26 in. (66 cm) scrub head 13 in (33.0 cm)
Scrub brush diameter for 32 in. (81 cm) scrub head 16 in (41 cm)
Scrub brush pressure Actuated 0 lbs to 150 lbs (0 kg to 68 kg)
Scrub brush speed 200 rpm
Tires
Casters
Foundation Pressure (at recommended tire psi)
Maximum Speed 3.2 Miles/hour (5.2 km/hour)
Frame Construction Steel plate with epoxy powdercoat finish.
Brakes (optional) Tire lock parking brake.
Minimum aisle u-turn width with 26 in. (66 cm) scrub head 64 in. (163 cm)
Minimum aisle u-turn width with 32 in. (81 cm) scrub head 69 in. (175 cm)
Maximum rated climb and descent angle with empty tanks and without
optional parking brake
Maximum rated climb and descent angle with full tanks and without
optional parking brake
Gravity feed, fully variable with automatic
shut-off in neutral
2 x 10 in (25.4 cm) non-marking foamfilled
2 X 4 in (10.2 cm) polyurethane solid nonmarking
21 lbs./in
2%
2%
2
(140 kPa)
Special Notes:
The sound pressure level at the operator’s ear was measured to be 72 dBA. This was a nearfield, broad-band
measurement taken in a typical industrial enviro nment on a tile floor. This appliance contains no possible source of
impact noise. The instantaneous sound pressure level is below 63 Pa.
The weighted root mean square acceleration at the operator’s arms was measured to be below 2.5m/s
a tri-axial, third-octave-band measurement made during normal operation on a composite tile floor. The measurement and related calculations were made in accordance with ANSI S3.34-1986.
10
86400260 Manual Operators - Cutter 24V Deluxe
2
. This was
ITEM MEASURE
Height
Width
Length
Height 45 in. (114 cm)
Length with 26 in. (66 cm) scrub head 64 in. (163 cm)
Length with 32 in. (81 cm) scrub head 66 in. (167 cm)
Width without squeegee and scrub head 24 in. (61 cm)
Width of squeegee for 26 in. (66 cm) scrub head 35 in. (89 cm)
Width of squeegee for 32 in. (81 cm) scrub head 39 in. (99 cm)
Width of scrub path for 26 in. (66 cm) scrub head 26 in. (66 cm)
Width of scrub path for 32 in. (81 cm) scrub head 32 in. (81 cm)
Operations
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
Cet appareil n'est pas prévu à l'usage des personnes (enfants y compris) avec des possibilités physiques, sensorielles ou mentales réduites, ou le manque d'expérience et de connaissance, à moins qu'ils aient été donnés la
surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des
enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil.
86400260 Manual Operators - Cutter 24V Deluxe
11
Operations
How The Machine Works
The Saber Cutter is a battery powered, self-propelled,
hard floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor,
scrubs the floor with brushes, and then vacuums the
soiled water back into the recovery tank.
The machine's primary systems are the solution
system, scrub system, recovery system, and directional
control system.
The function of the solution system is to store cleaning
solution and deliver it to the scrub system. The solution
system consists of the solution tank, strainer, valve and
controls. The solution tank stores cleaning solution
(water and detergent) until it is delivered to the scrub
system. The strainer protects the valve from debris.
The valve is a solenoid type valve, which controls the
delivery of cleaning solution to the scrub system. The
valve automatically prevents solution flow unless the
scrub brushes are turned on and the machine is being
propelled. The solution control knob controls the
amount of cleaning solution delivered to the scrub
system by controlling the amount of time the valve is
open.
The function of the scrub system is to scrub the floor.
The scrub system consists of two rotary type disk scrub
brushes, motors, scrub deck skirt, lift mechanism and
controls. The brushes scrub the floor and th e mo to rs
drive the brushes. The brush drive hubs allow the scrub
brushes to follow irregularities and changes in the floor
without loosing contact with floor. The scrub deck skirt
controls the cleaning solution on the floor so that the
squeegee can pick it up. The brush lift mechanisms a re
controls used to raise and lower the deck.
The function of the recovery system is to vacuum the
soiled water back into the recovery tank. The recovery
system consists of the squeegee, vacuum motor, float
ball filter, recovery tank and controls. The squeegee
wipes the dirty solution off the floor as the machine
moves forward. The vacuum motor provides suction to
draw the dirty solution off the floor and into th e recovery
tank. The recovery tank stores the dirty solution. The
float ball filter protects the vacuum fan from debris and
shuts off air going to the recover y tank when tank is full.
When flow of air is shut off the vacuum motor will
continue to run. At this time the recovery tank must be
drained.
The function of the directional control system is to
control the direction and speed of the machine. The
directional control system consists of the propel control
buttons, reverse button, speed control knob/potentiometer, controller and transaxle. The propel controls
actuate switches which cause the machine to move
forward. For reverse motion depress the reverse button
while depressing one of the propel controls. The speed
control knob actuates a potentiomete r, which signals
speed. The controller interprets the forward/reverse
signals from the switches and the speed signal from the
potentiometer to command the transaxle to propel the
machine in the direction, and at the speed, desired.
12
86400260 Manual Operators - Cutter 24V Deluxe
Loading...
