CARPET EXTRACTOR
Operating Instructions (GB/USA)
Manuel d’utilisation (FRE)
Bedienungsanleitung (GER)
MODEL: COUNTRY
ADM8IA - 10080010 AUSTRALIA
ADM8IB - 10080020 BRITIAN
ADM8IE - 10080030 EUROPE
ADM8IS - 10080040 SWITZERLAND
Read these instructions before operating the machine
Bitte lesen Sie diese Anleitungen, bevor Sie die Maschine in Gebrauch nehmen
AJ
86038270 10/12/07
PRV NO. 98655
IPX4
Lire ce manuel avant d’utiliser la machine
TABLE OF CONTENTS
MODEL
DATE OF PURCHASE
SERIAL NUMBER
SALES REPRESENTATIVE #
DEALER NAME
Data Log/Table of Contents..............1
Safety Instructions............................2
Controls ............................................3-5
Operations........................................6-11
Troubleshooting................................12
Blank Page .......................................13
Wiring Diagram................................. 14
Maintenance..................................... 15-17
Technical Specifications................... 18
Parts Lists......................................... 19-34
Spare Parts/Notes............................ 35
EC Declaration of Conformity........... 36
INSPECTION
Carefully unpack and inspect your machine for shipping dam age. Each unit is operated and thoroughly inspected
before shipping, and any damage is the responsibility of the carrie r, who shoul d be notified immediately.
1
ADMIRAL 86038270 05/22/07
SAFETY INSTRUCTIONS
!
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
To reduce the risk of fire, electric shock, or injury:
WARNING:
Connect to a properly grounded outlet.
Do not leave the machine unattended. Unplug machine from outlet when not in use and before
maintenance or service.
Use only indoors. Do not use outdoors or expose to rain.
Do not allow machine to be used as a toy. Close attention is necessary when used by or near
children.
Use only as described in this manual. Use only manufacturer’s recommended components and
attachments.
Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding
the machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or
dropped into water, return it to an authorized service center.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord
around sharp edges or corners.
Do not run machine over cord. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce
airflow.
This machine is intended for cleaning carpet only.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
This machine is not suitable for picking up health endangering dust.
Turn off all controls before unplugging.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this
machine near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals,
factories, shops and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
SAVE THESE INSTRUCTIONS
ADMIRAL 86038270 05/22/07
2
CONTROLS/COMPONENT LOCATIONS
3
1
3
8
9
4
7
10
5
6
1. Main Handle. Used to pull and maneuver
machine.
2. Handle Adjustment. Used to adjust height of
handle.
3. Electrical Cord.
4. Solution Switch. Turns on pump. Continuous
position (bottom) activates electro-valve to
dispense solution to floor through jets.
Intermittent position (up) requires operator to
depress 1 of 3 trigger switches to dispense
solution. Center position is off.
5. Brush Motor Switch. Turns on brush motor.
6. Vacuum Motor Switch. Turns on vacuum
motor.
7. Trigger Switches. Activates electro-valve to
dispense solution to floor through jets when
solution switch is in the intermittent position.
8. Brush Motor Circuit Breaker. 4 amp.
Breaker protecting brush motor.
9. Vacuum Motor Circuit Breaker. 7 amp.
Breaker protecting vacuum motor.
10. Recovery Dump Hose. Facilitates draining
dirty cleaning solution.
2
11. Solution Dump Hose. Facilitates draining
11
excess cleaning solution from solution tank.
ADMIRAL 86038270 05/22/07
4
1. Solution Accessory Tool Hookup. Used
for various auxiliary cleaning tools.
2. Vacuum Hose Door. Used to connect
various auxiliary 1 ½ inch cleaning tool
vacuum hoses.
3. Brush Height Adjustment. Used to
regulate brush height from storage position
to various carpet heights.
4. Recovery Tank. Used to collect dirty
cleaning solution.
5. Solution Tank. Used to hold cleaning
solution.
6. Recovery Tank Dome.
7. Vacuum Shoe.
8. Brush Housing.
9. Front Lifting Handle.
10. Cleaning Solution Filter.
11. Solution Tank Fill Hose.
CONTROLS/COMPONENT LOCATIONS
11
10
3
2
1
9
6
ADMIRAL 86038270 05/22/07
4
5
7
8
CONTROLS/COMPONENT LOCATIONS
5
6
2
1. Solution Intake Cover.
2. Vacuum Intake Cover.
3. Float Shut-Off.
4. Clean-Out Opening.
5. Pour Spout.
6. Lift Handle.
1
6
4
5
3
ADMIRAL 86038270 05/22/07
FILLING OPERATIONS
A
A
(
)
RECOVERY TANK
STEP
1
SOLUTION
TANK
STEP
2
FILL LINE
STEP
3
FILLING THE ADMIRAL
NOTE: Use clean bucket of water to fill solution tank
Do not put defoamer, solvents, spotter or
prespray chemicals in the solution tank.
Do not allow water to spill into vacuum motor inlet. Dry
spillage from top of solution tank before replacing
recovery tank.
CHEMICALS
Suitable Chemicals Non-Compatible Chemicals
Alkalis Aldehydes
Detergents Aromatic Hydrocarbons
Hydroxides SP Butyls
Soaps Carbon Tetrachloride
Vinegar Clorox*
Chlorinated Bleaches
Chlorinated Hydrocarbons
Lysol*
Methyl Ethel Ketone (MEK)
Perchorethylene (perc)
Phenolics
Trichlorethylene
D-Limonene
* Product Trademark Names
STEP
4
Remove recovery
tank
or
(30.3 ltr.)
140°F
8 – 16oz.
(237ml – 473ml)
dd cleaning
chemical
Replace recovery
tank
dd water
8 gal.
60°C
ADMIRAL 86038270 05/22/07
6
OPERATIONS
7

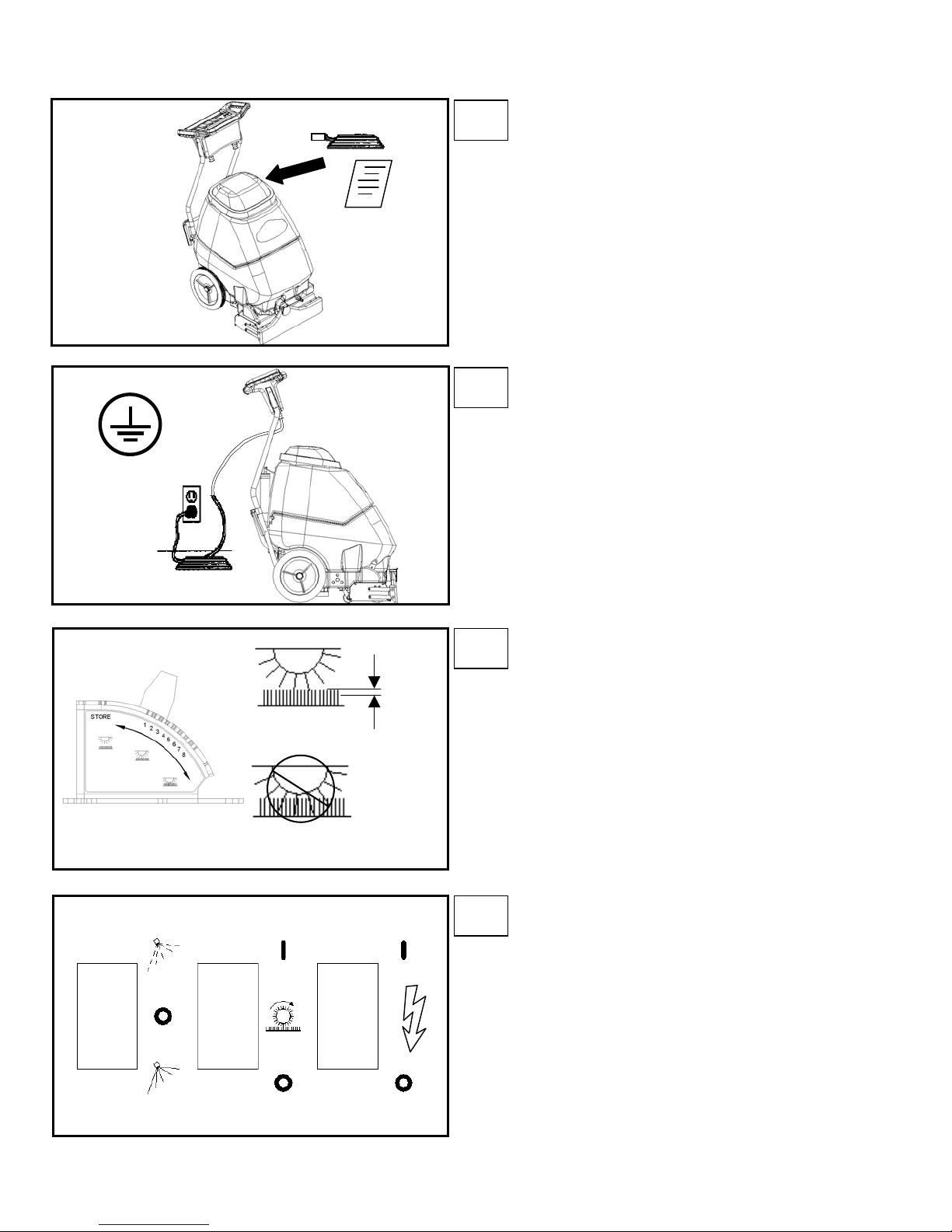

STEP
Remove electrical cord and literature
1
from recovery tank. Fill solution tank
(see filling instructions page 6).
STEP
Plug cord into grounded outlet. Note:
2
Be sure dome is seated on recovery
tank, and float shut-off is installed
correctly.
CORRECT
1/8in
(3mm)
STEP
Adjust brush to proper setting. Note:
3
For good operation the brush must
skim the carpet. If circuit breaker
trips raise brush to prevent damage
to motor or carpet.
INCORRECT
STEP
SOLUTION VACUUM
INT
BRUSH
ON ON
Turn on brush and vacuum motor
4
switches (“ON”=“I”). Turn on solution
switch for continuous spray or set
switch to intermittent to allow use of
trigger switches.
CONT
ADMIRAL 86038270 05/22/07
OPERATIONS
Adjust handle to comfortable
operating position. Tip machine
back by main handle to move to
starting point.
Lower machine to floor.
STEP
5
STEP
6
Select continuous setting to start
solution spray or select intermittent
setting to enable use of trigger
switches to start solution spray.
The intermittent setting requires the
operator to hold any one of the
three trigger switches in the “on”
position with the fingers, and is
typically used in small areas where
short cleaning passes are made.
The continuous setting allows the
operator to set the switch in the “on”
position with one touch, and is
typically used in large areas where
long cleaning passes are made.
STEP
7
CONT
ADMIRAL 86038270 05/22/07
8
CLEANING PROCEDURE
9
STEP
Start at wall closest to power outlet.
1
Pull straight back without pushing
down on handle.
STEP
Release intermittent trigger
2
switches or turn off continuous
setting on solution switch
1ft.
(30cm)
OFF
approximately 1 foot before ending
cleaning pass.
1in.
(25mm)
VACUUM
INTAKE COVER
STEP
3
SOLUTION
INTAKE COVER
ADMIRAL 86038270 05/22/07
STEP
4
Push down on handle to raise
vacuum shoe and brush before
moving to the next cleaning pass.
Overlap brush contact area a
minimum of 1inch on the right
(close cleaning) side of machine.
During operation, observe the following:
The Admiral is equipped with clear
internal covers to facilitate operator
viewing of dirty solution and vacuum air
flow.
During operation, observe the vacuum
intake cover. Large amounts of water or
foam entering the vacuum system can
damage the vacuum motor. If you
notice either condition, shut down the
machine immediately. Empty recovery
tank and/or add defoamer to recovery
tank.
CLEANING PROCEDURE
0
A
Use right side of machine for
cleaning against walls.
After cleaning, turn off all controls,
return brush to storage position and
carefully unplug machine.
STEP
5
STEP
6
OFF
OFF OFF
To speed drying, use a
Windblower™ fan.
Empty recovery tank by releasing
dump hose. Use a hose with cold
water to clean out the recovery tank.
Also drain solution tank after each
use.
STEP
7
STEP
8
RECOVERY
DRAIN
SOLUTION
DR
IN
ADMIRAL 86038270 05/22/07
1
ACCESSORY TOOL USAGE
p
STEP
1
Use only one of the following
acceptable accessory tools.
86000020 – PRV NO. HT
86000000 – PRV NO. DDH
86041150 – PRV NO. DH
86031540 – PRV NO. 39504
86000610 – PRV NO. 89227
86000600 – PRV NO. 89226
Pull back collar and insert over machine
mounted fitting, then release collar to
lock into place.
STEP
2
Lift door on front of vacuum shoe and
insert 1 ½ inch hose cuff into hole.
SOLUTION
INT
BRUSH
OFF
VACUUM
ON
STEP
3
STEP
4
Turn on vacuum motor switch and set
solution switch to intermittent position.
Note: Be sure brush switch is in off
osition and brush is in storage position.
Squeeze handle on accessory tool to
begin cleaning.
11
ADMIRAL 86038270 05/22/07
TROUBLESHOOTING CHART
2
PROBLEM CAUSE SOLUTION
No Power, Nothing Runs
Vacuum Motor Will Not
Run
Vacuum Motor Runs But
Suction Is Poor
Poor Or No Water Flow
(Carpet Is Streaky)
Brush Does Not Spin
1. Is the cord plugged in.
2. Circuit breaker tripped in building.
3. Faulty switch.
4. Faulty power cord or pigtail.
1.Vacuum circuit breaker tripped.
2.Faulty main vacuum switch.
3.Loose wiring.
4.Faulty vac motor.
1.Debris lodged in vac shoe.
2.Dome gasket defective or missing.
3.Vacuum hose cracked or hose cuff loose.
4.Recovery tank full / float ball stuck in the up
position.
1.Main pump switch off.
2.Jets clogged or missing.
3.Solution filter clogged.
4.Faulty solenoid.
1.Brush switch off.
2.Brush circuit breaker tripped
3.Brush belt broken.
4.Faulty brush motor.
1. Plug in cord.
2. Reset breaker
3. Call for service.
4. Call for service.
1.Reset breaker
2.Call for service.
3.Call for service.
4.Call for service.
1.Remove debris from vac shoe.
2.Replace as necessary.
3.Replace or repair as necessary.
4.Turn off vac motor. Drain and rinse
recovery tank.
1. Turn on.
2.Clean using a vinegar /water solution or
replace.
3.Drain solution tank and clean solution
filter.
4.Call for service.
1.Turn on brush switch.
2.Reset circuit breaker.
3.Replace as necessary.
4.Call for service.
ADMIRAL 86038270 05/22/07
1
3
THIS PAGE LEFT INTENTIONALLY BLANK
1
ADMIRAL 86038270 05/22/07
4
86268290
PRV NO. 88229
WIRING DIAGRAM
86238840
PRV NO. 41356
86268460
PRV NO. 88333
86268370
PRV NO. 88276
86238830
PRV NO. 41355
86268430
PRV NO. 88323
86268430
PRV NO. 88323
86268430 - PRV NO. 88323
FILTER
86003650
PRV NO. 34362
86266720
86268900
PRV NO. 88655
86001240
PRV NO. 14020
86268420
PRV NO. 88317
PRV NO. 880043
86268750
PRV NO. 88567
86238820
PRV NO. 41351
ADMIRAL 86038270 05/22/07
1
MAINTENANCE
PERIODIC MAINTENANCE
Twice a month, flush a white vinegar solution (One
quart vinegar to two gallons of water) or anti-browning
solution (mixed as directed) through the extractor. This
will prevent build-up of alkaline residue in the system. If
spray jets become clogged, remove the spray tips,
wash them thoroughly, and blow-dry.
NOTE: Do not use pins, wire, etc. to clean nozzles as
this could destroy spray pattern.
Periodically inspect all hoses, electrical cables and
connections on your machine. Frayed or cracked
hoses should be repaired or replaced to eliminate
vacuum or solution pressure loss. If the cable
insulation is broken or frayed, repair or replace it
immediately. Don’t take chances with electrical fire or
shock.
DAILY / REGULAR MAINTENANCE
Before making any adjustments or repairs to the
machine, disconnect the power cord from electrical
source.
1. Empty unused cleaning solution from the solution
tank.
2. Inspect and clean filter screen in solution tank.
3. Flush pumping system with 4 or 7 liters of clean,
hot water.
4. After each use, rinse tank with fresh water.
Periodically inspect the recovery tank and
decontaminate if necessary, using a Hospital Grade
Virucide or a 1-10 bleach to water solution. Waste
water should be disposed of properly.
5. Check for and remove any lint or debris around vac
shoe.
6. Check spray jets for full spray pattern.
7. Remove lint and dirt build-up from brush and
housing.
NOTE: Brush removal.
A. To remove brush, grab and pull brush out from
end opposite drive belt (operator’s right).
Remove other end from brush driver.
B. To install brush, line up slots in brush core with
pin in driver on drive belt side (operator’s left)
and push brush onto driver. Then snap bearing
end (opposite end) of brush into retaining clip.
8. Check cooling air screen (located on frame behind
left wheel) for lint or debris.
9. Check float and shut-off screen and clean as
necessary.
NOTE: Always store machine with brush
in “Store” position.
15
ADMIRAL 86038270 05/22/07
MAINTENANCE
!
WARNING:
THE FOLLOWING REPAIRS.
VACUUM MOTOR REPLACEMENT
1. Turn off all switches and unplug machine.
2. Remove recovery tank.
3. Remove the (2) screws that fasten the
solution tank to the frame, and tilt tank back
to expose the inside of the frame.
4. Locate the vacuum motor wires and
disconnect at the connector. Close the
solution tank.
5. Remove the (6) screws holding the vacuum
motor cover (p/n 86003080 – PRV NO.
27809) to the solution tank.
6. Remove the vacuum motor.
7. Reverse process to install vacuum motor.

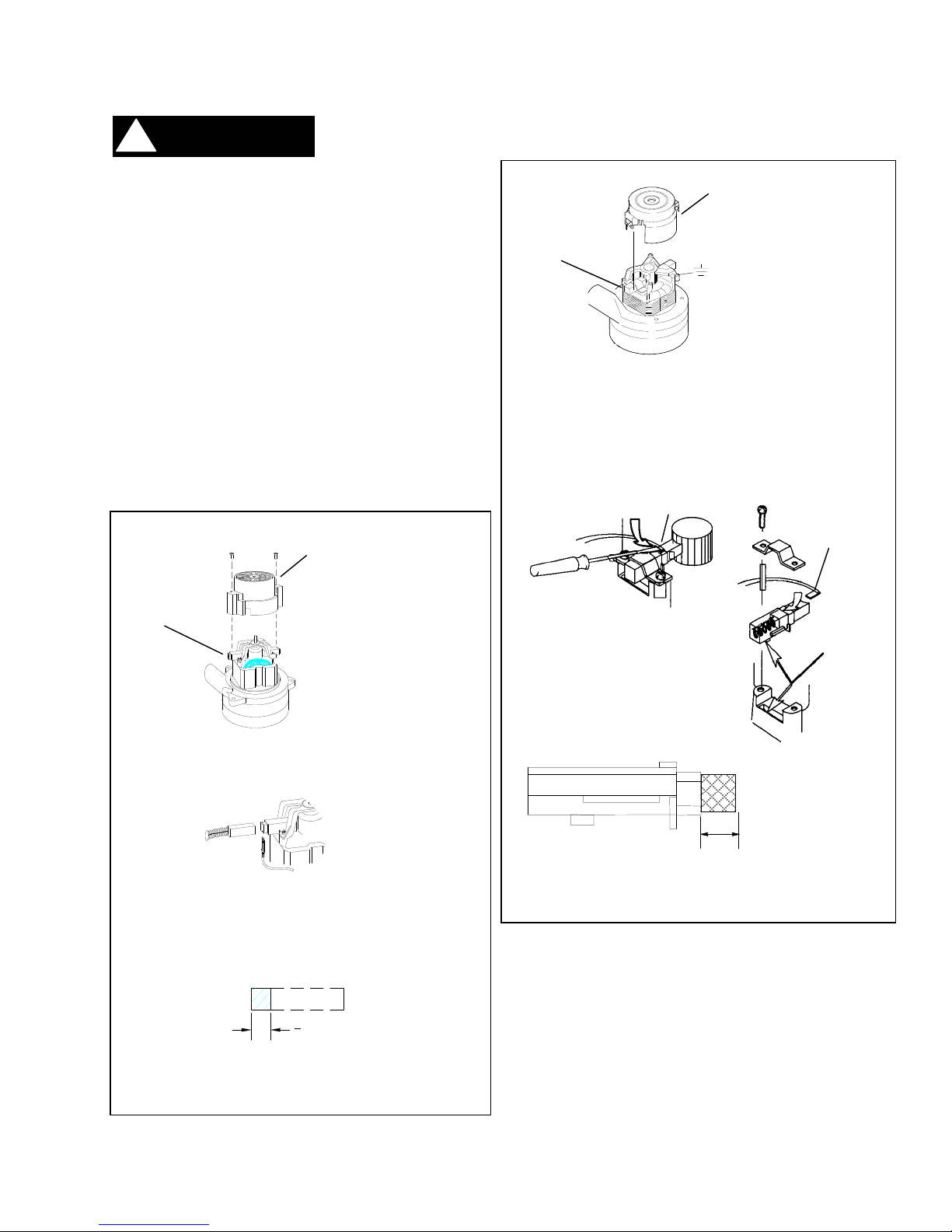

Vacuum Motor Carbon Brushes Replacement (Windsor)
End Cap
ONLY QUALIFIED MAINTENANCE PERSONNEL ARE TO PERFOR M
Vac Motor Carbon Brushes Replacement (Ametek)
End Cap
Carbon Brushes
Note: When replacing carbon vac motor brushes
loosen wire terminal BEFORE removing screws on
bracket.
If armature commutator is not concentric, extremely
pitted, or grooved the motor will need to be replaced
or sent to a qualified service center to restore vac
performance.
Wire Terminal
WARNING: The green
ground wire must be
attached for safe
operation.
See wiring diagram.
Wire
Terminal
Carbon
Brushes
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
Important:
These brushes wear quicker as the length shortens due
to increased heat. Spring inside brush housing will
damage motor if brushes are allowed to wear away
completely.
WARNING: The green
ground wire must be
attached for safe
operation. See wiring
diagram.
3
[9.5m m]
8
Important:
These brushes wear quicker
as the length shortens due to
increased heat.
Spring inside brush
housing will damage motor
if brushes are
allowed to wear away
completely.
Periodically check the length of the carbon brushes.
Replace both carbon brushes when either is less
than 3/8" long.
Note:
Place
stop in
groove.
Periodically check the length of the carbon brushes.
Replace both carbon brushes when either is less than 3/8"
(9.5mm) long.
ADMIRAL 86038270 05/22/07
16
MAINTENANCE
!
SOLUTION PUMP REPLACEMENT
1. Turn off all switches and unplug the machine.
2. Remove recovery tank.
3. Remove the (2) screws that fasten the solution tank to the frame, and tilt tank back to expose the inside of the
frame.
4. Remove solution hoses from fittings in pump.
5. Remove the (2) screws that fasten the pump to the frame.
6. Reverse process to install pump.
Pump Replacement Parts for Shurflo 100 psi (86026400 – PRV NO. 65254)
PumpHead
86251040
Pressure Switch
86161980
PRV NO. 42-809332
Pump Head
86251090
PRV NO. 65204
Valve Asm
Pump Replacement Parts for Flojet 100 PSI 230V (86004770 – PRV NO. 47477)
86258830
PRV NO. 84161
Diaphragm
86003400
PRV NO. 29206
Motor
86247370 - PRV NO. 53246
Valve Asm
86258860
PRV NO. 84166
Diaphragm
86235120
PRV NO. 29219
ONLY QUALIFIED MAINTENANCE PERSONNEL ARE TO PERFOR M THE FOLLOWING REPAIRS.
WARNING:
BELT REPLACEMENT
1. Turn off all switches and unplug machine.
2. Remove recovery tank and brush.
3. Remove the (2) screws that fasten the solution tank
to the frame, and tilt tank back to expose the inside
of the frame.
6. Remove the (3) screws that fasten
the side plate (p/n 86249420 – PRV
NO. 62759) to the brush housing to
remove belt.
NOTE: All components associated with
driving the brush will come out with the
side plate.
7. Reverse process to install belt.
4. Loosen the (4) screws that hold the brush motor in
place and slide motor forward to release tension in
belt.
5. Remove the (2) screws that fasten the vacuum shoe
links (p/n 86227350 – PRV NO. 05016) to the brush
housing.
17
ADMIRAL 86038270 05/22/07
86227350
PRV NO. 05016
86249420
PRV NO. 62759
TECHNICAL SPECIFICATIONS
POWER TYPE
ELECTRICAL: 230-240 V, 7 A, 50 HZ
ELECTRIC VACUUM MOTOR: (1) –3 stage, 1
hp, 99 cfm (2.80 cubic meters/min.) Waterlift –
117” (297cm)
BRUSH: (1) 15” (38.1 cm.)
SOLUTION PUMP: 100 PSI, diaphragm style,
internal bypass
SOLUTION CAPACITY: 8 gallons (30.3 ltr)
RECOVERY CAPACITY: 8 gallons (30.3 ltr)
BRUSH SPEED: 1000 rpm
GENERAL DIMENSIONS/WEIGHT
Vacuum shoe: 17” (43.18 cm) cast aluminum
with spring loaded down pressure
WHEELS: (2) 10” dia. (25 cm) wheels by 2”
WEIGHT: 92 lbs. (42 kg)
LENGTH: 35” (89 cm)
HEIGHT: 42” (107 cm)
WIDTH: 18.5” (47 cm)
SOLUTION SPRAY: 2 quick change jets.
POWER CABLE: 50’ (12.7 m) (1 mm)
42”
(107cm)
35”
(89cm)
ADMIRAL 86038270 05/22/07
18.5”
(47cm)
18
Loading...
