Page 1

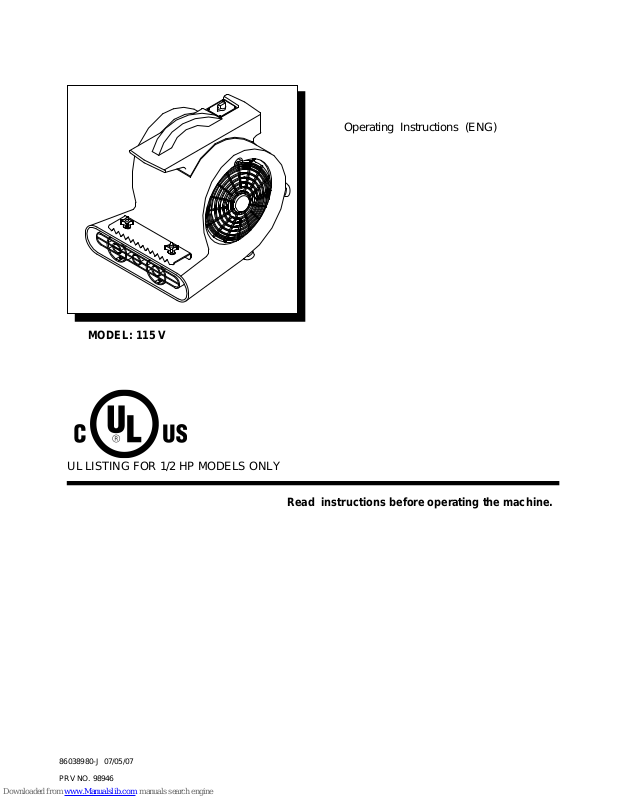

Operating Instructions (ENG)

MODEL: 115 V

UL LISTING FOR 1/2 HP MODELS ONLY

Read instructions before operating the machine.

86038980-J 07/05/07 PRV NO. 98946

Page 2

MACHINE DATA LOG/OVERVIEW

Name: _________________________________________________ __ _______________________________________________

Address: ___________________________________________ ____________________________________________________

Phone Number: _________________________________________________________________________________________

MODEL _______________________________________ DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ DEALER NAME ________________________________ OPERATIONS GUIDE NUMBER ___________________

PUBLISHED

__________________________________________

YOUR DEALER

For the name and address of your dealer contact: Windsor Industries

86038980 03/05/07

Page 3

HOW TO USE THIS MANUAL

This manual contains the following sections:

- HOW TO USE THIS MANUAL

- SAFETY

- OPERATIONS

- MAINTENANCE

PARTS LIST

The HOW TO USE THIS MANUAL section will tell you how to find important information for ordering correct repair parts.

Parts may be ordered from authorized dealers. When placing an order for parts, the machine model and machine serial number are important. Refer to the MACHINE DATA box which is filled out during the installation of your machine. The MACHINE DATA box is located on the inside o f the front cover of this manual.

MODEL _____________________________________ DATE OF PURCHASE ________________________ SERIAL NUMBER ____________________________ SALES REPRESENTATIVE # ___________________ DEALER NAME ______________________________ OPERATIONS GUIDE NUMBER __________________

PUBLISHED ________________________________

The model an d serial number of your machine is on the back of the machine.

The SAFETY section contains important information regarding hazard or unsafe practices of the machine. Levels of haz ards is identified that could result in product or personal injury, or severe injury resulting in death.

The OPERATIONS section is to familiarize the operator with the operation and function of the machine.

The MAINTENANCE section contains preventive maintenance to keep the machine and its components in good working condition. They are listed in this general order:

- Power cord/switch

The PARTS LIST section contains assembled parts illustrations and corresponding parts list. The parts lists include a number o f columns of information:

column refers to the reference

REF –

number on the parts illustration.

- PART NO. – column lists the part number for the part.

- QTY – column lists the quantity of the part used in that area of th e machine.

DESCRIPTION

– column is a brief

description of the part.

- SERIAL NO. FROM – column indicates the first machine the part number is applicable to. When the machine design has changed, this column will indicate serial number of applicable machine. The main illustration shows the most current design of the machine. The boxed illustrations show older designs.

- NOTES – column for information not noted by the other columns.

NOTE: If a service or option kit is installed on your machine, be sure to keep the KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts.

86038980 03/05/07

Page 4

TABLE OF CONTENTS

Machine Data Log/Overview.........................2

HOW TO USE THIS MANUAL

How to use this Manual. ...............................3

Table of Contents .........................................4

SAFETY

Important Safety Instructions........................5

Hazard Intensity Level..................................6

Grounding Instructions..................................7

OPERATION

Set Up...............................................……….8

On/Off Procedure..............................……….8

MAINTENANCE

Power Cord................................................…8

Dust in Motor Windings..............................…8

Lubricating Motor Sleeve Bearings............…8

Fan Removal. ............................................…8

Power Cord/Capacitor.. .............................…8

Motor Removal. .........................................…8

Wiring Diagram… ......................................…9

GROUP PARTS LIST

Body Assembly..........................................10

Handle & Wheels.......................................12

86038980 03/0 5/ 0 7

Page 5

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precaution

must always be followed, including the following:

READ ALL INSTRUCT I O NS BE F O RE USING THIS MACHINE.

WARNING:

Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. Use only manufacturer’s recommended components and attachments.

If the machine is return it to an authorized service center.

operate the machine with any openings blocked. Keep openings free of debris that may reduce

Do not

airflow.

Machine can cause a fire

near flammable fluids, dust or vapors.

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices for more than normal housekeeping purposes.

Maintenance and repairs

During operation When leaving unattended, secure against unintentional movement. The machine shall only be operated by instructed and authorized persons. When leaving unattended Do not handle the plug or machine with wet hands. Do not unplug machine by pu ll i n g o n c or d. T o un pl u g , gr as p th e pl u g, not

use with damaged cord or plug. Follow all instructions in this manual concerning grounding the

Do not

machine.

pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or

Do not

corners.

pull/run machine over cord.

Do not Connect to a properly grounded outlet. See Grounding Instructions. Use only on GFCI protected receptacles.

use this fan with any solid-state speed control device.

Do not

not working properly

, attention shall be paid to other persons, especially children.

To reduce the risk of fire, electric shock, or injury:

, has been dropped, damaged, left outdoors, or dropped into water,

when operating near flammable vapors or materials. Do not operate this machine

must be done

, switch off or lock the main power switch to prevent unauthorized use.

by qualified personnel.

cord away from heated surfaces.

Keep

the cord.

SAVE THESE INSTRUCTIONS

86038980 03/05/07

Page 6

HAZARD INTENSITY LEVEL

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTE NS ITY LEVEL

FOR

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and SAFETY. The level of hazard intensity is determined by the following definitions:

WARNING

- Hazards or unsafe practices which COULD result in severe personal injury or death

CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.

FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating condition. Following is information that signals some potentially dangerous conditions to the operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the machine. Please take the necessary steps to train the machine operating personnel.

FOR SAFETY:

DO NOT OPERATE MACHINE: Unless Trained and Authorized. Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects.

WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts.

86038980 03/05/07

Page 7

THIS PRODUCT IS FOR COMMERCIAL USE ONLY.

ELECTRICAL:

In the USA this machine operates on a standard 15 amp 115V, 60 hz, A.C. power circuit . The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors.

EXTENSION CORDS:

If an extension cord is used, the wire size must be at least one size larger than the power cord on the machine, and must be limited to 50 feet (15.5m) in length.

GROUNDING INSTRUCTIONS:

This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

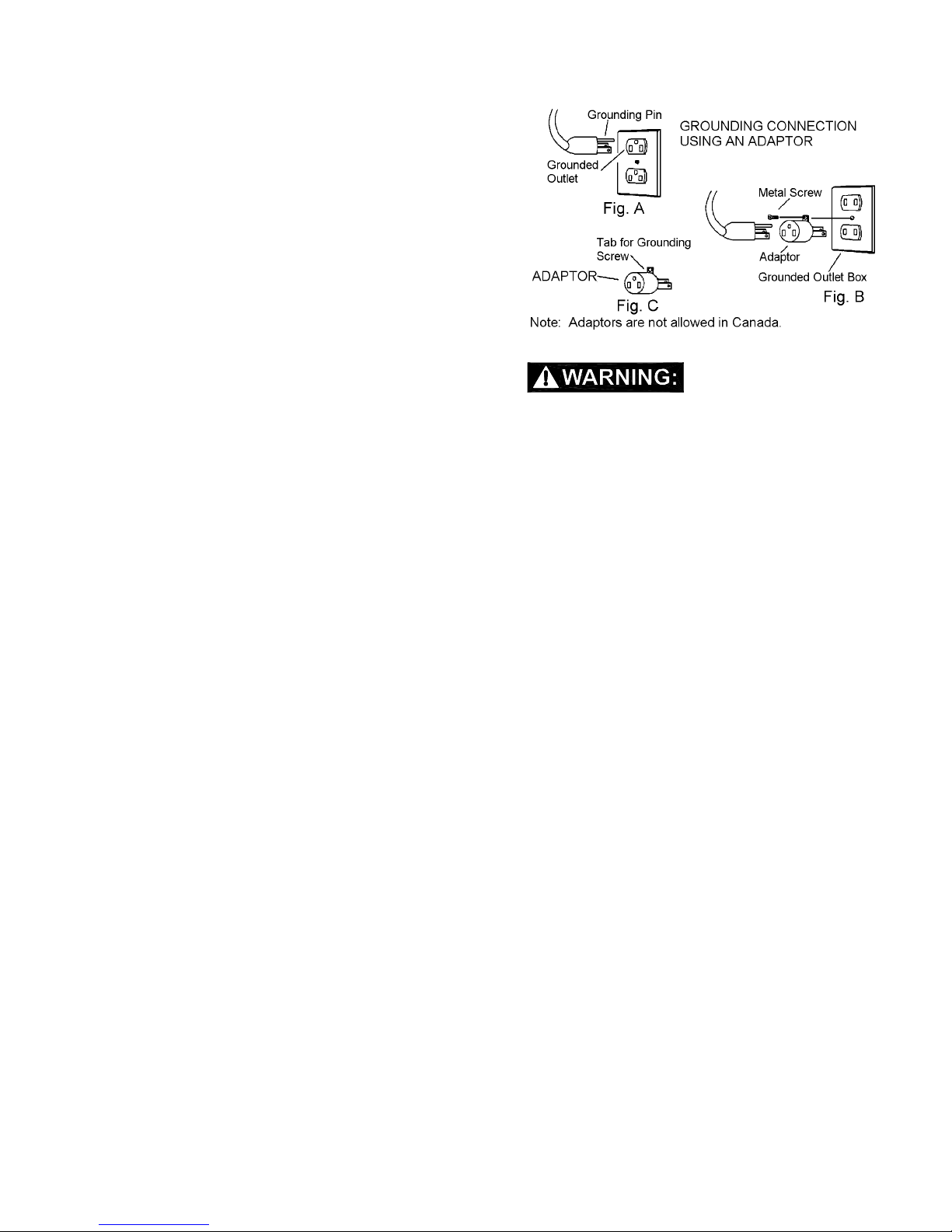

This appliance is for use on a nominal 120volt circuit, and has a grounded plug that looks like the plug in “Fig. A”. A temporary adaptor that looks like the adaptor in “Fig . C” may be used to connect this plug to a 2-pole receptacle as shown in “Fig. B”, if a properly grounded outlet is not available. The temporary adaptor should be used only until a properly grounded outlet (Fig. A) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the adaptor must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by a metal screw.

115V GROUNDING INSTRUCTIONS

Improper connection of the equipmentgrounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Use only GFCI protected receptacles.

86038980 03/05/07

Page 8

OPERATION & MAINTENANCE

OPERATION

1. Open the doors or windows if possible to aid in ventilation.

2. Ensure that the unit is turned off, plug the power cord into the outlet.

3. Turn the switch to the desired speed.

4. Turn the unit off before un-plugging the power cord from the outlet.

MAINTENANCE

1. Frequently inspect power cord for frayed or damaged insulation.

WARNING:

Remove mach ine power cor d from electrical source before making any repairs or adjustments to machine.

POWER CORD/SWITCH

Power cord and switch can be serviced.

1. Remove the 4 screws holding switch down.

2. To replace switch unplug wires and replace switch. See wiring diagram.

3. To replace power cord see step 1.

4. Unplug wires, loosen strain relief and remove cord.

5. Replace power cord. See wiring diagram.

CAUTION: When reinstalling motor and fan, make sure the wires are positioned and secured so they will not touch fan during rotation.

CAUTION: When reinstalling electrical parts, refer to wiring diagram for correct connections

86038980 03/05/07

Page 9

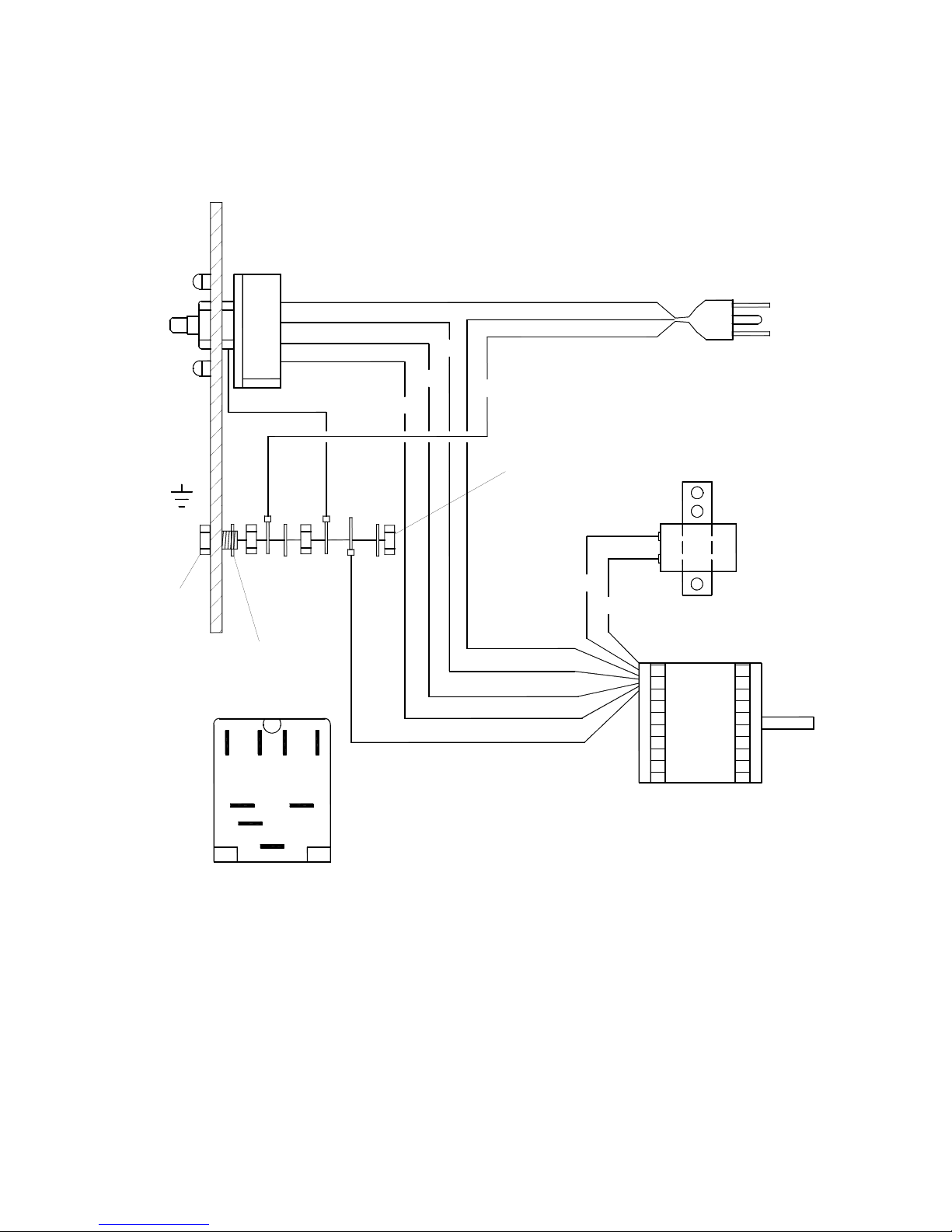

WIRING DIAGRAM

3 2 1

CAPACITOR

(86247130)

4-POSITION SWITCH

GRN

BRN

GRN

RED

BLU

BLK

WHT

GRN

RED

BLK

BLU

WHT

POWER

312

REAR VIEW OF

SWITCH

BLK

(86225090)

(86217020)

(86216620)

MOTOR

(86288710)

(86173350)

(PRV NO. 57086)

(PRV NO. 72176)

(PRV NO. 23696)

(PRV NO. 27943)

(PRV NO. 53149)

(86136310)

(PRV NO. 87515)

(PRV N O.

70769)

86038980 07/05/07

Page 10

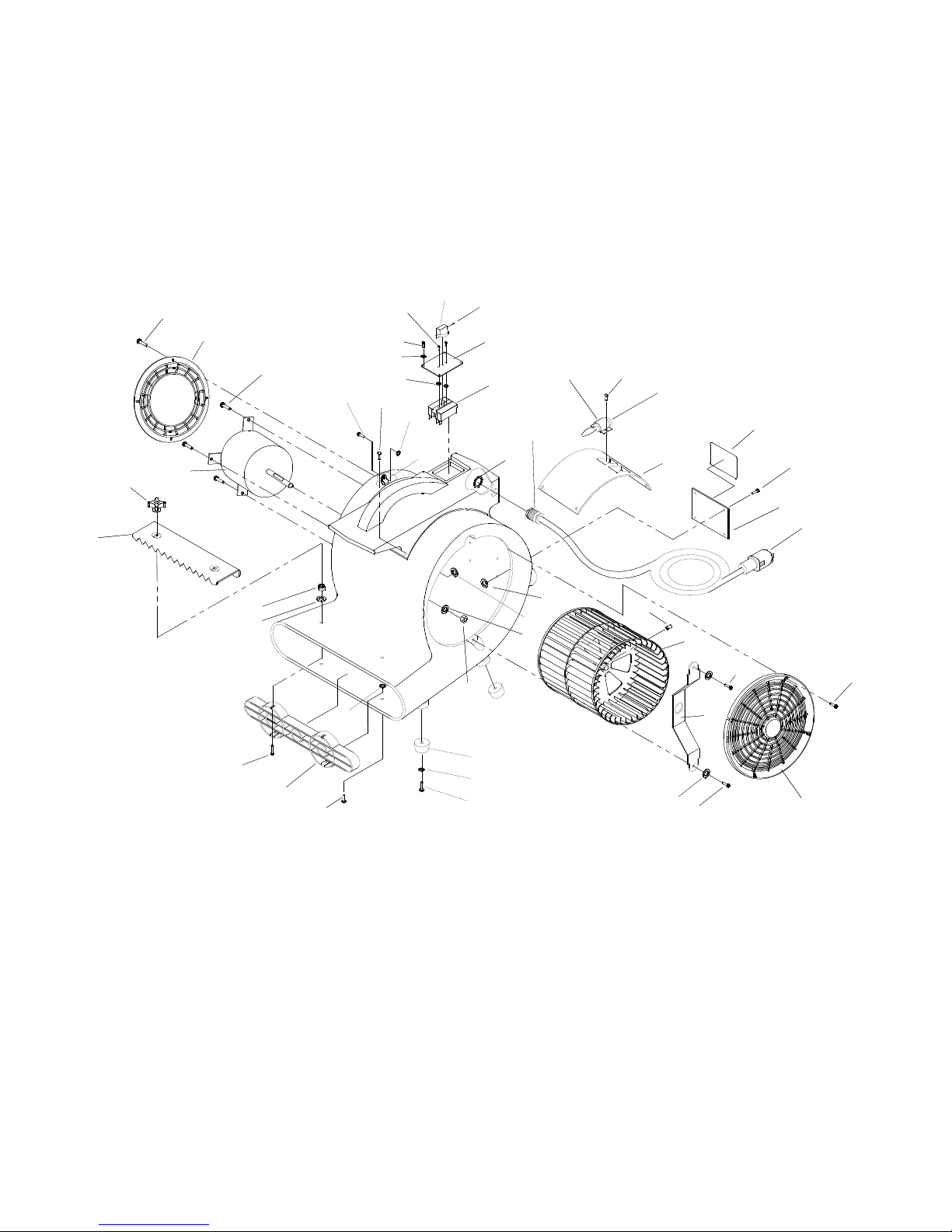

AIR BLOWER BODY ASSEMBLY

86038980 07/05/07

23*

25*

24*

26 21

32AB

Page 11

AIR BLOWER BODY ASSEMBLY

REF PART NO. PRV NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES:

1 86136750 70765 12 SCR, M4 X 15MM PH SHEET METAL 2 86214700 36210 1 GUARD, 9” AB 3 86136770 70768 2 SCR, M6-1 X 16MM FHMS BLK 4 86136630 70246 2 SCR, 8-32 X 1/4 PPHMS BLK 5 86137390 87255 7 WASHER, M4 RIVET BACKUP 6 86219700 48084 1 KNOB, SWITCH AB 7 86136840 70771 1 SET SCR, M3 X 8MM X .5 8 86223040 62928 1 PLATE, SWITCH AB

9 86225090 72176 1 SWITCH, 3 SPEED ROTARY 10 86288700 140474 1 CLAMP, CAPACITOR 11 86136540 67481 2 RIVET, M4 X 14MM 12 86216620 27943 1 CAPACITOR 13 86223050 62936 1 PLATE, INNER AB 14 86245090 50344 1 LABEL, WARNING 15 86136550 67483 4 RIVET, M3 X 12MM 16 86217020 23696 1 CORD, 14X3 SJT, AB 17 86217840 34389 1 FAN, SQUIRREL CAGE 18 86215760 140467 1 BRKT, MOTOR SHAFT AB 19 86136740 70764 2 SCR, M6-1 X 15 PPHMS PLTD BLK 20 86214690 36211 1 GUARD, 10” AB 21 86137340 87211 4 WASHER, M6 FLAT BLK 22 86136830 70770 1 SET SCR, M8 X 8MM CUP POINT

23 86217910 66352 4 FOOT BLOWER

*FOR MODEL

W/O HANDLE

24 86225730 87218 8 WASHER, M6 FLAT

*FOR MODEL

W/O HANDLE

25 86136760 70767 4 SCR, M6-1 X 19MM PPHMS

*FOR MODEL

W/O HANDLE 26 86271550 57220 6 NUT, M6X1 HEX NYLOCK PLTD 27 86288690 87226 4 WASHER, M3 RIVET BACKUP 28 86296660 - 4 RIVET, M4 X 18MM 29 86218420 36212 1 GUARD, FRONT AB 30 86136730 70763 2 SCR, M6-1 X 40MM 31 86219710 48085 2 KNOB, CARPET CLAMP

32A 86247130 53149 1 MOTOR, 115V 3SPD 1/2 HP 32B 86136240 53803 1 MOTOR, 115V 3SPD 1 HP

33 86216760 20100 1 CLAMP, CARPET 34 86198450 20005 1 CLAMP, 5/16 NYLON 35 86079800 62214 1 PLATE, WARNING LABEL 36 86137370 87231 1 WASHER, M18 STAR 37 86136560 87484 1 RIVET, M5 X 20 38 86288680 87230 1 WASHER, M5 RIVET BACKUP 39 86137360 87225 4 WASHER, M4 RIVET BACKUP 40 86225750 87239 4 WASHER, M4 INT STAR BLK ZNC PLT 41 86224930 730012 1 STRAINER RELIEF, 14/3 STRAIGHT 42 86296650 - 2 RIVET, M4 X 10MM

86038980 07/05/07

Page 12

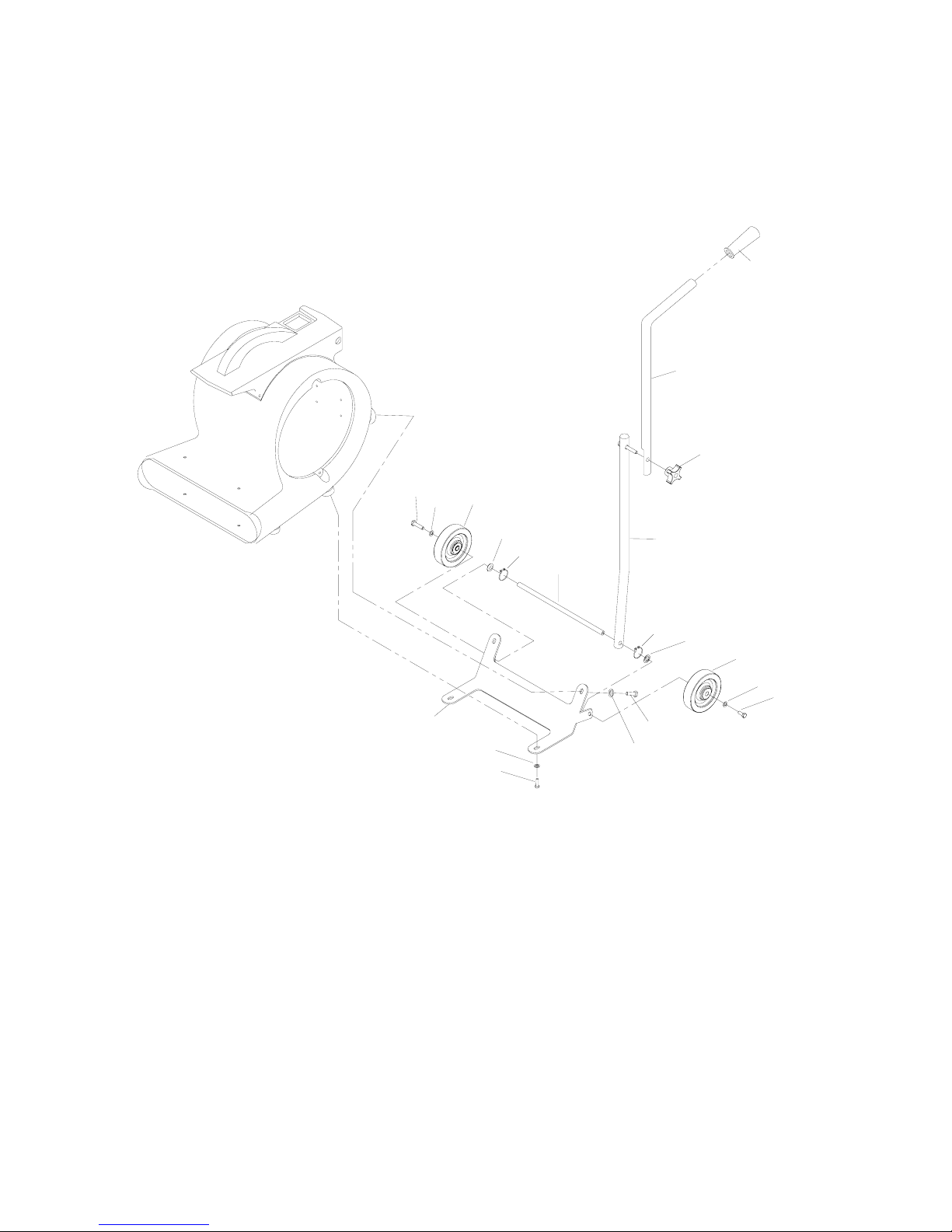

AIR BLOWER HANDLE

86038980 03/05/07

Page 13

AIR BLOWER HANDLE

REF PART NO. PRV NO. QTY DESCRIPTION

SERIAL NO.

FROM

NOTES:

1 86004070 36196 1 GRIP, POLISHER HANDLE 2 86292520 - 1 TUBE, HANDLE UPPER LONG 3 86219720 48087 1 KNOB, HANDLE LOCK 4 86225400 78485 1 TUBE, HANDLE LOWER 5 86223500 67469 2 RING, 13MM EXTERNAL SNAP 6 86222270 57276 2 NUT, PUSH FLAT RD .51ID 7 86226020 89206 2 WHEEL, 5D X 1.25 X 13MM ID GRY 8 86137280 87054 2 WASHER, M8 FLAT DIN125A PLT

9 86136640 70262 2 SCR, M8 X 20 HHMS PLTD 10 86136760 70767 2 SCR, M6 X 1 HEX NYLOCK PLTD 11 86137380 87233 2 WASHER, 20MM OD 12 86215490 140495 1 BRACKET, WHEEL, BLOWER 13 86214960 03118 1 AXLE, WHEEL, BLOWER

86038980 07/05/07
